1. ENDOMYOCARDIAL
BIOPSY
Dr E Kiran Kumar
Professor of Pathology
MIMS, Vizianagaram,A.P

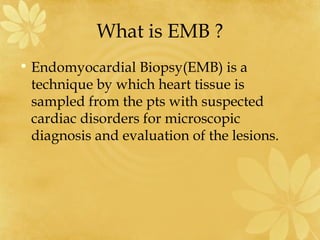

2. What is EMB ?
• Endomyocardial Biopsy(EMB) is a
technique by which heart tissue is
sampled from the pts with suspected
cardiac disorders for microscopic
diagnosis and evaluation of the lesions.

3. HISTORICAL ASPECTS
• Open surgical biopsies of heart-1950’s, followed
by needle bx using modified vim-silverman’s
needle through thoracotomy/trans-thoracic
approach- complications like pneumothorax/
cardiac tamponade. .
• The first trans-venous biopsy fx- KONNO-
SAKAKIBARA BIOPTOME- Japan-1962.
• Modified bioptome- CAVES-SCHULTZ-
STANFORD bioptome- Stanford-1972.

4. HISTORICAL ASPECTS (cont’d)
• Further modifications in catheter design-
sheathing and increased flexibility and easy
manouverability, e.g Modified Cordis Bioptome.
• Novel-shaped long-neck sheath for
endomyocardial biopsy through the internal
jugular approach- reduces trauma and provides
stability for the bioptome forceps,limits
radiation exposure.
• EMB –Initially performed via the “internal
jugular vein”, later- femoral venous approach is
used after the advent of long and flexible
bioptomes.

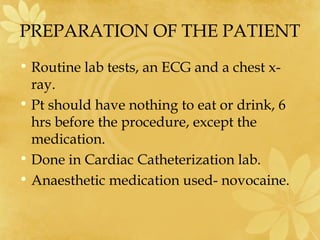

5. PREPARATION OF THE PATIENT
• Routine lab tests, an ECG and a chest x-
ray.
• Pt should have nothing to eat or drink, 6
hrs before the procedure, except the
medication.
• Done in Cardiac Catheterization lab.
• Anaesthetic medication used- novocaine.

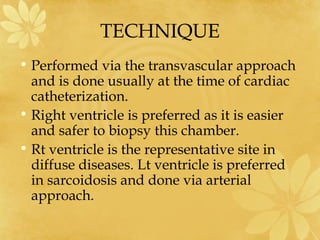

6. TECHNIQUE
• Performed via the transvascular approach
and is done usually at the time of cardiac
catheterization.
• Right ventricle is preferred as it is easier
and safer to biopsy this chamber.
• Rt ventricle is the representative site in
diffuse diseases. Lt ventricle is preferred
in sarcoidosis and done via arterial
approach.

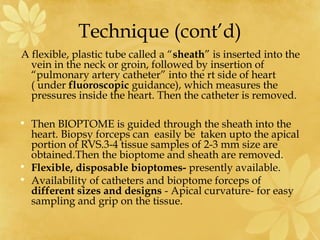

7. Technique (cont’d)
A flexible, plastic tube called a “sheath” is inserted into the
vein in the neck or groin, followed by insertion of
“pulmonary artery catheter” into the rt side of heart
( under fluoroscopic guidance), which measures the
pressures inside the heart. Then the catheter is removed.
• Then BIOPTOME is guided through the sheath into the
heart. Biopsy forceps can easily be taken upto the apical
portion of RVS.3-4 tissue samples of 2-3 mm size are
obtained.Then the bioptome and sheath are removed.
• Flexible, disposable bioptomes- presently available.
• Availability of catheters and bioptome forceps of
different sizes and designs - Apical curvature- for easy
sampling and grip on the tissue.

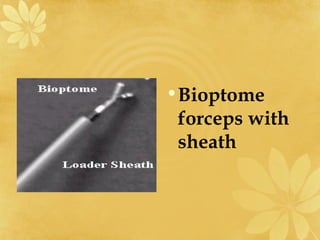

8. •Bioptome
forceps with
sheath

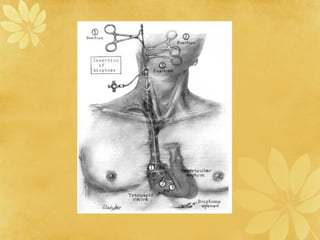

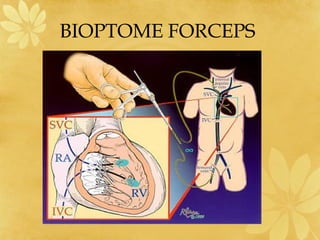

10. BIOPTOME FORCEPS

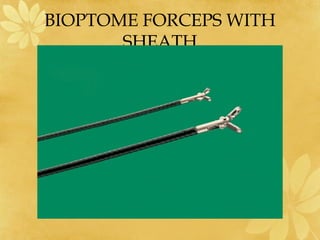

11. BIOPTOME FORCEPS WITH
SHEATH

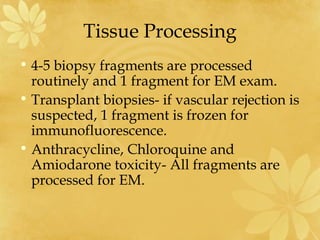

12. Tissue Processing
• 4-5 biopsy fragments are processed
routinely and 1 fragment for EM exam.
• Transplant biopsies- if vascular rejection is
suspected, 1 fragment is frozen for
immunofluorescence.
• Anthracycline, Chloroquine and
Amiodarone toxicity- All fragments are
processed for EM.

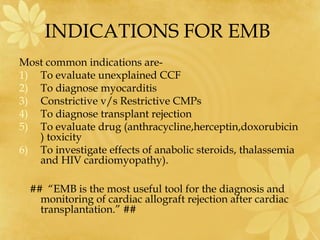

13. INDICATIONS FOR EMB
Most common indications are-
1) To evaluate unexplained CCF
2) To diagnose myocarditis
3) Constrictive v/s Restrictive CMPs
4) To diagnose transplant rejection
5) To evaluate drug (anthracycline,herceptin,doxorubicin
) toxicity
6) To investigate effects of anabolic steroids, thalassemia
and HIV cardiomyopathy).
## “EMB is the most useful tool for the diagnosis and
monitoring of cardiac allograft rejection after cardiac
transplantation.” ##

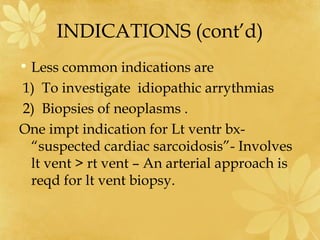

14. INDICATIONS (cont’d)
• Less common indications are
1) To investigate idiopathic arrythmias
2) Biopsies of neoplasms .
One impt indication for Lt ventr bx-
“suspected cardiac sarcoidosis”- Involves
lt vent > rt vent – An arterial approach is
reqd for lt vent biopsy.

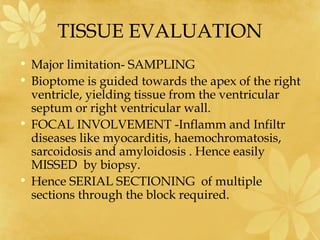

15. TISSUE EVALUATION
• Major limitation- SAMPLING
• Bioptome is guided towards the apex of the right
ventricle, yielding tissue from the ventricular
septum or right ventricular wall.
• FOCAL INVOLVEMENT -Inflamm and Infiltr
diseases like myocarditis, haemochromatosis,
sarcoidosis and amyloidosis . Hence easily
MISSED by biopsy.
• Hence SERIAL SECTIONING of multiple
sections through the block required.

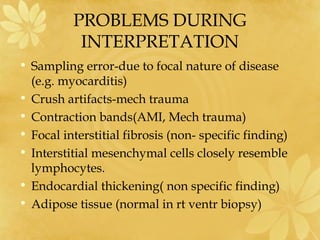

16. PROBLEMS DURING
INTERPRETATION
• Sampling error-due to focal nature of disease
(e.g. myocarditis)
• Crush artifacts-mech trauma
• Contraction bands(AMI, Mech trauma)
• Focal interstitial fibrosis (non- specific finding)
• Interstitial mesenchymal cells closely resemble
lymphocytes.
• Endocardial thickening( non specific finding)
• Adipose tissue (normal in rt ventr biopsy)

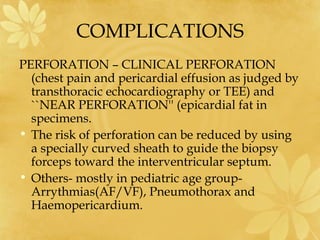

17. COMPLICATIONS
PERFORATION – CLINICAL PERFORATION
(chest pain and pericardial effusion as judged by
transthoracic echocardiography or TEE) and
``NEAR PERFORATION'' (epicardial fat in
specimens.
• The risk of perforation can be reduced by using
a specially curved sheath to guide the biopsy
forceps toward the interventricular septum.
• Others- mostly in pediatric age group-
Arrythmias(AF/VF), Pneumothorax and
Haemopericardium.

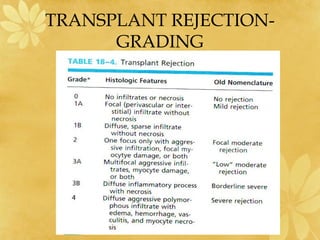

18. TRANSPLANT REJECTION-
GRADING

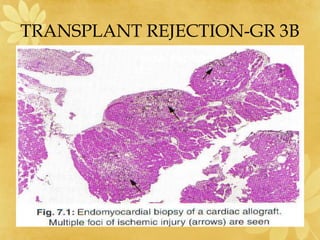

19. TRANSPLANT REJECTION-GR 3B

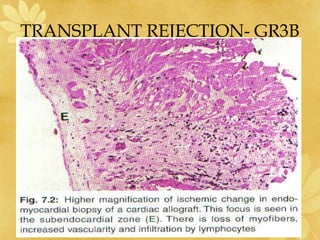

20. TRANSPLANT REJECTION- GR3B

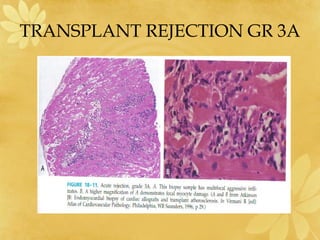

21. TRANSPLANT REJECTION GR 3A

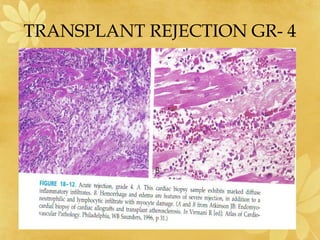

22. TRANSPLANT REJECTION GR- 4

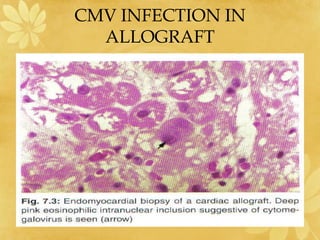

23. CMV INFECTION IN
ALLOGRAFT

24. PREVIOUS BIOPSY SITE AND
QUILTY EFFECT

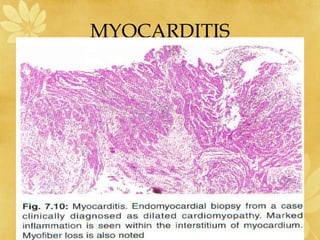

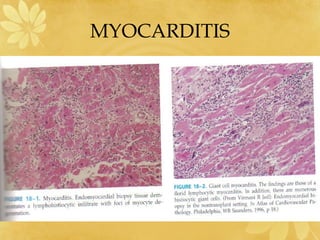

25. MYOCARDITIS

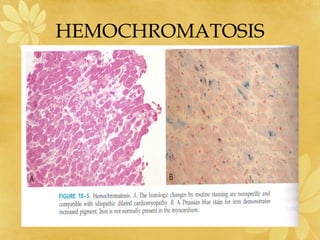

26. HEMOCHROMATOSIS

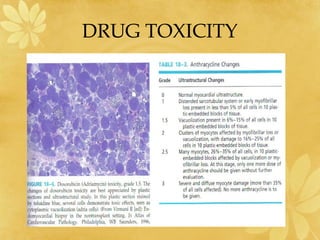

27. DRUG TOXICITY

28. DOXORUBICIN TOXICITY

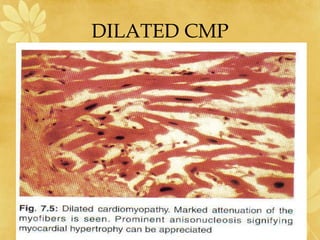

29. DILATED CMP

30. DILATED CMP

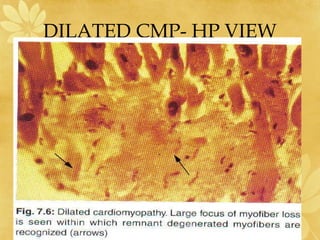

31. DILATED CMP- HP VIEW

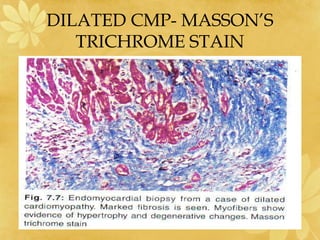

32. DILATED CMP- MASSON’S
TRICHROME STAIN

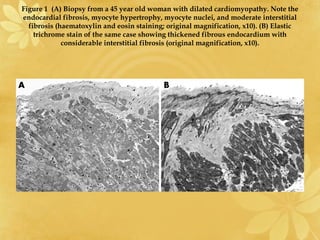

33. Figure 1 (A) Biopsy from a 45 year old woman with dilated cardiomyopathy. Note the
endocardial fibrosis, myocyte hypertrophy, myocyte nuclei, and moderate interstitial
fibrosis (haematoxylin and eosin staining; original magnification, x10). (B) Elastic
trichrome stain of the same case showing thickened fibrous endocardium with
considerable interstitial fibrosis (original magnification, x10).

34. MYOCARDITIS

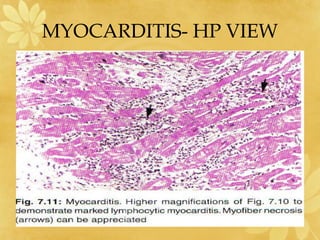

35. MYOCARDITIS- HP VIEW

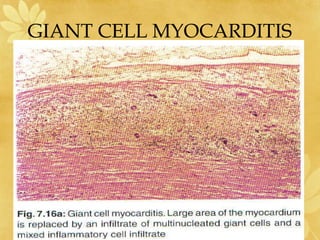

36. GIANT CELL MYOCARDITIS

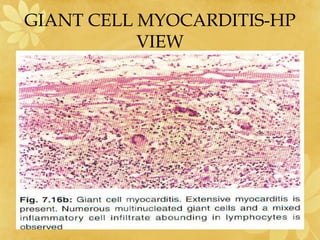

37. GIANT CELL MYOCARDITIS-HP
VIEW

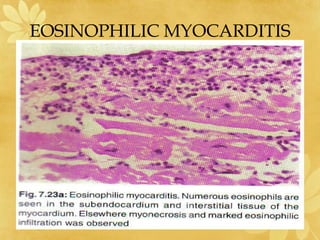

38. EOSINOPHILIC MYOCARDITIS

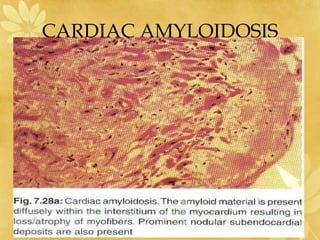

39. CARDIAC AMYLOIDOSIS

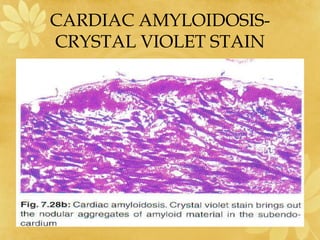

40. CARDIAC AMYLOIDOSIS-
CRYSTAL VIOLET STAIN

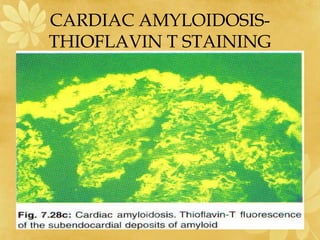

41. CARDIAC AMYLOIDOSIS-
THIOFLAVIN T STAINING

42. CARDIAC AMYLOIDOSIS-
BLOOD VESSELS

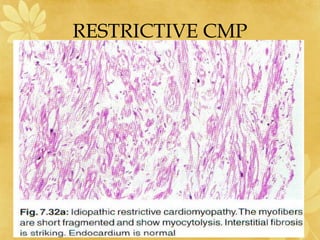

43. RESTRICTIVE CMP

44. RESTRICTIVE CMP- MASSON’S
TRICHROME STAIN

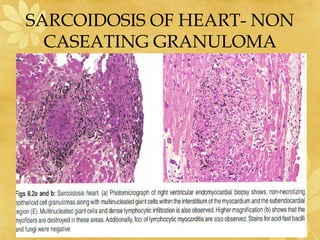

45. SARCOIDOSIS OF HEART- NON
CASEATING GRANULOMA

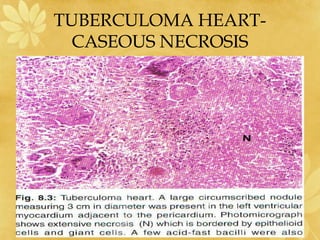

46. TUBERCULOMA HEART-
CASEOUS NECROSIS

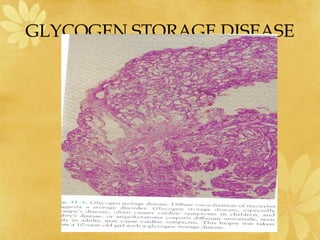

47. GLYCOGEN STORAGE DISEASE

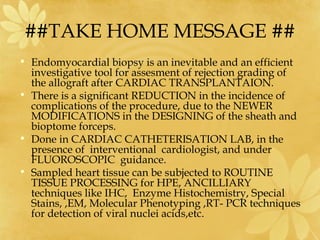

48. ##TAKE HOME MESSAGE ##
• Endomyocardial biopsy is an inevitable and an efficient
investigative tool for assesment of rejection grading of
the allograft after CARDIAC TRANSPLANTAION.
• There is a significant REDUCTION in the incidence of
complications of the procedure, due to the NEWER
MODIFICATIONS in the DESIGNING of the sheath and
bioptome forceps.
• Done in CARDIAC CATHETERISATION LAB, in the
presence of interventional cardiologist, and under
FLUOROSCOPIC guidance.
• Sampled heart tissue can be subjected to ROUTINE
TISSUE PROCESSING for HPE, ANCILLIARY
techniques like IHC, Enzyme Histochemistry, Special
Stains, ,EM, Molecular Phenotyping ,RT- PCR techniques
for detection of viral nuclei acids,etc.

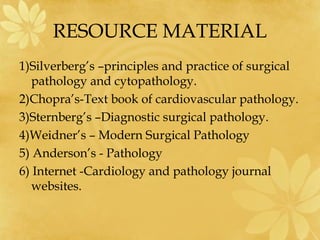

49. RESOURCE MATERIAL
1)Silverberg’s –principles and practice of surgical
pathology and cytopathology.
2)Chopra’s-Text book of cardiovascular pathology.
3)Sternberg’s –Diagnostic surgical pathology.
4)Weidner’s – Modern Surgical Pathology
5) Anderson’s - Pathology
6) Internet -Cardiology and pathology journal
