![EE 333, Communication Networks
Final Exam (2014-15S)
Maximum Marks = 50 Time = 3 hours
1. In the system shown, S transmits on a wireless link.
Therefore, a packet transmitted by S may be received
by both A and B simultaneously. The links A-D and B-
D are wired links. The probability of successful packet
reception for each link is as shown. Assume β1> β2 and
α1= α2= α and that these values are known to A.
Assume that ACKs are error free and the overhead
associated with ACKs can be neglected.
Our measure of system performance N* is the mean of the total number of times a packet has to be
transmitted overall (i.e. by S and by A and/or B) for it to successfully reach D. The following transmission
strategy is used - “S retransmits the packet if it is not received by either A or B. If only one (out of A and
B) receives it then that node is required to forward it to D. If the packet is received by both A and B, then
S selects one of them randomly (equally likely choice) to forward the packet to D.”
(a) Find N* when the above transmission strategy is used. [3]
(b) Consider a modified system, where if both (A and B) receive the packet, then S chooses the one which
would be a better forwarder and asks it to forward the packet to D. Find N* for this. [3]
(c) Consider another modified version of the original system where if both (A and B) receive the packet,
they both transmit to D until the packet is correctly received by the destination. Find N* for this system.
(Hint: Think back to Problem 1 of Quiz-1 to derive the additional result of how many times A and B will
transmit if both have the packet and both transmit.) [4]
2. Consider a single server queue with an infinite buffer where the service times are exponentially
distributed with mean 1/µ. Arrivals to this queue come in batches where each batch always has two
customers and the batches themselves come from a Poisson process with rate λ. Define the system
state as the number in the system. Use ρ=λ/µ for notational purposes.
(a) Draw the state transition diagram [2]
(b) Write the balance equations. [2]
(It would be useful to rewrite them once more in terms of ρ, for later use.)
(c) Find p0 directly from the set of balance equations (infinite set) and the normalization condition.
(Hint: You do not need to find the individual state probabilities explicitly for doing this.) [3]
(d) Use the balance equations to find the generating function P(z) of the system state defined as
0
( ) k
k
k
P z p z
. Confirm the result of (c) by using 1
( ) 1z
P z
[4]
[Hint: Do this by multiplying the kth
equation by zk
, summing both sides for k=1,…,∞ and using
0
1
( ) k
k
k
P z p p z
]
(e) Find the Mean Number in the System, N, using P(z) [2]
(f) What is the Mean Time Spent in System, W, by a customer? [2]](https://image.slidesharecdn.com/end-sem-150427230955-conversion-gate01/85/End-sem-1-320.jpg)
![EE 333, Communication Networks
Final Exam (2014-15S)
Maximum Marks = 50 Time = 3 hours
1. In the system shown, S transmits on a wireless link.
Therefore, a packet transmitted by S may be received
by both A and B simultaneously. The links A-D and B-
D are wired links. The probability of successful packet
reception for each link is as shown. Assume β1> β2 and
α1= α2= α and that these values are known to A.
Assume that ACKs are error free and the overhead
associated with ACKs can be neglected.
Our measure of system performance N* is the mean of the total number of times a packet has to be
transmitted overall (i.e. by S and by A and/or B) for it to successfully reach D. The following transmission
strategy is used - “S retransmits the packet if it is not received by either A or B. If only one (out of A and
B) receives it then that node is required to forward it to D. If the packet is received by both A and B, then
S selects one of them randomly (equally likely choice) to forward the packet to D.”
(a) Find N* when the above transmission strategy is used. [3]
(b) Consider a modified system, where if both (A and B) receive the packet, then S chooses the one which
would be a better forwarder and asks it to forward the packet to D. Find N* for this. [3]
(c) Consider another modified version of the original system where if both (A and B) receive the packet,
they both transmit to D until the packet is correctly received by the destination. Find N* for this system.
(Hint: Think back to Problem 1 of Quiz-1 to derive the additional result of how many times A and B will
transmit if both have the packet and both transmit.) [4]
2. Consider a single server queue with an infinite buffer where the service times are exponentially
distributed with mean 1/µ. Arrivals to this queue come in batches where each batch always has two
customers and the batches themselves come from a Poisson process with rate λ. Define the system
state as the number in the system. Use ρ=λ/µ for notational purposes.
(a) Draw the state transition diagram [2]
(b) Write the balance equations. [2]
(It would be useful to rewrite them once more in terms of ρ, for later use.)
(c) Find p0 directly from the set of balance equations (infinite set) and the normalization condition.
(Hint: You do not need to find the individual state probabilities explicitly for doing this.) [3]
(d) Use the balance equations to find the generating function P(z) of the system state defined as
0
( ) k
k
k
P z p z
. Confirm the result of (c) by using 1
( ) 1z
P z
[4]
[Hint: Do this by multiplying the kth
equation by zk
, summing both sides for k=1,…,∞ and using
0
1
( ) k
k
k
P z p p z
]
(e) Find the Mean Number in the System, N, using P(z) [2]
(f) What is the Mean Time Spent in System, W, by a customer? [2]](https://image.slidesharecdn.com/end-sem-150427230955-conversion-gate01/75/End-sem-1-2048.jpg)

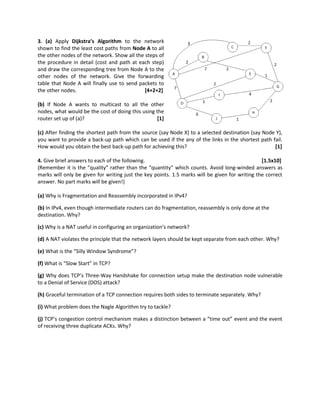

![3. (a) Apply Dijkstra’s Algorithm to the network
