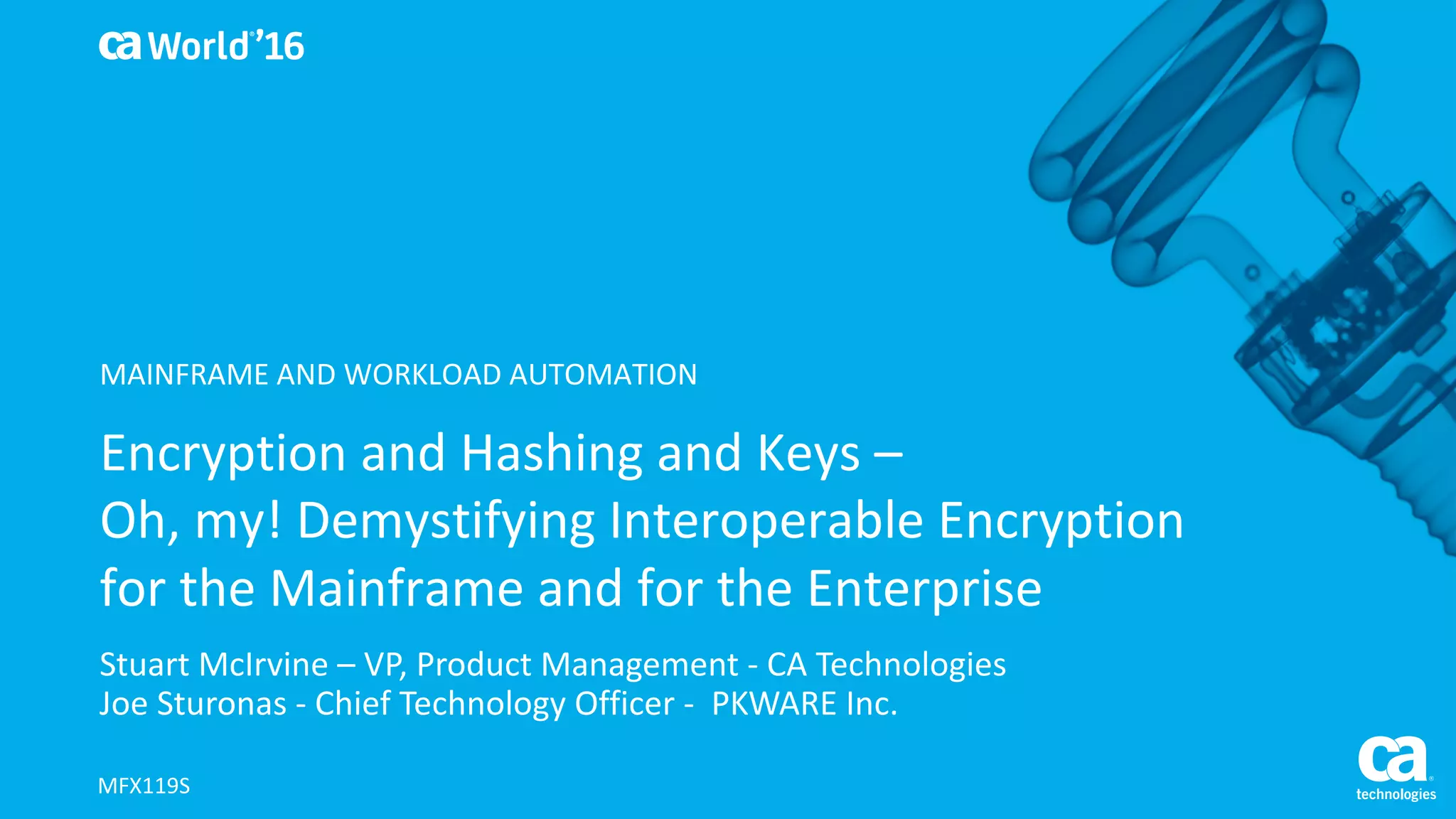

- 1. World® ’16 Encryption and Hashing and Keys – Oh, my! Demystifying Interoperable Encryption for the Mainframe and for the Enterprise Stuart McIrvine – VP, Product Management - CA Technologies Joe Sturonas - Chief Technology Officer - PKWARE Inc. MFX119S MAINFRAME AND WORKLOAD AUTOMATION

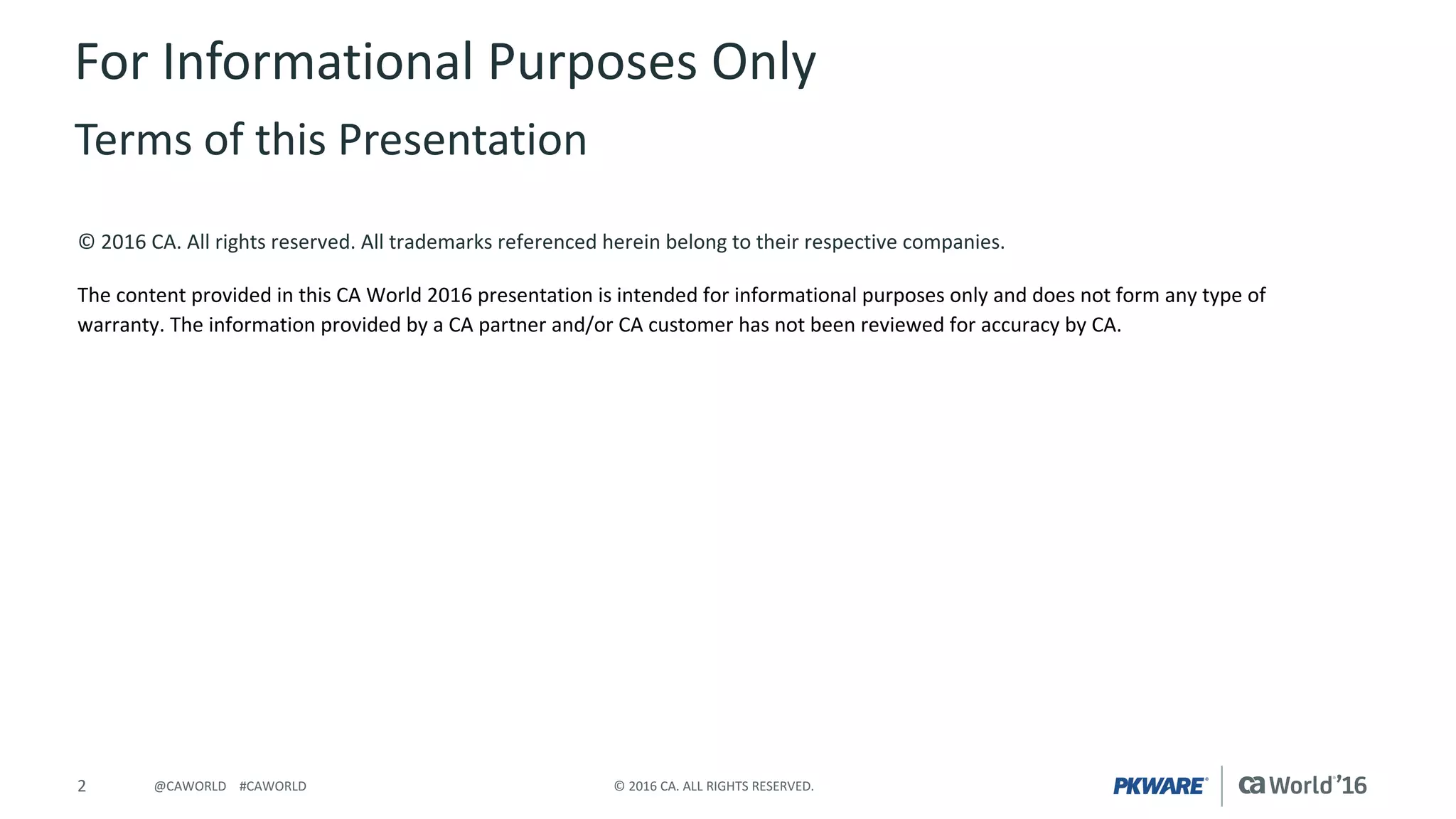

- 2. 2 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD © 2016 CA. All rights reserved. All trademarks referenced herein belong to their respective companies. The content provided in this CA World 2016 presentation is intended for informational purposes only and does not form any type of warranty. The information provided by a CA partner and/or CA customer has not been reviewed for accuracy by CA. For Informational Purposes Only Terms of this Presentation
- 3. 3 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Abstract Increasing risks of accidental and intentional mainframe data compromise elevates enterprises’ interest in achieving safe harbor by encrypting sensitive and regulated data. Encryption introduces many new elements of consideration to existing workflows, further complicated by the need for interoperability between the mainframe and other enterprise platforms. Join this session to learn best practices for applying encryption to protect your data, even while ensuring your existing processes remain intact. Topics include: • Types of cryptographic functions • Encryption algorithm selection • Sources of encryption acceleration on the mainframe • Considerations when encrypted mainframe data must be used on other platforms • Encryption key selection, management Stuart McIrvine CA Technologies VP, Product Management Joe Sturonas PKWARE, Inc. Chief Technology Officer
- 6. 6 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Data is an Asset § Data is business value – Facebook, Google, Uber, Twitter, …. § Industries depend on data – Banking, Insurance, Healthcare, …. § By 2020 there will be: – 44 zettabytes of data – Over 6 billion smart phones – 50 billion smart devices
- 7. 7 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Data is a Liability § Highly regulated – Industry, State, National and beyond § HIPAA, GLB, CA 1798, GDPR, Privacy Shield § It gets personal, quickly! – PII must be managed § Who owns it? What are you allowed to do with it? Delete it when requested § Data - the keys to the future – Business strategy, digital secrets, financial posture, ….
- 8. 8 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD What about those regulations? § PCI DSS – Protect stored cardholder data – Encrypt transmissions – Maintain InfoSec policy § SOX / HIPAA & Hi-Tech Act – Policy Management – Audit and Logging – Data Integrity § FIPS 140-2 – Making sure it’s done right§ GDPR – Prove that data is being protected – Appoint a data protection officer – Fines of 4% of annual turnover § EU-U.S. Privacy Shield – U.S. Department of Commerce and European Commission – Individual choice & control – Security
- 11. 11 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Thieves § External Attackers – Competitors – Script Kiddies – Nation States (OPM breach) – Lexis Nexis Breach § Rogue Administrators – Snowden § Internal Bad Actors – Espionage
- 12. 12 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Snoops § Privileged Administrators § Credential compromise § Sony Attackers
- 13. 13 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Idiots § Users – Make mistakes (lose devices) – Have poor security education (password=123456) § Developers / Vendors – Lenovo – Fortinet § Administrators – Sony – Dropbox
- 17. 17 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Dealing With the Threat Information Applications Devices Networks Advanced Persistent Threat Detection Intrusion Detection Access Control Application Firewalls Security Gateways VPN Antivirus Mobile Device Management Firewalls Stateful Pocket Inspection Mobile Application Management Data Leakage Prevention Full Disk Encryption Antimalware Network Access Control Endpoint DLP Access Brokers DNS Security Incident & Event Management Intrusion Detection Identity & Access Management DATA CENTRIC PROTECTION § Defense in depth § Data-centric protection
- 18. 18 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Based on regulation or organizational sensitivity Data remains on the z/OS platform Regulated and sensitive data in your mainframe data stores Protect Data-Centric Protection The App Economy creates new risks of catastrophic data compromise “With breaches in the news every day, being able to find where regulated data resides - or ruling out the existence of sensitive data - is a critical first step in protecting your business.” X 70%of the world mission critical data transacts on the mainframe. Find ProtectClassify
- 20. 20 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Public/Private Key Pairs § Public Key – Encrypting Data – Authenticating Data § Private Key – Decrypting Data – Signing Data
- 28. 28 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD IBM Hardware Crypto Machine z196 2817 z114 2818 zEC12 2827 zBC12 2828 z13 2964 Algorithm Supported DES 3DES AES 128, 192, 256 DES 3DES AES 128, 192, 256 DES 3DES AES 128, 192, 256 DES 3DES AES 128, 192, 256 DES 3DES AES 128, 192, 256 Crypto Hardware CPACF CEX3C CPACF CEX3C CPACF CEX3C CEX4C CPACF CEX3C CEX4C CPACF CEX4C CEX5C
- 36. 36 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Batch Job To Create Encrypted ZIP File //ZIP1 EXEC PGM=SECZIP //STEPLIB DD DISP=SHR,DSN=SUPPORT.SZ150R05.LOAD //SYSPRINT DD SYSOUT=* //SYSABEND DD SYSOUT=* //JASOUT DD DSN=JAS.TEXT.LIB.ZIP,DISP=(NEW,CATLG,DELETE), // UNIT=SYSDA,SPACE=(CYL,(1,1)), // DCB=(RECFM=FB,LRECL=27998,BLKSIZE=27998) //SYSIN DD * -ENCRYPTION_METHOD(AES256) -PWD(PKWARE) -INCLUDE_CMD(JAS.MVS810.PROFILE(LDAP2)) -RECIPIENT(LDAP:EM=JOE.STURONAS@PKWARE.COM,R) -DATA_TYPE(TEXT) -ARCHIVE_OUTFILE(JASOUT) -ACTION(ADD) -VERBOSE -ZIPPED_DSN(JAS.TEXT.LIB(CRC),crc.txt) -ZIPPED_DSN(JAS.TEXT.LIB(EBCDIC),ebcdic.txt) JAS.TEXT.LIB
- 37. 37 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Batch Job To Email Encrypted ZIP File //TSOB EXEC PGM=IKJEFT1B //SYSEXEC DD DISP=SHR,DSN=USER.CLIST //SYSPRINT DD SYSOUT=* //SYSTSPRT DD SYSOUT=* //DD1 DD DISP=SHR,DSN=JAS.TEXT.LIB.ZIP //SYSTSIN DD * %XMITIP JOE.STURONAS@PKWARE.COM + CC ( JSTURONAS@ME.COM ) + MSGT 'THIS ATTACHMENT WAS ENCRYPTED WITH SecureZIP' + SUBJECT 'SENT FROM A ZBC12 FROM A BATCH JOB' + FROM JOE.STURONAS@PKWARE.COM + FILEDD DD1 + Format (BIN) + Filename jas.zip
- 38. 38 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Output From Batch Job J E S 2 J O B L O G -- S Y S T E M P K W 1 -- N 15.54.04 JOB39394 ---- FRIDAY, 16 SEP 2016 ---- 15.54.04 JOB39394 IRR010I USERID JAS IS ASSIGNED TO THIS JOB. 15.54.04 JOB39394 ICH70001I JAS LAST ACCESS AT 15:52:02 ON FRIDAY, SEPTEMB 15.54.04 JOB39394 $HASP373 JASA STARTED - INIT 1 - CLASS A - SYS 15.54.05 JOB39394 HTRT01I CPU (Total) 15.54.05 JOB39394 HTRT02I Program Stepname ProcStep RC I/O hh:mm:ss.th 15.54.05 JOB39394 HTRT03I SECZIP ZIP1 00 686 00.17 15.54.06 JOB39394 HTRT03I IKJEFT1B TSOB 00 499 00.25 15.54.06 JOB39394 HTRT06I 15.54.06 JOB39394 HTRT04I JASA Job Service Totals 1185 00.42 15.54.06 JOB39394 HTRT07I CPU Cost $ 0.10 IO Cost $ 1.18 15.54.06 JOB39394 $HASP395 JASA ENDED ------ JES2 JOB STATISTICS ------ 16 SEP 2015 JOB EXECUTION DATE 38 CARDS READ 855 SYSOUT PRINT RECORDS 0 SYSOUT PUNCH RECORDS
- 39. 39 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Output From Batch Job - PKWARE Inc. - - Program Name SECZIP hh:mm:ss.th - Step Name ZIP1 Elapsed Time 01.46 - Procedure Step TCB CPU Time 00.15 - Return Code 00 SRB CPU Time 00.02 - Total I/O 686 Total CPU Time 00.17 - I/O Cost $ 0.68 CPU Cost $ 0.04 - Service Units 1154 - - PKWARE Inc. - - Program Name IKJEFT1B hh:mm:ss.th - Step Name TSOB Elapsed Time 00.73 - Procedure Step TCB CPU Time 00.24 - Return Code 00 SRB CPU Time 00.01 - Total I/O 499 Total CPU Time 00.25 - I/O Cost $ 0.49 CPU Cost $ 0.06 - Service Units 1870
- 40. 40 © 2016 CA. ALL RIGHTS RESERVED.@CAWORLD #CAWORLD Output From Batch Job ZPEN309I z/Architecture Hardware Available -zBC12 ZPEN313I CSNBSYE System Capable with ICSF when available. ZPEN313C AES is available. DES/3DES is available. ZPEN313C CPACF Protected Keys are available. ZPEN334I PKA callable services are enabled. ZPEN315I AES(128, 192, 256) Clear Key Hardware Available -zBC12 ZPEN310I CP Assist For Cryptographic Functions Available ZPEN205I Cryptographic facility {IBMHardware } is selected for ENCRYPTION_METHO ZPEN205I Cryptographic facility {IBMHardware } is selected for PseudoRandGen ZPCM017I A total of 1 ADD/UPDATE candidate data sets were identified. ZPCM100I Configuration Manager Shutdown. Posting Main Task: 00000000 ZPAM253I ADDED File JAS.TEXT.LIB(CRC) ZPAM254I as crc.txt ZPAM255I (DEFLATED 57%/56%) Smartcrypt(tm) AES256 ; DATA SIZE 1,600; ZIP SIZE ZPAM255C . DEFLATE32; Text ; PDS ; Recs_In/Out( 20 / 20); Encrypt(Password-Key ZPAM253I ADDED File JAS.TEXT.LIB(EBCDIC) ZPAM254I as ebcdic.txt ZPAM255I (DEFLATED 34%/32%) Smartcrypt(tm) AES256 ; DATA SIZE 480; ZIP SIZE 32 ZPAM255C . DEFLATE32; Text ; PDS ; Recs_In/Out( 6 / 6); Encrypt(Password-Key ); ZPAM140I FILES: ADDED EXCLUDED BYPASSED IN ERROR COPIED
