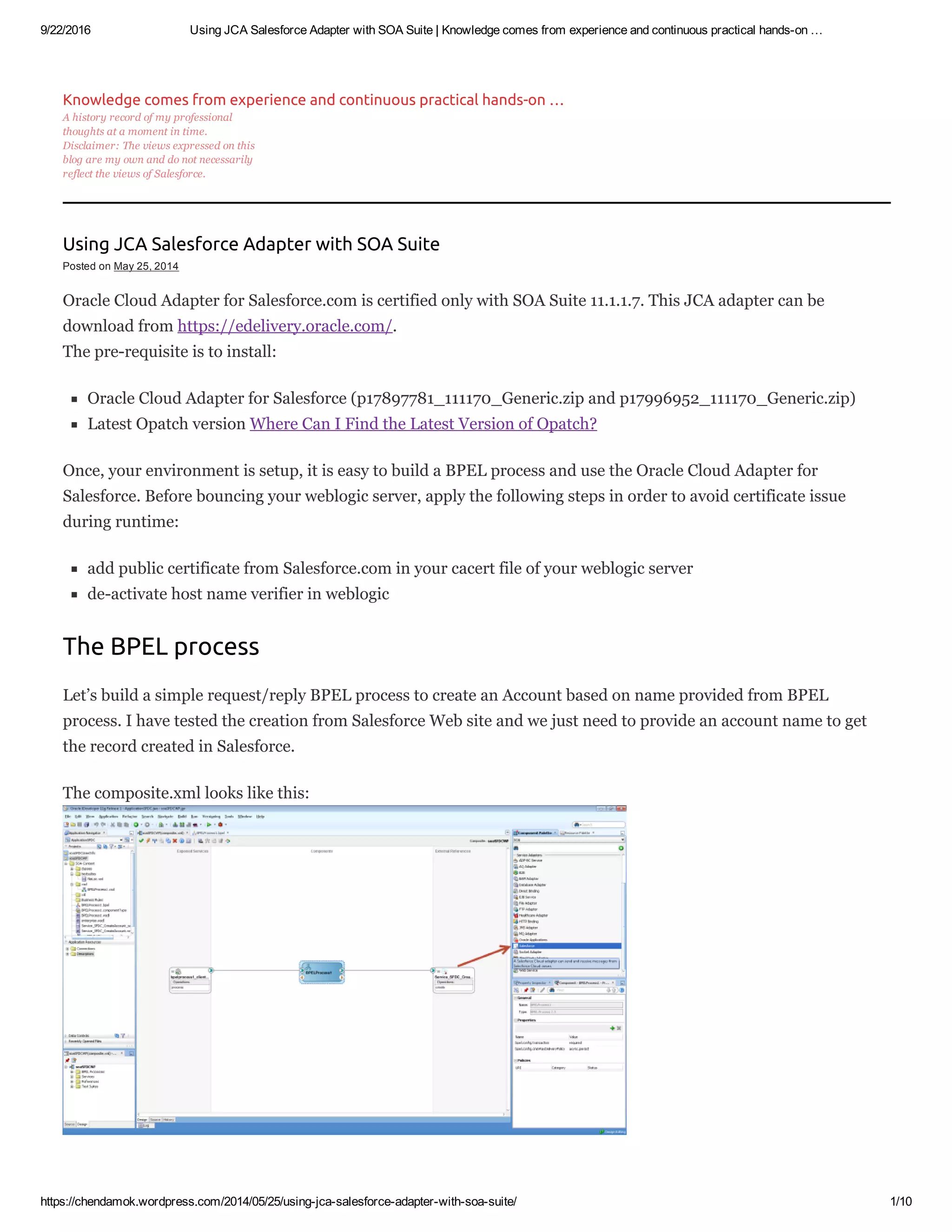

Using JCA Salesforce Adapter with SOA Suite
Posted on May 25, 2014
Oracle Cloud Adapter for Salesforce.com is certified only with SOA Suite 11.1.1.7. This JCA adapter can be
download from https://edelivery.oracle.com/.
The pre­requisite is to install:
Oracle Cloud Adapter for Salesforce (p17897781_111170_Generic.zip and p17996952_111170_Generic.zip)
Latest Opatch version Where Can I Find the Latest Version of Opatch?
Once, your environment is setup, it is easy to build a BPEL process and use the Oracle Cloud Adapter for
Salesforce. Before bouncing your weblogic server, apply the following steps in order to avoid certificate issue
during runtime:
add public certificate from Salesforce.com in your cacert file of your weblogic server
de­activate host name verifier in weblogic
The BPEL process
Let’s build a simple request/reply BPEL process to create an Account based on name provided from BPEL
process. I have tested the creation from Salesforce Web site and we just need to provide an account name to get
the record created in Salesforce.
The composite.xml looks like this:
Knowledge comes from experience and continuous practical hands-on …
A history record of my professional
thoughts at a moment in time.
Disclaimer: The views expressed on this
blog are my own and do not necessarily
reflect the views of Salesforce.

2. 9/22/2016 Using JCA Salesforce Adapter with SOA Suite | Knowledge comes from experience and continuous practical hands­on …
https://chendamok.wordpress.com/2014/05/25/using­jca­salesforce­adapter­with­soa­suite/ 2/10

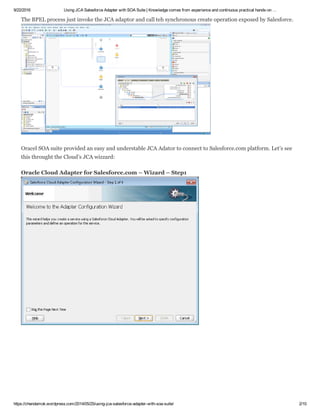

The BPEL process just invoke the JCA adaptor and call teh synchronous create operation exposed by Salesforce.
Oracel SOA suite provided an easy and understable JCA Adator to connect to Salesforce.com platform. Let’s see
this throught the Cloud’s JCA wizzard:
Oracle Cloud Adapter for Salesforce.com – Wizard – Step1

3. 9/22/2016 Using JCA Salesforce Adapter with SOA Suite | Knowledge comes from experience and continuous practical hands­on …
https://chendamok.wordpress.com/2014/05/25/using­jca­salesforce­adapter­with­soa­suite/ 3/10

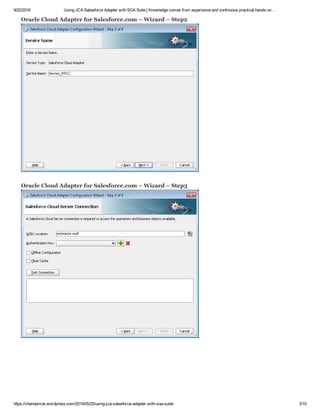

Oracle Cloud Adapter for Salesforce.com – Wizard – Step2
Oracle Cloud Adapter for Salesforce.com – Wizard – Step3

4. 9/22/2016 Using JCA Salesforce Adapter with SOA Suite | Knowledge comes from experience and continuous practical hands­on …
https://chendamok.wordpress.com/2014/05/25/using­jca­salesforce­adapter­with­soa­suite/ 4/10

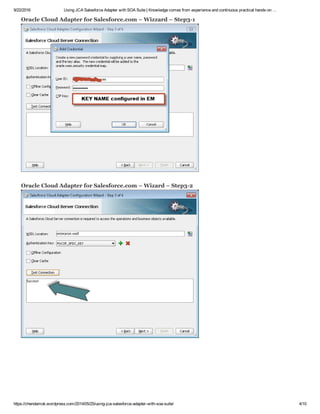

Oracle Cloud Adapter for Salesforce.com – Wizzard – Step3­1
Oracle Cloud Adapter for Salesforce.com – Wizard – Step3­2

5. 9/22/2016 Using JCA Salesforce Adapter with SOA Suite | Knowledge comes from experience and continuous practical hands­on …
https://chendamok.wordpress.com/2014/05/25/using­jca­salesforce­adapter­with­soa­suite/ 5/10

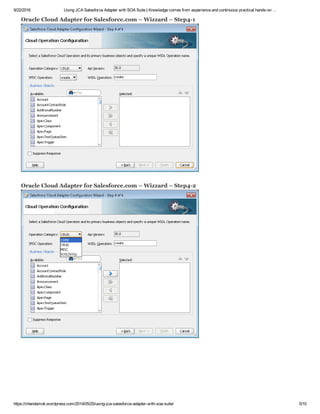

Oracle Cloud Adapter for Salesforce.com – Wizzard – Step4­1
Oracle Cloud Adapter for Salesforce.com – Wizzard – Step4­2

6. 9/22/2016 Using JCA Salesforce Adapter with SOA Suite | Knowledge comes from experience and continuous practical hands­on …
https://chendamok.wordpress.com/2014/05/25/using­jca­salesforce­adapter­with­soa­suite/ 6/10

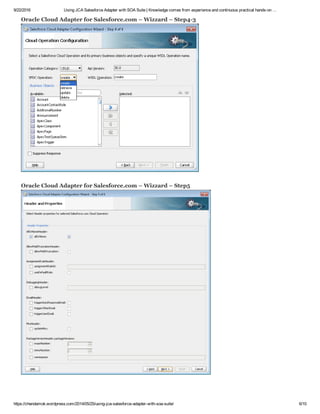

Oracle Cloud Adapter for Salesforce.com – Wizzard – Step4­3
Oracle Cloud Adapter for Salesforce.com – Wizzard – Step5

7. 9/22/2016 Using JCA Salesforce Adapter with SOA Suite | Knowledge comes from experience and continuous practical hands­on …
https://chendamok.wordpress.com/2014/05/25/using­jca­salesforce­adapter­with­soa­suite/ 7/10
Oracle Cloud Adapter for Salesforce.com – Wizzard – Step6
Before testing the Business Process, you need to define in EM console the csfmap and csfkey needed by the JCA
Adaptor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
<adapter‐config name="Service_SFDC_CreateAccountPortType" adapter="Salesforce" wsdlLocation
<connection‐factory location="cloud/CloudAdapter">
<non‐managed‐connection managedConnectionFactoryClassName="oracle.cloud.connector.salesf
<property name="targetWSDLURL" value="enterprise.wsdl"/>
<property name="csfkey" value="MyCSF_SFDC_KEY"/>
<property name="csfMap" value="SOA"/>
<property name="applicationVersion" value="30.0"/>
</non‐managed‐connection>
</connection‐factory>
<endpoint‐interaction portType="Service_SFDC_CreateAccountPortType" operation="create"
<interaction‐spec className="oracle.tip.adapter.cloud.CloudInteractionSpec">
<property name="targetOperation" value="create"/>
<property name="operationPath" value=""/>
<property name="oracle.cloud.rt.sfdcAdapterNamespace" value="http://xmlns.oracle.com/p
<property name="selectedObjects" value="Account"/>
<property name="AllOrNoneHeader.allOrNone" value="true"/>
<property name="oracle.cloud.rt.suppressResponse" value="false"/>
</interaction‐spec>
</endpoint‐interaction>
</adapter‐config>

8. 9/22/2016 Using JCA Salesforce Adapter with SOA Suite | Knowledge comes from experience and continuous practical hands­on …
https://chendamok.wordpress.com/2014/05/25/using­jca­salesforce­adapter­with­soa­suite/ 8/10
Connect to the EM console, and configure security credentials used by your JCA adaptor
Now, your are ready to test the BPEL process and validate that it is working as expected:

9. 9/22/2016 Using JCA Salesforce Adapter with SOA Suite | Knowledge comes from experience and continuous practical hands­on …
https://chendamok.wordpress.com/2014/05/25/using­jca­salesforce­adapter­with­soa­suite/ 9/10

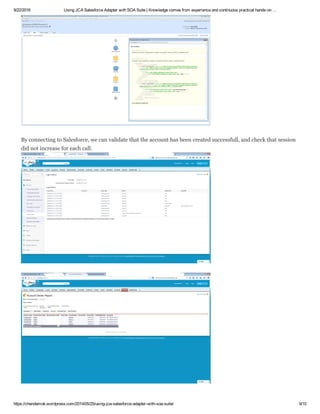

By connecting to Salesforce, we can validate that the account has been created successfull, and check that session
did not increase for each call.

10. 9/22/2016 Using JCA Salesforce Adapter with SOA Suite | Knowledge comes from experience and continuous practical hands­on …
https://chendamok.wordpress.com/2014/05/25/using­jca­salesforce­adapter­with­soa­suite/ 10/10

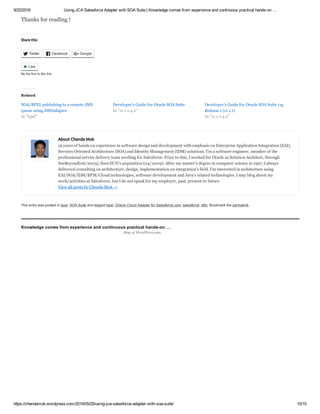

About Chenda Mok
19 years of hands on experience in software design and development with emphasis on Enterprise Application Integration (EAI),
Services Oriented Architecture (SOA) and Identity Management (IDM) solutions. I’m a software engineer, member of the
professional service delivery team working for Salesforce. Prior to this, I worked for Oracle as Solution Architect, through
SeeBeyond(06/2005), then SUN’s acquisition (04/2009). After my master’s degree in computer science in 1997; I always
delivered consulting on architecture, design, implementation on integration’s field. I’m interested in architecture using
EAI/SOA/IDM/BPM/Cloud technologies, software development and Java’s related technologies. I may blog about my
work/activities at Salesforce, but I do not speak for my employer, past, present or future.
View all posts by Chenda Mok →
Thanks for reading !
