This document describes how Elasticsearch was used to build a recommendation and search engine for a movie and TV streaming service. Key points include: 1) Elasticsearch allowed for autocomplete search and recommendation of titles based on partial user input, popularity, and other metadata like cast and year. 2) Various techniques were used to score and sort results, including custom scoring based on popularity metrics, filtering to boost recent or upcoming titles, and handling of alternative title translations. 3) Additional features like advanced search options that surfaced recommendations based on social connections were also implemented using Elasticsearch filtering capabilities.

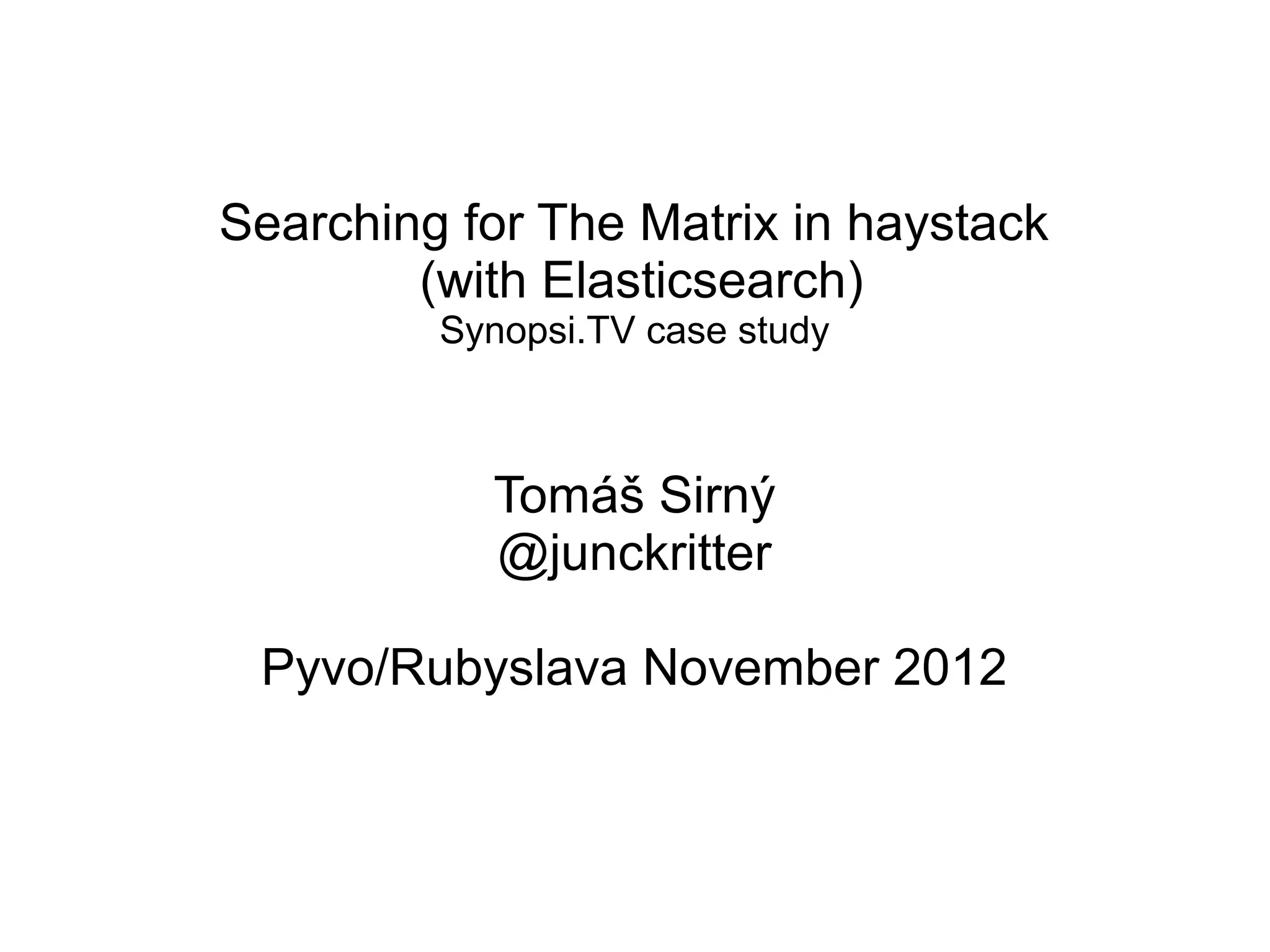

1. Searching for The Matrix in haystack
(with Elasticsearch)
Synopsi.TV case study
Tomáš Sirný
@junckritter
Pyvo/Rubyslava November 2012

2. The Environment
● Recommendation service for movies, TV shows
● People mark titles they watched(check-in), rate
them
● Get recommendations
● Make „Watch Later“ or other-purpose lists
● …
● Search (to check-in, add to list, share, etc.)

3. The Problem
● Input box for search on top of web page
● Many movies, TV shows in database
● Lot of them have similar titles, use similar
words
● Some are more probable to be searched for
● Few input information – 3, 4 letters
● Autocomplete, not only exact match

4. The Red Pill

5. The Blue Pill

6. The Tool
● Elasticsearch – designed for searching in
documents
● Based on Lucene – de facto standard
● Young yet feature-rich
● Quick development (despite 1 core developer)
● Business company recently founded
● 10M funding in A-round

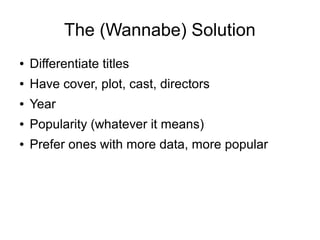

7. The (Wannabe) Solution
● Differentiate titles
● Have cover, plot, cast, directors
● Year
● Popularity (whatever it means)
● Prefer ones with more data, more popular

8. The Text – First Attempt
● Text Query (now Match Query)
● phrase_prefix type – all words in input with
matching of prefixes („m“, „ma“, „mat“, …), same
order of words
● operator and
● not_analyzed „name“ field (not broke down to
words)

9. The Text – First Attempt
● slop parameter - allows change of order, skip
words
„matrix revolutions“
„revolutions matrix“
„matrix first revolutions“

10. The Sorting – First Attempt
● Default scoring considers only occurence text in
documents
● We also want other properties of document to
count
● Custom Score Query
● Define script for scoring
„script“: „_score * doc[„rating“].value“

11. The Rating
● Allows to prefer more „popular“ titles
● External – top lists, links, etc.
● Internal – usage data from system
● Problem for newly added titles – lack of data of
both types

12. The Tuning of Rating
● Get rid off external data
● Only score „completeness“ of each document
● Release year
„script“: „3 * log(_score) +
1 * log(doc["year"].date.year – 1880) +
0.75 * log(doc["watched_count"].value +1)“

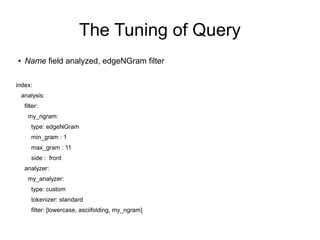

13. The Tuning of Query
● Name field analyzed, edgeNGram filter
index:
analysis:
filter:
my_ngram:
type: edgeNGram
min_gram : 1
max_gram : 11
side : front
analyzer:
my_analyzer:
type: custom
tokenizer: standard
filter: [lowercase, asciifolding, my_ngram]

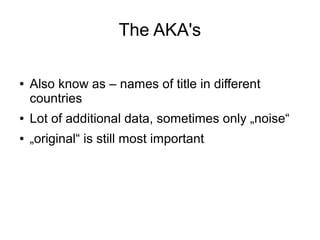

14. The AKA's
● Also know as – names of title in different
countries
● Lot of additional data, sometimes only „noise“
● „original“ is still most important

16. The AKA's
● Array of AKAs – problems with scoring of short
names
● Nested AKA documents - query does not return
nested document which matched
● AKA document is child of title – have own
information (original, country, slug)
● Top Children Query – which AKA matched
● Another query with Ids Filter – get titles

17. The Sorting – Second Attempt
● Custom Filter Score Query – apply set of filters,
each filter boosts documents which pass its
condition
● boost parameter of filter – differentiate
importance of that filter
● score_mode – sum, product of boost values

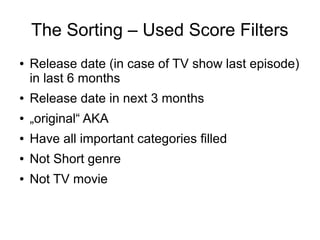

18. The Sorting – Used Score Filters
● Release date (in case of TV show last episode)
in last 6 months
● Release date in next 3 months
● „original“ AKA
● Have all important categories filled
● Not Short genre
● Not TV movie

19. The Sorting – Short Input
● Special case 1 – 3 letters
● Very rare to exact match
● Should work after typing of first letter
● Only titles from this year
● 3 letters – also titles in near future and previous
year

20. The Year in Input
● Matrix 1999
● Matrix Reloaded (2003)
● Matrix 2000- released to 2000
● Matrix 2000+ released since 2000

21. One More Thing – Advanced Search
● Titles have also data about their usage
● „Watched by Friends“ Filter
Shows titles with IDs of your „friends“ in proper
field (TermsFilter([IDS]))
● „Not Watched“ filter
Show titles in which is your ID absent
(NotFilter(TermFilter(ID))
● combination – titles to watch to catch up with
friends

23. The End
Thanks
Tomáš Sirný
@junckritter
