EKS vs GKE vs AKS - Evaluating Kubernetes in the Cloud
The document evaluates the top three Kubernetes providers: Amazon EKS, Google GKE, and Azure AKS, covering aspects such as supported versions, maintenance, features, networking, and security. Key takeaways include that GKE is the most mature platform, while EKS is considered the most unmanaged, and both EKS and AKS require more hands-on management or automation compared to GKE. The summary includes comparisons of control plane upgrades, service level agreements, and security options across the three platforms.
More Related Content
Similar to EKS vs GKE vs AKS - Evaluating Kubernetes in the Cloud
EKS vs GKE vs AKS - Evaluating Kubernetes in the Cloud
- 1. Evaluating theTop 3Kubernetes Providers EKS vs GKE vs AKS Karen Bruner,Tech Evangelist, StackRox March 24, 2020
- 2. 2©2020 StackRox. Allrights reserved. What We’ll Cover ● Supported Kubernetes versions ● Maintenance ● Features ● Networking ● Security ● And more Karen Bruner StackRoxTech Evangelist longtime DevOps engineer
- 3. 3©2020 StackRox. Allrights reserved. Google Kubernetes Engine Amazon Elastic Kubernetes Service Azure Kubernetes Service vs vs
- 4. 4©2020 StackRox. Allrights reserved. Version EKS AKS GKE Kubernetes 1.18 ✔ 1.17 preview preview* ✔ 1.16 ✔ beta ✔ 1.15 ✔ default ✔ 1.14 default ✔ default 1.13 ✔ 1.12 deprecated Version Support Matrix * GKE preview requires requesting access

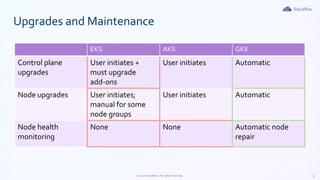

- 5. 5©2020 StackRox. Allrights reserved. EKS AKS GKE Control plane upgrades User initiates + must upgrade add-ons User initiates Automatic Node upgrades User initiates; manual for some node groups User initiates Automatic Node health monitoring None None Automatic node repair Upgrades and Maintenance

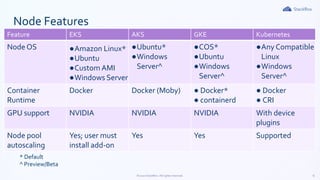

- 6. 6©2020 StackRox. Allrights reserved. * Default ^ Preview/Beta Feature EKS AKS GKE Kubernetes Node OS ●Amazon Linux* ●Ubuntu ●Custom AMI ●Windows Server ●Ubuntu* ●Windows Server^ ●COS* ●Ubuntu ●Windows Server^ ●Any Compatible Linux ●Windows Server^ Container Runtime Docker Docker (Moby) ● Docker* ● containerd ● Docker ● CRI GPU support NVIDIA NVIDIA NVIDIA With device plugins Node pool autoscaling Yes; user must install add-on Yes Yes Supported Node Features

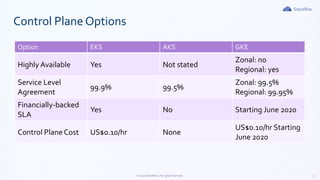

- 7. 7©2020 StackRox. Allrights reserved. Option EKS AKS GKE Highly Available Yes Not stated Zonal: no Regional: yes Service Level Agreement 99.9% 99.5% Zonal: 99.5% Regional: 99.95% Financially-backed SLA Yes No Starting June 2020 Control Plane Cost US$0.10/hr None US$0.10/hr Starting June 2020 Control Plane Options

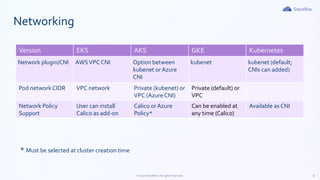

- 8. 8©2020 StackRox. Allrights reserved. * Must be selected at cluster creation time Version EKS AKS GKE Kubernetes Network plugin/CNI AWSVPC CNI Option between kubenet or Azure CNI kubenet kubenet (default; CNIs can added) Pod network CIDR VPC network Private (kubenet) or VPC (Azure CNI) Private (default) or VPC Network Policy Support User can install Calico as add-on Calico or Azure Policy* Can be enabled at any time (Calico) Available as CNI Networking

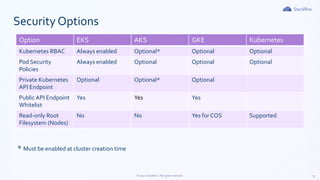

- 9. 9©2020 StackRox. Allrights reserved. * Must be enabled at cluster creation time Option EKS AKS GKE Kubernetes Kubernetes RBAC Always enabled Optional* Optional Optional Pod Security Policies Always enabled Optional Optional Optional Private Kubernetes API Endpoint Optional Optional* Optional Public API Endpoint Whitelist Yes Yes Yes Read-only Root Filesystem (Nodes) No No Yes for COS Supported Security Options

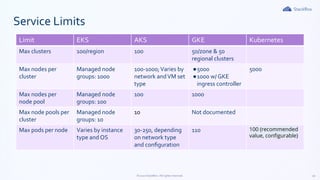

- 10. 10©2020 StackRox. Allrights reserved. Limit EKS AKS GKE Kubernetes Max clusters 100/region 100 50/zone & 50 regional clusters Max nodes per cluster Managed node groups: 1000 100-1000;Varies by network andVM set type ●5000 ●1000 w/ GKE ingress controller 5000 Max nodes per node pool Managed node groups: 100 100 1000 Max node pools per cluster Managed node groups: 10 10 Not documented Max pods per node Varies by instance type and OS 30-250, depending on network type and configuration 110 100 (recommended value, configurable) Service Limits
- 11. 11©2020 StackRox. Allrights reserved. Takeaways • Not all managed Kubernetes services are created equally • Most mature: GKE • Most unmanaged: EKS • AKS and EKS require more hands-on or automation work • Read the blog post at www.stackrox.com!
- 12.
- 13. 13 Let’s chat Think ofa question later? Karen@stackrox.com Twitter @fuzzyKB www.linkedin.com/in/kmbruner/ Want to learn more? https://www.stackrox.com/ We’re hiring!
