1. EKS Security Best Practices
KAREN BRUNER | 2019-09-13

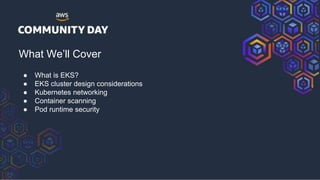

2. What We’ll Cover
● What is EKS?
● EKS cluster design considerations
● Kubernetes networking
● Container scanning
● Pod runtime security

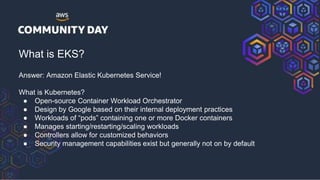

3. What is EKS?
Answer: Amazon Elastic Kubernetes Service!
What is Kubernetes?
● Open-source Container Workload Orchestrator
● Design by Google based on their internal deployment practices
● Workloads of “pods” containing one or more Docker containers
● Manages starting/restarting/scaling workloads
● Controllers allow for customized behaviors
● Security management capabilities exist but generally not on by default

4. EKS Cluster Design Considerations
EC2 VPC Layout
● Subnets across 3+ Availability Zones
● Private subnets + NAT Gateway(s) for worker nodes
● Public subnets for ingress from Internet
High Availability
● EKS creates redundant control plane across 3 Availability Zones
● User-created nodegroups should be across multiple Availability Zones

5. AWS VPC CNI
● EC2 security groups for traffic control
● Firewall controls cannot be applied at
deployment or namespace level
● Does NOT support Kubernetes
Network Policies
● Not cloud portable
● Not suitable for multi-tenant cluster
network segregation
EKS Cluster Networking
Calico
● Deploys alongside AWS VPC CNI
● Install at any time
● Full Kubernetes Network Policy support
● Supported on all(?) Kubernetes
providers
● Very good controls for multi-tenant
cluster network segregation

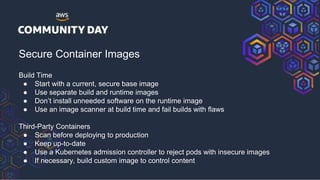

6. Secure Container Images
Build Time
● Start with a current, secure base image
● Use separate build and runtime images
● Don’t install unneeded software on the runtime image
● Use an image scanner at build time and fail builds with flaws
Third-Party Containers
● Scan before deploying to production
● Keep up-to-date
● Use a Kubernetes admission controller to reject pods with insecure images
● If necessary, build custom image to control content

7. Pod Runtime Security
● Namespaces! You get a namespace! You get a namespace!
● Kubernetes Role-Based Access Control
○ Principle of Least Privilege
○ Roles instead of ClusterRoles, RoleBindings instead of ClusterRoleBindings
● Use Network Policies (requires Calico CNI)
● Limit container runtime privileges
○ Service Account for each application
○ Use PodSecurityPolicy resources to enforce Principle of Least Privilege
● Protect EC2 Instance Role Credentials
○ kube2iam or Network Policies

8. Other Best Practices
Do!
● … monitor security of clusters and their workloads!
● … follow all Helm security practices for tillerd!
● … make Kubernetes API endpoint private, if possible!
● … keep all resource manifests for each deployment together!
● .... and deploy with identical RBAC, Network Policies, etc., in staging
before going to production!
Don’t!
● … install the Kubernetes dashboard
● … neglect AWS and EC2 security best practices

9. Me + More
See the companion blog post at https://www.stackrox.com/post/
Karen Bruner
● https://nightmare-before-devops.xyz/
● Tweetless
● Ask me for my Ravelry ID
● My cats ->
