Given a very large dataset of moderate-to-high di- mensionality, how to mine useful patterns from it? In such cases, dimensionality reduction is essential to overcome the “curse of dimensionality”. Although there exist algorithms to reduce the dimensionality of Big Data, unfortunately, they all fail to identify/eliminate non-linear correlations between attributes. This paper tackles the problem by exploring con- cepts of the Fractal Theory and massive parallel processing to present Curl-Remover, a novel dimensionality reduction technique for very large datasets. Our contributions are: Curl- Remover eliminates linear and non-linear attribute correlations as well as irrelevant ones; it is unsupervised and suits for analytical tasks in general – not only classification; it presents linear scale-up; it does not require the user to guess the number of attributes to be removed, and; it preserves the attributes’ semantics. We performed experiments on synthetic and real data spanning up to 1.1 billion points and Curl- Remover outperformed a PCA-based algorithm, being up to 8% more accurate.

1. Effective and
Unsupervised
Fractal-based
Feature Selection
for Very Large
Datasets
Removing linear and non-linear attribute correlations
Antonio Canabrava Fraideinberze
Jose F Rodrigues-Jr
Robson Leonardo Ferreira Cordeiro
Databases and Images Group
University of São Paulo
São Carlos - SP - Brazil

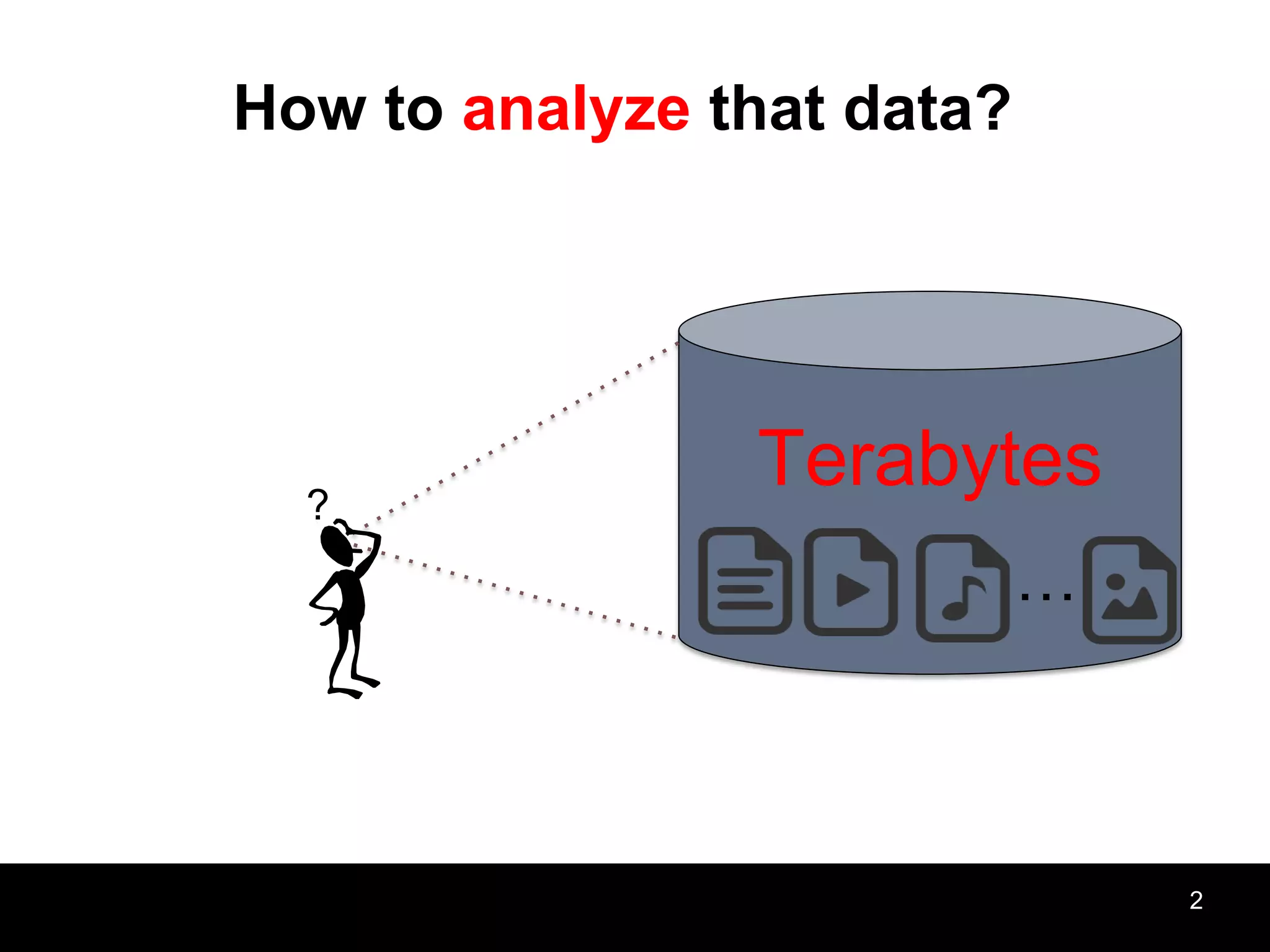

2. 2
Terabytes?
…
How to analyze that data?

3. 3
Terabytes?
Parallel processing
and dimensionality
reduction, for
sure...
…
How to analyze that data?

4. How to analyze that data?
4
Terabytes?
, but how to remove
linear and non-linear
attribute correlations,
besides irrelevant
attributes?
…

5. How to analyze that data?
5
Terabytes?
, and how to reduce
dimensionality without
human supervision
and being task
independent?
…

6. 6
Terabytes?
Curl-Remover
Medium-
dimensionality
…
How to analyze that data?

7. Agenda
Fundamental Concepts
Related Work
Proposed Method
Evaluation
Conclusion
7

8. Agenda
Fundamental Concepts
Related Work
Proposed Method
Evaluation
Conclusion
8

9. Fundamental Concepts
Fractal Theory
...
...
...
...
9

10. Fundamental Concepts
Fractal Theory
...
...
...
...
10

11. Fundamental Concepts
Fractal Theory
11

12. Fundamental Concepts
Fractal Theory
12

13. Fundamental Concepts
Fractal Theory
Embedded, Intrinsic and Fractal Correlation Dimension
Fractal Correlation Dimension ≅ Intrinsic Dimension
13

14. Fundamental Concepts
Fractal Theory
Embedded, Intrinsic and Fractal Correlation Dimension
Embedded dimension ≅ 3
Intrinsic dimension ≅ 1
Embedded dimension ≅ 3
Intrinsic dimension ≅ 2
14

15. Fundamental Concepts
Fractal Theory
Fractal Correlation Dimension - Box Counting
15

16. Fundamental Concepts
Fractal Theory
Fractal Correlation Dimension - Box Counting
16

17. Fundamental Concepts
Fractal Theory
Fractal Correlation Dimension - Box Counting
log(r)
17

18. Fundamental Concepts
Fractal Theory
Fractal Correlation Dimension - Box Counting
log(r)
18

19. Fundamental Concepts
Fractal Theory
Fractal Correlation Dimension - Box Counting
19
Multidimensional
Quad-tree
[Traina Jr. et al, 2000]

20. Agenda
Fundamental Concepts
Related Work
Proposed Method
Evaluation
Conclusion
20

21. Related Work
Dimensionality Reduction - Taxonomy 1
Dimensionality
Reduction
Supervised Algorithms
Unsupervised
Algorithms
Principal Component
Analysis
Singular Vector
Decomposition
Fractal Dimension
Reduction
21

22. Related Work
Dimensionality Reduction - Taxonomy 2
Dimensionality
Reduction
Feature ExtractionFeature Selection
Principal Component
Analysis
Singular Vector
Decomposition
Fractal Dimension
Reduction
EmbeddedFilterWrapper
22

23. Related Work
23
Terabytes?
Existing methods need supervision,
miss non-linear correlations, cannot
handle Big Data or work for
classification only
…

24. Agenda
Fundamental Concepts
Related Work
Proposed Method
Evaluation
Conclusion
24

25. General Idea
25
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.

26. General Idea
26
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
Builds partial trees
for the full dataset
and for its E
(E-1)-dimensional
projections

27. General Idea
27
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
TreeID
+
cell
spatial
position
Partial
count of
points

28. General Idea
28
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
Sums partial point
counts and reports
log(r) and log(sum2)
for each tree

29. General Idea
29
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
Computes D2 for
the full dataset and
pD2 for each of its E
(E-1)-dimensional
projections

30. General Idea
30
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
The least relevant
attribute, i.e., the one
not in the projection
that minimizes
| D2 - pD2 |

31. General Idea
31
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
Spots the second
least relevant
attribute …

32. General Idea
3 Main Issues
32
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.

33. General Idea
3 Main Issues
33
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
1° Too much data to
be shuffled – one
data pair per cell/tree

34. General Idea
3 Main Issues
34
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
2° One
data pass
per
irrelevant
attribute

35. General Idea
3 Main Issues
35
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
3° Not enough
memory for mappers

36. Proposed Method
Curl-Remover
36
1° Issue - Too much data to be shuffled; one data pair per
cell/tree;
Our solution - Two-phase dimensionality reduction:
a) Serial feature selection in a tiny data sample (one reducer). Used to
speed-up processing only;
b) All mappers project data into a fixed subspace

37. 37
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.Builds/reports N (2 or
3) tree levels of
lowest resolution…
Proposed Method
Curl-Remover

38. 38
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
… plus the points
projected into the M (2
or 3) most relevant
attributes of sample
Proposed Method
Curl-Remover

39. 39
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
Builds the full trees from
their low resolution level
cells and the projected
points
Proposed Method
Curl-Remover

40. 40
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
Proposed Method
Curl-Remover
High resolution cells
are never shuffled

41. Proposed Method
Curl-Remover
41
2° Issue - One data pass per irrelevant attribute;
Our solution – Stores/reads the tree level of highest
resolution, instead of the original data.

42. 42
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
Rdb = cost to read dataset;
TWRtree = cost to transfer,
write and read the last tree
level in next reduce step;
If (Rdb > TWRtree)
then writes tree;
Proposed Method
Curl-Remover

43. 43
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
Proposed Method
Curl-Remover

44. 44
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
Writes tree’s last level in
HDFS
Proposed Method
Curl-Remover

45. 45
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
Reads tree’s last level
from HDFS
Proposed Method
Curl-Remover

46. 46
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
Proposed Method
Curl-Remover
Reads dataset
only twice

47. Proposed Method
Curl-Remover
47
3° Issue - Not enough memory for mappers;
Our solution – Sorts data in mappers and reports “tree slices”
whenever needed.

48. 48
Removes the E - ⌈D2⌉ least relevant attributes, one at a time
in ascending order of relevance.
Sorts its local points and
builds “tree slices”
monitoring memory
consumption
Proposed Method
Curl-Remover

49. Proposed Method
Curl-Remover
49
Y
X

50. Proposed Method
Curl-Remover
50
Reports “tree slices”
with very little overlap

51. Agenda
Fundamental Concepts
Related Work
Proposed Method
Evaluation
Conclusion
51

52. Evaluation
Datasets
Sierpinski - Sierpinski Triangle + 1 attribute linearly correlated + 2 attributes non-
linearly correlated. 5 attributes, 1.1 billion points;
Sierpinski Hybrid - Sierpinski Triangle + 1 attribute non-linearly correlated + 2
random attributes. 5 attributes, 1.1 billion points;
Yahoo! Network Flows - communication patterns between end-users in the web. 12
attributes, 562 million points;
Astro - high-resolution cosmological simulation. 6 attributes, 1 billion points;
Hepmass - physics-related dataset with particles of unknown mass. 28 attributes, 10.5
million points;
Hepmass Duplicated – Hepmass + 28 correlated attributes. 56 attributes, 10.5
million points.
52

53. Evaluation
Fractal Dimension
Hepmass
53

54. Evaluation
Fractal Dimension
Hepmass Duplicated
54

55. Evaluation
Comparison with sPCA - Classification
55

56. Evaluation
Comparison with sPCA - Classification
56
8% more accurate,
7.5% faster

57. Evaluation
Comparison with sPCA
Percentage of Fractal Dimension after selection
57

58. Agenda
Fundamental Concepts
Related Work
Proposed Method
Evaluation
Conclusion
58

59. Conclusions
 Accuracy - eliminates both linear and non-linear attribute correlations,
besides irrelevant attributes; 8% better than sPCA;
Scalability – linear scalability on the data size (theoretical analysis);
experiments with up to 1.1 billion points;
Unsupervised - it does not require the user to guess the number of attributes
to be removed neither requires a training set;
Semantics - it is a feature selection method, thus maintaining the semantics of
the attributes;
Generality - it suits for analytical tasks in general, and not only for
classification;
59

60. Conclusions
 Accuracy - eliminates both linear and non-linear attribute correlations,
besides irrelevant attributes; 8% better than sPCA;
 Scalability – linear scalability on the data size (theoretical analysis);
experiments with up to 1.1 billion points;
Unsupervised - it does not require the user to guess the number of attributes
to be removed neither requires a training set;
Semantics - it is a feature selection method, thus maintaining the semantics of
the attributes;
Generality - it suits for analytical tasks in general, and not only for
classification;
60

61. Conclusions
 Accuracy - eliminates both linear and non-linear attribute correlations,
besides irrelevant attributes; 8% better than sPCA;
 Scalability – linear scalability on the data size (theoretical analysis);
experiments with up to 1.1 billion points;
 Unsupervised - it does not require the user to guess the number of
attributes to be removed neither requires a training set;
Semantics - it is a feature selection method, thus maintaining the semantics of
the attributes;
Generality - it suits for analytical tasks in general, and not only for
classification;
61

62. Conclusions
 Accuracy - eliminates both linear and non-linear attribute correlations,
besides irrelevant attributes; 8% better than sPCA;
 Scalability – linear scalability on the data size (theoretical analysis);
experiments with up to 1.1 billion points;
 Unsupervised - it does not require the user to guess the number of
attributes to be removed neither requires a training set;
 Semantics - it is a feature selection method, thus maintaining the semantics
of the attributes;
Generality - it suits for analytical tasks in general, and not only for
classification;
62

63. Conclusions
 Accuracy - eliminates both linear and non-linear attribute correlations,
besides irrelevant attributes; 8% better than sPCA;
 Scalability – linear scalability on the data size (theoretical analysis);
experiments with up to 1.1 billion points;
 Unsupervised - it does not require the user to guess the number of
attributes to be removed neither requires a training set;
 Semantics - it is a feature selection method, thus maintaining the semantics
of the attributes;
 Generality - it suits for analytical tasks in general, and not only for
classification;
63

64. Questions?
robson@icmc.usp.br
Hepmass Duplicated
