- 1. Architecture & Standards for e-Government JSatyanarayana CEO, NISG

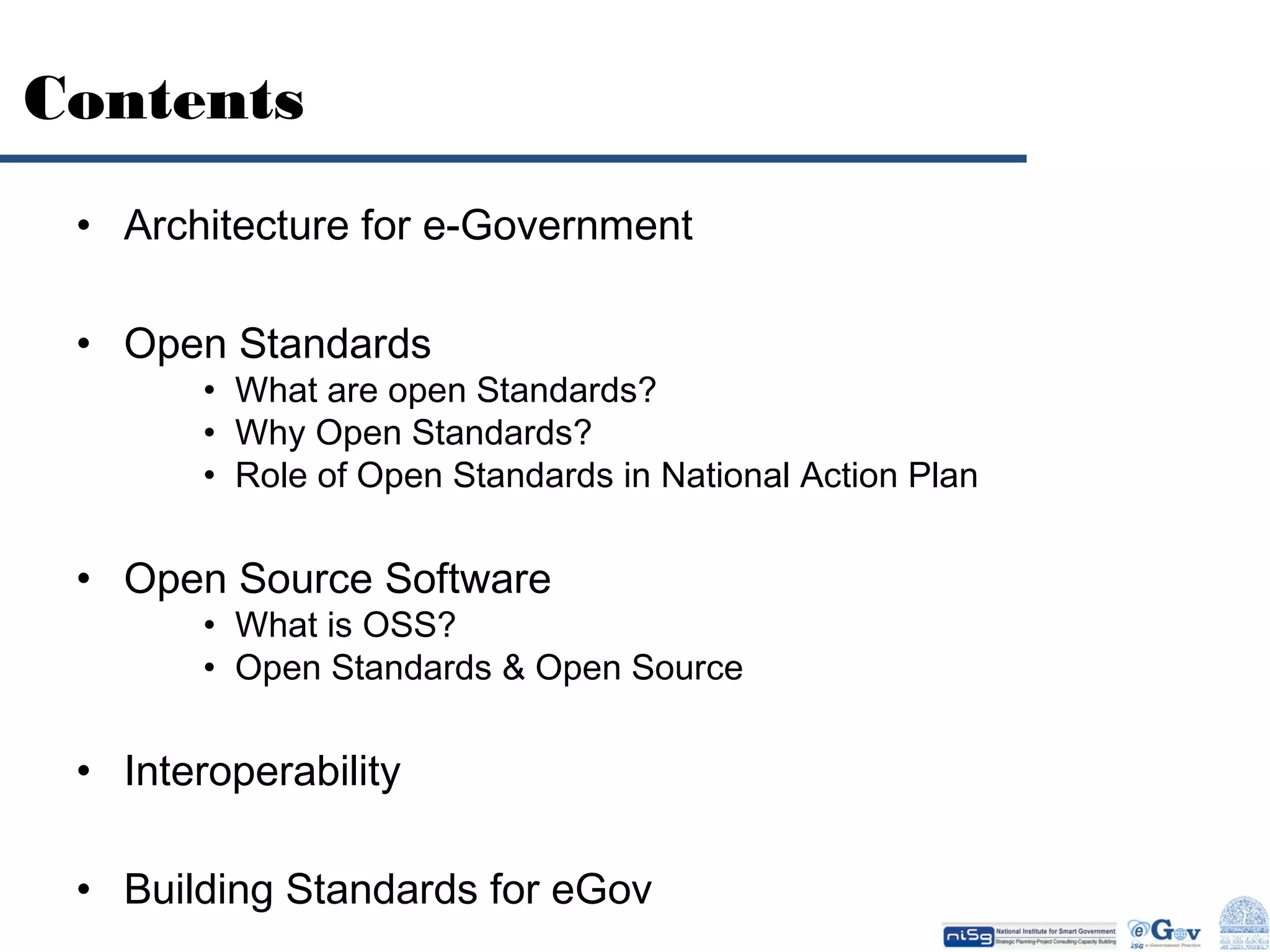

- 2. Contents • Architecture fore-Government • Open Standards • What are open Standards? • Why Open Standards? • Role of Open Standards in National Action Plan • Open Source Software • What is OSS? • Open Standards & Open Source • Interoperability • Building Standards for eGov

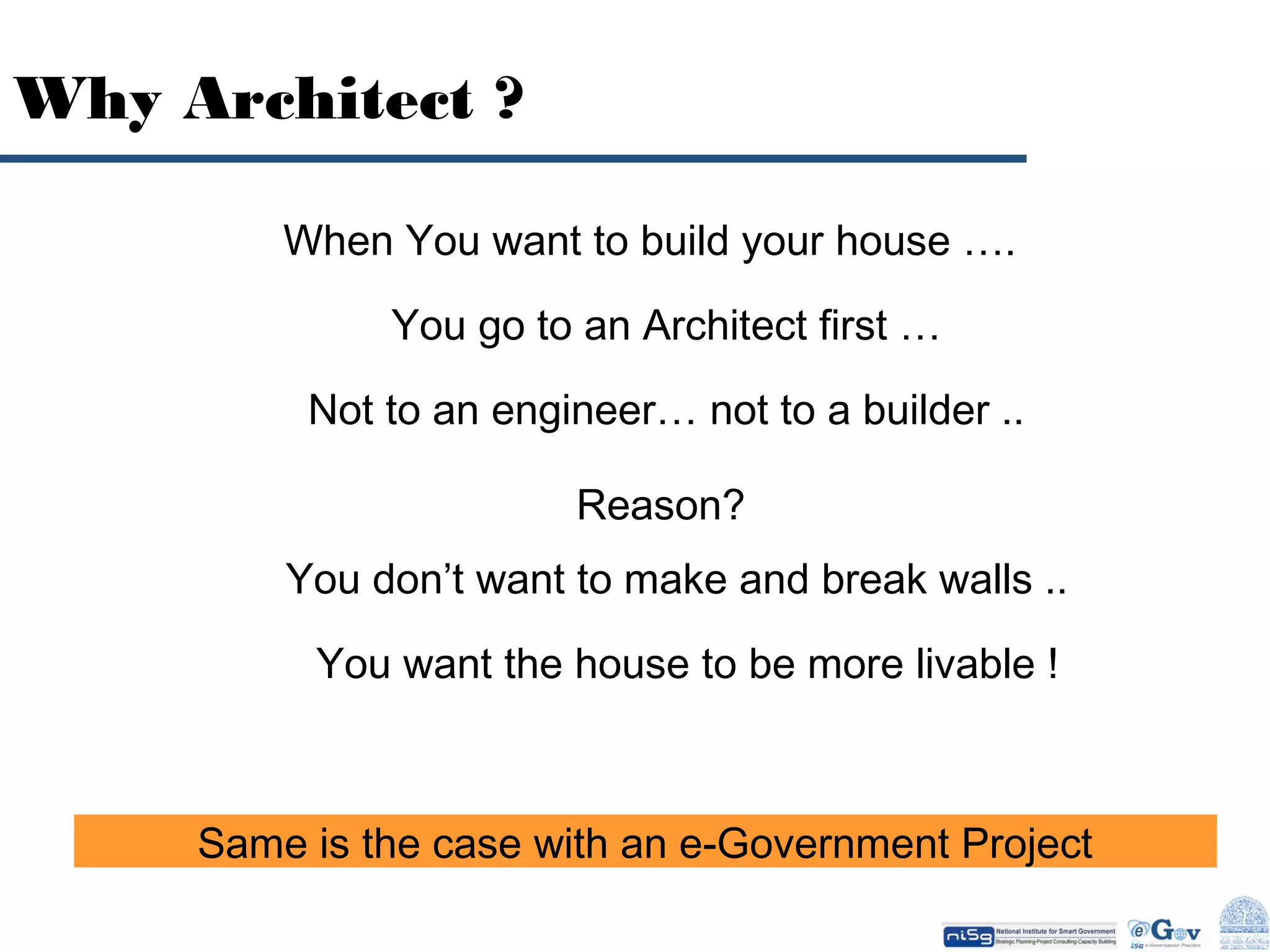

- 3. Why Architect ? WhenYou want to build your house …. You go to an Architect first … Not to an engineer… not to a builder .. Reason? You don’t want to make and break walls .. You want the house to be more livable ! Same is the case with an e-Government Project

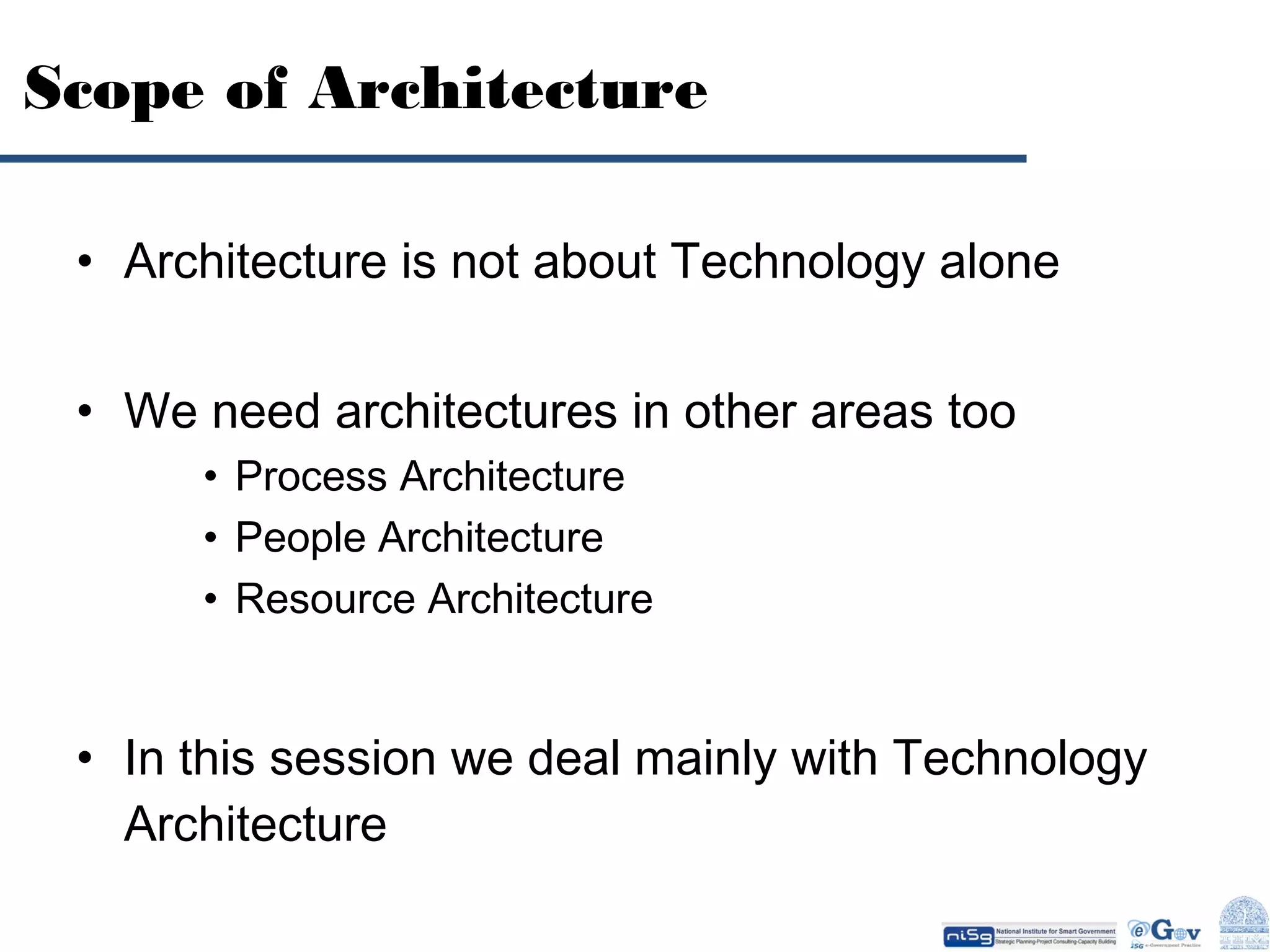

- 4. Scope of Architecture •Architecture is not about Technology alone • We need architectures in other areas too • Process Architecture • People Architecture • Resource Architecture • In this session we deal mainly with Technology Architecture

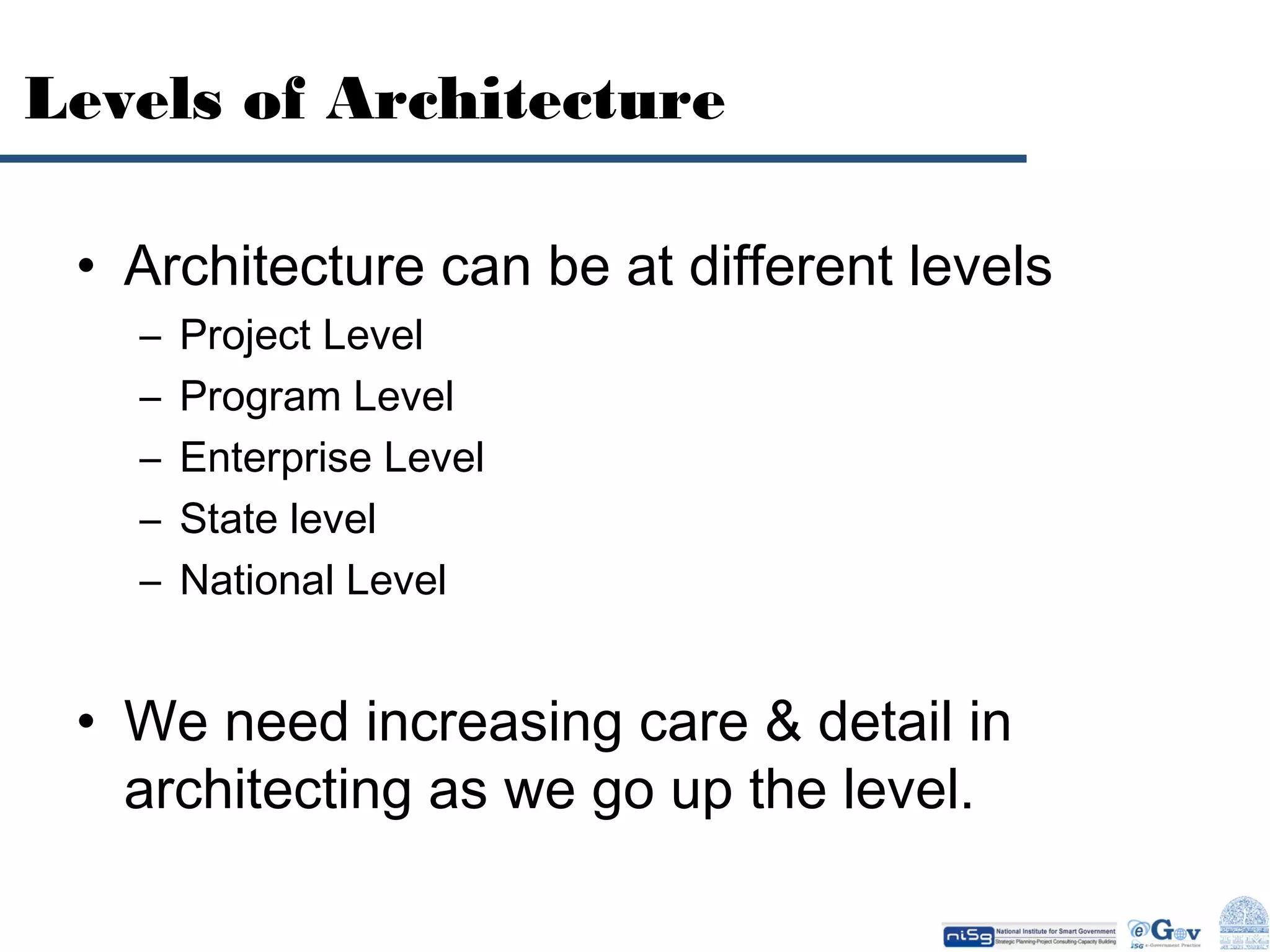

- 5. Levels of Architecture •Architecture can be at different levels – – – – – Project Level Program Level Enterprise Level State level National Level • We need increasing care & detail in architecting as we go up the level.

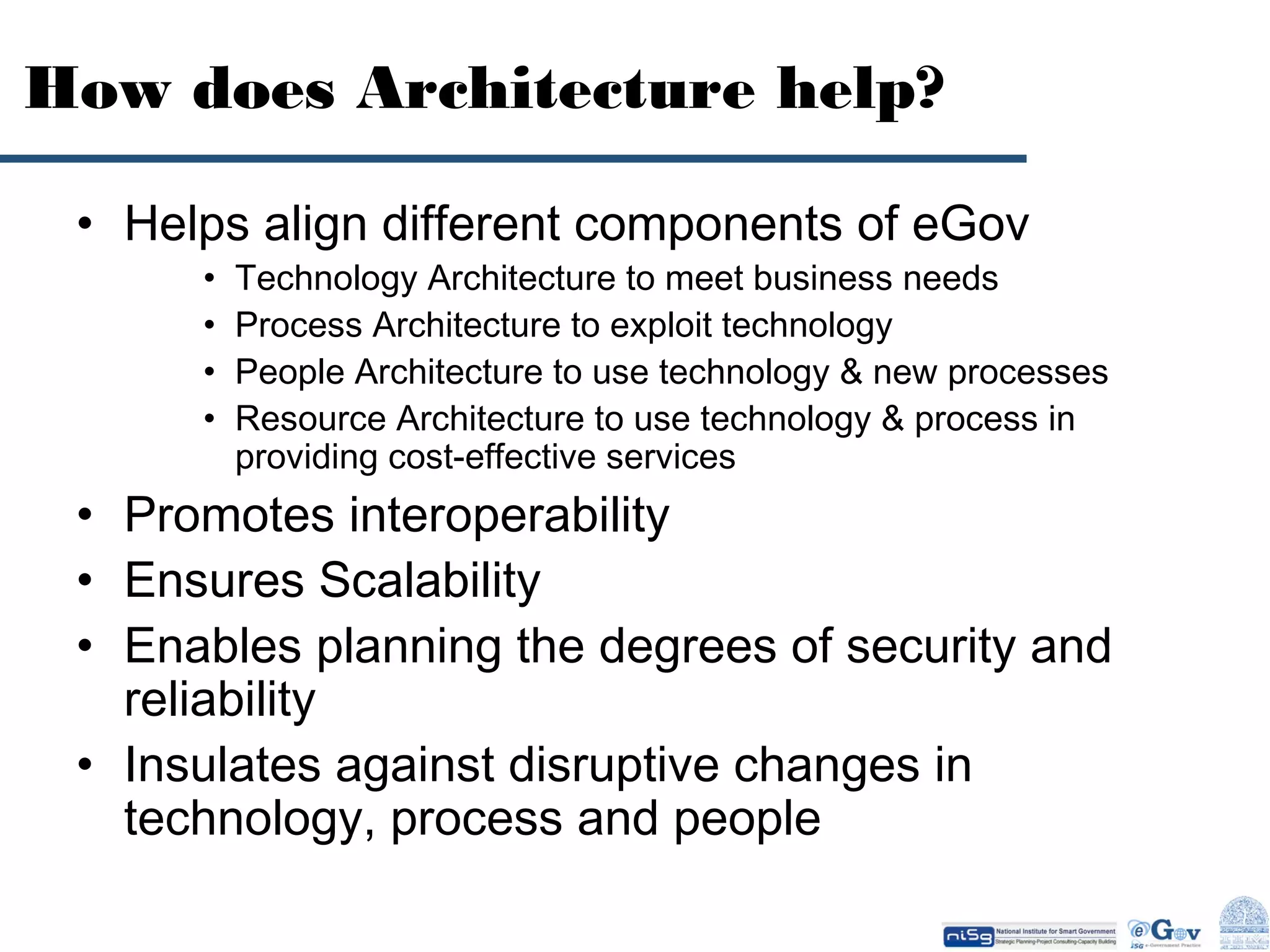

- 6. How does Architecturehelp? • Helps align different components of eGov • • • • Technology Architecture to meet business needs Process Architecture to exploit technology People Architecture to use technology & new processes Resource Architecture to use technology & process in providing cost-effective services • Promotes interoperability • Ensures Scalability • Enables planning the degrees of security and reliability • Insulates against disruptive changes in technology, process and people

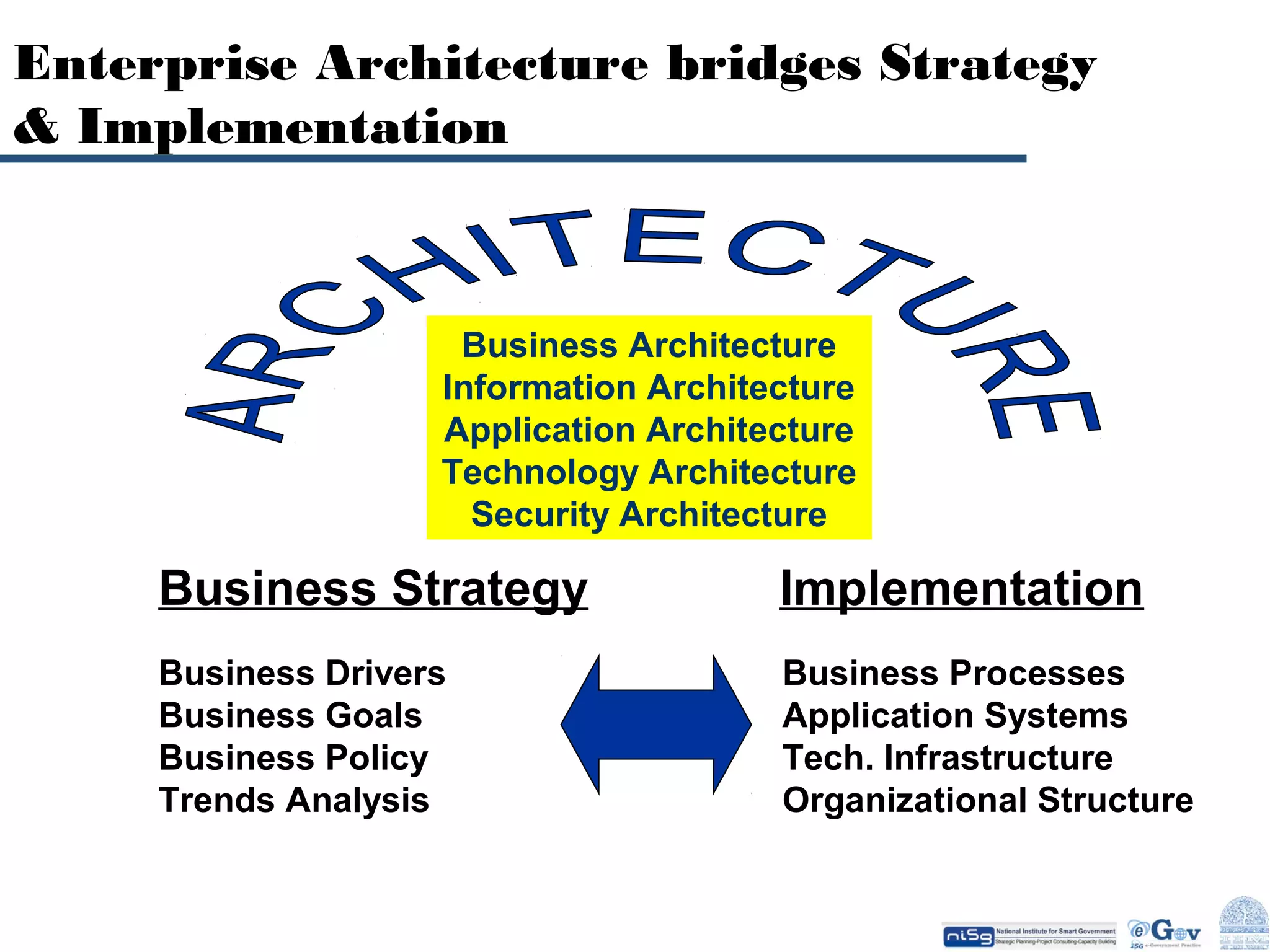

- 7. Enterprise Architecture bridgesStrategy & Implementation Business Architecture Information Architecture Application Architecture Technology Architecture Security Architecture Business Strategy Implementation Business Drivers Business Goals Business Policy Trends Analysis Business Processes Application Systems Tech. Infrastructure Organizational Structure

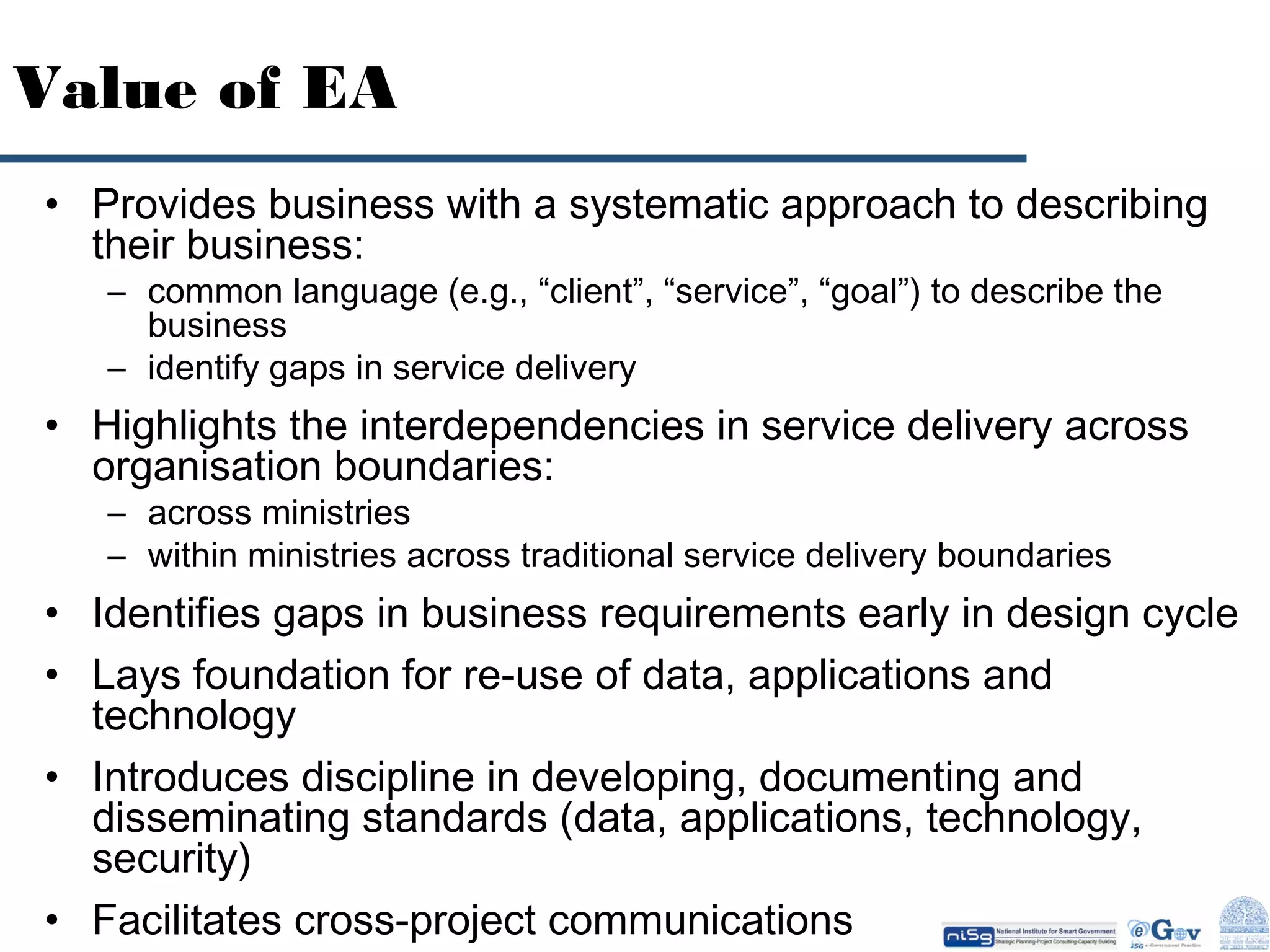

- 8. Value of EA •Provides business with a systematic approach to describing their business: – common language (e.g., “client”, “service”, “goal”) to describe the business – identify gaps in service delivery • Highlights the interdependencies in service delivery across organisation boundaries: – across ministries – within ministries across traditional service delivery boundaries • Identifies gaps in business requirements early in design cycle • Lays foundation for re-use of data, applications and technology • Introduces discipline in developing, documenting and disseminating standards (data, applications, technology, security) • Facilitates cross-project communications

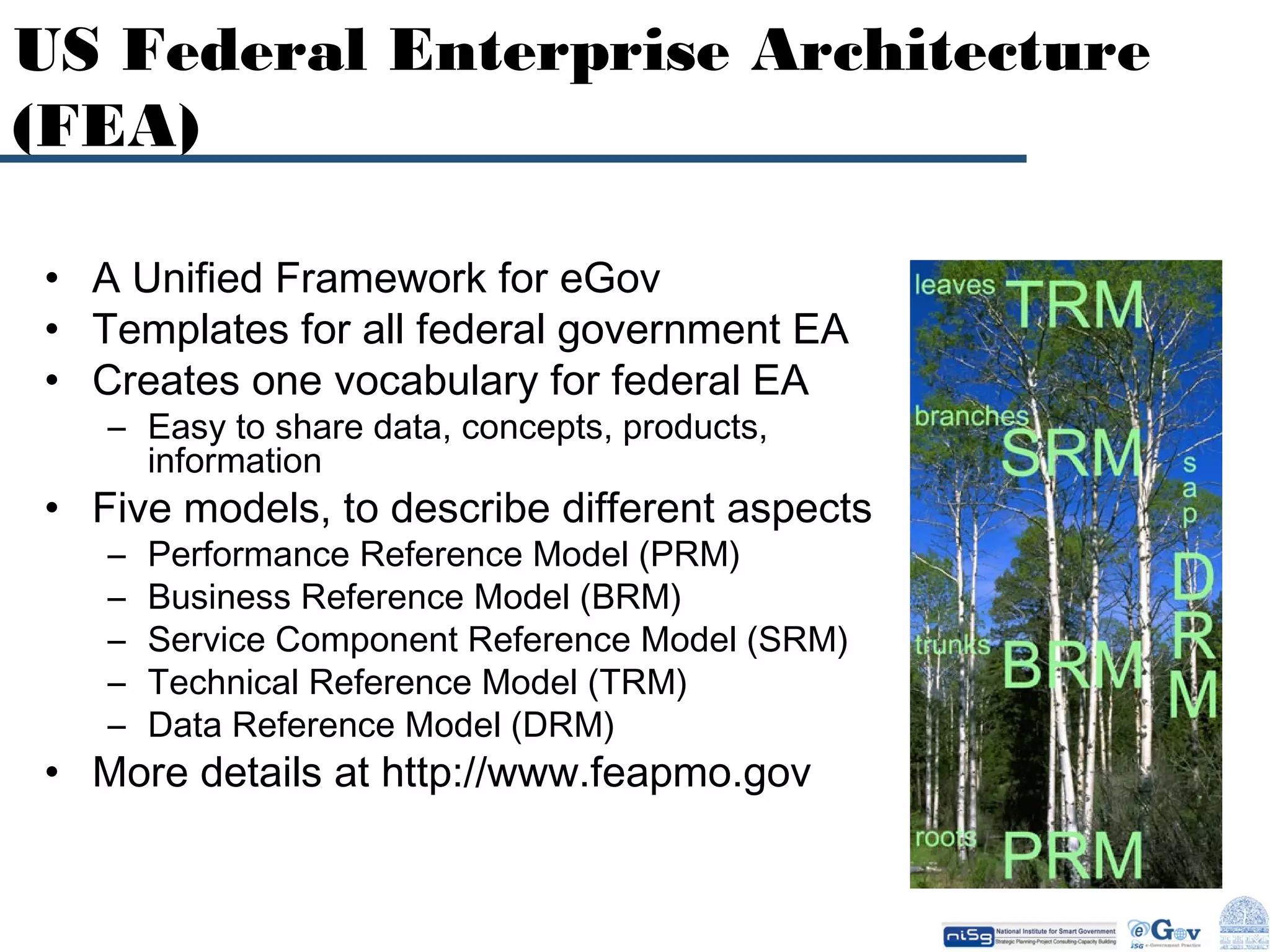

- 9. US Federal EnterpriseArchitecture (FEA) • A Unified Framework for eGov • Templates for all federal government EA • Creates one vocabulary for federal EA – Easy to share data, concepts, products, information • Five models, to describe different aspects – – – – – Performance Reference Model (PRM) Business Reference Model (BRM) Service Component Reference Model (SRM) Technical Reference Model (TRM) Data Reference Model (DRM) • More details at http://www.feapmo.gov
- 10.

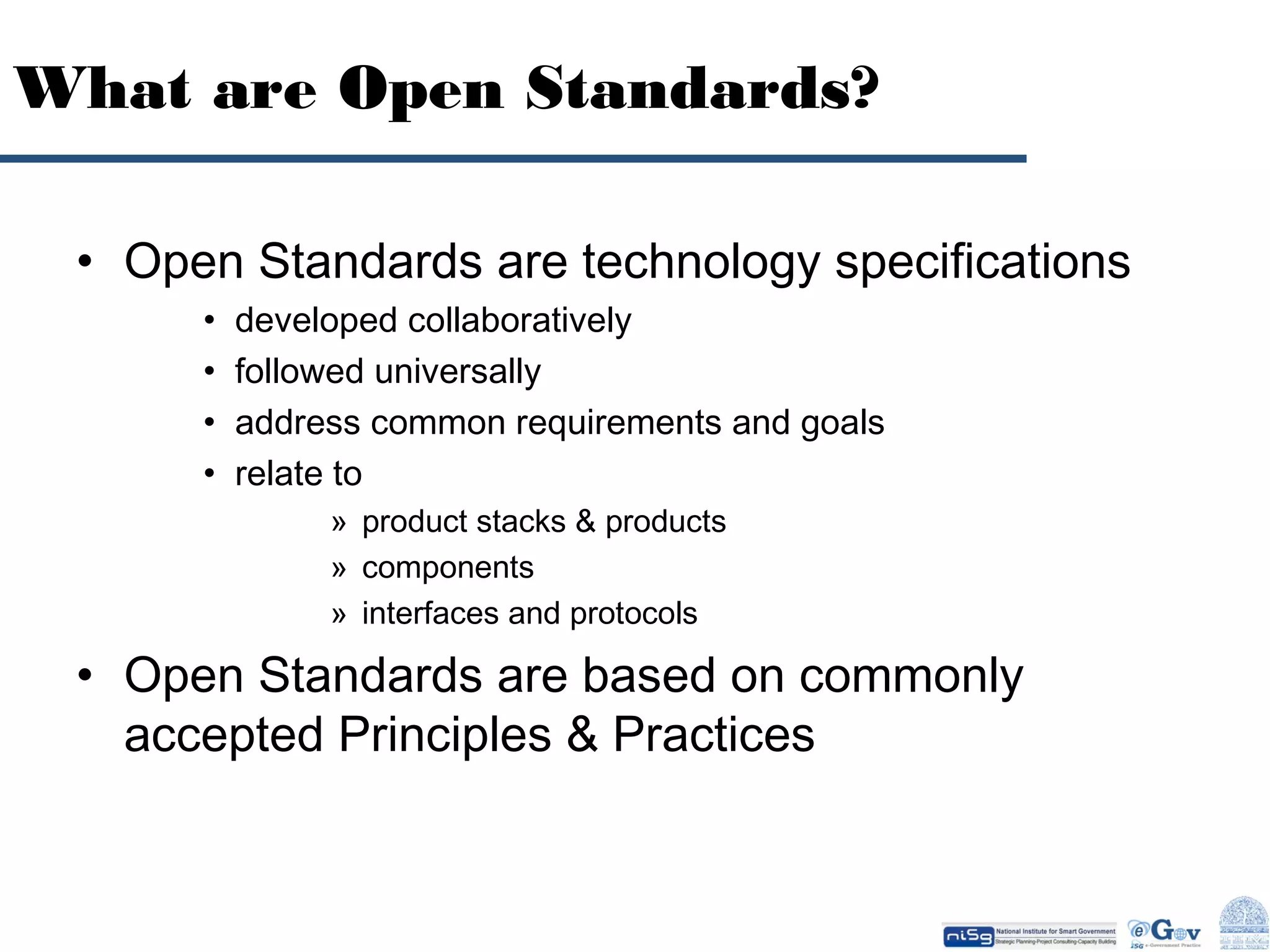

- 11. What are OpenStandards? • Open Standards are technology specifications • • • • developed collaboratively followed universally address common requirements and goals relate to » product stacks & products » components » interfaces and protocols • Open Standards are based on commonly accepted Principles & Practices

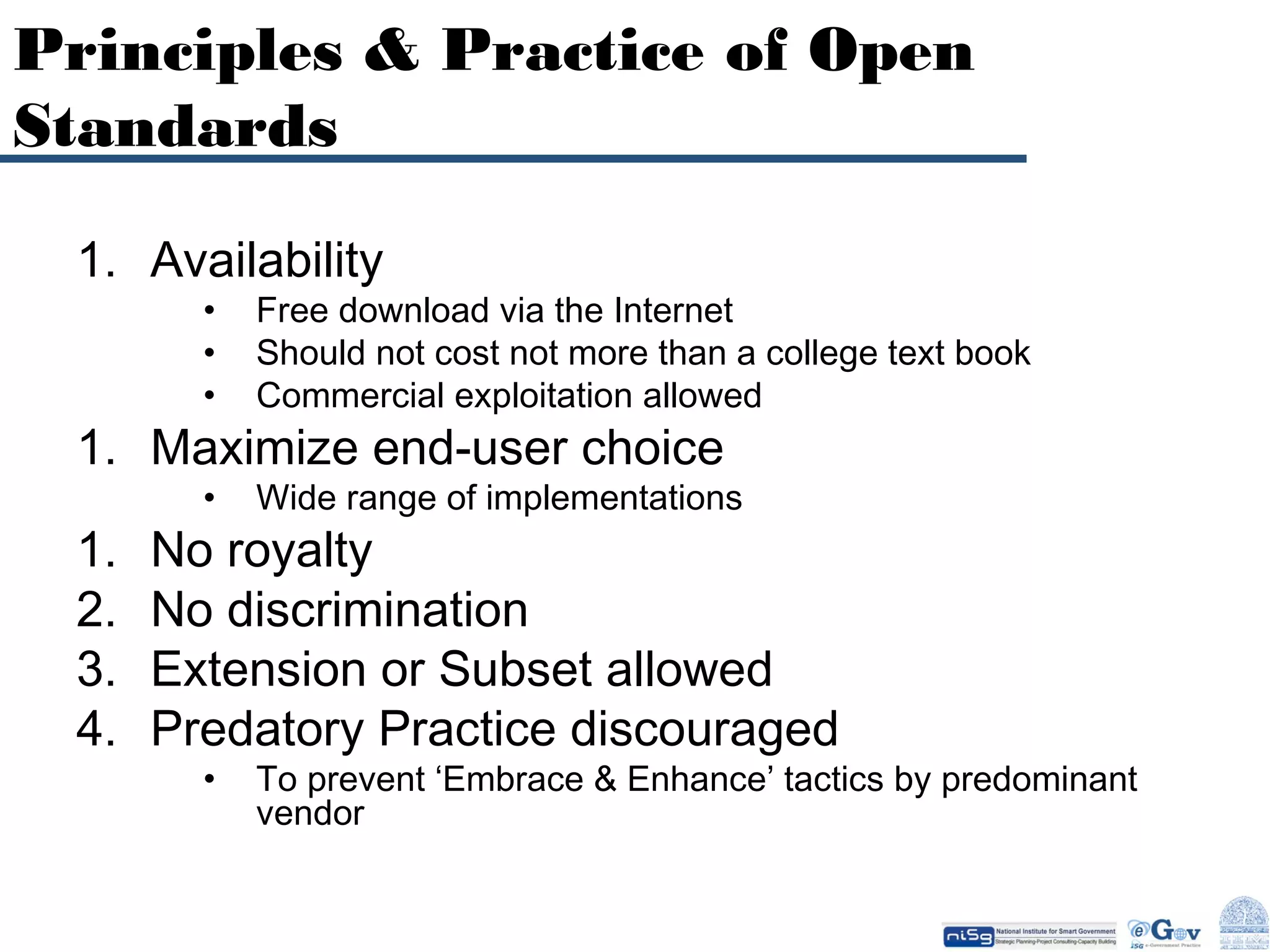

- 12. Principles & Practiceof Open Standards 1. Availability • • • Free download via the Internet Should not cost not more than a college text book Commercial exploitation allowed • Wide range of implementations • To prevent ‘Embrace & Enhance’ tactics by predominant vendor 1. Maximize end-user choice 1. 2. 3. 4. No royalty No discrimination Extension or Subset allowed Predatory Practice discouraged

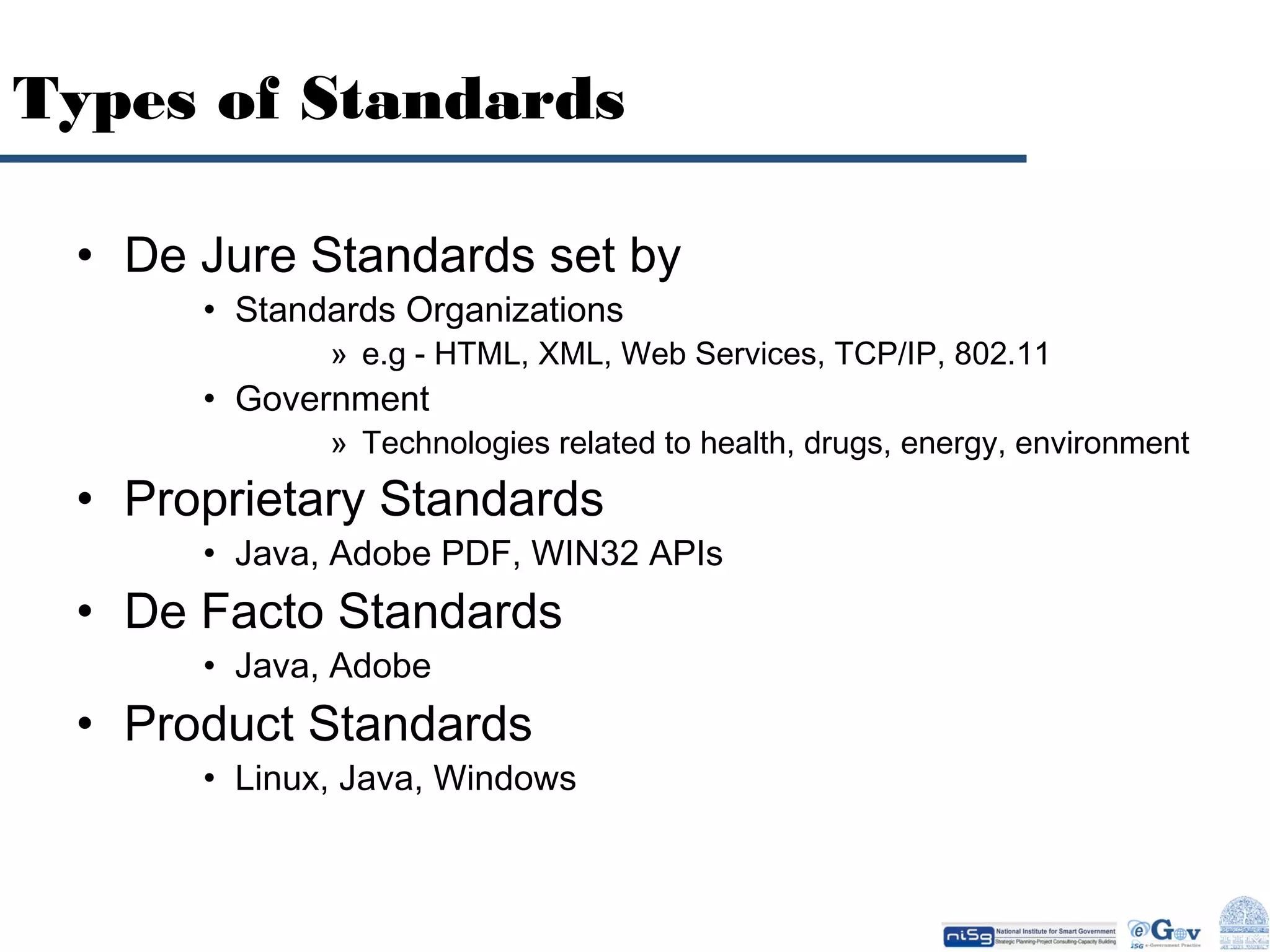

- 13. Types of Standards •De Jure Standards set by • Standards Organizations » e.g - HTML, XML, Web Services, TCP/IP, 802.11 • Government » Technologies related to health, drugs, energy, environment • Proprietary Standards • Java, Adobe PDF, WIN32 APIs • De Facto Standards • Java, Adobe • Product Standards • Linux, Java, Windows
- 14.

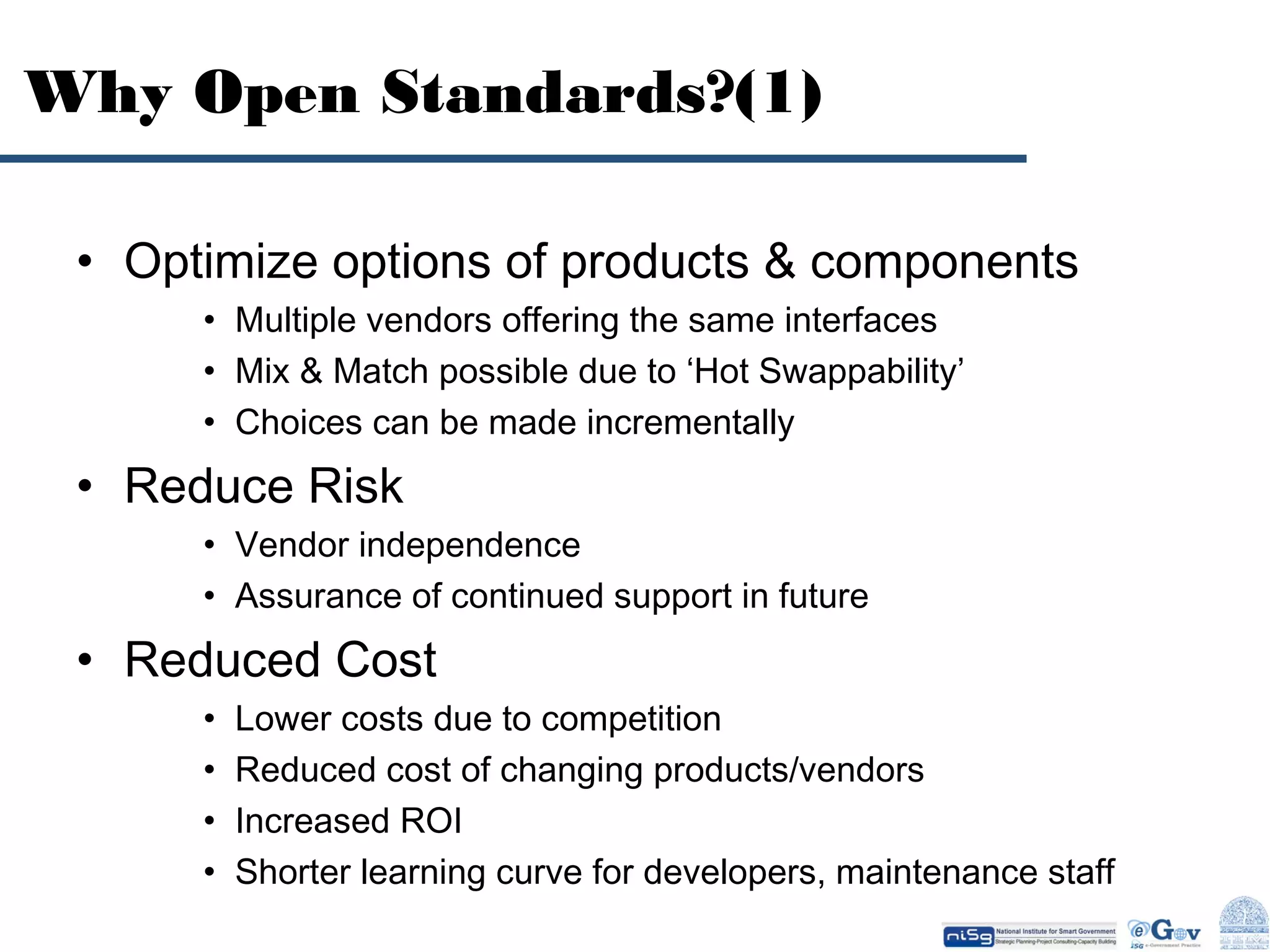

- 15. Why Open Standards?(1) •Optimize options of products & components • Multiple vendors offering the same interfaces • Mix & Match possible due to ‘Hot Swappability’ • Choices can be made incrementally • Reduce Risk • Vendor independence • Assurance of continued support in future • Reduced Cost • • • • Lower costs due to competition Reduced cost of changing products/vendors Increased ROI Shorter learning curve for developers, maintenance staff

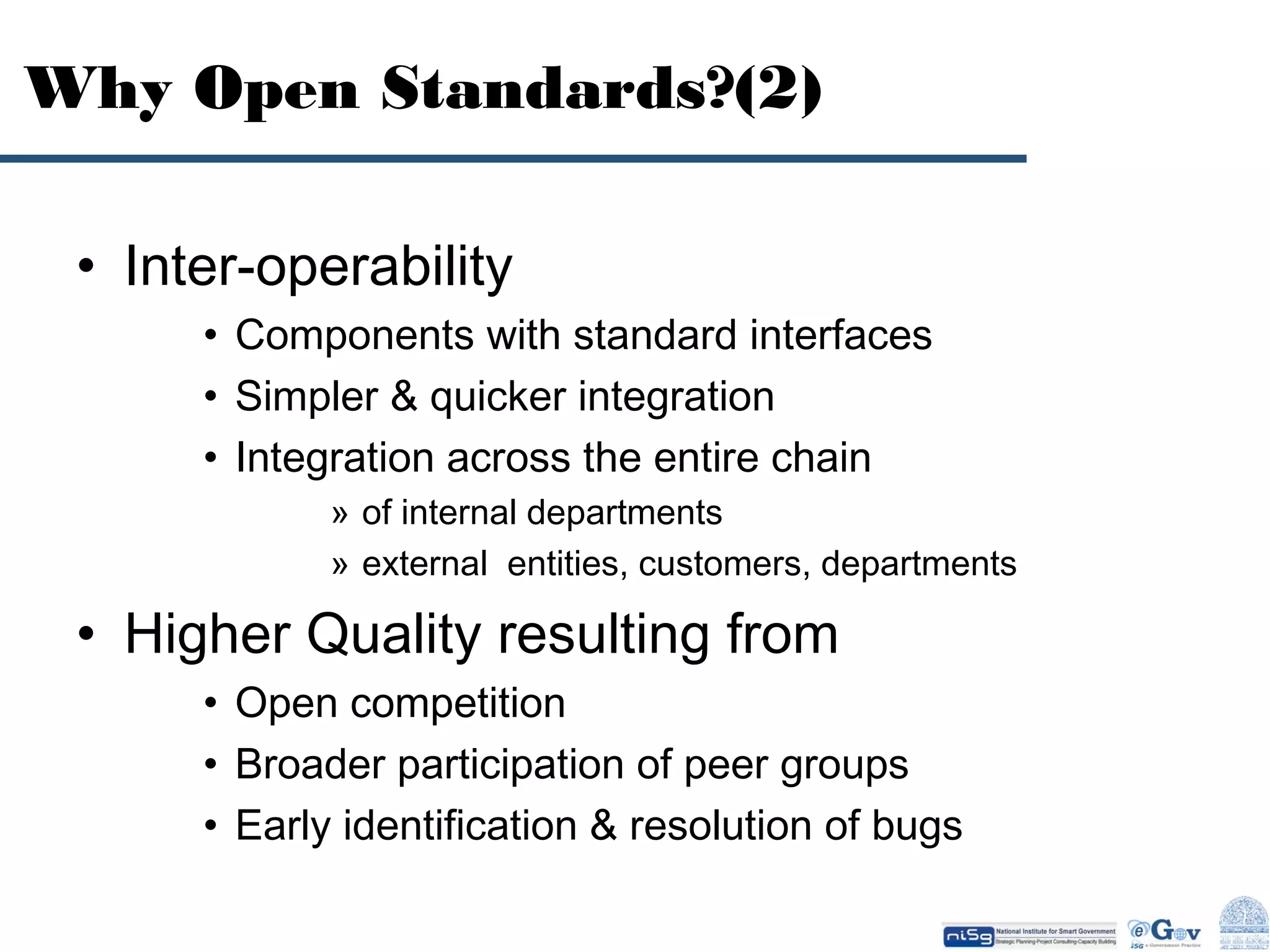

- 16. Why Open Standards?(2) •Inter-operability • Components with standard interfaces • Simpler & quicker integration • Integration across the entire chain » of internal departments » external entities, customers, departments • Higher Quality resulting from • Open competition • Broader participation of peer groups • Early identification & resolution of bugs

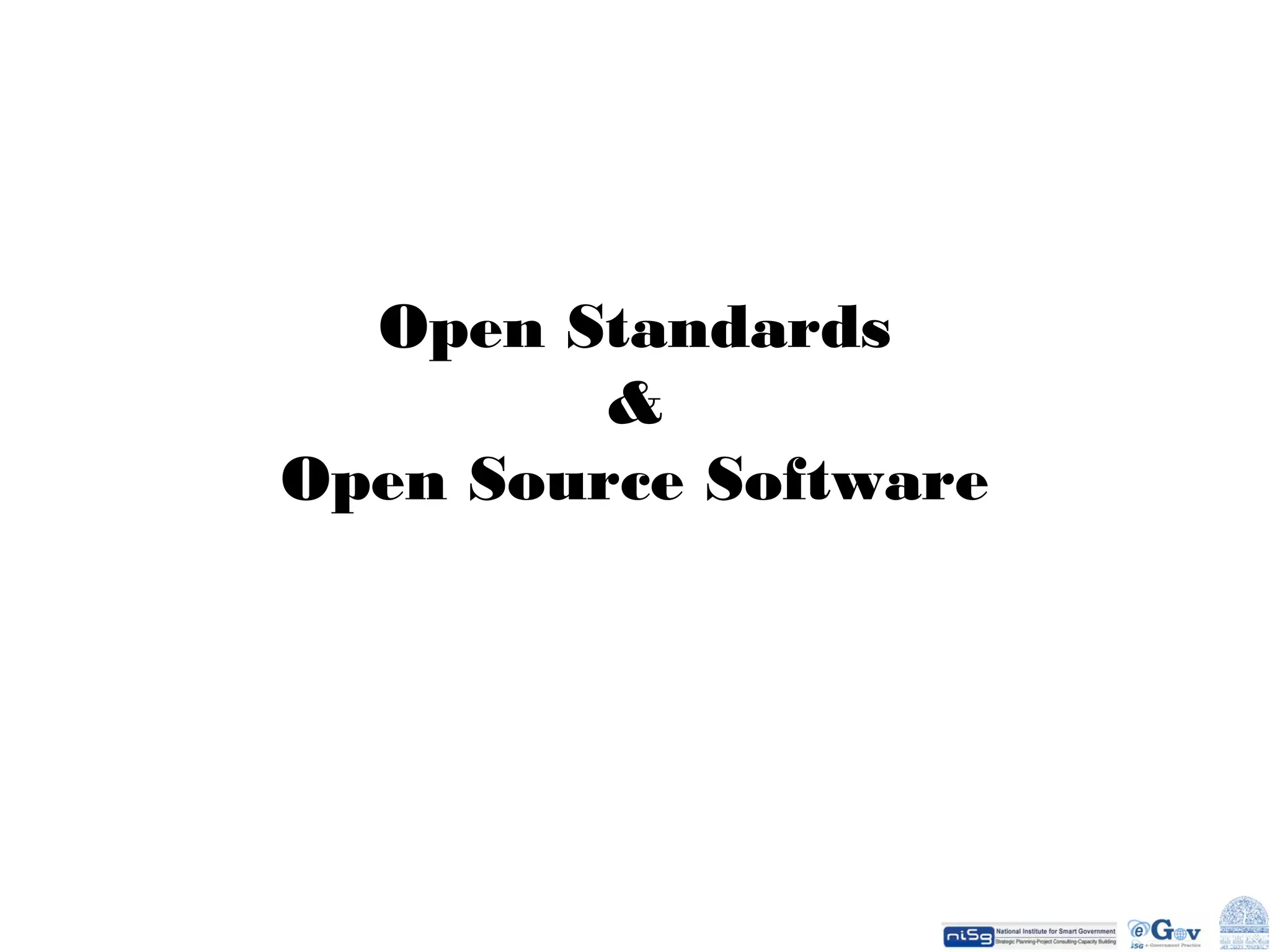

- 17. Open Standards & Open SourceSoftware

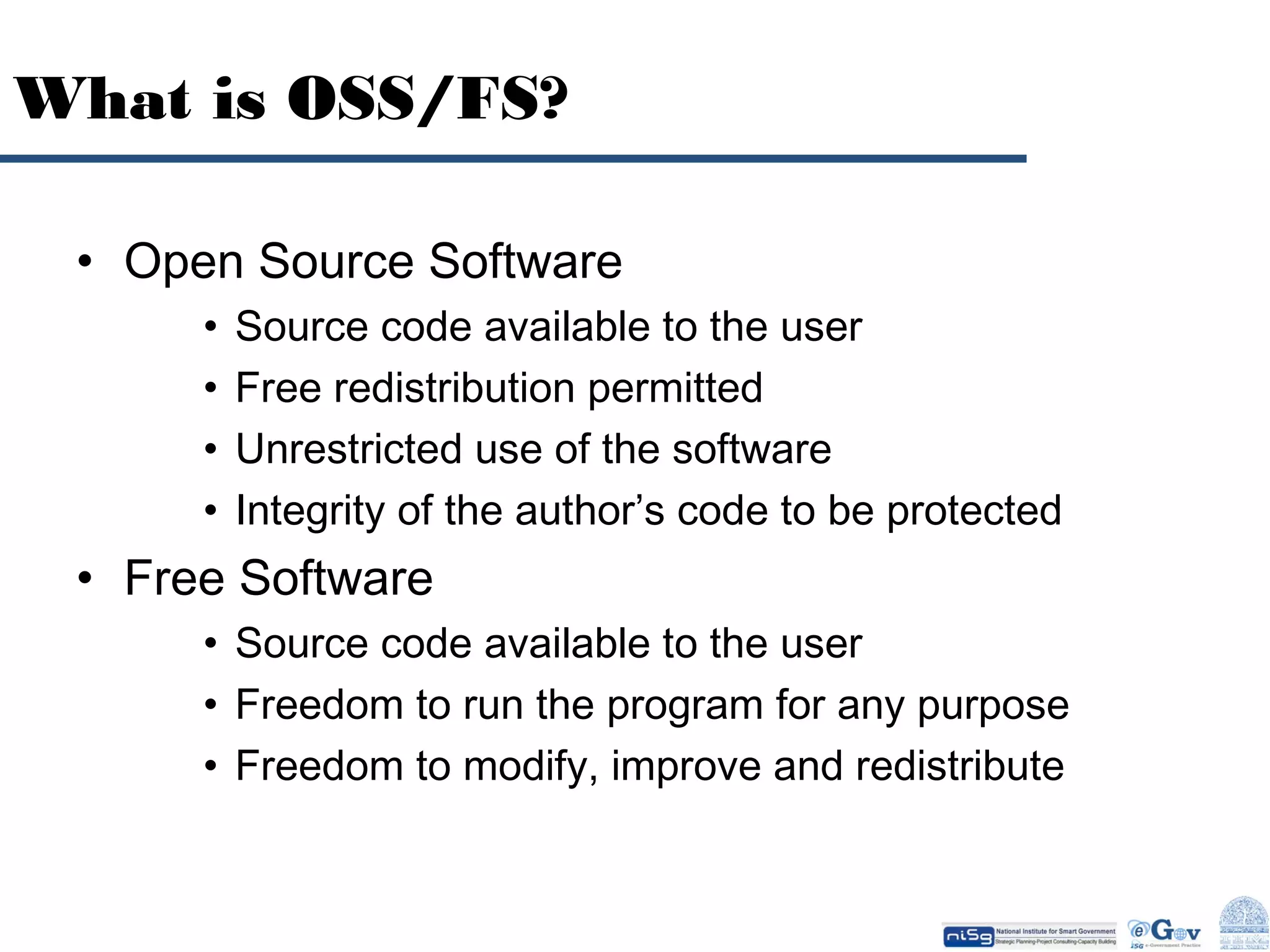

- 18. What is OSS/FS? •Open Source Software • • • • Source code available to the user Free redistribution permitted Unrestricted use of the software Integrity of the author’s code to be protected • Free Software • Source code available to the user • Freedom to run the program for any purpose • Freedom to modify, improve and redistribute

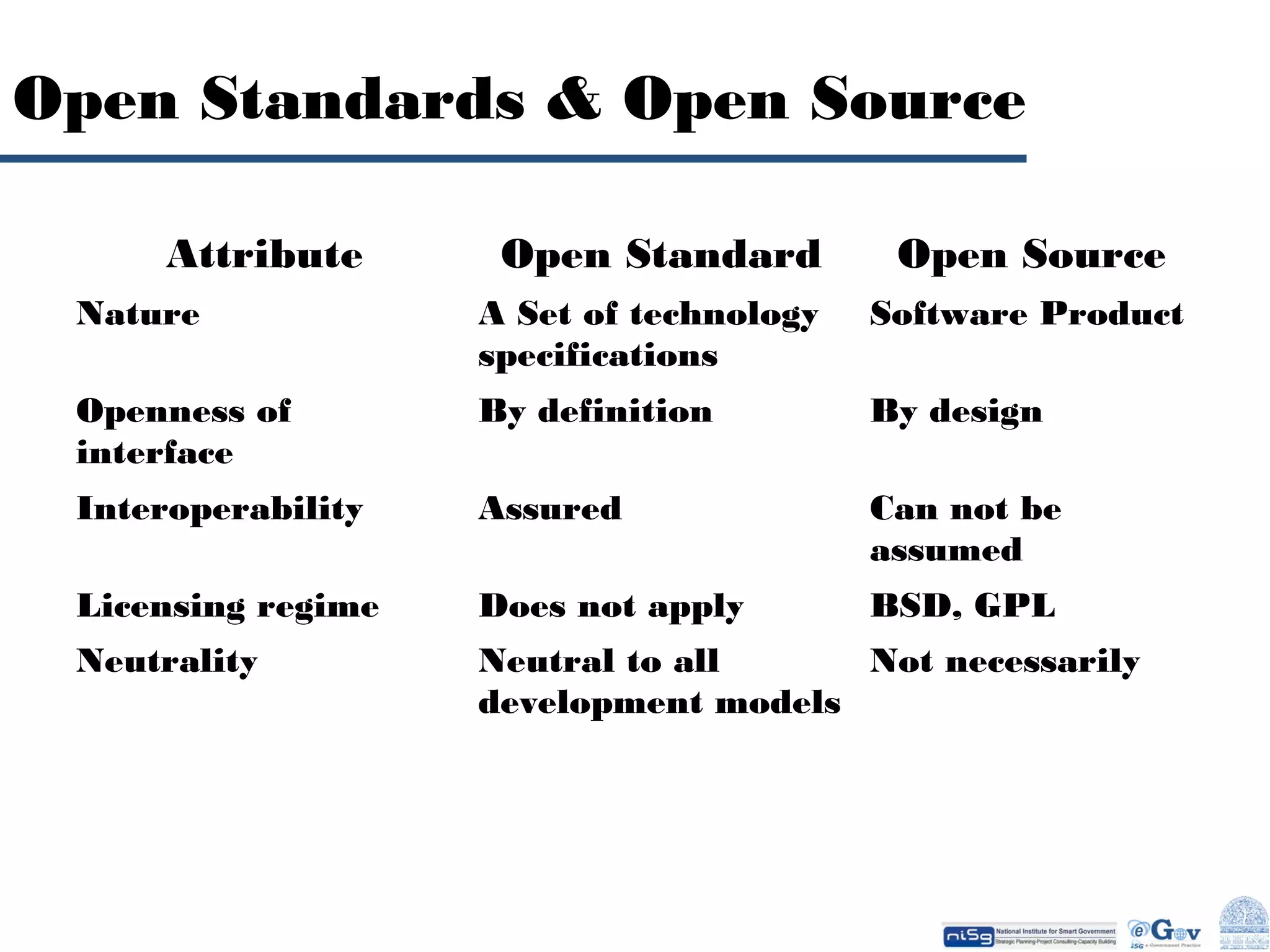

- 19. Open Standards &Open Source Attribute Open Standard Open Source Nature A Set of technology specifications Software Product Openness of interface By definition By design Interoperability Assured Can not be assumed Licensing regime Does not apply BSD, GPL Neutrality Neutral to all Not necessarily development models
- 20. Interoperability • Interoperability isthe capability of the components to function together to share in the fulfillment of a process • Components can be • Within a system OR • Spanning across disparate systems/ enterprises • Interoperability enables us to • automate processes that transcend technologies, platforms, languages and customizations.

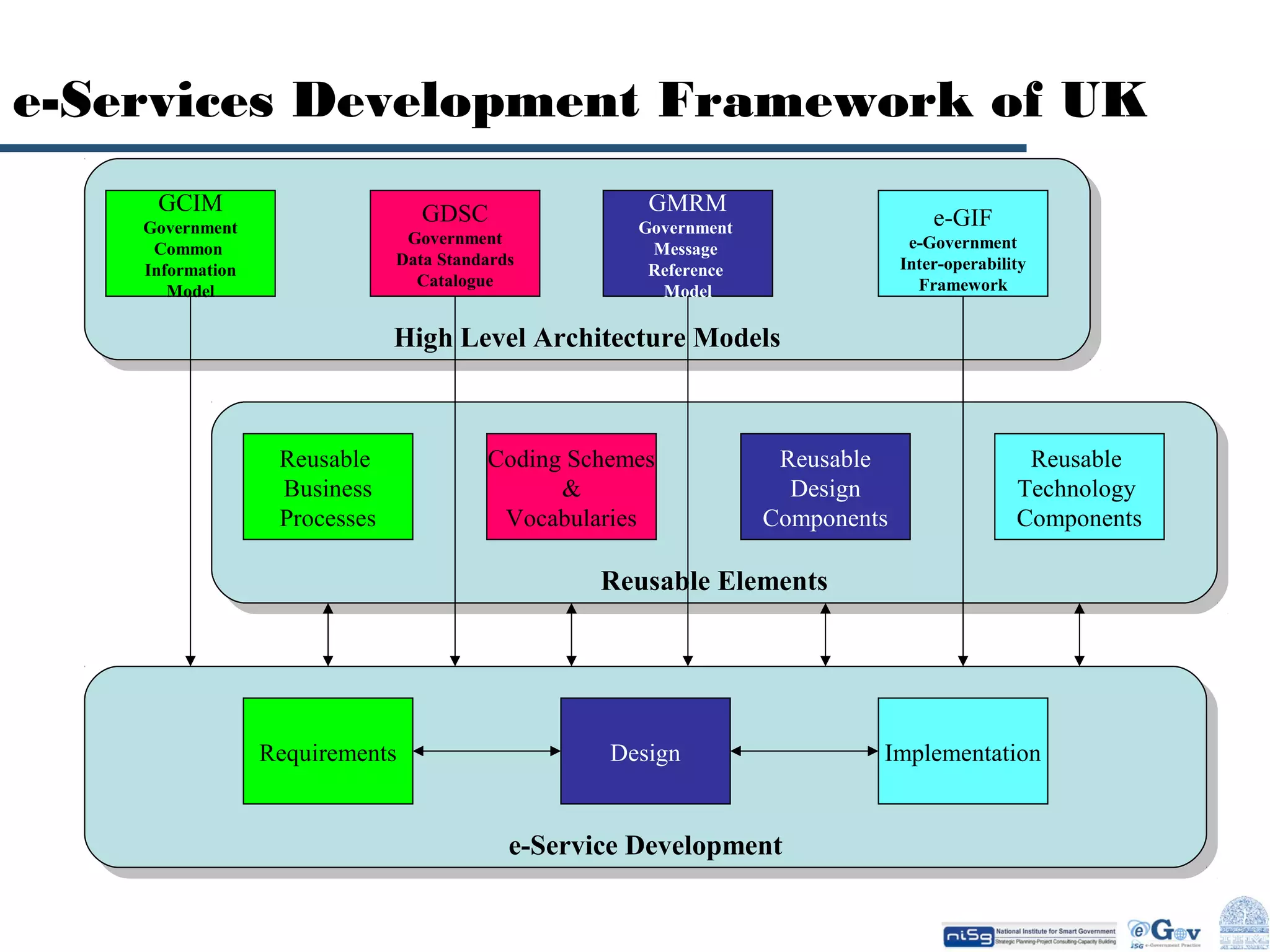

- 21. e-Services Development Frameworkof UK GCIM GMRM GDSC Government Common Information Model Government Data Standards Catalogue e-GIF Government Message Reference Model e-Government Inter-operability Framework High Level Architecture Models High Level Architecture Models Reusable Business Processes Coding Schemes & Vocabularies Reusable Design Components Reusable Technology Components Reusable Elements Reusable Elements Requirements Design e-Service Development e-Service Development Implementation
- 22.
- 23. Standards Life Cycle 1 IdentifyAreas For Standardization 3 Testing & Certification Standards Infrastructure 2 Develop Standards

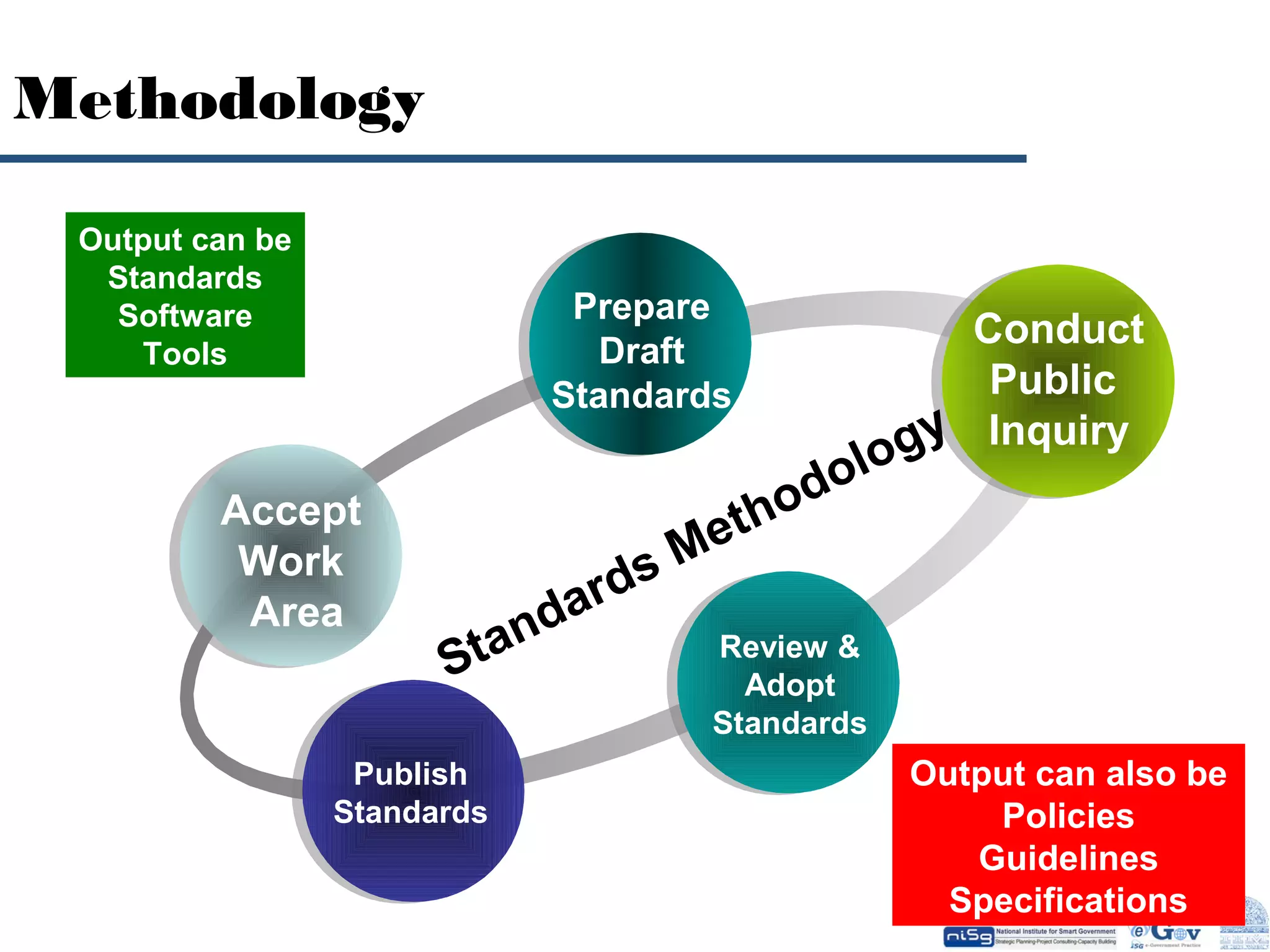

- 24. Methodology Output can be Standards Software Tools Prepare Draft Standards Accept Work Area olo od eth sM ard nd Review & Sta Adopt Conduct Public gy Inquiry Standards Publish Standards Output can also be Policies Guidelines Specifications

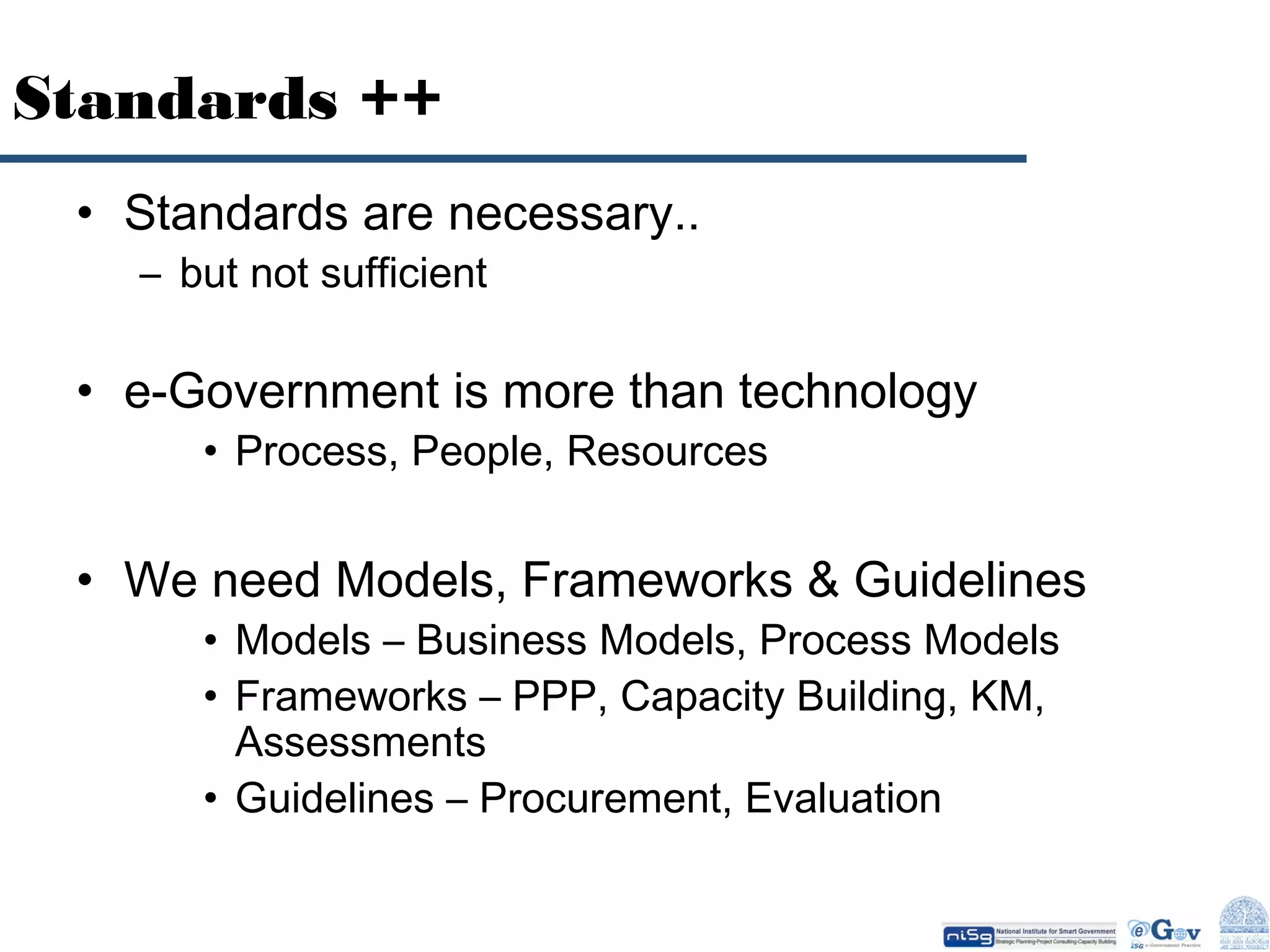

- 25. Standards ++ • Standardsare necessary.. – but not sufficient • e-Government is more than technology • Process, People, Resources • We need Models, Frameworks & Guidelines • Models – Business Models, Process Models • Frameworks – PPP, Capacity Building, KM, Assessments • Guidelines – Procurement, Evaluation

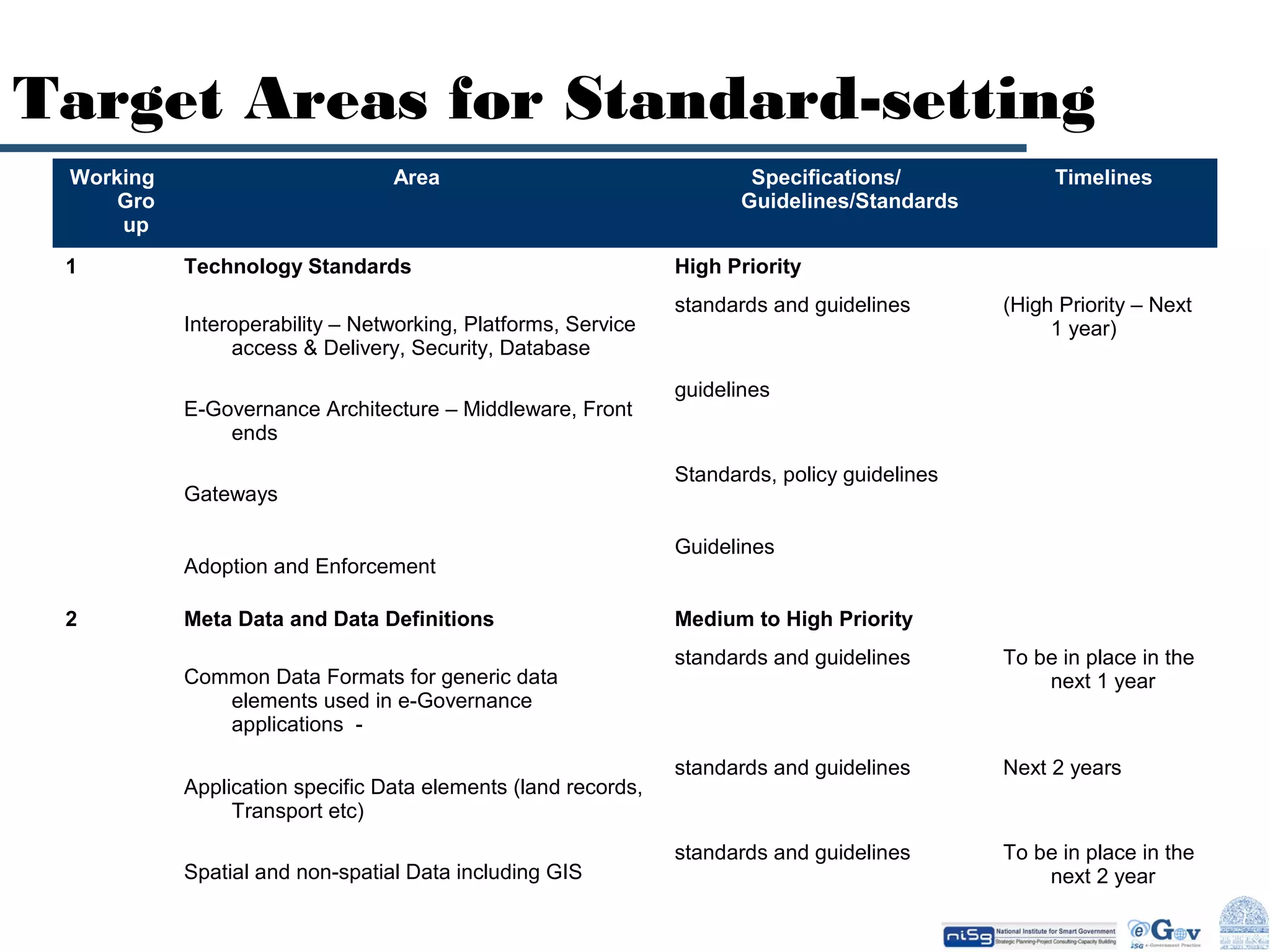

- 26. Target Areas forStandard-setting Working Gro up 1 Area Technology Standards Interoperability – Networking, Platforms, Service access & Delivery, Security, Database E-Governance Architecture – Middleware, Front ends Gateways Adoption and Enforcement 2 Meta Data and Data Definitions Common Data Formats for generic data elements used in e-Governance applications Application specific Data elements (land records, Transport etc) Spatial and non-spatial Data including GIS Specifications/ Guidelines/Standards Timelines High Priority standards and guidelines (High Priority – Next 1 year) guidelines Standards, policy guidelines Guidelines Medium to High Priority standards and guidelines To be in place in the next 1 year standards and guidelines Next 2 years standards and guidelines To be in place in the next 2 year

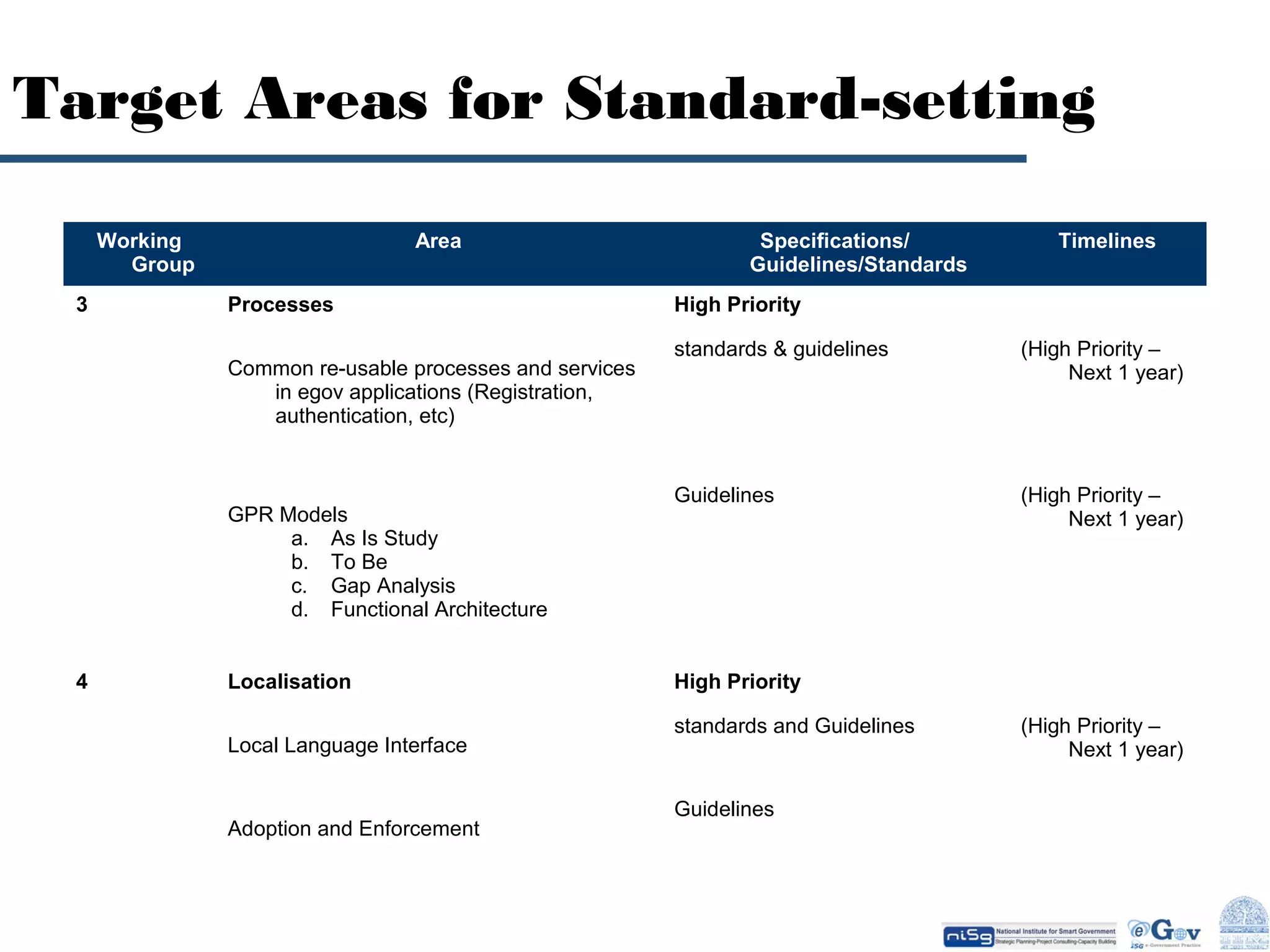

- 27. Target Areas forStandard-setting Working Group 3 Area Processes Common re-usable processes and services in egov applications (Registration, authentication, etc) GPR Models a. As Is Study b. To Be c. Gap Analysis d. Functional Architecture 4 Localisation Local Language Interface Adoption and Enforcement Specifications/ Guidelines/Standards Timelines High Priority standards & guidelines (High Priority – Next 1 year) Guidelines (High Priority – Next 1 year) High Priority standards and Guidelines Guidelines (High Priority – Next 1 year)

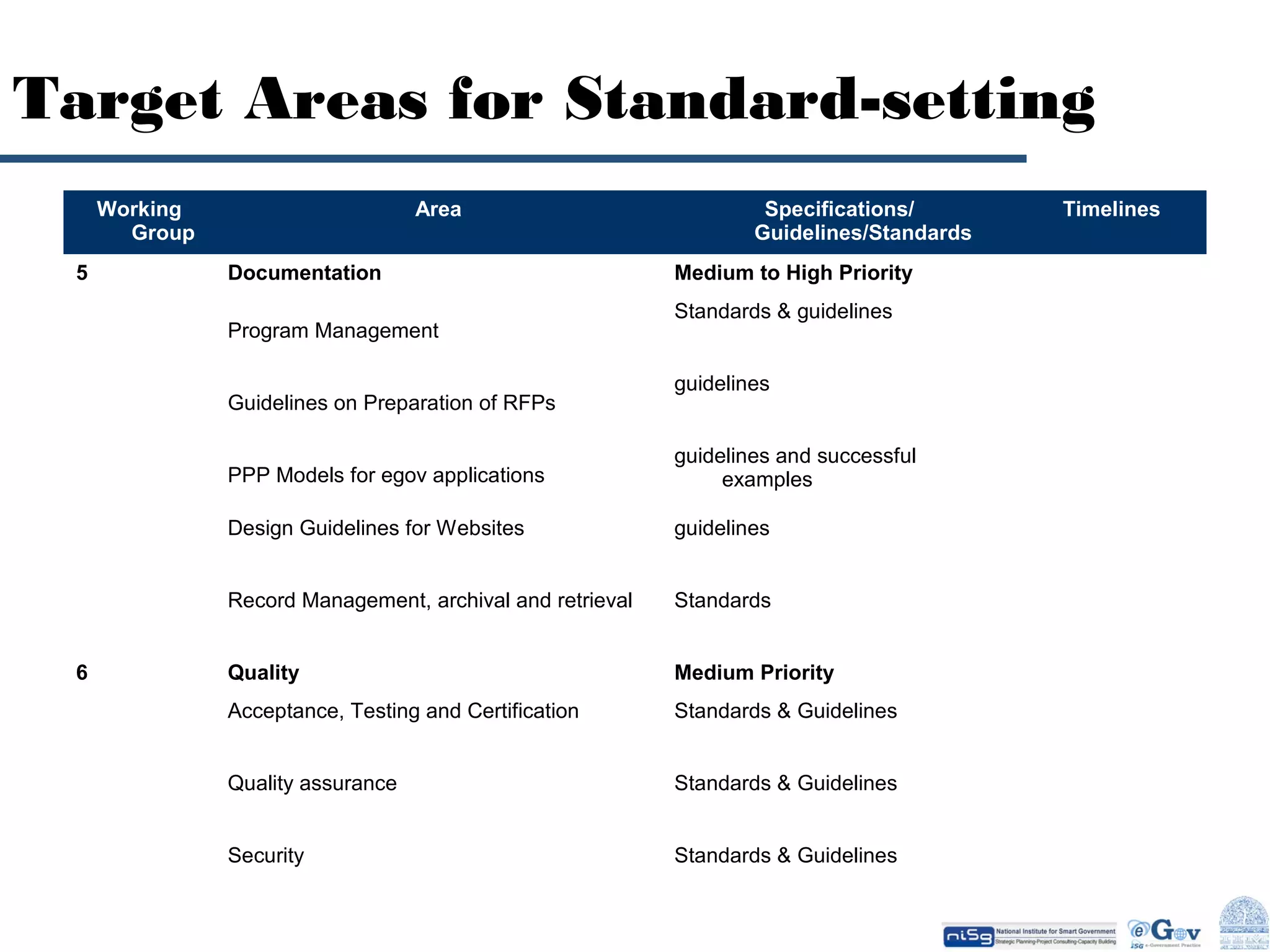

- 28. Target Areas forStandard-setting Working Group 5 Area Documentation Program Management Guidelines on Preparation of RFPs Specifications/ Guidelines/Standards Medium to High Priority Standards & guidelines guidelines PPP Models for egov applications Design Guidelines for Websites guidelines Record Management, archival and retrieval 6 guidelines and successful examples Standards Quality Medium Priority Acceptance, Testing and Certification Standards & Guidelines Quality assurance Standards & Guidelines Security Standards & Guidelines Timelines

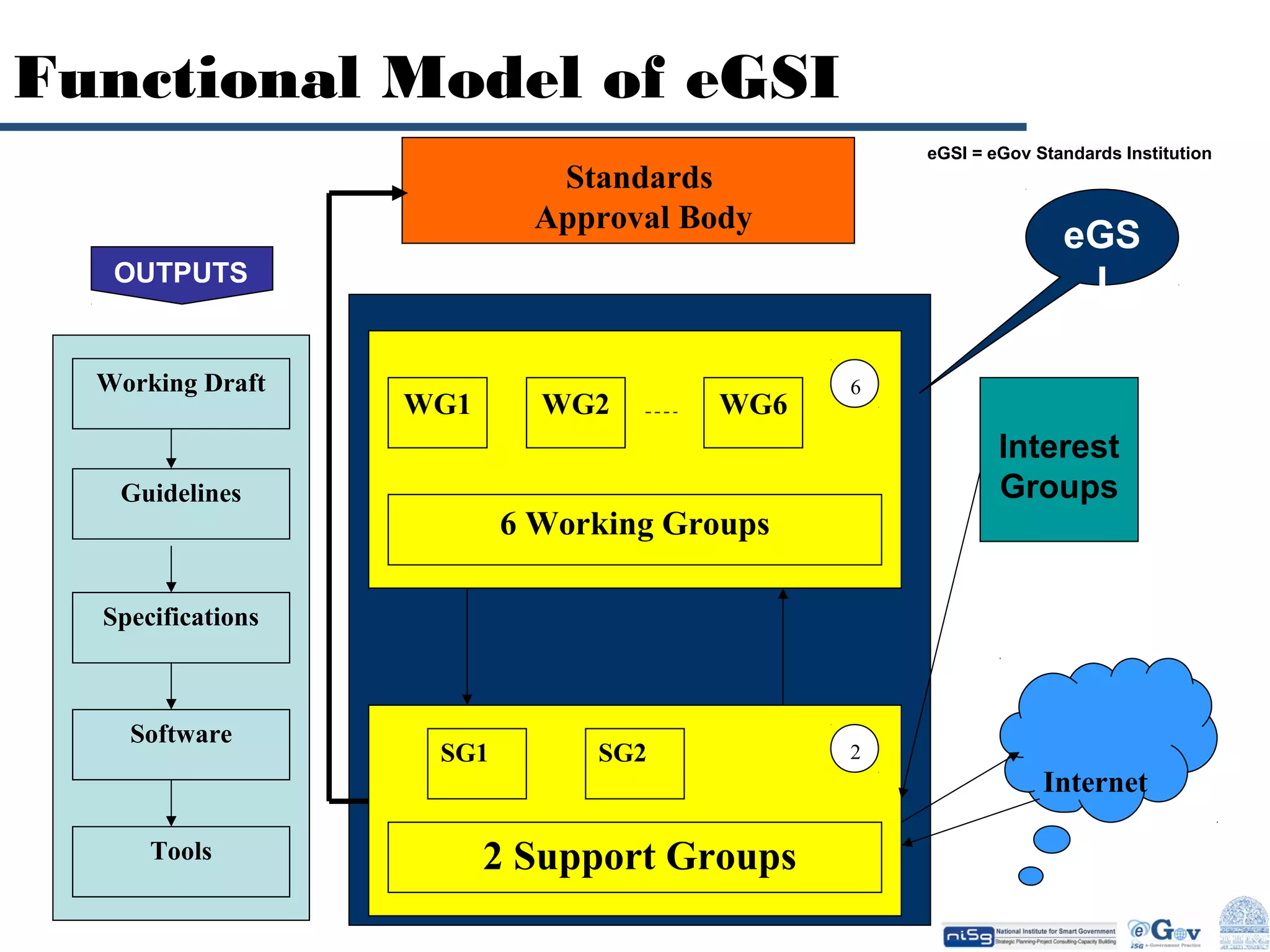

- 29. Functional Model ofeGSI eGSI = eGov Standards Institution Standards Approval Body eGS I OUTPUTS Working Draft WG1 WG2 Guidelines WG6 6 Interest Groups 6 Working Groups Specifications Software Tools SG1 SG2 2 Support Groups 2 Internet

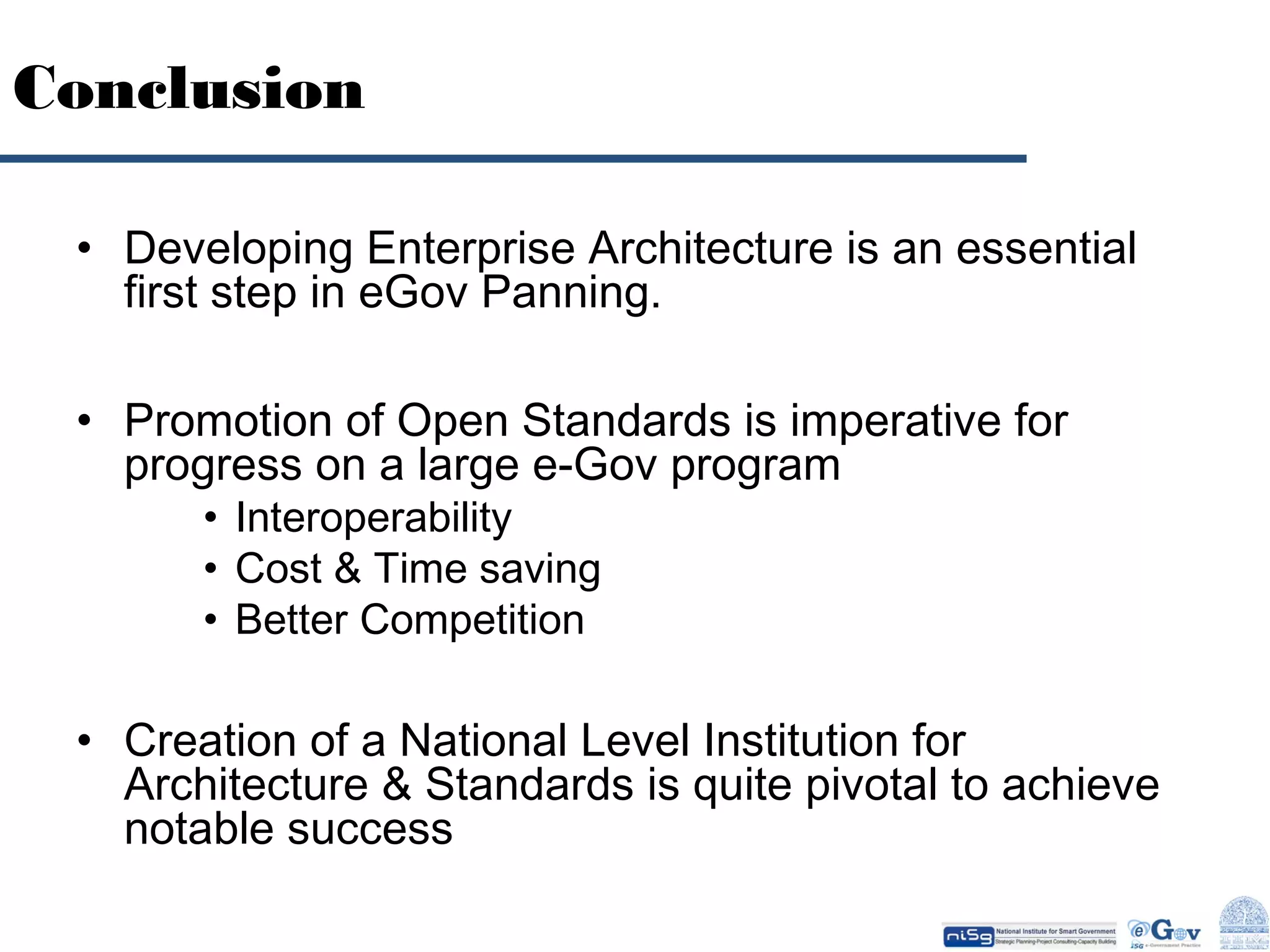

- 30. Conclusion • Developing EnterpriseArchitecture is an essential first step in eGov Panning. • Promotion of Open Standards is imperative for progress on a large e-Gov program • Interoperability • Cost & Time saving • Better Competition • Creation of a National Level Institution for Architecture & Standards is quite pivotal to achieve notable success
