The document discusses GNAT Project technology, which allows defining multi-language software projects using GPRbuild project files. A GPR project file provides a declarative description of project properties like source directories, compilation options, and targets. GPRbuild understands different languages and compilers and can build multi-language projects. It can also perform distributed builds across multiple machines.

1. Multi-language Programming
with GPRbuild
Vasiliy Fofanov
October 1, 2015

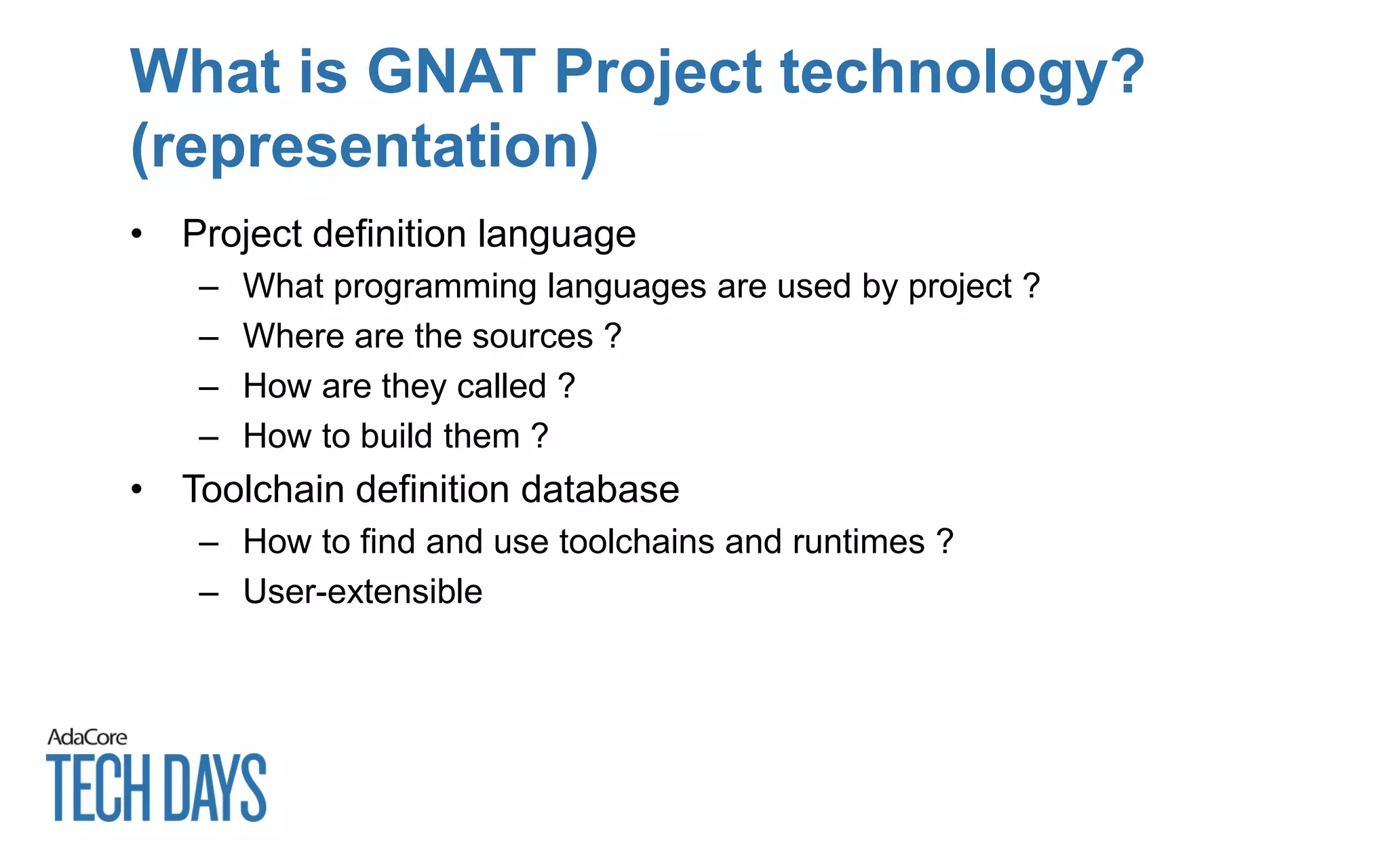

2. What is GNAT Project technology?
(representation)
• Project definition language
– What programming languages are used by project ?
– Where are the sources ?
– How are they called ?
– How to build them ?
• Toolchain definition database
– How to find and use toolchains and runtimes ?
– User-extensible

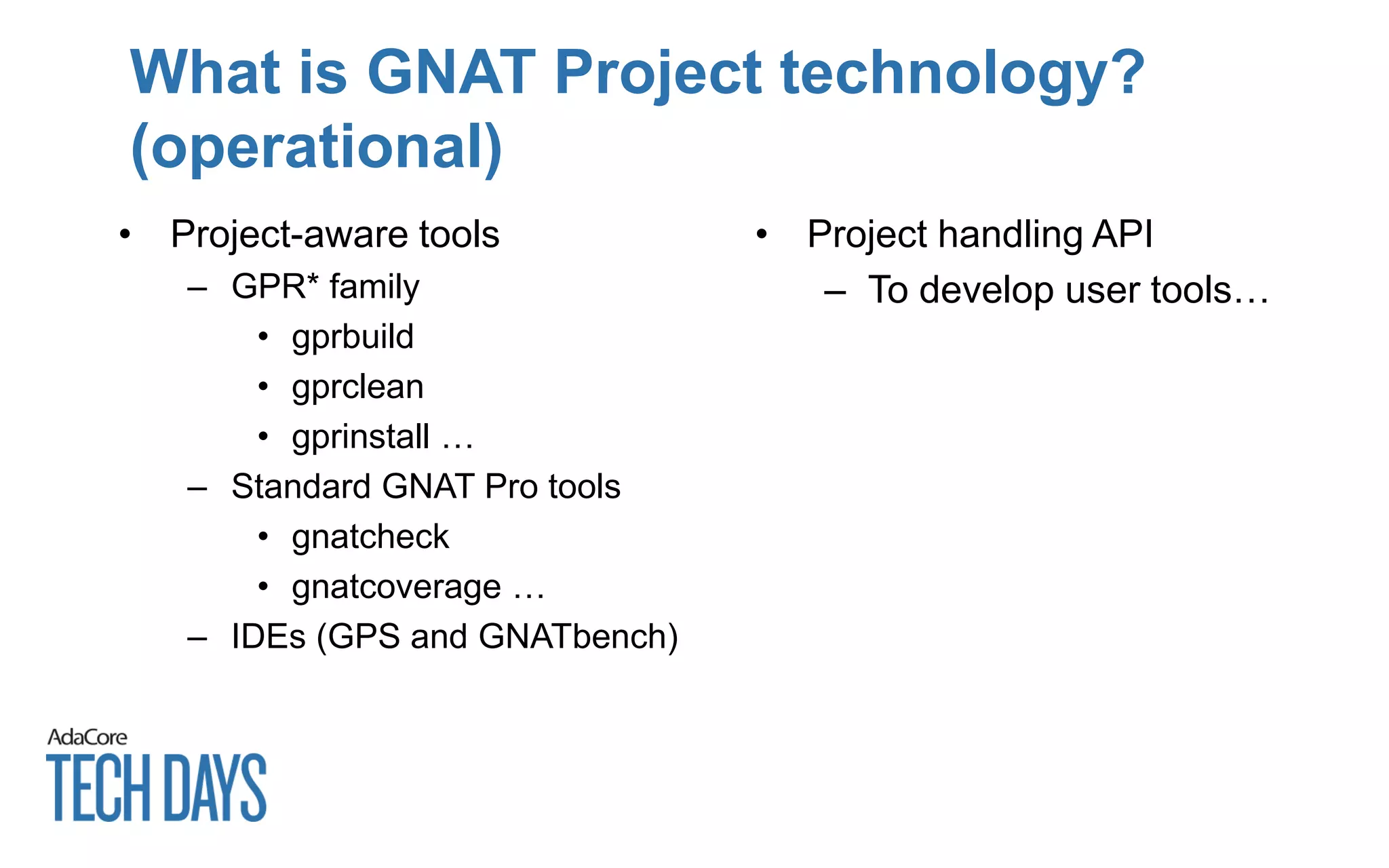

3. What is GNAT Project technology?
(operational)
• Project-aware tools
– GPR* family
• gprbuild
• gprclean
• gprinstall …
– Standard GNAT Pro tools
• gnatcheck
• gnatcoverage …
– IDEs (GPS and GNATbench)
• Project handling API
– To develop user tools…

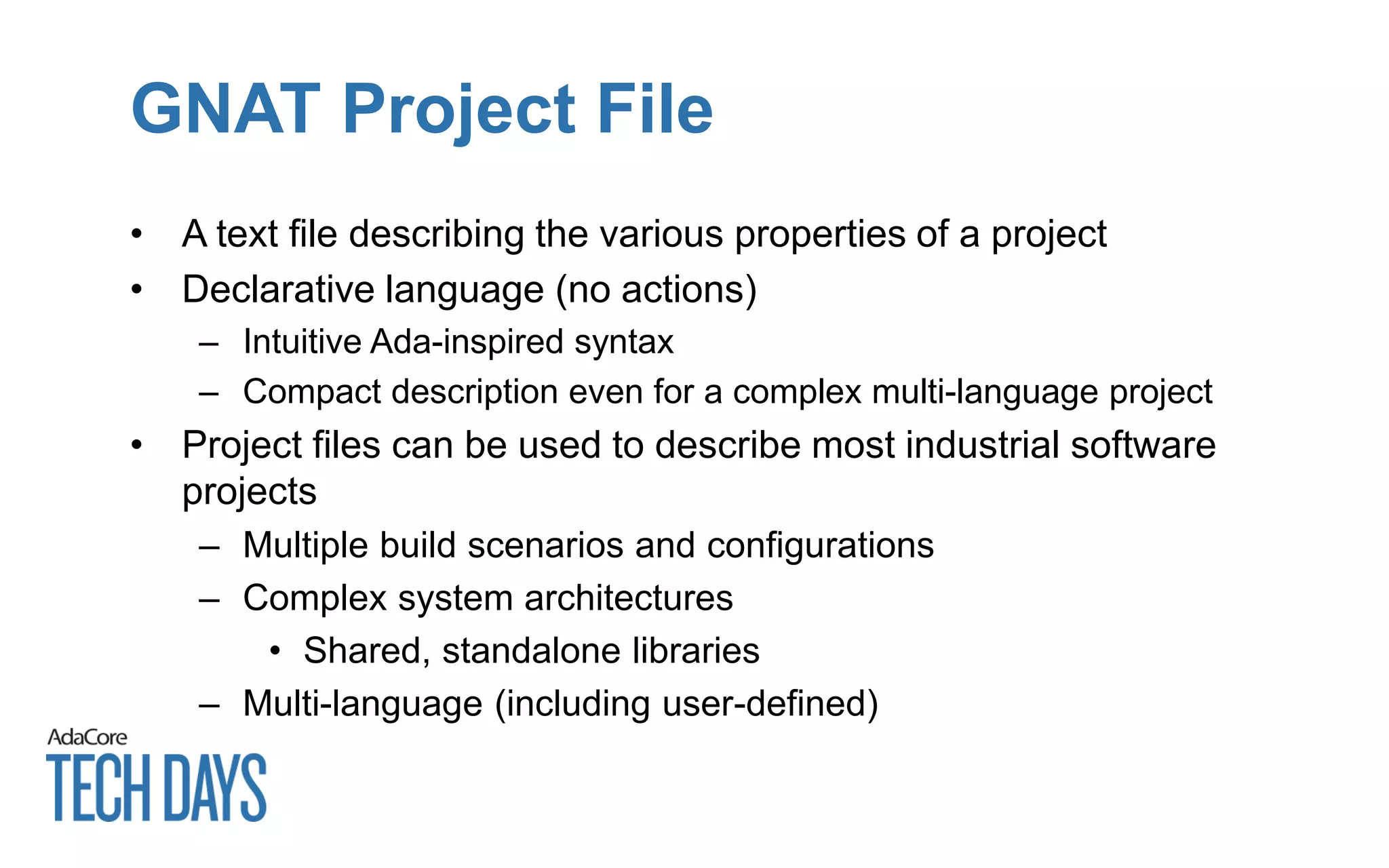

4. GNAT Project File
• A text file describing the various properties of a project
• Declarative language (no actions)
– Intuitive Ada-inspired syntax
– Compact description even for a complex multi-language project
• Project files can be used to describe most industrial software
projects
– Multiple build scenarios and configurations
– Complex system architectures
• Shared, standalone libraries
– Multi-language (including user-defined)

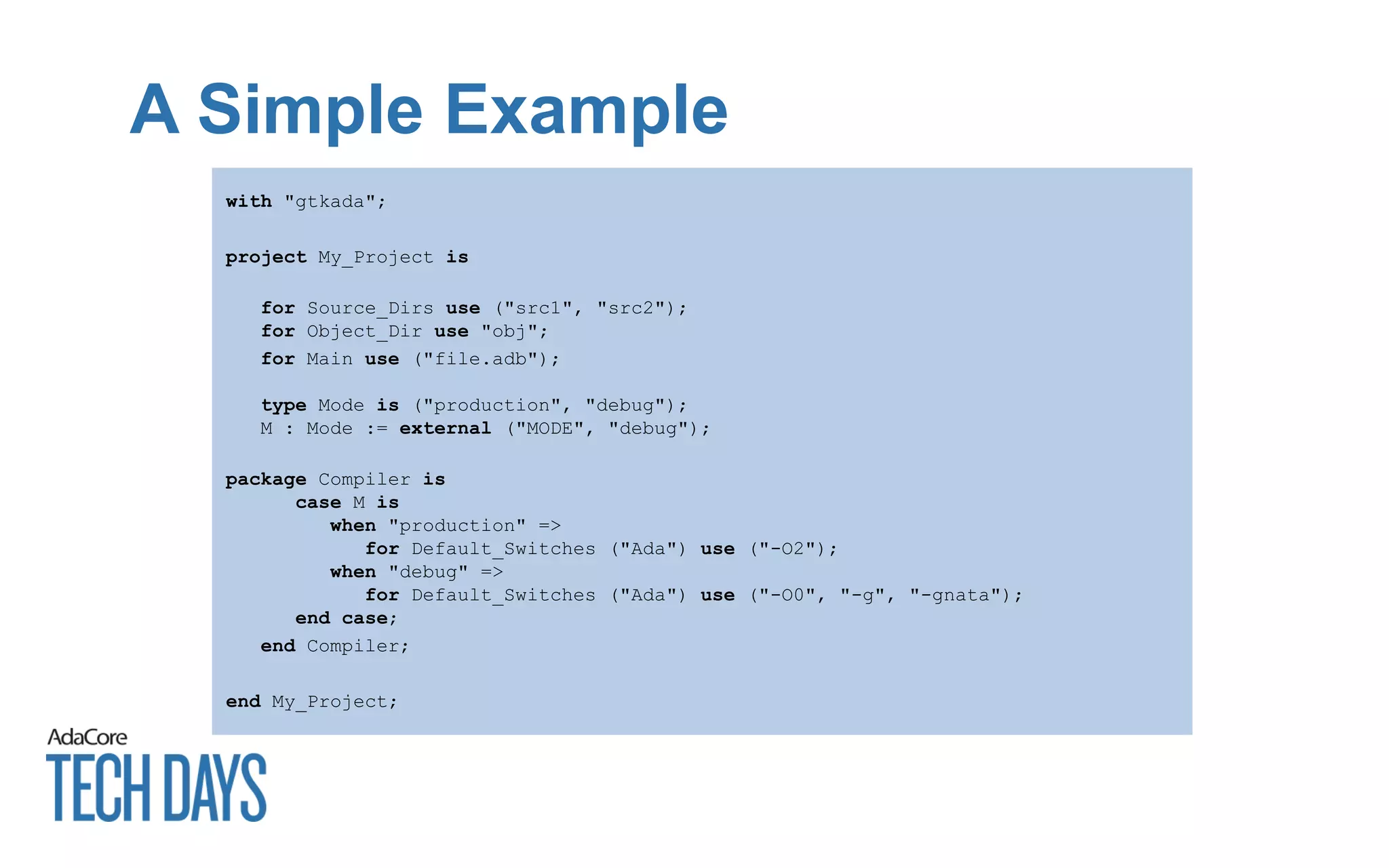

5. A Simple Example
with "gtkada";
project My_Project is
for Source_Dirs use ("src1", "src2");
for Object_Dir use "obj";
for Main use ("file.adb");
type Mode is ("production", "debug");
M : Mode := external ("MODE", "debug");
package Compiler is
case M is
when "production" =>
for Default_Switches ("Ada") use ("-O2");
when "debug" =>
for Default_Switches ("Ada") use ("-O0", "-g", "-gnata");
end case;
end Compiler;
end My_Project;

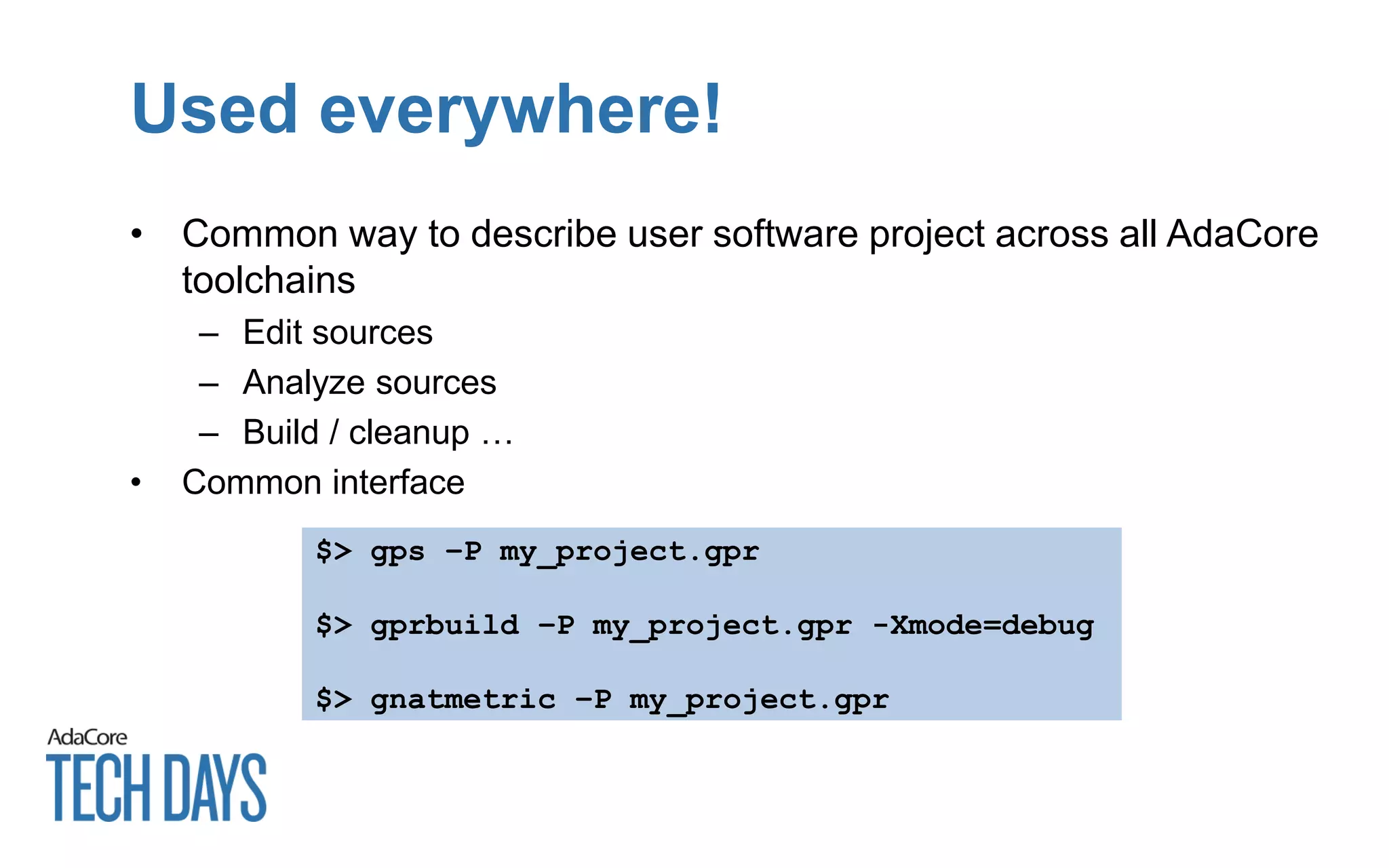

6. Used everywhere!
• Common way to describe user software project across all AdaCore
toolchains
– Edit sources
– Analyze sources
– Build / cleanup …
• Common interface
$> gps –P my_project.gpr
$> gprbuild –P my_project.gpr -Xmode=debug
$> gnatmetric –P my_project.gpr

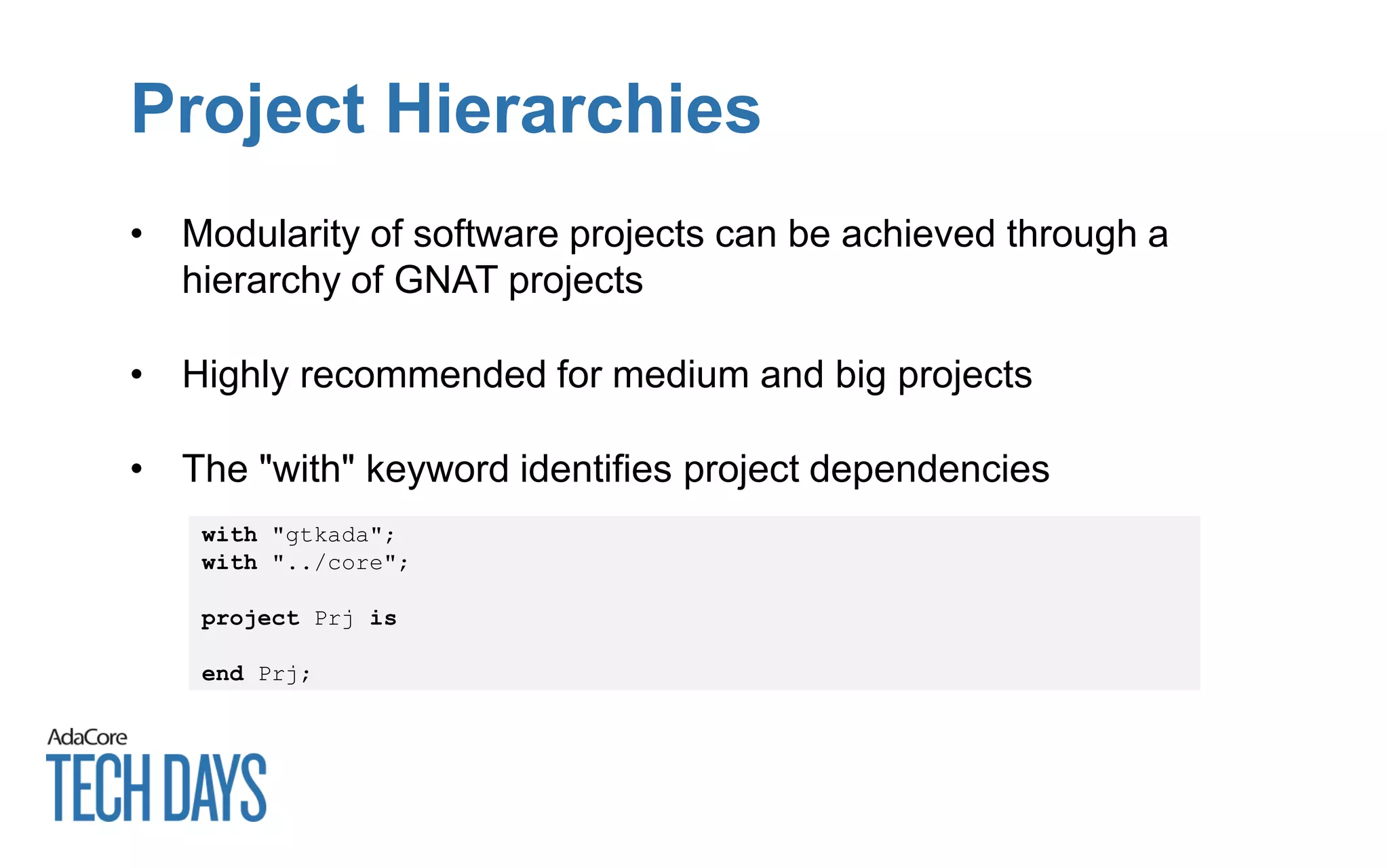

7. Project Hierarchies
• Modularity of software projects can be achieved through a
hierarchy of GNAT projects
• Highly recommended for medium and big projects
• The "with" keyword identifies project dependencies
with "gtkada";
with "../core";
project Prj is
end Prj;

8. Multi-Language Projects
• GNAT Projects are multi-language multi-compiler aware
– Supports a number of languages by default, including C and C++
• A project file is assumed to be Ada by default, but can declare your
own set via Languages attribute
• All languages are first class citizens
• Extensible
– Define your own languages/toolchains if needed
(binding generators, scripts, resource compilers, etc…)
for Languages use ("Ada", "C"); -- My sources are Ada and C

9. Multi-language Project Example
with "trig";
project My_App is
for Languages use ("C");
for Main use ("my_app.c");
end My_App;
#include <stdio.h>
float my_sin (float angle);
main ()
{ printf ("%fn", my_sin (3.1415/2.0)); }
package Trig is
function My_Sin (Angle : Float)
return Float;
pragma Export (C, My_Sin, "my_sin");
end Trig;
with Ada.Numerics.Generic_Elementary_Functions;
package body Trig is
package GEF is new
Ada.Numerics.Generic_Elementary_Functions (Float);
function My_Sin (Angle : Float) return Float is
begin
return GEF.Sin (Angle);
end My_Sin;
end Trig;
library project Trig is
for Library_Dir use "lib";
for Library_Kind use "dynamic";
for Library_Interface use ("trig");
for Library_Name use "trig”;
end Trig;
for Library_Standalone use "encapsulated";
$> gprbuild my_app.gpr
...
$> ./my_app
1.000000
That’s it!

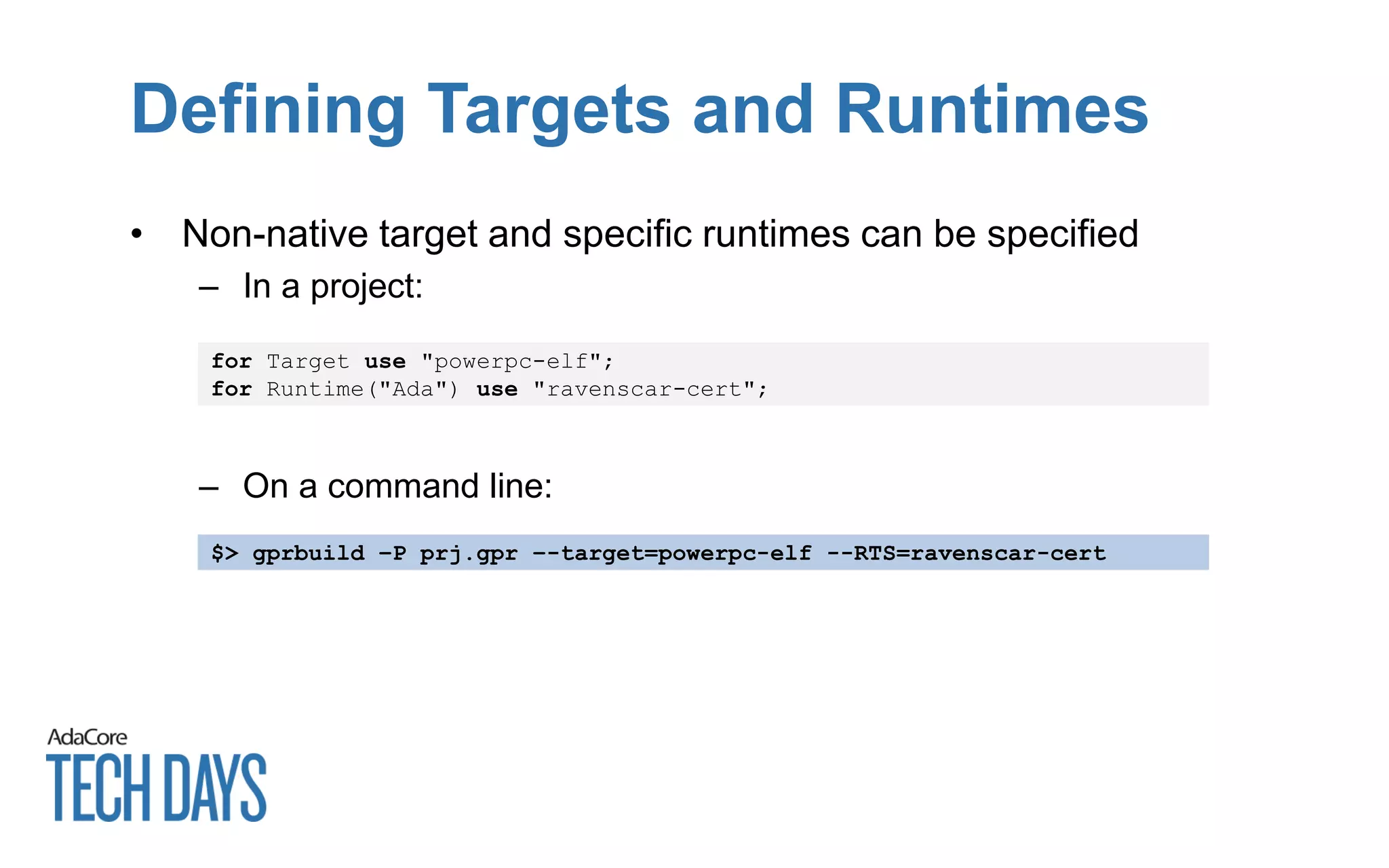

10. Defining Targets and Runtimes
• Non-native target and specific runtimes can be specified
– In a project:
– On a command line:
for Target use "powerpc-elf";
for Runtime("Ada") use "ravenscar-cert";
$> gprbuild –P prj.gpr –-target=powerpc-elf --RTS=ravenscar-cert

11. GPRbuild
• Our multi-language builder
• Understands different languages, compilers and targets
• Takes care of all building steps and complex cases
– compiling, binding, linking
– shared libraries, encapsulated libraries …
• Can be extended to understand new toolchains
• Can distribute compilation over several computers ?

12. Distributed builder
• Parallel builds have been supported for a long time
gcc –c …gcc –c …gcc –c …gcc –c …
gprbuild prj.gpr –j0
• …but not good enough!
– At best a dozen cores or so
– But we can drive hundreds of
build decisions at once
– Solution: distributed build farm

13. Distributed builder (2)
• Communication and file sync by lightweight sockets-based protocols
Master machine
Slave machines
gprslave
gprslave
gprslave
gprslave
• sources
• compile commands
• objects
• availability state
$ gprbuild prj --distributed=
file://comp1.xyz.com,
164.10.127.4, ...

14. Where to find it all?
• Bundled with all GNAT compiler toolchains
• Also as a separate package
– If you want to keep the current compiler and only update the builder
• Soon on GitHub (~early 2016)

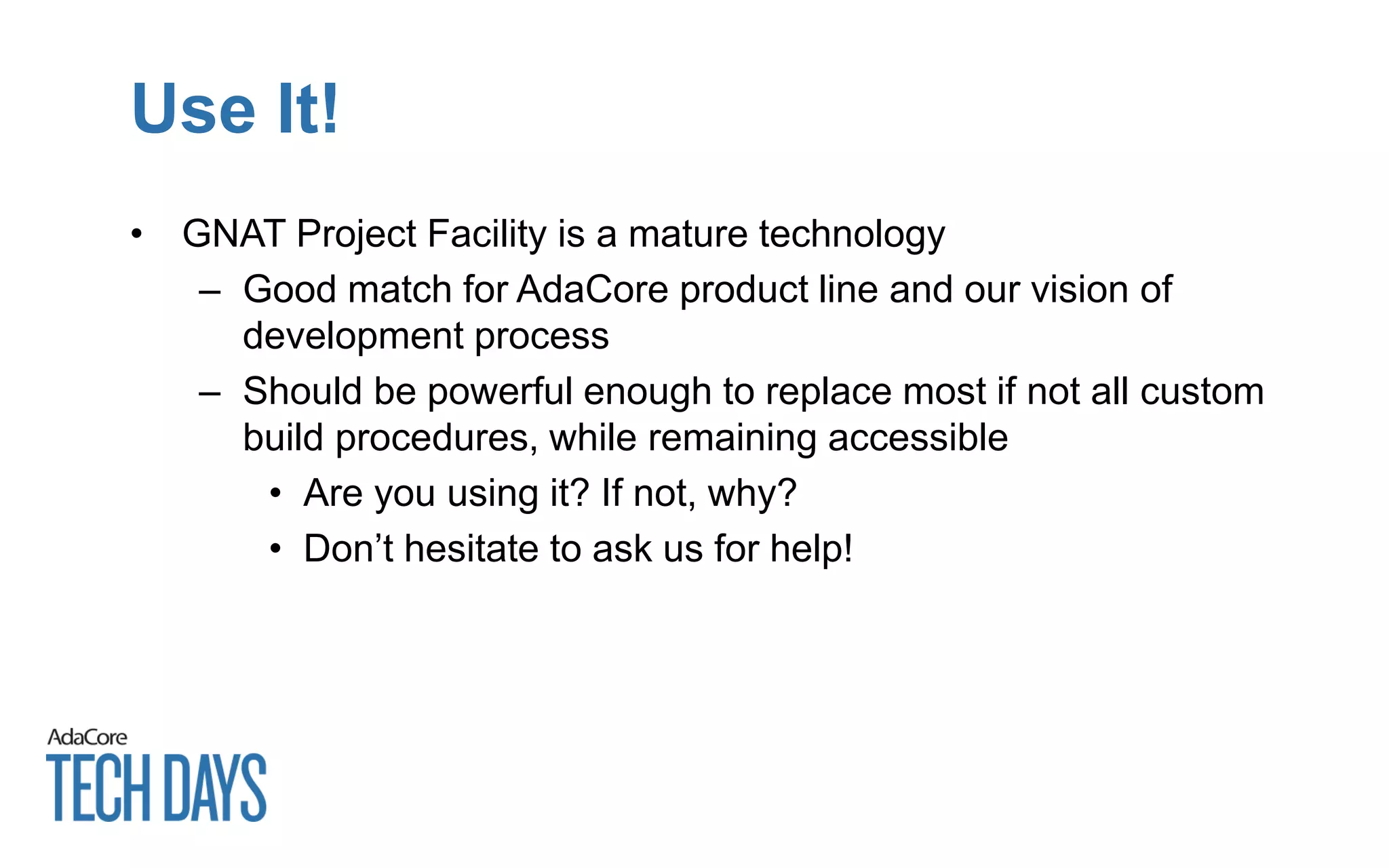

15. Use It!
• GNAT Project Facility is a mature technology
– Good match for AdaCore product line and our vision of
development process
– Should be powerful enough to replace most if not all custom
build procedures, while remaining accessible
• Are you using it? If not, why?
• Don’t hesitate to ask us for help!

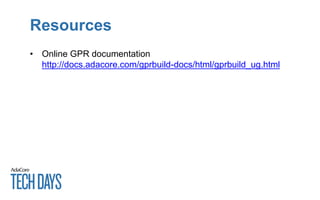

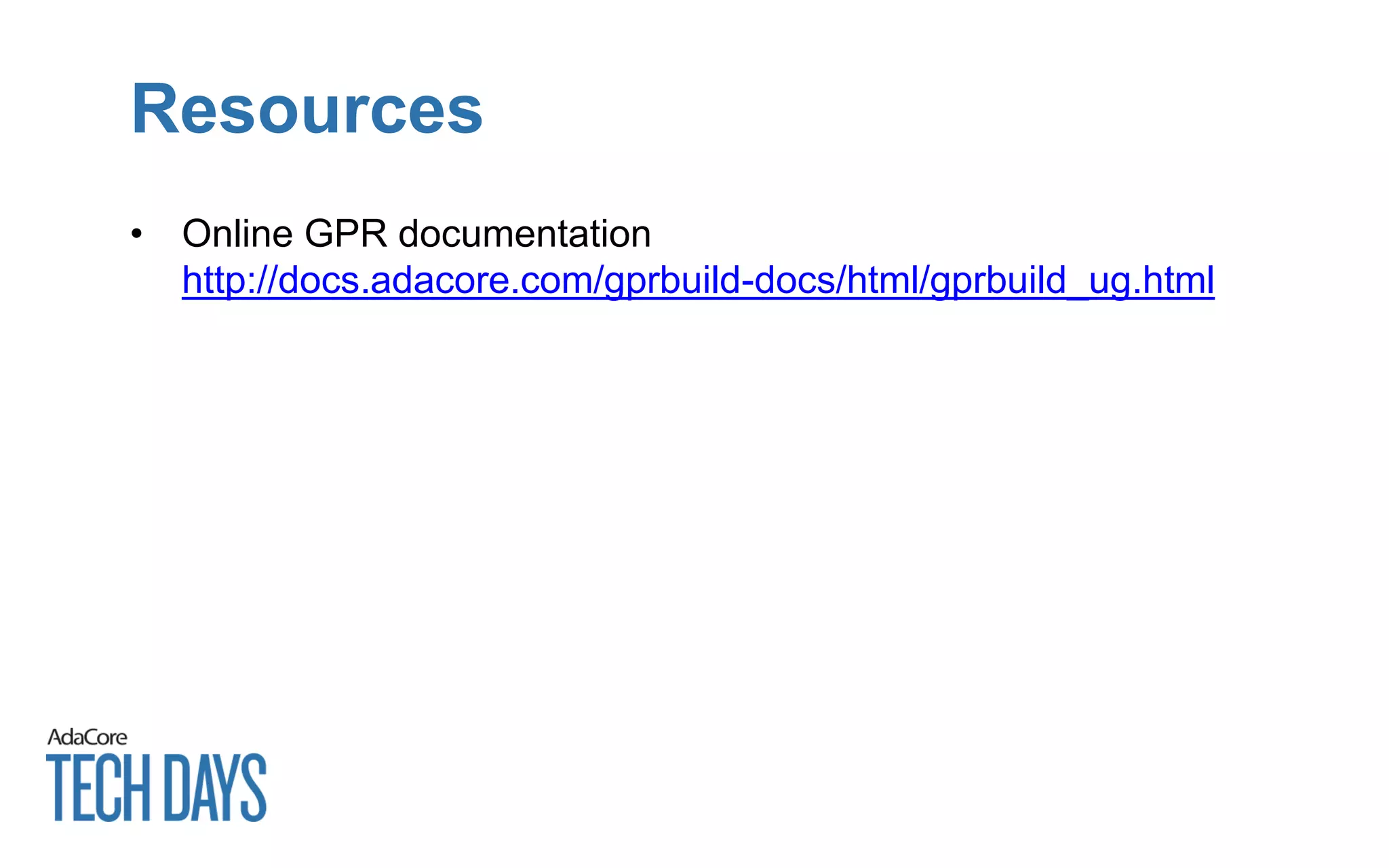

16. Resources
• Online GPR documentation
http://docs.adacore.com/gprbuild-docs/html/gprbuild_ug.html
