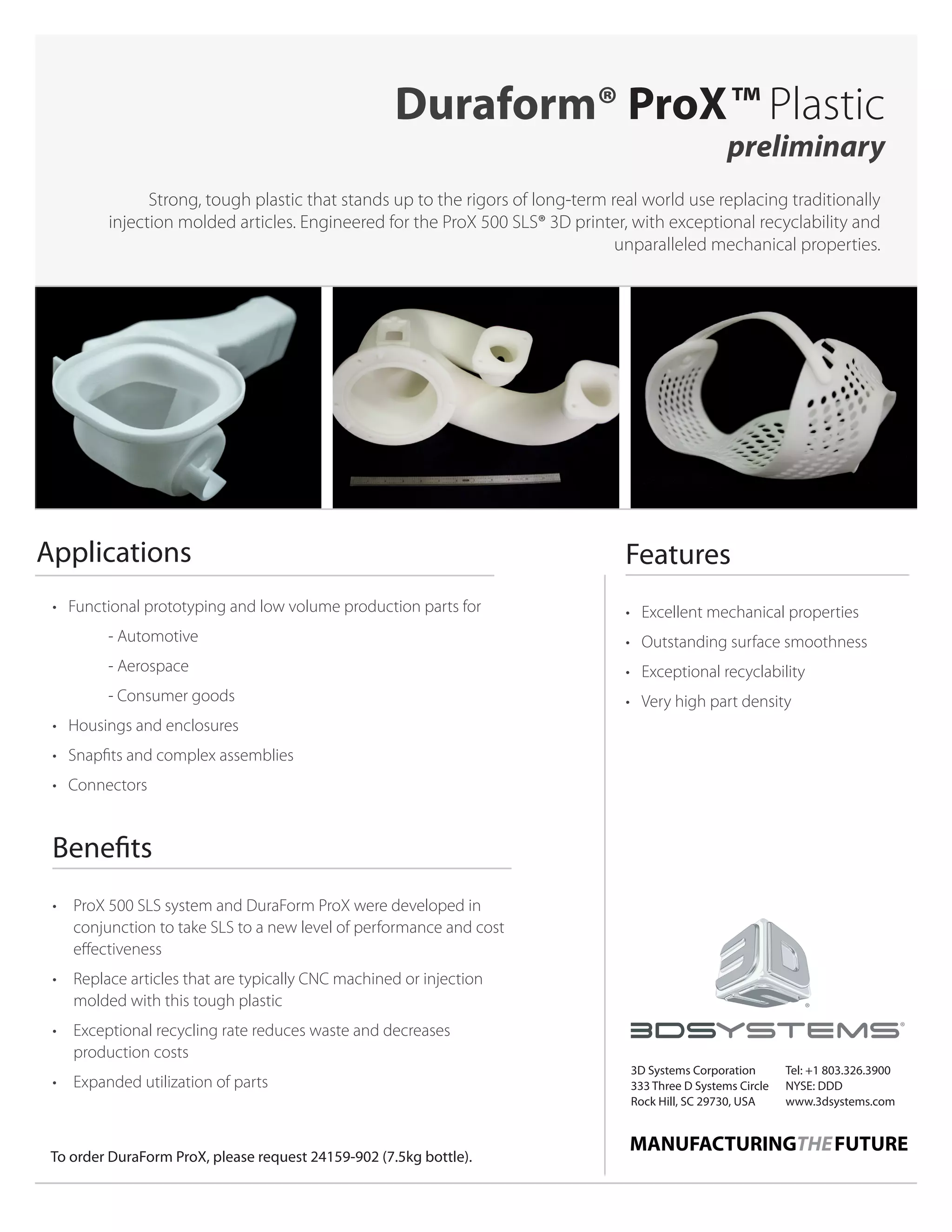

Duraform® Prox™ plastic offers excellent mechanical properties, outstanding surface smoothness, and exceptional recyclability, making it suitable for functional prototyping and low volume production in various industries. Engineered for the Prox 500 SLS® 3D printer, it replaces traditional injection molded articles with a tough and strong plastic that withstands long-term use. The material's high part density and cost-effective performance contribute to reduced waste and production costs.

1. • Excellent mechanical properties
• Outstanding surface smoothness
• Exceptional recyclability
• Very high part density
Strong, tough plastic that stands up to the rigors of long-term real world use replacing traditionally
injection molded articles. Engineered for the ProX 500 SLS® 3D printer, with exceptional recyclability and
unparalleled mechanical properties.
Duraform® ProX™ Plastic
preliminary
Features
3D Systems Corporation
333 Three D Systems Circle
Rock Hill, SC 29730, USA
Tel: +1 803.326.3900
NYSE: DDD
www.3dsystems.com
Applications
• Functional prototyping and low volume production parts for
- Automotive
- Aerospace
- Consumer goods
• Housings and enclosures
• Snapfits and complex assemblies
• Connectors
To order DuraForm ProX, please request 24159-902 (7.5kg bottle).
• ProX 500 SLS system and DuraForm ProX were developed in
conjunction to take SLS to a new level of performance and cost
effectiveness
• Replace articles that are typically CNC machined or injection
molded with this tough plastic
• Exceptional recycling rate reduces waste and decreases
production costs
• Expanded utilization of parts
Benefits

2. Mechanical Properties
Tensile Strength (MPa/PSI) ASTM D 638 47-51 6815-7395
Tensile Modulus (MPa/KSI) ASTM D 638 1740-1905 252-276
Elongation at Break ASTM D 638 13-15 % 13-15 %
Flexural Strength (MPa/PSI) ASTM D 790 63-65 9135-9425
Flexural Modulus(MPa/KSI) ASTM D 790 1595-1690 231-245
Notched Izod Impact Strength (J/m /Ft-lbs/in) ASTM D 256 33-42 0.62-0.78
Hardness, Shore D ASTM D2240 73 73
Strong, tough plastic that stands up to the rigors of long-term real world use replacing traditionally
injection molded articles. Engineered for the ProX 500 SLS® 3D printer, with exceptional recyclability and
unparalleled mechanical properties.
Duraform® ProX™ Plastic
preliminary
Unprecedented Surface Quality in SLS
Technical Data
Warranty/Disclaimer: The performance characteristics of these products may vary according to product application, operating conditions, or with end use. 3D Systems makes no warranties of
any type, express or implied, including, but not limited to, the warranties of merchantability or fitness for a particular use. © 2014 by 3D Systems, Inc. All rights reserved. Specifications subject to
change without notice. ProX is a trademark and the 3DS logo, DuraForm and SLS are registered trademarks of 3D Systems, Inc.
05-14
Surface roughness of
DuraForm ProX on a ProX 500:
Ra=9.7
General Properties
Sintered Part Density (g/cm3) .97 .97
Measurement Condition Metric U.S.
Measurement Condition Metric U.S.
Surface roughness of
typical SLS parts: Ra=17.8
