Ultrasonic treatment working principles
& research
The sound: a pressure cyclic
wave across the media
Emitter
Rarefaction
Molecules on the media being
compressed/uncompressed
Pressure wave
Sound is:
●
A mechanical wave.
●
A pressure oscillation through
a solid, liquid, or gas.
●
Composed of frequencies within the
range of appreciation.
Compression

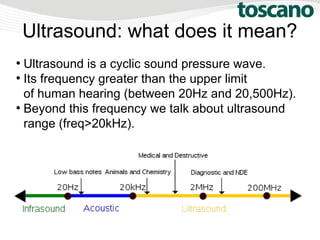

Ultrasound: what does it mean?
●
Ultrasound is a cyclic sound pressure wave.
●
Its frequency greater than the upper limit
of human hearing (between 20Hz and 20,500Hz).
●
Beyond this frequency we talk about ultrasound
range (freq>20kHz).
Algae and ultrasound
●
In 1916 and 1917 Paul Langevin
and Chilowski filed two US
patents disclosing the first
ultrasonic submarine detector
using an electrostatic method
(singing condenser) for one
patent, and thin quartz crystals
for the other.
●
The amount of time taken by the
signal to travel to the enemy
submarine and echo back to the
ship on which the device was
mounted was used to calculate
the distance under water.
●
He saw that micro-biological organisms exposed to
ultrasound waves died.
●
Ultrasound in water can kill the algae growing, that is a
fact but, how this happend?

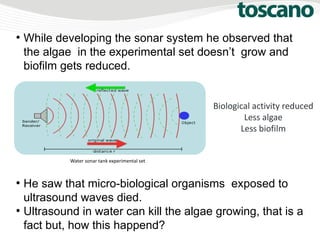

Water sonar tank experimental set
●
While developing the sonar system he observed that
the algae in the experimental set doesn’t grow and
biofilm gets reduced.
Biological activity reduced
Less algae
Less biofilm
Algae and ultrasound:
preliminary biology concepts
Cell parts:
●
Membrane: controls
the movement of
substances in and out
of cells.
●
Cell wall:  provides the
cells with structural
support and protection.
●
Gas vesicles: provides
buoyancy to these cells
by decreasing their
overall cell density.
Algae and ultrasound:
What happens with the ultrasound?
●
Liquids such as water are considered resistant to
compression, but not the gas inside the algae cell.
●
The gas inside the gas vesicle is compressible,
affecting to the gas volume depending on the pressure
experimented.
●
The sound in a media (e.g., water) is a pressure wave.
●
So, if the algae is formed by liquid substances (such as
cytoplasm), solid matter (Golgi apparatus, ribosomes,
cytoskeleton, etc.) and gas vesicles susceptible to
compression:
What happens when pressure sound waves
affects the volume of the gas vesicle but not
the surrounding organs inside the algae?
Micrograph by H.
S. Pankratz.
Magnification
x31,500
●

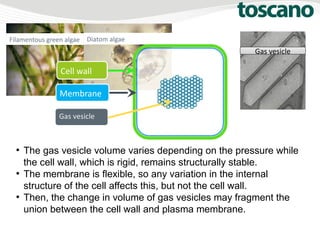

The gas vesicle volume varies depending on the pressure while
the cell wall, which is rigid, remains structurally stable.
●
The membrane is flexible, so any variation in the internal
structure of the cell affects this, but not the cell wall.
●
Then, the change in volume of gas vesicles may fragment the
union between the cell wall and plasma membrane.
Filamentous green algae Diatom algae
Cell wall
Gas vesicle
Gas vesicle
MembraneMembrane

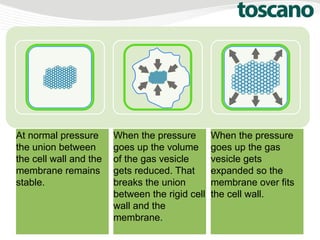

When the pressure
goes up the gas
vesicle gets
expanded so the
membrane over fits
the cell wall.
When the pressure
goes up the volume
of the gas vesicle
gets reduced. That
breaks the union
between the rigid cell
wall and the
membrane.
At normal pressure
the union between
the cell wall and the
membrane remains
stable.
●
This rupture between the membrane and cell wall prevents the leakage
of nutrients into the cell getting as a final result the cell death.
●
This phenomena affects to the cell structure on the algae and bacteria
(biofilm) but the effect of ultrasound on different cell structures is
likewise not representative because of the absence of the gas vesicle.

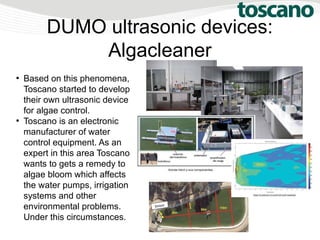

DUMO ultrasonic devices:
Algacleaner
●
Based on this phenomena,
Toscano started to develop
their own ultrasonic device
for algae control.
●
Toscano is an electronic
manufacturer of water
control equipment. As an
expert in this area Toscano
wants to gets a remedy to
algae bloom which affects
the water pumps, irrigation
systems and other
environmental problems.
Under this circumstances.
DUMO ultrasonic devices:
research & engineering
●
Cooperation agreements with European and local
universities.
●
New DUMO Algacleaner has been developed, supported
and verified by different Physics and Biological authorities.
DUMO ultrasonic devices:
the algae problem
Adverse effects
●
Many facilities are severely
compromised (pumps, pipes, sprinklers,
etc).
●
Odours occur because of bacteria.
●
The resulting decrease in dissolved
oxygen in water increases the mortality
of fish and insects.
●
Some types of algae produce
neurotoxins, a very harmful biological
impact on the environment.
●
Health problems in swimming-pools,
contaminated cooling towers, etc.Algae bloom
DUMO ultrasonic devices:
Toscano labs
Tests shown by Toscano research and
according to the reports from the
Bioindication Group of the University
of Seville, the breaking of filaments
and the destruction of algae cells.
No ultrasound
2 min. sonication
5 min. sonication
DUMO ultrasonic devices:
Toscano labs
DUMO ultrasonic devices:
R&D success
As a final result of Toscano
R&D team, investigating the
ultrasonic science and the
biological algae and bacterial
nature, we got…
DUMO
Algacleaner
DUMO ultrasonic devices:

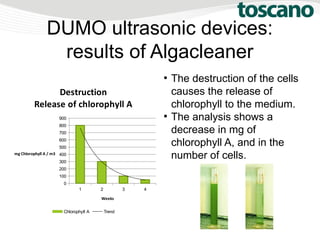

results of Algacleaner
●
The destruction of the cells
causes the release of
chlorophyll to the medium.
●
The analysis shows a
decrease in mg of
chlorophyll A, and in the
number of cells.
1 2 3 4
0
100
200
300
400
500
600
700
800
900
Destruction
Release of chlorophyll A
Chlorophyll A Trend
Weeks
mg Chlorophyll A / m3
DUMO ultrasonic devices:
results of Algacleaner
●

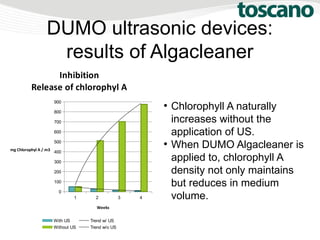

Chlorophyll A naturally
increases without the
application of US.
●
When DUMO Algacleaner is
applied to, chlorophyll A
density not only maintains
but reduces in medium
volume.1 2 3 4
0
100
200
300
400
500
600
700
800
900
Inhibition
Release of chlorophyl A
With US Trend w/ US
Without US Trend w/o US
Weeks
mg Chlorophyl A / m3
DUMO ultrasonic devices:

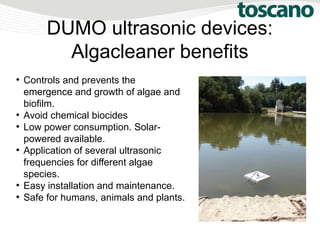

Algacleaner benefits
●
Controls and prevents the
emergence and growth of algae and
biofilm.
●
Avoid chemical biocides
●
Low power consumption. Solar-
powered available.
●
Application of several ultrasonic
frequencies for different algae
species.
●
Easy installation and maintenance.
●
Safe for humans, animals and plants.
DUMO Algacleaner:
certified production
The manufacturing process of
DUMO Algacleaner is
performed under environmental
and quality standards
(ISO14001 and ISO9001).

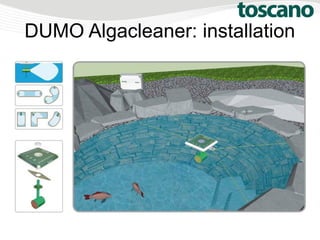

DUMO Algacleaner: installation

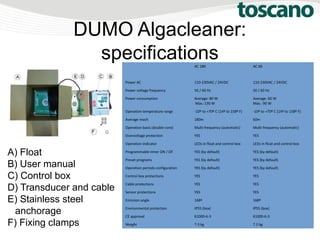

DUMO Algacleaner:
specificationsAC 180 AC 60
Power AC 110-230VAC / 24VDC 110-230VAC / 24VDC
Power voltage frequency 50 / 60 Hz 50 / 60 Hz
Power consumption Average: 80 W
Max.:130 W
Average: 60 W
Max.: 90 W
Operation temperature range -10º to +70º C (14º to 158º F) -10º to +70º C (14º to 158º F)
Average reach 180m 60m
Operation basis (double core) Multi-frequency (automatic) Multi-frequency (automatic)
Overvoltage protection YES YES
Operation indicator LEDs in float and control box LEDs in float and control box
Programmable timer ON / OF YES (by default) YES (by default)
Preset programs YES (by default) YES (by default)
Operation periods configuration YES (by default) YES (by default)
Control box protections YES YES
Cable protections YES YES
Sensor protections YES YES
Emission angle 168º 168º
Environmental protection IP55 (box) IP55 (box)
CE approval 61000-6-3 61000-6-3
Weight 7.3 kg 7.2 kg
A) Float
B) User manual
C) Control box
D) Transducer and cable
E) Stainless steel
anchorage
F) Fixing clamps

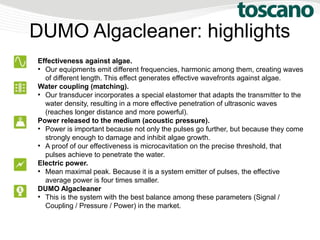

DUMO Algacleaner: highlights
Effectiveness against algae.
●
Our equipments emit different frequencies, harmonic among them, creating waves
of different length. This effect generates effective wavefronts against algae.
Water coupling (matching).
●
Our transducer incorporates a special elastomer that adapts the transmitter to the
water density, resulting in a more effective penetration of ultrasonic waves
(reaches longer distance and more powerful).
Power released to the medium (acoustic pressure).
●
Power is important because not only the pulses go further, but because they come
strongly enough to damage and inhibit algae growth.
●
A proof of our effectiveness is microcavitation on the precise threshold, that
pulses achieve to penetrate the water.
Electric power.
●
Mean maximal peak. Because it is a system emitter of pulses, the effective
average power is four times smaller.
DUMO Algacleaner
●
This is the system with the best balance among these parameters (Signal /
Coupling / Pressure / Power) in the market.
DUMO ultrasonic technology
More solutions for water and biosolids.
A full range of OEM product references.
Any questions?

More Related Content

What's hot

RMA QA ppt product information
RMA QA ppt product informationRMA QA ppt product information
RMA QA ppt product information
Mark Lobban

SODIS Method
SODIS Method SODIS Method
SODIS Method
anita03verde

Nano Filtration In Water Supply Systems
Nano Filtration In Water Supply SystemsNano Filtration In Water Supply Systems
Nano Filtration In Water Supply Systems
Aqeel Ahamad

The use of Engineered Nanomaterials in Environmental Remediation: Environment...
The use of Engineered Nanomaterials in Environmental Remediation: Environment...The use of Engineered Nanomaterials in Environmental Remediation: Environment...
The use of Engineered Nanomaterials in Environmental Remediation: Environment...
Gregory P Nichols, MPH, CPH

SODIS
SODISSODIS
Nanotechnology in water treatment
Nanotechnology in water treatmentNanotechnology in water treatment
Nanotechnology in water treatment
Shahrbano Awan

Nano technology in ervironmental engineering
Nano technology in ervironmental engineeringNano technology in ervironmental engineering
Nano technology in ervironmental engineering
Vishnu Raj

Nano clean up
Nano clean upNano clean up
Nano clean up
kimsradha

nano-bubble
nano-bubblenano-bubble
nano-bubble
Mark Lobban

R.o. plants biofouling an overview
R.o. plants biofouling   an overviewR.o. plants biofouling   an overview
R.o. plants biofouling an overview
PEREZTALAVERA

Nanotechnology in waste water treatment
Nanotechnology in waste water  treatmentNanotechnology in waste water  treatment
Nanotechnology in waste water treatment
Sakthivel R

12 water and waste water treatment
12  water and waste water treatment12  water and waste water treatment
12 water and waste water treatment
Karthik Sekhar

Water nanaotechnology
Water nanaotechnologyWater nanaotechnology
Water nanaotechnology
ISHAQ SULAIMAN MUKTAR

Solar water disenfection
Solar water disenfectionSolar water disenfection
Solar water disenfection
bhargav33

Neufeld citizen science
Neufeld citizen scienceNeufeld citizen science
Neufeld citizen science
Josh Neufeld

Nanotechnology
NanotechnologyNanotechnology
Nanotechnology
simin Maroof

nanotechnology
nanotechnologynanotechnology
nanotechnology
Abdul Shakeer

Decontamination of pollutted discharge waters from surface treatment
Decontamination of pollutted discharge waters from surface treatmentDecontamination of pollutted discharge waters from surface treatment
Decontamination of pollutted discharge waters from surface treatment
neehar91

Application of UV And Ozone in Recirculation Systems
Application of UV And Ozone in Recirculation SystemsApplication of UV And Ozone in Recirculation Systems
Application of UV And Ozone in Recirculation Systems
Centre for Environment, Fisheries and Aquaculture Science (Cefas)

Nano porous membranes for water purification by shrinath ghadge
Nano porous membranes for water purification by shrinath ghadgeNano porous membranes for water purification by shrinath ghadge
Nano porous membranes for water purification by shrinath ghadge
Shrinath Ghadge


What's hot (20)

RMA QA ppt product information
RMA QA ppt product informationRMA QA ppt product information
RMA QA ppt product information

SODIS Method
SODIS Method SODIS Method
SODIS Method

Nano Filtration In Water Supply Systems
Nano Filtration In Water Supply SystemsNano Filtration In Water Supply Systems
Nano Filtration In Water Supply Systems

The use of Engineered Nanomaterials in Environmental Remediation: Environment...
The use of Engineered Nanomaterials in Environmental Remediation: Environment...The use of Engineered Nanomaterials in Environmental Remediation: Environment...
The use of Engineered Nanomaterials in Environmental Remediation: Environment...

SODIS
SODISSODIS
SODIS

Nanotechnology in water treatment
Nanotechnology in water treatmentNanotechnology in water treatment
Nanotechnology in water treatment

Nano technology in ervironmental engineering
Nano technology in ervironmental engineeringNano technology in ervironmental engineering
Nano technology in ervironmental engineering

Nano clean up
Nano clean upNano clean up
Nano clean up

nano-bubble
nano-bubblenano-bubble
nano-bubble

R.o. plants biofouling an overview
R.o. plants biofouling   an overviewR.o. plants biofouling   an overview
R.o. plants biofouling an overview

Nanotechnology in waste water treatment
Nanotechnology in waste water  treatmentNanotechnology in waste water  treatment
Nanotechnology in waste water treatment

12 water and waste water treatment
12  water and waste water treatment12  water and waste water treatment
12 water and waste water treatment

Water nanaotechnology
Water nanaotechnologyWater nanaotechnology
Water nanaotechnology

Solar water disenfection
Solar water disenfectionSolar water disenfection
Solar water disenfection

Neufeld citizen science
Neufeld citizen scienceNeufeld citizen science
Neufeld citizen science

Nanotechnology
NanotechnologyNanotechnology
Nanotechnology

nanotechnology
nanotechnologynanotechnology
nanotechnology

Decontamination of pollutted discharge waters from surface treatment
Decontamination of pollutted discharge waters from surface treatmentDecontamination of pollutted discharge waters from surface treatment
Decontamination of pollutted discharge waters from surface treatment

Application of UV And Ozone in Recirculation Systems
Application of UV And Ozone in Recirculation SystemsApplication of UV And Ozone in Recirculation Systems
Application of UV And Ozone in Recirculation Systems

Nano porous membranes for water purification by shrinath ghadge
Nano porous membranes for water purification by shrinath ghadgeNano porous membranes for water purification by shrinath ghadge
Nano porous membranes for water purification by shrinath ghadge


Similar to DUMO Algacleaner - Working principles and research

DUMO Algacleaner english
DUMO Algacleaner englishDUMO Algacleaner english
DUMO Algacleaner english
Toscano Línea Electrónica

Hyper Sound Water Treatment
Hyper Sound Water TreatmentHyper Sound Water Treatment
Hyper Sound Water Treatment
Rohan Roy

ultrasonic
ultrasonicultrasonic
ultrasonic
stanley christy

Chemical_Free_Treatment_of_Algae.pdf
Chemical_Free_Treatment_of_Algae.pdfChemical_Free_Treatment_of_Algae.pdf
Chemical_Free_Treatment_of_Algae.pdf
AliAkbarKhazaei1

Ultrasonic spectroscopy
Ultrasonic spectroscopyUltrasonic spectroscopy
Ultrasonic spectroscopy
Bandam Poojitha

Ultrasound or Sonication Technology in Food Processing-2-30.pdf
Ultrasound or Sonication Technology in Food Processing-2-30.pdfUltrasound or Sonication Technology in Food Processing-2-30.pdf
Ultrasound or Sonication Technology in Food Processing-2-30.pdf
DHARMENDRAYADAV807034

Aaron
AaronAaron
Aaron
Naan Illa

Ultrasonic
UltrasonicUltrasonic
Ultrasonic
Sagar Patel

Ultrasound physics 2019
Ultrasound physics 2019Ultrasound physics 2019
Ultrasound physics 2019
Anushuya Gunaseelan

Introductory us
Introductory usIntroductory us
Introductory us
KamalEldirawi

Therapeutic Ultrsound | Thermotherapy PT
Therapeutic Ultrsound | Thermotherapy PTTherapeutic Ultrsound | Thermotherapy PT
Therapeutic Ultrsound | Thermotherapy PT
SriyaSrinivasan

Water Disinfection Electrodeless UV System
 Water Disinfection Electrodeless UV System  Water Disinfection Electrodeless UV System
Water Disinfection Electrodeless UV System
AndreyTsybulsky

Minimal food processing
Minimal food processingMinimal food processing
Minimal food processing
Er. Viraj Naliapara

Presentation ultrasonic anti fouling systems
Presentation ultrasonic anti fouling systemsPresentation ultrasonic anti fouling systems
Presentation ultrasonic anti fouling systems
Moniek Arends

Turbidity and turbidimeter
Turbidity and turbidimeterTurbidity and turbidimeter
Turbidity and turbidimeter
cairo university

Poster AIL - Ultrasound as control strategy for bryozoans
Poster AIL - Ultrasound as control strategy for bryozoansPoster AIL - Ultrasound as control strategy for bryozoans
Poster AIL - Ultrasound as control strategy for bryozoans
Toscano Línea Electrónica

Mosquito Repellent Circuit
Mosquito Repellent CircuitMosquito Repellent Circuit
Mosquito Repellent Circuit
Maryam Fatima

Environmental Toxicity of Nanoparticles Environmental Toxicity of Nanoparticles
Environmental Toxicity of Nanoparticles Environmental Toxicity of NanoparticlesEnvironmental Toxicity of Nanoparticles Environmental Toxicity of Nanoparticles
Environmental Toxicity of Nanoparticles Environmental Toxicity of Nanoparticles
International Journal of Modern Research in Engineering and Technology

basicsofultrasound-170807183128 (1).pdf
basicsofultrasound-170807183128 (1).pdfbasicsofultrasound-170807183128 (1).pdf
basicsofultrasound-170807183128 (1).pdf
littlealphonsa

Ultrasound Physics Made easy - By Dr Chandni Wadhwani
Ultrasound Physics Made easy - By Dr Chandni WadhwaniUltrasound Physics Made easy - By Dr Chandni Wadhwani
Ultrasound Physics Made easy - By Dr Chandni Wadhwani
Chandni Wadhwani


Similar to DUMO Algacleaner - Working principles and research (20)

DUMO Algacleaner english
DUMO Algacleaner englishDUMO Algacleaner english
DUMO Algacleaner english

Hyper Sound Water Treatment
Hyper Sound Water TreatmentHyper Sound Water Treatment
Hyper Sound Water Treatment

ultrasonic
ultrasonicultrasonic
ultrasonic

Chemical_Free_Treatment_of_Algae.pdf
Chemical_Free_Treatment_of_Algae.pdfChemical_Free_Treatment_of_Algae.pdf
Chemical_Free_Treatment_of_Algae.pdf

Ultrasonic spectroscopy
Ultrasonic spectroscopyUltrasonic spectroscopy
Ultrasonic spectroscopy

Ultrasound or Sonication Technology in Food Processing-2-30.pdf
Ultrasound or Sonication Technology in Food Processing-2-30.pdfUltrasound or Sonication Technology in Food Processing-2-30.pdf
Ultrasound or Sonication Technology in Food Processing-2-30.pdf

Aaron
AaronAaron
Aaron

Ultrasonic
UltrasonicUltrasonic
Ultrasonic

Ultrasound physics 2019
Ultrasound physics 2019Ultrasound physics 2019
Ultrasound physics 2019

Introductory us
Introductory usIntroductory us
Introductory us

Therapeutic Ultrsound | Thermotherapy PT
Therapeutic Ultrsound | Thermotherapy PTTherapeutic Ultrsound | Thermotherapy PT
Therapeutic Ultrsound | Thermotherapy PT

Water Disinfection Electrodeless UV System
 Water Disinfection Electrodeless UV System  Water Disinfection Electrodeless UV System
Water Disinfection Electrodeless UV System

Minimal food processing
Minimal food processingMinimal food processing
Minimal food processing

Presentation ultrasonic anti fouling systems
Presentation ultrasonic anti fouling systemsPresentation ultrasonic anti fouling systems
Presentation ultrasonic anti fouling systems

Turbidity and turbidimeter
Turbidity and turbidimeterTurbidity and turbidimeter
Turbidity and turbidimeter

Poster AIL - Ultrasound as control strategy for bryozoans
Poster AIL - Ultrasound as control strategy for bryozoansPoster AIL - Ultrasound as control strategy for bryozoans
Poster AIL - Ultrasound as control strategy for bryozoans

Mosquito Repellent Circuit
Mosquito Repellent CircuitMosquito Repellent Circuit
Mosquito Repellent Circuit

Environmental Toxicity of Nanoparticles Environmental Toxicity of Nanoparticles
Environmental Toxicity of Nanoparticles Environmental Toxicity of NanoparticlesEnvironmental Toxicity of Nanoparticles Environmental Toxicity of Nanoparticles
Environmental Toxicity of Nanoparticles Environmental Toxicity of Nanoparticles

basicsofultrasound-170807183128 (1).pdf
basicsofultrasound-170807183128 (1).pdfbasicsofultrasound-170807183128 (1).pdf
basicsofultrasound-170807183128 (1).pdf

Ultrasound Physics Made easy - By Dr Chandni Wadhwani
Ultrasound Physics Made easy - By Dr Chandni WadhwaniUltrasound Physics Made easy - By Dr Chandni Wadhwani
Ultrasound Physics Made easy - By Dr Chandni Wadhwani


More from Toscano Línea Electrónica

Variador solar TDS600 de Toscano
Variador solar TDS600 de ToscanoVariador solar TDS600 de Toscano
Variador solar TDS600 de Toscano
Toscano Línea Electrónica

Ultrasonidos contra las especies invasoras
Ultrasonidos contra las especies invasorasUltrasonidos contra las especies invasoras
Ultrasonidos contra las especies invasoras
Toscano Línea Electrónica

Poster - Tratamiento de ultrasonidos contra el mejillón cebra
Poster - Tratamiento de ultrasonidos contra el mejillón cebraPoster - Tratamiento de ultrasonidos contra el mejillón cebra
Poster - Tratamiento de ultrasonidos contra el mejillón cebra
Toscano Línea Electrónica

DUMO Algacleaner - Ultrasonic treatment and ecosystems
DUMO Algacleaner - Ultrasonic treatment and ecosystemsDUMO Algacleaner - Ultrasonic treatment and ecosystems
DUMO Algacleaner - Ultrasonic treatment and ecosystems
Toscano Línea Electrónica

DUMO Algacleaner - Applications and references
DUMO Algacleaner - Applications and referencesDUMO Algacleaner - Applications and references
DUMO Algacleaner - Applications and references
Toscano Línea Electrónica

Norma EN50550 - Protectores contra sobretensiones permanentes (POP)
Norma EN50550 - Protectores contra sobretensiones permanentes (POP)Norma EN50550 - Protectores contra sobretensiones permanentes (POP)
Norma EN50550 - Protectores contra sobretensiones permanentes (POP)
Toscano Línea Electrónica

Vigivolt - Sobretensiones transitorias
Vigivolt - Sobretensiones transitoriasVigivolt - Sobretensiones transitorias
Vigivolt - Sobretensiones transitorias
Toscano Línea Electrónica

Vigivolt - Sobretensiones permanentes
Vigivolt - Sobretensiones permanentesVigivolt - Sobretensiones permanentes
Vigivolt - Sobretensiones permanentes
Toscano Línea Electrónica

Familia vigilec
Familia vigilecFamilia vigilec
DUMO Algacleaner español
DUMO Algacleaner españolDUMO Algacleaner español
DUMO Algacleaner español
Toscano Línea Electrónica


More from Toscano Línea Electrónica (11)

Variador solar TDS600 de Toscano
Variador solar TDS600 de ToscanoVariador solar TDS600 de Toscano
Variador solar TDS600 de Toscano

Ultrasonidos contra las especies invasoras
Ultrasonidos contra las especies invasorasUltrasonidos contra las especies invasoras
Ultrasonidos contra las especies invasoras

Poster - Tratamiento de ultrasonidos contra el mejillón cebra
Poster - Tratamiento de ultrasonidos contra el mejillón cebraPoster - Tratamiento de ultrasonidos contra el mejillón cebra
Poster - Tratamiento de ultrasonidos contra el mejillón cebra

DUMO Algacleaner - Ultrasonic treatment and ecosystems
DUMO Algacleaner - Ultrasonic treatment and ecosystemsDUMO Algacleaner - Ultrasonic treatment and ecosystems
DUMO Algacleaner - Ultrasonic treatment and ecosystems

DUMO Algacleaner - Applications and references
DUMO Algacleaner - Applications and referencesDUMO Algacleaner - Applications and references
DUMO Algacleaner - Applications and references

Norma EN50550 - Protectores contra sobretensiones permanentes (POP)
Norma EN50550 - Protectores contra sobretensiones permanentes (POP)Norma EN50550 - Protectores contra sobretensiones permanentes (POP)
Norma EN50550 - Protectores contra sobretensiones permanentes (POP)

Vigivolt - Sobretensiones transitorias
Vigivolt - Sobretensiones transitoriasVigivolt - Sobretensiones transitorias
Vigivolt - Sobretensiones transitorias

Vigivolt - Sobretensiones permanentes
Vigivolt - Sobretensiones permanentesVigivolt - Sobretensiones permanentes
Vigivolt - Sobretensiones permanentes

Vigilec mini v1 n
Vigilec mini v1 nVigilec mini v1 n
Vigilec mini v1 n

Familia vigilec
Familia vigilecFamilia vigilec
Familia vigilec

DUMO Algacleaner español
DUMO Algacleaner españolDUMO Algacleaner español
DUMO Algacleaner español


Recently uploaded

Environment Conservation Rules 2023 (ECR)-2023.pptx
Environment Conservation Rules 2023 (ECR)-2023.pptxEnvironment Conservation Rules 2023 (ECR)-2023.pptx
Environment Conservation Rules 2023 (ECR)-2023.pptx
neilsencassidy

PACKAGING OF FROZEN FOODS ( food technology)
PACKAGING OF FROZEN FOODS  ( food technology)PACKAGING OF FROZEN FOODS  ( food technology)
PACKAGING OF FROZEN FOODS ( food technology)
Addu25809

RoHS stands for Restriction of Hazardous Substances, which is also known as t...
RoHS stands for Restriction of Hazardous Substances, which is also known as t...RoHS stands for Restriction of Hazardous Substances, which is also known as t...
RoHS stands for Restriction of Hazardous Substances, which is also known as t...
vijaykumar292010

Evolving Lifecycles with High Resolution Site Characterization (HRSC) and 3-D...
Evolving Lifecycles with High Resolution Site Characterization (HRSC) and 3-D...Evolving Lifecycles with High Resolution Site Characterization (HRSC) and 3-D...
Evolving Lifecycles with High Resolution Site Characterization (HRSC) and 3-D...
Joshua Orris

原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样
原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样
原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样
mvrpcz6

world-environment-day-2024-240601103559-14f4c0b4.pptx
world-environment-day-2024-240601103559-14f4c0b4.pptxworld-environment-day-2024-240601103559-14f4c0b4.pptx
world-environment-day-2024-240601103559-14f4c0b4.pptx
mfasna35

Optimizing Post Remediation Groundwater Performance with Enhanced Microbiolog...
Optimizing Post Remediation Groundwater Performance with Enhanced Microbiolog...Optimizing Post Remediation Groundwater Performance with Enhanced Microbiolog...
Optimizing Post Remediation Groundwater Performance with Enhanced Microbiolog...
Joshua Orris

快速办理(Calabria毕业证书)卡拉布里亚大学毕业证在读证明一模一样
快速办理(Calabria毕业证书)卡拉布里亚大学毕业证在读证明一模一样快速办理(Calabria毕业证书)卡拉布里亚大学毕业证在读证明一模一样
快速办理(Calabria毕业证书)卡拉布里亚大学毕业证在读证明一模一样
astuz

Wildlife-AnIntroduction.pdf so that you know more about our environment
Wildlife-AnIntroduction.pdf so that you know more about our environmentWildlife-AnIntroduction.pdf so that you know more about our environment
Wildlife-AnIntroduction.pdf so that you know more about our environment
amishajha2407

Kinetic studies on malachite green dye adsorption from aqueous solutions by A...
Kinetic studies on malachite green dye adsorption from aqueous solutions by A...Kinetic studies on malachite green dye adsorption from aqueous solutions by A...
Kinetic studies on malachite green dye adsorption from aqueous solutions by A...
Open Access Research Paper

在线办理(lboro毕业证书)拉夫堡大学毕业证学历证书一模一样
在线办理(lboro毕业证书)拉夫堡大学毕业证学历证书一模一样在线办理(lboro毕业证书)拉夫堡大学毕业证学历证书一模一样
在线办理(lboro毕业证书)拉夫堡大学毕业证学历证书一模一样
pjq9n1lk

原版制作(Newcastle毕业证书)纽卡斯尔大学毕业证在读证明一模一样
原版制作(Newcastle毕业证书)纽卡斯尔大学毕业证在读证明一模一样原版制作(Newcastle毕业证书)纽卡斯尔大学毕业证在读证明一模一样
原版制作(Newcastle毕业证书)纽卡斯尔大学毕业证在读证明一模一样
p2npnqp

BASIC CONCEPT OF ENVIRONMENT AND DIFFERENT CONSTITUTENET OF ENVIRONMENT
BASIC CONCEPT OF ENVIRONMENT AND DIFFERENT CONSTITUTENET OF ENVIRONMENTBASIC CONCEPT OF ENVIRONMENT AND DIFFERENT CONSTITUTENET OF ENVIRONMENT
BASIC CONCEPT OF ENVIRONMENT AND DIFFERENT CONSTITUTENET OF ENVIRONMENT
AmitKumar619042

Improving the viability of probiotics by encapsulation methods for developmen...
Improving the viability of probiotics by encapsulation methods for developmen...Improving the viability of probiotics by encapsulation methods for developmen...
Improving the viability of probiotics by encapsulation methods for developmen...
Open Access Research Paper

Biomimicry in agriculture: Nature-Inspired Solutions for a Greener Future
Biomimicry in agriculture: Nature-Inspired Solutions for a Greener FutureBiomimicry in agriculture: Nature-Inspired Solutions for a Greener Future
Biomimicry in agriculture: Nature-Inspired Solutions for a Greener Future
Dr. P.B.Dharmasena

Lessons from operationalizing integrated landscape approaches
Lessons from operationalizing integrated landscape approachesLessons from operationalizing integrated landscape approaches
Lessons from operationalizing integrated landscape approaches
CIFOR-ICRAF


Recently uploaded (16)

Environment Conservation Rules 2023 (ECR)-2023.pptx
Environment Conservation Rules 2023 (ECR)-2023.pptxEnvironment Conservation Rules 2023 (ECR)-2023.pptx
Environment Conservation Rules 2023 (ECR)-2023.pptx

PACKAGING OF FROZEN FOODS ( food technology)
PACKAGING OF FROZEN FOODS  ( food technology)PACKAGING OF FROZEN FOODS  ( food technology)
PACKAGING OF FROZEN FOODS ( food technology)

RoHS stands for Restriction of Hazardous Substances, which is also known as t...
RoHS stands for Restriction of Hazardous Substances, which is also known as t...RoHS stands for Restriction of Hazardous Substances, which is also known as t...
RoHS stands for Restriction of Hazardous Substances, which is also known as t...

Evolving Lifecycles with High Resolution Site Characterization (HRSC) and 3-D...
Evolving Lifecycles with High Resolution Site Characterization (HRSC) and 3-D...Evolving Lifecycles with High Resolution Site Characterization (HRSC) and 3-D...
Evolving Lifecycles with High Resolution Site Characterization (HRSC) and 3-D...

原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样
原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样
原版制作(Manitoba毕业证书)曼尼托巴大学毕业证学位证一模一样

world-environment-day-2024-240601103559-14f4c0b4.pptx
world-environment-day-2024-240601103559-14f4c0b4.pptxworld-environment-day-2024-240601103559-14f4c0b4.pptx
world-environment-day-2024-240601103559-14f4c0b4.pptx

Optimizing Post Remediation Groundwater Performance with Enhanced Microbiolog...
Optimizing Post Remediation Groundwater Performance with Enhanced Microbiolog...Optimizing Post Remediation Groundwater Performance with Enhanced Microbiolog...
Optimizing Post Remediation Groundwater Performance with Enhanced Microbiolog...

快速办理(Calabria毕业证书)卡拉布里亚大学毕业证在读证明一模一样
快速办理(Calabria毕业证书)卡拉布里亚大学毕业证在读证明一模一样快速办理(Calabria毕业证书)卡拉布里亚大学毕业证在读证明一模一样
快速办理(Calabria毕业证书)卡拉布里亚大学毕业证在读证明一模一样

Wildlife-AnIntroduction.pdf so that you know more about our environment
Wildlife-AnIntroduction.pdf so that you know more about our environmentWildlife-AnIntroduction.pdf so that you know more about our environment
Wildlife-AnIntroduction.pdf so that you know more about our environment

Kinetic studies on malachite green dye adsorption from aqueous solutions by A...
Kinetic studies on malachite green dye adsorption from aqueous solutions by A...Kinetic studies on malachite green dye adsorption from aqueous solutions by A...
Kinetic studies on malachite green dye adsorption from aqueous solutions by A...

在线办理(lboro毕业证书)拉夫堡大学毕业证学历证书一模一样
在线办理(lboro毕业证书)拉夫堡大学毕业证学历证书一模一样在线办理(lboro毕业证书)拉夫堡大学毕业证学历证书一模一样
在线办理(lboro毕业证书)拉夫堡大学毕业证学历证书一模一样

原版制作(Newcastle毕业证书)纽卡斯尔大学毕业证在读证明一模一样
原版制作(Newcastle毕业证书)纽卡斯尔大学毕业证在读证明一模一样原版制作(Newcastle毕业证书)纽卡斯尔大学毕业证在读证明一模一样
原版制作(Newcastle毕业证书)纽卡斯尔大学毕业证在读证明一模一样

BASIC CONCEPT OF ENVIRONMENT AND DIFFERENT CONSTITUTENET OF ENVIRONMENT
BASIC CONCEPT OF ENVIRONMENT AND DIFFERENT CONSTITUTENET OF ENVIRONMENTBASIC CONCEPT OF ENVIRONMENT AND DIFFERENT CONSTITUTENET OF ENVIRONMENT
BASIC CONCEPT OF ENVIRONMENT AND DIFFERENT CONSTITUTENET OF ENVIRONMENT

Improving the viability of probiotics by encapsulation methods for developmen...
Improving the viability of probiotics by encapsulation methods for developmen...Improving the viability of probiotics by encapsulation methods for developmen...
Improving the viability of probiotics by encapsulation methods for developmen...

Biomimicry in agriculture: Nature-Inspired Solutions for a Greener Future
Biomimicry in agriculture: Nature-Inspired Solutions for a Greener FutureBiomimicry in agriculture: Nature-Inspired Solutions for a Greener Future
Biomimicry in agriculture: Nature-Inspired Solutions for a Greener Future

Lessons from operationalizing integrated landscape approaches
Lessons from operationalizing integrated landscape approachesLessons from operationalizing integrated landscape approaches
Lessons from operationalizing integrated landscape approaches


DUMO Algacleaner - Working principles and research

  • 1. Ultrasonic treatment working principles & research
  • 2. The sound: a pressure cyclic wave across the media Emitter Rarefaction Molecules on the media being compressed/uncompressed Pressure wave Sound is: ● A mechanical wave. ● A pressure oscillation through a solid, liquid, or gas. ● Composed of frequencies within the range of appreciation. Compression
  • 3. Ultrasound: what does it mean? ● Ultrasound is a cyclic sound pressure wave. ● Its frequency greater than the upper limit of human hearing (between 20Hz and 20,500Hz). ● Beyond this frequency we talk about ultrasound range (freq>20kHz).
  • 4. Algae and ultrasound ● In 1916 and 1917 Paul Langevin and Chilowski filed two US patents disclosing the first ultrasonic submarine detector using an electrostatic method (singing condenser) for one patent, and thin quartz crystals for the other. ● The amount of time taken by the signal to travel to the enemy submarine and echo back to the ship on which the device was mounted was used to calculate the distance under water.
  • 5. ● He saw that micro-biological organisms exposed to ultrasound waves died. ● Ultrasound in water can kill the algae growing, that is a fact but, how this happend? Water sonar tank experimental set ● While developing the sonar system he observed that the algae in the experimental set doesn’t grow and biofilm gets reduced. Biological activity reduced Less algae Less biofilm
  • 6. Algae and ultrasound: preliminary biology concepts Cell parts: ● Membrane: controls the movement of substances in and out of cells. ● Cell wall:  provides the cells with structural support and protection. ● Gas vesicles: provides buoyancy to these cells by decreasing their overall cell density.
  • 7. Algae and ultrasound: What happens with the ultrasound? ● Liquids such as water are considered resistant to compression, but not the gas inside the algae cell. ● The gas inside the gas vesicle is compressible, affecting to the gas volume depending on the pressure experimented. ● The sound in a media (e.g., water) is a pressure wave. ● So, if the algae is formed by liquid substances (such as cytoplasm), solid matter (Golgi apparatus, ribosomes, cytoskeleton, etc.) and gas vesicles susceptible to compression: What happens when pressure sound waves affects the volume of the gas vesicle but not the surrounding organs inside the algae? Micrograph by H. S. Pankratz. Magnification x31,500
  • 8. ● The gas vesicle volume varies depending on the pressure while the cell wall, which is rigid, remains structurally stable. ● The membrane is flexible, so any variation in the internal structure of the cell affects this, but not the cell wall. ● Then, the change in volume of gas vesicles may fragment the union between the cell wall and plasma membrane. Filamentous green algae Diatom algae Cell wall Gas vesicle Gas vesicle MembraneMembrane
  • 9. When the pressure goes up the gas vesicle gets expanded so the membrane over fits the cell wall. When the pressure goes up the volume of the gas vesicle gets reduced. That breaks the union between the rigid cell wall and the membrane. At normal pressure the union between the cell wall and the membrane remains stable.
  • 10. ● This rupture between the membrane and cell wall prevents the leakage of nutrients into the cell getting as a final result the cell death. ● This phenomena affects to the cell structure on the algae and bacteria (biofilm) but the effect of ultrasound on different cell structures is likewise not representative because of the absence of the gas vesicle.
  • 11. DUMO ultrasonic devices: Algacleaner ● Based on this phenomena, Toscano started to develop their own ultrasonic device for algae control. ● Toscano is an electronic manufacturer of water control equipment. As an expert in this area Toscano wants to gets a remedy to algae bloom which affects the water pumps, irrigation systems and other environmental problems. Under this circumstances.
  • 12. DUMO ultrasonic devices: research & engineering ● Cooperation agreements with European and local universities. ● New DUMO Algacleaner has been developed, supported and verified by different Physics and Biological authorities.
  • 13. DUMO ultrasonic devices: the algae problem Adverse effects ● Many facilities are severely compromised (pumps, pipes, sprinklers, etc). ● Odours occur because of bacteria. ● The resulting decrease in dissolved oxygen in water increases the mortality of fish and insects. ● Some types of algae produce neurotoxins, a very harmful biological impact on the environment. ● Health problems in swimming-pools, contaminated cooling towers, etc.Algae bloom
  • 14. DUMO ultrasonic devices: Toscano labs Tests shown by Toscano research and according to the reports from the Bioindication Group of the University of Seville, the breaking of filaments and the destruction of algae cells. No ultrasound 2 min. sonication 5 min. sonication
  • 16. DUMO ultrasonic devices: R&D success As a final result of Toscano R&D team, investigating the ultrasonic science and the biological algae and bacterial nature, we got… DUMO Algacleaner
  • 17. DUMO ultrasonic devices: results of Algacleaner ● The destruction of the cells causes the release of chlorophyll to the medium. ● The analysis shows a decrease in mg of chlorophyll A, and in the number of cells. 1 2 3 4 0 100 200 300 400 500 600 700 800 900 Destruction Release of chlorophyll A Chlorophyll A Trend Weeks mg Chlorophyll A / m3
  • 18. DUMO ultrasonic devices: results of Algacleaner ● Chlorophyll A naturally increases without the application of US. ● When DUMO Algacleaner is applied to, chlorophyll A density not only maintains but reduces in medium volume.1 2 3 4 0 100 200 300 400 500 600 700 800 900 Inhibition Release of chlorophyl A With US Trend w/ US Without US Trend w/o US Weeks mg Chlorophyl A / m3
  • 19. DUMO ultrasonic devices: Algacleaner benefits ● Controls and prevents the emergence and growth of algae and biofilm. ● Avoid chemical biocides ● Low power consumption. Solar- powered available. ● Application of several ultrasonic frequencies for different algae species. ● Easy installation and maintenance. ● Safe for humans, animals and plants.
  • 20. DUMO Algacleaner: certified production The manufacturing process of DUMO Algacleaner is performed under environmental and quality standards (ISO14001 and ISO9001).
  • 22. DUMO Algacleaner: specificationsAC 180 AC 60 Power AC 110-230VAC / 24VDC 110-230VAC / 24VDC Power voltage frequency 50 / 60 Hz 50 / 60 Hz Power consumption Average: 80 W Max.:130 W Average: 60 W Max.: 90 W Operation temperature range -10º to +70º C (14º to 158º F) -10º to +70º C (14º to 158º F) Average reach 180m 60m Operation basis (double core) Multi-frequency (automatic) Multi-frequency (automatic) Overvoltage protection YES YES Operation indicator LEDs in float and control box LEDs in float and control box Programmable timer ON / OF YES (by default) YES (by default) Preset programs YES (by default) YES (by default) Operation periods configuration YES (by default) YES (by default) Control box protections YES YES Cable protections YES YES Sensor protections YES YES Emission angle 168º 168º Environmental protection IP55 (box) IP55 (box) CE approval 61000-6-3 61000-6-3 Weight 7.3 kg 7.2 kg A) Float B) User manual C) Control box D) Transducer and cable E) Stainless steel anchorage F) Fixing clamps
  • 23. DUMO Algacleaner: highlights Effectiveness against algae. ● Our equipments emit different frequencies, harmonic among them, creating waves of different length. This effect generates effective wavefronts against algae. Water coupling (matching). ● Our transducer incorporates a special elastomer that adapts the transmitter to the water density, resulting in a more effective penetration of ultrasonic waves (reaches longer distance and more powerful). Power released to the medium (acoustic pressure). ● Power is important because not only the pulses go further, but because they come strongly enough to damage and inhibit algae growth. ● A proof of our effectiveness is microcavitation on the precise threshold, that pulses achieve to penetrate the water. Electric power. ● Mean maximal peak. Because it is a system emitter of pulses, the effective average power is four times smaller. DUMO Algacleaner ● This is the system with the best balance among these parameters (Signal / Coupling / Pressure / Power) in the market.
  • 24. DUMO ultrasonic technology More solutions for water and biosolids. A full range of OEM product references.
