The document discusses the evolution of hypervisor usage in OpenStack from 2011 to 2013, highlighting KVM's rise to dominance with over 90% of requests and deployments, while VMware gained traction as a second choice. It outlines trends among different sectors, the challenges and opportunities of multi-hypervisor environments, and provides performance results and compatibility issues for KVM and VMware. Additionally, containers show increasing interest despite low current deployment rates, with limited OpenStack support.

1. Does Hypervisor
Matter in
OpenStack
Greg Elkinbard
Senior Technical Director
©
MIRANTIS
2012
PAGE
1

2. Outline
• Brief History of Time: Hypervisor Requests
• 2011, 2012, 2013
• Trends in Different Segments
• Opportunities and Challenges
©
MIRANTIS
2012
PAGE
2

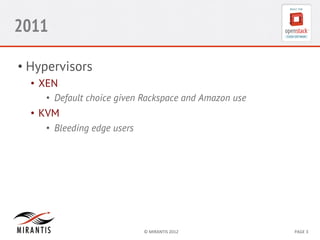

3. 2011
• Hypervisors
• XEN
• Default choice given Rackspace and Amazon use
• KVM
• Bleeding edge users
©
MIRANTIS
2012
PAGE
3

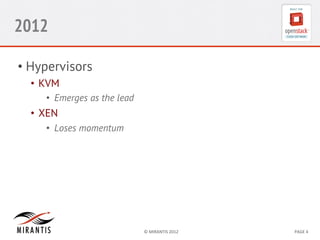

4. 2012
• Hypervisors
• KVM
• Emerges as the lead
• XEN
• Loses momentum
©
MIRANTIS
2012
PAGE
4

5. 2013
• Hypervisors
• KVM
• Maintains lead (around 90%+ for Mirantis)
• Vmware
• Emerges as a surprising second choice
• Containers (LXC, Parallels, Docker)
• Web Hosting and SAS focused
• Xen and HyperV
• Infrequent requests
©
MIRANTIS
2012
PAGE
5

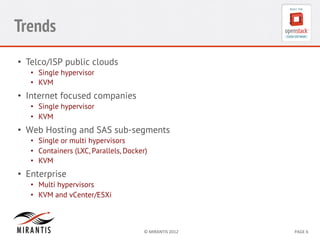

6. Trends
• Telco/ISP public clouds
• Single hypervisor
• KVM
• Internet focused companies
• Single hypervisor
• KVM
• Web Hosting and SAS sub-segments
• Single or multi hypervisors
• Containers (LXC, Parallels, Docker)
• KVM
• Enterprise
• Multi hypervisors
• KVM and vCenter/ESXi
©
MIRANTIS
2012
PAGE
6

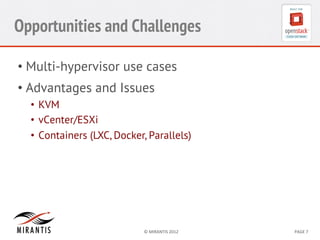

7. Opportunities and Challenges
• Multi-hypervisor use cases
• Advantages and Issues
• KVM
• vCenter/ESXi
• Containers (LXC, Docker, Parallels)
©
MIRANTIS
2012
PAGE
7

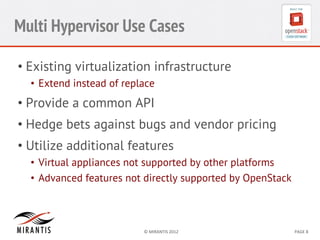

8. Multi Hypervisor Use Cases
• Existing virtualization infrastructure
• Extend instead of replace
• Provide a common API
• Hedge bets against bugs and vendor pricing
• Utilize additional features
• Virtual appliances not supported by other platforms
• Advanced features not directly supported by OpenStack
©
MIRANTIS
2012
PAGE
8

9. KVM
• Currently about 90%+ of requests, 95%+ of
deployments
• Type 2 hypervisor
• Relies on a distro
• Relatively easy to add new devices
• Easy to tune to get good performance
• Flexibility creates speedup opportunities
• Mellanox e-switch
• Intel DPDK vswitch
• Few issues
• Mostly distro related
©
MIRANTIS
2012
PAGE
9

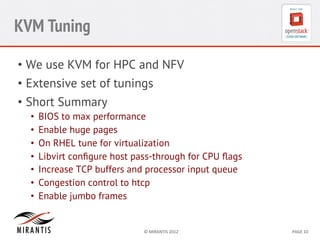

10. KVM Tuning
• We use KVM for HPC and NFV
• Extensive set of tunings
• Short Summary
•
•
•
•
•
•
•
BIOS to max performance
Enable huge pages
On RHEL tune for virtualization
Libvirt configure host pass-through for CPU flags
Increase TCP buffers and processor input queue
Congestion control to htcp
Enable jumbo frames
©
MIRANTIS
2012
PAGE
10

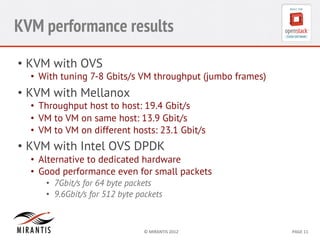

11. KVM performance results
• KVM with OVS
• With tuning 7-8 Gbits/s VM throughput (jumbo frames)
• KVM with Mellanox
• Throughput host to host: 19.4 Gbit/s
• VM to VM on same host: 13.9 Gbit/s
• VM to VM on different hosts: 23.1 Gbit/s
• KVM with Intel OVS DPDK
• Alternative to dedicated hardware
• Good performance even for small packets
• 7Gbit/s for 64 byte packets
• 9.6Gbit/s for 512 byte packets
©
MIRANTIS
2012
PAGE
11

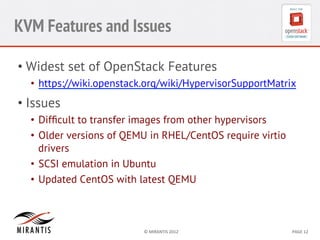

12. KVM Features and Issues
• Widest set of OpenStack Features
• https://wiki.openstack.org/wiki/HypervisorSupportMatrix
• Issues
• Difficult to transfer images from other hypervisors
• Older versions of QEMU in RHEL/CentOS require virtio
drivers
• SCSI emulation in Ubuntu
• Updated CentOS with latest QEMU
©
MIRANTIS
2012
PAGE
12

13. VMware ESXi
• Currently about 8-10% of requests, 5%+ of
deployments
• Primarily vCenter
• Type 1 hypervisor
• Does not need a linux distro
• VMware controls the code, 3rd party packages must be
signed.
• VMware is supporting both ESXi and vCenter
APIs
©
MIRANTIS
2012
PAGE
13

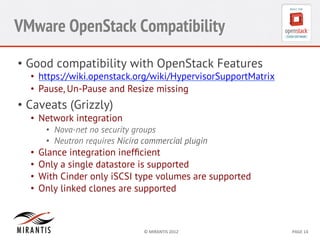

14. VMware OpenStack Compatibility
• Good compatibility with OpenStack Features
• https://wiki.openstack.org/wiki/HypervisorSupportMatrix
• Pause, Un-Pause and Resize missing
• Caveats (Grizzly)
• Network integration
• Nova-net no security groups
• Neutron requires Nicira commercial plugin
•
•
•
•
Glance integration inefficient
Only a single datastore is supported
With Cinder only iSCSI type volumes are supported
Only linked clones are supported
©
MIRANTIS
2012
PAGE
14

15. Vmware OpenStack Havana
• Linked and Full clones are supported
• Multiple VC clusters can be managed by a single
driver
• Config drive support
• Cinder support for VMDK based Volumes
• vShield Edge Driver support for NVP plugin
(FWaaS, LBaaS)
©
MIRANTIS
2012
PAGE
15

16. VMware Networking
• Nicira NVP/NSX
• Cisco 1000V (future)
• Accelerated Options
• NVP using STT
• VN-Tag, SR-IOV & Cisco Switches (VM-FEX)
©
MIRANTIS
2012
PAGE
16

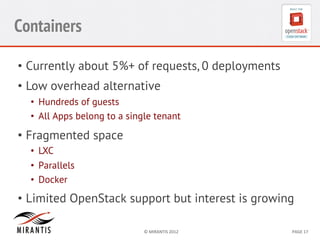

17. Containers
• Currently about 5%+ of requests, 0 deployments
• Low overhead alternative
• Hundreds of guests
• All Apps belong to a single tenant
• Fragmented space
• LXC
• Parallels
• Docker
• Limited OpenStack support but interest is growing
©
MIRANTIS
2012
PAGE
17

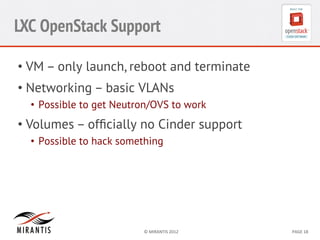

18. LXC OpenStack Support
• VM – only launch, reboot and terminate
• Networking – basic VLANs
• Possible to get Neutron/OVS to work
• Volumes – officially no Cinder support
• Possible to hack something
©
MIRANTIS
2012
PAGE
18
