1. Vtastic: Innovations In Distributed Systems Testing
Jack Wadden, Sr. Engineering Manager
Akamai Technologies, Inc.

2. ©2015 AKAMAI | FASTER FORWARDTM

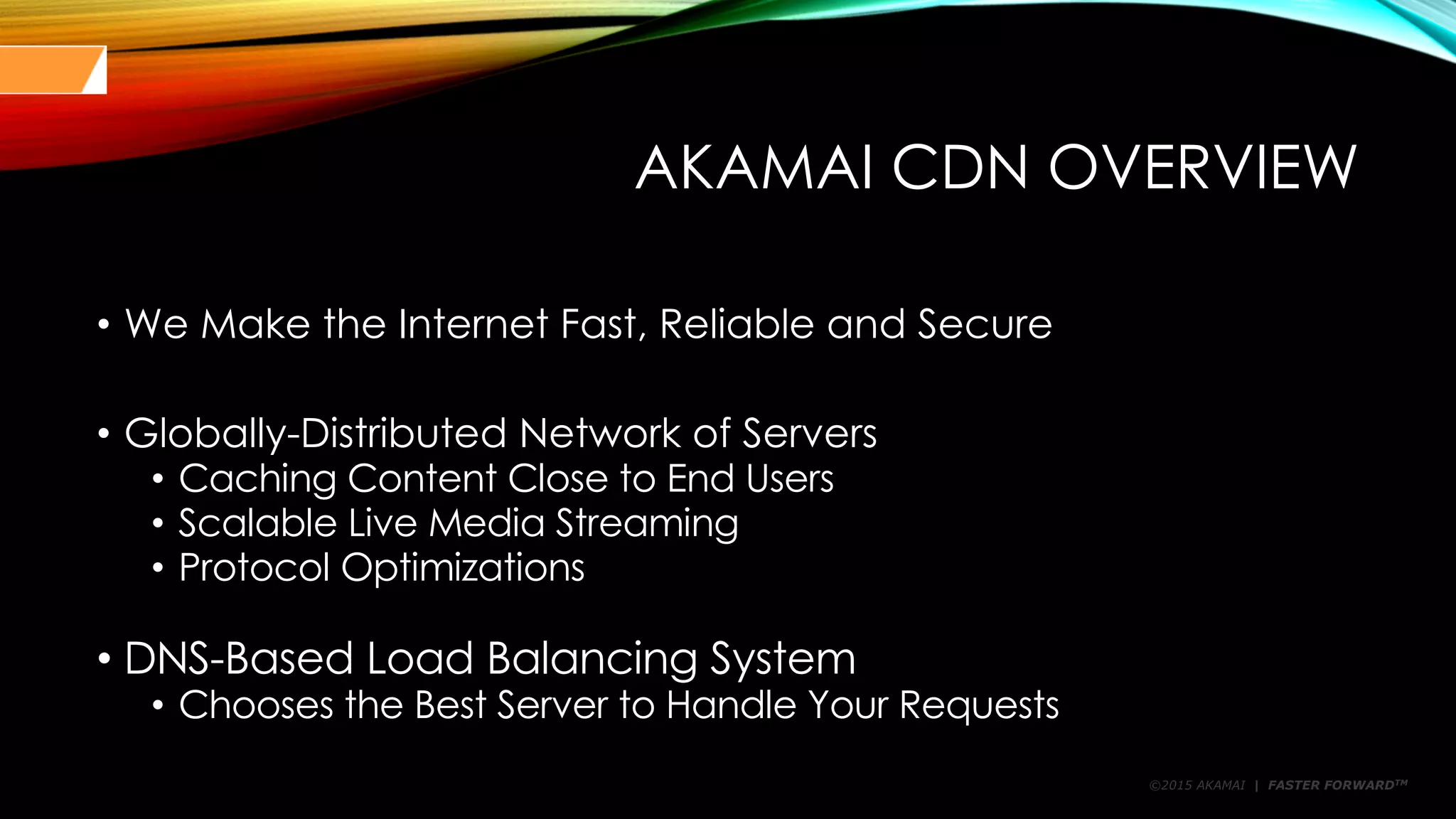

AKAMAI CDN OVERVIEW
• We Make the Internet Fast, Reliable and Secure
• Globally-Distributed Network of Servers
• Caching Content Close to End Users
• Scalable Live Media Streaming
• Protocol Optimizations
• DNS-Based Load Balancing System
• Chooses the Best Server to Handle Your Requests

3. ©2015 AKAMAI | FASTER FORWARDTM
MASSIVE SCALE
• 15-30% of All Internet Traffic
• 3+ Trillion Hits/day (2 x 1012
)
• 30+ Tbps
• 215,000+ Servers
• Located in 120+ Countries
• 1000+ Software Components
• 100+ of Server Roles

4. ©2015 AKAMAI | FASTER FORWARDTM
SYSTEM TESTING AT AKAMAI

5. ©2015 AKAMAI | FASTER FORWARDTM

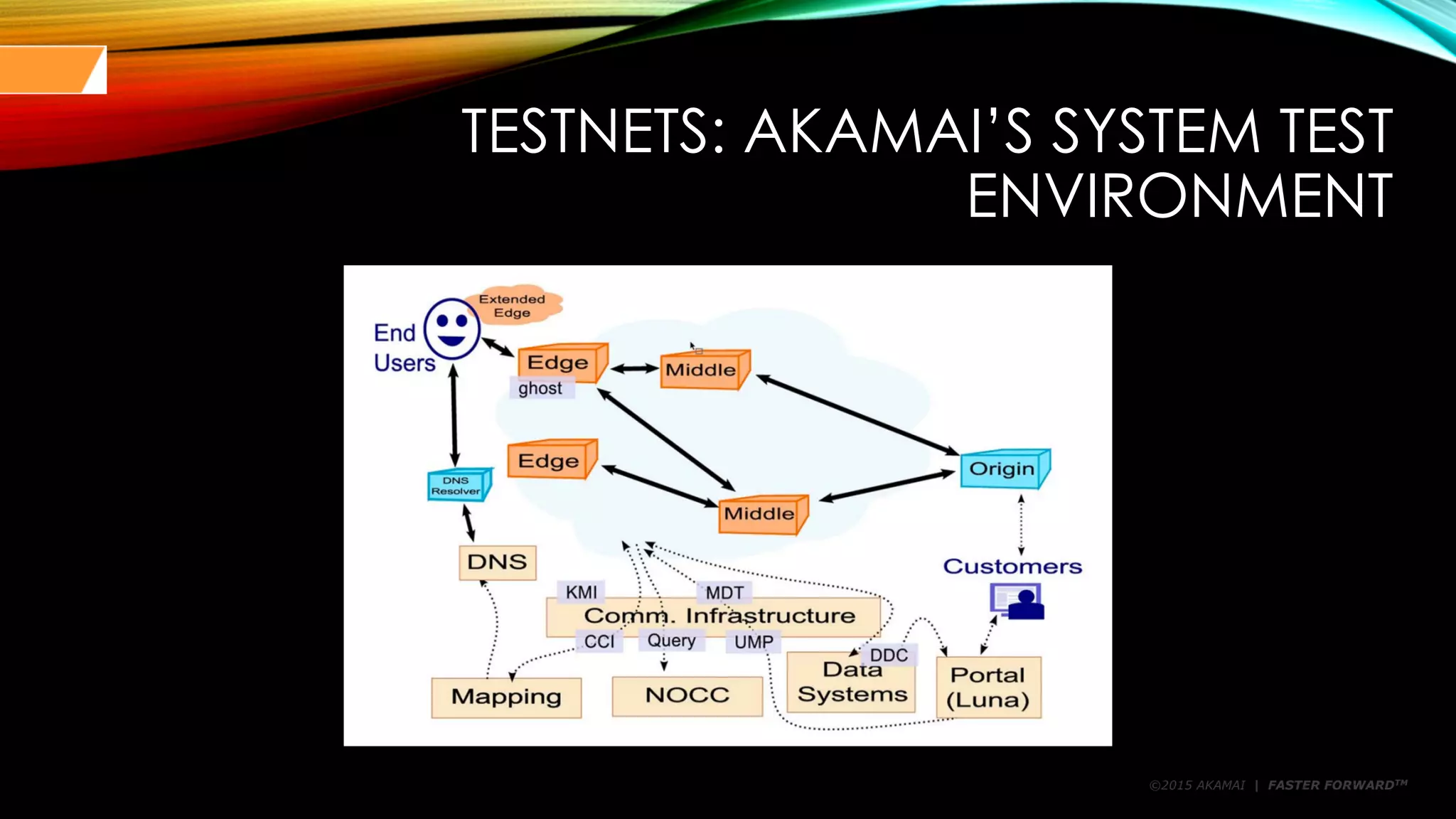

TESTNETS: AKAMAI’S SYSTEM TEST
ENVIRONMENT

6. ©2015 AKAMAI | FASTER FORWARDTM
HOWEVER, AT AKAMAI TESTNETS
ARE A SCARCE RESOURCE

7. ©2015 AKAMAI | FASTER FORWARDTM
THEY ARE EXPENSIVE TO BUILD

8. ©2015 AKAMAI | FASTER FORWARDTM
AND REQUIRE A HUGE TEAM TO
MAINTAIN

9. ©2015 AKAMAI | FASTER FORWARDTM
SHARING LEADS TO DISRUPTIONS

10. ©2015 AKAMAI | FASTER FORWARDTM
SOMETIMES THE FIT IS POOR

11. ©2015 AKAMAI | FASTER FORWARDTM
CONFLICTING USES NEED TO BE
COORDINATED

12. ©2015 AKAMAI | FASTER FORWARDTM
AND RESULT IN INEVITABLE DELAYS

13. ©2015 AKAMAI | FASTER FORWARDTM

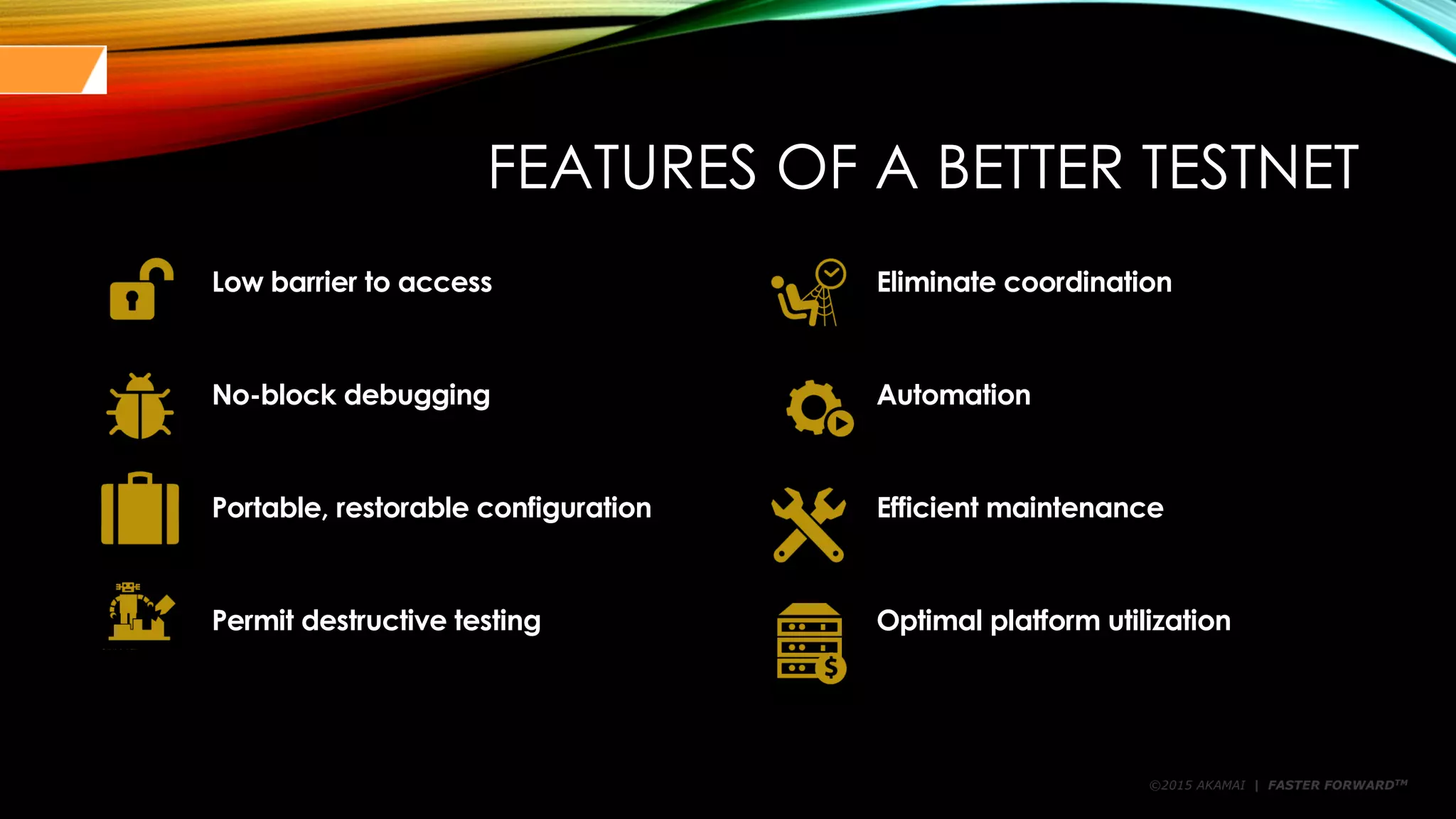

FEATURES OF A BETTER TESTNET
Low barrier to access Eliminate coordination
No-block debugging Automation
Portable, restorable configuration Efficient maintenance
Permit destructive testing Optimal platform utilization

14. CONTINUOUS,
AUTOMATED,
END-TO-END TESTING
FOR ALL ENGINEERS
ON EVERY COMPONENT
ACROSS AKAMAI

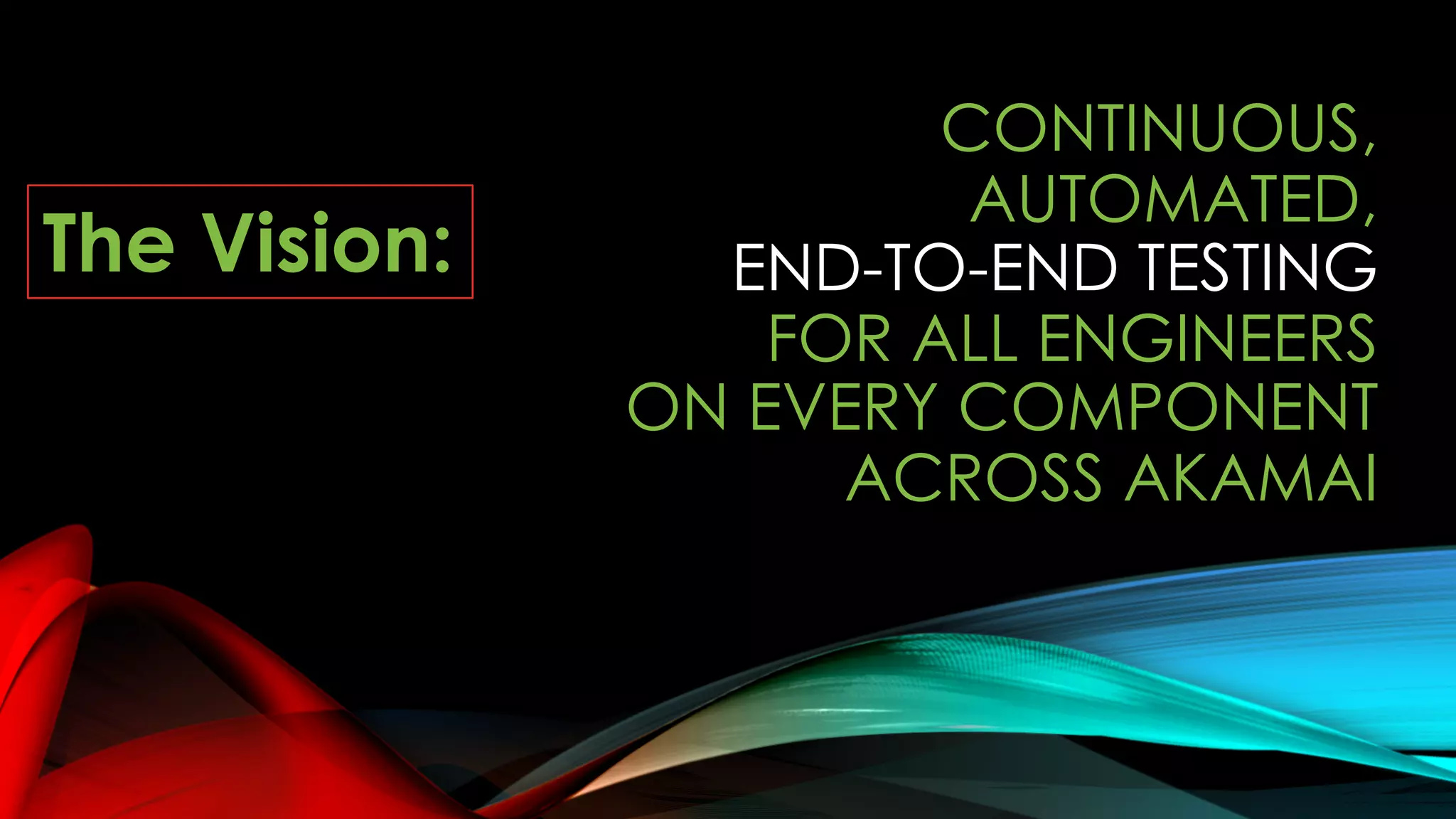

The Vision:

15. ©2015 AKAMAI | FASTER FORWARDTM

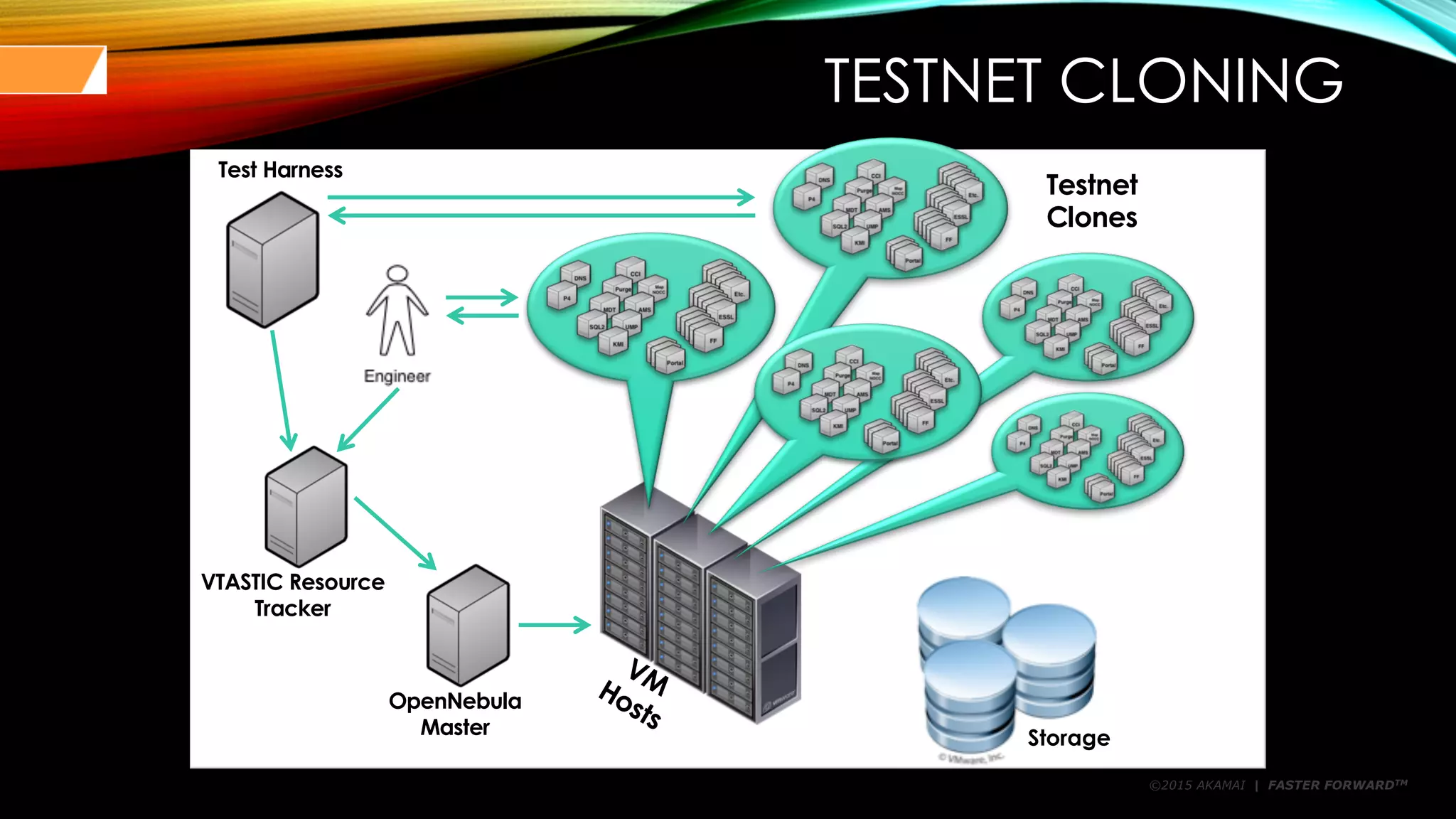

TESTNET CLONING
Test Harness
VTASTIC Resource
Tracker
OpenNebula
Master Storage
Testnet
Clones

16. ©2015 AKAMAI | FASTER FORWARDTM

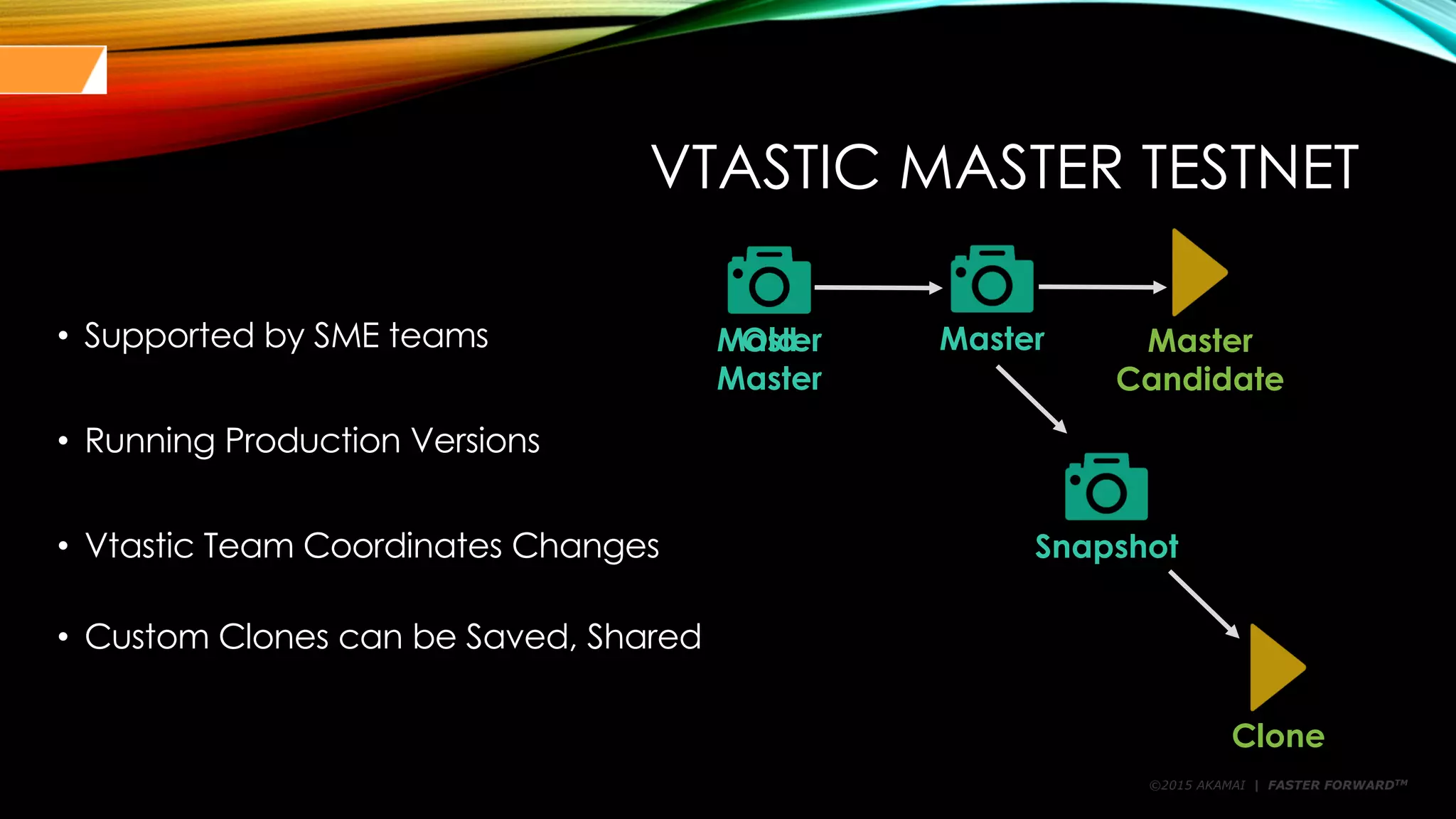

VTASTIC MASTER TESTNET
• Supported by SME teams
• Running Production Versions
• Vtastic Team Coordinates Changes
• Custom Clones can be Saved, Shared
Master Master Master
Candidate
Snapshot
Clone
Old
Master

17. ©2015 AKAMAI | FASTER FORWARDTM

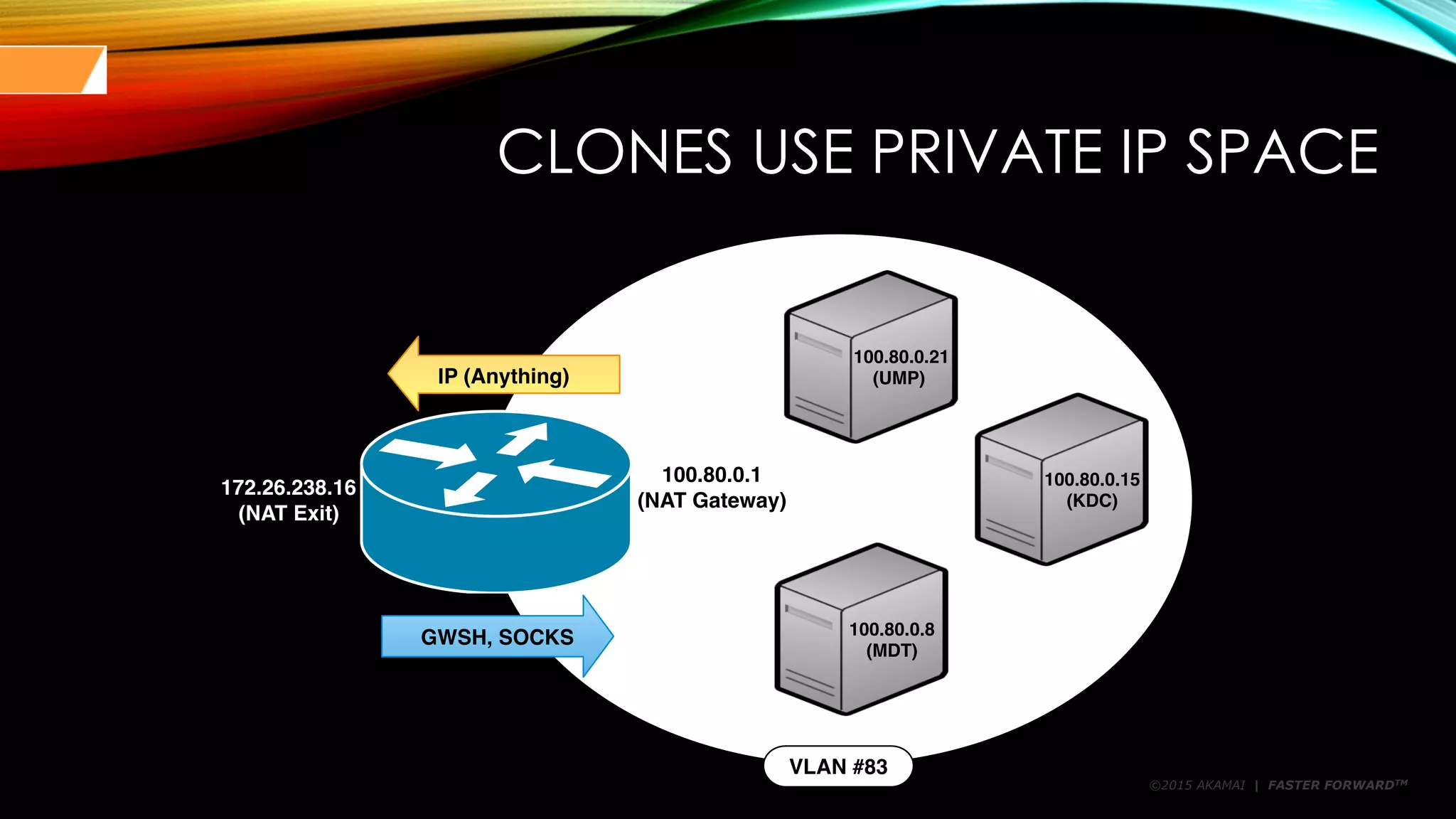

CLONES USE PRIVATE IP SPACE
100.80.0.8
(MDT)
100.80.0.15
(KDC)
100.80.0.21
(UMP)
GWSH, SOCKS
172.26.238.16
(NAT Exit)
100.80.0.1
(NAT Gateway)
IP (Anything)
VLAN #83

18. ©2015 AKAMAI | FASTER FORWARDTM

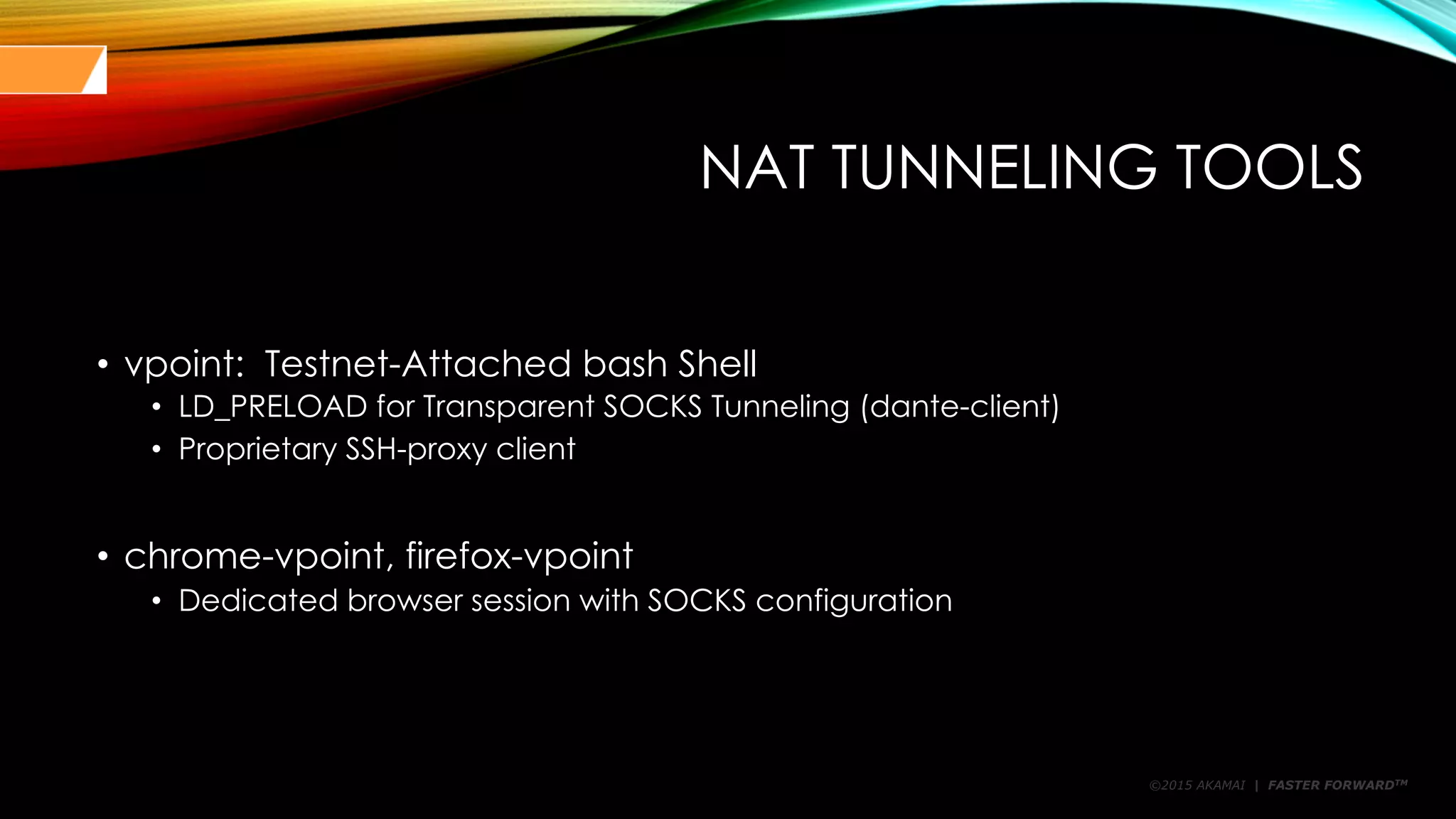

NAT TUNNELING TOOLS
• vpoint: Testnet-Attached bash Shell
• LD_PRELOAD for Transparent SOCKS Tunneling (dante-client)
• Proprietary SSH-proxy client
• chrome-vpoint, firefox-vpoint
• Dedicated browser session with SOCKS configuration

19. ©2015 AKAMAI | FASTER FORWARDTM

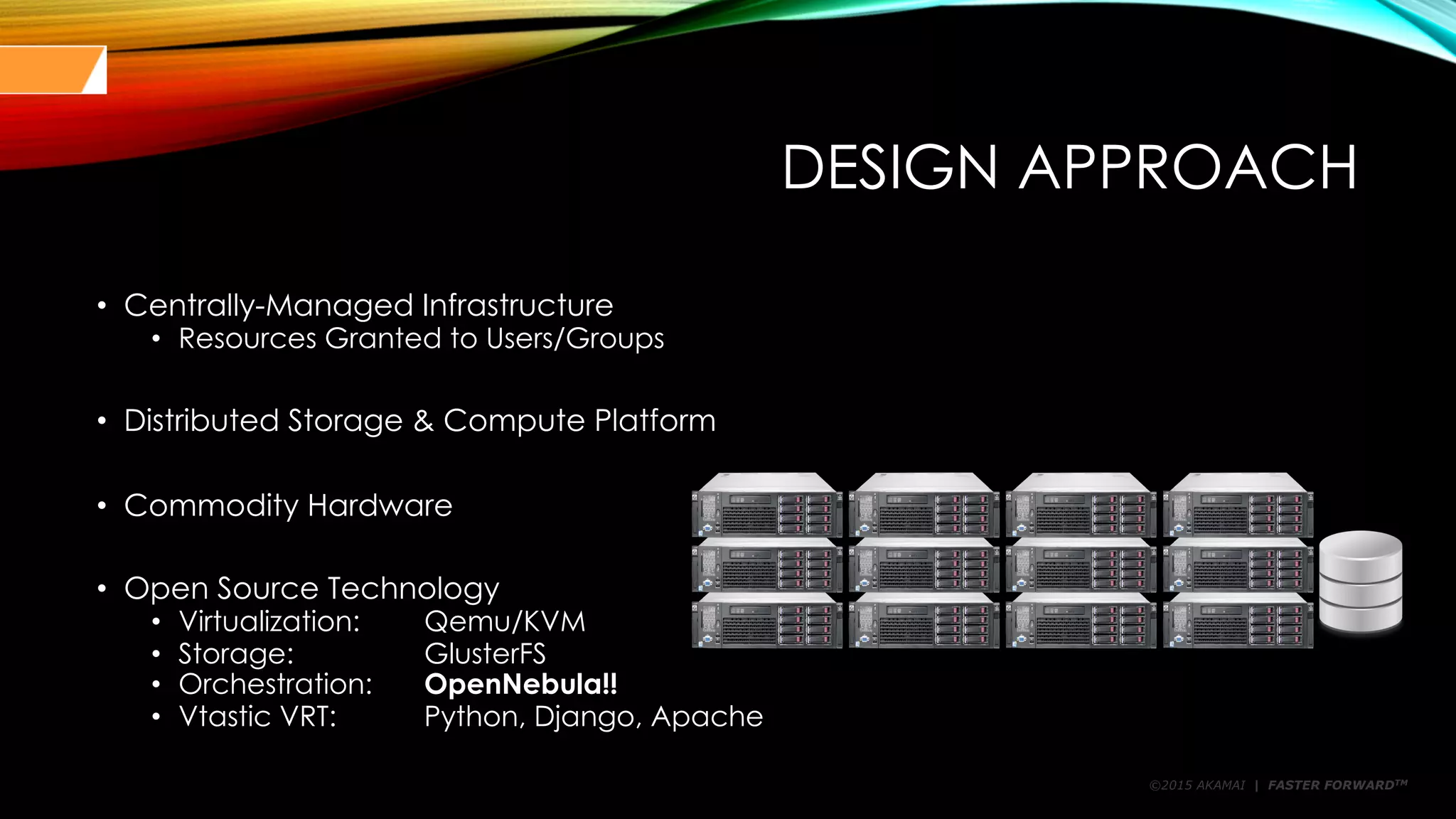

DESIGN APPROACH
• Centrally-Managed Infrastructure
• Resources Granted to Users/Groups
• Distributed Storage & Compute Platform
• Commodity Hardware
• Open Source Technology
• Virtualization: Qemu/KVM
• Storage: GlusterFS
• Orchestration: OpenNebula!!
• Vtastic VRT: Python, Django, Apache

20. ©2015 AKAMAI | FASTER FORWARDTM

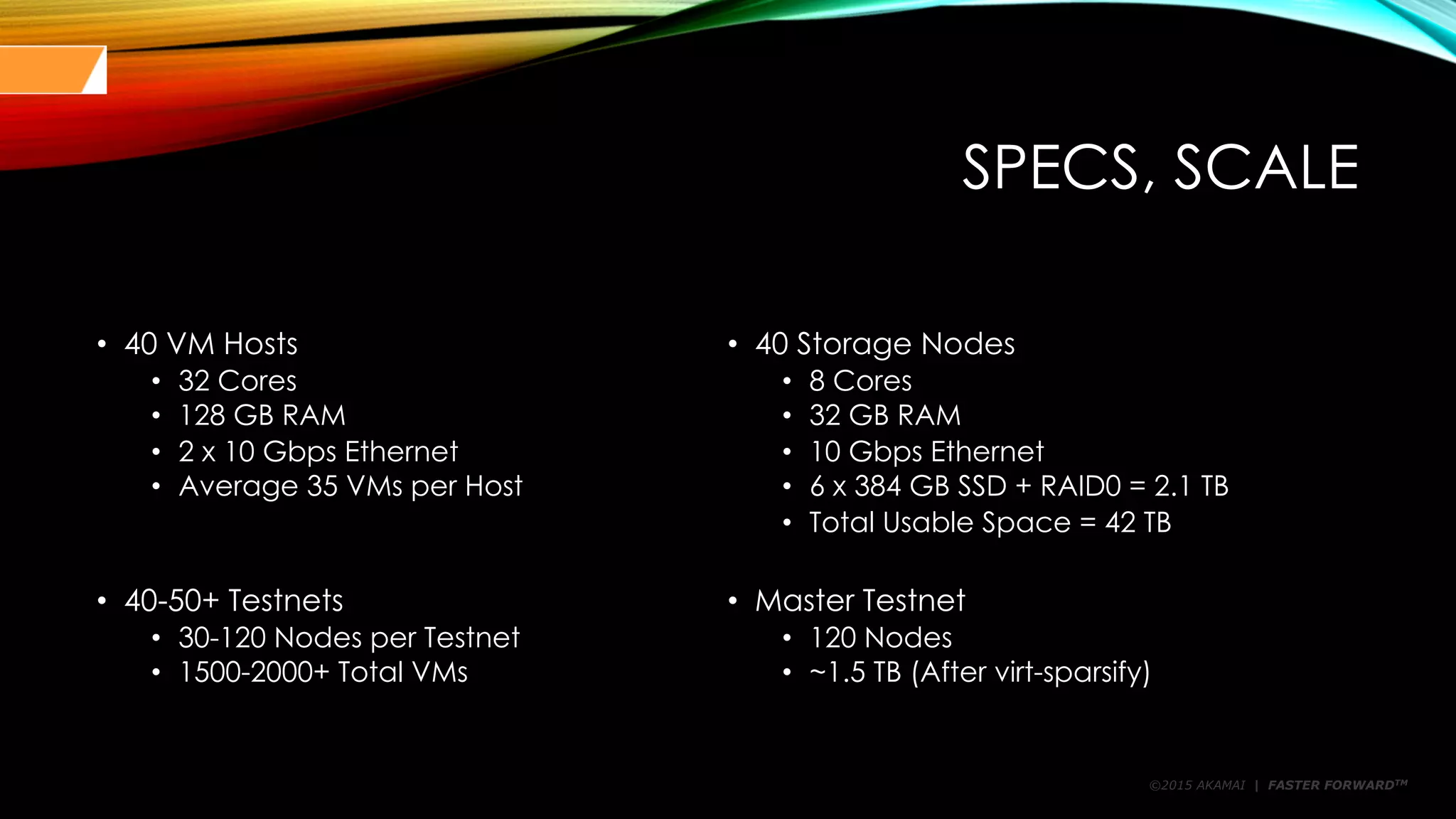

SPECS, SCALE
• 40 VM Hosts
• 32 Cores
• 128 GB RAM
• 2 x 10 Gbps Ethernet
• Average 35 VMs per Host
• 40-50+ Testnets
• 30-120 Nodes per Testnet
• 1500-2000+ Total VMs
• 40 Storage Nodes
• 8 Cores
• 32 GB RAM
• 10 Gbps Ethernet
• 6 x 384 GB SSD + RAID0 = 2.1 TB
• Total Usable Space = 42 TB
• Master Testnet
• 120 Nodes
• ~1.5 TB (After virt-sparsify)

21. ©2015 AKAMAI | FASTER FORWARDTM

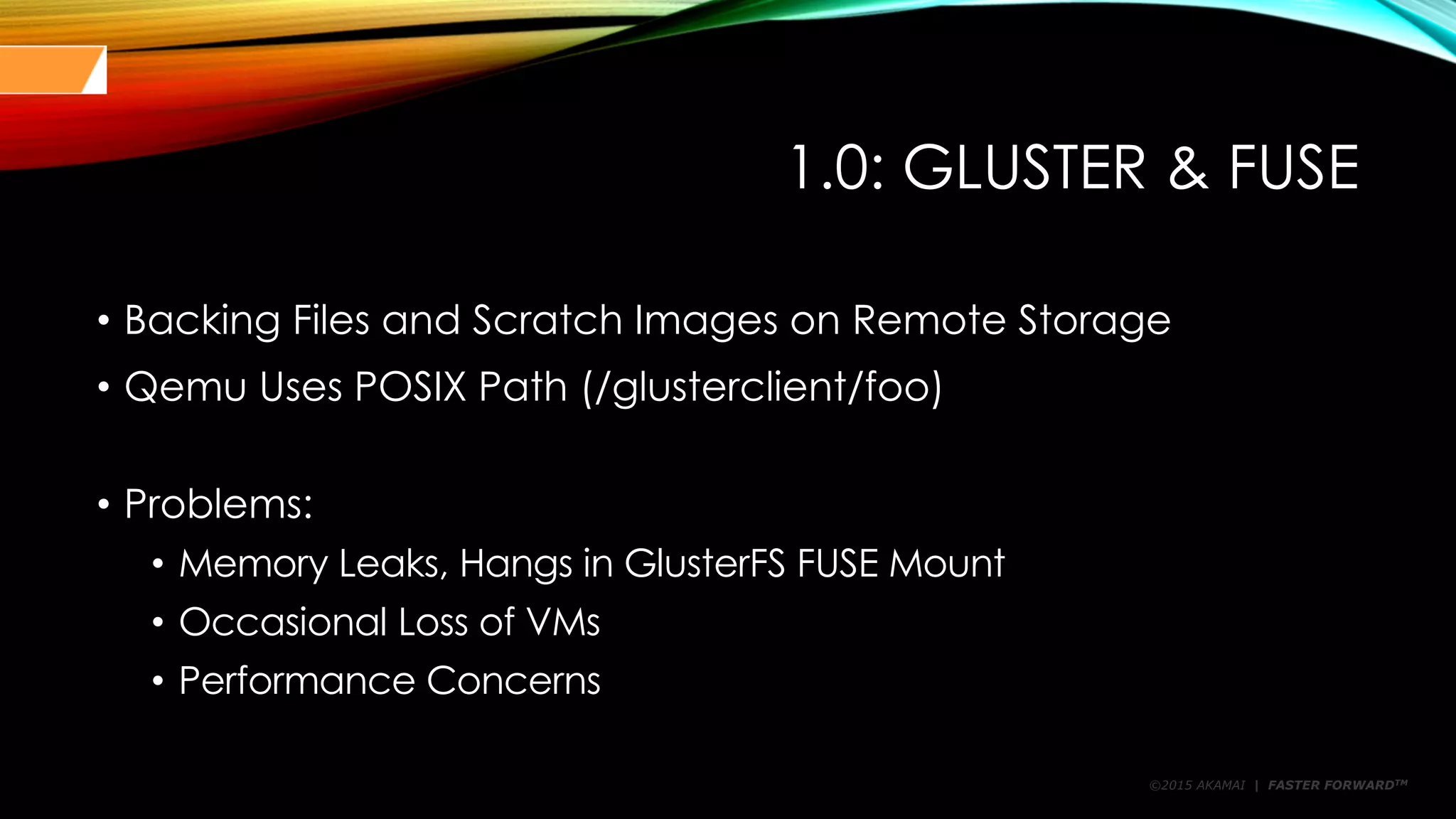

1.0: GLUSTER & FUSE
• Backing Files and Scratch Images on Remote Storage
• Qemu Uses POSIX Path (/glusterclient/foo)
• Problems:
• Memory Leaks, Hangs in GlusterFS FUSE Mount
• Occasional Loss of VMs
• Performance Concerns

22. ©2015 AKAMAI | FASTER FORWARDTM

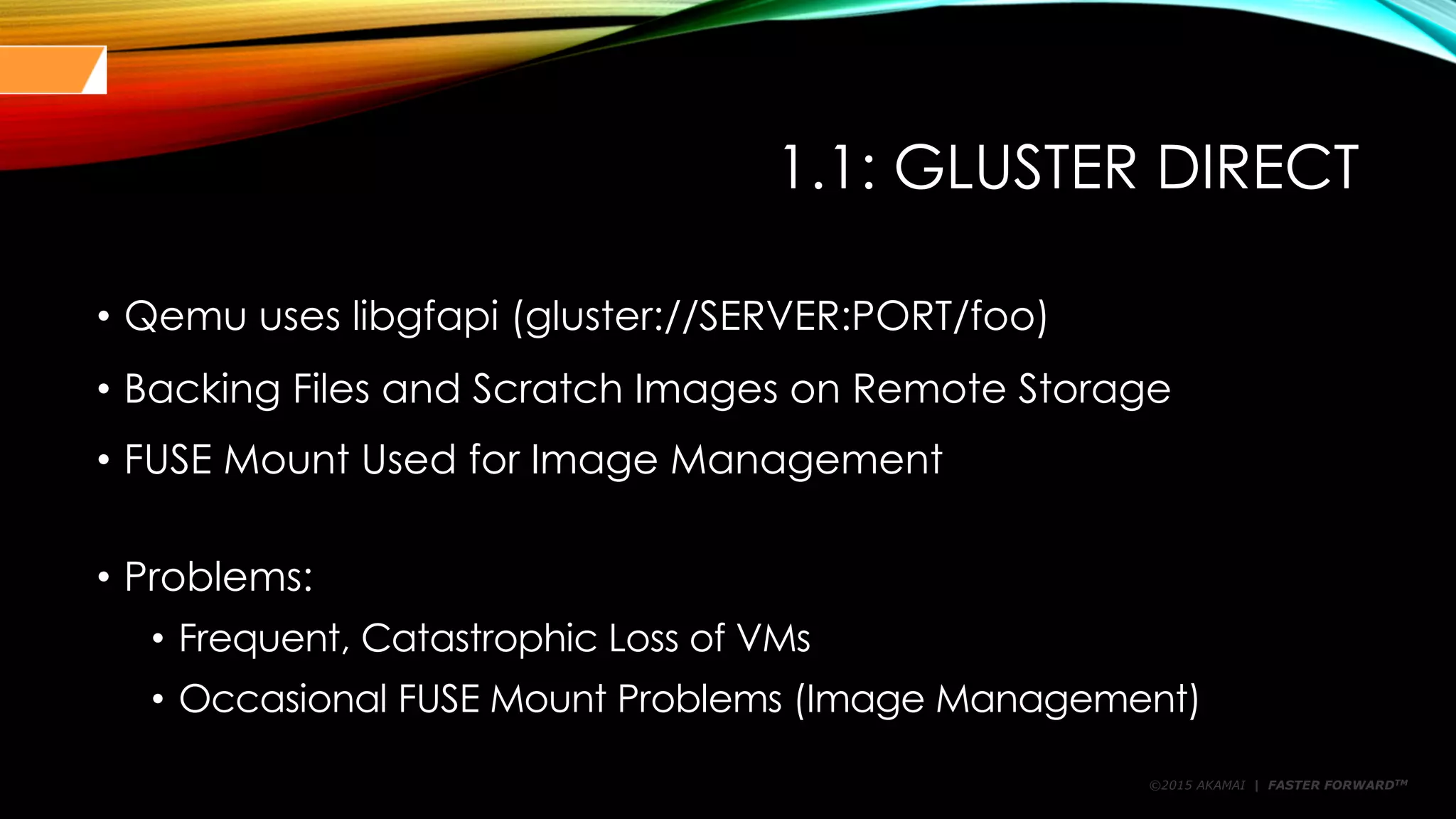

1.1: GLUSTER DIRECT
• Qemu uses libgfapi (gluster://SERVER:PORT/foo)
• Backing Files and Scratch Images on Remote Storage
• FUSE Mount Used for Image Management
• Problems:
• Frequent, Catastrophic Loss of VMs
• Occasional FUSE Mount Problems (Image Management)

23. ©2015 AKAMAI | FASTER FORWARDTM

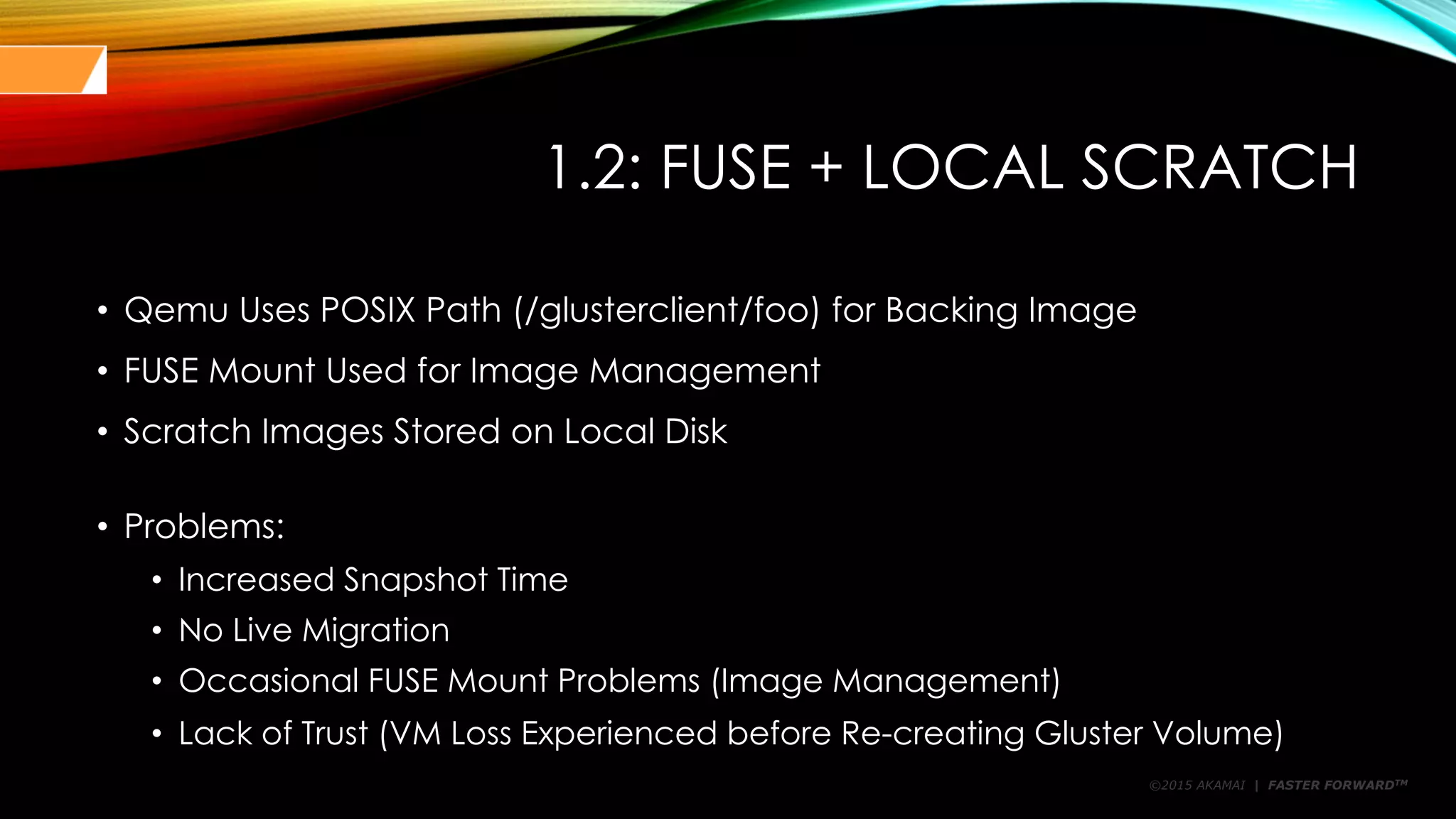

1.2: FUSE + LOCAL SCRATCH
• Qemu Uses POSIX Path (/glusterclient/foo) for Backing Image
• FUSE Mount Used for Image Management
• Scratch Images Stored on Local Disk
• Problems:
• Increased Snapshot Time
• No Live Migration
• Occasional FUSE Mount Problems (Image Management)
• Lack of Trust (VM Loss Experienced before Re-creating Gluster Volume)

24. ©2015 AKAMAI | FASTER FORWARDTM

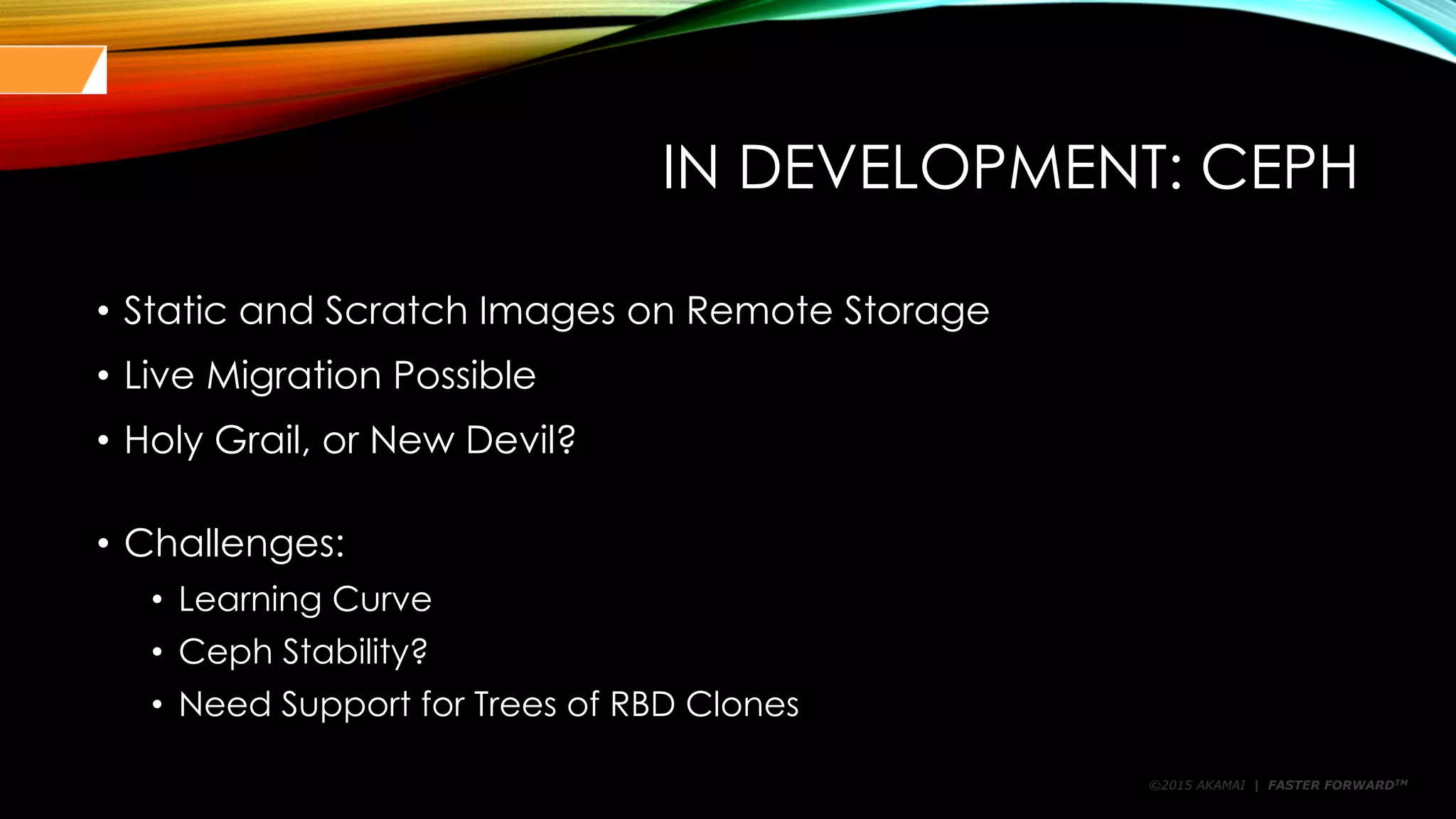

IN DEVELOPMENT: CEPH
• Static and Scratch Images on Remote Storage
• Live Migration Possible
• Holy Grail, or New Devil?
• Challenges:
• Learning Curve
• Ceph Stability?
• Need Support for Trees of RBD Clones

25. ©2015 AKAMAI | FASTER FORWARDTM

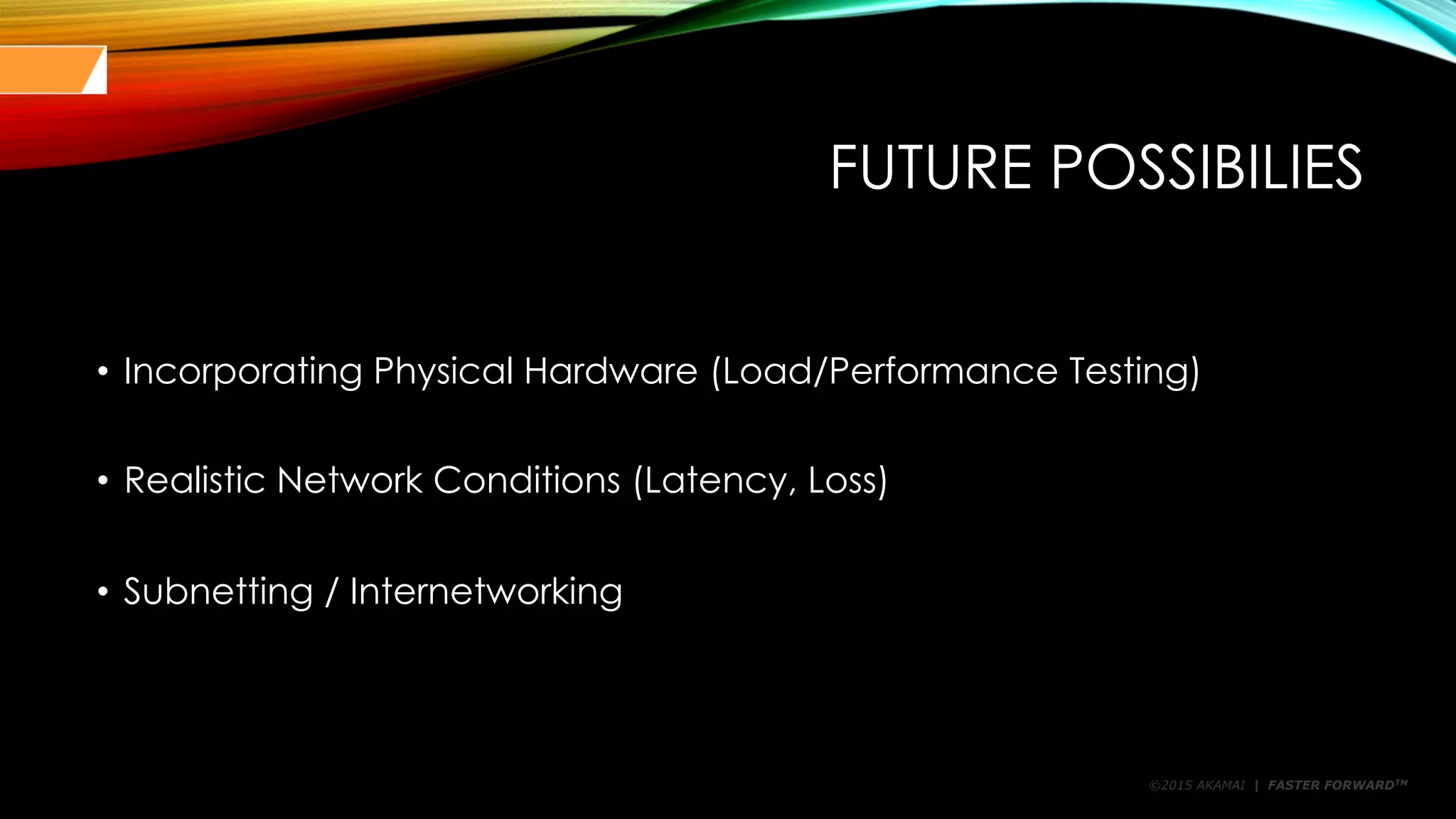

FUTURE POSSIBILIES
• Incorporating Physical Hardware (Load/Performance Testing)
• Realistic Network Conditions (Latency, Loss)
• Subnetting / Internetworking

26. VTASTIC.AKAMAI.COM

27. ©2015 AKAMAI | FASTER FORWARDTM

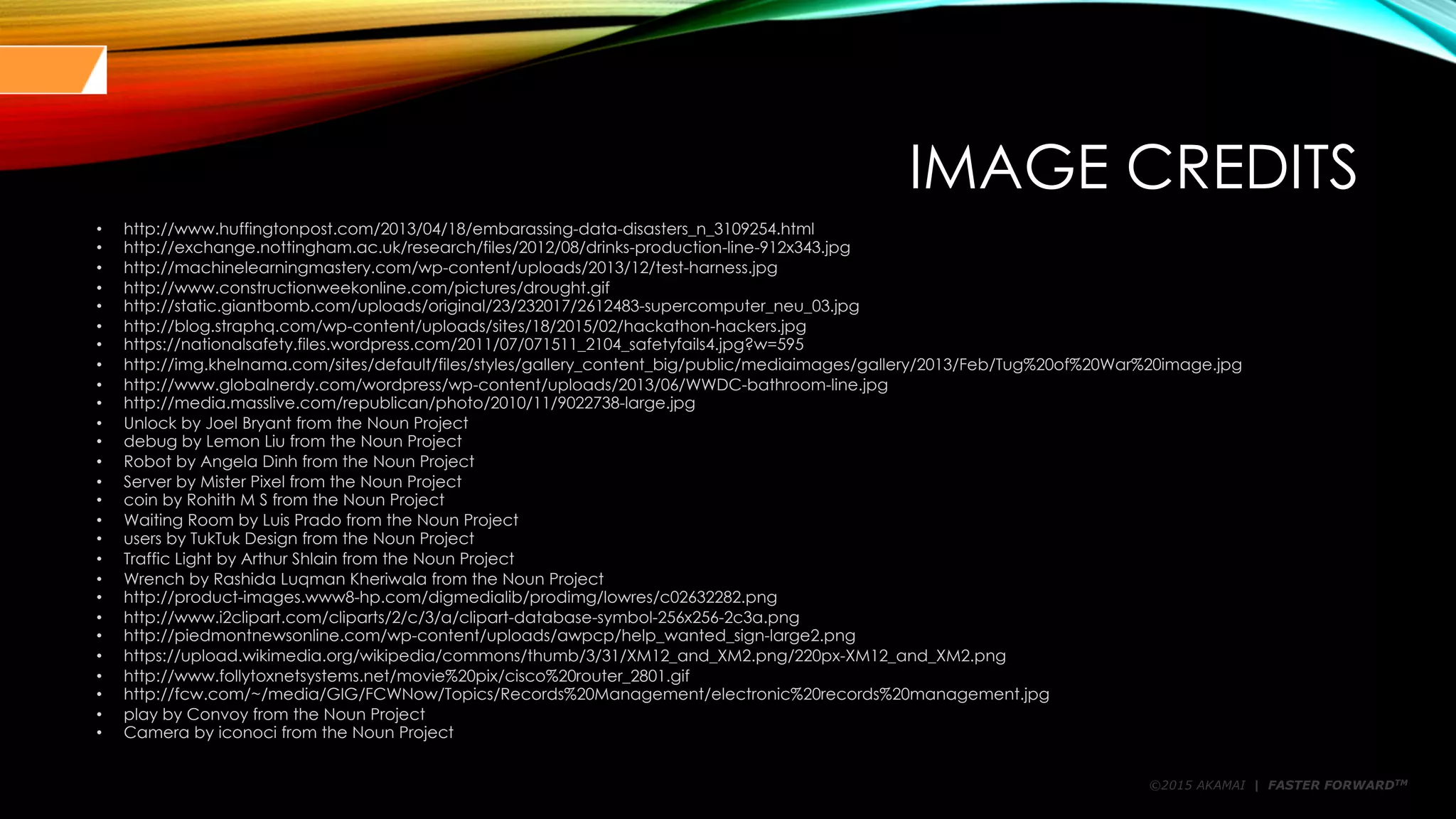

IMAGE CREDITS
