Guaranteeing Storage Performance in
CloudStack

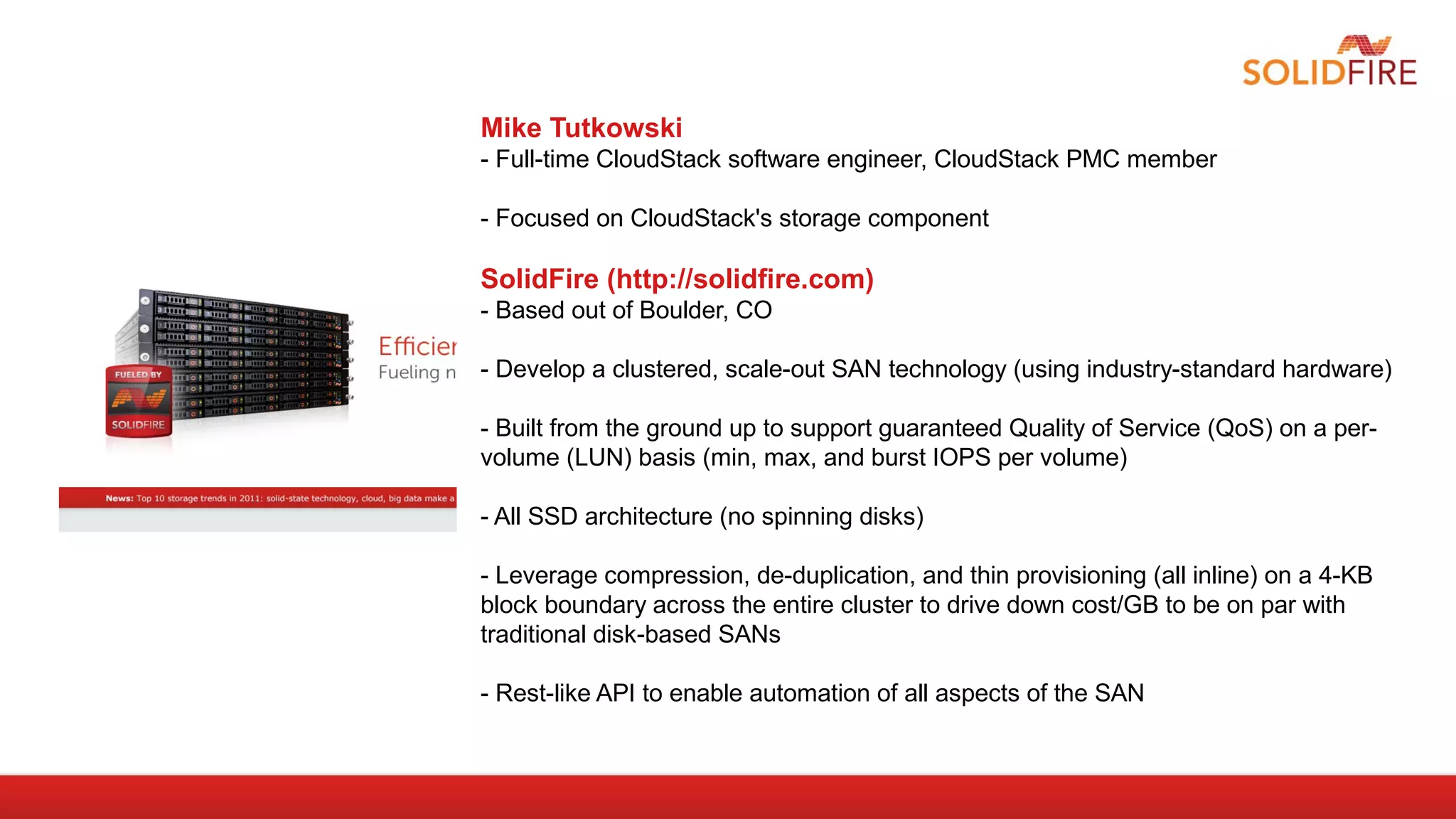

Mike Tutkowski
- Full-time CloudStack software engineer, CloudStack PMC member
- Focused on CloudStack's storage component
SolidFire (http://solidfire.com)
- Based out of Boulder, CO
- Develop a clustered, scale-out SAN technology (using industry-standard hardware)
- Built from the ground up to support guaranteed Quality of Service (QoS) on a per-volume
(LUN) basis (min, max, and burst IOPS per volume)
- All SSD architecture (no spinning disks)
- Leverage compression, de-duplication, and thin provisioning (all inline) on a 4-KB
block boundary across the entire cluster to drive down cost/GB to be on par with
traditional disk-based SANs
- Rest-like API to enable automation of all aspects of the SAN

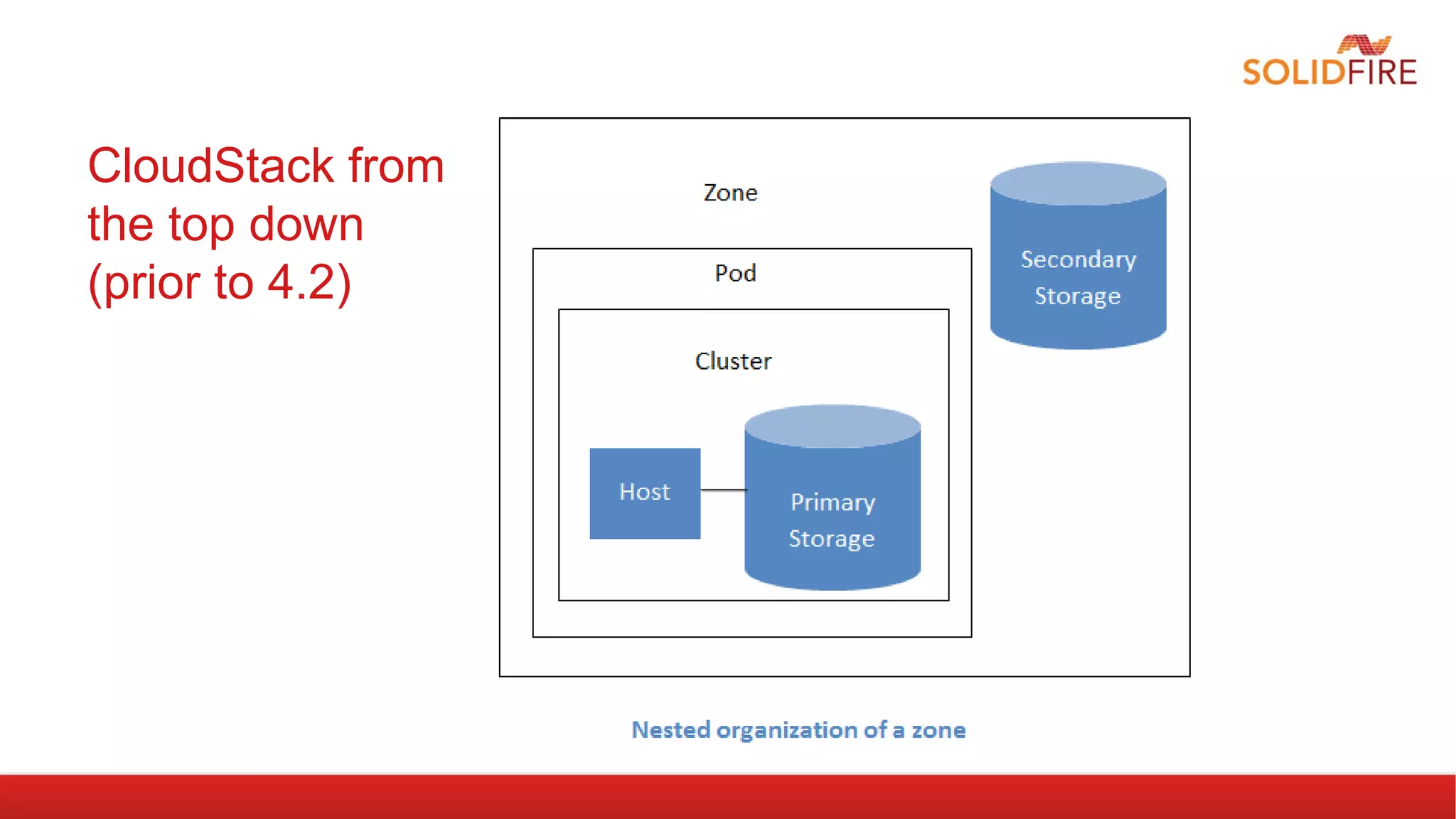

CloudStack from
the top down
(prior to 4.2)

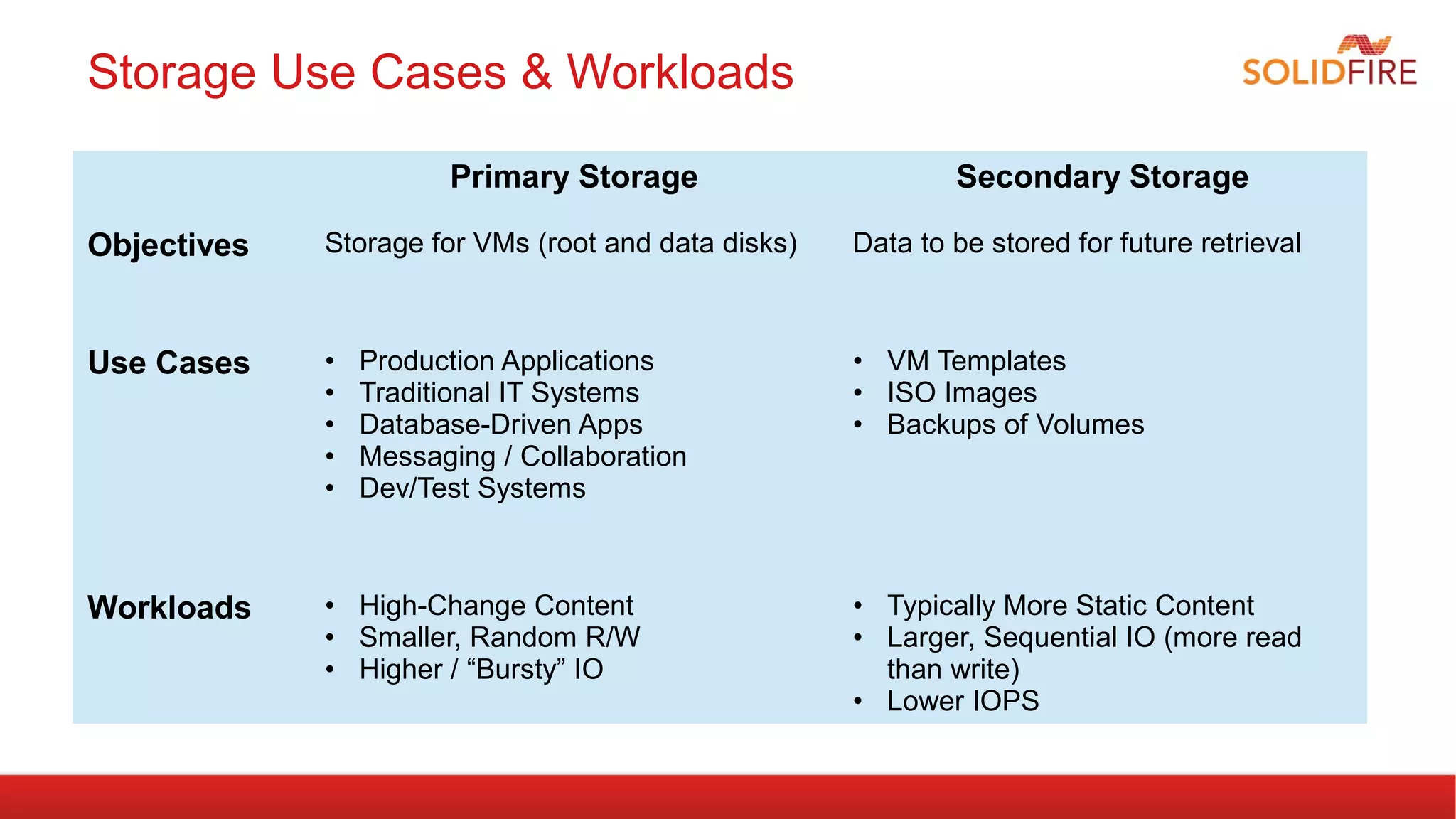

Primary Storage Secondary Storage
Objectives Storage for VMs (root and data disks) Data to be stored for future retrieval
Use Cases • Production Applications
• Traditional IT Systems
• Database-Driven Apps
• Messaging / Collaboration
• Dev/Test Systems
• VM Templates
• ISO Images
• Backups of Volumes
Workloads • High-Change Content
• Smaller, Random R/W
• Higher / “Bursty” IO
• Typically More Static Content
• Larger, Sequential IO (more read
than write)
• Lower IOPS
Storage Use Cases & Workloads

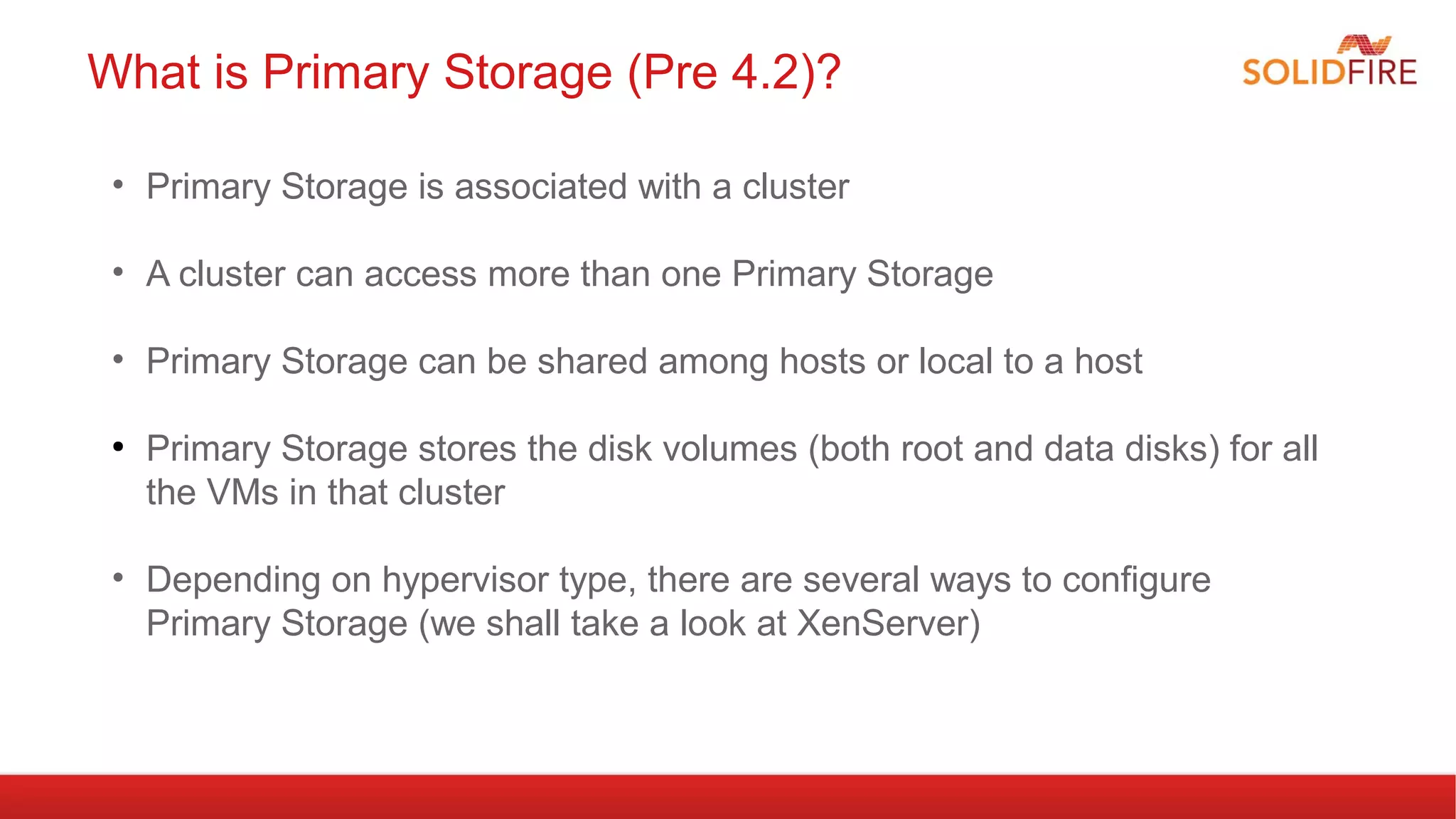

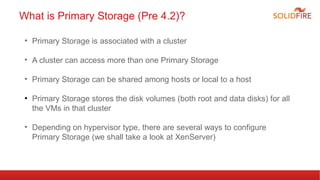

What is Primary Storage (Pre 4.2)?
• Primary Storage is associated with a cluster
• A cluster can access more than one Primary Storage
• Primary Storage can be shared among hosts or local to a host
● Primary Storage stores the disk volumes (both root and data disks) for all
the VMs in that cluster
• Depending on hypervisor type, there are several ways to configure
Primary Storage (we shall take a look at XenServer)

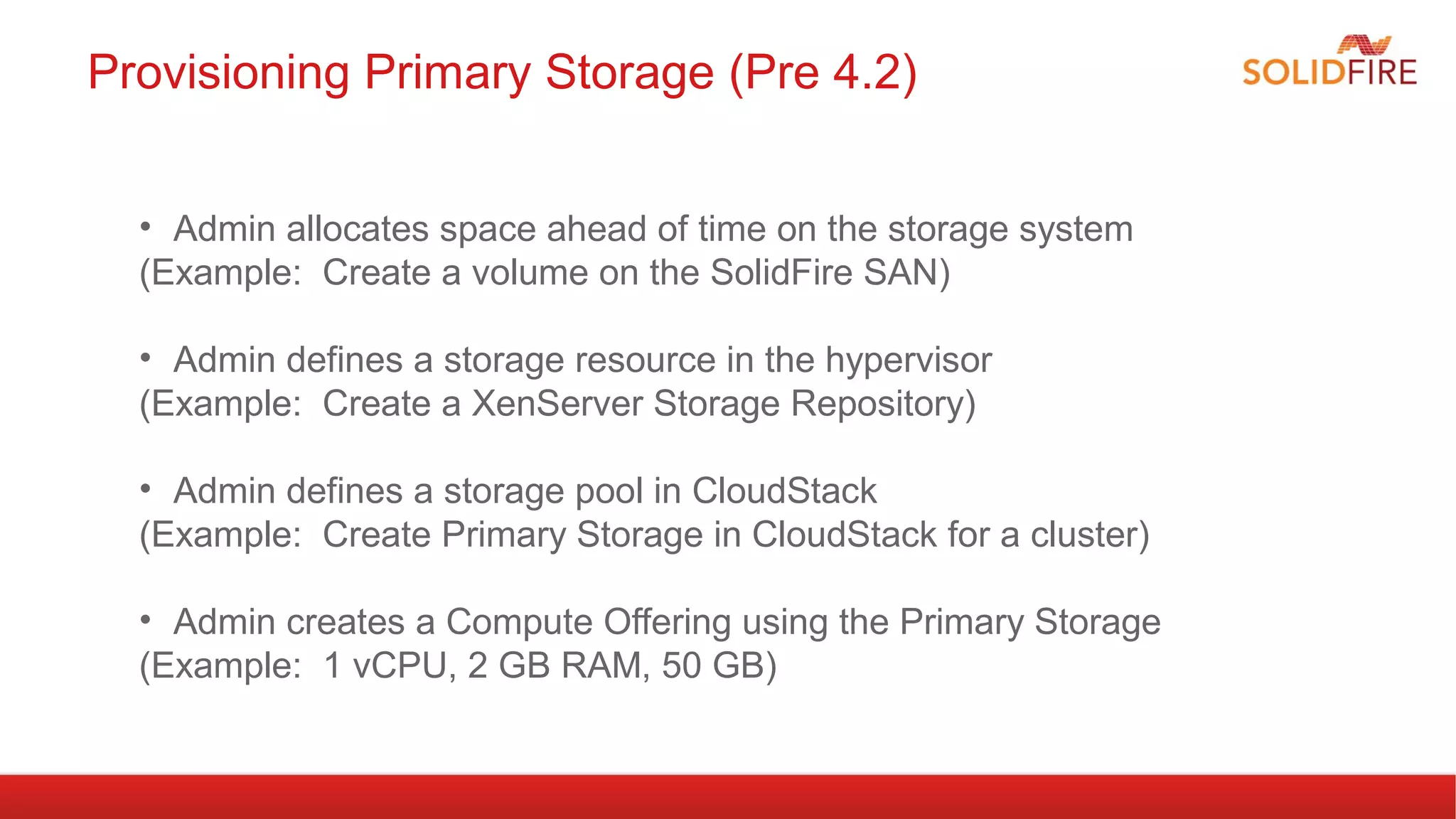

Provisioning Primary Storage (Pre 4.2)
• Admin allocates space ahead of time on the storage system
(Example: Create a volume on the SolidFire SAN)
• Admin defines a storage resource in the hypervisor
(Example: Create a XenServer Storage Repository)
• Admin defines a storage pool in CloudStack
(Example: Create Primary Storage in CloudStack for a cluster)
• Admin creates a Compute Offering using the Primary Storage
(Example: 1 vCPU, 2 GB RAM, 50 GB)

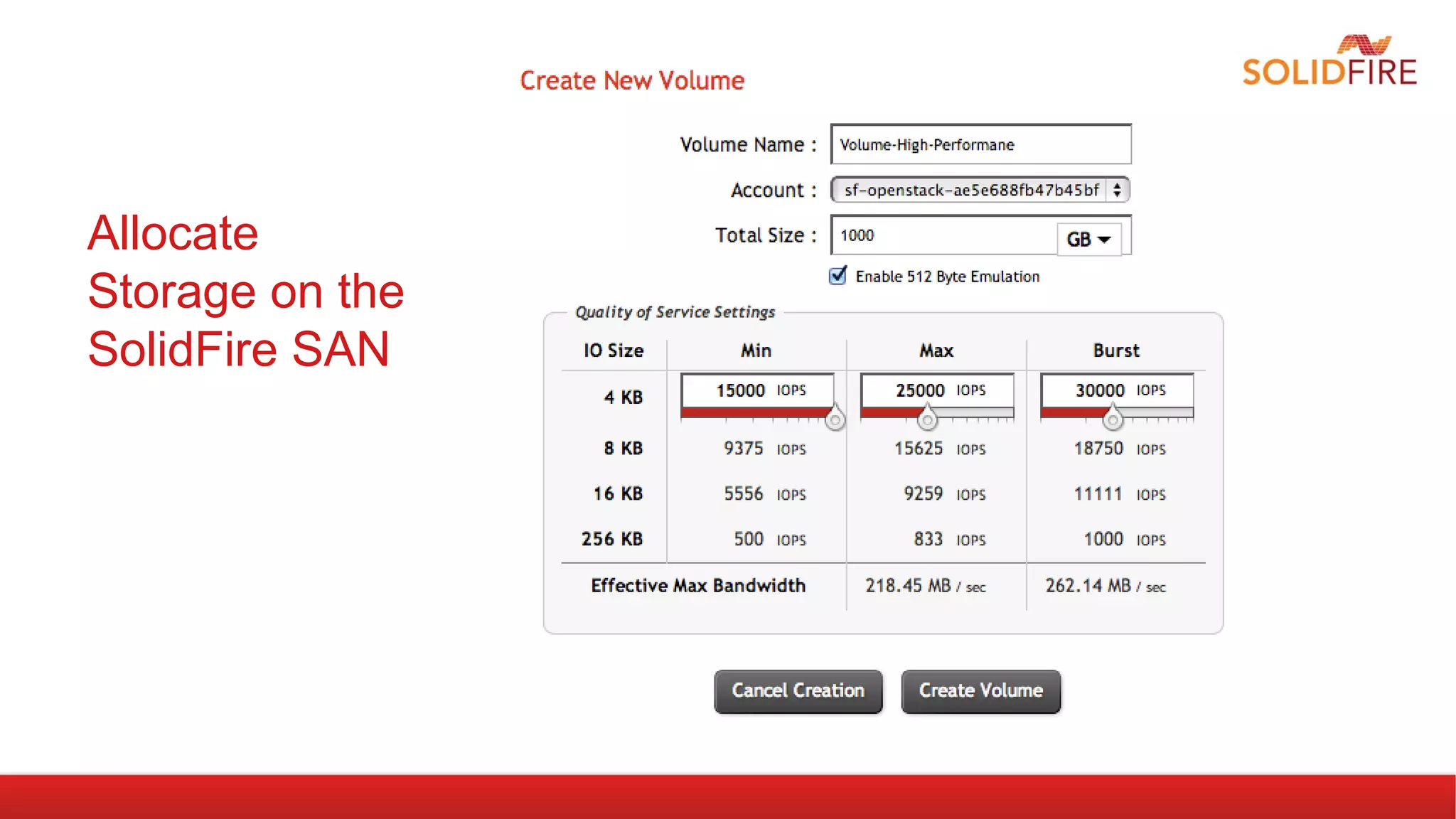

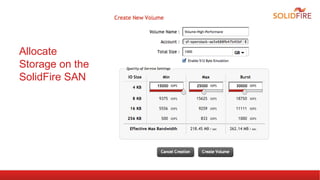

Allocate
Storage on the
SolidFire SAN

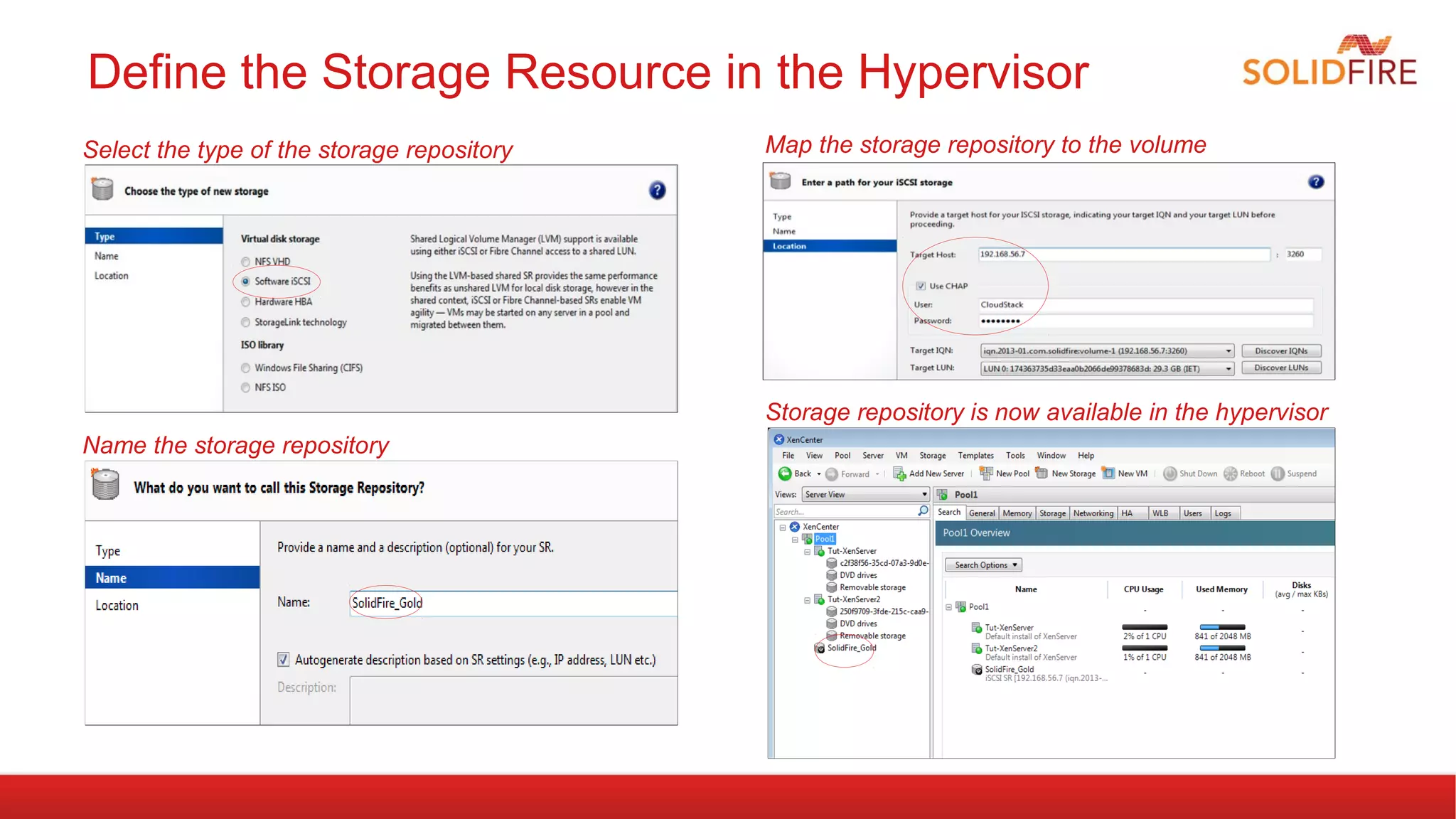

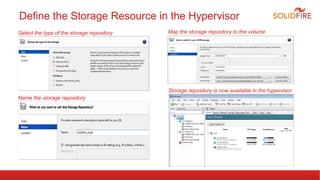

Define the Storage Resource in the Hypervisor
Select the type of the storage repository
Name the storage repository
Map the storage repository to the volume
Storage repository is now available in the hypervisor

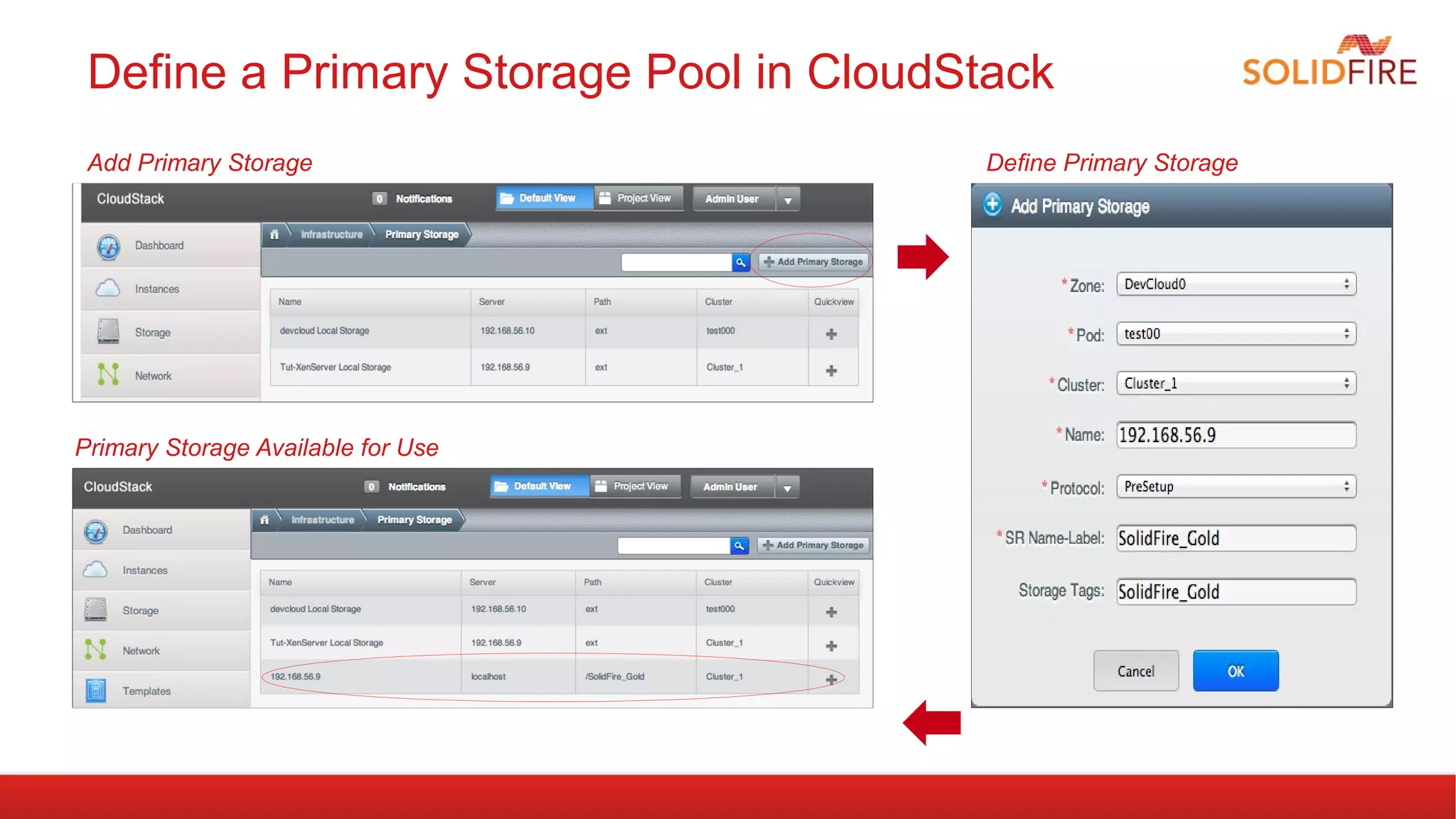

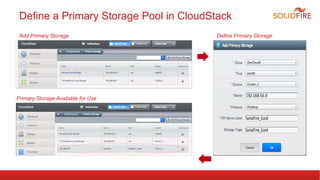

Define a Primary Storage Pool in CloudStack
Add Primary Storage Define Primary Storage
Primary Storage Available for Use

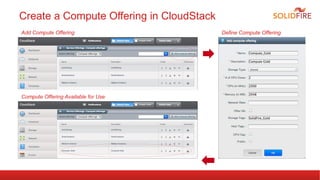

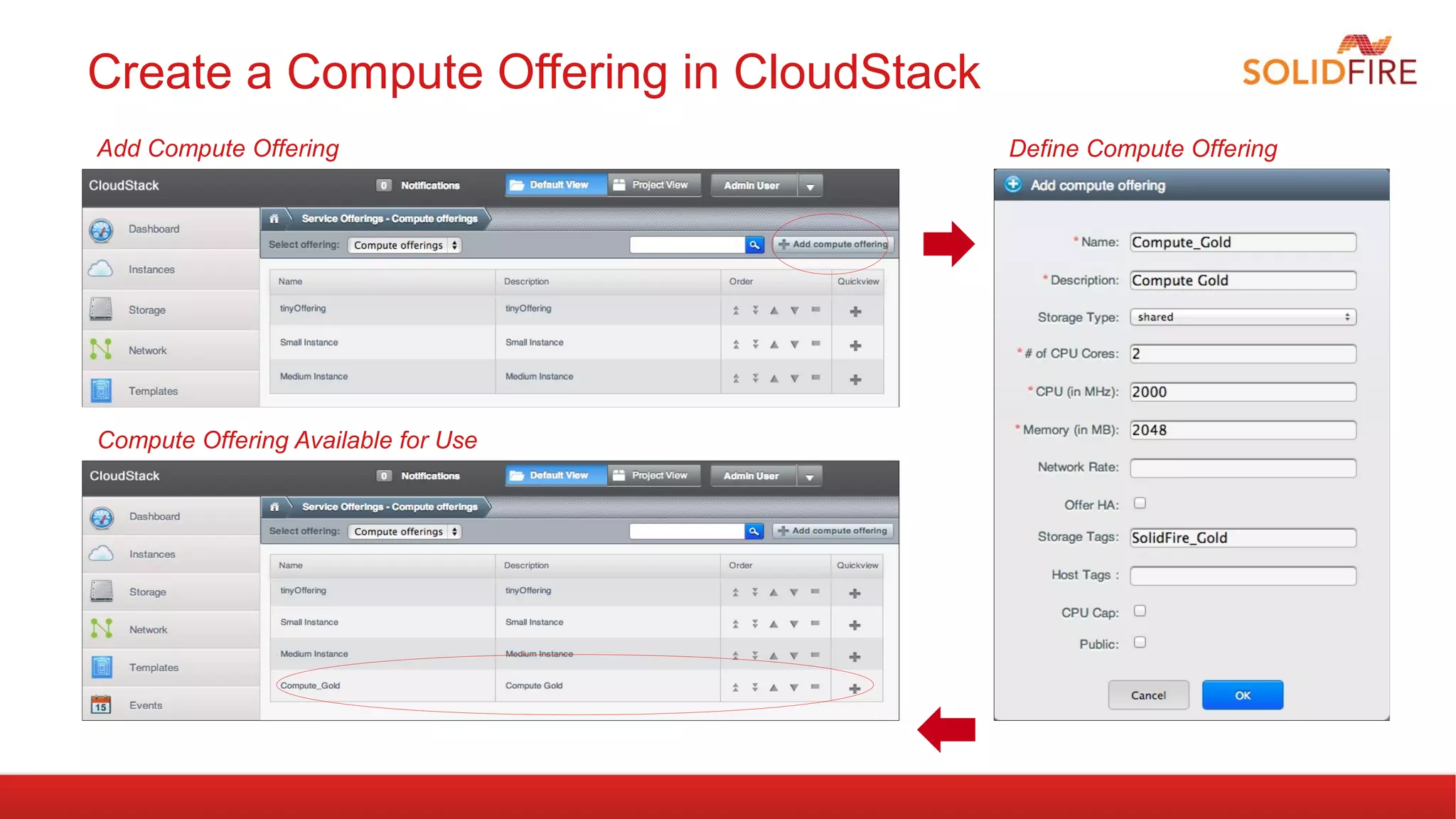

Create a Compute Offering in CloudStack
Add Compute Offering Define Compute Offering
Compute Offering Available for Use

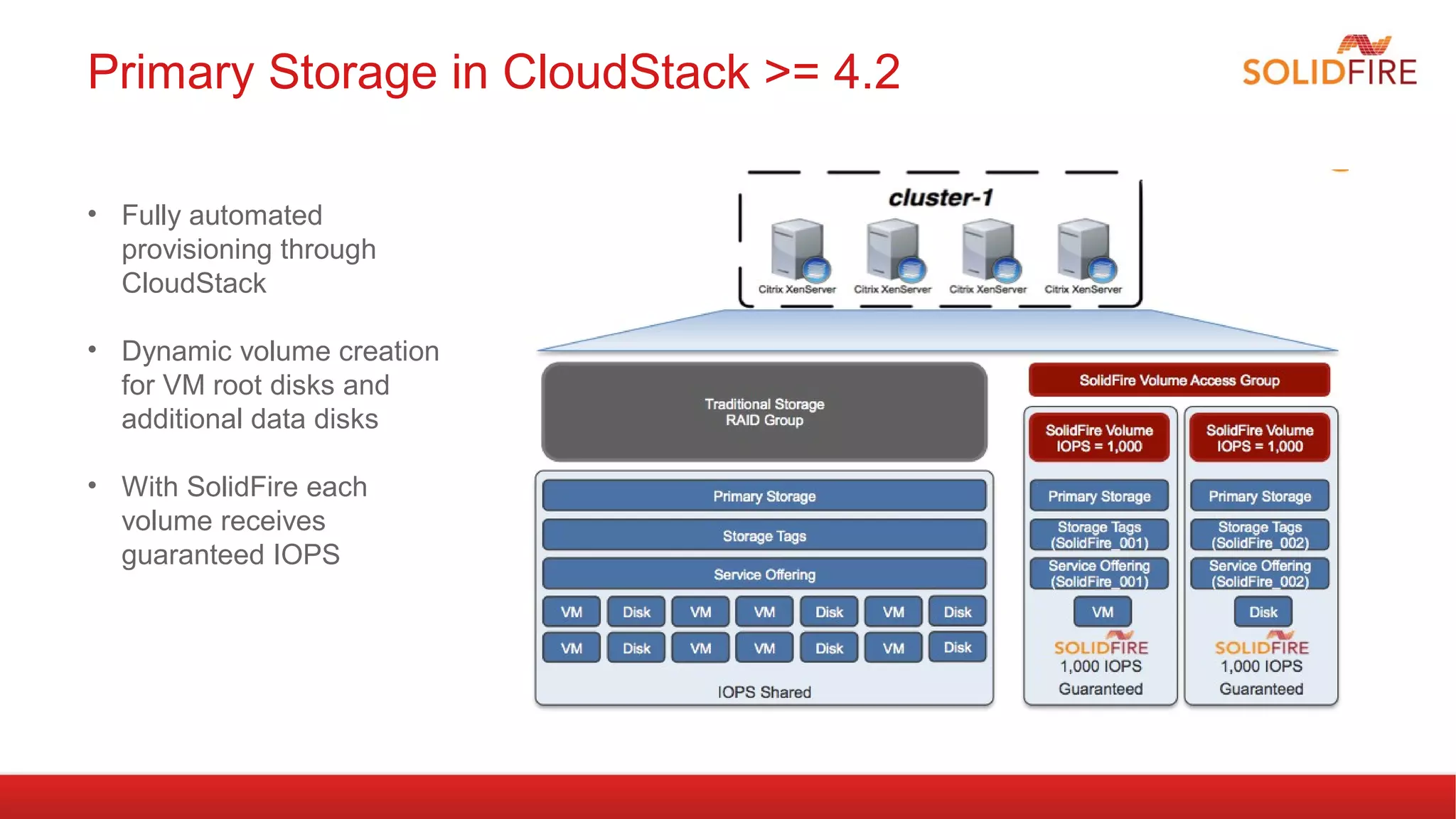

Primary Storage in CloudStack >= 4.2
• Fully automated
provisioning through
CloudStack
• Dynamic volume creation
for VM root disks and
additional data disks
• With SolidFire each
volume receives
guaranteed IOPS

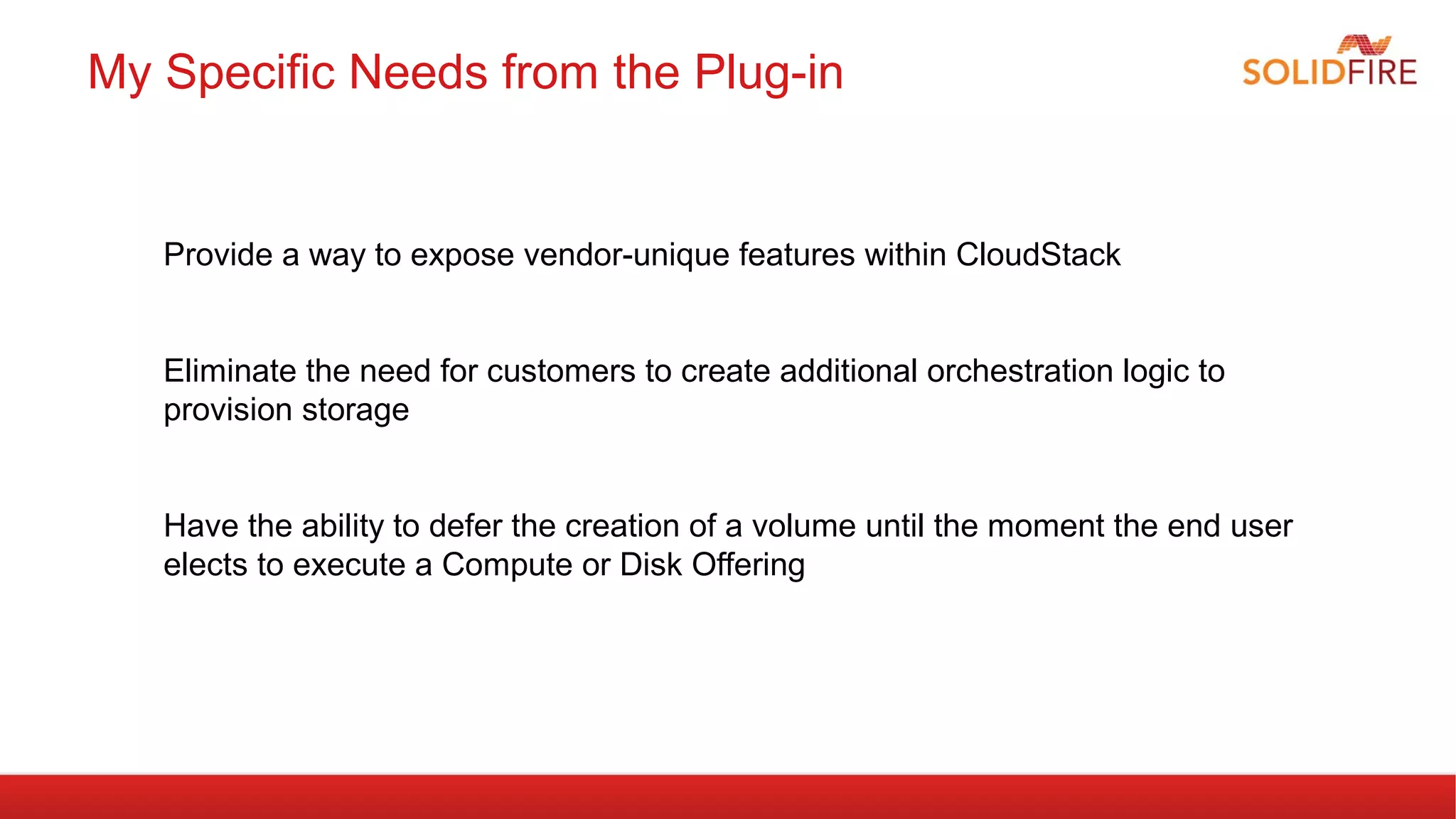

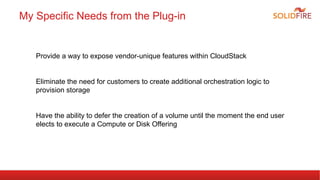

My Specific Needs from the Plug-in
Provide a way to expose vendor-unique features within CloudStack
Eliminate the need for customers to create additional orchestration logic to
provision storage
Have the ability to defer the creation of a volume until the moment the end user
elects to execute a Compute or Disk Offering

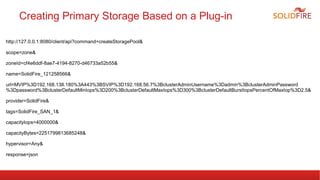

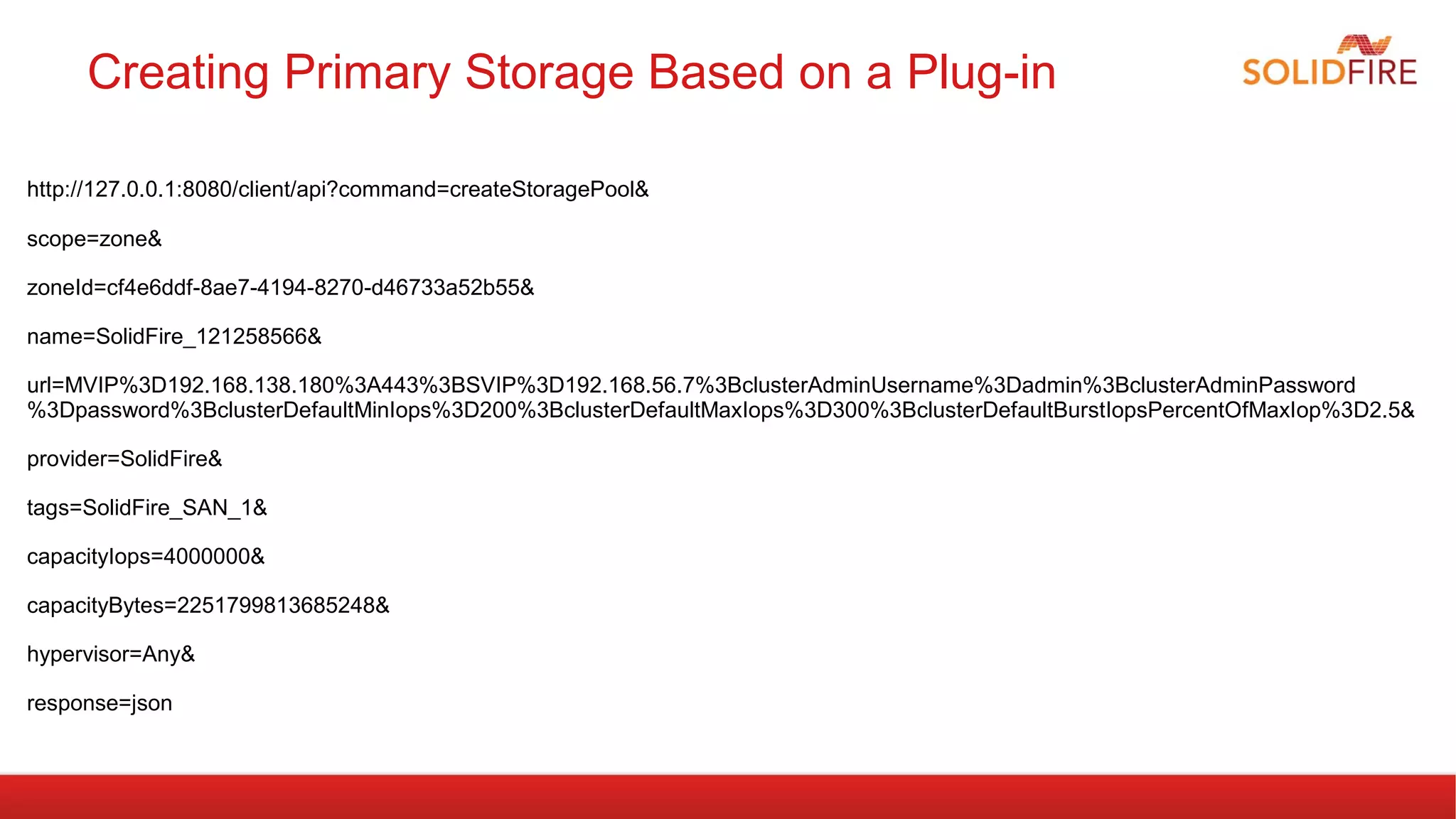

Creating Primary Storage Based on a Plug-in
http://127.0.0.1:8080/client/api?command=createStoragePool&
scope=zone&
zoneId=cf4e6ddf-8ae7-4194-8270-d46733a52b55&
name=SolidFire_121258566&
url=MVIP%3D192.168.138.180%3A443%3BSVIP%3D192.168.56.7%3BclusterAdminUsername%3Dadmin%3BclusterAdminPassword
%3Dpassword%3BclusterDefaultMinIops%3D200%3BclusterDefaultMaxIops%3D300%3BclusterDefaultBurstIopsPercentOfMaxIop%3D2.5&
provider=SolidFire&
tags=SolidFire_SAN_1&
capacityIops=4000000&
capacityBytes=2251799813685248&
hypervisor=Any&
response=json

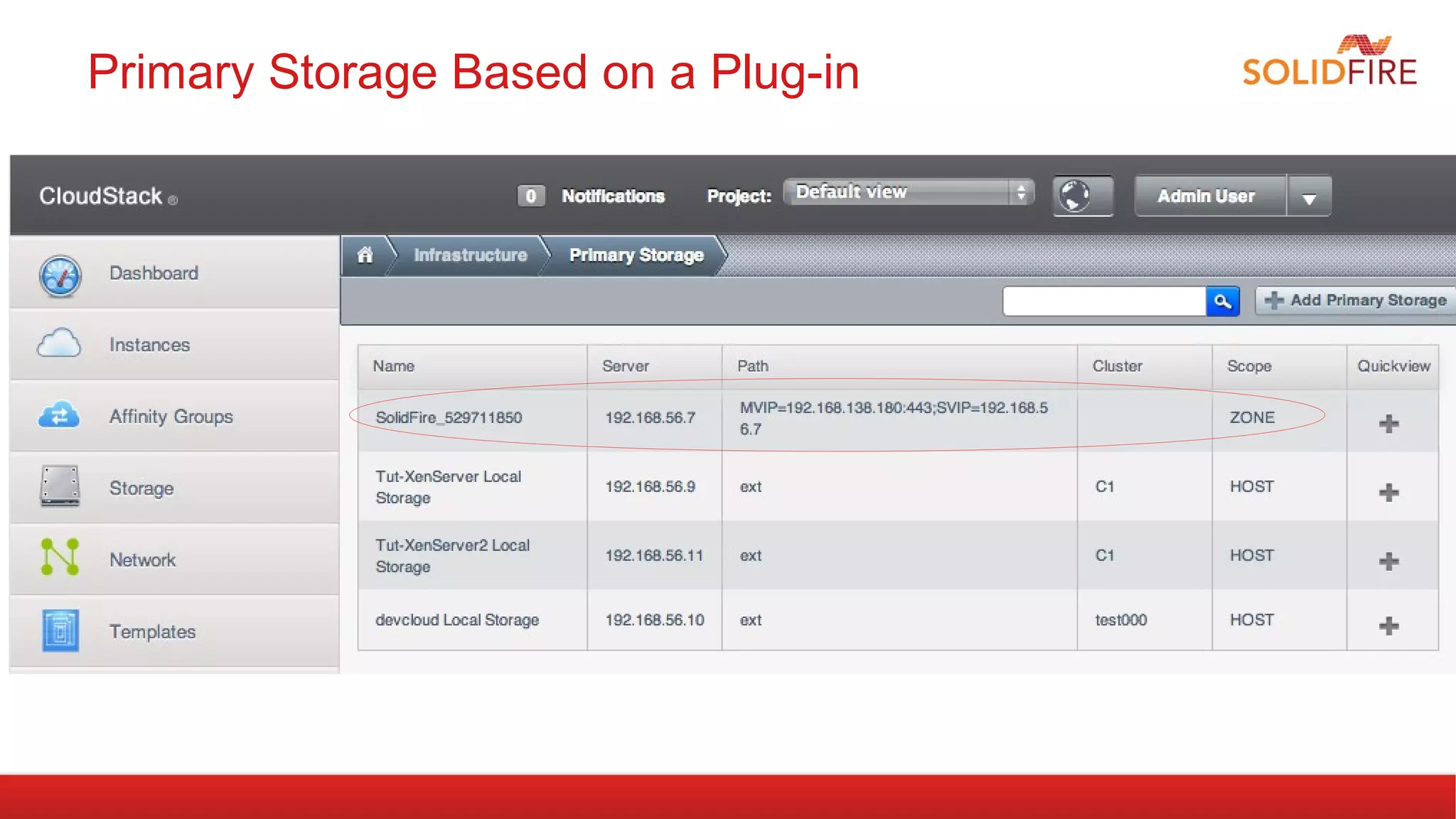

Primary Storage Based on a Plug-in

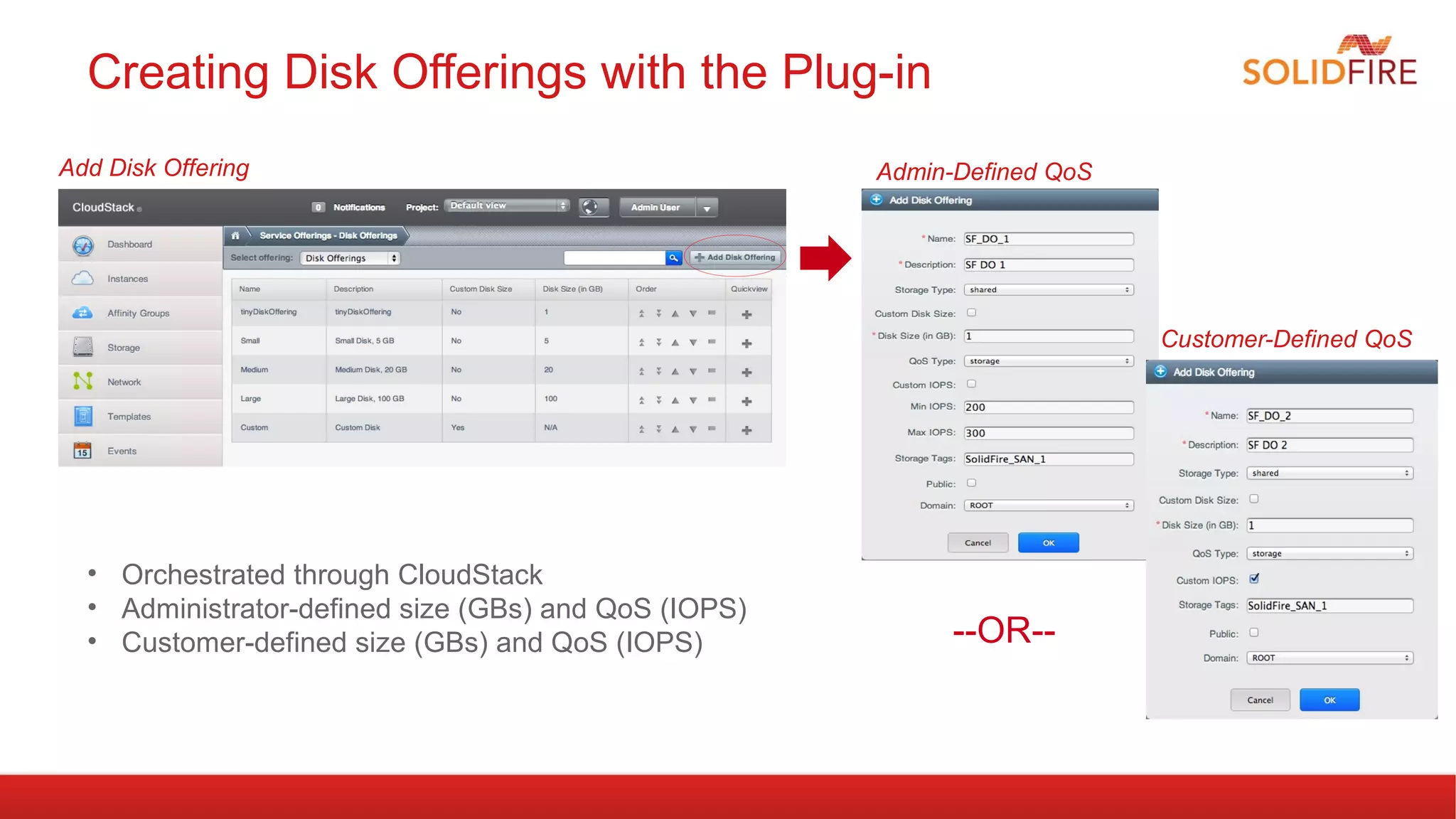

Creating Disk Offerings with the Plug-in
Admin-Defined QoS
--OR--
Customer-Defined QoS
Add Disk Offering
• Orchestrated through CloudStack
• Administrator-defined size (GBs) and QoS (IOPS)
• Customer-defined size (GBs) and QoS (IOPS)

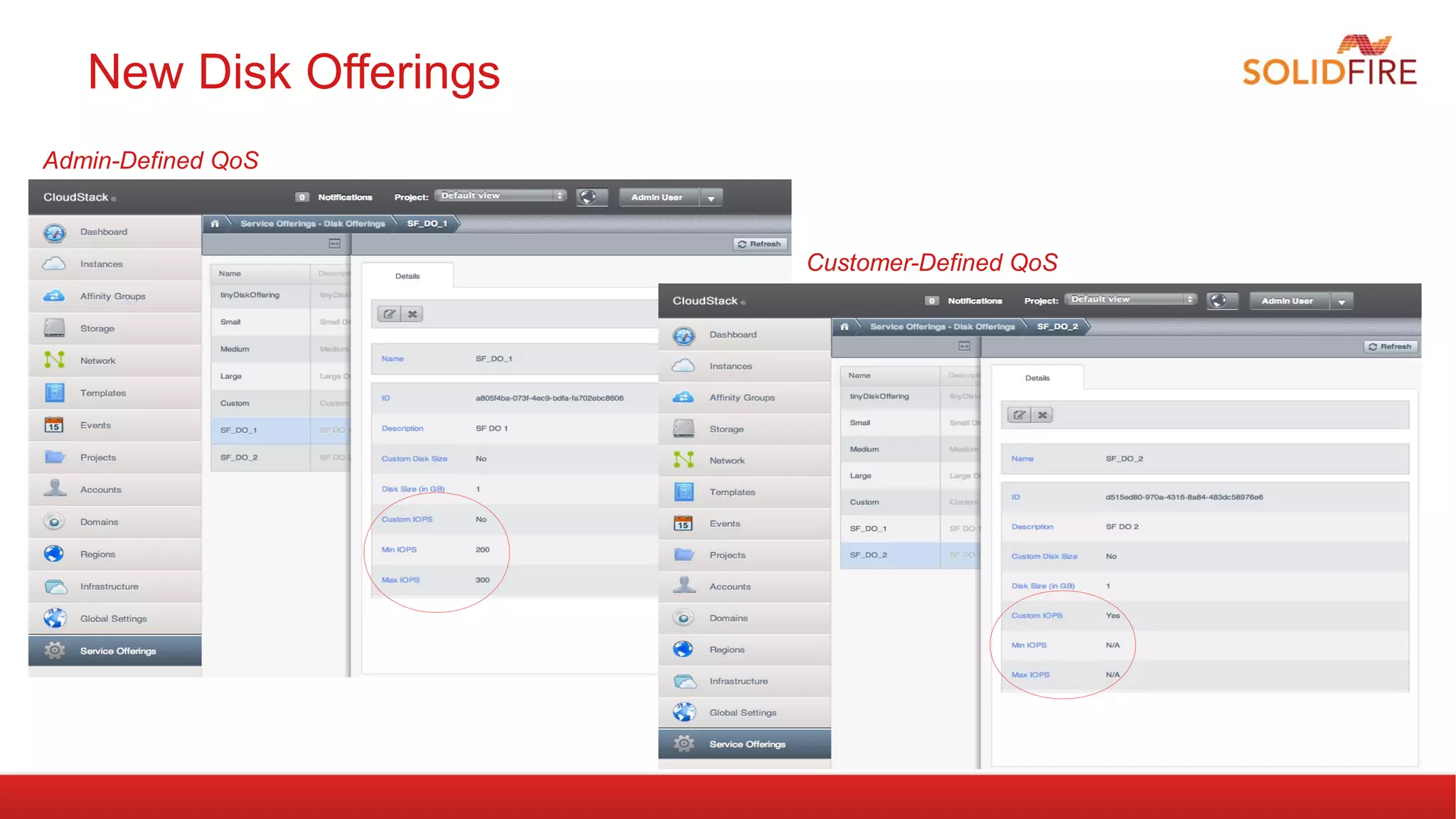

New Disk Offerings
Admin-Defined QoS
Customer-Defined QoS

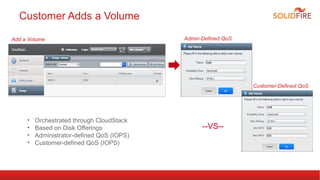

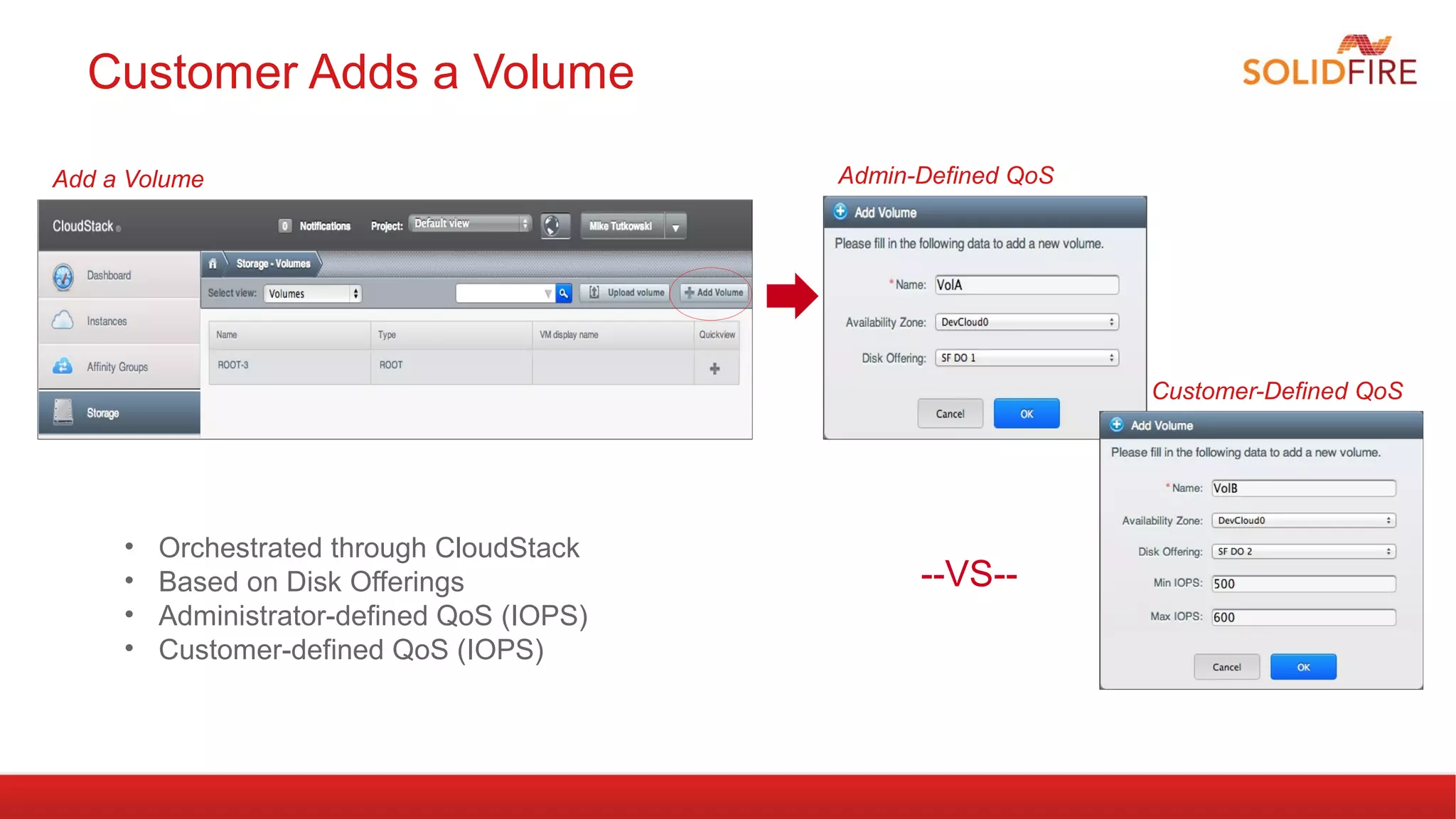

Admin-Defined QoS
--VS--
Customer Adds a Volume
• Orchestrated through CloudStack
• Based on Disk Offerings
• Administrator-defined QoS (IOPS)
• Customer-defined QoS (IOPS)
Customer-Defined QoS
Add a Volume

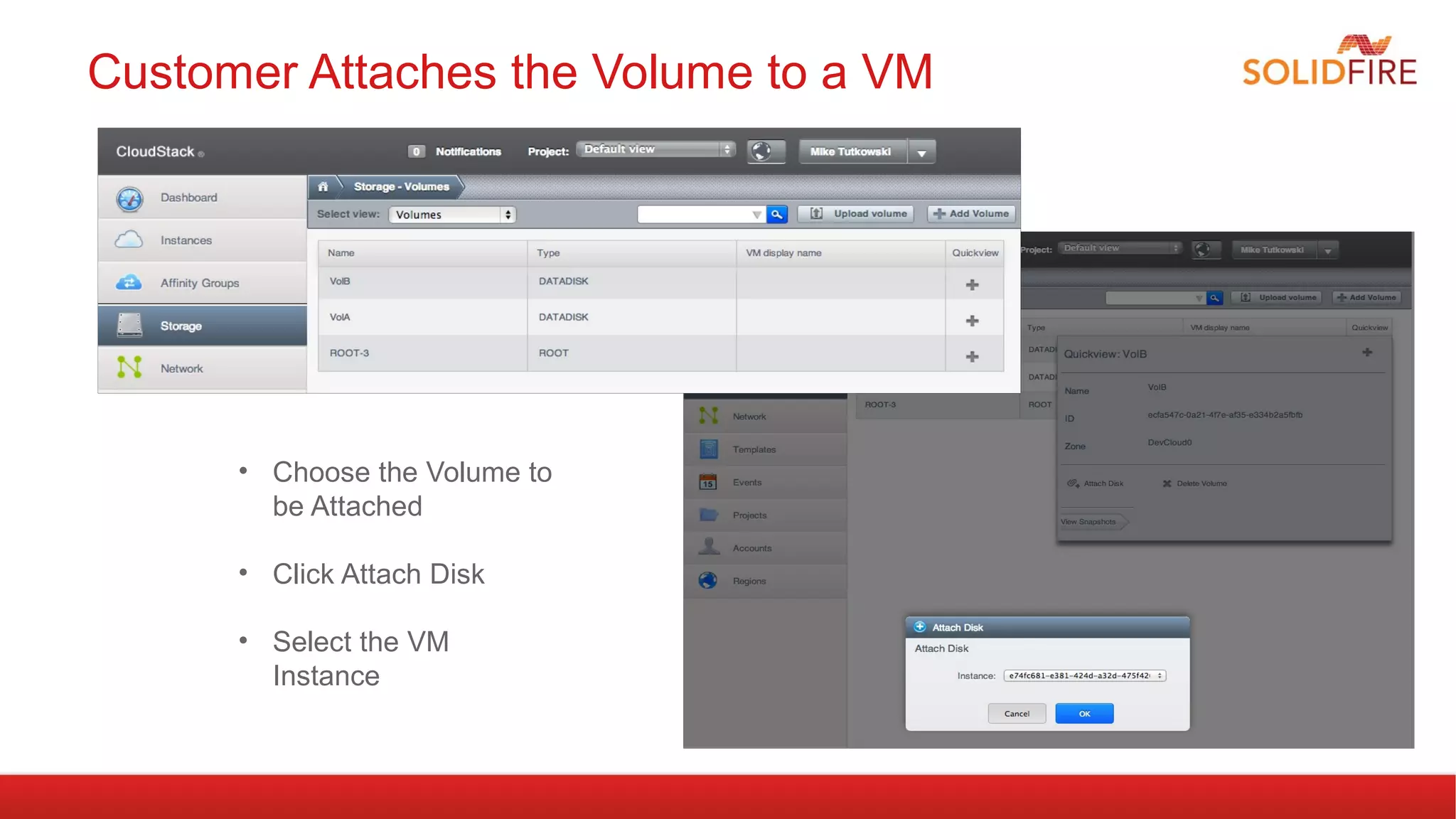

Customer Attaches the Volume to a VM
• Choose the Volume to
be Attached
• Click Attach Disk
• Select the VM
Instance

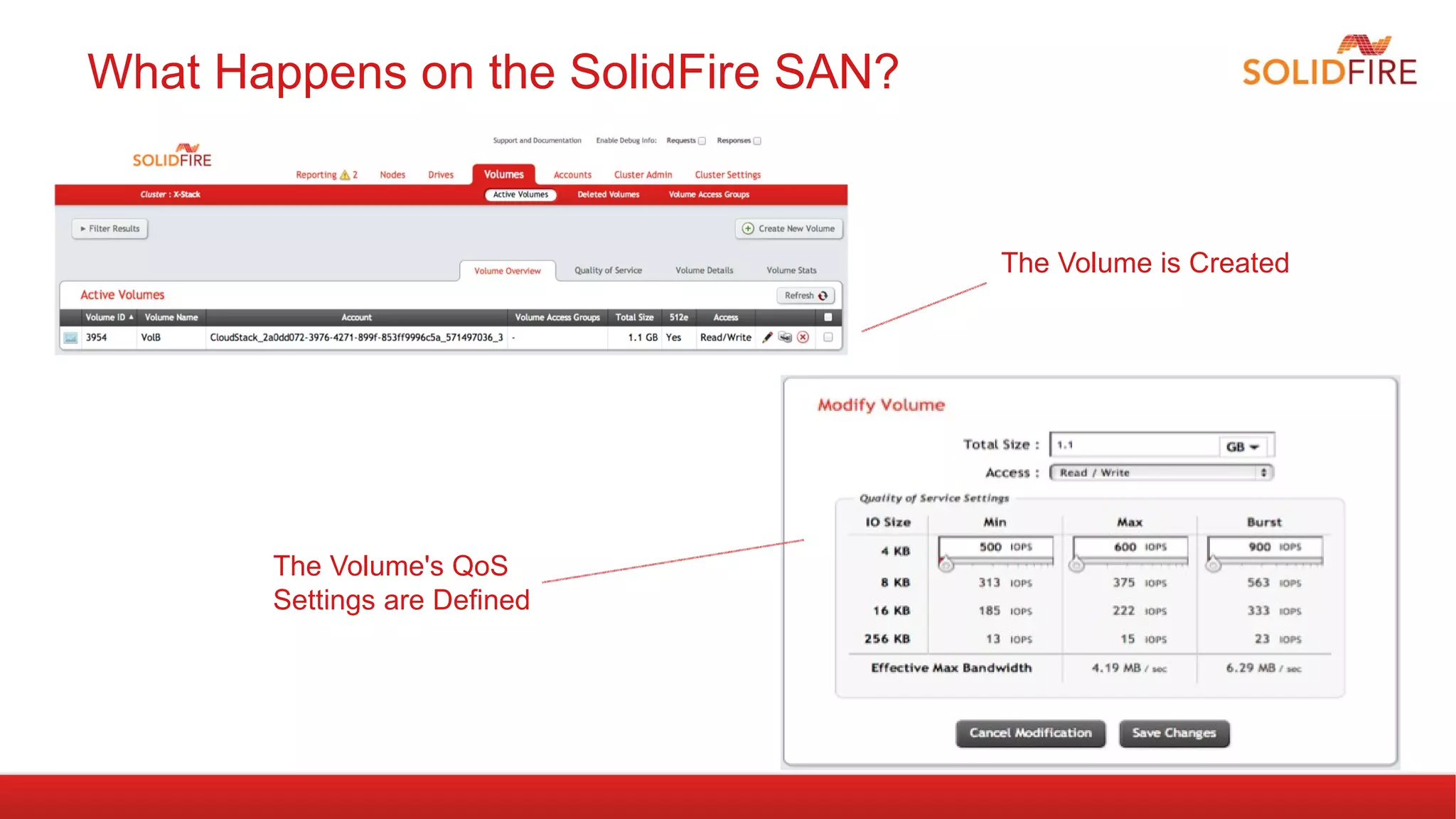

What Happens on the SolidFire SAN?
The Volume is Created
The Volume's QoS
Settings are Defined

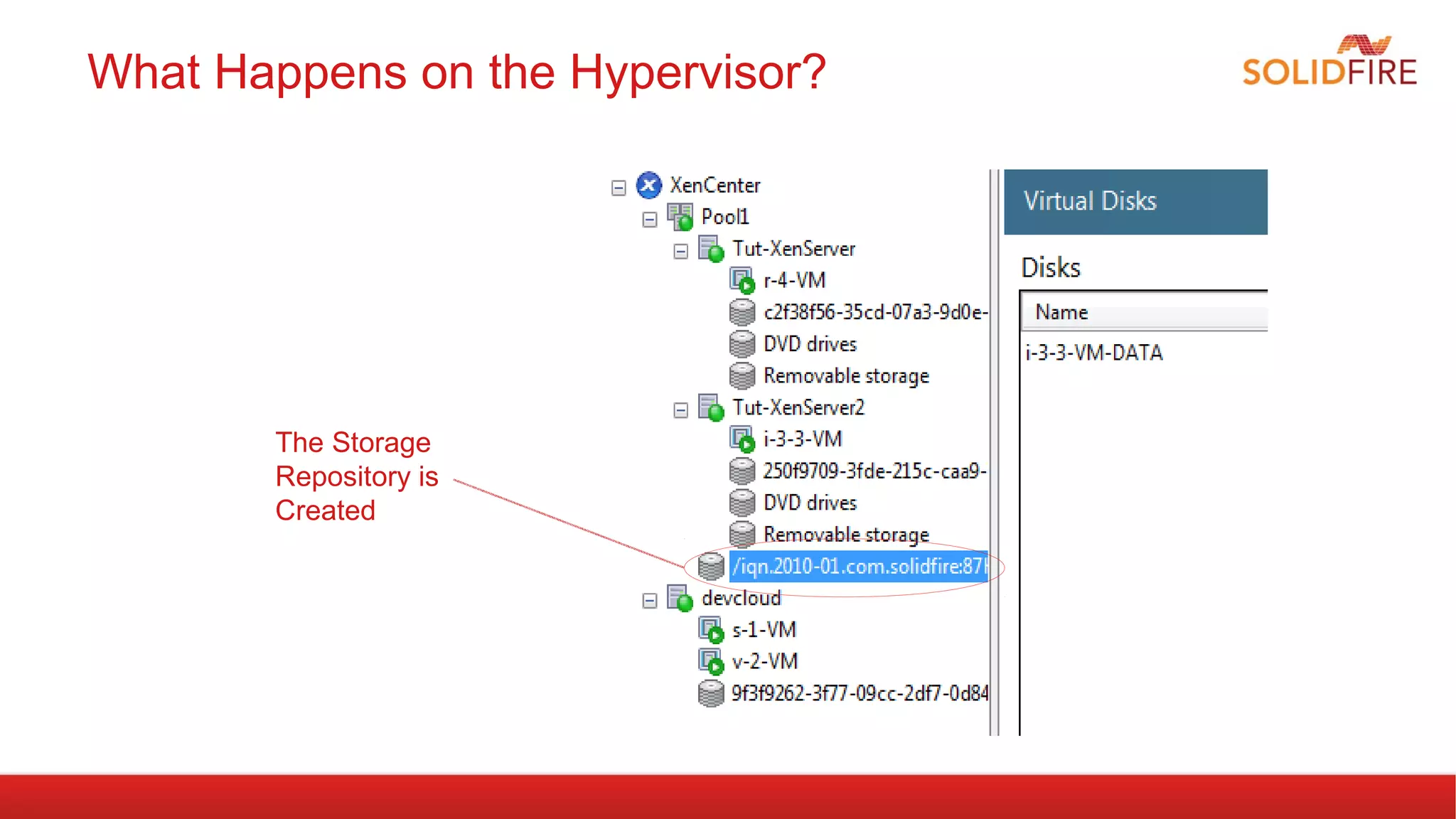

What Happens on the Hypervisor?
The Storage
Repository is
Created

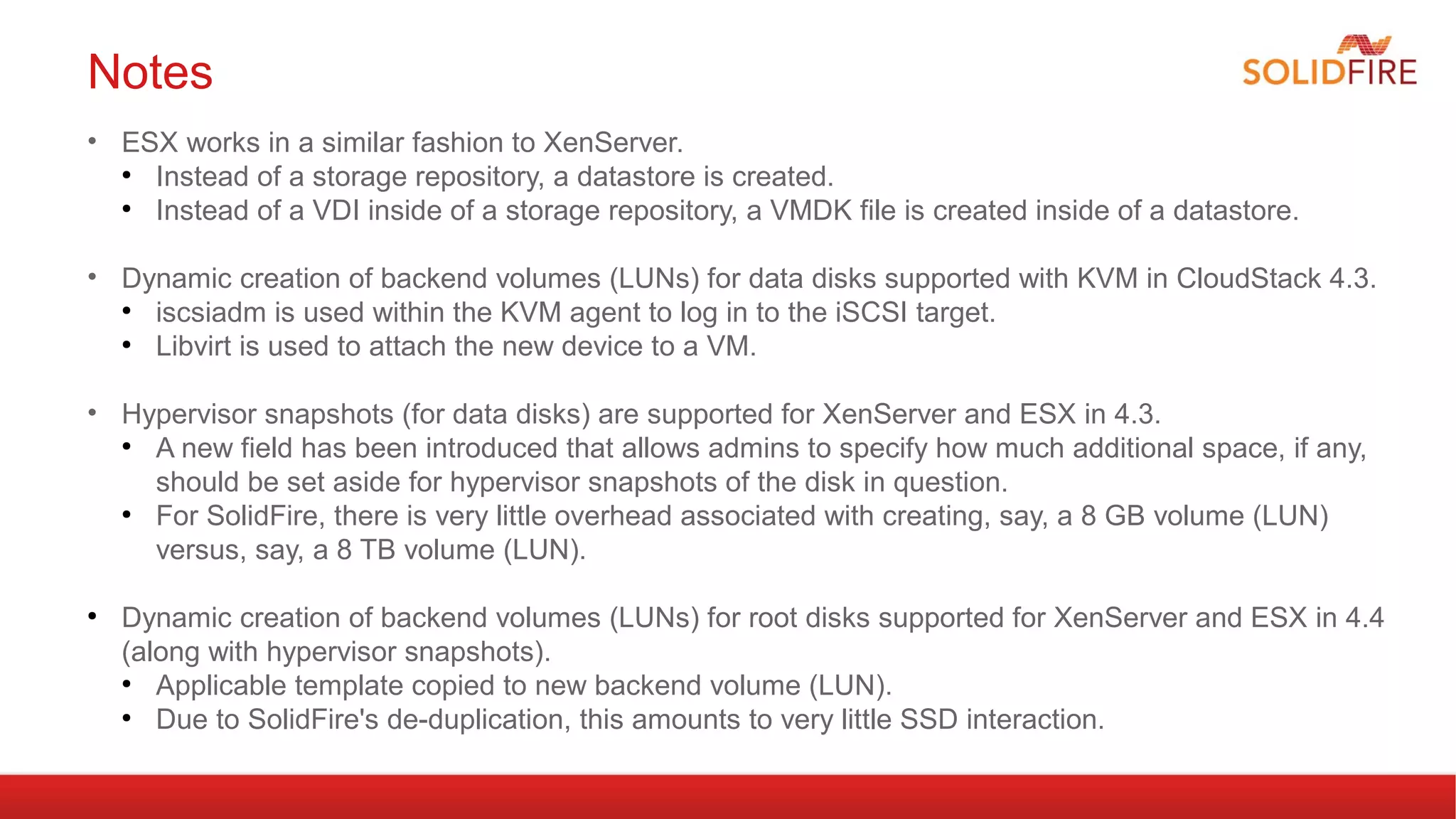

Notes
• ESX works in a similar fashion to XenServer.
● Instead of a storage repository, a datastore is created.
● Instead of a VDI inside of a storage repository, a VMDK file is created inside of a datastore.
• Dynamic creation of backend volumes (LUNs) for data disks supported with KVM in CloudStack 4.3.
● iscsiadm is used within the KVM agent to log in to the iSCSI target.
● Libvirt is used to attach the new device to a VM.
• Hypervisor snapshots (for data disks) are supported for XenServer and ESX in 4.3.
● A new field has been introduced that allows admins to specify how much additional space, if any,
should be set aside for hypervisor snapshots of the disk in question.
● For SolidFire, there is very little overhead associated with creating, say, a 8 GB volume (LUN)
versus, say, a 8 TB volume (LUN).
● Dynamic creation of backend volumes (LUNs) for root disks supported for XenServer and ESX in 4.4
(along with hypervisor snapshots).
● Applicable template copied to new backend volume (LUN).
● Due to SolidFire's de-duplication, this amounts to very little SSD interaction.

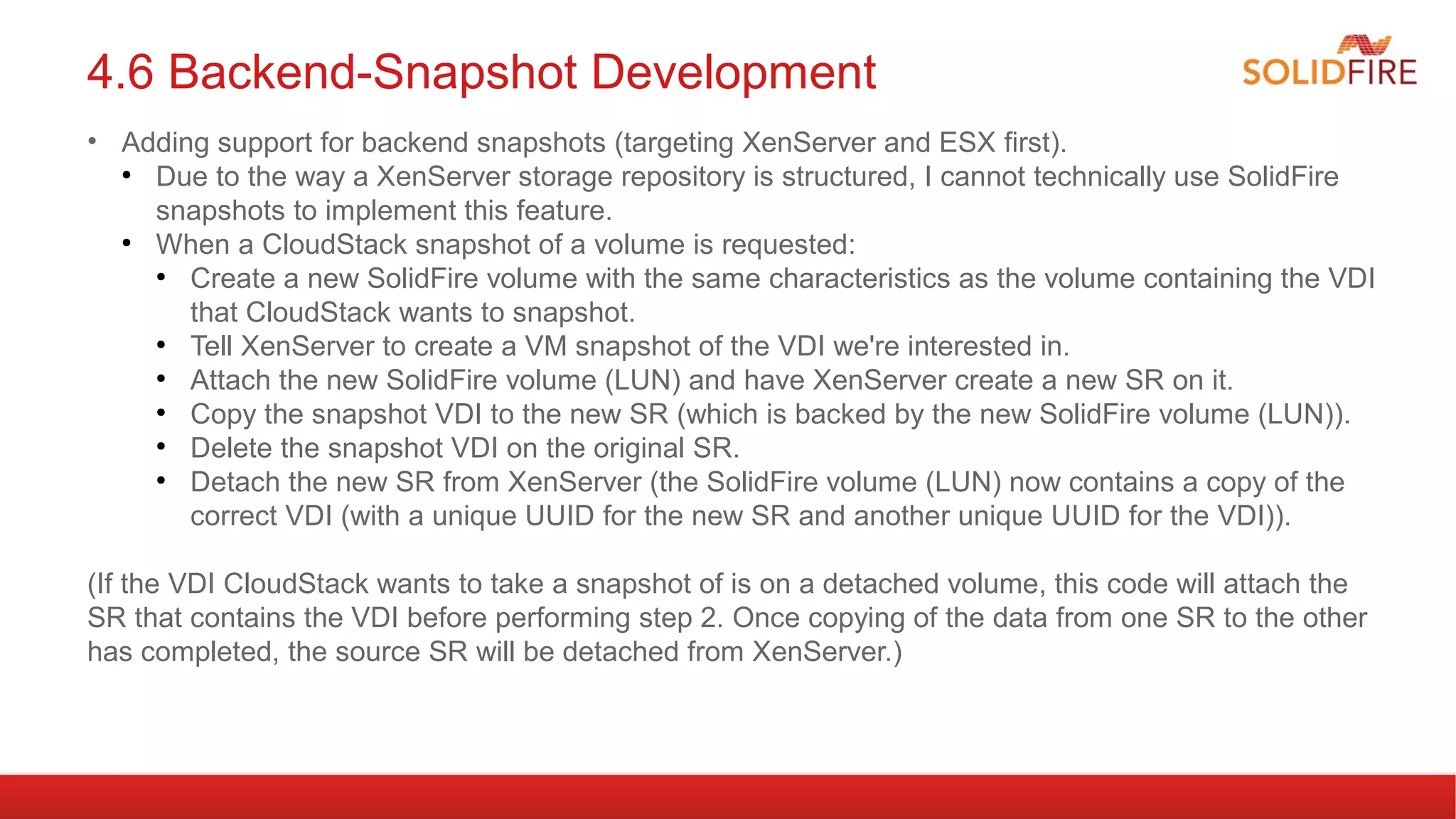

4.6 Backend-Snapshot Development
• Adding support for backend snapshots (targeting XenServer and ESX first).
● Due to the way a XenServer storage repository is structured, I cannot technically use SolidFire
snapshots to implement this feature.
● When a CloudStack snapshot of a volume is requested:
● Create a new SolidFire volume with the same characteristics as the volume containing the VDI
that CloudStack wants to snapshot.
● Tell XenServer to create a VM snapshot of the VDI we're interested in.
● Attach the new SolidFire volume (LUN) and have XenServer create a new SR on it.
● Copy the snapshot VDI to the new SR (which is backed by the new SolidFire volume (LUN)).
● Delete the snapshot VDI on the original SR.
● Detach the new SR from XenServer (the SolidFire volume (LUN) now contains a copy of the
correct VDI (with a unique UUID for the new SR and another unique UUID for the VDI)).
(If the VDI CloudStack wants to take a snapshot of is on a detached volume, this code will attach the
SR that contains the VDI before performing step 2. Once copying of the data from one SR to the other
has completed, the source SR will be detached from XenServer.)
1620 Pearl Street,
Boulder, Colorado 80302
Phone: 720.523.3278
Email: info@solidfire.com
www.solidfire.com
