Dockerizing Windows Server Applications by Ender Barillas and Taylor Brown
The document details the process of dockerizing Windows Server applications, including steps for setting up Docker and configuring containers. It compares OS architectures and outlines the architecture of container development and management tools for both Windows and Linux environments. Additionally, it discusses various networking options available for containers and their respective use cases.
More Related Content
![Learning the Alphabet: A/B, CD and [E-Z] in the Docker Datacenter by Brett Ti...](https://cdn.slidesharecdn.com/ss_thumbnails/alphabet-160624232958-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Dockerizing Windows Server Applications by Ender Barillas and Taylor Brown
Dockerizing Windows Server Applications by Ender Barillas and Taylor Brown
- 1. Dockerizing Windows Server Applications EnderBarillas Taylor Brown Program Manager Principal Program Manager Lead
- 2.
- 3.

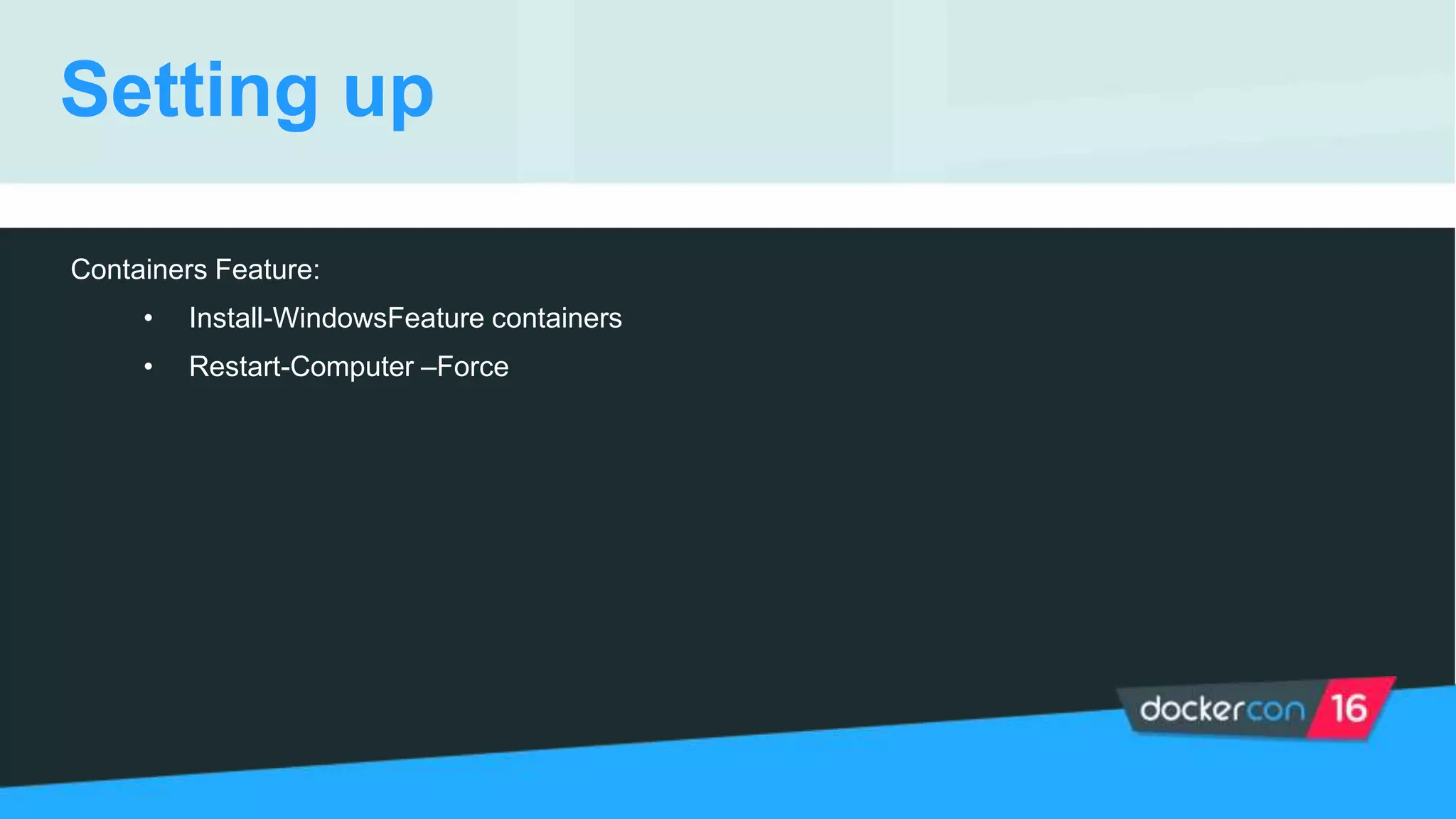

- 4. Setting up Containers Feature: •Install-WindowsFeature containers • Restart-Computer –Force

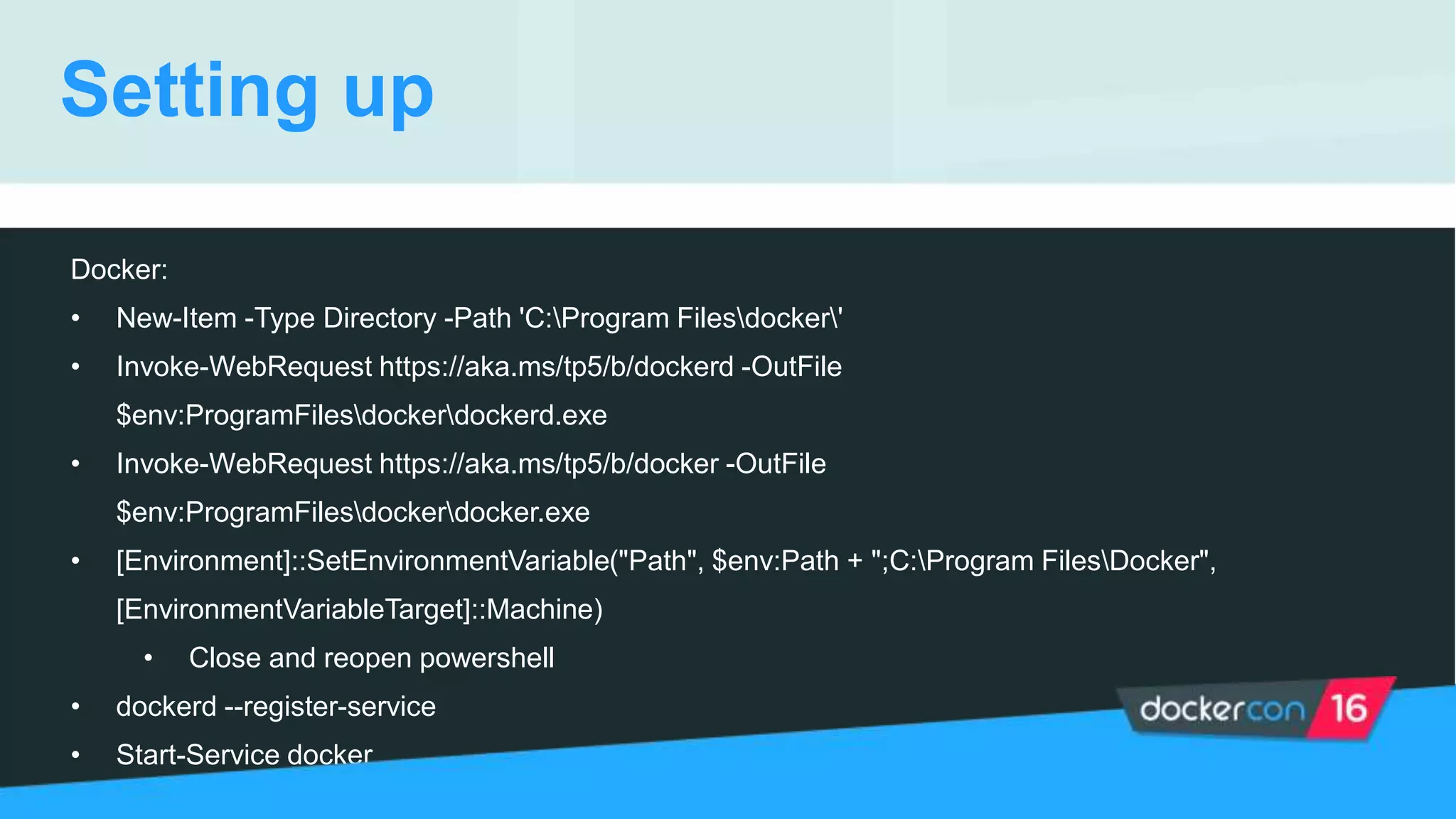

- 5. Setting up Docker: • New-Item-Type Directory -Path 'C:Program Filesdocker' • Invoke-WebRequest https://aka.ms/tp5/b/dockerd -OutFile $env:ProgramFilesdockerdockerd.exe • Invoke-WebRequest https://aka.ms/tp5/b/docker -OutFile $env:ProgramFilesdockerdocker.exe • [Environment]::SetEnvironmentVariable("Path", $env:Path + ";C:Program FilesDocker", [EnvironmentVariableTarget]::Machine) • Close and reopen powershell • dockerd --register-service • Start-Service docker

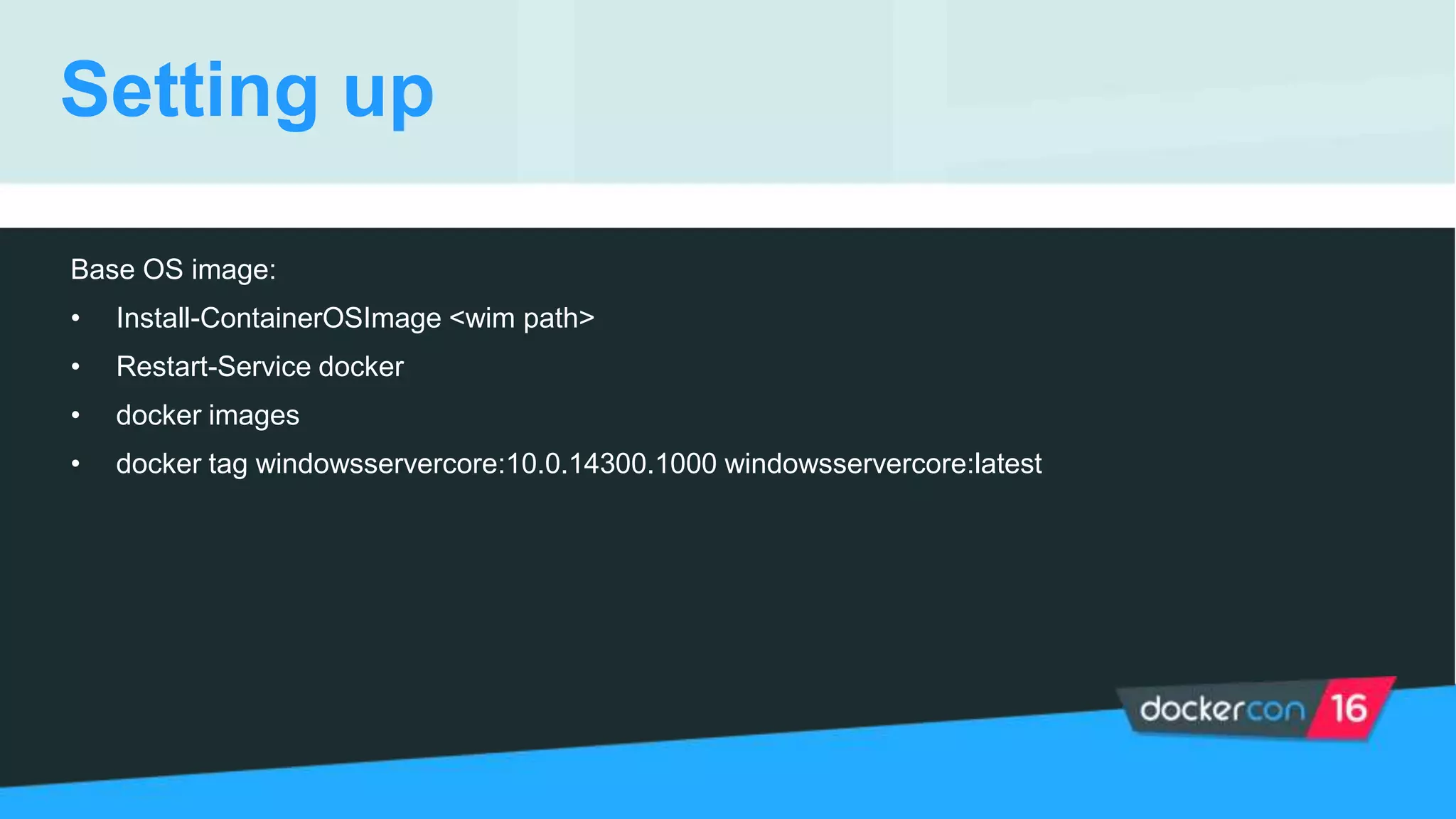

- 6. Setting up Base OSimage: • Install-ContainerOSImage <wim path> • Restart-Service docker • docker images • docker tag windowsservercore:10.0.14300.1000 windowsservercore:latest
- 7.
- 8.

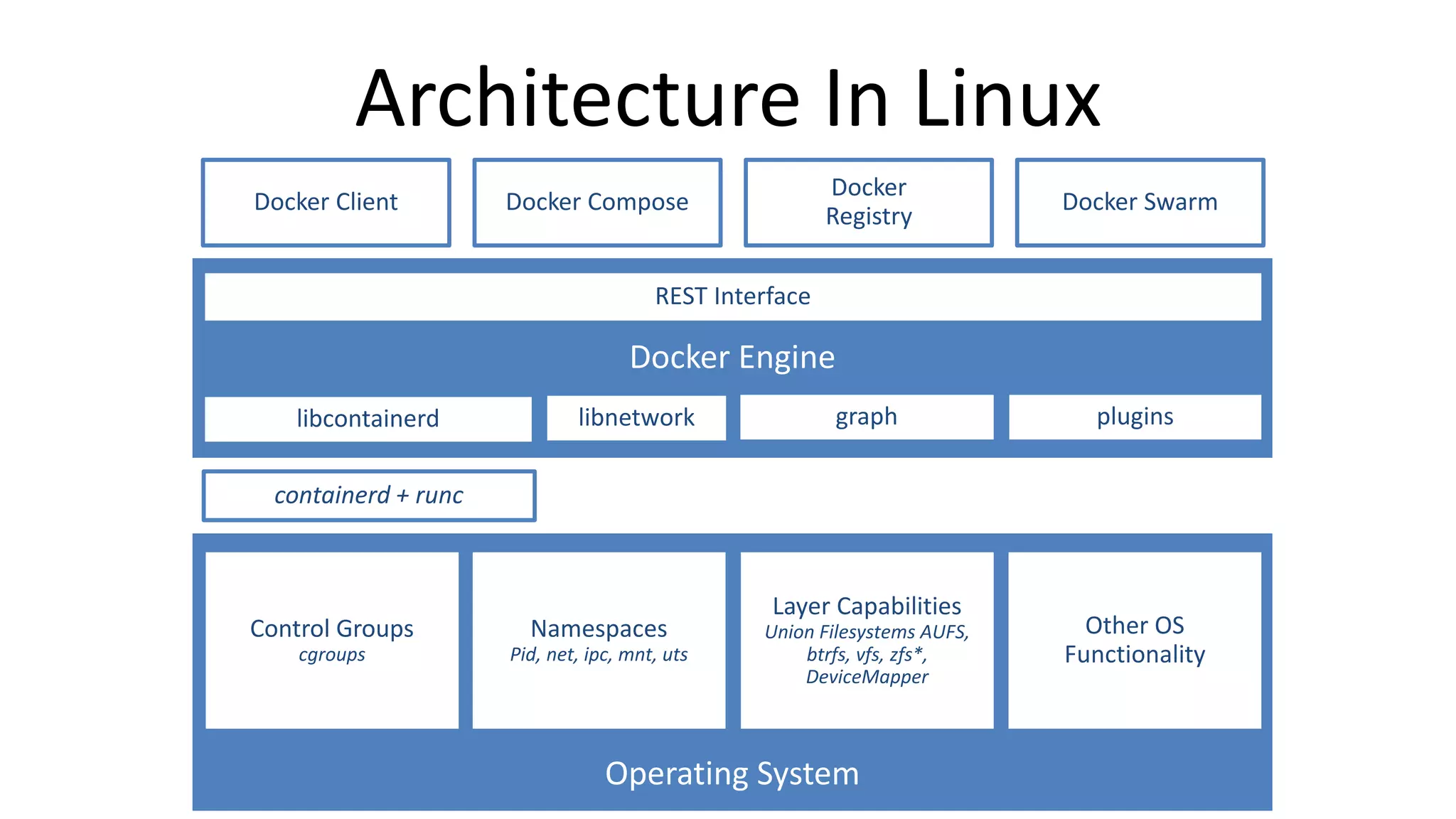

- 9. Architecture In Linux containerd+ runc REST Interface libcontainerd graphlibnetwork plugins Control Groups cgroups Namespaces Pid, net, ipc, mnt, uts Layer Capabilities Union Filesystems AUFS, btrfs, vfs, zfs*, DeviceMapper Other OS Functionality Docker Client Docker Registry Docker Compose Docker Swarm

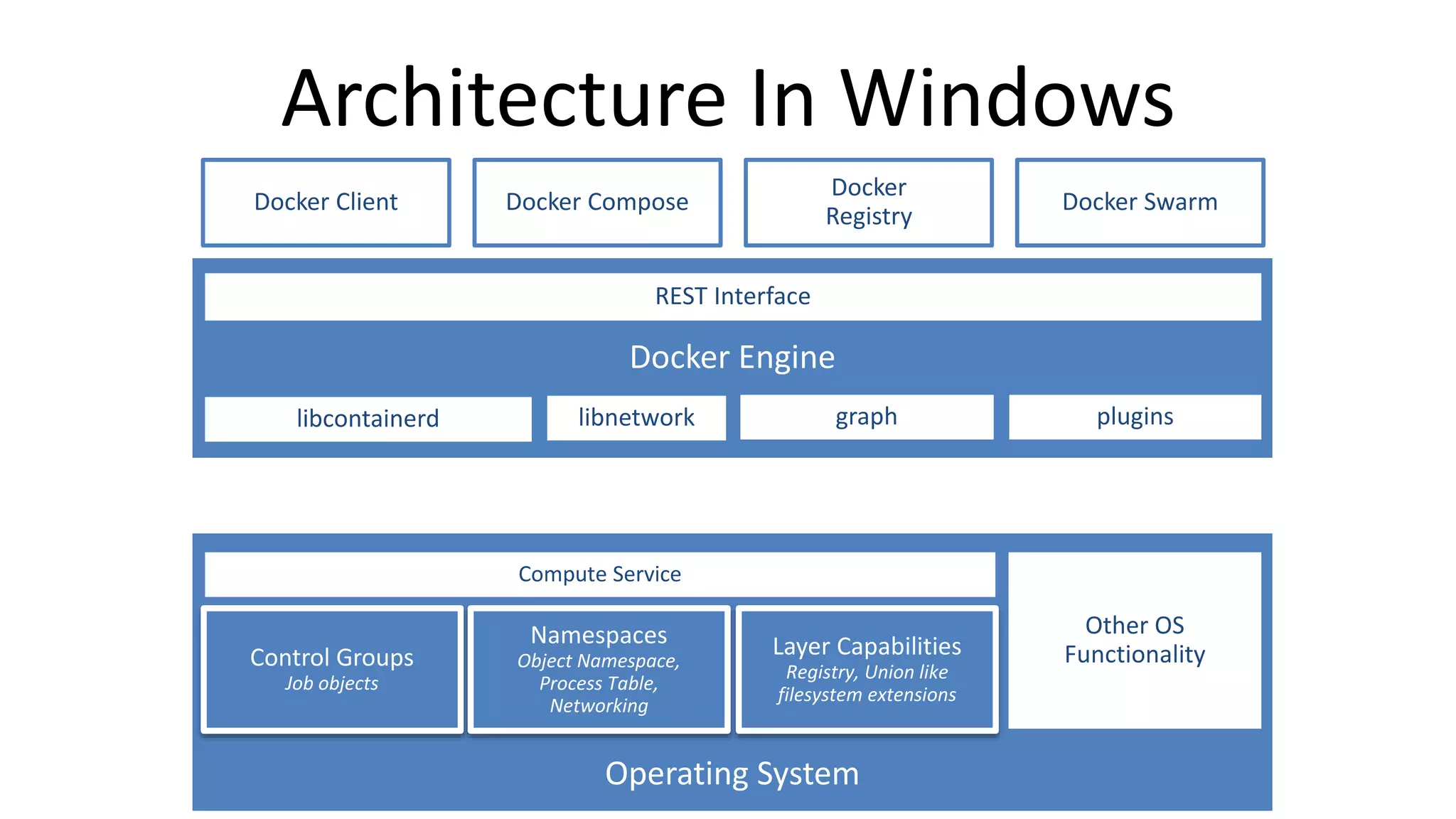

- 10. Architecture In Windows RESTInterface libcontainerd graphlibnetwork plugins Control Groups Job objects Namespaces Object Namespace, Process Table, Networking Layer Capabilities Registry, Union like filesystem extensions Other OS Functionality Compute Service Docker Client Docker Registry Docker Compose Docker Swarm

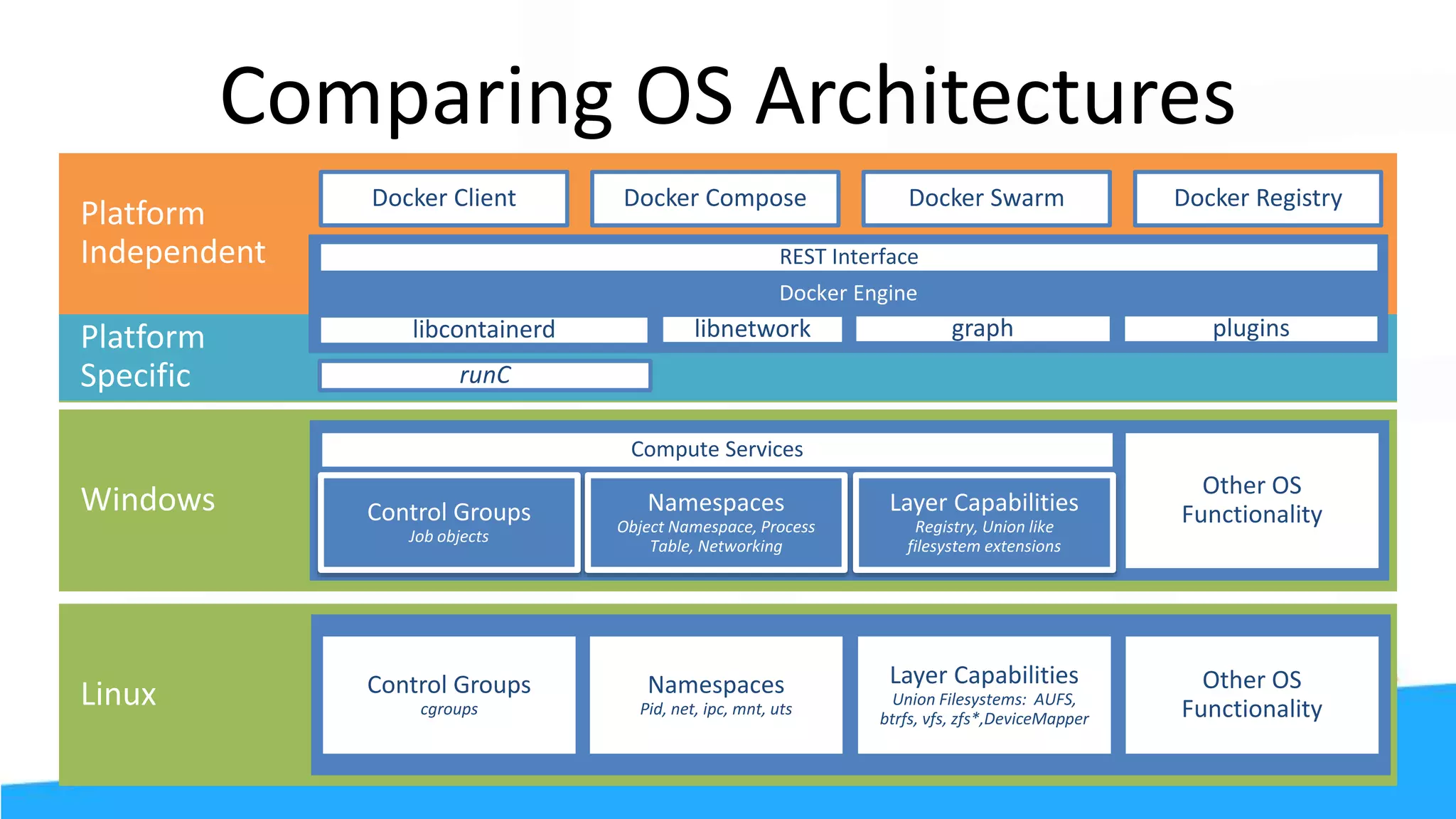

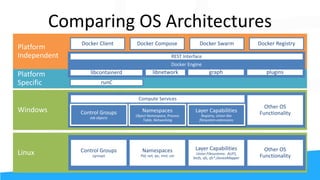

- 11. Comparing OS Architectures ControlGroups cgroups Namespaces Pid, net, ipc, mnt, uts Layer Capabilities Union Filesystems: AUFS, btrfs, vfs, zfs*,DeviceMapper Other OS Functionality runC REST Interface libcontainerd graphlibnetwork plugins Control Groups Job objects Namespaces Object Namespace, Process Table, Networking Layer Capabilities Registry, Union like filesystem extensions Other OS Functionality Compute Services Docker Client Docker SwarmDocker Compose Docker Registry

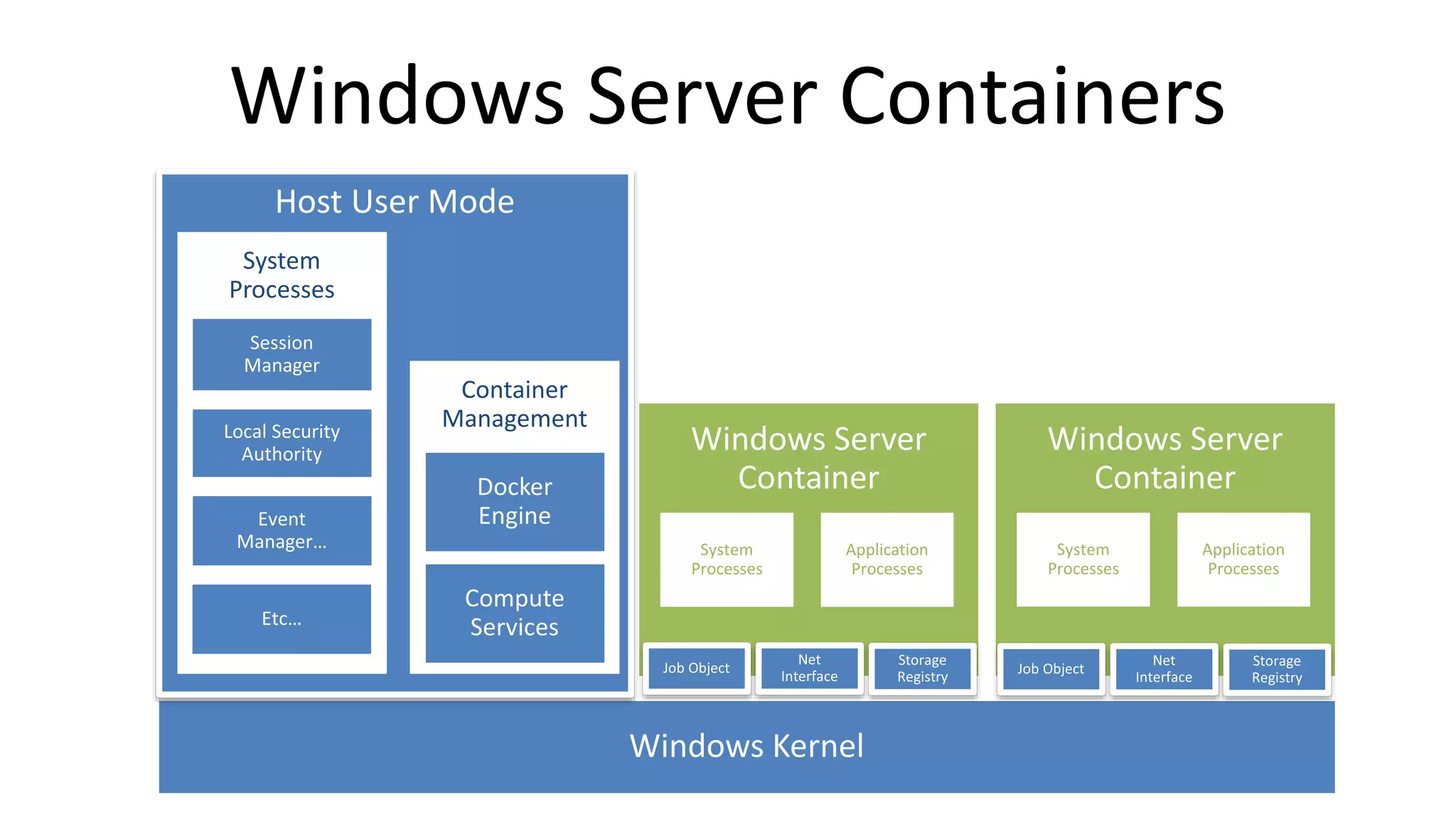

- 12. Host User Mode Container Management WindowsServer Containers System Processes Application Processes System Processes System Processes Application Processes

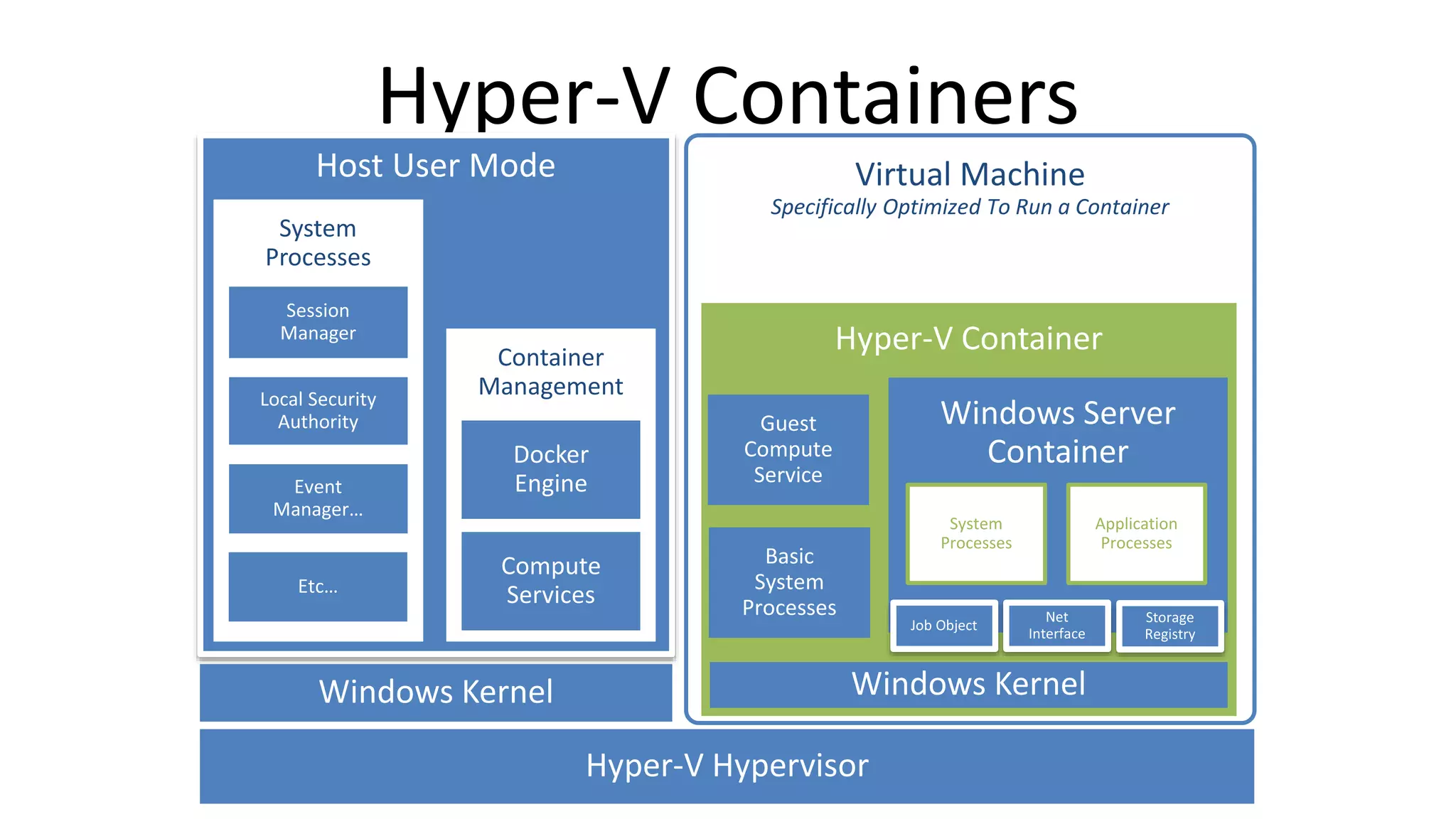

- 13. Hyper-V Containers Host UserMode Virtual Machine Specifically Optimized To Run a Container Container Management System Processes System Processes Application Processes

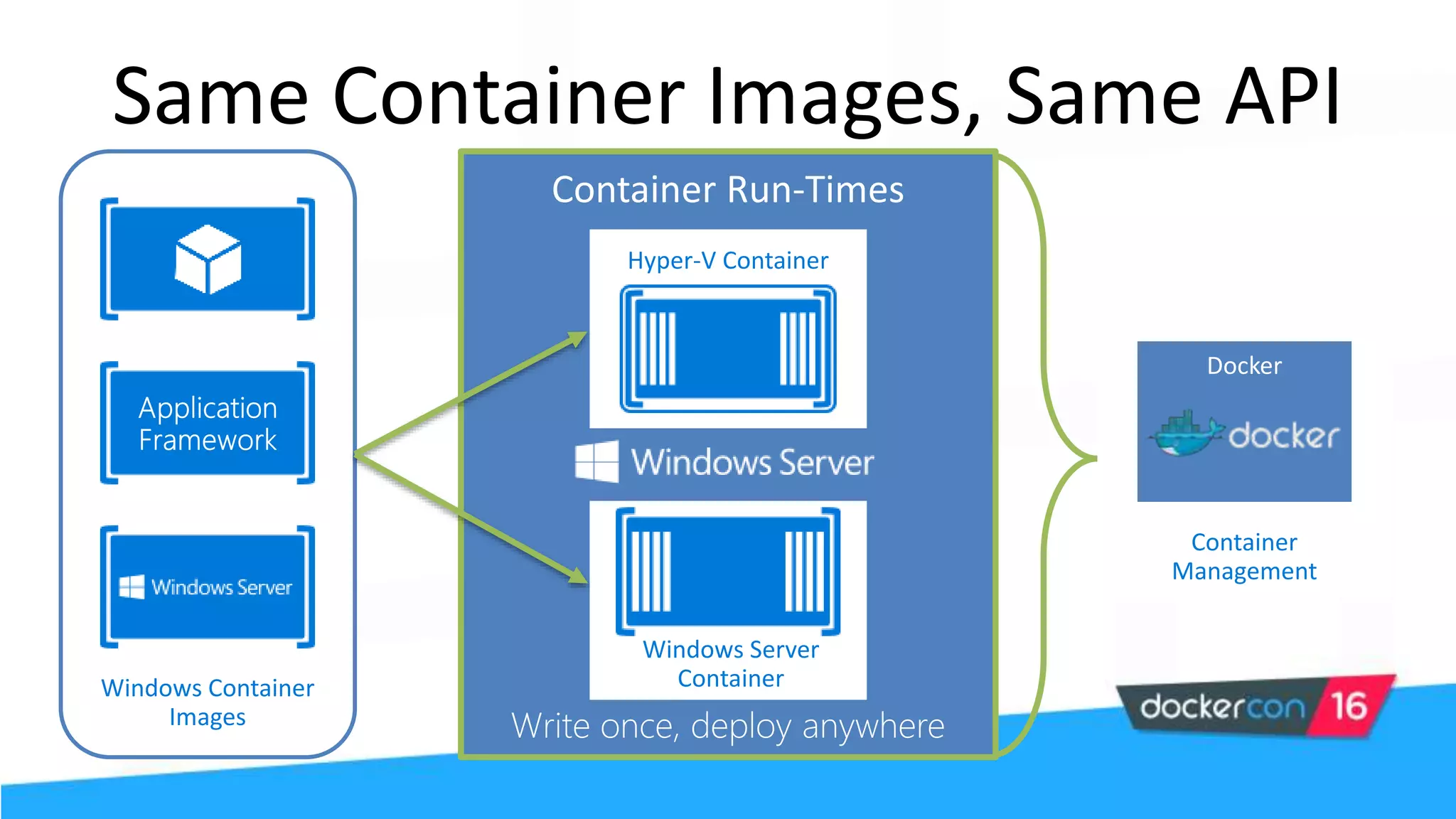

- 14. Same Container Images,Same API Container Management Docker Windows Container Images Hyper-V Container Windows Server Container
- 15.

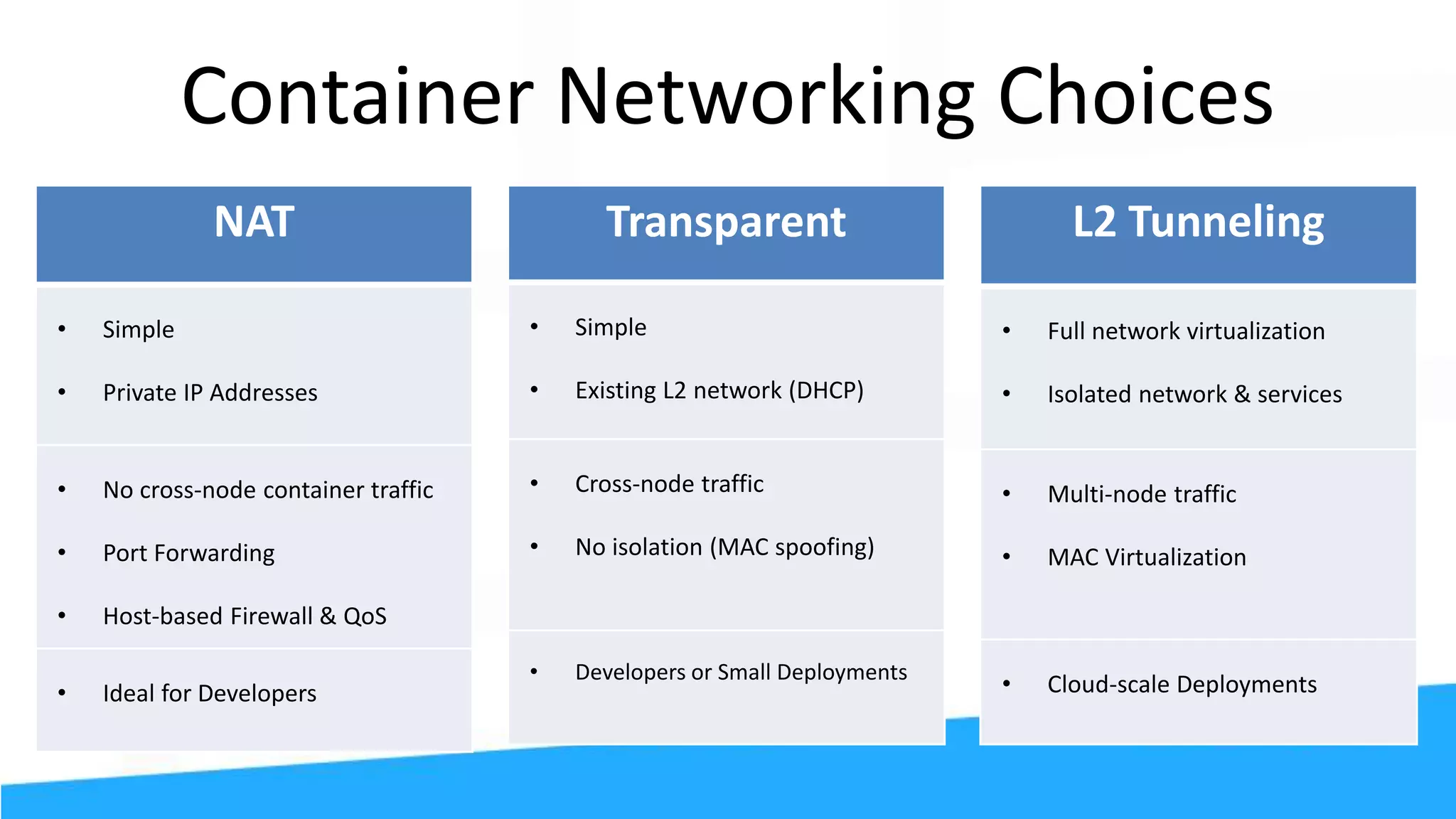

- 16. Container Networking Choices NAT •Simple • Private IP Addresses • No cross-node container traffic • Port Forwarding • Host-based Firewall & QoS • Ideal for Developers L2 Tunneling • Full network virtualization • Isolated network & services • Multi-node traffic • MAC Virtualization • Cloud-scale Deployments Transparent • Simple • Existing L2 network (DHCP) • Cross-node traffic • No isolation (MAC spoofing) • Developers or Small Deployments

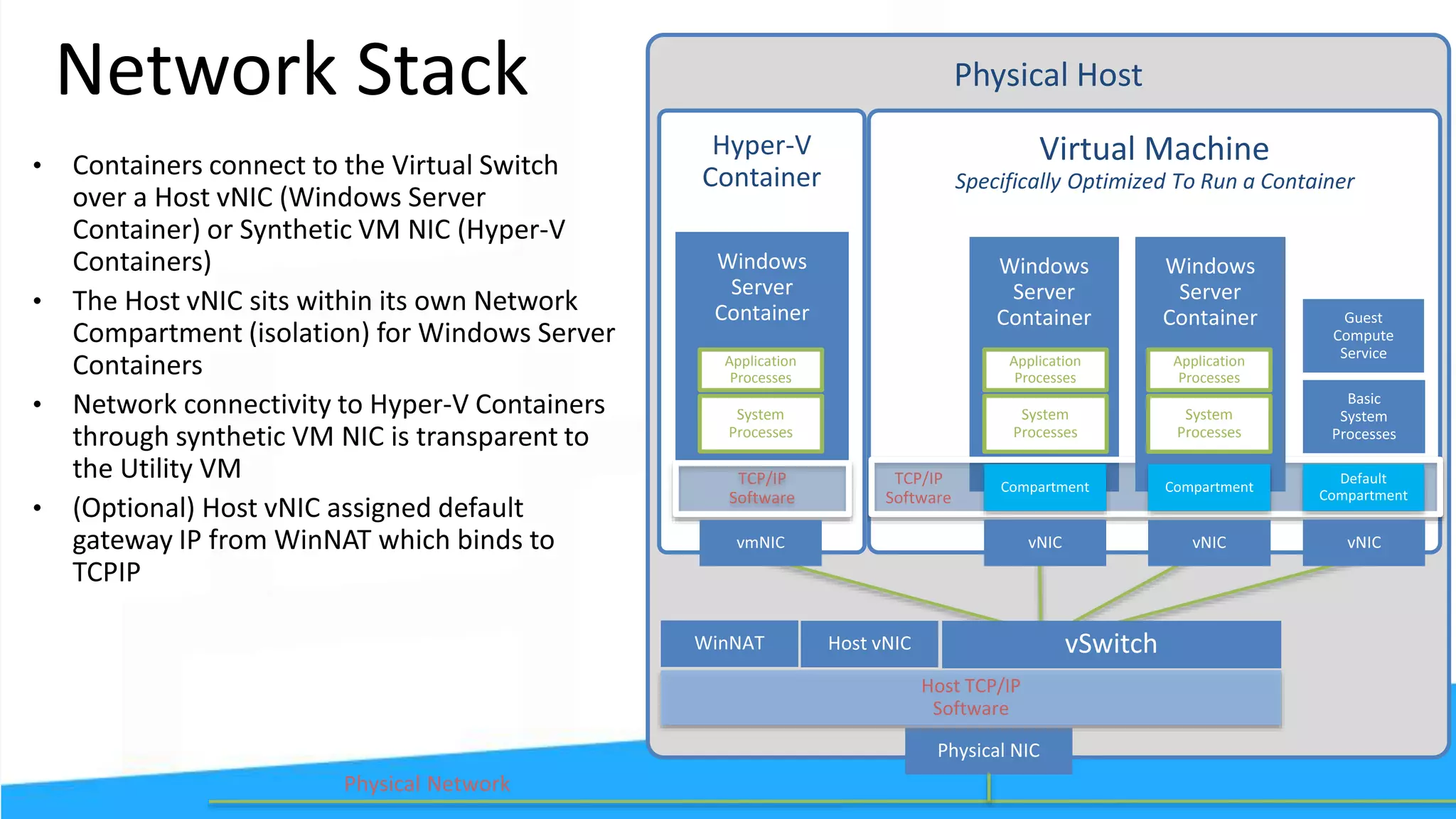

- 17. Physical HostNetwork Stack VirtualMachine Specifically Optimized To Run a Container System Processes Application Processes TCP/IP Software System Processes Application Processes Host TCP/IP Software Hyper-V Container System Processes Application Processes TCP/IP Software Physical Network
- 18.
Editor's Notes
- #18 We have a simplified view of the network stack from the perspective of the container host. A container host could either be a physical machine or VM. Somehow, this container host has connectivity through a physical network. Now it is the job of the container host to provide connectivity to the containers. Depending on the external connectivity and network requirements, it will provide connectivity through either an internal or external vSwitch. That vSwitch has a number of ports on it (just like a physical switch) which connect to host vNICs in the Windows Server Containers. Each host vNIC is inside a network compartment for isolation. In the Hyper-V Container case, we have a Utility VM wrapping the windows container and a synthetic M NIC is exposed through the Utility VM to connect directly to the container itself External connectivity is provided in a number of different ways which we will speak about in a minute. For one particulanetwork mode – NAT – we will also have a host vNIC attached to WinNAT and assigned the NAT’s default gateway IP address.
