- 1. Docker Networking Văn Đình Phúc – System Engineer Nguyễn Văn Thường – Linux Sysadmin Trần Hữu Cường – R&D
- 2. Networking Breakout Madhu Venugopal JanaRadhakrishnan Source: recap from DockerCon US 2015

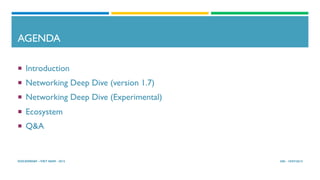

- 3. AGENDA ¡ Introduction ¡ NetworkingDeep Dive (version 1.7) ¡ Networking Deep Dive (Experimental) ¡ Ecosystem ¡ Q&A HN - 19/07/2015DOCKERDAY –VIET NAM - 2015

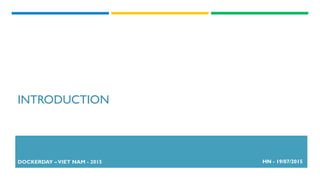

- 4. INTRODUCTION DOCKERDAY –VIET NAM- 2015 HN - 19/07/2015

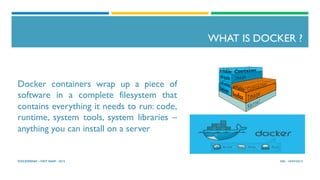

- 5. WHAT IS DOCKER? Docker containers wrap up a piece of software in a complete filesystem that contains everything it needs to run: code, runtime, system tools, system libraries – anything you can install on a server HN - 19/07/2015DOCKERDAY –VIET NAM - 2015

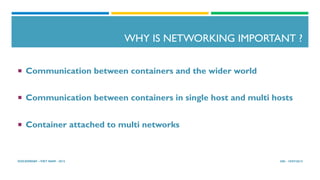

- 6. WHY IS NETWORKINGIMPORTANT ? ¡ Communication between containers and the wider world ¡ Communication between containers in single host and multi hosts ¡ Container attached to multi networks HN - 19/07/2015DOCKERDAY –VIET NAM - 2015

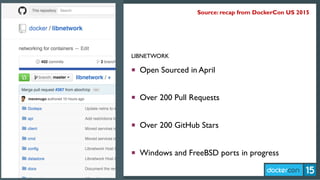

- 7. LIBNETWORK ¡ Open Sourcedin April ¡ Over 200 Pull Requests ¡ Over 200 GitHub Stars ¡ Windows and FreeBSD ports in progress Source: recap from DockerCon US 2015

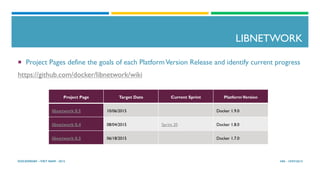

- 8. LIBNETWORK ¡ Project Pagesdefine the goals of each PlatformVersion Release and identify current progress https://github.com/docker/libnetwork/wiki HN - 19/07/2015DOCKERDAY –VIET NAM - 2015 Project Page Target Date Current Sprint PlatformVersion libnetwork 0.5 10/06/2015 Docker 1.9.0 libnetwork 0.4 08/04/2015 Sprint 20 Docker 1.8.0 libnetwork 0.3 06/18/2015 Docker 1.7.0
- 9. NETWORKING DEEP DIVE(VERSION 1.7) DOCKERDAY –VIET NAM - 2015 HN - 19/07/2015

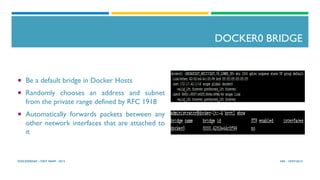

- 10. DOCKER0 BRIDGE HN -19/07/2015DOCKERDAY –VIET NAM - 2015 ¡ Be a default bridge in Docker Hosts ¡ Randomly chooses an address and subnet from the private range defined by RFC 1918 ¡ Automatically forwards packets between any other network interfaces that are attached to it
- 11. VIRTUAL ETHERNET INTERFACES ¡ a pair of “peer” interfaces that are like opposite ends of a pipe — a packet sent on one will be received on the other ¡ It gives one of the peers to the container to become its eth0 interface and keeps the other peer, with a unique name like veth37c1271 HN - 19/07/2015DOCKERDAY –VIET NAM - 2015

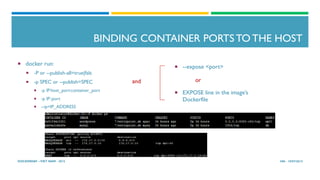

- 12. BINDING CONTAINER PORTSTO THE HOST ¡ docker run: ¡ -P or --publish-all=true|fals ¡ -p SPEC or --publish=SPEC ¡ -p IP:host_port:container_port ¡ -p IP::port ¡ --ip=IP_ADDRESS HN - 19/07/2015DOCKERDAY –VIET NAM - 2015 ¡ --expose <port> ¡ EXPOSE line in the image’s Dockerfile orand

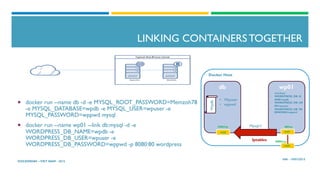

- 13. LINKING CONTAINERS TOGETHER ¡ docker run --name db -d -e MYSQL_ROOT_PASSWORD=Memzoh78 -e MYSQL_DATABASE=wpdb -e MYSQL_USER=wpuser -e MYSQL_PASSWORD=wppwd mysql ¡ docker run --name wp01 --link db:mysql -d -e WORDPRESS_DB_NAME=wpdb -e WORDPRESS_DB_USER=wpuser -e WORDPRESS_DB_PASSWORD=wppwd -p 8080:80 wordpress HN - 19/07/2015 DOCKERDAY –VIET NAM - 2015 Iptables Docker Host 8080/tcp eth0 db 3306/tcp • Wpuser • wppwd Wpdb eth0 wp01 • /etc/host • WORDPRESS_DB_N AME=wpdb • WORDPRESS_DB_US ER=wpuser • WORDPRESS_DB_PA SSWORD=wppwd eth0 Mysql:// 80/tcp

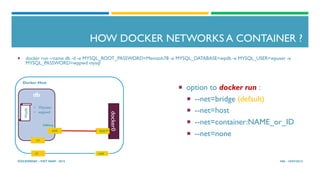

- 14. Docker Host eth0L0 docker0 HOW DOCKERNETWORKS A CONTAINER ? ¡ option to docker run : ¡ --net=bridge (default) ¡ --net=host ¡ --net=container:NAME_or_ID ¡ --net=none HN - 19/07/2015DOCKERDAY –VIET NAM - 2015 db • Wpuser • wppwd Wpdb L0 Veth***eth0 3306/tcp ¡ docker run --name db -d -e MYSQL_ROOT_PASSWORD=Memzoh78 -e MYSQL_DATABASE=wpdb -e MYSQL_USER=wpuser -e MYSQL_PASSWORD=wppwd mysql

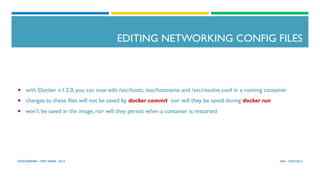

- 15. EDITING NETWORKING CONFIGFILES ¡ with Docker v.1.2.0, you can now edit /etc/hosts, /etc/hostname and /etc/resolve.conf in a running container ¡ changes to these files will not be saved by docker commit nor will they be saved during docker run ¡ won’t be saved in the image, nor will they persist when a container is restarted HN - 19/07/2015DOCKERDAY –VIET NAM - 2015

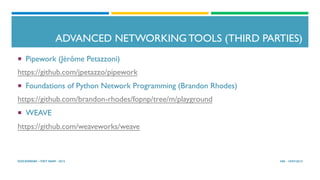

- 16. ADVANCED NETWORKING TOOLS(THIRD PARTIES) ¡ Pipework (Jérôme Petazzoni) https://github.com/jpetazzo/pipework ¡ Foundations of Python Network Programming (Brandon Rhodes) https://github.com/brandon-rhodes/fopnp/tree/m/playground ¡ WEAVE https://github.com/weaveworks/weave HN - 19/07/2015DOCKERDAY –VIET NAM - 2015
- 17. NETWORKING DEEP DIVE(EXPERIMENTAL) DOCKERDAY –VIET NAM - 2015 HN - 19/07/2015

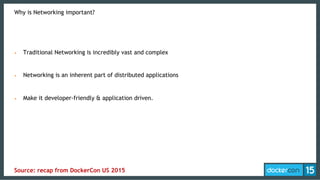

- 18. Why is Networkingimportant? • Traditional Networking is incredibly vast and complex • Networking is an inherent part of distributed applications • Make it developer-friendly & application driven. Source: recap from DockerCon US 2015

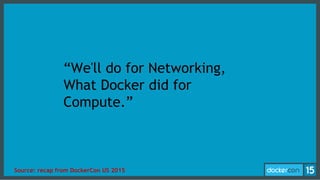

- 19. “We'll do forNetworking, What Docker did for Compute.” Source: recap from DockerCon US 2015

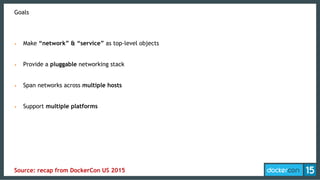

- 20. Goals • Make “network”& “service” as top-level objects • Provide a pluggable networking stack • Span networks across multiple hosts • Support multiple platforms Source: recap from DockerCon US 2015
- 21. Whats New? • UpdatedNetworking Stack in Docker • Create Networks using the Docker CLI • Multi-host Networking • Services UI blue = experimentalSource: recap from DockerCon US 2015

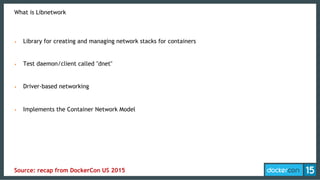

- 22. What is Libnetwork • Library for creating and managing network stacks for containers • Test daemon/client called "dnet" • Driver-based networking • Implements the Container Network Model Source: recap from DockerCon US 2015

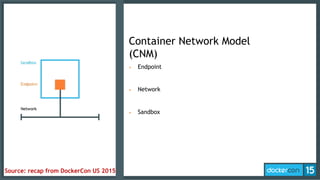

- 23. Container Network Model (CNM) • Endpoint • Network • Sandbox Source: recap from DockerCon US 2015

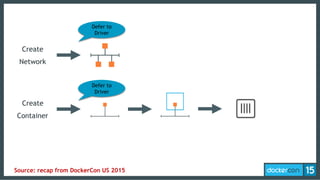

- 24. Create Network Create Container Defer to Driver Defer to Driver Source:recap from DockerCon US 2015

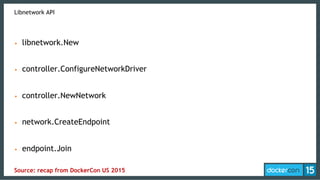

- 25. Libnetwork API • libnetwork.New • controller.ConfigureNetworkDriver • controller.NewNetwork • network.CreateEndpoint • endpoint.Join Source: recap from DockerCon US 2015

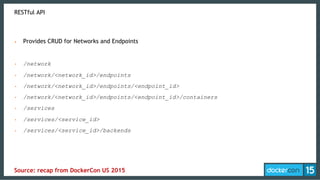

- 26. RESTful API • ProvidesCRUD for Networks and Endpoints • /network • /network/<network_id>/endpoints • /network/<network_id>/endpoints/<endpoint_id> • /network/<network_id>/endpoints/<endpoint_id>/containers • /services • /services/<service_id> • /services/<service_id>/backends Source: recap from DockerCon US 2015

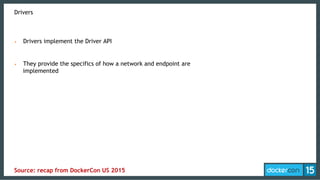

- 27. Drivers • Drivers implementthe Driver API • They provide the specifics of how a network and endpoint are implemented Source: recap from DockerCon US 2015
- 28. Bridge Driver • Createsa Linux Bridge for each network • Creates a veth pair for each endpoint - One end is attached to the bridge - The other appears as eth0 inside the containers • iptables rules created for NAT Source: recap from DockerCon US 2015

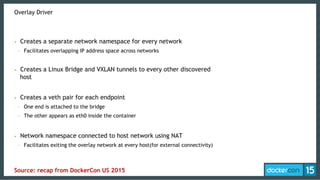

- 29. Overlay Driver • Createsa separate network namespace for every network - Facilitates overlapping IP address space across networks • Creates a Linux Bridge and VXLAN tunnels to every other discovered host • Creates a veth pair for each endpoint - One end is attached to the bridge - The other appears as eth0 inside the container • Network namespace connected to host network using NAT - Facilitates exiting the overlay network at every host(for external connectivity) Source: recap from DockerCon US 2015

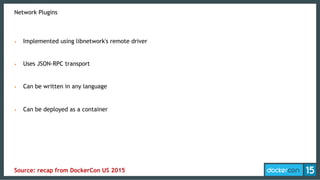

- 30. Network Plugins • Implementedusing libnetwork's remote driver • Uses JSON-RPC transport • Can be written in any language • Can be deployed as a container Source: recap from DockerCon US 2015

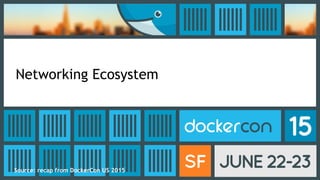

- 31. Networking Ecosystem Source: recapfrom DockerCon US 2015
- 32. – R. Callon,RFC 1925 - The Twelve Networking Truths “One size never fits all.” Source: recap from DockerCon US 2015
- 33. Source: recap fromDockerCon US 2015

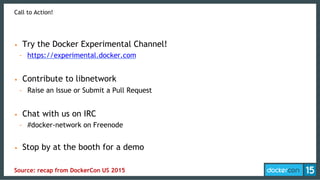

- 34. Call to Action! • Try the Docker Experimental Channel! - https://experimental.docker.com • Contribute to libnetwork - Raise an Issue or Submit a Pull Request • Chat with us on IRC - #docker-network on Freenode • Stop by at the booth for a demo Source: recap from DockerCon US 2015
- 35. Q&A Source: recap fromDockerCon US 2015
