This document provides instructions for setting up a microservices architecture using Node.js, AngularJS, MongoDB, and Docker. It describes building API and CMS services using Express and Angular, respectively. It also covers orchestrating the services using Docker Compose and routing them through an Nginx gateway. Finally, it demonstrates deploying the system locally using Vagrant.

1. Docker for JS Developer

2. Nguyen Sy Thanh Son
thanhson1085@gmail.com
@thanhson1085
https://sonnguyen.ws
Developer@Sigma IT Solutions
(Git/DevOps) Lecturer@Techmaster
A Big Fan of Open Source
Member of Docker Hanoi (https://www.facebook.com/dockerhanoi/)

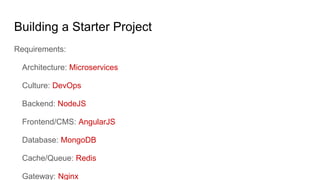

3. Building a Starter Project
Requirements:
Architecture: Microservices
Culture: DevOps
Backend: NodeJS
Frontend/CMS: AngularJS
Database: MongoDB
Cache/Queue: Redis
Gateway: Nginx

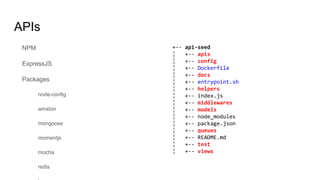

6. APIs
NPM
ExpressJS
Packages
node-config
winston
mongoose
momentjs
mocha
redis
+-- api-seed
¦ +-- apis
¦ +-- config
¦ +-- Dockerfile
¦ +-- docs
¦ +-- entrypoint.sh
¦ +-- helpers
¦ +-- index.js
¦ +-- middlewares
¦ +-- models
¦ +-- node_modules
¦ +-- package.json
¦ +-- queues
¦ +-- README.md
¦ +-- test
¦ +-- views

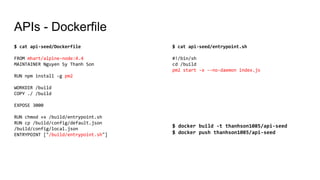

7. APIs - Dockerfile
$ cat api-seed/Dockerfile
FROM mhart/alpine-node:4.4
MAINTAINER Nguyen Sy Thanh Son
RUN npm install -g pm2
WORKDIR /build
COPY ./ /build
EXPOSE 3000
RUN chmod +x /build/entrypoint.sh
RUN cp /build/config/default.json
/build/config/local.json
ENTRYPOINT ["/build/entrypoint.sh"]
$ cat api-seed/entrypoint.sh
#!/bin/sh
cd /build
pm2 start -x --no-daemon index.js
$ docker build -t thanhson1085/api-seed
$ docker push thanhson1085/api-seed

8. CMS
AngularJS
SB Admin 2

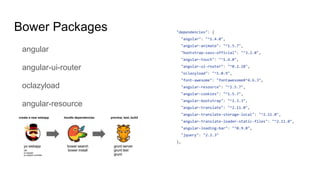

9. Bower Packages
angular
angular-ui-router
oclazyload
angular-resource
angular-translate
angular-bootstrap
"dependencies": {
"angular": "^1.4.0",
"angular-animate": "^1.5.7",
"bootstrap-sass-official": "^3.2.0",
"angular-touch": "^1.4.0",
"angular-ui-router": "^0.2.18",
"oclazyload": "^1.0.9",
"font-awesome": "fontawesome#^4.6.3",
"angular-resource": "^1.5.7",
"angular-cookies": "^1.5.7",
"angular-bootstrap": "^1.3.3",
"angular-translate": "^2.11.0",
"angular-translate-storage-local": "^2.11.0",
"angular-translate-loader-static-files": "^2.11.0",
"angular-loading-bar": "^0.9.0",
"jquery": "2.2.3"
},

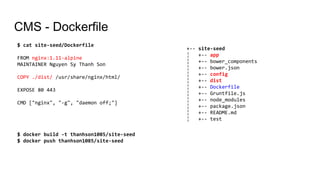

10. CMS - Dockerfile
$ cat site-seed/Dockerfile
FROM nginx:1.11-alpine
MAINTAINER Nguyen Sy Thanh Son
COPY ./dist/ /usr/share/nginx/html/
EXPOSE 80 443
CMD ["nginx", "-g", "daemon off;"]
+-- site-seed
¦ +-- app
¦ +-- bower_components
¦ +-- bower.json
¦ +-- config
¦ +-- dist
¦ +-- Dockerfile
¦ +-- Gruntfile.js
¦ +-- node_modules
¦ +-- package.json
¦ +-- README.md
¦ +-- test
$ docker build -t thanhson1085/site-seed
$ docker push thanhson1085/site-seed

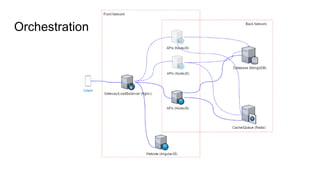

11. Orchestration

12. Orchestration
version: "2"
services:
apis:
image: thanhson1085/api-seed
depends_on:
- db
- redis
networks:
- front-net
- back-net
site:
image: thanhson1085/site-seed
networks:
- front-net
redis:
image: redis:alpine
container_name: redis
networks:
- back-net
db:
image: mongo:3.2
container_name: db
volumes:
- "mongodb:/data/db"
networks:
- back-net
gateway:
image: nginx
container_name: gateway
volumes:
- ./app.template:/etc/nginx/conf.d/default.conf
- ./nginx.template:/etc/nginx/nginx.conf
ports:
- "80:80"
- "443:443"
depends_on:
- apis
networks:
- front-net
volumes:
mongodb:
networks:
front-net:
back-net:
docker-compose.yml

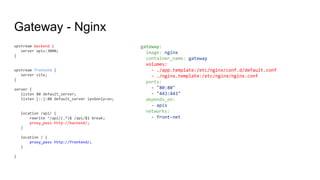

13. Gateway - Nginx
upstream backend {
server apis:3000;
}
upstream frontend {
server site;
}
server {
listen 80 default_server;
listen [::]:80 default_server ipv6only=on;
location /api/ {
rewrite ^/api/(.*)$ /api/$1 break;
proxy_pass http://backend/;
}
location / {
proxy_pass http://frontend/;
}
}
gateway:
image: nginx
container_name: gateway
volumes:
- ./app.template:/etc/nginx/conf.d/default.conf
- ./nginx.template:/etc/nginx/nginx.conf
ports:
- "80:80"
- "443:443"
depends_on:
- apis
networks:
- front-net

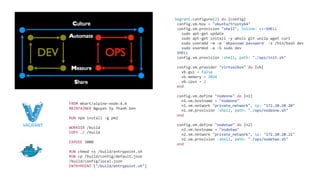

14. Vagrant.configure(2) do |config|
config.vm.box = "ubuntu/trusty64"
config.vm.provision "shell", inline: <<-SHELL
sudo apt-get update
sudo apt-get install -y whois git unzip wget curl
sudo useradd -m -p `mkpasswd password` -s /bin/bash dev
sudo usermod -a -G sudo dev
SHELL
config.vm.provision :shell, path: "./ops/init.sh"
config.vm.provider "virtualbox" do |vb|
vb.gui = false
vb.memory = 1024
vb.cpus = 2
end
config.vm.define "nodeone" do |n1|
n1.vm.hostname = "nodeone"
n1.vm.network "private_network", ip: "172.20.20.20"
n1.vm.provision :shell, path: "./ops/nodeone.sh"
end
config.vm.define "nodetwo" do |n2|
n2.vm.hostname = "nodetwo"
n2.vm.network "private_network", ip: "172.20.20.21"
n2.vm.provision :shell, path: "./ops/nodetwo.sh"
end
FROM mhart/alpine-node:4.4
MAINTAINER Nguyen Sy Thanh Son
RUN npm install -g pm2
WORKDIR /build
COPY ./ /build
EXPOSE 3000
RUN chmod +x /build/entrypoint.sh
RUN cp /build/config/default.json
/build/config/local.json
ENTRYPOINT ["/build/entrypoint.sh"]

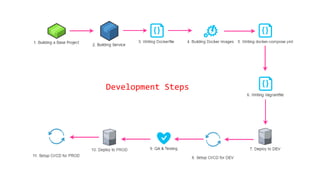

15. Development Steps

16. DEMO
https://github.com/thanhson1085/bean-seed
vagrant up

17. Q&A
