The document discusses the concept of declarative pipelines in Jenkins, highlighting their advantages over scripted pipelines such as increased readability and ease of use without requiring knowledge of Groovy. It outlines the basic structure of declarative pipelines, including agents, stages, steps, and environment variables, while also mentioning features like conditional execution and post-build actions. Additionally, it provides references to resources for further learning and tools for pipeline development and debugging.

1. Declarative
Pipeline
Malcolm
Groves
malcolm@code-­‐partners.com
@malgroves

2. Training,
Consulting
and
Services
across
the
whole
Development
and
Deployment
lifecycle.

3. What’s
Pipeline?

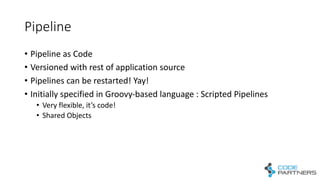

4. Pipeline
• Pipeline
as
Code
• Versioned
with
rest
of
application
source
• Pipelines
can
be
restarted!
Yay!
• Initially
specified
in
Groovy-­‐based
language
:
Scripted
Pipelines
• Very
flexible,
it’s
code!
• Shared
Objects

5. Sounds
Awesome.
What’s
the
problem?

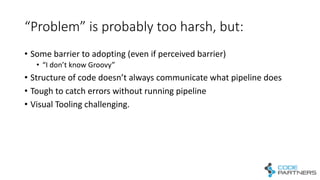

6. “Problem”
is
probably
too
harsh,
but:
• Some
barrier
to
adopting
(even
if
perceived
barrier)
• “I
don’t
know
Groovy”
• Structure
of
code
doesn’t
always
communicate
what
pipeline
does
• Tough
to
catch
errors
without
running
pipeline
• Visual
Tooling
challenging.

7. What’s
Declarative
Pipeline?

8. Declarative
Pipeline
• Alternative
to
Scripted
Pipeline
• More
approachable,
no
need
to
know
any
Groovy
• More
readable
• Structure
communicates
what
is
happening
• Visual,
two-­‐way
Editor
• Still
Jenkinsfile-­‐based

9. Hello
World
of
Declarative
Pipelines

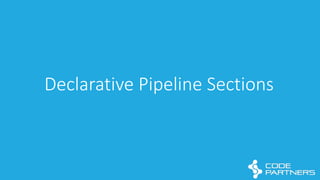

10. Declarative
Pipeline
Sections

11. Basic
Structure pipeline {
agent any
environment {
Foo = 'Bar’
Fred = 'Flintstone’
}
stages {
stage('Build') {
steps {
bat 'echo %Foo%’
}
}
}
}
• Whole
file
wrapped
in
a
pipeline
section
• stages specifies
what
will
run
• 1
or
more
stage
directives
• Each
stage
contains
1
or
more
steps

12. agent pipeline {
agent any
environment {
Foo = 'Bar’
Fred = 'Flintstone’
}
stages {
stage('Build') {
steps {
bat 'echo %Foo%’
}
}
}
}
• agent
specifies
where
pipeline
will
be
run:
• any,
none,
label,
docker,
dockerfile
• Can
specify
per
stage
as
well

13. agent
pipeline {
agent none
stages {
stage('Example Build') {
agent {docker 'maven:3-­‐alpine'}
steps {
echo 'Hello, Maven’
sh 'mvn -­‐-­‐version'
}
}
stage('Example Test') {
agent {docker 'openjdk:8-­‐jre'}
steps {
echo 'Hello, JDK'
sh 'java -­‐version'
}
}
}
}
• Example
of
per-­‐stage
agent
directive
• Needs
pipeline-­‐level
agent
directive
to
be
none

14. Stages pipeline {
agent any
stages {
stage('Example Build') {
steps {
echo 'Hello World’
}
}
stage('Example Deploy') {
when {branch 'production'}
echo 'Deploying’
}
}
}
• “When”
directive
allows
conditional
execution
of
stages
• Conditions:
• branch
– match
to
branch
name
• environment
– match
to
environment
variables
• expression
– Groovy
expression
evaluates
to
true

15. Steps
pipeline {
agent any
stages {
stage(’Test') {
steps {
archive ‘*/target/**/*’
junit‘*/target/reports/*.xml’
}
}
}
}
• The
actual
work
to
be
performed
inside
this
stage
• Individual
Steps
can
be:
• Any
pipeline
build
step.

16. Steps
pipeline {
agent any
stages {
stage(’Audits') {
steps {
parallel(
“code analysis”: {
bat: ‘echo do stuff’
},
“security scan”: {
bat: ‘echo do stuff’
},
)
}
}
}
}
• The
actual
work
to
be
performed
inside
this
stage
• Individual
Steps
can
be:
• Any
pipeline
build
step.
• parallel

17. Steps
pipeline {
agent any
stages {
stage(’Audits') {
steps {
echo 'Hello World’
script {
def browsers = ['chrome', 'firefox']
for (int i = 0; i < browsers.size(); ++i) {
echo "Testing the ${browsers[i]} browser"
}
}
}
}
}
}
• The
actual
work
to
be
performed
inside
this
stage
• Individual
Steps
can
be:
• Any
pipeline
build
step.
• Parallel
• Script

18. Environment
pipeline {
agent any
environment {
CC = 'clang’
}
stages {
stage('Example') {
environment {
MY_KEY = credentials('my-­‐secret-­‐text')
}
steps {
sh 'printenv’
}
}
}
}
• Name
=
value
pairs
that
will
be
defined
as
environment
variables
• Variables
are
scoped:
• to
whole
pipeline,
or
• to
just
an
individual
stage
if
defined
at
stage
level
• Helper
function
to
access
Credentials
defined
in
Jenkins

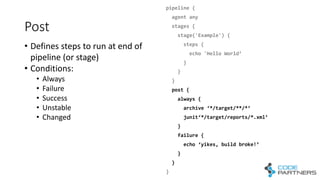

19. Post
pipeline {
agent any
stages {
stage('Example') {
steps {
echo 'Hello World’
}
}
}
post {
always {
archive ‘*/target/**/*’
junit‘*/target/reports/*.xml’
}
failure {
echo ‘yikes, build broke!’
}
}
}
• Defines
steps
to
run
at
end
of
pipeline
(or
stage)
• Conditions:
• Always
• Failure
• Success
• Unstable
• Changed

20. A
few
other
sections
• Options
• Options
for
whole
pipeline,
eg.
Timeout,
skipDefaultCheckout,
etc
• Tools
• Install
pre-­‐defined
tools
• Triggers
• alternative
triggers
for
pipeline,
eg.
Schedule,
poll,
etc
• Parameters
• Define
parameters
that
will
be
prompted
for
at
run
time
https://jenkins.io/doc/book/pipeline/syntax/

21. Declarative
Pipelines
are
for
making
most
things
easier.
For
corner-­‐cases,
you
have
Scripted
Pipelines

22. The
Dev
workflow
I’ve
shown
is
a
bit
cumbersome
Let’s
fix
that

23. Tools
and
Resources
Links
• Pipeline
Syntax
https://jenkins.io/doc/book/pipeline/syntax/
• Steps
Reference
https://jenkins.io/doc/pipeline/steps/
Tools
• Replay
https://jenkins.io/doc/book/pipeline/development/#replay
• Linter
https://jenkins.io/doc/book/pipeline/development/#linter
• Unit
Testing
(3rd Party)
https://github.com/lesfurets/JenkinsPipelineUnit

24. Questions?

25. Thank
You
malcolm@code-­‐partners.com
@malgroves
