How to implement a CI/CD pipeline with Docker and Azure using Azure Container Registry, Azure Container Service and Visual Studio Team Services

1. Docker & Azure
…the good, the bad and the ugly…

3. Azure Container Registry Azure Container Service Visual Studio Team Services
Agenda

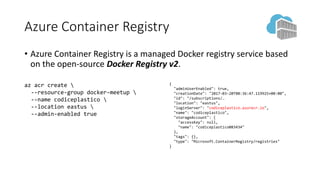

4. Azure Container Registry
• Azure Container Registry is a managed Docker registry service based
on the open-source Docker Registry v2.
az acr create
--resource-group docker-meetup
--name codiceplastico
--location eastus
--admin-enabled true
{
"adminUserEnabled": true,
"creationDate": "2017-03-20T08:36:47.119925+00:00",
"id": "/subscriptions/…
"location": "eastus",
"loginServer": "codiceplastico.azurecr.io",
"name": "codiceplastico",
"storageAccount": {
"accessKey": null,
"name": "codiceplastico083434"
},
"tags": {},
"type": "Microsoft.ContainerRegistry/registries"
}

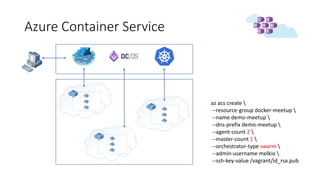

5. Azure Container Service
az acs create
--resource-group docker-meetup
--name demo-meetup
--dns-prefix demo-meetup
--agent-count 2
--master-count 1
--orchestrator-type swarm
--admin-username melkio
--ssh-key-value /vagrant/id_rsa.pub

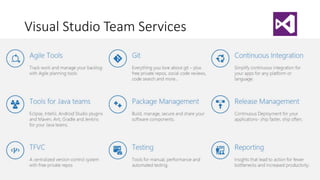

6. Visual Studio Team Services

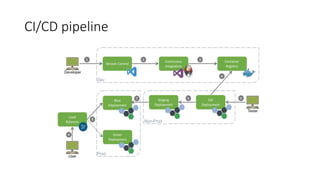

7. CI/CD pipeline

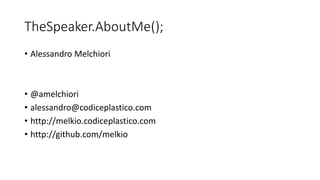

8. TheSpeaker.AboutMe();
• Alessandro Melchiori
• @amelchiori
• alessandro@codiceplastico.com
• http://melkio.codiceplastico.com
• http://github.com/melkio
