This document discusses Disaster Recovery as a Service (DRaaS) using Microsoft Azure Site Recovery. It outlines the need for disaster recovery strategies due to increased reliance on IT systems and the challenges of maintaining an on-premise DR site. Azure Site Recovery provides an automated and cost-effective DRaaS solution through replication of workloads to Azure. It allows for customizable recovery plans, non-disruptive testing, and orchestrated failover. The solution overview describes how Azure Site Recovery protects virtual machines, servers, and applications across platforms.

1. WWW.MISMOSYSTEMS.COM
Disaster Recovery as a Service (DRaaS) using Azure ASR

2. Need of DR and Value of DRaaS
o Why have a DR Strategy and Solution
o Increased dependency on data and IT system for every business
o Protection and availability of these systems is crucial for business to operate
o Outages can be caused by natural disaster or an operational failure but the IT systems need to get
back up and running asap
o Challenges that DRaaS addresses
o Maintaining a DR site/system was a costly affair
o Paying for the DR services/system even when they are not in use
o Its complex to maintain, test, failover & failback
WWW.MISMOSYSTEMS.COM

3. Solution Benefits
o Benefits of Azure Site Recovery (Leading DRaaS Solution)
o Automated protection and replication of IT workloads
o Remote health monitoring
o Customizable recovery plans
o No-impact recovery plan testing
o Orchestrated recovery when needed
o Replication to—and recovery in—Azure
o Cost Effective Solution
o Pay minimum fee for data replication, pay for compute only in case of DR
WWW.MISMOSYSTEMS.COM

4. Solution Overview
o Simple, automated protection and disaster recovery in the cloud
o Protect your environment by automating the replication of the virtual machines
o Protect Microsoft Hyper-V, VMware and physical servers
o Use Azure or your secondary datacenter as your recovery site
o Easily create Disaster Recovery plans
o No impact DR testing
o Application aware replication
o Easy Failback Capabilities
o Data encrypted while in replication and at rest
o Reduced RTO and RPO with low cost
o Guaranteed 99.9% availability for each Protected Instance of Site Recovery Service
WWW.MISMOSYSTEMS.COM

5. Solution
Diagram
WWW.MISMOSYSTEMS.COM

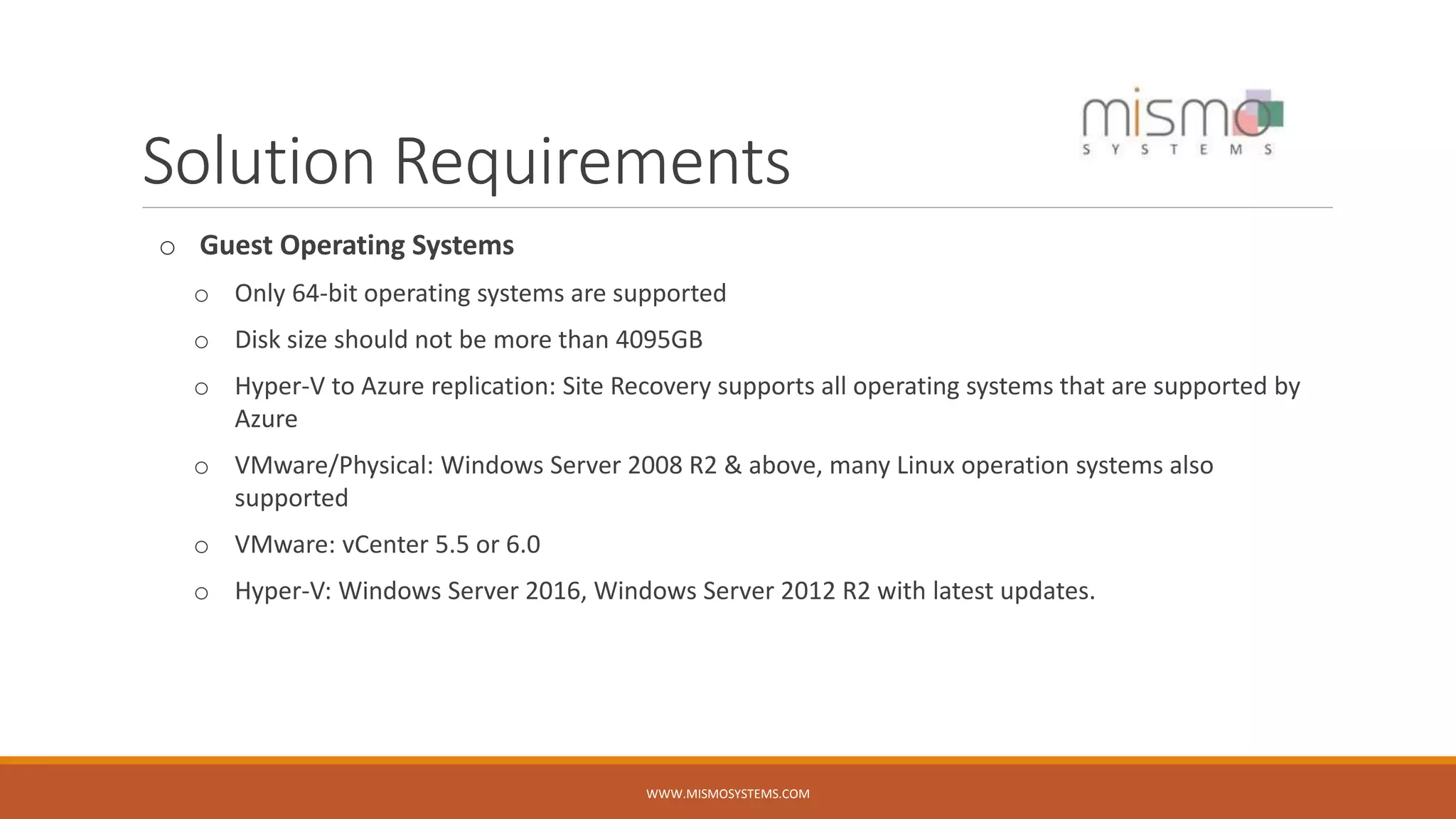

6. Solution Requirements
o Guest Operating Systems
o Only 64-bit operating systems are supported
o Disk size should not be more than 4095GB
o Hyper-V to Azure replication: Site Recovery supports all operating systems that are supported by
Azure
o VMware/Physical: Windows Server 2008 R2 & above, many Linux operation systems also
supported
o VMware: vCenter 5.5 or 6.0
o Hyper-V: Windows Server 2016, Windows Server 2012 R2 with latest updates.
WWW.MISMOSYSTEMS.COM

7. Cost Estimate
WWW.MISMOSYSTEMS.COM
Item Description QTY Total Cost
ASR Protected
Instance
Azure Site Recovery to customer
owned sites
1 ₹1,057.54/month
o Example 1 – Azure Site Recovery to customer owned sites
o Example 2 – Azure Site Recovery to Azure
Item Description QTY Total Cost
ASR Protected
Instance
Azure Site Recovery to Azure 1 ₹1,652.41/month
Azure Storage Cost 1 TB disk with 500 GB data 1 ₹ 2,881.80/month
* Costs are also incurred during test failover, where the VM, storage, egress, and
storage transactions costs will be applied but can be estimated.
* Implementation and Support Cost Extra (Optional)

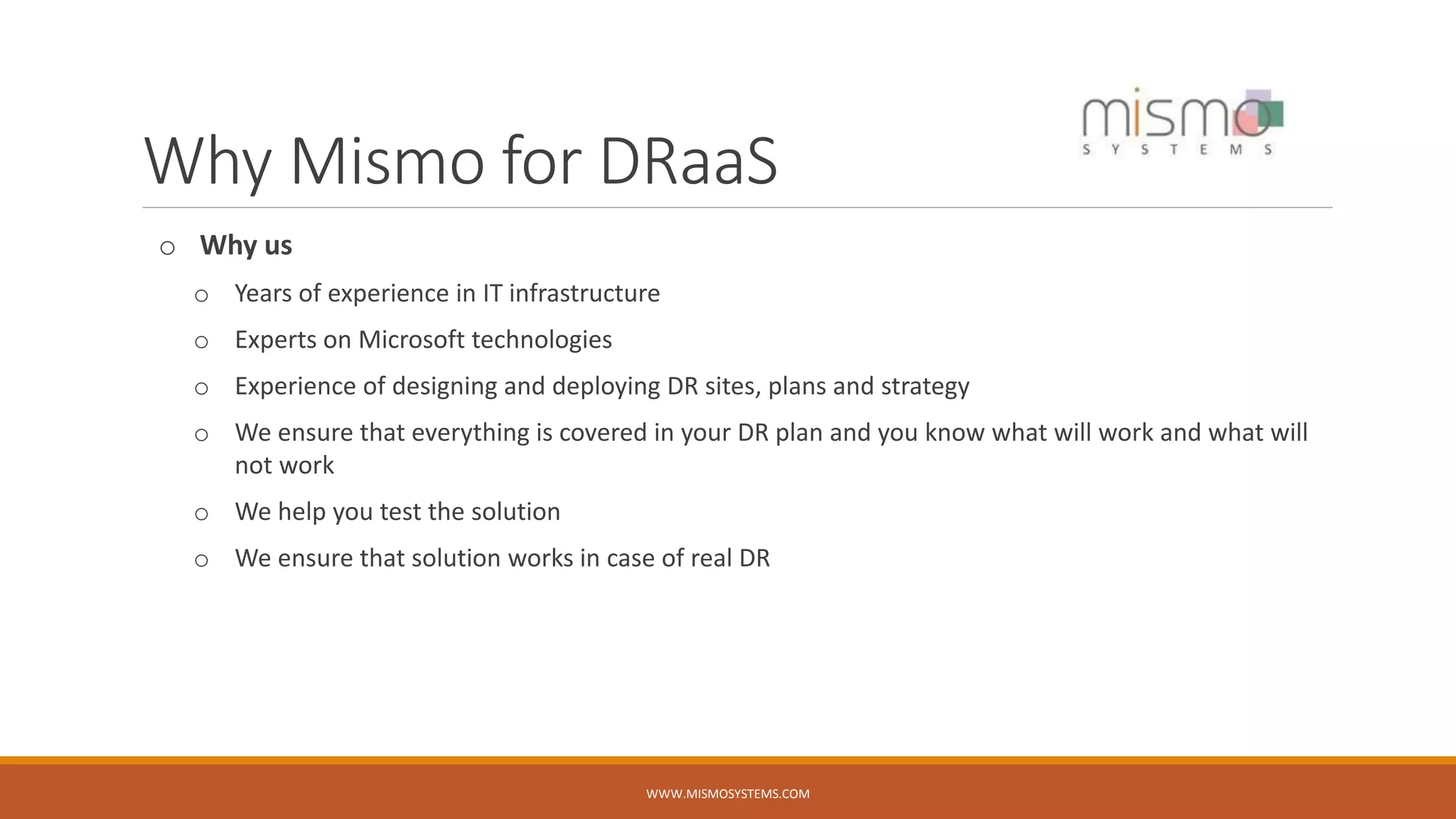

8. Why Mismo for DRaaS
o Why us
o Years of experience in IT infrastructure
o Experts on Microsoft technologies
o Experience of designing and deploying DR sites, plans and strategy
o We ensure that everything is covered in your DR plan and you know what will work and what will
not work
o We help you test the solution
o We ensure that solution works in case of real DR
WWW.MISMOSYSTEMS.COM

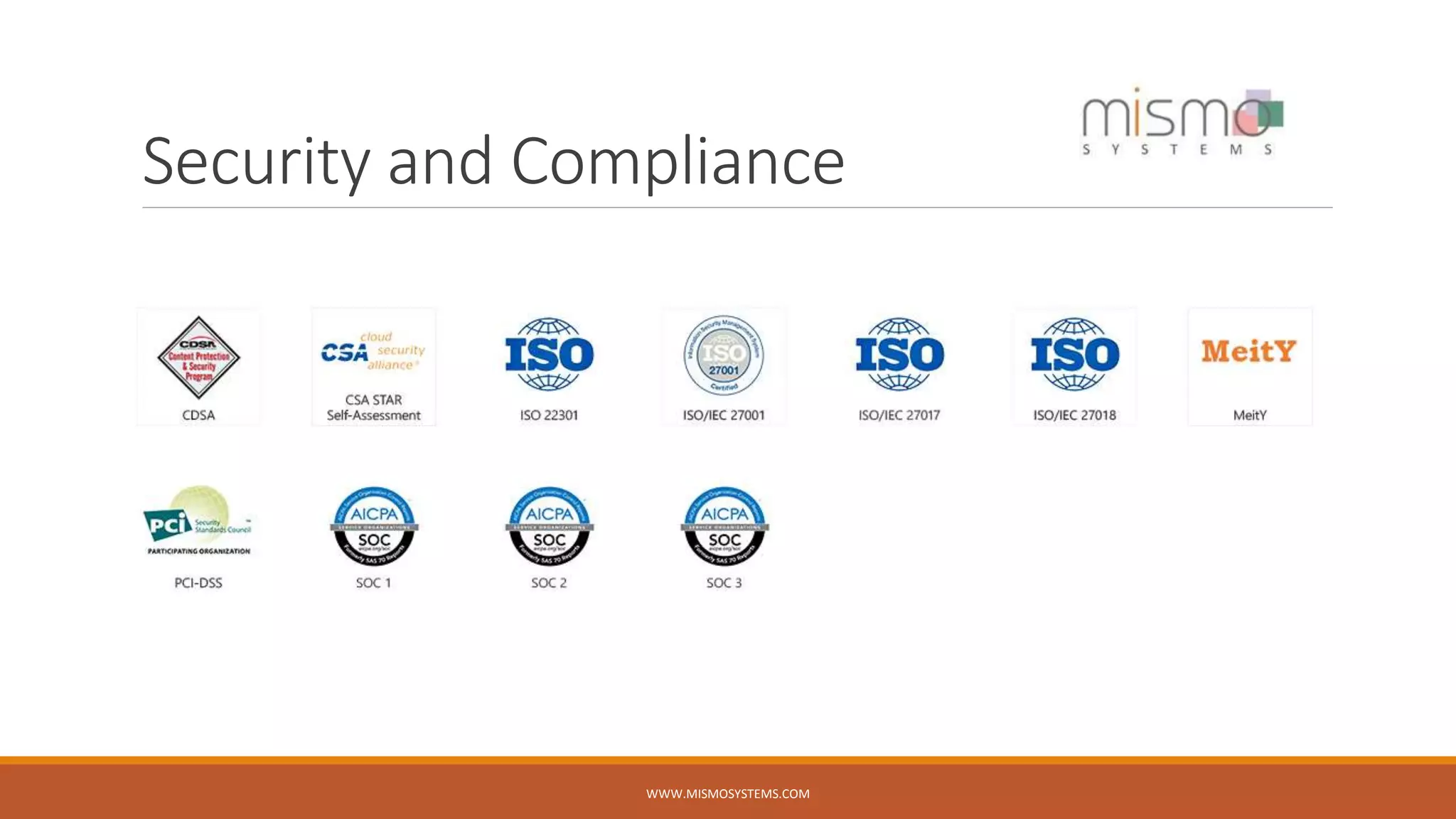

9. Security and Compliance
WWW.MISMOSYSTEMS.COM

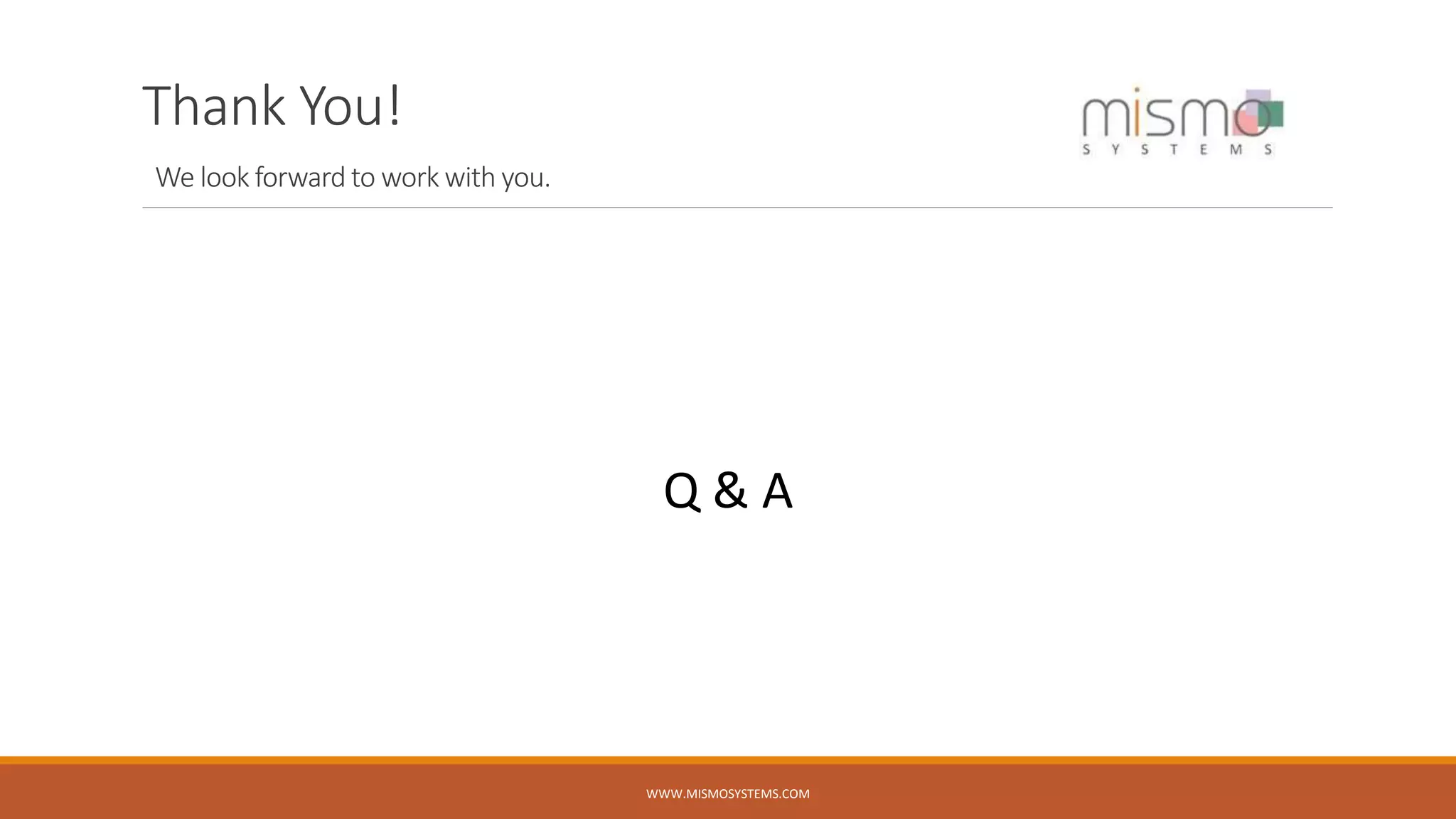

10. Thank You!
We look forward to work with you.
WWW.MISMOSYSTEMS.COM
Q & A
