VirtualStor is a software-defined storage platform that aggregates and optimizes all storage resources to provide flexible storage solutions for any environment or application. It uses a scale-out architecture to deliver up to 10 million IOPS and 1PB of storage. VirtualStor offers high performance with sub-millisecond latency, low write amplification to extend SSD life, and the ability to consolidate and seamlessly migrate data from existing storage.

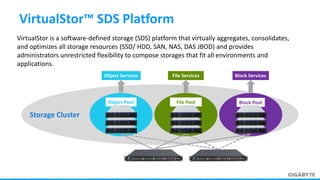

2. VirtualStor™ SDS Platform
Object Services Block ServicesFile Services
Storage Cluster
Object Pool Block PoolFile Pool
VirtualStor is a software-defined storage (SDS) platform that virtually aggregates, consolidates,
and optimizes all storage resources (SSD/ HDD, SAN, NAS, DAS JBOD) and provides
administrators unrestricted flexibility to compose storages that fit all environments and
applications.

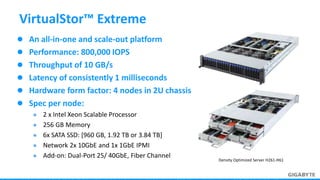

3.  An all-in-one and scale-out platform
 Performance: 800,000 IOPS
 Throughput of 10 GB/s
 Latency of consistently 1 milliseconds
 Hardware form factor: 4 nodes in 2U chassis
 Spec per node:
 2 x Intel Xeon Scalable Processor
 256 GB Memory
 6x SATA SSD: [960 GB, 1.92 TB or 3.84 TB]
 Network 2x 10GbE and 1x 1GbE IPMI
 Add-on: Dual-Port 25/ 40GbE, Fiber Channel
VirtualStor™ Extreme
Density Optimized Server H261-H61

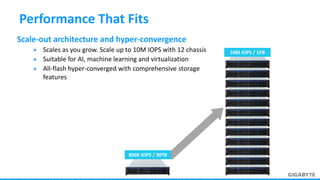

4. Scale-out architecture and hyper-convergence
 Scales as you grow. Scale up to 10M IOPS with 12 chassis
 Suitable for AI, machine learning and virtualization
 All-flash hyper-converged with comprehensive storage
features
800K IOPS / 90TB
10M IOPS / 1PB
Performance That Fits

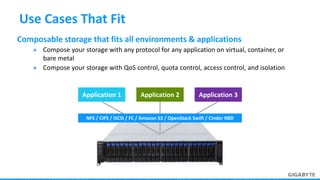

5. Application 1 Application 2 Application 3
NFS / CIFS / iSCSI / FC / Amazon S3 / OpenStack Swift / Cinder RBD
Use Cases That Fit
Composable storage that fits all environments & applications
 Compose your storage with any protocol for any application on virtual, container, or
bare metal
 Compose your storage with QoS control, quota control, access control, and isolation

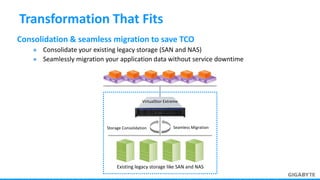

6. Consolidation & seamless migration to save TCO
 Consolidate your existing legacy storage (SAN and NAS)
 Seamlessly migration your application data without service downtime
Transformation That Fits
VirtualStor Extreme
Seamless MigrationStorage Consolidation
Existing legacy storage like SAN and NAS

7. Ceph Mimic BlueStore vs VirtualStor Extreme
SSD Latency
Latency (ms) 9
8
7
6
5
4
3
2
1
0
0 200 400 600 800 1000 1200 1400 1600
Times (s)
Latency (ms) 9
8
7
6
5
4
3
2
1
0
0 200 400 600 800 1000 1200 1400 1600
Times (s)
Ceph Mimic BlueStore VirtualStor Extreme

8. Ceph Mimic BlueStore VS VirtualStor Extreme
Client Latency
Latency (ms) 9
8
7
6
5
4
3
2
1
0
0 200 400 600 800 1000 1200 1400 1600
Times (s)
Latency (ms) 9
8
7
6
5
4
3
2
1
0
0 200 400 600 800 1000 1200 1400 1600
Times (s)
Ceph Mimic BlueStore VirtualStor Extreme

9. 7.31
1.05
0
1
2
3
4
5
6
7
8
Ceph FileStore VirtualStor Extreme
Minimizes Write Amplification (WA)
 Write amplification (WA) is an
undesirable phenomenon with flash
where the actual amount of data
physically written to the media is a
multiple of the logical amount
intended to be written. It will make
SSD life reduced.
 Compared with Ceph, VirtualStor
Extreme significantly minimizes WA to
1.05. Almost 7x extension of SSD
lifetime compared to other SDS.

10. Big Data
High Performance Computing, AI, Gene Sequence and Data Analytics
Rich Media & Multimedia
4K Media broadcasting, Surveillance, Online Training
Cloud Infrastructure & IT Virtualization
Public, Private and Hybrid Cloud, Server virtualization, Desktop virtualization
Electronic Design Automation
Scale to PB capacity and address, EDA software development workloads
User Scenarios

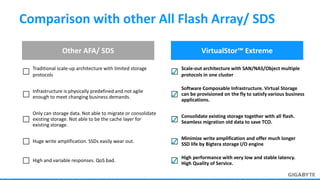

11. Other AFA/ SDS VirtualStor™ Extreme
Infrastructure is physically predefined and not agile
enough to meet changing business demands.
Software Composable Infrastructure. Virtual Storage
can be provisioned on the fly to satisfy various business
applications.
Only can storage data. Not able to migrate or consolidate
existing storage. Not able to be the cache layer for
existing storage.
Consolidate existing storage together with all flash.
Seamless migration old data to save TCO.
Traditional scale-up architecture with limited storage
protocols
Scale-out architecture with SAN/NAS/Object multiple
protocols in one cluster
Huge write amplification. SSDs easily wear out.
Minimize write amplification and offer much longer
SSD life by Bigtera storage I/O engine
High and variable responses. QoS bad.
High performance with very low and stable latency.
High Quality of Service.
Comparison with other All Flash Array/ SDS

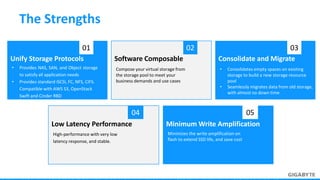

12. • Provides NAS, SAN, and Object storage
to satisfy all application needs
• Provides standard iSCSI, FC, NFS, CIFS.
Compatible with AWS S3, OpenStack
Swift and Cinder RBD
Unify Storage Protocols
01
Compose your virtual storage from
the storage pool to meet your
business demands and use cases
Software Composable
02
• Consolidates empty spaces on existing
storage to build a new storage resource
pool
• Seamlessly migrates data from old storage,
with almost no down time
Consolidate and Migrate
03
High-performance with very low
latency response, and stable.
Low Latency Performance
04
Minimizes the write amplification on
flash to extend SSD life, and save cost
Minimum Write Amplification
05
The Strengths
