A.SANYSI RAO
                     AMIE; M.Tech; MISTE; MIETE

            Assoc. Professor
Balaji Institute of Engineering & Sciences
            A.S.Rao

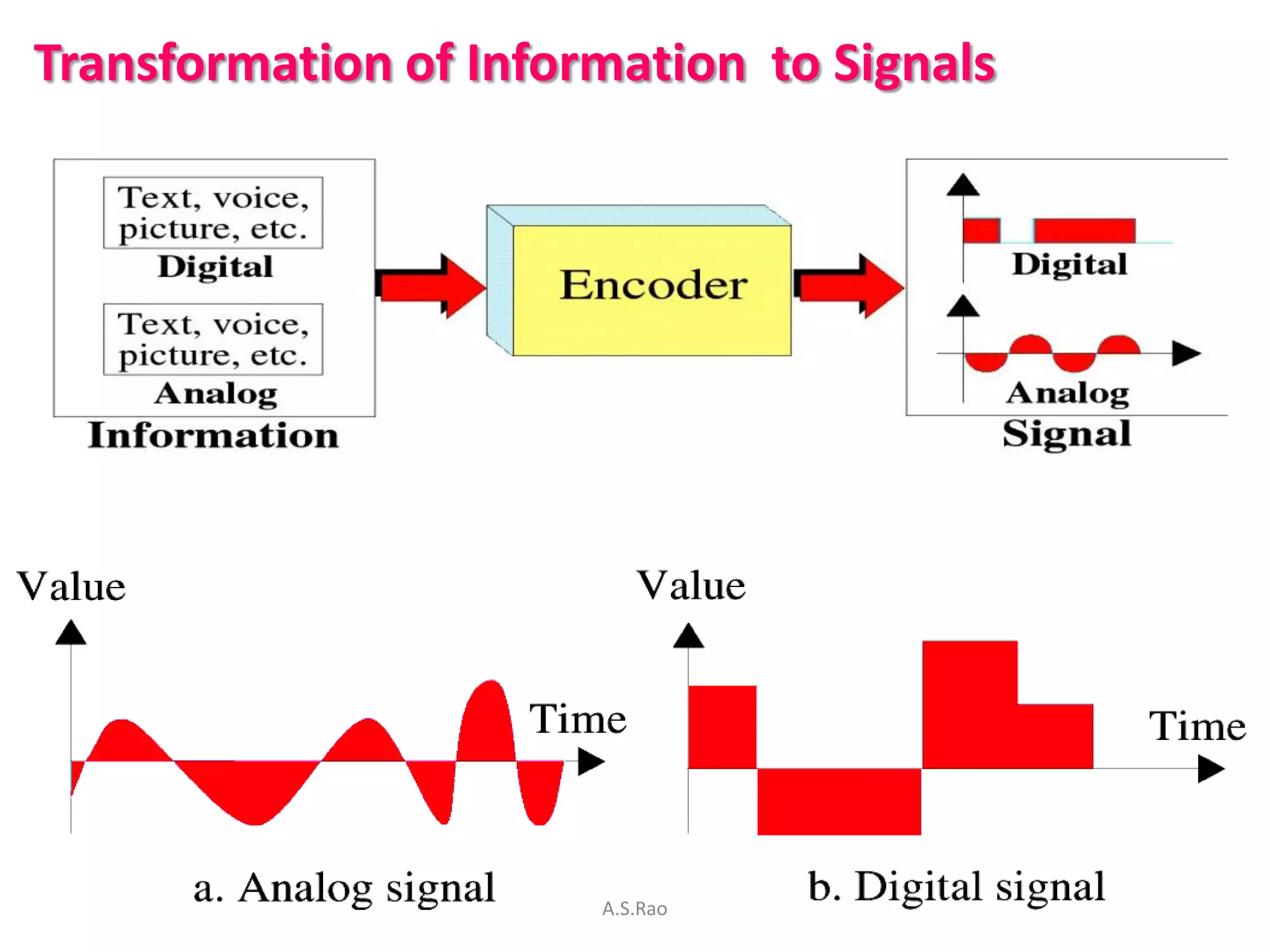

Transformation of Information to Signals




                       A.S.Rao

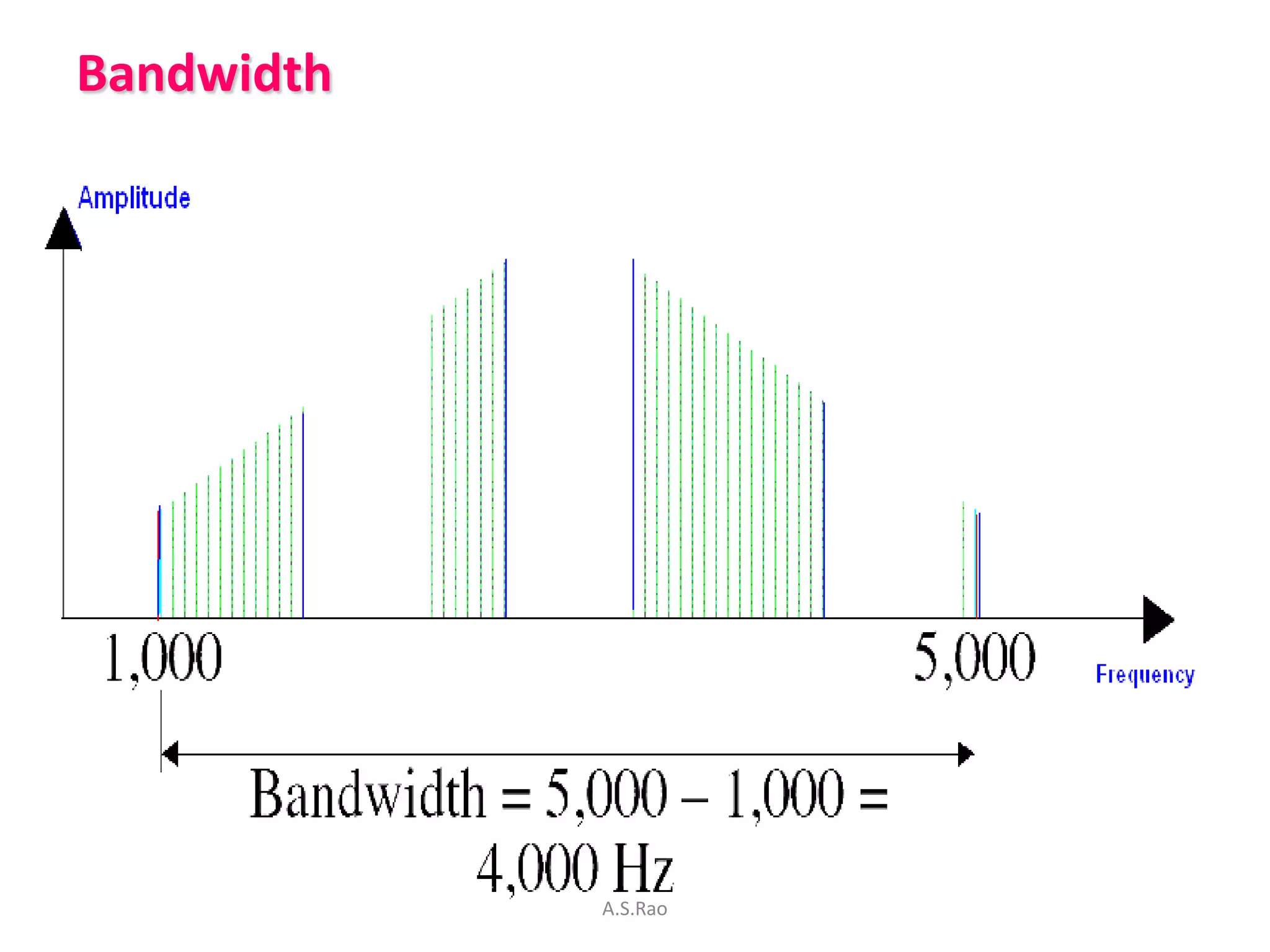

Bandwidth




            A.S.Rao
Bit Rate and Bit Interval




                        A.S.Rao

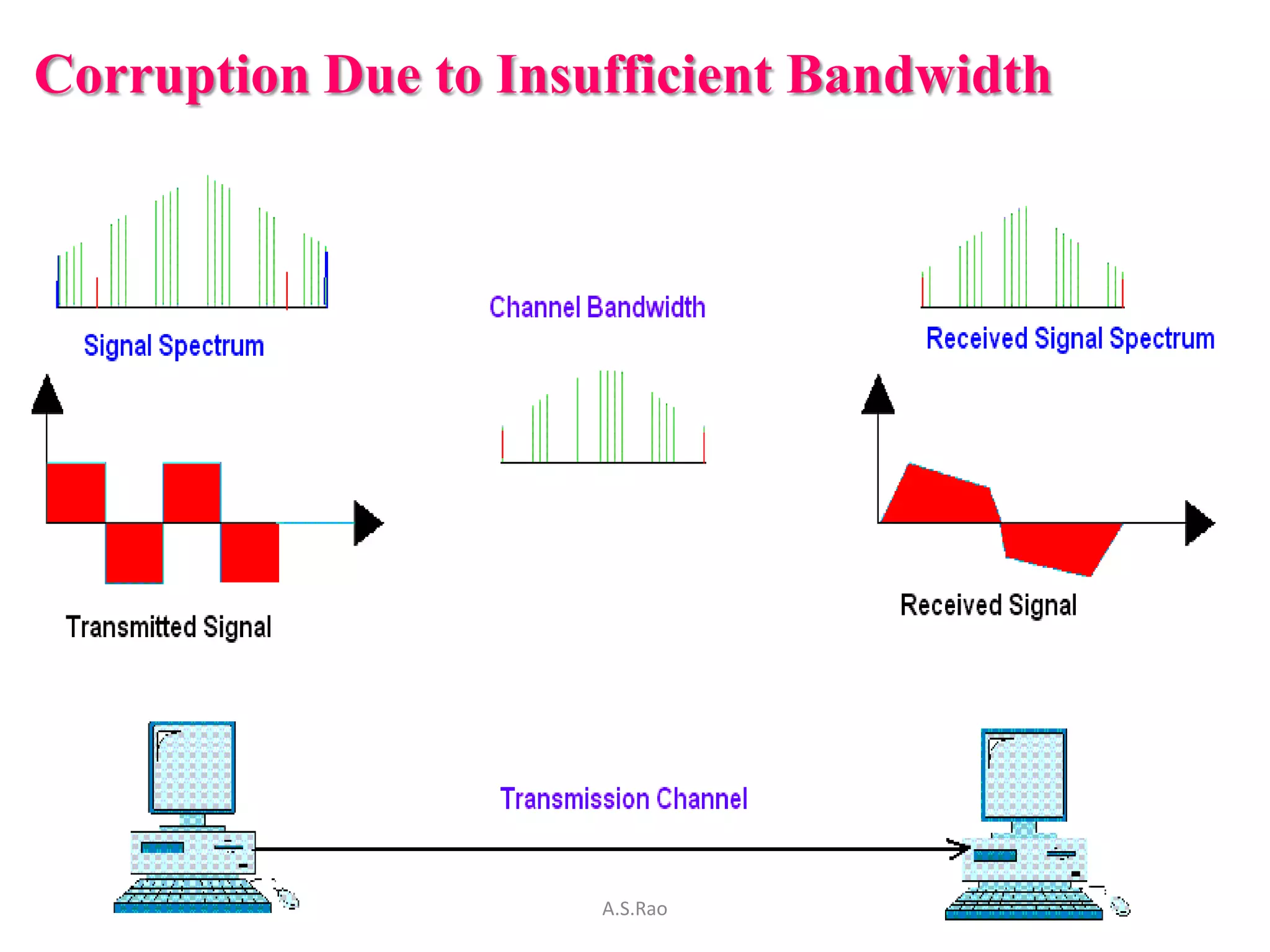

Corruption Due to Insufficient Bandwidth




                      A.S.Rao

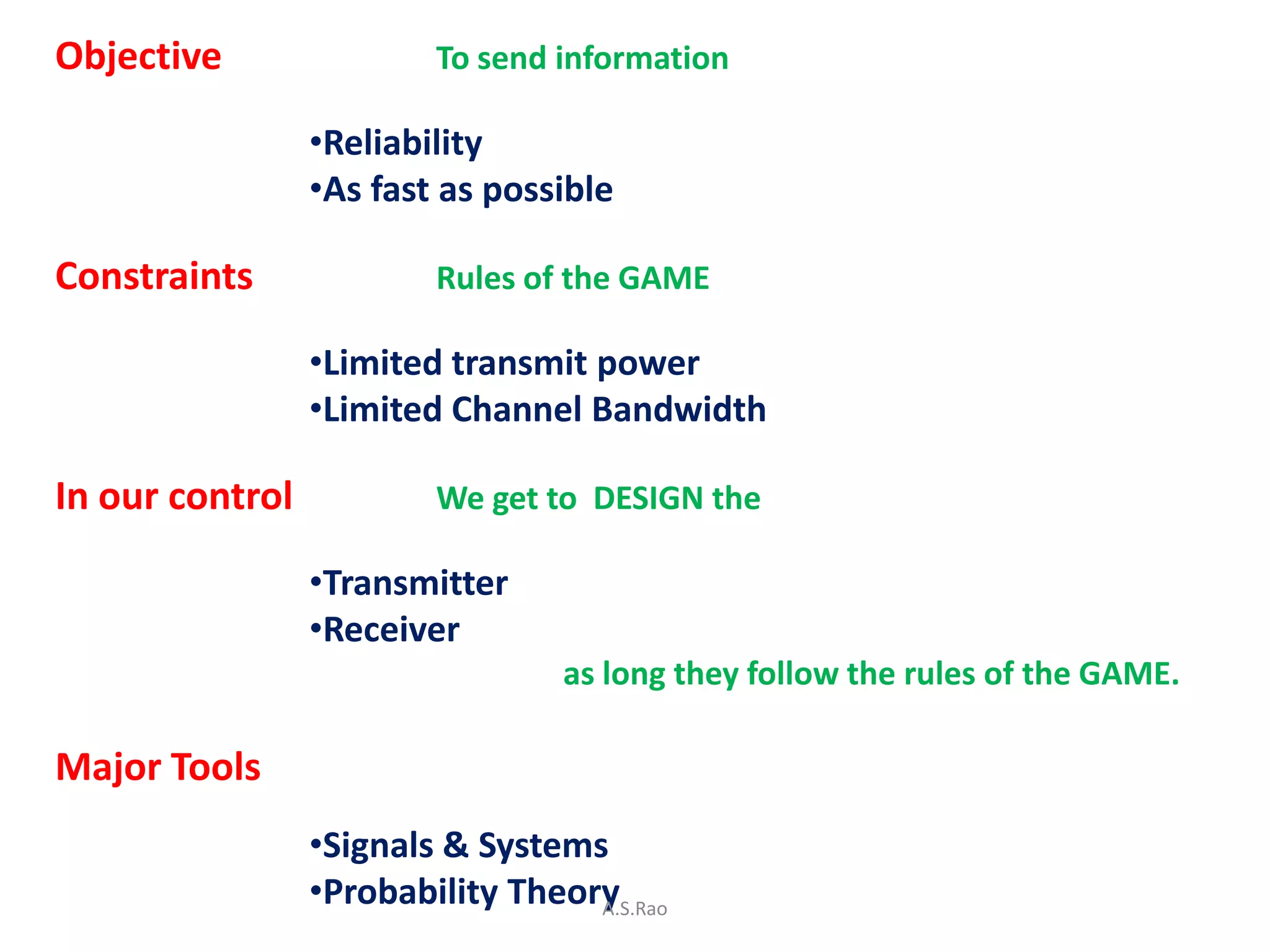

Objective                To send information

                 •Reliability
                 •As fast as possible

Constraints              Rules of the GAME

                 •Limited transmit power
                 •Limited Channel Bandwidth

In our control           We get to DESIGN the

                 •Transmitter
                 •Receiver
                                  as long they follow the rules of the GAME.

Major Tools
                 •Signals & Systems
                 •Probability Theory
                                   A.S.Rao

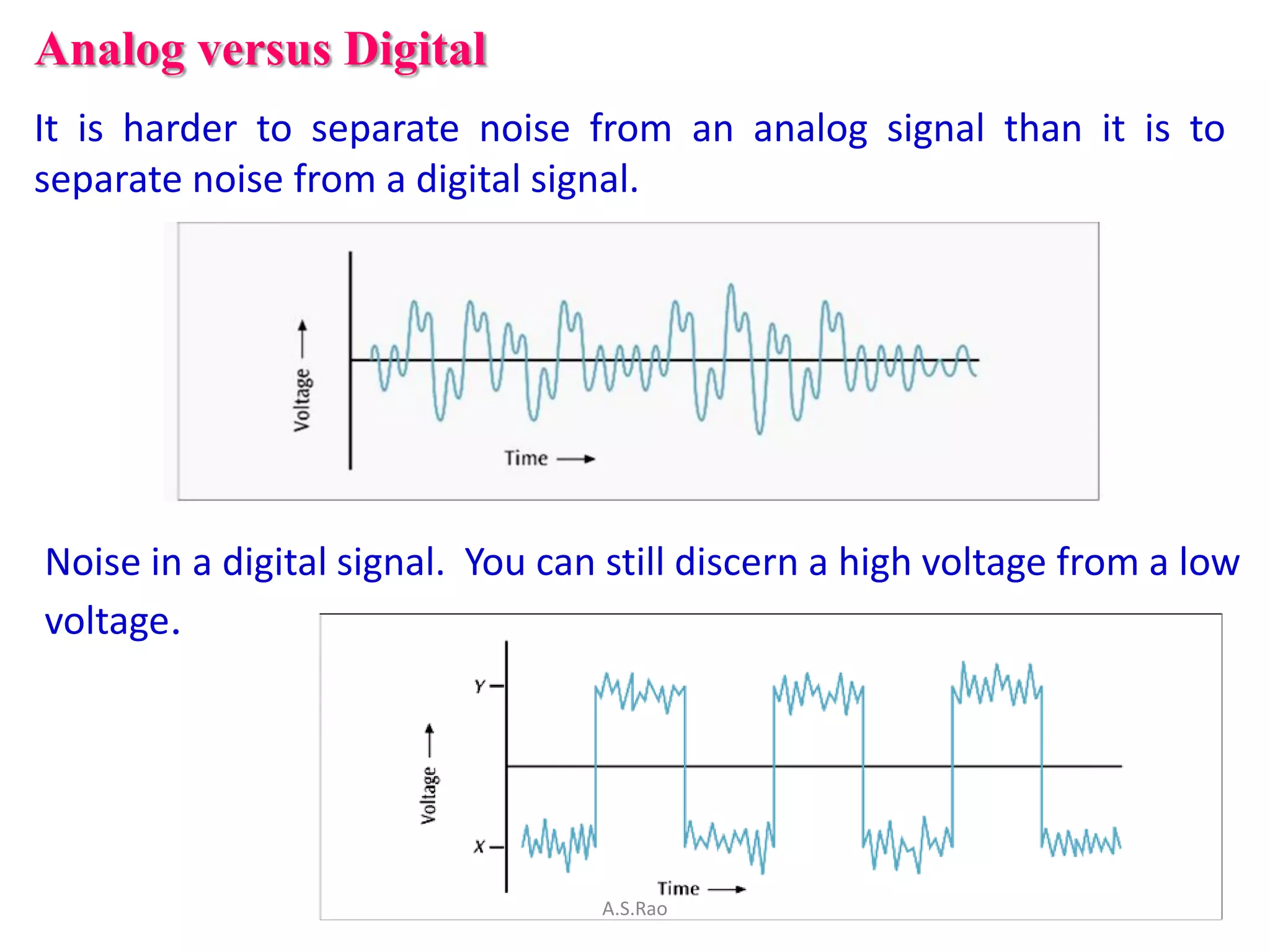

Analog versus Digital
It is harder to separate noise from an analog signal than it is to
separate noise from a digital signal.




Noise in a digital signal. You can still discern a high voltage from a low
voltage.




                                  A.S.Rao

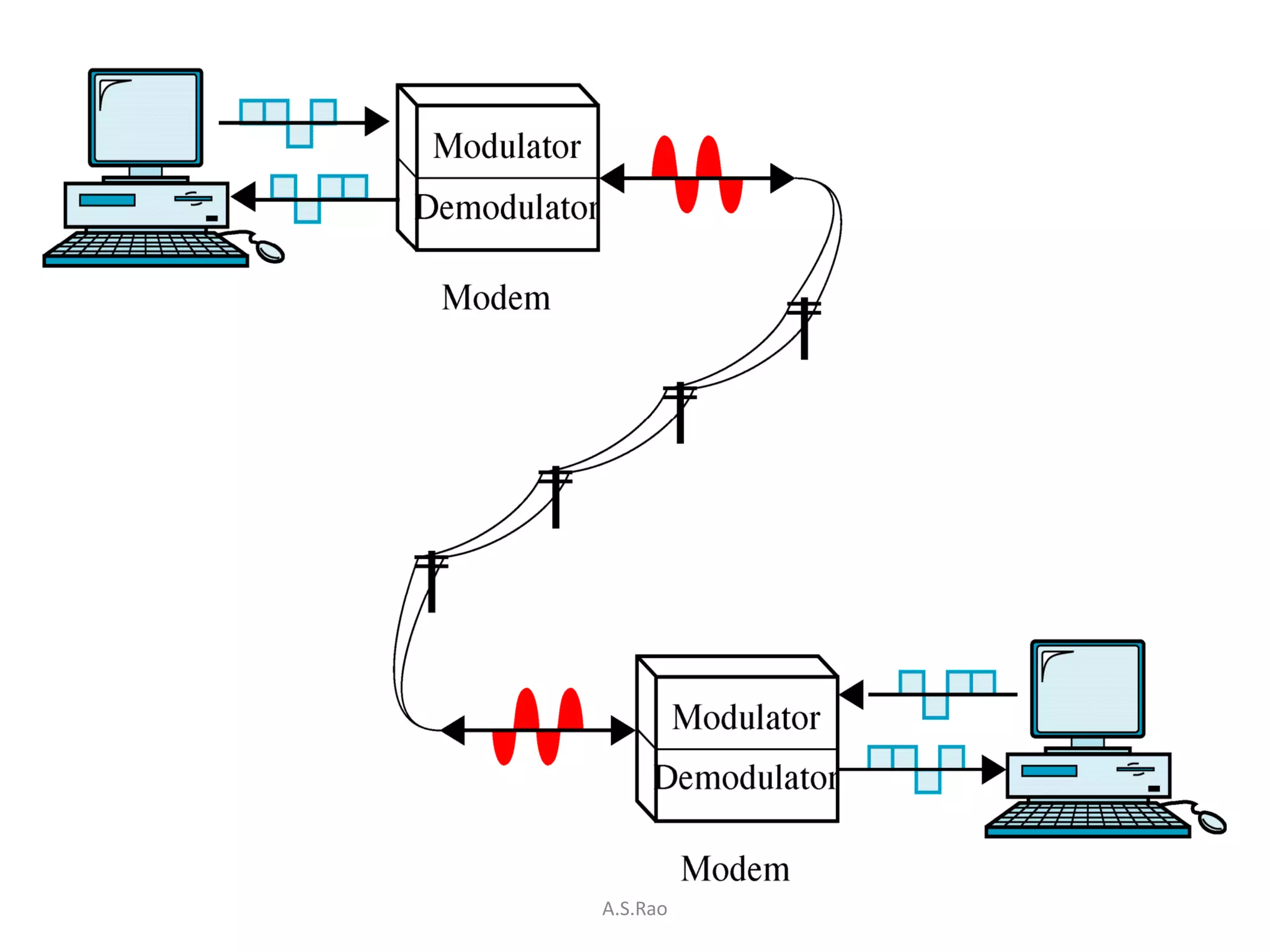

A.S.Rao

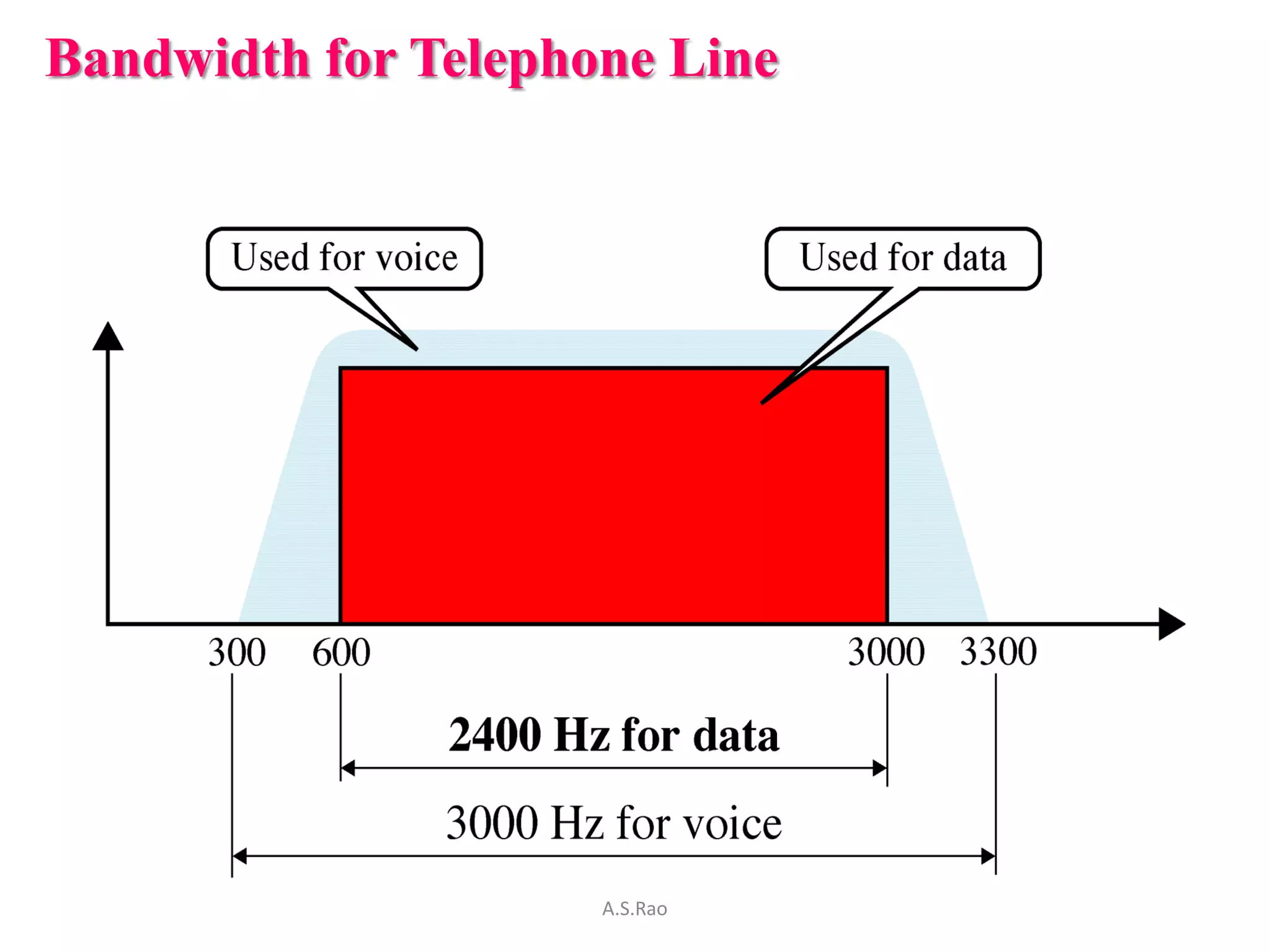

Bandwidth for Telephone Line




                     A.S.Rao

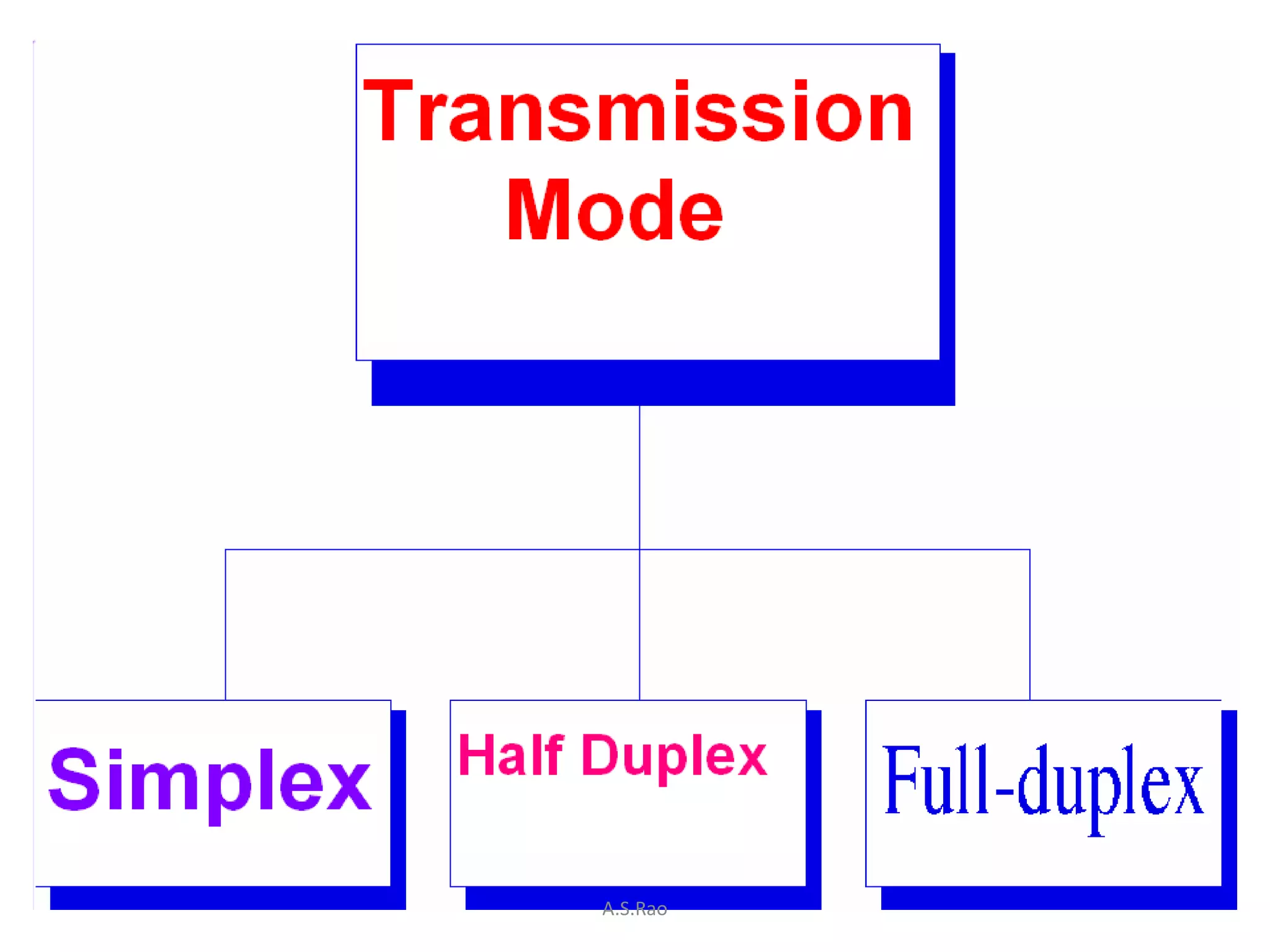

A.S.Rao

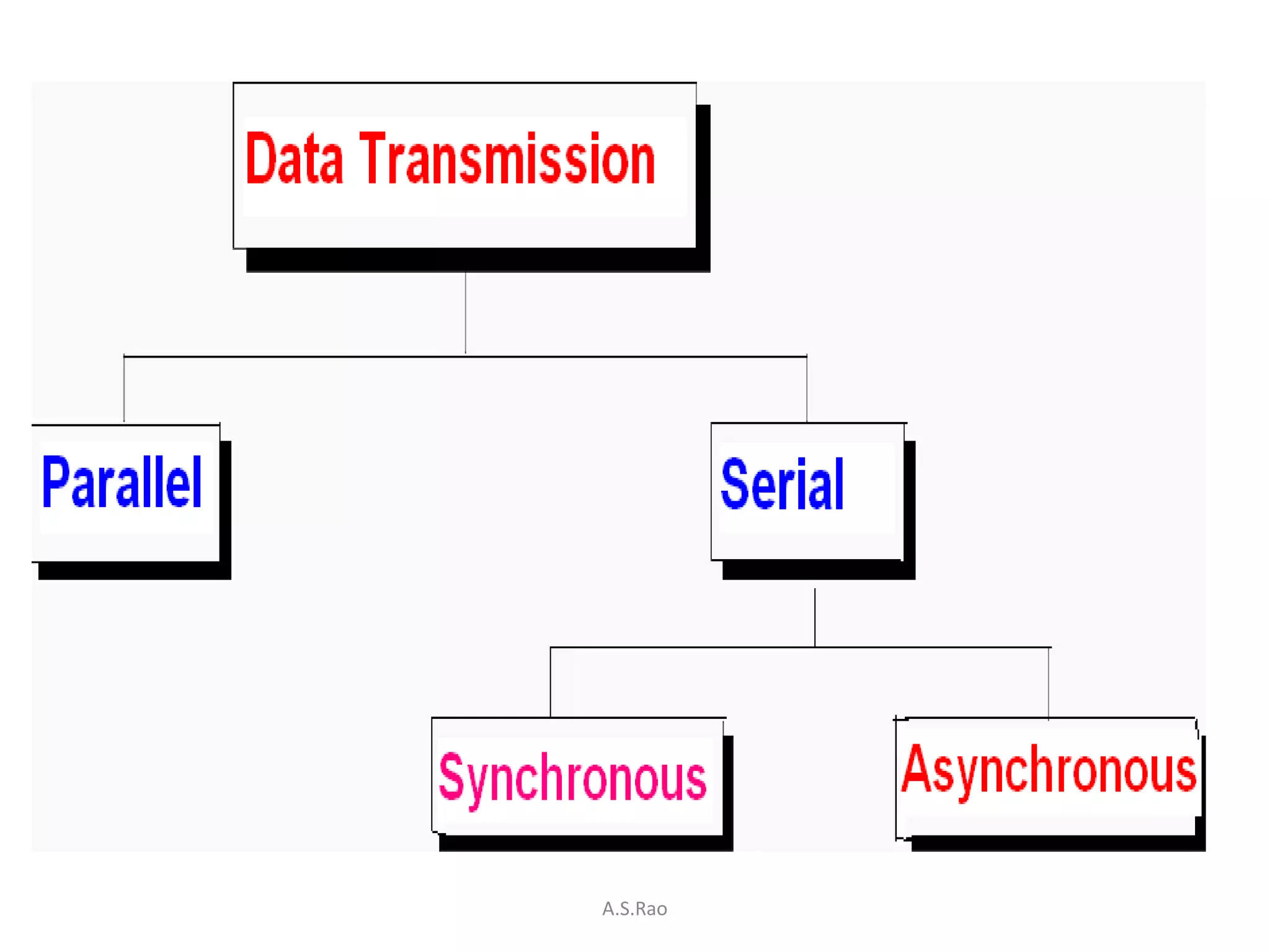

A.S.Rao

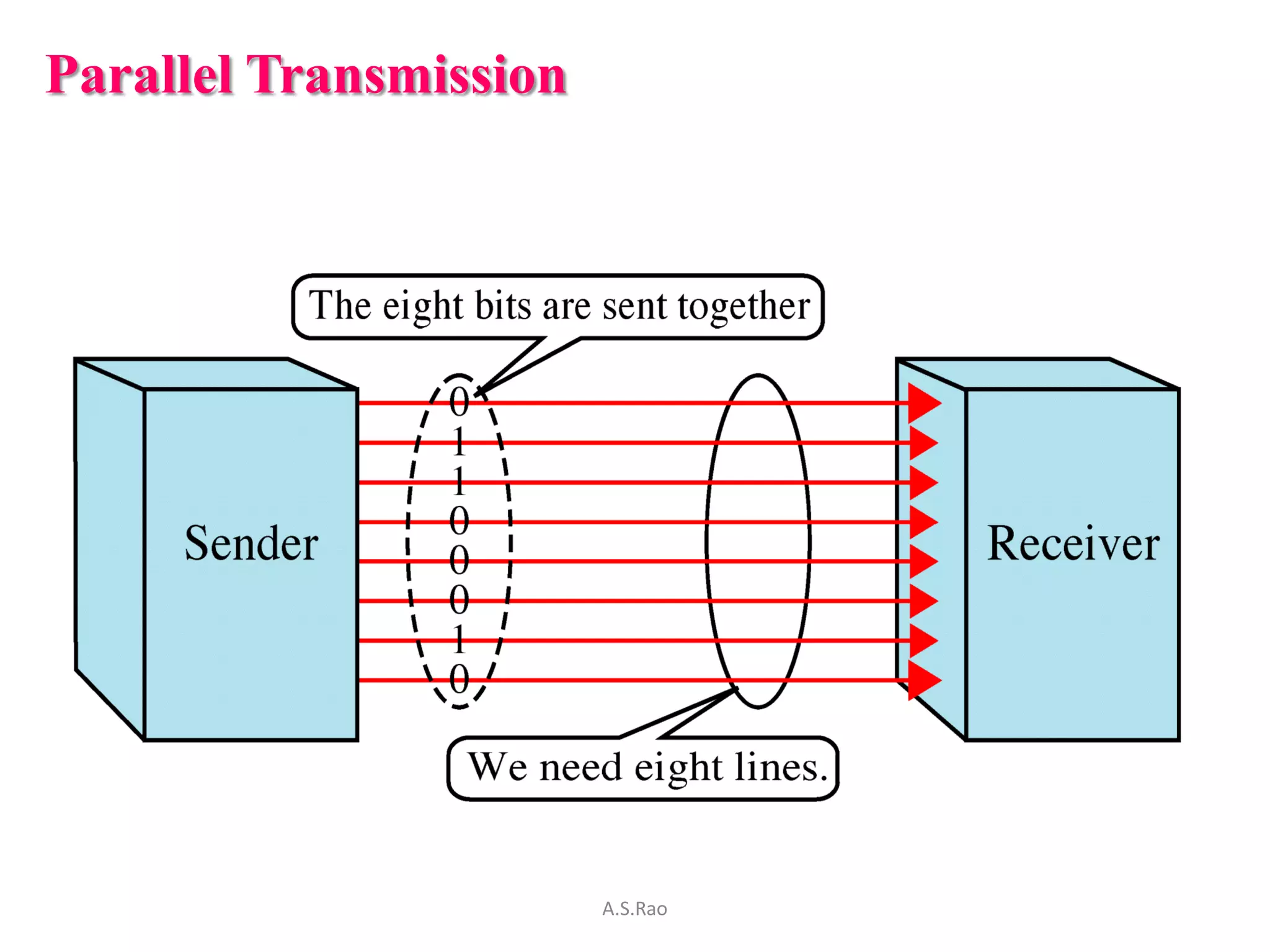

Parallel Transmission




                        A.S.Rao

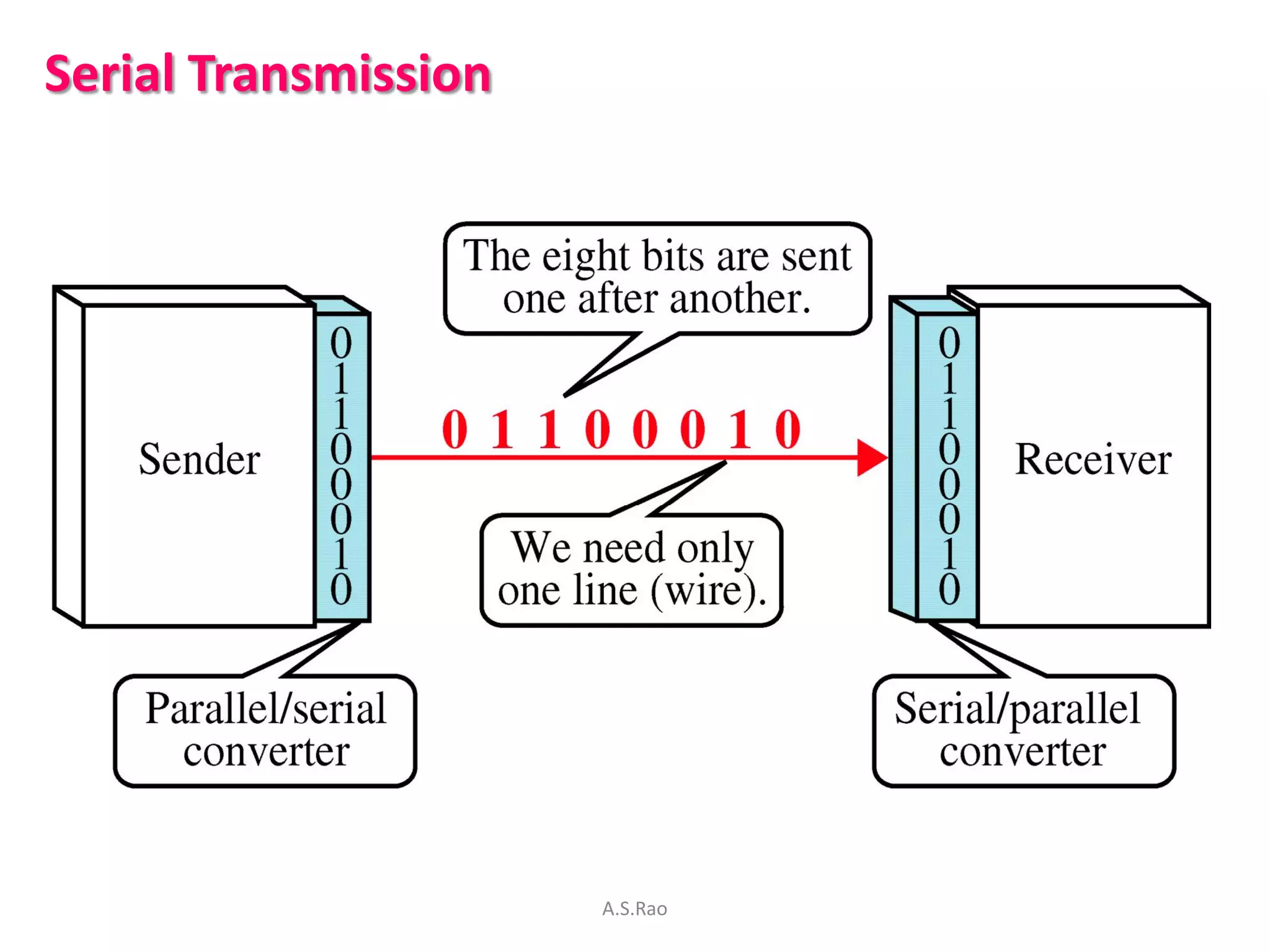

Serial Transmission




                      A.S.Rao

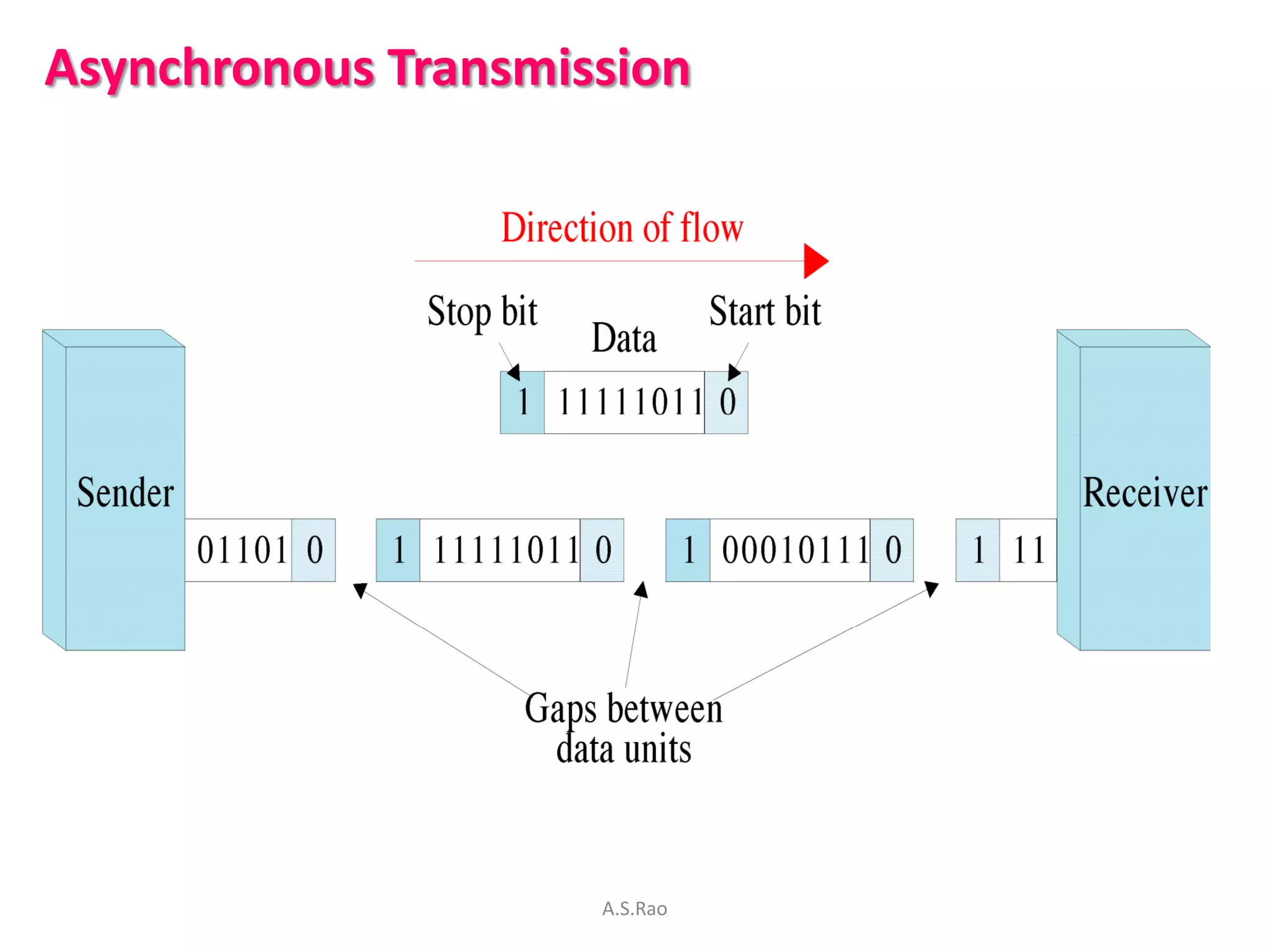

Asynchronous Transmission




                     A.S.Rao

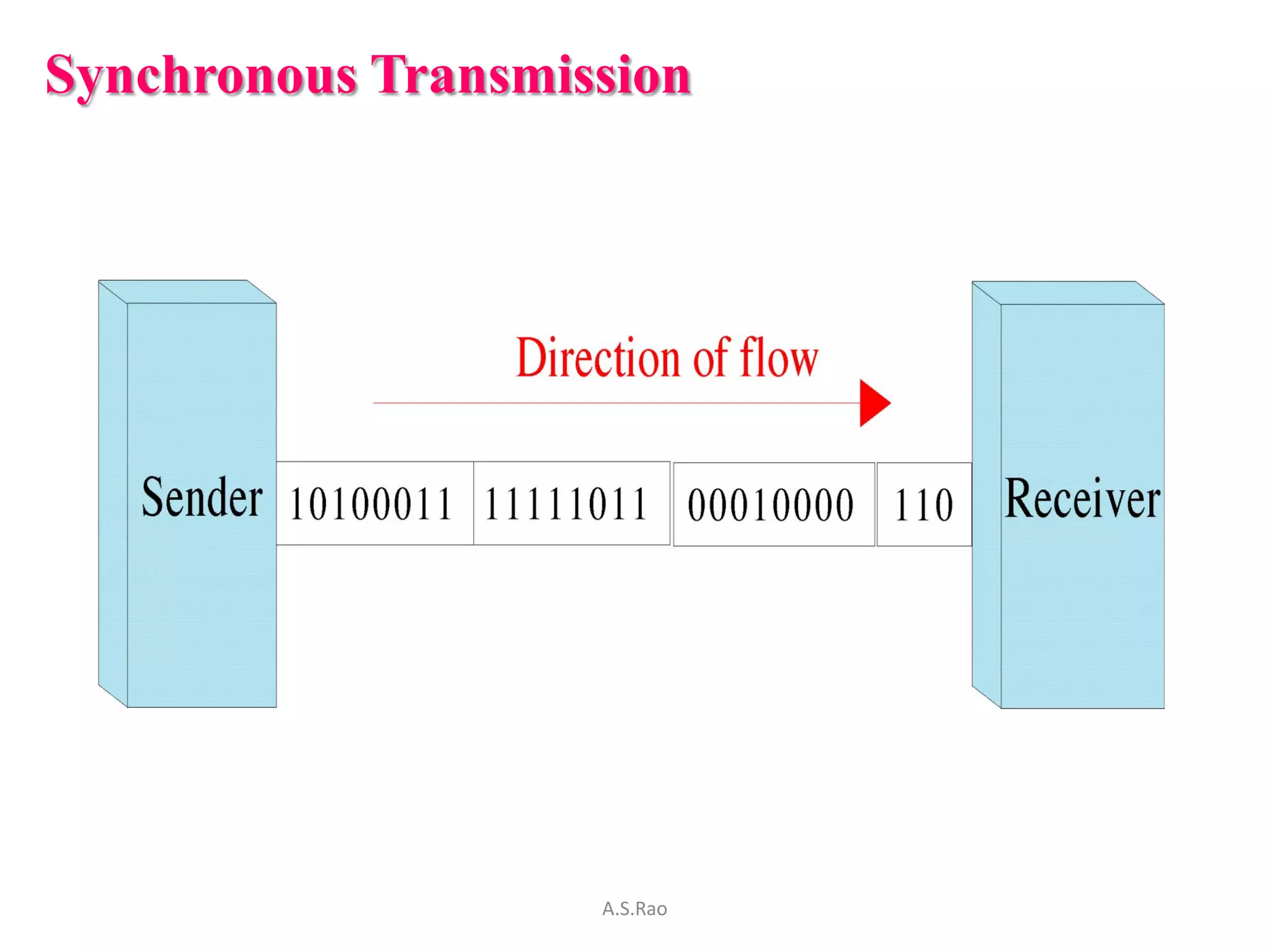

Synchronous Transmission




                    A.S.Rao

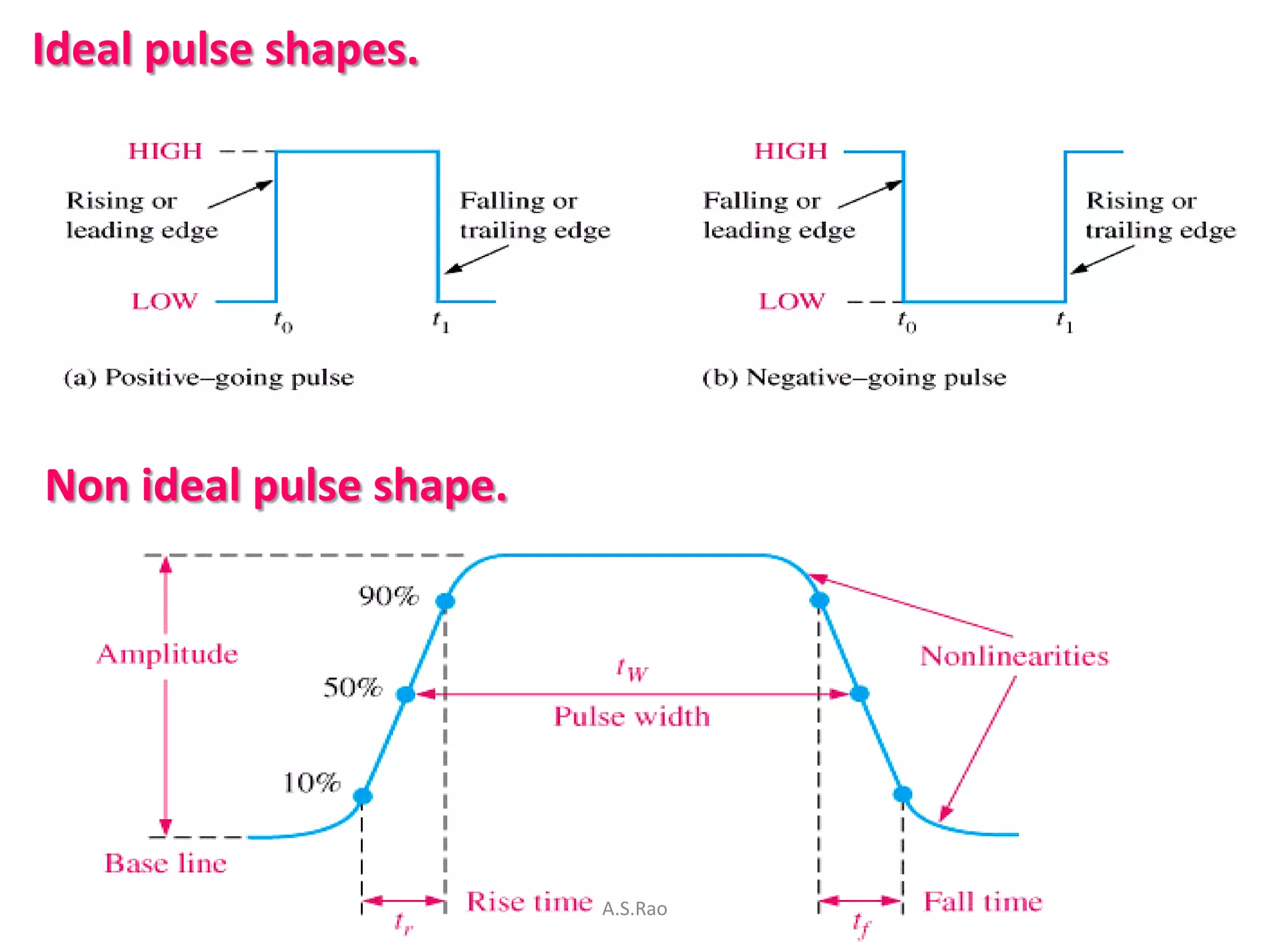

Ideal pulse shapes.




Non ideal pulse shape.




                         A.S.Rao

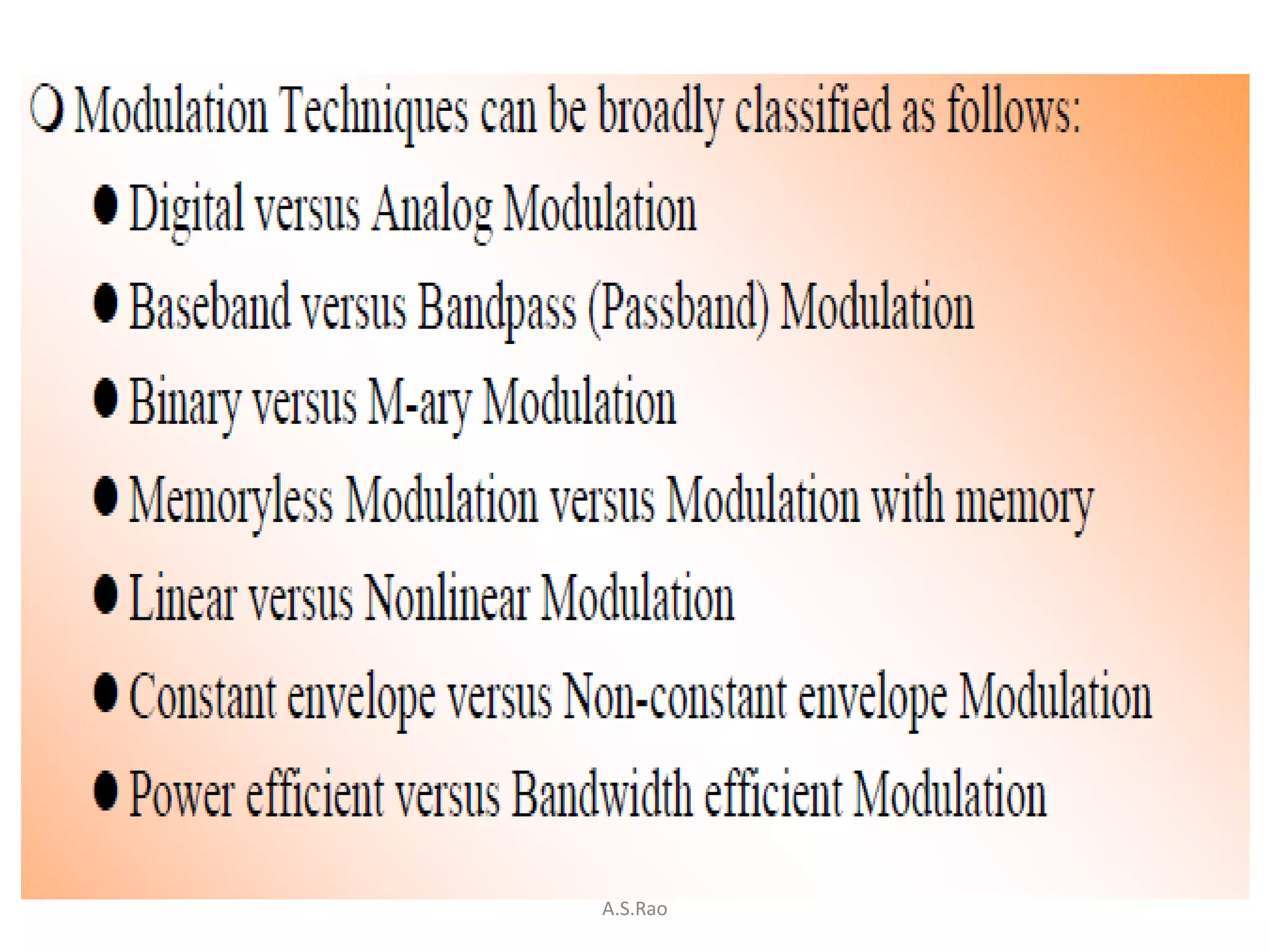

A.S.Rao
Core Concepts of
Digital Communications


          A.S.Rao

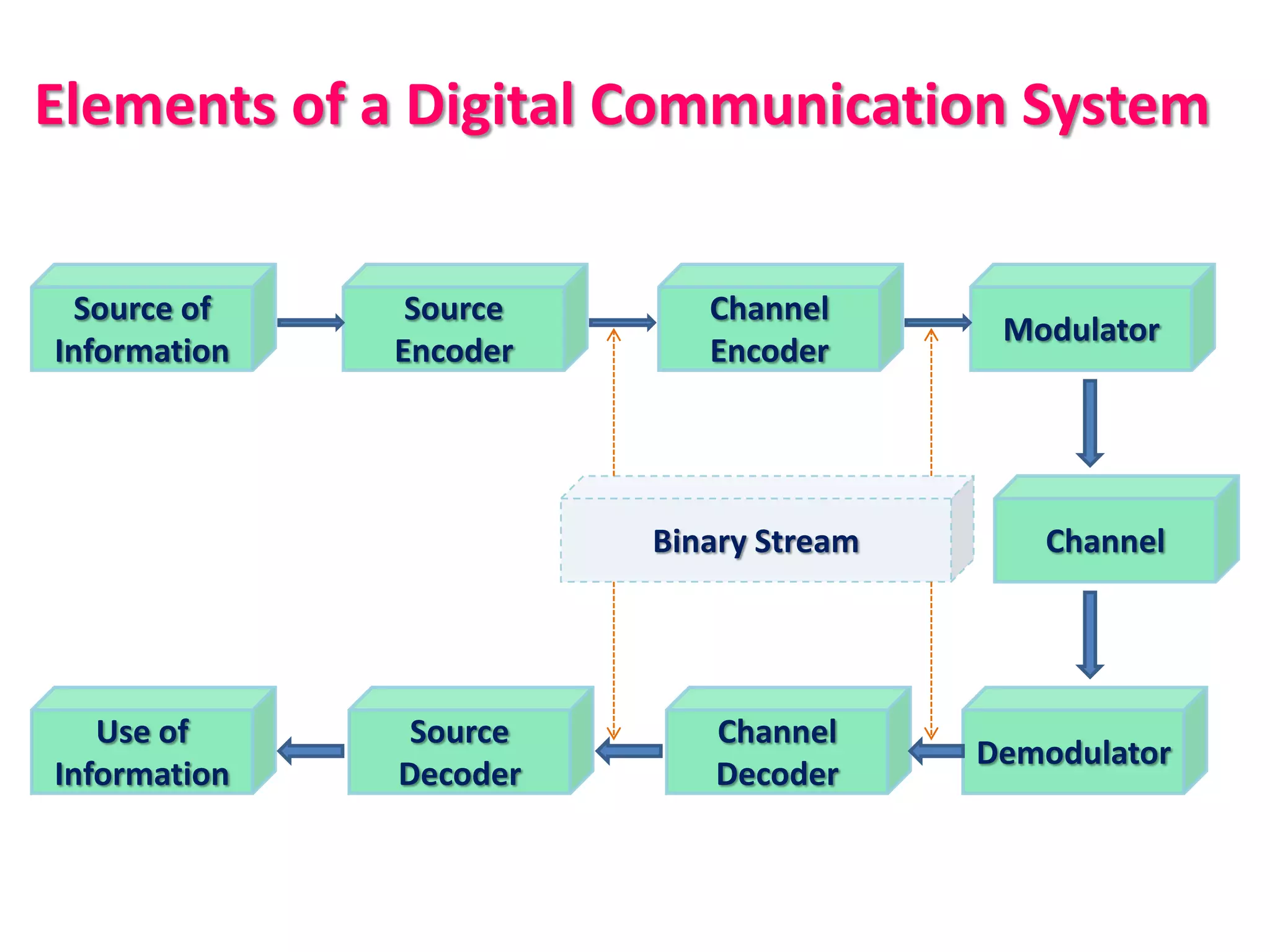

Elements of a Digital Communication System


  Source of    Source      Channel
                                         Modulator
Information   Encoder      Encoder




                        Binary Stream      Channel




   Use of      Source      Channel
                                        Demodulator
Information   Decoder      Decoder

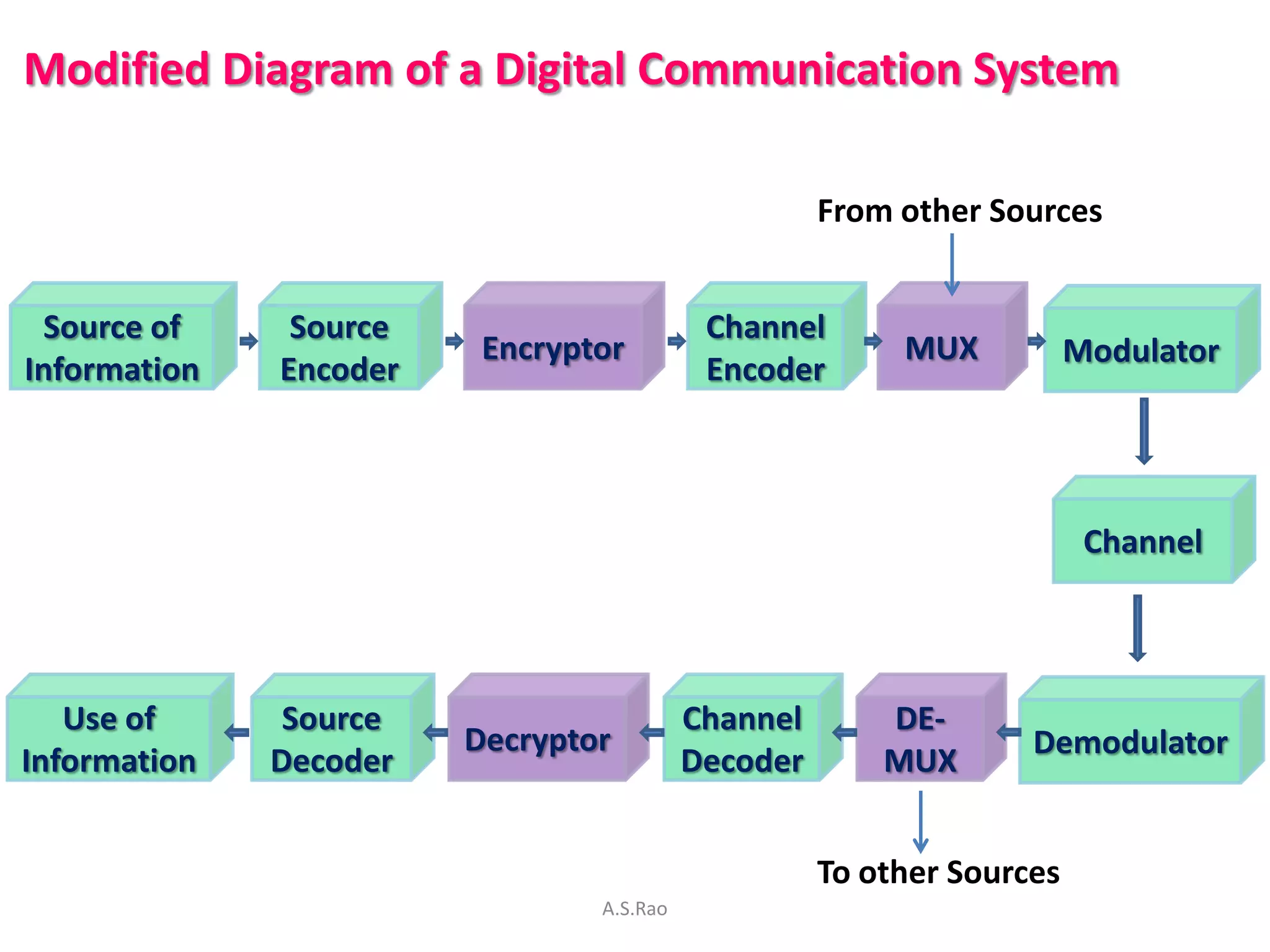

Modified Diagram of a Digital Communication System

                                                    From other Sources


 Source of     Source                      Channel
                         Encryptor                       MUX           Modulator
Information   Encoder                      Encoder



                                                                        Channel




   Use of      Source                     Channel       DE-
                        Decryptor                                 Demodulator
Information   Decoder                     Decoder       MUX


                                                    To other Sources
                                A.S.Rao

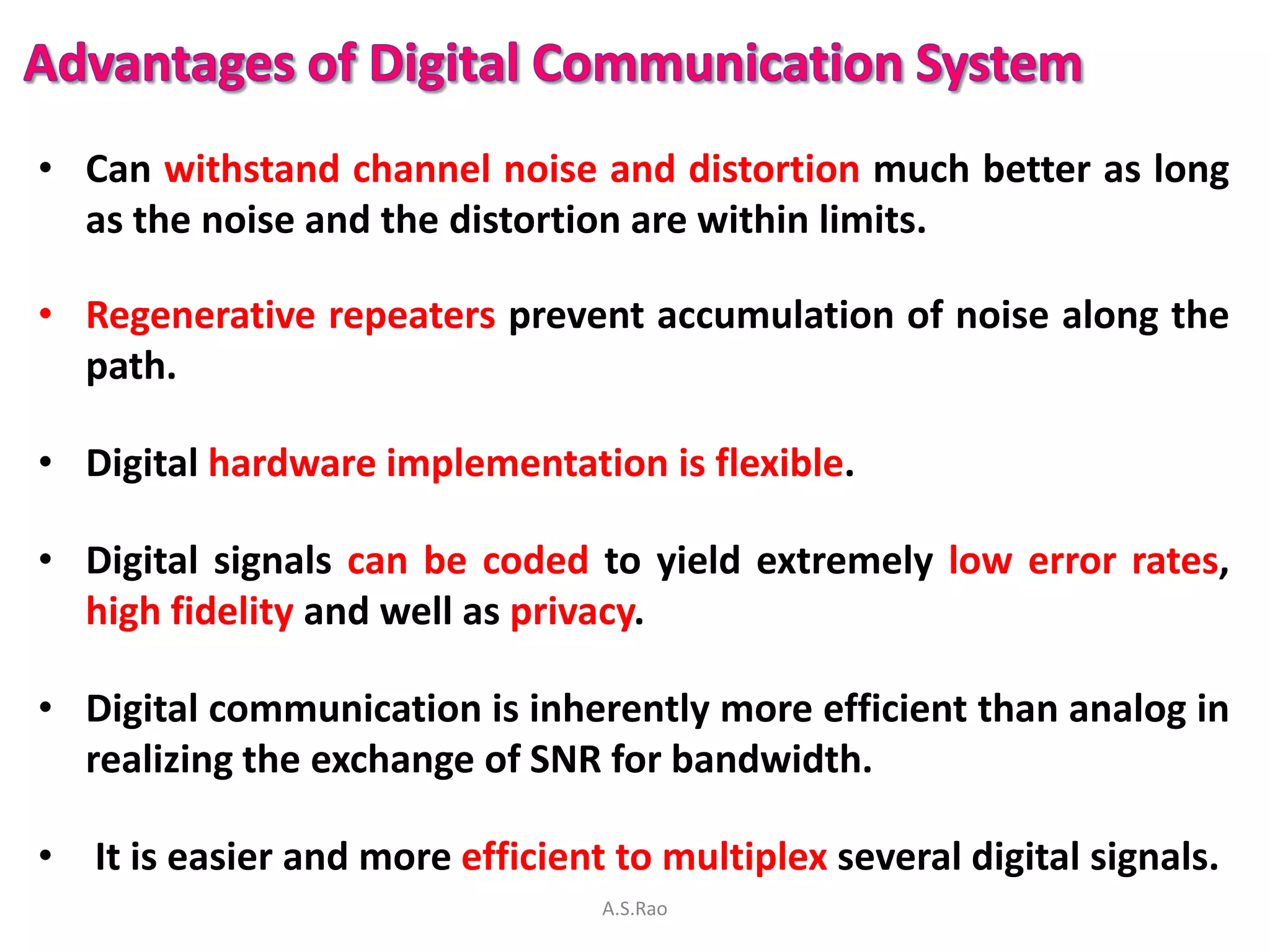

• Can withstand channel noise and distortion much better as long
  as the noise and the distortion are within limits.

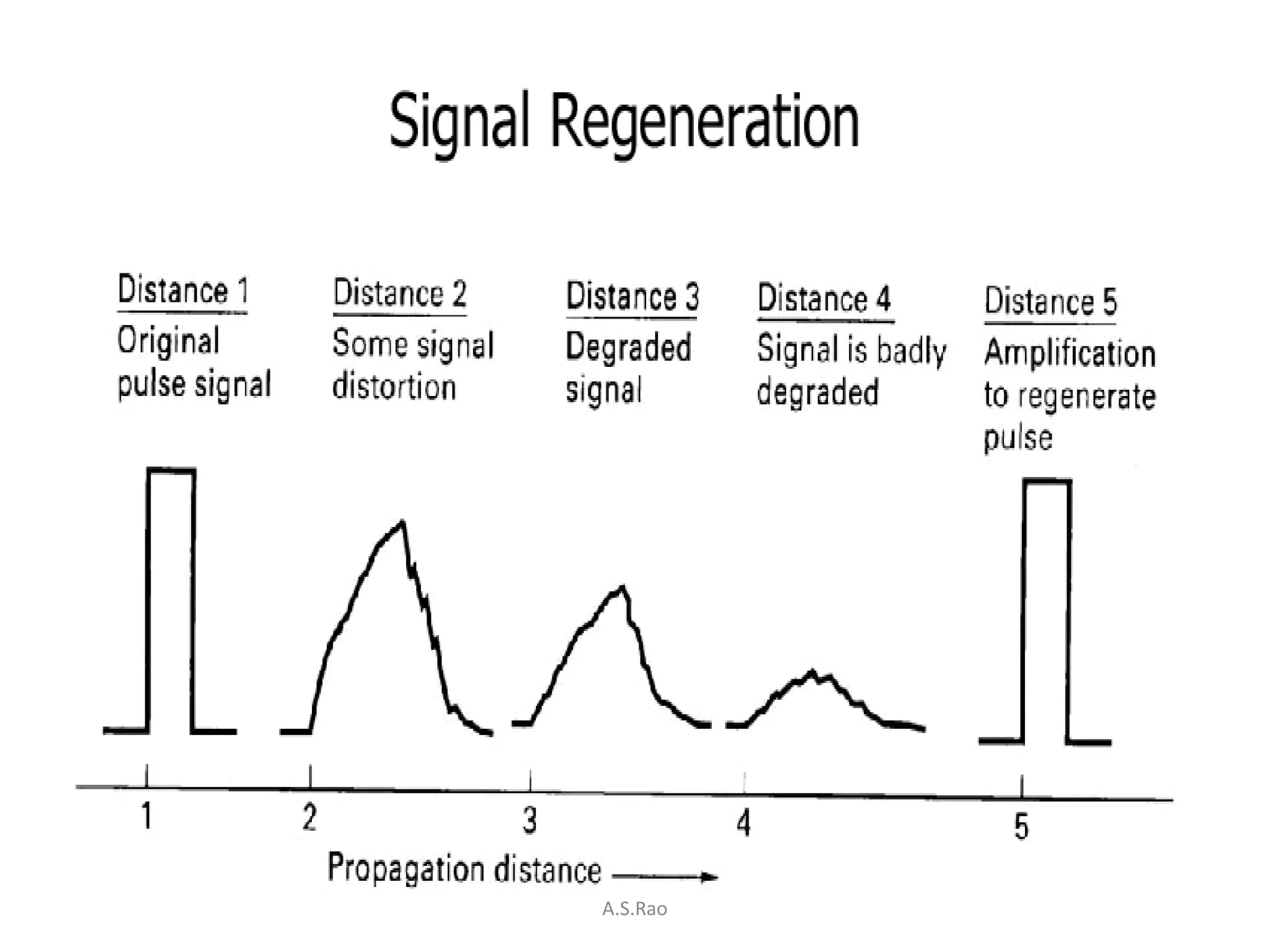

• Regenerative repeaters prevent accumulation of noise along the
  path.

• Digital hardware implementation is flexible.

• Digital signals can be coded to yield extremely low error rates,
  high fidelity and well as privacy.

• Digital communication is inherently more efficient than analog in
  realizing the exchange of SNR for bandwidth.

• It is easier and more efficient to multiplex several digital signals.
                                 A.S.Rao

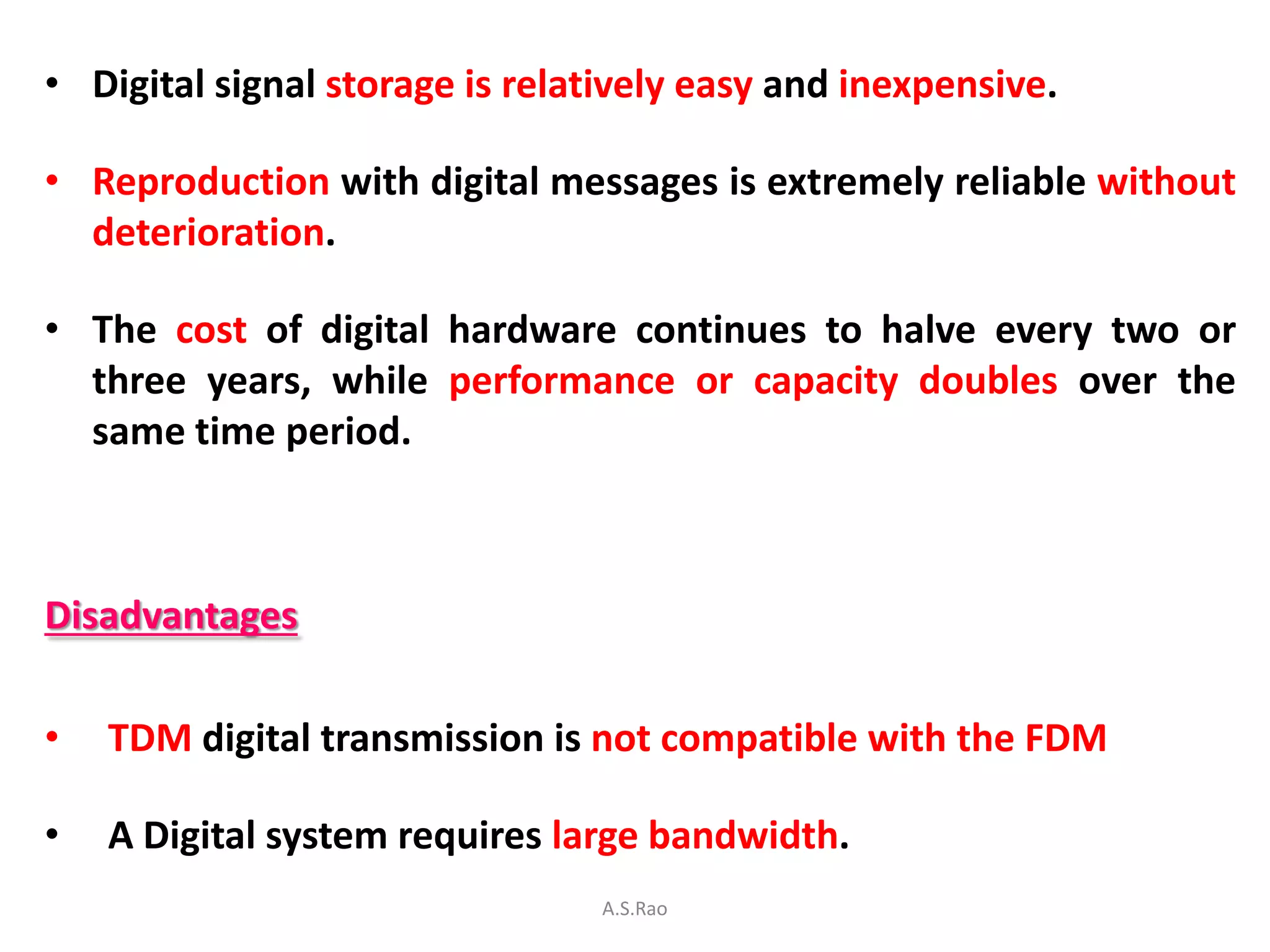

• Digital signal storage is relatively easy and inexpensive.

• Reproduction with digital messages is extremely reliable without
  deterioration.

• The cost of digital hardware continues to halve every two or
  three years, while performance or capacity doubles over the
  same time period.



Disadvantages

•   TDM digital transmission is not compatible with the FDM

•   A Digital system requires large bandwidth.
                                 A.S.Rao

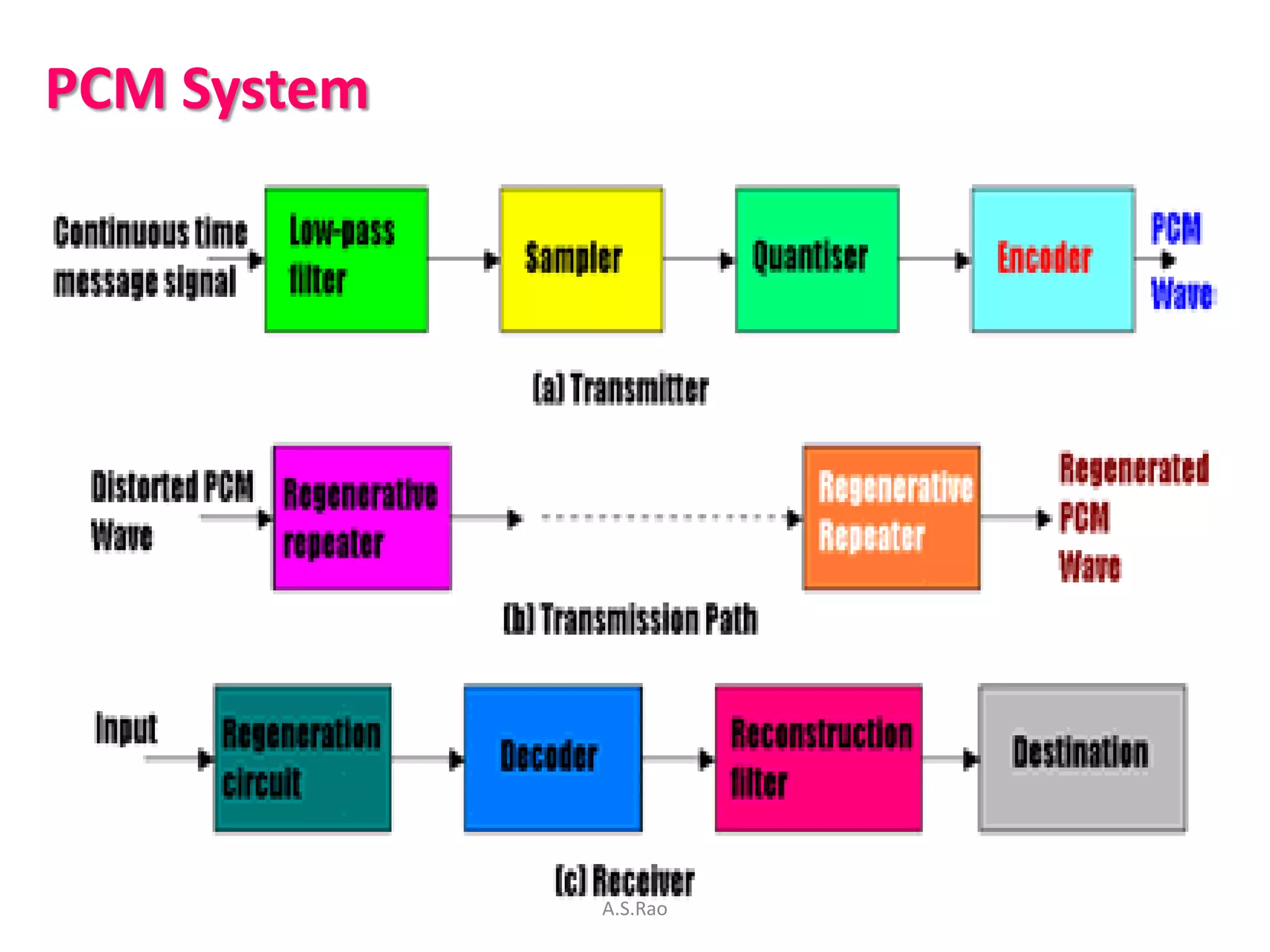

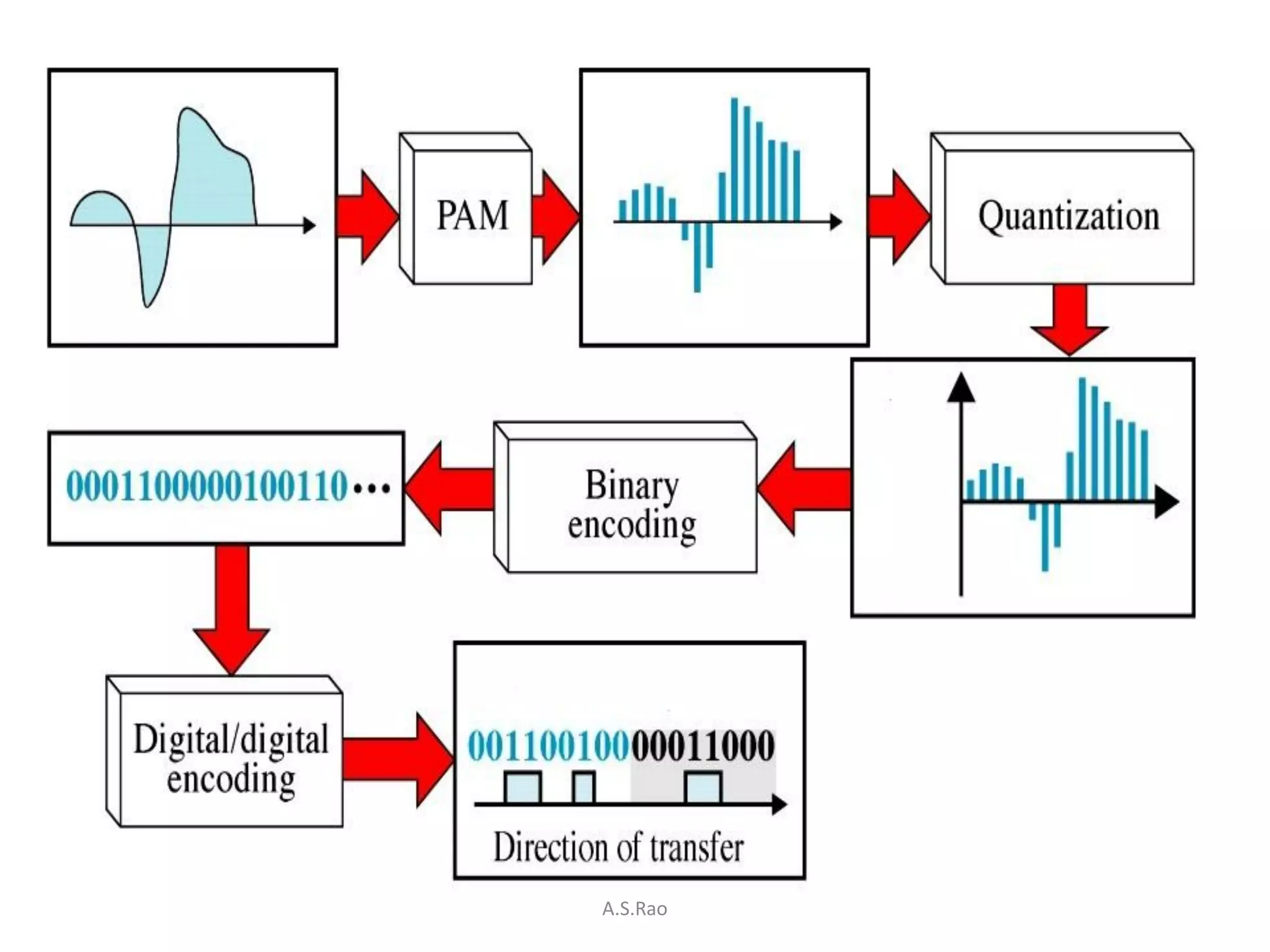

PCM System




             A.S.Rao
A.S.Rao
A.S.Rao

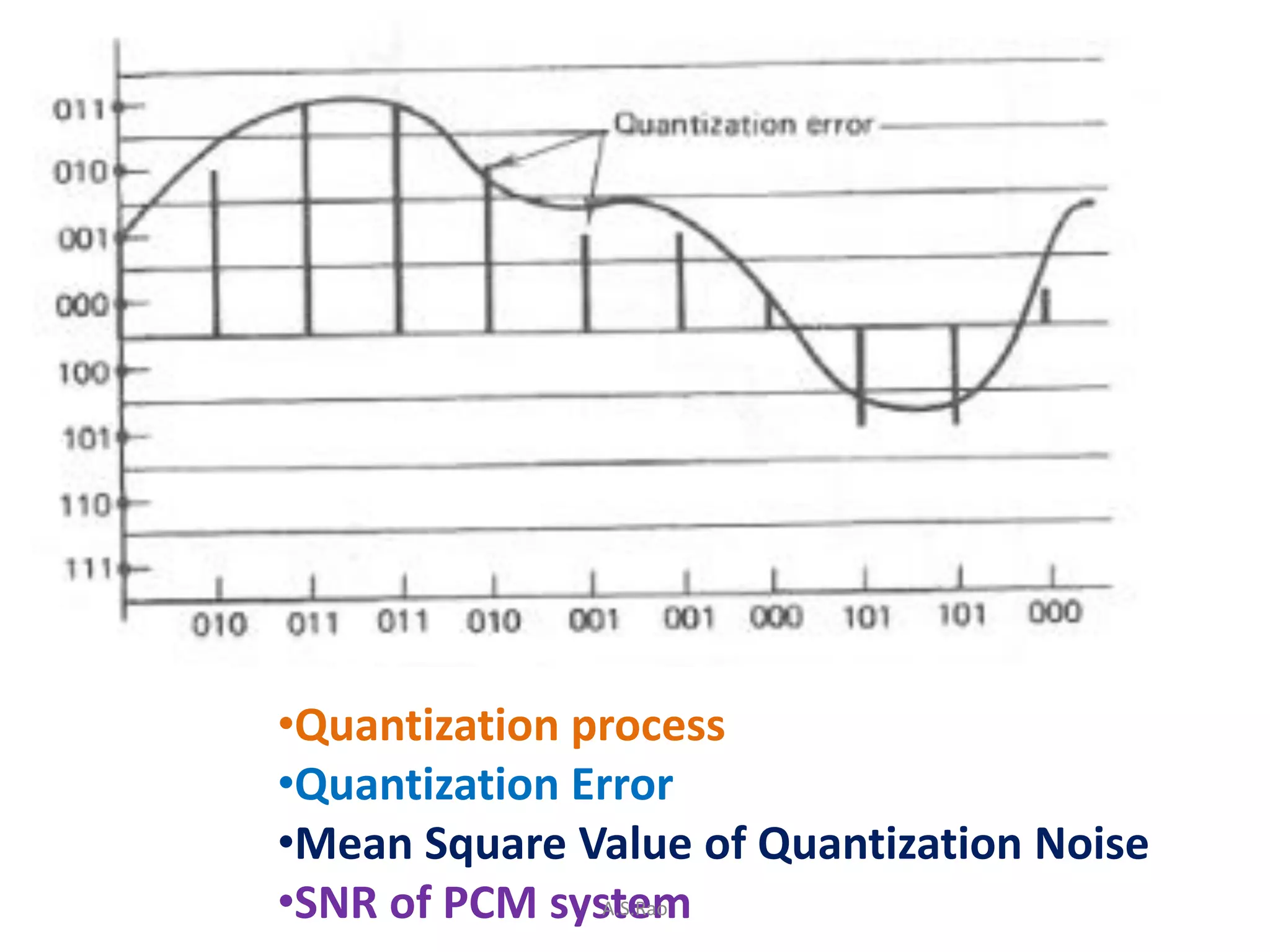

•Quantization process
•Quantization Error
•Mean Square Value of Quantization Noise
•SNR of PCM system
               A.S.Rao

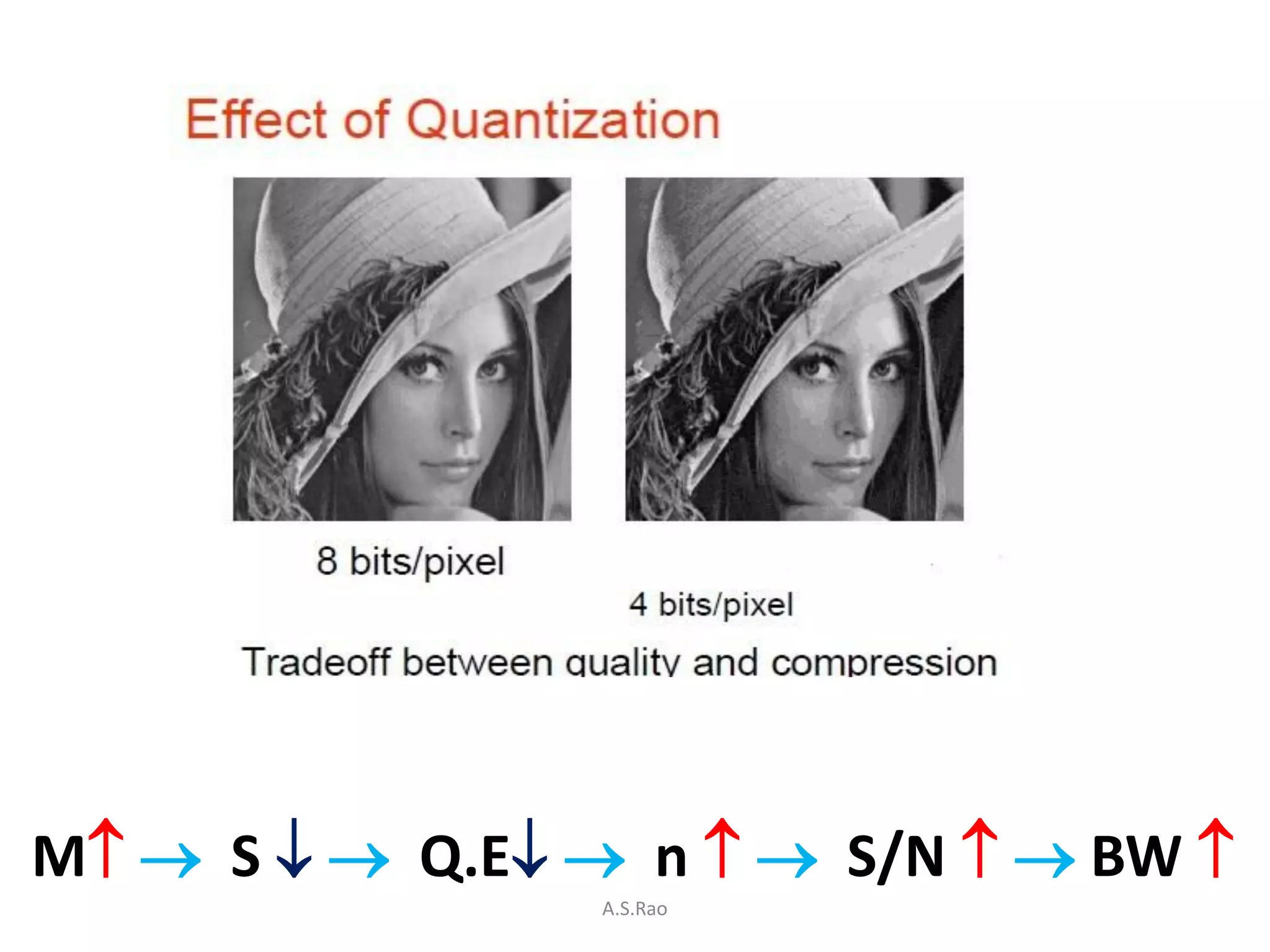

M  S   Q.E  n   S/N   BW 
                 A.S.Rao
A.S.Rao

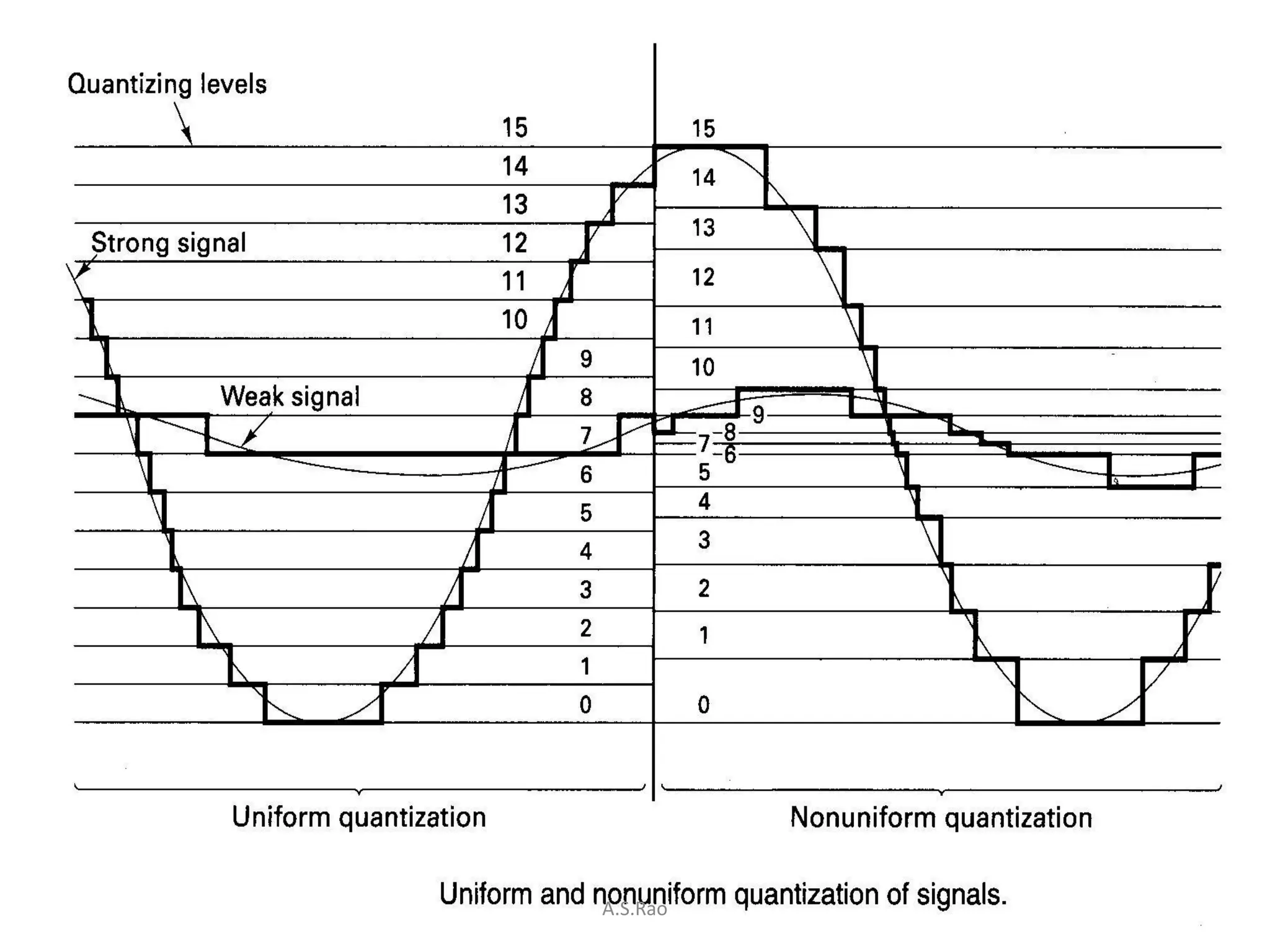

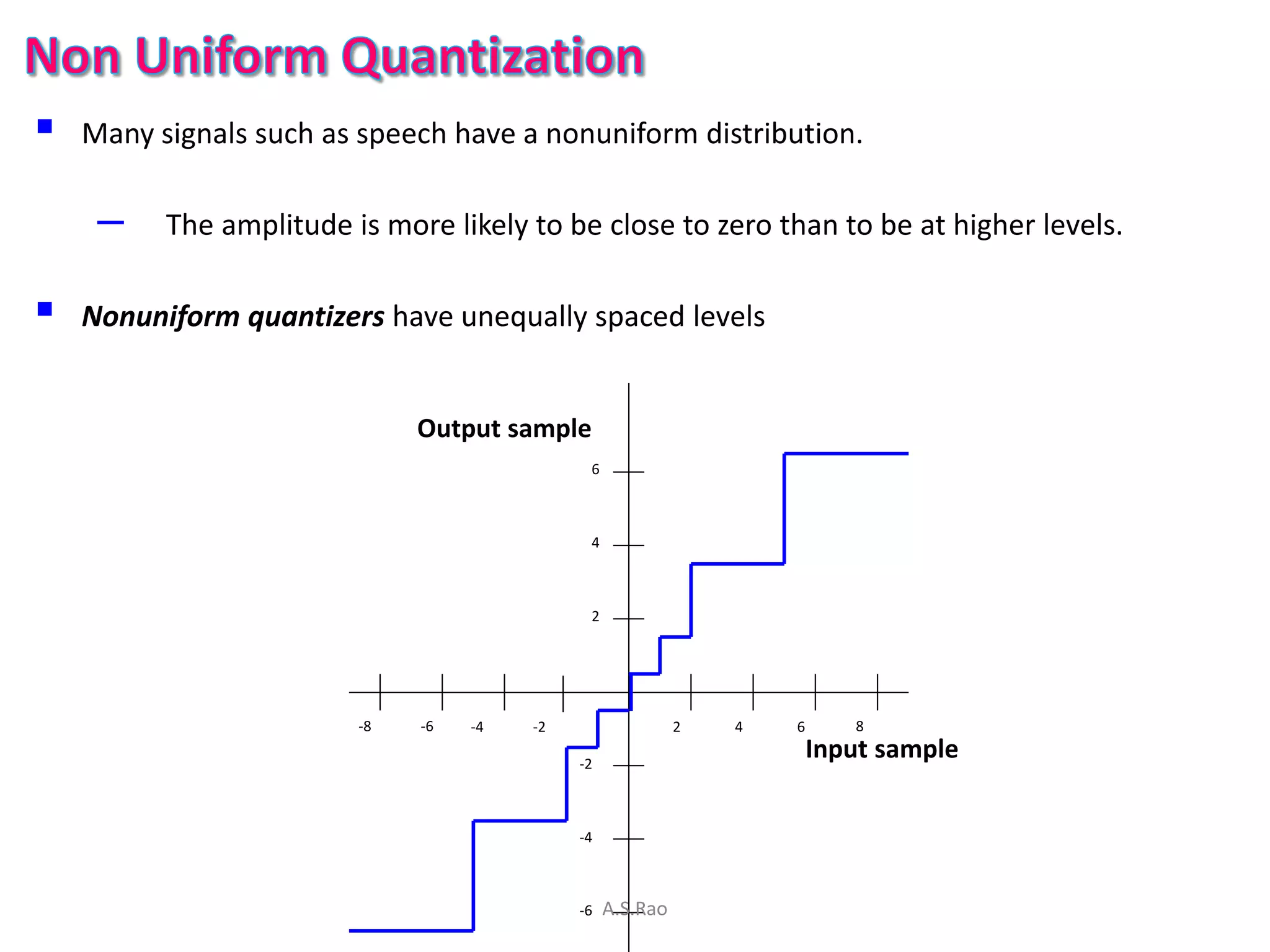

   Many signals such as speech have a nonuniform distribution.

     –    The amplitude is more likely to be close to zero than to be at higher levels.

   Nonuniform quantizers have unequally spaced levels


                              Output sample
                                              6



                                              4



                                              2




                         -8   -6   -4   -2                  2   4   6      8

                                             -2
                                                                        Input sample


                                             -4



                                             -6   A.S.Rao
A.S.Rao

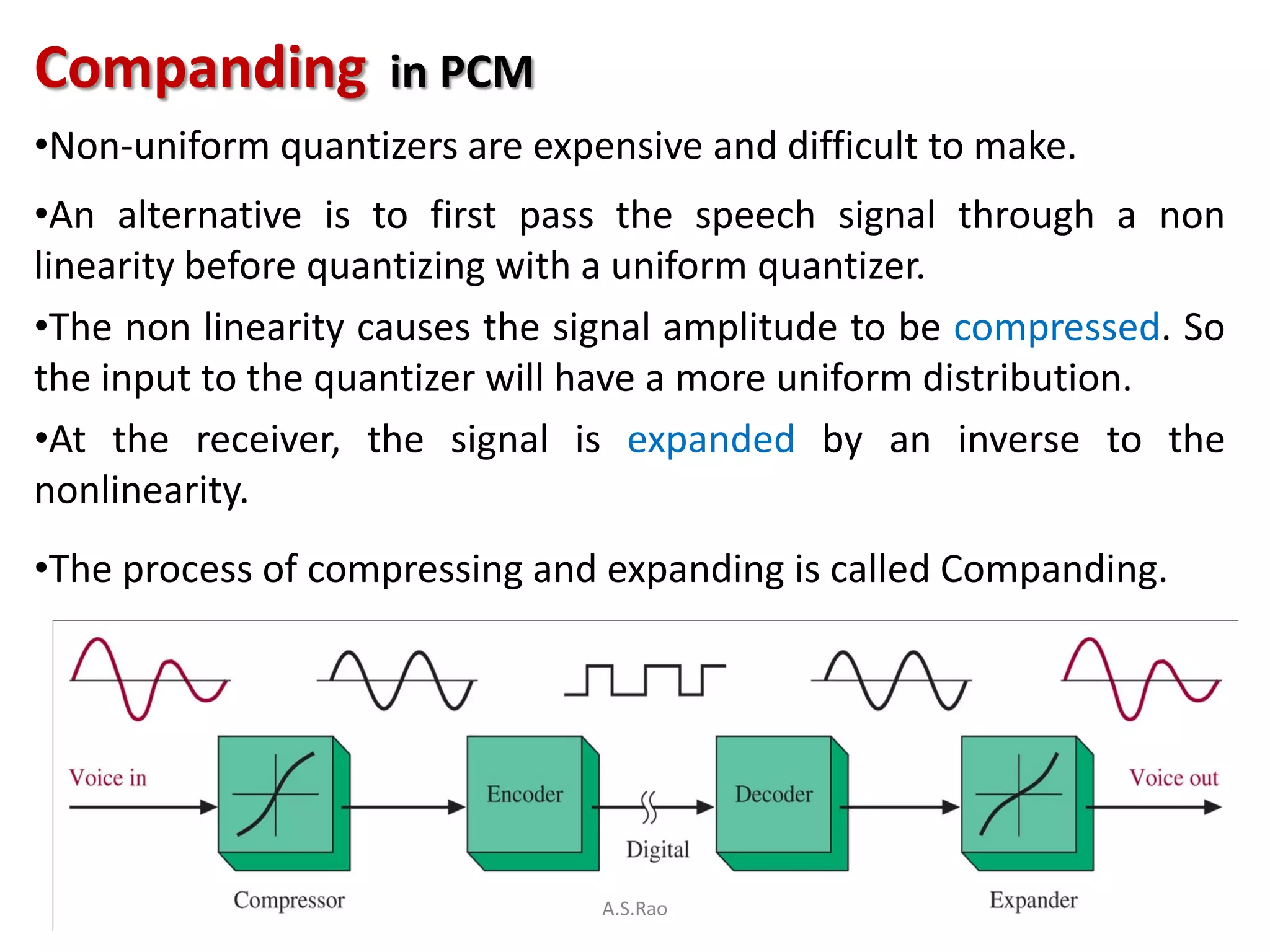

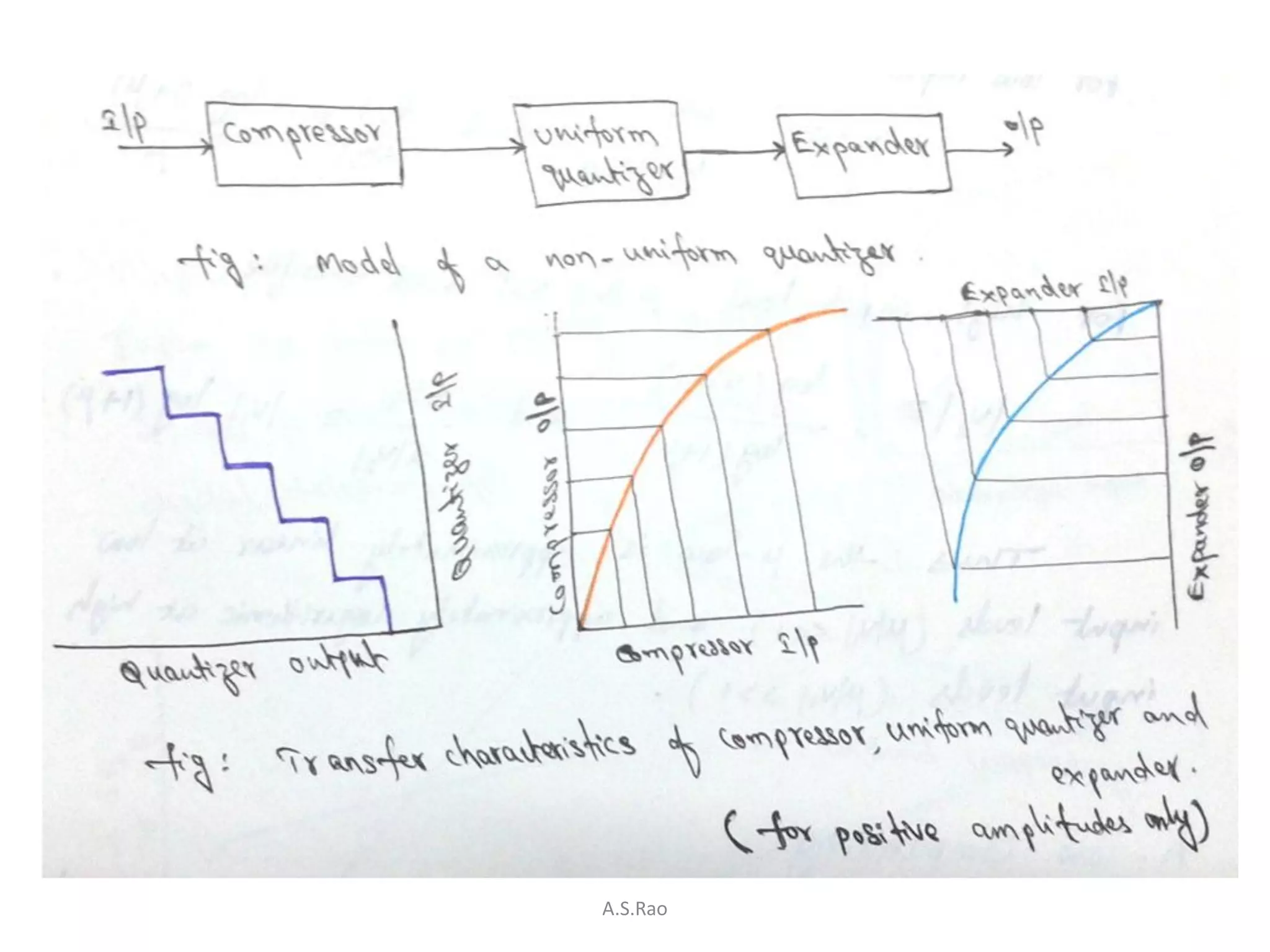

Companding          in PCM
•Non-uniform quantizers are expensive and difficult to make.
•An alternative is to first pass the speech signal through a non
linearity before quantizing with a uniform quantizer.
•The non linearity causes the signal amplitude to be compressed. So
the input to the quantizer will have a more uniform distribution.
•At the receiver, the signal is expanded by an inverse to the
nonlinearity.
•The process of compressing and expanding is called Companding.




                                A.S.Rao

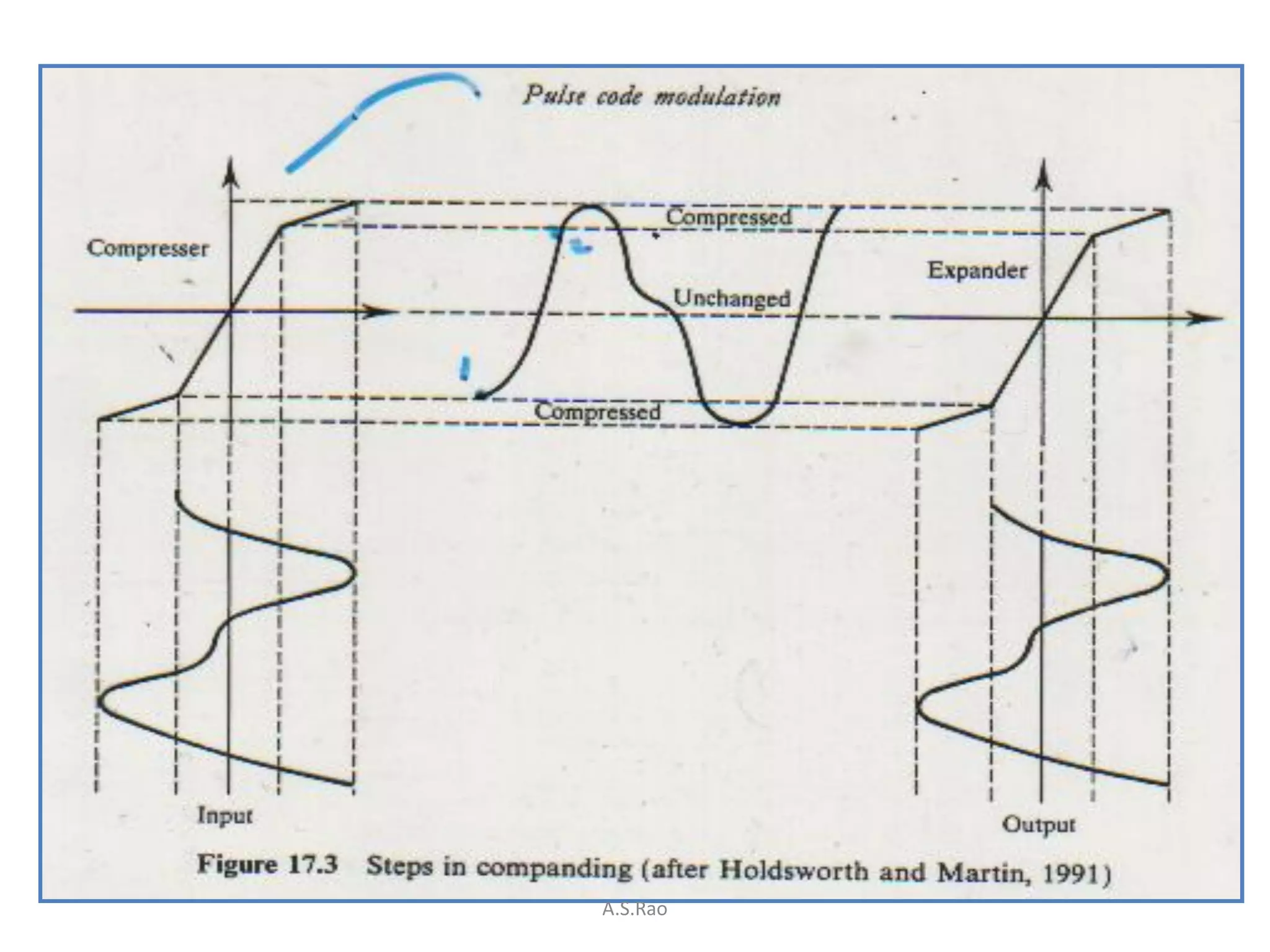

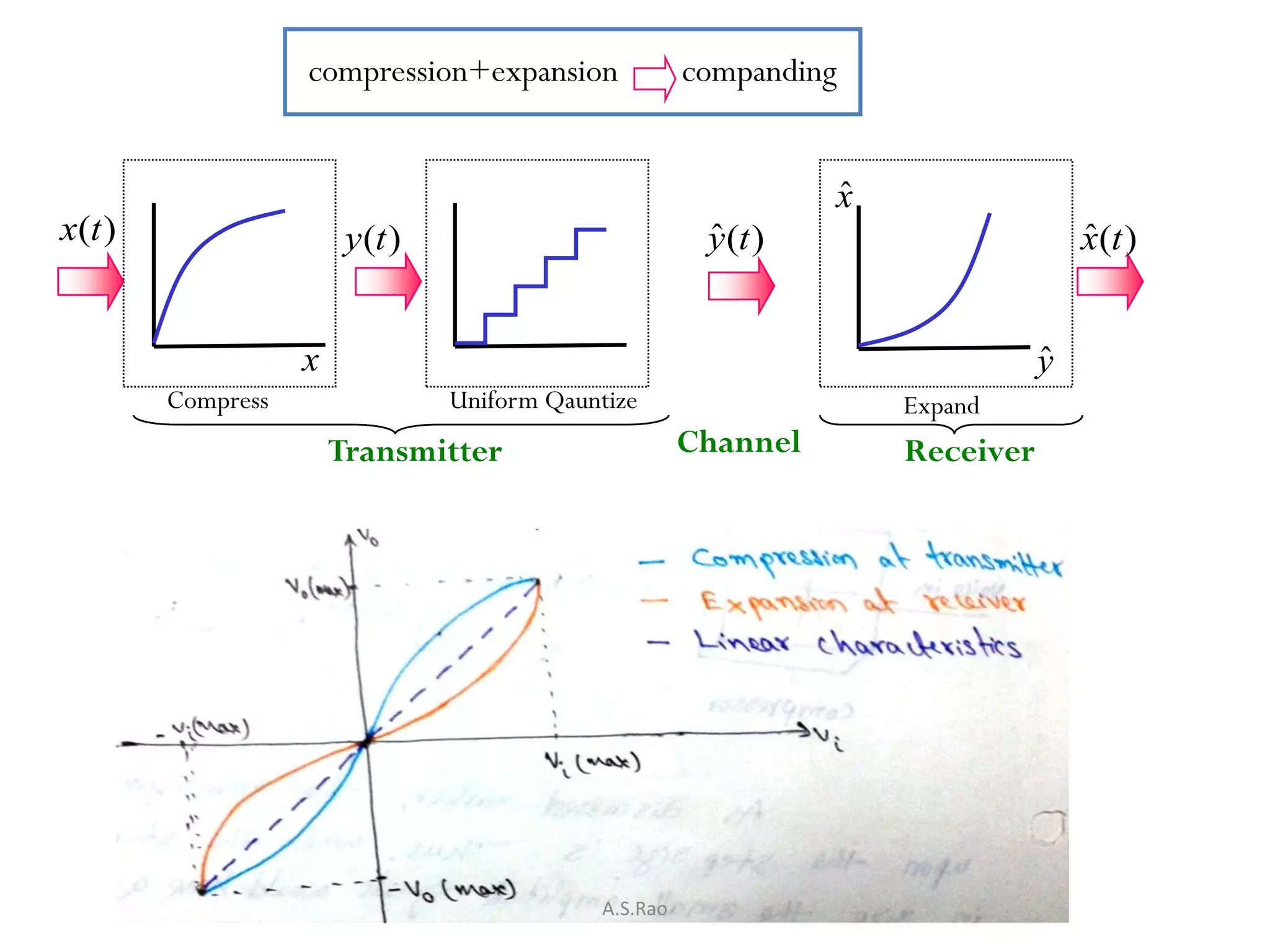

compression+expansion               companding


                                                                 ˆ
                                                                 x
x(t )                   y (t )                          ˆ
                                                        y (t )                      ˆ
                                                                                    x(t )


                   x                                                            ˆ
                                                                                y
        Compress                 Uniform Qauntize                    Expand
                       Transmitter                     Channel       Receiver




                                             A.S.Rao
A.S.Rao

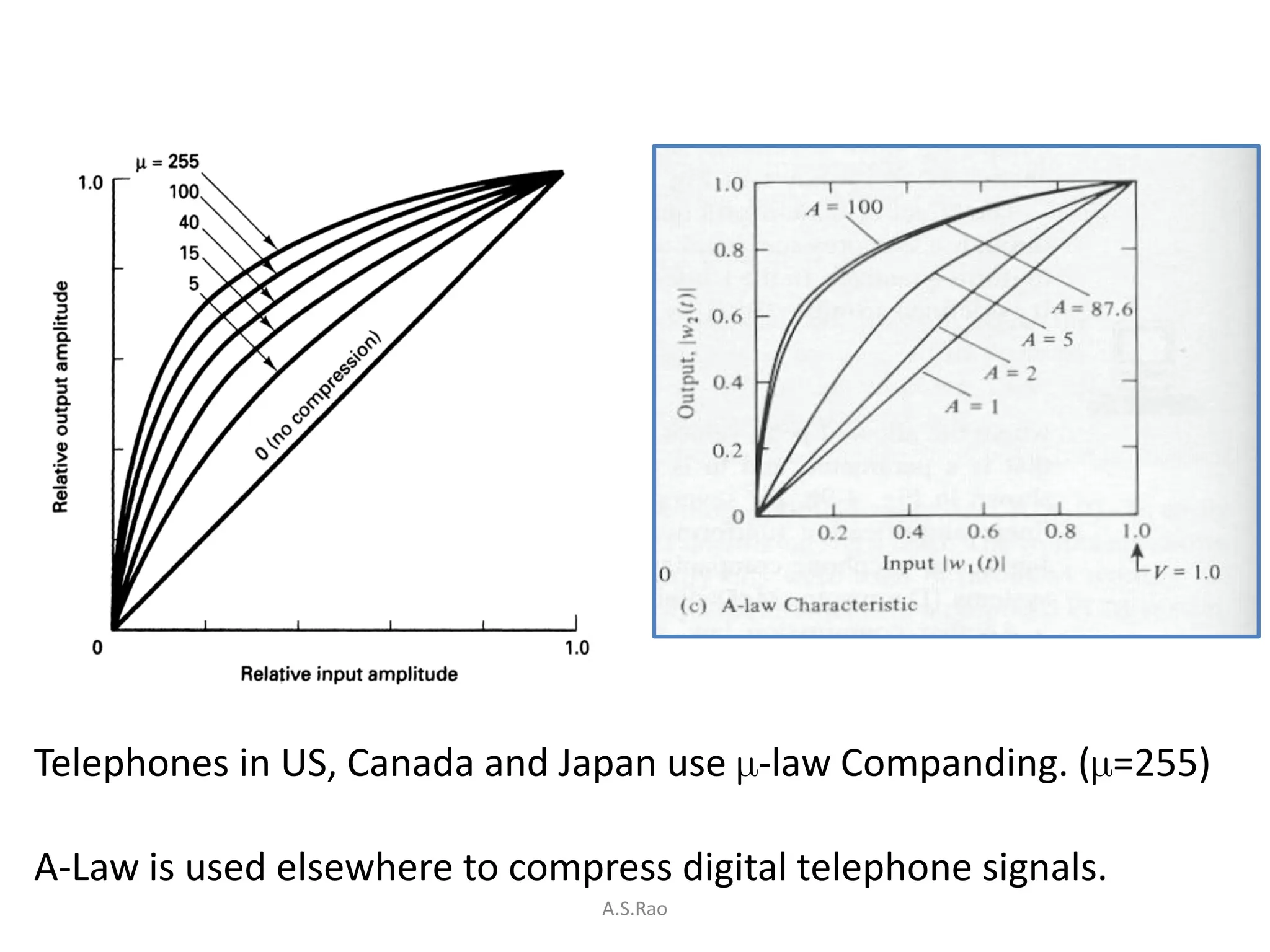

Telephones in US, Canada and Japan use -law Companding. (=255)

A-Law is used elsewhere to compress digital telephone signals.
                                A.S.Rao
A.S.Rao
A.S.Rao

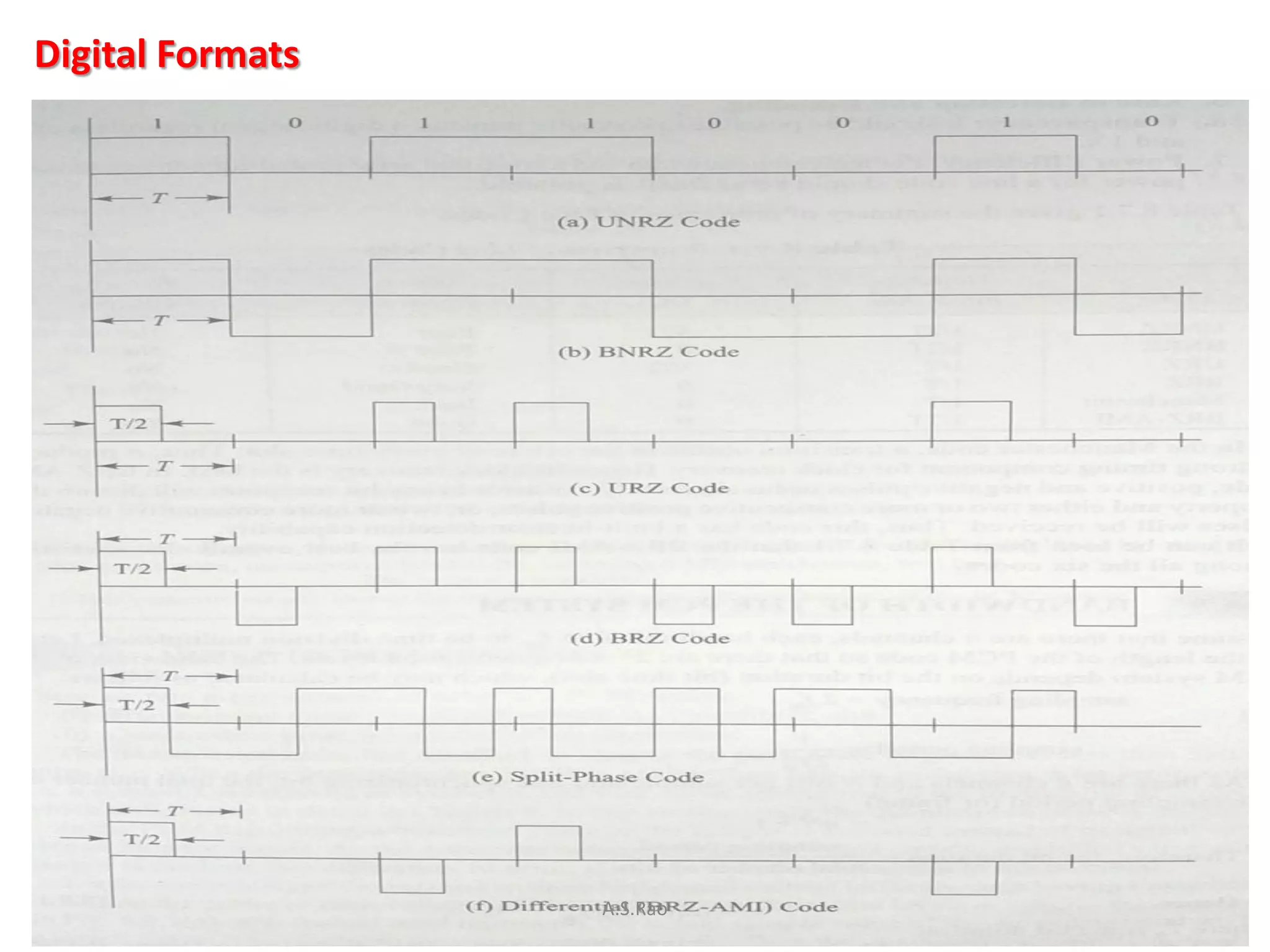

Digital Formats




                  A.S.Rao

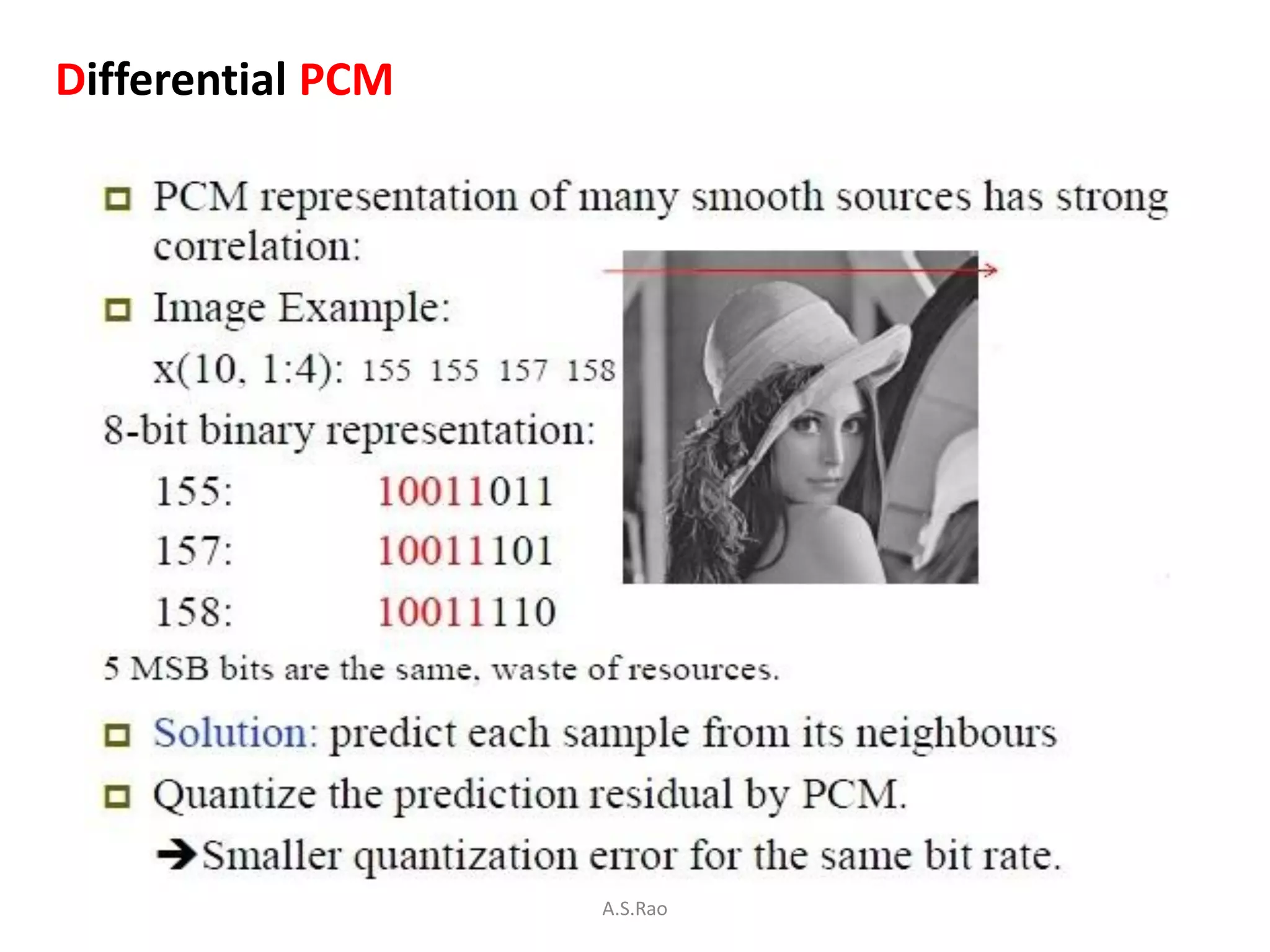

Differential PCM




                   A.S.Rao

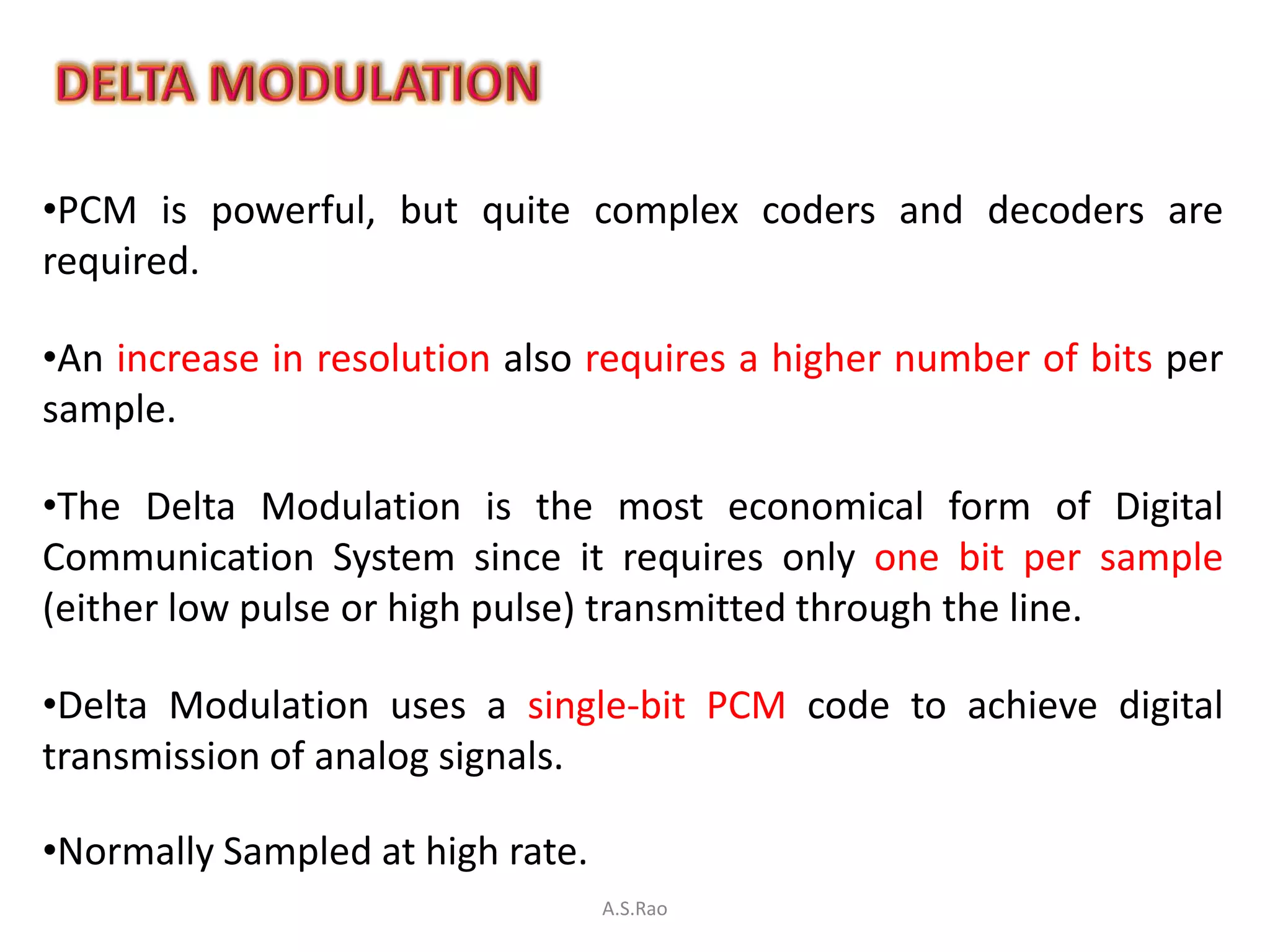

•PCM is powerful, but quite complex coders and decoders are
required.

•An increase in resolution also requires a higher number of bits per
sample.

•The Delta Modulation is the most economical form of Digital
Communication System since it requires only one bit per sample
(either low pulse or high pulse) transmitted through the line.

•Delta Modulation uses a single-bit PCM code to achieve digital
transmission of analog signals.

•Normally Sampled at high rate.
                                  A.S.Rao


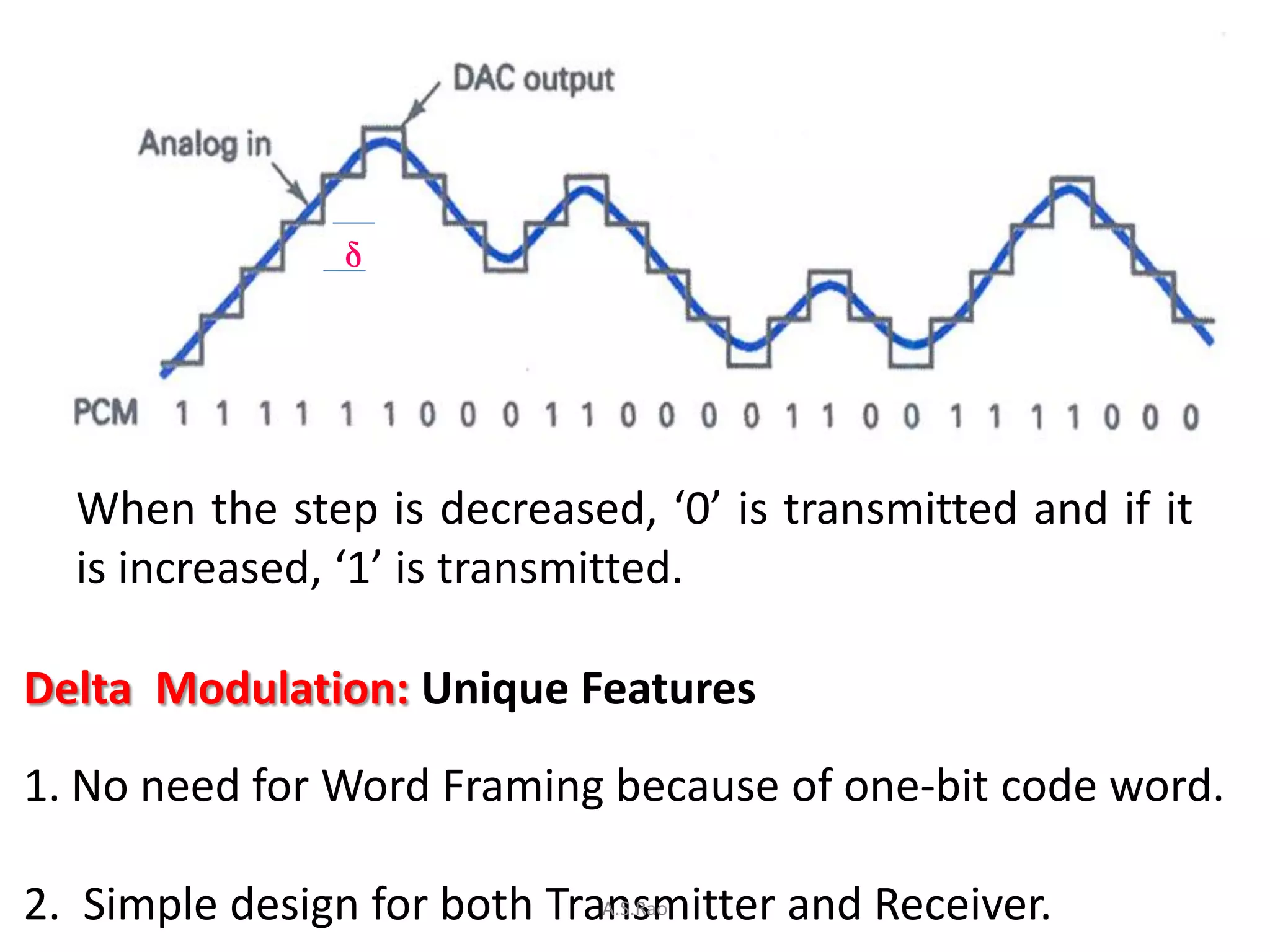

  When the step is decreased, ‘0’ is transmitted and if it
  is increased, ‘1’ is transmitted.

Delta Modulation: Unique Features
1. No need for Word Framing because of one-bit code word.

2. Simple design for both Transmitter and Receiver.
                             A.S.Rao

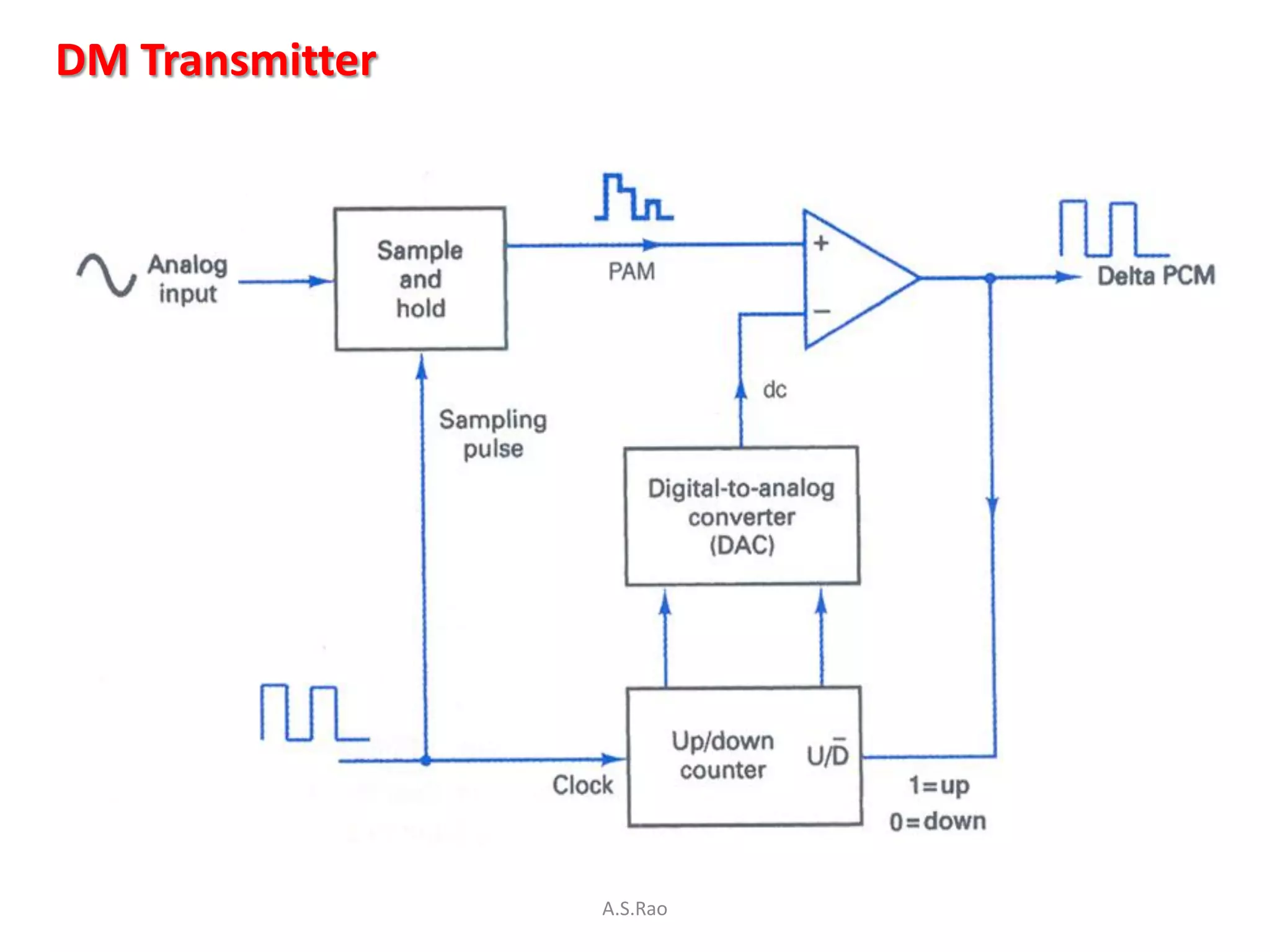

DM Transmitter




                 A.S.Rao

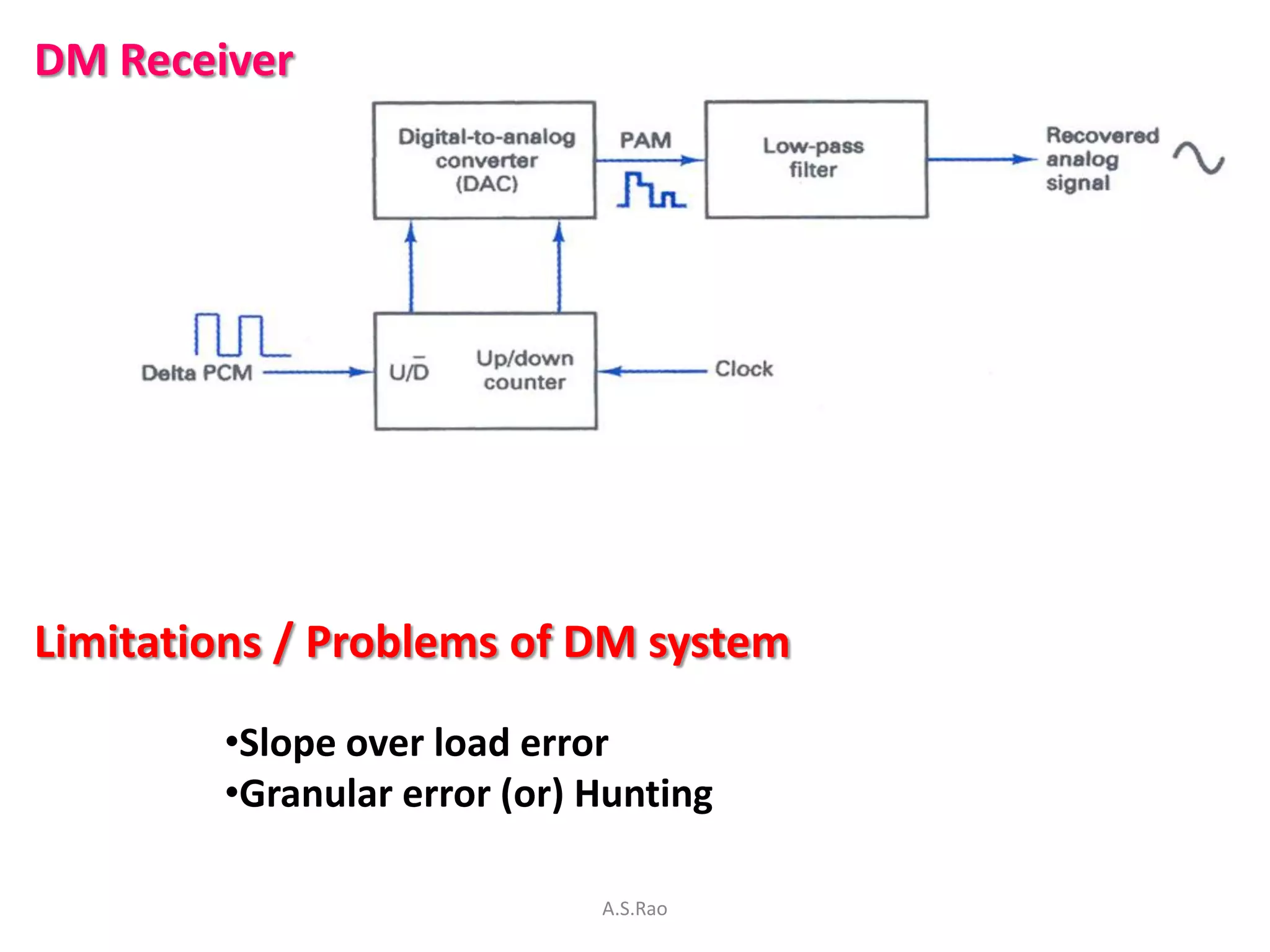

DM Receiver




Limitations / Problems of DM system

        •Slope over load error
        •Granular error (or) Hunting

                             A.S.Rao

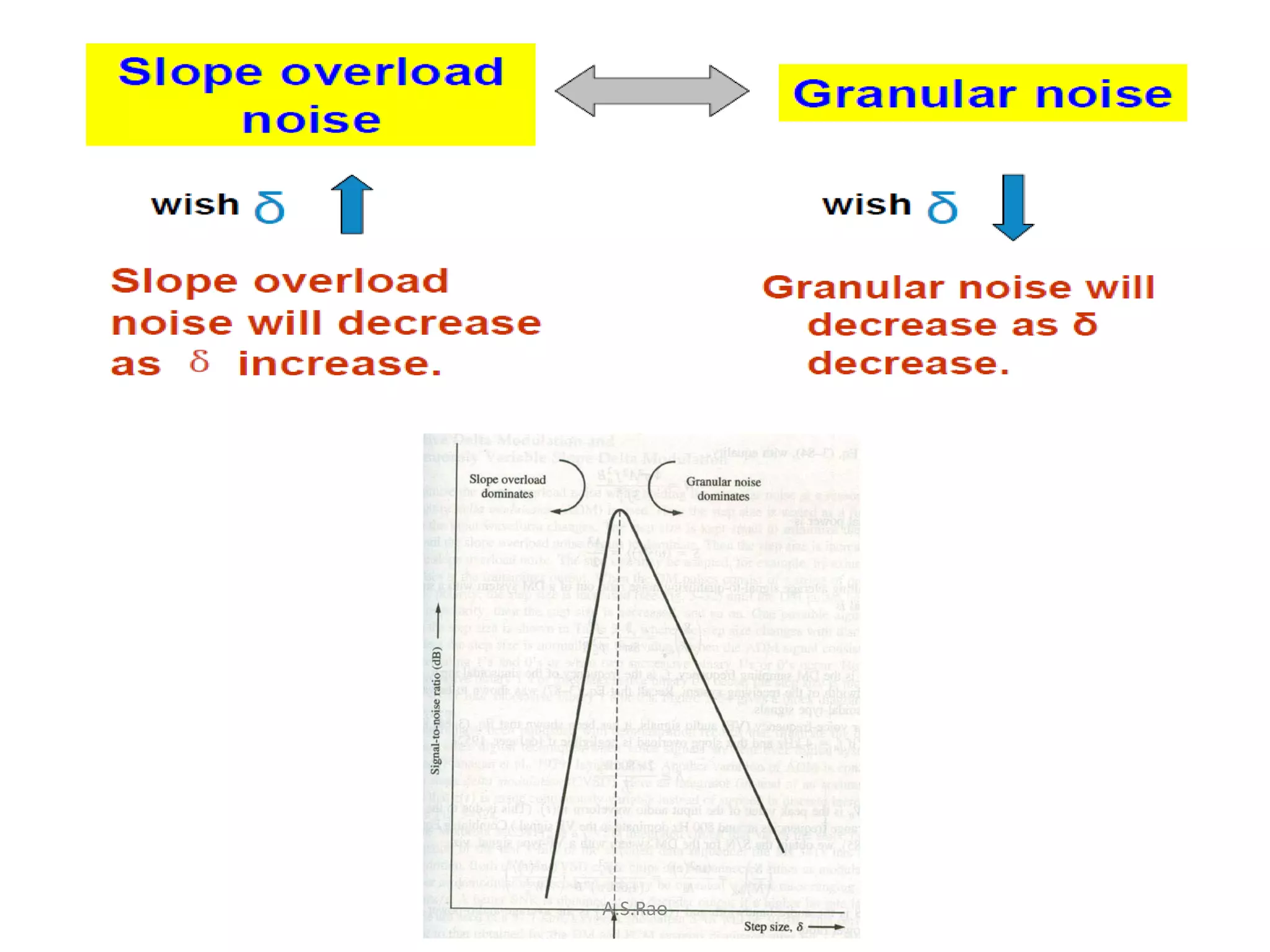

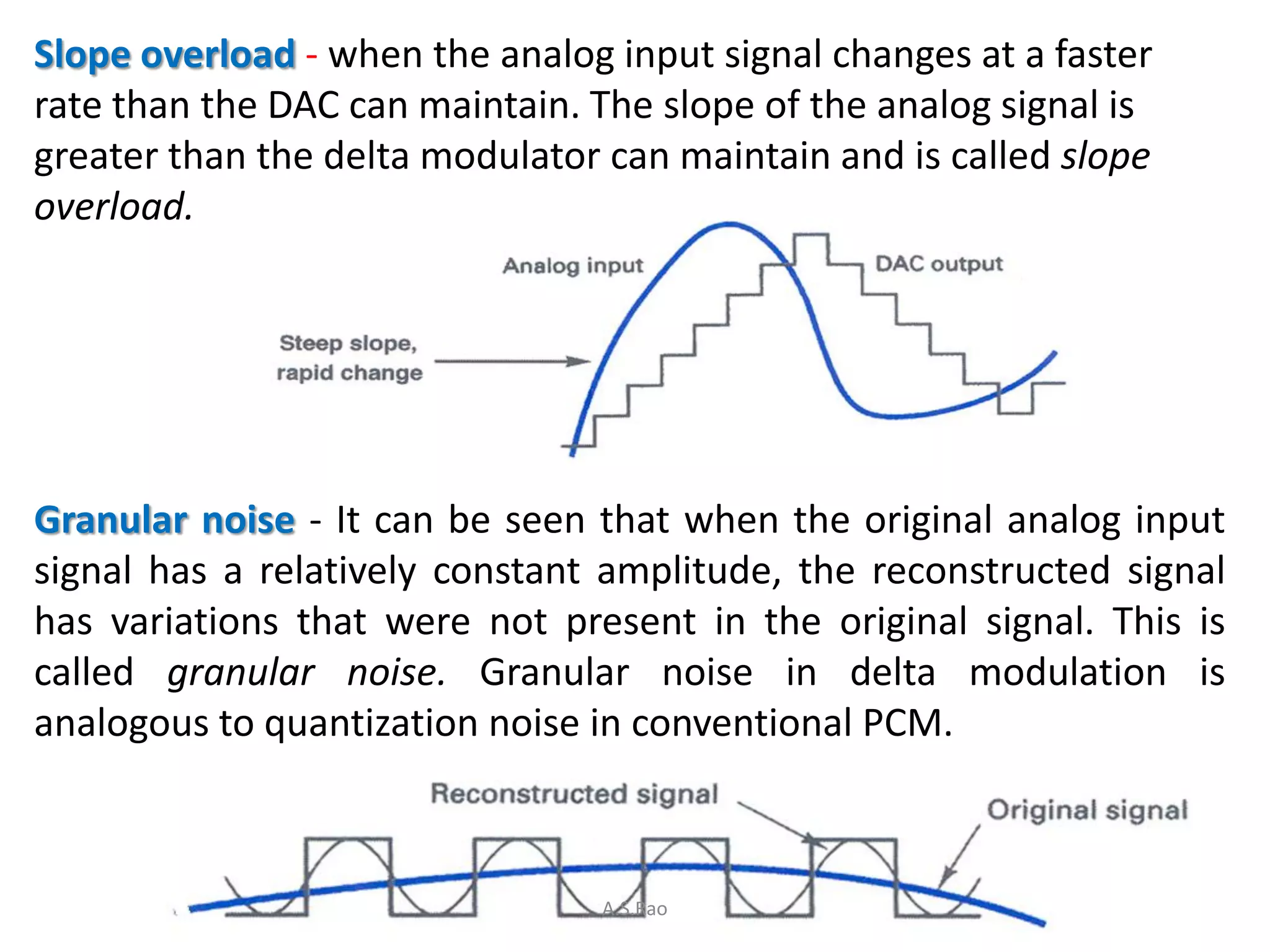

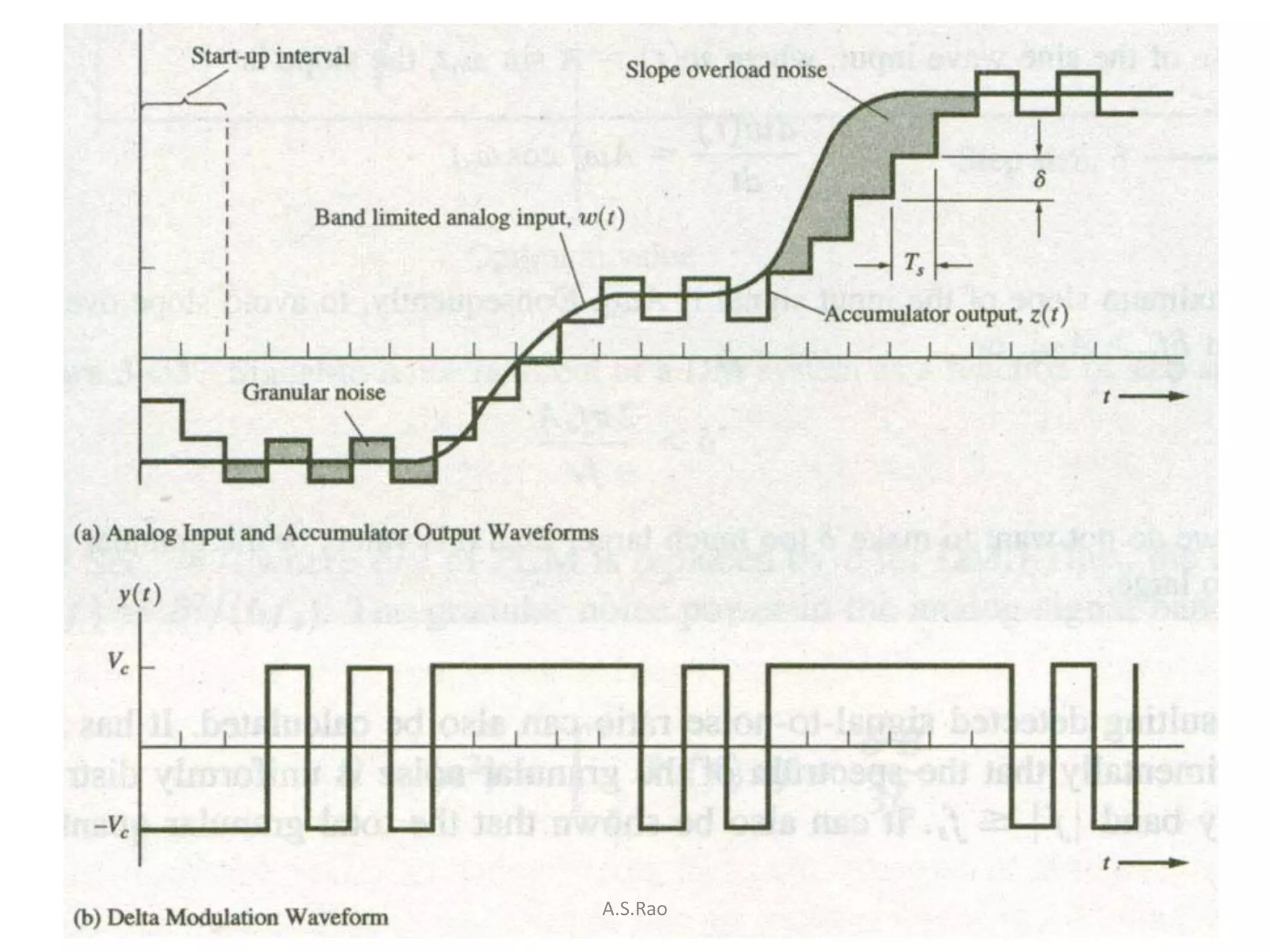

Slope overload - when the analog input signal changes at a faster
rate than the DAC can maintain. The slope of the analog signal is
greater than the delta modulator can maintain and is called slope
overload.




Granular noise - It can be seen that when the original analog input
signal has a relatively constant amplitude, the reconstructed signal
has variations that were not present in the original signal. This is
called granular noise. Granular noise in delta modulation is
analogous to quantization noise in conventional PCM.



                                 A.S.Rao
A.S.Rao
A.S.Rao
M- ary Signaling

Multiple Signal Levels:
Why use multiple signal levels?
We can represent two levels with a single bit, 0 or 1.
We can represent four levels with two bits: 00, 01, 10, 11.
We can represent eight levels with three bits: 000, 001,
010, 011, 100, 101, 110, 111
Note that the number of levels is always a power of 2.
                          M=2n
                            A.S.Rao

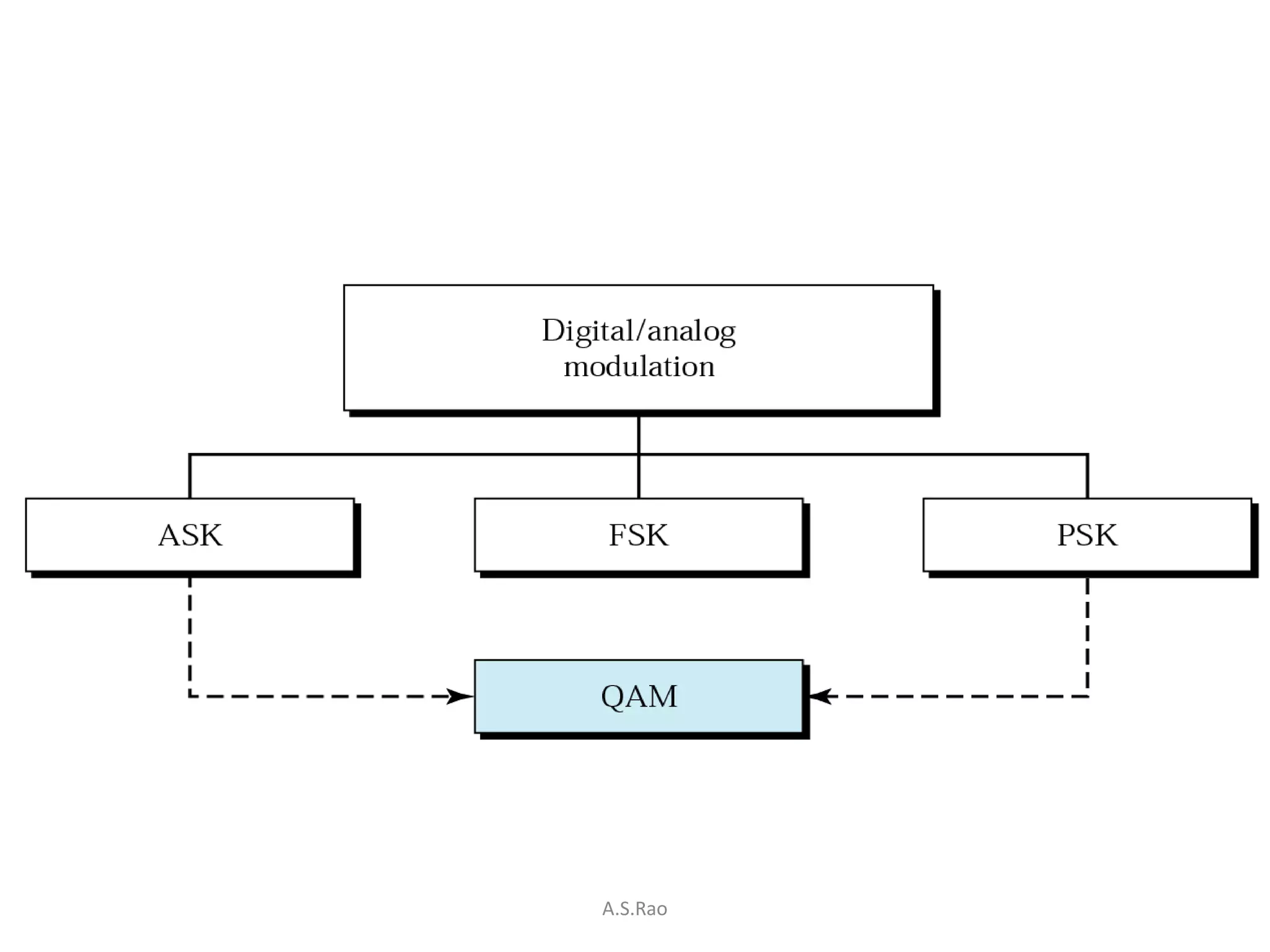

DIGITAL MODULATION




Input Binary
data
                               Output Symbol/waveform



                     A.S.Rao

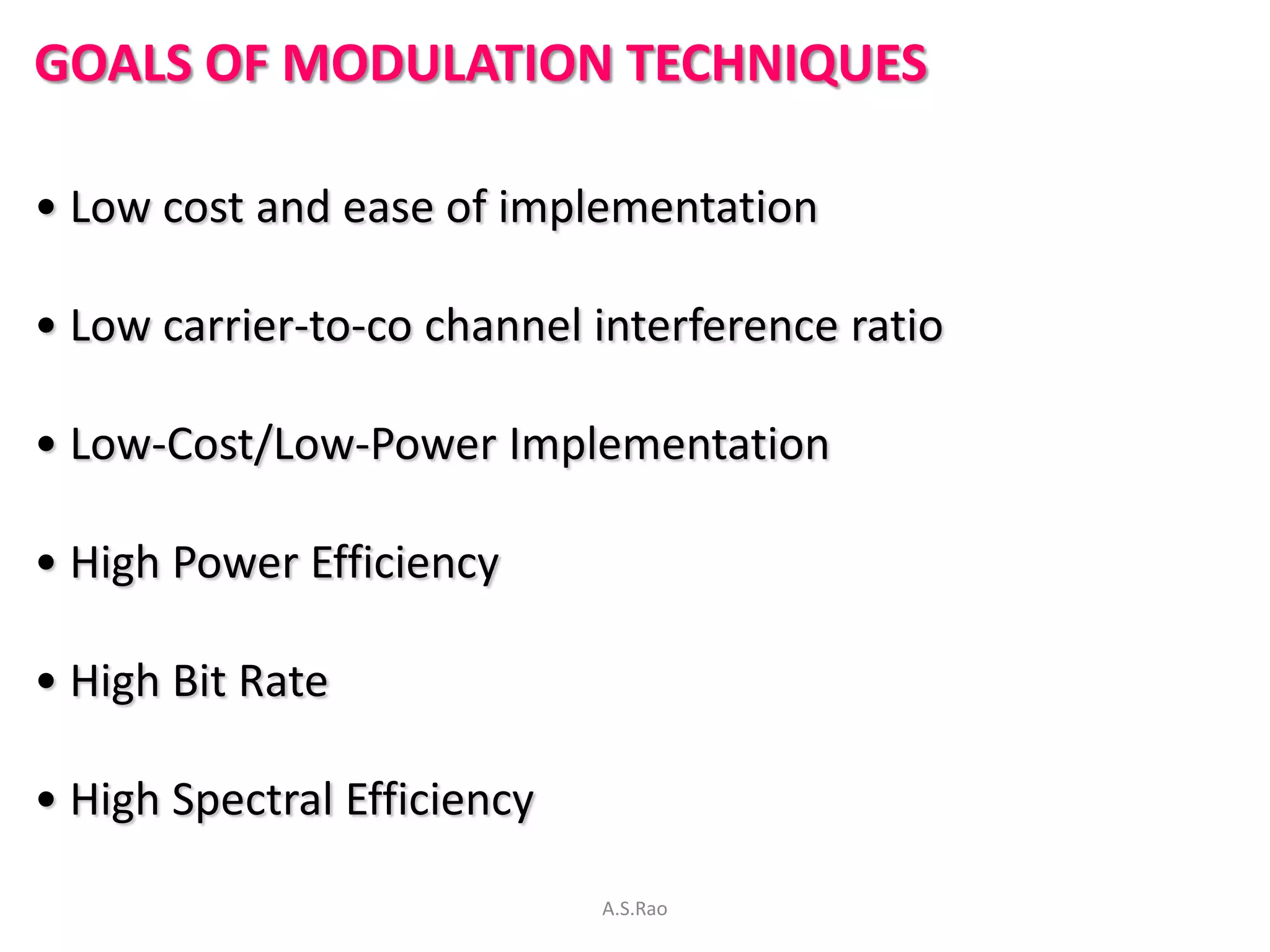

GOALS OF MODULATION TECHNIQUES

• Low cost and ease of implementation

• Low carrier-to-co channel interference ratio

• Low-Cost/Low-Power Implementation

• High Power Efficiency

• High Bit Rate

• High Spectral Efficiency

                             A.S.Rao

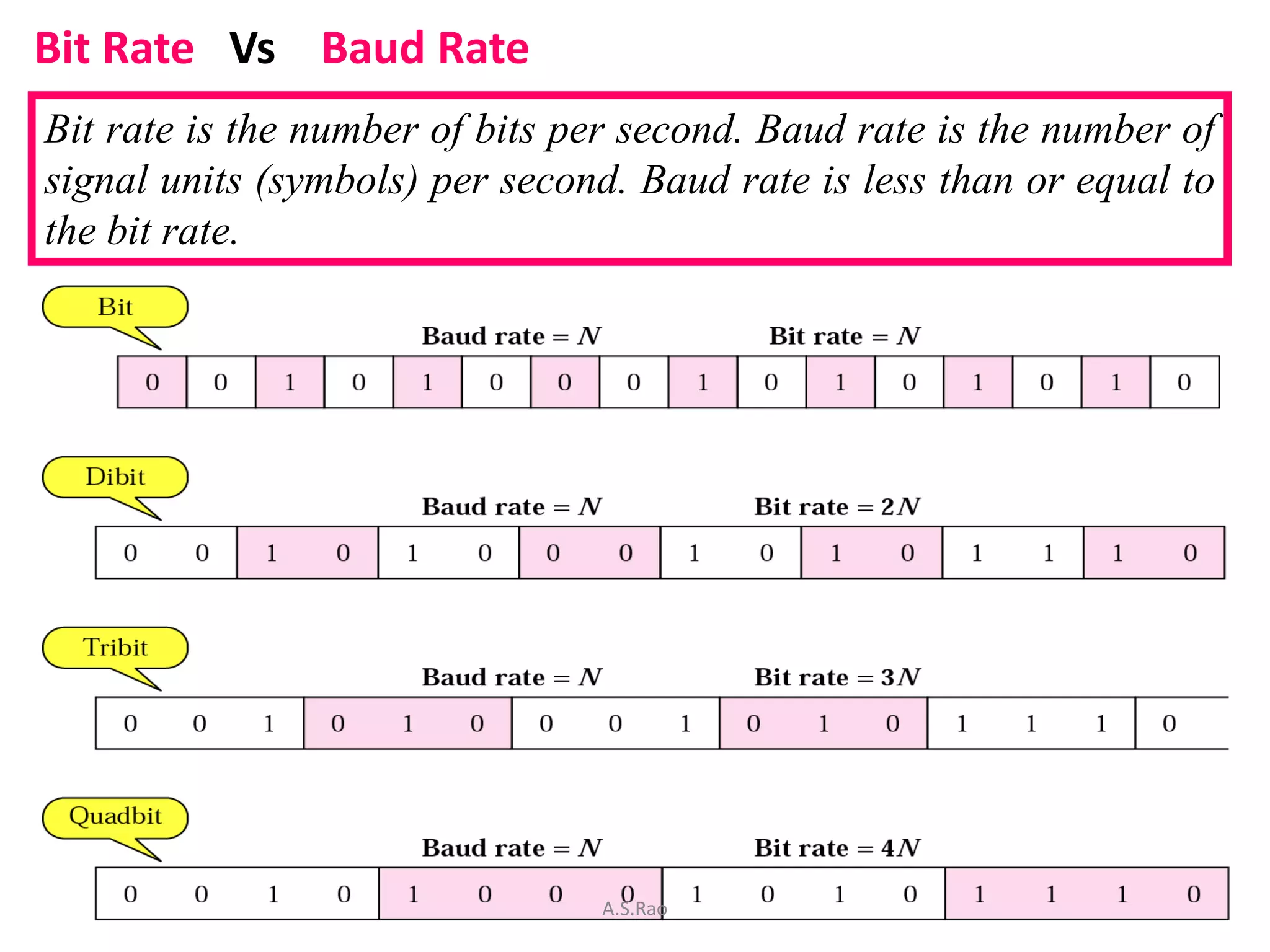

Bit Rate Vs Baud Rate
Bit rate is the number of bits per second. Baud rate is the number of
signal units (symbols) per second. Baud rate is less than or equal to
the bit rate.




                                A.S.Rao

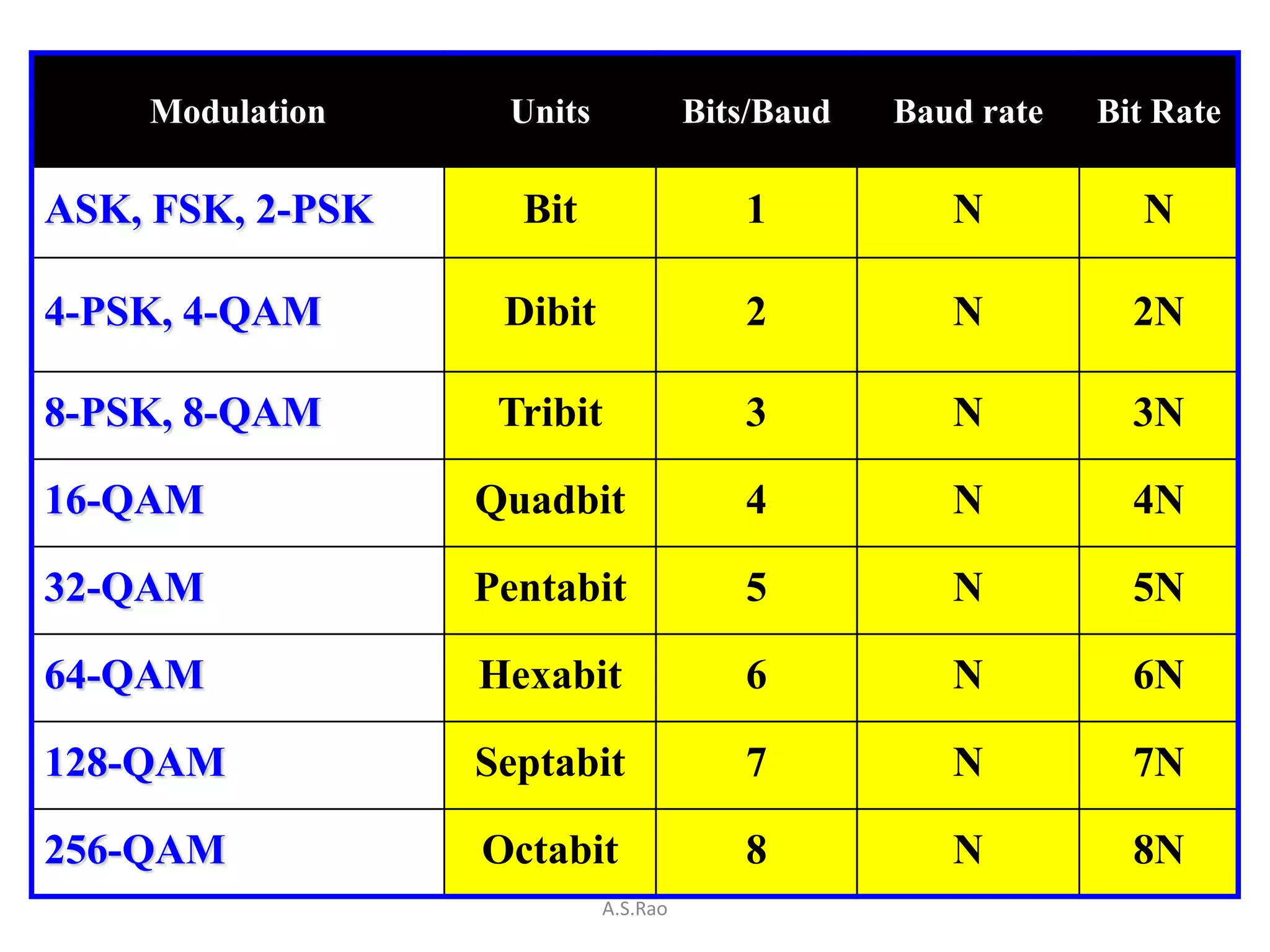

Modulation     Units             Bits/Baud   Baud rate   Bit Rate

ASK, FSK, 2-PSK     Bit                 1           N           N

4-PSK, 4-QAM       Dibit                2           N          2N

8-PSK, 8-QAM       Tribit               3           N          3N

16-QAM            Quadbit               4           N          4N

32-QAM            Pentabit              5           N          5N

64-QAM            Hexabit               6           N          6N

128-QAM           Septabit              7           N          7N

256-QAM           Octabit               8           N          8N
                           A.S.Rao
A.S.Rao

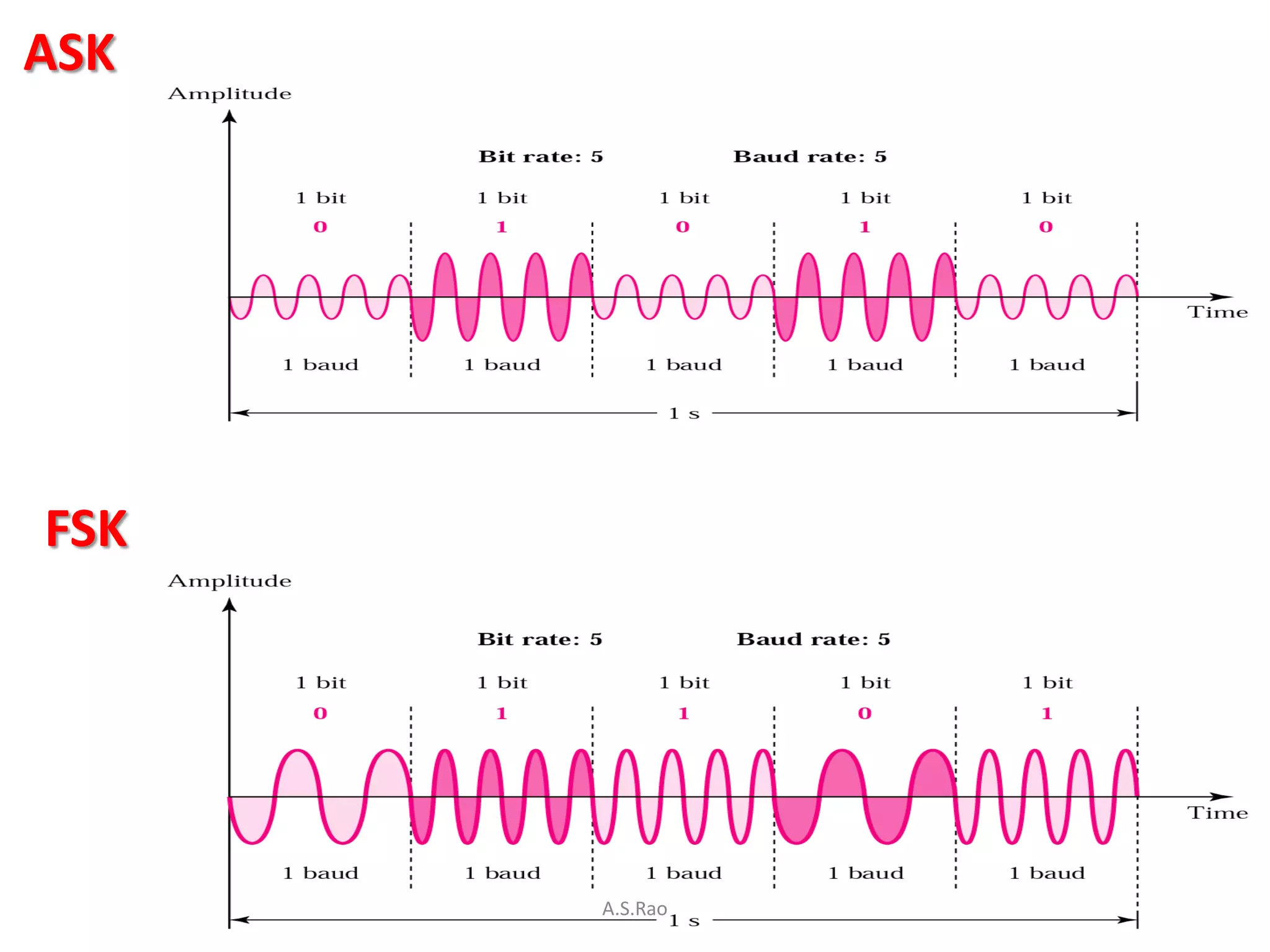

ASK




FSK




      A.S.Rao

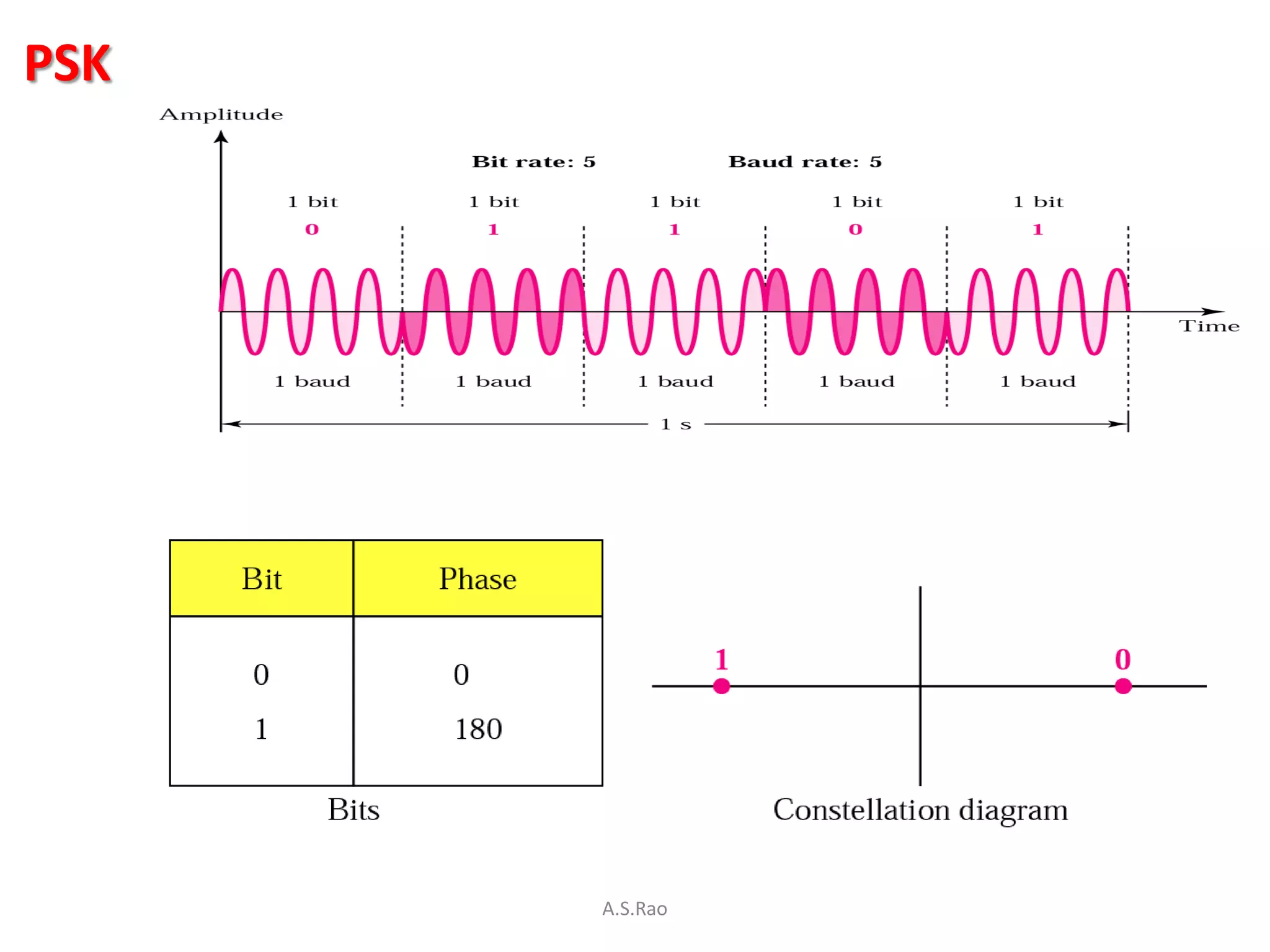

PSK




      A.S.Rao

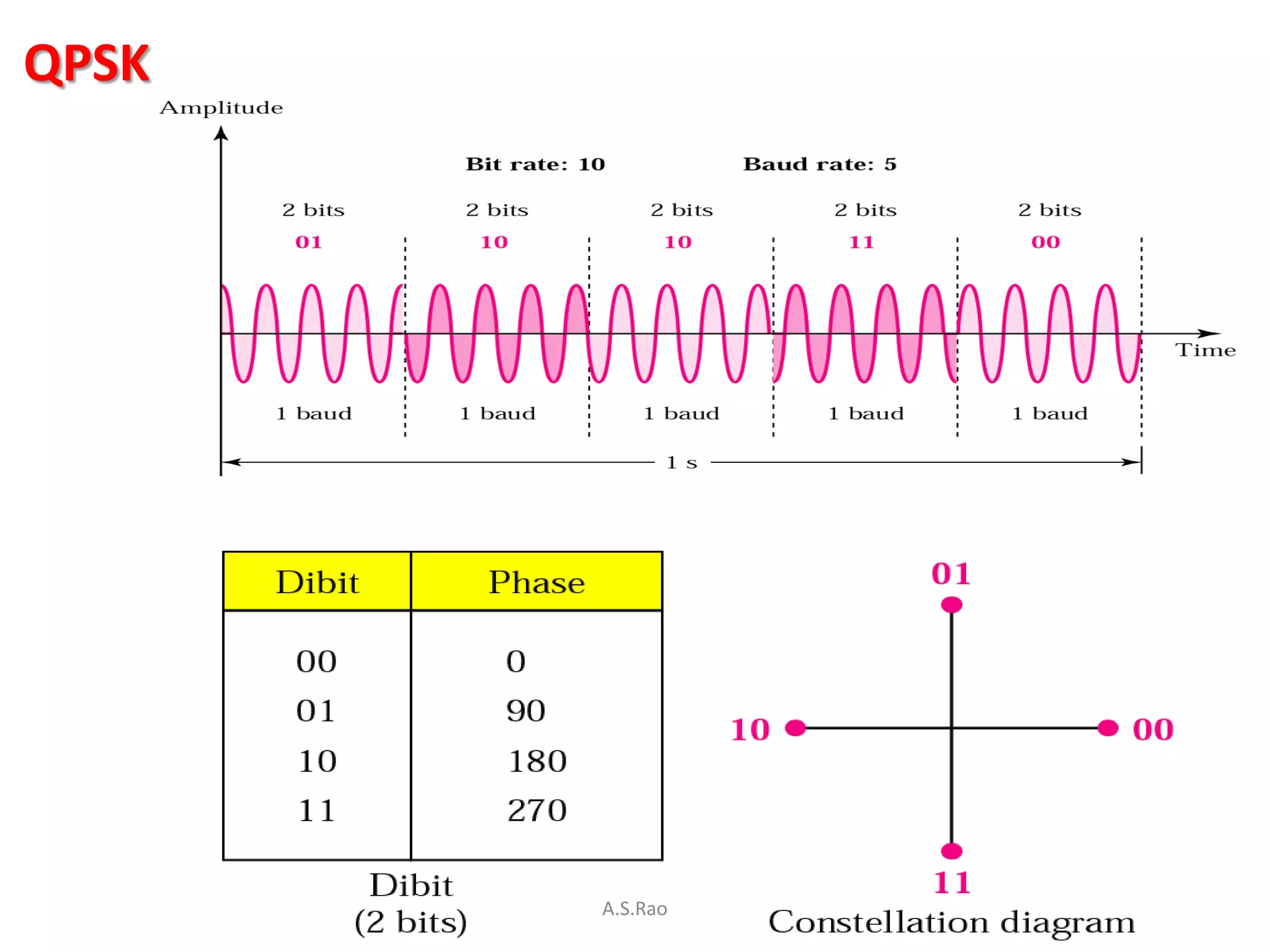

QPSK




       A.S.Rao

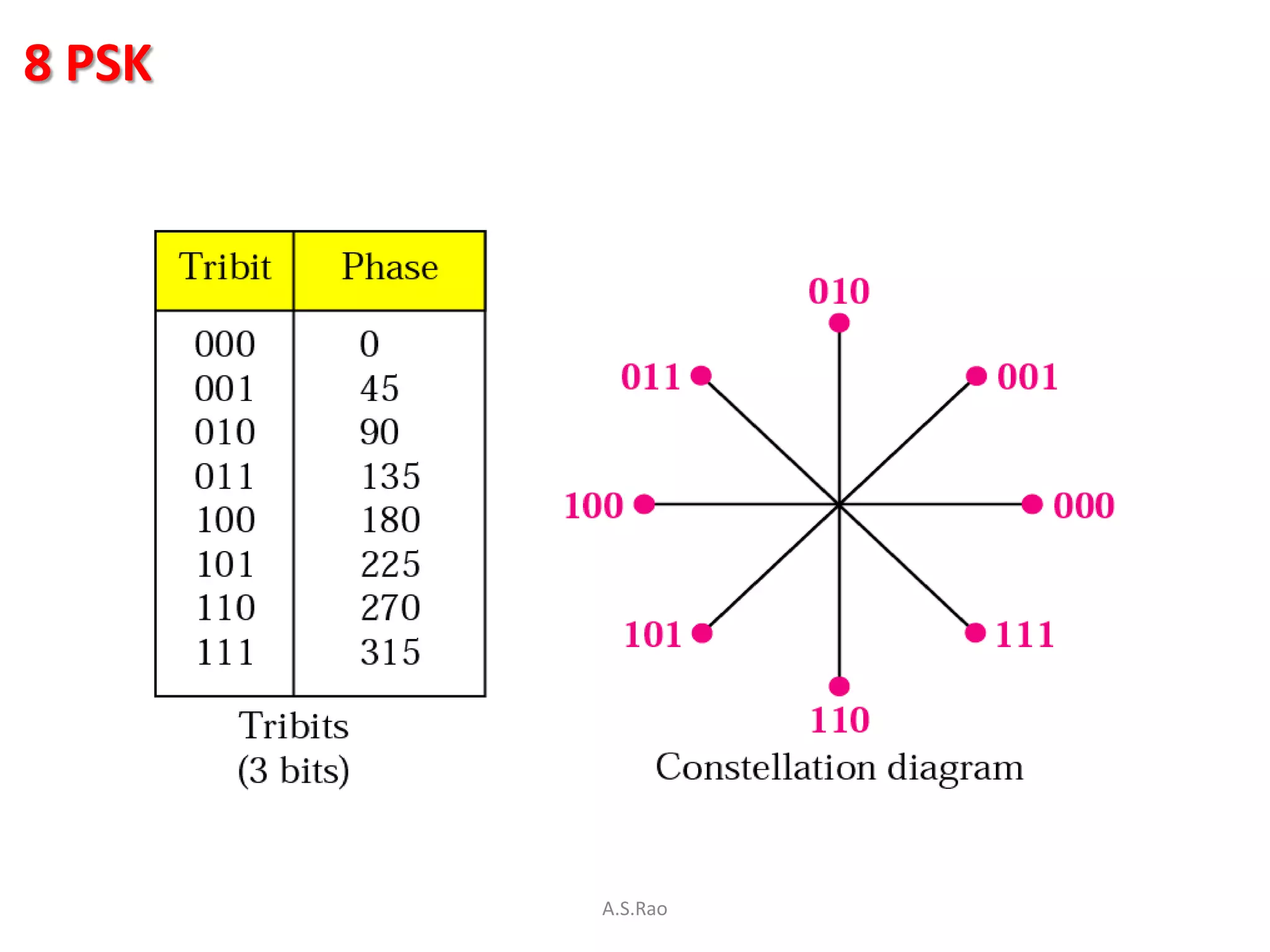

8 PSK




        A.S.Rao

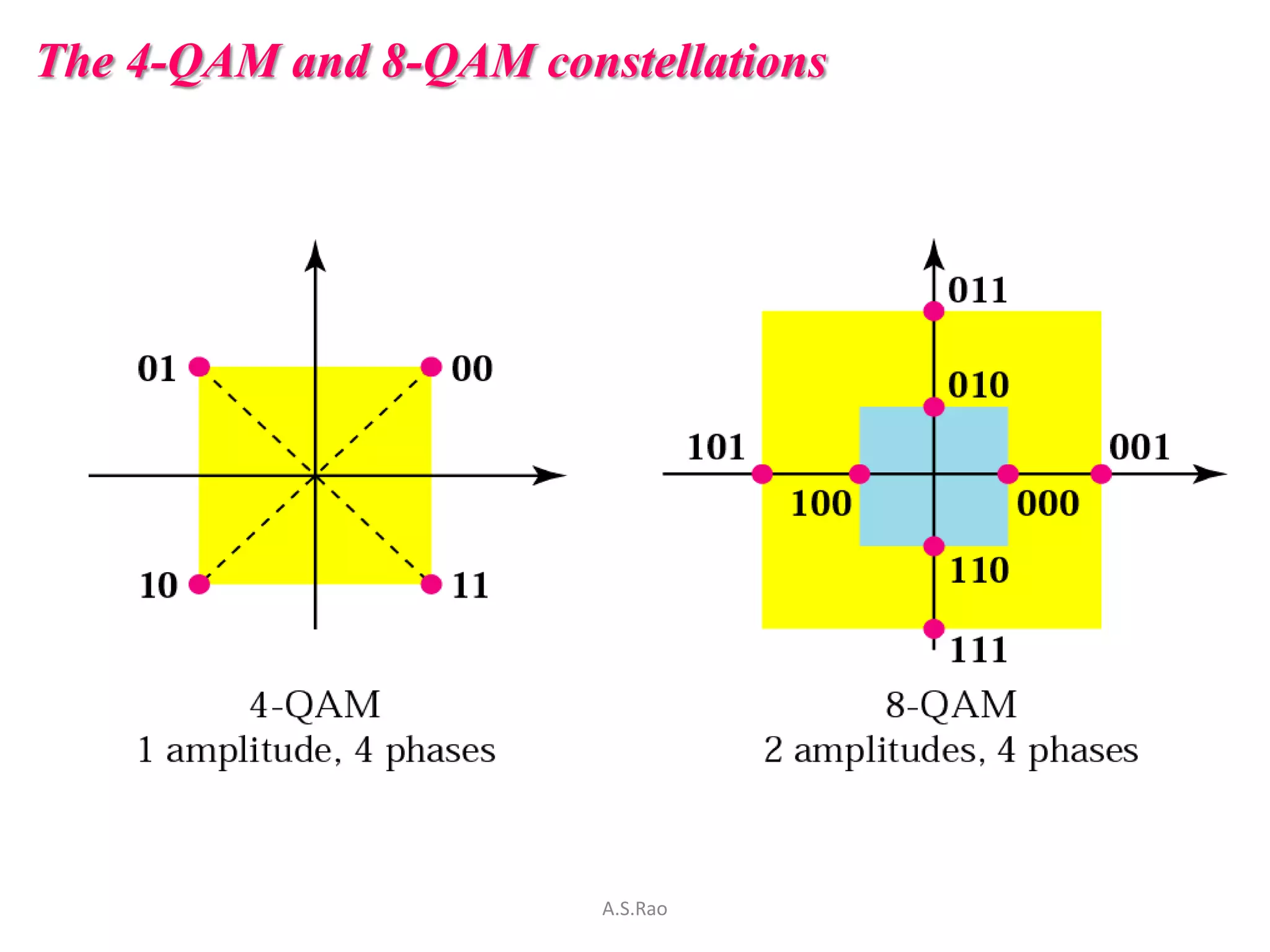

The 4-QAM and 8-QAM constellations




                        A.S.Rao

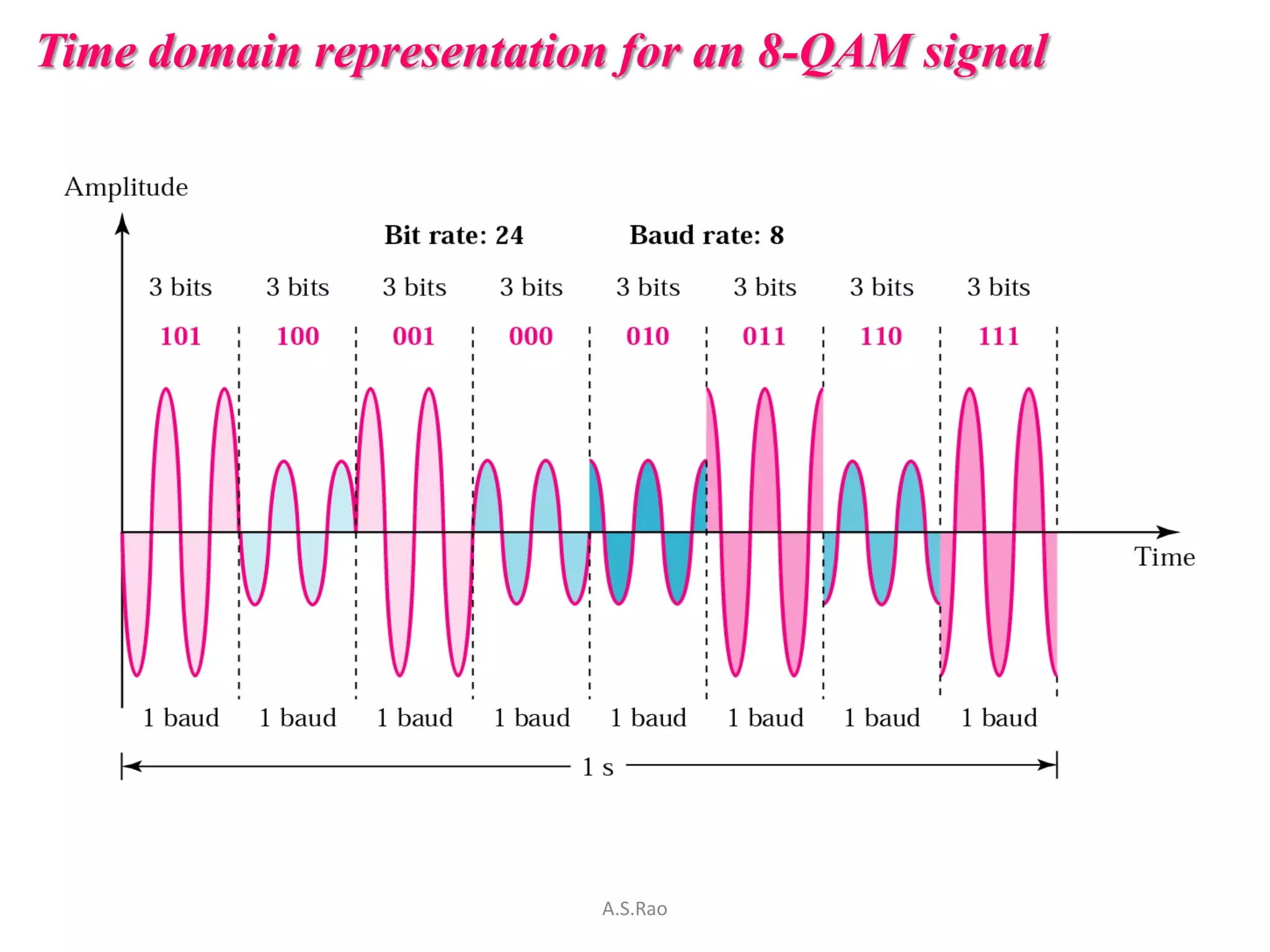

Time domain representation for an 8-QAM signal




                         A.S.Rao

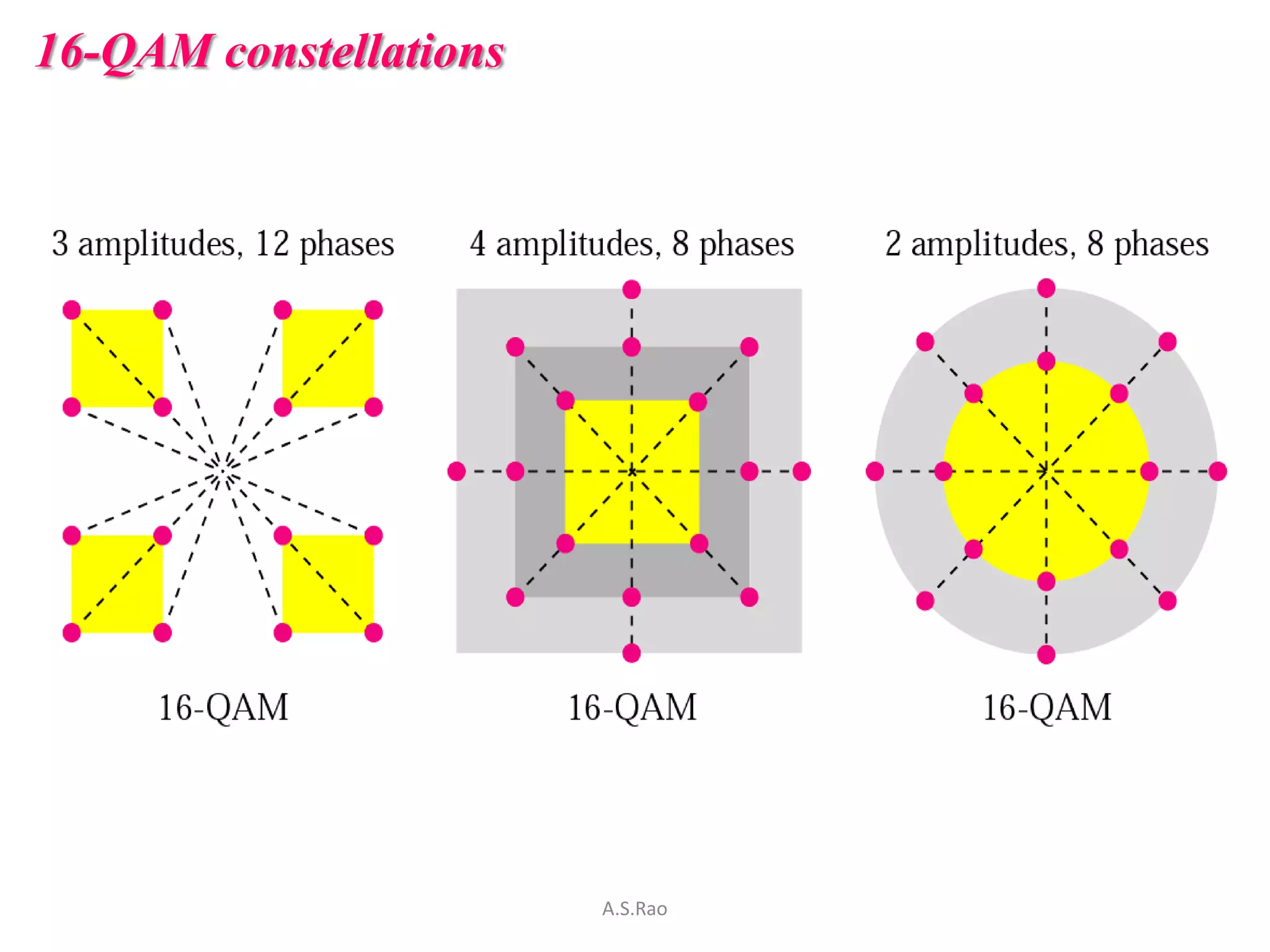

16-QAM constellations




                        A.S.Rao

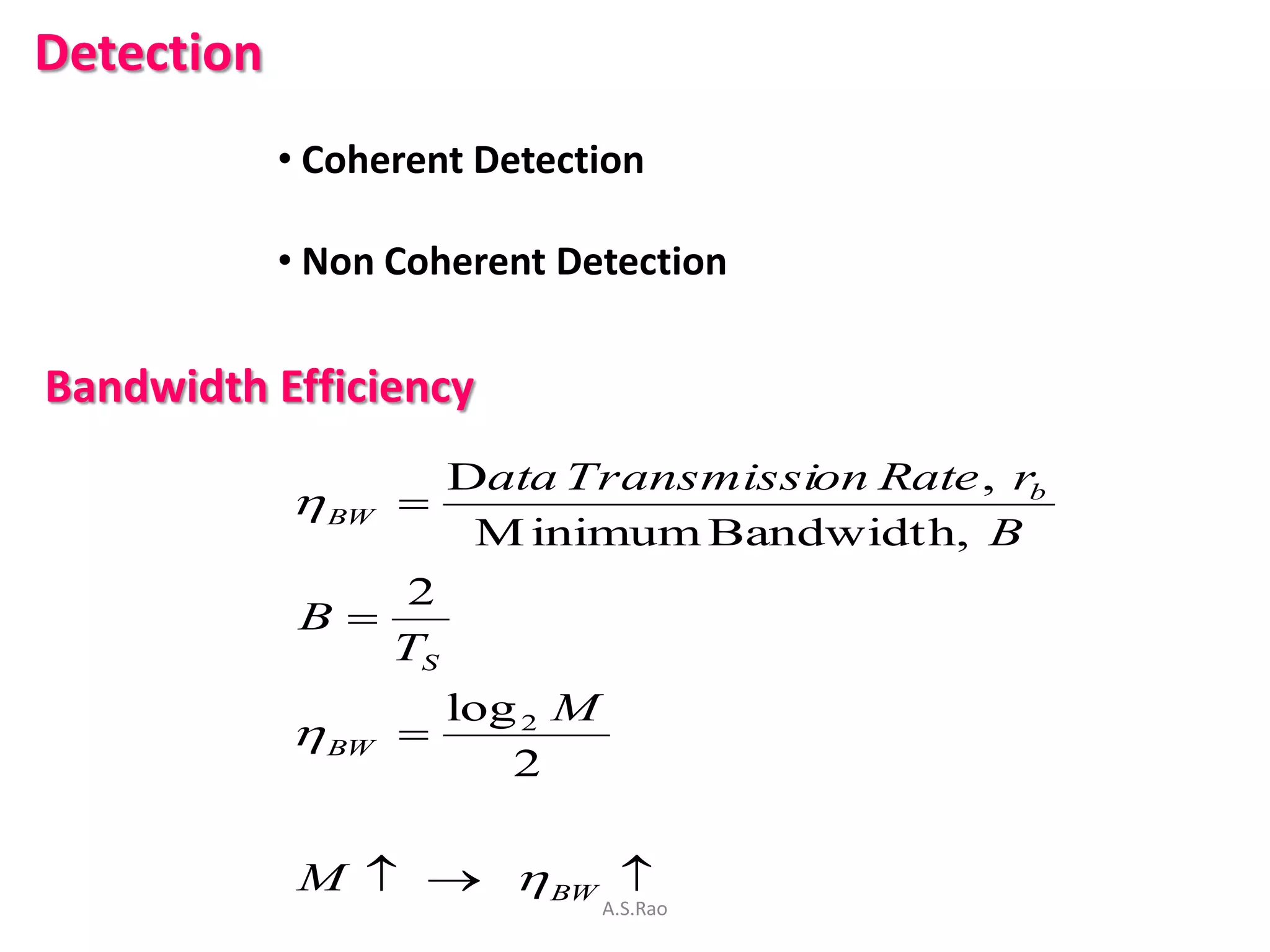

Detection
            • Coherent Detection

            • Non Coherent Detection


Bandwidth Efficiency
                     Data Transmission Rate , rb
             BW 
                      M inimum Bandwidth, B
                 2
             B
                TS
                     log 2 M
             BW 
                        2

             M    BW 
                               A.S.Rao

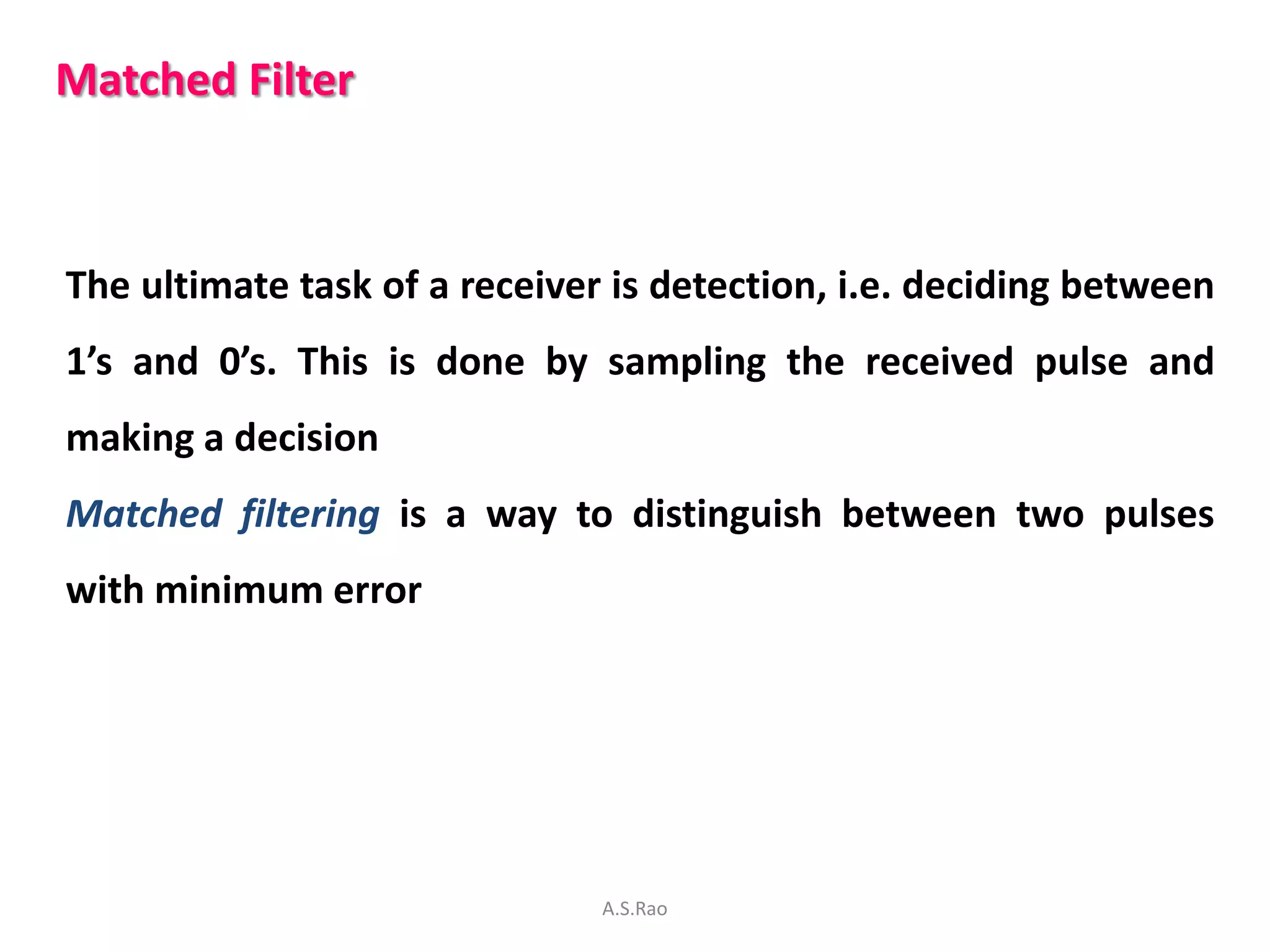

Matched Filter



The ultimate task of a receiver is detection, i.e. deciding between
1’s and 0’s. This is done by sampling the received pulse and
making a decision
Matched filtering is a way to distinguish between two pulses
with minimum error




                               A.S.Rao

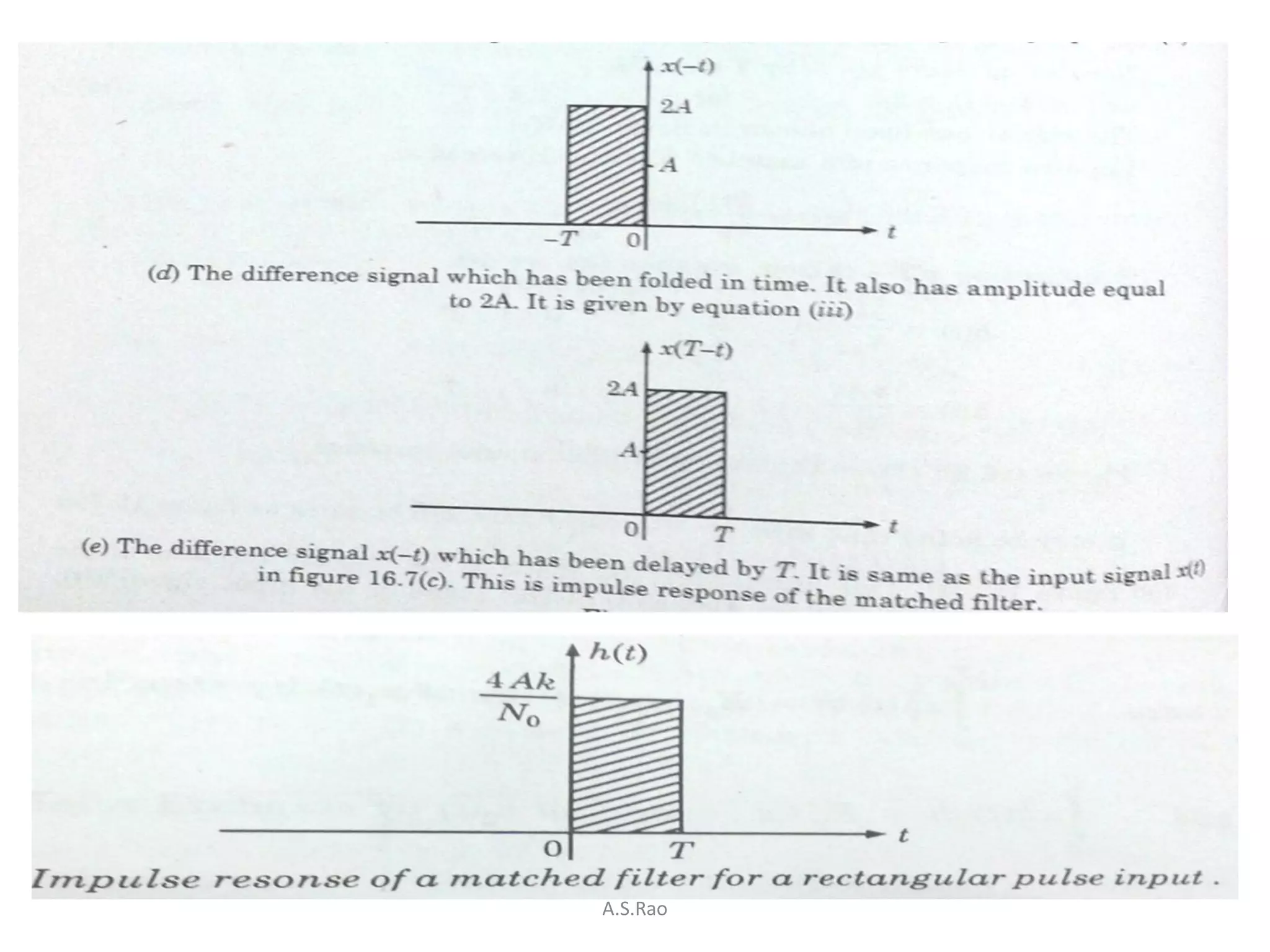

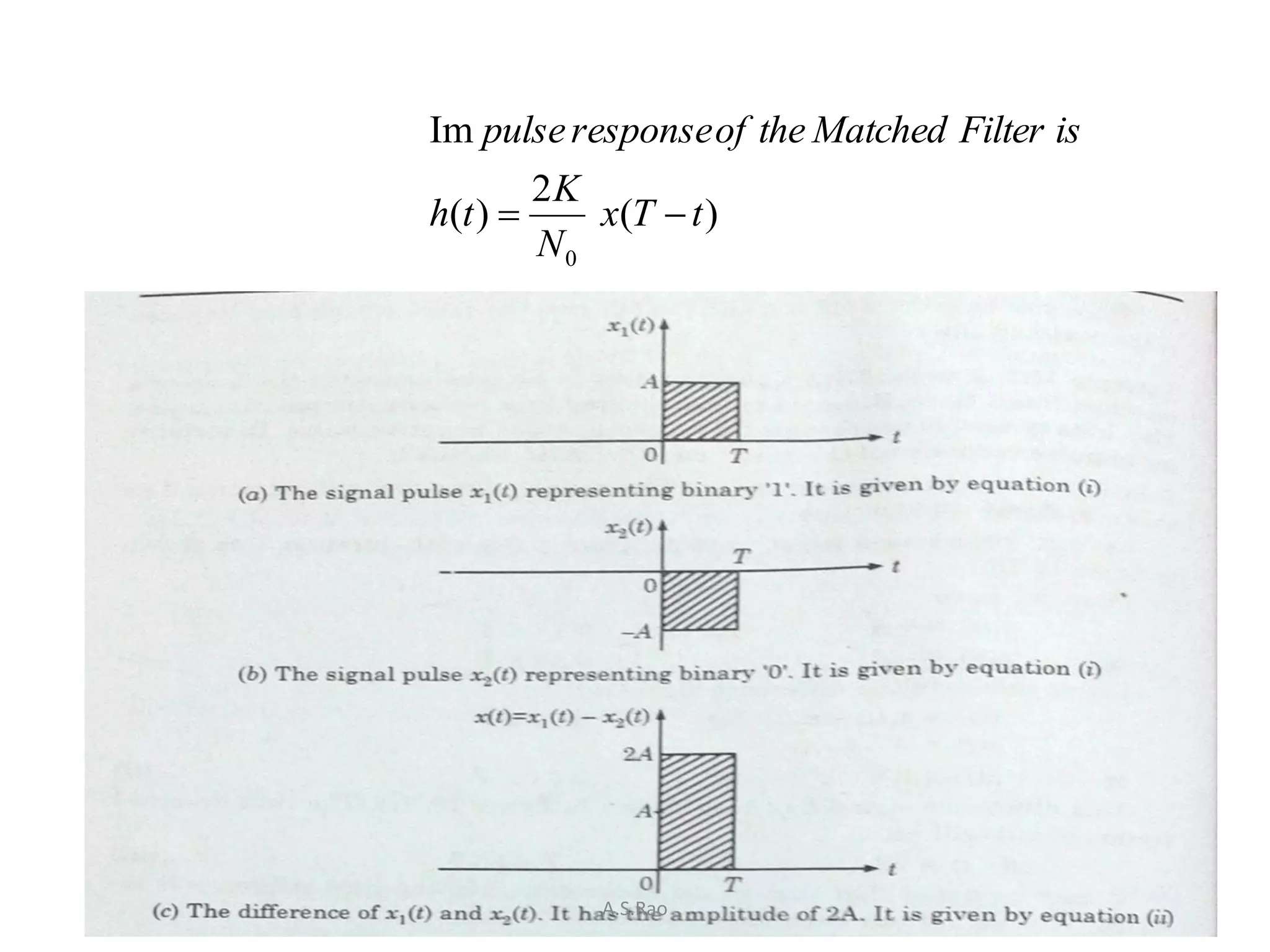

Im pulse response of the Matched Filter is
        2K
h(t )     x(T  t )
        N0




           A.S.Rao
A.S.Rao

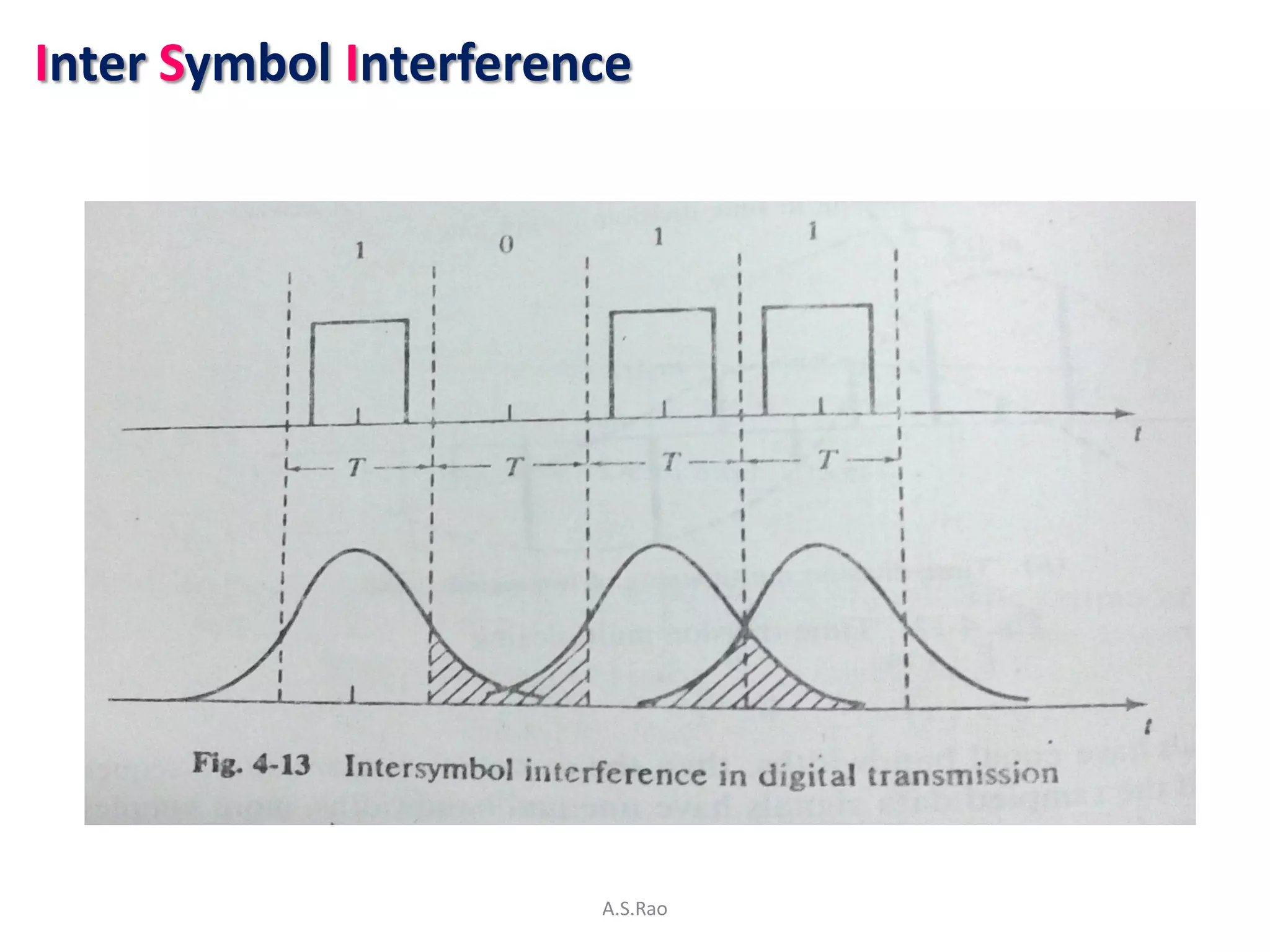

Inter Symbol Interference




                       A.S.Rao

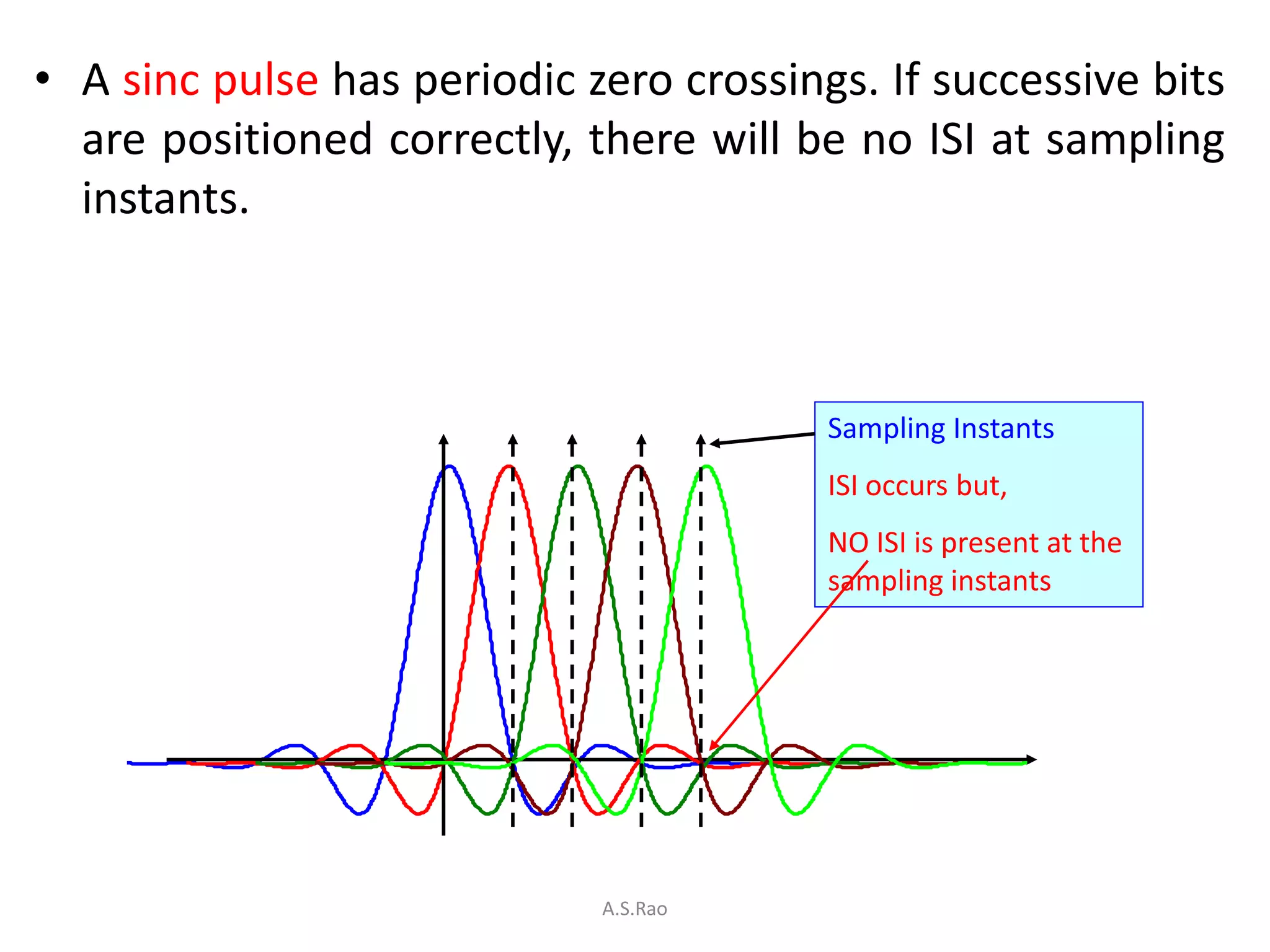

• A sinc pulse has periodic zero crossings. If successive bits
  are positioned correctly, there will be no ISI at sampling
  instants.



                                         Sampling Instants
                                         ISI occurs but,
                                         NO ISI is present at the
                                         sampling instants




                             A.S.Rao
Raised Cosine Filter




                       A.S.Rao

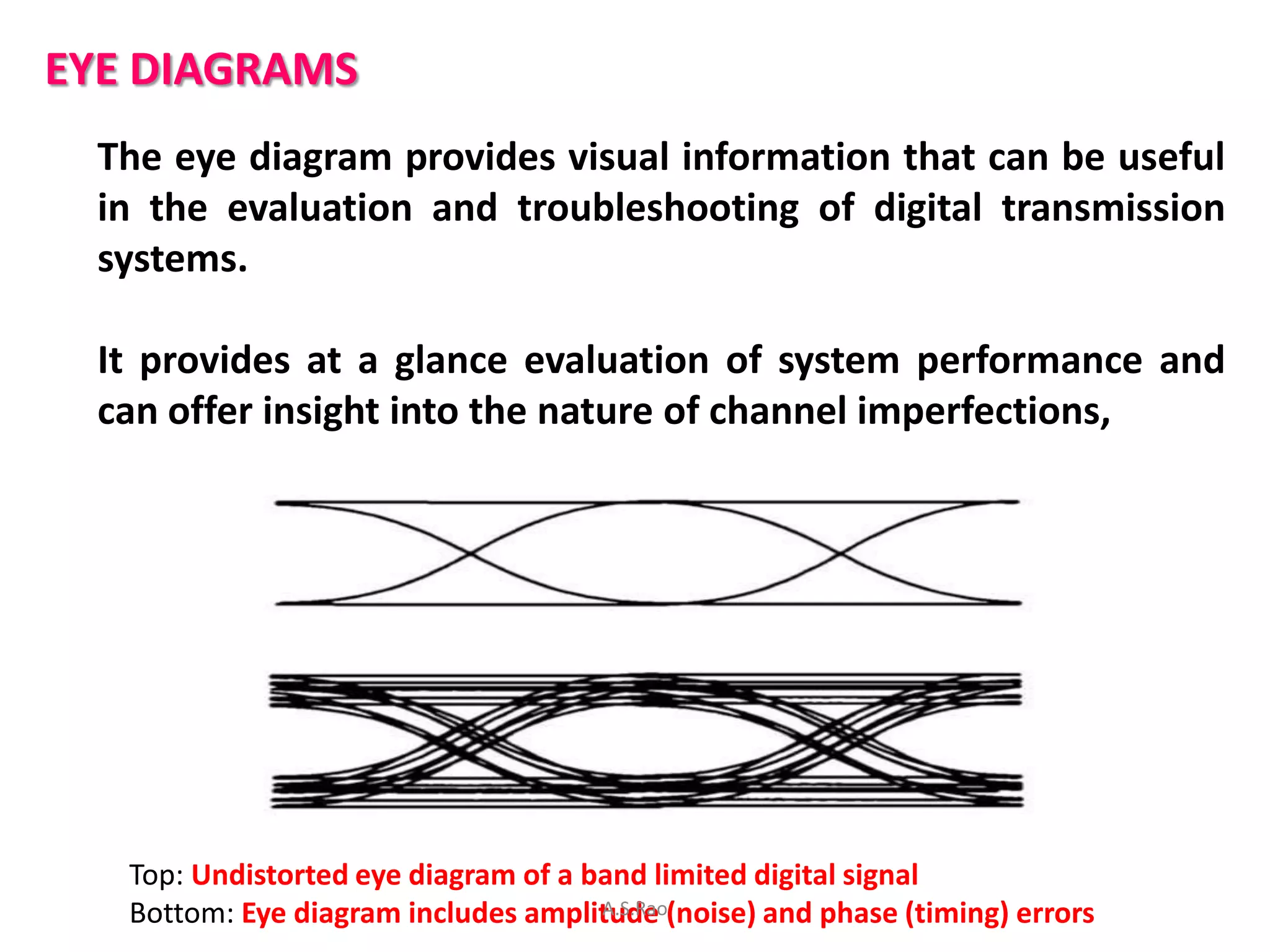

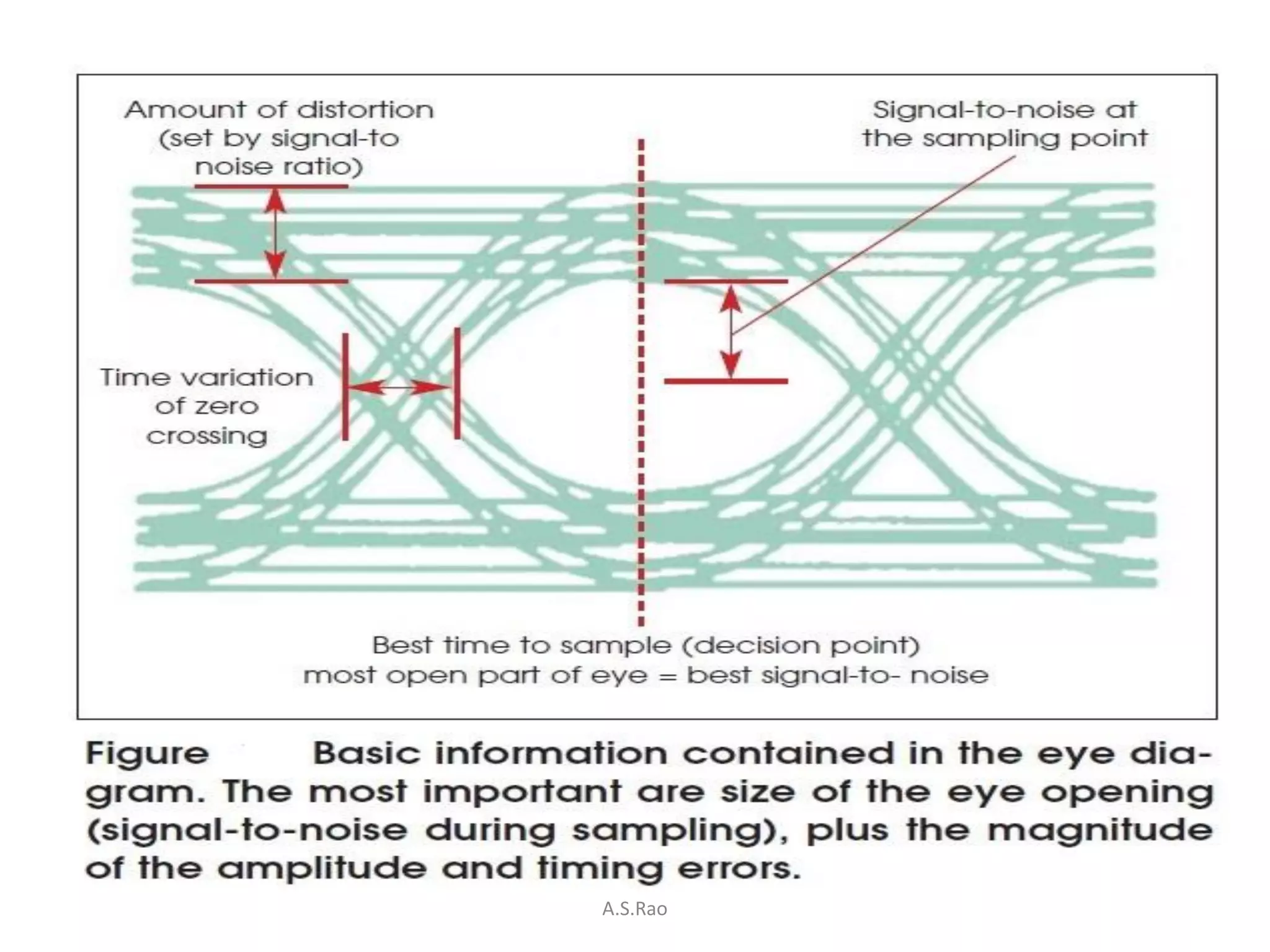

EYE DIAGRAMS
  The eye diagram provides visual information that can be useful
  in the evaluation and troubleshooting of digital transmission
  systems.

  It provides at a glance evaluation of system performance and
  can offer insight into the nature of channel imperfections,




   Top: Undistorted eye diagram of a band limited digital signal
   Bottom: Eye diagram includes amplitude (noise) and phase (timing) errors
                                      A.S.Rao
A.S.Rao

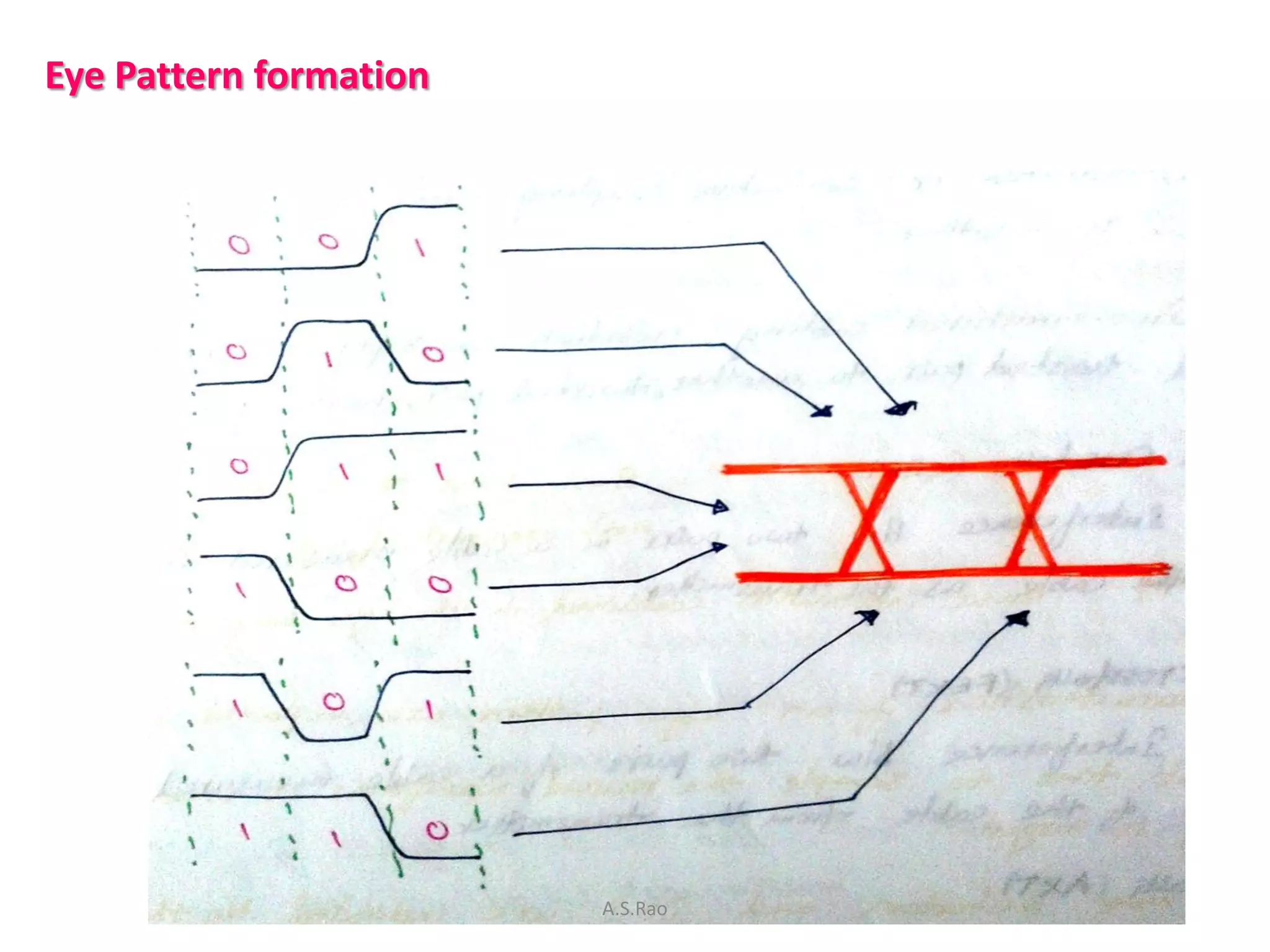

Eye Pattern formation




                        A.S.Rao

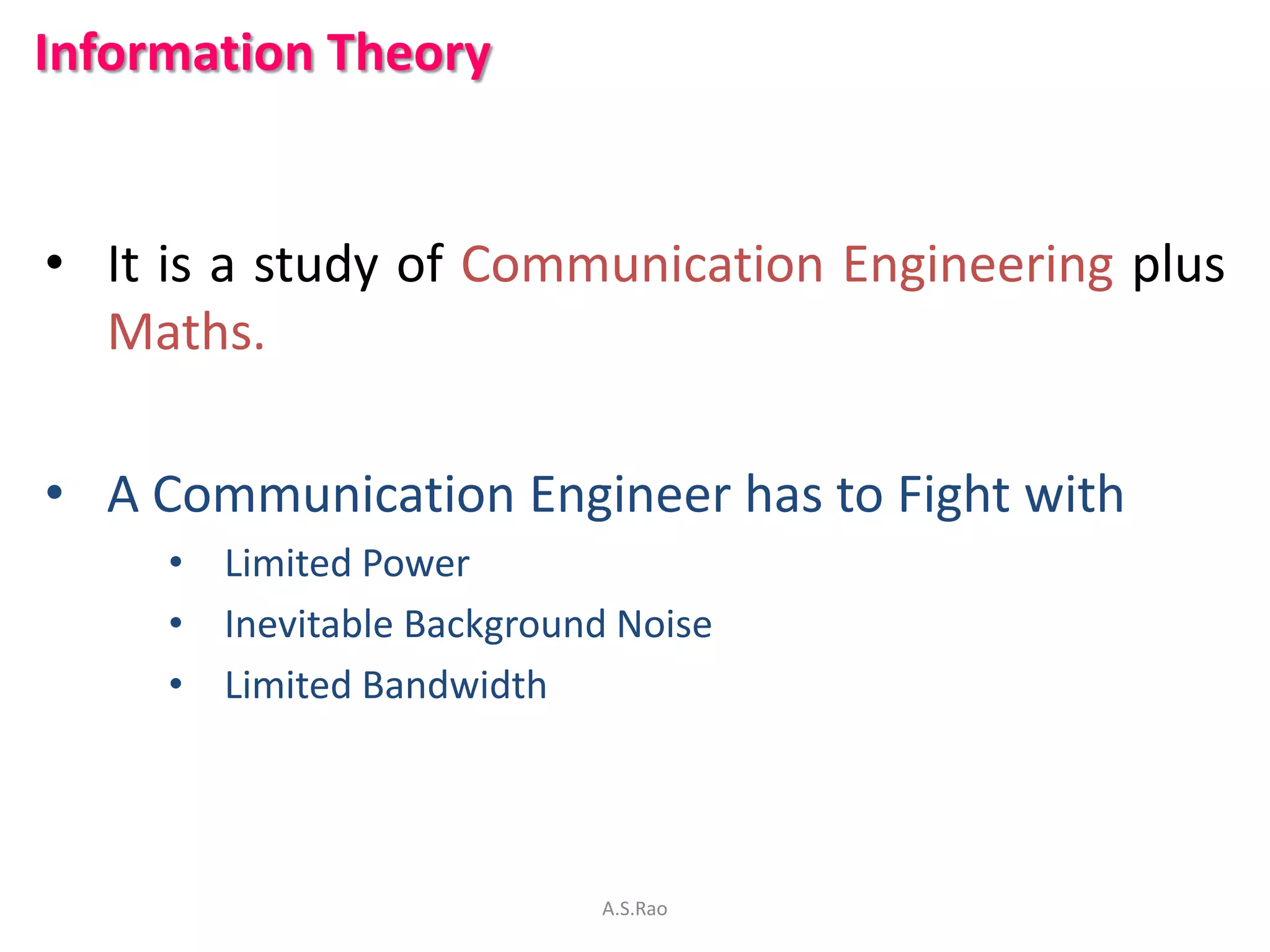

Information Theory


• It is a study of Communication Engineering plus
  Maths.

• A Communication Engineer has to Fight with
     • Limited Power
     • Inevitable Background Noise
     • Limited Bandwidth




                            A.S.Rao

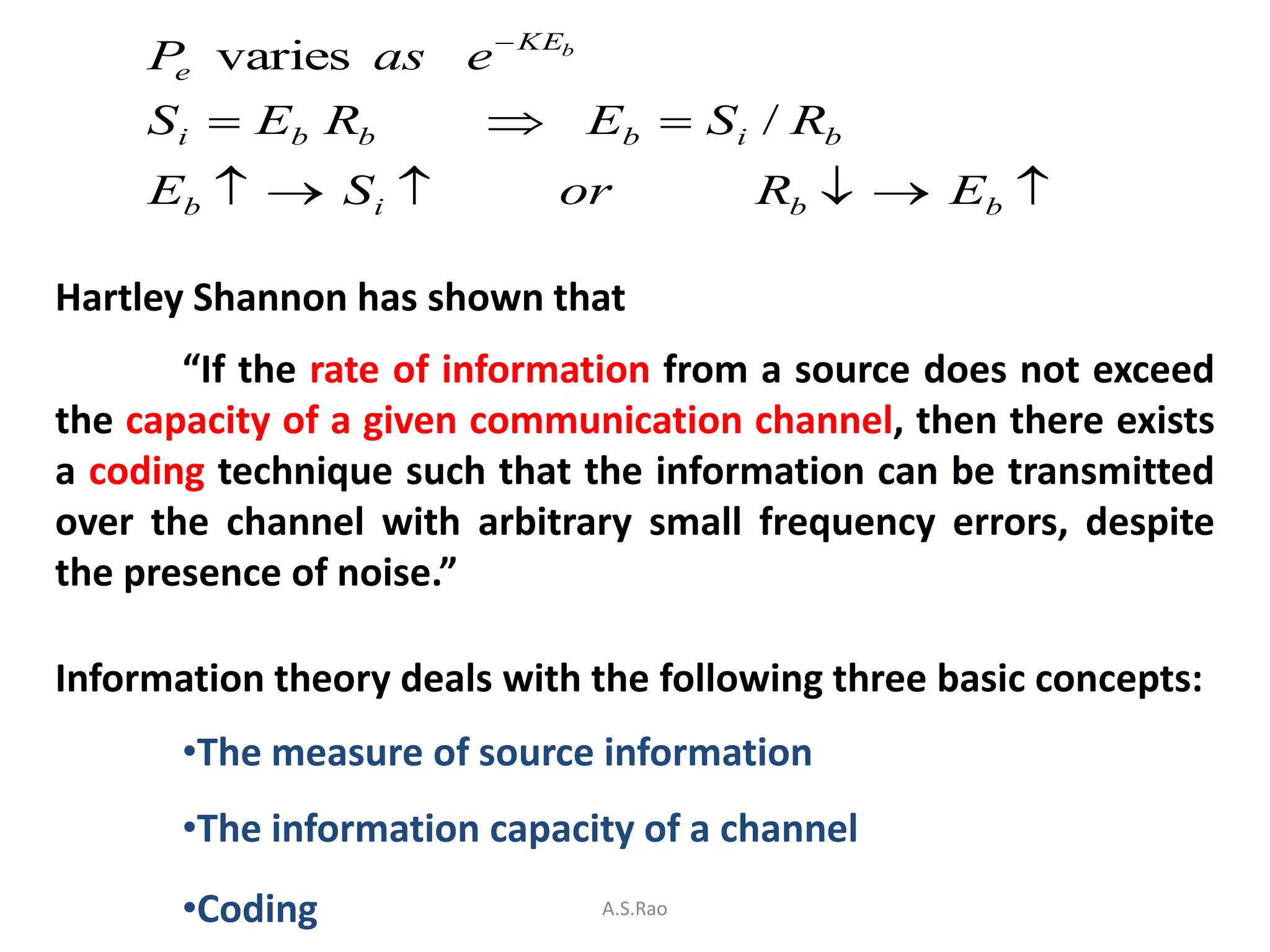

P varies as e  KEb
      e

     S i  Eb Rb         Eb  Si / Rb
     Eb   S i            or          Rb   Eb 

Hartley Shannon has shown that
       “If the rate of information from a source does not exceed
the capacity of a given communication channel, then there exists
a coding technique such that the information can be transmitted
over the channel with arbitrary small frequency errors, despite
the presence of noise.”

Information theory deals with the following three basic concepts:
       •The measure of source information
       •The information capacity of a channel
       •Coding                A.S.Rao

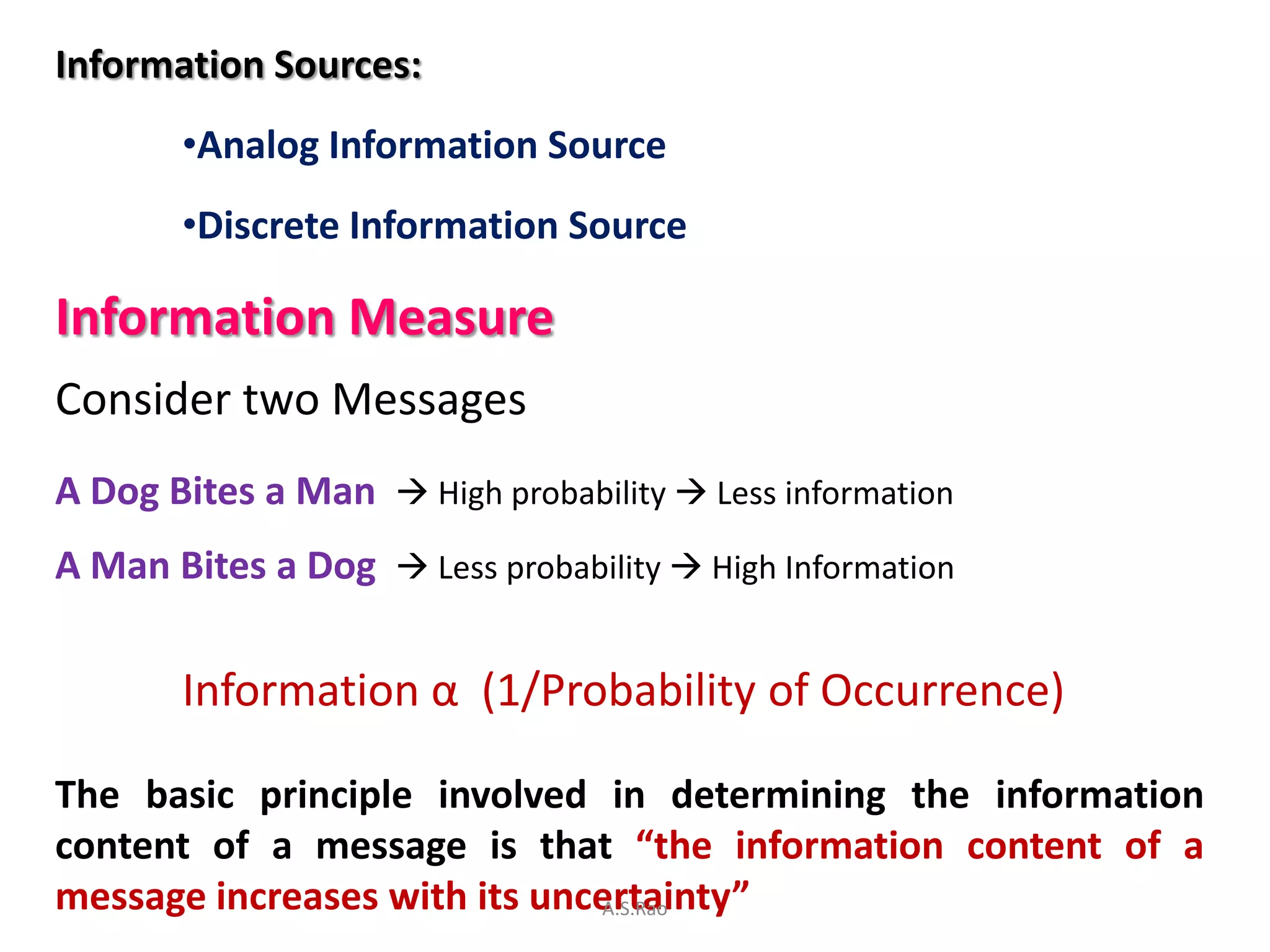

Information Sources:
       •Analog Information Source
       •Discrete Information Source

Information Measure
Consider two Messages
A Dog Bites a Man  High probability  Less information
A Man Bites a Dog  Less probability  High Information


       Information α (1/Probability of Occurrence)

The basic principle involved in determining the information
content of a message is that “the information content of a
message increases with its uncertainty”
                              A.S.Rao

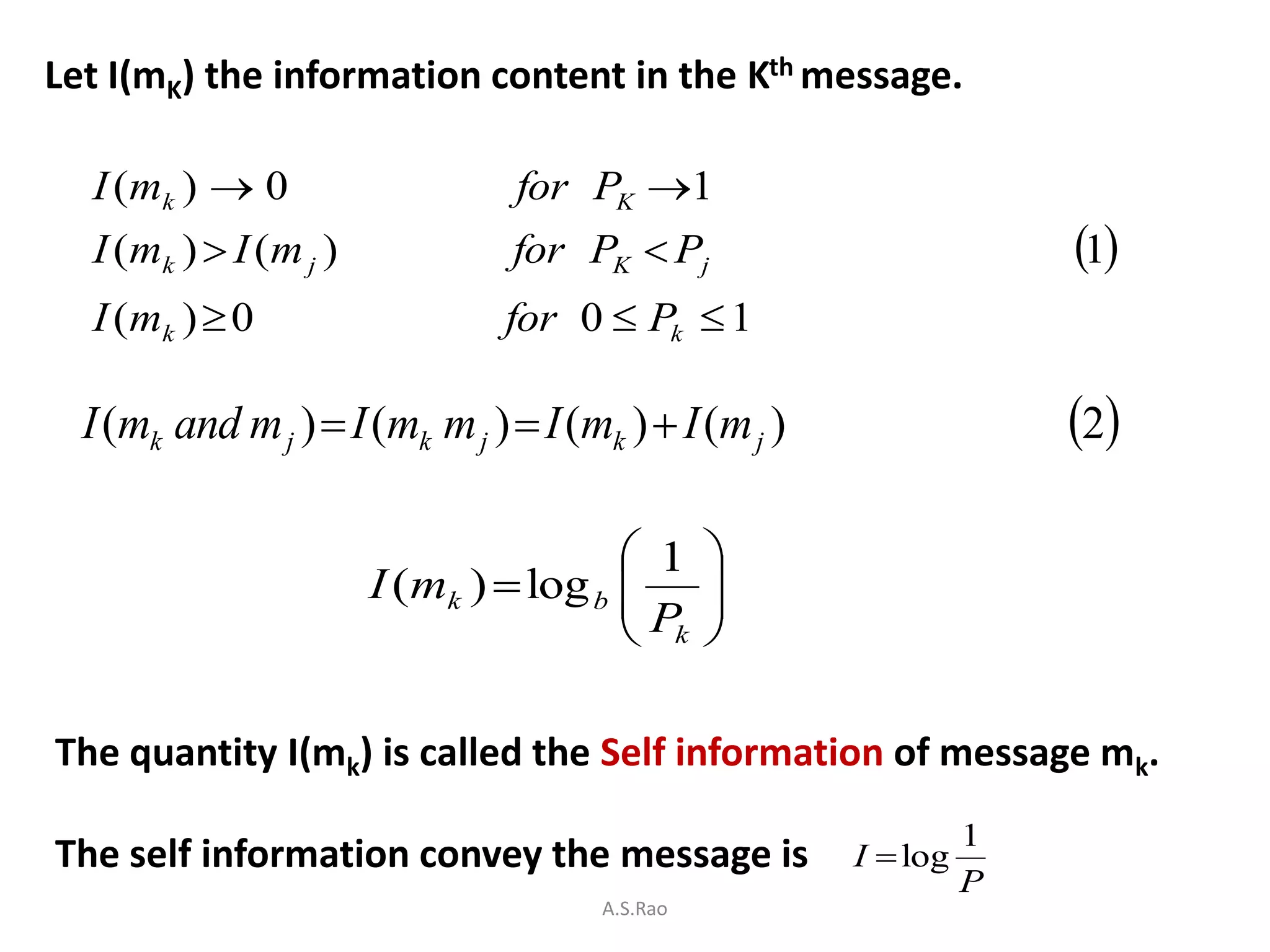

Let I(mK) the information content in the Kth message.

  I ( mk )  0                   for PK 1
  I ( mk )  I ( m j )           for PK  Pj                         1
  I ( mk )  0                   for 0  Pk  1

  I (mk and m j )  I (mk m j )  I (mk )  I (m j )                 2

                                          1    
                         I (mk )  log b 
                                         P     
                                                
                                          k    

The quantity I(mk) is called the Self information of message mk.
                                                                 1
The self information convey the message is             I  log
                                                                 P
                                      A.S.Rao

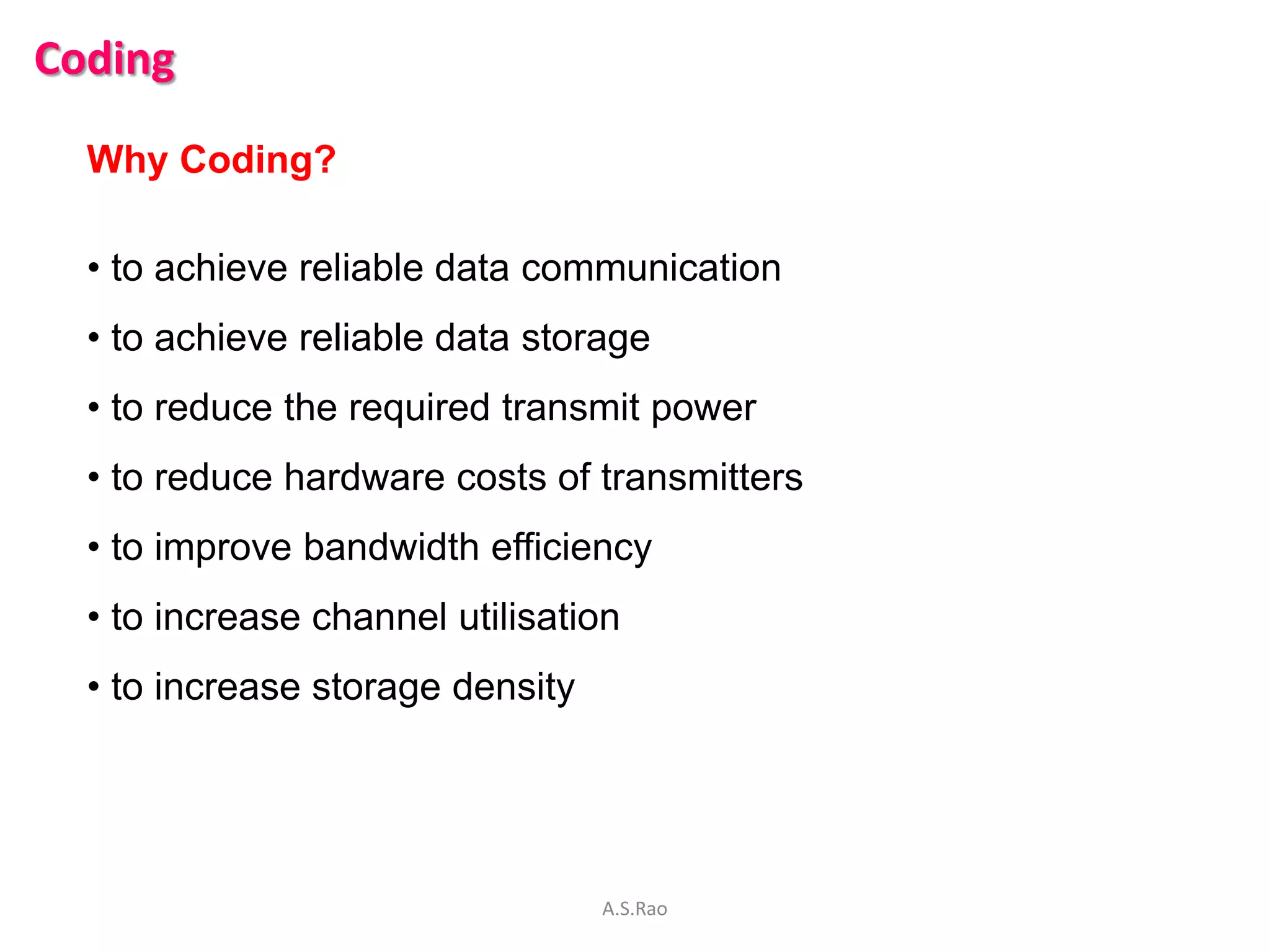

Coding

  Why Coding?

  • to achieve reliable data communication
  • to achieve reliable data storage
  • to reduce the required transmit power
  • to reduce hardware costs of transmitters
  • to improve bandwidth efficiency
  • to increase channel utilisation
  • to increase storage density




                                  A.S.Rao

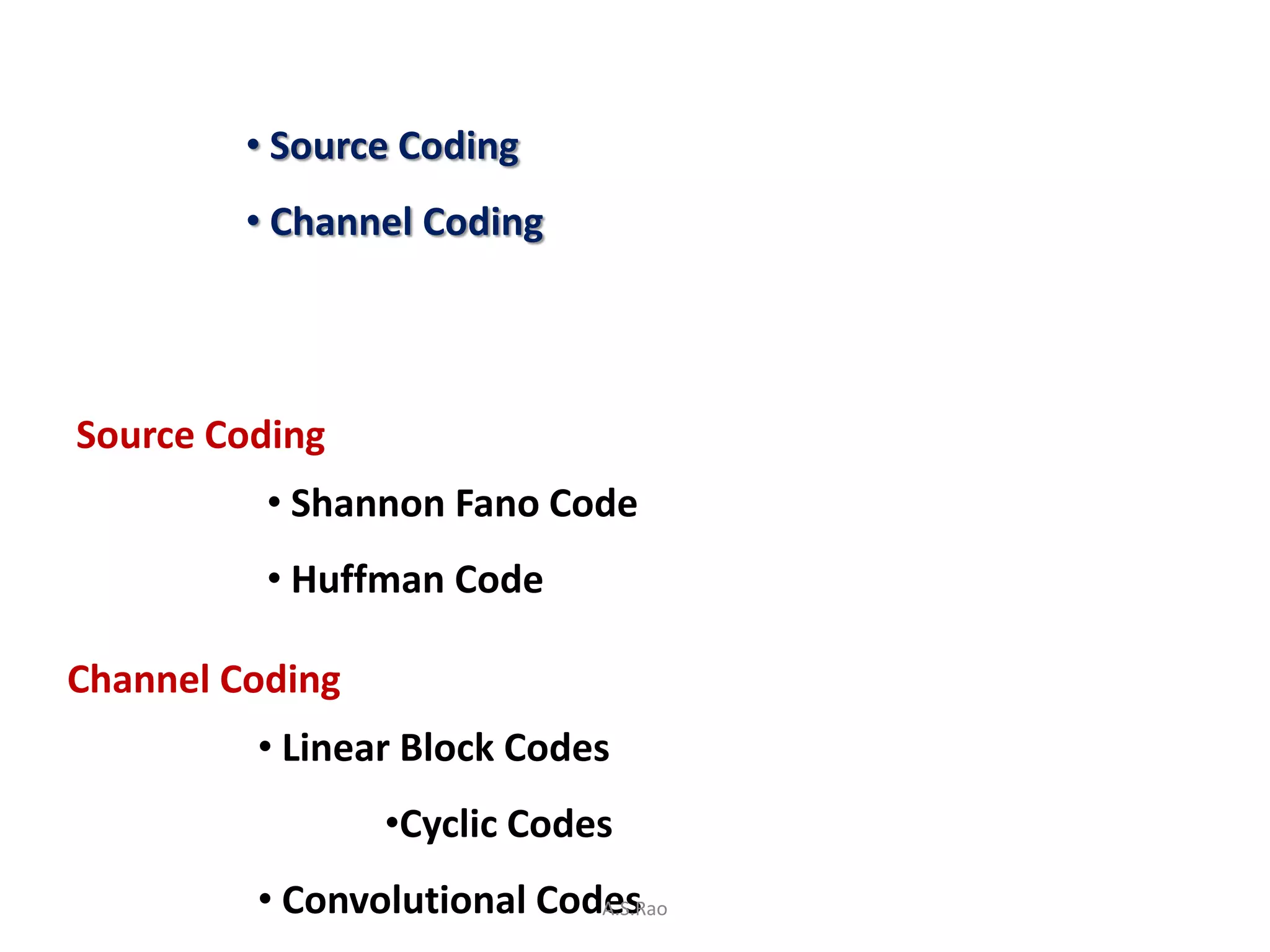

• Source Coding
         • Channel Coding




Source Coding
          • Shannon Fano Code
          • Huffman Code

Channel Coding
         • Linear Block Codes
                 •Cyclic Codes
         • Convolutional Codes
                            A.S.Rao

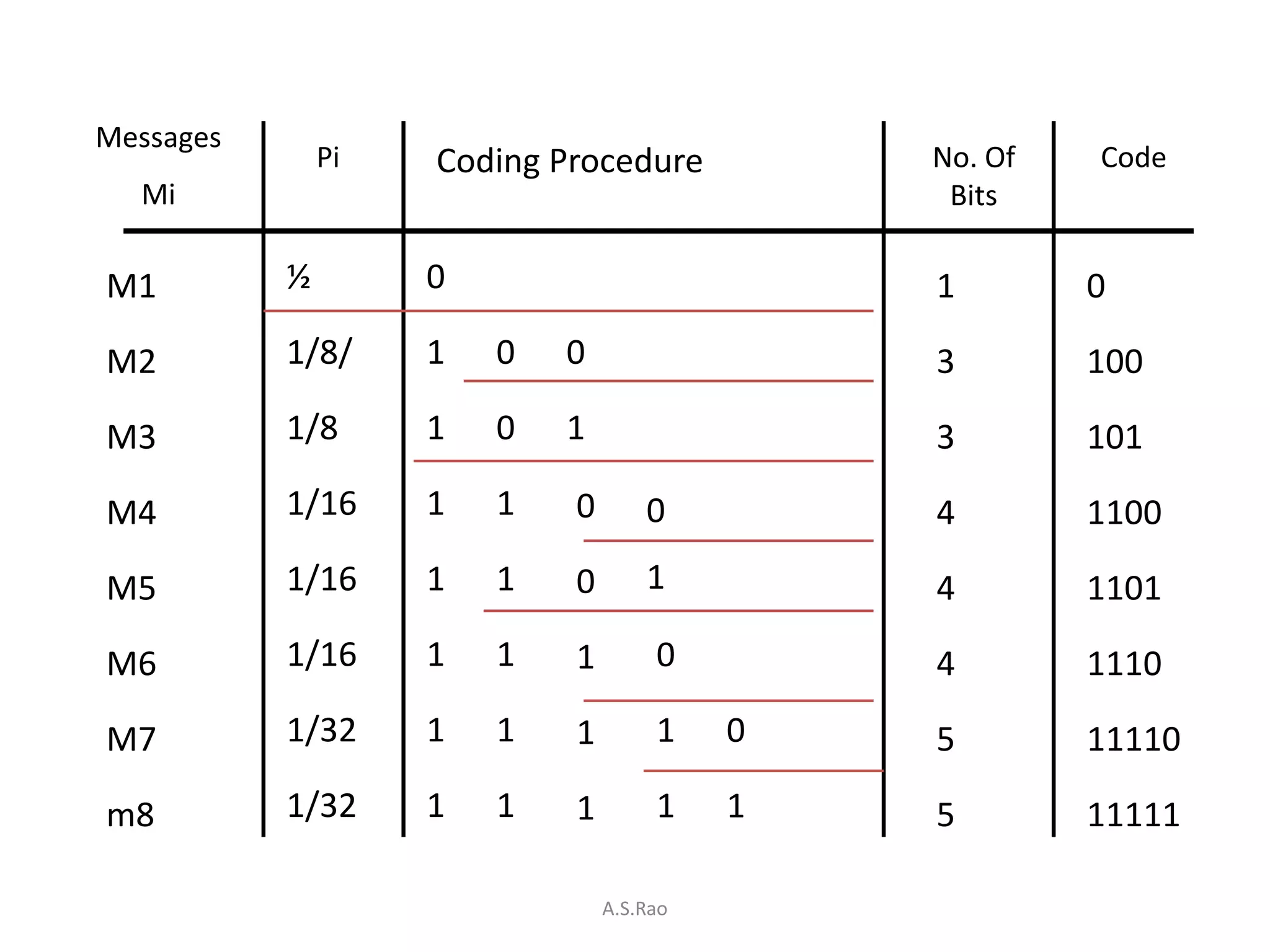

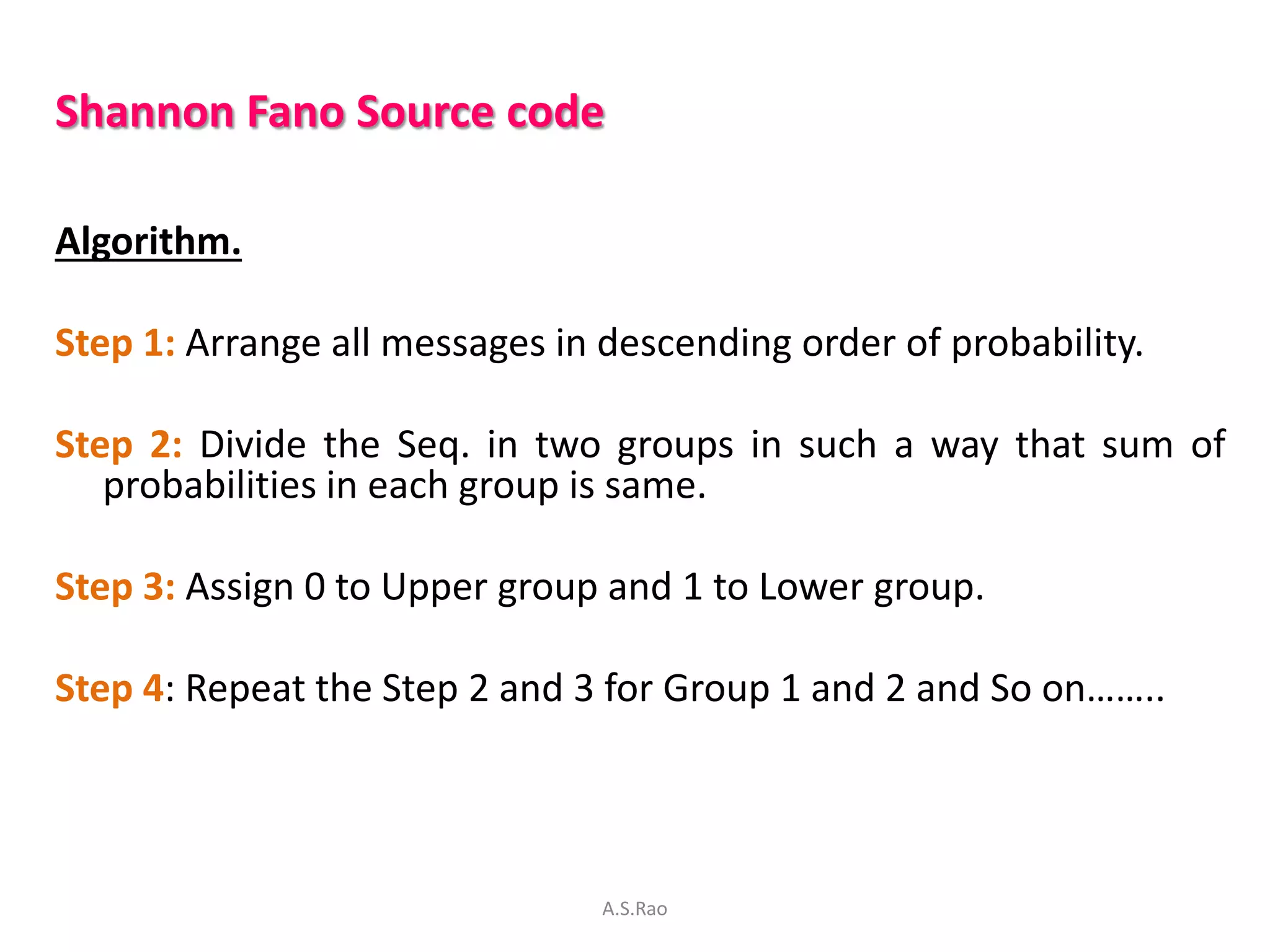

Shannon Fano Source code

Algorithm.

Step 1: Arrange all messages in descending order of probability.

Step 2: Divide the Seq. in two groups in such a way that sum of
   probabilities in each group is same.

Step 3: Assign 0 to Upper group and 1 to Lower group.

Step 4: Repeat the Step 2 and 3 for Group 1 and 2 and So on……..




                                A.S.Rao
Messages
               Pi   Coding Procedure          No. Of   Code
  Mi                                           Bits

M1         ½        0                         1        0

M2         1/8/     1   0   0                 3        100

M3         1/8      1   0   1                 3        101

M4         1/16     1   1   0       0         4        1100

M5         1/16     1   1   0       1         4        1101

M6         1/16     1   1   1        0        4        1110

M7         1/32     1   1   1        1    0   5        11110

m8         1/32     1   1   1        1    1   5        11111

                                A.S.Rao

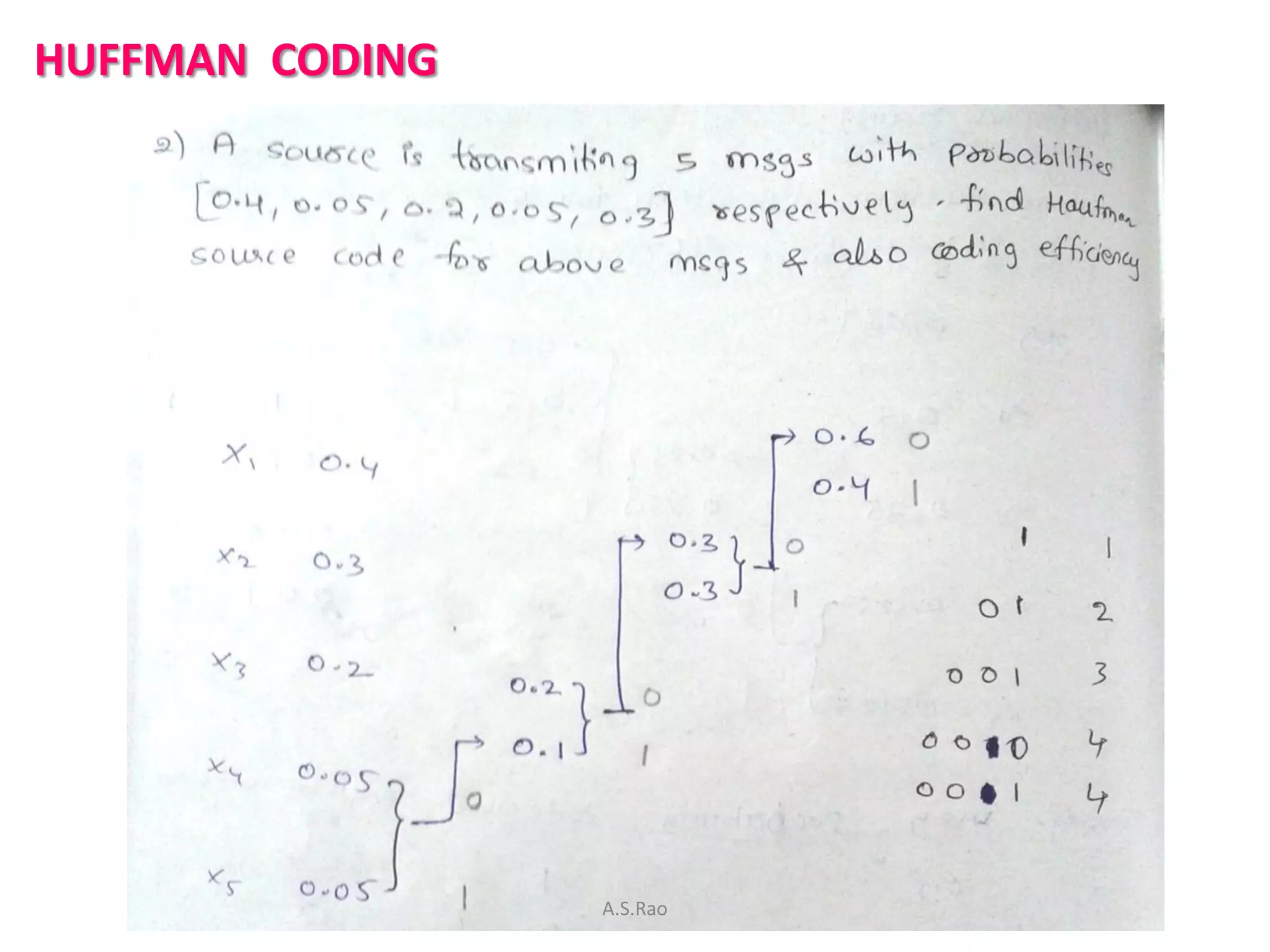

HUFFMAN CODING




                 A.S.Rao

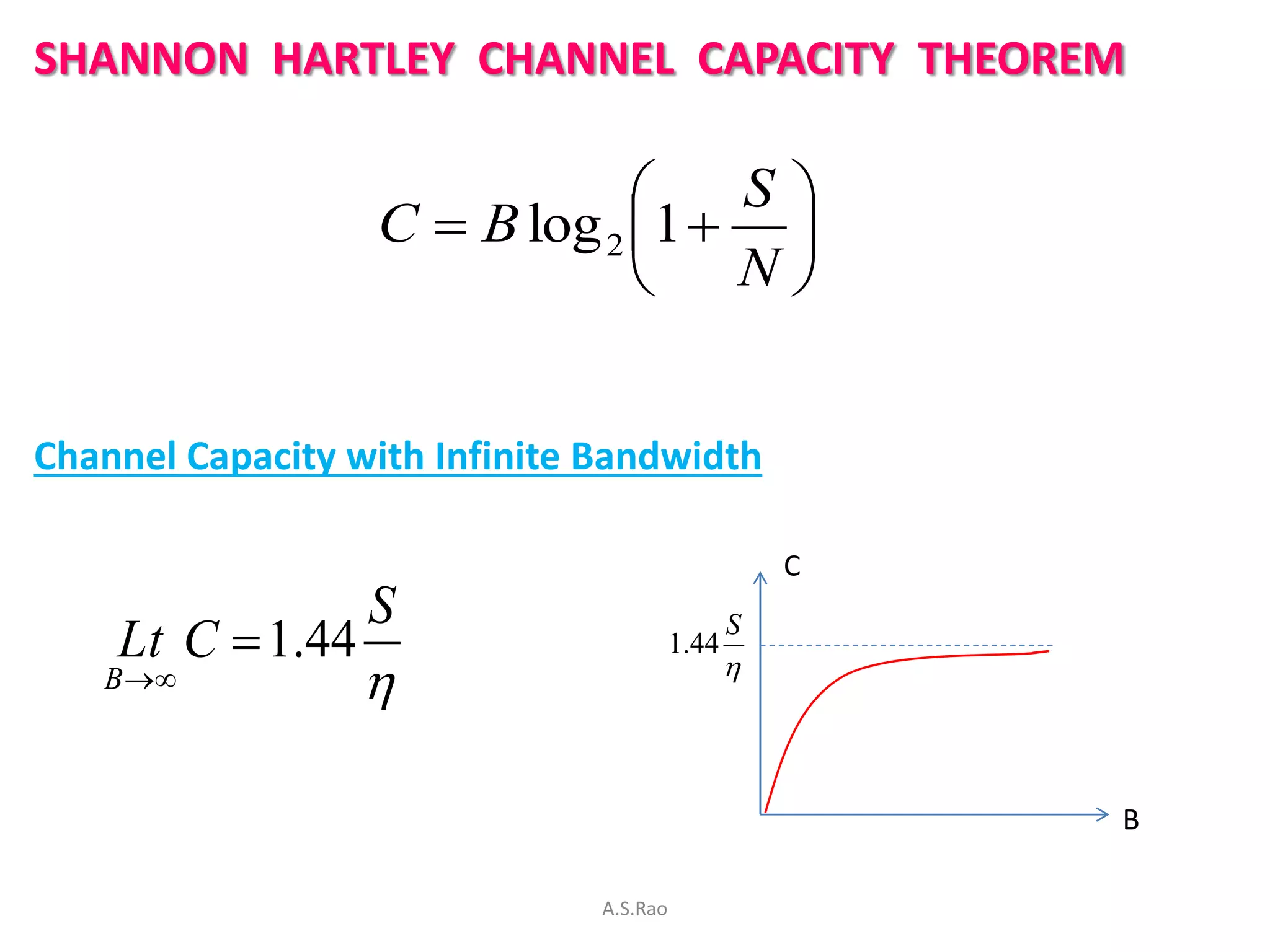

SHANNON HARTLEY CHANNEL CAPACITY THEOREM

                                 S
                  C  B log 2 1  
                                 N


Channel Capacity with Infinite Bandwidth

                                                    C
                  S
    Lt C  1.44                          1.44
                                                S
   B                                         



                                                        B

                               A.S.Rao
A.S.Rao

More Related Content

What's hot

Adaptive equalization
Adaptive equalizationAdaptive equalization
Adaptive equalization
Oladapo Abiodun

communication system ch1
communication system ch1communication system ch1
communication system ch1
moeen khan afridi

Introduction to Digital Communication
Introduction to Digital CommunicationIntroduction to Digital Communication
Introduction to Digital Communication
Dr. Sanjay M. Gulhane

Frequency hopping spread spectrum
Frequency hopping spread spectrumFrequency hopping spread spectrum
Frequency hopping spread spectrum
Harshit Gupta

MIMO Channel Capacity
MIMO Channel CapacityMIMO Channel Capacity
MIMO Channel Capacity
Pei-Che Chang

Introduction to equalization
Introduction to equalizationIntroduction to equalization
Introduction to equalization
Harshit Srivastava

Mimo
MimoMimo
Mimo
Virak Sou

10. types of small scale fading
10. types of small scale fading10. types of small scale fading
10. types of small scale fading
JAIGANESH SEKAR

Channel equalization
Channel equalizationChannel equalization
Channel equalization
Munnangi Anirudh

Pulse Modulation ppt
Pulse Modulation pptPulse Modulation ppt
Pulse Modulation ppt
sanjeev2419

Digital Communications Lecture 1
Digital Communications Lecture 1Digital Communications Lecture 1
Digital Communications Lecture 1
DrAimalKhan

QUADRATURE AMPLITUDE MODULATION
QUADRATURE AMPLITUDE MODULATIONQUADRATURE AMPLITUDE MODULATION
QUADRATURE AMPLITUDE MODULATION
AHSAN HALIMI

UNIT-1 Elements of Digital Communication
UNIT-1 Elements of Digital CommunicationUNIT-1 Elements of Digital Communication
UNIT-1 Elements of Digital Communication
abhishek reddy

Digital modulation basics(nnm)
Digital modulation basics(nnm)Digital modulation basics(nnm)
Digital modulation basics(nnm)
nnmaurya

Fundamentals of RF Systems
Fundamentals of RF SystemsFundamentals of RF Systems
Fundamentals of RF Systems
Yong Heui Cho

Speech coding techniques
Speech coding techniquesSpeech coding techniques
Speech coding techniques
Hemaraja Nayaka S

ISI & niquist Criterion.pptx
ISI & niquist Criterion.pptxISI & niquist Criterion.pptx
ISI & niquist Criterion.pptx
RahulAgarwal505237

Channel capacity
Channel capacityChannel capacity
Channel capacity
PALLAB DAS

Digital communication unit II
Digital communication unit IIDigital communication unit II
Digital communication unit II
Gangatharan Narayanan

Pulse Code Modulation (PCM)
Pulse Code Modulation (PCM)Pulse Code Modulation (PCM)
Pulse Code Modulation (PCM)
Arun c


What's hot (20)

Adaptive equalization
Adaptive equalizationAdaptive equalization
Adaptive equalization

communication system ch1
communication system ch1communication system ch1
communication system ch1

Introduction to Digital Communication
Introduction to Digital CommunicationIntroduction to Digital Communication
Introduction to Digital Communication

Frequency hopping spread spectrum
Frequency hopping spread spectrumFrequency hopping spread spectrum
Frequency hopping spread spectrum

MIMO Channel Capacity
MIMO Channel CapacityMIMO Channel Capacity
MIMO Channel Capacity

Introduction to equalization
Introduction to equalizationIntroduction to equalization
Introduction to equalization

Mimo
MimoMimo
Mimo

10. types of small scale fading
10. types of small scale fading10. types of small scale fading
10. types of small scale fading

Channel equalization
Channel equalizationChannel equalization
Channel equalization

Pulse Modulation ppt
Pulse Modulation pptPulse Modulation ppt
Pulse Modulation ppt

Digital Communications Lecture 1
Digital Communications Lecture 1Digital Communications Lecture 1
Digital Communications Lecture 1

QUADRATURE AMPLITUDE MODULATION
QUADRATURE AMPLITUDE MODULATIONQUADRATURE AMPLITUDE MODULATION
QUADRATURE AMPLITUDE MODULATION

UNIT-1 Elements of Digital Communication
UNIT-1 Elements of Digital CommunicationUNIT-1 Elements of Digital Communication
UNIT-1 Elements of Digital Communication

Digital modulation basics(nnm)
Digital modulation basics(nnm)Digital modulation basics(nnm)
Digital modulation basics(nnm)

Fundamentals of RF Systems
Fundamentals of RF SystemsFundamentals of RF Systems
Fundamentals of RF Systems

Speech coding techniques
Speech coding techniquesSpeech coding techniques
Speech coding techniques

ISI & niquist Criterion.pptx
ISI & niquist Criterion.pptxISI & niquist Criterion.pptx
ISI & niquist Criterion.pptx

Channel capacity
Channel capacityChannel capacity
Channel capacity

Digital communication unit II
Digital communication unit IIDigital communication unit II
Digital communication unit II

Pulse Code Modulation (PCM)
Pulse Code Modulation (PCM)Pulse Code Modulation (PCM)
Pulse Code Modulation (PCM)


Similar to Digital communications

Wireless SS.pptx
Wireless                                        SS.pptxWireless                                        SS.pptx
Wireless SS.pptx
Desalechali1

05 signal encodingtechniques
05 signal encodingtechniques05 signal encodingtechniques
05 signal encodingtechniques
Orbay Yeşil

1 wireless fundamentals
1 wireless fundamentals1 wireless fundamentals
1 wireless fundamentals
Venudhanraj

05 signal encodingtechniques
05 signal encodingtechniques05 signal encodingtechniques
05 signal encodingtechniques
chameli devi group of institutions

1 wireless fundamentals
1 wireless fundamentals1 wireless fundamentals
1 wireless fundamentals
Venudhanraj

RF fundamentals
RF fundamentalsRF fundamentals
RF fundamentals
Dhanraj Puduchery Venu

signal encoding techniques
signal encoding techniquessignal encoding techniques
signal encoding techniques
Srinivasa Rao

komdat5
komdat5komdat5
komdat5
pasca

365 digital basics before
365 digital basics before365 digital basics before
365 digital basics before
Jeff Francis

Cdma 101
Cdma 101Cdma 101
Cdma 101
SAFAREENA

Digital communications 1
Digital communications 1Digital communications 1
Digital communications 1
Jojie Cepeda

Digital Transmission 1.ppt
Digital Transmission 1.pptDigital Transmission 1.ppt
Digital Transmission 1.ppt
robomango

Encoding Techniques
Encoding TechniquesEncoding Techniques
Encoding Techniques
Goriha Naveed

Encoding techniques
Encoding techniquesEncoding techniques
Encoding techniques
Goriha Naveed

Carrier to Noise Versus Signal to Noise.ppt
Carrier to Noise Versus Signal to Noise.pptCarrier to Noise Versus Signal to Noise.ppt
Carrier to Noise Versus Signal to Noise.ppt
AbdulMaalik17

Modulation_techniques4th unit.pptx
Modulation_techniques4th unit.pptxModulation_techniques4th unit.pptx
Modulation_techniques4th unit.pptx
AshishChandrakar12

Digital communication systems Vemu Institute of technology
Digital communication systems Vemu Institute of technologyDigital communication systems Vemu Institute of technology
Digital communication systems Vemu Institute of technology
rgaula07

UNIT 2- UNDERSTANDING DIGITAL SIGNALS PART 2
UNIT 2- UNDERSTANDING DIGITAL SIGNALS PART 2UNIT 2- UNDERSTANDING DIGITAL SIGNALS PART 2
UNIT 2- UNDERSTANDING DIGITAL SIGNALS PART 2
LeahRachael

_Pulse-Modulation-Techniqnes.pdf
_Pulse-Modulation-Techniqnes.pdf_Pulse-Modulation-Techniqnes.pdf
_Pulse-Modulation-Techniqnes.pdf
SoyallRobi

Signal encoding techniques
Signal encoding techniquesSignal encoding techniques
Signal encoding techniques
Syed Zaid Irshad


Similar to Digital communications (20)

Wireless SS.pptx
Wireless                                        SS.pptxWireless                                        SS.pptx
Wireless SS.pptx

05 signal encodingtechniques
05 signal encodingtechniques05 signal encodingtechniques
05 signal encodingtechniques

1 wireless fundamentals
1 wireless fundamentals1 wireless fundamentals
1 wireless fundamentals

05 signal encodingtechniques
05 signal encodingtechniques05 signal encodingtechniques
05 signal encodingtechniques

1 wireless fundamentals
1 wireless fundamentals1 wireless fundamentals
1 wireless fundamentals

RF fundamentals
RF fundamentalsRF fundamentals
RF fundamentals

signal encoding techniques
signal encoding techniquessignal encoding techniques
signal encoding techniques

komdat5
komdat5komdat5
komdat5

365 digital basics before
365 digital basics before365 digital basics before
365 digital basics before

Cdma 101
Cdma 101Cdma 101
Cdma 101

Digital communications 1
Digital communications 1Digital communications 1
Digital communications 1

Digital Transmission 1.ppt
Digital Transmission 1.pptDigital Transmission 1.ppt
Digital Transmission 1.ppt

Encoding Techniques
Encoding TechniquesEncoding Techniques
Encoding Techniques

Encoding techniques
Encoding techniquesEncoding techniques
Encoding techniques

Carrier to Noise Versus Signal to Noise.ppt
Carrier to Noise Versus Signal to Noise.pptCarrier to Noise Versus Signal to Noise.ppt
Carrier to Noise Versus Signal to Noise.ppt

Modulation_techniques4th unit.pptx
Modulation_techniques4th unit.pptxModulation_techniques4th unit.pptx
Modulation_techniques4th unit.pptx

Digital communication systems Vemu Institute of technology
Digital communication systems Vemu Institute of technologyDigital communication systems Vemu Institute of technology
Digital communication systems Vemu Institute of technology

UNIT 2- UNDERSTANDING DIGITAL SIGNALS PART 2
UNIT 2- UNDERSTANDING DIGITAL SIGNALS PART 2UNIT 2- UNDERSTANDING DIGITAL SIGNALS PART 2
UNIT 2- UNDERSTANDING DIGITAL SIGNALS PART 2

_Pulse-Modulation-Techniqnes.pdf
_Pulse-Modulation-Techniqnes.pdf_Pulse-Modulation-Techniqnes.pdf
_Pulse-Modulation-Techniqnes.pdf

Signal encoding techniques
Signal encoding techniquesSignal encoding techniques
Signal encoding techniques


Digital communications

  • 1. A.SANYSI RAO AMIE; M.Tech; MISTE; MIETE Assoc. Professor Balaji Institute of Engineering & Sciences A.S.Rao
  • 2. Transformation of Information to Signals A.S.Rao
  • 3. Bandwidth A.S.Rao
  • 4. Bit Rate and Bit Interval A.S.Rao
  • 5. Corruption Due to Insufficient Bandwidth A.S.Rao
  • 6. Objective To send information •Reliability •As fast as possible Constraints Rules of the GAME •Limited transmit power •Limited Channel Bandwidth In our control We get to DESIGN the •Transmitter •Receiver as long they follow the rules of the GAME. Major Tools •Signals & Systems •Probability Theory A.S.Rao
  • 7. Analog versus Digital It is harder to separate noise from an analog signal than it is to separate noise from a digital signal. Noise in a digital signal. You can still discern a high voltage from a low voltage. A.S.Rao
  • 9. Bandwidth for Telephone Line A.S.Rao
  • 16. Ideal pulse shapes. Non ideal pulse shape. A.S.Rao
  • 18. Core Concepts of Digital Communications A.S.Rao
  • 19. Elements of a Digital Communication System Source of Source Channel Modulator Information Encoder Encoder Binary Stream Channel Use of Source Channel Demodulator Information Decoder Decoder
  • 20. Modified Diagram of a Digital Communication System From other Sources Source of Source Channel Encryptor MUX Modulator Information Encoder Encoder Channel Use of Source Channel DE- Decryptor Demodulator Information Decoder Decoder MUX To other Sources A.S.Rao
  • 21. • Can withstand channel noise and distortion much better as long as the noise and the distortion are within limits. • Regenerative repeaters prevent accumulation of noise along the path. • Digital hardware implementation is flexible. • Digital signals can be coded to yield extremely low error rates, high fidelity and well as privacy. • Digital communication is inherently more efficient than analog in realizing the exchange of SNR for bandwidth. • It is easier and more efficient to multiplex several digital signals. A.S.Rao
  • 22. • Digital signal storage is relatively easy and inexpensive. • Reproduction with digital messages is extremely reliable without deterioration. • The cost of digital hardware continues to halve every two or three years, while performance or capacity doubles over the same time period. Disadvantages • TDM digital transmission is not compatible with the FDM • A Digital system requires large bandwidth. A.S.Rao
  • 23. PCM System A.S.Rao
  • 26. •Quantization process •Quantization Error •Mean Square Value of Quantization Noise •SNR of PCM system A.S.Rao
  • 27. M  S   Q.E  n   S/N   BW  A.S.Rao
  • 29. Many signals such as speech have a nonuniform distribution. – The amplitude is more likely to be close to zero than to be at higher levels.  Nonuniform quantizers have unequally spaced levels Output sample 6 4 2 -8 -6 -4 -2 2 4 6 8 -2 Input sample -4 -6 A.S.Rao
  • 31. Companding in PCM •Non-uniform quantizers are expensive and difficult to make. •An alternative is to first pass the speech signal through a non linearity before quantizing with a uniform quantizer. •The non linearity causes the signal amplitude to be compressed. So the input to the quantizer will have a more uniform distribution. •At the receiver, the signal is expanded by an inverse to the nonlinearity. •The process of compressing and expanding is called Companding. A.S.Rao
  • 32. compression+expansion companding ˆ x x(t ) y (t ) ˆ y (t ) ˆ x(t ) x ˆ y Compress Uniform Qauntize Expand Transmitter Channel Receiver A.S.Rao
  • 34. Telephones in US, Canada and Japan use -law Companding. (=255) A-Law is used elsewhere to compress digital telephone signals. A.S.Rao
  • 37. Digital Formats A.S.Rao
  • 38. Differential PCM A.S.Rao
  • 39. •PCM is powerful, but quite complex coders and decoders are required. •An increase in resolution also requires a higher number of bits per sample. •The Delta Modulation is the most economical form of Digital Communication System since it requires only one bit per sample (either low pulse or high pulse) transmitted through the line. •Delta Modulation uses a single-bit PCM code to achieve digital transmission of analog signals. •Normally Sampled at high rate. A.S.Rao
  • 40.  When the step is decreased, ‘0’ is transmitted and if it is increased, ‘1’ is transmitted. Delta Modulation: Unique Features 1. No need for Word Framing because of one-bit code word. 2. Simple design for both Transmitter and Receiver. A.S.Rao
  • 41. DM Transmitter A.S.Rao
  • 42. DM Receiver Limitations / Problems of DM system •Slope over load error •Granular error (or) Hunting A.S.Rao
  • 43. Slope overload - when the analog input signal changes at a faster rate than the DAC can maintain. The slope of the analog signal is greater than the delta modulator can maintain and is called slope overload. Granular noise - It can be seen that when the original analog input signal has a relatively constant amplitude, the reconstructed signal has variations that were not present in the original signal. This is called granular noise. Granular noise in delta modulation is analogous to quantization noise in conventional PCM. A.S.Rao
  • 46. M- ary Signaling Multiple Signal Levels: Why use multiple signal levels? We can represent two levels with a single bit, 0 or 1. We can represent four levels with two bits: 00, 01, 10, 11. We can represent eight levels with three bits: 000, 001, 010, 011, 100, 101, 110, 111 Note that the number of levels is always a power of 2. M=2n A.S.Rao
  • 47. DIGITAL MODULATION Input Binary data Output Symbol/waveform A.S.Rao
  • 48. GOALS OF MODULATION TECHNIQUES • Low cost and ease of implementation • Low carrier-to-co channel interference ratio • Low-Cost/Low-Power Implementation • High Power Efficiency • High Bit Rate • High Spectral Efficiency A.S.Rao
  • 49. Bit Rate Vs Baud Rate Bit rate is the number of bits per second. Baud rate is the number of signal units (symbols) per second. Baud rate is less than or equal to the bit rate. A.S.Rao
  • 50. Modulation Units Bits/Baud Baud rate Bit Rate ASK, FSK, 2-PSK Bit 1 N N 4-PSK, 4-QAM Dibit 2 N 2N 8-PSK, 8-QAM Tribit 3 N 3N 16-QAM Quadbit 4 N 4N 32-QAM Pentabit 5 N 5N 64-QAM Hexabit 6 N 6N 128-QAM Septabit 7 N 7N 256-QAM Octabit 8 N 8N A.S.Rao
  • 52. ASK FSK A.S.Rao
  • 53. PSK A.S.Rao
  • 54. QPSK A.S.Rao
  • 55. 8 PSK A.S.Rao
  • 56. The 4-QAM and 8-QAM constellations A.S.Rao
  • 57. Time domain representation for an 8-QAM signal A.S.Rao
  • 59. Detection • Coherent Detection • Non Coherent Detection Bandwidth Efficiency Data Transmission Rate , rb  BW  M inimum Bandwidth, B 2 B TS log 2 M  BW  2 M    BW  A.S.Rao
  • 60. Matched Filter The ultimate task of a receiver is detection, i.e. deciding between 1’s and 0’s. This is done by sampling the received pulse and making a decision Matched filtering is a way to distinguish between two pulses with minimum error A.S.Rao
  • 61. Im pulse response of the Matched Filter is 2K h(t )  x(T  t ) N0 A.S.Rao
  • 64. • A sinc pulse has periodic zero crossings. If successive bits are positioned correctly, there will be no ISI at sampling instants. Sampling Instants ISI occurs but, NO ISI is present at the sampling instants A.S.Rao
  • 66. EYE DIAGRAMS The eye diagram provides visual information that can be useful in the evaluation and troubleshooting of digital transmission systems. It provides at a glance evaluation of system performance and can offer insight into the nature of channel imperfections, Top: Undistorted eye diagram of a band limited digital signal Bottom: Eye diagram includes amplitude (noise) and phase (timing) errors A.S.Rao
  • 69. Information Theory • It is a study of Communication Engineering plus Maths. • A Communication Engineer has to Fight with • Limited Power • Inevitable Background Noise • Limited Bandwidth A.S.Rao
  • 70. P varies as e  KEb e S i  Eb Rb  Eb  Si / Rb Eb   S i  or Rb   Eb  Hartley Shannon has shown that “If the rate of information from a source does not exceed the capacity of a given communication channel, then there exists a coding technique such that the information can be transmitted over the channel with arbitrary small frequency errors, despite the presence of noise.” Information theory deals with the following three basic concepts: •The measure of source information •The information capacity of a channel •Coding A.S.Rao
  • 71. Information Sources: •Analog Information Source •Discrete Information Source Information Measure Consider two Messages A Dog Bites a Man  High probability  Less information A Man Bites a Dog  Less probability  High Information Information α (1/Probability of Occurrence) The basic principle involved in determining the information content of a message is that “the information content of a message increases with its uncertainty” A.S.Rao
  • 72. Let I(mK) the information content in the Kth message. I ( mk )  0 for PK 1 I ( mk )  I ( m j ) for PK  Pj 1 I ( mk )  0 for 0  Pk  1 I (mk and m j )  I (mk m j )  I (mk )  I (m j ) 2  1  I (mk )  log b  P    k  The quantity I(mk) is called the Self information of message mk. 1 The self information convey the message is I  log P A.S.Rao
  • 73. Coding Why Coding? • to achieve reliable data communication • to achieve reliable data storage • to reduce the required transmit power • to reduce hardware costs of transmitters • to improve bandwidth efficiency • to increase channel utilisation • to increase storage density A.S.Rao
  • 74. • Source Coding • Channel Coding Source Coding • Shannon Fano Code • Huffman Code Channel Coding • Linear Block Codes •Cyclic Codes • Convolutional Codes A.S.Rao
  • 75. Shannon Fano Source code Algorithm. Step 1: Arrange all messages in descending order of probability. Step 2: Divide the Seq. in two groups in such a way that sum of probabilities in each group is same. Step 3: Assign 0 to Upper group and 1 to Lower group. Step 4: Repeat the Step 2 and 3 for Group 1 and 2 and So on…….. A.S.Rao
  • 76. Messages Pi Coding Procedure No. Of Code Mi Bits M1 ½ 0 1 0 M2 1/8/ 1 0 0 3 100 M3 1/8 1 0 1 3 101 M4 1/16 1 1 0 0 4 1100 M5 1/16 1 1 0 1 4 1101 M6 1/16 1 1 1 0 4 1110 M7 1/32 1 1 1 1 0 5 11110 m8 1/32 1 1 1 1 1 5 11111 A.S.Rao
  • 77. HUFFMAN CODING A.S.Rao
  • 78. SHANNON HARTLEY CHANNEL CAPACITY THEOREM  S C  B log 2 1    N Channel Capacity with Infinite Bandwidth C S Lt C  1.44 1.44 S B    B A.S.Rao
