Datwyler DCS IT-Safe The modular compact data center for the security of your IT infrastructure ● High-availability IT protection on less than 2 m2 ● Can be expanded, disassembled and reassembled ● Capacity of up to 56U or 62U ● Investment security – grows along with requirements ● Maximum protection against physical hazards ● EI 90 system test conforming to EN 1363 ● Self-locking double-leaf door as standard ● Rack with 1200 mm installation depth as standard ● Includes air conditioner and access control ● Air conditioning unit conforms to industry standard (continuous operation) ● Redundant air conditioning possible from 800 mm width onwards HxWxD: Capacity: 2185 x 1452 x 1470 mm 56U = 44U horizontal + 12U vertical 2425 x 1452 x 1470 mm 62U = 50U horizontal + 12U vertical Features: ● Compact split unit (cooling) ● Access control ● Hard/soft fittings ● 19" rack(s) Options: ● Fire detection and suppression ● Monitoring and energy efficiency systems ● UPS ● PDU ● Copper or FO data cabling ● 19" accessories ● EI 90 system test: at least 40 minutes compliance ● IP 56 with limit values conforming to EN 1047-2 ● Impervious to flue gas ● RC 2 burglary protection ● EMC and explosion protection Smoothly expandable via linking modules with click assembly

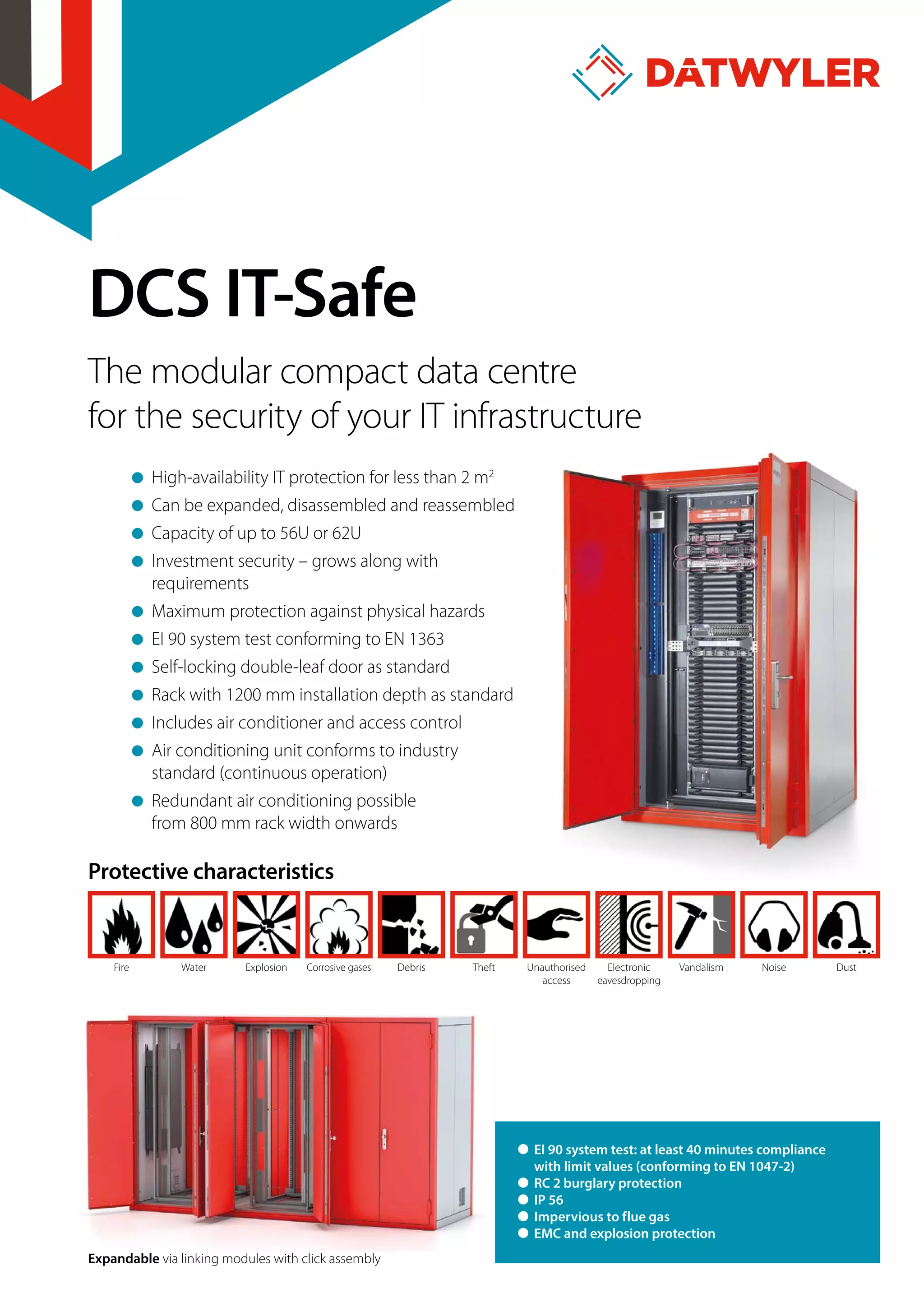

1. DCS IT-Safe
The modular compact data centre
for the security of your IT infrastructure
High-availability IT protection for less than 2 m2
Can be expanded, disassembled and reassembled
Capacity of up to 56U or 62U
Investment security – grows along with
requirements
Maximum protection against physical hazards
EI 90 system test conforming to EN 1363
Self-locking double-leaf door as standard
Rack with 1200 mm installation depth as standard
Includes air conditioner and access control
Air conditioning unit conforms to industry
standard (continuous operation)
Redundant air conditioning possible
from 800 mm rack width onwards
Protective characteristics
Fire Water Explosion Corrosive gases Debris Theft Unauthorised
access
Electronic
eavesdropping
Vandalism Noise Dust
Expandable via linking modules with click assembly
˜ EI 90 system test: at least 40 minutes compliance
with limit values (conforming to EN 1047-2)
˜ RC 2 burglary protection
˜ IP 56
˜ Impervious to flue gas
˜ EMC and explosion protection

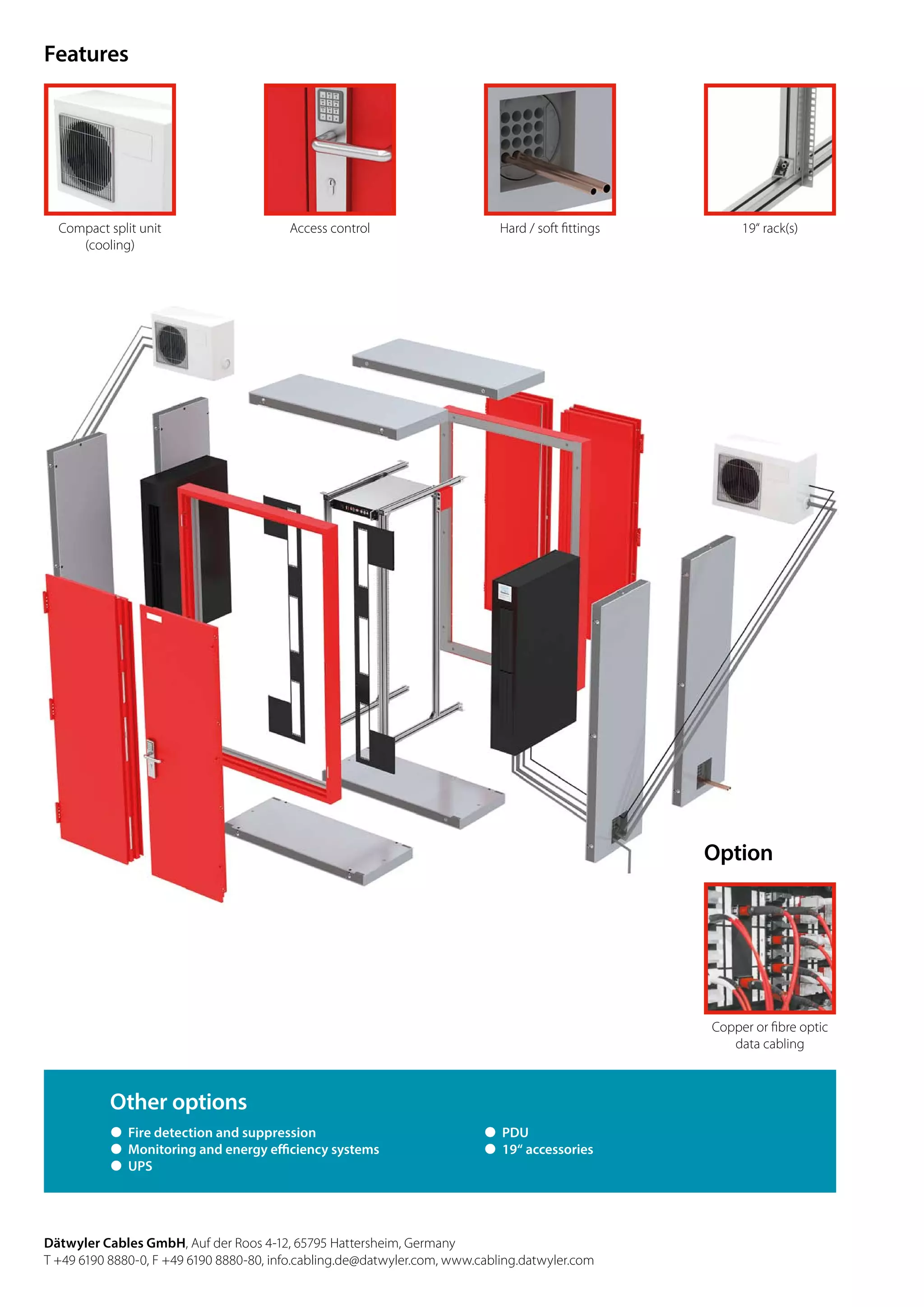

2. Features
Dätwyler Cables GmbH, Auf der Roos 4-12, 65795 Hattersheim, Germany
T +49 6190 8880-0, F +49 6190 8880-80, info.cabling.de@datwyler.com, www.cabling.datwyler.com
Compact split unit
(cooling)
Access control Hard / soft fittings 19“ rack(s)
Other options
˜ Fire detection and suppression
˜ Monitoring and energy efficiency systems
˜ UPS
˜ PDU
˜ 19“ accessories
Option
Copper or fibre optic
data cabling
