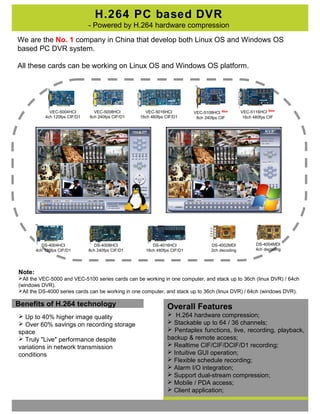

H.264 PC based DVR
- Powered by H.264 hardware compression
Benefits of H.264 technology
 Up to 40% higher image quality
 Over 60% savings on recording storage
space
 Truly "Live" performance despite
variations in network transmission
conditions
Overall Features
 H.264 hardware compression;
 Stackable up to 64 / 36 channels;
 Pentaplex functions, live, recording, playback,
backup & remote access;
 Realtime CIF/CIF/DCIF/D1 recording;
 Intuitive GUI operation;
 Flexible schedule recording;
 Alarm I/O integration;
 Support dual-stream compression;
 Mobile / PDA access;
 Client application;
VEC-5004HCI
4ch 120fps CIF/D1
VEC-5008HCI
8ch 240fps CIF/D1
VEC-5016HCI
16ch 480fps CIF/D1
VEC-5108HCI New
8ch 240fps CIF
DS-4004HCI
4ch 120fps CIF/D1
DS-4008HCI
8ch 240fps CIF/D1
DS-4016HCI
16ch 480fps CIF/D1
DS-4002MDI
2ch decoding
We are the No. 1 company in China that develop both Linux OS and Windows OS
based PC DVR system.
All these cards can be working on Linux OS and Windows OS platform.
Note:
All the VEC-5000 and VEC-5100 series cards can be working in one computer, and stack up to 36ch (linux DVR) / 64ch
(windows DVR).
All the DS-4000 series cards can be working in one computer, and stack up to 36ch (linux DVR) / 64ch (windows DVR).
DS-4004MDI
4ch decoding
VEC-5116HCI New
16ch 480fps CIF

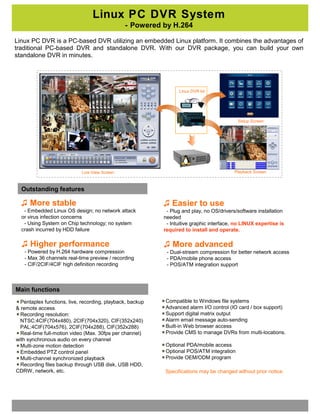

Linux PC DVR System
- Powered by H.264
Linux PC DVR is a PC-based DVR utilizing an embedded Linux platform. It combines the advantages of
traditional PC-based DVR and standalone DVR. With our DVR package, you can build your own
standalone DVR in minutes.
Linux DVR kit
Live View Screen
Setup Screen
Playback Screen
Outstanding features
♫ More stable
- Embedded Linux OS design; no network attack
or virus infection concerns
- Using System on Chip technology; no system
crash incurred by HDD failure
♫ Easier to use
- Plug and play, no OS/drivers/software installation
needed
- Intuitive graphic interface, no LINUX expertise is
required to install and operate.
♫ Higher performance
- Powered by H.264 hardware compression
- Max 36 channels real-time preview / recording
- CIF/2CIF/4CIF high definition recording
♫ More advanced
- Dual-stream compression for better network access
- PDA/mobile phone access
- POS/ATM integration support
Specifications may be changed without prior notice.
Main functions
Pentaplex functions, live, recording, playback, backup
& remote access
Recording resolution:
NTSC:4CIF(704x480), 2CIF(704x320), CIF(352x240)
PAL:4CIF(704x576), 2CIF(704x288), CIF(352x288)
Real-time full-motion video (Max. 30fps per channel)
with synchronous audio on every channel
Multi-zone motion detection
Embedded PTZ control panel
Multi-channel synchronized playback
Recording files backup through USB disk, USB HDD,
CDRW, network, etc.
Compatible to Windows file systems
Advanced alarm I/O control (IO card / box support)
Support digital matrix output
Alarm email message auto-sending
Built-in Web browser access
Provide CMS to manage DVRs from multi-locations.
Optional PDA/mobile access
Optional POS/ATM integration
Provide OEM/ODM program

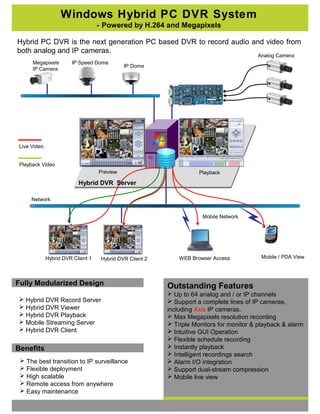

Windows Hybrid PC DVR System
- Powered by H.264 and Megapixels
Hybrid PC DVR is the next generation PC based DVR to record audio and video from
both analog and IP cameras.
Fully Modularized Design
 Hybrid DVR Record Server
 Hybrid DVR Viewer
 Hybrid DVR Playback
 Mobile Streaming Server
 Hybrid DVR Client
Benefits
 The best transition to IP surveillance
 Flexible deployment
 High scalable
 Remote access from anywhere
 Easy maintenance
Outstanding Features
 Up to 64 analog and / or IP channels
 Support a complete lines of IP cameras,
including Axis IP cameras.
 Max Megapixels resolution recording
 Triple Monitors for monitor & playback & alarm
 Intuitive GUI Operation
 Flexible schedule recording
 Instantly playback
 Intelligent recordings search
 Alarm I/O integration
 Support dual-stream compression
 Mobile live view
Hybrid DVR Client 1 Mobile / PDA ViewWEB Browser Access
Mobile Network
Hybrid DVR Client 2
Network
Playback Video
Hybrid DVR Server
Preview Playback
Megapixels
IP Camera
IP Speed Dome
IP Dome
Analog Camera
Live Video

Of NVR+ IP and Hybrid DVR system
Max 36ch simultaneously playback
- Time-line playback in both local and remote site
- Accurately synchronization between channels
- Fast/slow/frame by frame control
Instant playback
- Directly playback in preview screen to catch
events quickly
- Fast/slow/replay control, snapshot picture
Flexible recording schedule
- Record service at system backend, regardless
of channel preview or not.
- Any record combination of Continuous Record,
Alarm Record, Motion Detection Record, etc.
Intelligent search
- Quickly search motion events in archived video
- Define search accuracy by time / sensitivity /
region
Multiple Monitors Display
- Live video display on several monitors
- Archived video playback on separated monitor
- E-map with alarm events on separated monitor
3GPP mobile access
- Mobile live view (standard RTSP mobile stream)
- Also provide motion JPEGs for normal phones
access

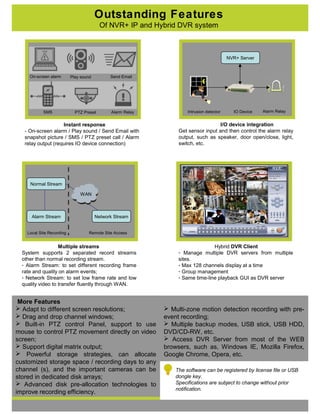

Instant response
- On-screen alarm / Play sound / Send Email with
snapshot picture / SMS / PTZ preset call / Alarm
relay output (requires IO device connection)
I/O device integration
Get sensor input and then control the alarm relay
output, such as speaker, door open/close, light,
switch, etc.
On-screen alarm Play sound Send Email
SMS PTZ Preset Alarm Relay
Multiple streams
System supports 2 separated record streams
other than normal recording stream.
- Alarm Stream: to set different recording frame
rate and quality on alarm events;
- Network Stream: to set low frame rate and low
quality video to transfer fluently through WAN.
Normal Stream
Network StreamAlarm Stream
WAN
Local Site Recording Remote Site Access
Intrusion detector
NVR+ Server
IO Device Alarm Relay
Hybrid DVR Client
- Manage multiple DVR servers from multiple
sites.
- Max 128 channels display at a time
- Group management
- Same time-line playback GUI as DVR server
More Features
 Adapt to different screen resolutions;
 Drag and drop channel windows;
 Built-in PTZ control Panel, support to use
mouse to control PTZ movement directly on video
screen;
 Support digital matrix output;
 Powerful storage strategies, can allocate
customized storage space / recording days to any
channel (s), and the important cameras can be
stored in dedicated disk arrays;
 Advanced disk pre-allocation technologies to
improve recording efficiency.
 Multi-zone motion detection recording with pre-
event recording;
 Multiple backup modes, USB stick, USB HDD,
DVD/CD-RW, etc.
 Access DVR Server from most of the WEB
browsers, such as, Windows IE, Mozilla Firefox,
Google Chrome, Opera, etc.
The software can be registered by license file or USB
dongle key.
Specifications are subject to change without prior
notification.
Of NVR+ IP and Hybrid DVR system

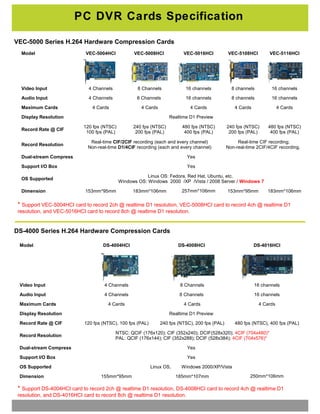

PC DVR Cards Specification
Model DS-4004HCI DS-4008HCI DS-4016HCI
　　　　
Video Input 4 Channels 8 Channels 16 channels
Audio Input 4 Channels 8 Channels 16 channels
Maximum Cards 4 Cards 4 Cards 4 Cards
Display Resolution Realtime D1 Preview
Record Rate @ CIF 120 fps (NTSC), 100 fps (PAL) 240 fps (NTSC), 200 fps (PAL) 480 fps (NTSC), 400 fps (PAL)
Record Resolution
NTSC: QCIF (176x120); CIF (352x240); DCIF(528x320); 4CIF (704x480)*
PAL: QCIF (176x144); CIF (352x288); DCIF (528x384); 4CIF (704x576)*
Dual-stream Compress Yes
Support I/O Box Yes
OS Supported Linux OS, Windows 2000/XP/Vista
Dimension 155mm*95mm 185mm*107mm 250mm*106mm
DS-4000 Series H.264 Hardware Compression Cards
* Support DS-4004HCI card to record 2ch @ realtime D1 resolution, DS-4008HCI card to record 4ch @ realtime D1
resolution, and DS-4016HCI card to record 8ch @ realtime D1 resolution.
Model VEC-5004HCI VEC-5008HCI VEC-5016HCI VEC-5108HCI VEC-5116HCI
　　　　　
Video Input 4 Channels 8 Channels 16 channels 8 channels 16 channels
Audio Input 4 Channels 8 Channels 16 channels 8 channels 16 channels
Maximum Cards 4 Cards 4 Cards 4 Cards 4 Cards 4 Cards
Display Resolution Realtime D1 Preview
Record Rate @ CIF
120 fps (NTSC)
100 fps (PAL)
240 fps (NTSC)
200 fps (PAL)
480 fps (NTSC)
400 fps (PAL)
240 fps (NTSC)
200 fps (PAL)
480 fps (NTSC)
400 fps (PAL)
Record Resolution
Real-time CIF/2CIF recording (each and every channel)
Non-real-time D1/4CIF recording (each and every channel)
Real-time CIF recording;
Non-real-time 2CIF/4CIF recording.
Dual-stream Compress Yes
Support I/O Box Yes
OS Supported
Linux OS: Fedora, Red Hat, Ubuntu, etc.
Windows OS: Windows 2000 /XP /Vista / 2008 Server / Windows 7
Dimension 153mm*95mm 183mm*106mm 257mm*106mm 153mm*95mm 183mm*106mm
VEC-5000 Series H.264 Hardware Compression Cards
* Support VEC-5004HCI card to record 2ch @ realtime D1 resolution, VEC-5008HCI card to record 4ch @ realtime D1
resolution, and VEC-5016HCI card to record 8ch @ realtime D1 resolution.
