This document provides information on several products from LinoVision, including DVRs, NVRs, and IP cameras. It describes the key features and specifications of their economical DVR and NVR models for 4, 8, and 16 channels. It also lists models of their VEC series of IP cameras that vary in image sensor type, maximum resolution, IR distance, housing type, and other specifications. Their NVR+ video management software is also summarized as allowing remote access to surveillance systems via desktop, laptop, or mobile devices.

1. LinoVision Products

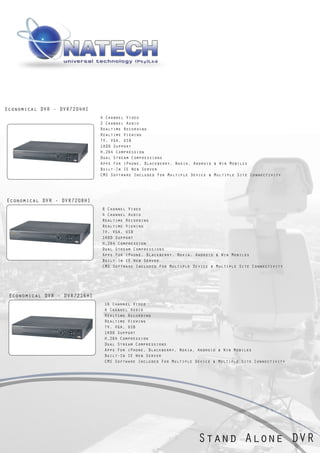

2. Economical DVR - DVR7204HI
4 Channel Video
2 Channel Audio
Realtime Recording
Realtime Viewing
TV, VGA, USB
1HDD Support
H.264 Compression
Dual Stream Compressions
Apps For iPhone, Blackberry, Nokia, Android & Win Mobiles
Built-In IE Web Server
CMS Software Included For Multiple Device & Multiple Site Connectivity
Economical DVR - DVR7208HI
8 Channel Video
4 Channel Audio
Realtime Recording
Realtime Viewing
TV, VGA, USB
1HDD Support
H.264 Compression
Dual Stream Compressions
Apps For iPhone, Blackberry, Nokia, Android & Win Mobiles
Built-In IE Web Server
CMS Software Included For Multiple Device & Multiple Site Connectivity
Economical DVR - DVR7216HI
16 Channel Video
4 Channel Audio
Realtime Recording
Realtime Viewing
TV, VGA, USB
1HDD Support
H.264 Compression
Dual Stream Compressions
Apps For iPhone, Blackberry, Nokia, Android & Win Mobiles
Built-In IE Web Server
CMS Software Included For Multiple Device & Multiple Site Connectivity
Stand Alone DVR

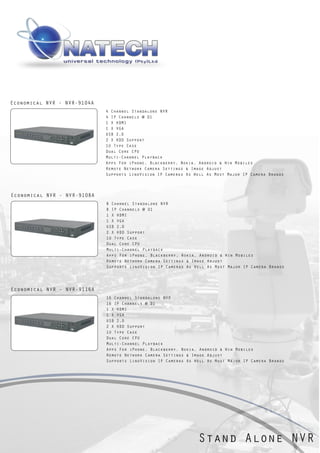

3. Economical NVR - NVR-9104A
4 Channel Standalone NVR
4 IP Channels @ D1
1 X HDMI
1 X VGA
USB 2.0
2 X HDD Support
1U Type Case
Dual Core CPU
Multi-Channel Playback
Apps For iPhone, Blackberry, Nokia, Android & Win Mobiles
Remote Network Camera Settings & Image Adjust
Supports LinoVision IP Cameras As Well As Most Major IP Camera Brands
Economical NVR - NVR-9108A
8 Channel Standalone NVR
8 IP Channels @ D1
1 X HDMI
1 X VGA
USB 2.0
2 X HDD Support
1U Type Case
Dual Core CPU
Multi-Channel Playback
Apps For iPhone, Blackberry, Nokia, Android & Win Mobiles
Remote Network Camera Settings & Image Adjust
Supports LinoVision IP Cameras As Well As Most Major IP Camera Brands
Economical NVR - NVR-9116A
16 Channel Standalone NVR
16 IP Channels @ D1
1 X HDMI
1 X VGA
USB 2.0
2 X HDD Support
1U Type Case
Dual Core CPU
Multi-Channel Playback
Apps For iPhone, Blackberry, Nokia, Android & Win Mobiles
Remote Network Camera Settings & Image Adjust
Supports LinoVision IP Cameras As Well As Most Major IP Camera Brands
Stand Alone NVR

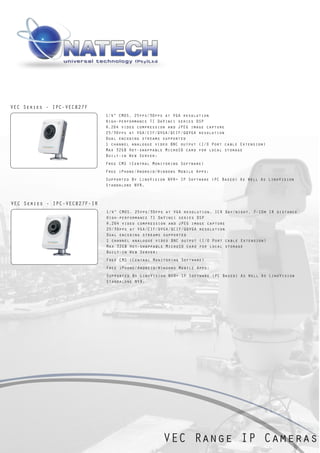

4. VEC Series - IPC-VEC827F
1/4” CMOS, 25fps/30fps at VGA resolution
High-performance TI DaVinci series DSP
H.264 video compression and JPEG image capture
25/30fps at VGA/CIF/QVGA/QCIF/QQVGA resolution
Dual encoding streams supported
1 channel analogue video BNC output (I/O Port cable Extension)
Max 32GB Hot-swappable MicroSD card for local storage
Built-in Web Server;
Free CMS (Central Monitoring Software)
Free iPhone/Android/Windows Mobile Apps;
Supported By LinoVision NVR+ IP Software (PC Based) As Well As LinoVision
Standalone NVR.
VEC Series - IPC-VEC827F-IR
1/4” CMOS, 25fps/30fps at VGA resolution, ICR Day/night, 7-10m IR distance
High-performance TI DaVinci series DSP
H.264 video compression and JPEG image capture
25/30fps at VGA/CIF/QVGA/QCIF/QQVGA resolution
Dual encoding streams supported
1 channel analogue video BNC output (I/O Port cable Extension)
Max 32GB Hot-swappable MicroSD card for local storage
Built-in Web Server;
Free CMS (Central Monitoring Software)
Free iPhone/Android/Windows Mobile Apps;
Supported By LinoVision NVR+ IP Software (PC Based) As Well As LinoVision
Standalone NVR.
VEC Range IP Cameras

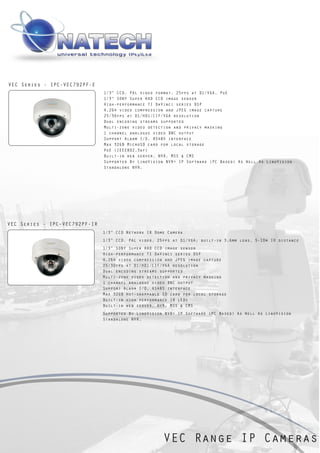

5. VEC Series - IPC-VEC792PF-E
1/3” CCD, PAL video format, 25fps at D1/VGA, PoE
1/3” SONY Super HAD CCD image sensor
High-performance TI DaVinci series DSP
H.264 video compression and JPEG image capture
25/30fps at D1/HD1/CIF/VGA resolution
Dual encoding streams supported
Multi-zone video detection and privacy masking
1 channel analogue video BNC output
Support Alarm I/O, RS485 interface
Max 32GB MicroSD card for local storage
PoE (IEEE802.3af)
Built-in web server, NVR, MSS & CMS
Supported By LinoVision NVR+ IP Software (PC Based) As Well As LinoVision
Standalone NVR.
VEC Series - IPC-VEC792PF-IR
1/3” CCD Network IR Dome Camera
1/3” CCD, PAL video, 25fps at D1/VGA; built-in 3.6mm lens, 5-10m IR distance
1/3” SONY Super HAD CCD image sensor
High-performance TI DaVinci series DSP
H.264 video compression and JPEG image capture
25/30fps at D1/HD1/CIF/VGA resolution
Dual encoding streams supported
Multi-zone video detection and privacy masking
1 channel analogue video BNC output
Support Alarm I/O, RS485 interface
Max 32GB Hot-swappable SD card for local storage
Built-in high performance IR LEDs
Built-in web server, NVR, MSS & CMS
Supported By LinoVision NVR+ IP Software (PC Based) As Well As LinoVision
Standalone NVR.
VEC Range IP Cameras

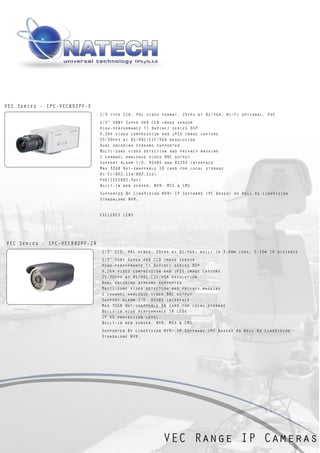

6. VEC Series - IPC-VEC892PF-E
1/3 type CCD, PAL video format, 25fps at D1/VGA; Wi-Fi optional, PoE
1/3” SONY Super HAD CCD image sensor
High-performance TI DaVinci series DSP
H.264 video compression and JPEG image capture
25/30fps at D1/HD1/CIF/VGA resolution
Dual encoding streams supported
Multi-zone video detection and privacy masking
1 channel analogue video BNC output
Support Alarm I/O, RS485 and RS232 interface
Max 32GB Hot-swappable SD card for local storage
Wi-Fi(802.11b/802.11g)
PoE(IEEE802.3af)
Built-in web server, NVR, MSS & CMS
Supported By LinoVision NVR+ IP Software (PC Based) As Well As LinoVision
Standalone NVR.
EXCLUDES LENS
VEC Series - IPC-VEC892PF-IR
1/3” CCD, PAL video, 25fps at D1/VGA; built-in 3.6mm lens, 5-10m IR distance
1/3” SONY Super HAD CCD image sensor
High-performance TI DaVinci series DSP
H.264 video compression and JPEG image capture
25/30fps at D1/HD1/CIF/VGA resolution
Dual encoding streams supported
Multi-zone video detection and privacy masking
1 channel analogue video BNC output
Support Alarm I/O, RS485 interface
Max 32GB Hot-swappable SD card for local storage
Built-in high performance IR LEDs
IP 65 protection level
Built-in web server, NVR, MSS & CMS
Supported By LinoVision NVR+ IP Software (PC Based) As Well As LinoVision
Standalone NVR.
VEC Range IP Cameras

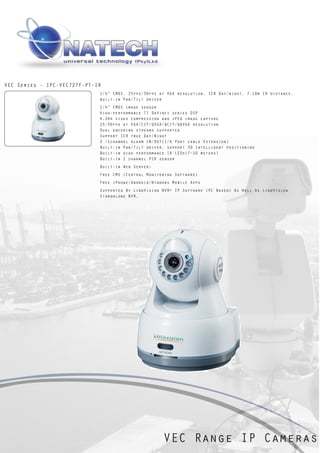

7. VEC Series - IPC-VEC727F-PT-IR
1/4” CMOS, 25fps/30fps at VGA resolution, ICR Day/night, 7-10m IR distance,
built-in Pan/Tilt driver
1/4“ CMOS image sensor
High-performance TI DaVinci series DSP
H.264 video compression and JPEG image capture
25/30fps at VGA/CIF/QVGA/QCIF/QQVGA resolution
Dual encoding streams supported
Support ICR true Day/Night
2 /1channel alarm IN/OUT(I/O Port cable Extension)
Built-in Pan/Tilt driver, support 3D intelligent positioning
Built-in high performance IR LEDs(7~10 meters)
Built-in 1 channel PIR sensor
Built-in Web Server;
Free CMS (Central Monitoring Software)
Free iPhone/Android/Windows Mobile Apps
Supported By LinoVision NVR+ IP Software (PC Based) As Well As LinoVision
Standalone NVR.
VEC Range IP Cameras

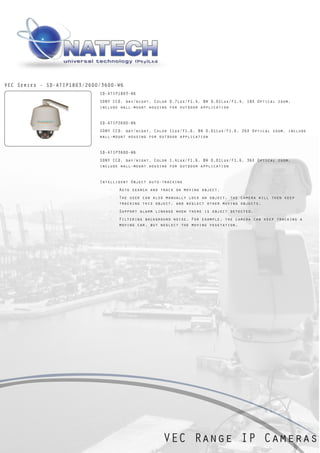

8. VEC Series - SD-ATIP1803/2600/3600-W6
SD-ATIP1803-W6
SONY CCD, day/night, Color 0.7Lux/F1.4, BW 0.01Lux/F1.4, 18X Optical zoom,
include wall-mount housing for outdoor application
SD-ATIP2600-W6
SONY CCD, day/night, Color 1Lux/F1.6, BW 0.01Lux/F1.6, 26X Optical zoom, include
wall-mount housing for outdoor application
SD-ATIP3600-W6
SONY CCD, day/night, Color 1.4Lux/F1.6, BW 0.01Lux/F1.6, 36X Optical zoom,
include wall-mount housing for outdoor application
Intelligent Object auto-tracking
· Auto search and track on moving object.
· The user can also manually lock an object, the camera will then keep
tracking this object, and neglect other moving objects.
· Support alarm linkage when there is object detected.
· Filtering background noise. For example, the camera can keep tracking a
moving car, but neglect the moving vegetation.
VEC Range IP Cameras

9. NVR+ Video Management Software
NVR+ VMS
NVR+ IP Surveillance system is a professional network video management system to
record audio and video over TCP/IP Networks. It can work with multiple brands of
IP device comprising of hundreds of models, including Megapixel IP Cameras, IP
Box Cameras, IP IR Cameras, IP Dome Cameras, IP Speed Dome Cameras, Video Servers
and Standalone DVRs all at once.
With the built-in mobile streaming module and feature-rich NVR+ Client, customers
can reach video surveillance data from any location at any time using a desktop
computer, laptop or PDA/mobile phones.
Featured with user-friendly operation. NVR+ IP Surveillance system provides a
scalable, intelligent and cost-effective solution, managing from 1 to 64 channels
depending on customer’s needs.
VEC Range IP Cameras
