Comparison USA/China datacenters standards
This document compares data center standards between the United States' ANSI/TIA 942 standard and China's GB 50174-2008 standard. The US standard uses a tier system of 1 to 4, focusing on redundancy and fault tolerance, while the China standard uses an A to C class system. The document provides details on location, power, generator, UPS, and HVAC requirements according to the different tiers/classes of each standard.
More Related Content
Similar to Comparison USA/China datacenters standards
Comparison USA/China datacenters standards
- 1. KEEPING TO CODE comparisonbetween US & China standards Jeffrey Lam RCDD
- 2. Data Center Standards Comparisonbetween EIA/TIA 942 & GB 50174 -2008
- 3. ANSI / TIA942 Telecommunications Infrastructure Standard for Data Centers Published by Telecommunications Industry Association Recognised by American National Standards Institue Published in 2005 GB 50174 (2008) Code for Design of Electronic Information System Room Published by China Electronics Engineering Design Institute Designated as Guo Biao ( 国标） or National Standards Published in 2008 US vs China “National” standards

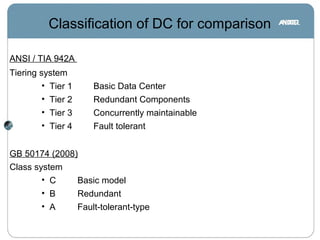

- 4. ANSI / TIA942A Tiering system • Tier 1 Basic Data Center • Tier 2 Redundant Components • Tier 3 Concurrently maintainable • Tier 4 Fault tolerant GB 50174 (2008) Class system • C Basic model • B Redundant • A Fault-tolerant-type Classification of DC for comparison

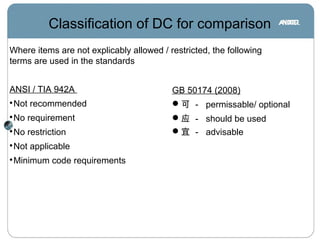

- 5. Where items arenot explicably allowed / restricted, the following terms are used in the standards ANSI / TIA 942A Not recommended No requirement No restriction Not applicable Minimum code requirements Classification of DC for comparison GB 50174 (2008) 可 － permissable/ optional 应 － should be used 宜 － advisable

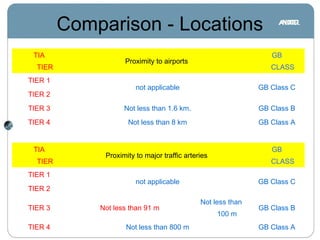

- 6. Comparison - Locations TIA TIER Proximityto airports GB CLASS TIER 1 not applicable GB Class C TIER 2 TIER 3 Not less than 1.6 km. GB Class B TIER 4 Not less than 8 km GB Class A TIA TIER Proximity to major traffic arteries GB CLASS TIER 1 not applicable GB Class C TIER 2 TIER 3 Not less than 91 m Not less than 100 m GB Class B TIER 4 Not less than 800 m GB Class A

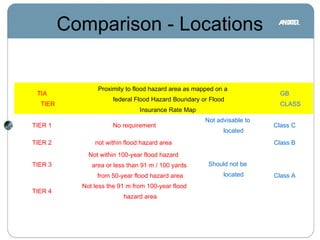

- 7. Comparison - Locations TIA TIER Proximityto flood hazard area as mapped on a federal Flood Hazard Boundary or Flood Insurance Rate Map GB CLASS TIER 1 No requirement Not advisable to located Class C TIER 2 not within flood hazard area Should not be located Class B TIER 3 Not within 100-year flood hazard area or less than 91 m / 100 yards from 50-year flood hazard area Class A TIER 4 Not less the 91 m from 100-year flood hazard area

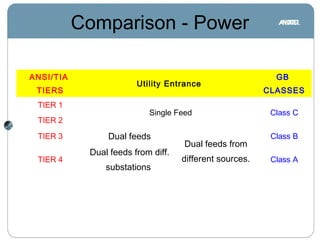

- 8. Comparison - Power ANSI/TIA TIERS UtilityEntrance GB CLASSES TIER 1 Single Feed Class C TIER 2 TIER 3 Dual feeds Dual feeds from different sources. Class B TIER 4 Dual feeds from diff. substations Class A
- 9. Comparison - Genset TIA TIERS Back-updiesel generator system GB CLASSES not mentioned Class C TIER 1 8 hrs TIER 2 24 hrs Class B TIER 3 72 hrs Class A TIER 4 96 hrs
- 10. Comparison – UPS ANSI/TI A TIERS UPSRedundancy GB CLASSE S TIER 1 N Class C TIER 2 TIER 3 N+1 N+X Class B TIER 4 2N 2N or M(N+1) Class A
- 11. Comparison – CRAC/CRAH ANSI/TIA TIERS CRAC/ CRAH GB CLASSES TIER 1 No redundant Unit N Class C TIER 2 1 redundant Unit per critical area N+1 Class B TIER 3 Redundancy to maintain continunity during loss of one source of power TIER 4 N+X Class A
