The document discusses strategies for dealing with Android device fragmentation and maintaining clean code. It covers using resource qualifiers to customize UI for different devices, implementing compatibility libraries to support older OS versions, applying dependency injection and the MVP pattern to improve testability, and writing tests that can run across multiple device configurations using tools like Spoon and Fork. The presentation emphasizes separating concerns, avoiding hardcoded dependencies, and writing automated tests to handle complexity from a diverse range of Android devices and configurations.

1. Iordanis Giannakakis
@iordanis_g
Device Fragmentation vs Clean Code

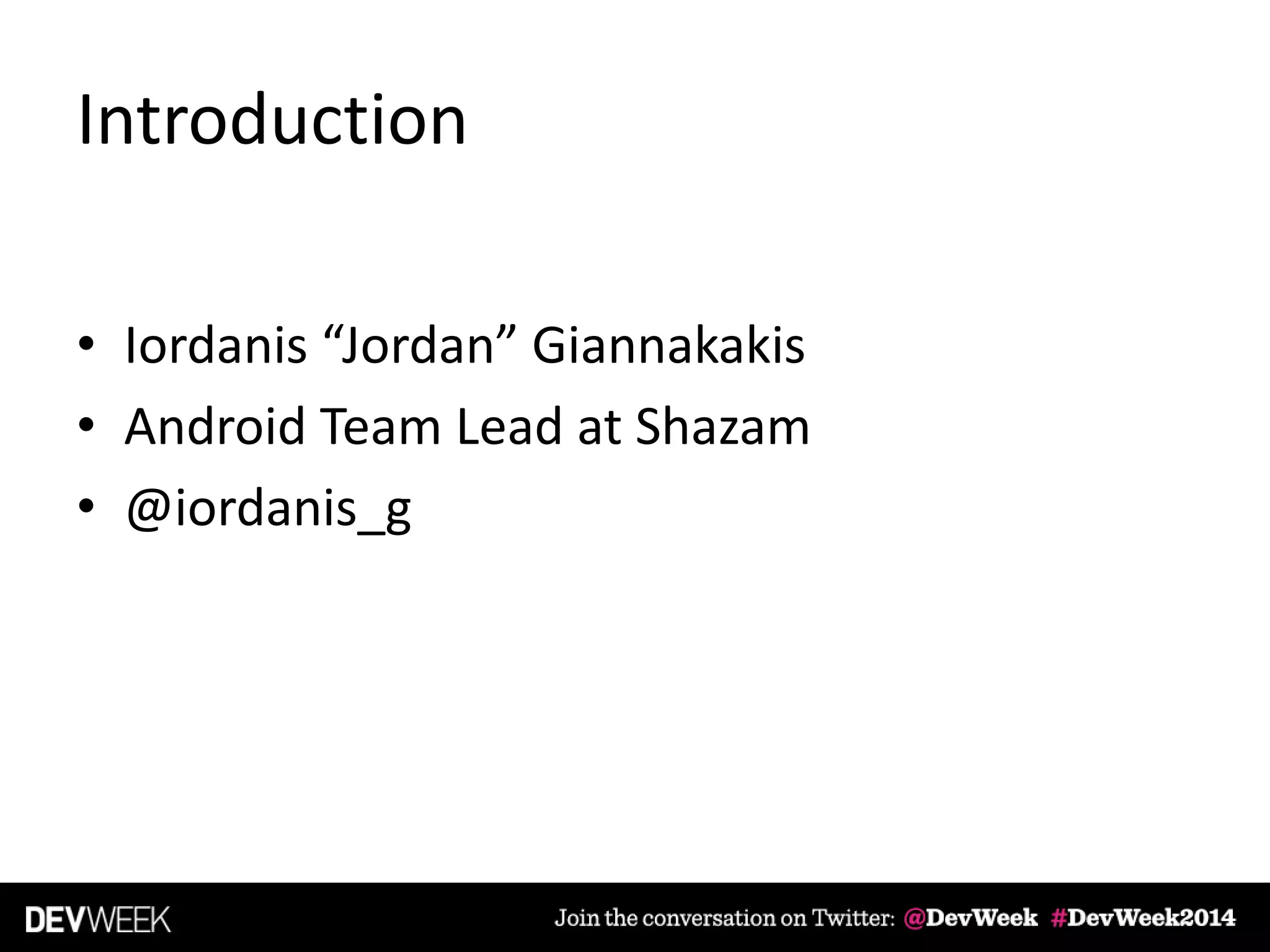

2. Introduction
• Iordanis “Jordan” Giannakakis
• Android Team Lead at Shazam
• @iordanis_g

3. How Shazam works

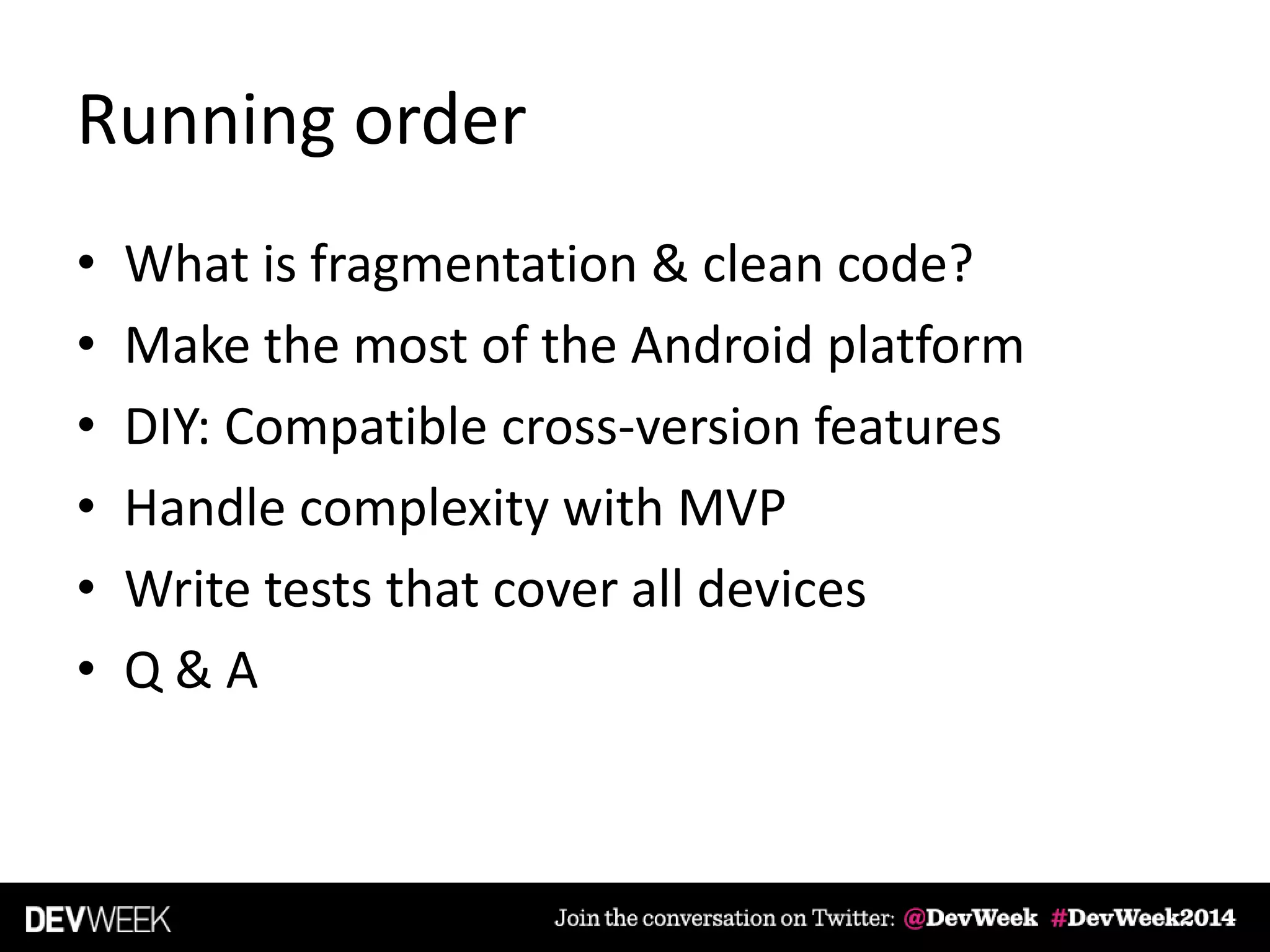

4. Running order
• What is fragmentation & clean code?
• Make the most of the Android platform
• DIY: Compatible cross-version features
• Handle complexity with MVP
• Write tests that cover all devices
• Q & A

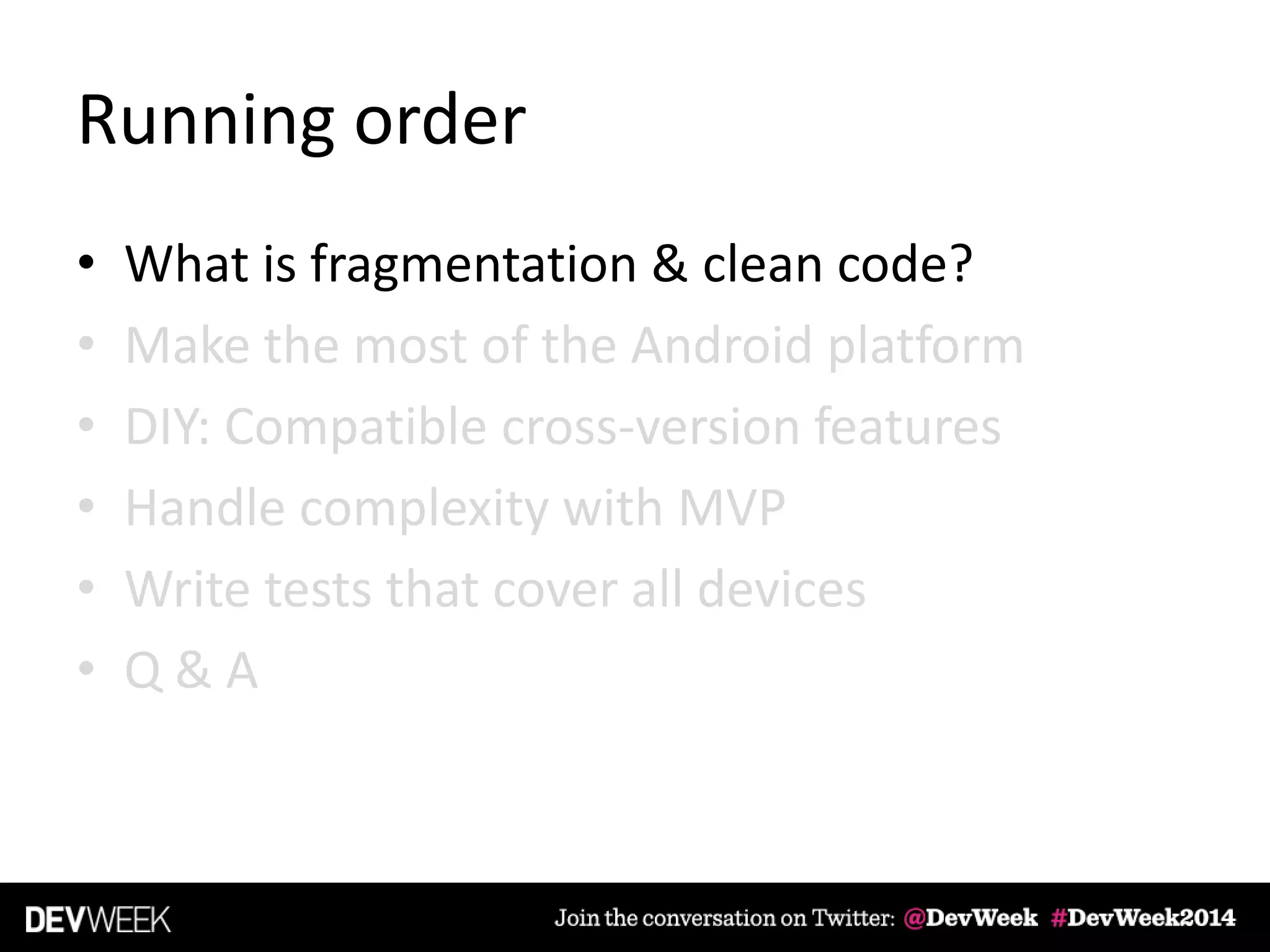

5. Running order
• What is fragmentation & clean code?
• Make the most of the Android platform
• DIY: Compatible cross-version features
• Handle complexity with MVP
• Write tests that cover all devices
• Q & A

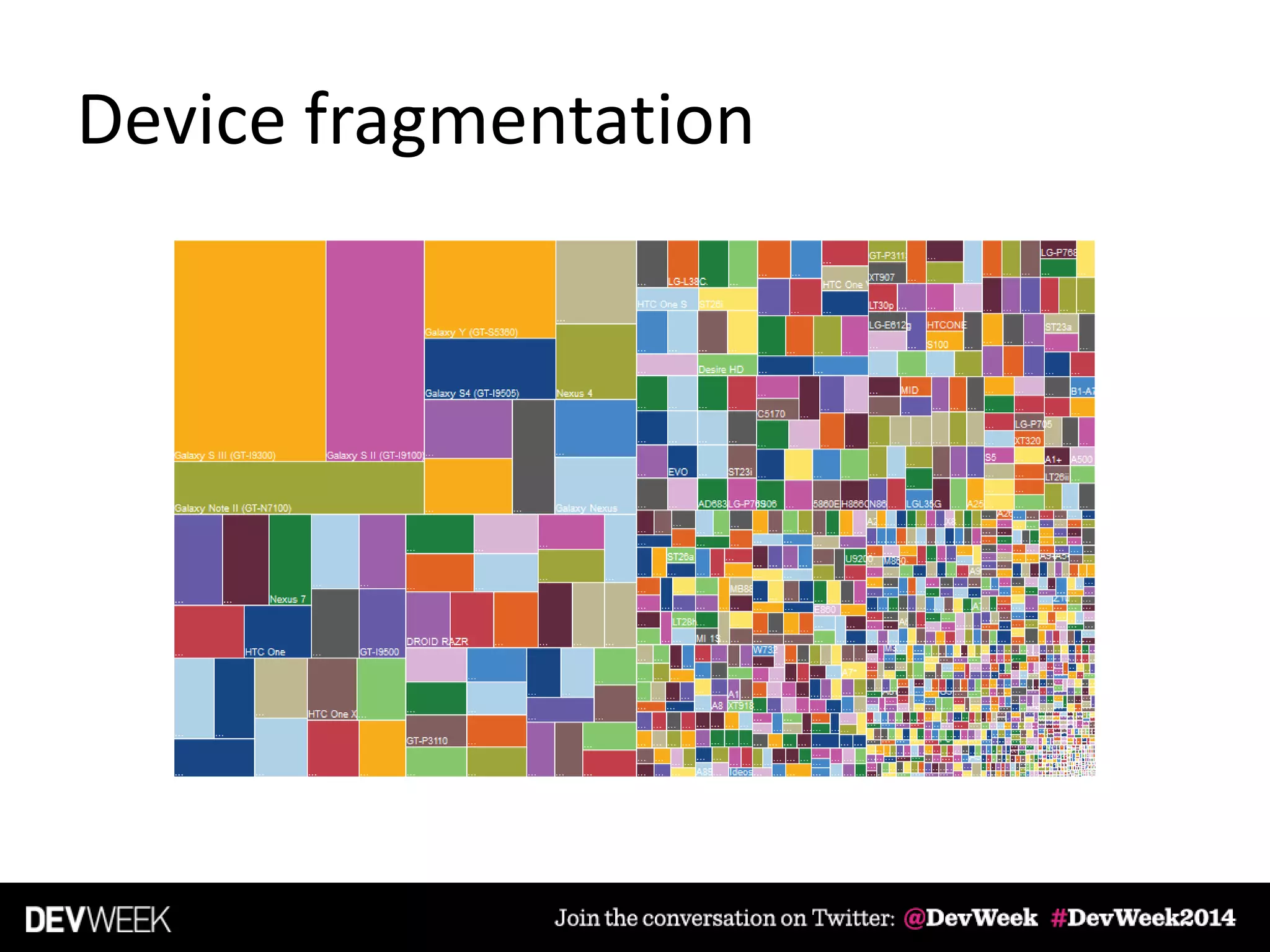

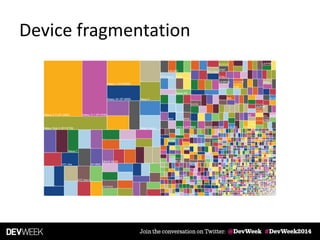

6. Device fragmentation

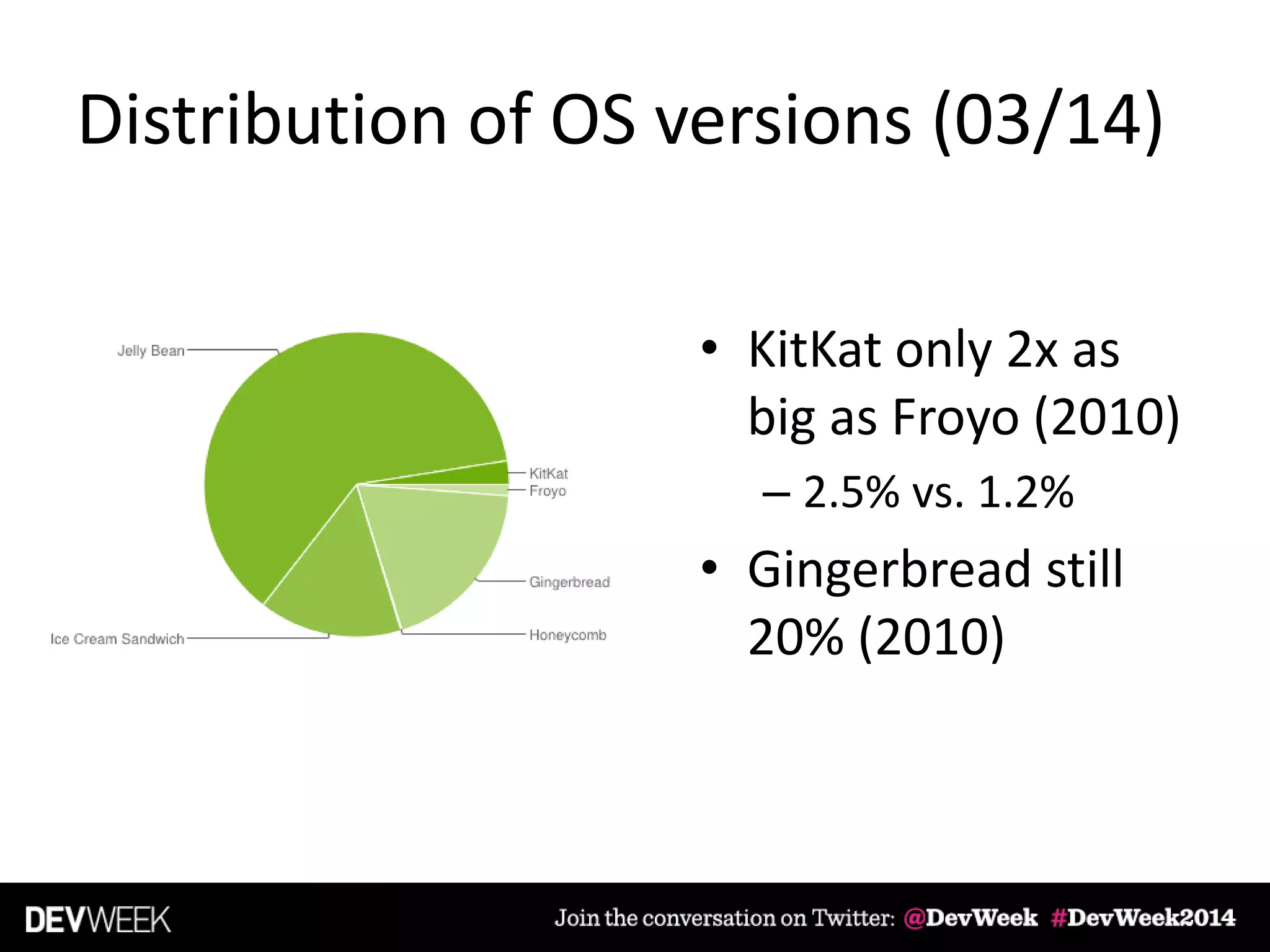

7. Distribution of OS versions (03/14)
• KitKat only 2x as
big as Froyo (2010)
– 2.5% vs. 1.2%
• Gingerbread still
20% (2010)

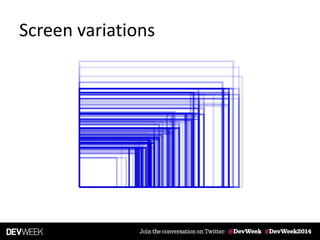

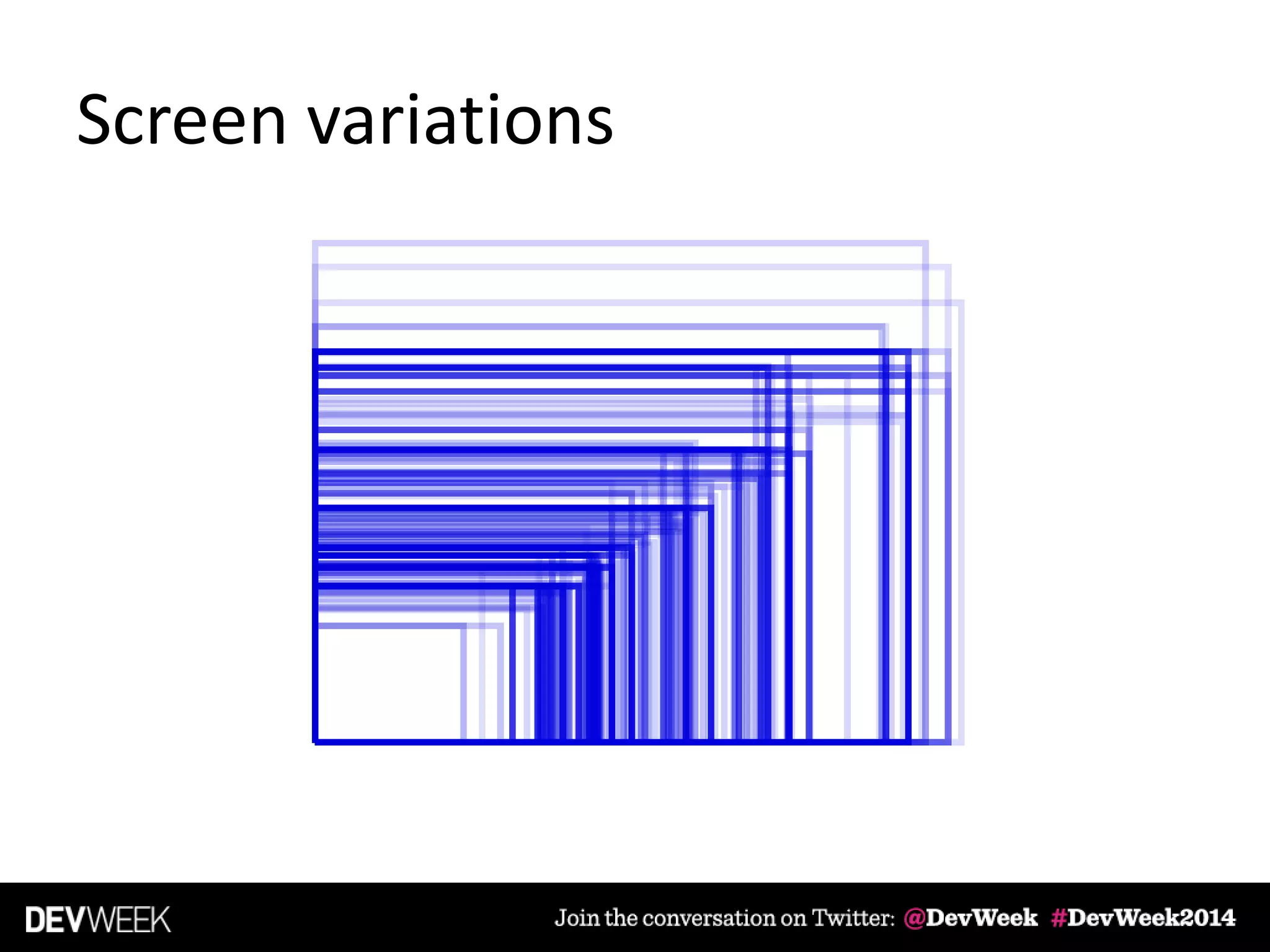

8. Screen variations

9. Variety of capabilities

10. Variety of capabilities

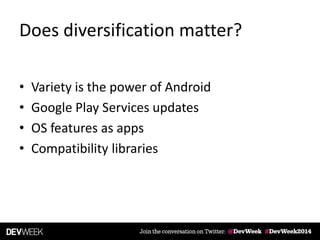

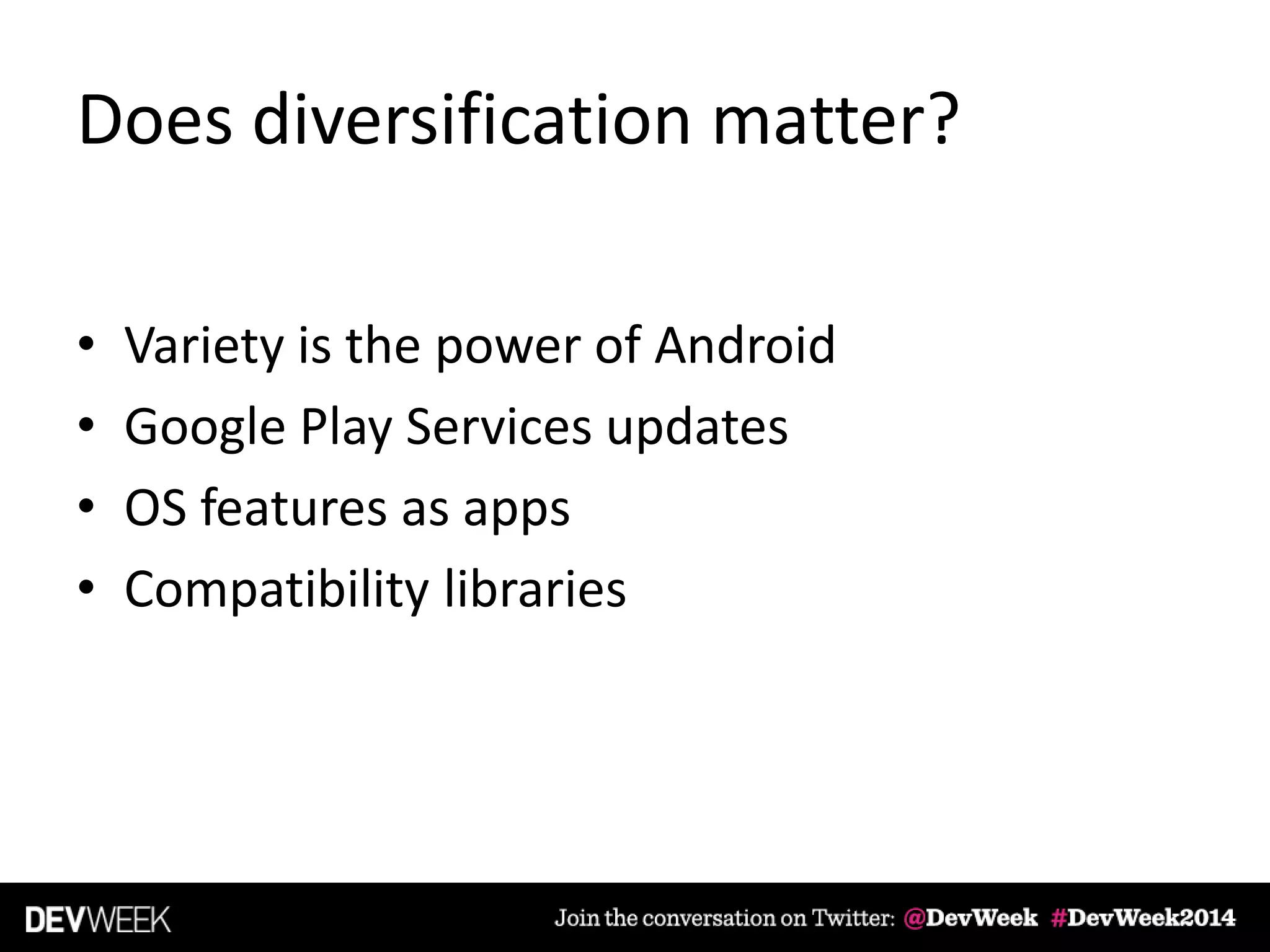

11. Does diversification matter?
• Variety is the power of Android
• Google Play Services updates
• OS features as apps
• Compatibility libraries

12. Bad code

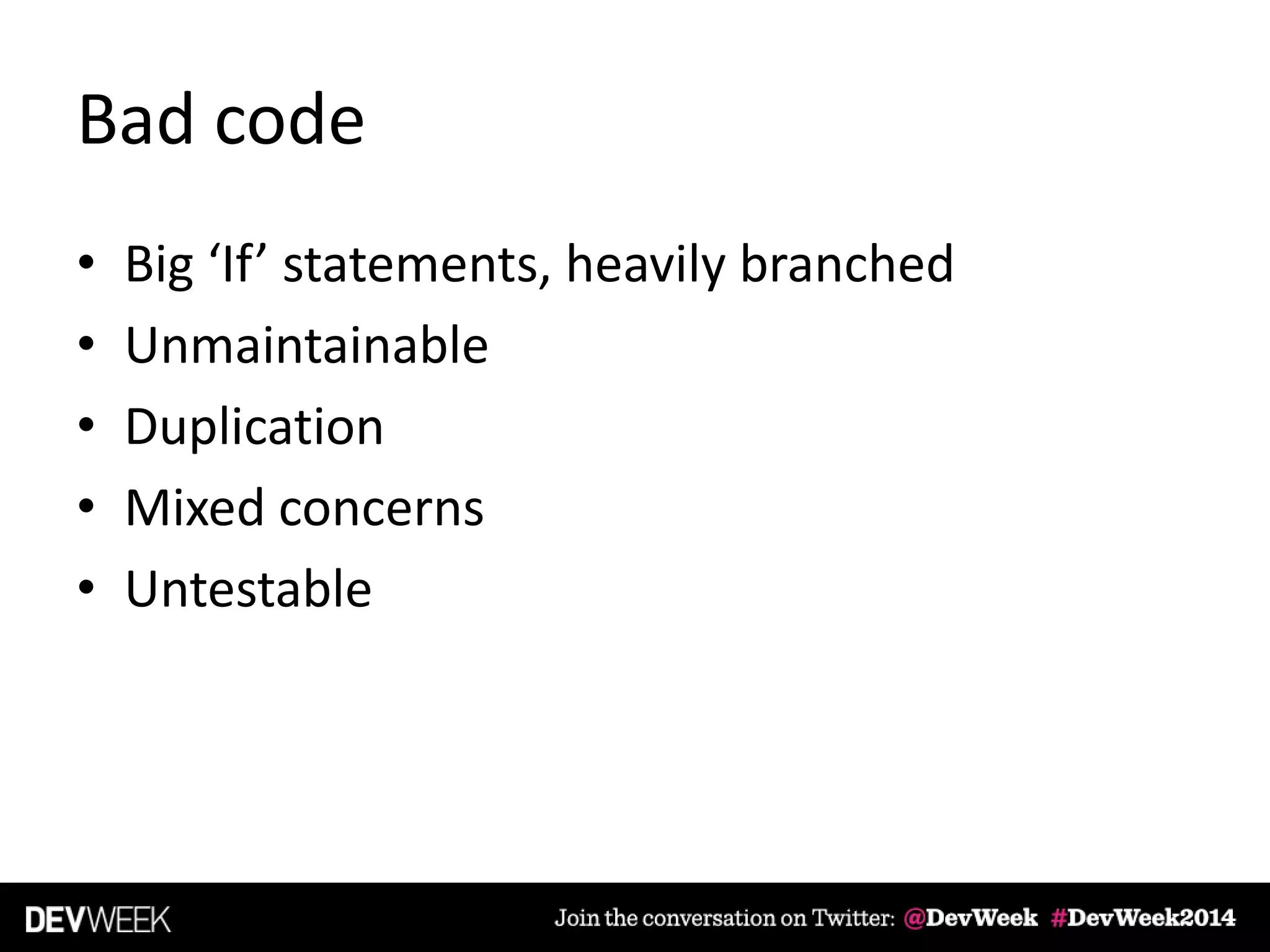

13. Bad code
• Big ‘If’ statements, heavily branched
• Unmaintainable
• Duplication
• Mixed concerns
• Untestable

14. Clean code

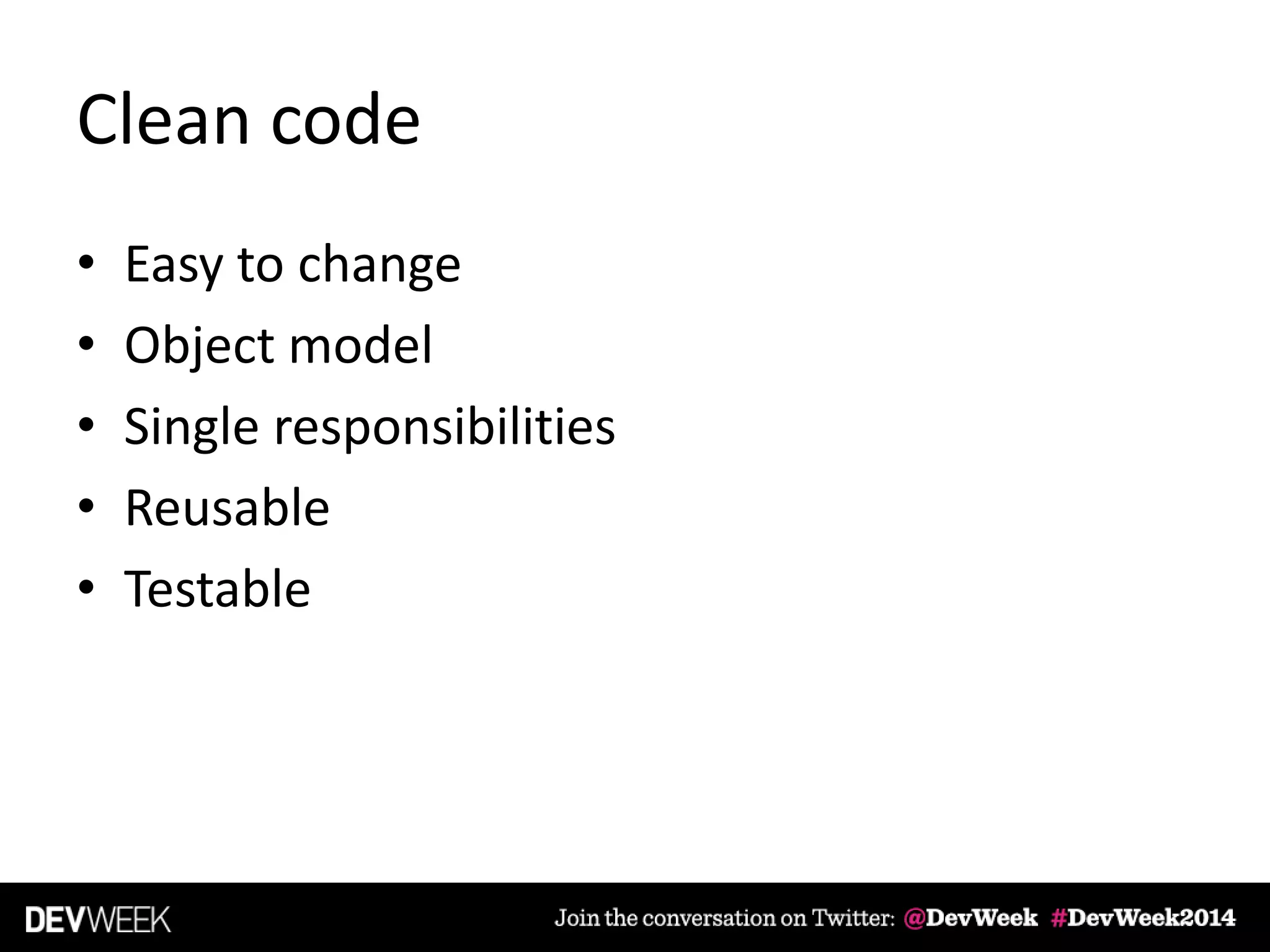

15. Clean code
• Easy to change
• Object model
• Single responsibilities
• Reusable
• Testable

16. Code quality: Is it a concern really?
• Short-term projects
• Individually developed
• Lean
• A/B testing

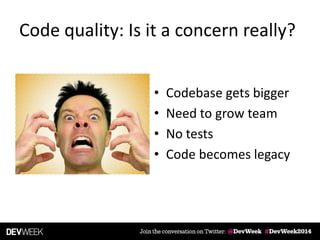

17. Code quality: Is it a concern really?
• Codebase gets bigger
• Need to grow team
• No tests
• Code becomes legacy

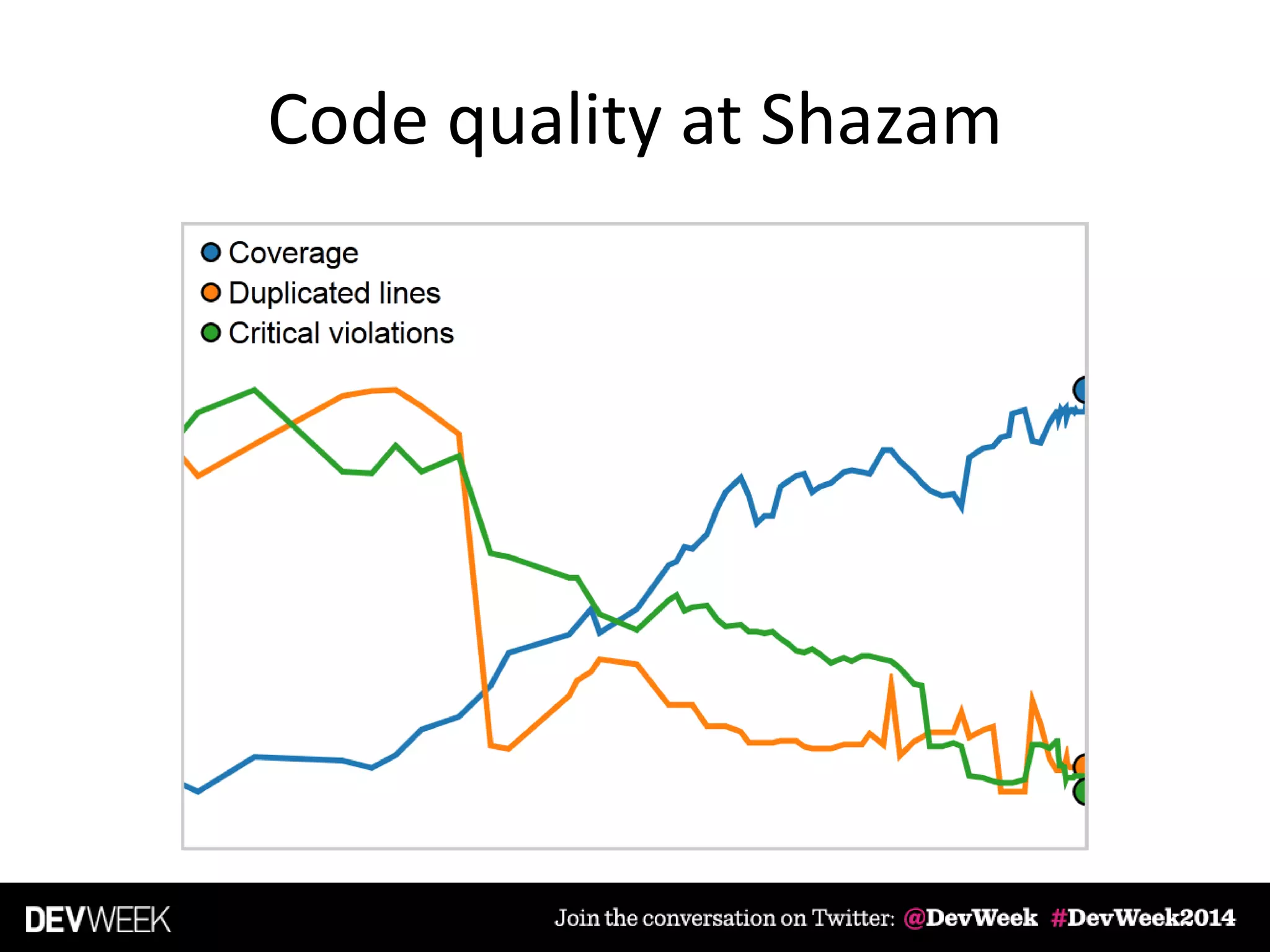

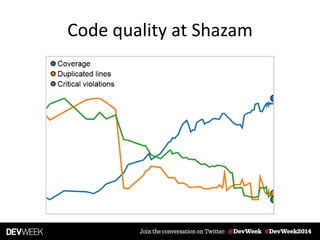

18. Code quality at Shazam

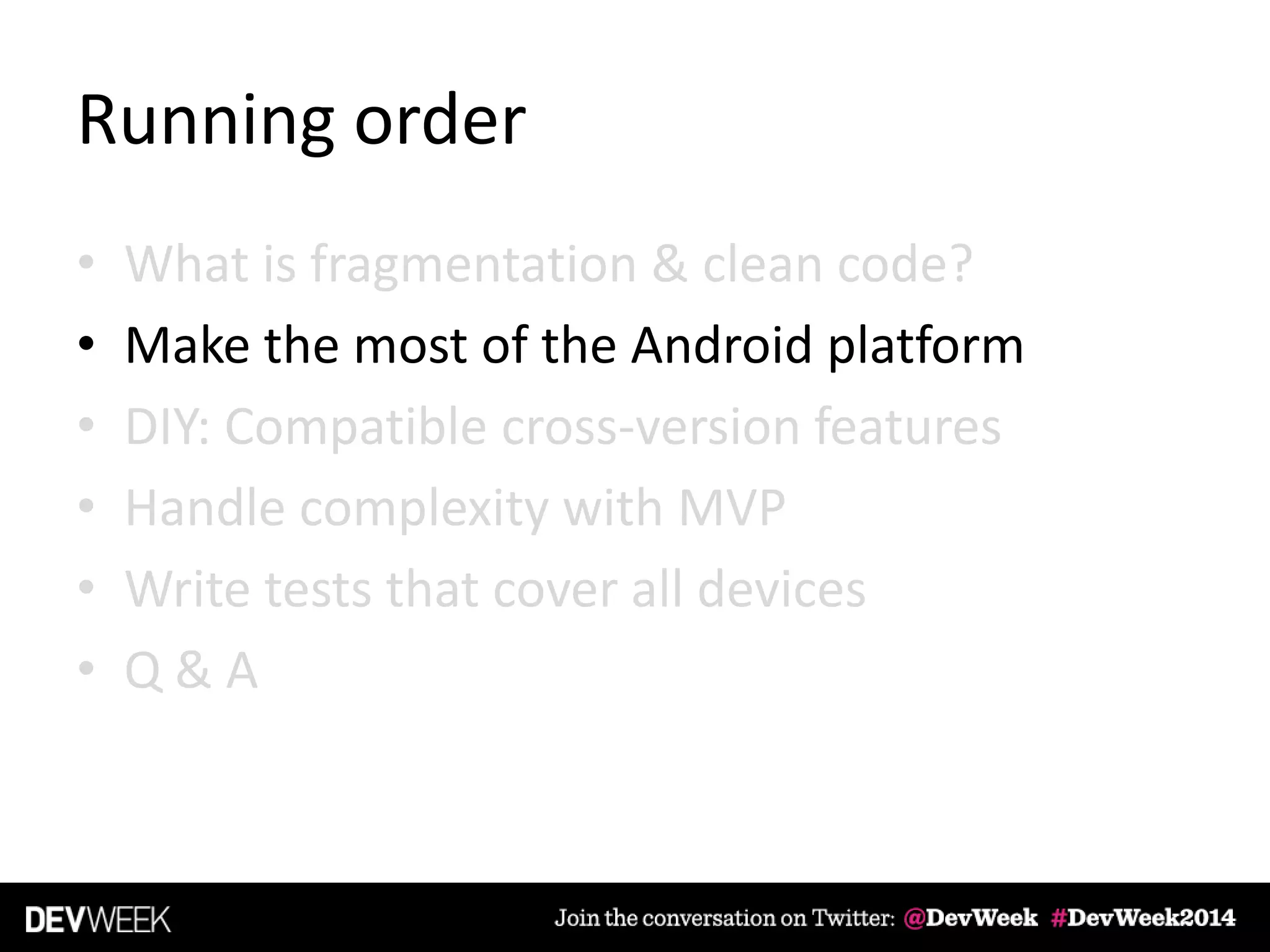

19. Running order
• What is fragmentation & clean code?
• Make the most of the Android platform
• DIY: Compatible cross-version features
• Handle complexity with MVP
• Write tests that cover all devices
• Q & A

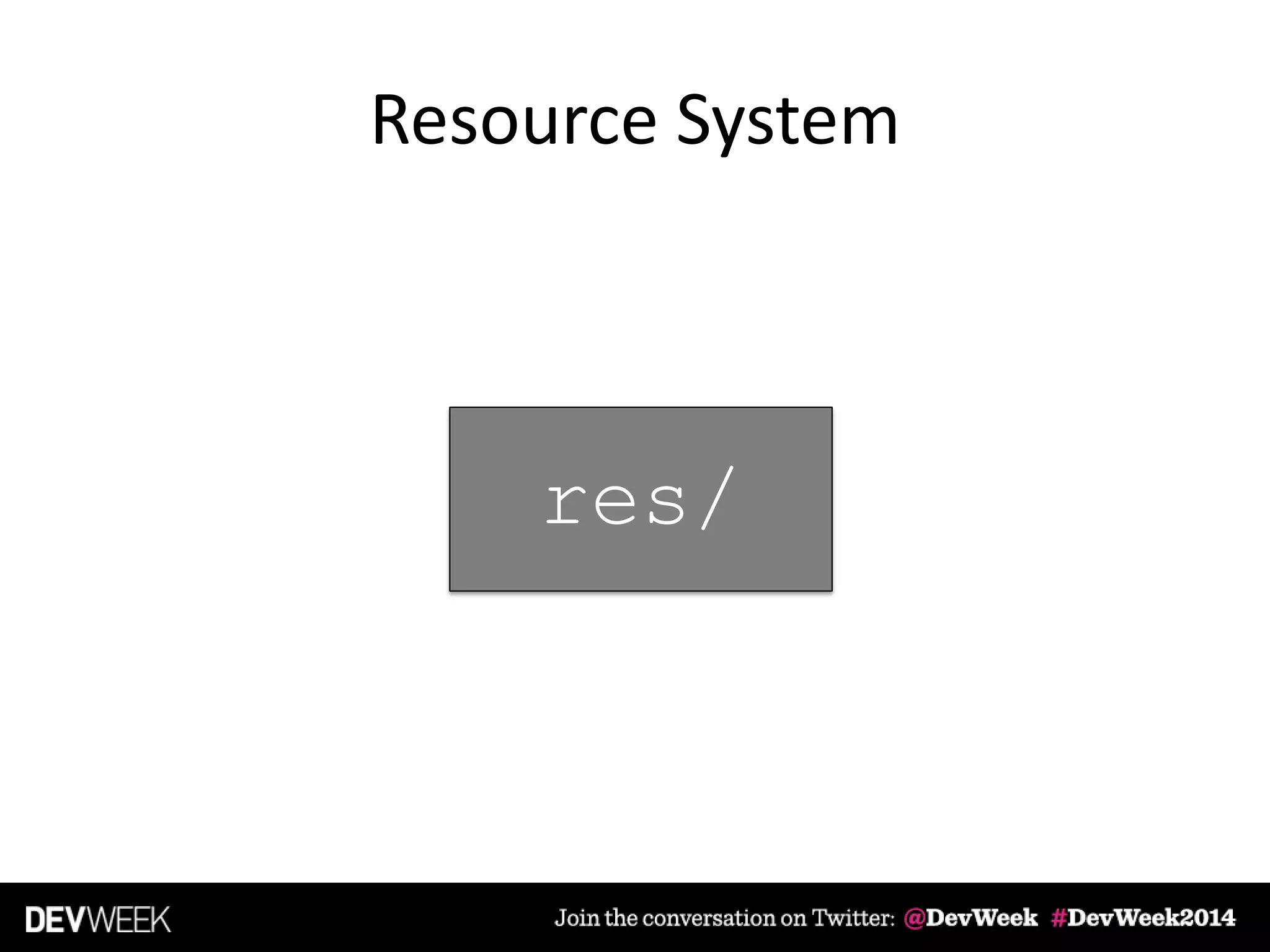

20. Resource System
res/

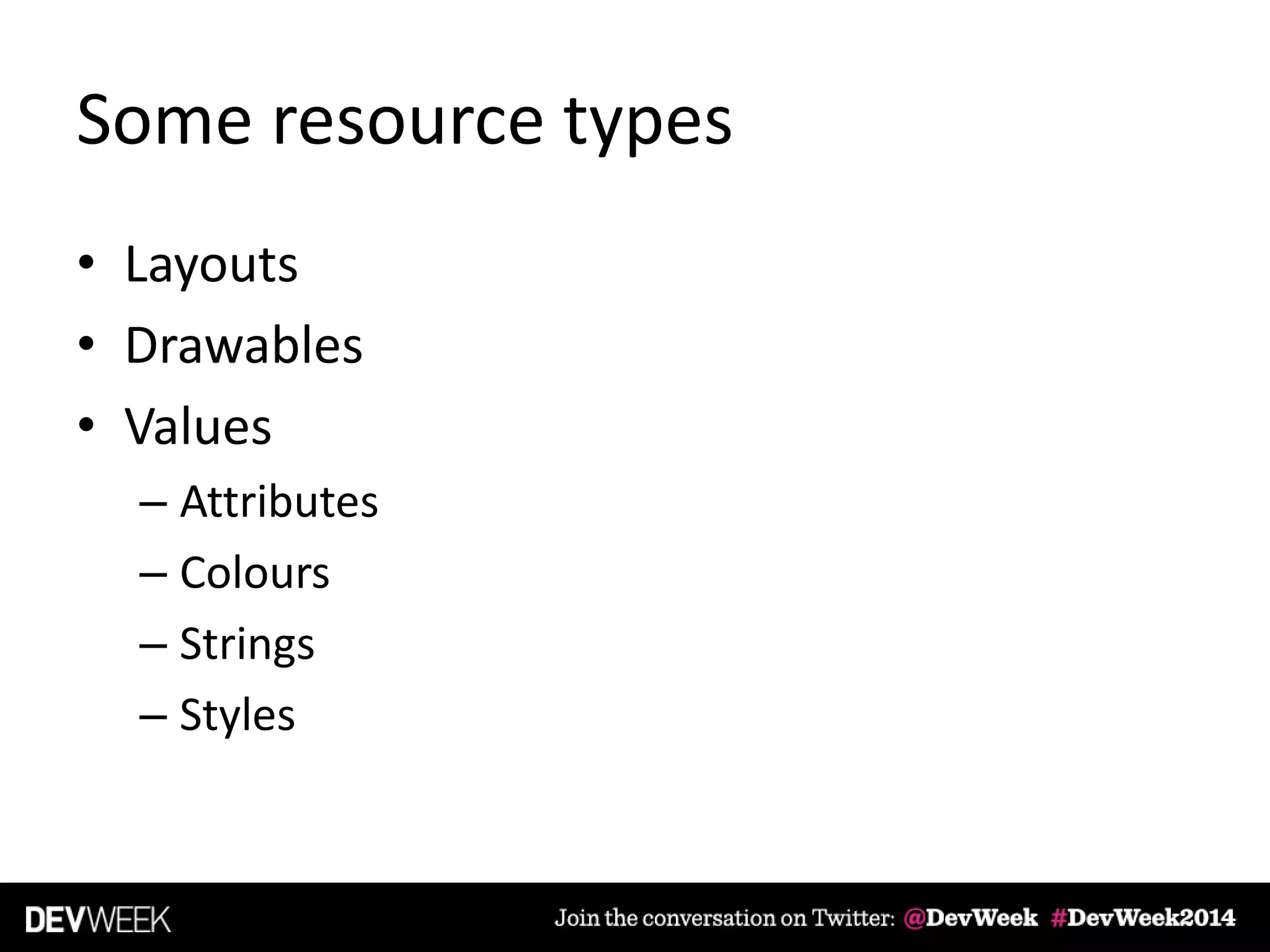

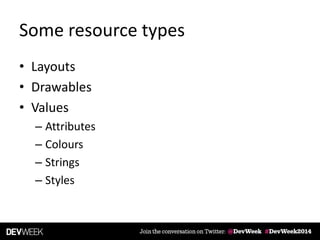

21. Some resource types
• Layouts
• Drawables
• Values
– Attributes
– Colours
– Strings
– Styles

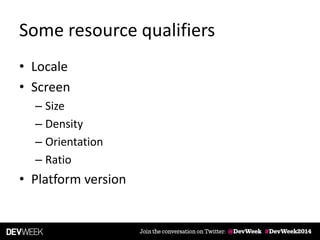

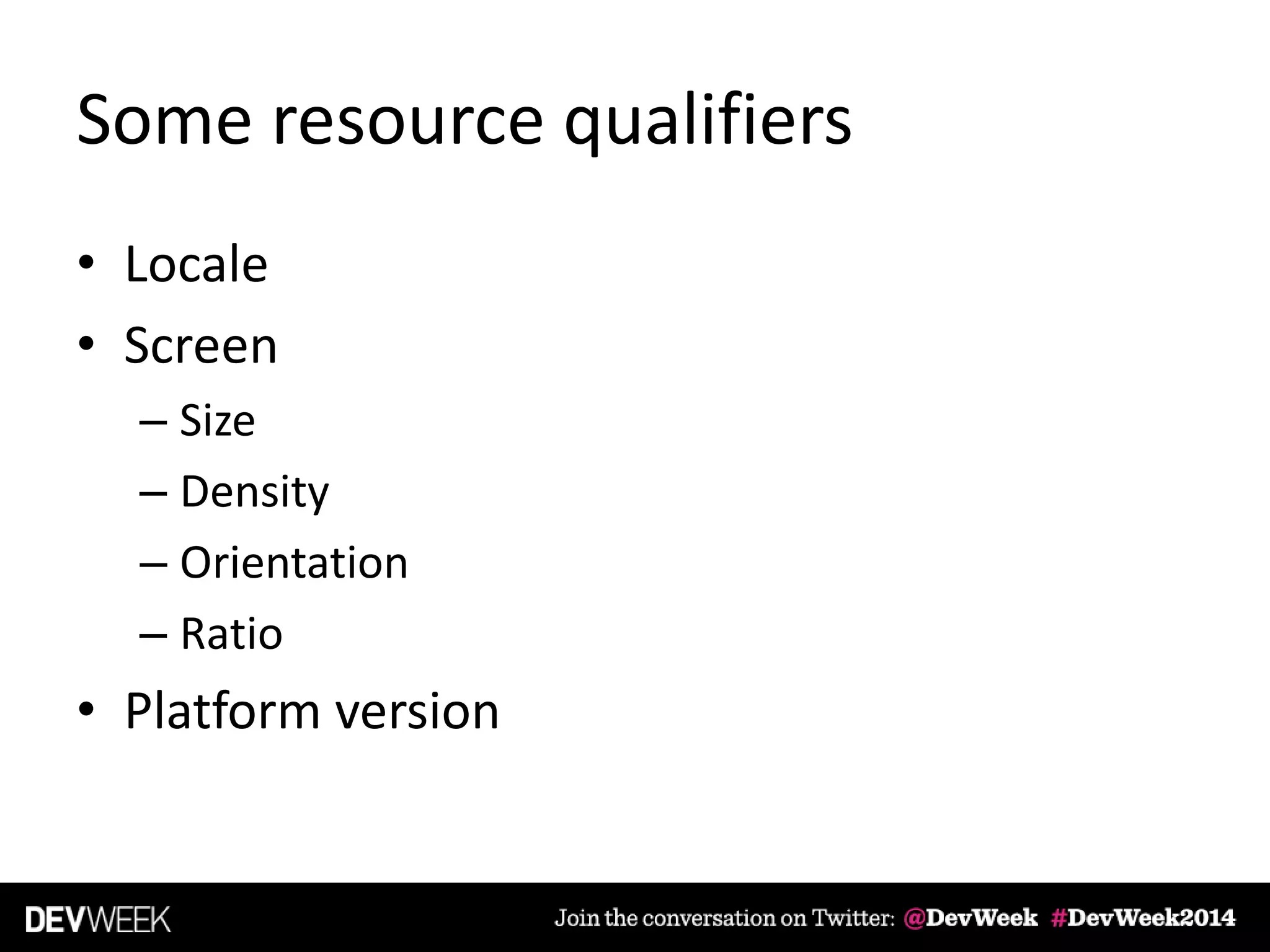

22. Some resource qualifiers
• Locale
• Screen
– Size
– Density
– Orientation
– Ratio
• Platform version

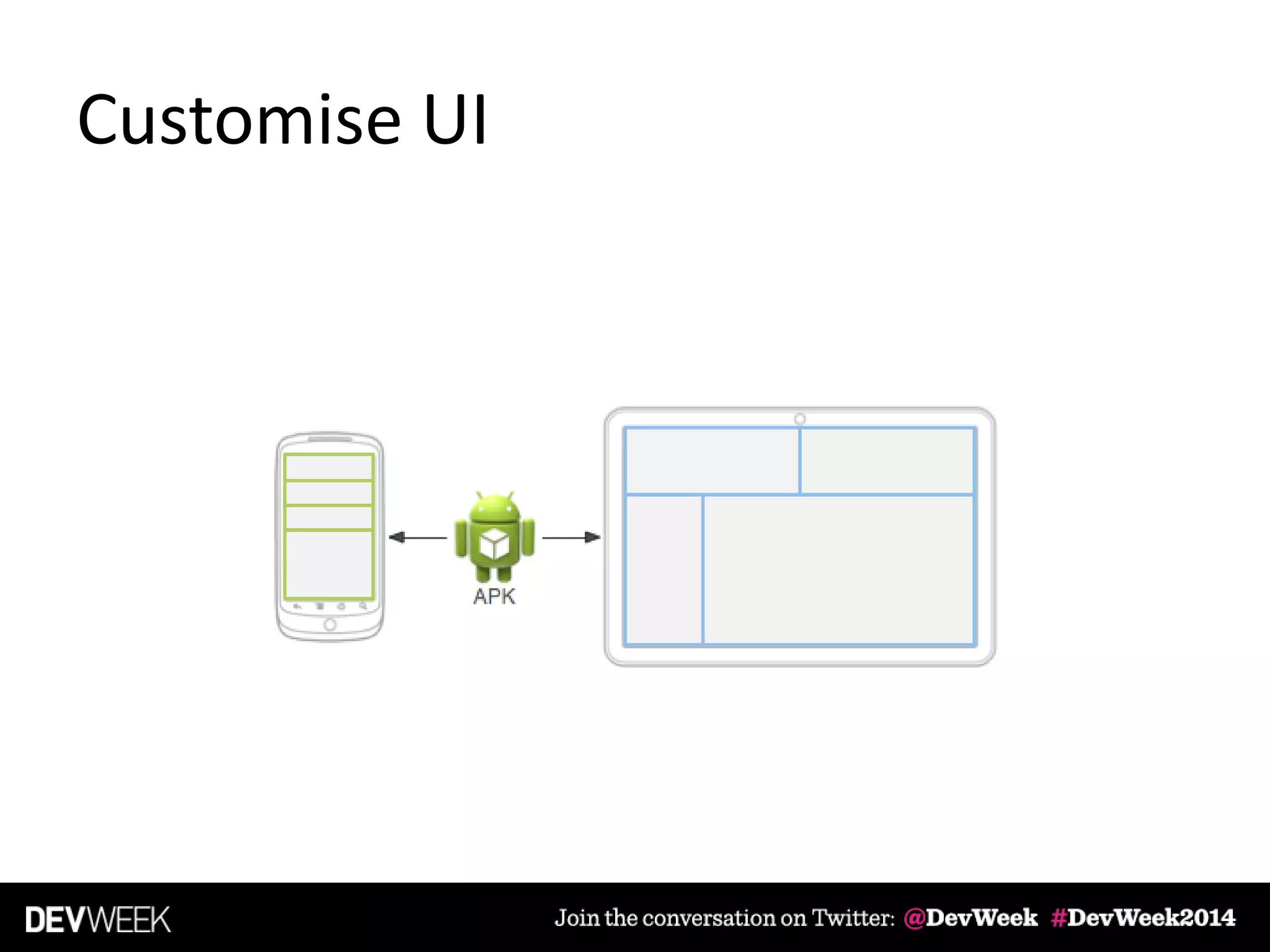

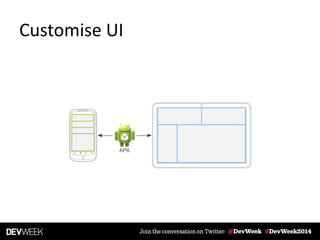

23. Customise UI

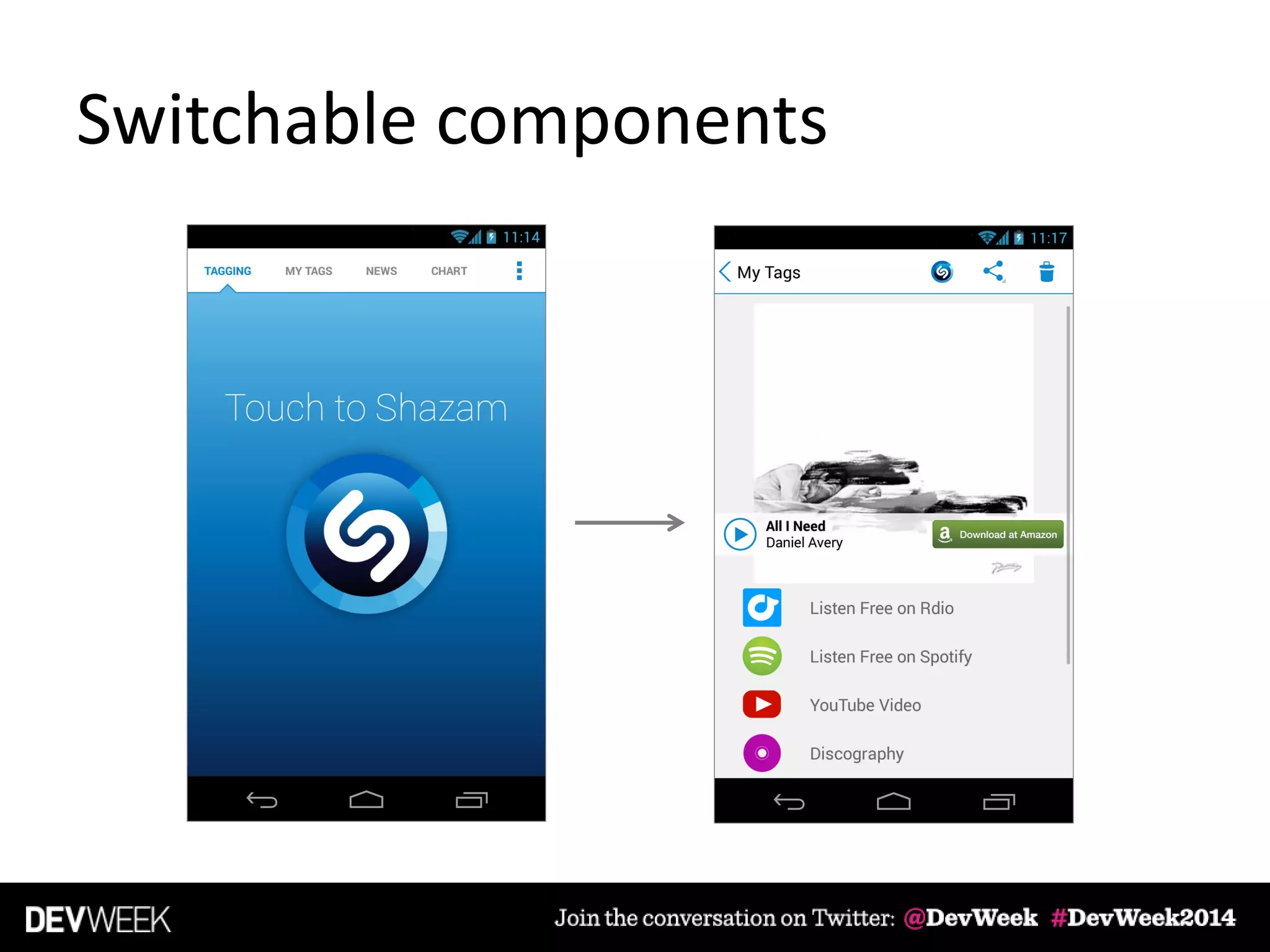

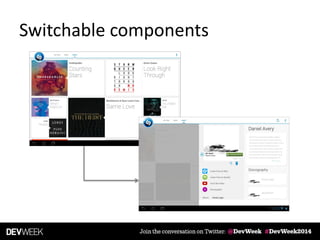

24. Switchable components

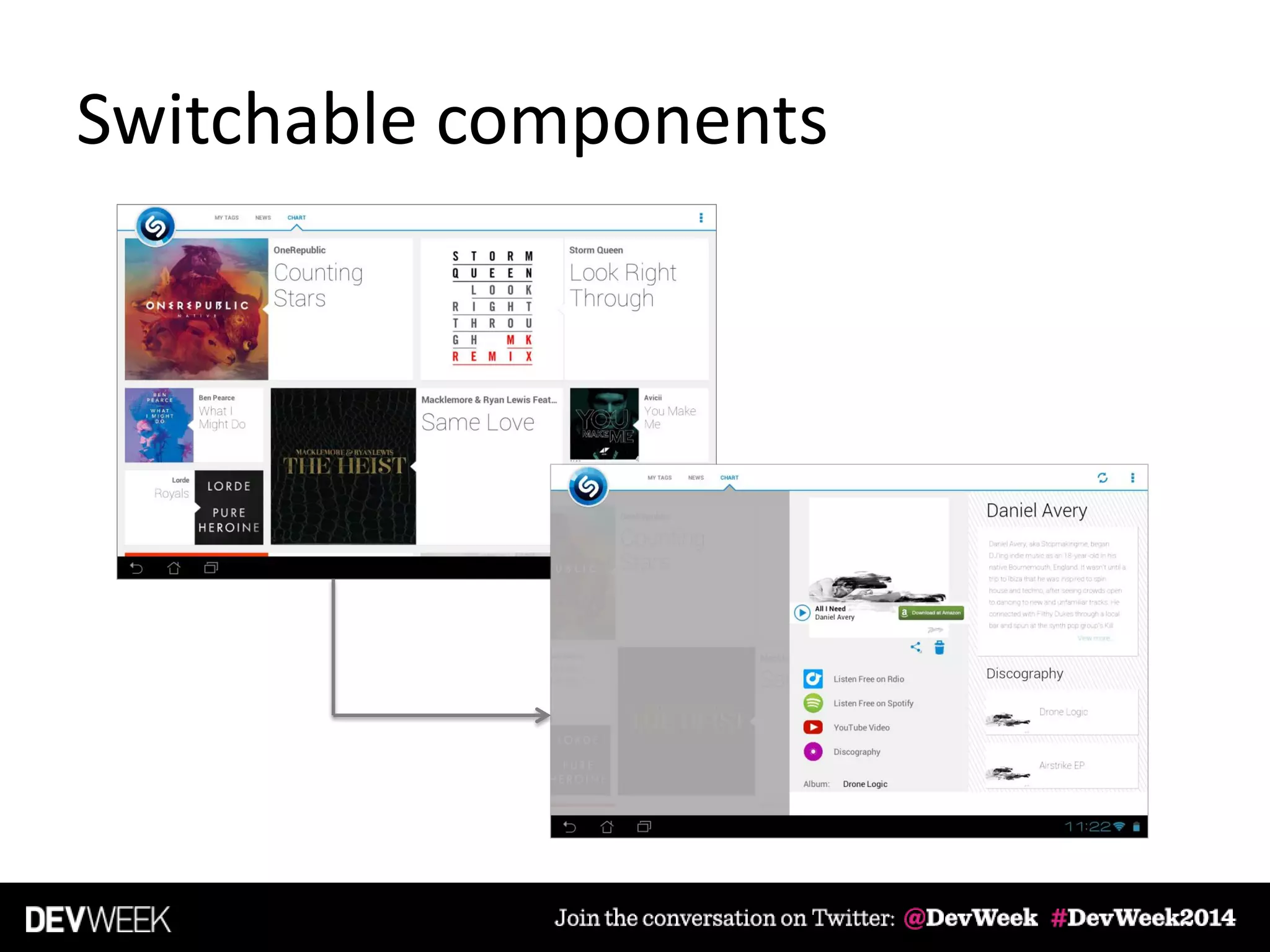

25. Switchable components

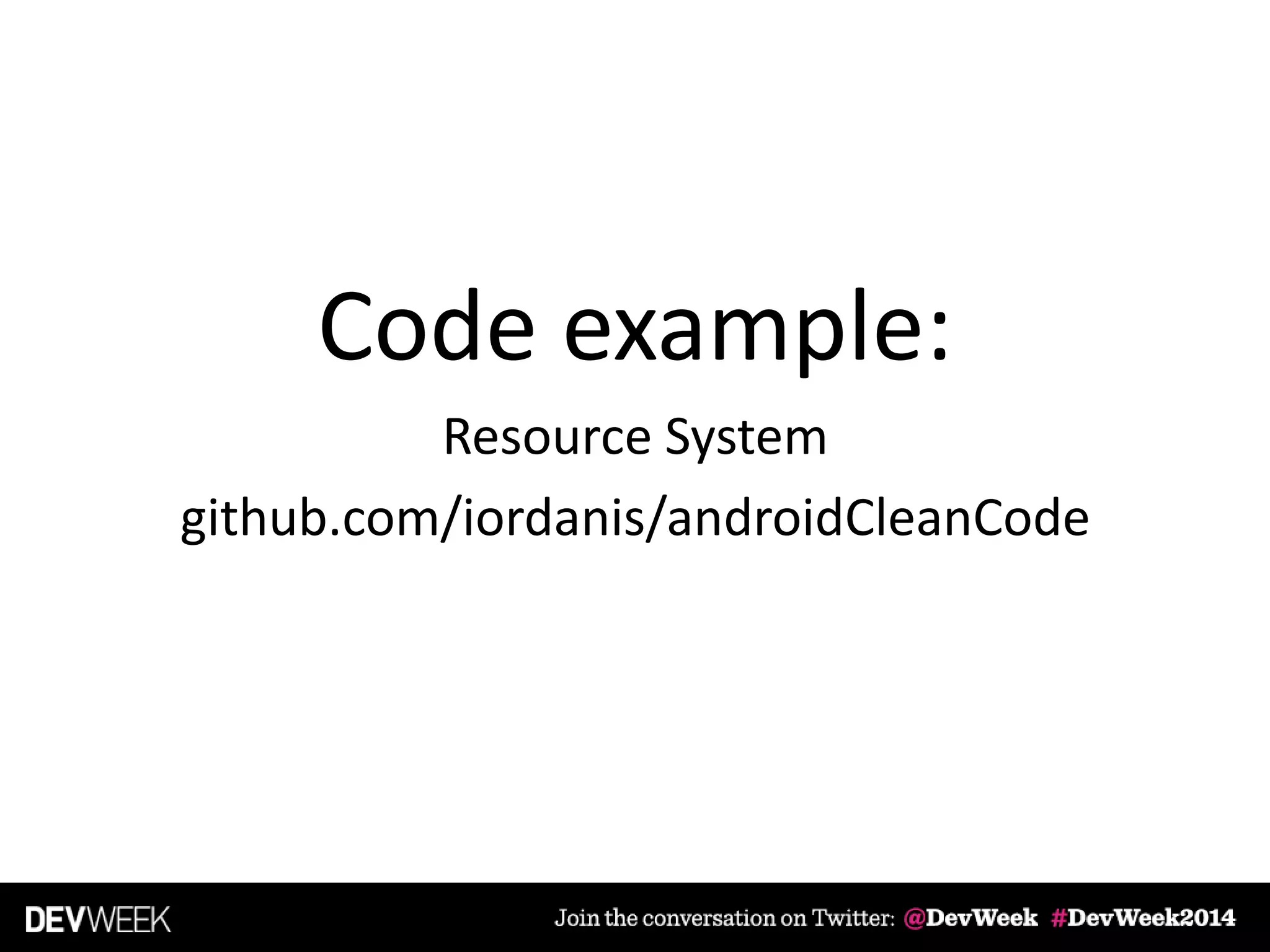

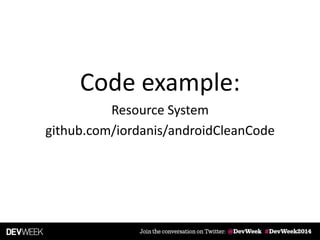

26. Code example:
Resource System
github.com/iordanis/androidCleanCode

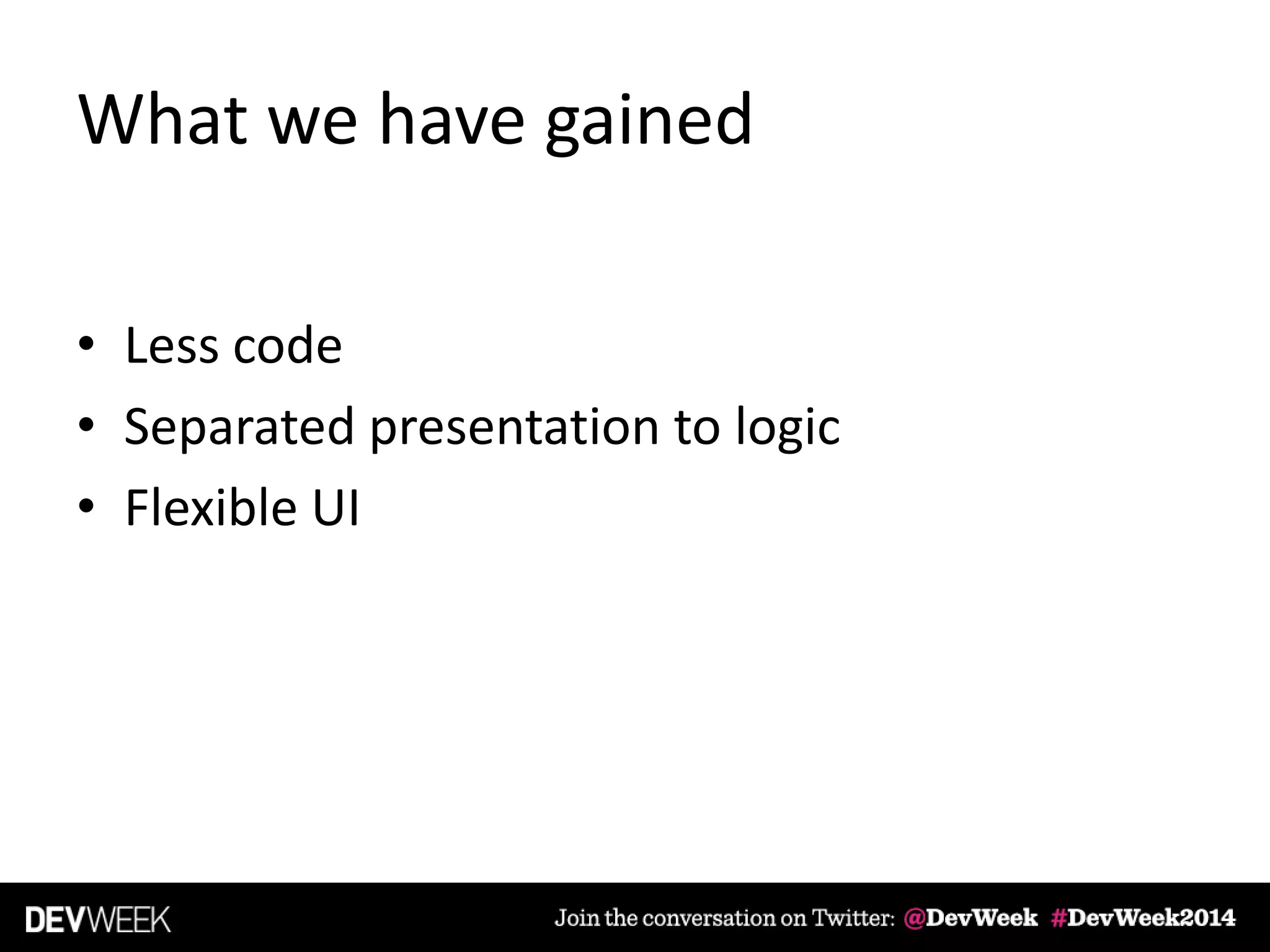

27. What we have gained
• Less code
• Separated presentation to logic
• Flexible UI

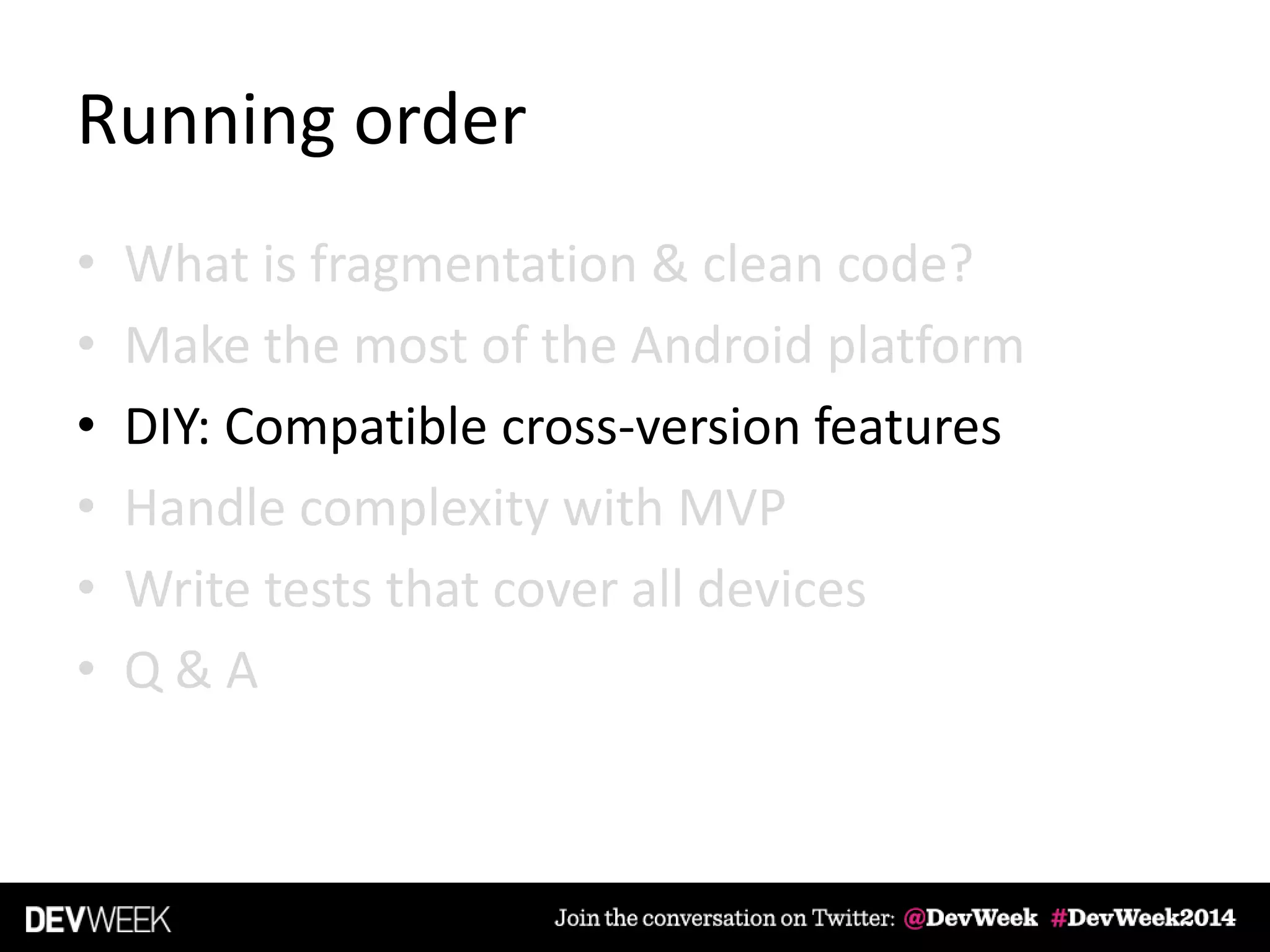

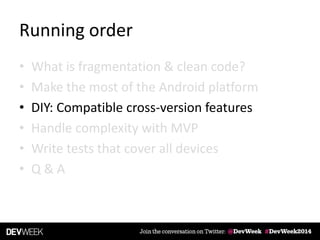

28. Running order
• What is fragmentation & clean code?
• Make the most of the Android platform
• DIY: Compatible cross-version features
• Handle complexity with MVP
• Write tests that cover all devices
• Q & A

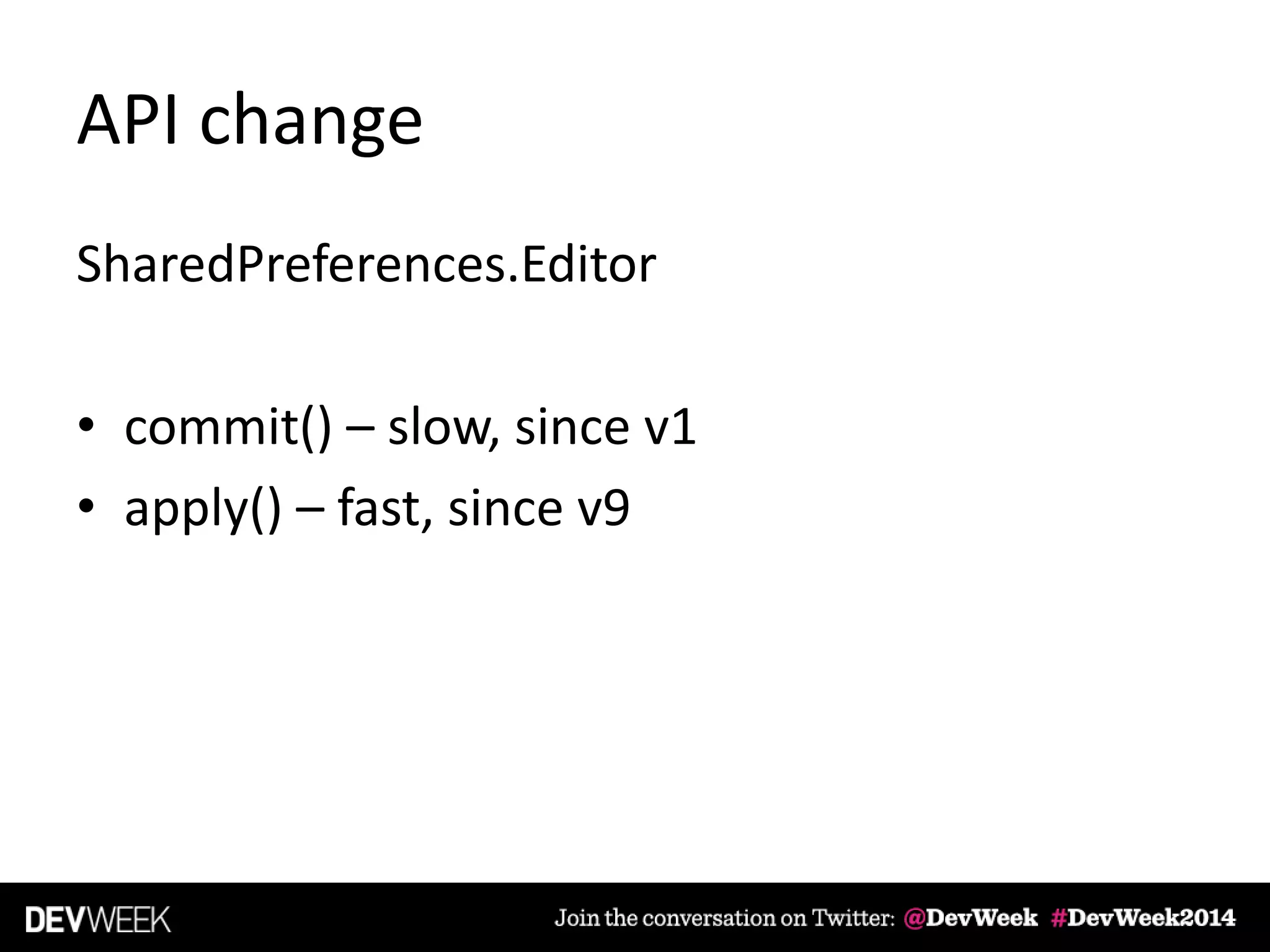

29. API change
SharedPreferences.Editor
• commit() – slow, since v1
• apply() – fast, since v9

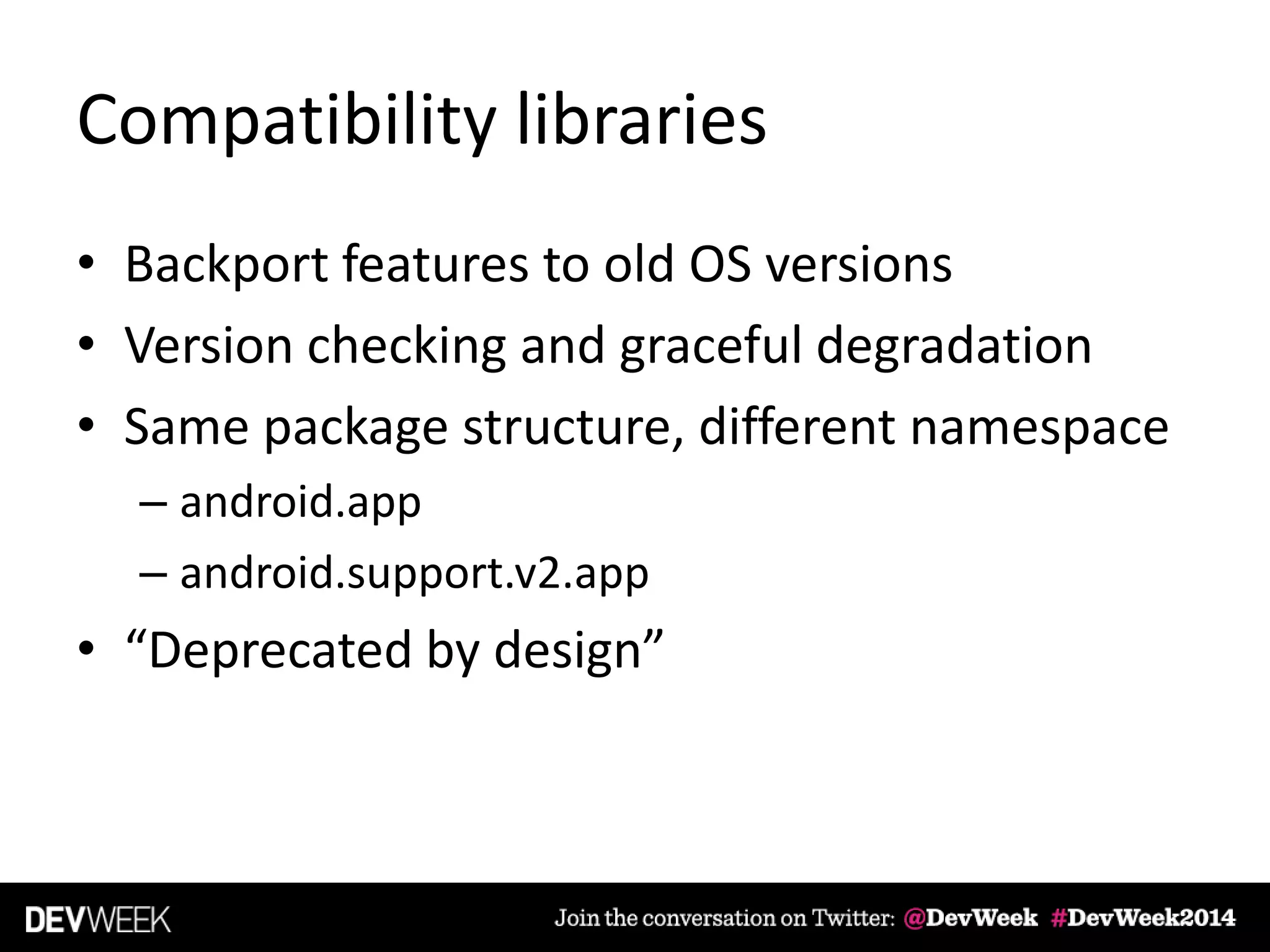

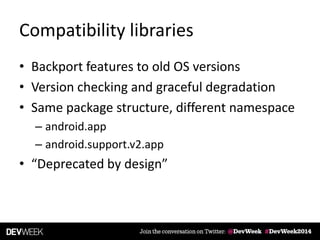

30. Compatibility libraries
• Backport features to old OS versions
• Version checking and graceful degradation
• Same package structure, different namespace
– android.app
– android.support.v2.app
• “Deprecated by design”

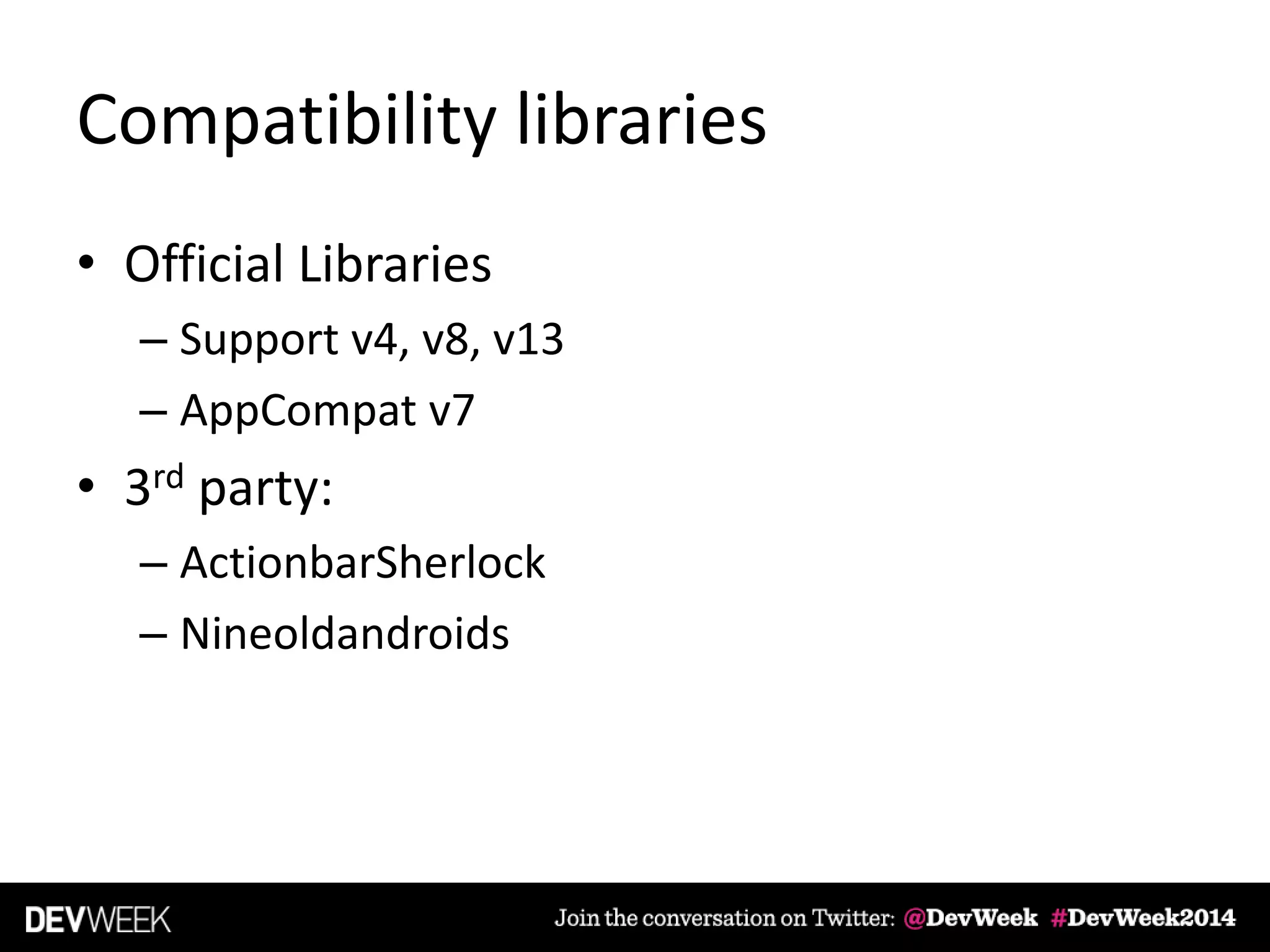

31. Compatibility libraries
• Official Libraries
– Support v4, v8, v13
– AppCompat v7
• 3rd party:
– ActionbarSherlock
– Nineoldandroids

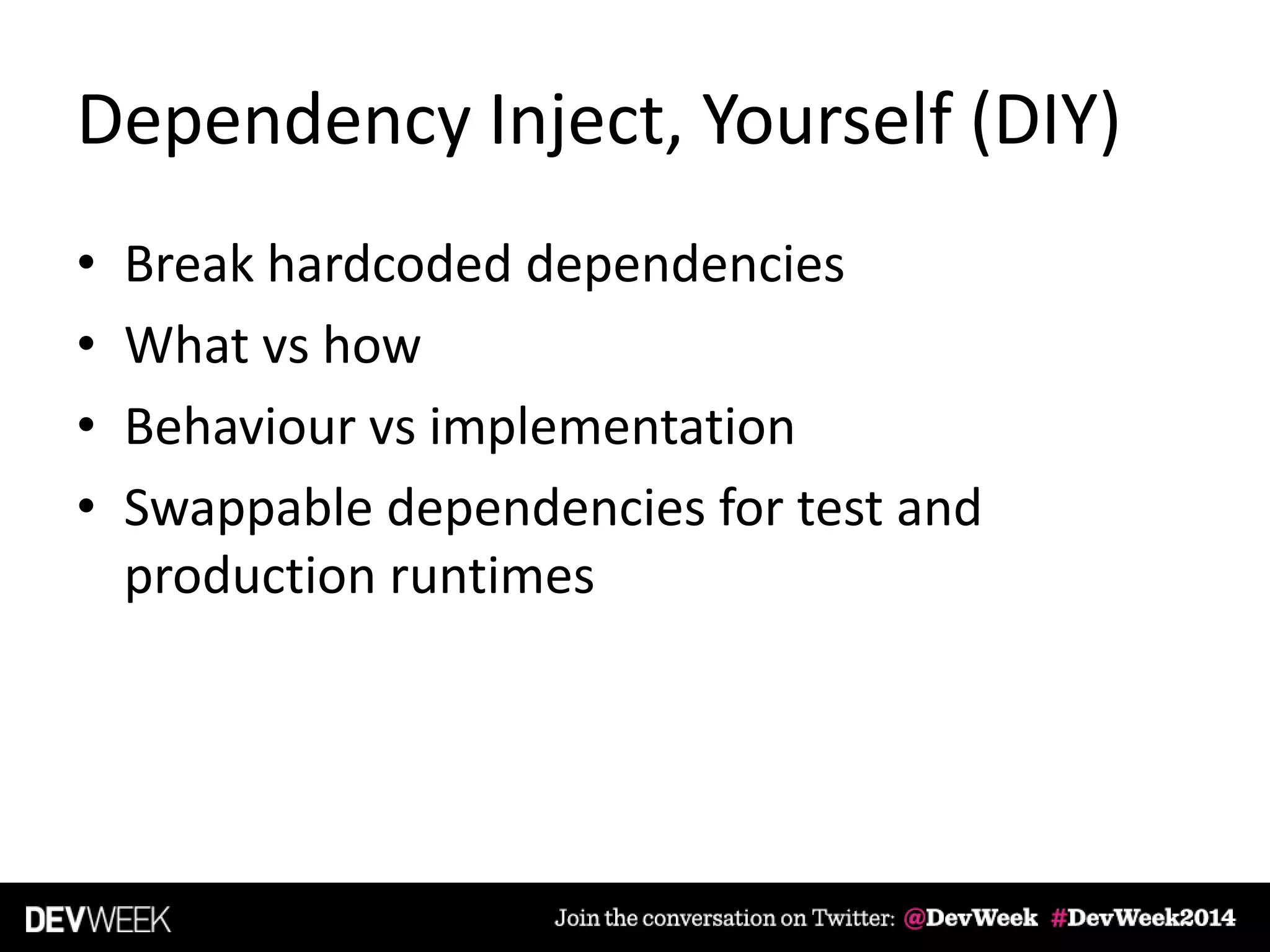

32. Dependency Inject, Yourself (DIY)
• Break hardcoded dependencies
• What vs how
• Behaviour vs implementation
• Swappable dependencies for test and
production runtimes

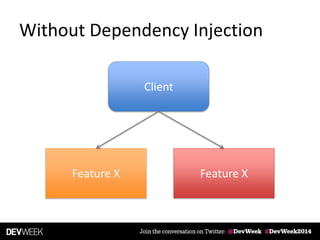

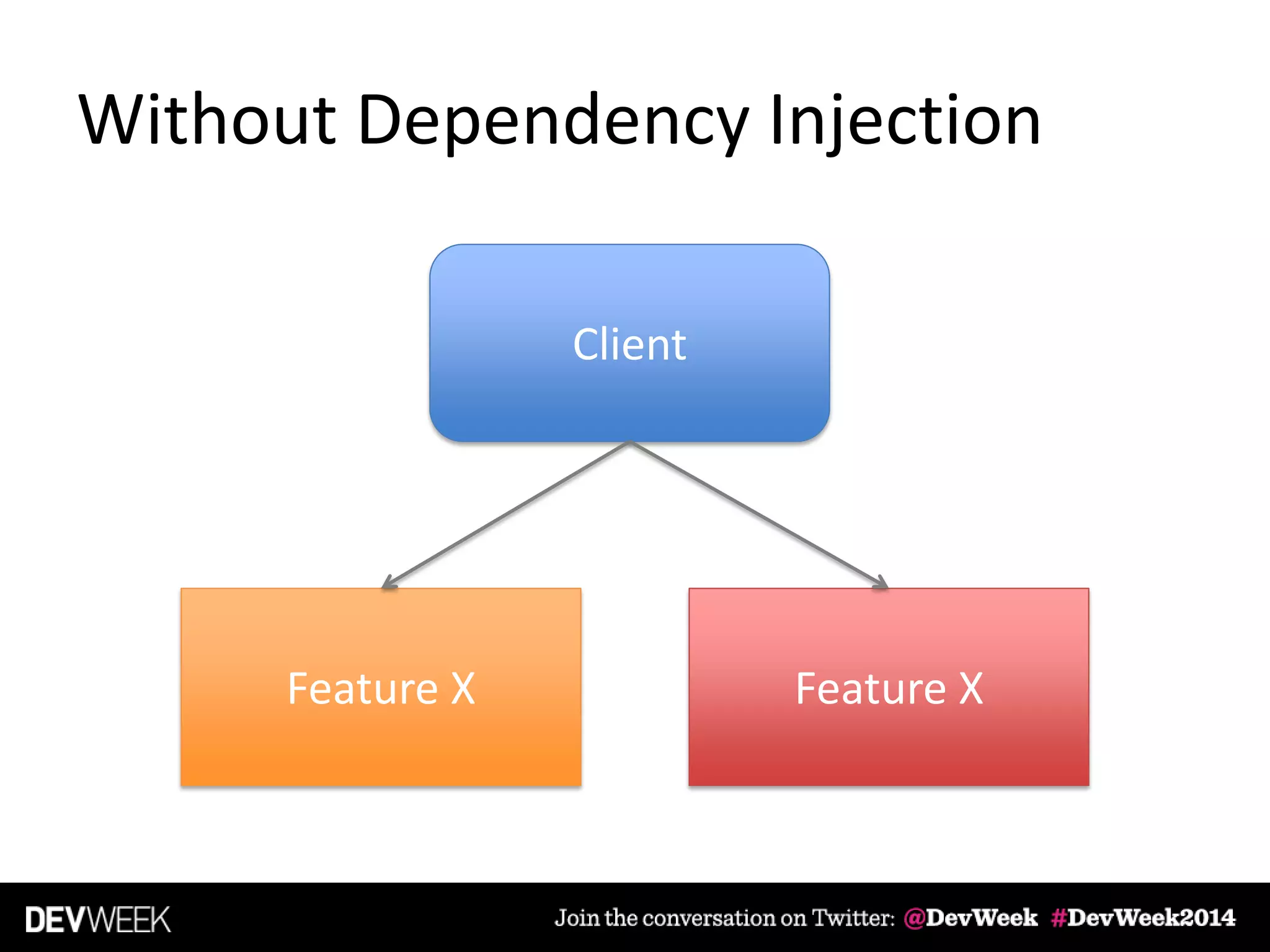

33. Without Dependency Injection
Client
Feature X Feature X

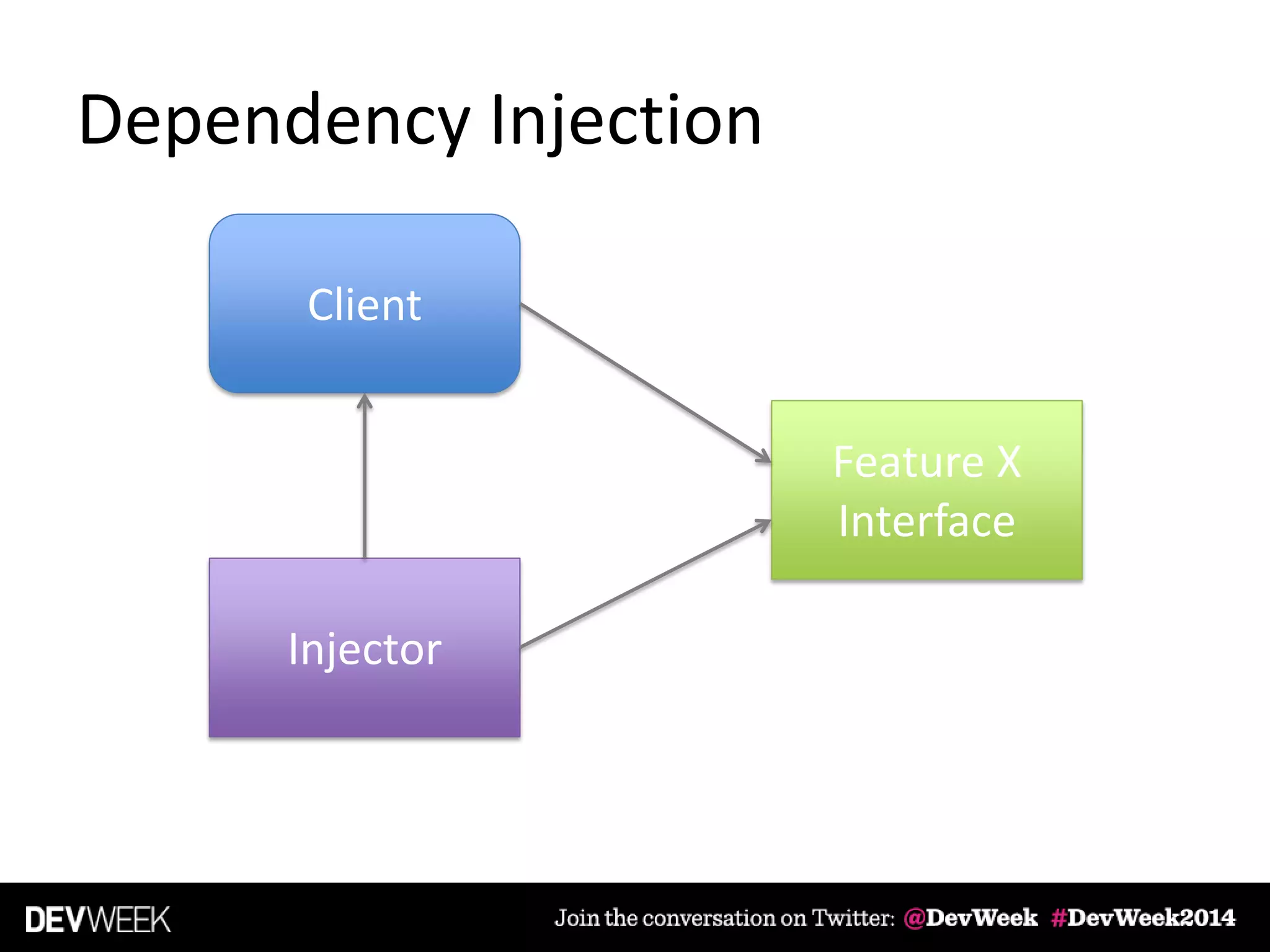

34. Dependency Injection
Client
Injector
Feature X
Interface

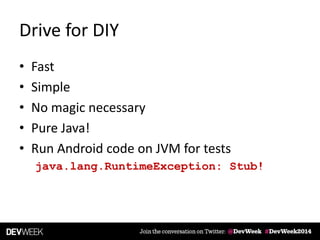

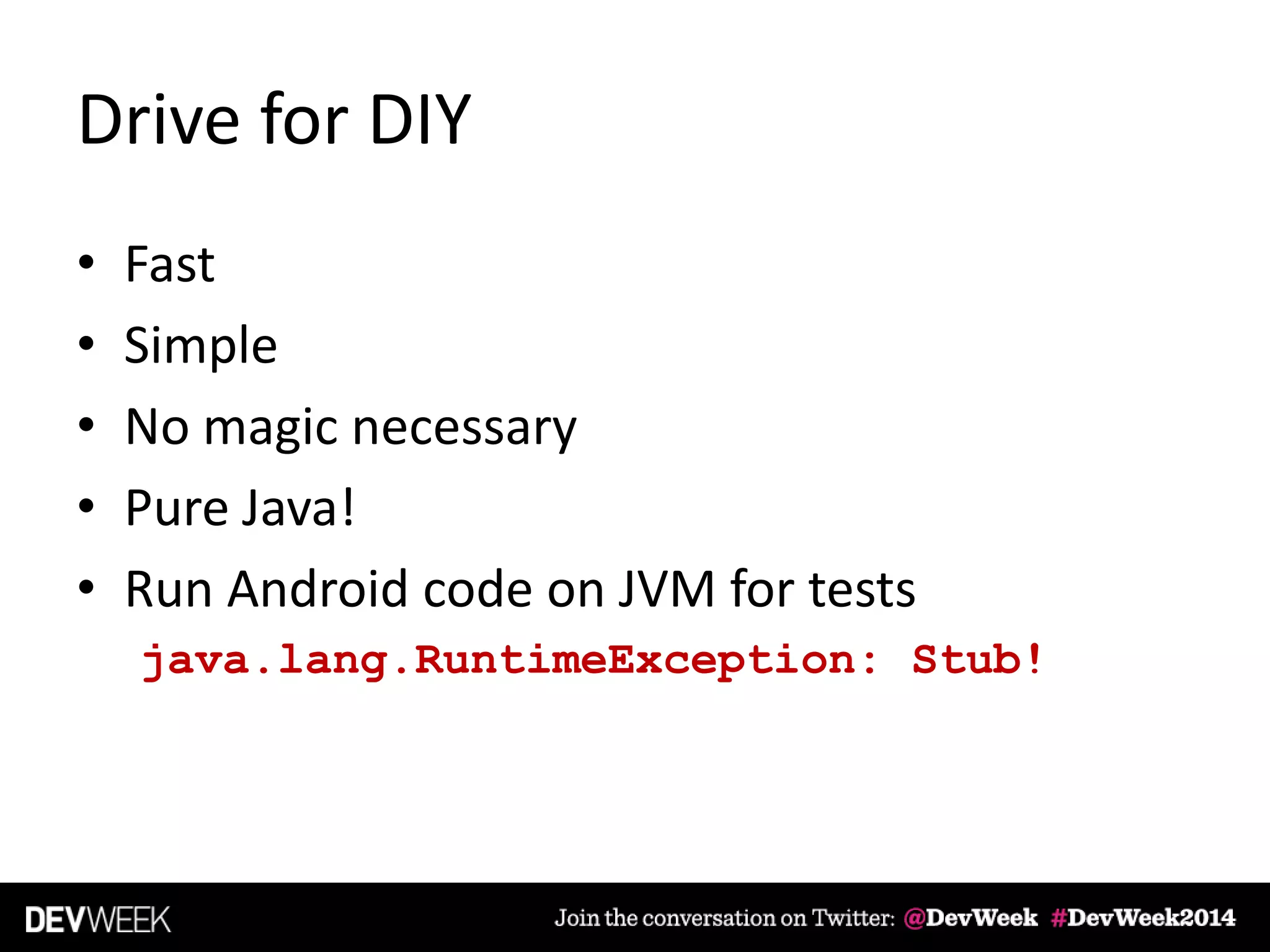

35. Drive for DIY
• Fast
• Simple
• No magic necessary
• Pure Java!
• Run Android code on JVM for tests
java.lang.RuntimeException: Stub!

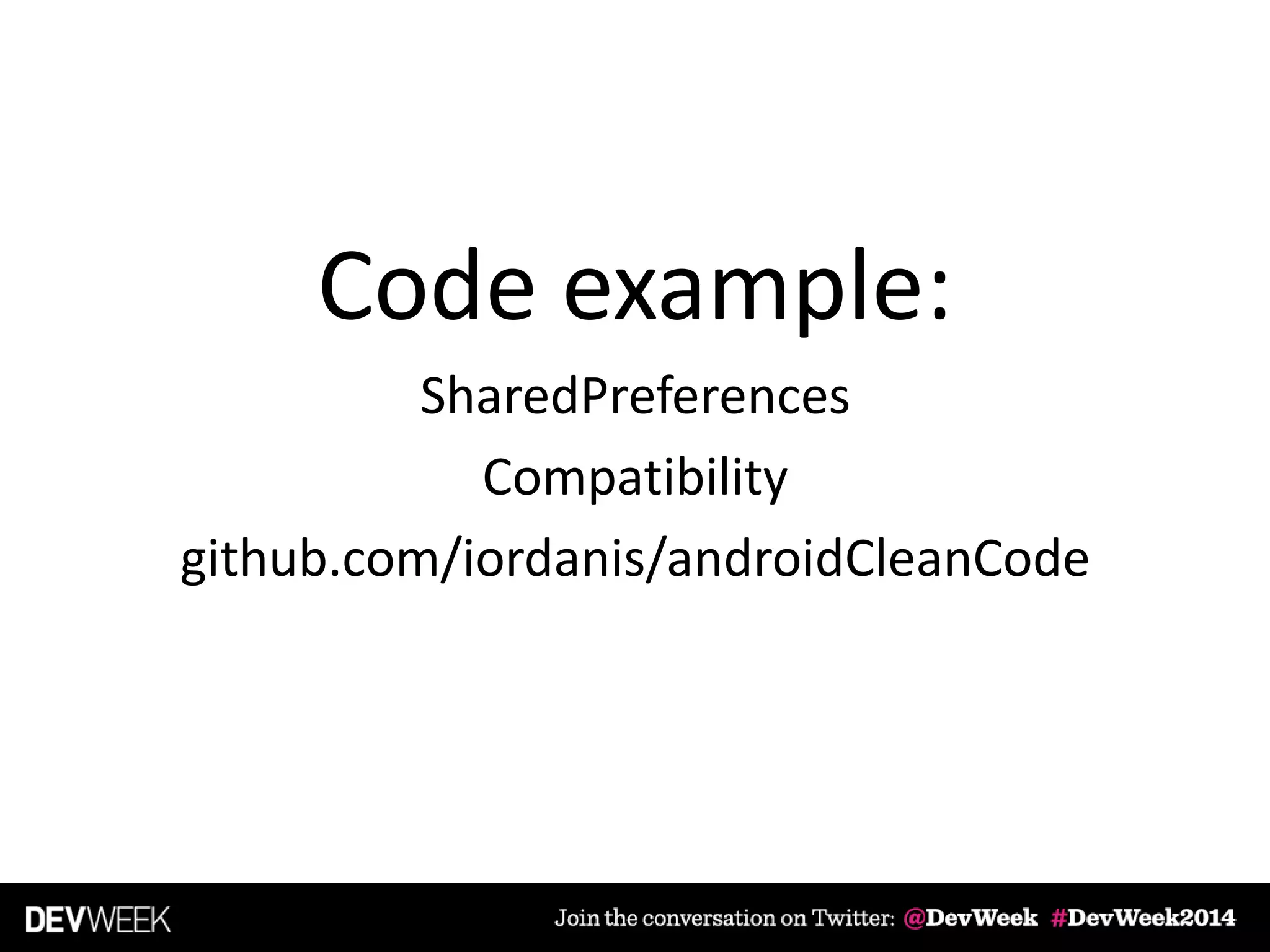

36. Code example:
SharedPreferences
Compatibility
github.com/iordanis/androidCleanCode

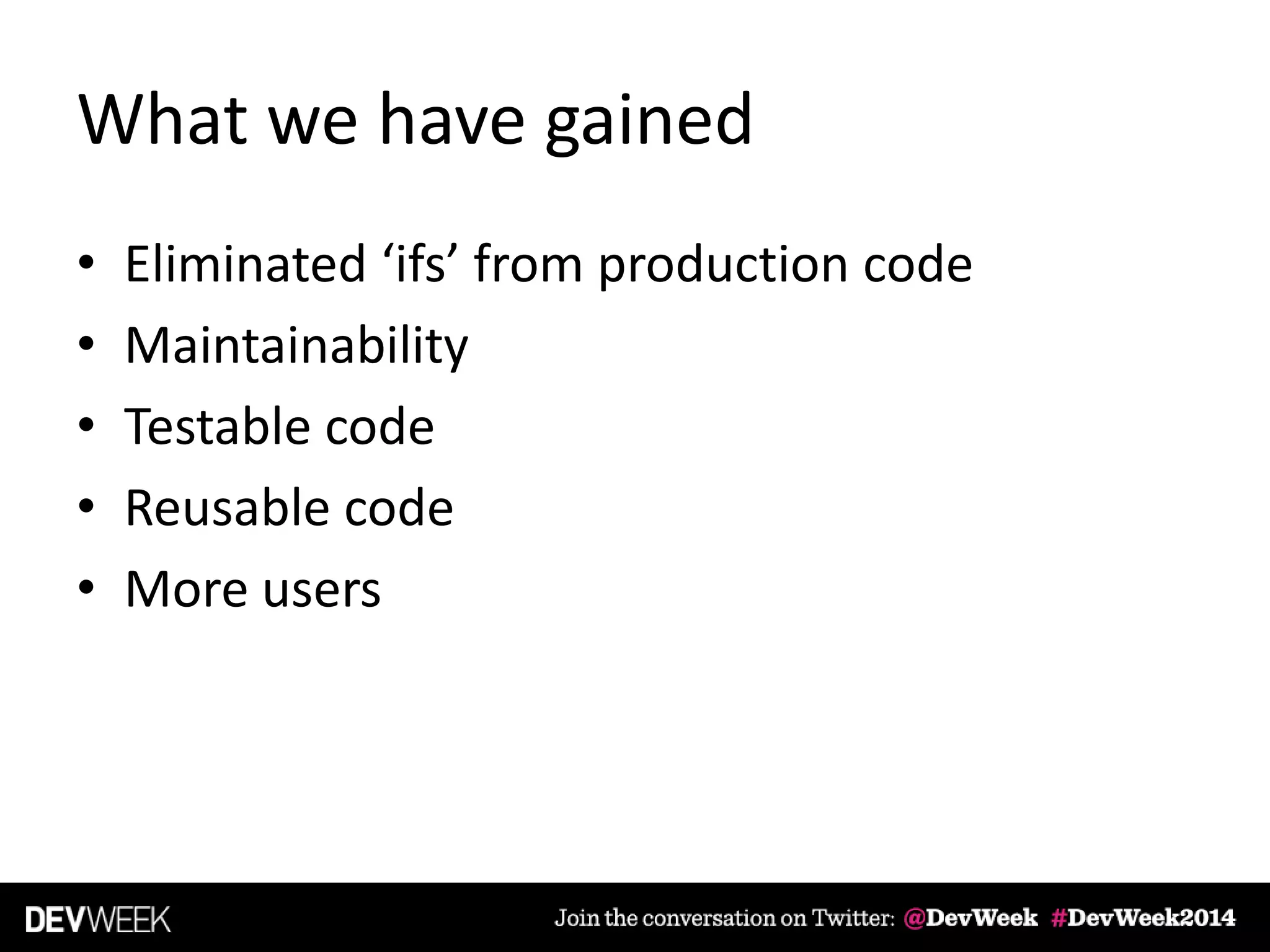

37. What we have gained
• Eliminated ‘ifs’ from production code
• Maintainability
• Testable code
• Reusable code
• More users

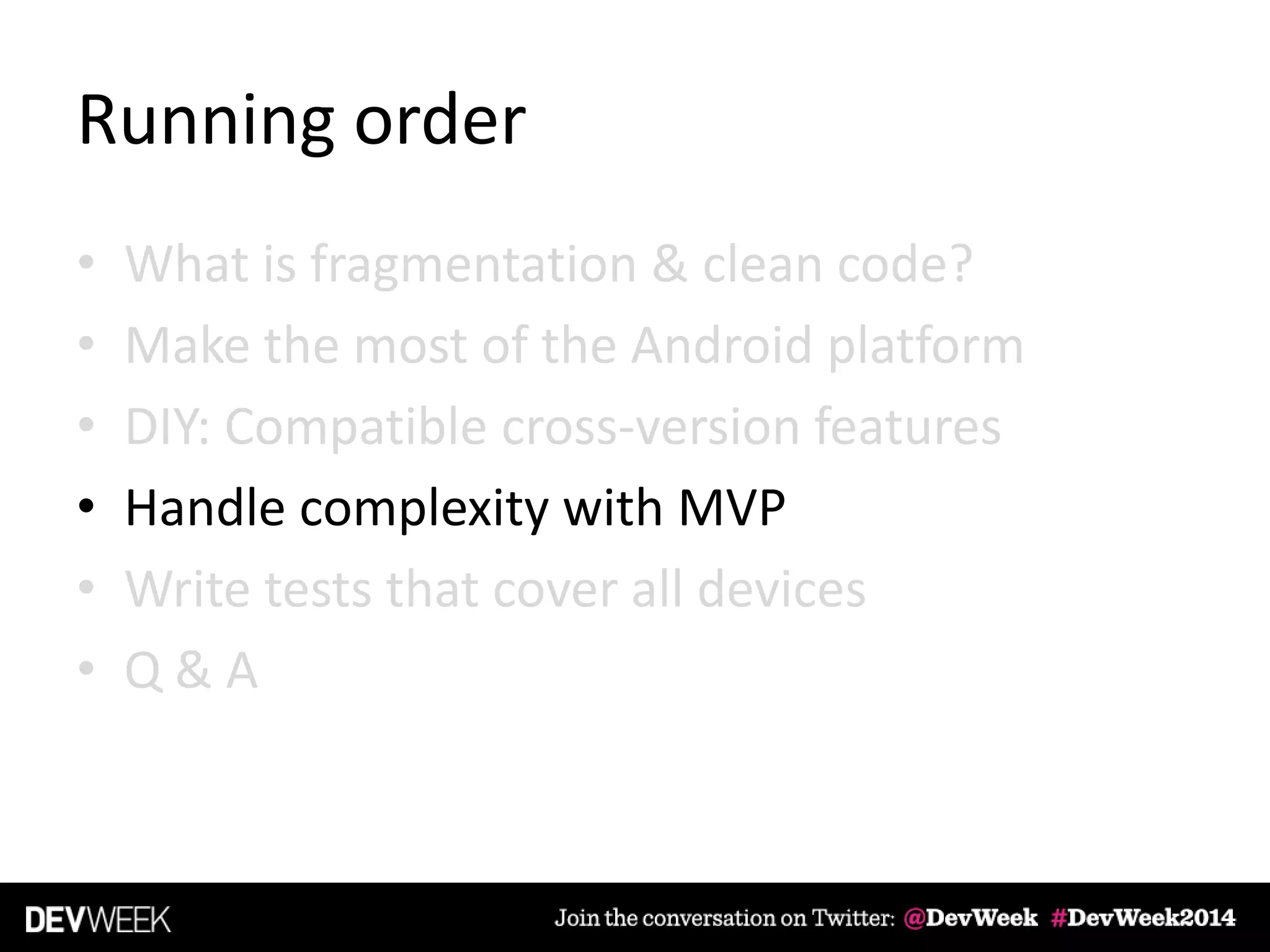

38. Running order
• What is fragmentation & clean code?
• Make the most of the Android platform
• DIY: Compatible cross-version features
• Handle complexity with MVP
• Write tests that cover all devices
• Q & A

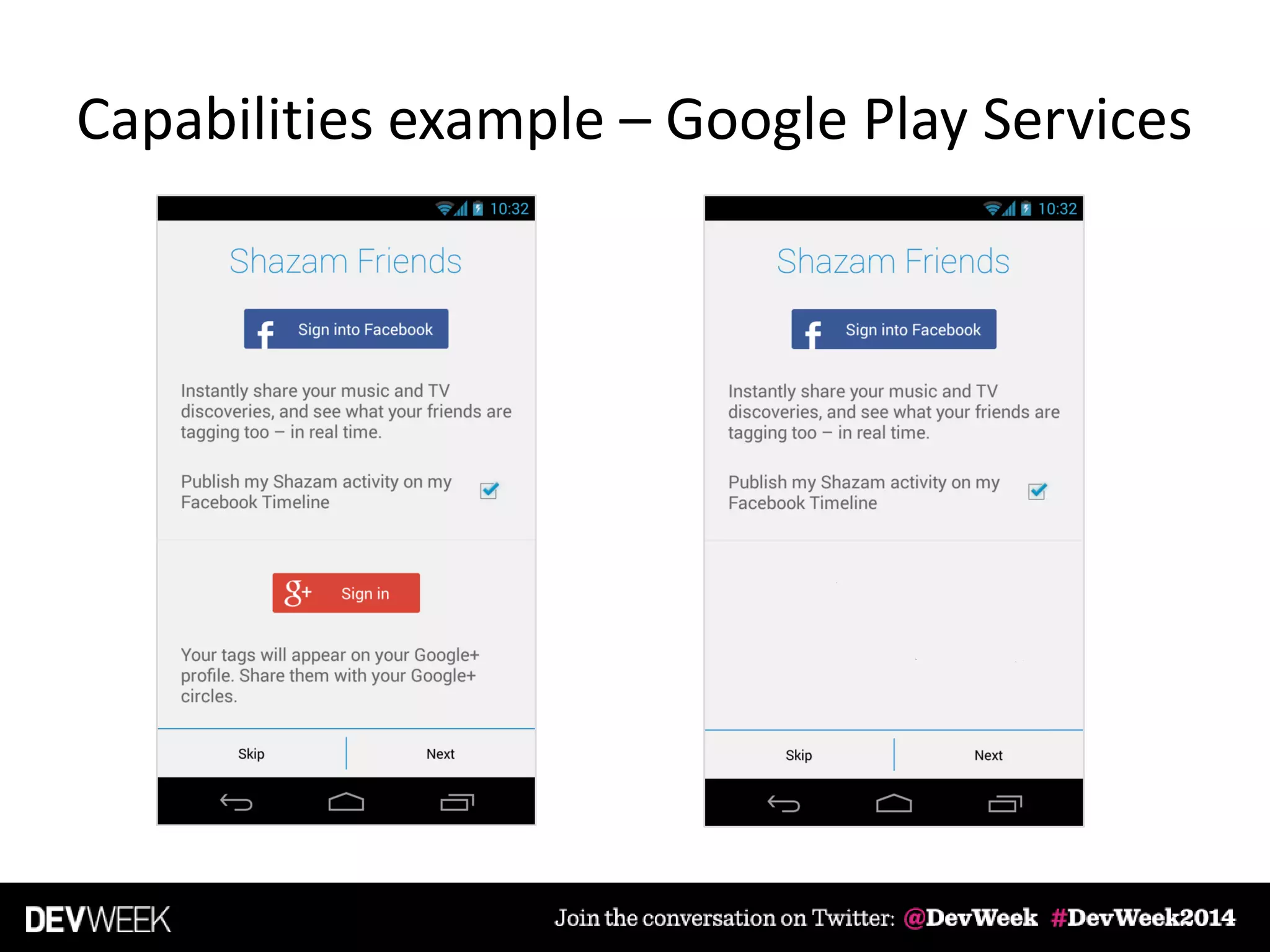

39. Capabilities example – Google Play Services

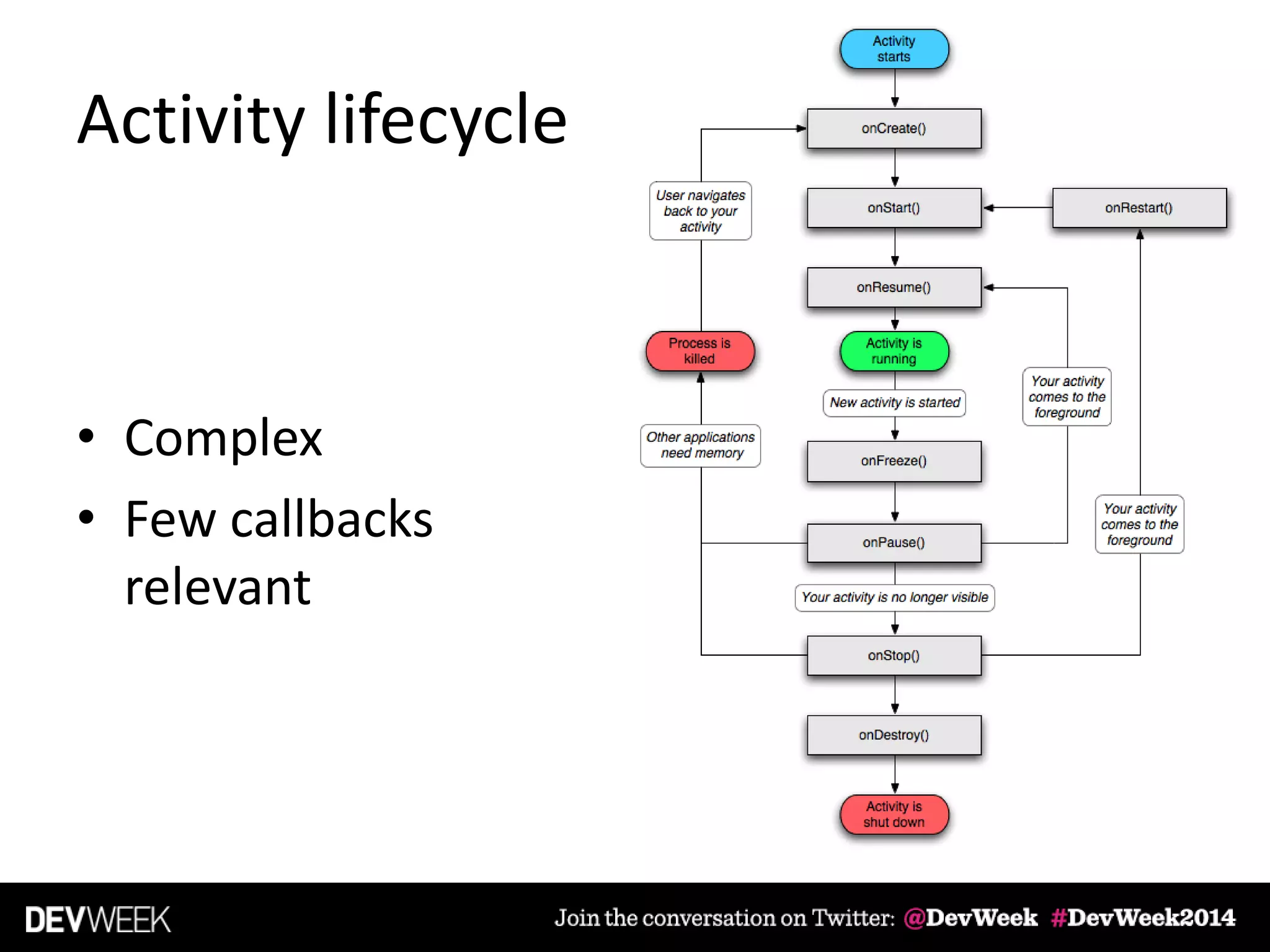

40. Activity lifecycle
• Complex
• Few callbacks
relevant

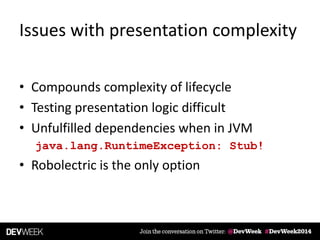

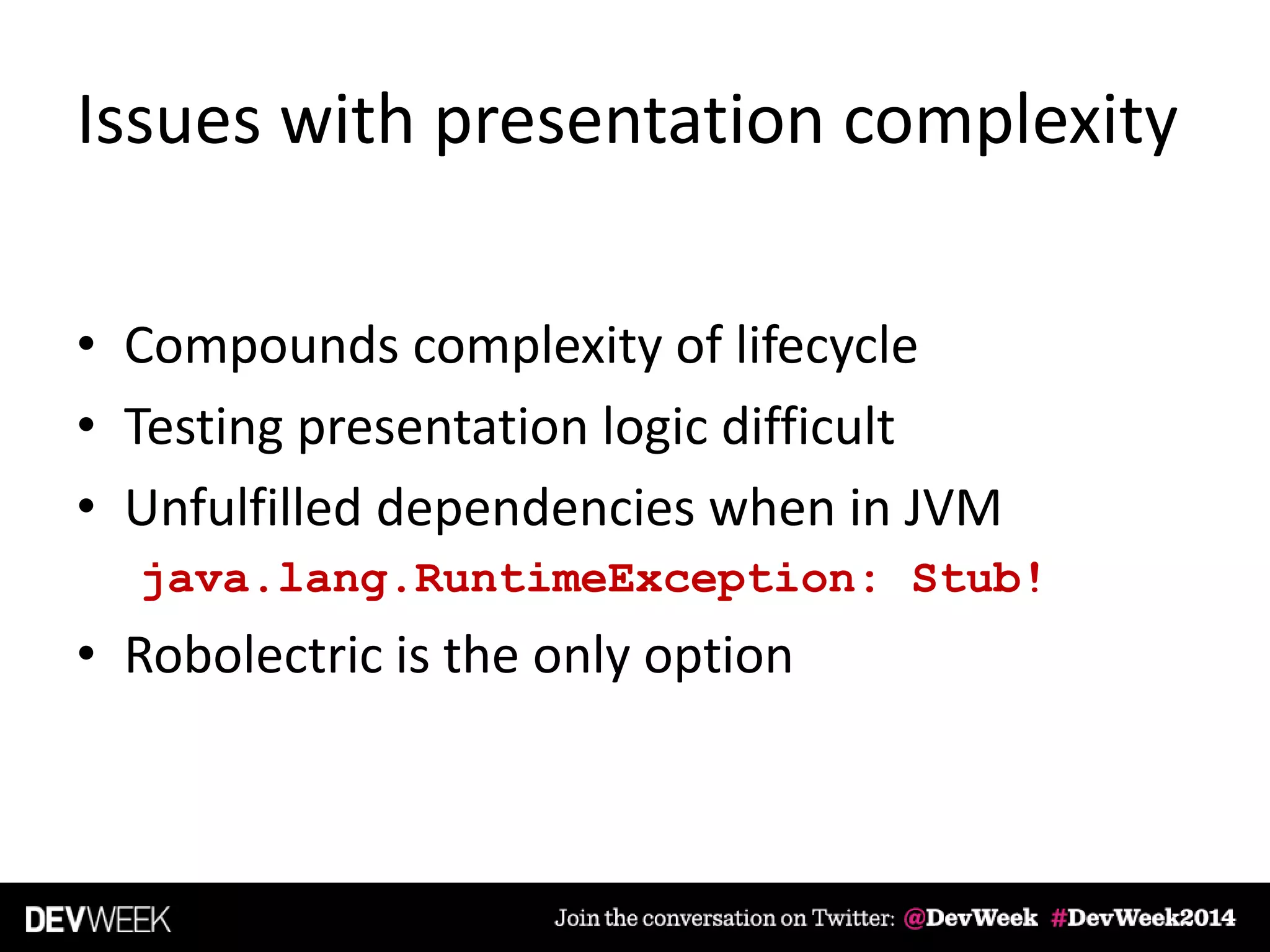

41. Issues with presentation complexity
• Compounds complexity of lifecycle
• Testing presentation logic difficult
• Unfulfilled dependencies when in JVM
java.lang.RuntimeException: Stub!
• Robolectric is the only option

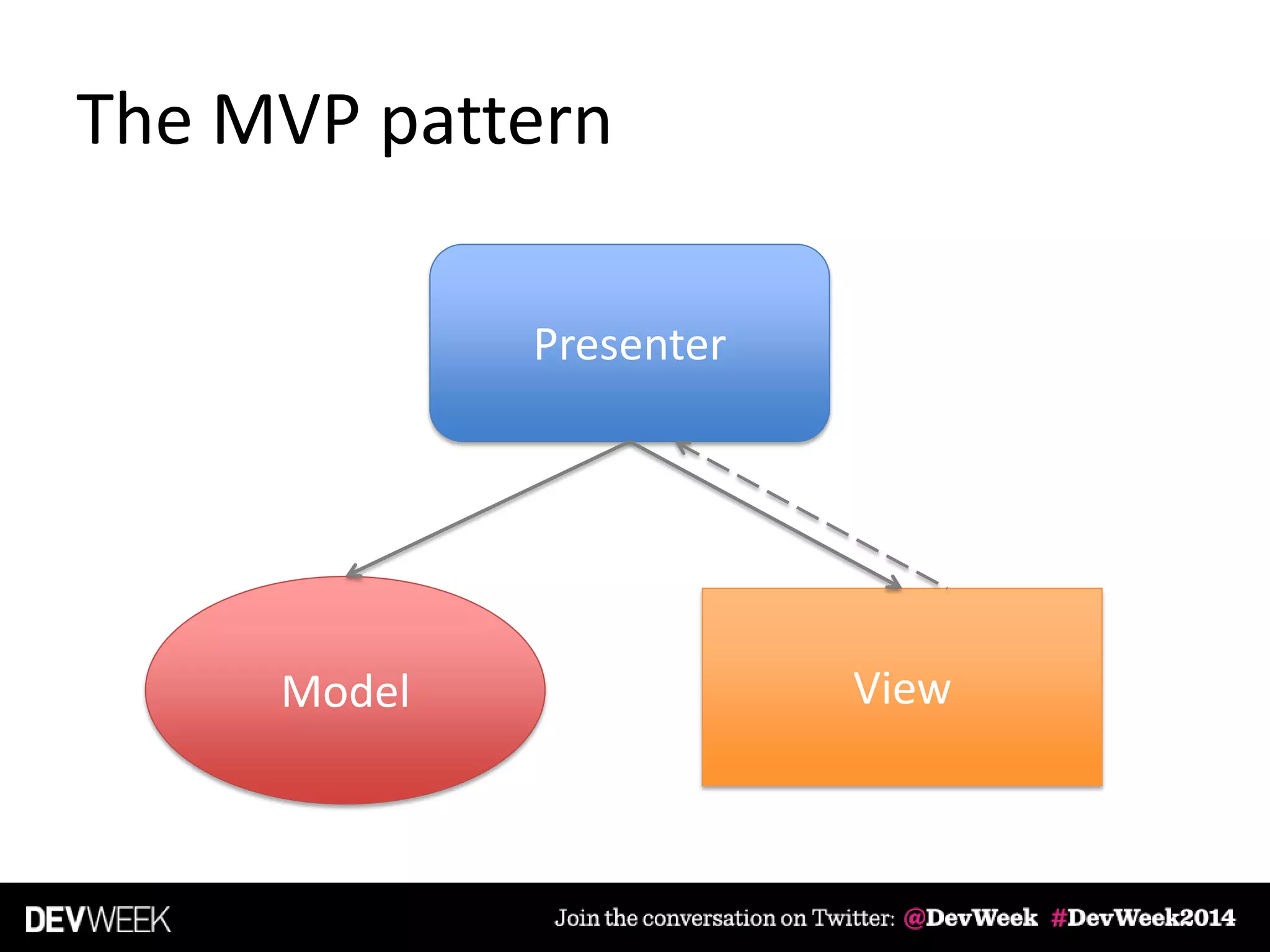

42. The MVP pattern
Presenter
Model View

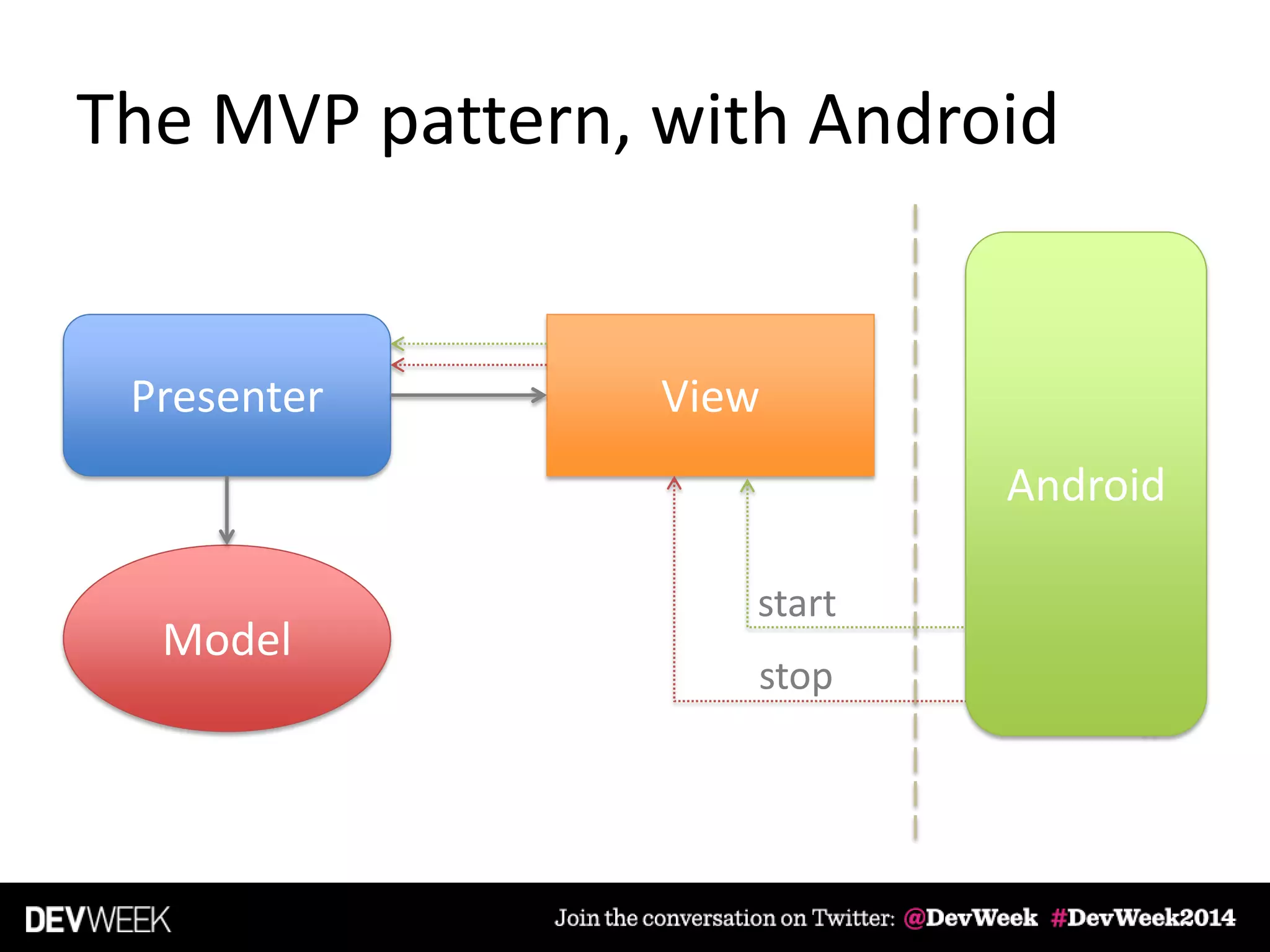

43. The MVP pattern, with Android
Presenter
Model
View
start
stop
Android

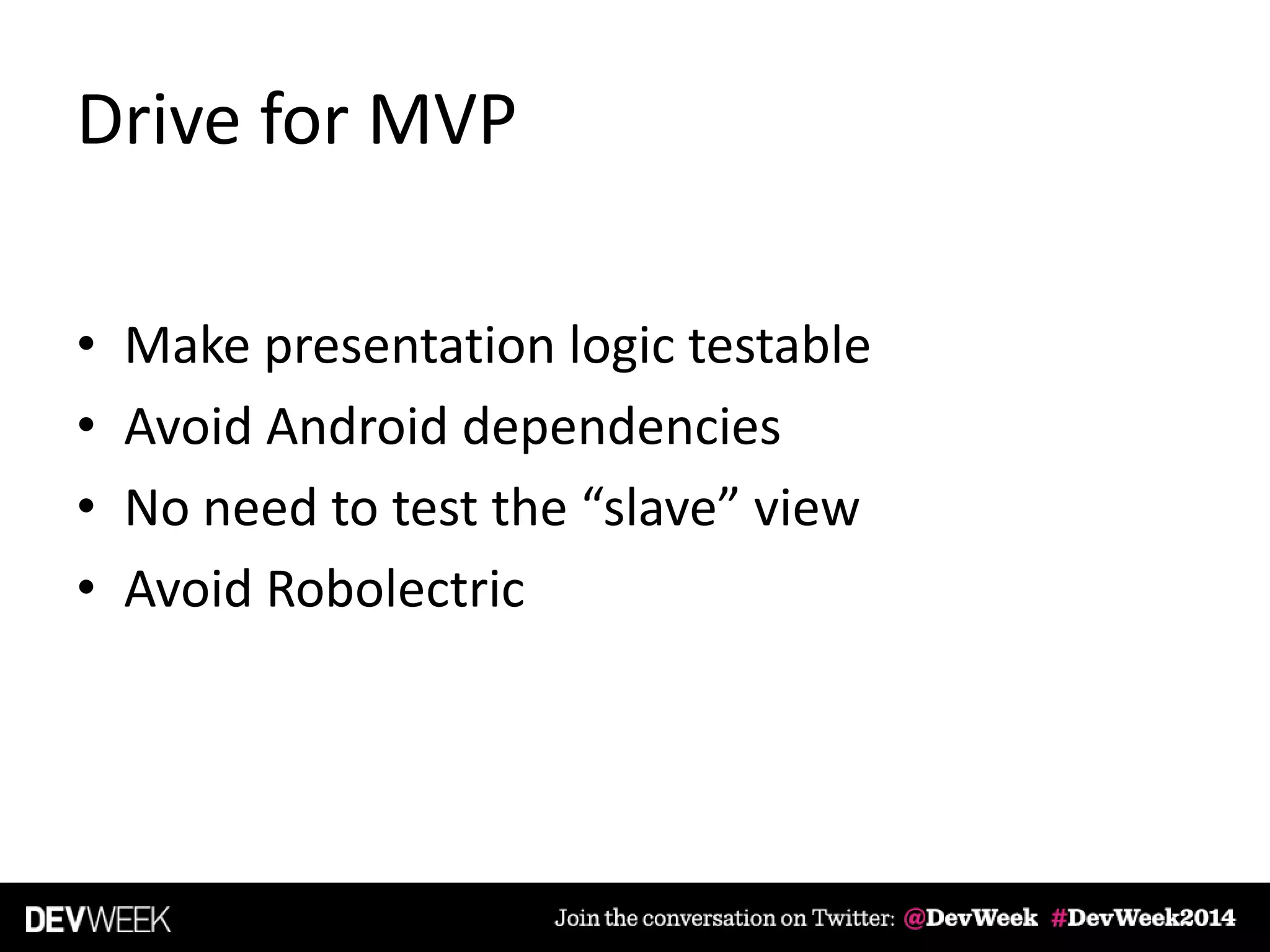

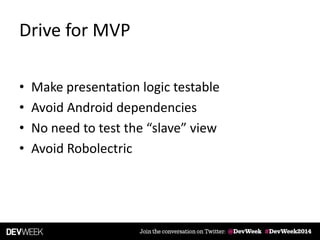

44. Drive for MVP
• Make presentation logic testable
• Avoid Android dependencies
• No need to test the “slave” view
• Avoid Robolectric

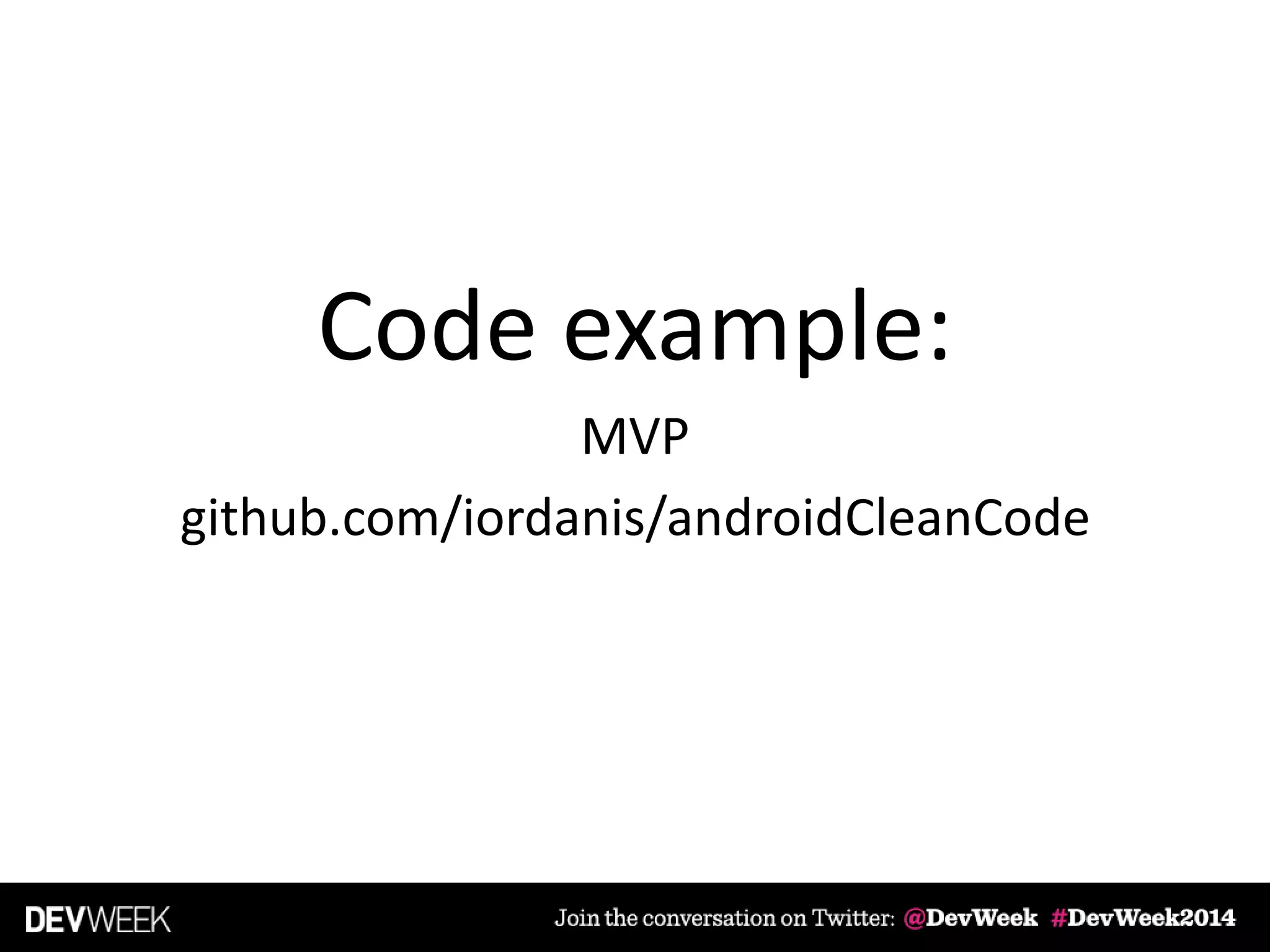

45. Code example:
MVP
github.com/iordanis/androidCleanCode

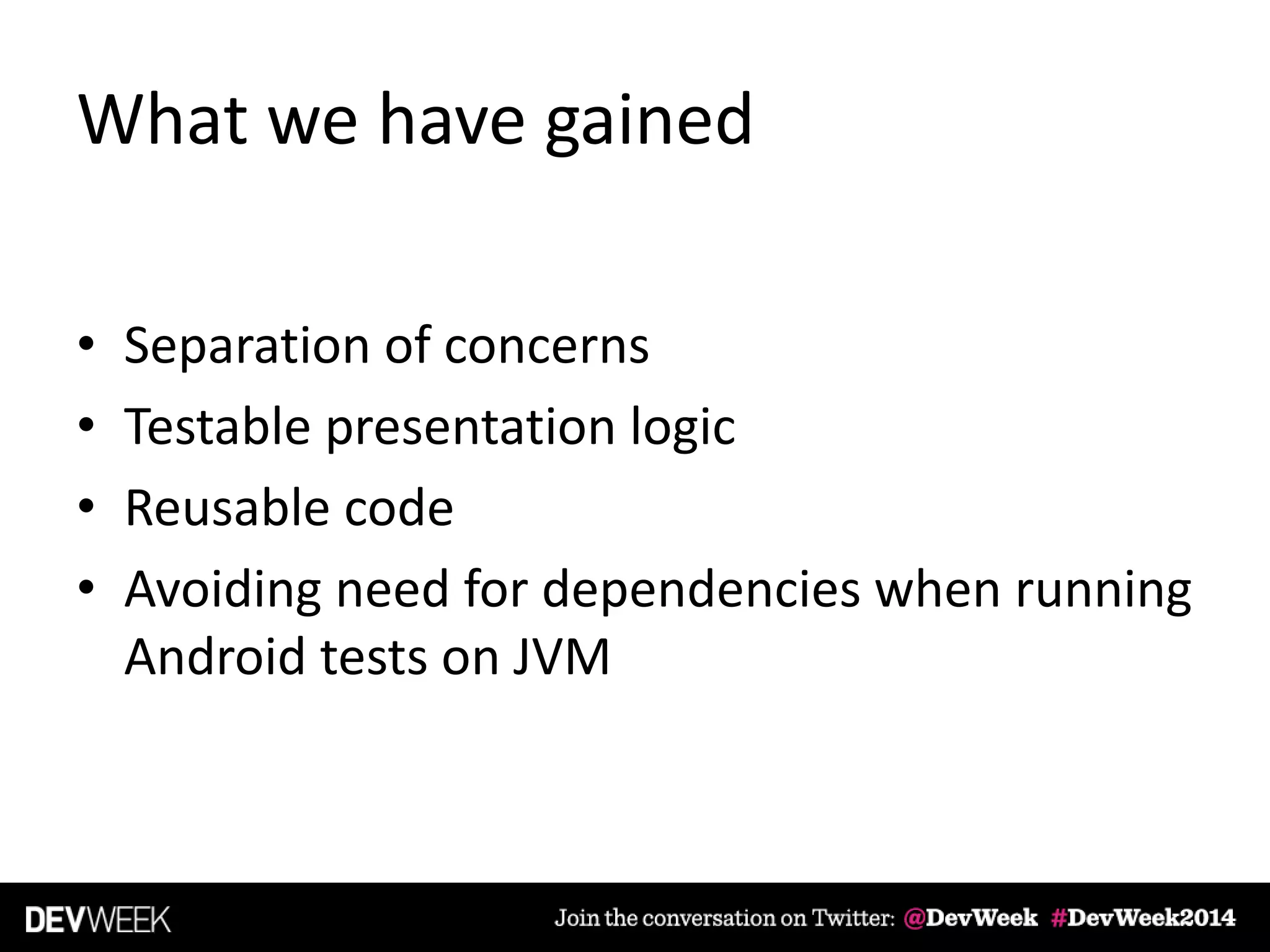

46. What we have gained
• Separation of concerns
• Testable presentation logic
• Reusable code
• Avoiding need for dependencies when running
Android tests on JVM

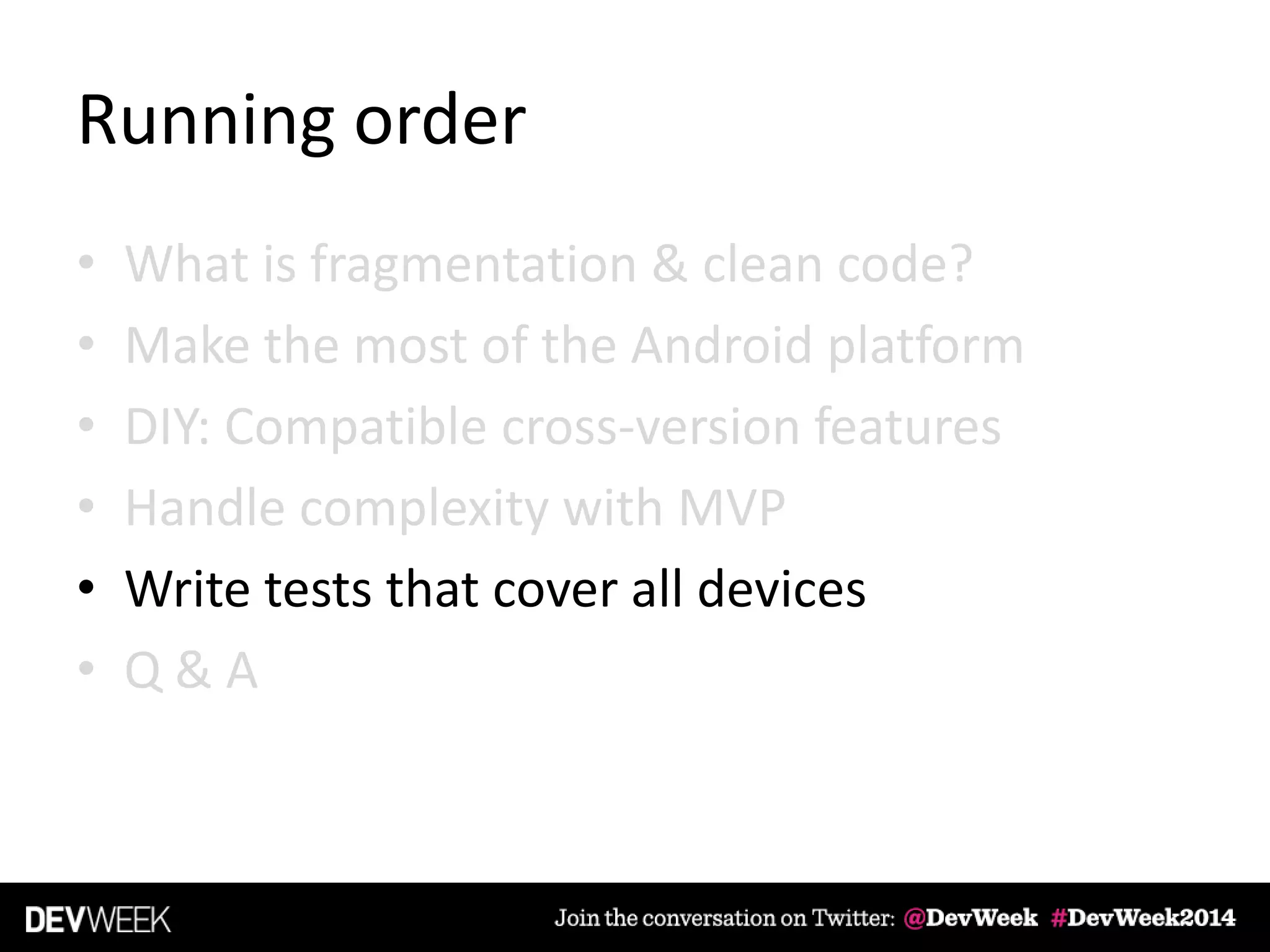

47. Running order
• What is fragmentation & clean code?
• Make the most of the Android platform
• DIY: Compatible cross-version features
• Handle complexity with MVP
• Write tests that cover all devices
• Q & A

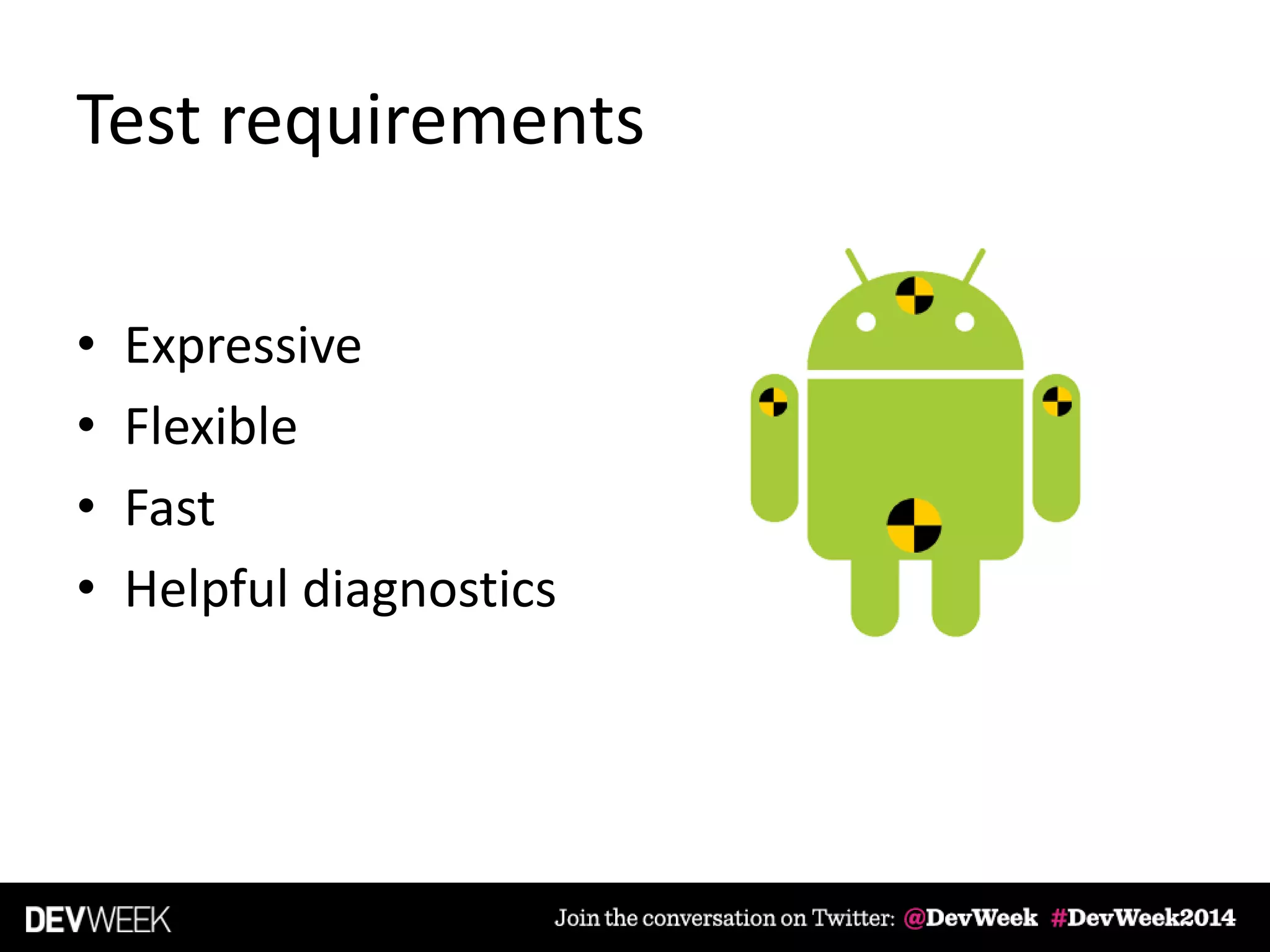

48. Test requirements
• Expressive
• Flexible
• Fast
• Helpful diagnostics

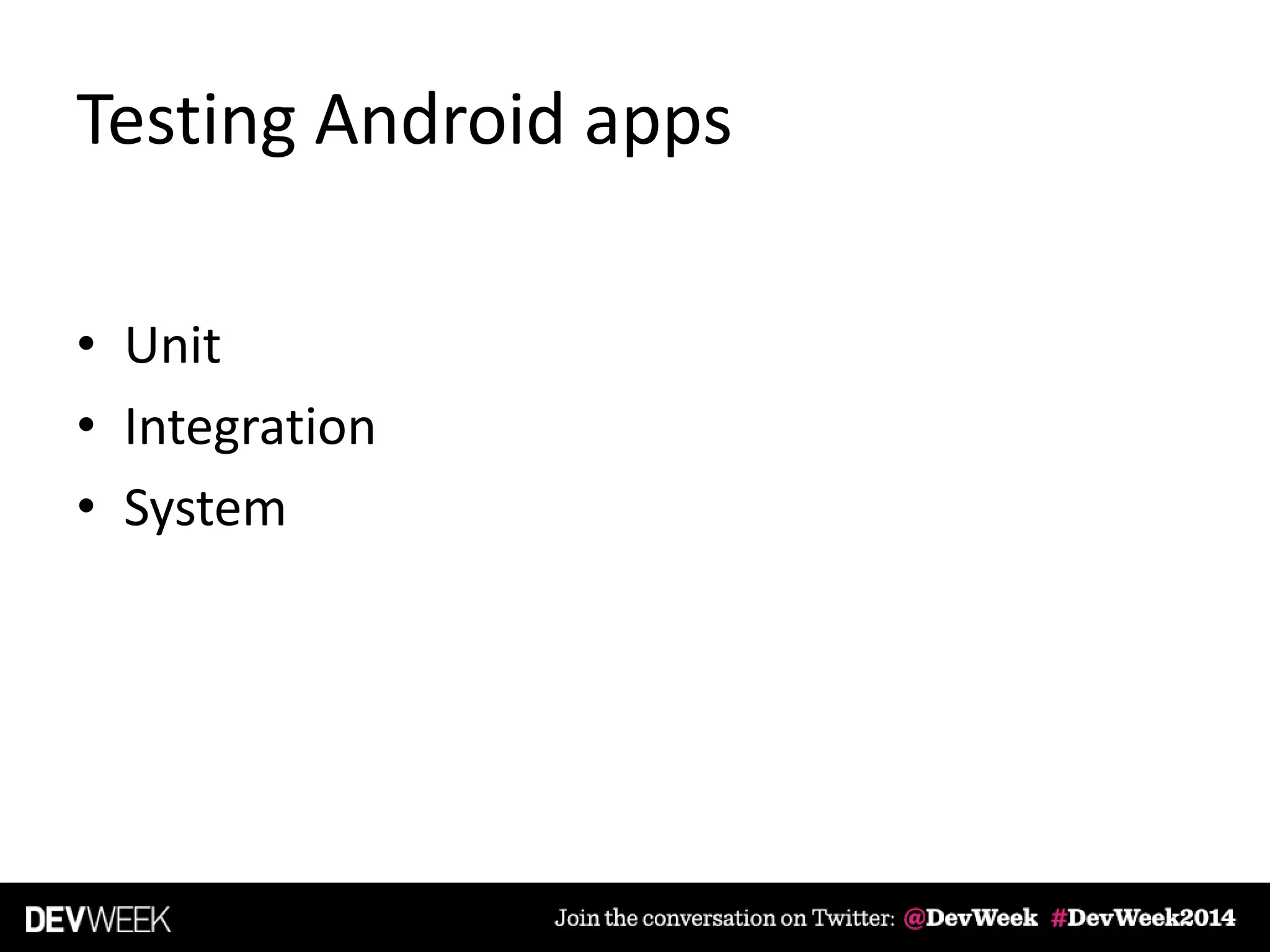

49. Testing Android apps
• Unit
• Integration
• System

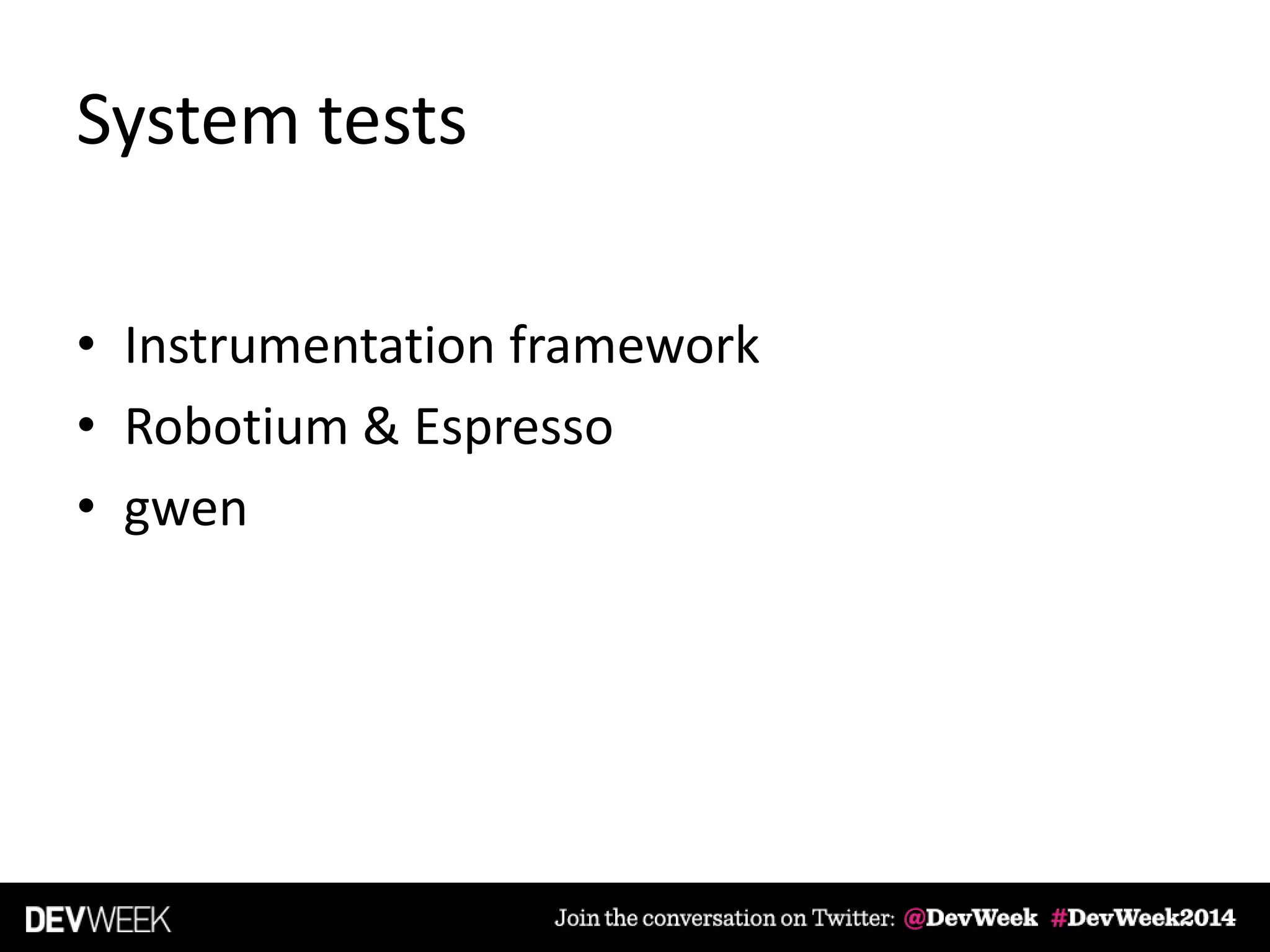

50. System tests
• Instrumentation framework
• Robotium & Espresso
• gwen

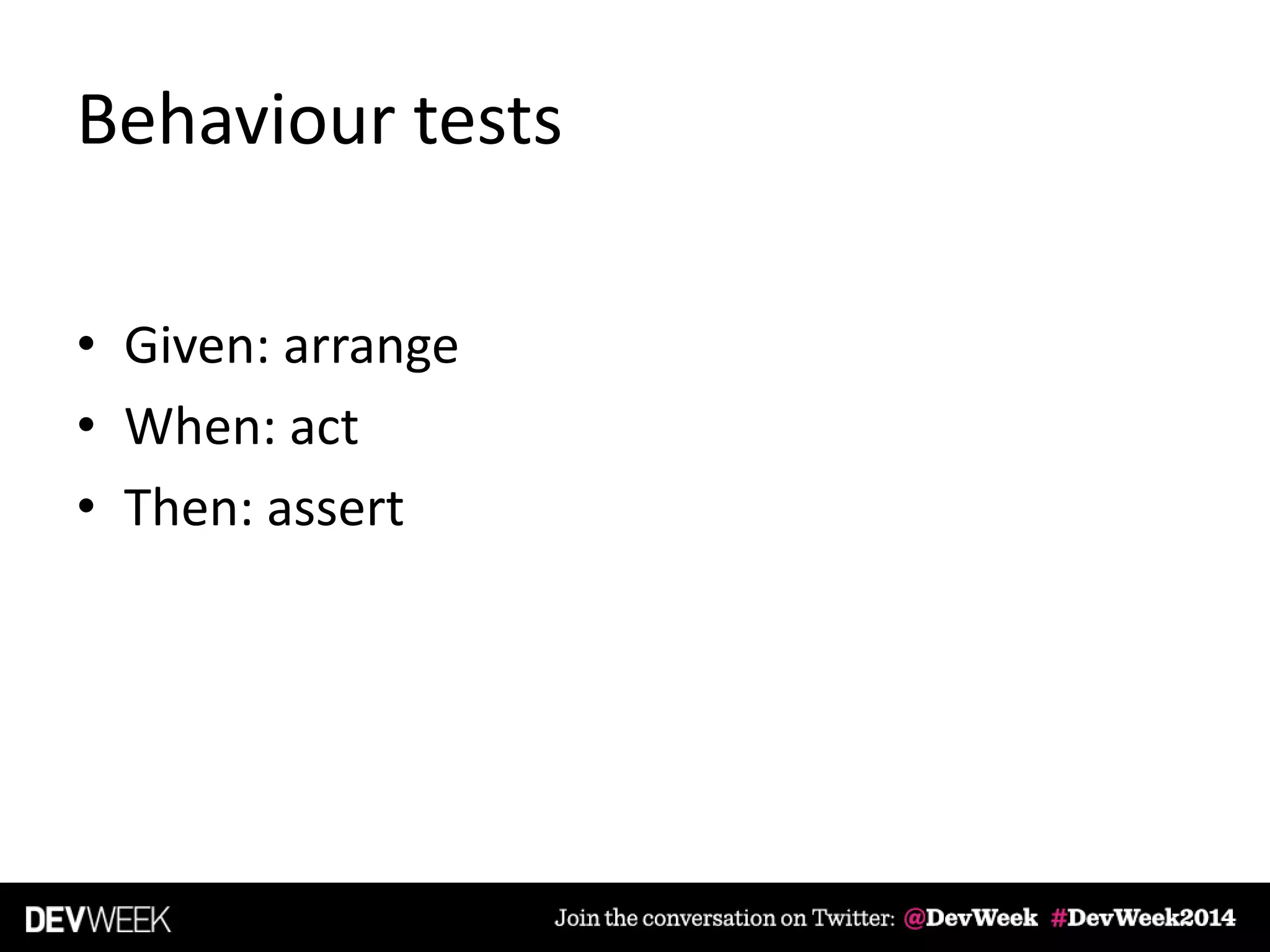

51. Behaviour tests
• Given: arrange
• When: act
• Then: assert

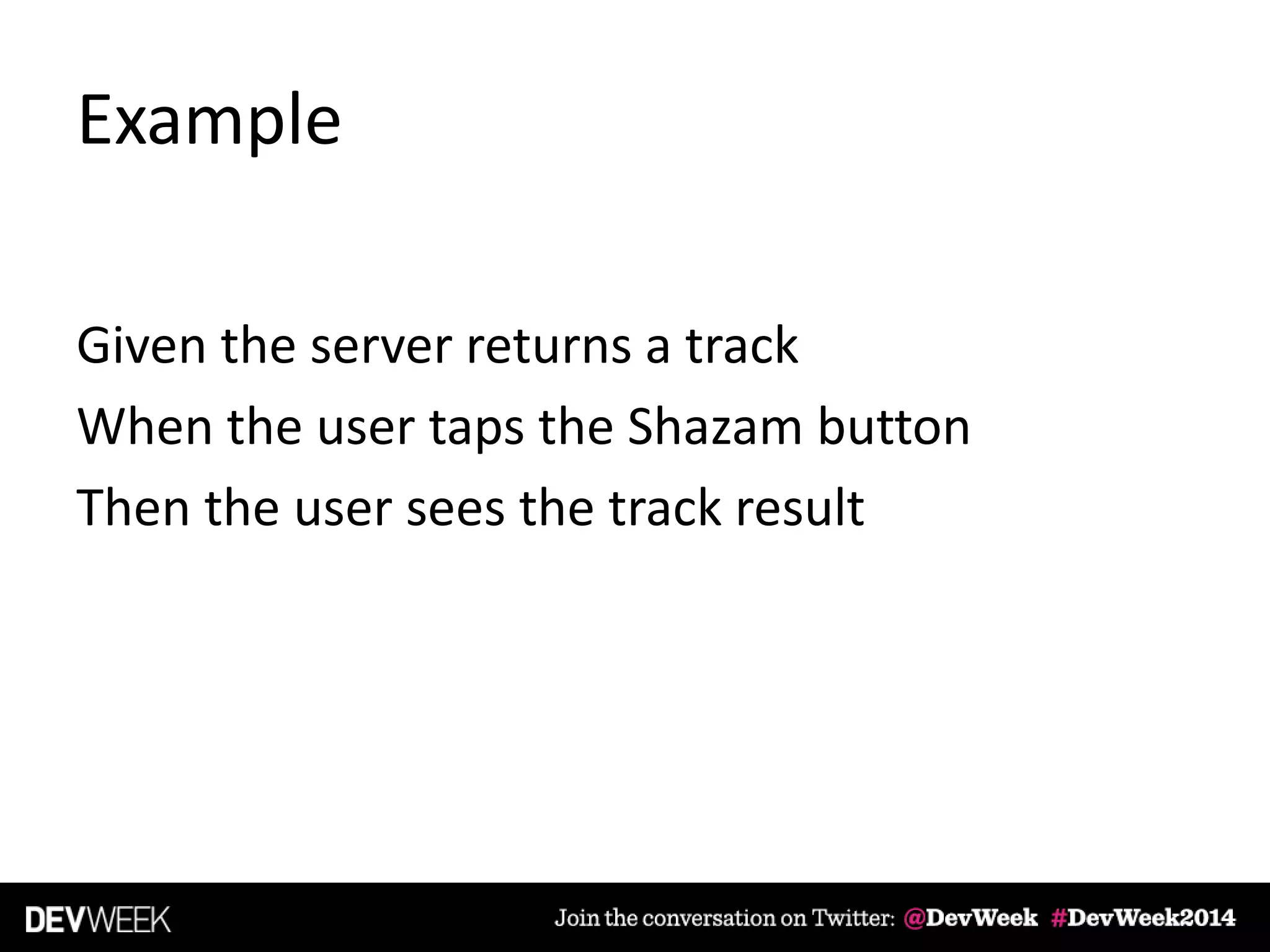

52. Example
Given the server returns a track
When the user taps the Shazam button
Then the user sees the track result

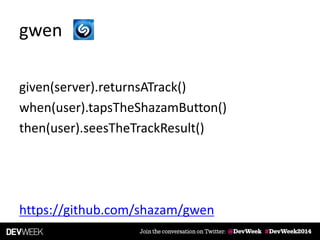

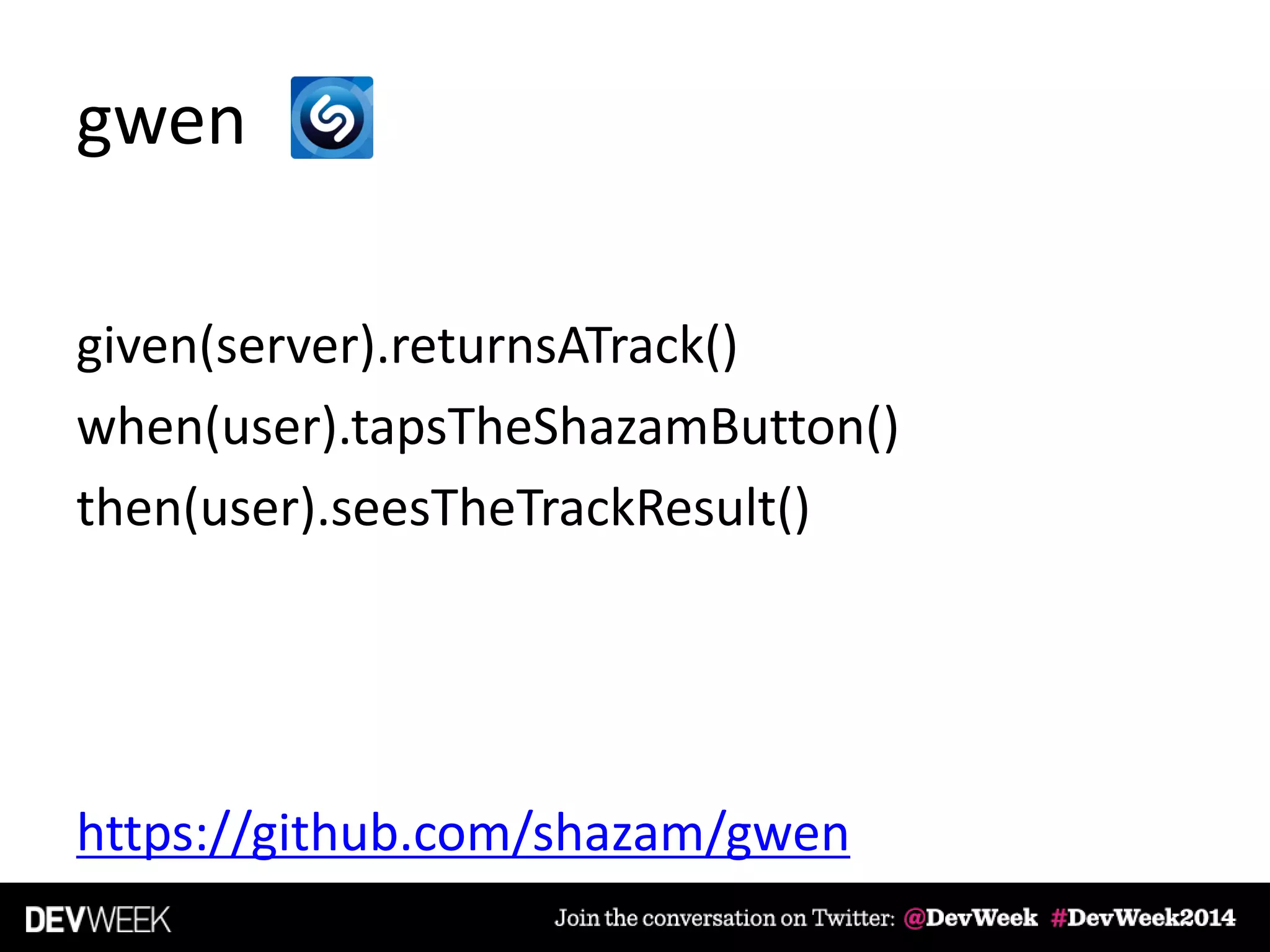

53. gwen
given(server).returnsATrack()
when(user).tapsTheShazamButton()
then(user).seesTheTrackResult()
https://github.com/shazam/gwen

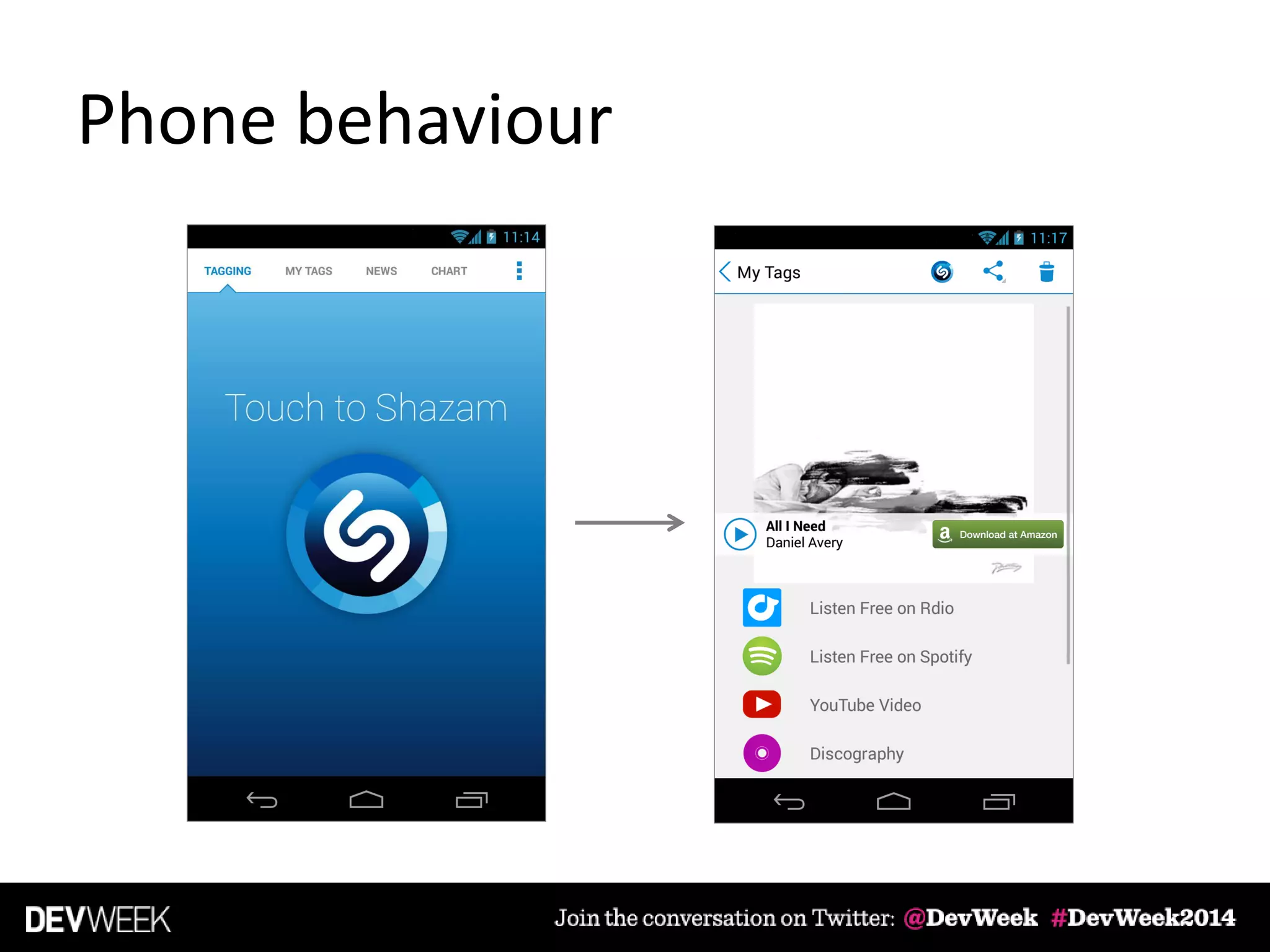

54. Phone behaviour

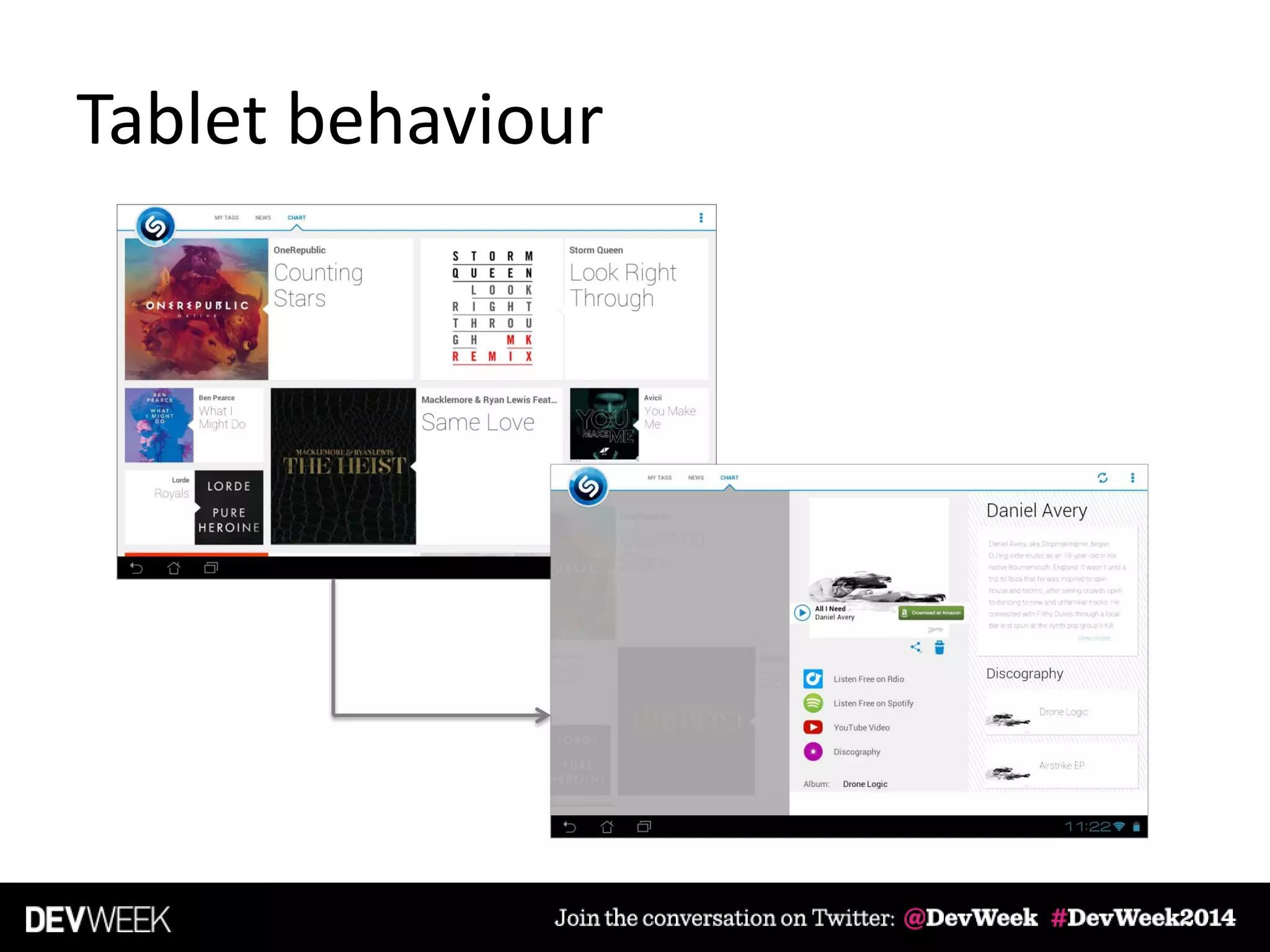

55. Tablet behaviour

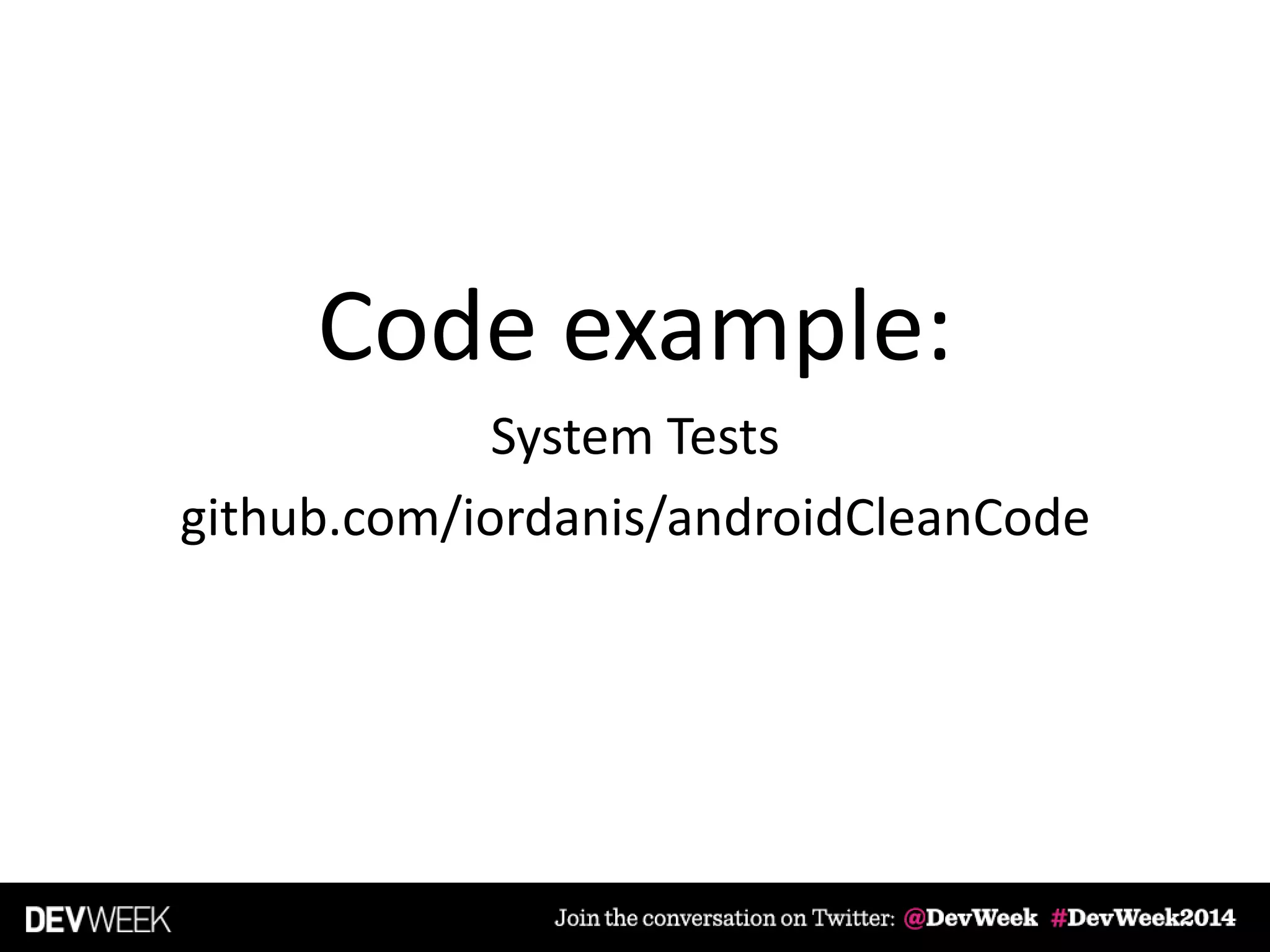

56. Code example:
System Tests
github.com/iordanis/androidCleanCode

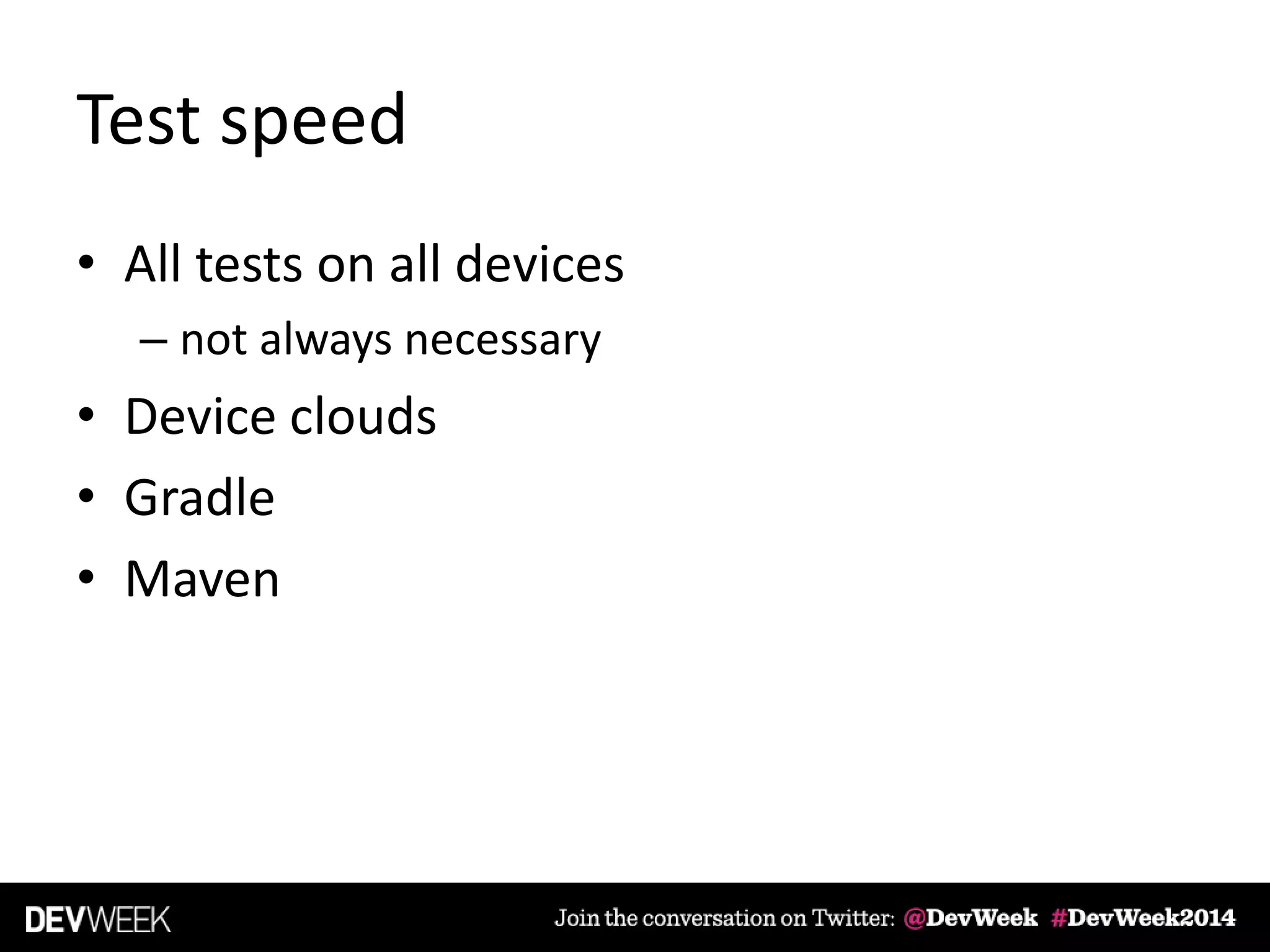

57. Test speed
• All tests on all devices
– not always necessary
• Device clouds
• Gradle
• Maven

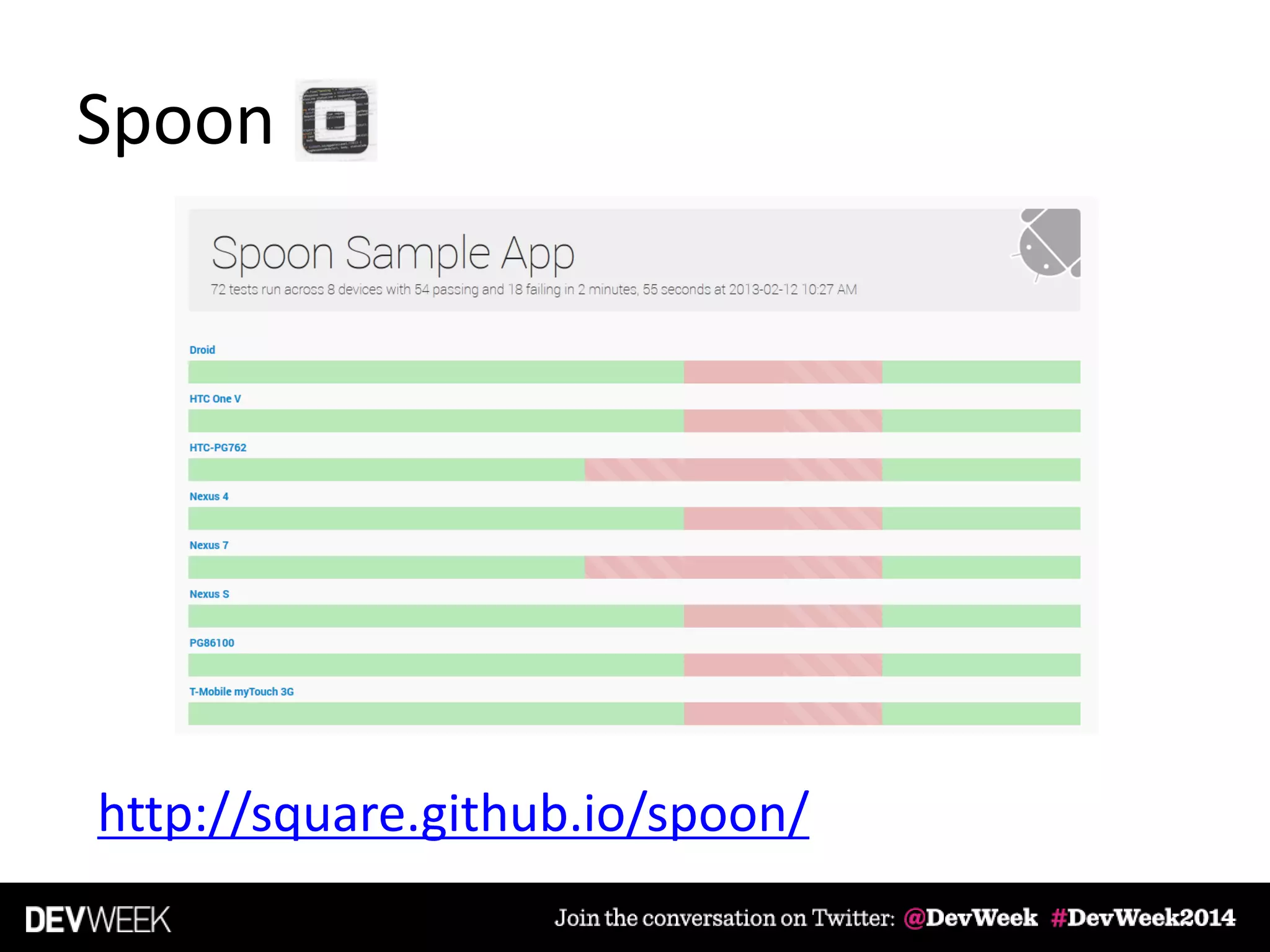

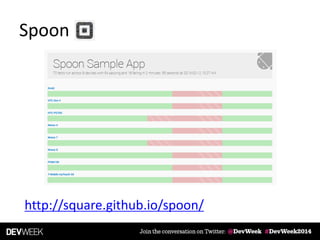

58. Spoon
http://square.github.io/spoon/

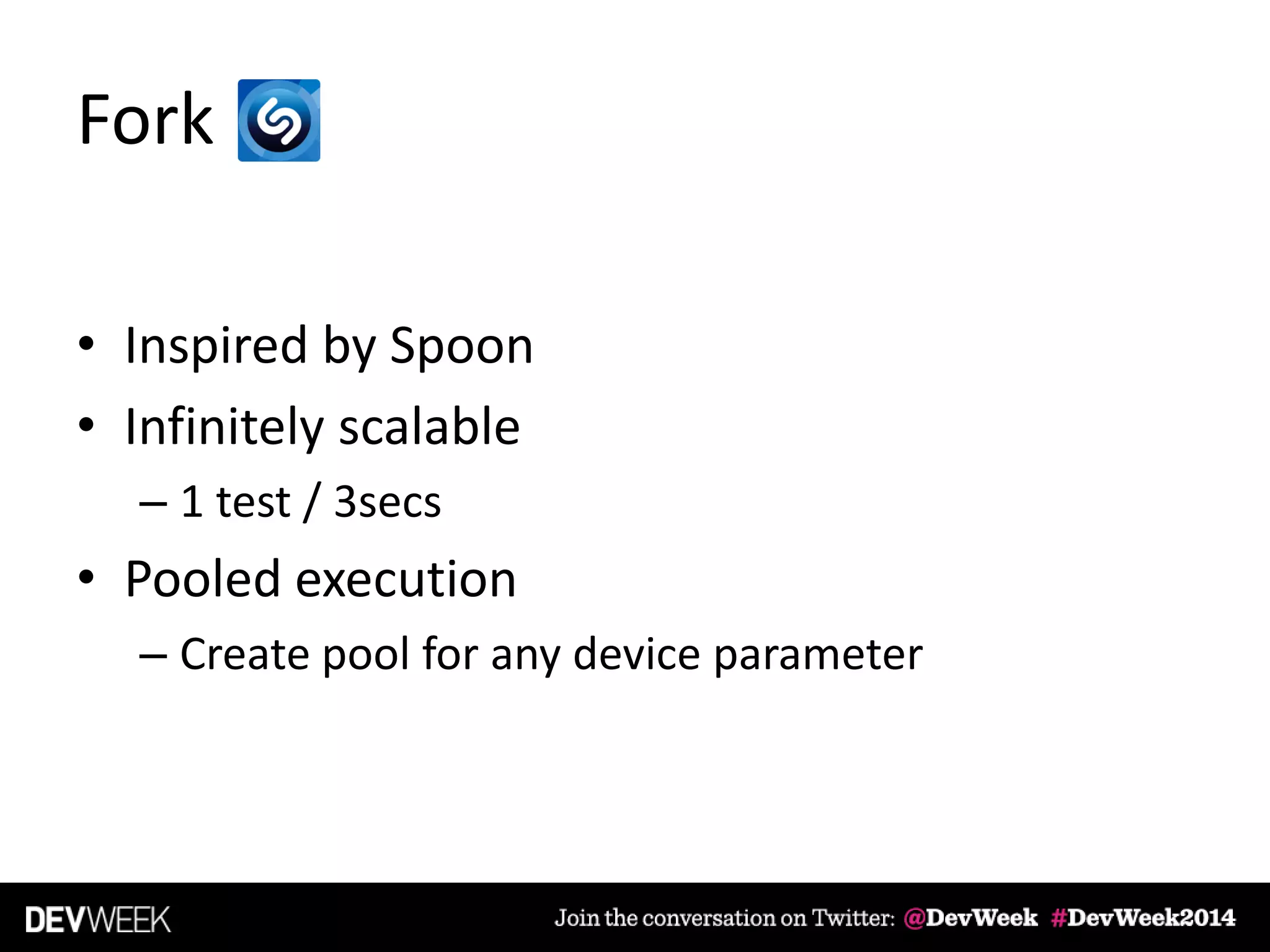

59. Fork
• Inspired by Spoon
• Infinitely scalable
– 1 test / 3secs
• Pooled execution
– Create pool for any device parameter

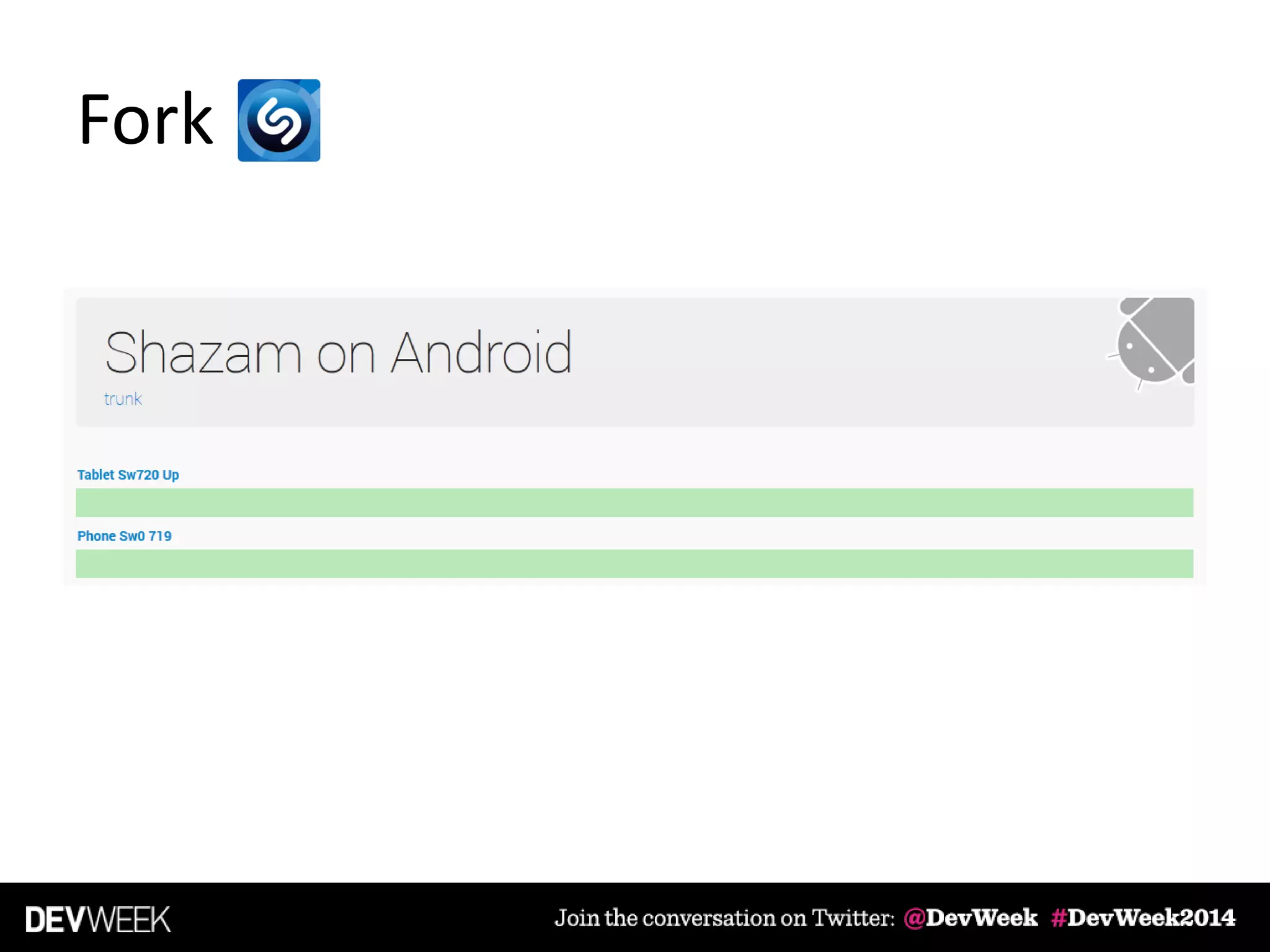

60. Fork

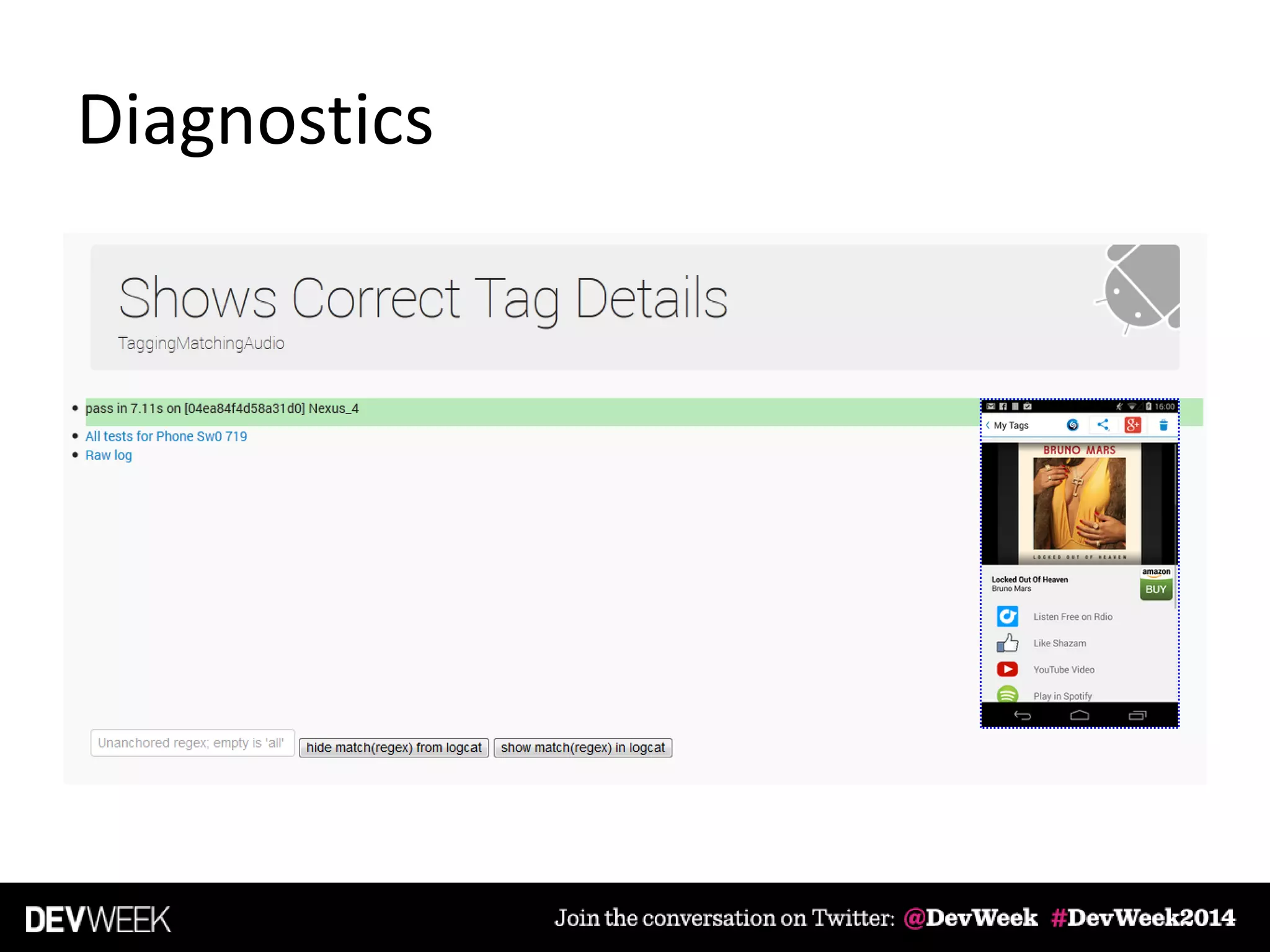

61. Diagnostics

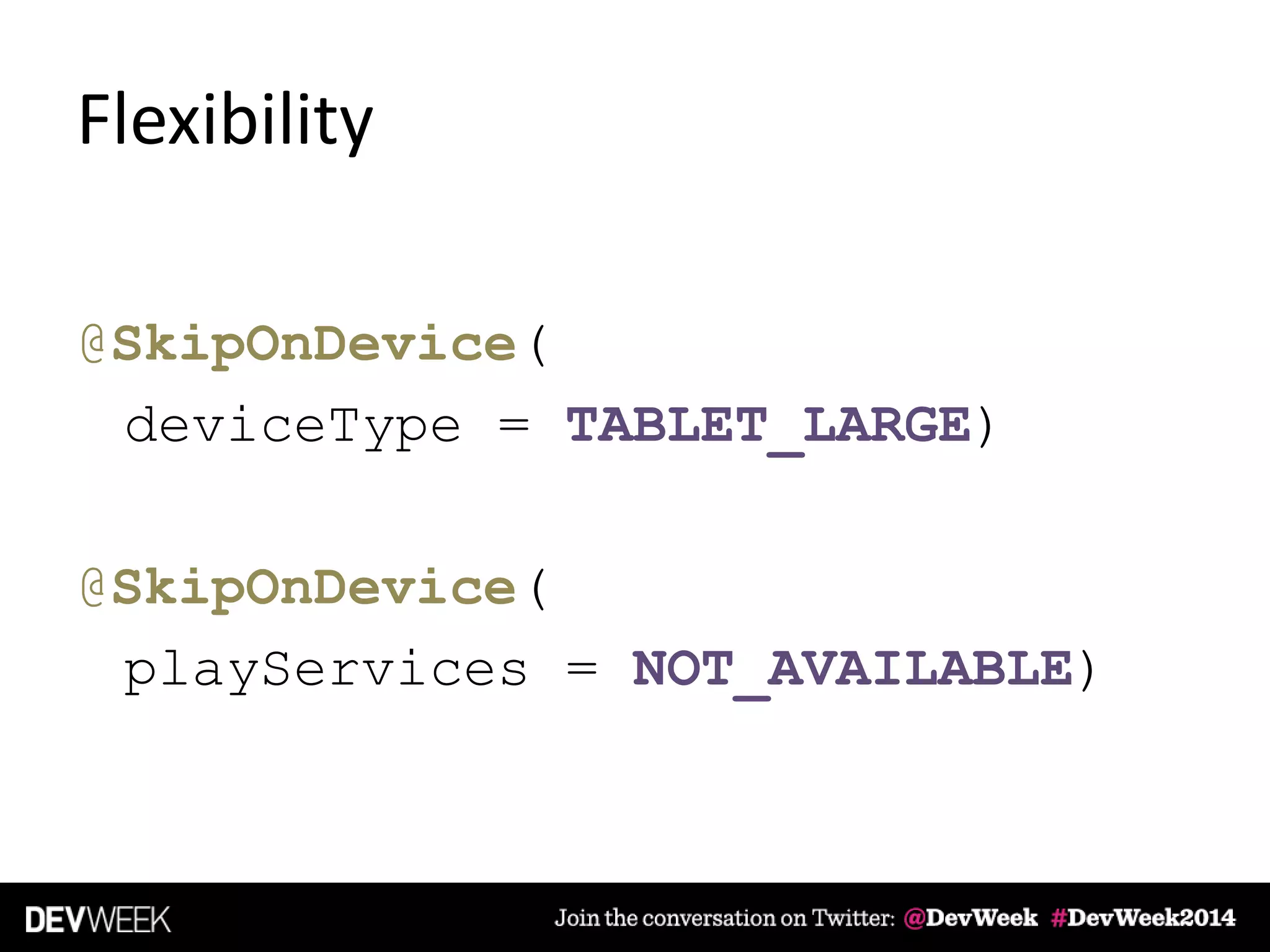

62. Flexibility
@SkipOnDevice(
deviceType = TABLET_LARGE)
@SkipOnDevice(
playServices = NOT_AVAILABLE)

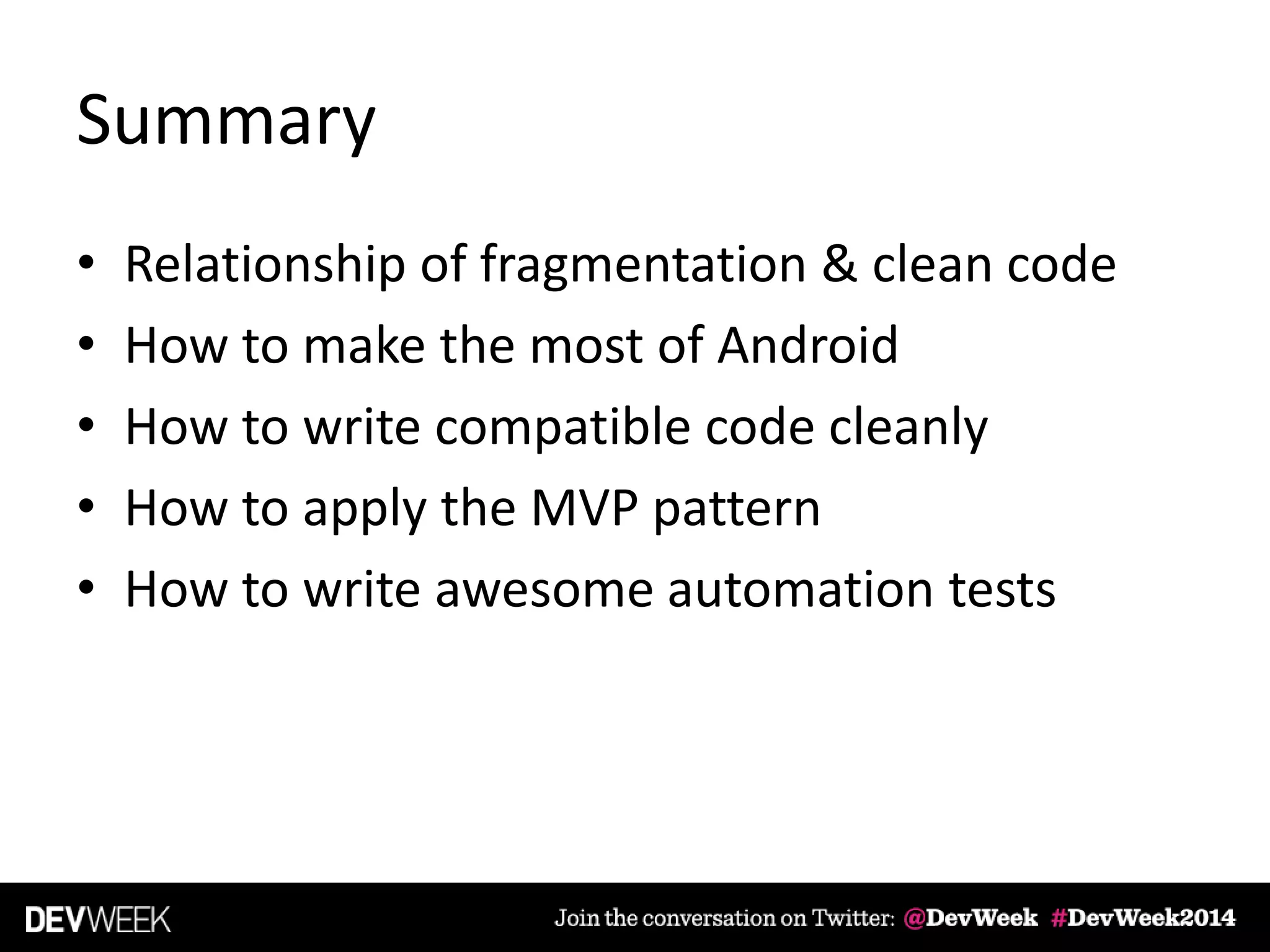

63. Summary
• Relationship of fragmentation & clean code
• How to make the most of Android
• How to write compatible code cleanly
• How to apply the MVP pattern
• How to write awesome automation tests

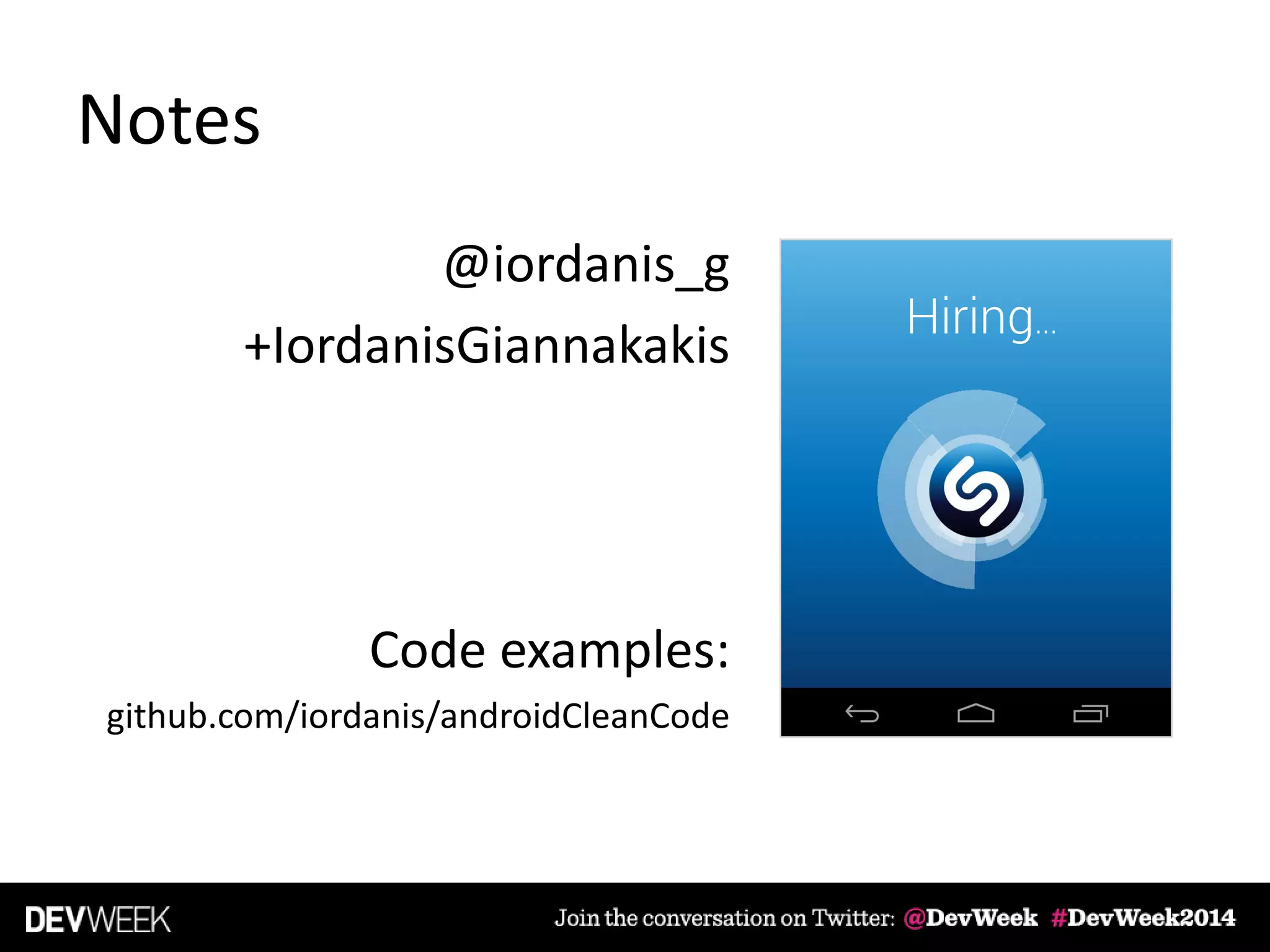

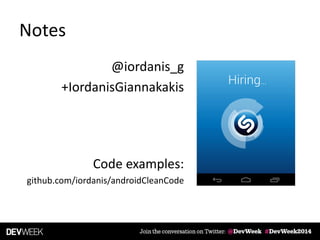

64. Notes
@iordanis_g
+IordanisGiannakakis
Code examples:
github.com/iordanis/androidCleanCode
Hiring...

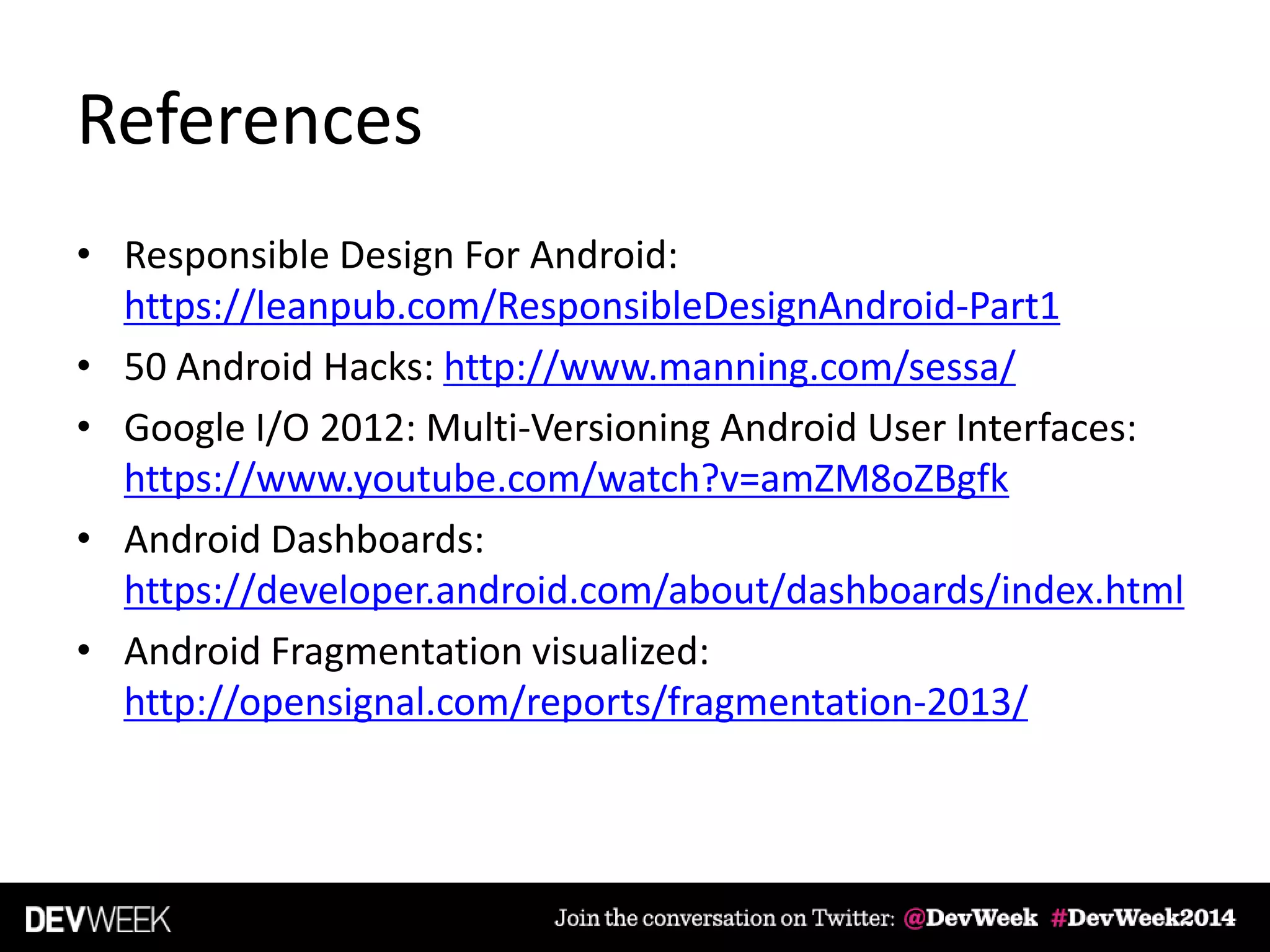

65. References
• Responsible Design For Android:
https://leanpub.com/ResponsibleDesignAndroid-Part1
• 50 Android Hacks: http://www.manning.com/sessa/
• Google I/O 2012: Multi-Versioning Android User Interfaces:
https://www.youtube.com/watch?v=amZM8oZBgfk
• Android Dashboards:
https://developer.android.com/about/dashboards/index.html
• Android Fragmentation visualized:
http://opensignal.com/reports/fragmentation-2013/

66. Questions?
