1. Mobile Cross Platform Automation
in-practice and on a large scale
Sathish Gogineni
Mobile QA Automation Lead

2. Raise your hands if….
• You’re working in Mobile platform?
• You have apps on multiple platforms?
• You’re aware of the test automation tools in
Mobile?
• You have functional test automation?
• You’re using Cross platform test automation?

3. A bit of self promotion

4. Mobile Automation at Badoo
• Badoo has 2 popular apps
– Badoo
– HotOrNot
• Apps support 4 mobile platforms
– Android
– iOS
– MobileWeb ( HTML5 )
– Windows

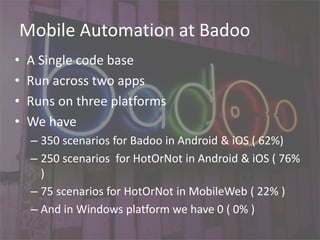

5. Mobile Automation at Badoo
• A Single code base
• Run across two apps
• Runs on three platforms
• We have
– 350 scenarios for Badoo in Android & iOS ( 62%)
– 250 scenarios for HotOrNot in Android & iOS ( 76%
)
– 75 scenarios for HotOrNot in MobileWeb ( 22% )
– And in Windows platform we have 0 ( 0% )

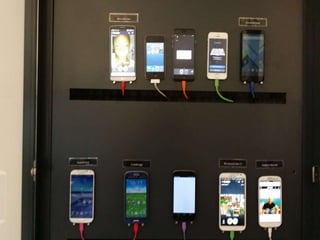

6. Device Display Cabinet

7. A bit of Cross platform test

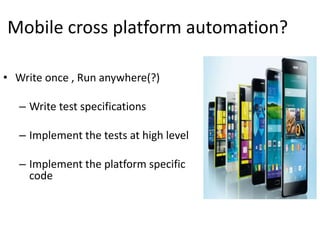

8. Mobile cross platform automation?
• Write once , Run anywhere(?)
– Write test specifications
– Implement the tests at high level
– Implement the platform specific
code

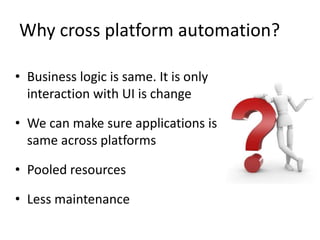

9. Why cross platform automation?
• Business logic is same. It is only
interaction with UI is change
• We can make sure applications is
same across platforms
• Pooled resources
• Less maintenance

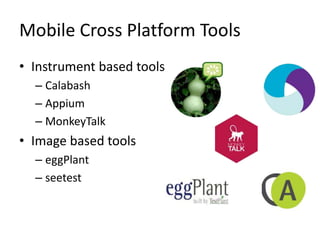

10. Mobile Cross Platform Tools
• Instrument based tools
– Calabash
– Appium
– MonkeyTalk
• Image based tools
– eggPlant
– seetest

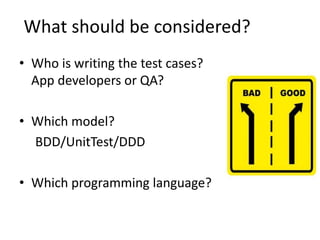

11. What should be considered?
• Who is writing the test cases?
App developers or QA?
• Which model?
BDD/UnitTest/DDD
• Which programming language?

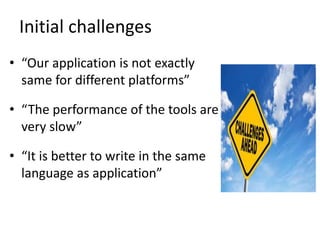

12. Initial challenges
• “Our application is not exactly
same for different platforms”
• “The performance of the tools are
very slow”
• “It is better to write in the same
language as application”

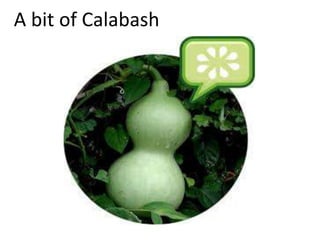

13. A bit of Calabash

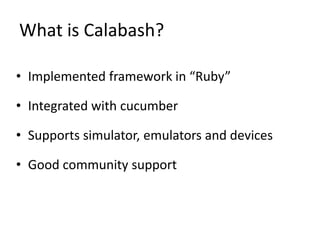

14. What is Calabash?
• Implemented framework in “Ruby”
• Integrated with cucumber
• Supports simulator, emulators and devices
• Good community support

15. Calabash stack
Scenarios
Feature
Step definitions
Android Page iOS Page
Gherkin
Ruby

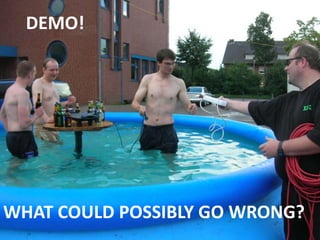

16. DEMO!
WHAT COULD POSSIBLY GO WRONG?

18. A bit of……

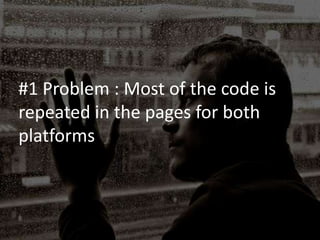

19. #1 Problem : Most of the code is
repeated in the pages for both
platforms

20. Solution:
• All the test logic in step definition.
• Pages should be light weight. It should only
‘interact’ with UI
• Transitions should be handled by Pages.

21. #2 Problem : There are too many
things in the screen and “Page”
becomes long and complex

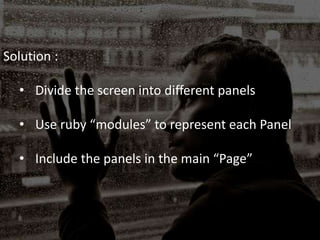

22. Solution :
• Divide the screen into different panels
• Use ruby “modules” to represent each Panel
• Include the panels in the main “Page”

23. #3 Problem :
Test case should be independent
but it’s hard to set up the pre
conditions every time

24. Solution :
Implement an API with server
Examples:
Create a new user ( from user pool )
Add photo
Send message from other user

25. #4 Problem :
Some time test case fails due to
networks issue and server glitches
that are not reproducible

26. Solution :
Re-run the failed test cases in the build server
• Run with “cucumber -f rerun -o rerun.txt”
• Rerun with “cucumber rerun.txt”

27. #5 Problem :
Testing scenarios which interact
outside the app like Facebook sign in &
taking photos

28. Solution :
Integrate with tools which work outside
application
• monkeyrunner/UIAutomator for Android
• Sikuli for iOS

29. #6 Problem :
Having the same environment setup
everywhere

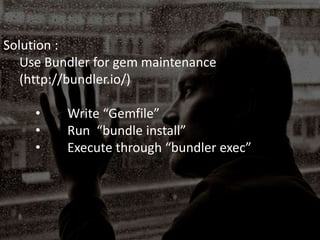

30. Solution :
Use Bundler for gem maintenance
(http://bundler.io/)
• Write “Gemfile”
• Run “bundle install”
• Execute through “bundler exec”
