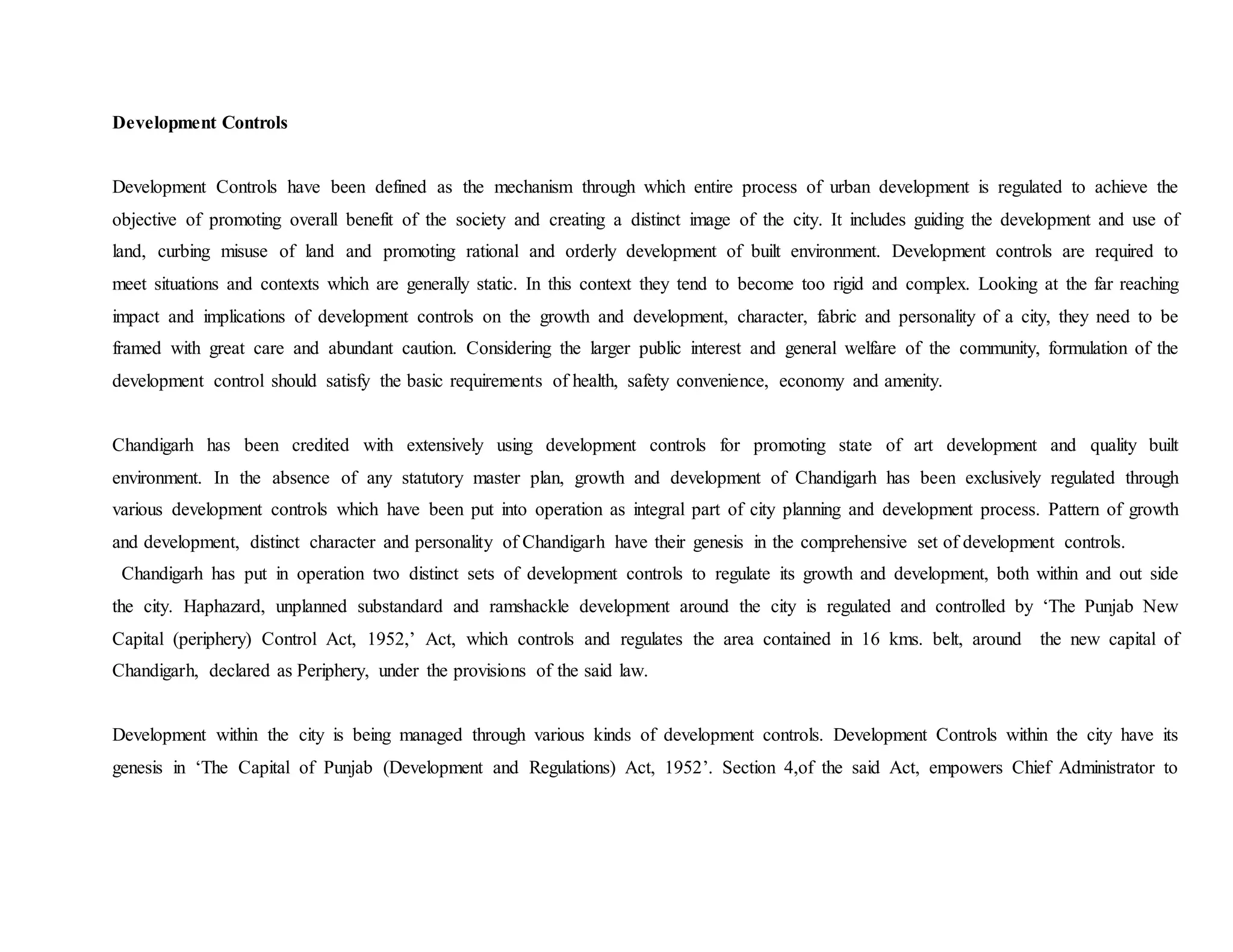

1. Development Controls
Development Controls have been defined as the mechanism through which entire process of urban development is regulated to achieve the
objective of promoting overall benefit of the society and creating a distinct image of the city. It includes guiding the development and use of
land, curbing misuse of land and promoting rational and orderly development of built environment. Development controls are required to
meet situations and contexts which are generally static. In this context they tend to become too rigid and complex. Looking at the far reaching
impact and implications of development controls on the growth and development, character, fabric and personality of a city, they need to be
framed with great care and abundant caution. Considering the larger public interest and general welfare of the community, formulation of the
development control should satisfy the basic requirements of health, safety convenience, economy and amenity.
Chandigarh has been credited with extensively using development controls for promoting state of art development and quality built
environment. In the absence of any statutory master plan, growth and development of Chandigarh has been exclusively regulated through
various development controls which have been put into operation as integral part of city planning and development process. Pattern of growth
and development, distinct character and personality of Chandigarh have their genesis in the comprehensive set of development controls.
Chandigarh has put in operation two distinct sets of development controls to regulate its growth and development, both within and out side
the city. Haphazard, unplanned substandard and ramshackle development around the city is regulated and controlled by ‘The Punjab New
Capital (periphery) Control Act, 1952,’ Act, which controls and regulates the area contained in 16 kms. belt, around the new capital of
Chandigarh, declared as Periphery, under the provisions of the said law.
Development within the city is being managed through various kinds of development controls. Development Controls within the city have its
genesis in ‘The Capital of Punjab (Development and Regulations) Act, 1952’. Section 4,of the said Act, empowers Chief Administrator to

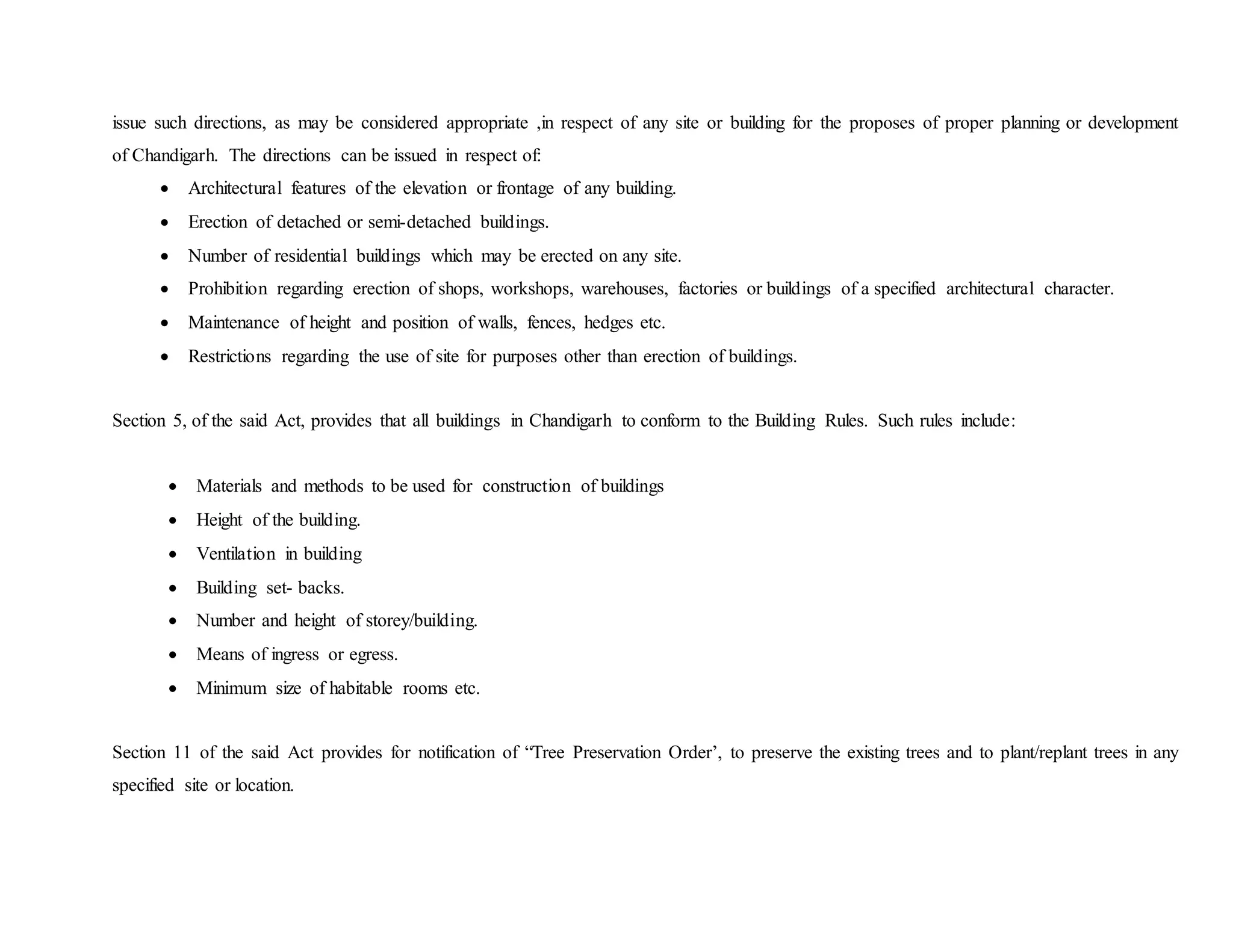

2. issue such directions, as may be considered appropriate ,in respect of any site or building for the proposes of proper planning or development
of Chandigarh. The directions can be issued in respect of:
Architectural features of the elevation or frontage of any building.
Erection of detached or semi-detached buildings.
Number of residential buildings which may be erected on any site.
Prohibition regarding erection of shops, workshops, warehouses, factories or buildings of a specified architectural character.
Maintenance of height and position of walls, fences, hedges etc.
Restrictions regarding the use of site for purposes other than erection of buildings.
Section 5, of the said Act, provides that all buildings in Chandigarh to conform to the Building Rules. Such rules include:
Materials and methods to be used for construction of buildings
Height of the building.
Ventilation in building
Building set- backs.
Number and height of storey/building.
Means of ingress or egress.
Minimum size of habitable rooms etc.
Section 11 of the said Act provides for notification of “Tree Preservation Order’, to preserve the existing trees and to plant/replant trees in any
specified site or location.
3. Section 12 provides for issue of ‘Advertisement Control Order’ to restrict, regulate the display of advertisements in Chandigarh in order to
check the visual pollution .
However, the Punjab Capital (Development and Regulation) Building Rules, 1952 framed under the Principal Act of Capital of
Punjab (Development and Regulation) Act, 1952, put into operation different development controls to regulate the architectural
character of the buildings to be constructed in the city. Initially, there was only one type of control i.e. Architectural Control
prescribed in the rules to regulate the architectural character of the buildings beside the Zoning Control. However, subsequently
Frame Control was added to cover the Marla type housing. Architectural Controls are applicable only in the areas which are declared
as Special Areas in the Zoning Plan.Schedule1 defines the Special areas in which Architectural Controls Sheets will operate:
Areas along some V2 roads were shown on the zoning plans.
Areas of shops and terraced houses along some V4 roads where shown on the zoning plans.
Some areas of city centre as shown on the zoning plans.
Any other areas shown as special areas on the zoning plan.
The Building Rules inter-alias provide for following Development Controls:
Architectural Controls
Frame control
Zoning
Building Rules have classified all the buildings to be constructed in Chandigarh into 4 distinct categories which include:
Residential Buildings
Commercial Buildings
4. Warehouse and Industrial buildings
Public buildings.
All these buildings are subjected to different development controls for regulating their design and construction. The application of the
development controls have been largely dictated by the category of buildings, location of the site, size of the site and need to regulate the
building design/architecture etc.
Considering the role and importance of major axes of the city including all the Margs (V2s) and Shopping streets (V4) within the sector in
defining the character of the growth and development, all the sites located on these roads are declared as special areas and accordingly
subjected to detailed architectural controls.
Level and intensity of controls made applicable are at variance depending upon the importance of the location and category of buildings.
Buildings located on major axis (V2) are subjected to rigorous controls as compared to buildings located on V3. Buildings located on V4 are
required to follow well defined controls as compared to building on V5 & V6. Buildings located in City Centre (sector 17) and Sub-City Centre
(Sector 43) is required to follow strict material and construction controls along with Architectural design.
Controls are also dictated by the category of buildings. Accordingly, Commercial buildings are subjected to more detailed controls as
compared to residential buildings. All commercial buildings are subjected to detailed Architectural Controls. Within residential buildings,
Marla type houses follow elaborate system of Development controls in the shape of Frame Controls whereas larger residential plots are
subjected to more relaxed Zoning Controls, regulating the set backs, height, building line , ground, coverage, FAR etc. However, residential
buildings located on V4, irrespective of their size, are subject to detailed architectural controls. Institutional buildings of larger sizes are
regulated through the mechanism of zoning whereas small size buildings are subject to architectural controls. Buildings of special character
5. including cinema, petrol pumps are required to follow a design prepared by a qualified Architect in consultation with the Chief Architect.
However large institutional complexes like PGI and Punjab University do not follow any specified development controls. Construction in
these campuses is regulated through the designs prepared by Architects employed by them.
While looking at different controls, all public buildings designed by Chief Architect, generally did not follow any stringent control whereas
all buildings falling in the domain of private buildings are regulated through detailed systems of development controls. While looking at
different controls, no well defined pattern of ground coverage, FAR, height, number of storeys etc. has been followed. In most cases they are
at variance. Further in the garb of Architectural Controls, in most of the cases complete architectural designs have been provided bringing
enormous amount of rigidity in the built environment. Development Controls made applicable on different areas of the city including major
roads are detailed below:
1. Madhya Marg ( V2)
2. Jan Marg ( V2)
3. Himalyan Marg (V2b)
4. Dakshin Marg( V2)
5. Sector Periphery Roads (V3)
6. Shopping Streets (V4)
7. City Centre Sector-17
8. Sub-City Centre Sector-34
9. Residential Building
I. Phase-1
II. Phase-2
III. Phase-3
6. 10. Institutional Buildings.
1. DEVELOPMENT CONTROLS ALONG MADHYA MARG (V2) _URBAN CORRIDOR (200 ft wide)
SECTORS-NORTH-EAST (SECTORS- 12,11,10,9,8,7,26 & 26 E)
SOUTH-WEST(SECTORS-14,15,16,17,18,19,27 & 28)
Category Commercial Commercial Commercial Institutional/Offices
Type of Building ShowRooms(Wholesale Trades) ShowRooms (Shop
cum Offices)
ShowRooms (Shopcum
Offices)
Location Sector 7 & 26 Sector8 Sector9 Sec.15,18,19 ,27 & 28
Land
use/Volumetric
Controls
* Designedonagrid of 17’.3”
* Coveredarea-Width2 grids
and Depth5 Gridswithrear
courtyard.
*Plannedasa linearstrip.
* Three StoreyStructure with
basementprovidedinarea
excludingpubliccorridor.
*Height 38’-3”
*CompulsoryDouble Storey
Corridorinfront,11’-7” deep.
*Commercial atGround Floor.
* Offices at1st
Floor,
*Residence of Care
taker/Managerat 2nd
Floor
*Basementforstorage.
*Courtyardfor storage.
*Rear Service Lane forloading
and Unloading.
* Designedonagrid of
17’.3”
* Coveredarea-width
2 gridsand depthof 5
Grids .
*Plannedasa linear
staggeredblockwith
parkinginfrontand
rear.
*Height 38’-3”
*100% ground
coverage.
*FAR 3.5.
* Three Storey
Structure with
mezzanine and
basementprovidedin
area excludingpublic
corridors..
*Publiccorridorson
bothsidesexceptrear
blocks.
* Designedonagrid of
17’.3”
* Coveredarea-width2grid
and depthof 5 grids
*Plannedasa linear
staggeredblockwithparking
infront andrear.
*Height 38’-3”
*100% ground coverage.
*FAR 3.5.
* Three StoreyStructure
withmezzanine and
basementprovidedinarea
excludingpubliccorridors..
*Publiccorridorsonboth
sidesexceptrearblocks.
*Ground usedforshops
withhigherfloorsfor
offices.
*Basementusedforstorage
and services.
* Varyingplotsizeswith
coveredandopenspaces
*Uses include Institutional,
Offices,Educational,Cultural
and ancillaryuses
*Designedona gridof
17’.3”and a sub-gridof
8’.71/2
*Buildingsmix of 3 typesof
blocks- single,doubleand
fourstoreyedstructures
withheightsof 15’9”,
29’3”&57’7”
*Blocksplacedat an angle
orientedtoNorthand
south.
* Provisionof courtyard
allowedwithminimum
widthof 10’11/2”
*Blockscouldbe under
single ormulti ownership.
7. *Ground usedfor
shopswithhigher
floorsforoffices.
*Basementusedfor
storage and services.
* Each block designedas
self containedentity.
Architectural
Controls
*Brick, Concrete &glassusedas
basicmaterialsinthe natural
form.
*structural elementusedas
integral partof the controls.
*Front Designedasa blankwall
inexposedbrickwall
punctuatedwithhorizontal and
vertical concrete
beams/columns.
*No projectionspermittedon
the façade.
*Advertisementpanels
restrictedatgroundfloorwithin
the corridors.
*Single small windowopening
at 2nd
floorineach grid.
*2nd
floorprojectedoverthe
corridor.
*Brick, Concrete &
glassusedas basic
materialsinthe natural
form.
*structural element
usedas integral partof
the controls.
*Front Designedasa
blankwall inexposed
brickwall punctuated
with openingat2nd
floor.
*Advertisementpanels
provided at1st floor.
*2nd
floorprojected
overthe corridor.
*Double height
corridorfor more light
and ventilation.
*Top lightprovided
withskylight.
*Back wall of the Rear
Blocksdesignedas
brickstructure
punctuatedwithglass
windowsandopenings.
*Brick, Concrete &glass
usedas basicmaterialsin
the natural form.
*structural elementusedas
integral partof the controls.
*Advertisementpanels
provided at1st floor.
*2nd
floorprojectedover
the corridor.
*Double heightcorridorfor
more lightand ventilation.
*Top lightprovidedwithsky
light.
*Back wall of the Rear
Blocksdesignedasbrick
structure punctuatedwith
glasswindowsand
openings.
*Small openingonthe 2nd
floorprovidedinthe Show
Roomsof Sector8 replaced
withcontinuesglazingfor
more lighting.
*Brick, Concrete &glass
usedas basicmaterialsin
the natural form.
*structural elementusedas
integral partof the controls
*Differentpatternof
elevationandmaterials
usedfordifferentblocks
*Exposedbrickworkwith
plasteredbandsand
architravesusedforsingle
and double storeyedblocks.
*Exposedconcrete with
undulatoryglazingusedfor
fourstoreyedblock.
*Constructionof single
storeyblockmandatory.
*Constructionof double and
fourstoreyblockoptional
but whenbuilt- tobe
completedinsingle
operation
*Façade of four storeyblock
similartoSector17 buildings
Visuals
8. Remarks *No variationinfrontandrear
elevationspermittedwith
freedomtochange the internal
plan.
*50% of the rear courtyard
permitted tobe coveredfor
parking,Chowkidarquarters.
*Problemof adequate lighting
at the 1st
& 2nd
floor.
*Conversionof topfloorfor
commercial use.
*No variationinfront
and rear elevations
permittedwith
freedomtochange the
internal plan.
*No variationinfrontand
rear elevationspermitted
withfreedomtochange the
internal plan.
*Numberof variationsexist-
PressbuildinginSector18,
General Hospital inSector
16, CongressBhawanin
Sector15.
* PunjabUniversityandPGI
are notsubjectedtoany
controls.
2 DEVELOPMENT CONTROLS ALONG JAN MARG (V2/ VERTICAL) _URBAN CORRIDOR (259ft wide)
SECTORS-NORTH-WEST (SECTORS- 3,10 & 16)
SOUTH-EAST (SECTORS-4,9 & 17)
Category Commercial & Institutional
Type of Building Commercial &Institutional
Location Sector 4,9 & 17
Land
use/Volumetric
Controls
*Building plannedas acomposite of 3 rectangularblocks withtwosingle storiedandone sevenstoried
block.
*7 storiedblockplacedinthe middle flangedbyTwosingle storeyL-Shapeblocksplacedoneitherside.
*majorityof the blocksplacedon the north-southdirection.
*Single storeyblocksplannedongridof 17’-3”.
*Seven Storeyedblockplannedonagrid of 17’-3”x23’-0” witha depthof 69’-0” withcompulsoryverandah
of 6’-9” widthonsouthand westside.
*Basementprovided underall blocks
*Basementforstorage,garages,parking.
*Heightof sevenstoreyblocksplacedat85’-6”
*Commercial atGround Floor,Firstfloor,Secondfloor&thirdfloors
* HigherFloorscan be usedforboth commercial andresidential.
*Two or more floorscan be combined.
9. *Onlyfrontand rear setbacks providedwithsingle storeyedblockstouchingthe boundaryforgivingan
impressionof continuityof buildings..
*Onlypedestrianaccesspermittedfromthe janmargwithprovisionof parking.
Architectural
Controls
*Brick, Concrete,Stone &glassusedas basicmaterialsinthe natural form.
*structural elementusedasintegral partof the controls
*Exposedbrickworkpunctuatedwithwindowsandlouversusedasthe elementsinthe façade of single
storeyblocks.
*Exposedconcrete workwithcircularcolumnsandparapetsdominate the 7 storeyedblocks.
*Front Designedasa blankwall inexposedbrickwall punctuatedwithhorizontalandvertical concrete
beams/columns.
*No projectionspermittedonthe façade.
*Courtyardspermittedforbetterair,lightandventilationwithinthe single storeyedblocks.
*No change inthe compulsorybuildingline of 7storeyedblockpermitted.
*Two expansionjointsseparatedby3’-0” part of the buildingdesign.
*Entry to the buildingprovidedthroughthe 7storeyedconcrete blockkeptfree onthe groundfloor
withVariationpermitted.
Visuals
Remarks *Character of Madhya Marg & JanMarg not synchronized.
*All institutionssitesplacedontheSouth-Westof Madhya Marg.
*All commercial Buildingsplacedonthe North-Eastof MadhyaMarg as againstSouth-Westonall V4roads.
*Interchanging Institutional BuildingsandCommercialBuildingonMadhyaMarg may have beenmore
rational andlogical.
3 DEVELOPMENT CONTROLS ALONG HIMALYAN MARG (V2/ VERTICAL) _URBAN CORRIDOR (238ft 6 in wide)
SECTORS-NORTH-WEST (SECTORS- 4,9,17,22,35, 43 & 52)
SOUTH-EAST (SECTORS-5,8,18,21,34,44 & 51)
-Controls are only followed on the North-West of the Himalyan Marg in Sector-9,17,22,35 & 43
-Sectors in the South-East including Sectors-5,8,18,21,44 do not follow any control because of Residential Plots Backing on the
marg.
10. -Only Sector-34 located in the South-East follow a systemof controls due to sector being sub city centre.
-Controls made applicable on Sectors-22 & 35 have been explained.
-Controls Applicable on Sector-9 have been explained under the controls made applicable along Madhya Marg.
-Controls Applicable on Sector-17 & 34 will be explained as part of controls applicable in city/Sub-city Centre.
Category Commercial Commercial
Type of Building Commercial-ShowRooms Commercial- ShowRooms
Location Sector 22 Sector35
Land
use/Volumetric
Controls
* Designedonagrid of 17’.3”
*Size-Front twogrid, Depth-five grids(34’-6”x87’-6”)
*100% Coveredareaat GroundFloor,FirstFloor&
SecondFloor.
*F.A.R-3
*Plannedasa linearstrip,separated byshoppingstreet
& stripof single storiedbooths.
* Three StoreyStructure withbasementprovidedinarea
excludingpubliccorridor.
*Height 38’-9”
*CompulsorypublicCorridor,9’-9”deepatgroundfloor
infront.
*With 6’-0” verandahon1st
& 2nd
floorinfrontand a
smallerverandahat1st
& 2nd
Floorin Rear.
*Commercial atGround Floor.
*Officesatfirstand secondfloor.
*Basementforstorage.
*Rear Service Lane forloadingandUnloading.
*Staircase runninginfront.
*OpenCourtyardpermittedinthe central portion
withoutchangingthe facade.
* Designedonagrid of 17’.3”
* Size (34’-6”x75’-0”).
* Plannedasa linearstrip,separated byshoppingstreet&
stripof single storiedbooths onthe patternfollowedin
Sector-22.
* Three StoreyStructure withbasementprovidedinarea
excludingpubliccorridor.
*Height 33’-6” (5’-3” lessthansector-22 showroom).
*Reducedgroundcoverage withcoverage increasingon
higherfloors.
*FAR lessthan3
* noverandahprovidedathigherfloors.
*buildingsprojectingatthe successive floorswithsecond
floorprojectedinfront& rear.
* Commercial atGroundFloor.
* Officesatfirstandsecondfloor.
* Basementforstorage.
* RearService Lane for loadingandUnloading.
* Staircase runninginfront.
*No optionforcourtyardprovidedathigherlevels.
Architectural
Controls
*ExposedBrickWork, Concrete &glassusedas basic
materialsinthe natural form.
*structural elementusedasintegral partof the controls.
*Horizontal Bandsprovidedinthe façade
*A frame like structure onthe patternof frame control
* ExposedBrickWork,Concrete & glassusedas basic
materialsinthe natural form.
*structural elementusedasintegral partof the controls.
*Horizontal Bandsprovidedinthe façade
*Frontage markedby twohorizontal Brickbandsat the
11. define the frontandrearof the showrooms.
*withincorridorsbrickjail above 6’-9” provided.
*No projectionspermittedonthe façade.
*Advertisementpanelsrestrictedatgroundfloorwithin
the corridors & onthe facade.
*With minorvariationrearand the front elevationhave
large similarity
*2nd
floorprojectedinFront& Rearof the ShowRoom.
*Brick Columnsplacedatregularintervalsdividingthe
facade intosmall rectangularvoids.
secondfloorandthe roof level.
* Advertisementpanelsrestrictedatgroundfloorwithinthe
corridors& on the facade.
*Vertical concrete columnswithglazing providingdistinct
character.
*2nd
floorprojectedinFront& Rear of the ShowRoom.
* Glassprovidedonthe South-Eastside forthe lighting
whereasinthe rear small horizontal bandsprovidedfor
similarpurposes.
*Steel glazingprovidedinfrontandrear forlighting.
*Entire buildingistobe completedinasingle operation.
Visuals
Remarks *No change inthe façade permitted.
*Large scale violationsobservedintermsof coveringthe
verandahs.
*Large scale sub-divisionof showroomsobserved.
*Chandigarhadministrationpermittedextracoverage at
firstand secondfloorbyallowingcoverage upto3’-0”
afterpayingprescribedcharges.
*Large visual pollutionobservedwithall bandsusedfor
advertisement.
*Lac of uniformityinthe patternof advertisement.
*Air Conditioners/AirCoolersdominatingthe Facade.
*Acute Shortage of parking.
*Aroma hotel doesnotfollowthe control due toitsprior
construction.
*Ownersusingthe rear portionof the showroom for
commercial use creatingaseparate marketoperating
fromthe service lane.
*No VariationInFrontAndRear ElevationsPermitted With
FreedomToChange The Internal Plan.
*The Facade Of The BuildingsLookMuchCleanerAs
ComparedTo Sector-22.
* LimitedSub-DivisionOf ShowRoomsObserved.
* Acute Shortage Of Parking.
* AirConditioners/AirCoolersdominatingthe Facade.
*With large numberof hotelsandCorporate Offices,show
roomslookmuch cleanerascomparedto sectior-22.
* Ownersusingthe rearportionof the showroom for
commercial use creatingaseparate markingoperatingfrom
service lane.
12. 4 DEVELOPMENT CONTROLS ALONG DAKSHIN MARG (V2 HORIZONTAL) _URBAN CORRIDOR (231ft 8 in wide)
SECTORS-NORTH-EAST (SECTORS- 25,24,23,22,21,20,30 & 29)
SOUTH-WEST(SECTORS-38,37,36,35,34,33,32 & 31)
*major arterial road definingthe edge of Phase-1of Chandigarh and the road dividingPhase-1& Phase-2of the city.
*North-East Sectors do not followa uniformpattern of land use.It has a mix of Residential,institutional,Cultural & Commercial Buildings.
Allocationof land uses appear to be adhoc.Sector-23 provide the exceptionofResidential plotsfacingthe sectorroad.
*Sector-24 have large number ofbhawans plannedin a pattern of horizontal strip.
*South-WestSectorshave a mixof institutional,commercial & Office buildings.
*South-Westside isknown as cultural belt.Majority ofbuildingsplacedin the North-Southdirection,with variationsobservedin case of
buildingsinthe Sub-CityCentre (Sector-34),GovernmentHospital (Sector-32),Batra Cinema(Sector-37),Hotel (sector-35) etc.Bhawansin
sector-37 do not followthe general pattern of Architectural Controls.
*Sector-31 have Office complexeswhichdoesnot gel with the general character of the Dakshin Marg.
*Area available with the Punjab Universityinsector-25 and CSIO located in Sector-30 do not followany system ofArchitectural Control.
Category Commercial Commercial Institutional/Offices
Type of Building ShowRooms Booths Institutional/Offices
Location Sector 20 & 22 Sector20 & 22 Sec.38,37,36,35, 33,32, 31
Land
use/Volumetric
Controls
* Designedonagrid of 17’-3”
*Size-Front twogrid,(34’-6”x80’-0”)
*Less Coveredareaat GroundFloor,
withhighestcoveredareaatSecond
Floor.
*F.A.R-3
*Plannedasa linearstrip,separated
by shoppingstreet&stripof single
storiedbooths.
* Three StoreyStructure with an
optional basementtobe providedin
area excludingpubliccorridor.
*Height 36’-7” as comparedto 38’-9”
insector-22 on HimalyanMarg.
*CompulsorypublicCorridor,9’-9”
deepat groundfloorinfront.With
4’-6” deepbalcony onthe rearof the
* Designedonagrid of 8’-9”
*Size-8’-9”x19’-6”
*Designedassingle storeystructure
*F.A.R-1
*Plannedasa linearstripwith
boothson the frontand dhaba’son
the rear.
*No basementpermitted
*Height15’-7” as comparedto 36’-
7” for the showrooms.
*CompulsorypublicCorridor.
*Used formeetingdayto dayneeds
includingSTDbooths/Photostat,
snacksetc.
*NO toiletpermitted.
*No waterconnectionpermitted.
*Commontoiletforthe Blockof
*Large sizedplots
*Built-upareacomprisingof three
blocks.
*All blocksPlacedinNorth-South
direction.
*Blocksdesignedassingle storeyed
double storeyedandsix storeyed
structures.
*Six and twostoreyedblocks
intersected/joinedbysinglestoreyed
block.
*Single storeyed blockplannedaround
a central courtyard.
*BlocksDesignedona gridof
12’-0”x24’-0”.
*Double Storeyandfourstoreyblocks
plannedasrectangularstructure with
13. firstfloorandon the front and the
rear of the secondfloor.
*Commercial atGround Floor.
*Officesatfirstand secondfloor.
*Basementforstorage,StrongRoom,
Machine Rooms.
*Rear Service Lane forloadingand
Unloading.
* Staircase runninginfront.
booth. no courtyard.
*Basementpermittedbelowthe
double storeyblocks tobe usedfor
parking,storage andPlantroom.
*Heightof the blocksincludingparapet
varyingfrom15’-0” for the single
storey,26’-3” for the double storeyand
74’-3” for the six storey.
*No F.A.Rdefined.
* Inthe double Storeyblocksfirstfloor
couldbe omittedinfull orpart of the
structure.
Architectural
Controls
*ExposedBrickWork, Concrete &
glassusedas basicmaterialsinthe
natural form.
*structural elementusedasintegral
part of the controls.
*1st
& 2nd
Floorprojectoutin
staggeredmannertoincrease the
space.
*Horizontal Bandsprovidedinthe
façade.
*A frame like structure onthe pattern
of frame control define the frontand
rear of the showrooms.
*No projectionspermittedonthe
façade.
*Front dominatedbyaDouble height
Columnscapedbysecondfloorwith
firstfloorprojectingoverthe
corridors.
*No Advertisementpanel providedon
the façade.
*Side elevationof the blocksdesigned
* BrickWork & Concrete usedas
basicmaterialsinthe natural form.
*structural elementusedasintegral
part of the controls.
*Variationinn the roof profile to
provide forlighting.
*Horizontal Bandsprovidedinthe
façade for advertisement.
*Corridorrunninginfront of show
roomscontinuedbefore the booths.
*No projectionspermittedonthe
façade.
*Front dominatedbythe rolling
shuttercoveringthe full widthof the
booth.
*ExposedBrickWork, Concrete &glass
usedas basicmaterialsinthe natural
form.
*structural elementusedasintegral
part of the controls.
*Façade of the single anddouble storey
blockto be in the natural exposed
brick.
*No plastering,paintingoranyother
treatmentpermitted.
*Six storeyblockto be constructedin
R.C.Cwithprescribedpatternof steel
shuttering.
*No plastering/paintingtreatmentof
the blockto be permitted.
*Six storeyblockto have continues
projectedbalconiesonbothsidesto
forma horizontal bandoneachfloor.
*Glazingprovidedinfrontof the
columnstogive a continueslook.
*Side elevationtobe a blankconcrete
wall withthe 6’-0” recess.
14. as corbelledBrickfacedstructure.
*With minorvariationrearand the
frontelevationhave large similarity.
*Steel Glazingprovidedatfrontand
rear to ensure adequate lighting.
*Exteriorof the buildingtobe of
exposedbrickworkwithno
painting/colourpermitted.
*Concrete Columnstohave a
prescribedShutteringpatternwithno
treatment.
*Buildingtobe designedasdouble
loadedcorridor..
*No Advertisementpanel providedon
the façade.
Visuals
Remarks *No change inthe façade permitted.
*Large visual pollutionobservedwith
all bandsusedfor advertisement.
*Lac of uniformityinthe patternof
advertisement.
*Air Conditioners/AirCoolers
dominatingthe Facade.
*Acute Shortage of parking.
*Brick façade beingchangedby
puttingcolours.
*Rear portionof the showroom being
usedforcommercial use creatinga
separate marketoperatingfromthe
service lane.
*No change inthe façade permitted.
*Lac of uniformityinthe patternof
advertisement.
*Large area of the corridor
encroachedandused for storage.
*Numberof whole sale uses
operatingfromthe booths.
*No change inthe façade permitted.
*Lac of uniformityinthe patternof
advertisement.
*Air Conditioners/AirCoolers
dominatingthe Facade.
*Acute Shortage of parkingwithservice
roads beingusedforpublicparking.
*Brick façade beingchangedbyputting
colours.
*Buildingsbeingputtonumberof Non-
conforminglanduses.
*Façade control beingviolatedwith
extensive use of glassonfaçade.
5 DEVELOPMENT CONTROLS ALONG SECTOR PERIPHERY ROADS (V2 HORIZONTAL) _URBAN CORRIDOR
(231ft 8 in wide)
SECTORS-NORTH-EAST (SECTORS- 25,24,23,22,21,20,30 & 29)
SOUTH-WEST(SECTORS-38,37,36,35,34,33,32 & 31)
15. *major arterial road definingthe edge of Phase-1of Chandigarh and the road dividingPhase-1& Phase-2of the city.
*North-East Sectors do not followa uniformpattern of land use.It has a mix of Residential,institutional,Cultural & Commercial Buildings.
Allocationof land uses appear to be adhoc.Sector-23 provide the exceptionofResidential plotsfacingthe sectorroad.
*Sector-24 have large number ofbhawans plannedin a pattern of horizontal strip.
*South-WestSectorshave a mixof institutional,commercial & Office buildings.
*South-Westside isknown as cultural belt.Majority ofbuildingsplacedin the North-Southdirection,with variationsobservedin case of
buildingsinthe Sub-CityCentre (Sector-34),GovernmentHospital (Sector-32),Batra Cinema(Sector-37),Hotel (sector-35) etc.Bhawansin
sector-37 do not followthe general pattern of Architectural Controls.
*Sector-31 have Office complexeswhichdoesnot gel with the general character of the Dakshin Marg.
*Area available with the Punjab Universityinsector-25 and CSIO located in Sector-30 do not followany system ofArchitectural Control.
6 DEVELOPMENT CONTROLS ALONG SHOPPING STREETS (V4)
*V4, known as Shopping Street, integral part of sector planning.
*Runs horizontally across the sector.
*Essentially divider of sector into two parts.
*Shopping invariably located in the South-West side, with shops facing North-East.
*Shops are a mix of larger and smaller Shops (Booths).
*Different sectors have different pattern of design and controls.
*Shopping streets governed by full Architectural Controls involving design, layout, use of material, Skyline, façade treatment
*Residential development along the shopping street also subjected to full Architectural Control involving type design and
façade control.
*V4’s in the Phase-1 are designed as a meandering road cutting across the sector and a making a continues stretch of
Commercial development with adjoining sectors.
*V4 of Phase-2 sectors different from Phase-1 in terms of layout and external façade.
16. (A) SECTOR-22
Category Commercial Commercial Commercial
Type of Building Semi-IndustrialShops ShopCum Flats Shopcum Flats
Location Sector-22 –(zone-1) neararoma
hotel
Sector-22 –(zone-2) nearkirancinema Sector-22 –(zone-3) opposite
governmenthousing
Land
use/Volumetric
Controls
* Designedonagrid of 10’-10 1/2”
as Semi-Industrialshopcumflat
withcourtyardin the rear.
*Size -21’-9”x78’-9”
*Plannedasa staggeredrowof
shopswithparkinginbetween.
* Twoand a half StoreyStructure
withno basement.
*Height33’-0”.
*CompulsorypublicCorridor.
*Commercial atGround Floor.
*Residences atfirstandBarsati at
Secondfloor.
* Staircase locatedinthe rear
courtyardto provide access to the
firstfloor.
*positionof staircasesshiftedatfirst
floor.
*Top Floorprovided withabarsati
and terracesinfrontand rear.
* Designedonagrid of 11’-0” as shop
cum flatwithlimitedcourtyardinthe
rear.
*Size -33’-0”x80’-0”
*Plannedasa four storeystructure
arounda parkingflankedbybooths&
Cinemas.
*No basementpermitted.
*Height41’-7 1/2”.
*CompulsorypublicCorridorof 9’-0”
deepat groundfloorinfront.
*Commercial atGround Floor.
*Residencesatfirstandsecondfloor.
*Upper floors providedwithbarsati
and terrace.
* Staircase locatedinthe rearto
provide access tothe higherfloors.
*Commonstaircase providedfortwo
plots.
*Verandahsprovidedinthe firstand
secondfloor.
*Terraces providedinthe rearonthe
firstand secondfloor.
* Designedonagrid of 14’-1 1/2” as
shopcum flatwithcourtyard inthe
rear.
*Size -14’-1 1/2”x64’-0”
*Plannedasa linearstrip flangedby
booths,shopswithparkinginfrontand
the rear.
* Twoand Half StoreyStructure with
twointermediate floorsand no
basement.
*Height 31’-8 5/7”.
*CompulsorypublicCorridoratground
floorinfront.
*Commercial atGround Floor.
*Residence atfirstfloorandtwo
intermediate floors.
*Top floorinclude verandahand
terrace.
* Staircase locatedinthe centre to
provide accessfromfrontand rear.
Architectural
Controls
*Brick & Plasterused as the basic
materialsof design.
*Façade dominatedbyexposed
brickwithprojectedconcrete bands
*Brick & Plasterusedas basic
materialsof design.
*The façade dominatedbyexposed
brick & Concrete
*Pre cast Concrete louversdominate
the façade.
*The façade punctuatedbyhorizontal
and vertical bands.
17. aroundwindows.
*Barsati floorshasjallisandsquare
openingscreatingaplayof solids
and voids.
*Entire buildingdesignedwithina
frame on the patternof frame
control.
*All projectionsandframe plastered
and subjecttowhite
washing/painting.
*Advertisementpanelof uniform
size andmaterial providedonlyon
the groundfloor.
*Showwindowsprovidedatground
floorwithinthe corridorfordisplay.
*PlasteredRoundcolumnprovided
inthe frontas an elementof
structural design.
*Brick façade dividedintorectangular
spaceswithconcrete plasterand
white washbands.
*Windowsandverandahscreate a
playof solidsandvoids.
*Horizontal andVertical bands
dominate the façade.
*Top Horizontal bandprovides
continuityamongdifferentshops.
*No paintingof the brickfaçade
permitted.
* Advertisementpanel providedin
frontand withincorridor.
* Showcasesprovidedatthe ground
floorfordisplay.
*Architravessegregate the concrete jali
and brickwall at the firstfloorand
railingatthe topfloor.
*Buildingcappedwithaframe on the
patternof frame controls.
* All horizontal andvertical bands
plastered/whitewashed.
* Advertisementpanel providedin
frontand withincorridor.
* Showcasesprovidedatthe ground
floorfordisplay.
Visuals
Remarks *Considerable violationsobserved
on the façade.
*Large visual pollutionobserveddue
to use of façade foradvertisement.
*Higherfloorsusedfor
commercial/otherthan residential
purposes.
*Absence of parking.
*Large violationsobservedinthe
façade.
*Large visual pollutionobserveddue
to use of façade foradvertisement.
*Brick wall painted/white washedin
manycases.
*Higherfloorsusedfor
commercial/otherthanresidential
purposes.
*Large violationsobservedinthe
façade.
*Large visual pollutionobserveddue to
use of façade foradvertisement.
*Higherfloorsusedfor
commercial/otherthanresidential
purposes.
*Concrete screenclosedforchecking
rain anddust.
*Verandahscoveredtocreate more
coveredspace.
*Inadequate Parking.
18. (B) SHOPPING STREET -SECTORS-11 & 35
Category Commercial Commercial
Type of Building Shopcum Flats Shops
Location Sector-11 Sector-35
Land
use/Volumetric
Controls
* Designedon agrid of 14’-1 1/2” as shopcum flat with
courtyardin the rear.
*Size -14’-1 1/2”x70’-0”
*Ground Coverage more than80%.
*F.A.R-2.4
*Plannedasa linearstripof six blocksstaggered
alternativelywithparkinginfrontandthe rear withrow of
boothsat the East end.
* Three StoreyStructure with nobasement.
*Height 32’-6”.
*CompulsorypublicCorridorof 7’-6”deepat groundfloor
infront.
*Commercial atGround Floor.
*Residencesatfirstandsecondfloor.
*Upper floorsplannedasDuplex with verandahonboth
sides.
* Staircase locatedinthe centre toprovide accessfrom
frontand rear.
* Designedonagrid of 16’-6” as shop cum flatwith
courtyardin the rear.
*Size -16’-6”x66’-0”
*Ground Coverage more than70%.
*Plannedasenclosedsquare withparkinginfront.
*Boothsplacedarounda pedestrianopenspace.
* Three StoreyStructure with nobasement.
*Height36’-0”.
*CompulsorypublicCorridorof 7’-6”deepat groundfloor
infront.
*Commercial atGround Floor.
*Residencesatfirstandsecondfloor.
* TwoStaircasesprovided inFrontandthe Rear for
providingaccesstoupperfloors.
Architectural
Controls
*Rectangularcolumn,SignBoardsmajorelementsof
façade.
*Plasteredcolumnwithwhitepaint.
*Perforatedconcrete screenwithsquare openingsinthe
front-majorelementof design.
*Perforationfornatural ventilation.
*Advertisementpanelprovidedinfrontandwithin
corridor.
*Large similarityinthe frontandrear elevation.
*End wall from12’-3” heightplasteredwithlowerportion
*Brick & Glass usedas basicmaterials.
*The façade dominatedbyexposedbrickworkwith
corbelledbrickcolumns beyond7’-6”.
*Cappingof the buildingatsecondfloorwithbrickwall
perforatedwithasquarishopening.
*Entire frontage at the firstfloorprovidedwithglassto
permitadequate lighting.
*Recessedglazingatfirstfloorforprotectionfromsun.
*No paintingof the brickfaçade permitted.
*Simplerfaçade leavinglimited optionsforviolation.
19. havingbrickfaçade.
*Showcasesprovidedatthe groundfloor fordisplay.
* Advertisementpanel providedinfrontandwithin
corridor.
* Showcasesprovidedatthe groundfloorfordisplay.
Visuals
Remarks *Large violationsobservedinthe façade.
*Large visual pollutionobserveddue todisplayof
advertisement.
*Concrete screenclosedforcheckingrainanddust.
*Square openingsusedforputtingair
conditioners/coolers.
*Higherfloorsusedforcommercial/otherthanresidential
purposes.
*Large violationsobservedinthe façade.
*Large visual pollutionobserveddue to use of façade for
advertisement.
*Brick wall painted/white washedinmanycases.
*Higherfloorsusedforcommercial/otherthanresidential
purposes.
7 DEVELOPMENT CONTROLS IN CITY CENTRE
SECTOR-17
*Location at the intersection of Jan Marg, Madhya Marg, Himalyan Marg and Udyog Path.
*Sector divided into two distinct parts with North-East portion used for commercial and South-West part for the public
buildings.
*Commercial area planned as pedestrian paradise with no interference of vehicular traffic.
*Exposed brick façade SCF block separating the two uses.
*All Private/Commercial buildings within City Centre subjected to architectural control.
*All Public buildings within City Centre follow the architectural design prepared by the Chief Architect UT.
*Different grids followed in the designing of commercial buildings based on the material used.
*Buildings located outside the City Centre are subjected to different controls.
20. *North-West edge of Jan Marg (Sector-16) does not have any building.
*South-East of Himalyan Marg (Sector-18) does not have any Public building.Residential buildings planned along the edge have
no opening.
*North-East of Madhya Marg (Sector-9) and South-West of Udyog Path have commercial buildings which are subjected to
strict Architectural Control.
*North-West and South-East edges have sevenstorey blocks to give city centre a sense of urbanity.
*Different heights adopted for different blocks. i.e 48’-9” for the exposedbrick face SCF, 57’-7” for the exposedconcrete SCF
And 85’-6” for the sevenstorey blocks. Maximum height of _______________in the city centre is given to 11 storey block.
*City Centre planned on the pattern of cross-axial with rigid Architectural Control.
*Building material, Grid, Placing of window, Passages, Systemof construction have been used for Evolving Architectural
Controls.
*Cinemas designed based on the well defined controlled facades.
*The tallest building-11 storey block proposed in the chownk yet to be built and defined.
Category Commercial Commercial
Type of Building Shopcum flatswithexposedbrickface Shopcum Office inexposedconcrete-Showrooms
/Departmental stores.
Location Sector 17 Sector17
Land
use/Volumetric
Controls
* Designedonagrid of 11’-0”
*Three bays constitute aplot.
*Size-33’-0”x78’-6”
*Ground Coverage More than 95%
*F.A.R– 3 approx.
*Plannedasa linearstrip.
*Courtyardprovidedinthe rear witha service core.
*Four StoreyStructure with an mezzanine atthe ground
floor.
* Designedonagrid of 17’-3”x17’-3” withfrontage of two
baysand depthof six bays.
*Designedassingle rowof shopswitha Compulsorypublic
Corridorsinfrontand rear.
*Cornershopsto have three verandasat the groundlevel.
*Compulsorybalconiesof 6’-9”at First,Secondandthird
floorsforprotectionfromsun/rainsetc.
*Normal Size-34’-6”x105’-0”withcornershops51’-9”x105’-0’.
*DesignedasFourstoreystructure withoptiontoadd one
21. *Height 48’-9”.
*CompulsorypublicCorridor,11’-0”deepat groundfloor
infront.
*Commercial atGround Floor.
*Offices/Shopsatfirstandsecondfloor.
*residence forthe essential staff atthe thirdfloor.
*No Basementforpermitted.
*Parking/ Service Lane forloadingandUnloading inthe
rear side.
* Staircase runninginfront.
more floorwithoutincreasingthe height.
*F.A.R-4/5
*Ground Coverage 100%
*Plannedasa linearstripwithvariationinthe placingof the
blocks.
*Compulsorybasement.
*Height57’-7”as comparedto48’-9” for the brick facedshow
rooms.
*Clearheightof 12’-0” betweenthe floors.
* Commercial atGroundFloor.
*Offices/Shopsatfirst,secondfloorandthirdfloor.
* Staircase runninginfront.
Architectural
Controls
*ExposedFaçade with BrickWork.
*Box like structure.
*Upper floorswithrecessed Balconiesinfront&rear.
*Provisionof undulatingglazing.
*Brick tile Claddingonparapets.
*1/2” thickvertical groove separatingeachplot.
*Advertisementpanelsprovidedatthe groundfloorin
the front andin the corridor.
*No provisionof advertisementforofficefloors.
*Internal structure made upof R.C.Ccolumns.
*No projectionspermittedonthe façade.
*Varyingheightof the buildingwithgreaterheightat
groundfloorto accommodate mezzanine.
*With minorvariationrearand the frontelevationhave
large similarity.
*Show windowsprovidedinthe shopfrontage for
display.
*Exteriorof the buildingtobe of exposedbrickworkwith
no painting/colourpermitted.
* Concrete &Glass usedas basicmaterialsinthe natural form.
*structural elementusedasintegral partof the controls.
*No Variationinthe roof profile Permitted.
* Showwindowsprovidedinthe shopfrontage fordisplay.
*No projectionspermittedonthe façade.
*Advertisementpermittedwithinthe corridoratthe ground
level.
*No advertisementpermittedonthe façade.
*Well definedshutteringpatternbased on4’-0”x8’-0”module
of steel platesadoptedforthe columns/parapets,onthe
façade.
*Repetitiveuse of concrete parapetsinthe balconiestogive
distinctcharacterto the city centre.
*Variationsinfaçade permittedtohave adouble height
corridorsat the groundlevel.
*Well definedpatternof undulatoryglazingprescribedinthe
frontor the rear.
*All blocksinterconnectedwithlowheightcorridors.
*DifferentBlocksseparated atintervalstobreakthe
monotonyandfacilitate pedestrianmovementwithinthe
22. blocks.
*Placingof the blocksonthe mainpiazza togive a distinct
Architectural Character.
Visuals
Remarks *Large variationsmade inthe internal planningwith
variationinheightof the ground floor.
*Lack of uniformityobservedinthe displayof
advertisementswithadvertisementdisplayedathigher
floorsonthe buildingfacades.
*Staircase doesnot getsufficientlight&ventilation.
*Top floorsalsousedforShop/Officesdue tohigh
rentals.
*Balconyareas alsocoveredwithglassandaddedinto
the work area.
*Air Conditioners/AirCoolersdominatingthe Facade.
*Rear portionof the showroom beingusedfor
commercial use creatingaseparate marketoperating
fromthe service lane.
*Poor maintenance andupkeepof courtyardat ground
level.
*Roof of Service blockatthe firstfloorusedfordumping
waste/installingHVACunits.
*Large scale violationsmade inthe buildingswithBalconies
usedfordisplayof advertisement.
*Paintingsof concrete balconies.
*Large scale sub-divisionof shops.
*Basementusedforcommercial purposes.
*Poor air,light& Ventilationwithinthe buildingdue tolarge
plotdepth.
8 DEVELOPMENT CONTROLS IN SUB-CITY CENTRE
SECTOR-34
*Location at the intersection of Dakshin Marg (V2 Horizontal) & Himalyan Marg (V2 Vertical).
*Smaller in scale and area as compare to sector-17.
23. *Sector divided into two distinct parts with North-East portion used for commercial and South-West part beyond V4 for the
residential purposes.
*Planning principles/concept similar to sector-17.
*North-West & South-East edges of the sector have public/ Commercial buildings similar to sector-17 to give a sense of Urbanity.
*Commercial area planned as pedestrian paradise with no interference of vehicular traffic.
*Commercial activities planned along three major pedestrian axis.
*Cultural buildings occupy the central space.
*All buildings joined at the first floor through a public corridor to provide connectivity at higher level.
*Materials, Structure, Grid, Height, Skyline used as basic principles of Architectural Design.
*All buildings within Sub-City Centre subjected to architectural control.
*Cinemas designed based on the well defined controlled facades.
*North-West edge of Himalyan Marg (Sector-35) have row of Show Rooms (Already detailed under Himalyan Marg).
*South-East of the Sub-City Centre (sector-33) has only residential buildings backing on the road.
*North-West and South-East edges have sevenstorey blocks to give city centre a sense of urbanity.
*Cinemas designed based on the well defined controlled facades.
Category Commercial
Type of Building Commercial /ShopCumOffices
Location Sector-34
Land
use/Volumetric
Controls
* Designedonagrid of 17’-3”x17’-3” withvaryingfrontage anddepthof Five bays(101’-6”).
*Designedassingle rowof shopswitha Compulsorypublic Corridorsinfrontandrear.
*Cornershopsto have three verandasat the groundlevel.
*Successive projectionsof the roof forprotectionfromSun/Rainetc.
*DesignedasFive storeystructure.
*F.A.R-5
*Ground Coverage 100%
25. *Basementusedforcommercial purposes.
9. DEVELOPMENT CONTROLS IN RESIDENTIAL BUILDINGS
Phase-1(Sector 2 -30)
*Low density of 17 PPA with majority of plotted development.
*Density increasing from North to South with plots decreasing in size.
*Large variety of plots carved out ranging from 125 sq. yds. to more than 4000 sq. yds.
*Mix of Government and private housing.
*Development Controls guided by size and location of residential plots.
*Zoning is the primary tool of residential development.
*Smaller plots (Marla category) guided by the Frame Control.
*Larger plots governed by Zoning Plans.
*Plots located along V4 and backing onV3s guided by Full Architectural Controls.
* All residential plots have front and rear setbacks.
* Controls are primarily in terms of setbacks, height, ground coverage, FAR, use of material, façade, projections and size of
openings.
* Category of plots provided
5marlas- 16’-6” x 66’-6” 6marlas- 19’-6” x 70’-0” 7.5marlas- 24’-9” x 70’-0”
8marlas- 25’-6” x 70’-0” 10marlas- 33’-0” x 68’-6” 1kanal- 500 sq. yd.
2kanal- 1000 sq. yd. 4kanal- 2000 sq. yd. More than 4 Kanal
26. Category Residential Residential Residential
Type of Building Marla Others-SemiDetached/Detached HousesalongV4
Land
use/Volumetric
Controls
*CompulsoryFrontandRear
setbacks.
* DefinedBuildingZone for
constructionof building.
*BuildingZone definedonthe basis
of GroundCoverage.
* MaximumHeightcovered -31’-6”
*No. of Stories -03
*54% coverage at groundand first
floorwith30% on the secondfloor.
*F.A.R.1.40.
*BuildingLinesnottobe changed.
*Initiallyconstructiongovernedby
setbacksandheight.
* Subsequentlysystemof façade
controlswasintroduced.
* Finallysystemof frame control
evolvedandmade applicable tothe
city.
*BuildingDesignregulatedthrough
definedsetbacks,GroundCoverage,
HeightandFAR
*CompulsoryFrontsetbacks and
buildingline.
* DefinedBuildingZone for
constructionof building.
*BuildingZone definedonthe basisof
Ground Coverage dependinguponthe
plotarea
* GroundCoverage governedby
--First250 sq.yd - 50%.
--Second250 Sq. yd. – 33%
--Remaining - 25%
* FARfor 1 & 2 Kanal plots -1.00
* FARfor largerplots -0.87
* MaximumHeightcovered -35’-0”
*No. of Stories -03
*Buildingdividedintodifferentzones
double/triple storieswithdifferential
heights.
*BuildingDesignregulatedthrough
definedsetbacks,GroundCoverage,
Height
* Compulsoryfrontandrearsetbacks.
*FixedHeightof the Building
* DefinedBuildingZone for
construction.
*Ground coverage notrelatedtothe
plotarea.
* Fixedno.of stories.
Architectural
Controls
*Brick and plastershall be the
material tobe used on the façade.
*A compulsoryframe tobe put on
the front andrear of the building.
*Frame comprisesof projected
party wallswithatop course to
create a frame.
*A setof openingsdefinedfor
ownerstomake a choice.
*No change inFront and Rear
setbackspermitted.
*No Architectural controlsputin
place.
* Higherdegree of flexibility.
*Zoning/ FAR/Height/Setbacks
governedthe buildingdesign.
* Nodefinedsize of Doorsand
windows.
*No stagesof buildingconstruction
specified.
* Projectionspermittedwithinthe
specifiedlimits.
* Buildingdesignsubjectedtofull
Architectural Control.
* Constructiontobe based ondesign
preparedbyCapital Projectoffice.
* Novariationinthe external design
and façade treatmentpermitted.
* Flexibilitypermittedonlyinthe
interiorlayout.
* Nochange in the materialsusedon
the front andrear façade permitted.
* Stagesof Constructionpredefined
27. * Three stagesof building
constructionspecified.
* Noprojectionspermittedbeyond
the frame.
*Frame to be plasteredand
whitewashedwithoutanycolour.
* Frontwall to be inthe exposed
brickin the natural colour.
*Use of stone ,concrete blockson
the façade blockspermittedsubject
to priorapproval.
*No constructionpermittedinthe
setbacks.
* All servicesinthe buildingtobe
encasedwithinthe walls.
* Noapplieddecorations,names
etc.permittedonthe façade of the
building.
*Area of the commonwall to be
shared.
*A service lane providedfor
accommodatingservicesotherthan
watersupply.
* Flexibilityinuse of materials. and all stagesto be completedina
single operation.
*No colouringof brickworkpermitted.
* Nosanitaryor rain pipe permittedon
the face of the building.
Visuals
28. Phase-2(Sector 31-47)
*Higher density of 60 PPA with majority of smaller plots development.
*Large variety of plots carved out ranging from 125 sq. yds. to more than 1000 sq. yds.
*Mix of Government and private housing with majority of private housing both in plotted & flatted development.
*Development Controls guided by size and location of residential plots on the pattern followed in phase 1.
*Zoning as the primary tool of residential development.
*Smaller plots (Marla category) guided by the Frame Control.
*Larger plots governed by Zoning Plans.
*Plots located along V4 and backing onV3s guided by Full Architectural Controls.
* All residential plots have front and rear setbacks.
* Controls are primarily in terms of setbacks, height, ground coverage, FAR, use of material, façade, projections and size of
openings.
* Category of plots provided
5marlas- 19’-6” x 58’-6” 6marlas- 19’-6” x 78’-0” 8marlas- 24’-0” x 72’-0”
10marlas- 30’-0” x 75’-0” 14marlas- 39’-0” x 78’-0” 1kanal- 48’-9”x97’-6”
2kanal- 1000 sq. yd.
Category Residential Residential Residential
Type of Building Marla Others-SemiDetached/Detached Four storeyflats
Land
use/Volumetric
Controls
*Plotwitharea upto250 sq.yds.
placedunderframe control.
*CompulsoryFrontandRear
setbacks.
*BuildingDesignregulatedthrough
definedsetbacks, GroundCoverage,
HeightandFAR
*CompulsoryFrontsetbacksand
*Zoningplanregulatingthe designand
constructionof flats.
*BuildingDesignregulatedthrough
definedsetbacks,GroundCoverage,
29. * DefinedBuildingZone for
constructionof building.
*No. of Stories -03
*coverage at ground floor60%, first
floor48% with24% onthe second
floor.
*F.A.R.1.33.
*MaximumHeightcovered -32’-3”
*BuildingLinesnottobe changed.
buildingline.
* DefinedBuildingZone for
constructionof building.
*BuildingZone definedonthe basisof
Ground Coverage dependinguponthe
plotarea
* GroundCoverage governedby
--First250 sq.yd- 50%.
--Second250 Sq. yd. – 33%
--Remaining - 25%
* FARfor 1 & 2 Kanal plots -1.00
* FARfor largerplots -0.87
* MaximumHeightcovered -35’-0”
*No. of Stories -03
*Buildingdividedinto twodifferent
zonesdouble/triplestorieswith
heightof 24’-6” and35’-0”.
Height.
*Architectural control sheetsregulating
the façade,heightandcoveredarea.
* No.of stories4 withprovisionof
mumty.
*Max. height45’-9”excludingthe
heightof mumty.
*Includingmumtyheightshouldnot
exceed50’-9”.
*Ground coverage andF.A.R.as
definedinarchitectural control sheets.
* Blocksplannedona gridof 9’-9”x25’-
6”.
*Buildingblockstobe rectangularin
shape.
Architectural
Controls
*Brick and plastertobe the material
usedon the façade.
*A compulsoryframe tobe put on
the front andrear of the building.
*Frame comprisesof projected
party wallswithatop course to
create a frame.
*A setof openingsdefinedfor
ownerstomake a choice.
*No change inFront and Rear
setbackspermitted.
* Three stagesof building
construction specified withheight
of 18’, 28’-6” and 32’-3”.
*Differentvolumes of built-uparea
specifiedforeachfloor.
*Each stage isto be completedin
*No Architectural controlsputin
place.
* Higherdegree of flexibility.
*Zoning/ FAR/Height/Setbacks
governedthe buildingdesign.
* Nodefinedsize of Doorsand
windows.
*No stagesof buildingconstruction
specified.
* Projectionspermittedwithinthe
specifiedlimits.
* Flexibilityinuse of materials.
*Service lane omitted.
* Buildingdesignsubjectedto
Architectural Control sheets.
*External façade to be in exposedbrick
work.
*No colorwash or paintpermitted.
* Novariationinthe external design
and façade treatmentpermitted.
* Flexibilitypermittedonlyinthe
interiorlayout.
* Nochange in the materialsusedon
the front andrear façade permitted.
*Balconiesupto6’-0” permitted.
*Change of ownershiptobe definedby
a vertical groove of 18”x18”.
*Structure on the terrace to be
recessedbyminimumdistanceof 3’-9”
fromthe edgesof the block.
30. one operation.
*Terraces providedateachfloorin
the rear witha defineddepth.
*Brick jailsdefiningthe edgesof
terraces.
* Noprojectionspermittedbeyond
the frame.
*Frame to be plasteredand
whitewashedwithoutanycolour.
* Frontwall to be inthe exposed
brickin the natural colour.
*No constructionpermittedinthe
setbacks.
* All servicesinthe buildingtobe
encasedwithinthe walls.
* Noapplieddecorations,names
etc.permittedonthe façade of the
building.
*Area of the commonwall to be
shared.
*No service lane provided.
* Nosanitaryor rain pipe permittedon
the face of the building.
Visuals
Phase-3
