1. Linux as a guest
on Hyper-V
Vitaly Kuznetsov
Red Hat
DevConf 2016

2. 2 Linux on Hyper-V
Virtualization at Red Hat
● OS-level virtualization at Red Hat:
● Xen-based solutions in the past
● KVM-based solutions now:
● RHEV, OpenStack
● RHEL-as-a-guest efforts:
● On KVM: RHEV and OpenStack, standalone
● On Xen: Amazon Web Services
● On VMware: standalone
● On Hyper-V: Azure and standalone

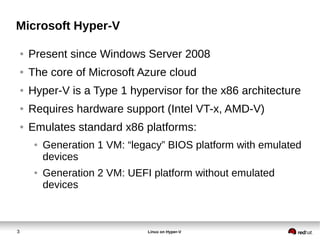

3. 3 Linux on Hyper-V
Microsoft Hyper-V
● Present since Windows Server 2008
● The core of Microsoft Azure cloud
● Hyper-V is a Type 1 hypervisor for the x86 architecture
● Requires hardware support (Intel VT-x, AMD-V)
● Emulates standard x86 platforms:
● Generation 1 VM: “legacy” BIOS platform with emulated
devices
● Generation 2 VM: UEFI platform without emulated
devices

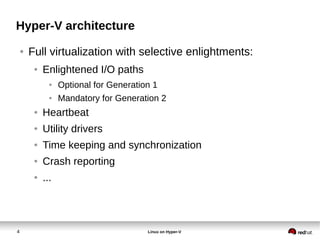

4. 4 Linux on Hyper-V
Hyper-V architecture
● Full virtualization with selective enlightments:
● Enlightened I/O paths
● Optional for Generation 1
● Mandatory for Generation 2
● Heartbeat
● Utility drivers
● Time keeping and synchronization
● Crash reporting
● ...

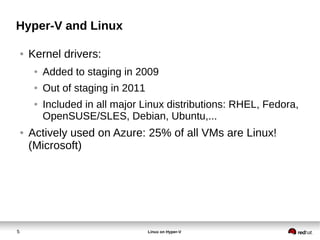

5. 5 Linux on Hyper-V
Hyper-V and Linux
● Kernel drivers:
● Added to staging in 2009
● Out of staging in 2011
● Included in all major Linux distributions: RHEL, Fedora,
OpenSUSE/SLES, Debian, Ubuntu,...
● Actively used on Azure: 25% of all VMs are Linux!
(Microsoft)

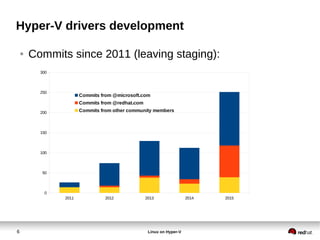

6. 6 Linux on Hyper-V
Hyper-V drivers development
● Commits since 2011 (leaving staging):
2011 2012 2013 2014 2015
0
50
100
150
200
250
300
Commits from @microsoft.com
Commits from @redhat.com
Commits from other community members

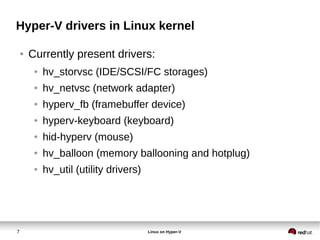

7. 7 Linux on Hyper-V
Hyper-V drivers in Linux kernel
● Currently present drivers:
● hv_storvsc (IDE/SCSI/FC storages)
● hv_netvsc (network adapter)
● hyperv_fb (framebuffer device)
● hyperv-keyboard (keyboard)
● hid-hyperv (mouse)
● hv_balloon (memory ballooning and hotplug)
● hv_util (utility drivers)

8. 8 Linux on Hyper-V

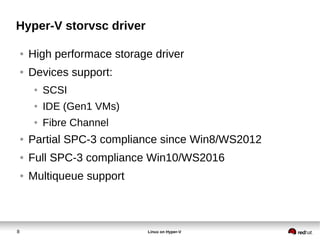

Hyper-V storvsc driver
● High performace storage driver
● Devices support:
● SCSI
● IDE (Gen1 VMs)
● Fibre Channel
● Partial SPC-3 compliance since Win8/WS2012
● Full SPC-3 compliance Win10/WS2016
● Multiqueue support

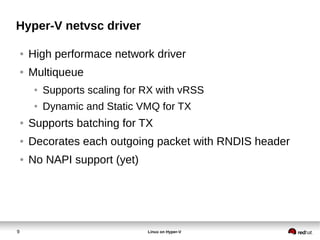

9. 9 Linux on Hyper-V
Hyper-V netvsc driver
● High performace network driver
● Multiqueue
● Supports scaling for RX with vRSS
● Dynamic and Static VMQ for TX
● Supports batching for TX
● Decorates each outgoing packet with RNDIS header
● No NAPI support (yet)

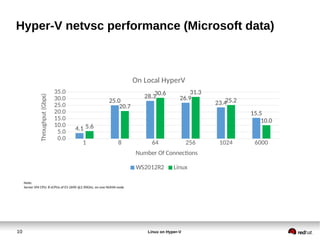

10. 10 Linux on Hyper-V
Hyper-V netvsc performance (Microsoft data)
1 8 64 256 1024 6000
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
4.1
25.0
28.3 26.9
23.4
15.5
5.6
20.7
30.6 31.3
25.2
10.0
On Local HyperV
WS2012R2 Linux
Number Of Connections
Throughput(Gbps)
Note:
Server VM CPU: 8 vCPUs of E5-2690 @2.90GHz, on one NUMA node

11. 11 Linux on Hyper-V

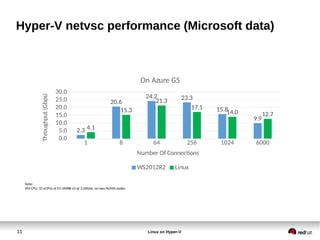

Hyper-V netvsc performance (Microsoft data)
1 8 64 256 1024 6000
0.0
5.0
10.0
15.0
20.0
25.0
30.0
2.3
20.6
24.2 23.3
15.8
9.9
4.1
15.3
21.3
17.1
14.0 12.7
On Azure G5
WS2012R2 Linux
Number Of Connections
Throughput(Gbps)
Note:
VM CPU: 32 vCPUs of E5-2698B v3 @ 2.00GHz, on two NUMA nodes

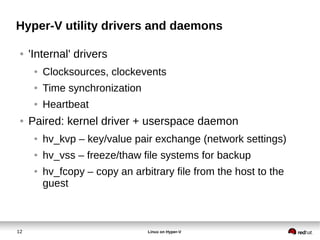

12. 12 Linux on Hyper-V
Hyper-V utility drivers and daemons
● 'Internal' drivers
● Clocksources, clockevents
● Time synchronization
● Heartbeat
● Paired: kernel driver + userspace daemon
● hv_kvp – key/value pair exchange (network settings)
● hv_vss – freeze/thaw file systems for backup
● hv_fcopy – copy an arbitrary file from the host to the
guest

13. 13 Linux on Hyper-V

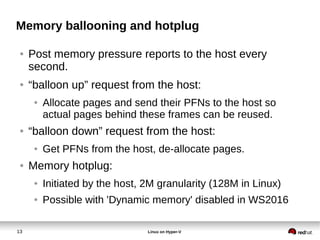

Memory ballooning and hotplug
● Post memory pressure reports to the host every
second.
● “balloon up” request from the host:
● Allocate pages and send their PFNs to the host so
actual pages behind these frames can be reused.
● “balloon down” request from the host:
● Get PFNs from the host, de-allocate pages.
● Memory hotplug:
● Initiated by the host, 2M granularity (128M in Linux)
● Possible with 'Dynamic memory' disabled in WS2016

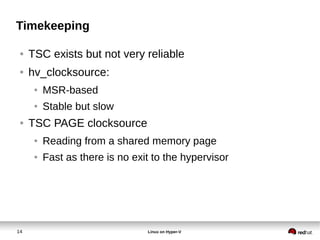

14. 14 Linux on Hyper-V
Timekeeping
● TSC exists but not very reliable
● hv_clocksource:
● MSR-based
● Stable but slow
● TSC PAGE clocksource
● Reading from a shared memory page
● Fast as there is no exit to the hypervisor

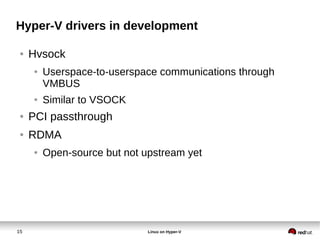

15. 15 Linux on Hyper-V
Hyper-V drivers in development
● Hvsock
● Userspace-to-userspace communications through
VMBUS
● Similar to VSOCK
● PCI passthrough
● RDMA
● Open-source but not upstream yet

16. 16 Linux on Hyper-V
Linux on Hyper-V internals
● Why do we need Hyper-V-specific drivers?
● Emulating real hardware is SLOW, other hypervisors
have their drivers in kernel too:
● KVM: virtio
● Xen: blkfront, netfront, balloon, …
● Vmware: pvscsi, vmxnet3, ..
● Some devices don't have hardware counterparts:
● Utility drivers
● Memory ballooning

17. 17 Linux on Hyper-V

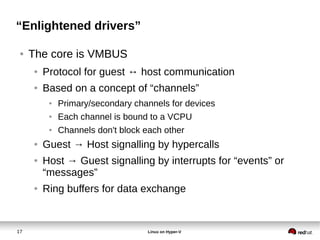

“Enlightened drivers”
● The core is VMBUS
● Protocol for guest ↔ host communication
● Based on a concept of “channels”
● Primary/secondary channels for devices
● Each channel is bound to a VCPU
● Channels don't block each other
● Guest → Host signalling by hypercalls
● Host → Guest signalling by interrupts for “events” or
“messages”
● Ring buffers for data exchange

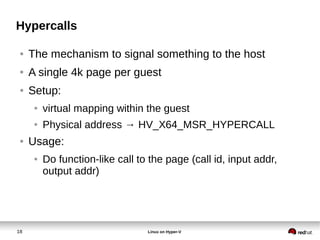

18. 18 Linux on Hyper-V
Hypercalls
● The mechanism to signal something to the host
● A single 4k page per guest
● Setup:
● virtual mapping within the guest
● Physical address → HV_X64_MSR_HYPERCALL
● Usage:
● Do function-like call to the page (call id, input addr,
output addr)

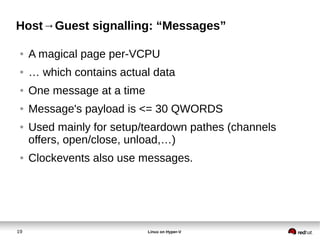

19. 19 Linux on Hyper-V
Host→Guest signalling: “Messages”
● A magical page per-VCPU
● … which contains actual data
● One message at a time
● Message's payload is <= 30 QWORDS
● Used mainly for setup/teardown pathes (channels
offers, open/close, unload,…)
● Clockevents also use messages.

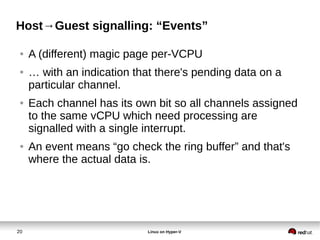

20. 20 Linux on Hyper-V
Host→Guest signalling: “Events”
● A (different) magic page per-VCPU
● … with an indication that there's pending data on a
particular channel.
● Each channel has its own bit so all channels assigned
to the same vCPU which need processing are
signalled with a single interrupt.
● An event means “go check the ring buffer” and that's
where the actual data is.

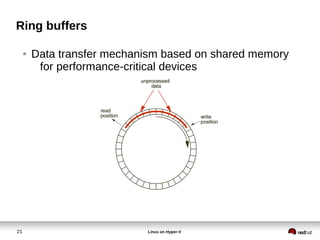

21. 21 Linux on Hyper-V
Ring buffers
● Data transfer mechanism based on shared memory
for performance-critical devices

22. 22 Linux on Hyper-V

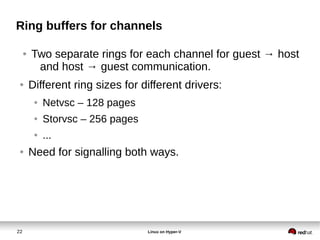

Ring buffers for channels
● Two separate rings for each channel for guest → host
and host → guest communication.
● Different ring sizes for different drivers:
● Netvsc – 128 pages
● Storvsc – 256 pages
● ...
● Need for signalling both ways.

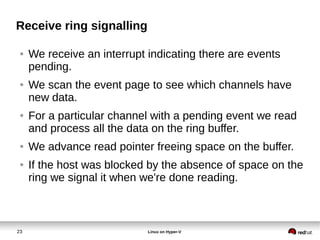

23. 23 Linux on Hyper-V
Receive ring signalling
● We receive an interrupt indicating there are events
pending.
● We scan the event page to see which channels have
new data.
● For a particular channel with a pending event we read
and process all the data on the ring buffer.
● We advance read pointer freeing space on the buffer.
● If the host was blocked by the absence of space on the
ring we signal it when we're done reading.

24. 24 Linux on Hyper-V

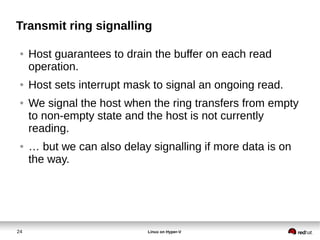

Transmit ring signalling
● Host guarantees to drain the buffer on each read
operation.
● Host sets interrupt mask to signal an ongoing read.
● We signal the host when the ring transfers from empty
to non-empty state and the host is not currently
reading.
● … but we can also delay signalling if more data is on
the way.

25. Thank you!
Questions?
Vitaly Kuznetsov
vkuznets@redhat.com
