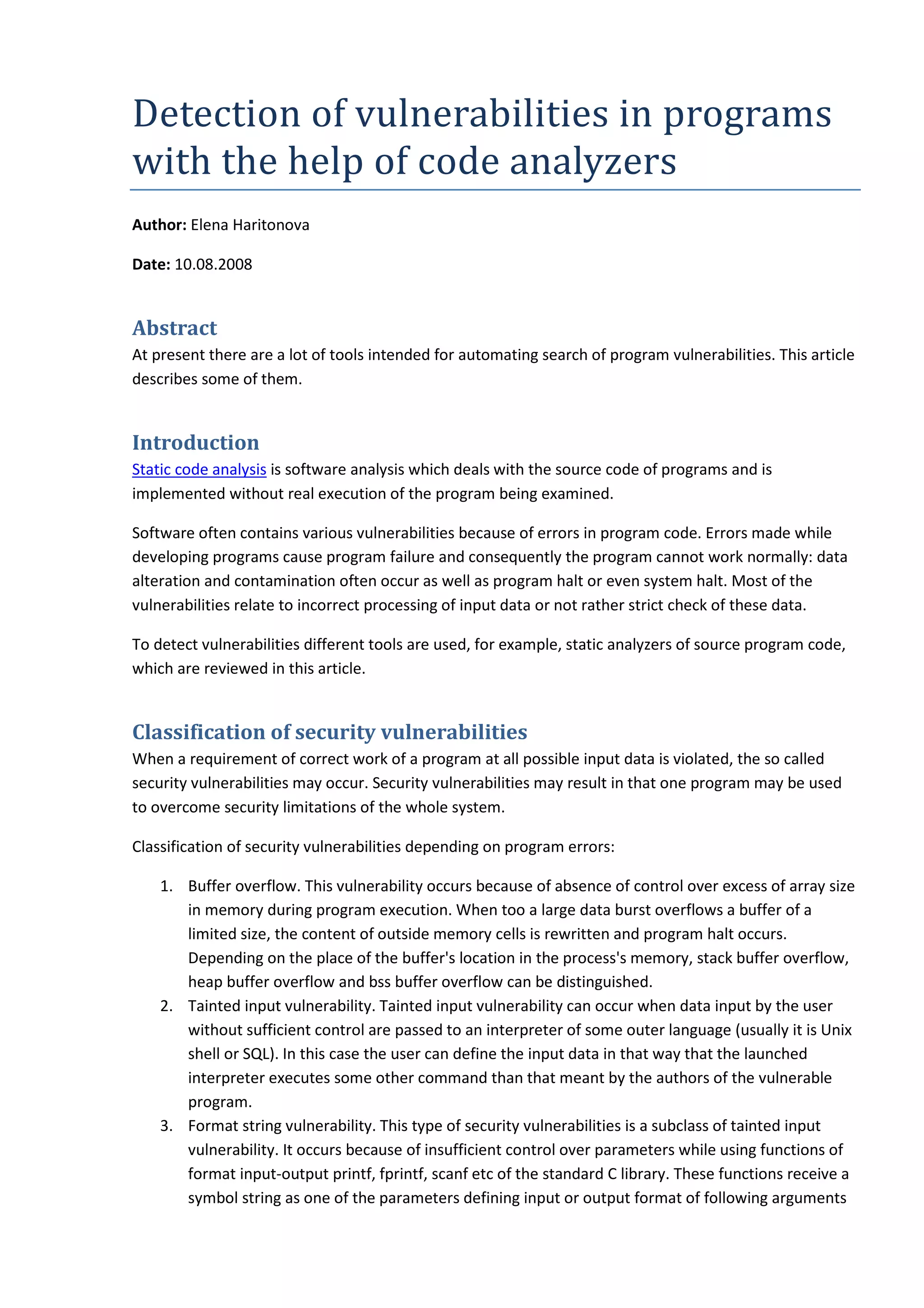

1. Detection of vulnerabilities in programs
with the help of code analyzers
Author: Elena Haritonova
Date: 10.08.2008
Abstract
At present there are a lot of tools intended for automating search of program vulnerabilities. This article
describes some of them.
Introduction
Static code analysis is software analysis which deals with the source code of programs and is
implemented without real execution of the program being examined.
Software often contains various vulnerabilities because of errors in program code. Errors made while
developing programs cause program failure and consequently the program cannot work normally: data
alteration and contamination often occur as well as program halt or even system halt. Most of the
vulnerabilities relate to incorrect processing of input data or not rather strict check of these data.
To detect vulnerabilities different tools are used, for example, static analyzers of source program code,
which are reviewed in this article.
Classification of security vulnerabilities
When a requirement of correct work of a program at all possible input data is violated, the so called
security vulnerabilities may occur. Security vulnerabilities may result in that one program may be used
to overcome security limitations of the whole system.
Classification of security vulnerabilities depending on program errors:
1. Buffer overflow. This vulnerability occurs because of absence of control over excess of array size
in memory during program execution. When too a large data burst overflows a buffer of a
limited size, the content of outside memory cells is rewritten and program halt occurs.
Depending on the place of the buffer's location in the process's memory, stack buffer overflow,
heap buffer overflow and bss buffer overflow can be distinguished.
2. Tainted input vulnerability. Tainted input vulnerability can occur when data input by the user
without sufficient control are passed to an interpreter of some outer language (usually it is Unix
shell or SQL). In this case the user can define the input data in that way that the launched
interpreter executes some other command than that meant by the authors of the vulnerable
program.
3. Format string vulnerability. This type of security vulnerabilities is a subclass of tainted input
vulnerability. It occurs because of insufficient control over parameters while using functions of
format input-output printf, fprintf, scanf etc of the standard C library. These functions receive a
symbol string as one of the parameters defining input or output format of following arguments

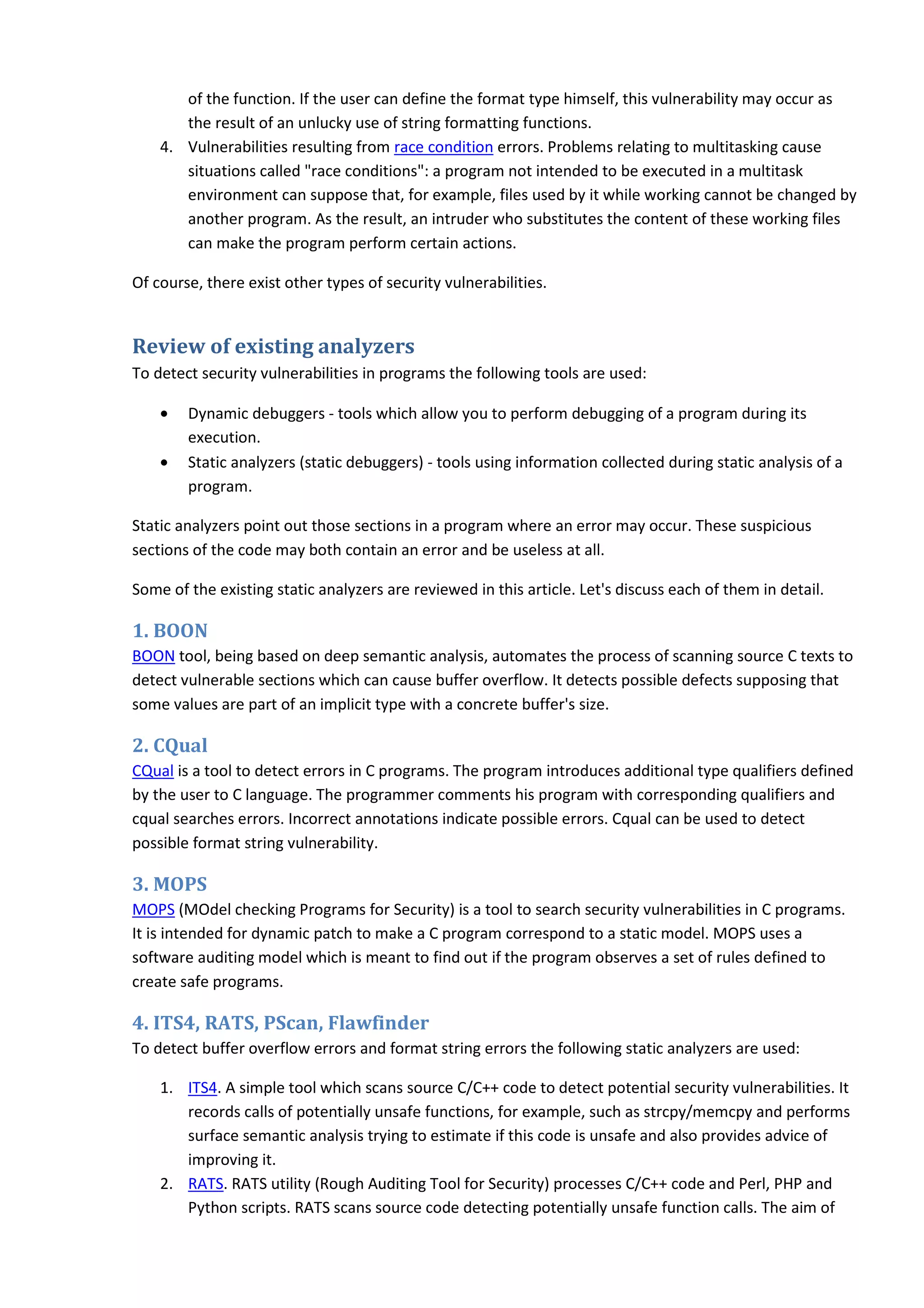

2. of the function. If the user can define the format type himself, this vulnerability may occur as
the result of an unlucky use of string formatting functions.
4. Vulnerabilities resulting from race condition errors. Problems relating to multitasking cause
situations called "race conditions": a program not intended to be executed in a multitask
environment can suppose that, for example, files used by it while working cannot be changed by
another program. As the result, an intruder who substitutes the content of these working files
can make the program perform certain actions.
Of course, there exist other types of security vulnerabilities.
Review of existing analyzers
To detect security vulnerabilities in programs the following tools are used:
• Dynamic debuggers - tools which allow you to perform debugging of a program during its
execution.
• Static analyzers (static debuggers) - tools using information collected during static analysis of a
program.
Static analyzers point out those sections in a program where an error may occur. These suspicious
sections of the code may both contain an error and be useless at all.
Some of the existing static analyzers are reviewed in this article. Let's discuss each of them in detail.
1. BOON
BOON tool, being based on deep semantic analysis, automates the process of scanning source C texts to
detect vulnerable sections which can cause buffer overflow. It detects possible defects supposing that
some values are part of an implicit type with a concrete buffer's size.
2. CQual
CQual is a tool to detect errors in C programs. The program introduces additional type qualifiers defined
by the user to C language. The programmer comments his program with corresponding qualifiers and
cqual searches errors. Incorrect annotations indicate possible errors. Cqual can be used to detect
possible format string vulnerability.
3. MOPS
MOPS (MOdel checking Programs for Security) is a tool to search security vulnerabilities in C programs.
It is intended for dynamic patch to make a C program correspond to a static model. MOPS uses a
software auditing model which is meant to find out if the program observes a set of rules defined to
create safe programs.
4. ITS4, RATS, PScan, Flawfinder
To detect buffer overflow errors and format string errors the following static analyzers are used:
1. ITS4. A simple tool which scans source C/C++ code to detect potential security vulnerabilities. It
records calls of potentially unsafe functions, for example, such as strcpy/memcpy and performs
surface semantic analysis trying to estimate if this code is unsafe and also provides advice of
improving it.
2. RATS. RATS utility (Rough Auditing Tool for Security) processes C/C++ code and Perl, PHP and
Python scripts. RATS scans source code detecting potentially unsafe function calls. The aim of

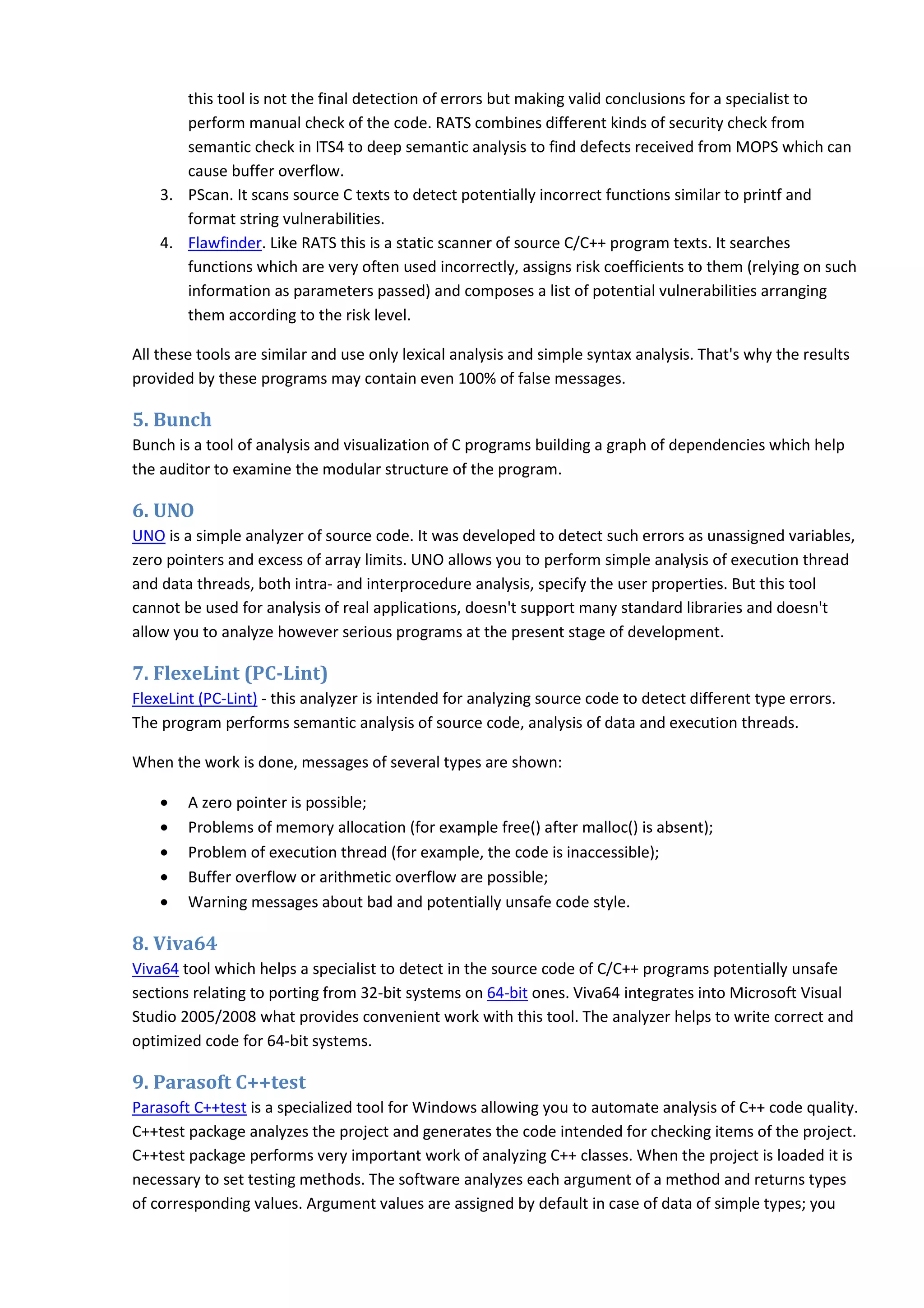

3. this tool is not the final detection of errors but making valid conclusions for a specialist to
perform manual check of the code. RATS combines different kinds of security check from
semantic check in ITS4 to deep semantic analysis to find defects received from MOPS which can
cause buffer overflow.
3. PScan. It scans source C texts to detect potentially incorrect functions similar to printf and
format string vulnerabilities.
4. Flawfinder. Like RATS this is a static scanner of source C/C++ program texts. It searches
functions which are very often used incorrectly, assigns risk coefficients to them (relying on such
information as parameters passed) and composes a list of potential vulnerabilities arranging
them according to the risk level.
All these tools are similar and use only lexical analysis and simple syntax analysis. That's why the results
provided by these programs may contain even 100% of false messages.
5. Bunch
Bunch is a tool of analysis and visualization of C programs building a graph of dependencies which help
the auditor to examine the modular structure of the program.
6. UNO
UNO is a simple analyzer of source code. It was developed to detect such errors as unassigned variables,
zero pointers and excess of array limits. UNO allows you to perform simple analysis of execution thread
and data threads, both intra- and interprocedure analysis, specify the user properties. But this tool
cannot be used for analysis of real applications, doesn't support many standard libraries and doesn't
allow you to analyze however serious programs at the present stage of development.
7. FlexeLint (PC-Lint)
FlexeLint (PC-Lint) - this analyzer is intended for analyzing source code to detect different type errors.
The program performs semantic analysis of source code, analysis of data and execution threads.
When the work is done, messages of several types are shown:
• A zero pointer is possible;
• Problems of memory allocation (for example free() after malloc() is absent);
• Problem of execution thread (for example, the code is inaccessible);
• Buffer overflow or arithmetic overflow are possible;
• Warning messages about bad and potentially unsafe code style.
8. Viva64
Viva64 tool which helps a specialist to detect in the source code of C/C++ programs potentially unsafe
sections relating to porting from 32-bit systems on 64-bit ones. Viva64 integrates into Microsoft Visual
Studio 2005/2008 what provides convenient work with this tool. The analyzer helps to write correct and
optimized code for 64-bit systems.
9. Parasoft C++test
Parasoft C++test is a specialized tool for Windows allowing you to automate analysis of C++ code quality.
C++test package analyzes the project and generates the code intended for checking items of the project.
C++test package performs very important work of analyzing C++ classes. When the project is loaded it is
necessary to set testing methods. The software analyzes each argument of a method and returns types
of corresponding values. Argument values are assigned by default in case of data of simple types; you

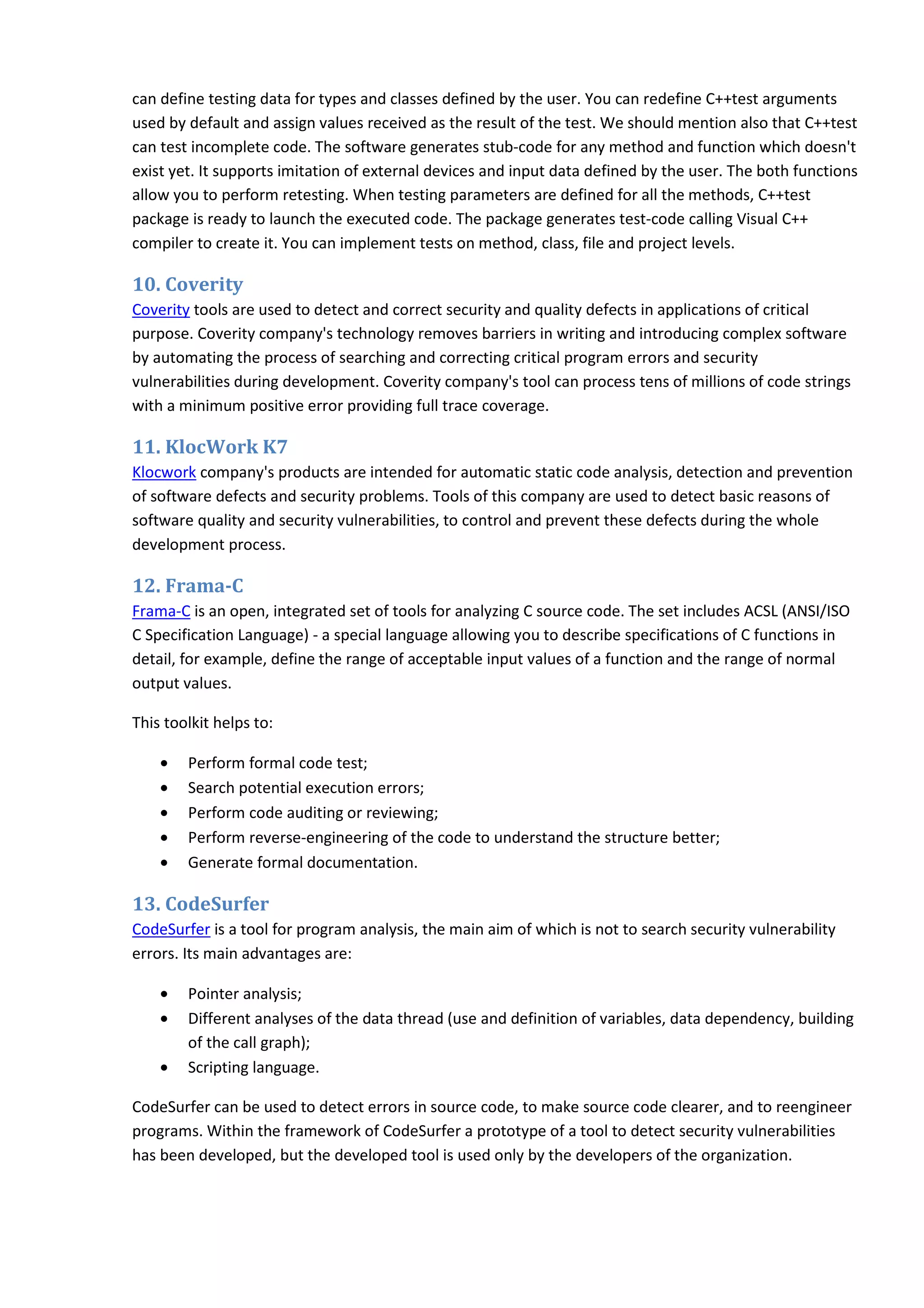

4. can define testing data for types and classes defined by the user. You can redefine C++test arguments
used by default and assign values received as the result of the test. We should mention also that C++test
can test incomplete code. The software generates stub-code for any method and function which doesn't
exist yet. It supports imitation of external devices and input data defined by the user. The both functions
allow you to perform retesting. When testing parameters are defined for all the methods, C++test
package is ready to launch the executed code. The package generates test-code calling Visual C++
compiler to create it. You can implement tests on method, class, file and project levels.
10. Coverity
Coverity tools are used to detect and correct security and quality defects in applications of critical
purpose. Coverity company's technology removes barriers in writing and introducing complex software
by automating the process of searching and correcting critical program errors and security
vulnerabilities during development. Coverity company's tool can process tens of millions of code strings
with a minimum positive error providing full trace coverage.
11. KlocWork K7
Klocwork company's products are intended for automatic static code analysis, detection and prevention
of software defects and security problems. Tools of this company are used to detect basic reasons of
software quality and security vulnerabilities, to control and prevent these defects during the whole
development process.
12. Frama-C
Frama-C is an open, integrated set of tools for analyzing C source code. The set includes ACSL (ANSI/ISO
C Specification Language) - a special language allowing you to describe specifications of C functions in
detail, for example, define the range of acceptable input values of a function and the range of normal
output values.
This toolkit helps to:
• Perform formal code test;
• Search potential execution errors;
• Perform code auditing or reviewing;
• Perform reverse-engineering of the code to understand the structure better;
• Generate formal documentation.
13. CodeSurfer
CodeSurfer is a tool for program analysis, the main aim of which is not to search security vulnerability
errors. Its main advantages are:
• Pointer analysis;
• Different analyses of the data thread (use and definition of variables, data dependency, building
of the call graph);
• Scripting language.
CodeSurfer can be used to detect errors in source code, to make source code clearer, and to reengineer
programs. Within the framework of CodeSurfer a prototype of a tool to detect security vulnerabilities
has been developed, but the developed tool is used only by the developers of the organization.

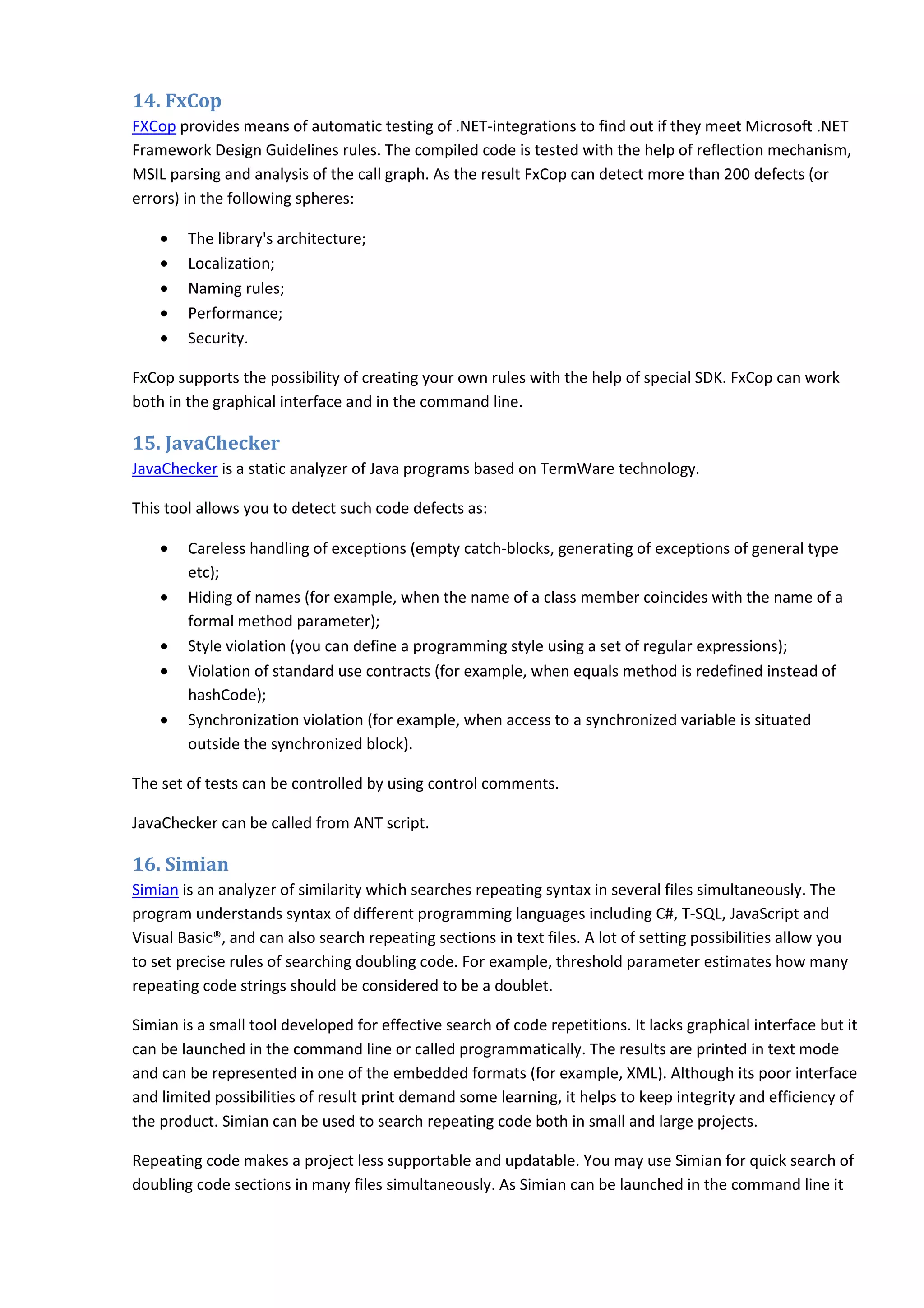

5. 14. FxCop
FXCop provides means of automatic testing of .NET-integrations to find out if they meet Microsoft .NET
Framework Design Guidelines rules. The compiled code is tested with the help of reflection mechanism,
MSIL parsing and analysis of the call graph. As the result FxCop can detect more than 200 defects (or
errors) in the following spheres:
• The library's architecture;
• Localization;
• Naming rules;
• Performance;
• Security.
FxCop supports the possibility of creating your own rules with the help of special SDK. FxCop can work
both in the graphical interface and in the command line.
15. JavaChecker
JavaChecker is a static analyzer of Java programs based on TermWare technology.
This tool allows you to detect such code defects as:
• Careless handling of exceptions (empty catch-blocks, generating of exceptions of general type
etc);
• Hiding of names (for example, when the name of a class member coincides with the name of a
formal method parameter);
• Style violation (you can define a programming style using a set of regular expressions);
• Violation of standard use contracts (for example, when equals method is redefined instead of
hashCode);
• Synchronization violation (for example, when access to a synchronized variable is situated
outside the synchronized block).
The set of tests can be controlled by using control comments.
JavaChecker can be called from ANT script.
16. Simian
Simian is an analyzer of similarity which searches repeating syntax in several files simultaneously. The
program understands syntax of different programming languages including C#, T-SQL, JavaScript and
Visual Basic®, and can also search repeating sections in text files. A lot of setting possibilities allow you
to set precise rules of searching doubling code. For example, threshold parameter estimates how many
repeating code strings should be considered to be a doublet.
Simian is a small tool developed for effective search of code repetitions. It lacks graphical interface but it
can be launched in the command line or called programmatically. The results are printed in text mode
and can be represented in one of the embedded formats (for example, XML). Although its poor interface
and limited possibilities of result print demand some learning, it helps to keep integrity and efficiency of
the product. Simian can be used to search repeating code both in small and large projects.
Repeating code makes a project less supportable and updatable. You may use Simian for quick search of
doubling code sections in many files simultaneously. As Simian can be launched in the command line it

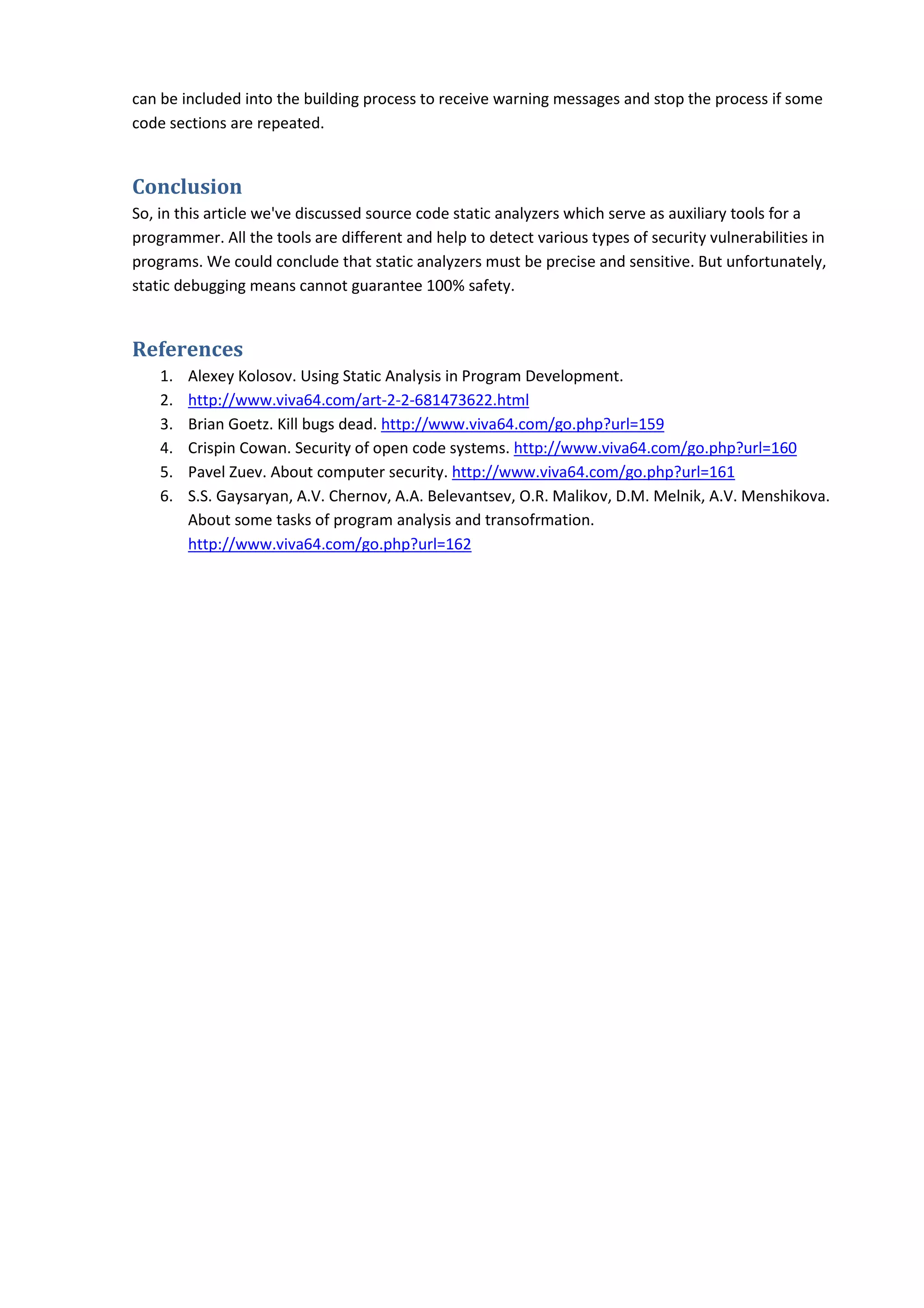

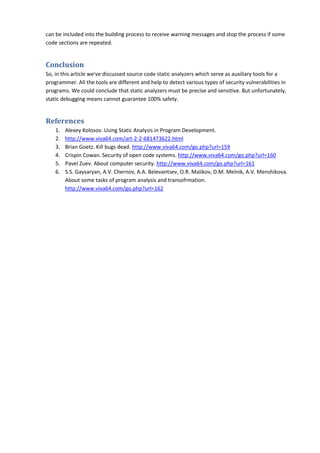

6. can be included into the building process to receive warning messages and stop the process if some
code sections are repeated.
Conclusion
So, in this article we've discussed source code static analyzers which serve as auxiliary tools for a
programmer. All the tools are different and help to detect various types of security vulnerabilities in
programs. We could conclude that static analyzers must be precise and sensitive. But unfortunately,
static debugging means cannot guarantee 100% safety.
References
1. Alexey Kolosov. Using Static Analysis in Program Development.
2. http://www.viva64.com/art-2-2-681473622.html
3. Brian Goetz. Kill bugs dead. http://www.viva64.com/go.php?url=159
4. Crispin Cowan. Security of open code systems. http://www.viva64.com/go.php?url=160
5. Pavel Zuev. About computer security. http://www.viva64.com/go.php?url=161
6. S.S. Gaysaryan, A.V. Chernov, A.A. Belevantsev, O.R. Malikov, D.M. Melnik, A.V. Menshikova.
About some tasks of program analysis and transofrmation.
http://www.viva64.com/go.php?url=162
