1. Design Patterns for
JavaScript Web Apps
Stefan Scheidt
OPITZ CONSULTING GmbH

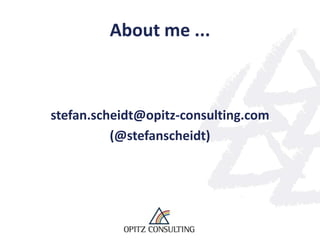

2. About me ...
stefan.scheidt@opitz-consulting.com
(@stefanscheidt)

3. Mission Markets
The company's ambition is to help  Branchspreading
organizations to be better than their  Over 600 customers
competitors. 29%
Trade / Logistics /
Our services take place in partnership and 29% Supplier
Industry / Services /
are aimed at co-operation of many years. Telecommunications
42%
Public Clients / Banks and Insurance
Associations and Federations
Portfolio Basic Data
 Business IT Alignment  Founded in 1990
 Business Information Management  400 employees
 Business Process Management  8 offices
 Application Development
 SOA and System Integration
 IT Infrastructure Management
© OPITZ CONSULTING GmbH 2012 Seite 3

4. And … who are you?

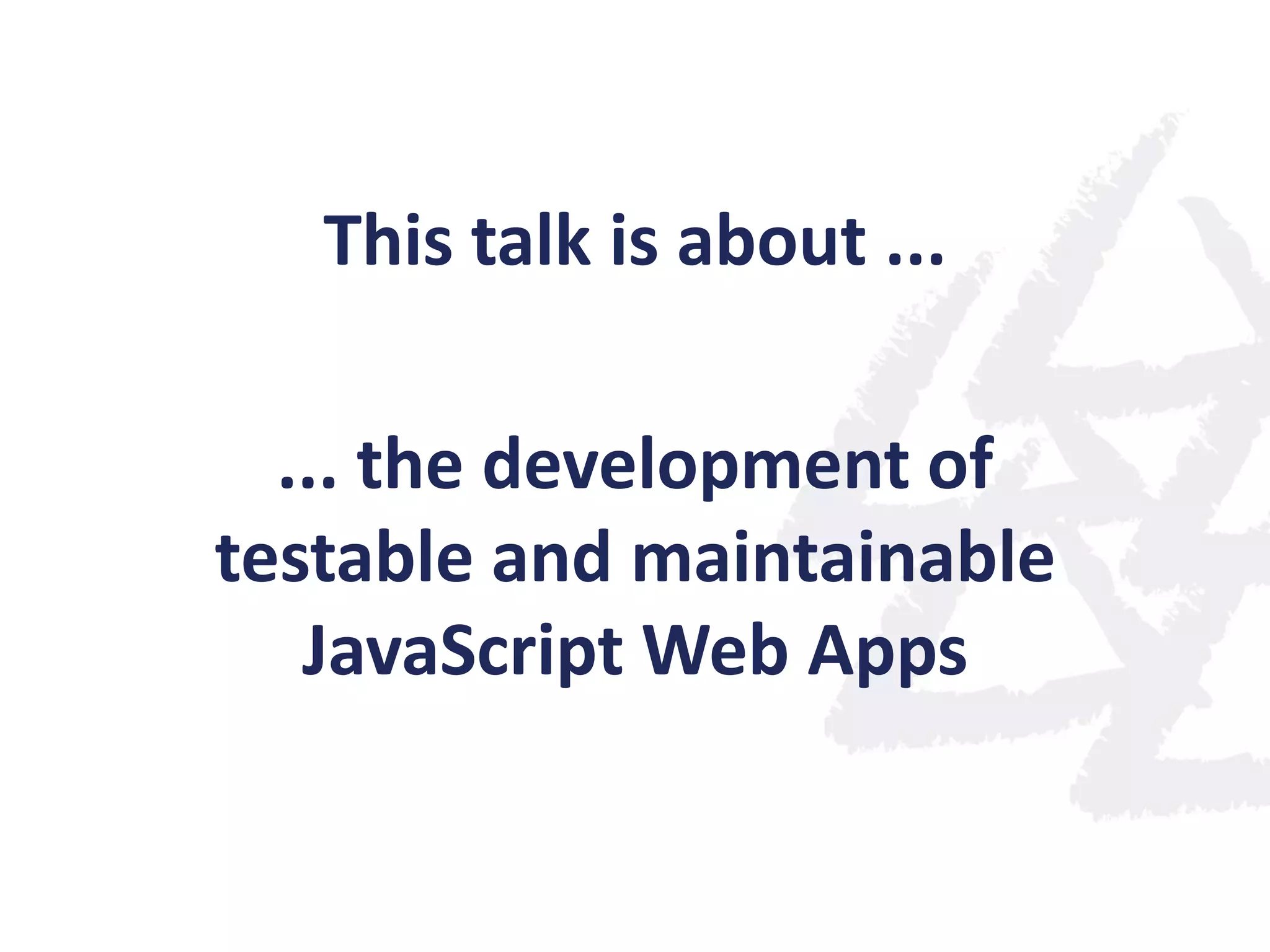

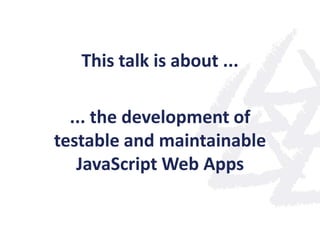

5. This talk is about ...
... the development of
testable and maintainable
JavaScript Web Apps

6. This talk is about ...
... the development of
testable and maintainable
JavaScript Web Apps

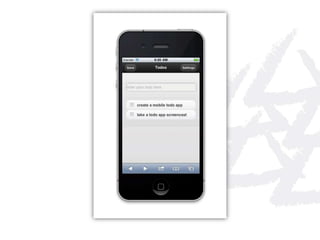

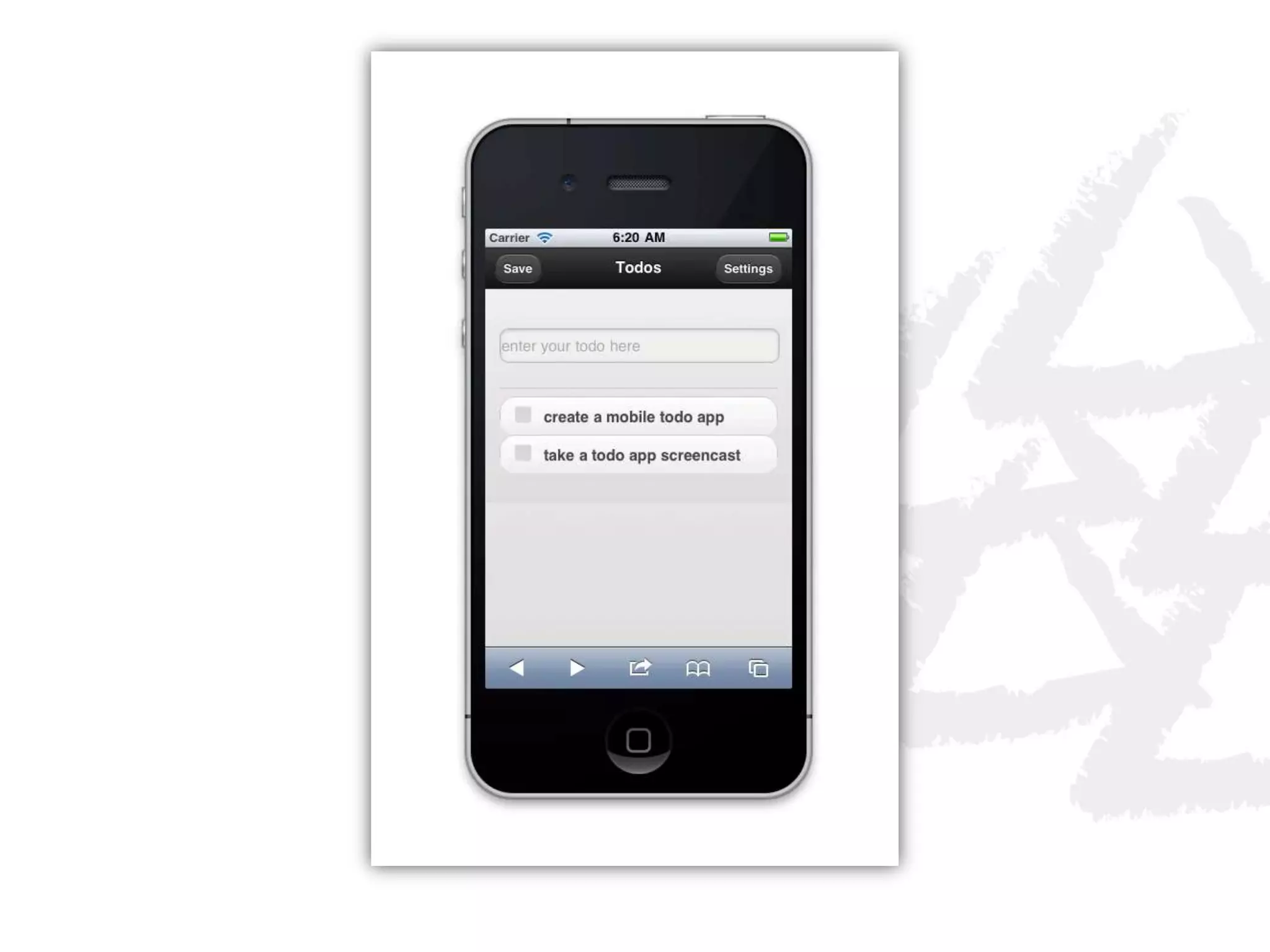

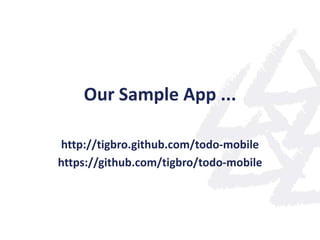

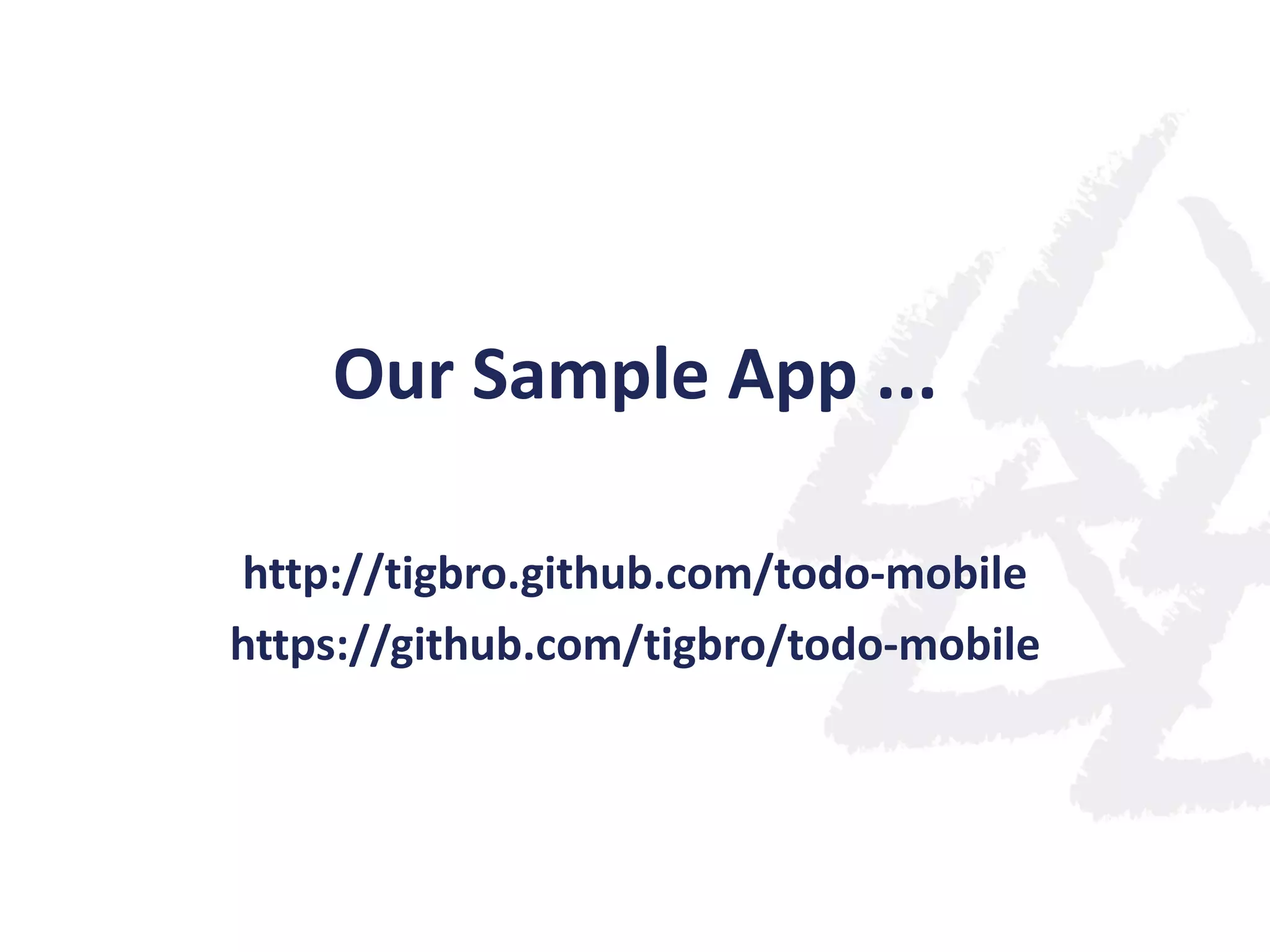

7. Our Sample App ...
http://tigbro.github.com/todo-mobile
https://github.com/tigbro/todo-mobile

9. Software Design

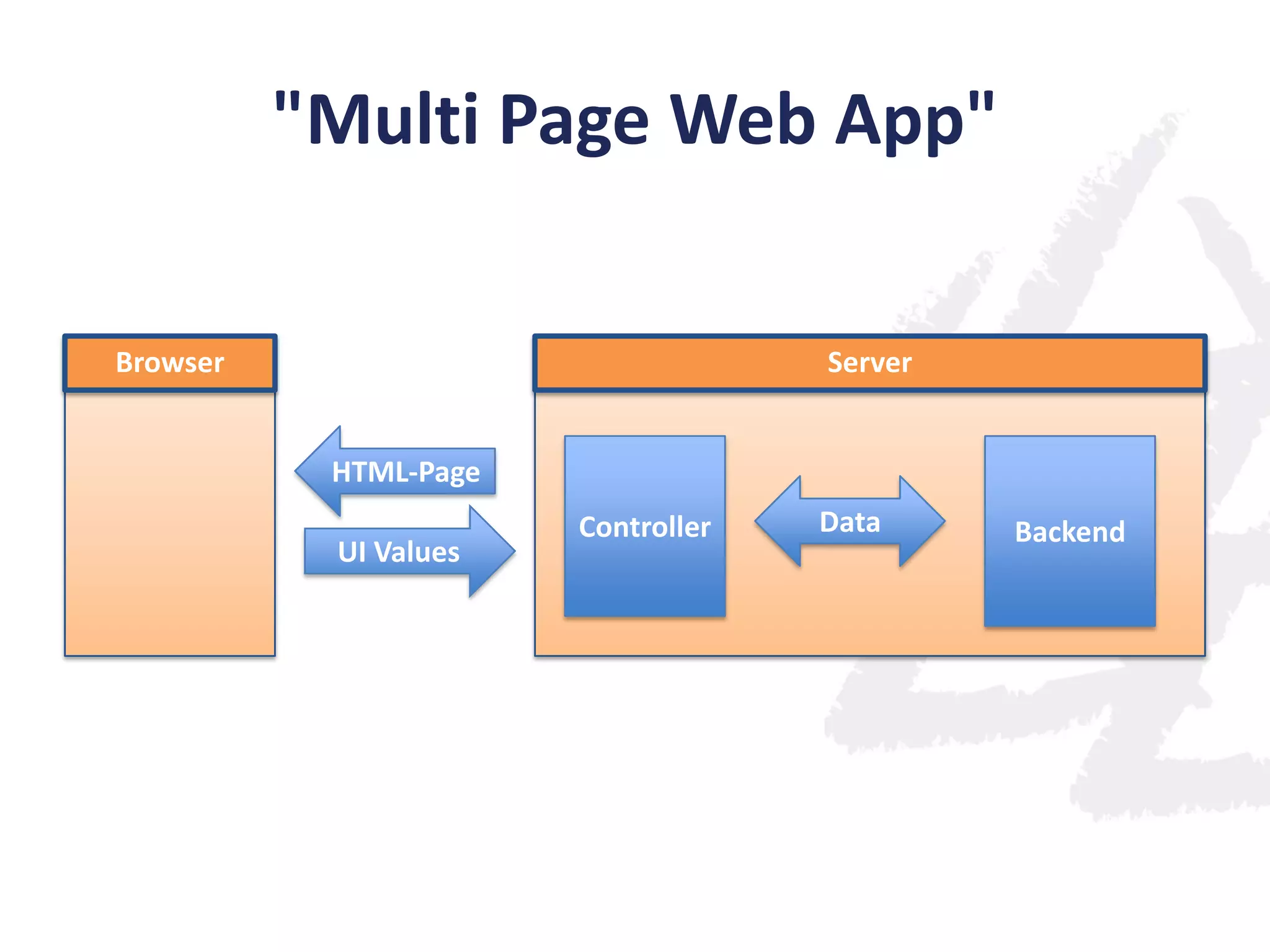

10. "Multi Page Web App"
Browser Server
HTML-Page
Controller Data Backend
UI Values

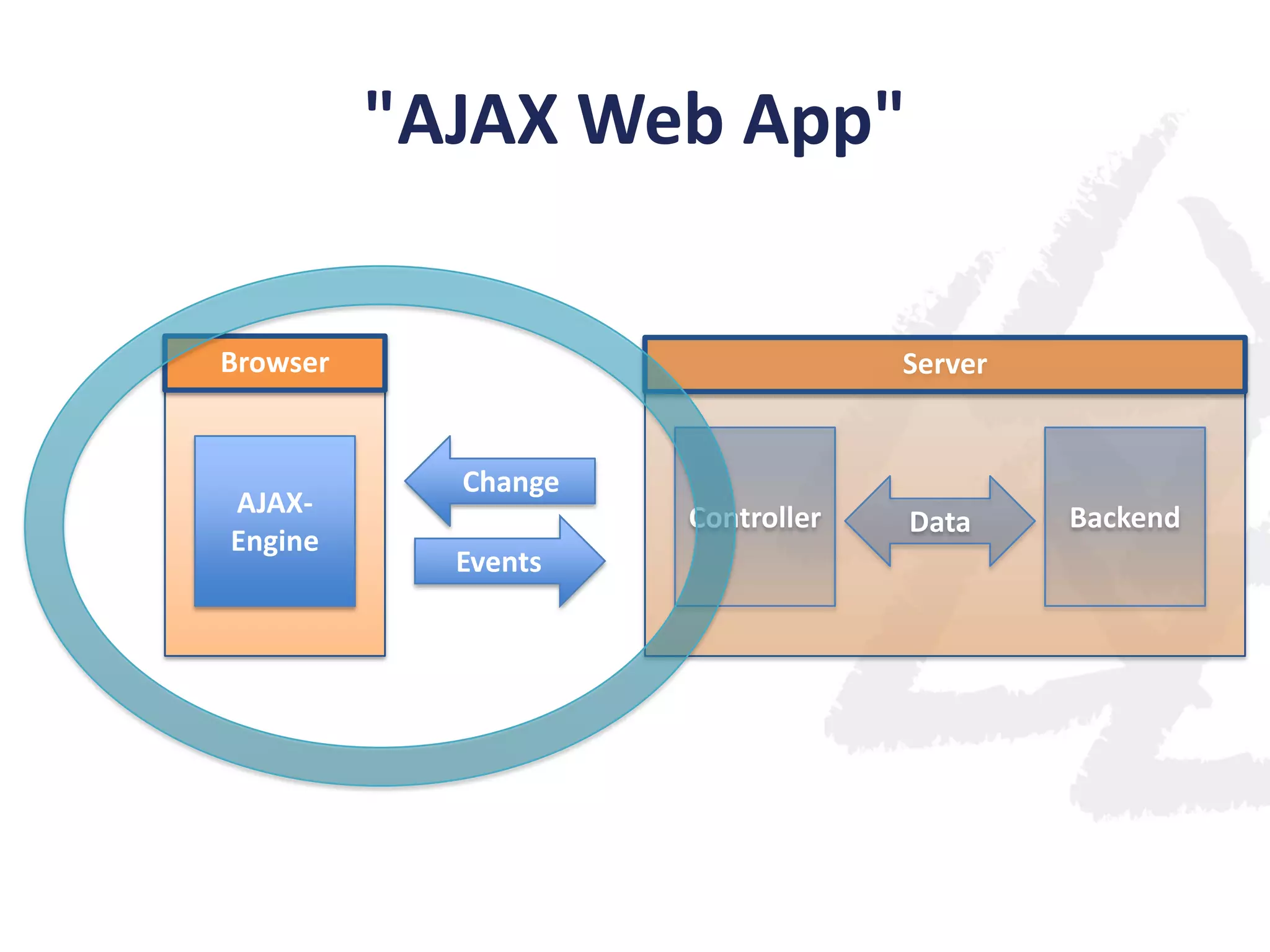

11. "AJAX Web App"
Browser Server
Change
AJAX- Controller Backend
Data
Engine
Events

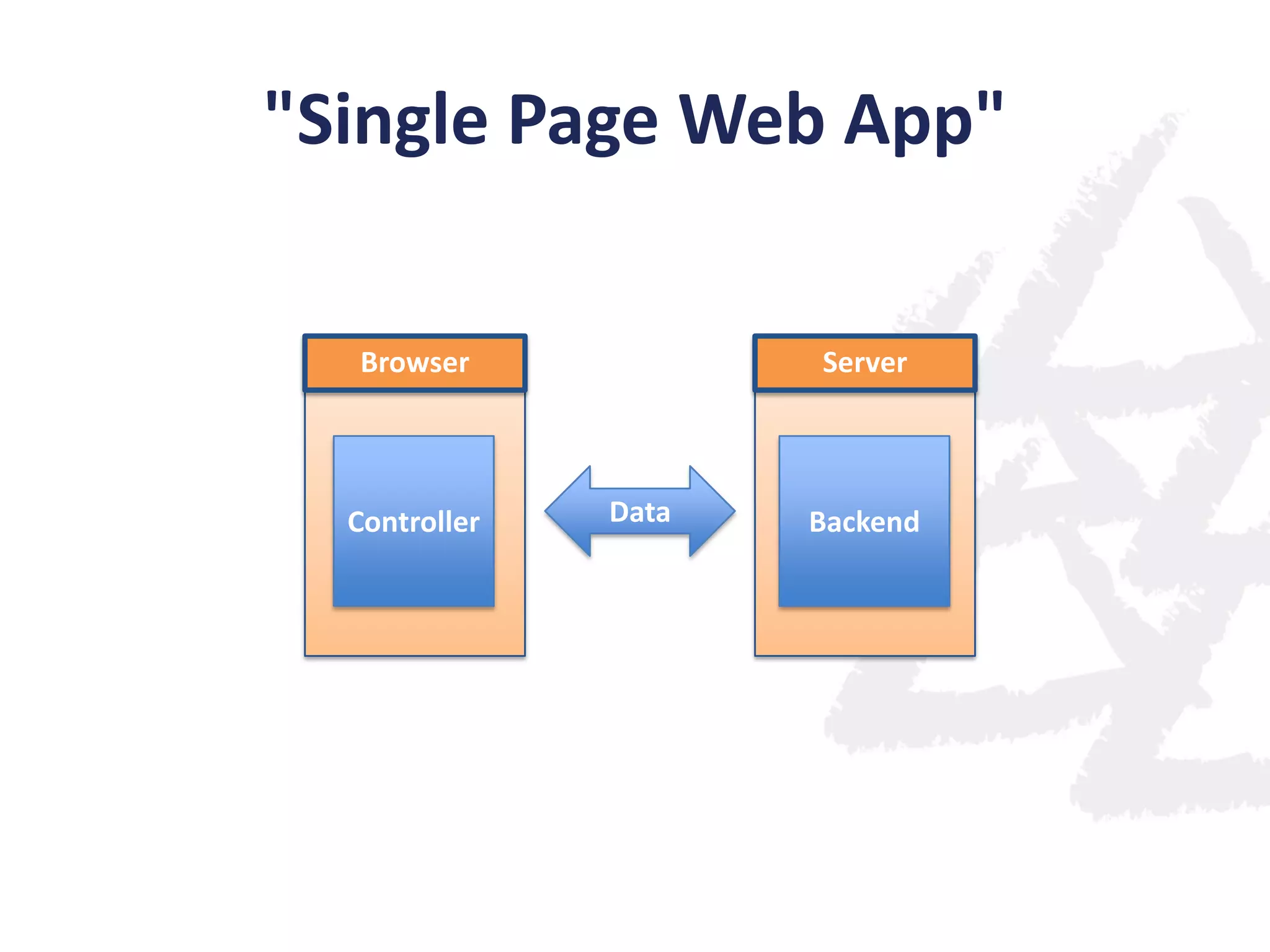

12. "Single Page Web App"
Browser Server
Controller Data Backend

13. UI Component Libraries

14. jQuery Mobile
http://jquerymobile.com/

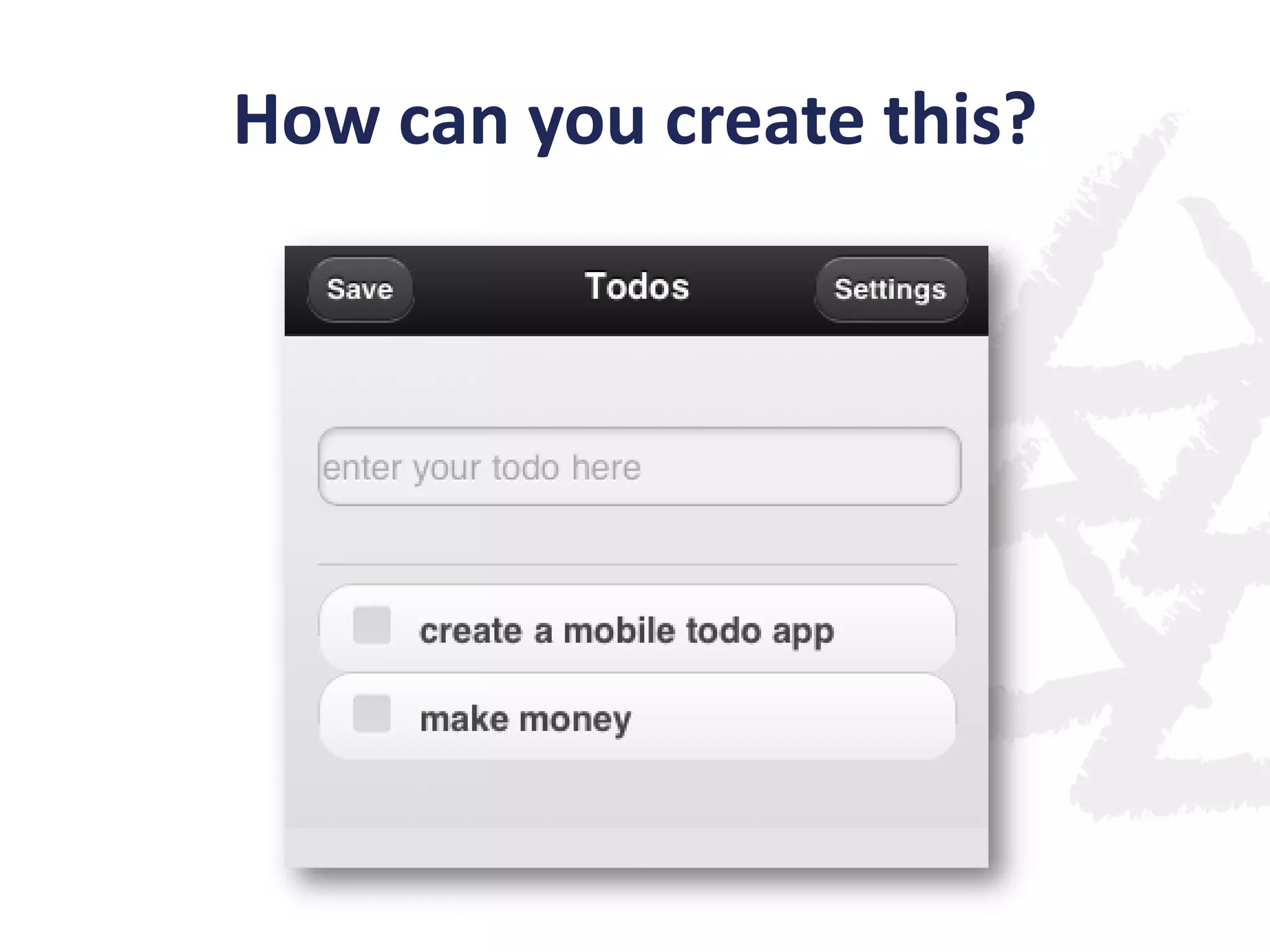

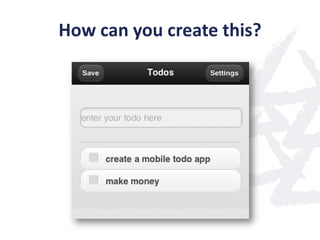

15. How can you create this?

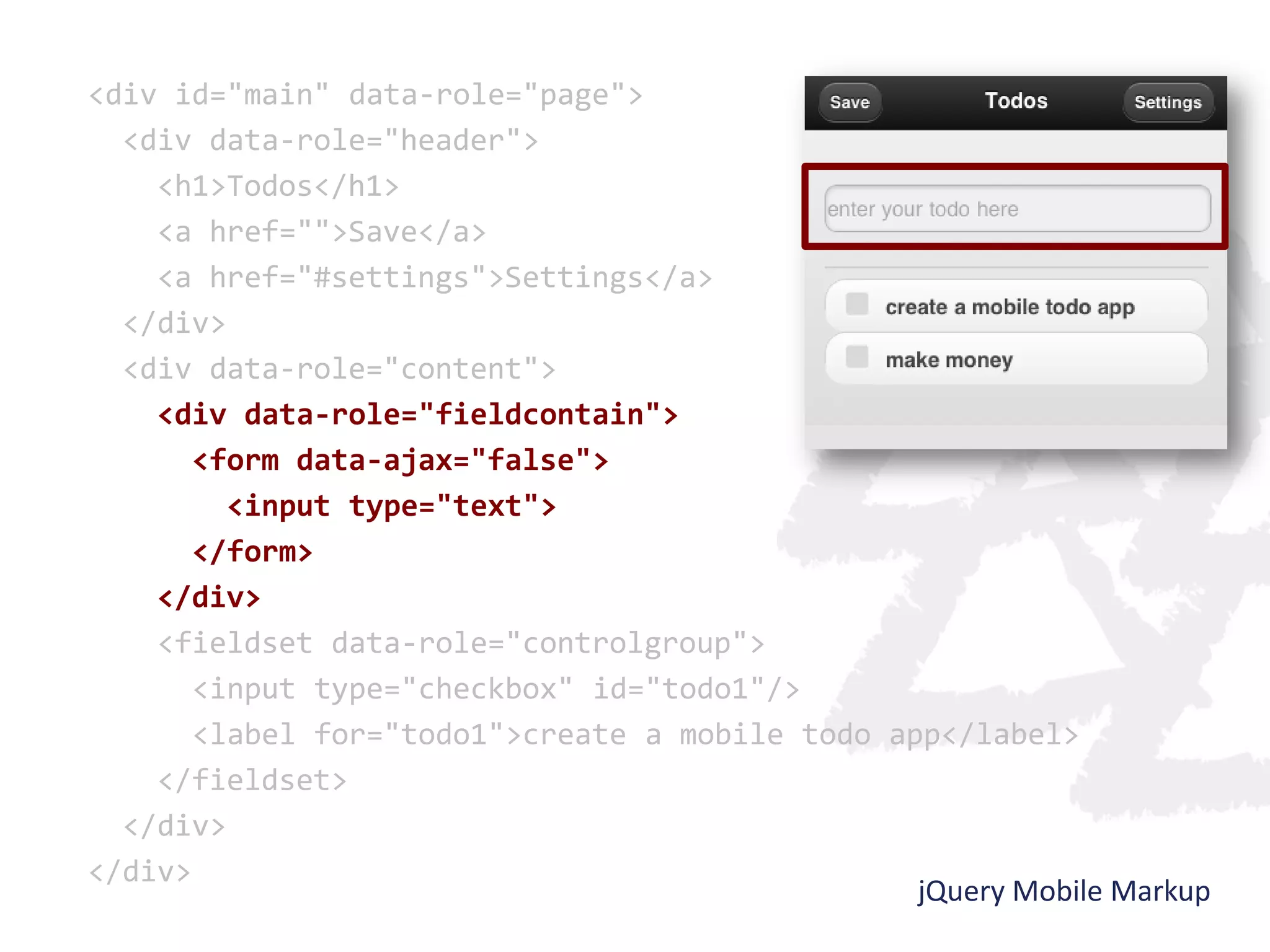

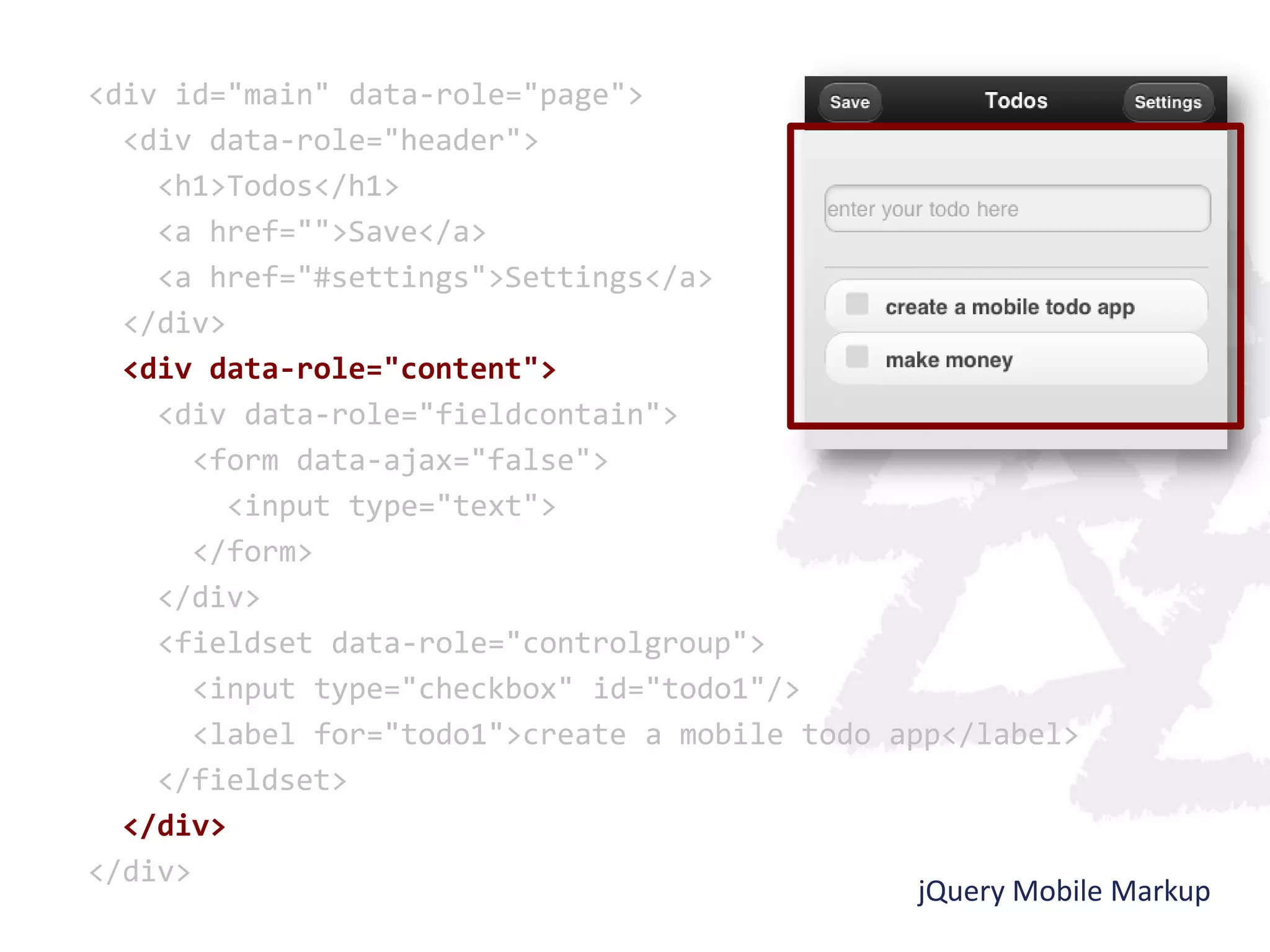

16. <div id="main" data-role="page">
<div data-role="header">
<h1>Todos</h1>
<a href="">Save</a>
<a href="#settings">Settings</a>
</div>
<div data-role="content">
<div data-role="fieldcontain">
<form data-ajax="false">
<input type="text">
</form>
</div>
<fieldset data-role="controlgroup">
<input type="checkbox" id="todo1"/>
<label for="todo1">create a mobile todo app</label>
</fieldset>
</div>
</div>
jQuery Mobile Markup

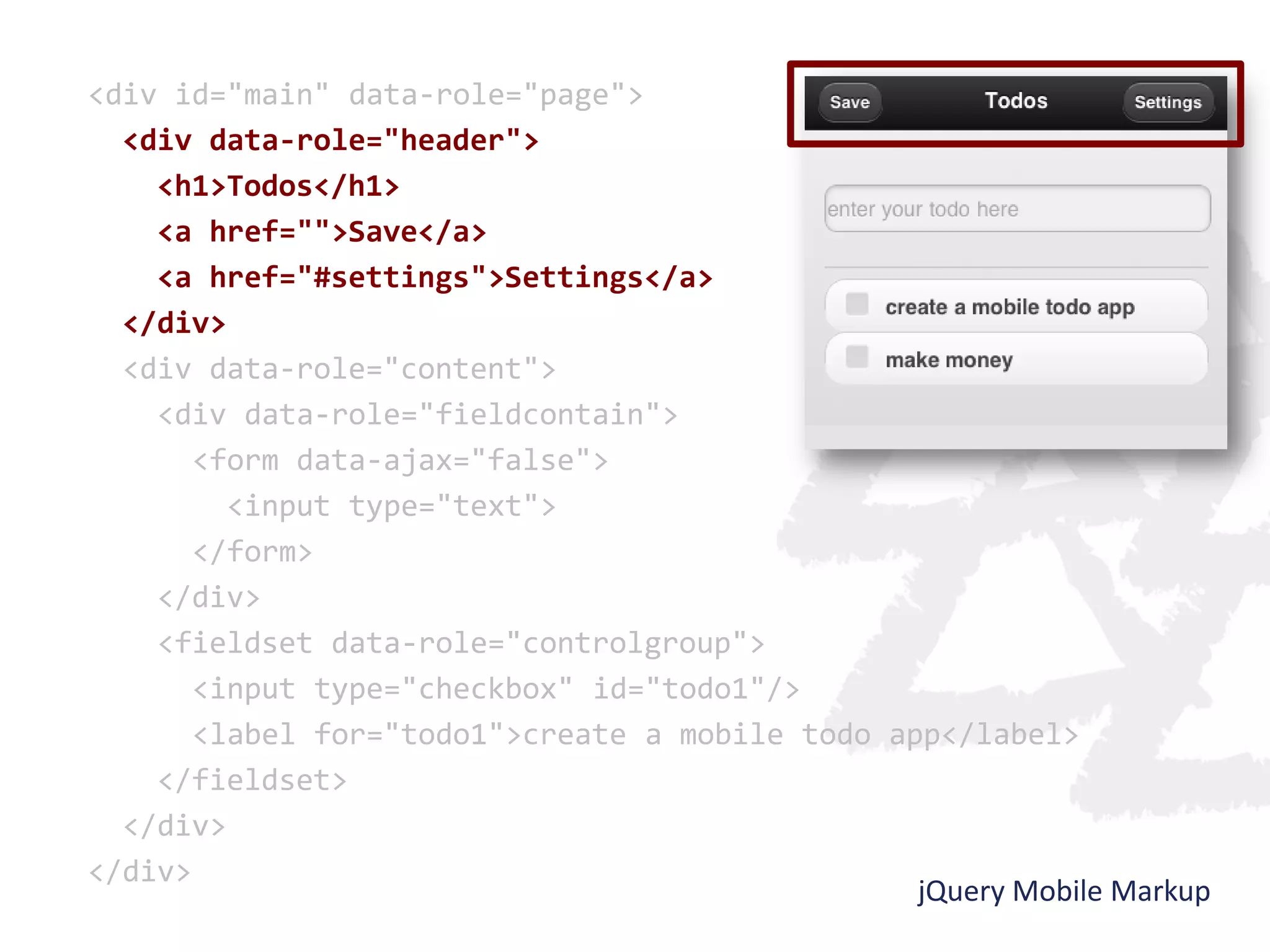

17. <div id="main" data-role="page">
<div data-role="header">
<h1>Todos</h1>
<a href="">Save</a>
<a href="#settings">Settings</a>
</div>
<div data-role="content">
<div data-role="fieldcontain">
<form data-ajax="false">
<input type="text">
</form>
</div>
<fieldset data-role="controlgroup">
<input type="checkbox" id="todo1"/>
<label for="todo1">create a mobile todo app</label>
</fieldset>
</div>
</div>
jQuery Mobile Markup

18. <div id="main" data-role="page">
<div data-role="header">
<h1>Todos</h1>
<a href="">Save</a>
<a href="#settings">Settings</a>
</div>
<div data-role="content">
<div data-role="fieldcontain">
<form data-ajax="false">
<input type="text">
</form>
</div>
<fieldset data-role="controlgroup">
<input type="checkbox" id="todo1"/>
<label for="todo1">create a mobile todo app</label>
</fieldset>
</div>
</div>
jQuery Mobile Markup

19. <div id="main" data-role="page">
<div data-role="header">
<h1>Todos</h1>
<a href="">Save</a>
<a href="#settings">Settings</a>
</div>
<div data-role="content">
<div data-role="fieldcontain">
<form data-ajax="false">
<input type="text">
</form>
</div>
<fieldset data-role="controlgroup">
<input type="checkbox" id="todo1"/>
<label for="todo1">create a mobile todo app</label>
</fieldset>
</div>
</div>
jQuery Mobile Markup

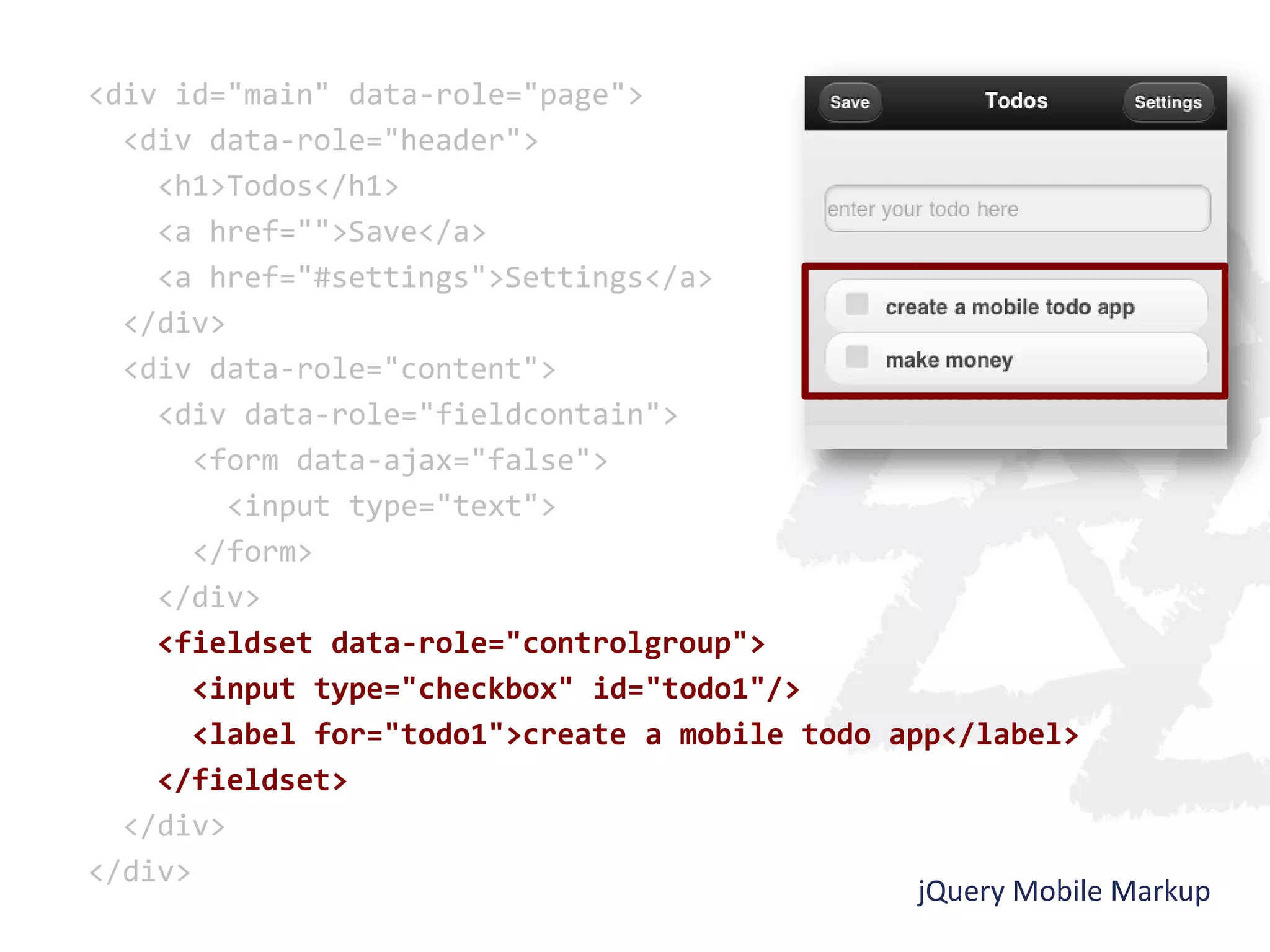

20. <div id="main" data-role="page">
<div data-role="header">
<h1>Todos</h1>
<a href="">Save</a>
<a href="#settings">Settings</a>
</div>
<div data-role="content">
<div data-role="fieldcontain">
<form data-ajax="false">
<input type="text">
</form>
</div>
<fieldset data-role="controlgroup">
<input type="checkbox" id="todo1"/>
<label for="todo1">create a mobile todo app</label>
</fieldset>
</div>
</div>
jQuery Mobile Markup

21. DOM Transformations

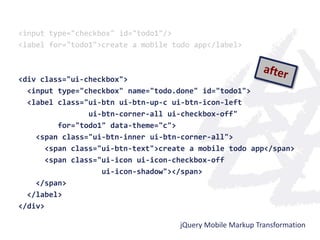

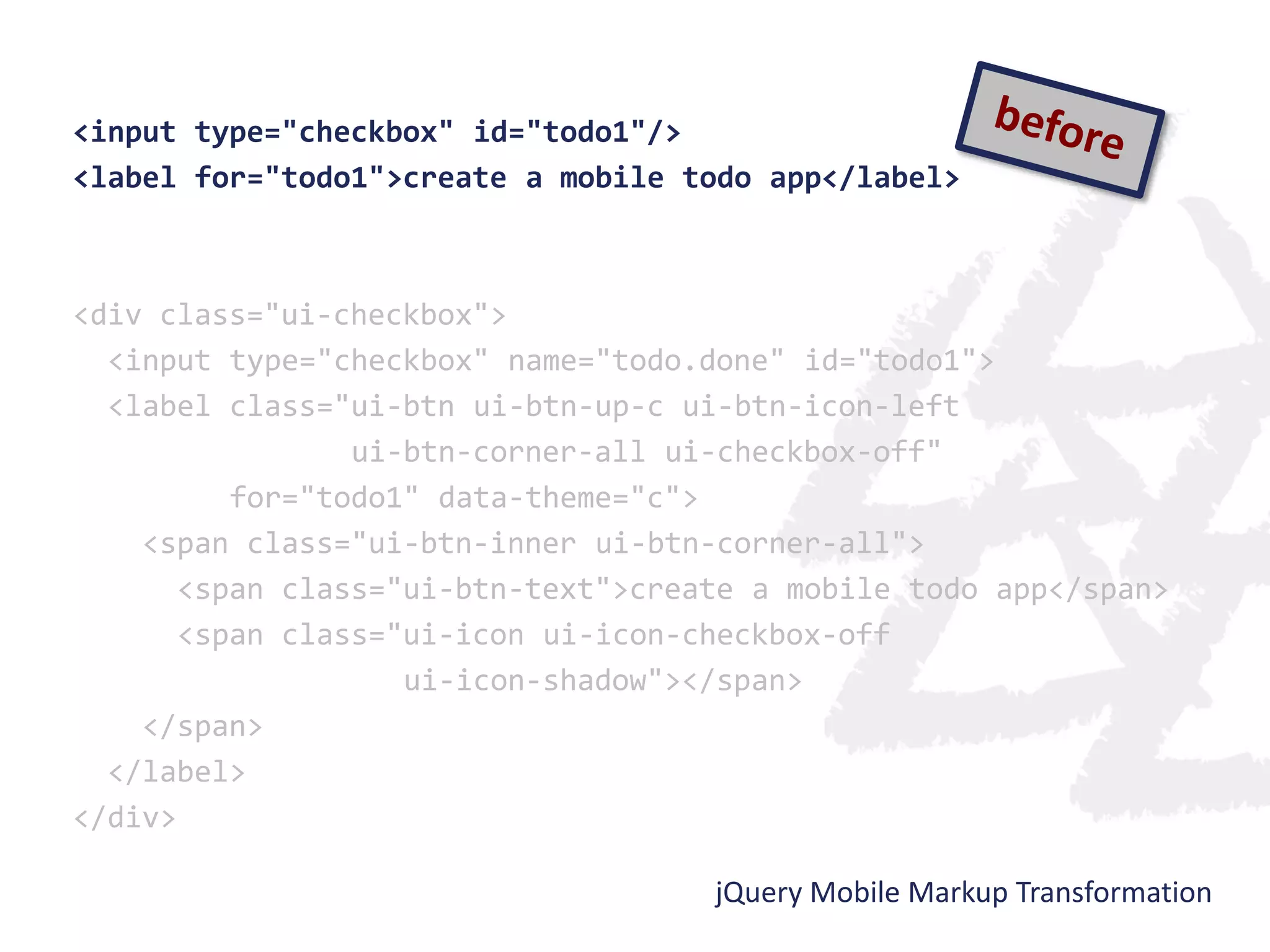

22. <input type="checkbox" id="todo1"/>
<label for="todo1">create a mobile todo app</label>
<div class="ui-checkbox">
<input type="checkbox" name="todo.done" id="todo1">
<label class="ui-btn ui-btn-up-c ui-btn-icon-left
ui-btn-corner-all ui-checkbox-off"
for="todo1" data-theme="c">
<span class="ui-btn-inner ui-btn-corner-all">
<span class="ui-btn-text">create a mobile todo app</span>
<span class="ui-icon ui-icon-checkbox-off
ui-icon-shadow"></span>
</span>
</label>
</div>
jQuery Mobile Markup Transformation

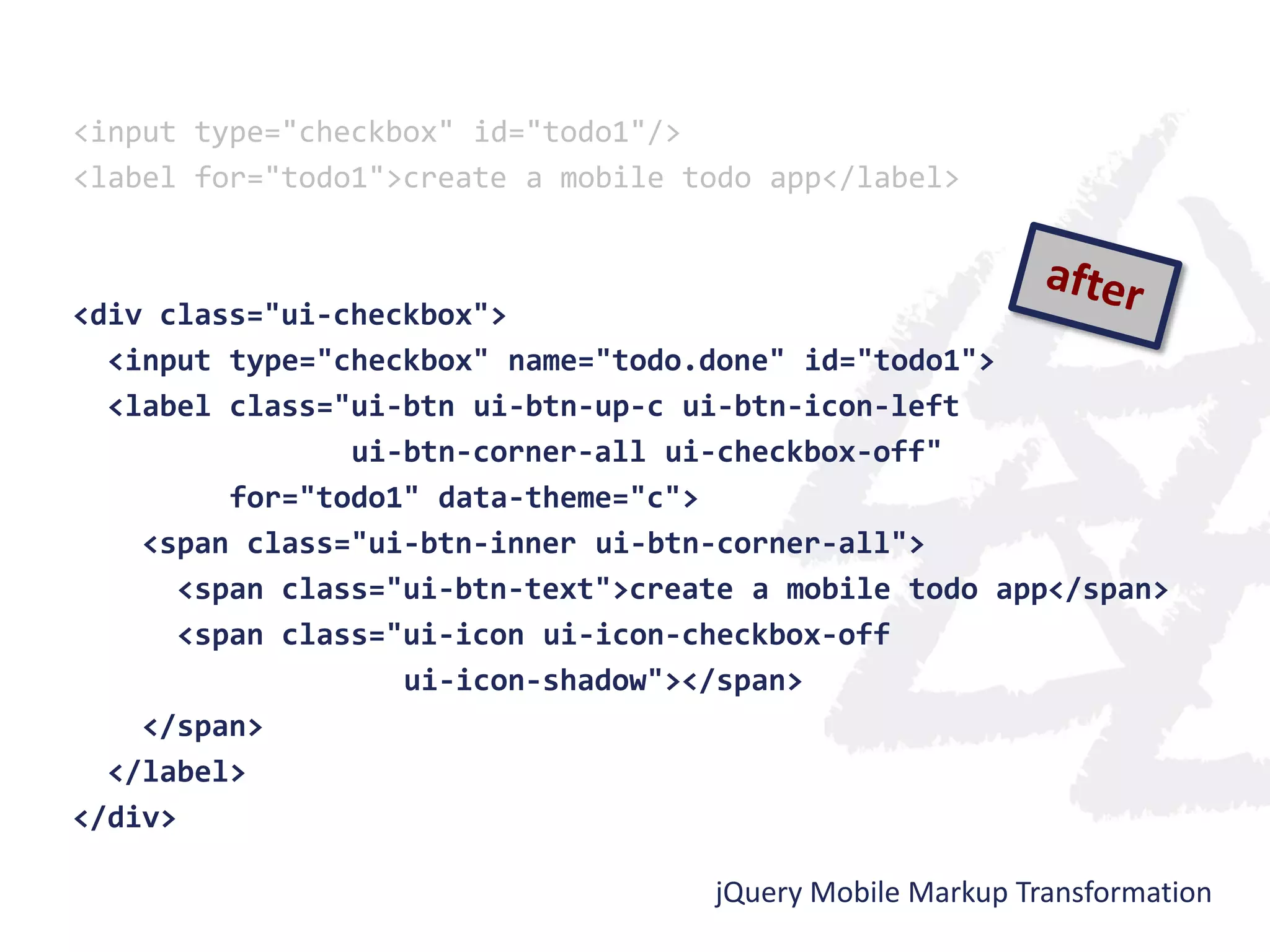

23. <input type="checkbox" id="todo1"/>
<label for="todo1">create a mobile todo app</label>
<div class="ui-checkbox">
<input type="checkbox" name="todo.done" id="todo1">
<label class="ui-btn ui-btn-up-c ui-btn-icon-left
ui-btn-corner-all ui-checkbox-off"
for="todo1" data-theme="c">
<span class="ui-btn-inner ui-btn-corner-all">
<span class="ui-btn-text">create a mobile todo app</span>
<span class="ui-icon ui-icon-checkbox-off
ui-icon-shadow"></span>
</span>
</label>
</div>
jQuery Mobile Markup Transformation

24. Two Way Data Binding

25. Do it yourself "binding" ...

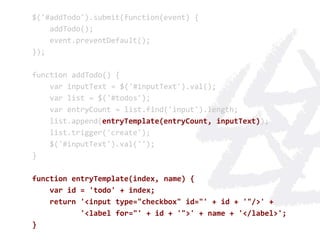

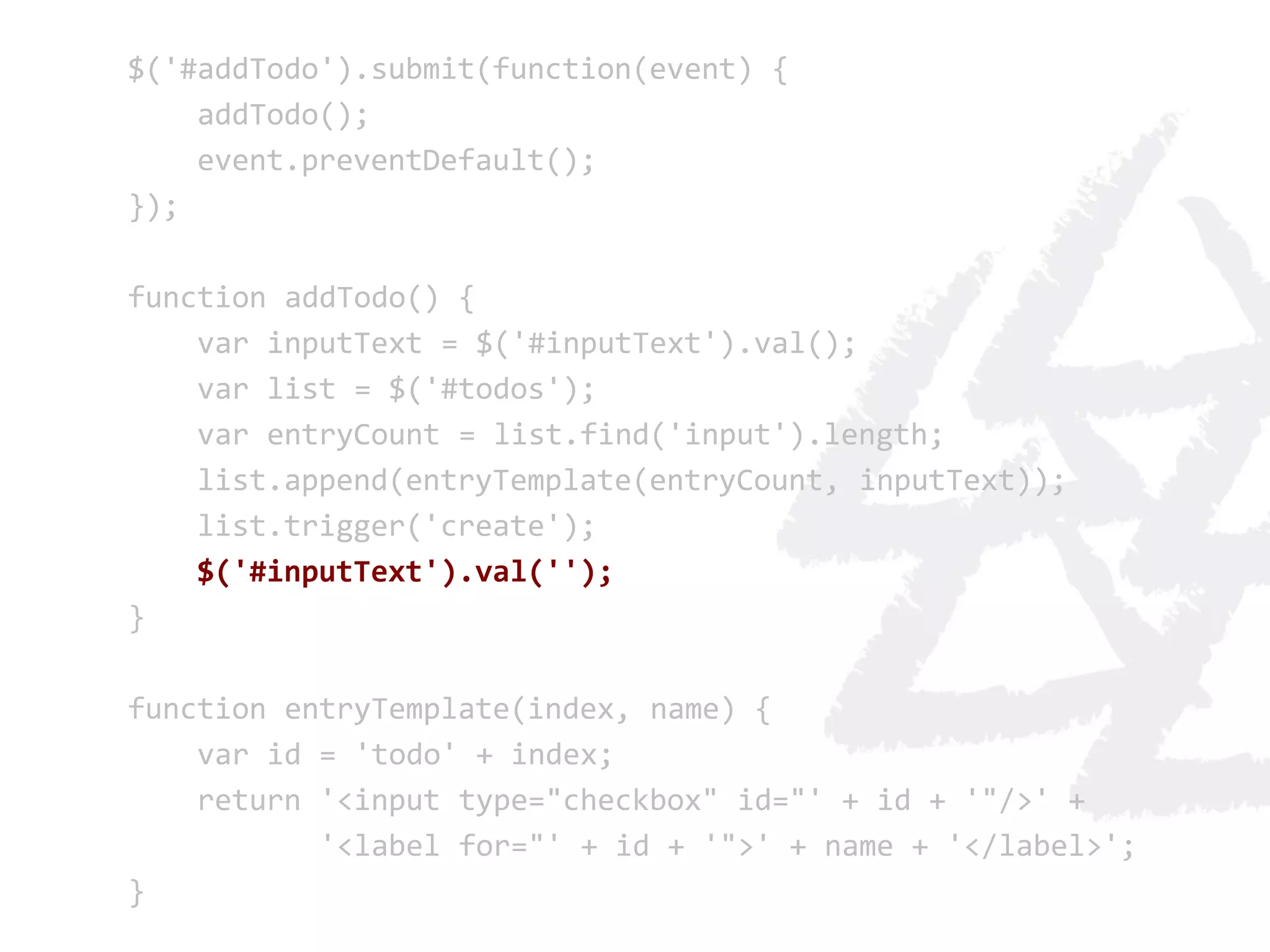

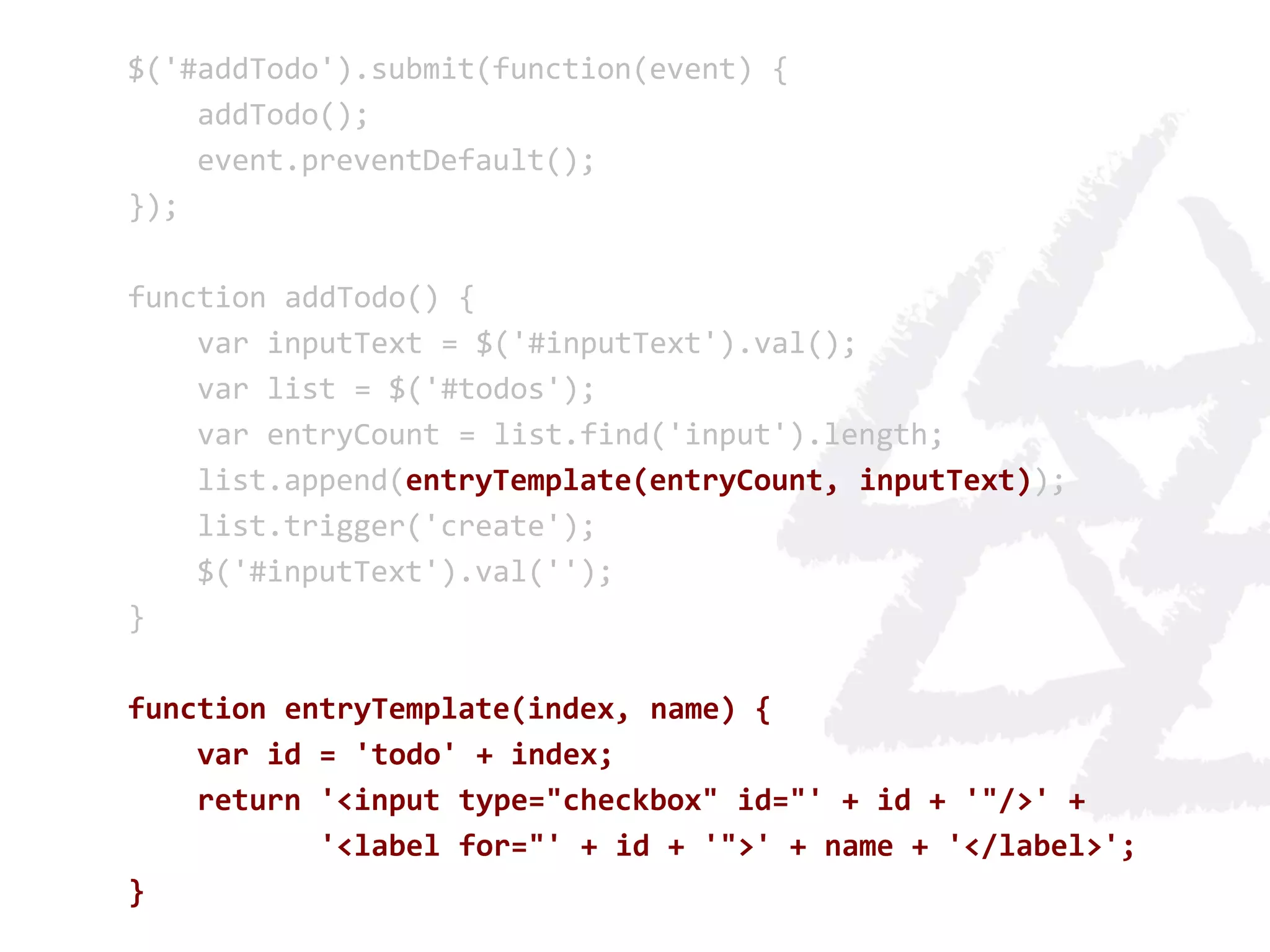

26. $('#addTodo').submit(function(event) {
addTodo();
event.preventDefault();
});
function addTodo() {
var inputText = $('#inputText').val();
var list = $('#todos');
var entryCount = list.find('input').length;
list.append(entryTemplate(entryCount, inputText));
list.trigger('create');
$('#inputText').val('');
}
function entryTemplate(index, name) {
var id = 'todo' + index;
return '<input type="checkbox" id="' + id + '"/>' +
'<label for="' + id + '">' + name + '</label>';
}

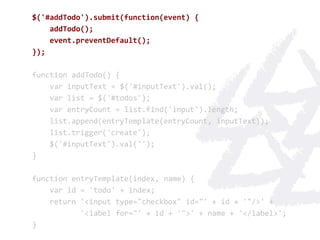

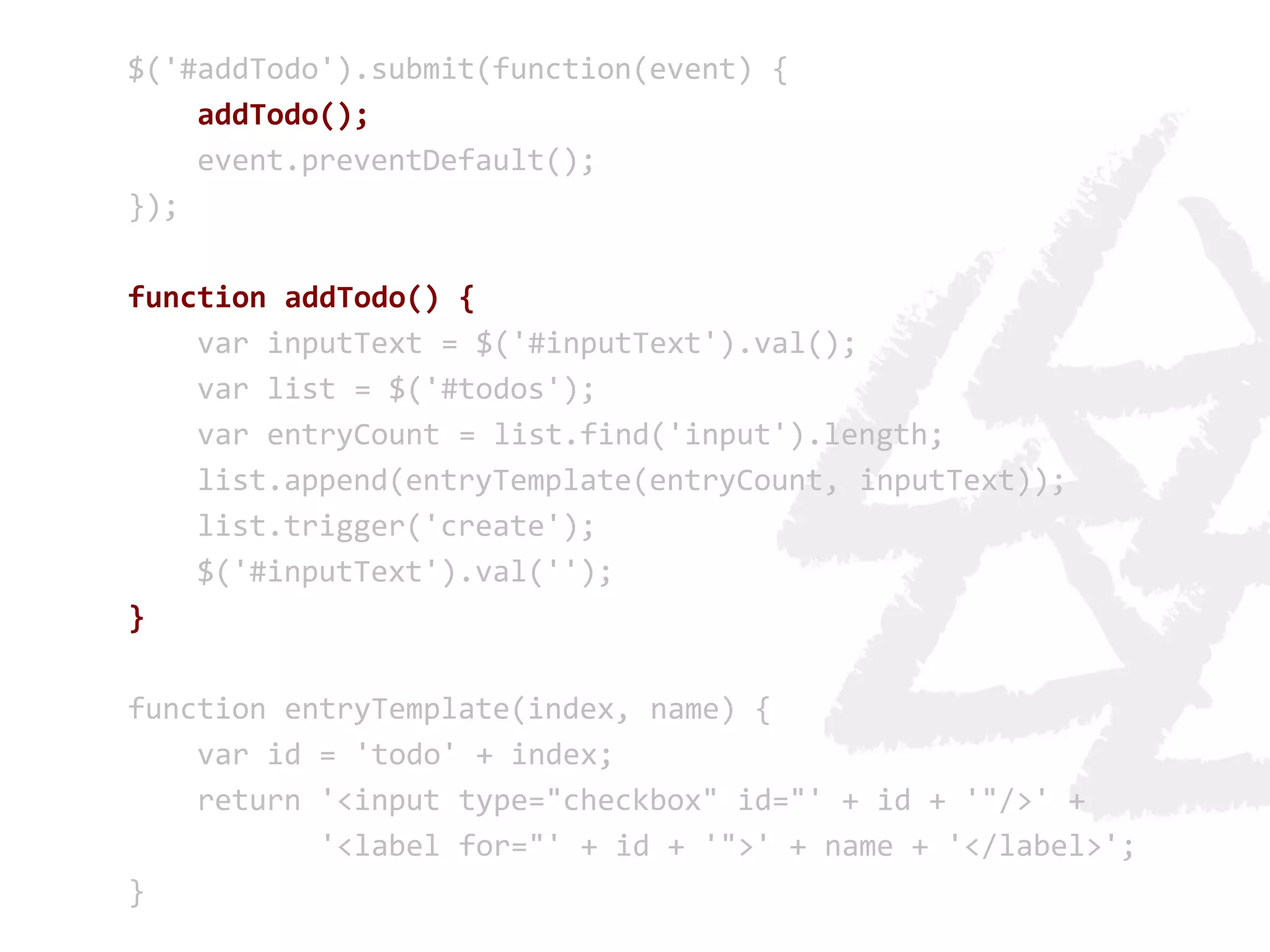

27. $('#addTodo').submit(function(event) {
addTodo();
event.preventDefault();
});
function addTodo() {
var inputText = $('#inputText').val();
var list = $('#todos');
var entryCount = list.find('input').length;
list.append(entryTemplate(entryCount, inputText));
list.trigger('create');
$('#inputText').val('');
}
function entryTemplate(index, name) {
var id = 'todo' + index;
return '<input type="checkbox" id="' + id + '"/>' +
'<label for="' + id + '">' + name + '</label>';
}

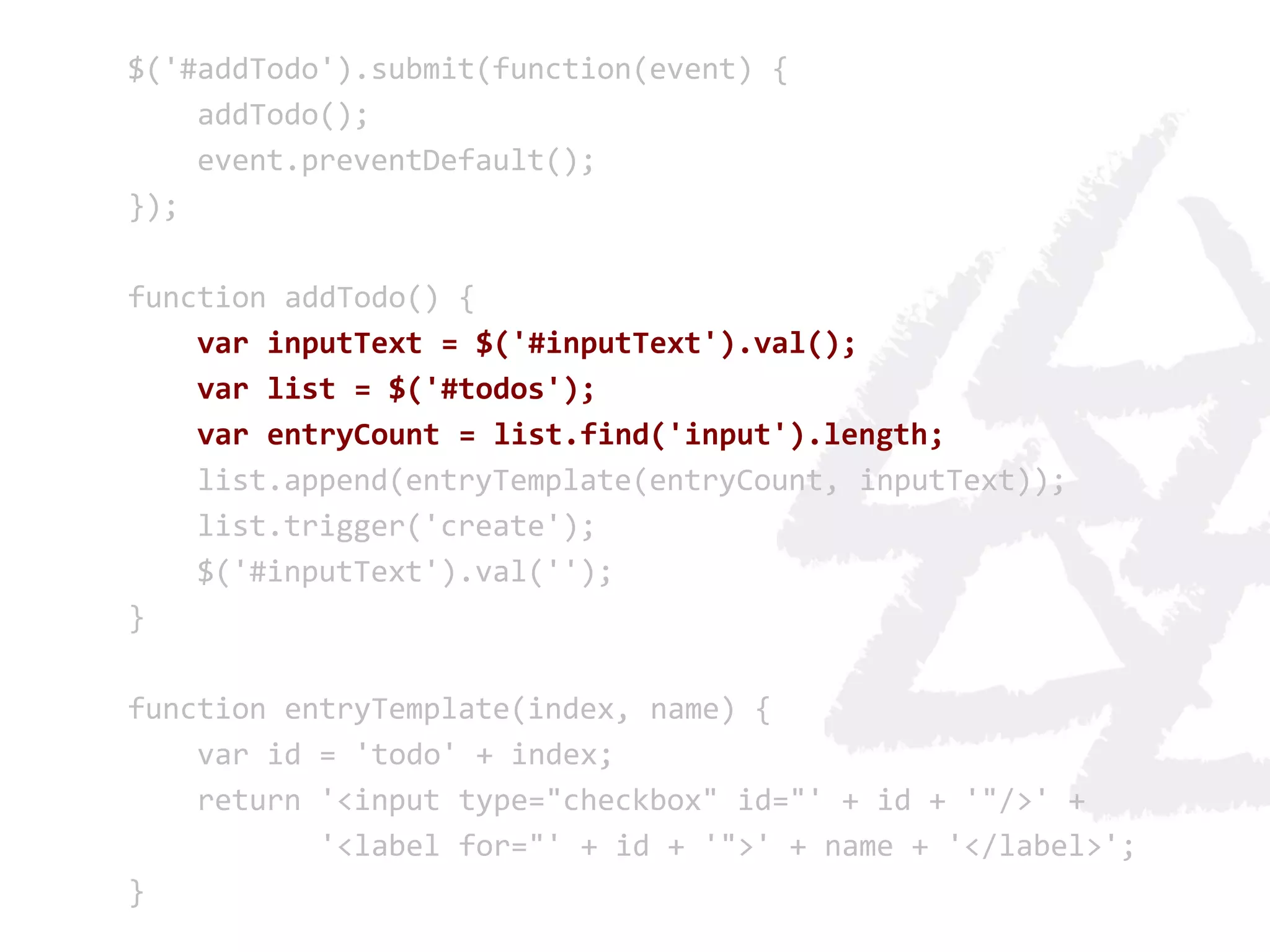

28. $('#addTodo').submit(function(event) {
addTodo();
event.preventDefault();
});
function addTodo() {
var inputText = $('#inputText').val();
var list = $('#todos');
var entryCount = list.find('input').length;
list.append(entryTemplate(entryCount, inputText));
list.trigger('create');
$('#inputText').val('');
}
function entryTemplate(index, name) {
var id = 'todo' + index;
return '<input type="checkbox" id="' + id + '"/>' +
'<label for="' + id + '">' + name + '</label>';
}

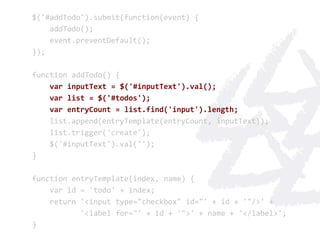

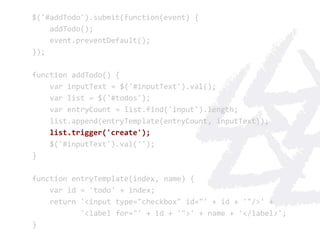

29. $('#addTodo').submit(function(event) {
addTodo();
event.preventDefault();
});
function addTodo() {
var inputText = $('#inputText').val();
var list = $('#todos');
var entryCount = list.find('input').length;
list.append(entryTemplate(entryCount, inputText));
list.trigger('create');
$('#inputText').val('');
}
function entryTemplate(index, name) {
var id = 'todo' + index;
return '<input type="checkbox" id="' + id + '"/>' +
'<label for="' + id + '">' + name + '</label>';
}

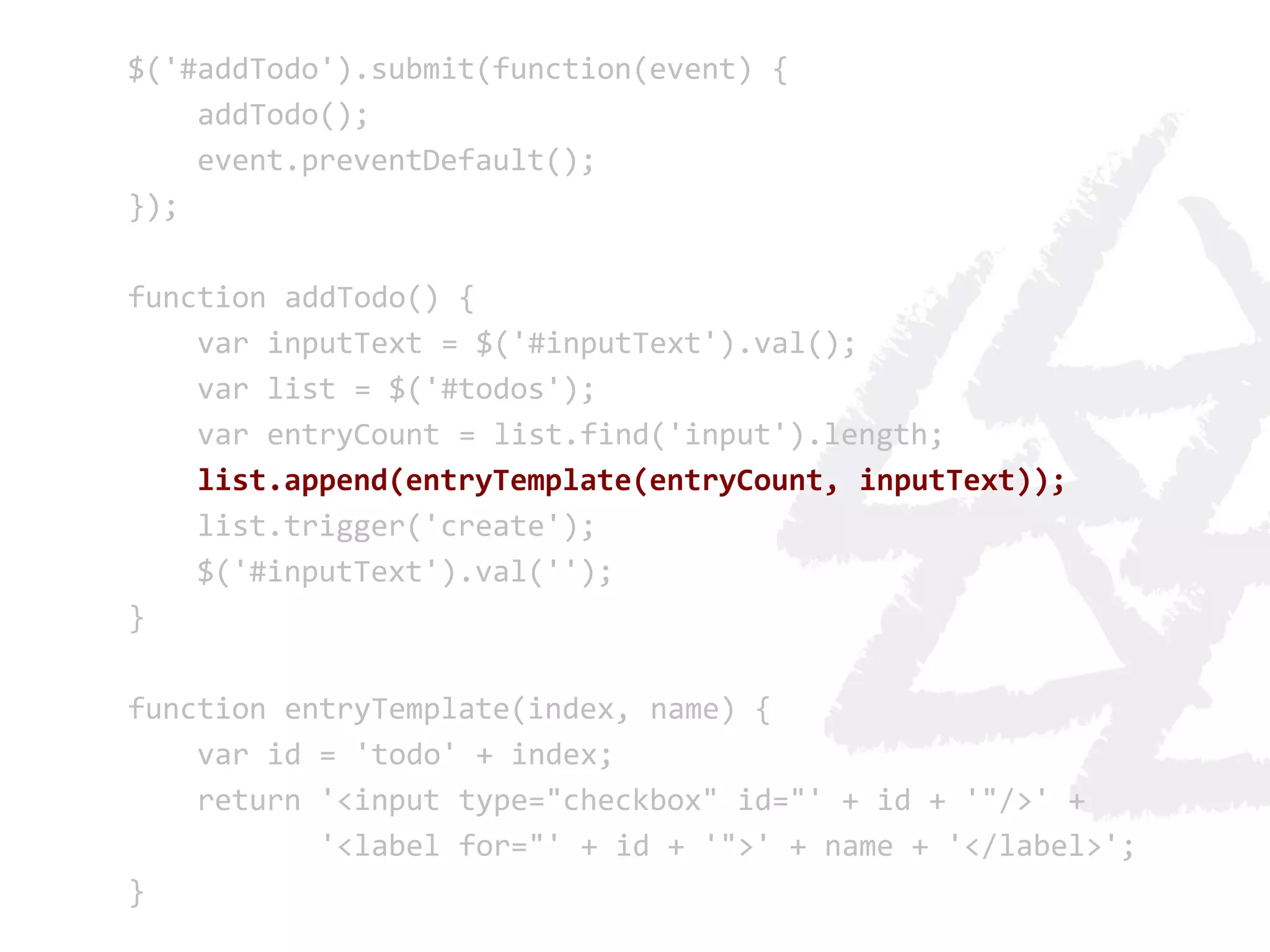

30. $('#addTodo').submit(function(event) {
addTodo();
event.preventDefault();
});
function addTodo() {
var inputText = $('#inputText').val();
var list = $('#todos');
var entryCount = list.find('input').length;
list.append(entryTemplate(entryCount, inputText));
list.trigger('create');
$('#inputText').val('');
}
function entryTemplate(index, name) {
var id = 'todo' + index;
return '<input type="checkbox" id="' + id + '"/>' +
'<label for="' + id + '">' + name + '</label>';
}

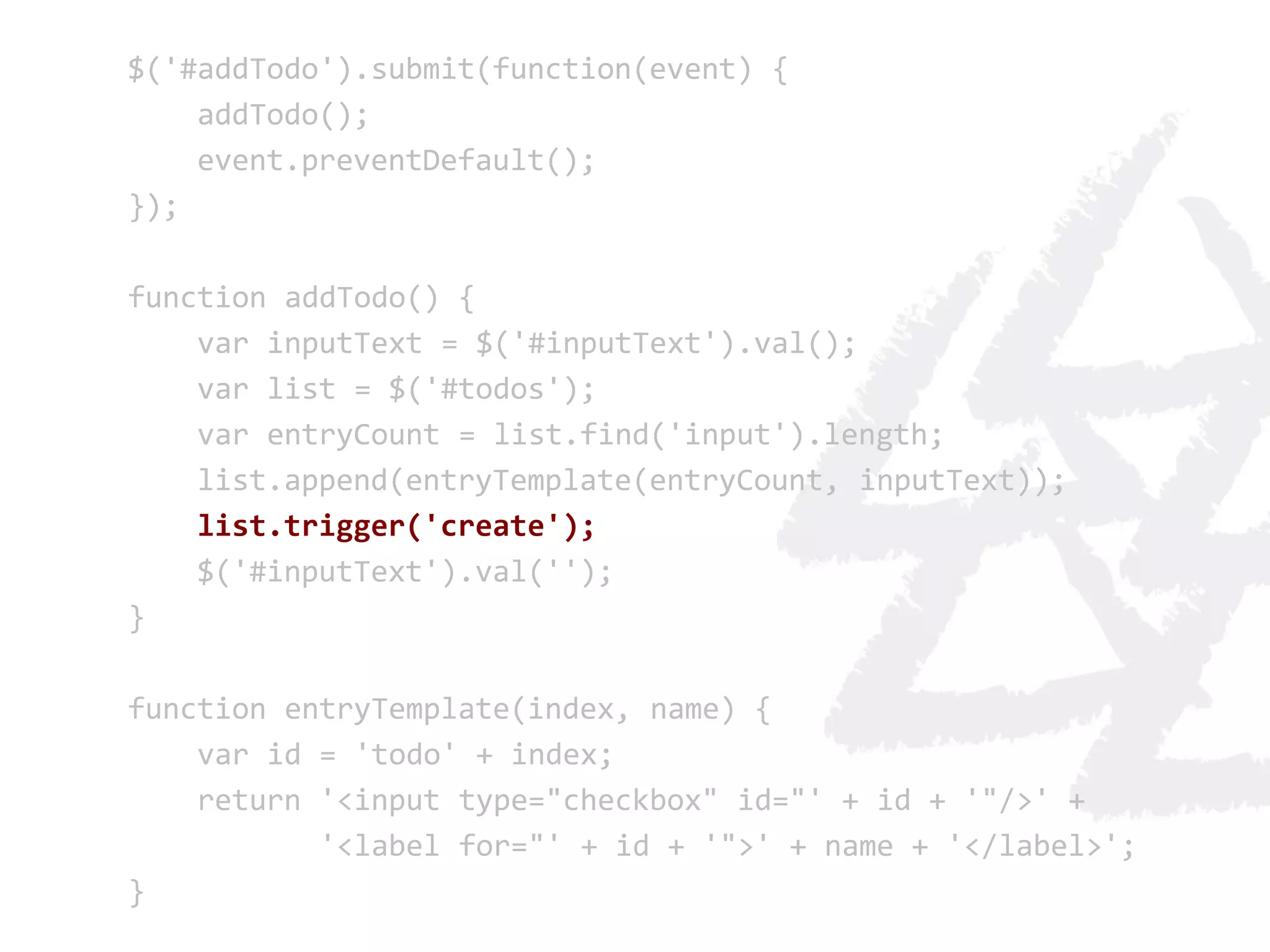

31. $('#addTodo').submit(function(event) {
addTodo();
event.preventDefault();
});
function addTodo() {
var inputText = $('#inputText').val();
var list = $('#todos');
var entryCount = list.find('input').length;
list.append(entryTemplate(entryCount, inputText));
list.trigger('create');
$('#inputText').val('');
}
function entryTemplate(index, name) {
var id = 'todo' + index;
return '<input type="checkbox" id="' + id + '"/>' +
'<label for="' + id + '">' + name + '</label>';
}

32. $('#addTodo').submit(function(event) {
addTodo();
event.preventDefault();
});
function addTodo() {
var inputText = $('#inputText').val();
var list = $('#todos');
var entryCount = list.find('input').length;
list.append(entryTemplate(entryCount, inputText));
list.trigger('create');
$('#inputText').val('');
}
function entryTemplate(index, name) {
var id = 'todo' + index;
return '<input type="checkbox" id="' + id + '"/>' +
'<label for="' + id + '">' + name + '</label>';
}

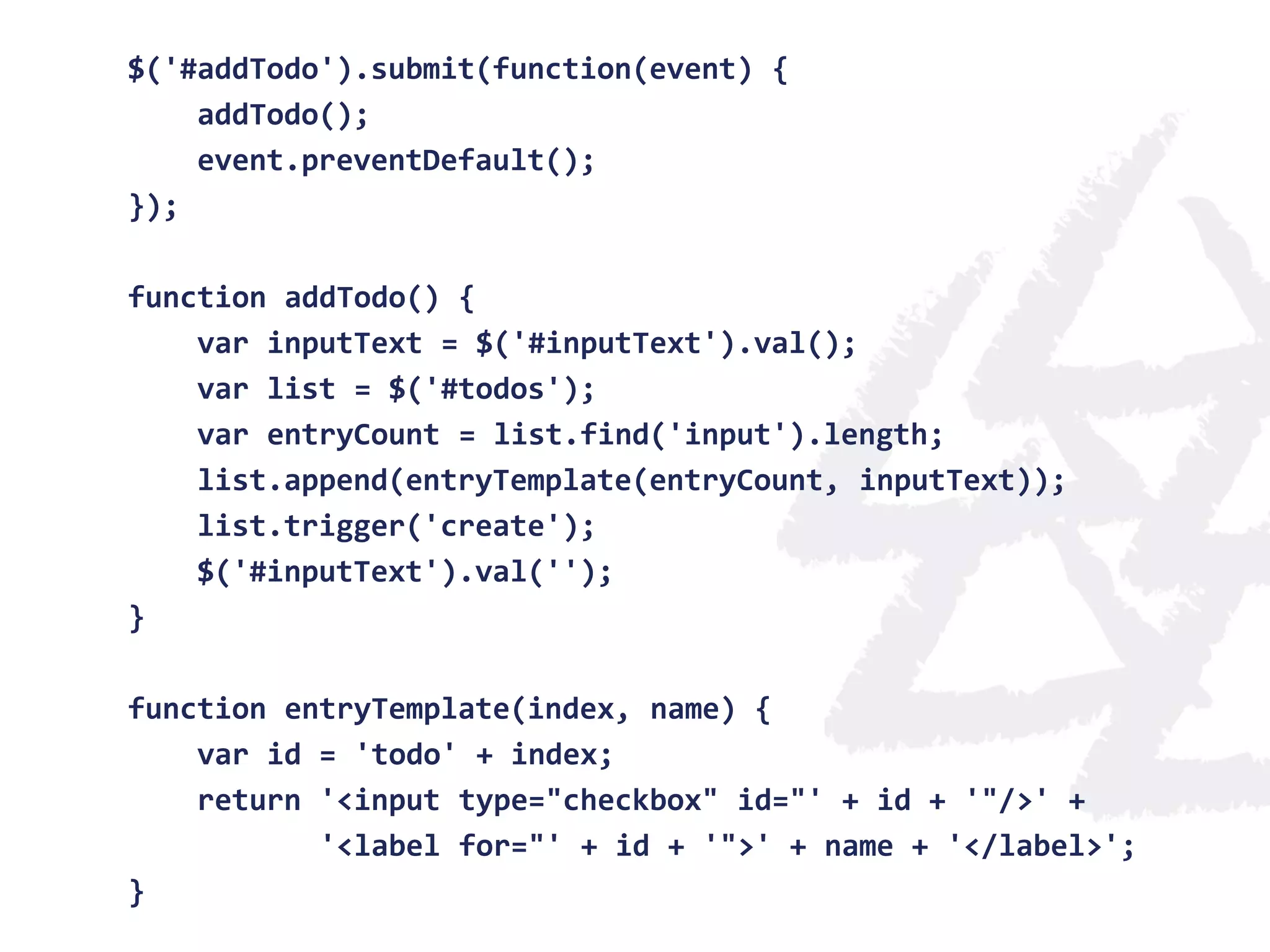

33. $('#addTodo').submit(function(event) {
addTodo();
event.preventDefault();
});
function addTodo() {
var inputText = $('#inputText').val();
var list = $('#todos');
var entryCount = list.find('input').length;
list.append(entryTemplate(entryCount, inputText));
list.trigger('create');
$('#inputText').val('');
}
function entryTemplate(index, name) {
var id = 'todo' + index;
return '<input type="checkbox" id="' + id + '"/>' +
'<label for="' + id + '">' + name + '</label>';
}

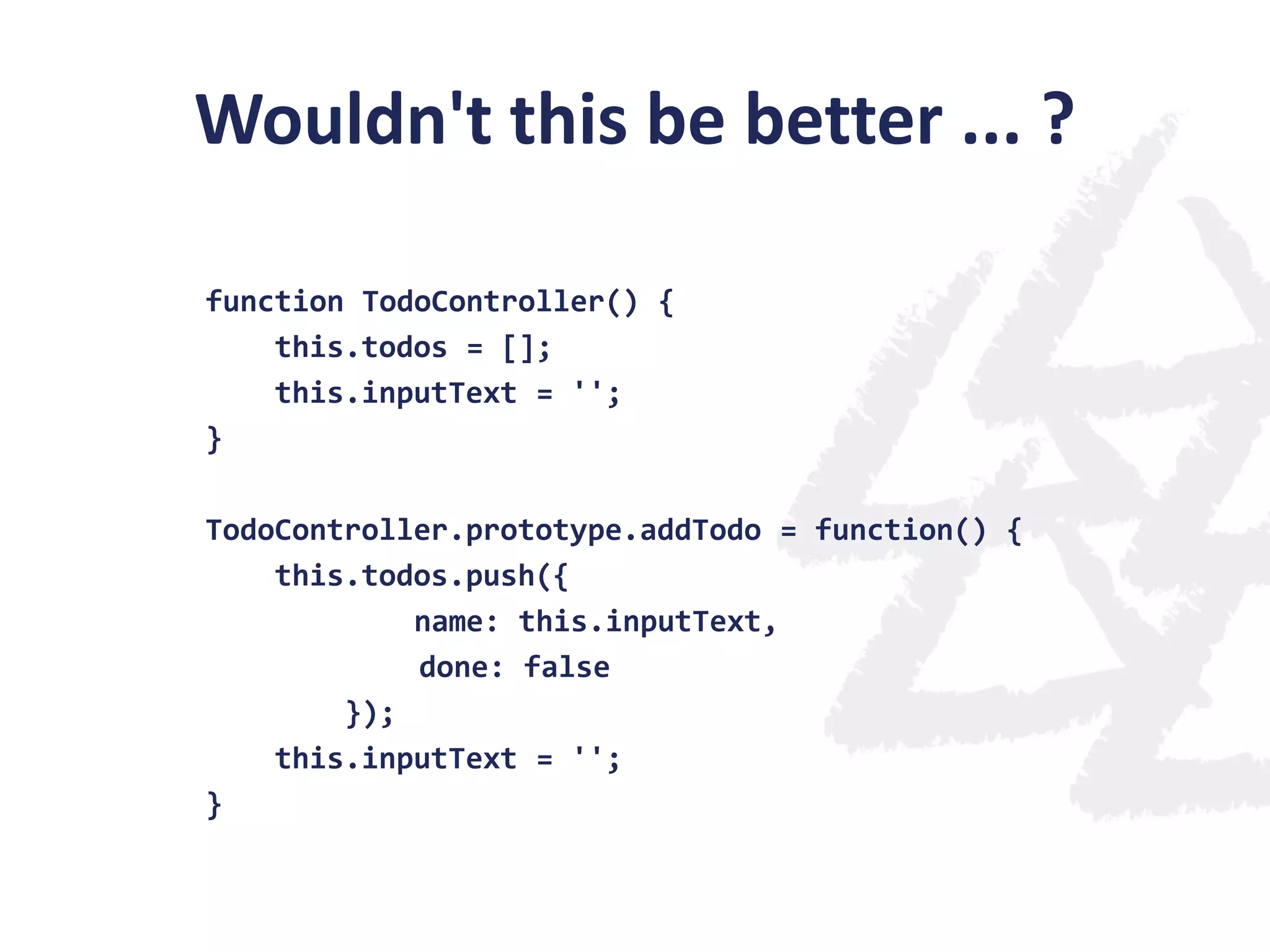

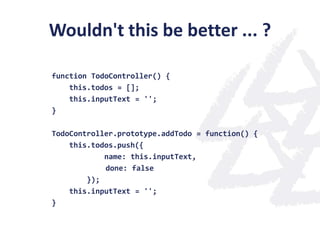

34. Wouldn't this be better ... ?
function TodoController() {
this.todos = [];
this.inputText = '';
}
TodoController.prototype.addTodo = function() {
this.todos.push({
name: this.inputText,
done: false
});
this.inputText = '';
}

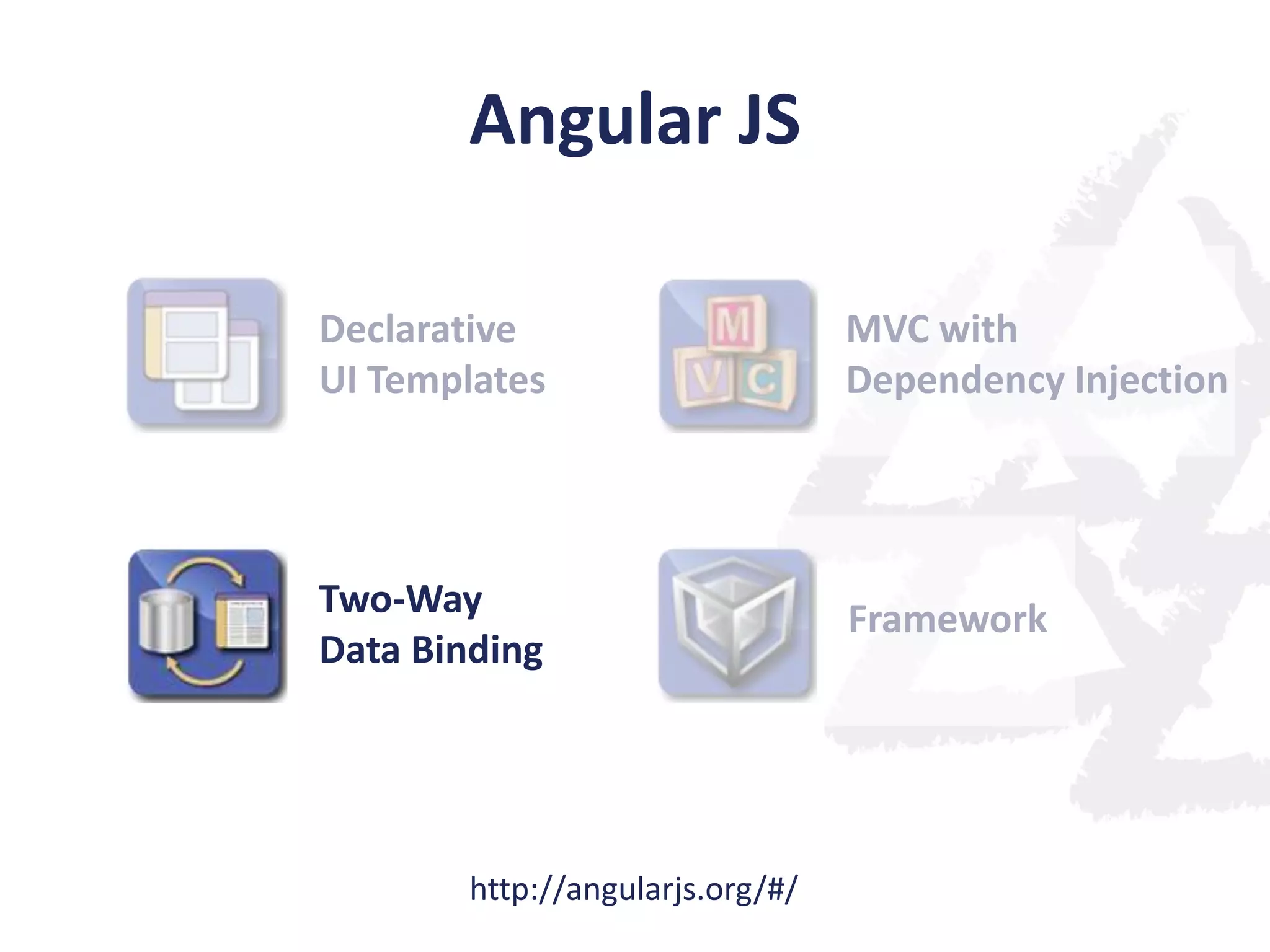

35. Angular JS
Declarative MVC with
UI Templates Dependency Injection
Two-Way Framework
Data Binding
http://angularjs.org/#/

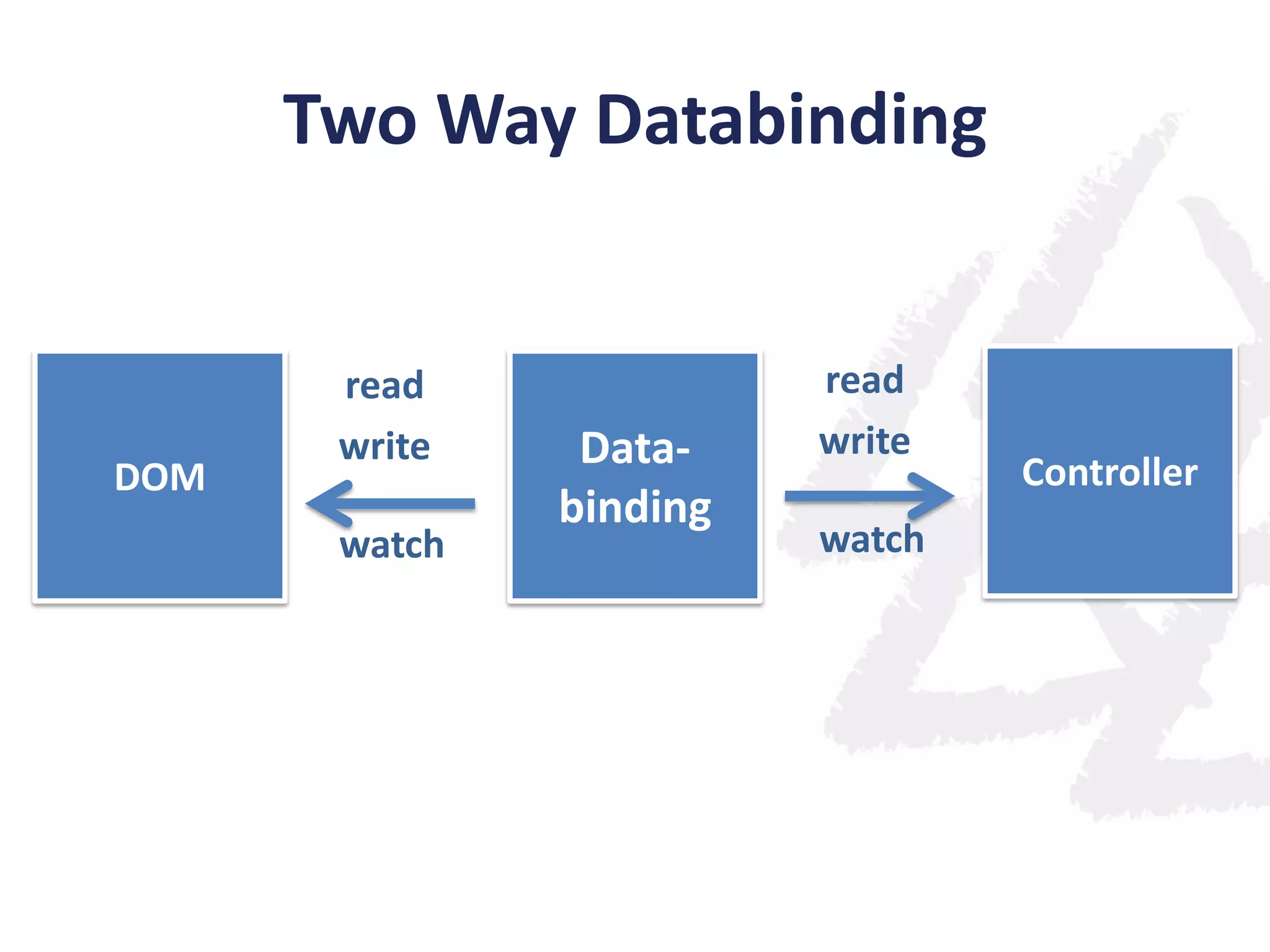

36. Two Way Databinding
read read
write Data- write
DOM Controller
binding
watch watch

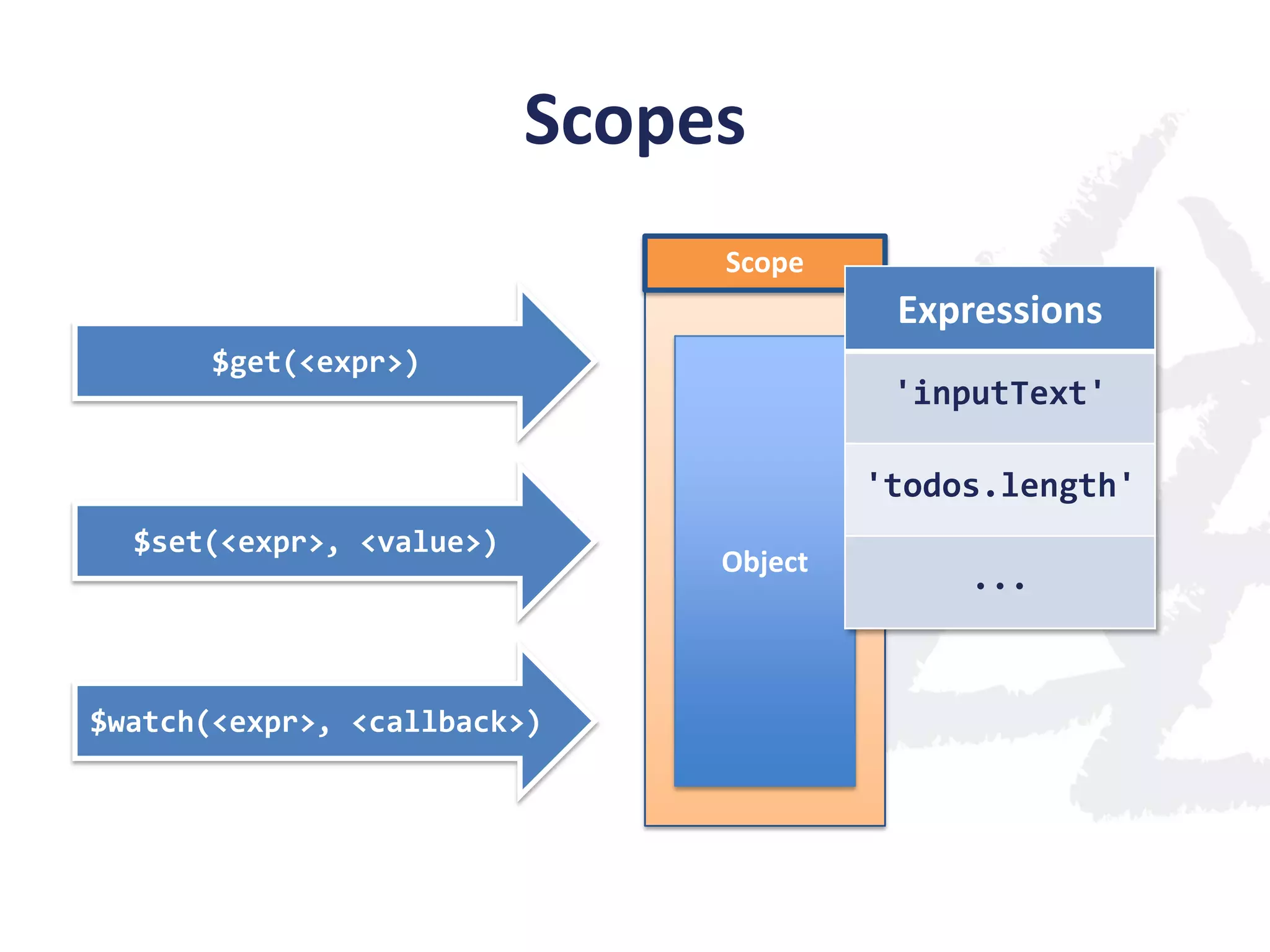

37. Scopes
Scope
Expressions
$get(<expr>)
'inputText'
'todos.length'
$set(<expr>, <value>)
Object
...
$watch(<expr>, <callback>)

38. Demo

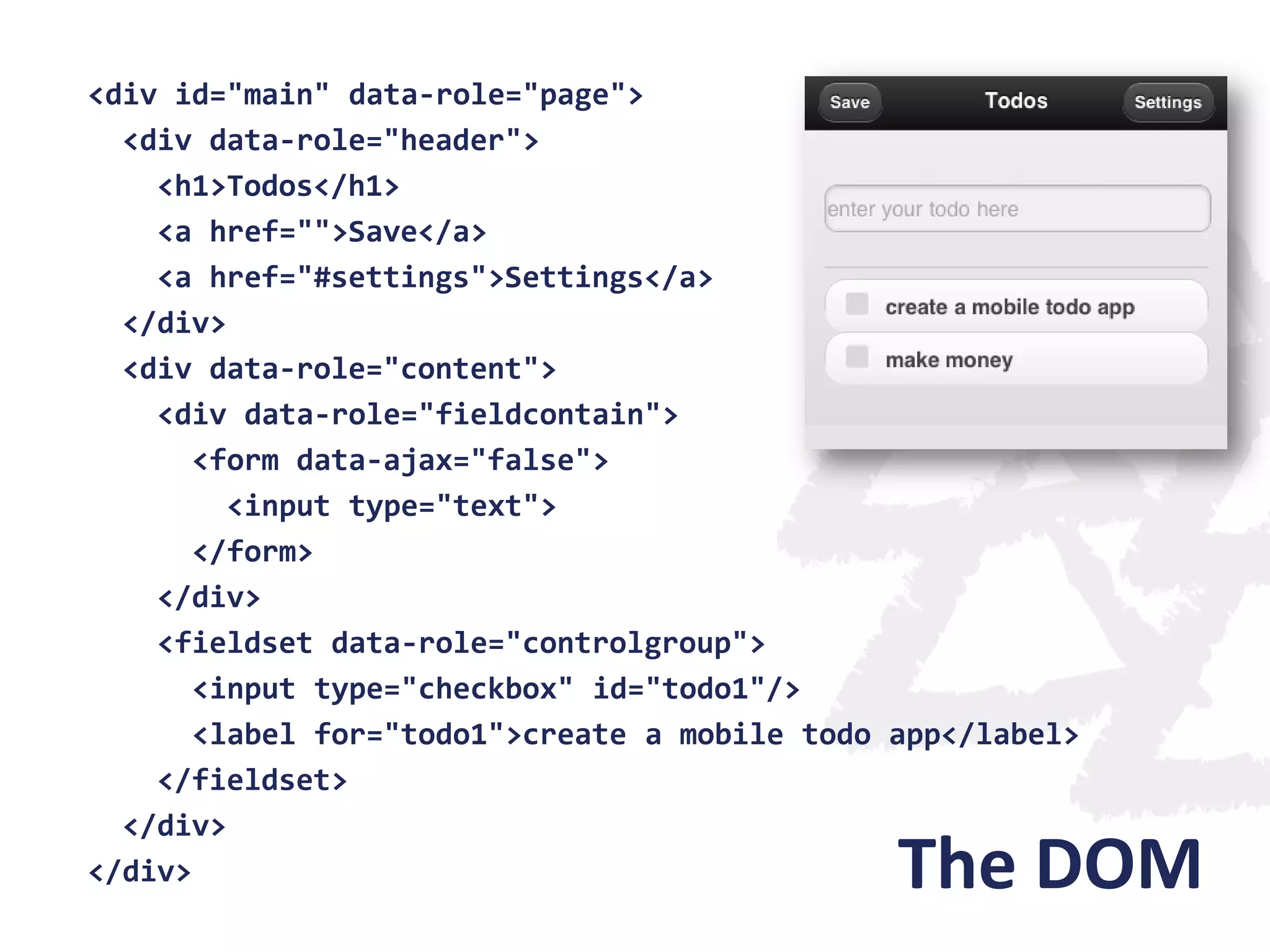

39. <div id="main" data-role="page">
<div data-role="header">
<h1>Todos</h1>
<a href="">Save</a>
<a href="#settings">Settings</a>
</div>
<div data-role="content">
<div data-role="fieldcontain">
<form data-ajax="false">
<input type="text">
</form>
</div>
<fieldset data-role="controlgroup">
<input type="checkbox" id="todo1"/>
<label for="todo1">create a mobile todo app</label>
</fieldset>
</div>
</div> The DOM

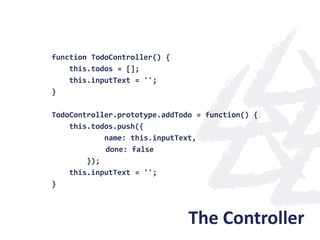

40. function TodoController() {
this.todos = [];
this.inputText = '';
}
TodoController.prototype.addTodo = function() {
this.todos.push({
name: this.inputText,
done: false
});
this.inputText = '';
}
The Controller

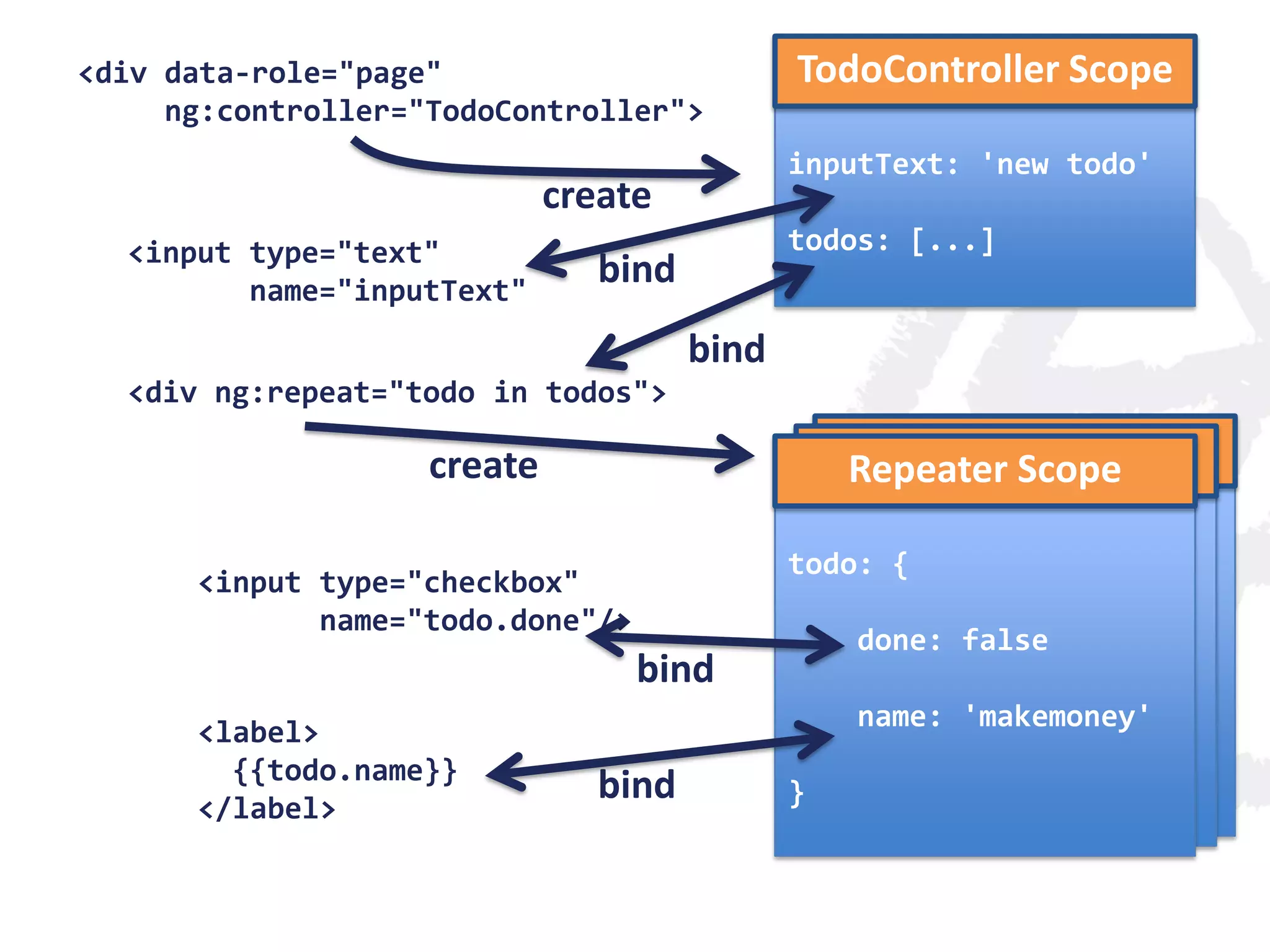

41. <div data-role="page" TodoController Scope
ng:controller="TodoController">
inputText: 'new todo'
create
<input type="text" todos: [...]
name="inputText"
bind
bind
<div ng:repeat="todo in todos">
create Repeater Scope
Repeater Scope
Repeater Scope
todo: {
todo:
todo: { {
<input type="checkbox"
name="todo.done"/> done: false
done: false
done: false
bind
name: 'makemoney'
name: 'makemoney'
name: 'makemoney'
<label>
{{todo.name}} }
</label>
bind }}

42. We are almost there, but ...

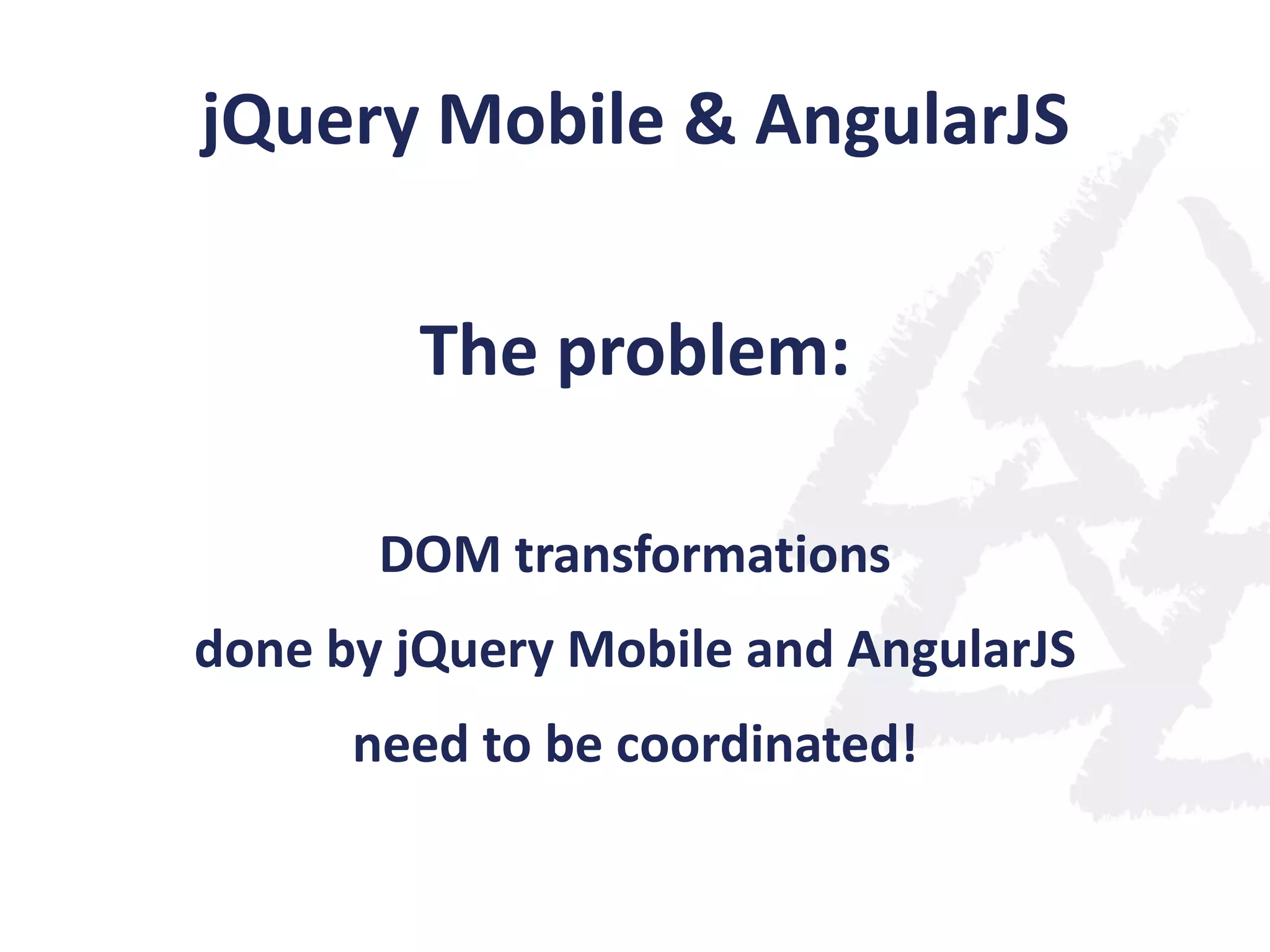

43. jQuery Mobile & AngularJS
The problem:
DOM transformations
done by jQuery Mobile and AngularJS
need to be coordinated!

44. jQuery Mobile & AngularJS
Our Solution:
jQuery Mobile Angular Adapter

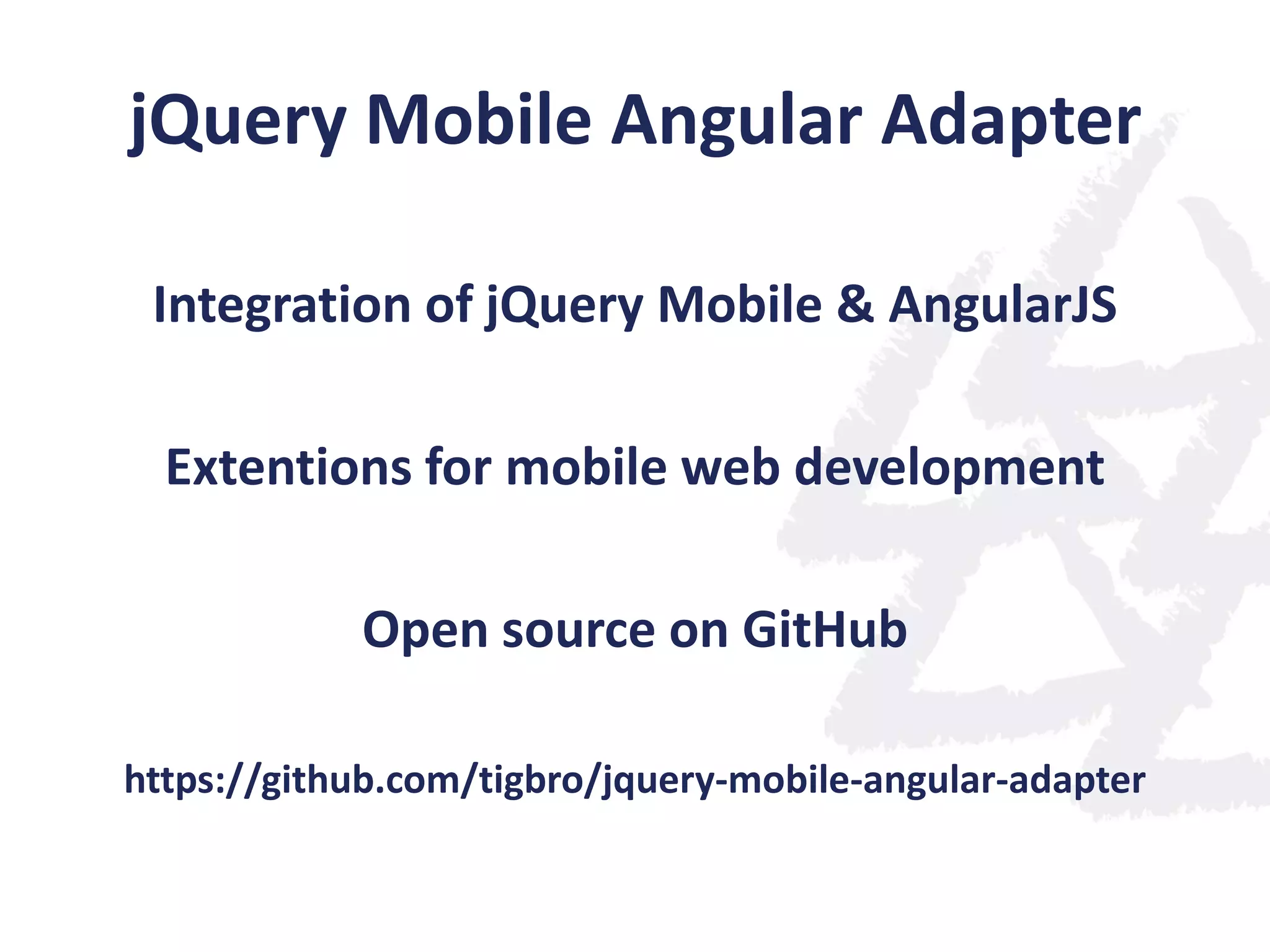

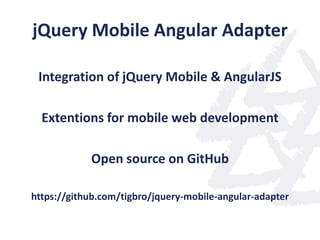

45. jQuery Mobile Angular Adapter
Integration of jQuery Mobile & AngularJS
Extentions for mobile web development
Open source on GitHub
https://github.com/tigbro/jquery-mobile-angular-adapter

46. Dependency Injection

47. Dependency Injection is a design pattern
whose purpose is to reduce the dependencies
between components.
It delegates the responsibility for creation and
wiring of objects to an externaly configurable
framework.
http://de.wikipedia.org/wiki/Dependency_Injection

48. Dependency Injection is a design pattern
whose purpose is to reduce the dependencies
between components.
It delegates the responsibility for creation and
wiring of objects to an externaly configurable
framework.
http://de.wikipedia.org/wiki/Dependency_Injection

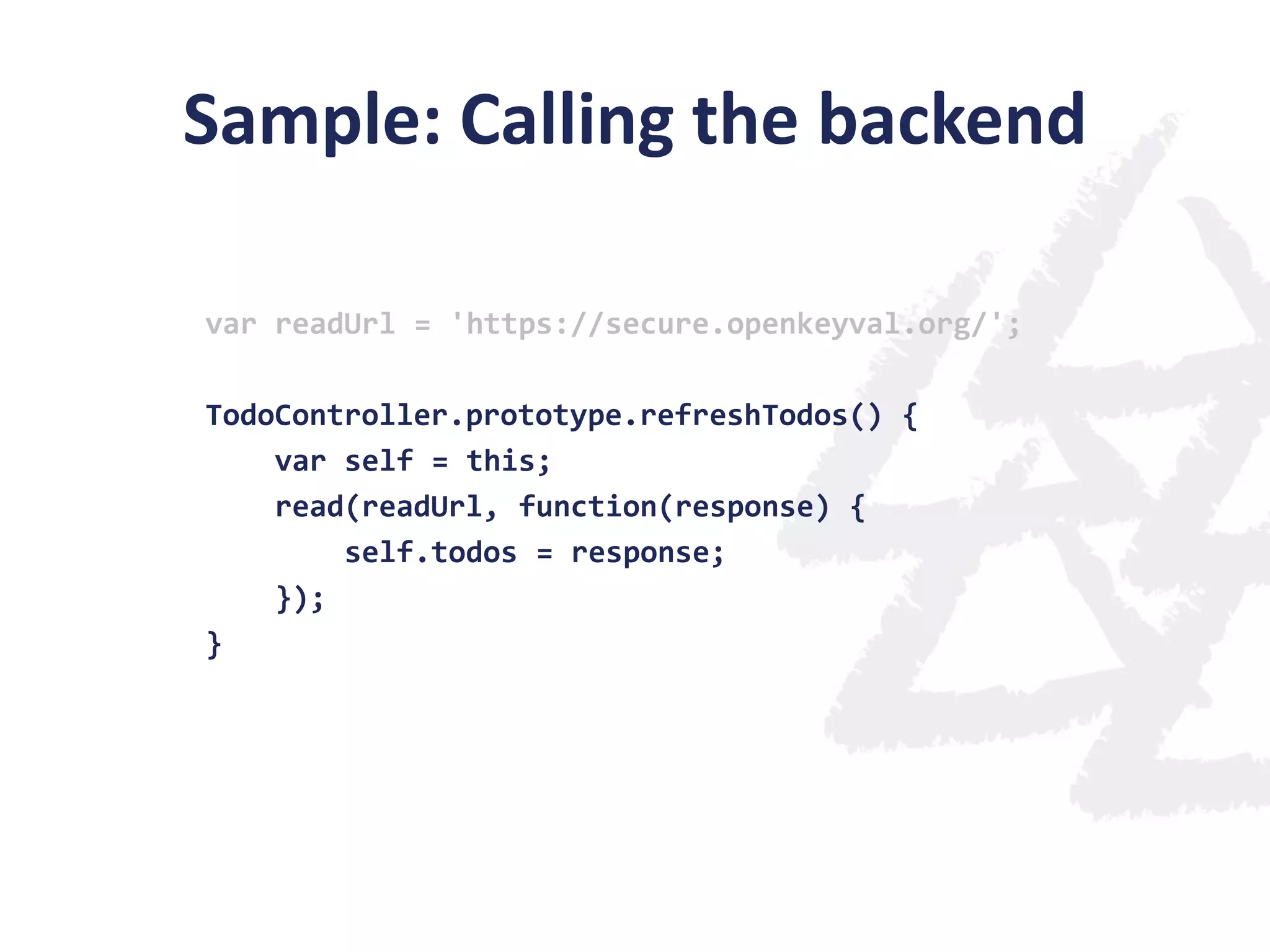

49. Sample: Calling the backend
var readUrl = 'https://secure.openkeyval.org/';
TodoController.prototype.refreshTodos() {
var self = this;
read(readUrl, function(response) {
self.todos = response;
});
}

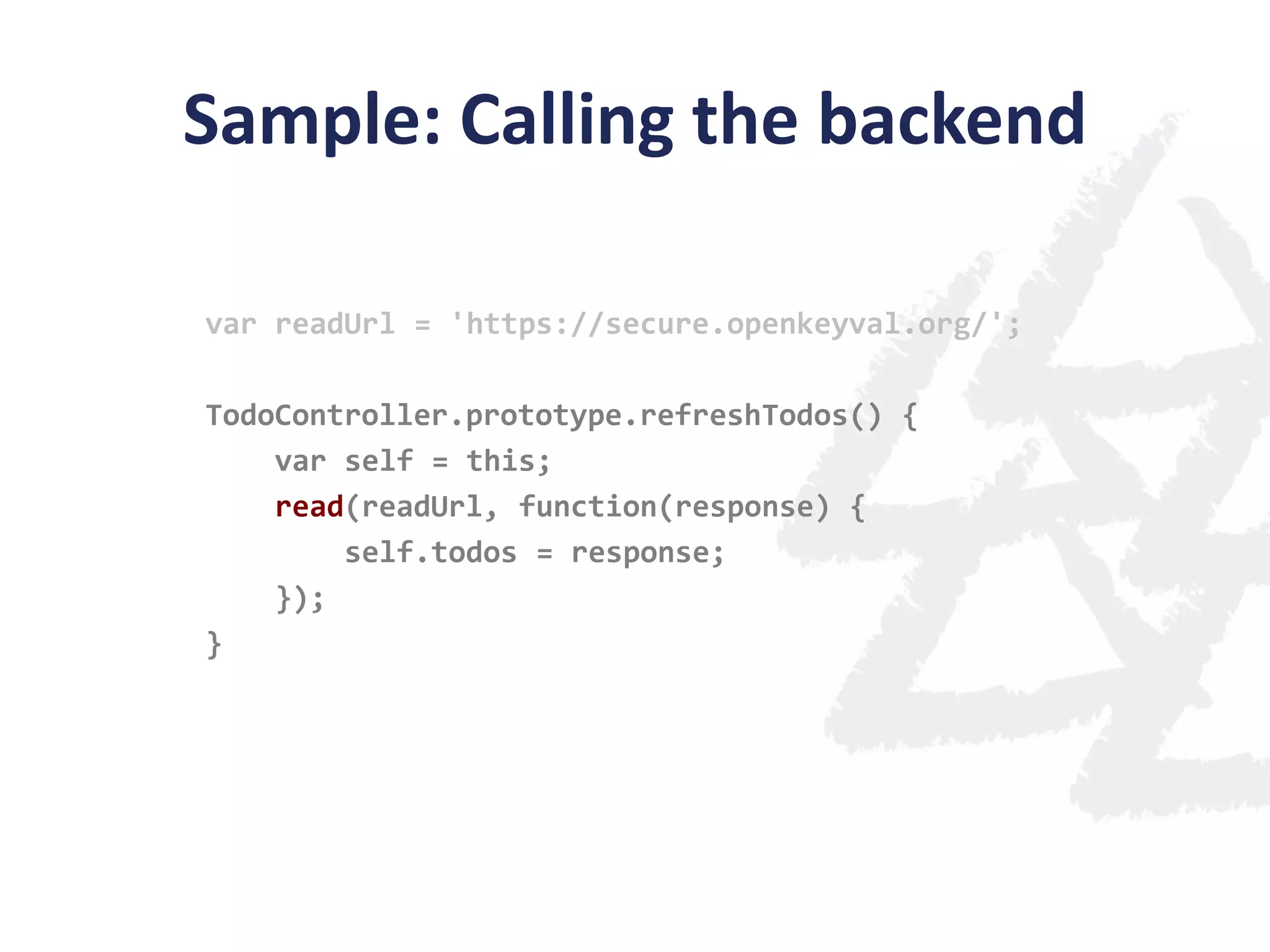

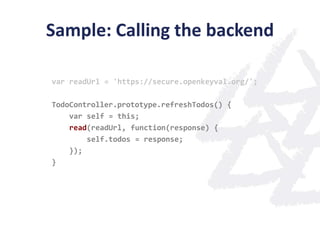

50. Sample: Calling the backend
var readUrl = 'https://secure.openkeyval.org/';
TodoController.prototype.refreshTodos() {
var self = this;
read(readUrl, function(response) {
self.todos = response;
});
}

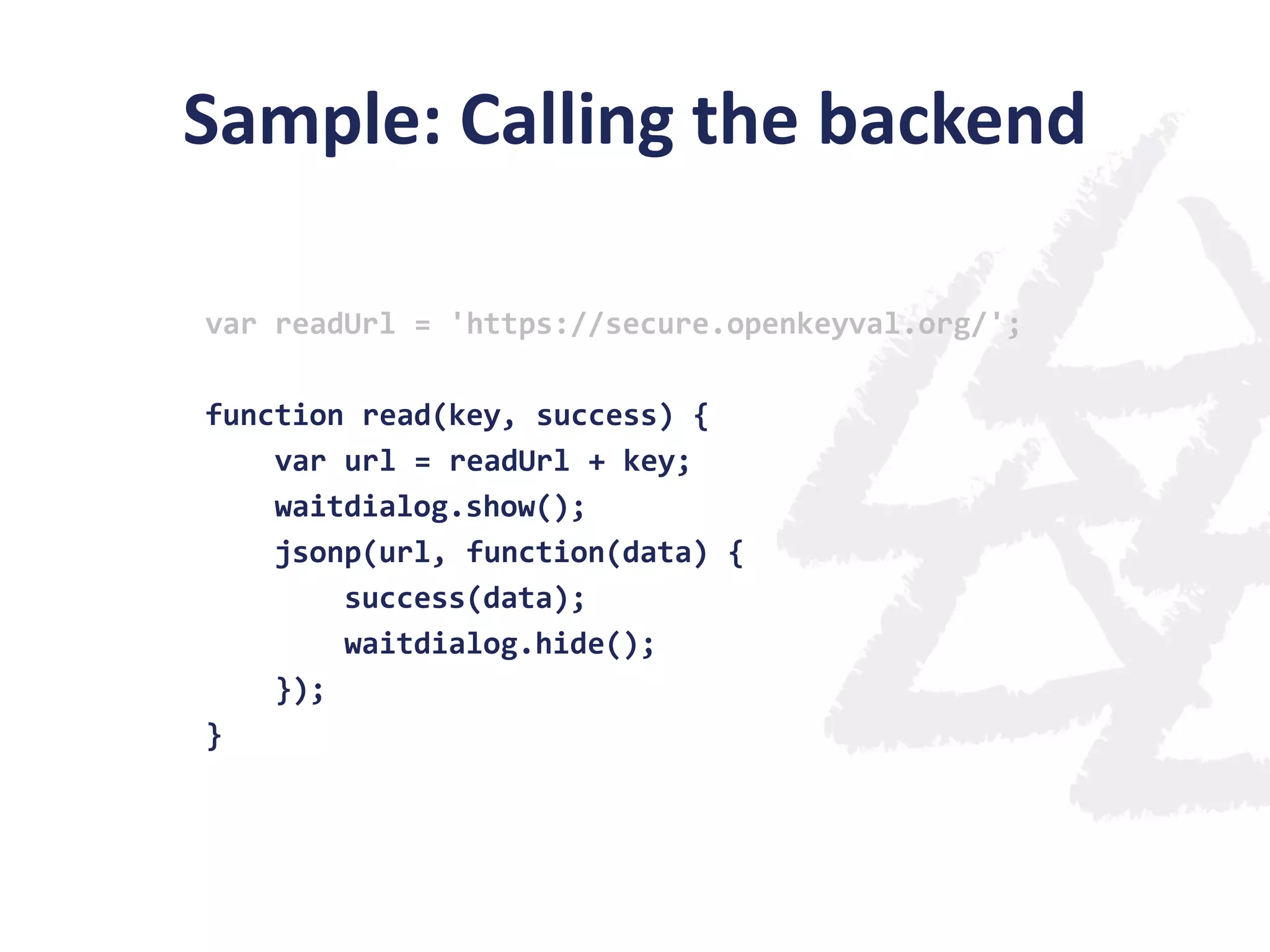

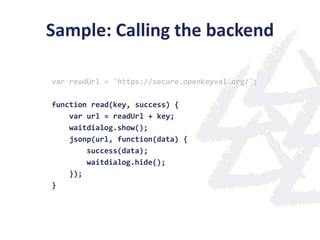

51. Sample: Calling the backend
var readUrl = 'https://secure.openkeyval.org/';
function read(key, success) {
var url = readUrl + key;
waitdialog.show();
jsonp(url, function(data) {
success(data);
waitdialog.hide();
});
}

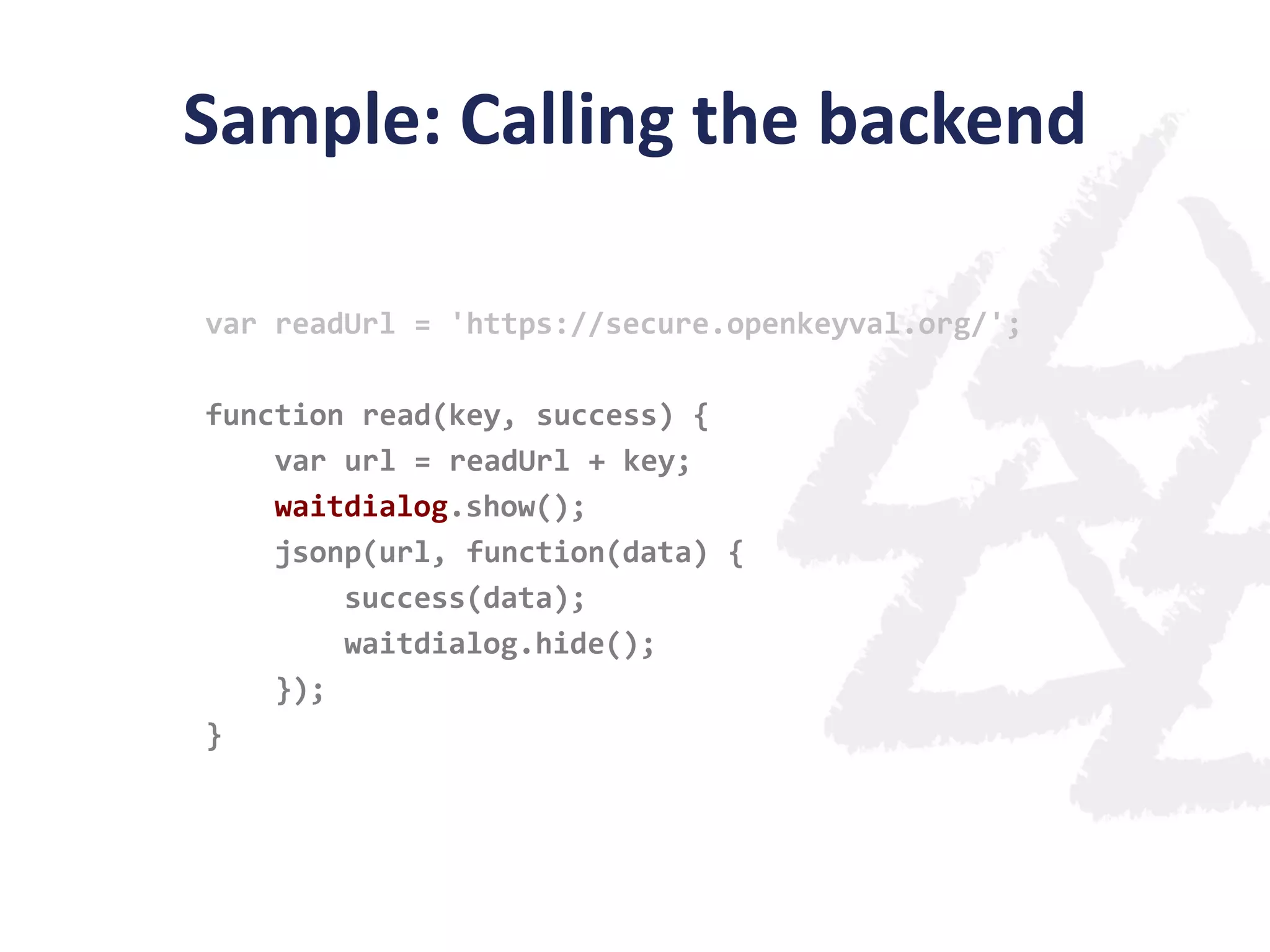

52. Sample: Calling the backend
var readUrl = 'https://secure.openkeyval.org/';
function read(key, success) {
var url = readUrl + key;
waitdialog.show();
jsonp(url, function(data) {
success(data);
waitdialog.hide();
});
}

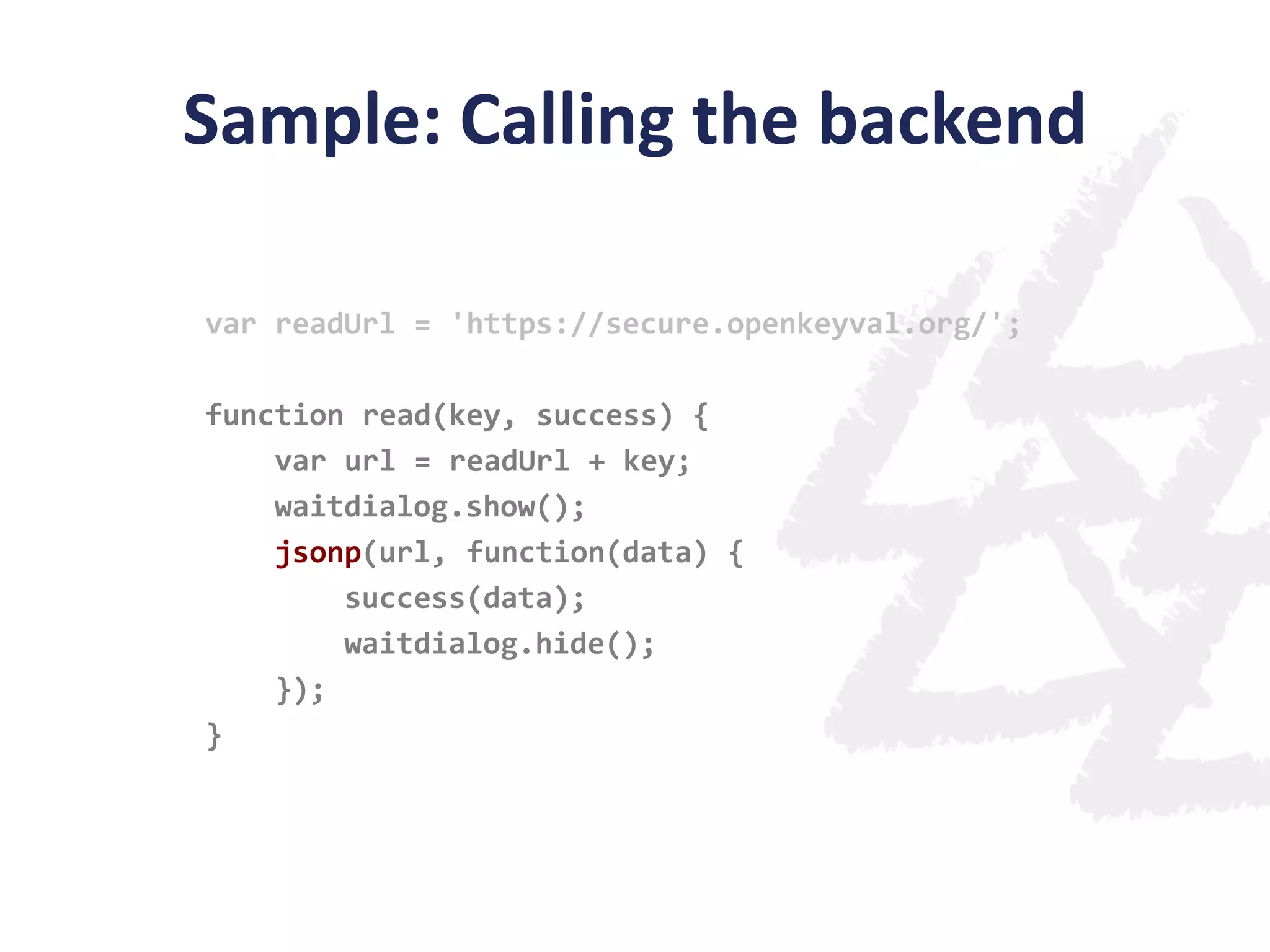

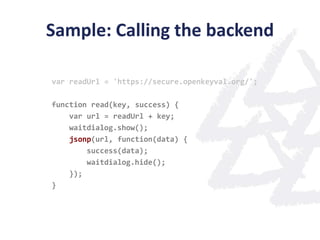

53. Sample: Calling the backend
var readUrl = 'https://secure.openkeyval.org/';
function read(key, success) {
var url = readUrl + key;
waitdialog.show();
jsonp(url, function(data) {
success(data);
waitdialog.hide();
});
}

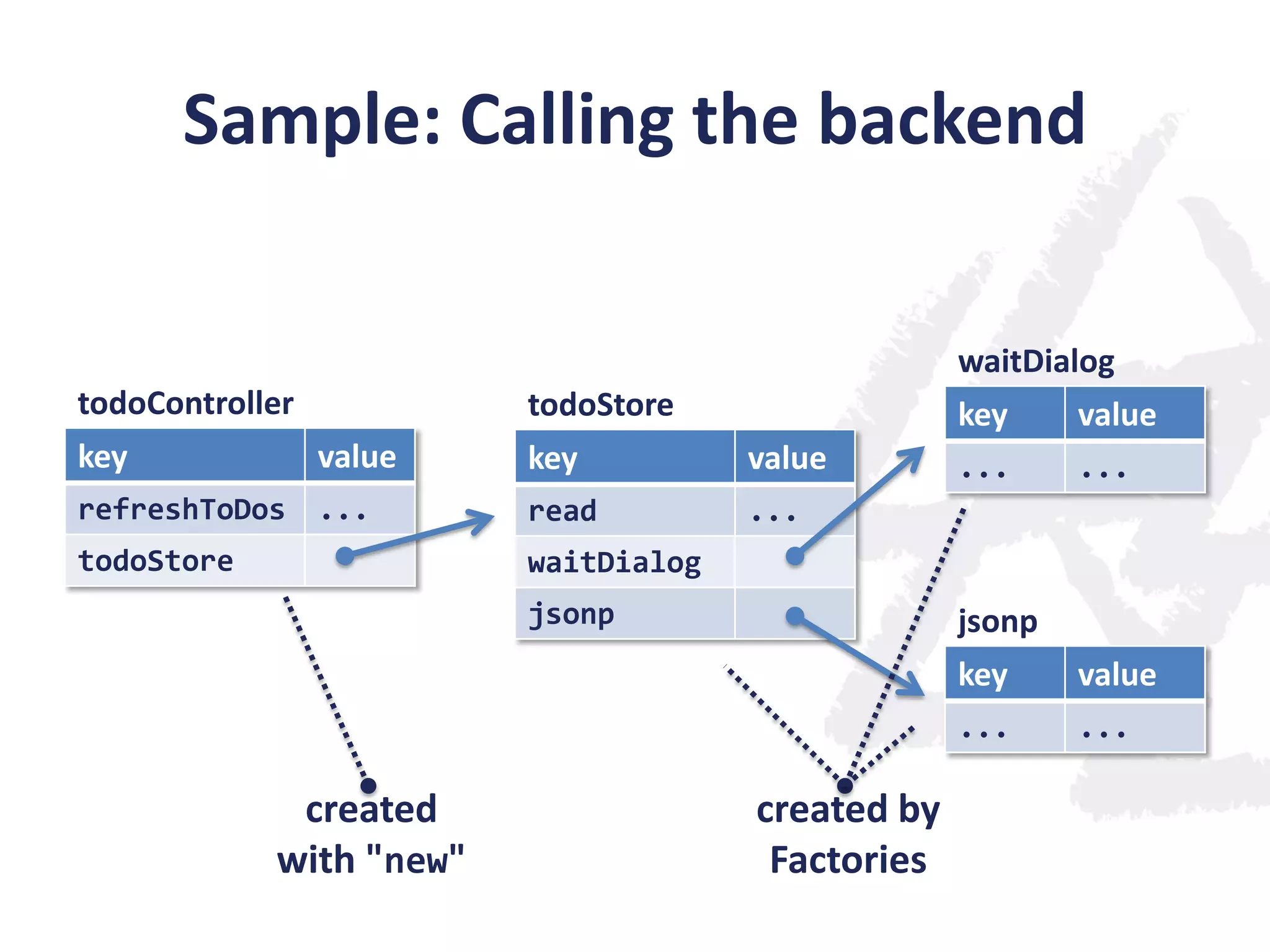

54. Sample: Calling the backend
waitDialog
todoController todoStore key value
key value key value ... ...
refreshToDos ... read ...
todoStore waitDialog
jsonp jsonp
key value
... ...
created created by
with "new" Factories

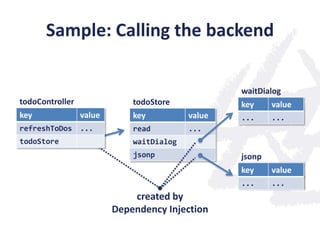

55. Sample: Calling the backend
waitDialog
todoController todoStore key value
key value key value ... ...
refreshToDos ... read ...
todoStore waitDialog
jsonp jsonp
key value
... ...
created by
Dependency Injection

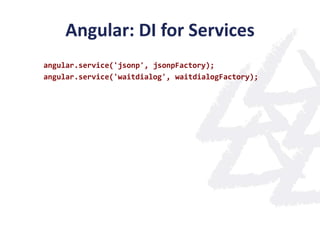

56. Angular: DI for Services
angular.service('jsonp', jsonpFactory);
angular.service('waitdialog', waitdialogFactory);

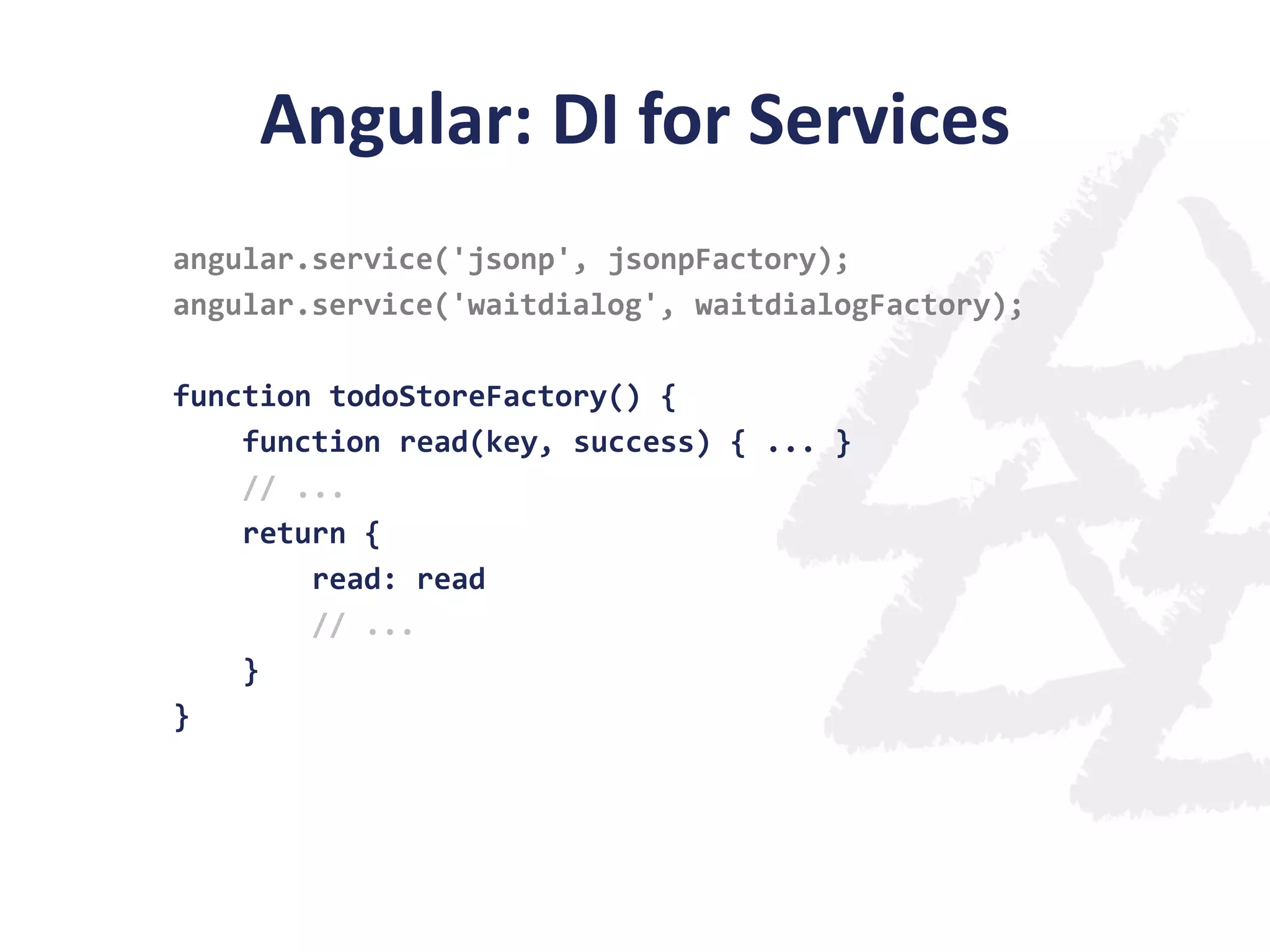

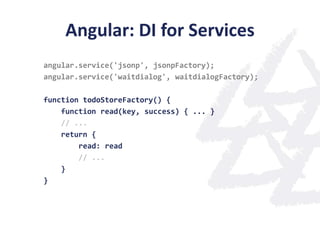

57. Angular: DI for Services
angular.service('jsonp', jsonpFactory);
angular.service('waitdialog', waitdialogFactory);
function todoStoreFactory() {
function read(key, success) { ... }
// ...
return {
read: read
// ...
}
}

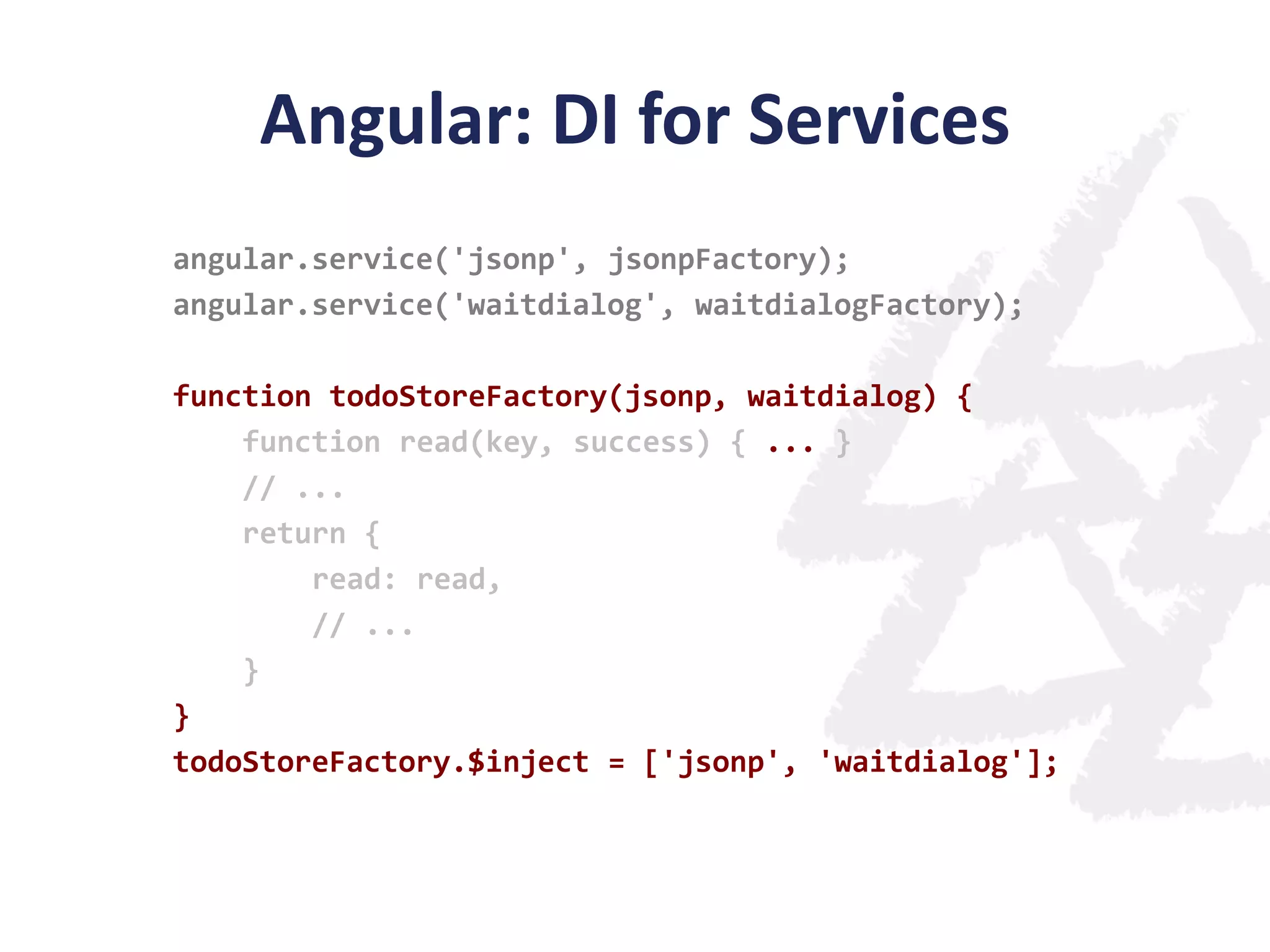

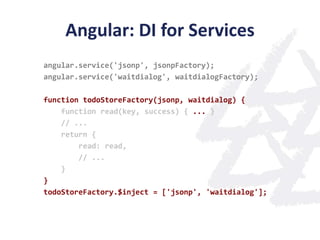

58. Angular: DI for Services
angular.service('jsonp', jsonpFactory);
angular.service('waitdialog', waitdialogFactory);
function todoStoreFactory(jsonp, waitdialog) {
function read(key, success) { ... }
// ...
return {
read: read,
// ...
}
}
todoStoreFactory.$inject = ['jsonp', 'waitdialog'];

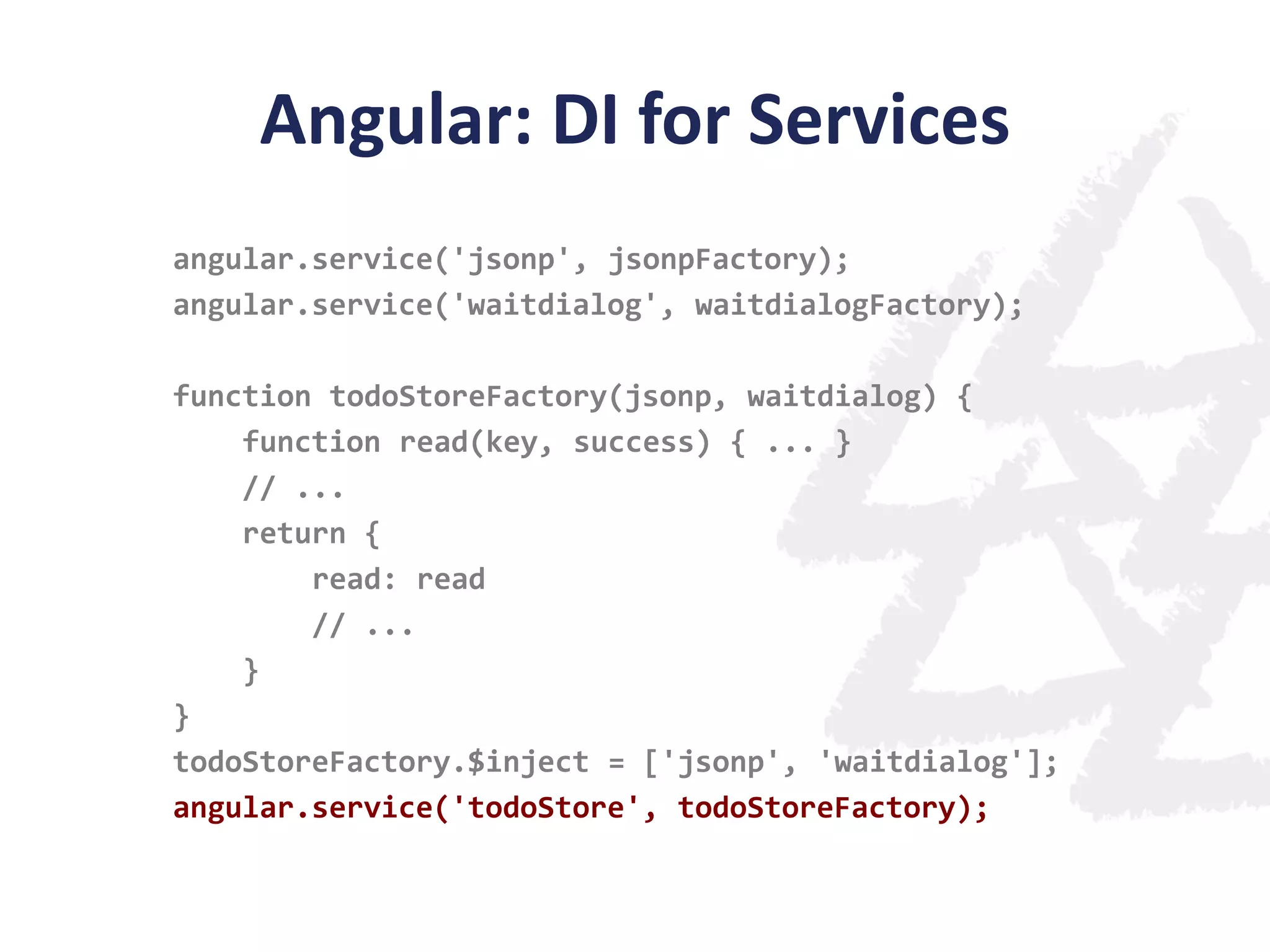

59. Angular: DI for Services
angular.service('jsonp', jsonpFactory);
angular.service('waitdialog', waitdialogFactory);
function todoStoreFactory(jsonp, waitdialog) {
function read(key, success) { ... }
// ...
return {
read: read
// ...
}
}
todoStoreFactory.$inject = ['jsonp', 'waitdialog'];
angular.service('todoStore', todoStoreFactory);

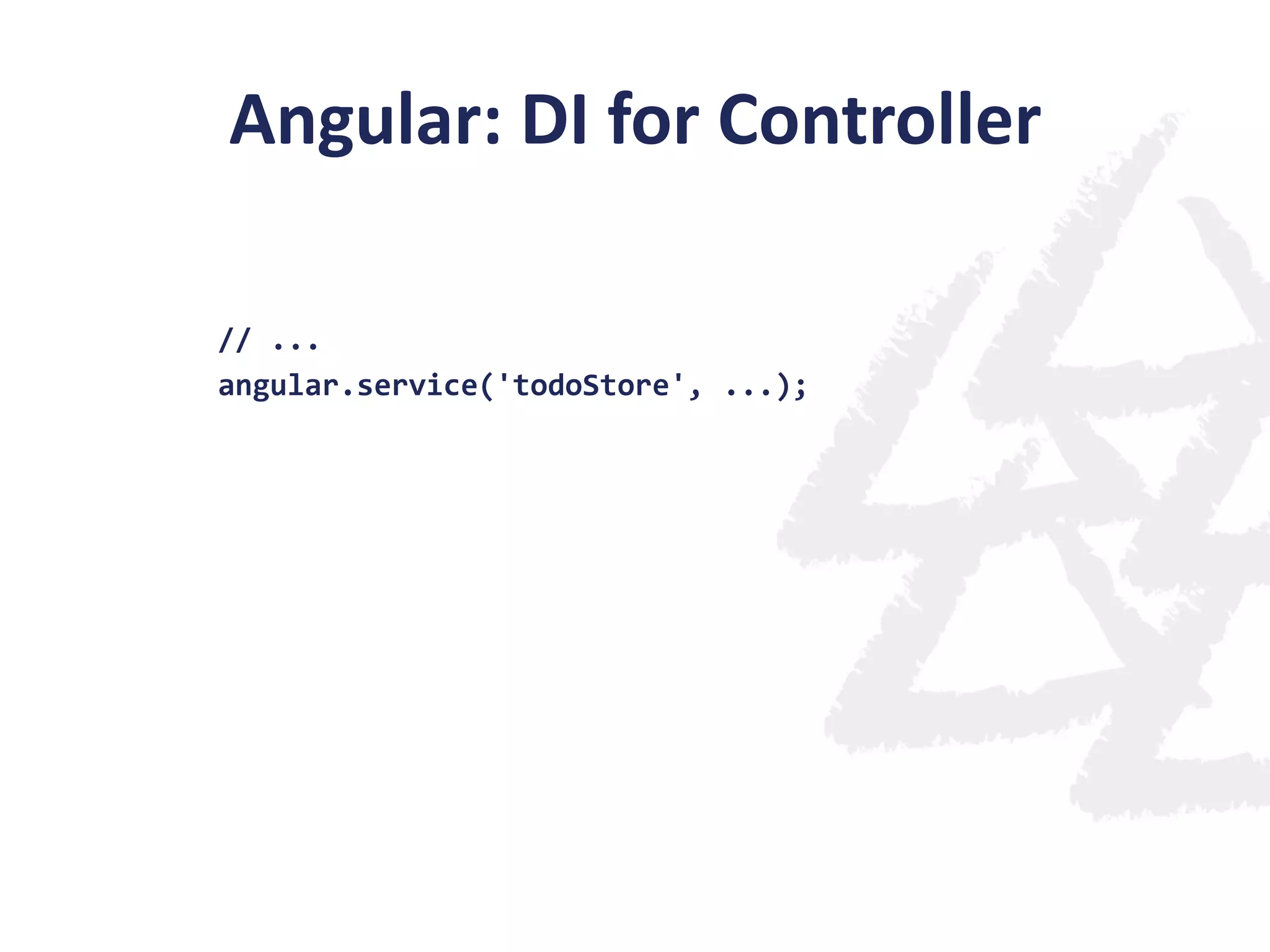

60. Angular: DI for Controller
// ...
angular.service('todoStore', ...);

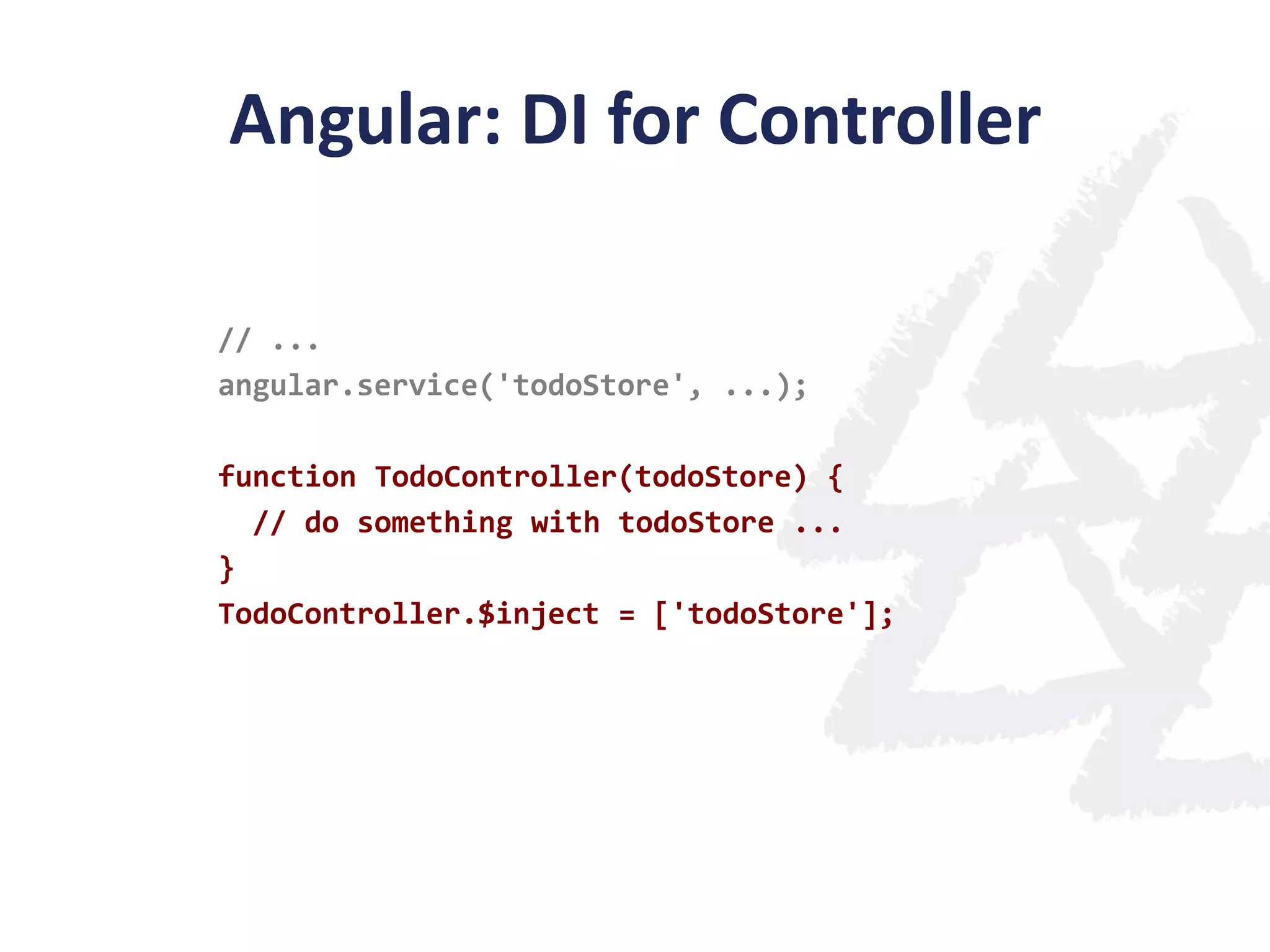

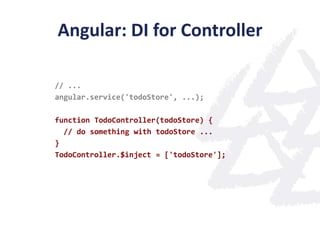

61. Angular: DI for Controller
// ...
angular.service('todoStore', ...);
function TodoController(todoStore) {
// do something with todoStore ...
}
TodoController.$inject = ['todoStore'];

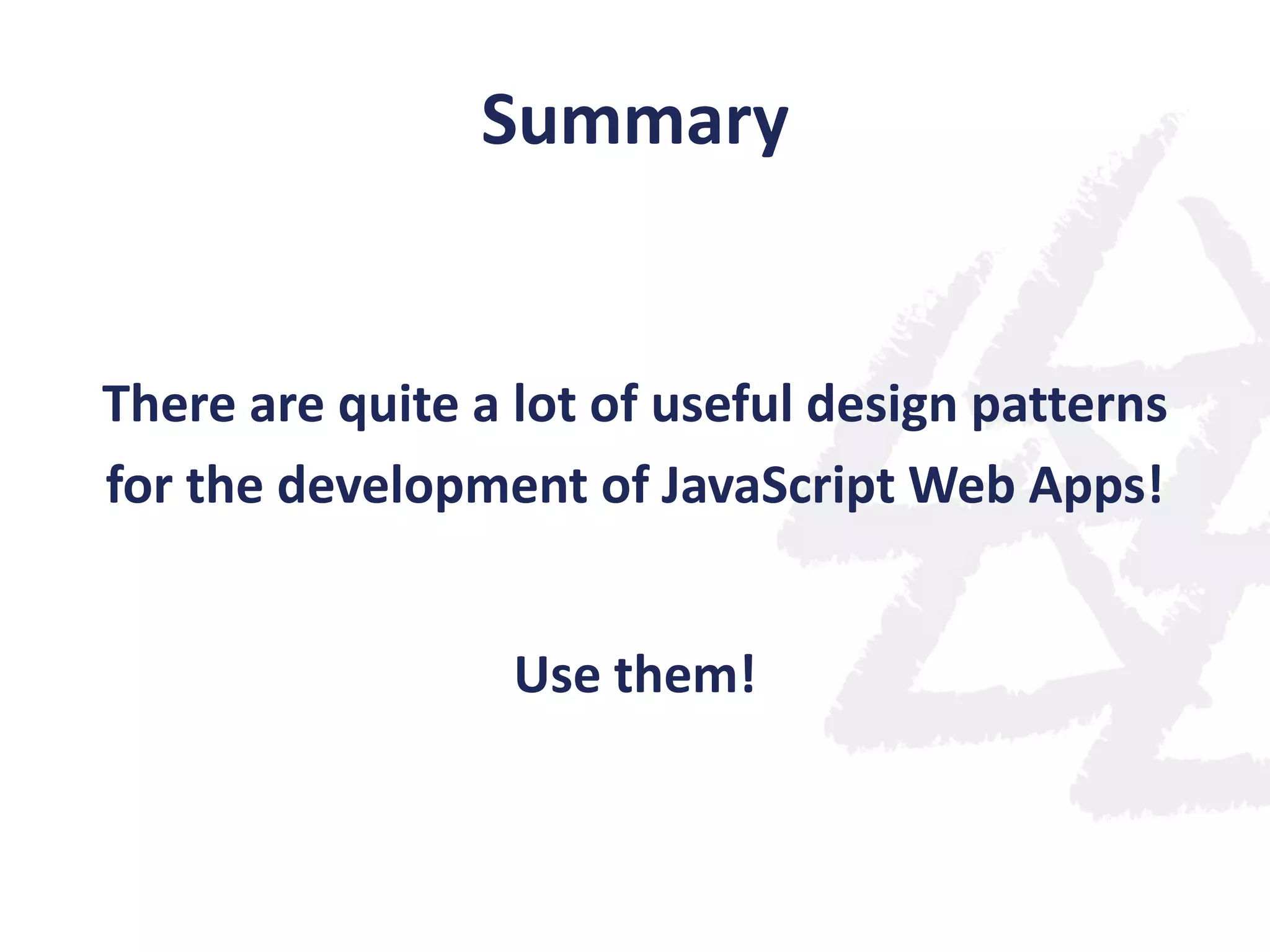

62. Summary
There are quite a lot of useful design patterns
for the development of JavaScript Web Apps!
Use them!

63. Summary
Libraries and Frameworks
can help you to get your stuff done!

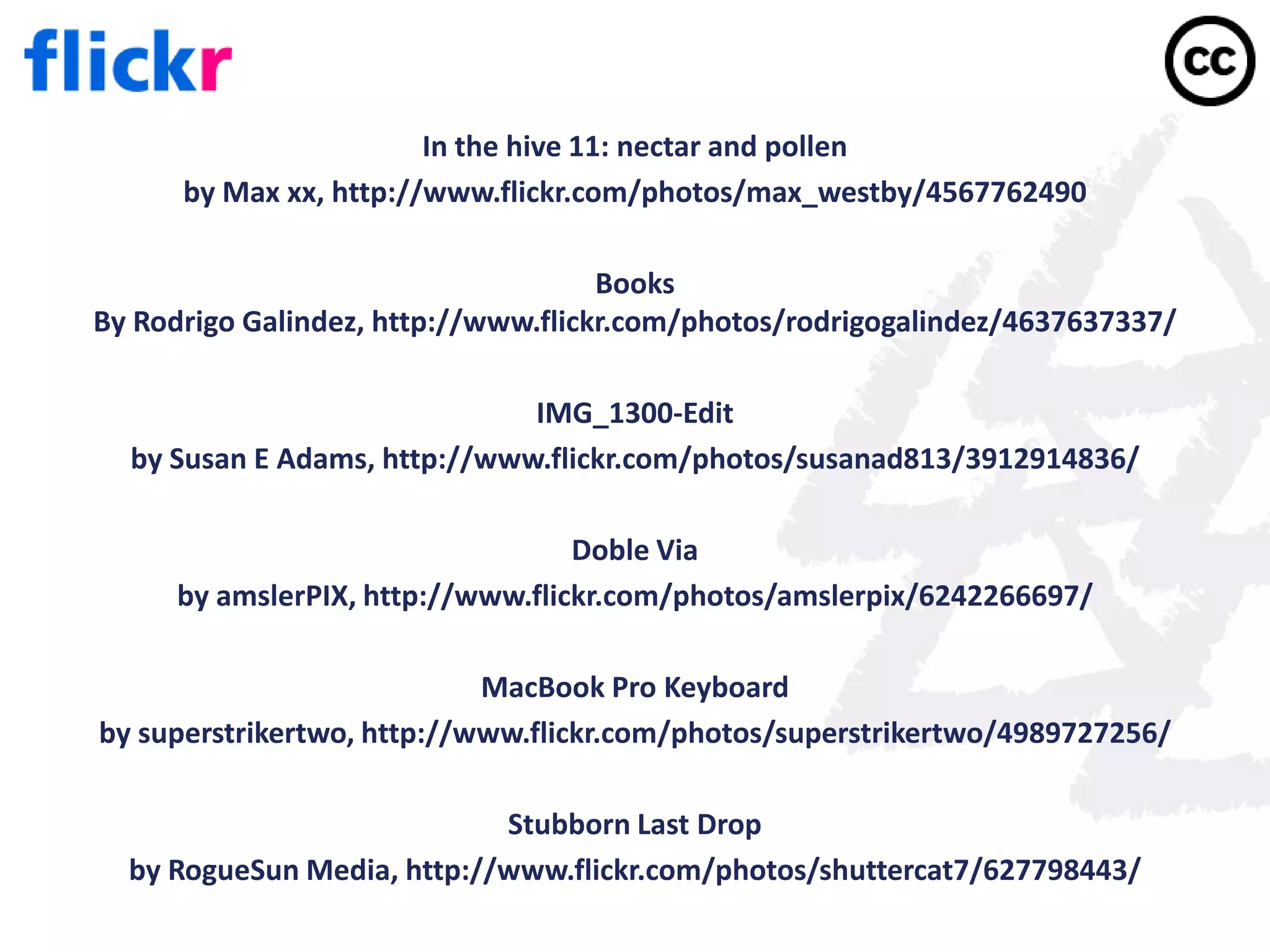

64. In the hive 11: nectar and pollen
by Max xx, http://www.flickr.com/photos/max_westby/4567762490
Books
By Rodrigo Galindez, http://www.flickr.com/photos/rodrigogalindez/4637637337/
IMG_1300-Edit
by Susan E Adams, http://www.flickr.com/photos/susanad813/3912914836/
Doble Via
by amslerPIX, http://www.flickr.com/photos/amslerpix/6242266697/
MacBook Pro Keyboard
by superstrikertwo, http://www.flickr.com/photos/superstrikertwo/4989727256/
Stubborn Last Drop
by RogueSun Media, http://www.flickr.com/photos/shuttercat7/627798443/

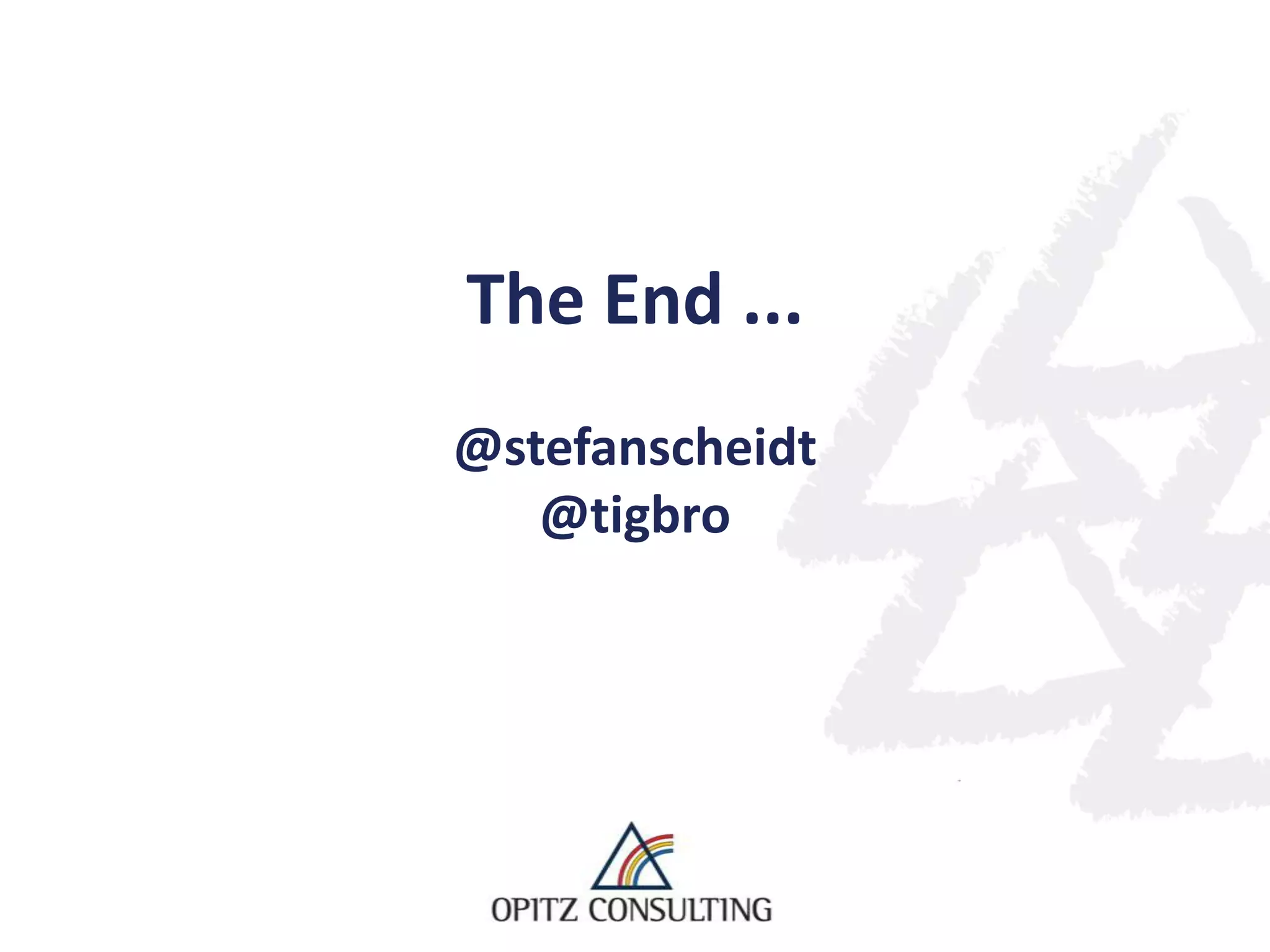

65. The End ...
@stefanscheidt
@tigbro
