Real-world Dojo Mobile

D06 Real-world Dojo Mobile Applications

Andrew Ferrier | Web 2.0 / Mobile Consultant |
IBM Software Services for WebSphere, UK

© IBM Corporation 2012

Agenda
• Recap: what is Web 2.0?

• What is Dojo/Dojo Mobile?

• Digression: What is Worklight?

• Project Lifecycle: Best Practices and
Approach for building Dojo Mobile
Applications

Recap: what is Web
2.0?

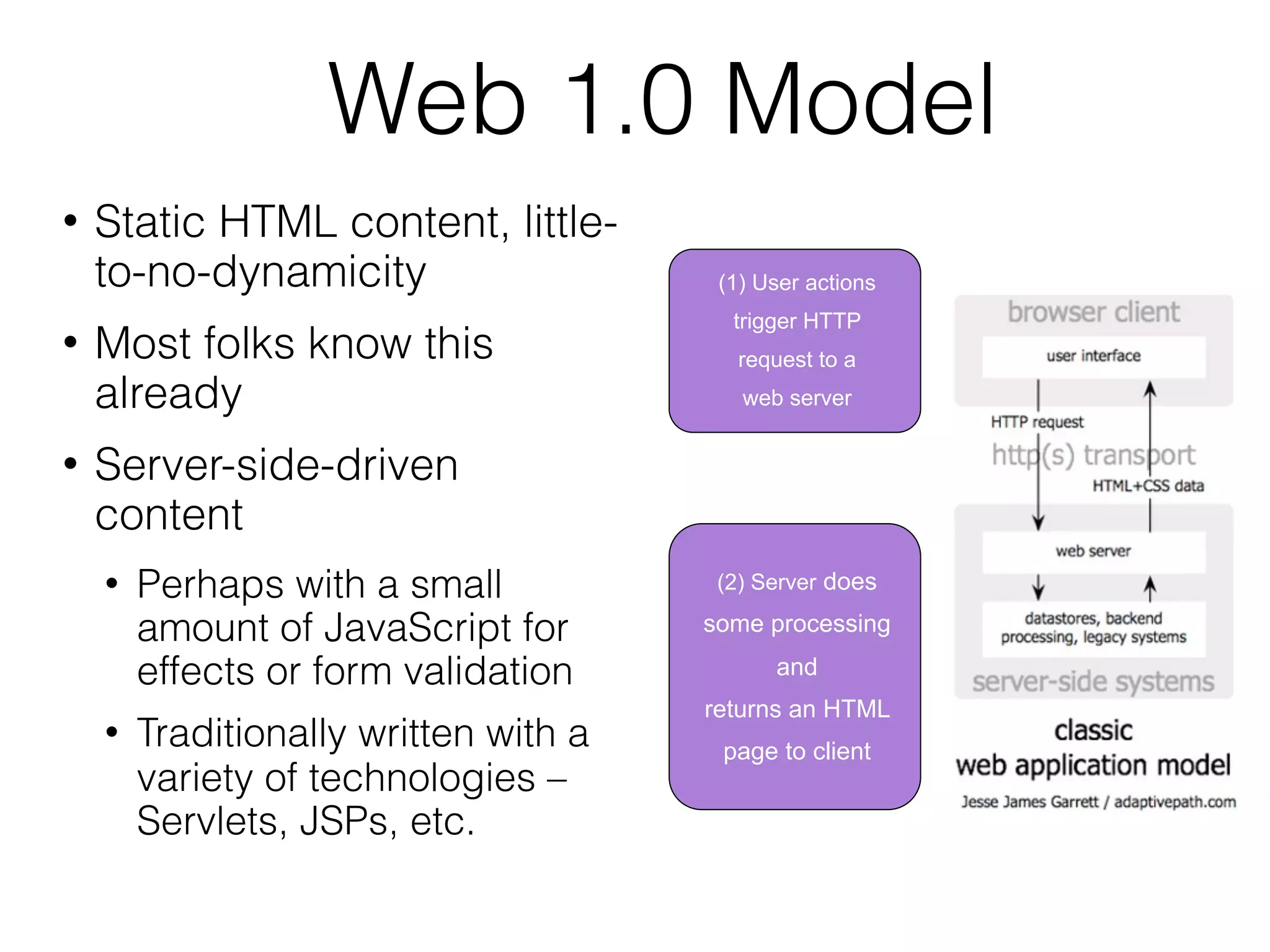

Web 1.0 Model
 Static HTML content, little-
to-no-dynamicity (1) User actions
trigger HTTP
 Most folks know this request to a
already web server

 Server-side-driven
content
 Perhaps with a small (2) Server does

amount of JavaScript for some processing

effects or form validation and
returns an HTML
 Traditionally written with a page to client
variety of technologies –
Servlets, JSPs, etc.

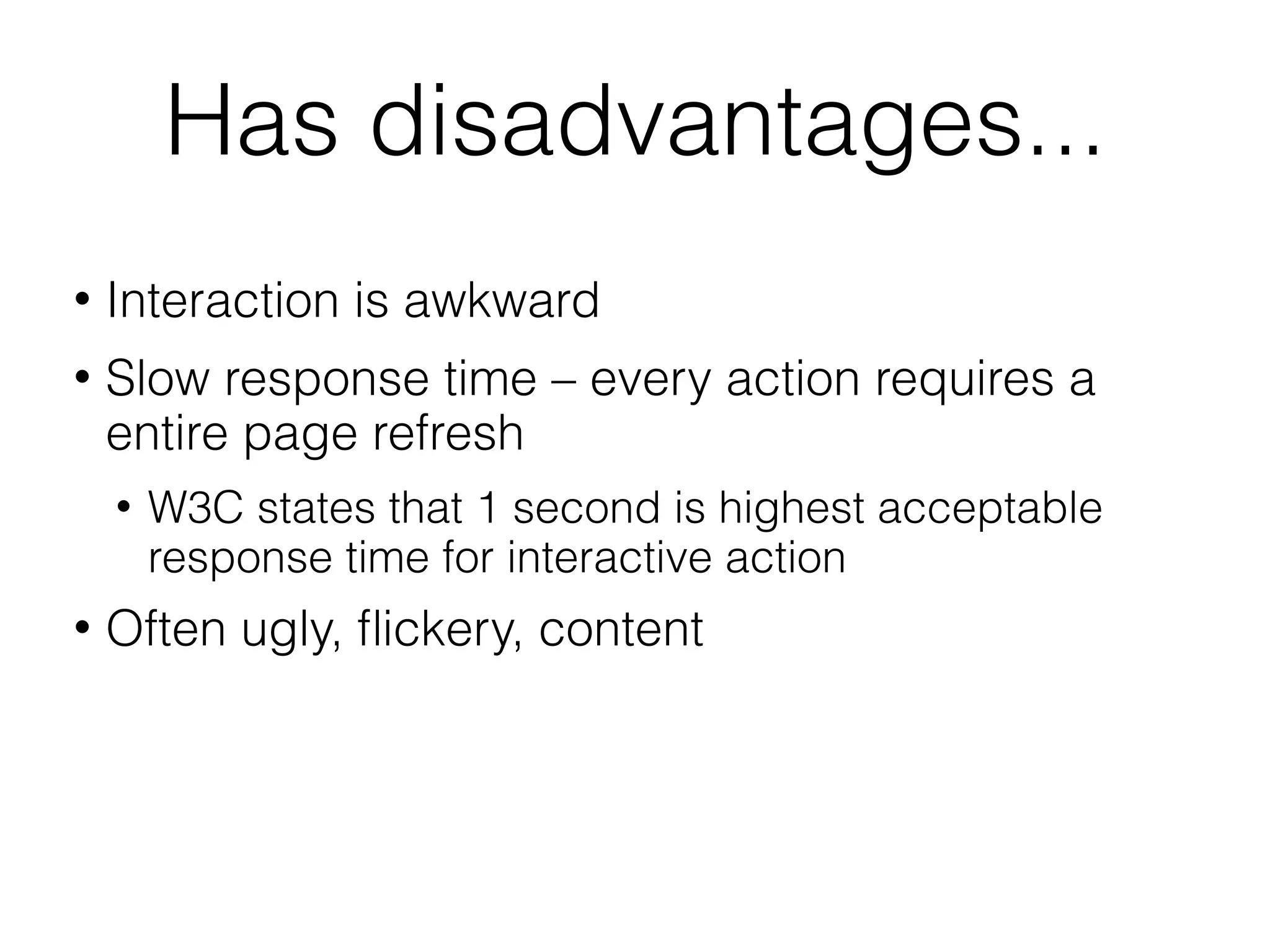

Has disadvantages...
 Interaction is awkward
 Slow response time – every action requires a
entire page refresh
 W3C states that 1 second is highest acceptable
response time for interactive action
 Often ugly, ﬂickery, content

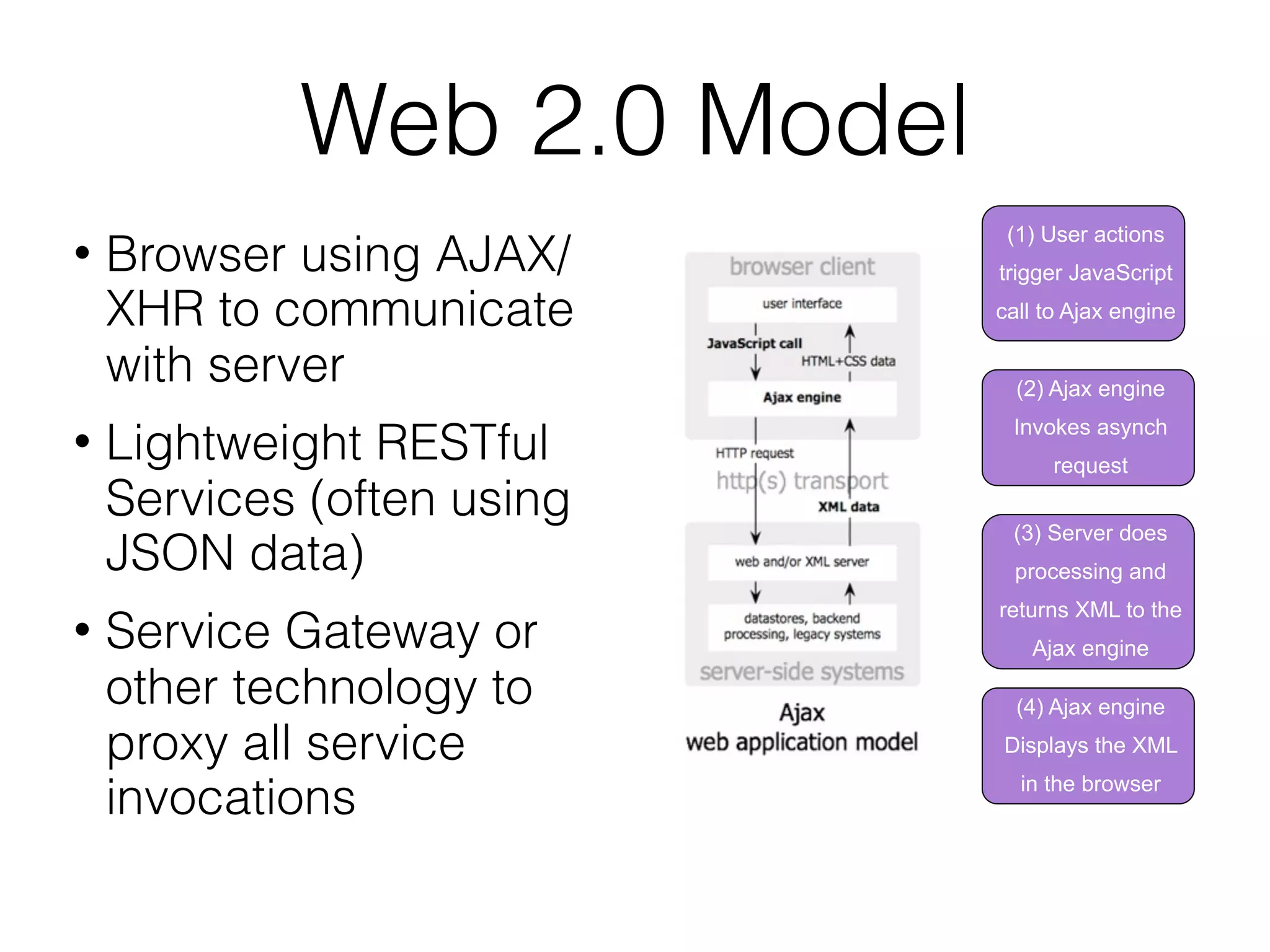

Web 2.0 Model
(1) User actions
 Browser using AJAX/ trigger JavaScript

XHR to communicate call to Ajax engine

with server (2) Ajax engine
Invokes asynch
 Lightweight RESTful request
Services (often using
(3) Server does
JSON data) processing and
returns XML to the
 Service Gateway or Ajax engine

other technology to (4) Ajax engine

proxy all service Displays the XML
in the browser
invocations

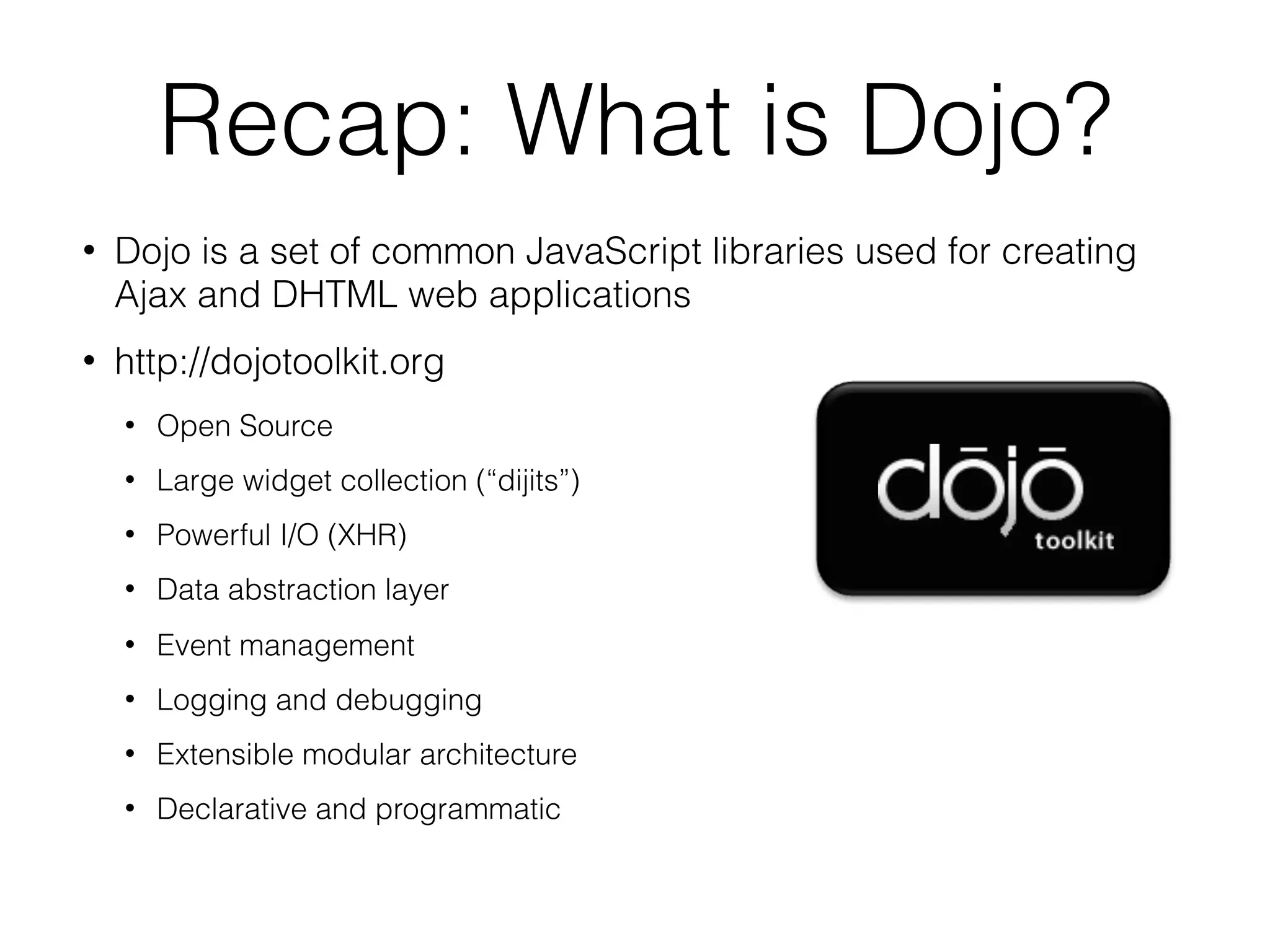

Recap: What is Dojo?
 Dojo is a set of common JavaScript libraries used for creating
Ajax and DHTML web applications
 http://dojotoolkit.org
 Open Source
 Large widget collection (“dijits”)‫‏‬
 Powerful I/O (XHR)‫‏‬
 Data abstraction layer
 Event management
 Logging and debugging
 Extensible modular architecture
 Declarative and programmatic

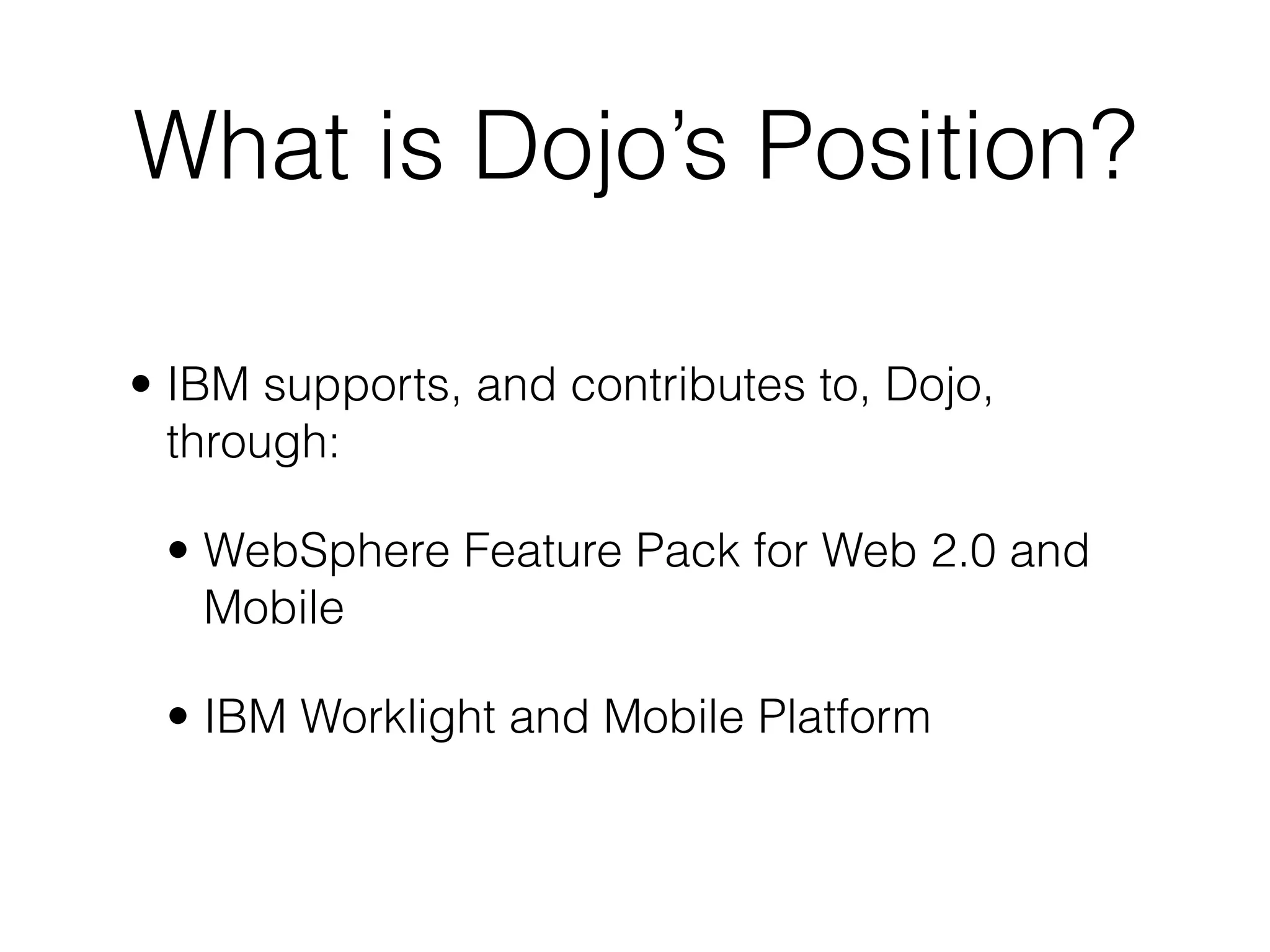

What is Dojo’s Position?

• IBM supports, and contributes to, Dojo,
through:

• WebSphere Feature Pack for Web 2.0 and
Mobile

• IBM Worklight and Mobile Platform

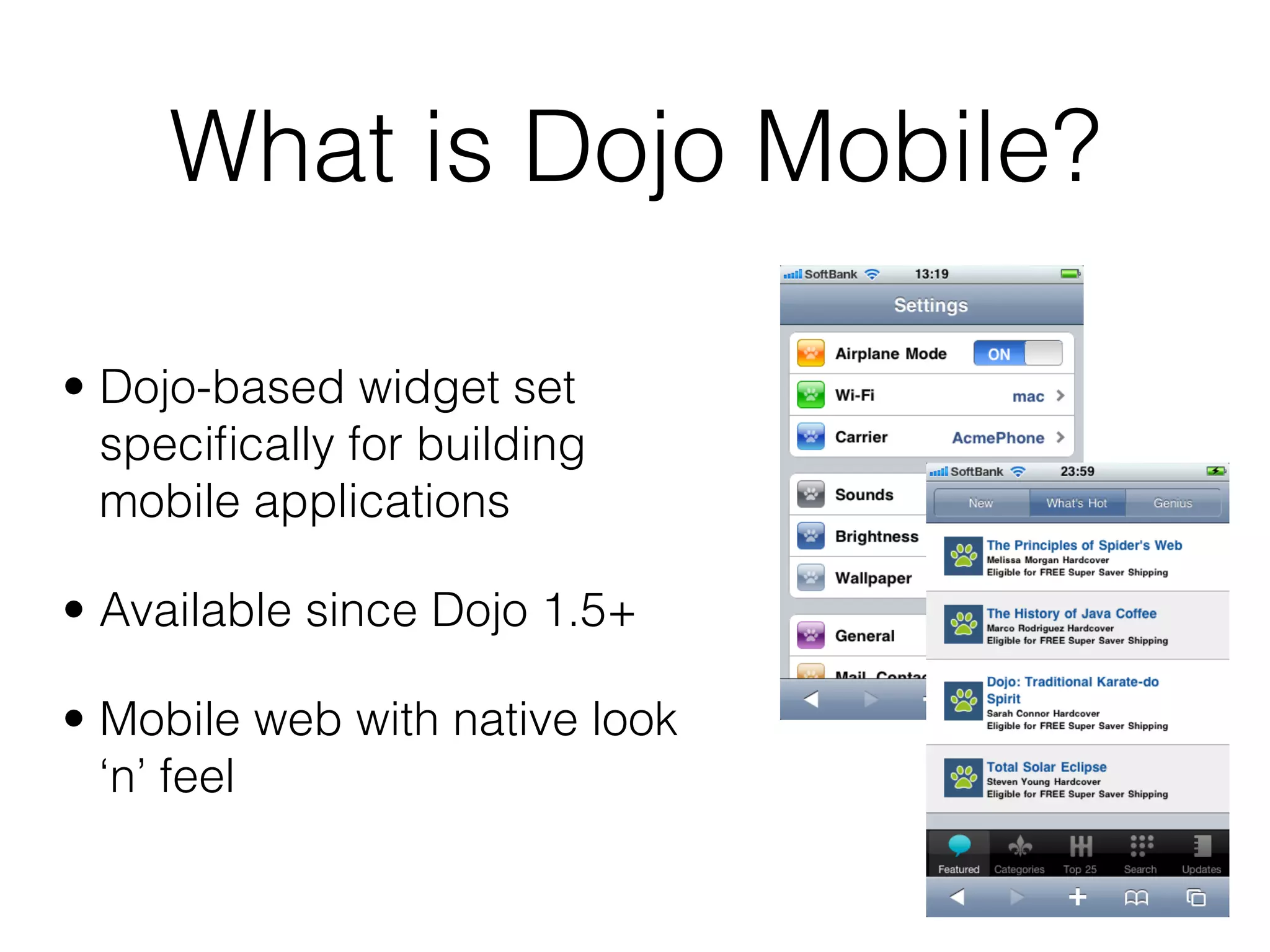

What is Dojo Mobile?

• Dojo-based widget set
speciﬁcally for building
mobile applications

• Available since Dojo 1.5+

• Mobile web with native look
‘n’ feel

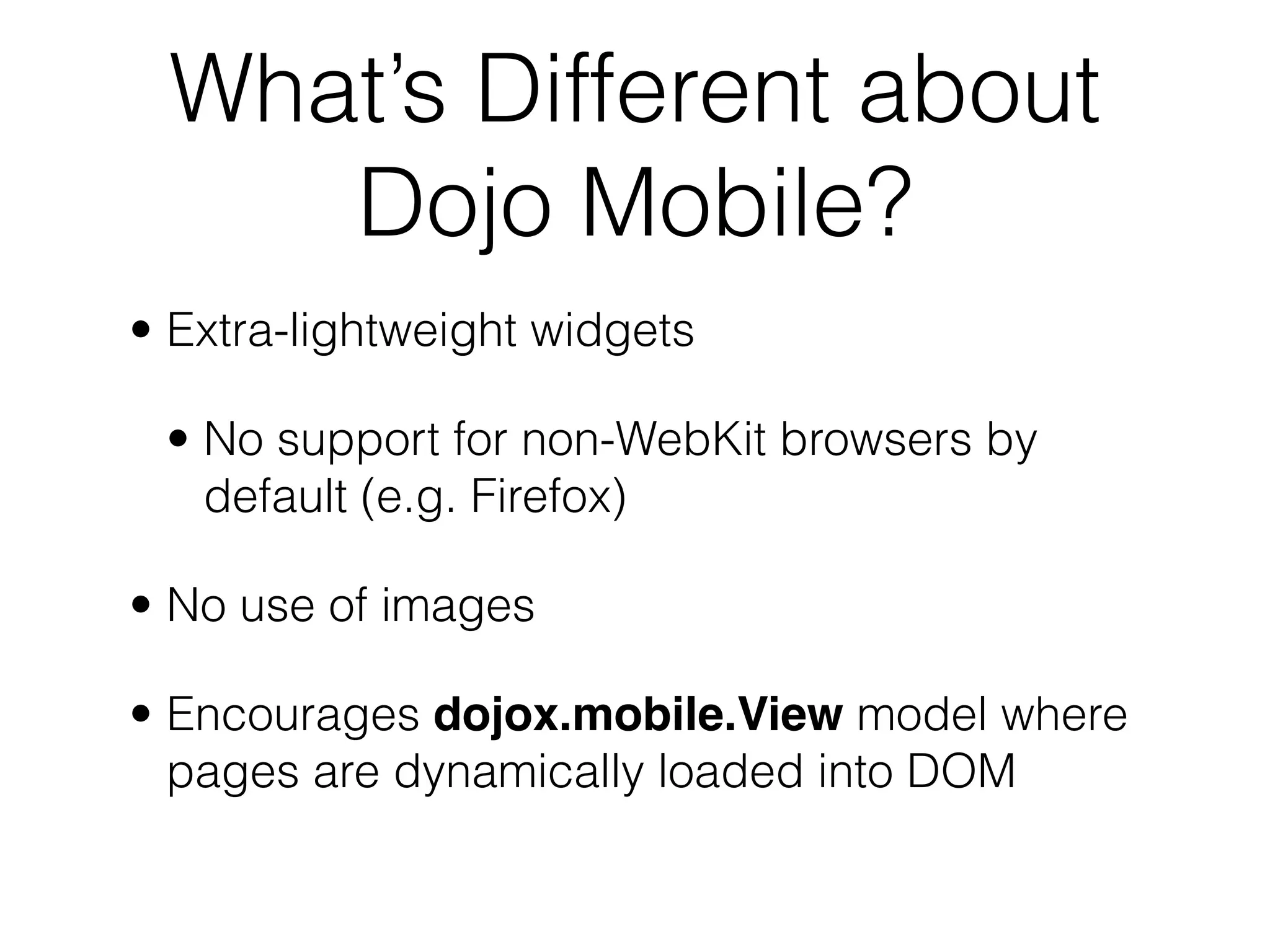

What’s Different about
Dojo Mobile?
• Extra-lightweight widgets

• No support for non-WebKit browsers by
default (e.g. Firefox)

• No use of images

• Encourages dojox.mobile.View model where
pages are dynamically loaded into DOM

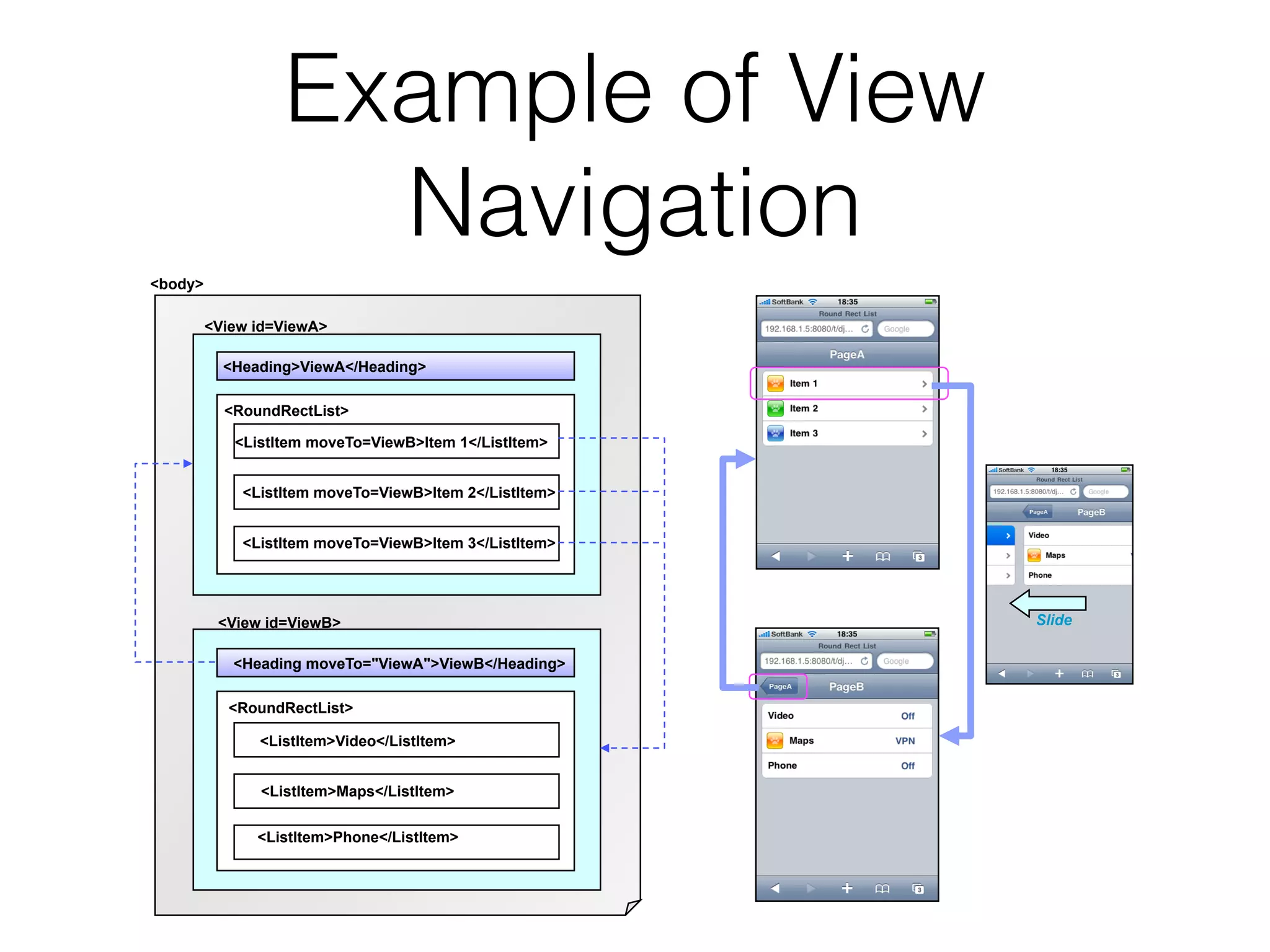

Example of View
Navigation
<body>

<View id=ViewA>

<Heading>ViewA</Heading>

<RoundRectList>

<ListItem moveTo=ViewB>Item 1</ListItem>



<View id=ViewB> Slide

<Heading moveTo="ViewA">ViewB</Heading>

<RoundRectList>

<ListItem>Video</ListItem>

<ListItem>Maps</ListItem>

<ListItem>Phone</ListItem>

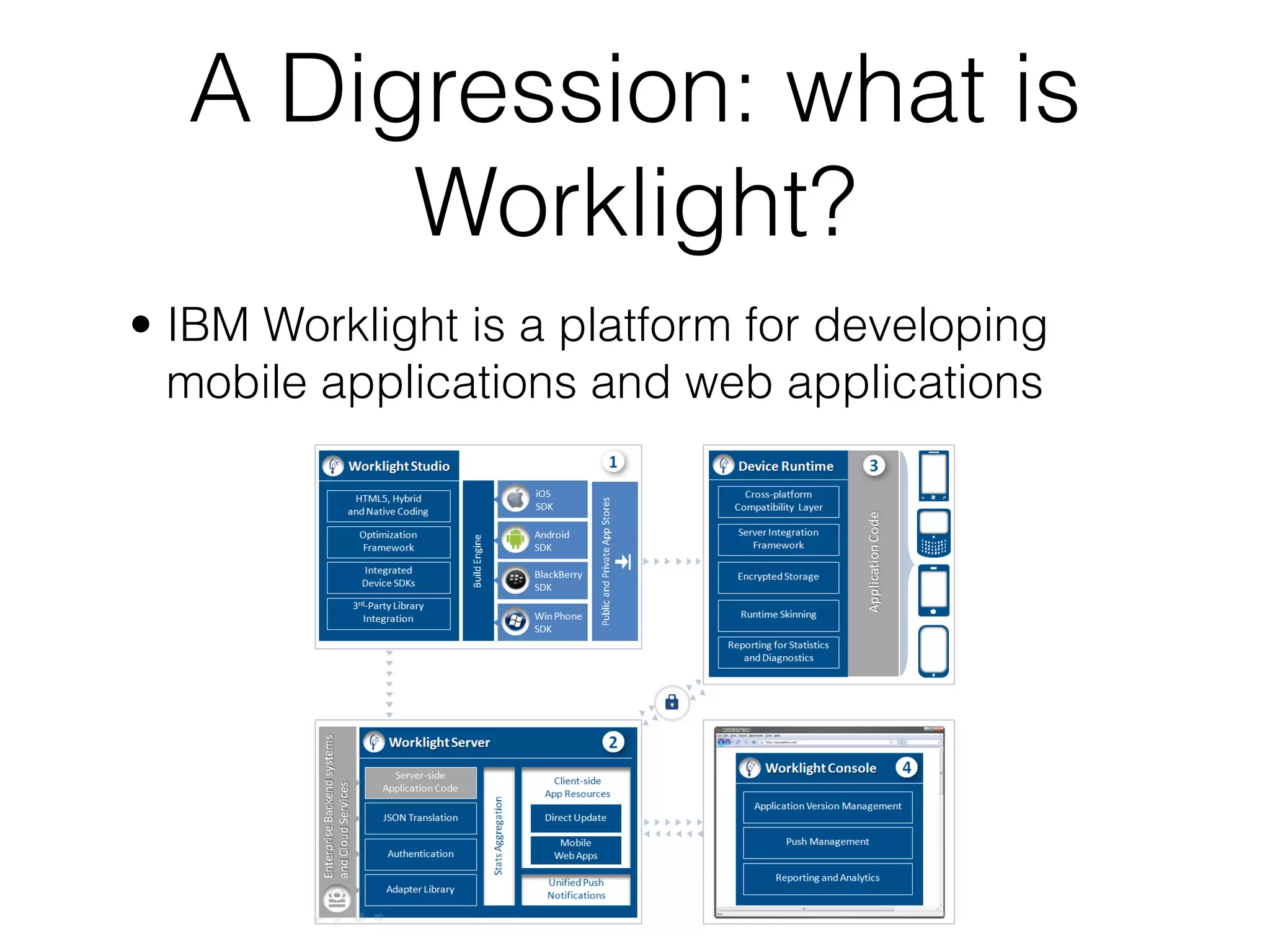

A Digression: what is
Worklight?
• IBM Worklight is a platform for developing
mobile applications and web applications

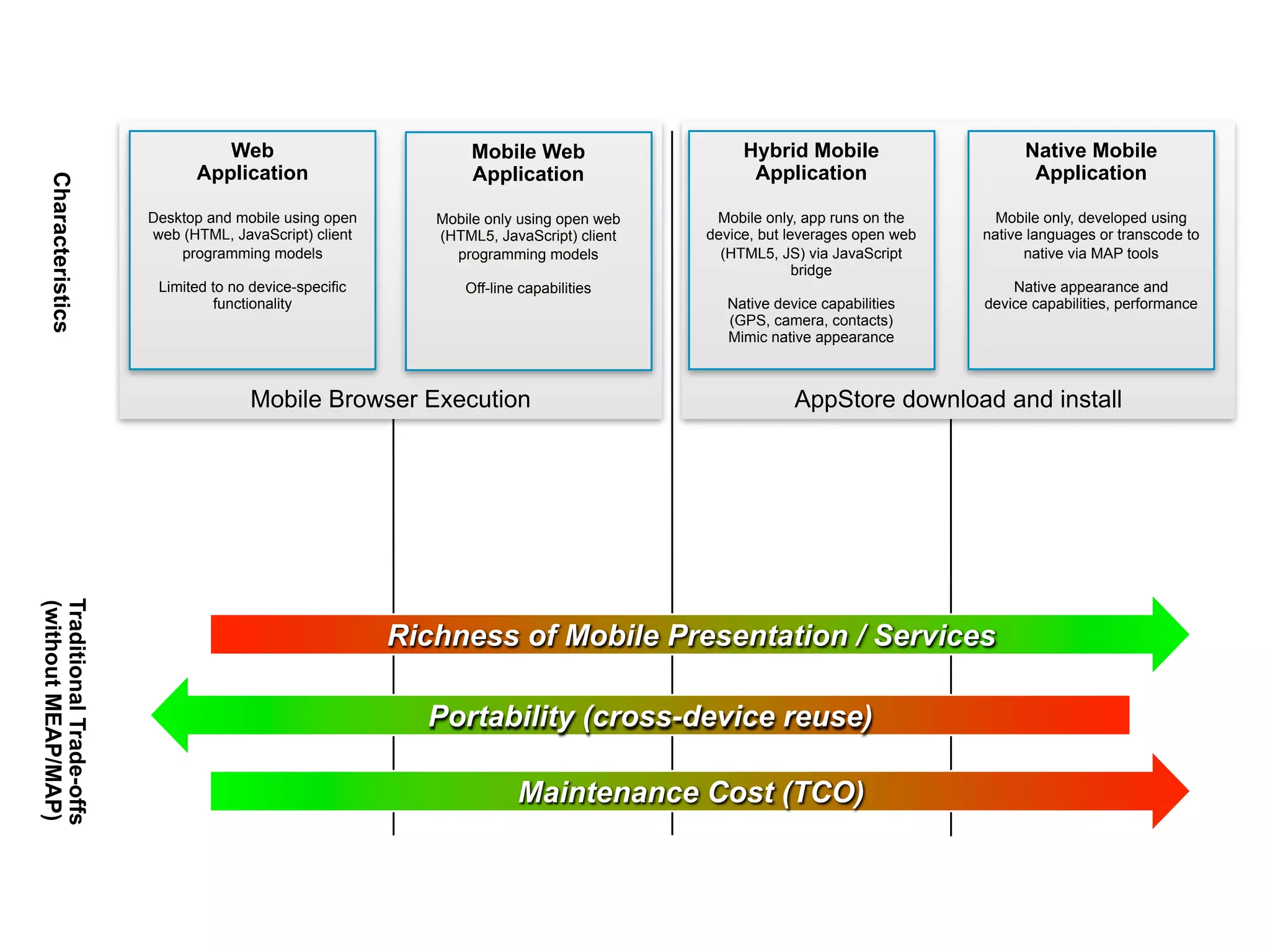

Web Mobile Web Hybrid Mobile Native Mobile
Application Application Application Application
Characteristics

Desktop and mobile using open Mobile only using open web Mobile only, app runs on the Mobile only, developed using
web (HTML, JavaScript) client (HTML5, JavaScript) client device, but leverages open web native languages or transcode to
programming models programming models (HTML5, JS) via JavaScript native via MAP tools
bridge
Limited to no device-specific Off-line capabilities Native appearance and
functionality Native device capabilities device capabilities, performance
(GPS, camera, contacts)
Mimic native appearance

Mobile Browser Execution AppStore download and install
Traditional Trade-offs
(without MEAP/MAP)

Richness of Mobile Presentation / Services

Portability (cross-device reuse)

Maintenance Cost (TCO)

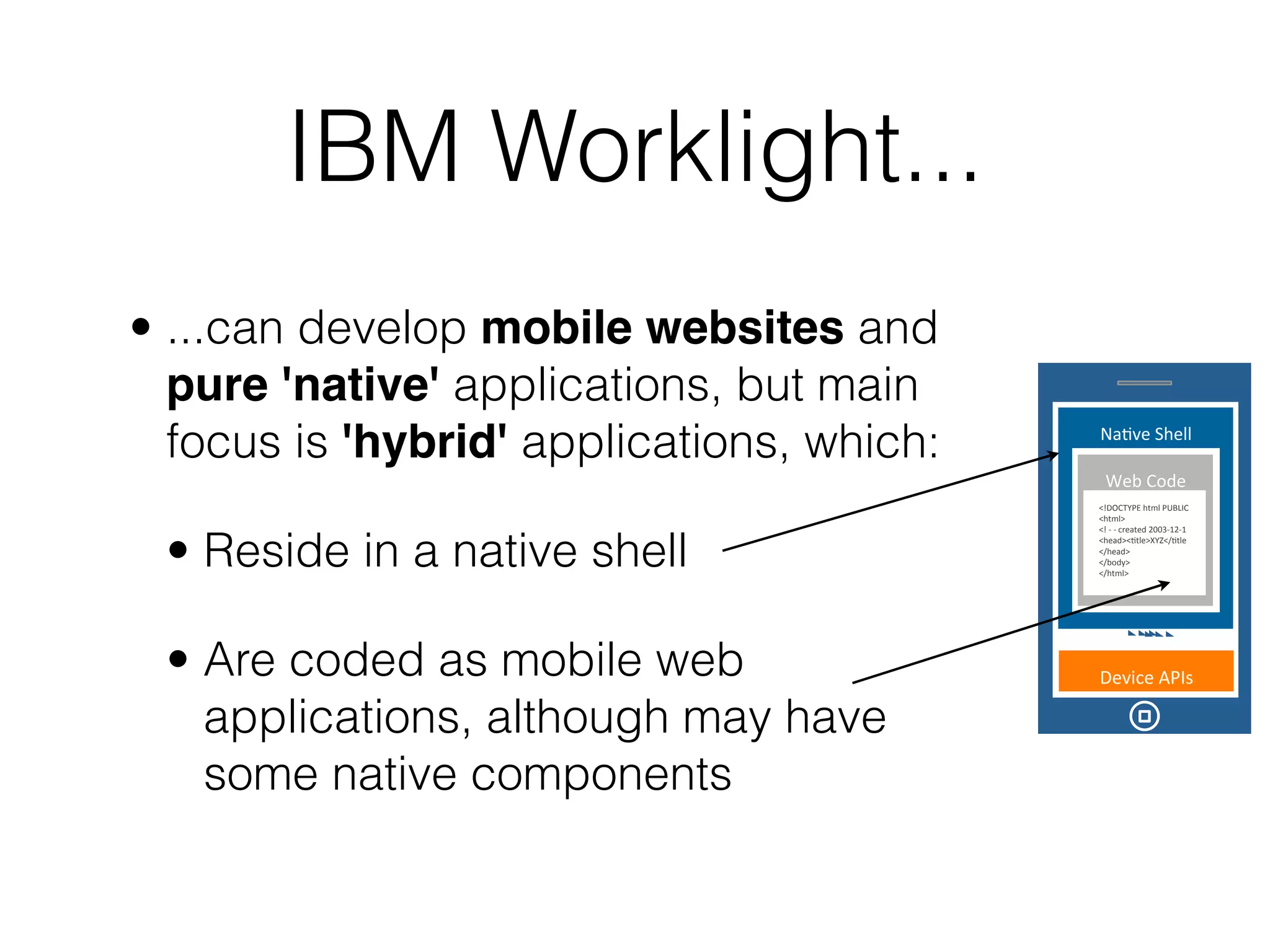

IBM Worklight...
• ...can develop mobile websites and
pure 'native' applications, but main
focus is 'hybrid' applications, which: Na#ve&Shell

Web&Code
<!DOCTYPE&html&PUBLIC
<html>
<!&>&>&created&2003>12>1

• Reside in a native shell <head><#tle>XYZ</#tle
</head>
</body>
</html>

• Are coded as mobile web Device&APIs

applications, although may have
some native components

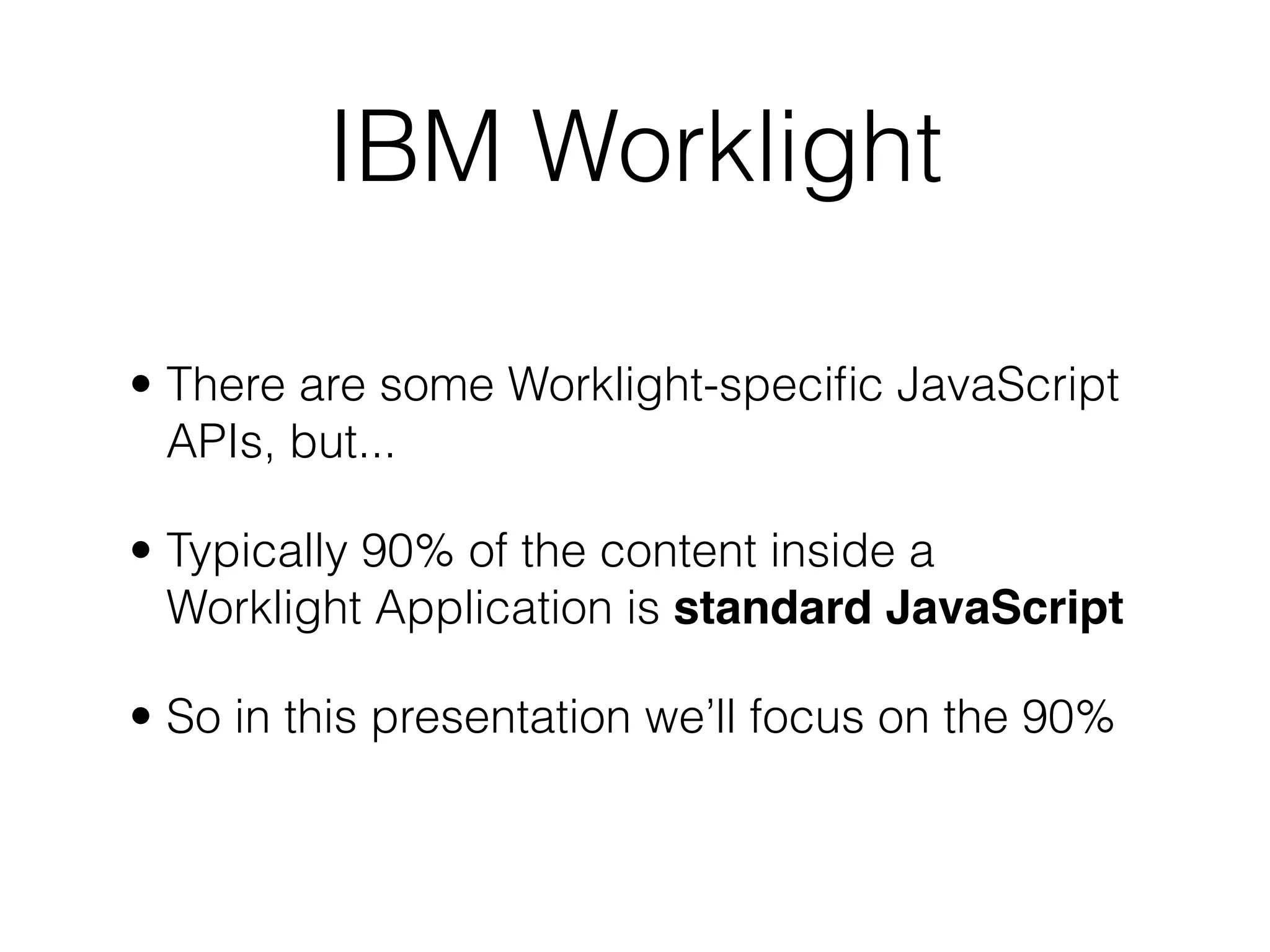

IBM Worklight

• There are some Worklight-speciﬁc JavaScript
APIs, but...

• Typically 90% of the content inside a
Worklight Application is standard JavaScript

• So in this presentation we’ll focus on the 90%

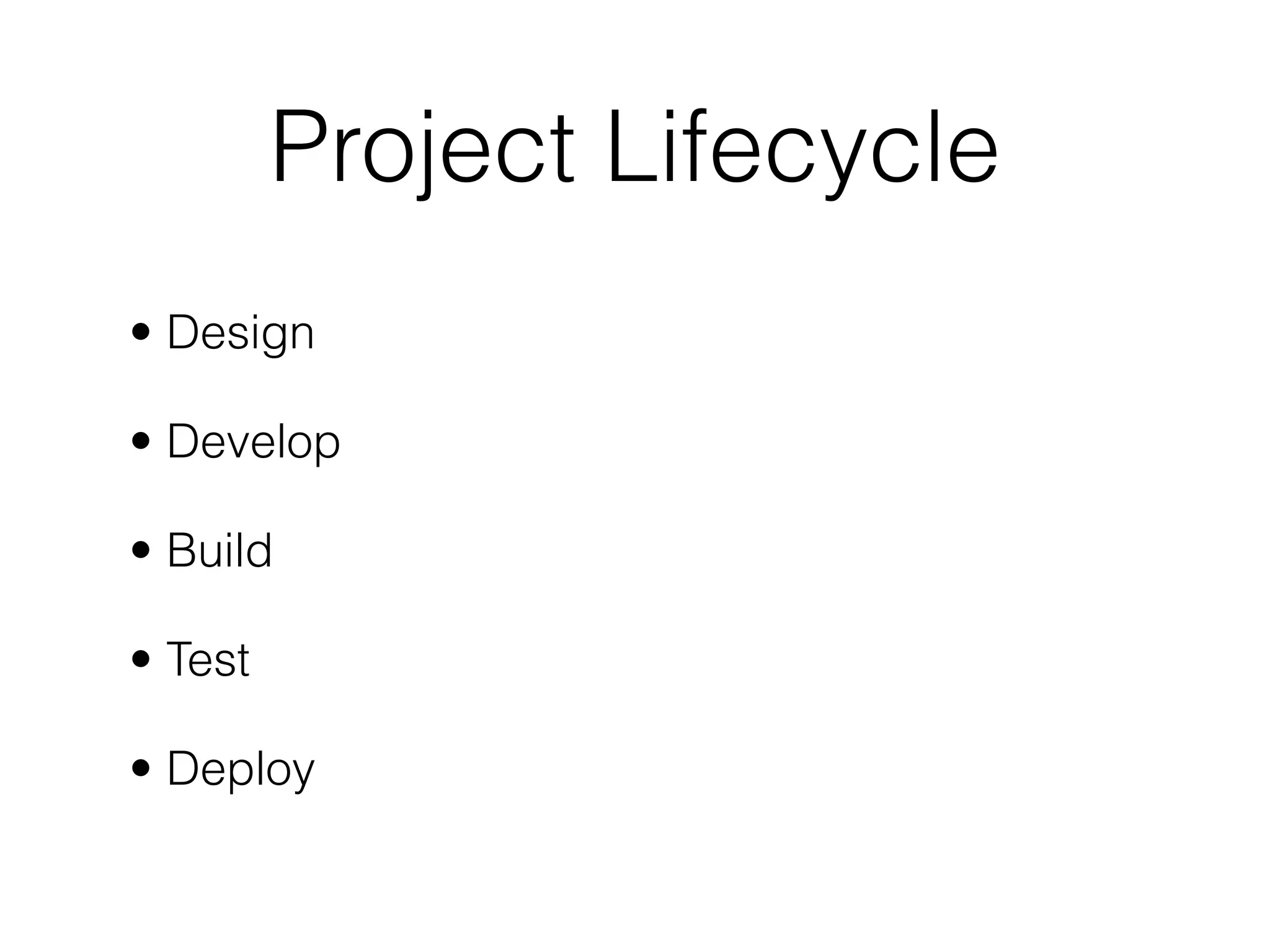

Project Lifecycle
• Design

• Develop

• Build

• Test

• Deploy

Design: UX
• Work with a User EXperience designer

• Especially important for consumer-facing content

• Ensure they understand mobile:

• Performance Considerations

• Screen simplicity

• Locality of site usage

• Screen size variations (incl. Portrait / Landscape)

• Touch input implications

• Limitations/strengths of toolkit and web model

Design: Usage
Variations
• How will you handle:

• Software platforms you don’t support?

• m.mycorp.com or www.mycorp.com?

• What happens if a customer wants to go to
the full site on mobile? ...

• .. Or the mobile on desktop?

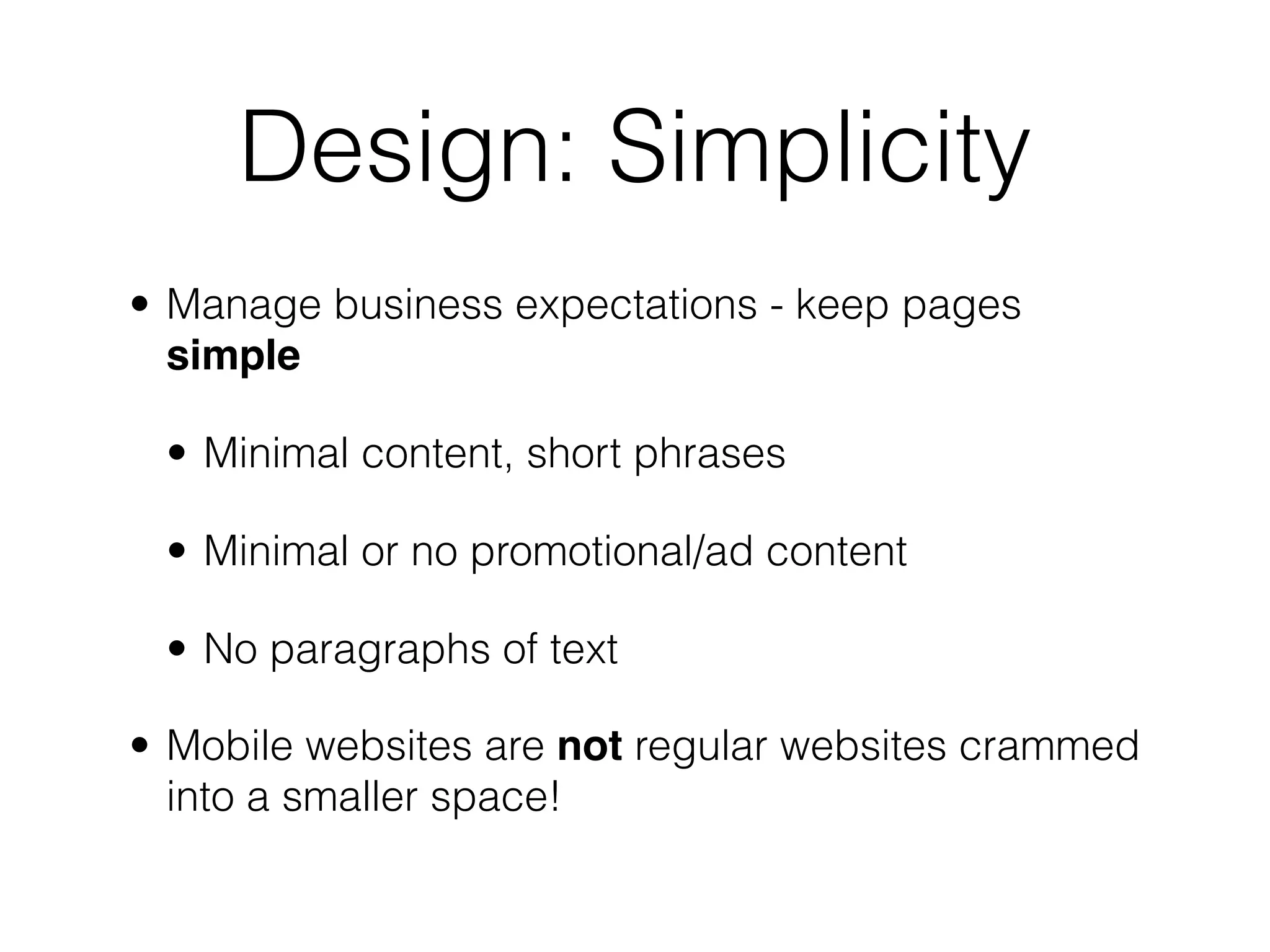

Design: Simplicity
• Manage business expectations - keep pages
simple

• Minimal content, short phrases

• Minimal or no promotional/ad content

• No paragraphs of text

• Mobile websites are not regular websites crammed
into a smaller space!

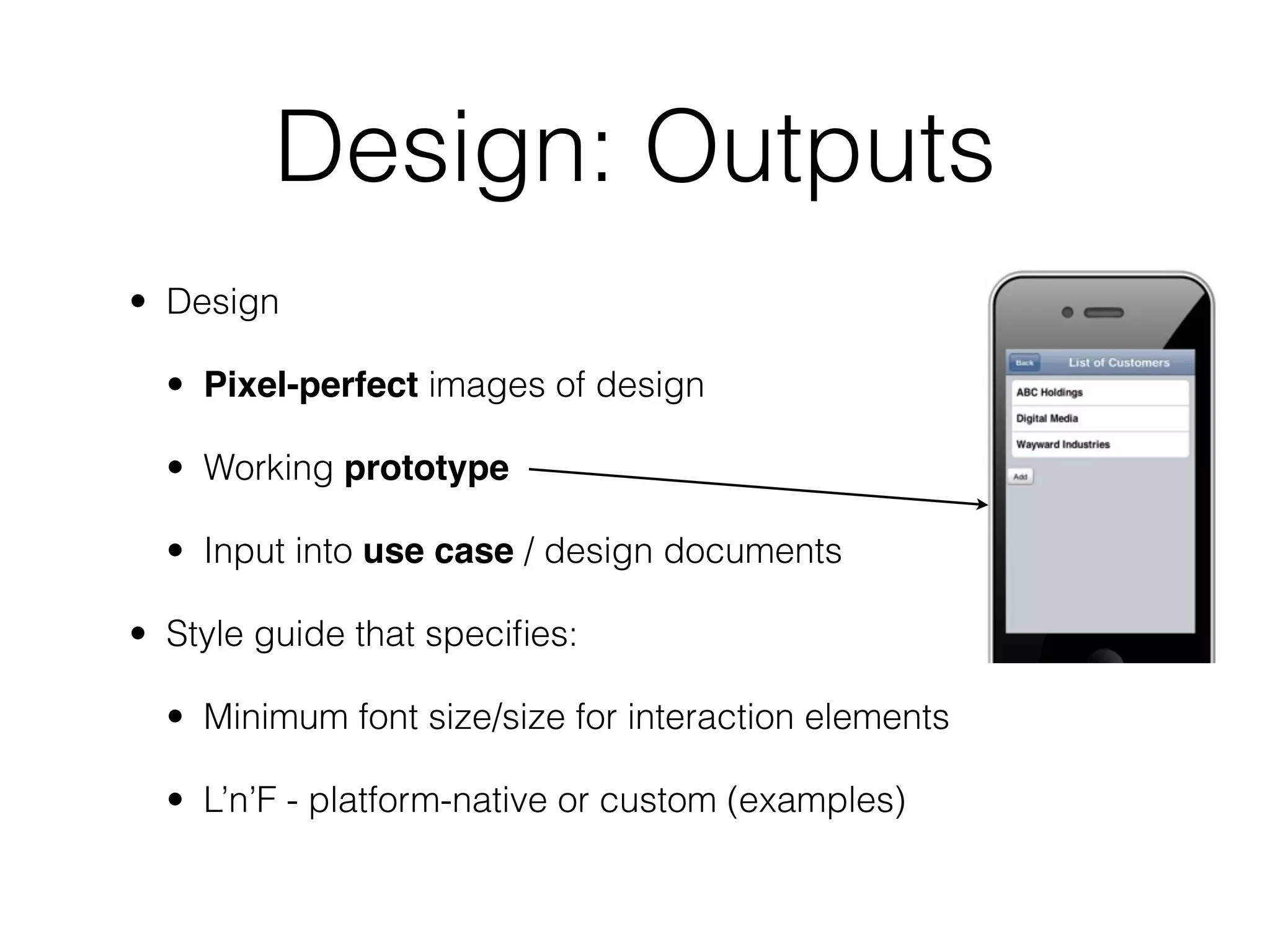

Design: Outputs
• Design

• Pixel-perfect images of design

• Working prototype

• Input into use case / design documents

• Style guide that speciﬁes:

• Minimum font size/size for interaction elements

• L’n’F - platform-native or custom (examples)

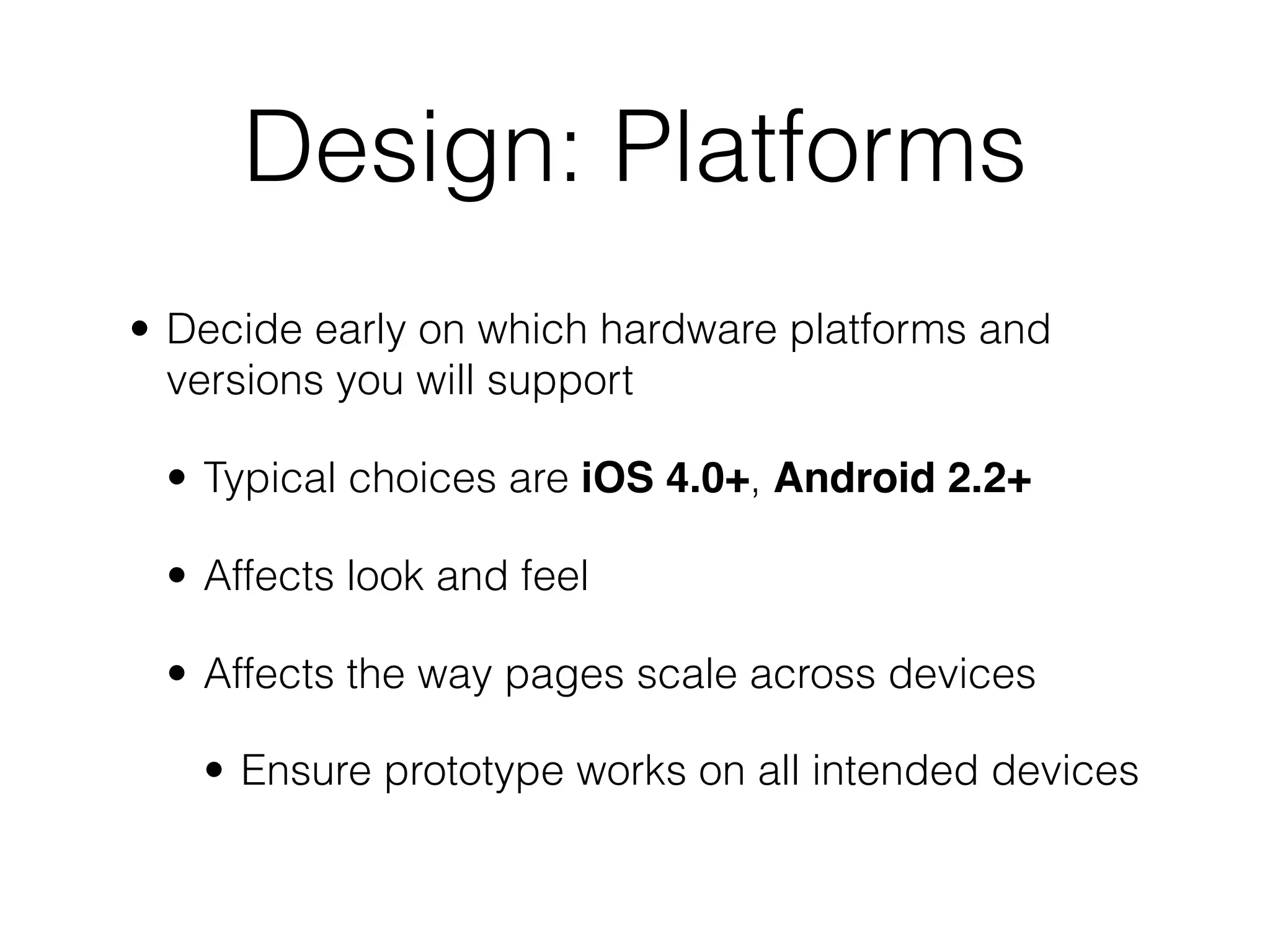

Design: Platforms
• Decide early on which hardware platforms and
versions you will support

• Typical choices are iOS 4.0+, Android 2.2+

• Affects look and feel

• Affects the way pages scale across devices

• Ensure prototype works on all intended devices

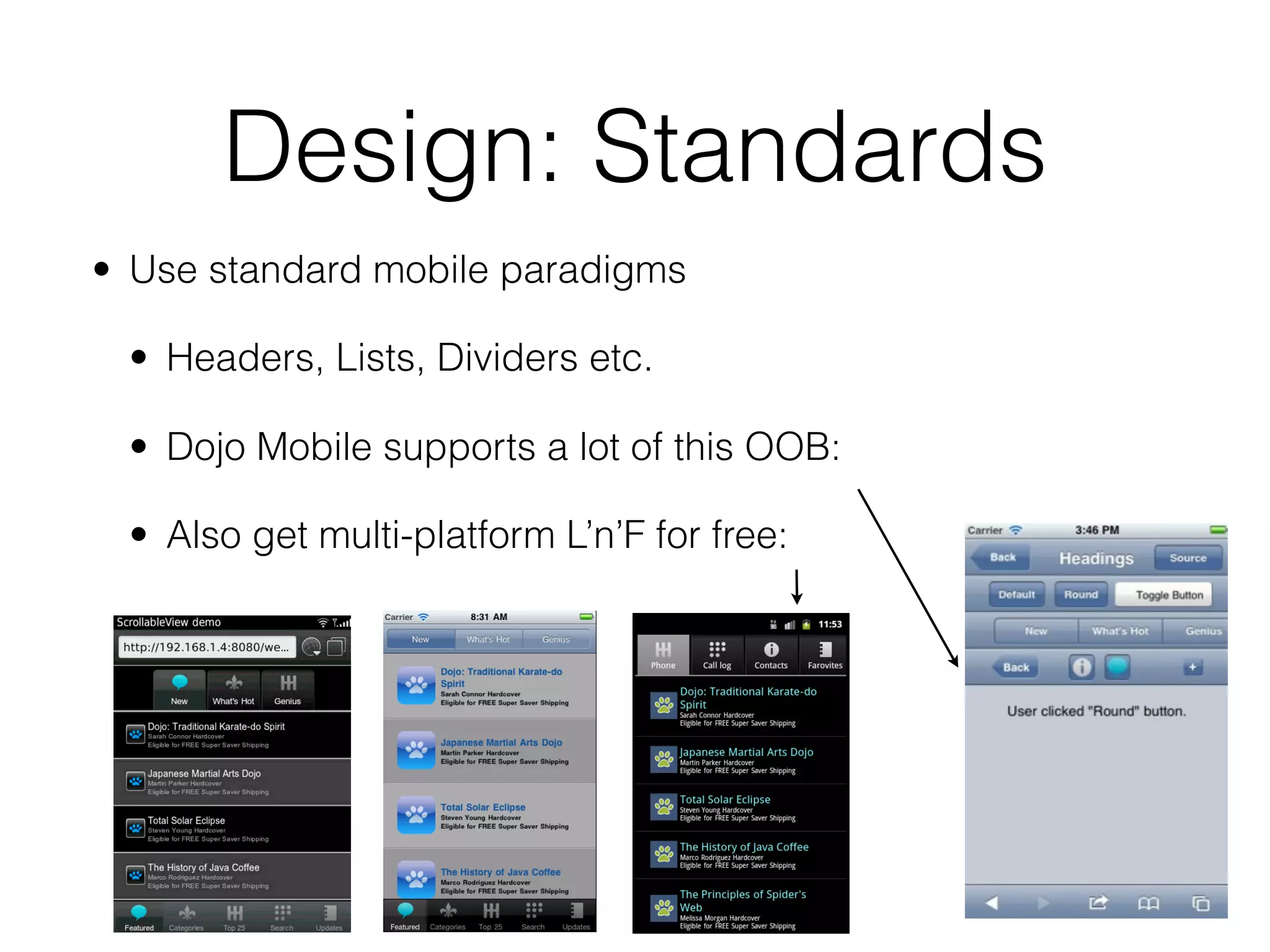

Design: Standards
• Use standard mobile paradigms

• Headers, Lists, Dividers etc.

• Dojo Mobile supports a lot of this OOB:

• Also get multi-platform L’n’F for free:

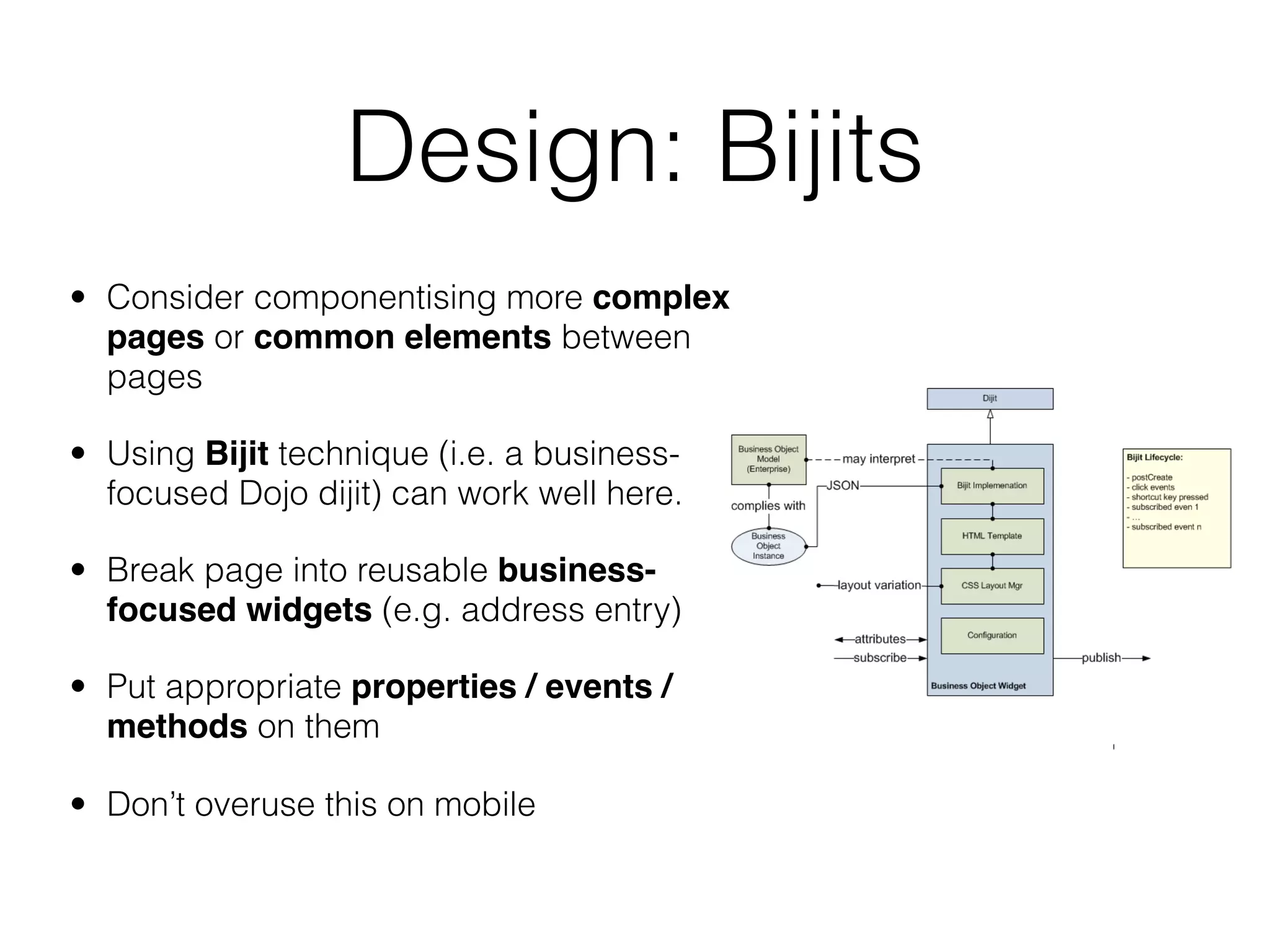

Design: Bijits
• Consider componentising more complex
pages or common elements between
pages

• Using Bijit technique (i.e. a business-
focused Dojo dijit) can work well here.

• Break page into reusable business-
focused widgets (e.g. address entry)

• Put appropriate properties / events /
methods on them

• Don’t overuse this on mobile

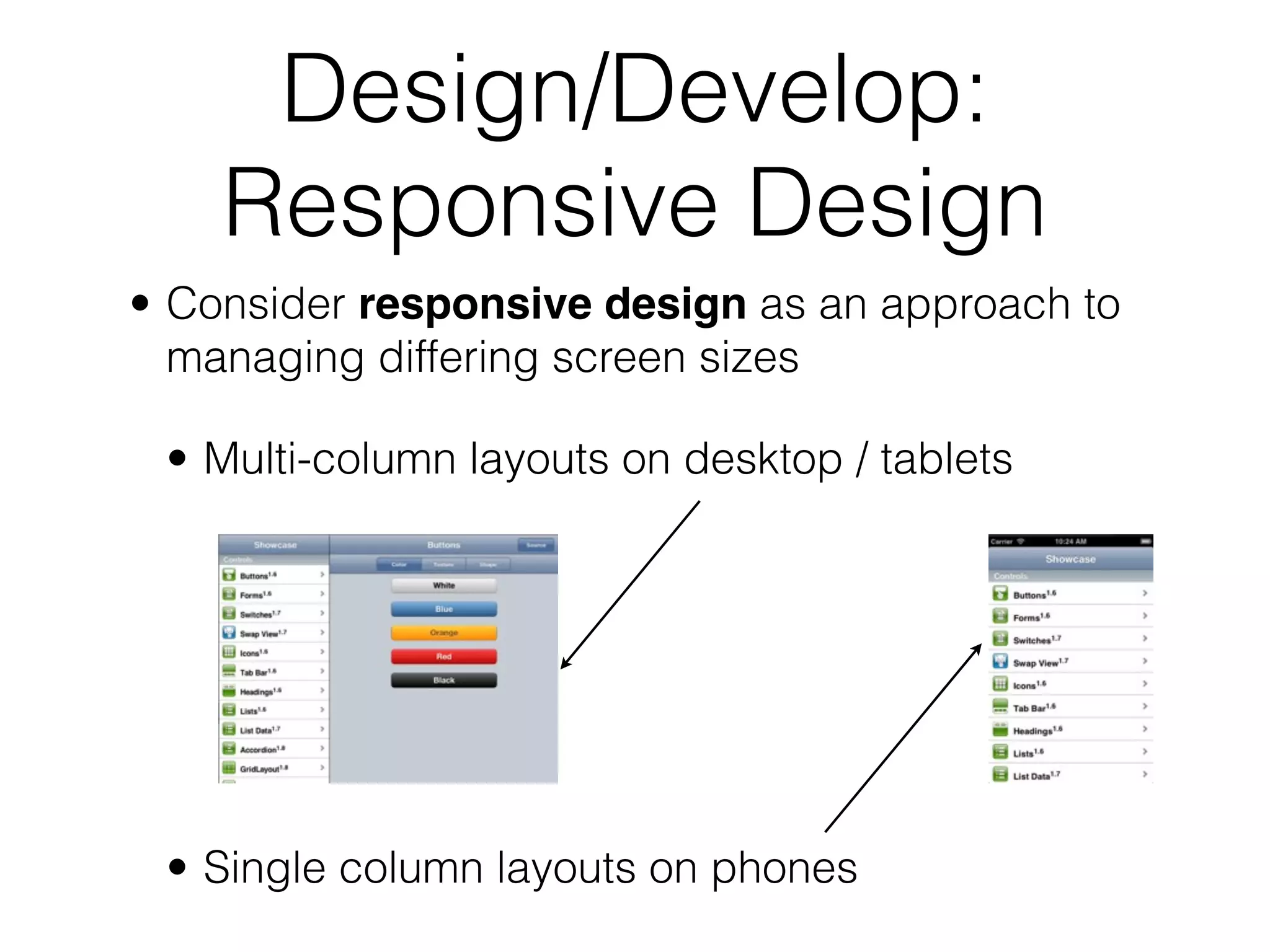

Design/Develop:
Responsive Design
• Consider responsive design as an approach to
managing differing screen sizes

• Multi-column layouts on desktop / tablets

• Single column layouts on phones

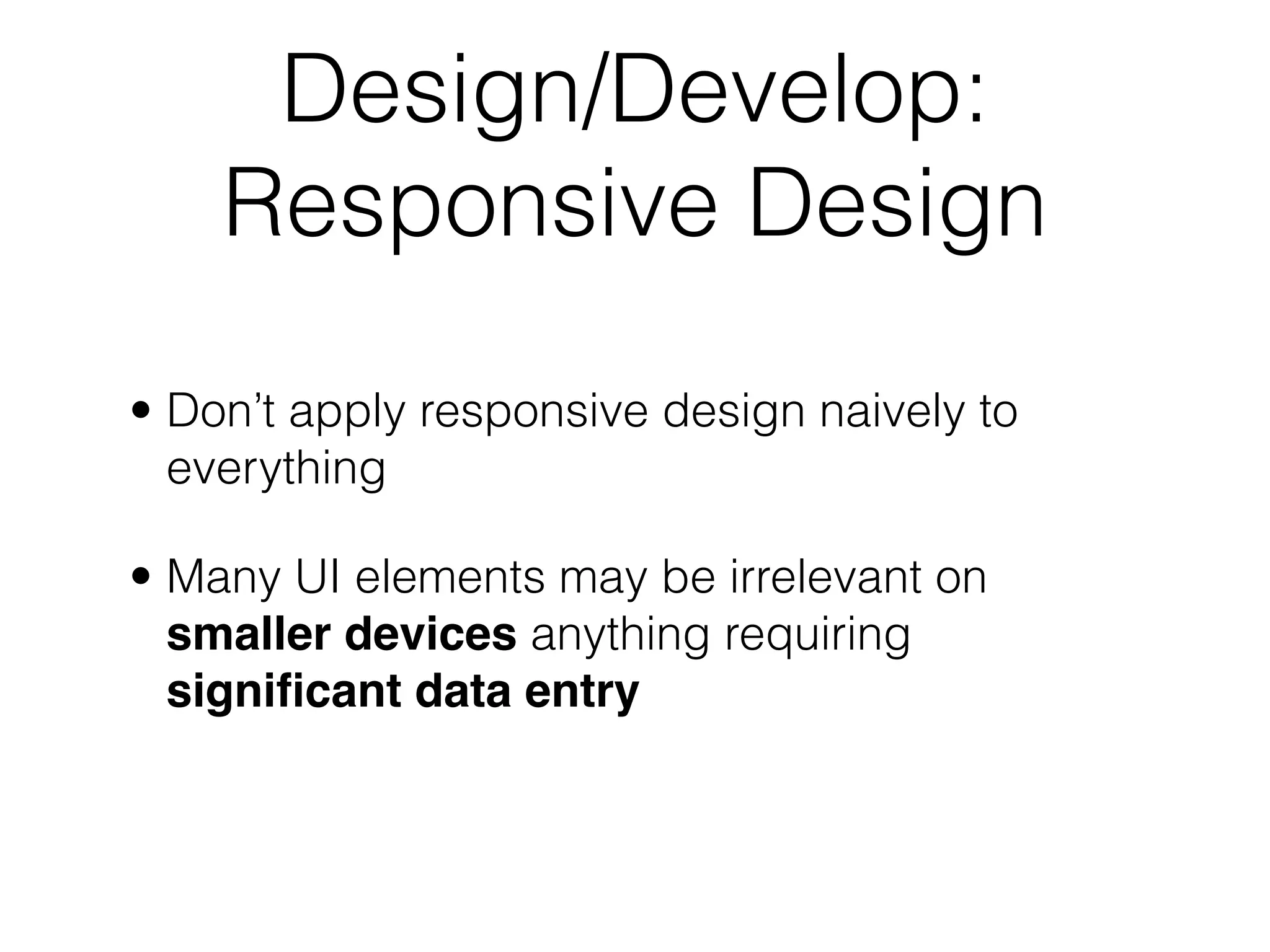

Design/Develop:
Responsive Design

• Don’t apply responsive design naively to
everything

• Many UI elements may be irrelevant on
smaller devices anything requiring
signiﬁcant data entry

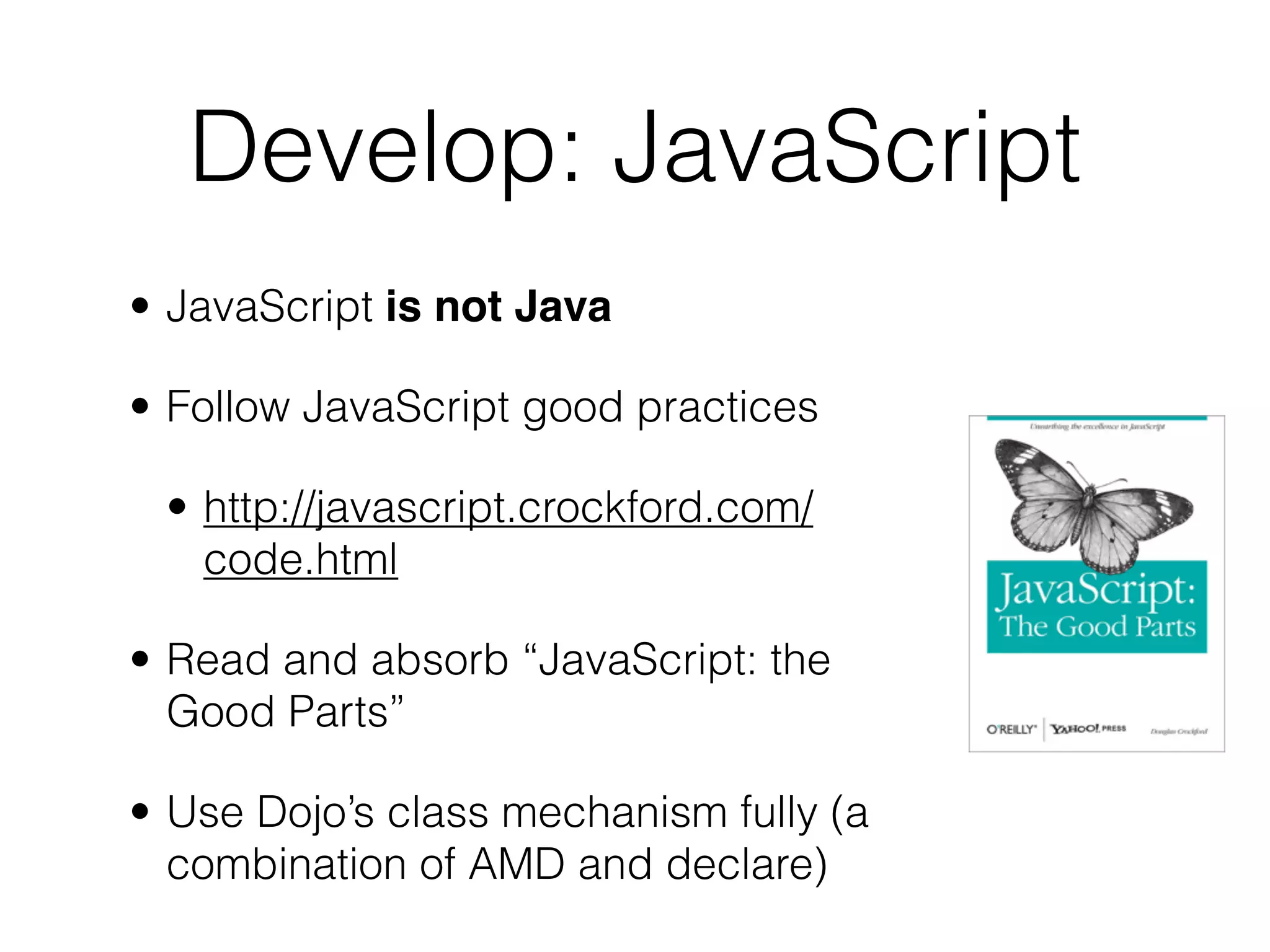

Develop: JavaScript
• JavaScript is not Java

• Follow JavaScript good practices

• http://javascript.crockford.com/
code.html

• Read and absorb “JavaScript: the
Good Parts”

• Use Dojo’s class mechanism fully (a
combination of AMD and declare)

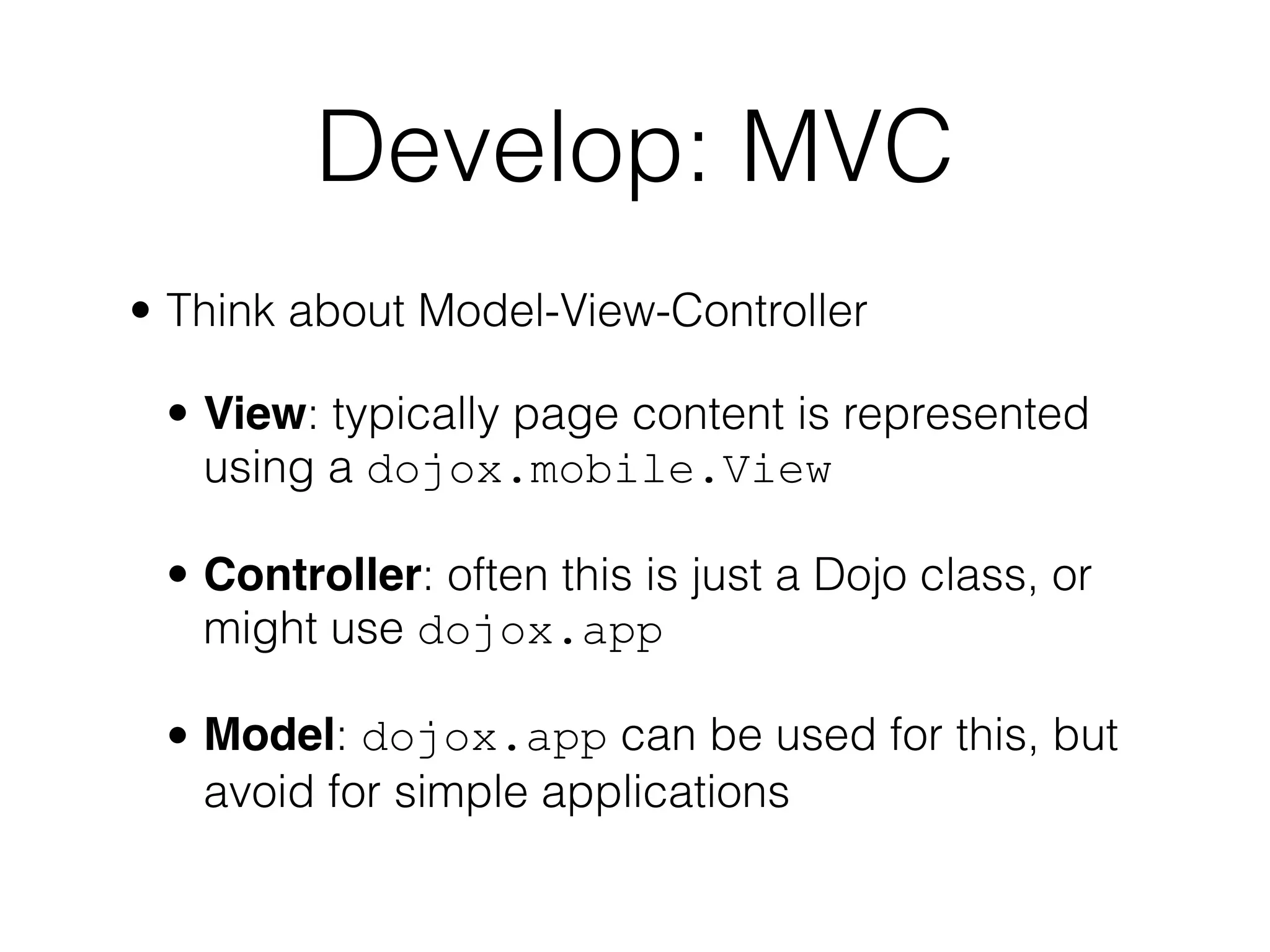

Develop: MVC
• Think about Model-View-Controller

• View: typically page content is represented
using a dojox.mobile.View

• Controller: often this is just a Dojo class, or
might use dojox.app

• Model: dojox.app can be used for this, but
avoid for simple applications

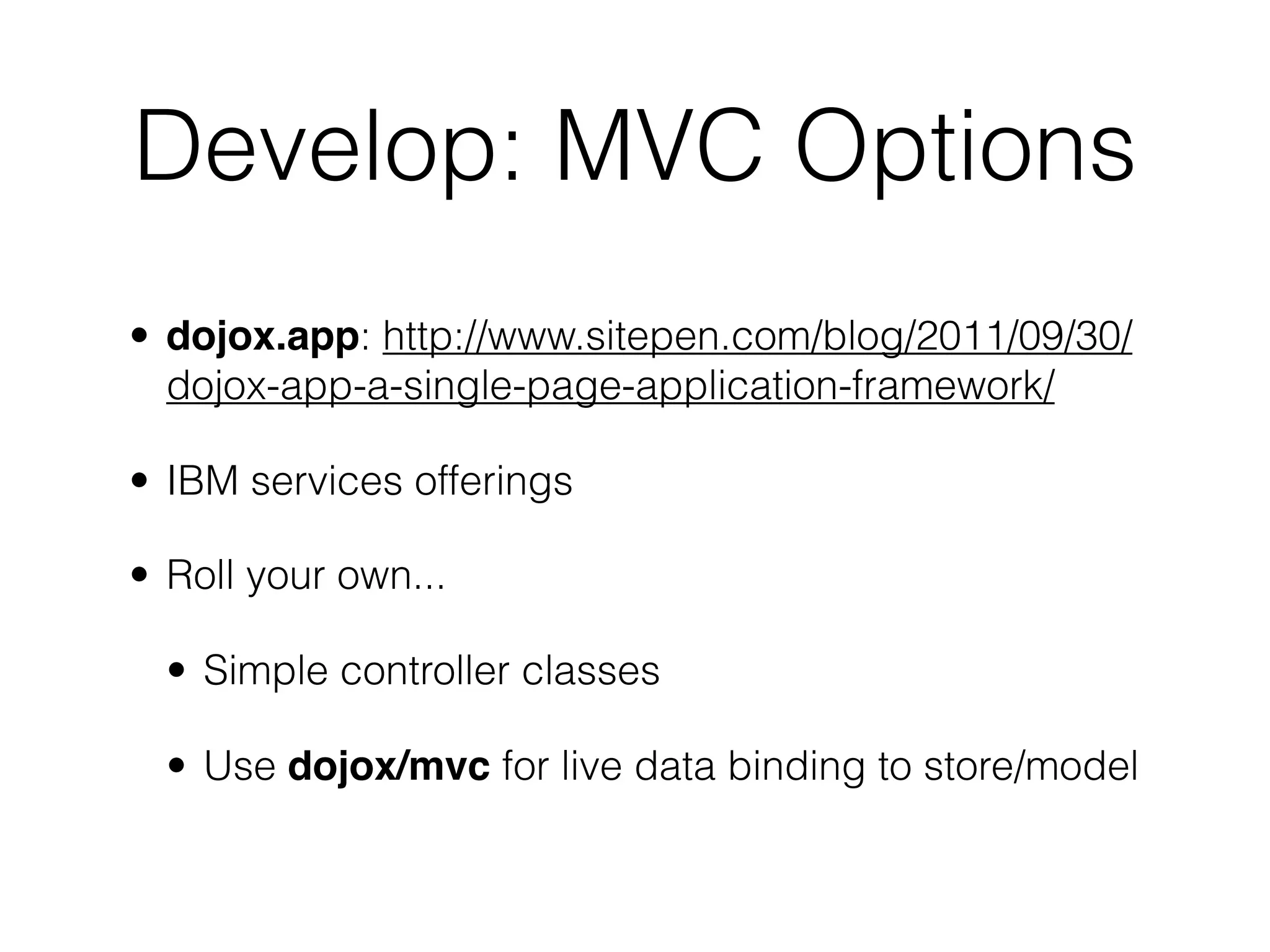

Develop: MVC Options
• dojox.app: http://www.sitepen.com/blog/2011/09/30/
dojox-app-a-single-page-application-framework/

• IBM services offerings

• Roll your own...

• Simple controller classes

• Use dojox/mvc for live data binding to store/model

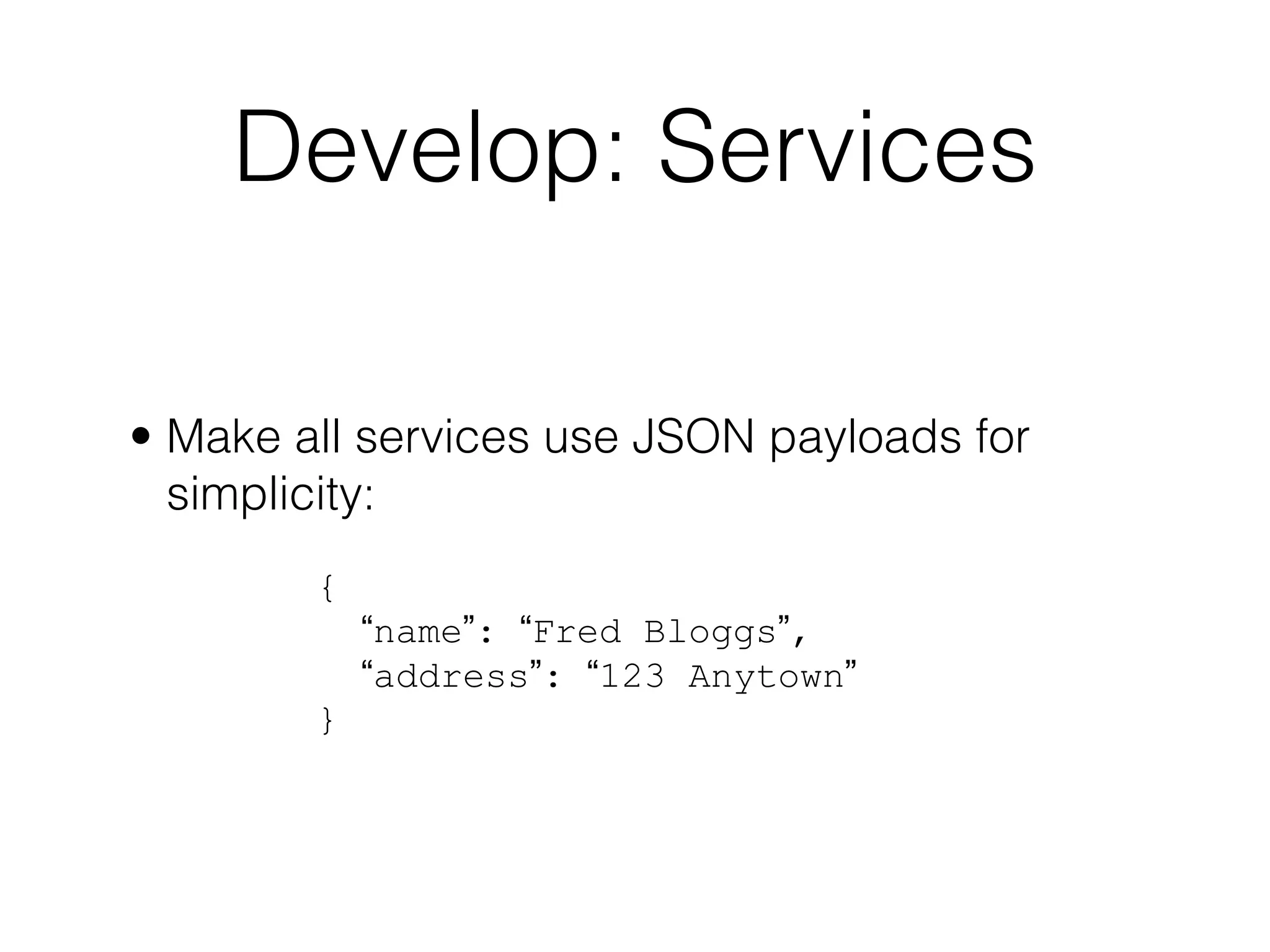

Develop: Services

• Make all services use JSON payloads for
simplicity:
{
“name”: “Fred Bloggs”,
“address”: “123 Anytown”
}

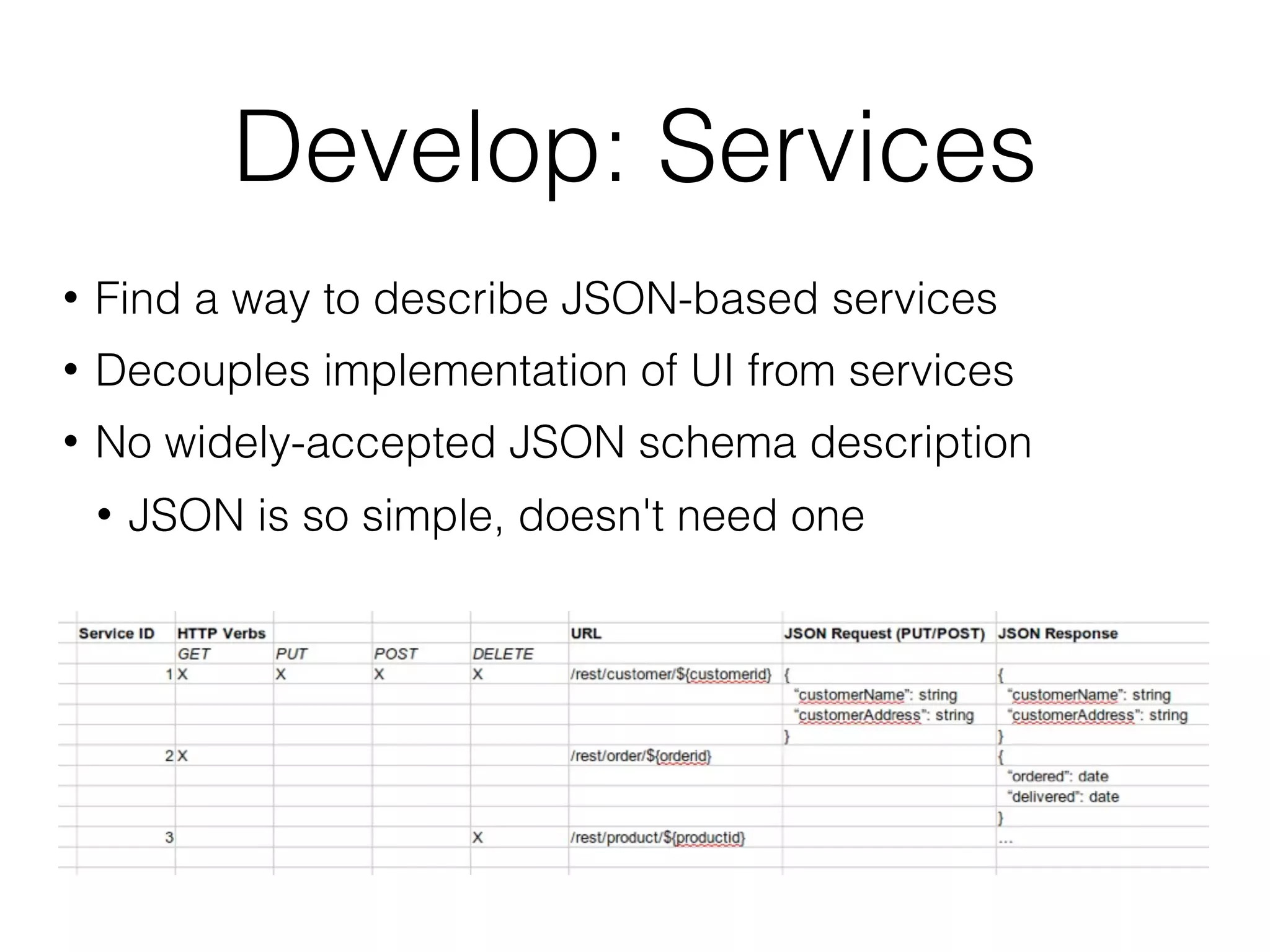

Develop: Services
 Find a way to describe JSON-based services
 Decouples implementation of UI from services
 No widely-accepted JSON schema description
 JSON is so simple, doesn't need one

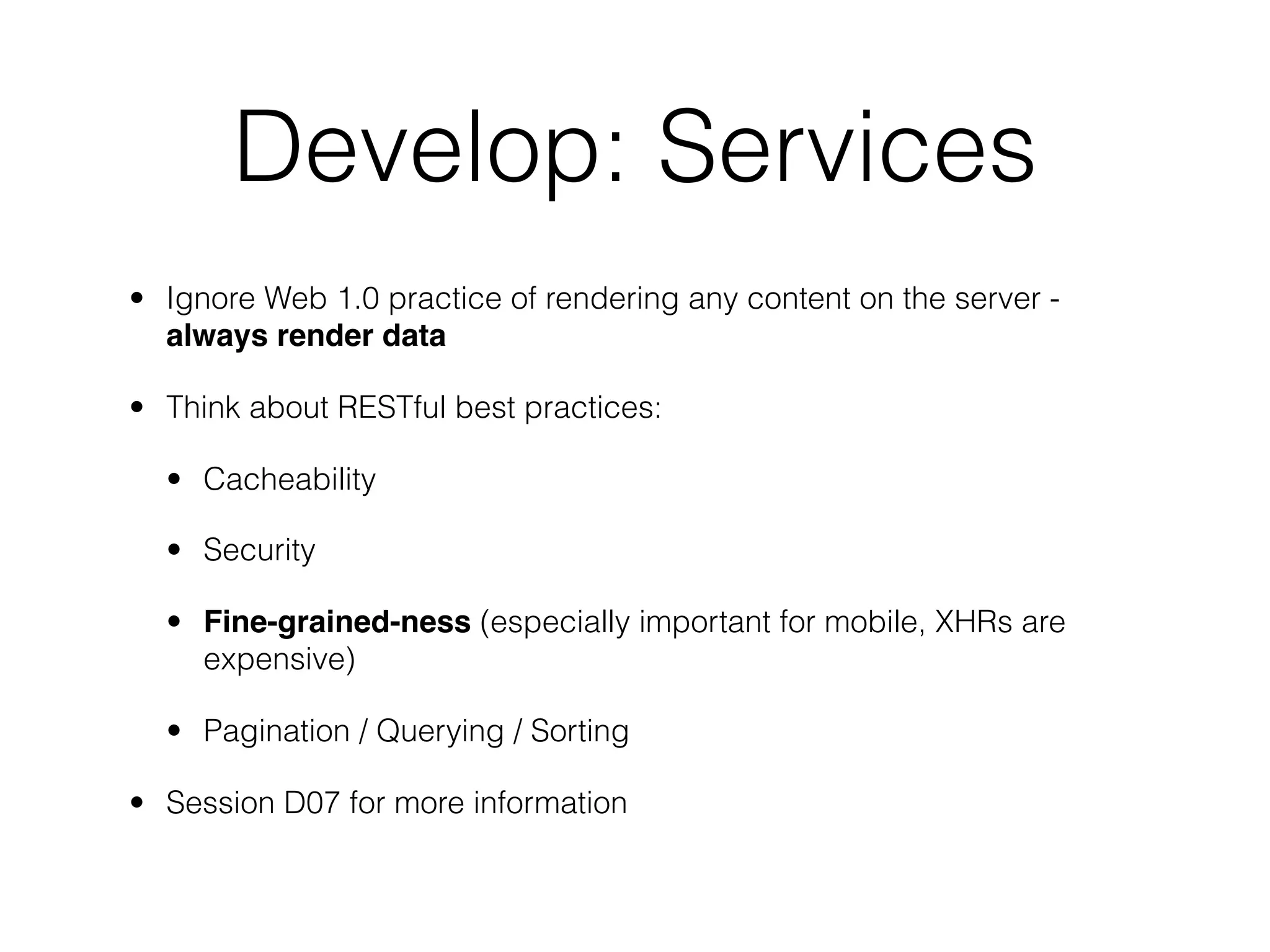

Develop: Services
• Ignore Web 1.0 practice of rendering any content on the server -
always render data

• Think about RESTful best practices:

• Cacheability

• Security

• Fine-grained-ness (especially important for mobile, XHRs are
expensive)

• Pagination / Querying / Sorting

• Session D07 for more information

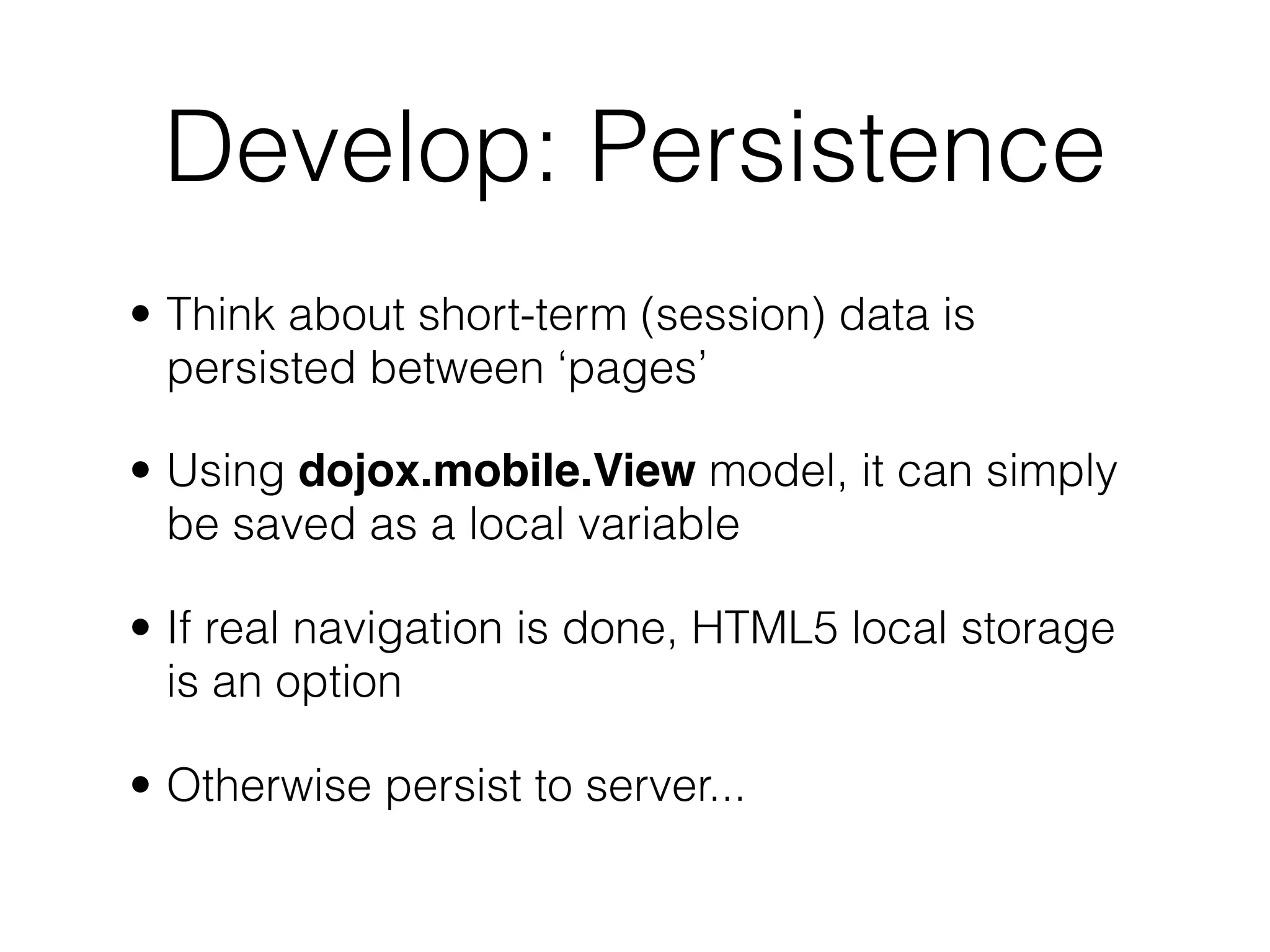

Develop: Persistence
• Think about short-term (session) data is
persisted between ‘pages’

• Using dojox.mobile.View model, it can simply
be saved as a local variable

• If real navigation is done, HTML5 local storage
is an option

• Otherwise persist to server...

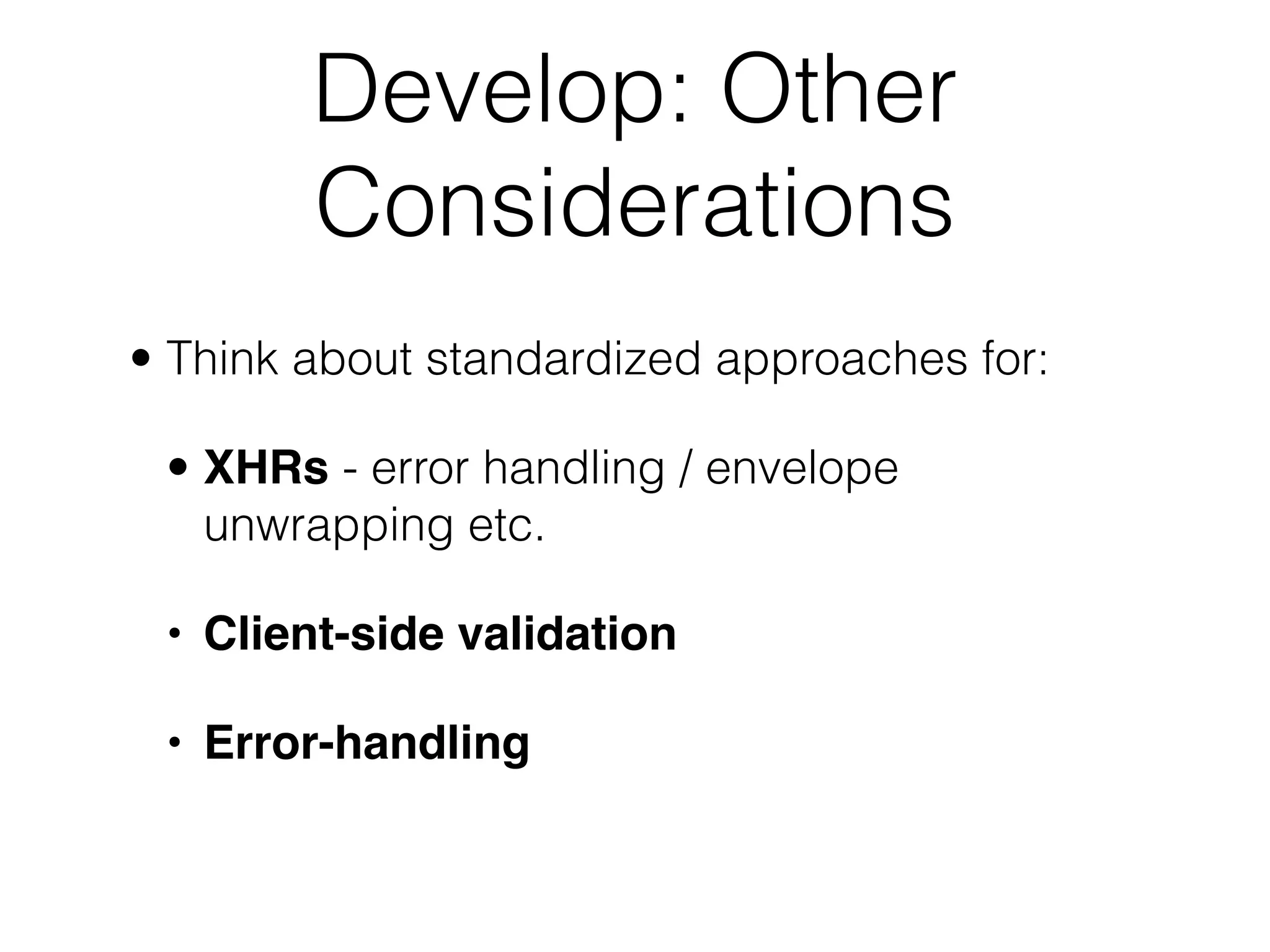

Develop: Other
Considerations
• Think about standardized approaches for:

• XHRs - error handling / envelope
unwrapping etc.

• Client-side validation

• Error-handling

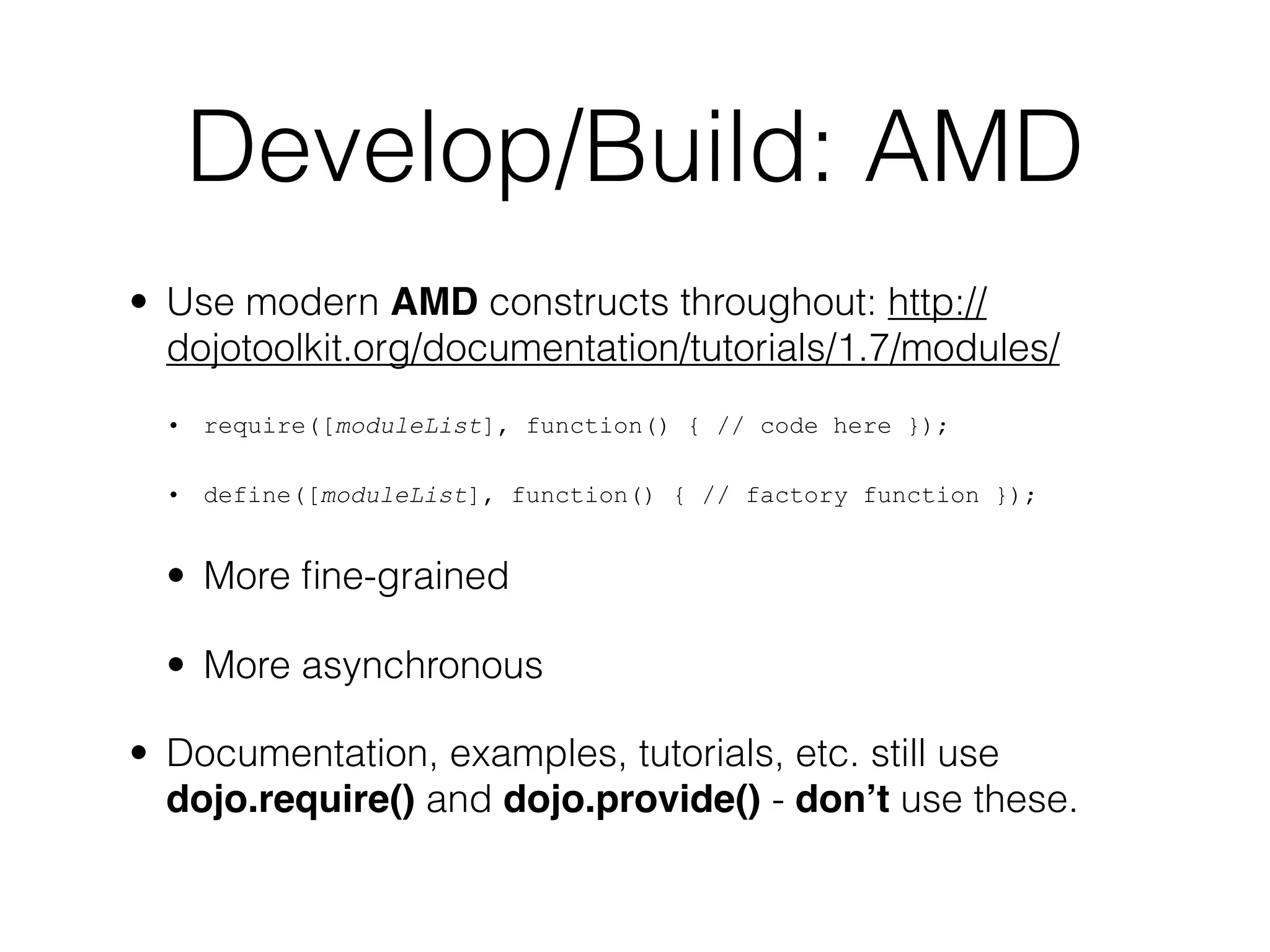

Develop/Build: AMD
• Use modern AMD constructs throughout: http://
dojotoolkit.org/documentation/tutorials/1.7/modules/
• require([moduleList], function() { // code here });

• define([moduleList], function() { // factory function });

• More ﬁne-grained

• More asynchronous

• Documentation, examples, tutorials, etc. still use
dojo.require() and dojo.provide() - don’t use these.

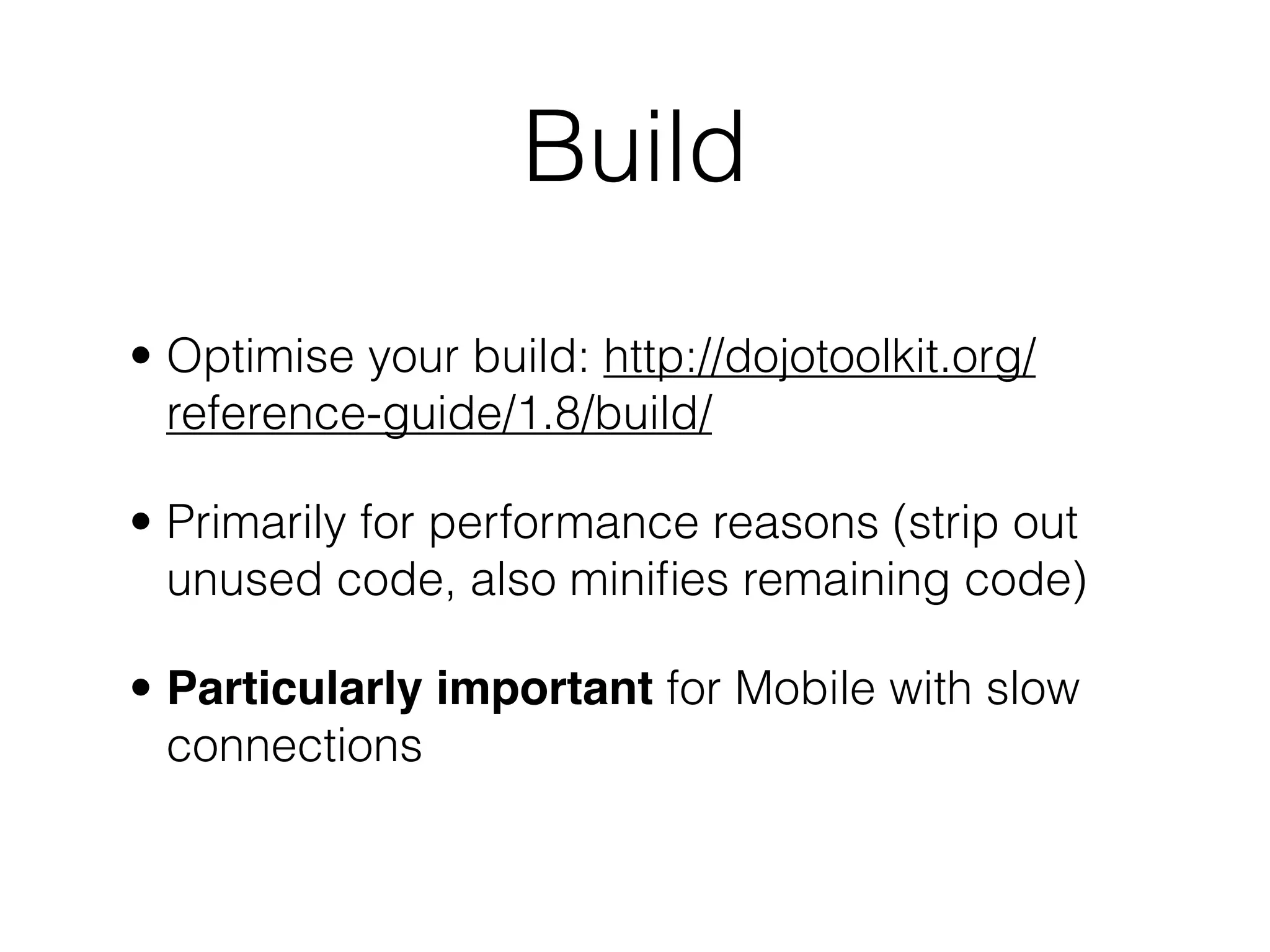

Build
• Optimise your build: http://dojotoolkit.org/
reference-guide/1.8/build/

• Primarily for performance reasons (strip out
unused code, also miniﬁes remaining code)

• Particularly important for Mobile with slow
connections

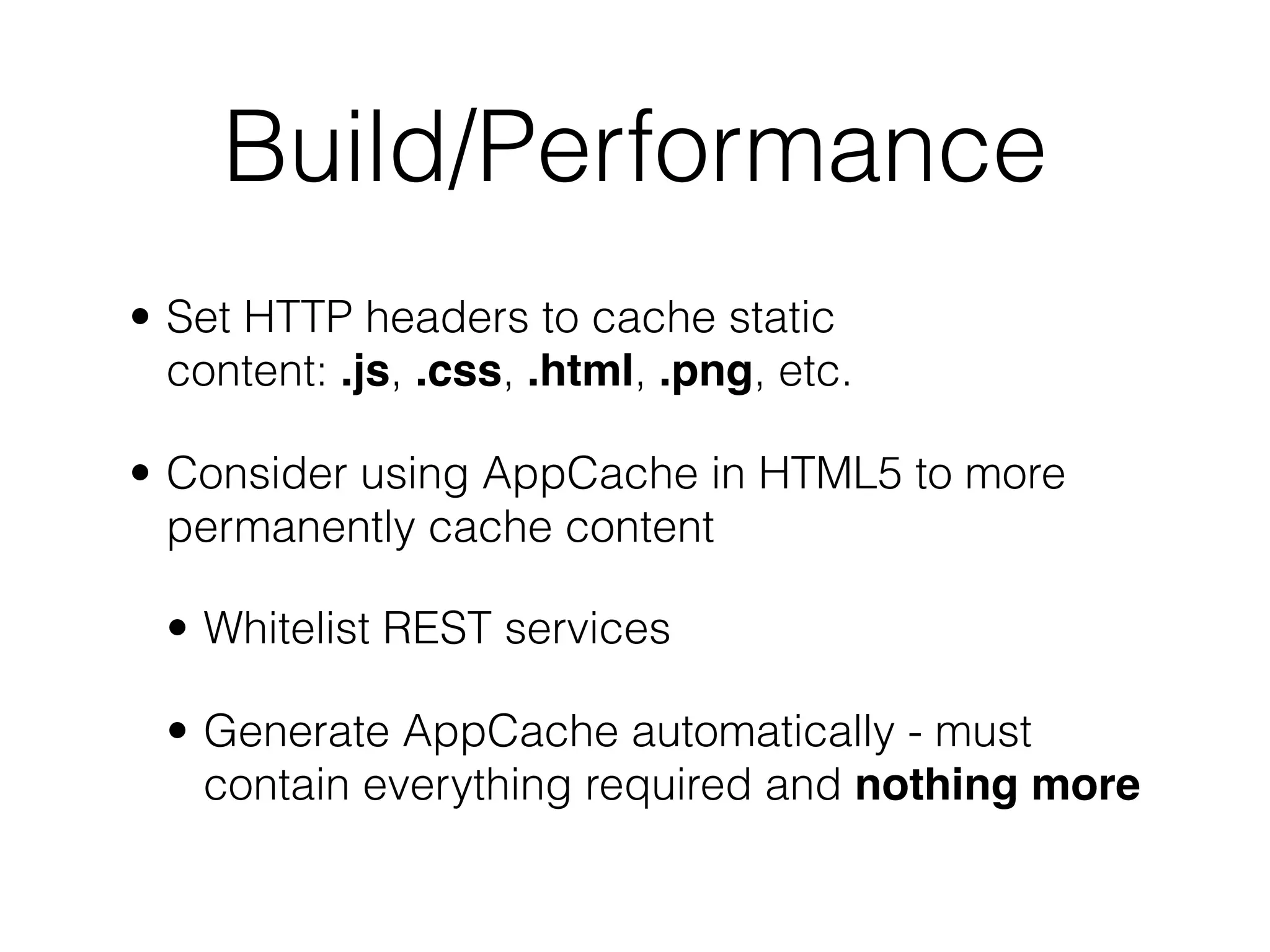

Build/Performance
• Set HTTP headers to cache static
content: .js, .css, .html, .png, etc.

• Consider using AppCache in HTML5 to more
permanently cache content

• Whitelist REST services

• Generate AppCache automatically - must
contain everything required and nothing more

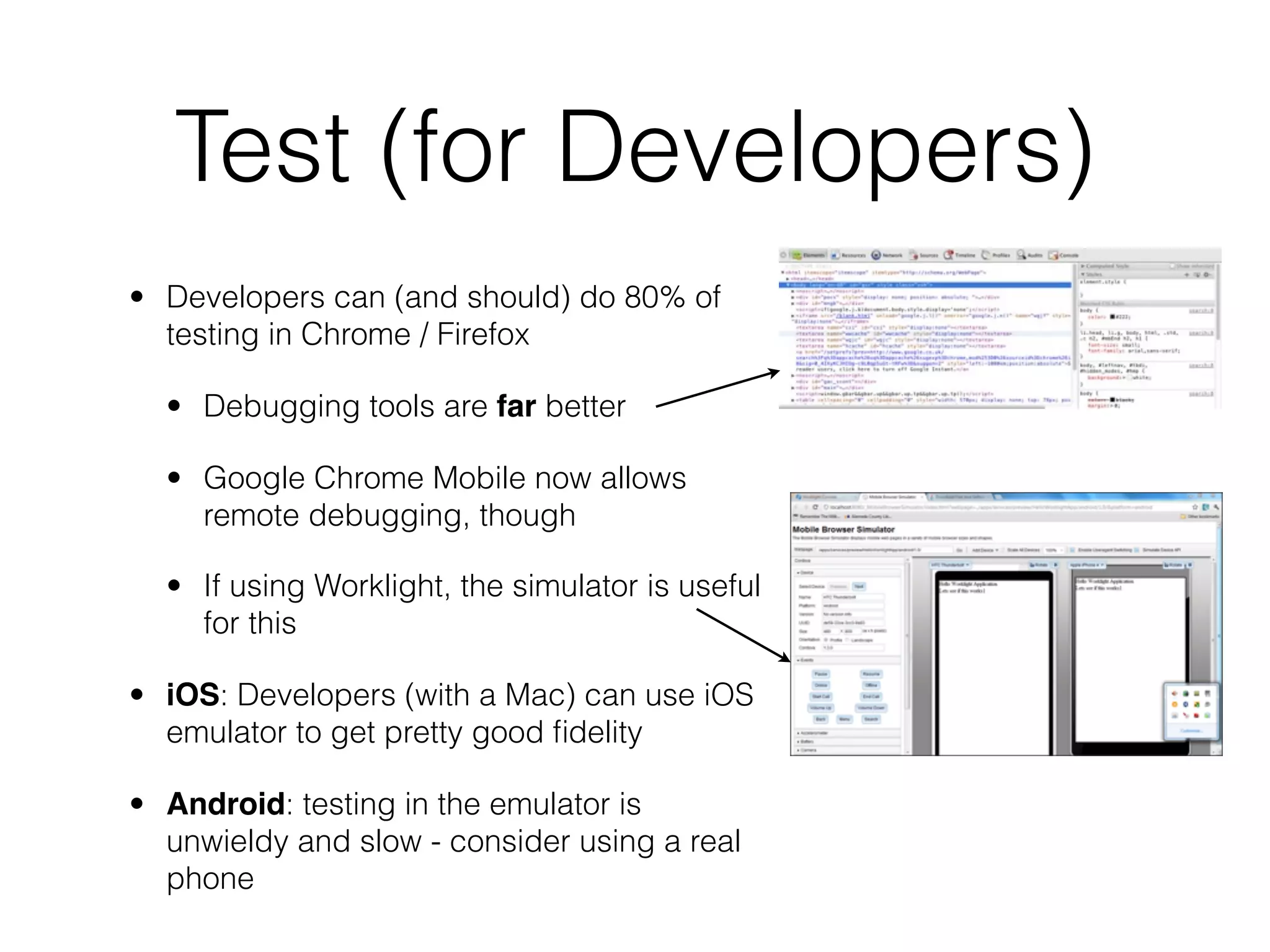

Test (for Developers)
• Developers can (and should) do 80% of
testing in Chrome / Firefox

• Debugging tools are far better

• Google Chrome Mobile now allows
remote debugging, though

• If using Worklight, the simulator is useful
for this

• iOS: Developers (with a Mac) can use iOS
emulator to get pretty good ﬁdelity

• Android: testing in the emulator is
unwieldy and slow - consider using a real
phone

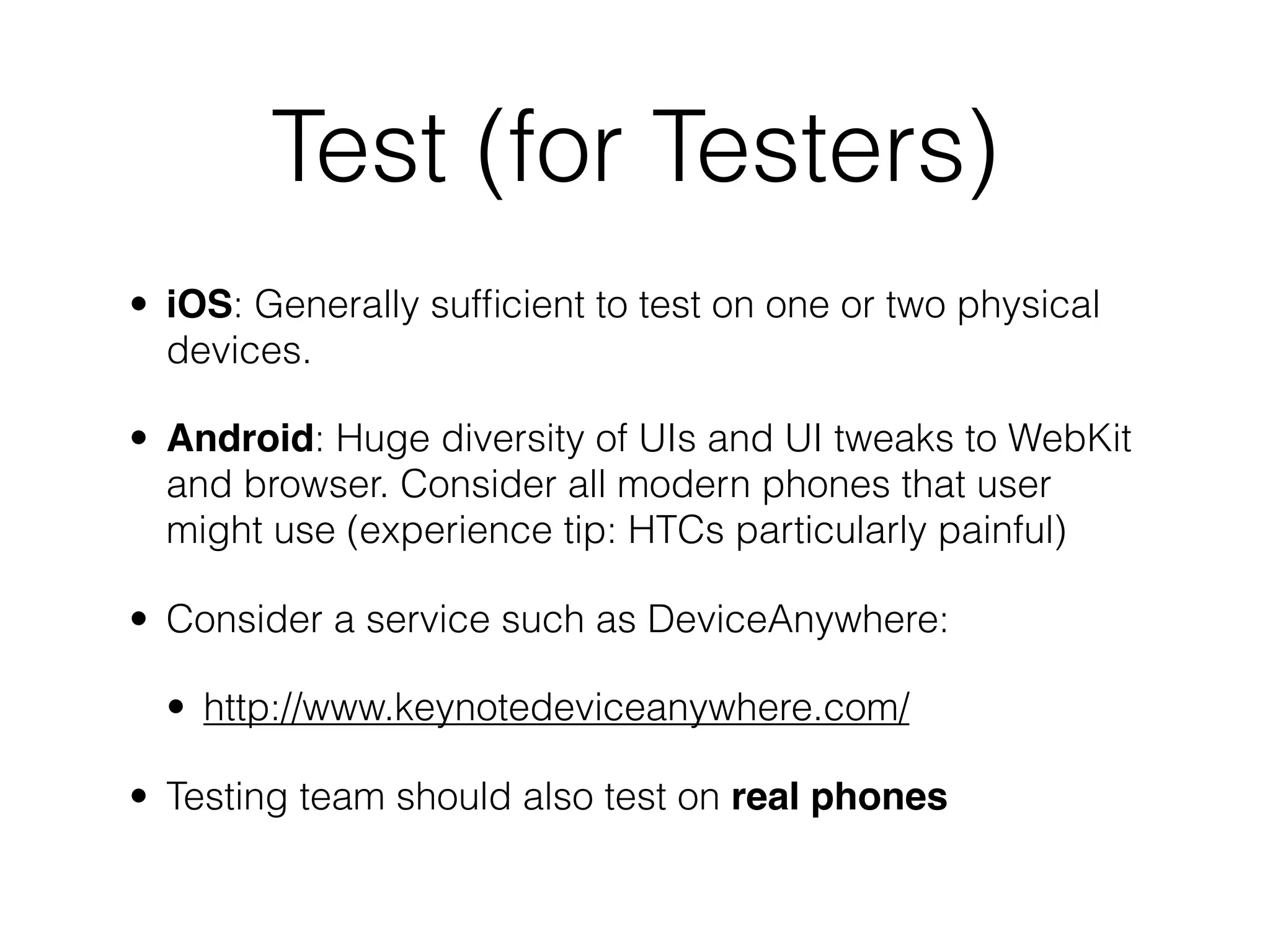

Test (for Testers)
• iOS: Generally sufﬁcient to test on one or two physical
devices.

• Android: Huge diversity of UIs and UI tweaks to WebKit
and browser. Consider all modern phones that user
might use (experience tip: HTCs particularly painful)

• Consider a service such as DeviceAnywhere:

• http://www.keynotedeviceanywhere.com/

• Testing team should also test on real phones

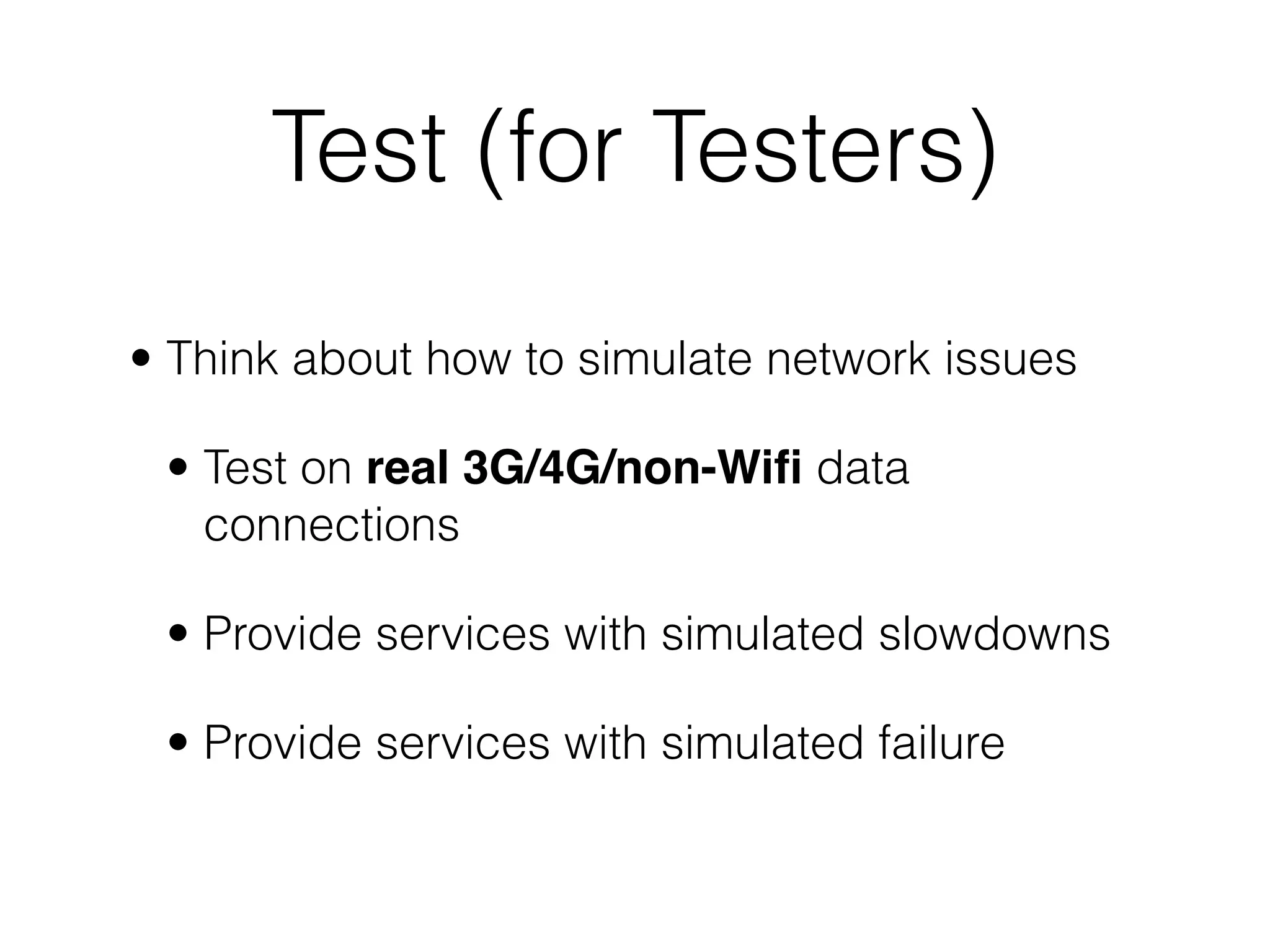

Test (for Testers)
• Think about how to simulate network issues

• Test on real 3G/4G/non-Wiﬁ data
connections

• Provide services with simulated slowdowns

• Provide services with simulated failure

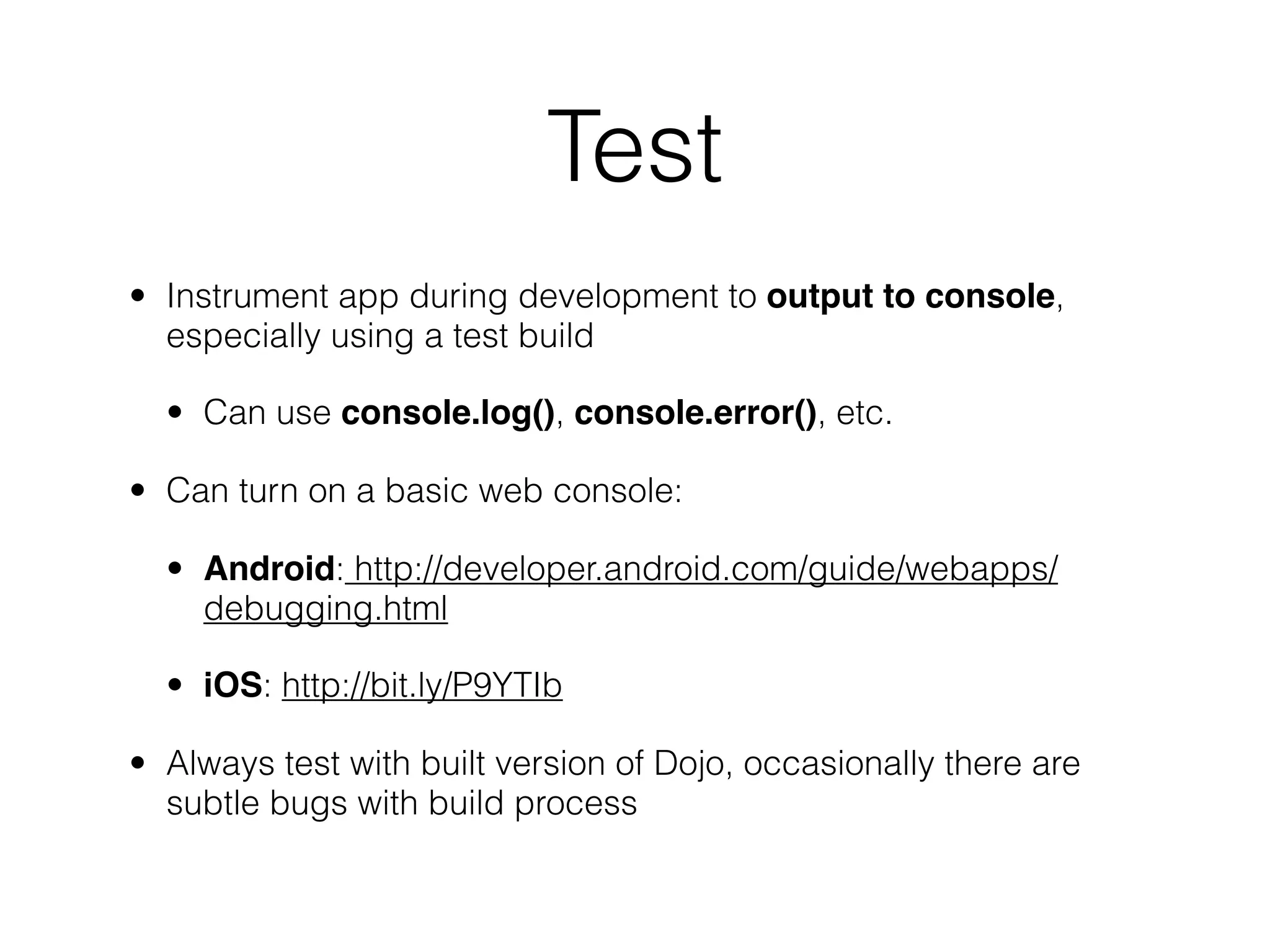

Test
• Instrument app during development to output to console,
especially using a test build

• Can use console.log(), console.error(), etc.

• Can turn on a basic web console:

• Android: http://developer.android.com/guide/webapps/
debugging.html

• iOS: http://bit.ly/P9YTIb

• Always test with built version of Dojo, occasionally there are
subtle bugs with build process

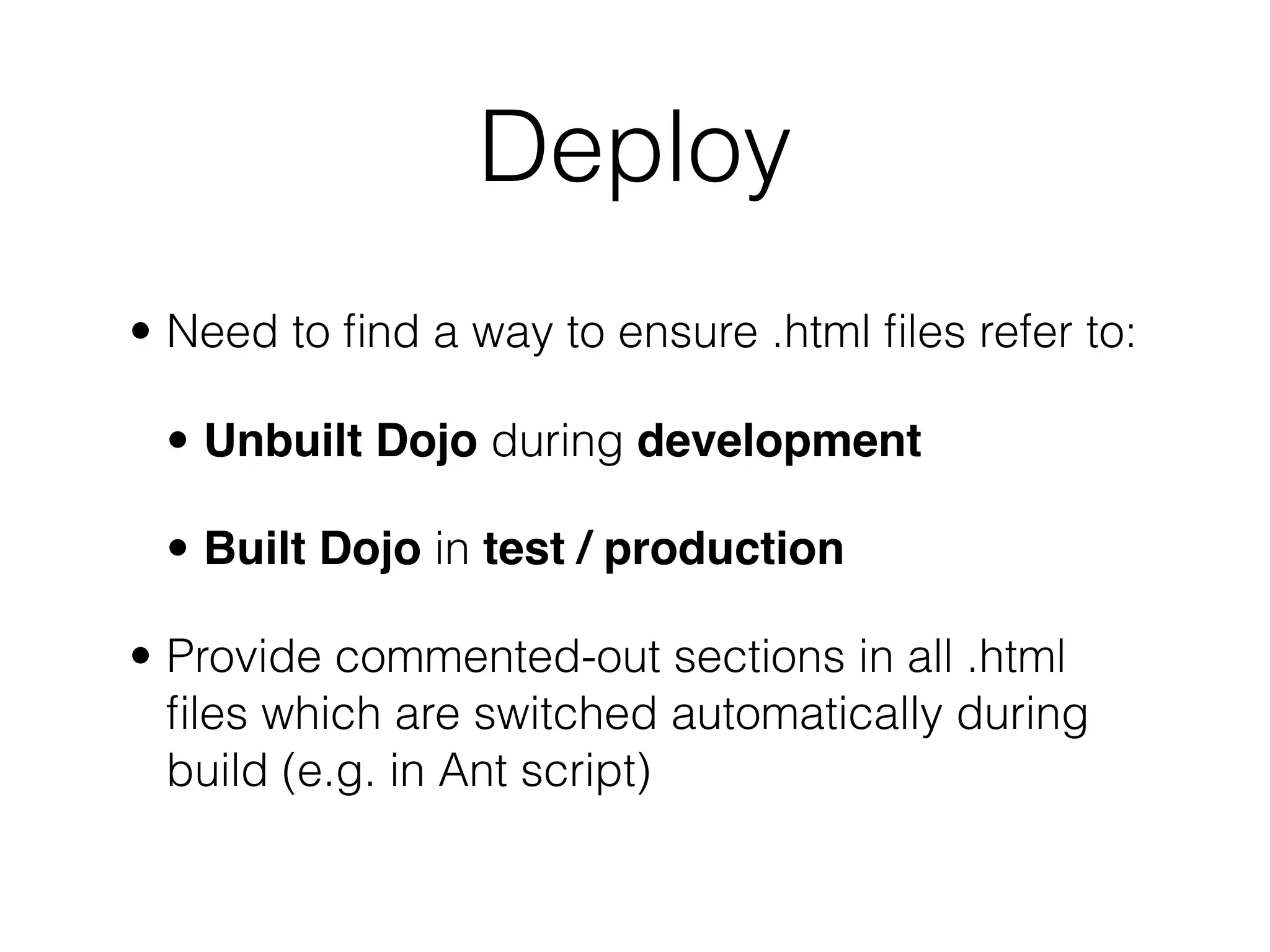

Deploy
• Need to find a way to ensure .html files refer to:

• Unbuilt Dojo during development

• Built Dojo in test / production

• Provide commented-out sections in all .html
files which are switched automatically during
build (e.g. in Ant script)

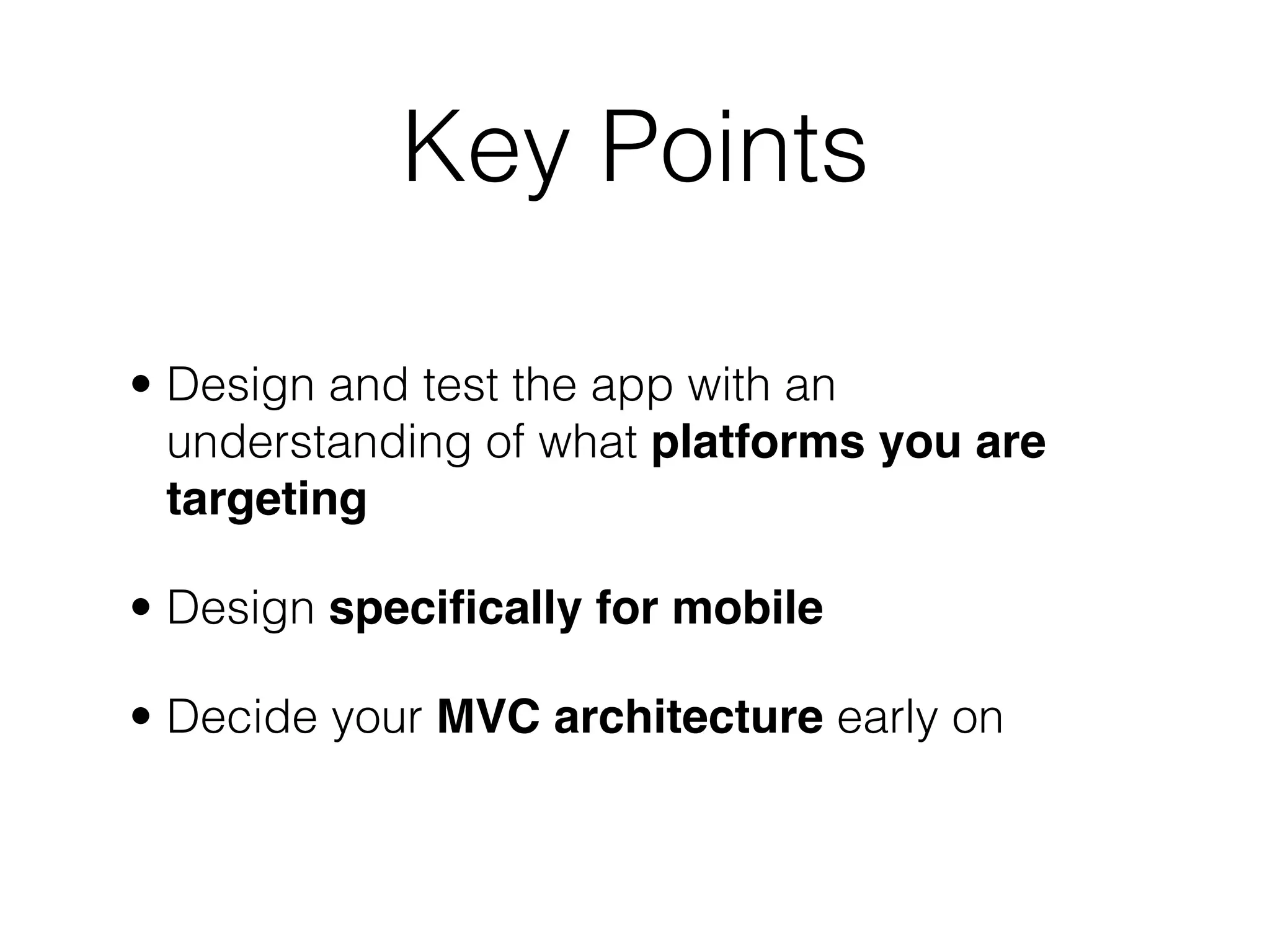

Key Points

• Design and test the app with an
understanding of what platforms you are
targeting

• Design speciﬁcally for mobile

• Decide your MVC architecture early on

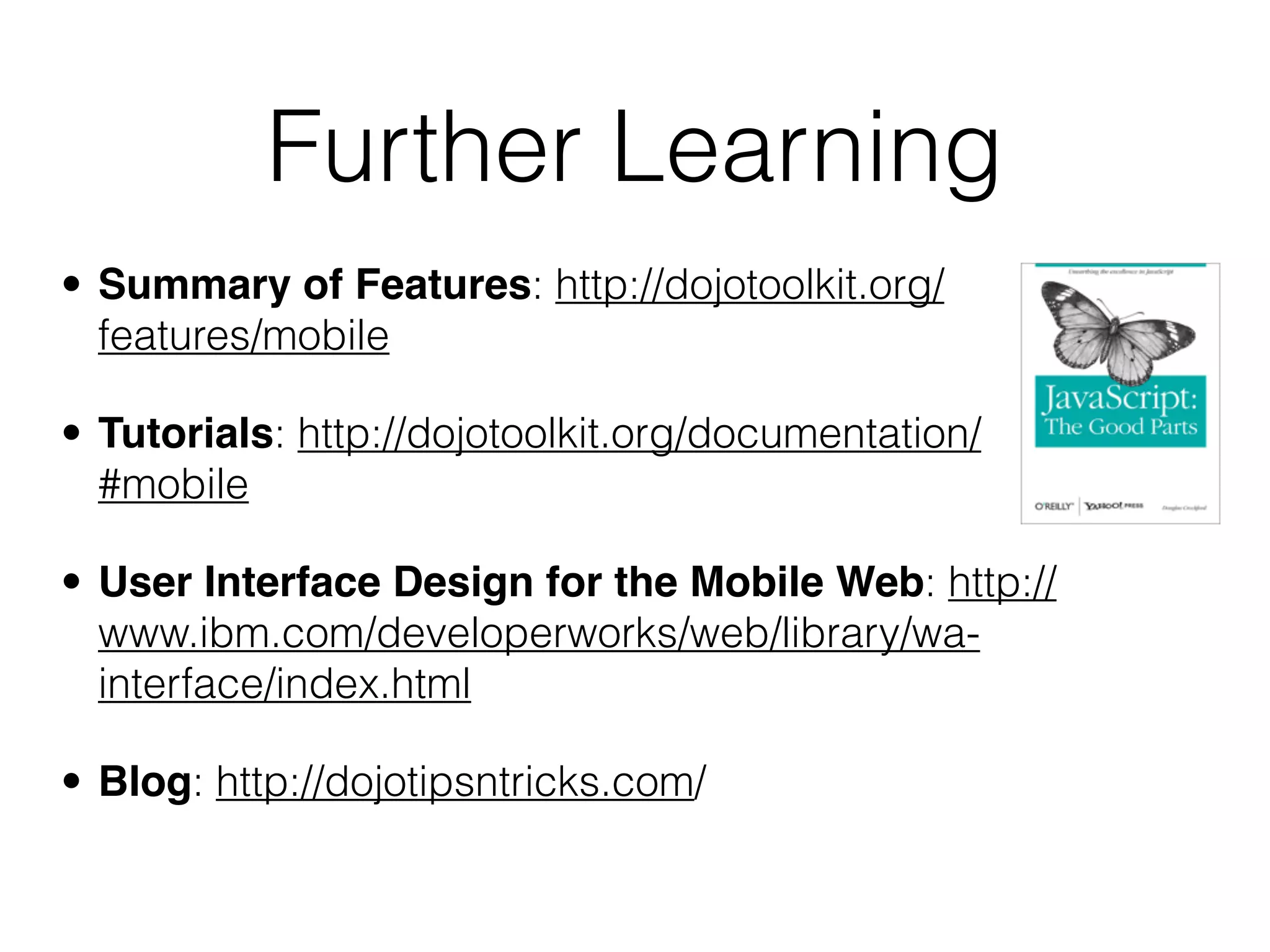

Further Learning
• Summary of Features: http://dojotoolkit.org/
features/mobile

• Tutorials: http://dojotoolkit.org/documentation/
#mobile

• User Interface Design for the Mobile Web: http://
www.ibm.com/developerworks/web/library/wa-
interface/index.html

• Blog: http://dojotipsntricks.com/

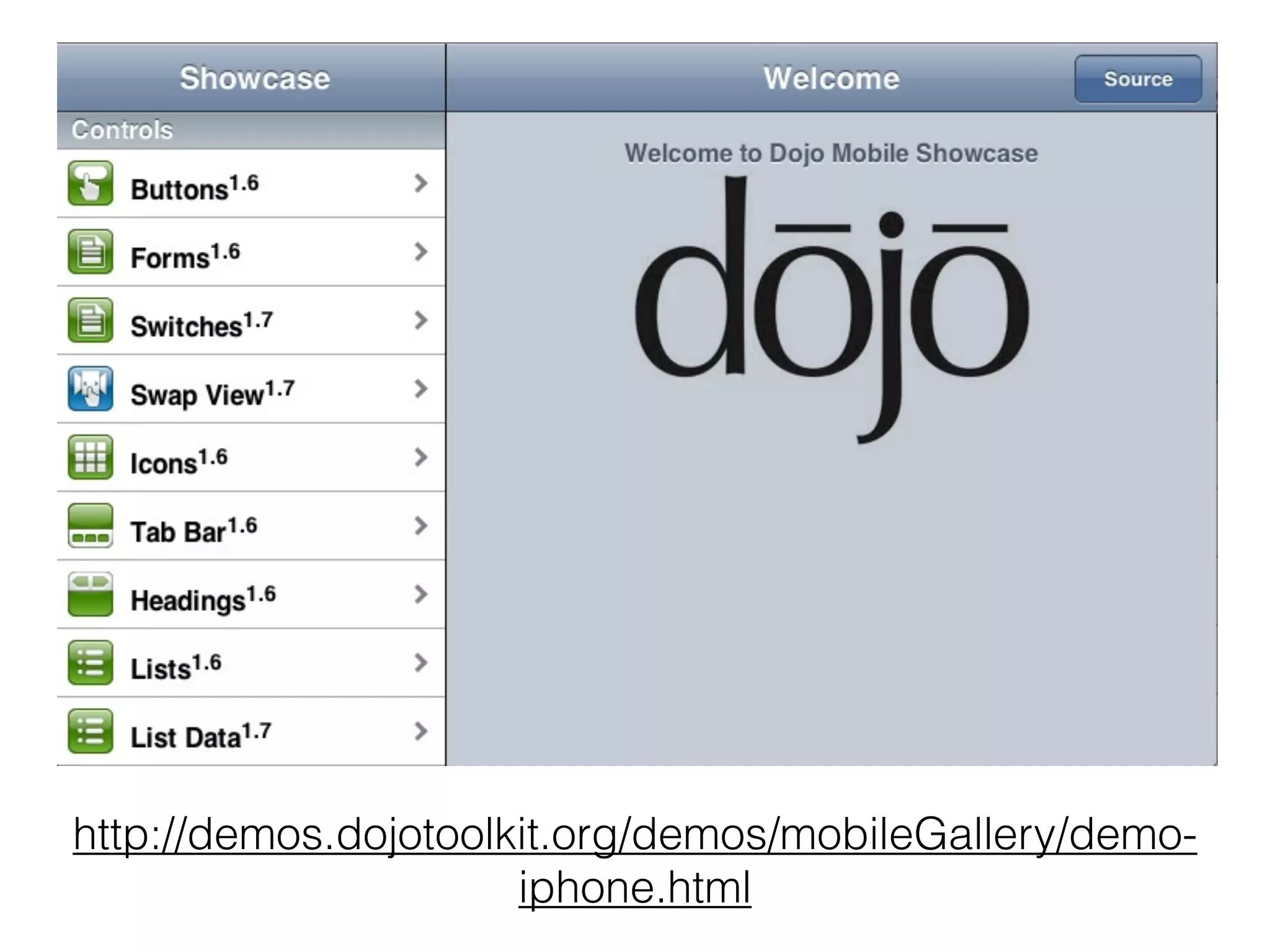

http://demos.dojotoolkit.org/demos/mobileGallery/demo-
iphone.html

IBM WebSphere Technical Convention 2012 – Berlin, Germany

Questions?

As a reminder, please fill out a session evaluation


IBM WebSphere Technical Convention 2012 – Berlin, Germany

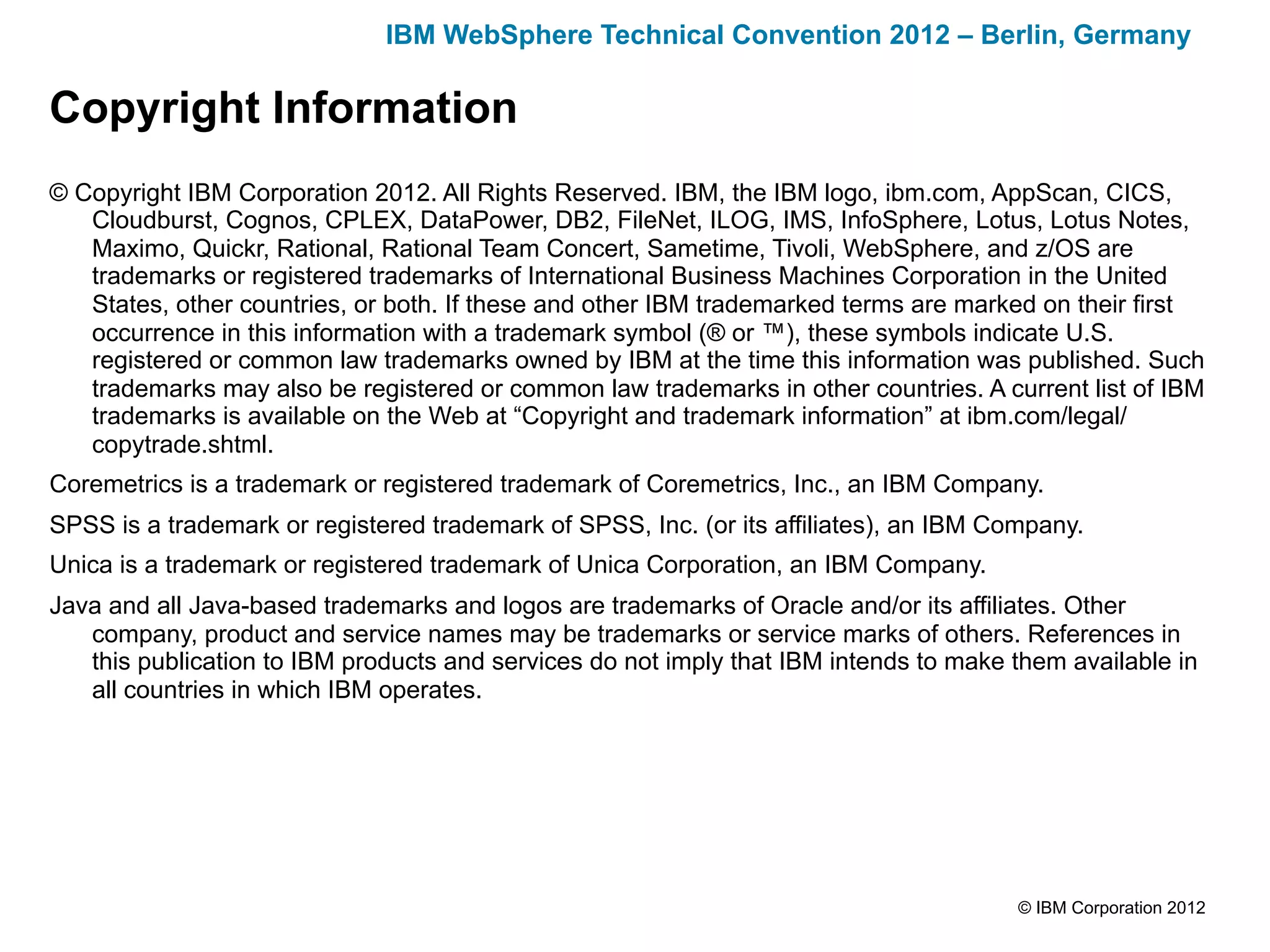

Copyright Information
© Copyright IBM Corporation 2012. All Rights Reserved. IBM, the IBM logo, ibm.com, AppScan, CICS,
Cloudburst, Cognos, CPLEX, DataPower, DB2, FileNet, ILOG, IMS, InfoSphere, Lotus, Lotus Notes,
Maximo, Quickr, Rational, Rational Team Concert, Sametime, Tivoli, WebSphere, and z/OS are
trademarks or registered trademarks of International Business Machines Corporation in the United
States, other countries, or both. If these and other IBM trademarked terms are marked on their first
occurrence in this information with a trademark symbol (® or ™), these symbols indicate U.S.
registered or common law trademarks owned by IBM at the time this information was published. Such
trademarks may also be registered or common law trademarks in other countries. A current list of IBM
trademarks is available on the Web at “Copyright and trademark information” at ibm.com/legal/
copytrade.shtml.
Coremetrics is a trademark or registered trademark of Coremetrics, Inc., an IBM Company.
SPSS is a trademark or registered trademark of SPSS, Inc. (or its affiliates), an IBM Company.
Unica is a trademark or registered trademark of Unica Corporation, an IBM Company.
Java and all Java-based trademarks and logos are trademarks of Oracle and/or its affiliates. Other
company, product and service names may be trademarks or service marks of others. References in
this publication to IBM products and services do not imply that IBM intends to make them available in
all countries in which IBM operates.


Real-world Dojo Mobile

More Related Content

What's hot

Similar to Real-world Dojo Mobile

More from Andrew Ferrier

Recently uploaded

Real-world Dojo Mobile

Editor's Notes
