QCon 2015 - Thinking in components: A new paradigm for Web UI
- 1. PENSANDO EM COMPONENTES: UM PARADIGMA NOVO PARA WEB UIS
- 2. Oliver Häger
- 3. 1. Introdução Uma (ultra-)breve História do Tempo
- 4. Introdução

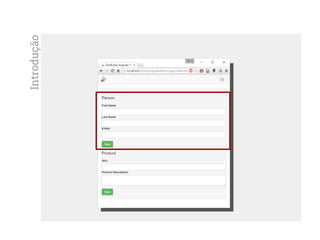

- 5. Introdução

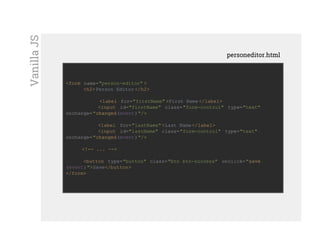

- 6. <form name="person-editor" > <h2>Person Editor </h2> <label for="firstName" >First Name</label> <input id="firstName" class="form-control" type="text" onchange="changed(event)"/> <label for="lastName">Last Name</label> <input id="lastName" class="form-control" type="text" onchange="changed(event)"/> <!-- ... --> <button type="button" class="btn btn-success" onclick="save (event)">Save</button> </form> personeditor.html VanillaJS

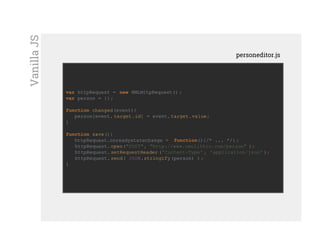

- 7. var httpRequest = new XMLHttpRequest() ; var person = {} ; function changed(event){ person[event. target.id] = event.target.value; } function save(){ httpRequest.onreadystatechange = function(){/* ... */} ; httpRequest. open("POST", "http://www.neolithic.com/person" ); httpRequest. setRequestHeader ('Content-Type' , 'application/json' ); httpRequest. send( JSON.stringify(person) ); } personeditor.js VanillaJS

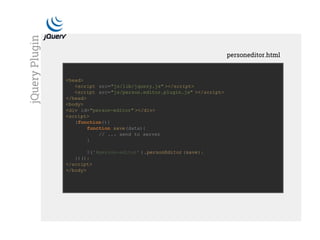

- 8. <head> <script src="js/lib/jquery.js" ></script> <script src="js/person.editor.plugin.js" ></script> </head> <body> <div id="person-editor" ></div> <script> (function(){ function save(data){ // ... send to server } $('#person-editor' ).personEditor (save); })(); </script> </body> personeditor.html jQueryPlugin

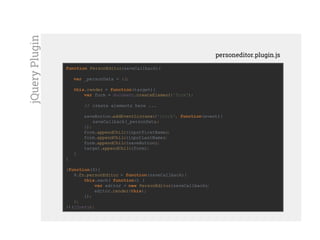

- 9. function PersonEditor(saveCallback){ var _personData = {}; this.render = function(target){ var form = document.createElement('form'); // create elements here ... saveButton.addEventListener('click', function(event){ saveCallback(_personData); }); form.appendChild(inputFirstName); form.appendChild(inputLastName); form.appendChild(saveButton); target.appendChild(form); } } (function($){ $.fn.personEditor = function(saveCallback){ this.each( function() { var editor = new PersonEditor(saveCallback); editor.render(this); }); }; })(jQuery); personeditor.plugin.js jQueryPlugin
- 10. AngularJS <form name="person-editor" ng-controller ="personeditorController" > <h2>Person Editor </h2> <label for="firstName" >First Name</label> <input id="firstName" class="form-control" type="text" ng-model=" person.firstName" /> <label for="lastName">Last Name</label> <input id="lastName" class="form-control" type="text" ng-model=" person.lastName" /> <!-- ... --> <button type="button" class="btn btn-success" ng-click="save ($event)">Save</button> </form> personeditor.html
- 11. app.controller("personeditorController" , function($scope, $http){ $scope.person = {}; $scope.save = function(event){ var req = { method: 'POST', url: 'http://example.com/api/v1/person' , headers: { 'Content-Type' : 'application/json' }, data: $scope.person }; $http(req). then(function(){ // handle response }, console.error); } }); personeditor.controller.js AngularJS
- 12. 2. Componentes O novo paradigma

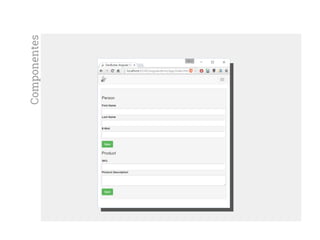

- 13. Componentes
- 14. Componentes

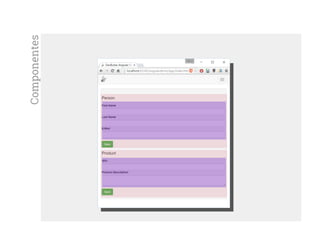

- 15. Componentes

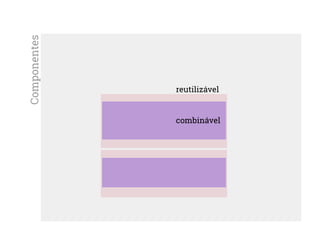

- 17. <div class="container" > <editor-frame title="Person" onsave="savePerson" > <person-editor></person-editor> </editor-frame> <editor-frame title="Product" onsave="saveProduct" > <product-editor></product-editor> </editor-frame> </div> AngularDirectives

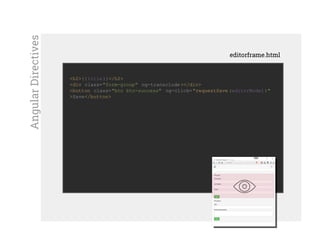

- 18. <h2>{{title}}</h2> <div class="form-group" ng-transclude ></div> <button class="btn btn-success" ng-click="requestSave (editorModel )" >Save</button> editorframe.html AngularDirectives

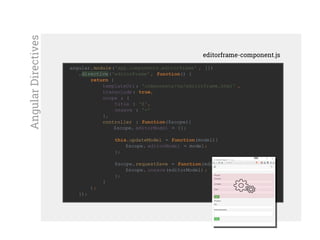

- 19. angular.module('app.components.editorframe' , []) .directive('editorFrame' , function() { return { templateUrl : 'components/ng/editorframe.html' , transclude: true, scope : { title : '@', onsave : '=' }, controller : function($scope){ $scope. editorModel = {}; this.updateModel = function(model){ $scope. editorModel = model; }; $scope.requestSave = function(editorModel) { $scope. onsave(editorModel) ; }; } }; }); editorframe-component.js AngularDirectives

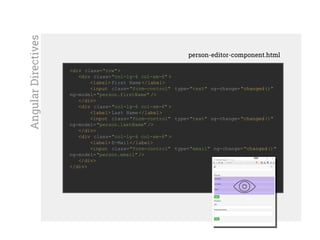

- 20. <div class="row"> <div class="col-lg-6 col-sm-6" > <label> First Name</label> <input class="form-control" type="text" ng-change="changed()" ng-model="person.firstName" /> </div> <div class="col-lg-6 col-sm-6" > <label> Last Name</label> <input class="form-control" type="text" ng-change="changed()" ng-model="person.lastName" /> </div> <div class="col-lg-6 col-sm-6" > <label> E-Mail</label> <input class="form-control" type="email" ng-change="changed()" ng-model="person.email" /> </div> </div> person-editor-component.html AngularDirectives
- 21. angular.module('app.components.personeditor' , ['app.components. editorframe' ]) .directive('personEditor' , function($rootScope) { return { require : "^editorFrame" , restrict : "AE", scope : { } , templateUrl : 'components/ng/person-editor-directive.html' , link : function($scope, element, attrs, frameCtrl) { $scope. changed = function(){ frameCtrl. updateModel ($scope.person); } } }; }); person-editor-component.js AngularDirectives
- 22. Bibliotéca para View Performático Sem dependências Facebook (e Instagram) ReactJS

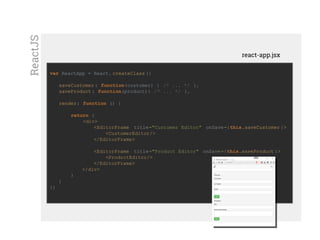

- 23. Mostrar custom elementvar ReactApp = React. createClass ({ saveCustomer : function(customer) { /* ... */ }, saveProduct : function(product){ /* ... */ }, render: function () { return ( <div> <EditorFrame title="Customer Editor" onSave={this.saveCustomer }> <CustomerEditor/> </EditorFrame> <EditorFrame title="Product Editor" onSave={this.saveProduct }> <ProductEditor/> </EditorFrame> </div> ) } }) react-app.jsx ReactJS

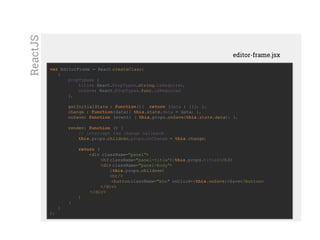

- 24. Mostrar custom elementvar EditorFrame = React.createClass( { propTypes: { title: React.PropTypes.string.isRequired, onSave: React.PropTypes.func.isRequired }, getInitialState : function(){ return {data : {}}; }, change : function(data){ this.state.data = data; }, onSave: function (event) { this.props.onSave(this.state.data); }, render: function () { // intercept the change callback this.props.children.props.onChange = this.change; return ( <div className="panel"> <h3 className="panel-title">{this.props.title}</h3> <div className="panel-body"> {this.props.children} <hr/> <buttonclassName="btn" onClick={this.onSave}>Save</button> </div> </div> ) } } ); editor-frame.jsx ReactJS
- 25. Mostrar custom element var CustomerEditor = React.createClass({ PropTypes: { onChange : React.PropTypes.func.isRequired }, getInitialState : function(){ return {data: {}}; }, editorDataChanged: function (event) { this.state.data[event.target.name] = event.target.value; this.props.onChange(this.state.data); // propagate data model }, render: function () { return ( <div> <div className="form-group"> <input name="name" className="form-control" type="text" onChange={this.editorDataChanged}/> </div> <div className="form-group"> <input name="email" className="form-control" type="text" onChange={this.editorDataChanged}/> </div> </div> ) } }); customer-editor.jsx ReactJS
- 26. Bibliotéca para View Criado em cima da especificação Web Components Google Catálogo de componentes tipo Material Design Polymer

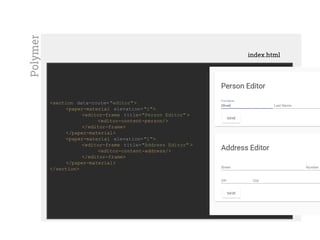

- 27. Mostrar custom element <section data-route= "editor"> <paper-material elevation="1"> <editor-frame title="Person Editor" > <editor-content-person/> </editor-frame> </paper-material> <paper-material elevation="1"> <editor-frame title="Address Editor" > <editor-content-address/> </editor-frame> </paper-material> </section> index.html Polymer
- 28. Mostrar custom element <link rel="import" href="/bower_components/paper-button/paper-button.html" > <link rel="import" href="../common/message-dialog.html" > <dom-module id="editor-frame" > <style> :host { display: block; } .button { margin-top: 1em; } @media (max-width: 600px) { h1.paper-font-display1 { font-size: 24px; } } </style> <template> <!-- part 2 --> </template> <script> <!-- part 3 --> </script> </dom-module> editor-frame.html (1/3) Polymer
- 29. Mostrar custom element<link rel="import" href="/bower_components/paper-button/paper-button.html" > <link rel="import" href="../common/message-dialog.html" > <dom-module id="editor-frame" > <style> <!-- part 1 --> </style> <template> <h1 class="paper-font-display1" ><span>{{title}}</span></h1> <div id="content"> <content></content> </div> <paper-button class="button" on-click="save" raised>Save</paper-button> <message-dialog id="dialog" title="Saved Data" message="[[editorData]]" ></message-dialog> </template> <script> <!-- part 3 --> </script> </dom-module> editor-frame.html (2/3) Polymer
- 30. Mostrar custom element<script> (function () { Polymer({ is: 'editor-frame' , properties: { editorData: String, title: { type: String, notify: true } }, ready: function() { this.addEventListener ('changed-model' , this.updateModel ); }, updateModel : function(event){ this.editorData = JSON.stringify(event.detail.model); }, save: function () { this.$.dialog.open(); } }); })(); </script> editor-frame.html (3/3) Polymer
- 31. Mostrar custom element<link rel="import" href="/bower_components/paper-input/paper-input.html" > <link rel="import" href="editor-content-behaviour.html" > <dom-module id="editor-content-person" > <style> <!-- encapsulated style --> </style> <template> <paper-input class="width-50" name="firstName" label="First Name" on- change="handleChange" ></paper-input> <paper-input class="width-50" name="lastName" label="Last Name" on- change="handleChange" ></paper-input> </template> <script> (function () { "use strict" ; Polymer({ is: 'editor-content-person' , behaviors : [EditorContentBehavior ] }); })(); </script> </dom-module> editor-content-person.html Polymer

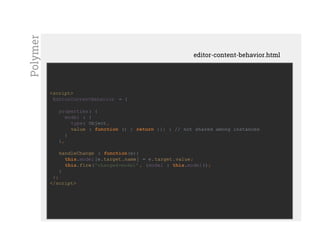

- 32. Mostrar custom element <script> EditorContentBehavior = { properties: { model : { type: Object, value : function () { return {}; } // not shared among instances } }, handleChange : function(e){ this.model[e.target.name] = e.target.value; this.fire('changed-model' , {model : this.model}); } }; </script> editor-content-behavior.html Polymer
- 34. Componentização Encapsulamento DOM CSS Javascript Lifecycle Virtual DOM Shadow (Shady) DOM Scoped Styles Dados Compartilhados Instâncias
- 35. Pensar em componentes Fluxo de dados Arquitetura Desafios
- 37. Crescimento descontrolado Black Box Desenvolvimento Inicial Riscos
- 38. 3. Outlook The next big thing?

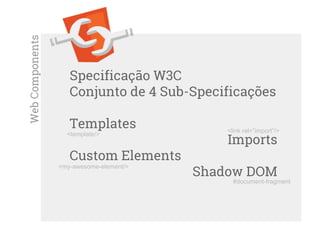

- 39. Specificação W3C Conjunto de 4 Sub-Specificações Templates Imports Custom Elements Shadow DOM WebComponents #document-fragment <my-awesome-element/> <link rel=”import”/> <template/>

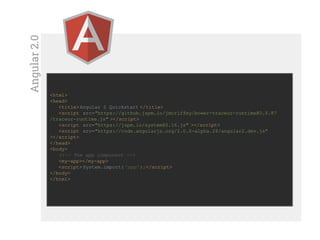

- 41. Angular2.0 <html> <head> <title>Angular 2 Quickstart </title> <script src="https://github.jspm.io/jmcriffey/bower-traceur-runtime@0.0.87 /traceur-runtime.js" ></script> <script src="https://jspm.io/system@0.16.js" ></script> <script src="https://code.angularjs.org/2.0.0-alpha.28/angular2.dev.js" ></script> </head> <body> <!-- The app component --> <my-app></my-app> <script> System.import( 'app');</script> </body> </html>
- 42. Angular2.0 @Component({ selector: 'my-app' }) @View({ template: '<h1>Hello {{ name }}</h1>' }) // Component controller class MyAppComponent { name: string; constructor() { this.name = 'Alice'; } } bootstrap(MyAppComponent) ;
