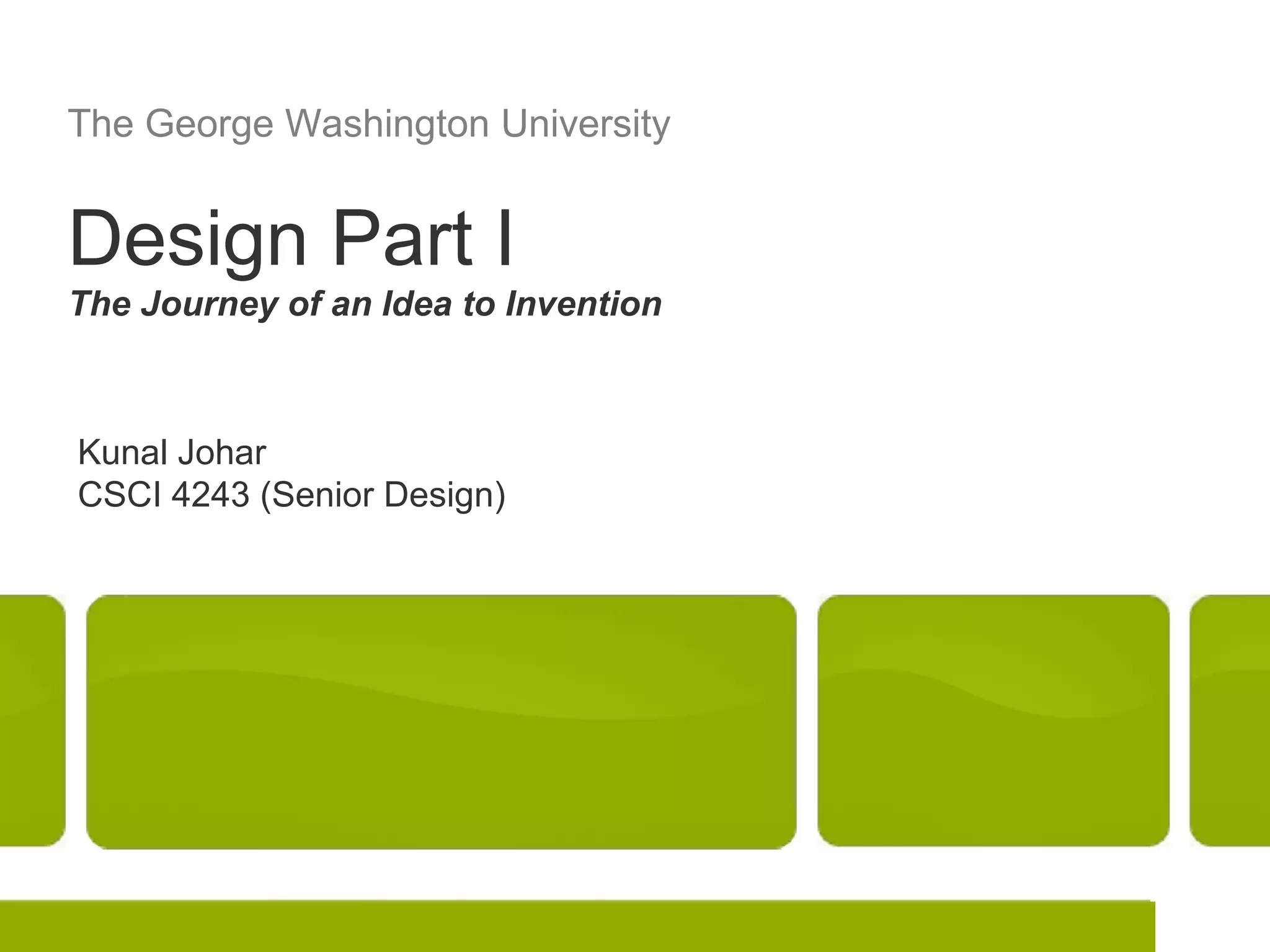

1. The George Washington University
Design Part I
The Journey of an Idea to Invention
Kunal Johar
CSCI 4243 (Senior Design)
Kunal Johar Design Part I 1
3. What is Senior Design?
Idea
Formal Planning
Practice Software Engineering
Technical Challenge
Polished Product
Ability to Articulate Your Vision
Kunal Johar Design Part I 3
4. What is Kunal Doing Here?
“I’ve been here for 8 weeks and I feel like
I’ve done 2 mini senior designs”
- Zack Schwartz (GW CS Class of 2011)
Kunal Johar Design Part I 4
5. What is Kunal Doing Here?
• Goals
– Think like an outsider while commanding
strong engineering skills
– Communicate superbly to coders, managers,
and the public at large
Kunal Johar Design Part I 5
6. What is Kunal Doing Here?
Idea
Formal Planning
Practice Software Engineering
Technical Challenge
Polished Product
Ability to Articulate Your Vision
Kunal Johar Design Part I 6
7. The Idea
• This is YOUR project
• It is up to YOU to transition it to invention
• Own it!
Kunal Johar Design Part I 7
8. Technical Challenge
''My mother made me a scientist without ever intending it.
Every other Jewish mother in Brooklyn would ask her
child after school: 'So? Did you learn anything today?'
But not my mother. She always asked me a different
question. 'Izzy,'
she would say, 'did you
ask a good question today?' That
difference - asking good questions -made me become a
scientist!''
http://www.nytimes.com/1988/01/19/opinion/l-izzy-did-you-ask-a-good-question-today-712388.html
(Isidor I. Rabi, Nobel laureate in physics)
…often quoted by Dr. Youssef
Kunal Johar Design Part I 8
9. Technical Challenge
• Not knowing what you don’t know is the
battle
• You can implement any* algorithm
• Trial and Error is the formula of innovation
*I have yet to successfully implement the CS151 dynamic programming based
assignments
Kunal Johar Design Part I 9
10. How Will We Learn?
• Shop it 2 me
Idea
Formal Planning
Practice Software Engineering
Polished Product
Ability to Articulate Your Vision
Shop it 2 Me will be developed through in-class discussion and exercises
Expand upon the techniques used as you develop out your idea
Kunal Johar Design Part I 10
11. Shop it 2 Me: Overview
• Whose Idea is It?
– Yours
– Mine
– Client
• Heather
Kunal Johar Design Part I 11
12. Developing Heather’s Idea
• How are other projects started?
– Flickr? Twitter? Craigslist?
– Can you name a project where the “idea” did not
originate from someone who can program?
http://money.cnn.com/2011/08/24/technology/startups/startups_technical_founder/
• Who is Heather?
– Individual
– Self-Funded
– Has an “idea”
Kunal Johar Design Part I 12
13. But She Actually Has No Idea
http://www.cs.uni.edu/~wallingf/blog/archives/monthly/2010-12.html#e2010-12-01T15_45_40.htm
• “I just need a programmer”
– Our insights, our ideas become the invention
– We solve the core challenges of the project
• Algorithms
• Data structures
• Workflows
Kunal Johar Design Part I 13
14. Let’s Begin with the Idea!
“I want to go to the mall and if I want to buy
something, I should be able to ask friends
and get their ideas and see if I should by it
buy looking at a yes/no pie chart”
• “I also like the name ‘Shop it 2 Me’ is it available?”
Kunal Johar Design Part I 14
15. Getting to an Idea
• One Option is to Refine the Problem
Statement
“I want to go to the mall and if I want to buy something, I should
be able to ask friends and get their ideas and see if I should buy
it by looking at a yes/no pie chart”
• Another option is to jot out features
needed
• Another option is to jot out how it will be
used
Kunal Johar Design Part I 15
16. What is the Main Idea?
“I want to go to the mall and if I want to buy
something, I should be able to ask friends
and get their ideas and see if I should by it by
looking at a yes/no pie chart”
What features are How should this
needed? work?
How can you restate
the problem? ise
ss Exerc
In-Cla
Kunal Johar Design Part I 16
17. Some Thoughts….
• Must be mobile
• Must be multi-user but asynchronous
• Has feedback element
• Interfaces with camera?
• Needs a server?
• Sends notifications?
• Is “Shop it 2 Me Available?”
– .com? App name? Trademark?
Kunal Johar Design Part I 17
18. How Will People Use It?
• Scenario I
– I go to the store and take a picture to send to
friends
• Scenario II
– I receive a picture and am asked my thoughts
• Scenario III
– I look at results of a past question
Kunal Johar Design Part I 18
19. But How Can People Use It?
• Scenario IV
– How do I Authenticate?
Kunal Johar Design Part I 19
20. Organizing Our Thoughts
• Idea
– What are we building?
• Use Cases / Scenarios
– How will it be used and who will use it?
• Functional / Non Functional Requirements
– What will it do and how will it do it?
Kunal Johar Design Part I 20
21. Keep Refining
REQ
UI RE
MEN
T S
A
IDE
US
E
CA
SE
S
Kunal Johar Design Part I 21
22. Use Cases
• Define a scenario
– Describe how the application will be used
– Determine actors
• Individuals
• Groups
• Other Systems
– Specify Pre-Condition or “State”
– Specify Trigger or “Action”
Kunal Johar Design Part I 22
23. Defining a Scenario
• I go to the store and take a picture to send
to friends
– What is the objective?
– Who are the “actors”?
– What are the preconditions?
– Who are the actors?
Kunal Johar Design Part I 23
24. Scenario Refined
• Generic Names for Actors
– Instead of “I” perhaps “Requestor” or even
“Vote Requestor”
– This helps us incrementally create our
workflow and data structures
Kunal Johar Design Part I 24
25. Drawing Our Use Case
• Plenty of Tools
– Microsoft Visio (Free to GW Students)
– Gliffy (Free Trial)
– Omnigraffle (Mac Only)
Kunal Johar Design Part I 25
26. Example of Our Use Case
• How Can we Improve this?
Kunal Johar Design Part I 26
27. Example of Our Use Case
• How Can we Improve this?
Kunal Johar Design Part I 27
29. Use Cases -> Structure / Workflow
• We are starting to see the iterative
process of building out an idea
• The simple use case has identified at least
a few components, client app, server app,
messaging system
Kunal Johar Design Part I 29
32. Functional / Non-Functional Specs
• Functional Specs / Requirements
– Describes action or display
– E.g. “Use camera to take photo of item to be
voted on”
• Non-Functional Specs/Requirements
– Describes external requirement
– E.g. “Must work on iPhone” or “App must load
within 2 seconds”
Kunal Johar Design Part I 32
33. Formalizing Requirements
• We build these elements in parallel
– Idea / Problem Statement
– High Level Requirements
– Use Cases
– Functional / Non-Functional Requirements
– Components Needed
– Workflow
Kunal Johar Design Part I 33
34. Formalizing Requirements
• However at some point we need to move
on to coding
• SCRUM / Waterfall / X P
– Describe management style of moving from
requirements to coding
Kunal Johar Design Part I 34
35. Brainstorming -> Formalizing
• Overview
iOS app to allow a user to solicit a “Yes/No”
feedback on a photograph sent to a
subset of contacts
Kunal Johar Design Part I 35
36. Use Cases
• Shopper asks friends if she should buy an
item
• Friend responds to vote request
• Shopper views response
Kunal Johar Design Part I 36
37. Workflow
• Shopper asks friends if she should buy an
item
– Takes picture
– Chooses contacts
– Writes message
– Sends request
Kunal Johar Design Part I 37
38. Analysis Leads to More Use Cases
• User adds other user to contact list
• User removes other user from contact list
Kunal Johar Design Part I 38
39. In
-C
la
Workflow Refinement s s
Ex
er
ci
se
• Articulate workflows for each step
– Shopper asks friends if she should buy an item
– Friend responds to vote request
– Shopper views response
– User adds other user to contact list
– User removes other user from contact list
• What other use cases/requirements can you
uncover?
Kunal Johar Design Part I 39
40. Some Use Cases
• Vote Related
– Shopper asks friends if she should buy an item
– Friend receives vote request
– Friend views vote request
– Friend responds to vote request
– Shopper receives notification of response
– Shopper views response
• Contact Related
– User adds other user to contact list
– User removes other user from contact list
– User searches for other user
– User adds friend via Facebook Connect
– User ‘blocks’ user from communicating with self
• Authentication
– User authenticates
Kunal Johar Design Part I 40
41. Some Requirements
• Authentication
– Probably need a server
– Probably need to use some sort of cryptography
• Non-functional (General) Requirements
– iOS App, RESTFul web service
• Functional
– Use OAUTH Challenge/Response
Kunal Johar Design Part I 41
42. Some Requirements
• Sending a vote request
– Data: Photo, geo-location, from user, to contacts
• Non-functional (General) Requirements
– UI should not freeze during send process
• Functional
– Upload photo via Amazon S3 API
– Use asynchronous calls during upload process
– Send push notifications to contacts
Kunal Johar Design Part I 42
43. Requirements Lead To More…
• Upload photo via Amazon S3 API
– Anyone have experience with this?
Kunal Johar Design Part I 43
44. Upload to Amazon S3
• “Basics” of S3 uploads
– Need to secure upload request
– Need to apply access control to photo links
• APIs are not necessarily trivial
~30 hours of coding to get this component
- Plan ahead. Perhaps label this as its own
module in your requirements plan
Kunal Johar Design Part I 44
45. Bottom Line
- Construct your project with organized
brainstorming
- High level
- Use cases
- Workflow
- Requirements
- More use cases
- More requirements
Kunal Johar Design Part I 45
46. Bottom Line
- Draw a clear picture as you refine
Kunal Johar Design Part I 46
47. Specifications Document
- Attached is a redacted specification document
for ShopVote
- Use this as a guide as you create your
specification document
- Homework (Due 9/15)
- Develop a specification document and a screencast as
you would talk a developer through it
Kunal Johar Design Part I 47
48. Shop It 2 Me
• Waterfall
Determine Requirements
Determine Workflow / High Level Components
Identify Unknown Steps
Determine 3rd party APIs
Setup Bootcamp Tasks to Overcome
Determine Overall Code Structure
Develop Task List with Pseudo Code
Code / Test
Polish
Kunal Johar Design Part I 48
49. Next Steps
• Our Specification Document Provides a Framework for us to continue
planning
• Create Low Level Workflow (Design Part II)
– For each high level work flow
• Create a UI mockup
• Determine data structures needed
• Determine control flow
• Determine the pseudocode design
• Reorganize / Refactor into Task List (Design Part III)
– Finalize psuedocode and class structures
– Think about design patterns, classes, helper/utility classes, third party APIs
– Reorder into logical units of coding
– Develop test plan
• Code!
Kunal Johar Design Part I 49
50. How Good Do You Want to Be?
• The 10,000 Hours Rule
DO
• Write your ideas out
• Refactor and optimize your thoughts
LEARN
• Try a tool like Visio
• Critique a Friend’s Design
DO
• Further refine your ideas
• Write some proof of concept code
LEARN
• Read a book like Design Patterns
• Try a new paradigm (functional language, NoSQL DB)
http://www.gladwell.com/outliers/outliers_excerpt1.html
Malcolm Gladwell, Author (Outliers) Kunal Johar Design Part I 50
