Java 9 brings modules as a core concept to the platform, but it’s more than just a language feature. With modules in Java 9, we can improve the design of code to increase maintainability and extensibility. As with every design principle, modularity requires thought and trade-offs to really reap the benefits. This session covers design practices for making codebases more maintainable and extensible. You will also find out about trade-offs to help you make the best choices. Topics include hiding implementations, using services for extensibility, API modules, avoiding cycles, optional dependencies, and dynamically loading modules. Familiarity with modules is helpful but not required. The speakers are the authors of Java 9 Modularity (O’Reilly). Also see https://javamodularity.com

1. Designing for Modularity
Paul Bakker
@pbakker
Sander Mak
@Sander_Mak
with Java 9

2. Today's journey
Module primer
Services & DI
Modular design
Layers & loading

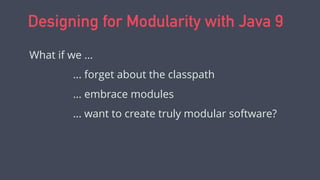

3. Designing for Modularity with Java 9
What if we ...
... forget about the classpath
... embrace modules
... want to create truly modular software?

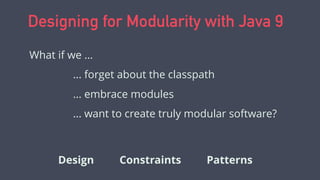

4. Designing for Modularity with Java 9
What if we ...
... forget about the classpath
... embrace modules
... want to create truly modular software?
Design Constraints Patterns

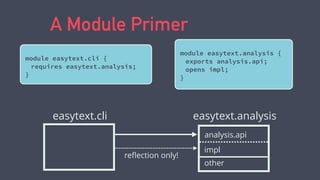

5. A Module Primer
module easytext.cli {
requires easytext.analysis;
}
module easytext.analysis {
exports analysis.api;
opens impl;
}
easytext.cli easytext.analysis
other
analysis.api
impl
reflection only!

6. A Module Primer
module easytext.cli {
requires easytext.analysis;
}
module easytext.analysis {
exports analysis.api;
opens impl;
}
Modules define dependencies
explicitly
easytext.cli easytext.analysis
other
analysis.api
impl
reflection only!

7. module easytext.cli {
requires easytext.analysis;
}
A Module Primer
module easytext.analysis {
exports analysis.api;
opens impl;
}
Packages are encapsulated by
default
easytext.cli easytext.analysis
other
analysis.api
impl
reflection only!

8. module easytext.cli {
requires easytext.analysis;
}
A Module Primer
module easytext.analysis {
exports analysis.api;
opens impl;
}
Packages can be “opened” for
deep reflection at run-time
easytext.cli easytext.analysis
other
analysis.api
impl
reflection only!

9. Services

10. EasyText example
easytext.gui
easytext.analysis.kincaid easytext.analysis.coleman
easytext.cli
analysis.api

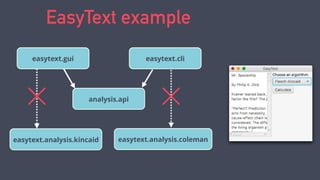

11. EasyText example
easytext.gui
easytext.analysis.kincaid easytext.analysis.coleman
easytext.cli
analysis.api

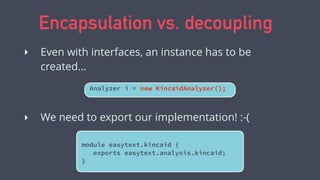

12. Encapsulation vs. decoupling
Analyzer i = new KincaidAnalyzer();
‣ Even with interfaces, an instance has to be
created…

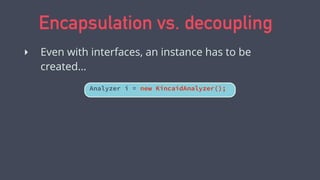

13. Encapsulation vs. decoupling
Analyzer i = new KincaidAnalyzer();
‣ Even with interfaces, an instance has to be
created…
‣ We need to export our implementation! :-(
module easytext.kincaid {
exports easytext.analysis.kincaid;
}

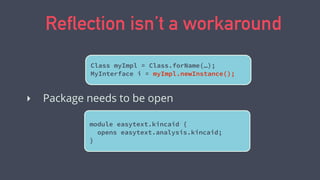

14. Reflection isn’t a workaround
Class myImpl = Class.forName(…);
MyInterface i = myImpl.newInstance();
‣ Package needs to be open
module easytext.kincaid {
opens easytext.analysis.kincaid;
}

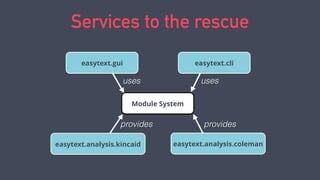

15. Services to the rescue
easytext.gui
easytext.analysis.kincaid easytext.analysis.coleman
easytext.cli
Module System
uses uses
providesprovides

16. Providing a service
module easytext.analyzer.kincaid {
requires easytext.analysis.api;
provides javamodularity.easytext.analysis.api.Analyzer
with javamodularity.easytext.analysis.kincaid.KincaidAnalyzer;
}

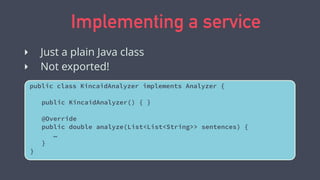

17. Implementing a service
public class KincaidAnalyzer implements Analyzer {
public KincaidAnalyzer() { }
@Override
public double analyze(List<List<String>> sentences) {
…
}
}
‣ Just a plain Java class
‣ Not exported!

18. Consuming a service
module easytext.cli {
requires easytext.analysis.api;
uses javamodularity.easytext.analysis.api.Analyzer;
}

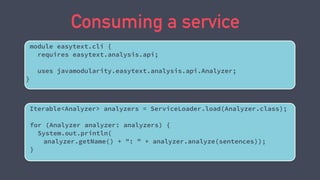

19. Consuming a service
Iterable<Analyzer> analyzers = ServiceLoader.load(Analyzer.class);
for (Analyzer analyzer: analyzers) {
System.out.println(
analyzer.getName() + ": " + analyzer.analyze(sentences));
}
module easytext.cli {
requires easytext.analysis.api;
uses javamodularity.easytext.analysis.api.Analyzer;
}

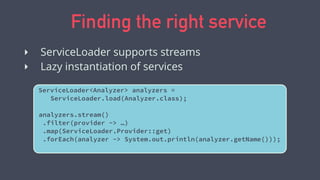

20. Finding the right service
ServiceLoader<Analyzer> analyzers =
ServiceLoader.load(Analyzer.class);
analyzers.stream()
.filter(provider -> …)
.map(ServiceLoader.Provider::get)
.forEach(analyzer -> System.out.println(analyzer.getName()));
‣ ServiceLoader supports streams
‣ Lazy instantiation of services

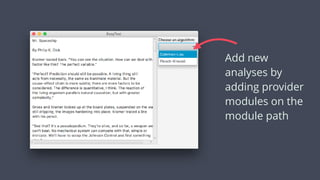

21. Add new
analyses by
adding provider
modules on the
module path

22. Dependency Injection

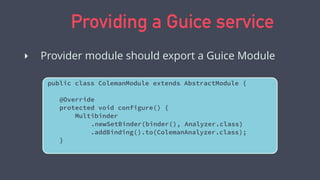

23. Providing a Guice service
public class ColemanModule extends AbstractModule {
@Override
protected void configure() {
Multibinder
.newSetBinder(binder(), Analyzer.class)
.addBinding().to(ColemanAnalyzer.class);
}
‣ Provider module should export a Guice Module

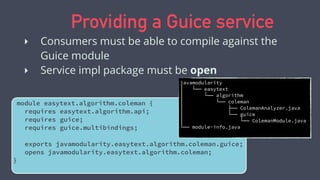

24. Providing a Guice service
‣ Consumers must be able to compile against the
Guice module
‣ Service impl package must be open
module easytext.algorithm.coleman {
requires easytext.algorithm.api;
requires guice;
requires guice.multibindings;
exports javamodularity.easytext.algorithm.coleman.guice;
opens javamodularity.easytext.algorithm.coleman;
}
javamodularity
│ └── easytext
│ └── algorithm
│ └── coleman
│ ├── ColemanAnalyzer.java
│ └── guice
│ └── ColemanModule.java
└── module-info.java

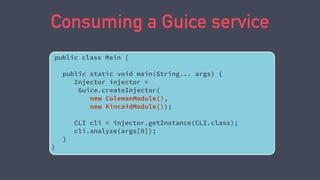

25. Consuming a Guice service
public class Main {
public static void main(String... args) {
Injector injector =
Guice.createInjector(
new ColemanModule(),
new KincaidModule());
CLI cli = injector.getInstance(CLI.class);
cli.analyze(args[0]);
}
}

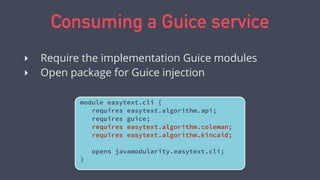

26. Consuming a Guice service
‣ Require the implementation Guice modules
‣ Open package for Guice injection
module easytext.cli {
requires easytext.algorithm.api;
requires guice;
requires easytext.algorithm.coleman;
requires easytext.algorithm.kincaid;
opens javamodularity.easytext.cli;
}

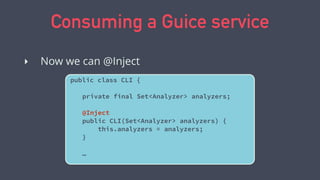

27. Consuming a Guice service
‣ Now we can @Inject
public class CLI {
private final Set<Analyzer> analyzers;
@Inject
public CLI(Set<Analyzer> analyzers) {
this.analyzers = analyzers;
}
…

28. Injecting a service
algorithm.coleman
guice
Create binding

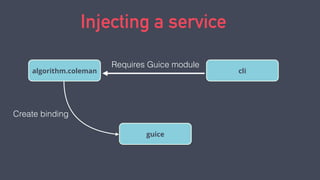

29. Injecting a service
cli
Requires Guice module
algorithm.coleman
guice
Create binding

30. Injecting a service
cli
Requires Guice module
algorithm.coleman
guice
Create binding
Create injector

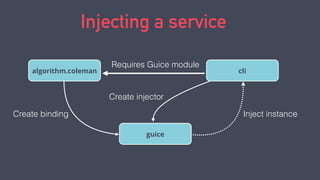

31. Injecting a service
cli
Requires Guice module
algorithm.coleman
guice
Create binding Inject instance
Create injector

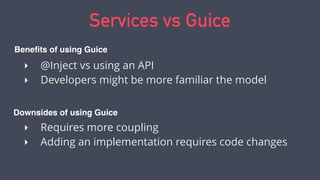

32. Services vs Guice
‣ @Inject vs using an API
‣ Developers might be more familiar the model
‣ Requires more coupling
‣ Adding an implementation requires code changes
Benefits of using Guice
Downsides of using Guice

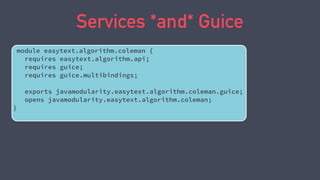

33. Services *and* Guice
module easytext.algorithm.coleman {
requires easytext.algorithm.api;
requires guice;
requires guice.multibindings;
exports javamodularity.easytext.algorithm.coleman.guice;
opens javamodularity.easytext.algorithm.coleman;
}

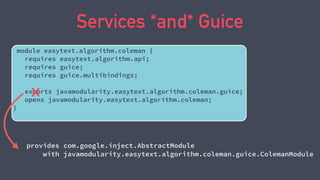

34. Services *and* Guice
module easytext.algorithm.coleman {
requires easytext.algorithm.api;
requires guice;
requires guice.multibindings;
exports javamodularity.easytext.algorithm.coleman.guice;
opens javamodularity.easytext.algorithm.coleman;
}
provides com.google.inject.AbstractModule
with javamodularity.easytext.algorithm.coleman.guice.ColemanModule

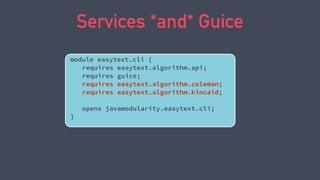

35. Services *and* Guice
module easytext.cli {
requires easytext.algorithm.api;
requires guice;
requires easytext.algorithm.coleman;
requires easytext.algorithm.kincaid;
opens javamodularity.easytext.cli;
}

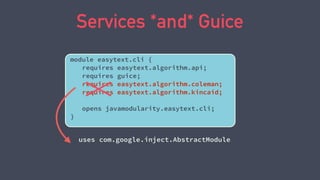

36. Services *and* Guice
module easytext.cli {
requires easytext.algorithm.api;
requires guice;
requires easytext.algorithm.coleman;
requires easytext.algorithm.kincaid;
opens javamodularity.easytext.cli;
}
uses com.google.inject.AbstractModule

37. Modular Design

38. Naming Modules
... is hard

39. Naming Modules
... is hard
Application modules
‣ Short & memorable
‣ <application>.<component>
‣ e.g. easytext.gui

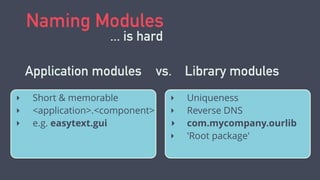

40. Naming Modules
... is hard
Application modules
‣ Short & memorable
‣ <application>.<component>
‣ e.g. easytext.gui
vs. Library modules
‣ Uniqueness
‣ Reverse DNS
‣ com.mycompany.ourlib
‣ 'Root package'

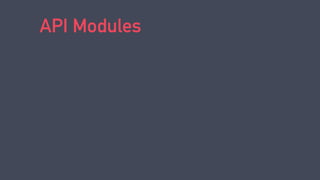

41. API Modules

42. API Modules
‣ Module with exported API only
‣ When multiple implementations are expected
‣ Can also contain 'default' implementation

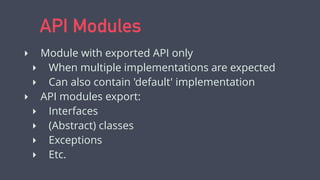

43. API Modules
‣ Module with exported API only
‣ When multiple implementations are expected
‣ Can also contain 'default' implementation
‣ API modules export:
‣ Interfaces
‣ (Abstract) classes
‣ Exceptions
‣ Etc.

44. Small Modules vs. All-in-one

45. Small Modules vs. All-in-one
‣ Composability
‣ Reusability
Small modules

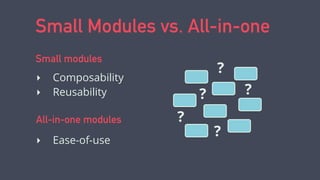

46. Small Modules vs. All-in-one
‣ Composability
‣ Reusability
Small modules
‣ Ease-of-use
All-in-one modules ?
?
?
?
?

47. Small Modules vs. All-in-one
Why choose? Use aggregator modules

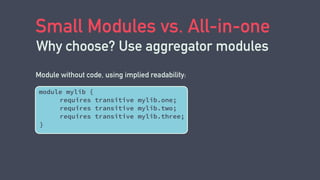

48. Small Modules vs. All-in-one
Why choose? Use aggregator modules
module mylib {
requires transitive mylib.one;
requires transitive mylib.two;
requires transitive mylib.three;
}
Module without code, using implied readability:

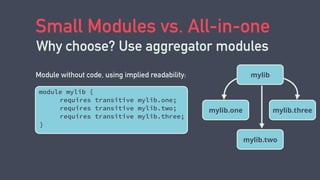

49. Small Modules vs. All-in-one
Why choose? Use aggregator modules
module mylib {
requires transitive mylib.one;
requires transitive mylib.two;
requires transitive mylib.three;
}
Module without code, using implied readability: mylib
mylib.one
mylib.two
mylib.three

50. Small Modules vs. All-in-one
Why choose? Use aggregator modules
mylib
mylib.one
mylib.two
mylib.three
application

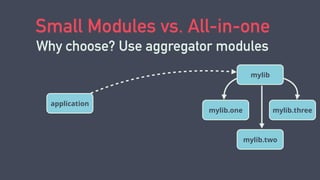

51. Small Modules vs. All-in-one
Why choose? Use aggregator modules
mylib
mylib.one
mylib.two
mylib.three
application

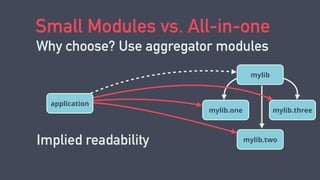

52. Small Modules vs. All-in-one
Why choose? Use aggregator modules
mylib
mylib.one
mylib.two
mylib.three
application
Implied readability

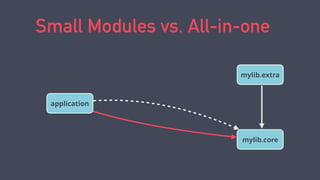

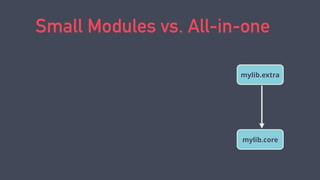

53. Small Modules vs. All-in-one
mylib.extra
mylib.core

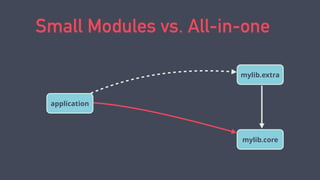

54. Small Modules vs. All-in-one
mylib.extra
mylib.core
application

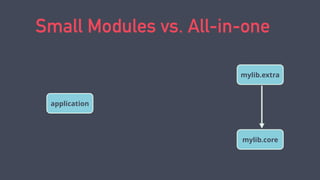

55. Small Modules vs. All-in-one
mylib.extra
mylib.core
application

56. Small Modules vs. All-in-one
mylib.extra
mylib.core
application

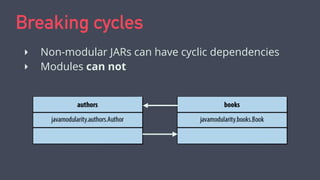

57. Breaking cycles
‣ Non-modular JARs can have cyclic dependencies
‣ Modules can not

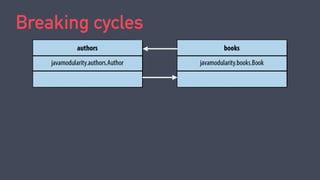

58. Breaking cycles

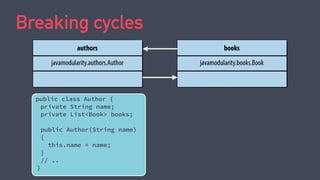

59. Breaking cycles
public class Author {
private String name;
private List<Book> books;
public Author(String name)
{
this.name = name;
}
// ..
}

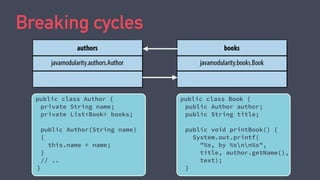

60. Breaking cycles
public class Author {
private String name;
private List<Book> books;
public Author(String name)
{
this.name = name;
}
// ..
}
public class Book {
public Author author;
public String title;
public void printBook() {
System.out.printf(
"%s, by %snn%s",
title, author.getName(),
text);
}

61. Breaking cycles
public class Author {
private String name;
private List<Book> books;
public Author(String name)
{
this.name = name;
}
// ..
}
public class Book {
public Author author;
public String title;
public void printBook() {
System.out.printf(
"%s, by %snn%s",
title, author.getName(),
text);
}

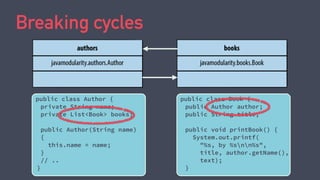

62. Breaking cycles
public class Author {
private String name;
private List<Book> books;
public Author(String name)
{
this.name = name;
}
// ..
}
public class Book {
public Author author;
public String title;
public void printBook() {
System.out.printf(
"%s, by %snn%s",
title, author.getName(),
text);
}

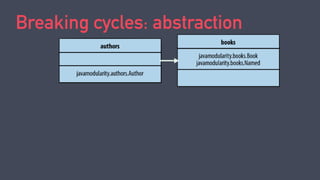

63. Breaking cycles: abstraction

64. Breaking cycles: abstraction
public class Author
implements Named {
// ..
public String getName() {
return this.name;
}
}

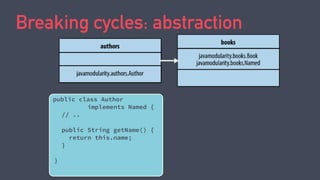

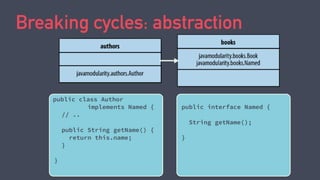

65. Breaking cycles: abstraction
public class Author
implements Named {
// ..
public String getName() {
return this.name;
}
}
public interface Named {
String getName();
}

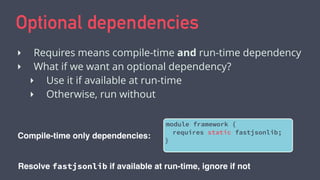

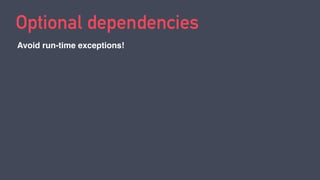

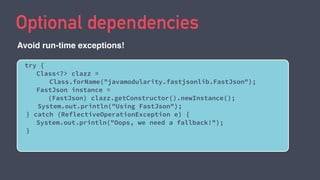

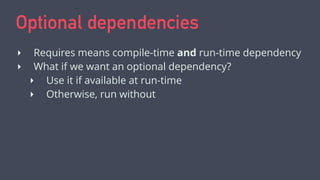

66. Optional dependencies
‣ Requires means compile-time and run-time dependency
‣ What if we want an optional dependency?
‣ Use it if available at run-time
‣ Otherwise, run without

67. Optional dependencies
‣ Requires means compile-time and run-time dependency
‣ What if we want an optional dependency?
‣ Use it if available at run-time
‣ Otherwise, run without
Compile-time only dependencies:
module framework {
requires static fastjsonlib;
}

68. Optional dependencies
‣ Requires means compile-time and run-time dependency
‣ What if we want an optional dependency?
‣ Use it if available at run-time
‣ Otherwise, run without
Compile-time only dependencies:
module framework {
requires static fastjsonlib;
}
Resolve fastjsonlib if available at run-time, ignore if not

69. Optional dependencies
Avoid run-time exceptions!

70. Optional dependencies
try {
Class<?> clazz =
Class.forName("javamodularity.fastjsonlib.FastJson");
FastJson instance =
(FastJson) clazz.getConstructor().newInstance();
System.out.println("Using FastJson");
} catch (ReflectiveOperationException e) {
System.out.println("Oops, we need a fallback!");
}
Avoid run-time exceptions!

71. Optional dependencies
Better yet: use services for optional dependencies
module framework {
requires json.api;
uses json.api.Json;
}
ServiceLoader.load(Json.class)
.stream()
.filter(this::isFast)
.findFirst();

72. Layers and
dynamic module
loading

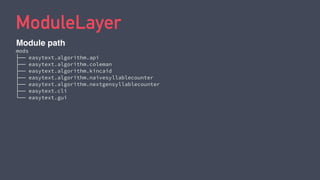

73. ModuleLayer
mods
├── easytext.algorithm.api
├── easytext.algorithm.coleman
├── easytext.algorithm.kincaid
├── easytext.algorithm.naivesyllablecounter
├── easytext.algorithm.nextgensyllablecounter
├── easytext.cli
└── easytext.gui
Module path

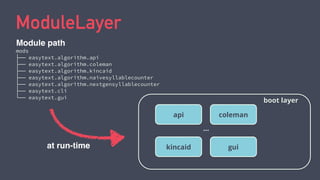

74. ModuleLayer
mods
├── easytext.algorithm.api
├── easytext.algorithm.coleman
├── easytext.algorithm.kincaid
├── easytext.algorithm.naivesyllablecounter
├── easytext.algorithm.nextgensyllablecounter
├── easytext.cli
└── easytext.gui
Module path
boot layer
api coleman
kincaid gui
...
at run-time

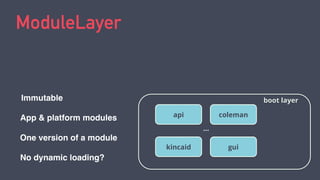

75. ModuleLayer
Immutable boot layer
api coleman
kincaid gui
...
One version of a module
No dynamic loading?
App & platform modules

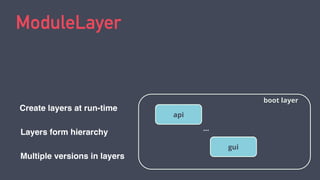

76. ModuleLayer
boot layer
api
gui
...
Create layers at run-time
Multiple versions in layers
Layers form hierarchy

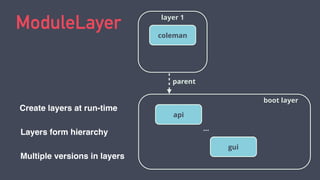

77. ModuleLayer
boot layer
api
gui
...
layer 1
coleman
parent
Create layers at run-time
Multiple versions in layers
Layers form hierarchy

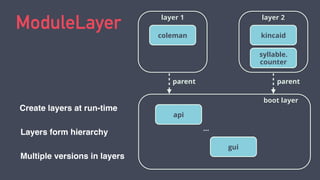

78. ModuleLayer
boot layer
api
gui
...
layer 1
coleman
parent
layer 2
kincaid
syllable.
counter
parent
Create layers at run-time
Multiple versions in layers
Layers form hierarchy

79. ModuleLayer Demo

80. Thank you.
https://javamodularity.com
Paul Bakker
@pbakker
Sander Mak
@Sander_Mak
