The document discusses IoT provisioning, emphasizing modular deployment and Apache ACE's role in simplifying this process. It highlights key features such as automation, security, and bandwidth efficiency while differentiating between various provisioning standards. A demonstration showcases the deployment of a modular system on targets like cars and provides insights into the architecture and extensibility of the system.

1. Paul Bakker
Sander Mak
Luminis Technologies
- @pbakker
- @sander_mak
Provisioning the IoT

2. 1. Put IoT provisioning into context
2. Demo: modular provisioning
3. Apache ACE
Today's goals

3. Provisioning spectrum

4. Provisioning spectrum
servers
Cloud/SaaS:
‣ full control
‣ reliable network
‣ VM/Containers

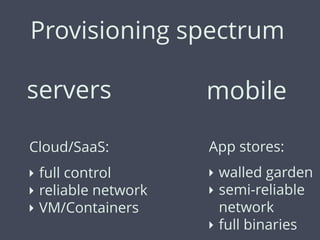

5. Provisioning spectrum
servers
Cloud/SaaS:
‣ full control
‣ reliable network
‣ VM/Containers
mobile
App stores:
‣ walled garden
‣ semi-reliable
network
‣ full binaries

6. Provisioning spectrum
IoT
?

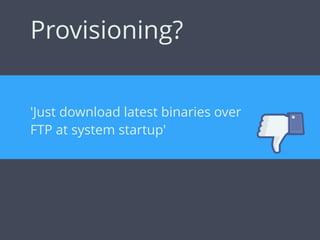

7. Provisioning?
'Just download latest binaries over
FTP at system startup'

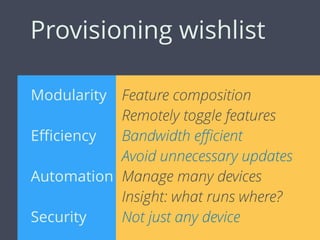

8. Provisioning wishlist
Modularity
Efficiency
Automation
Security
Feature composition
Remotely toggle features
Bandwidth efficient
Avoid unnecessary updates
Manage many devices
Insight: what runs where?
Not just any device

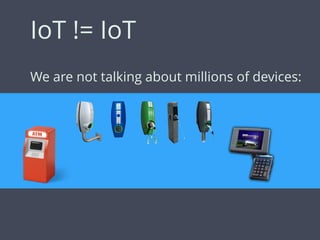

9. IoT != IoT
We are not talking about millions of devices:

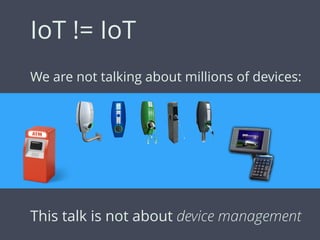

10. IoT != IoT
We are not talking about millions of devices:
This talk is not about device management

11. IoT Provisioning standards
Mostly about device management
Device
OS
Firmware
Application
Vendors
Operators
OMA-DM (cellular)
LWM2M (ip-based)
?

13. Demo time!

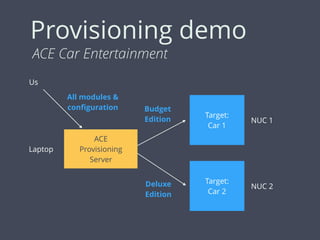

14. Provisioning demo
Target:
Car 1
ACE Car Entertainment
Target:
Car 2
NUC 1
NUC 2
Laptop
ACE
Provisioning
Server
Budget
Edition
Deluxe
Edition
All modules &
configuration
Us

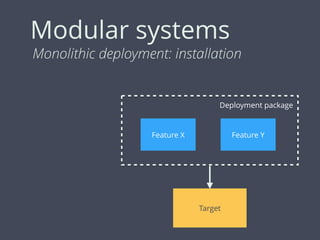

15. Modular systems
Feature Y
Monolithic deployment: installation
Feature X
Deployment package
Target

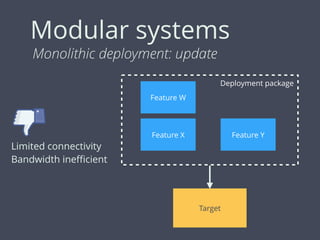

16. Modular systems
Feature Y
Monolithic deployment: update
Feature X
Deployment package
Target
Limited connectivity
Bandwidth inefficient
Feature W

17. Modular systems
Feature Y
Modular deployment: installation
Feature X
Deployment package
Target

18. Modular systems
Feature Y
Modular deployment: update
Feature X
Deployment package
Target
Feature W

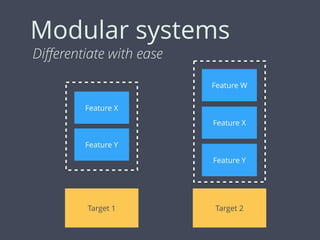

19. Modular systems
Feature Y
Differentiate with ease
Feature X
Target 2
Feature W
Target 1
Feature Y
Feature X

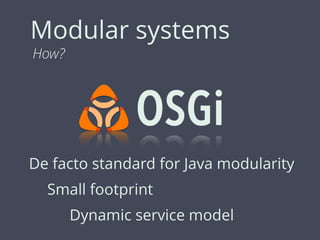

20. Modular systems
How?
De facto standard for Java modularity
Small footprint
Dynamic service model

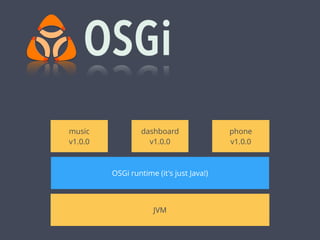

21. phone
v1.0.0
OSGi runtime (it's just Java!)
JVM
music
v1.0.0
dashboard
v1.0.0

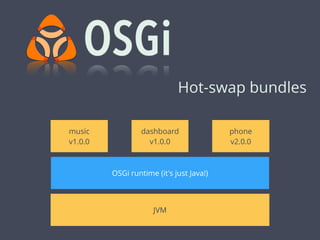

22. phone
v2.0.0
OSGi runtime (it's just Java!)
JVM
music
v1.0.0
dashboard
v1.0.0
Hot-swap bundles

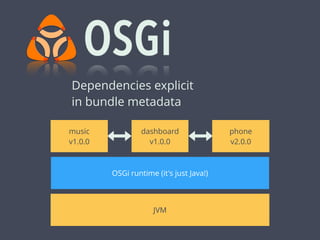

23. Dependencies explicit
in bundle metadata
phone
v2.0.0
OSGi runtime (it's just Java!)
JVM
music
v1.0.0
dashboard
v1.0.0

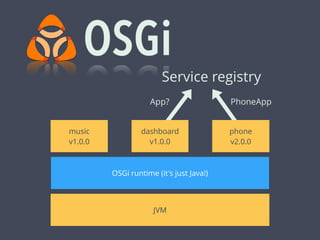

24. Service registry
App? PhoneApp
phone
v2.0.0
OSGi runtime (it's just Java!)
JVM
music
v1.0.0
dashboard
v1.0.0

25. Modular systems
Demo code
Code @ bit.ly/carprov

27. Ace
client
Ace
Server
Artifact
Repository
Device 1
Device 2
Device n
Build
server
Architecture

28. Model
Bundle A
Bundle B
Bundle C
Feature A
Feature B
Distribution A

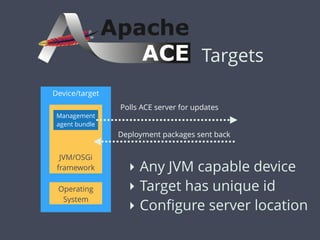

29. Targets
Device/target
JVM/OSGi
framework
Operating
System
Management
agent bundle
Polls ACE server for updates
‣ Any JVM capable device
‣ Target has unique id
‣ Configure server location
Deployment packages sent back

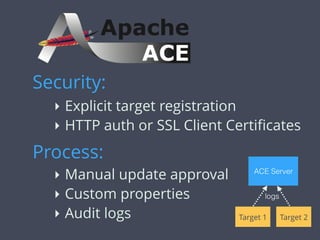

30. ‣ Explicit target registration
‣ HTTP auth or SSL Client Certificates
Security:
Process:
‣ Manual update approval
‣ Custom properties
‣ Audit logs
ACE Server
Target 1 Target 2
logs

31. Scripting
REST
Java API
scriptable OSGi shell, calls (low-
level) Java API
Gogo script
GET /work/{id}/feature
workspaceMgr.cw().lf()

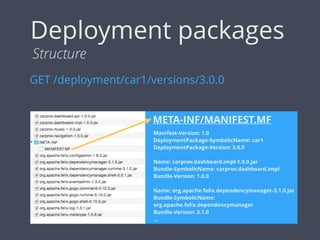

32. Deployment packages
Structure
GET /deployment/car1/versions/3.0.0
Manifest-Version: 1.0
DeploymentPackage-SymbolicName: car1
DeploymentPackage-Version: 3.0.0
Name: carprov.dashboard.impl-1.0.0.jar
Bundle-SymbolicName: carprov.dashboard.impl
Bundle-Version: 1.0.0
Name: org.apache.felix.dependencymanager-3.1.0.jar
Bundle-SymbolicName:
org.apache.felix.dependencymanager
Bundle-Version: 3.1.0
…
META-INF/MANIFEST.MF

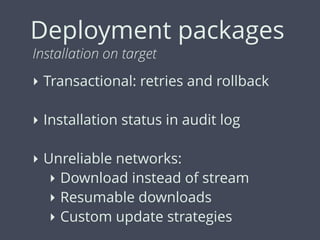

33. Deployment packages
Installation on target
‣ Transactional: retries and rollback
‣ Installation status in audit log
‣ Unreliable networks:
‣ Download instead of stream
‣ Resumable downloads
‣ Custom update strategies

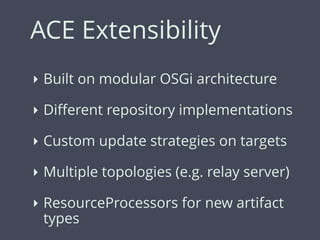

34. ACE Extensibility
‣ Built on modular OSGi architecture
‣ Different repository implementations
‣ Custom update strategies on targets
‣ Multiple topologies (e.g. relay server)
‣ ResourceProcessors for new artifact
types

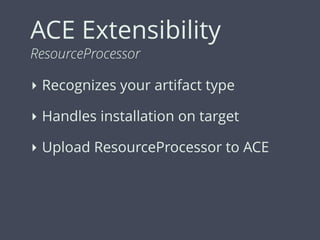

35. ACE Extensibility
ResourceProcessor
‣ Recognizes your artifact type
‣ Handles installation on target
‣ Upload ResourceProcessor to ACE

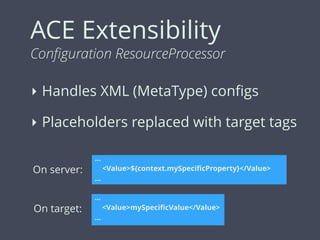

36. ACE Extensibility
Configuration ResourceProcessor
‣ Handles XML (MetaType) configs
‣ Placeholders replaced with target tags
...
<Value>${context.mySpecificProperty}</Value>
...
On server:
...
<Value>mySpecificValue</Value>
...
On target:

37. In summary
Modular applications rock!
Modular deployment is worth your while
Apache ACE simplifies IoT deployments

38. Thank you!
Paul Bakker
Sander Mak
- @pbakker
- @sander_mak
Code @
bit.ly/carprov
