1. Angular (Session - 2)
Nitin Bhojwani nbhojwani@vmware.com
Saket Singh sakets@vmware.com
Nikhil Gupta guptanikhil@vmware.com

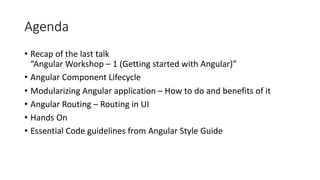

2. Agenda
• Recap of the last talk
“Angular Workshop – 1 (Getting started with Angular)”
• Angular Component Lifecycle
• Modularizing Angular application – How to do and benefits of it
• Angular Routing – Routing in UI
• Hands On
• Essential Code guidelines from Angular Style Guide

3. Recap

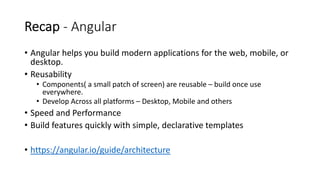

4. Recap - Angular
• Angular helps you build modern applications for the web, mobile, or
desktop.
• Reusability
• Components( a small patch of screen) are reusable – build once use
everywhere.
• Develop Across all platforms – Desktop, Mobile and others
• Speed and Performance
• Build features quickly with simple, declarative templates
• https://angular.io/guide/architecture

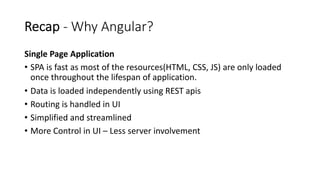

5. Recap - Why Angular?
Single Page Application
• SPA is fast as most of the resources(HTML, CSS, JS) are only loaded
once throughout the lifespan of application.
• Data is loaded independently using REST apis
• Routing is handled in UI
• Simplified and streamlined
• More Control in UI – Less server involvement

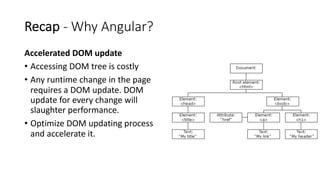

6. Recap - Why Angular?
Accelerated DOM update
• Accessing DOM tree is costly
• Any runtime change in the page
requires a DOM update. DOM
update for every change will
slaughter performance.
• Optimize DOM updating process
and accelerate it.

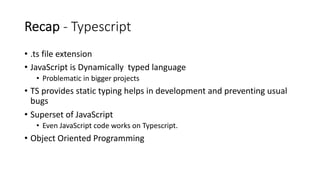

7. Recap - Typescript
• .ts file extension
• JavaScript is Dynamically typed language
• Problematic in bigger projects
• TS provides static typing helps in development and preventing usual
bugs
• Superset of JavaScript
• Even JavaScript code works on Typescript.
• Object Oriented Programming

8. Recap - Angular Building Blocks
Component
• A component controls a patch of screen called a view.
• Presentation Logic goes here, can invoke based on user actions
• Define:
@Component({
selector: 'app-hero-list’,
templateUrl: './hero-list.component.html’,
providers: [ HeroService ] })
• Use:
<app-hero-list></app-hero-list>
• https://angular.io/guide/architecture-components

9. Recap - Angular Building Blocks
Service
• Includes any value, function, or feature that an app needs.
• A service is typically a class with a narrow, well-defined purpose.
• Should do something specific and do it well.
• Backend for view(Component)
• Handles functionality

10. Recap - Clarity Design System
• Open sourced by VMware
• UX guidelines,
HTML/CSS framework, and
Angular components
• Don’t work on view from scratch
• Reuse components provided by Clarity
• https://clarity.design/

11. Angular Component Lifecycle

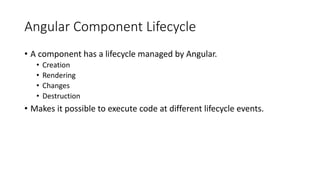

12. Angular Component Lifecycle
• A component has a lifecycle managed by Angular.
• Creation
• Rendering
• Changes
• Destruction
• Makes it possible to execute code at different lifecycle events.

13. Lifecycle Hooks
ngOnChanges():
• Called before ngOnInit() and whenever one or more data-bound
input properties change.
• Code to react on input changes goes here.
ngOnInit():
• Called once, after the first ngOnChanges()
• Code to initialize component data, set initial values goes here.
ngAfterContentInit():
• Called after Angular projects external content into the component's view. (Stuff that
goes inside "ng-content" tags)
• Pieces of HTML that can be passed from parent and projected in a child component.

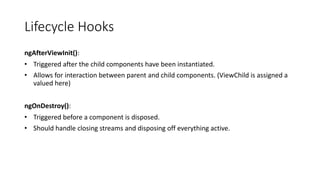

14. Lifecycle Hooks
ngAfterViewInit():
• Triggered after the child components have been instantiated.
• Allows for interaction between parent and child components. (ViewChild is assigned a
valued here)
ngOnDestroy():
• Triggered before a component is disposed.
• Should handle closing streams and disposing off everything active.

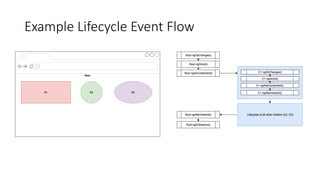

15. Example Lifecycle Event Flow

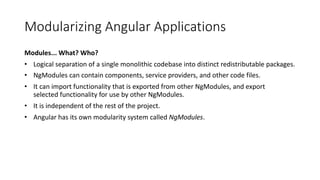

16. Modularizing Angular Applications
Modules... What? Who?
• Logical separation of a single monolithic codebase into distinct redistributable packages.
• NgModules can contain components, service providers, and other code files.
• It can import functionality that is exported from other NgModules, and export
selected functionality for use by other NgModules.
• It is independent of the rest of the project.
• Angular has its own modularity system called NgModules.

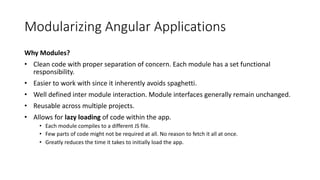

17. Modularizing Angular Applications
Why Modules?
• Clean code with proper separation of concern. Each module has a set functional
responsibility.
• Easier to work with since it inherently avoids spaghetti.
• Well defined inter module interaction. Module interfaces generally remain unchanged.
• Reusable across multiple projects.
• Allows for lazy loading of code within the app.
• Each module compiles to a different JS file.
• Few parts of code might not be required at all. No reason to fetch it all at once.
• Greatly reduces the time it takes to initially load the app.

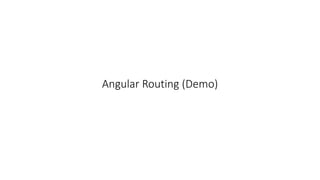

18. Angular Routing (Demo)

19. Hands On

20. (Hands On) Refactoring from last hands-on
• https://github.com/tech-talky/wwc-weather
• After the last hands-on, some refactoring is done:
• weather-status – new feature module
• migrate app.component.html and app.component.ts content to another
component in the new module weather-status
• Basic routing

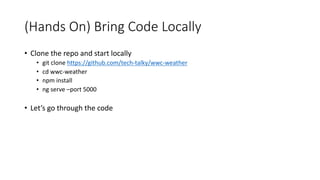

21. (Hands On) Bring Code Locally
• Clone the repo and start locally
• git clone https://github.com/tech-talky/wwc-weather
• cd wwc-weather
• npm install
• ng serve –port 5000
• Let’s go through the code

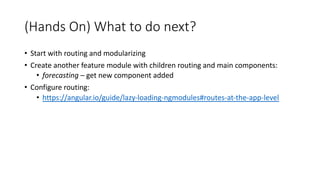

22. (Hands On) What to do next?
• Start with routing and modularizing
• Create another feature module with children routing and main components:
• forecasting – get new component added
• Configure routing:
• https://angular.io/guide/lazy-loading-ngmodules#routes-at-the-app-level

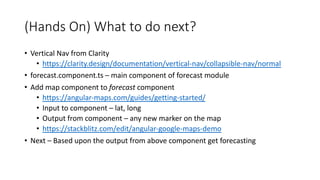

23. (Hands On) What to do next?
• Vertical Nav from Clarity
• https://clarity.design/documentation/vertical-nav/collapsible-nav/normal
• forecast.component.ts – main component of forecast module
• Add map component to forecast component
• https://angular-maps.com/guides/getting-started/
• Input to component – lat, long
• Output from component – any new marker on the map
• https://stackblitz.com/edit/angular-google-maps-demo
• Next – Based upon the output from above component get forecasting

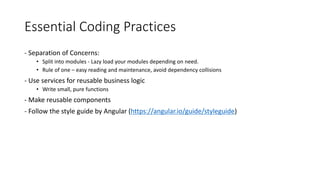

24. Essential Coding Practices
- Separation of Concerns:
• Split into modules - Lazy load your modules depending on need.
• Rule of one – easy reading and maintenance, avoid dependency collisions
- Use services for reusable business logic
• Write small, pure functions
- Make reusable components
- Follow the style guide by Angular (https://angular.io/guide/styleguide)
