Modularity in the Cloud
- 1. Modularity in the cloud Acase study
- 2. Jan Willem Janssen LuminisTechnologies @j_w_janssen Sander Mak Luminis Technologies @sander_mak http://branchandbound.net

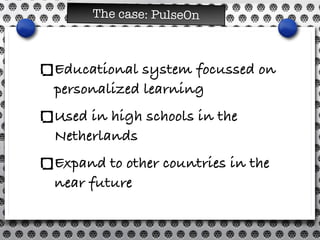

- 3. The case: PulseOn Educationalsystem focussed on personalized learning Used in high schools in the Netherlands Expand to other countries in the near future
- 4. Requirements Easy software updates Cross device iPad/android/ desktop... Differentset of components per school Scalability (both up and down)
- 5.
- 6.

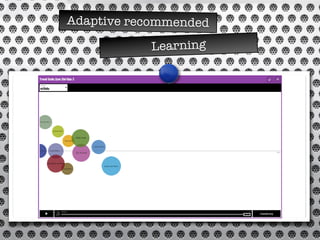

- 7.
- 8. How to buildsoftware when nobody can tell you exactly what to build?
- 9. Divide and conquer, preventthe ripple effect Modularity
- 10. Modularity in practice Programto interfaces, not implementations Rate of change of modules http://geekandpoke.typepad.com
- 11.
- 12. Ok, but howto create an instance of a hidden class? MyInterface myI = new MyImplementation(); YOU DON’T!
- 13.

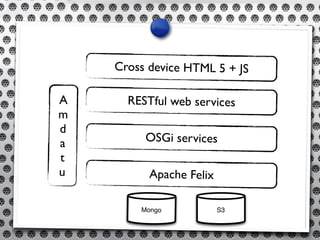

- 14. Cross device HTML5 + JS RESTful web services OSGi services Mongo Apache Felix A m d a t u S3
- 15.
- 16.
- 17. Some numbers 190 bundles in adeployment 120 PulseOn bundles
- 18. Amdatu: OSGi Cloudcomponents JAX-RS Mongo DB BlobStores Scheduling Multi-tenancy Search OpenSocial ... Apache Licensed open source project
- 19. Amdatu MongoDB Most datais exposed using REST The profiler generates a LOT of data The recommender needs powerful queries
- 20. Amdatu OpenSocial How toseparate UI elements in modules? Each functional part is an OpenSocial gadget Modularity in the UI

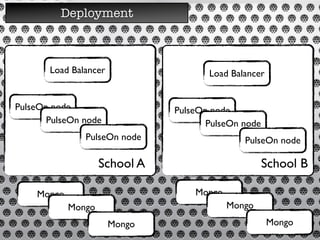

- 21. School B Load Deployment Load Balancer PulseOnnode PulseOn node PulseOn node Load Balancer PulseOn node PulseOn node PulseOn node School A Mongo Mongo Mongo Mongo Mongo Mongo
- 22. Auto scaling Considerable higherloads during school hours Enough capacity Without paying for idle servers at night...

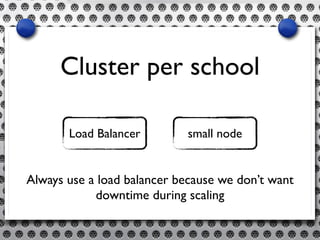

- 23. Load Balancer smallnode Cluster per school Always use a load balancer because we don’t want downtime during scaling
- 24. Load Balancer smallnode Early morning...
- 25. Load Balancer smallnode large node large node Early morning...

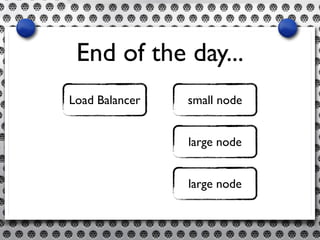

- 26. End of theday... Load Balancer small node large node large node

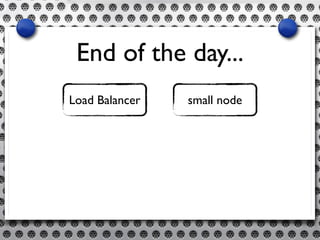

- 27. End of theday... Load Balancer small node
- 28. But how dowe install our software on a node?
- 29.
- 30.

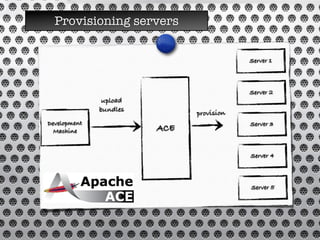

- 31. Node AWS Auto Scaling 1.Start Load Balancer Apache ACE 4. register 2. register 3. provision deployment package Provisioning servers
- 32. Tooling and frameworks are nowmature enough How does this fit other applications? The architecture fits most modern web applications Works in the cloud (but not a requirement)
- 33.
- 34. Cloud provisioning http://ace.apache.org/ Cloud OSGiservices http://www.amdatu.org/ Eclipse OSGi plugin http://bndtools.org/ @Sander_Mak http://luminis.eu/en/ There is more...
