![Hibernate Sucks!
... because it’s slow
‘The problem is sort of cultural [..] developers
use Hibernate because they are uncomfortable
with SQL and with RDBMSes. You should be
very comfortable with SQL and JDBC before you
start using Hibernate - Hibernate builds on
JDBC, it doesn’t replace it. That is the cost of
extra abstraction [..] save yourself effort,
pay attention to the database at all stages
of development.
- Gavin King (creator)](https://image.slidesharecdn.com/hibperftuning-100430064340-phpapp02/85/Hibernate-performance-tuning-5-320.jpg)
More Related Content
![[EPPG] Oracle to PostgreSQL, Challenges to Opportunity](https://cdn.slidesharecdn.com/ss_thumbnails/eppg-oracletopostgresqlchallengestoopportunity-190409033058-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Hibernate performance tuning
Hibernate performance tuning
- 1.

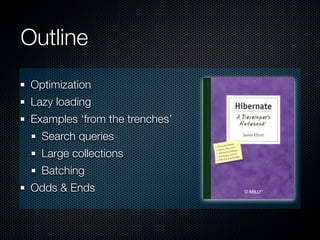

- 2. Outline Optimization Lazyloading Examples ‘from the trenches’ Search queries Large collections Batching Odds & Ends
- 3.
- 4. Hibernate Sucks! ... because it’s slow
- 5. Hibernate Sucks! ... because it’s slow ‘The problem is sort of cultural [..] developers use Hibernate because they are uncomfortable with SQL and with RDBMSes. You should be very comfortable with SQL and JDBC before you start using Hibernate - Hibernate builds on JDBC, it doesn’t replace it. That is the cost of extra abstraction [..] save yourself effort, pay attention to the database at all stages of development. - Gavin King (creator)

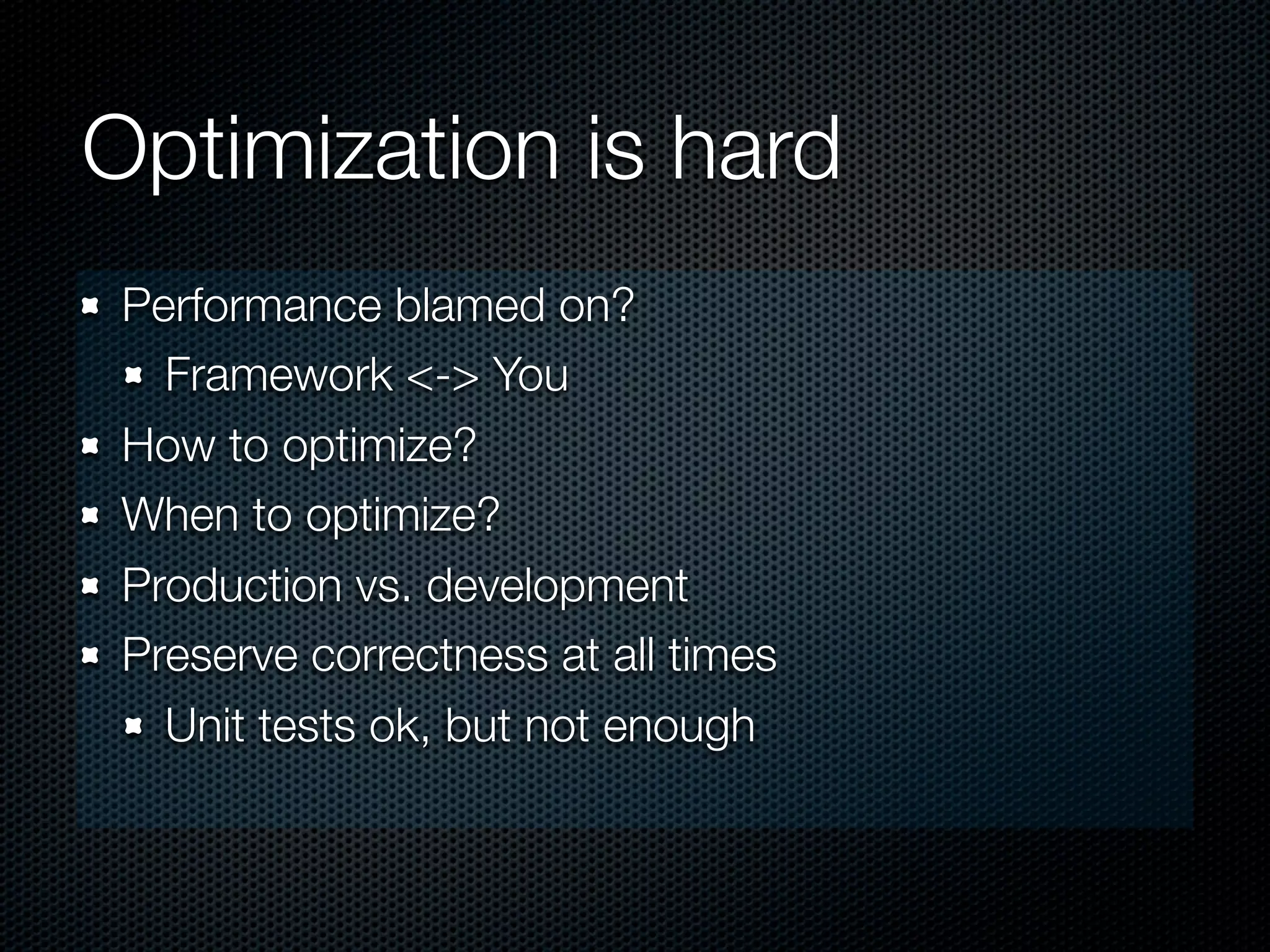

- 6. Optimization is hard Performance blamed on? Framework <-> You How to optimize? When to optimize? Production vs. development Preserve correctness at all times Unit tests ok, but not enough
- 7. Optimization is hard Performance blamed on? Framework <-> You How to optimize? When to optimize? Production vs. development Preserve correctness at all times Unit tests ok, but not enough Premature optimization is the root of all evil - Donald Knuth

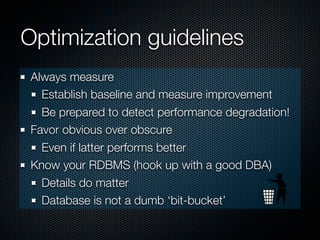

- 8. Optimization guidelines Alwaysmeasure Establish baseline and measure improvement Be prepared to detect performance degradation! Favor obvious over obscure Even if latter performs better Know your RDBMS (hook up with a good DBA) Details do matter Database is not a dumb ‘bit-bucket’

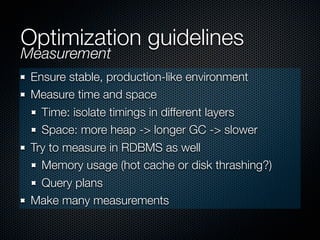

- 9. Optimization guidelines Measurement Ensurestable, production-like environment Measure time and space Time: isolate timings in different layers Space: more heap -> longer GC -> slower Try to measure in RDBMS as well Memory usage (hot cache or disk thrashing?) Query plans Make many measurements
- 10. Optimization guidelines Measurement Ensurestable, production-like environment Measure time and space Time: isolate timings in different layers Space: more heap -> longer GC -> slower Try to measure in RDBMS as well Memory usage (hot cache or disk thrashing?) Query plans Make many measurements Remember: measurements are relative
- 11. Optimization guidelines Practical Profileron DAO/Session.query() methods VisualVM etc. for heap usage Also: JRockit Mission Control Hibernate JMX <property name="hibernate.generate_statistics">true </property> RDBMS monitoring tools

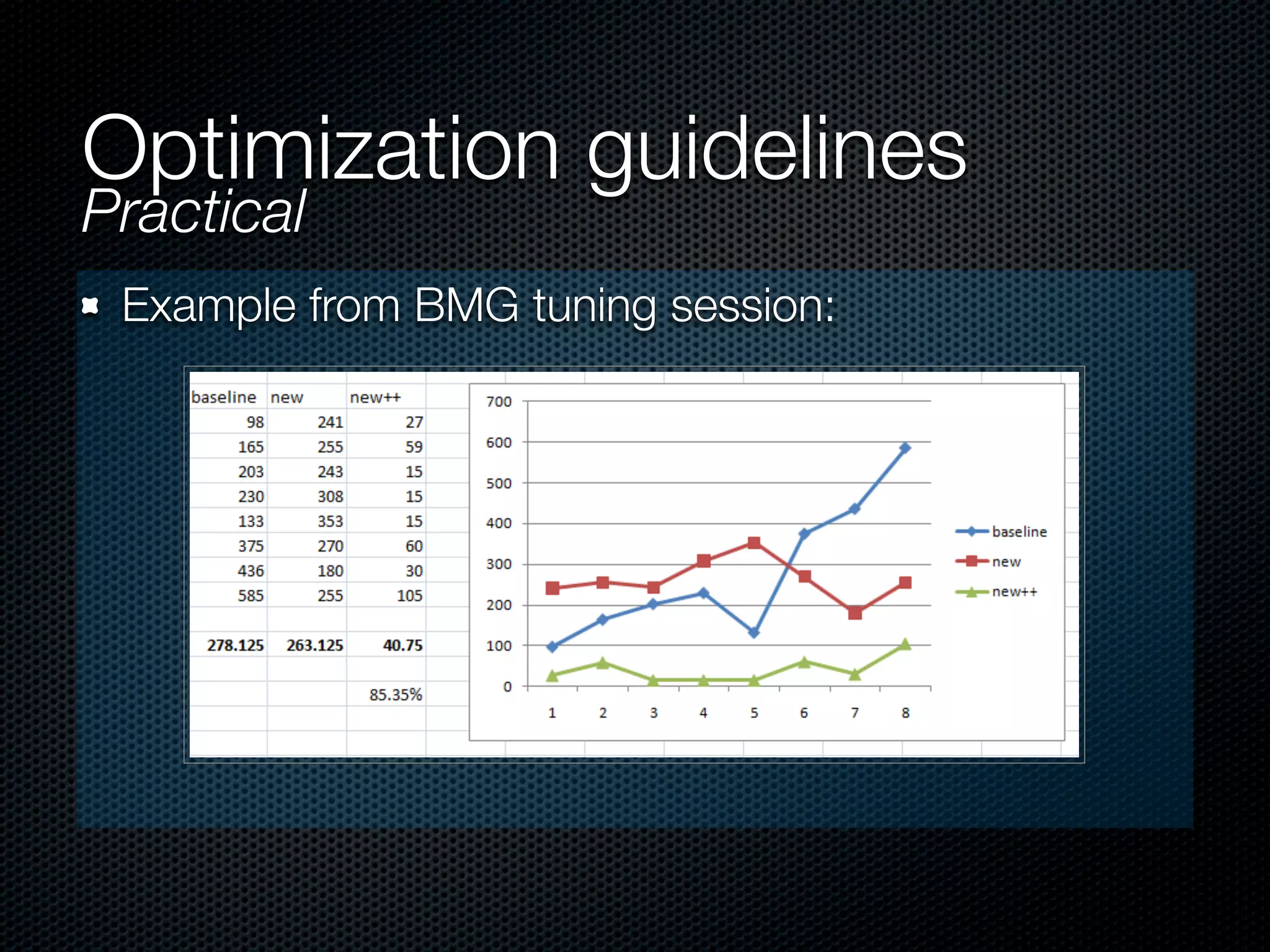

- 12. Optimization guidelines Practical Examplefrom BMG tuning session:

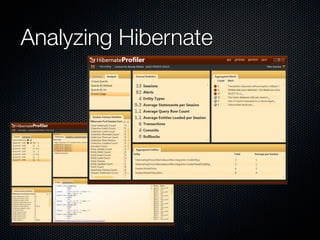

- 13. Analyzing Hibernate Log SQL: <property name="show_sql">true</property> <property name="format_sql">true</property> Log4J configuration: org.hibernate -> DEBUG org.hibernate.type -> FINE (see bound params) Or use P6Spy to snoop on JDBC connection

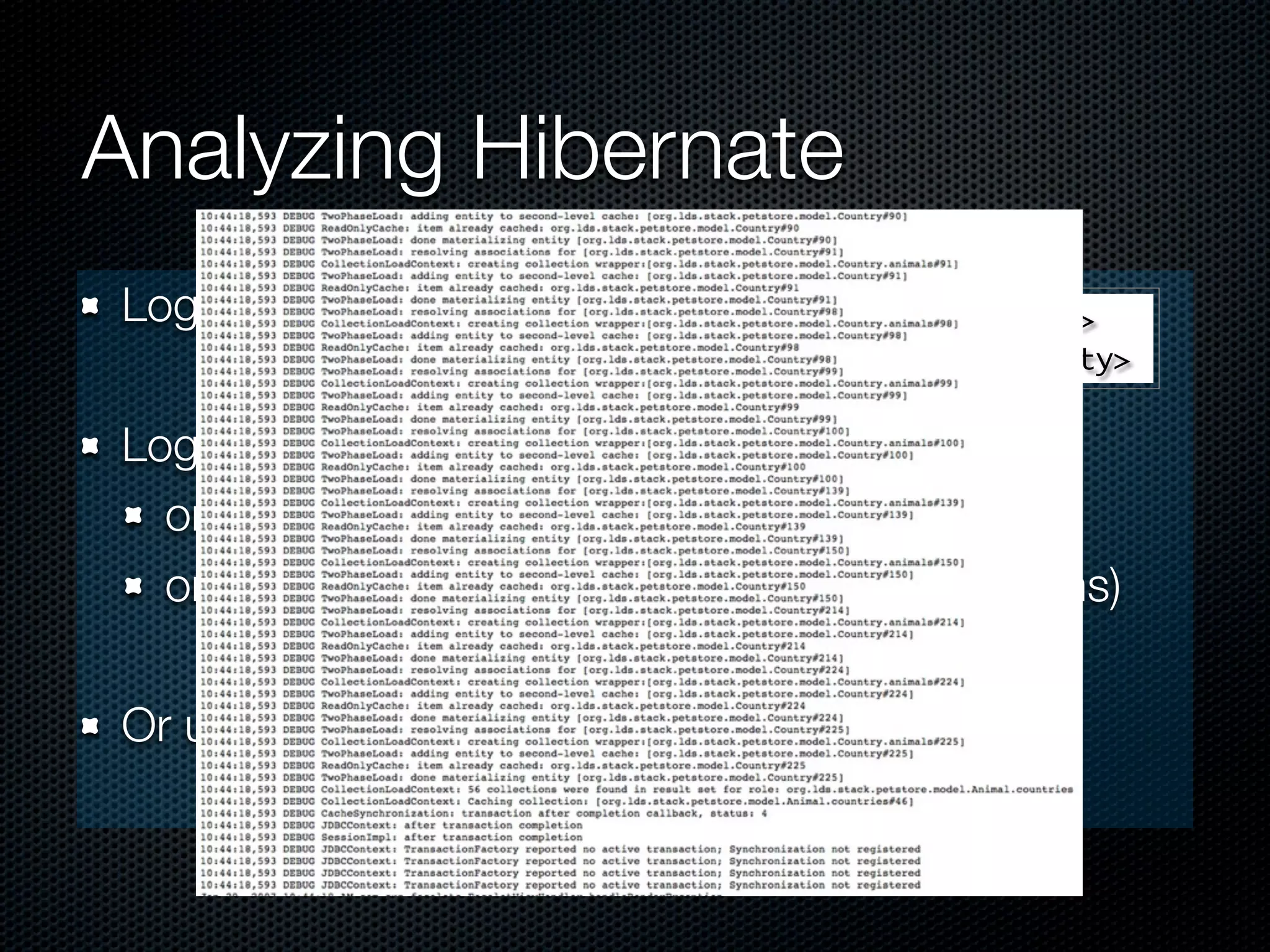

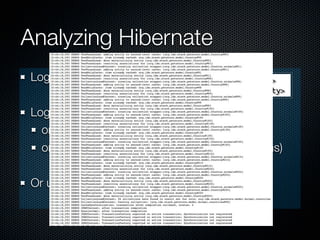

- 14. Analyzing Hibernate Log SQL: <property name="show_sql">true</property> <property name="format_sql">true</property> Log4J configuration: org.hibernate -> DEBUG org.hibernate.type -> FINE (see bound params) Or use P6Spy to snoop on JDBC connection

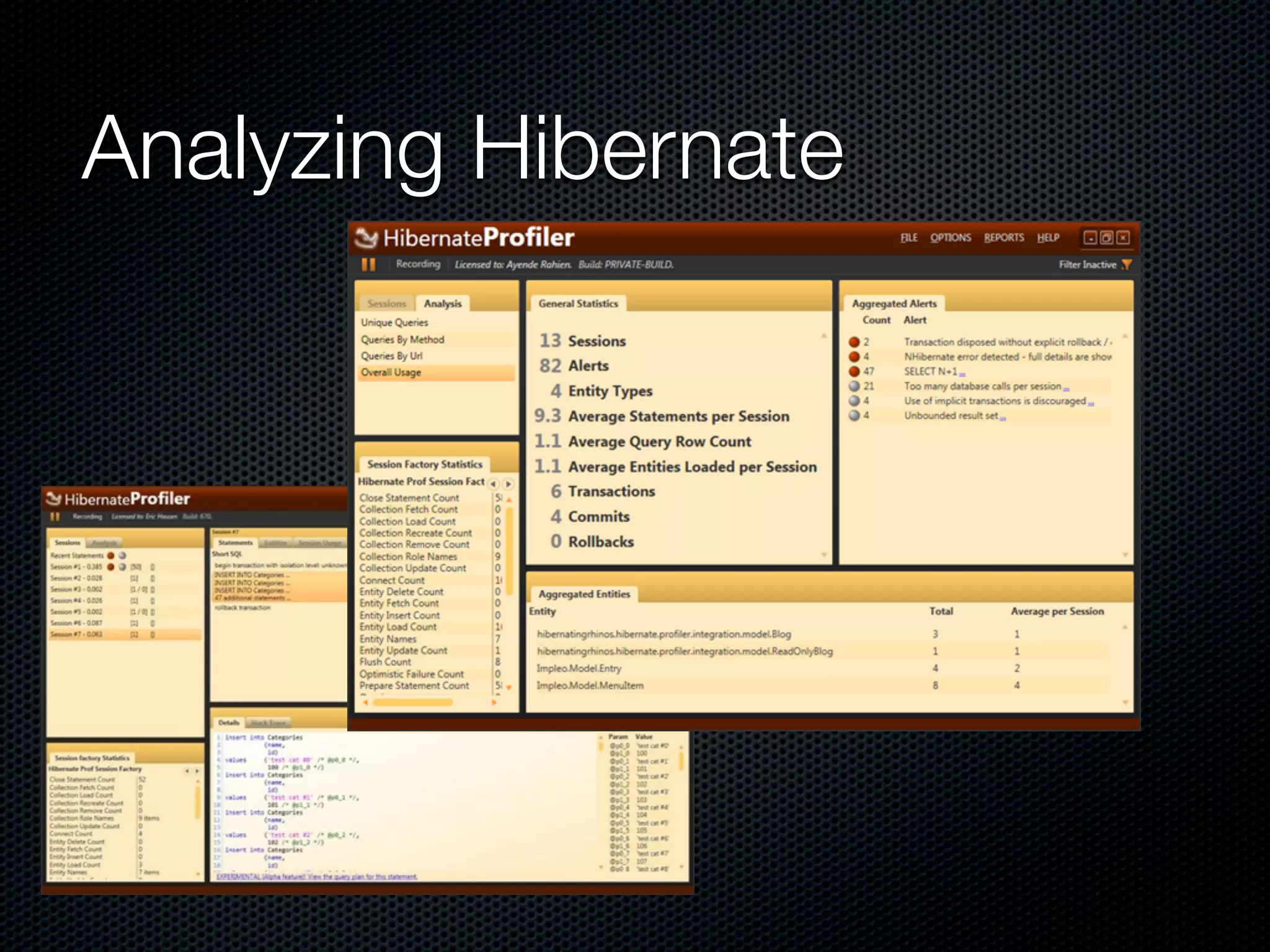

- 15.
- 16.

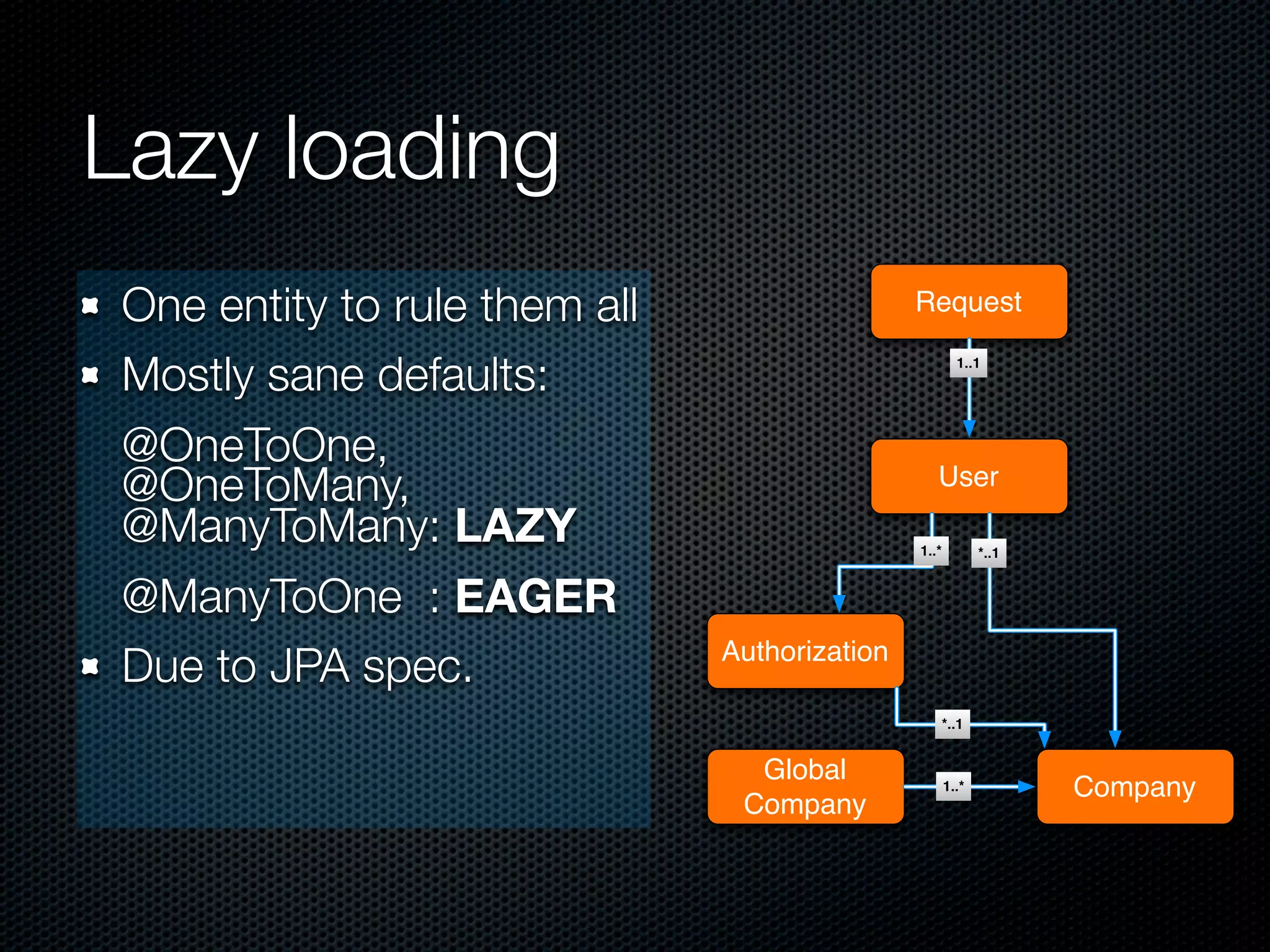

- 17. Lazy loading One entityto rule them all Request Mostly sane defaults: 1..1 @OneToOne, @OneToMany, User @ManyToMany: LAZY 1..* *..1 @ManyToOne : EAGER Due to JPA spec. Authorization *..1 Global 1..* Company Company

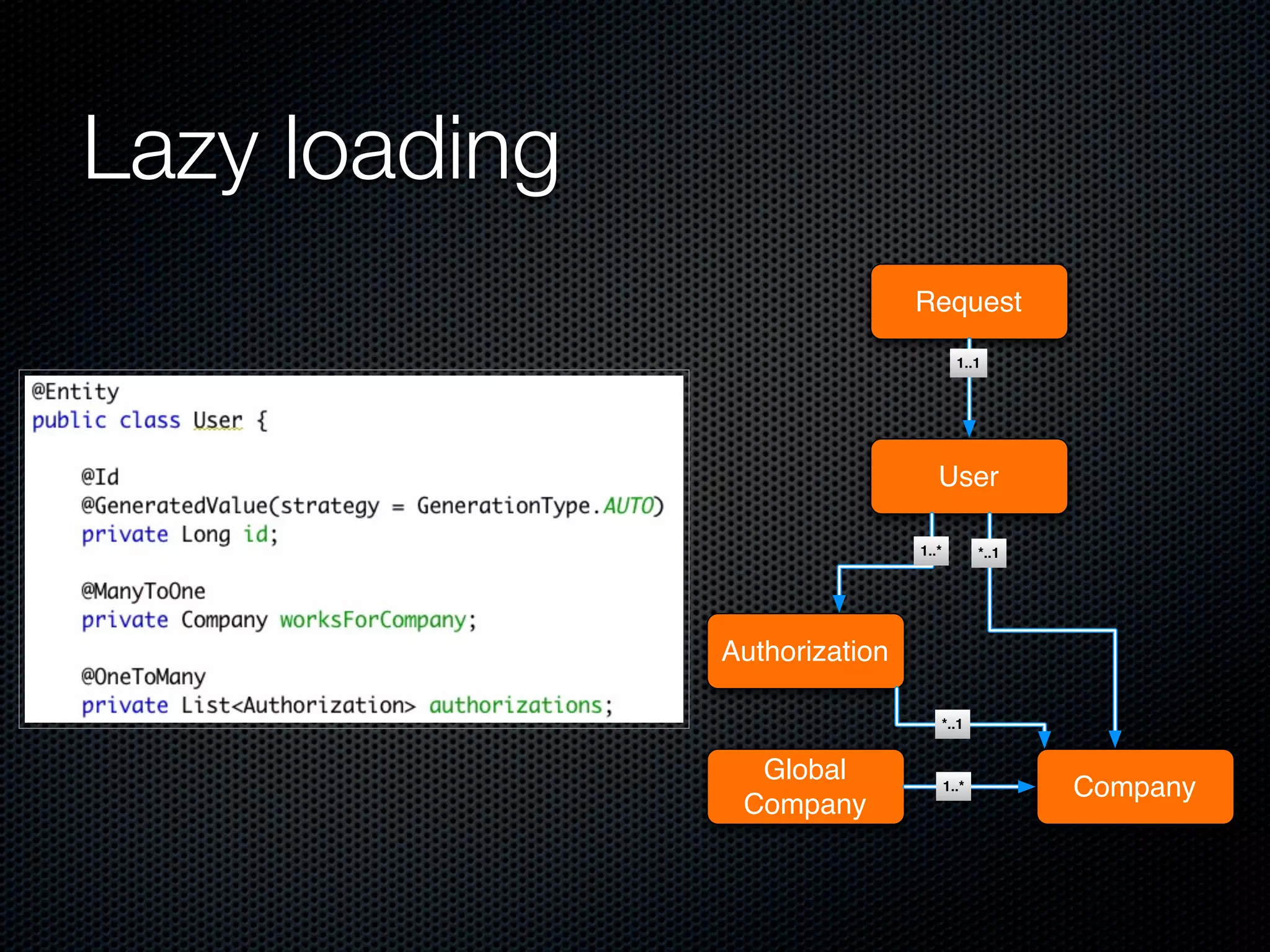

- 18. Lazy loading Request 1..1 User 1..* *..1 Authorization *..1 Global 1..* Company Company
- 20.

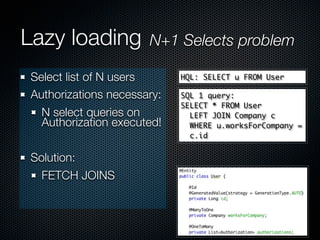

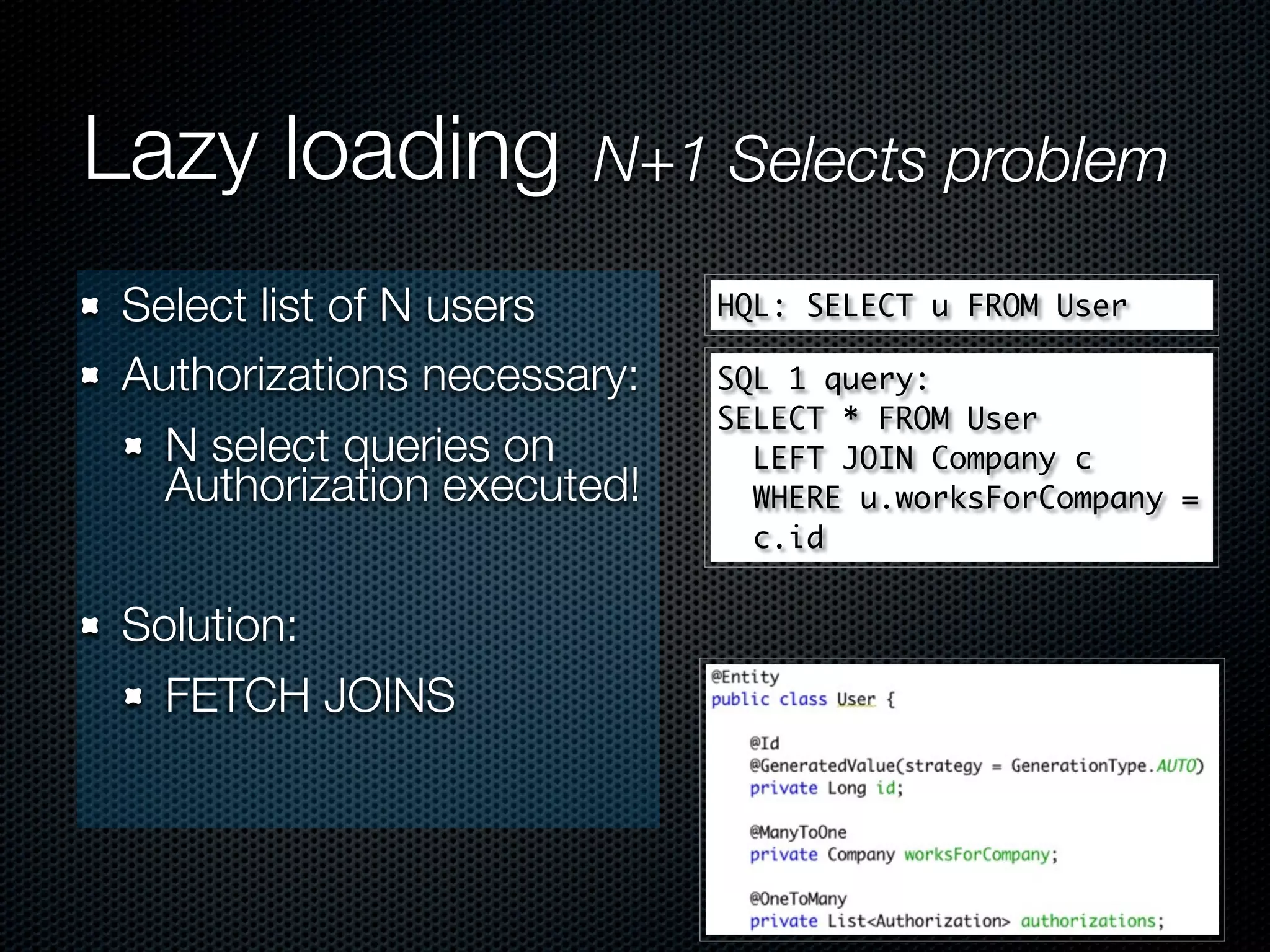

- 21. Lazy loading N+1 Selects problem Select list of N users HQL: SELECT u FROM User Authorizations necessary: SQL 1 query: SELECT * FROM User N select queries on LEFT JOIN Company c Authorization executed! WHERE u.worksForCompany = c.id Solution: FETCH JOINS
- 22. Lazy loading N+1 Selects problem Select list of N users HQL: SELECT u FROM User Authorizations necessary: SQL N queries: SELECT * FROM Authorization N select queries on WHERE userId = N Authorization executed! Solution: FETCH JOINS
- 23. Lazy loading N+1 Selects problem Select list of N users HQL: SELECT u FROM User JOIN FETCH u.authorizations Authorizations necessary: SQL 1 query: N select queries on SELECT * FROM User Authorization executed! LEFT JOIN Company c LEFT OUTER JOIN Authorization ON .. WHERE Solution: u.worksForCompany = c.id FETCH JOINS

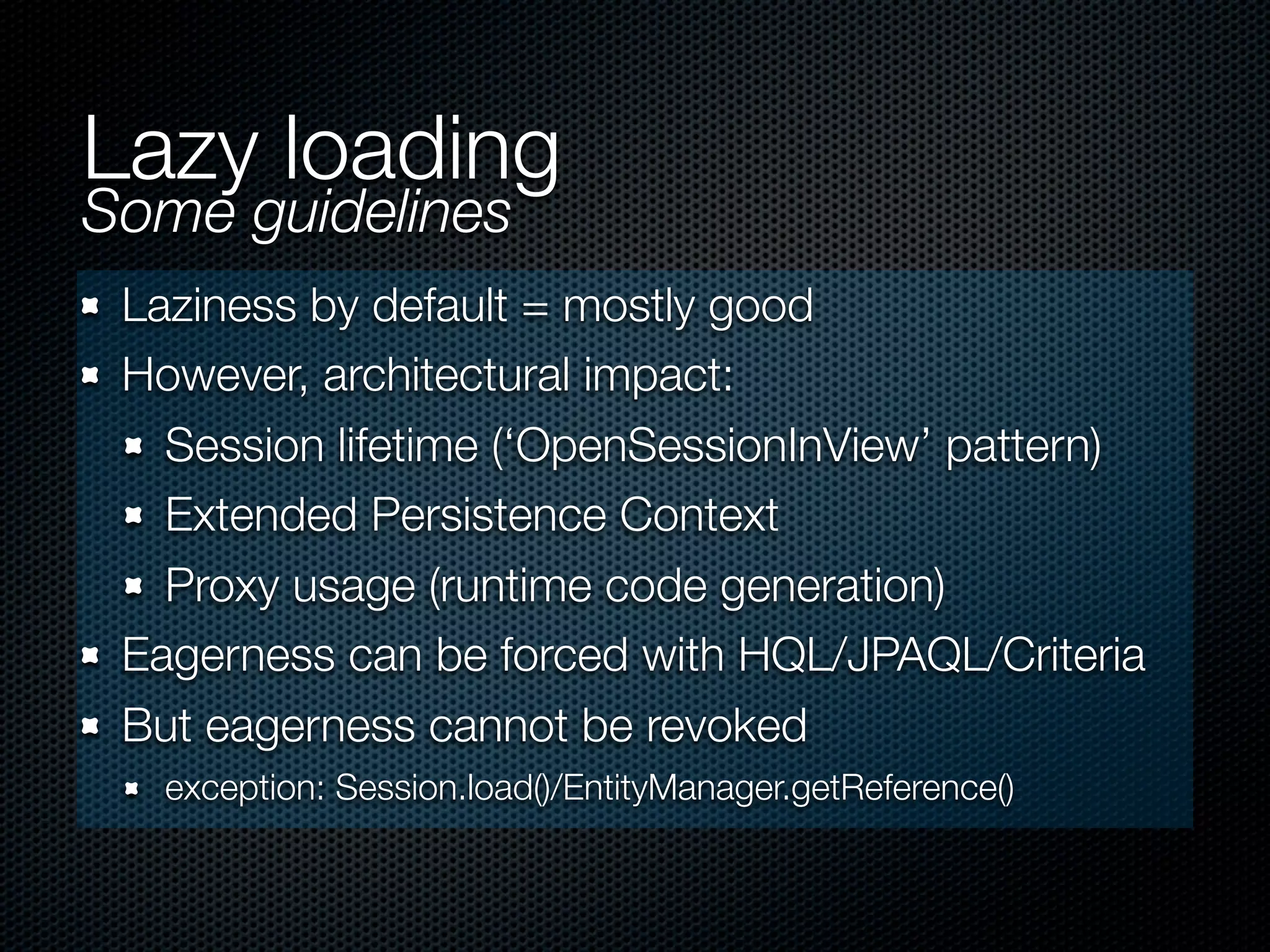

- 24. Lazy loading Some guidelines Laziness by default = mostly good However, architectural impact: Session lifetime (‘OpenSessionInView’ pattern) Extended Persistence Context Proxy usage (runtime code generation) Eagerness can be forced with HQL/JPAQL/Criteria But eagerness cannot be revoked exception: Session.load()/EntityManager.getReference()
- 25.

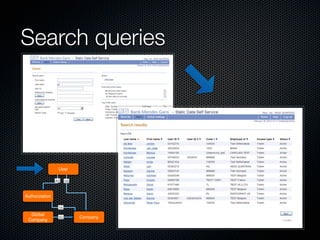

- 26. Search queries User 1..* *..1 Authorization *..1 Global 1..* Company Company

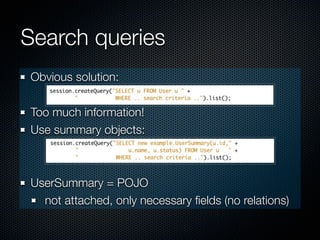

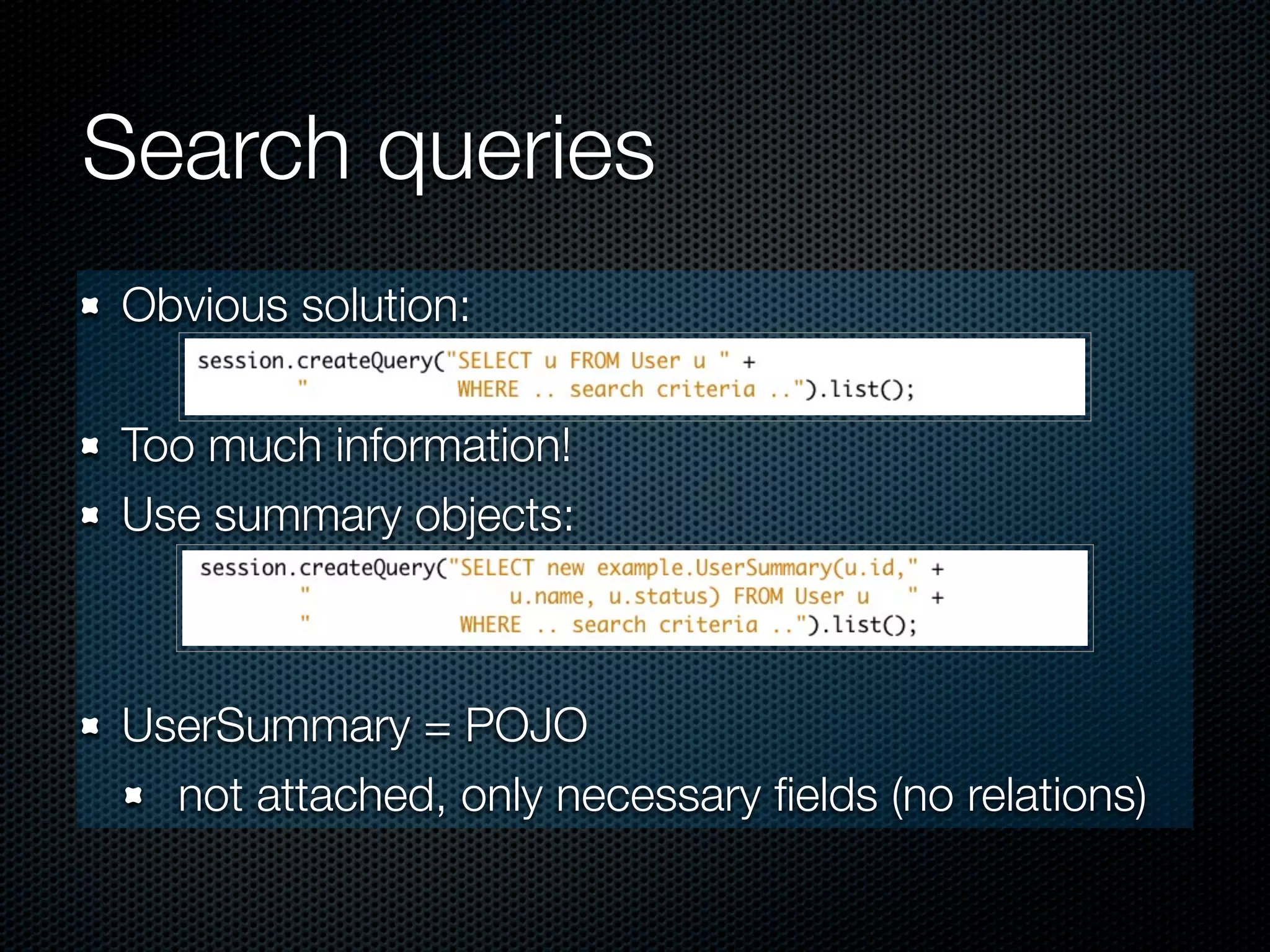

- 27. Search queries Obvious solution: Toomuch information! Use summary objects: UserSummary = POJO not attached, only necessary fields (no relations)

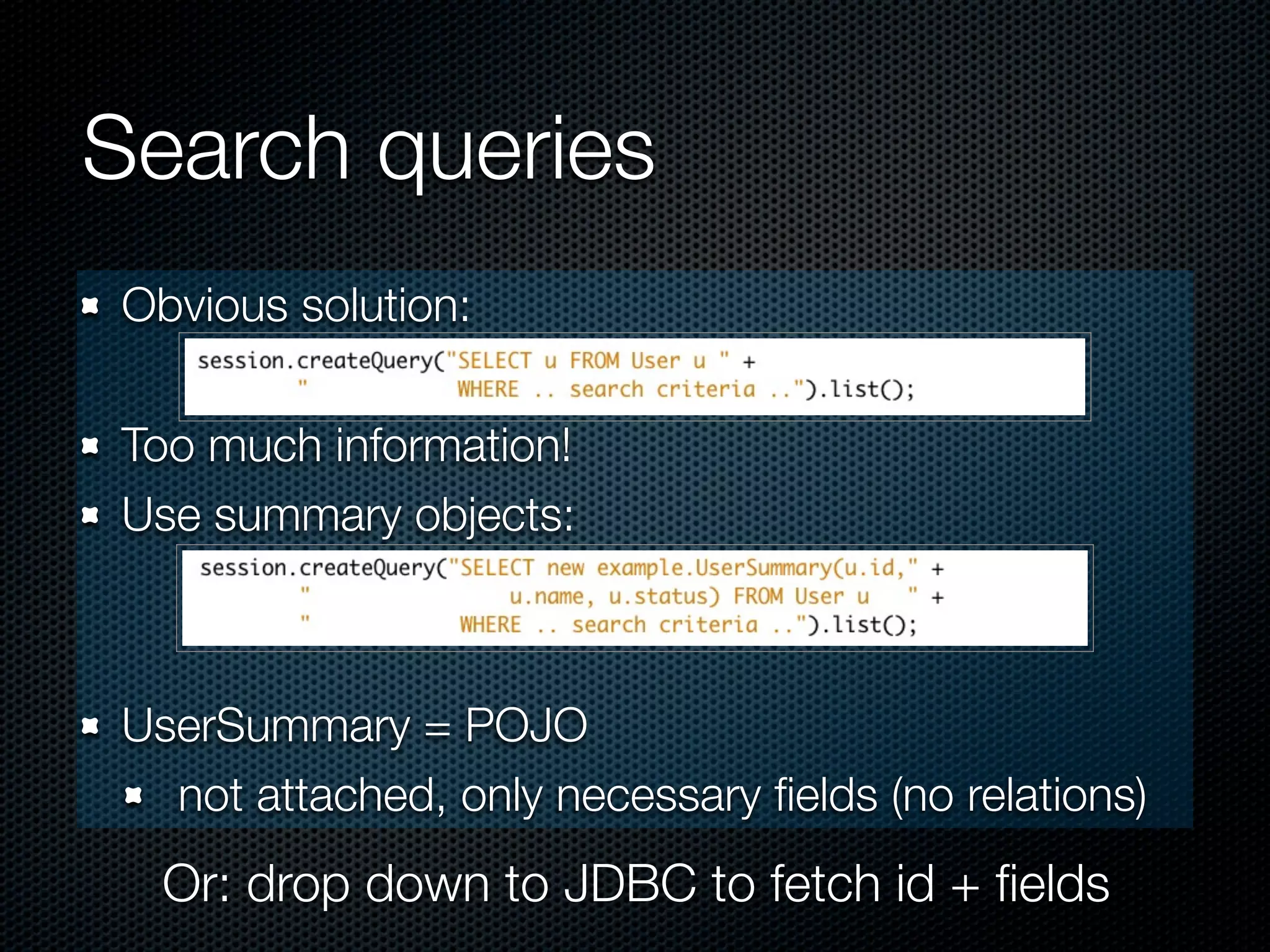

- 28. Search queries Obvious solution: Toomuch information! Use summary objects: UserSummary = POJO not attached, only necessary fields (no relations) Or: drop down to JDBC to fetch id + fields

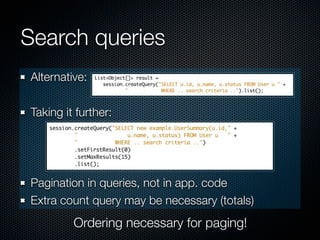

- 29. Search queries Alternative: Taking itfurther: Pagination in queries, not in app. code Extra count query may be necessary (totals) Ordering necessary for paging!

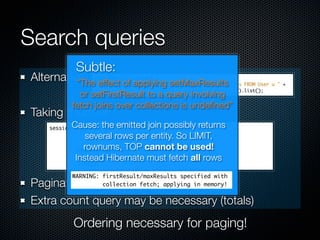

- 30. Search queries Subtle: Alternative: effect of applying setMaxResults “The or setFirstResult to a query involving fetch joins over collections is undefined” Taking it further: Cause: the emitted join possibly returns several rows per entity. So LIMIT, rownums, TOP cannot be used! Instead Hibernate must fetch all rows WARNING: firstResult/maxResults specified with Pagination in queries, not in app. code collection fetch; applying in memory! Extra count query may be necessary (totals) Ordering necessary for paging!
- 31.

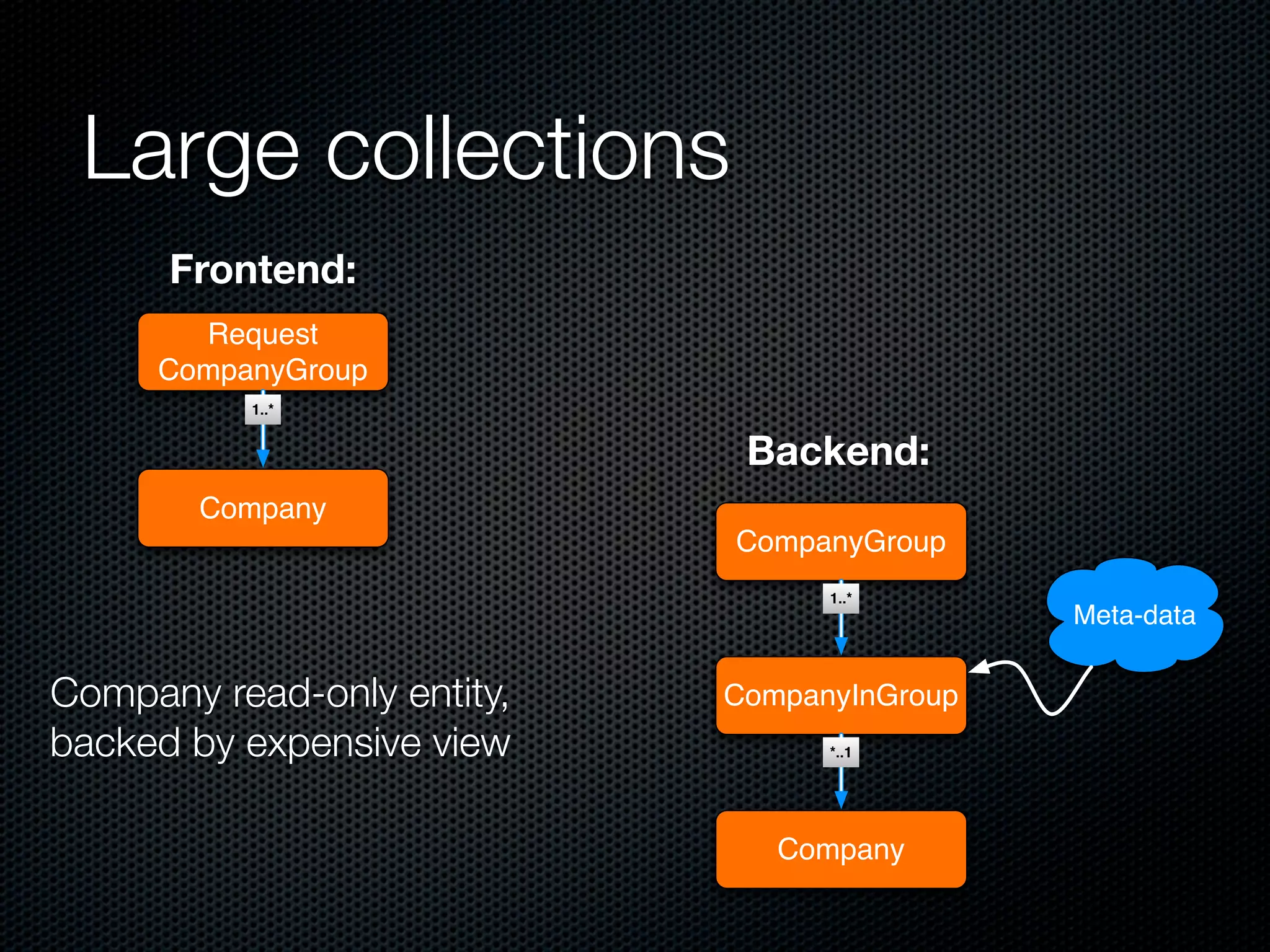

- 32. Large collections Frontend: Request CompanyGroup 1..* Backend: Company CompanyGroup 1..* Meta-data Company read-only entity, CompanyInGroup backed by expensive view *..1 Company
- 33. Large collections Frontend: Request CompanyGroup 1..* Backend: Company CompanyGroup 1..* Meta-data CompanyInGroup *..1 Company

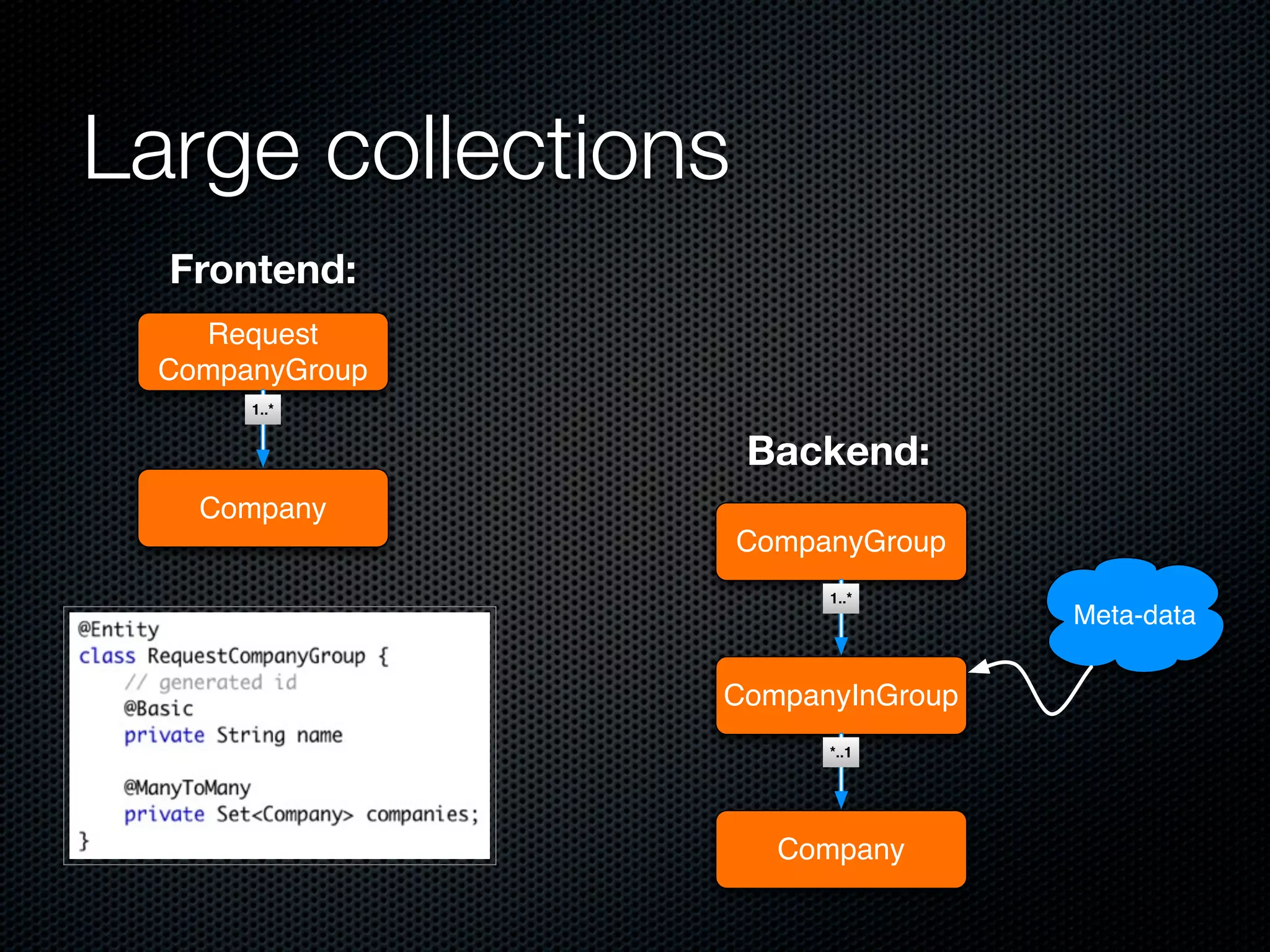

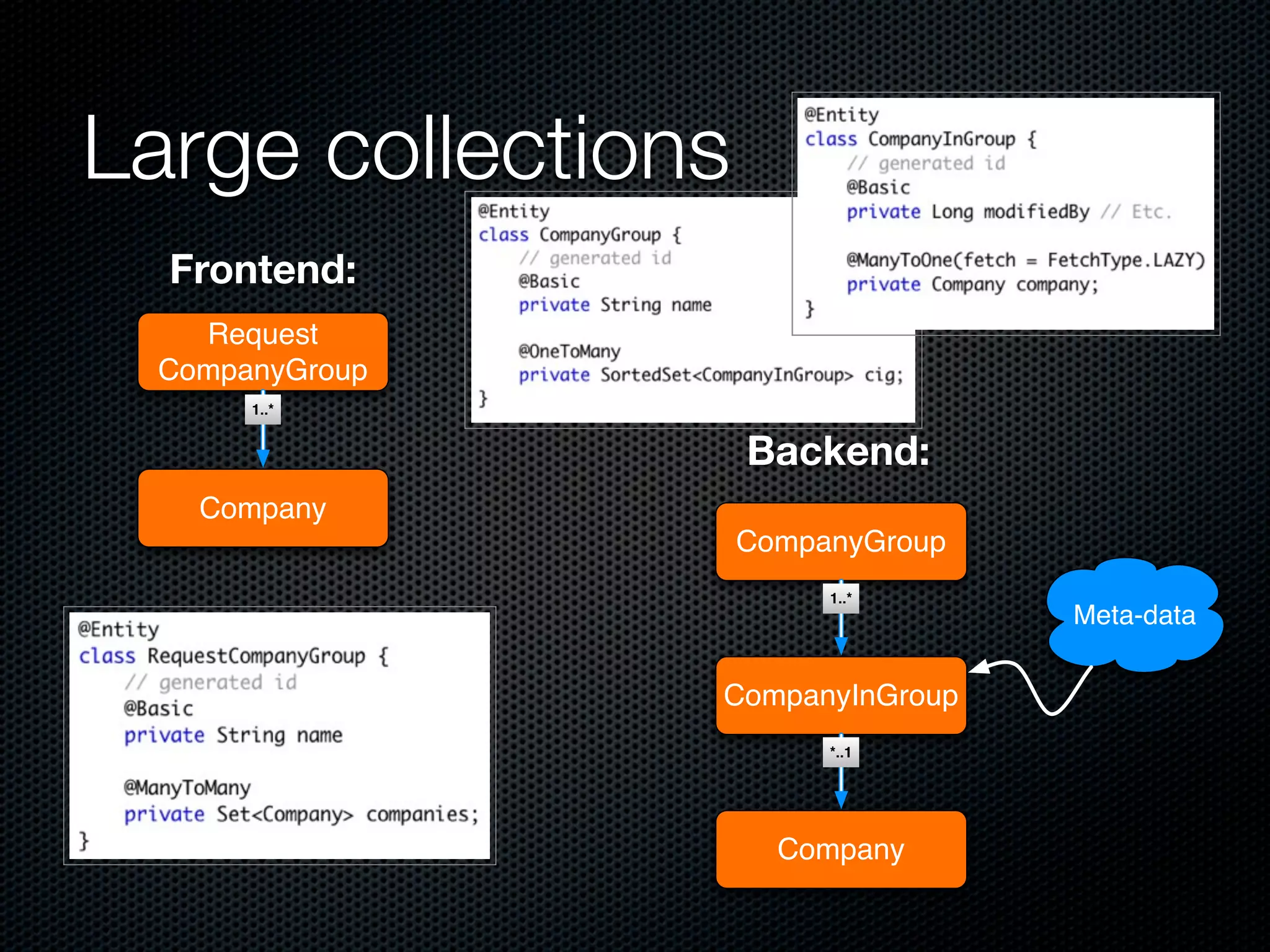

- 34. Large collections Frontend: Request CompanyGroup 1..* Backend: Company CompanyGroup 1..* Meta-data CompanyInGroup *..1 Company

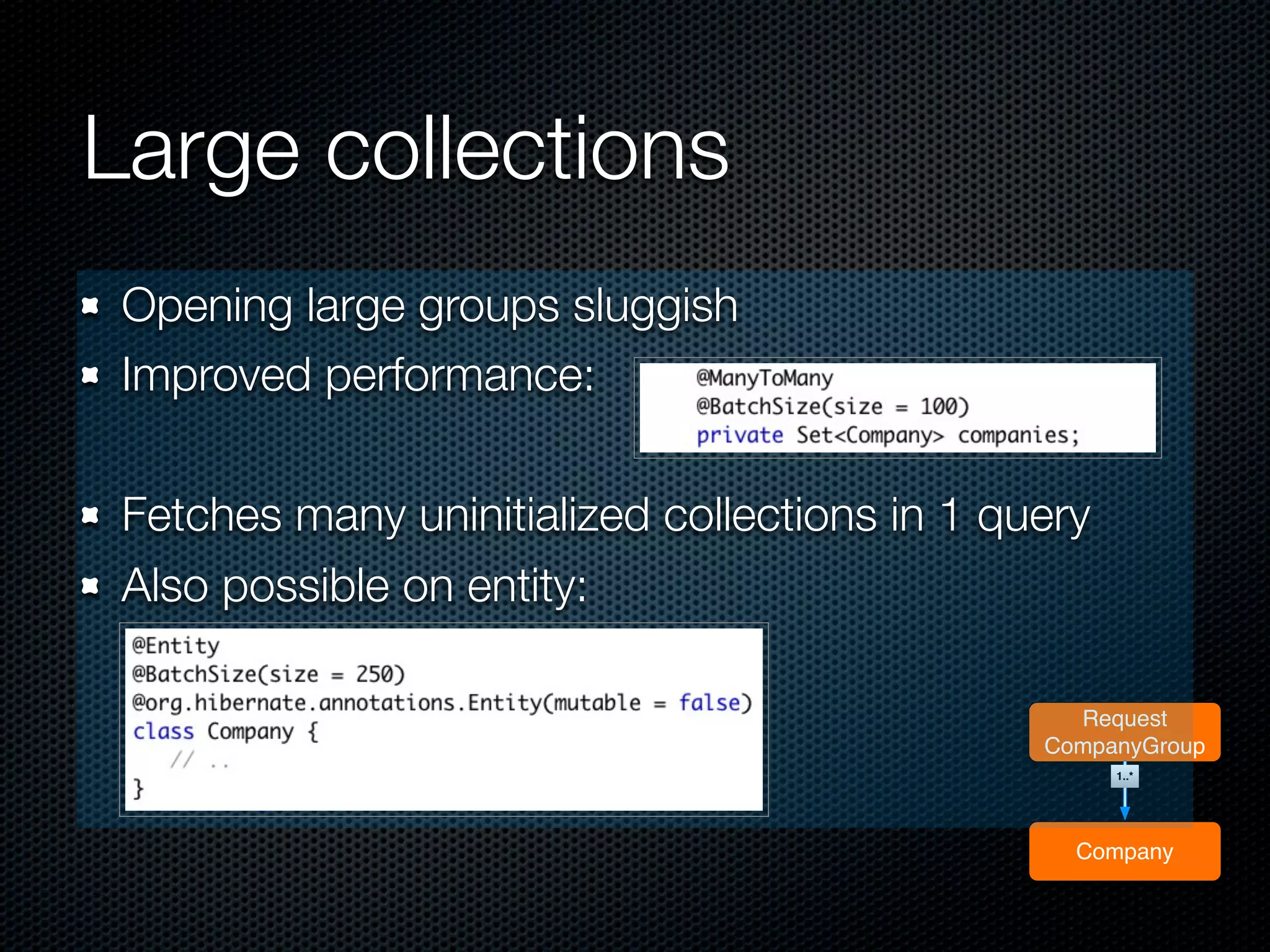

- 35. Large collections Openinglarge groups sluggish Improved performance: Fetches many uninitialized collections in 1 query Also possible on entity: Request CompanyGroup 1..* Company
- 36. Large collections Openinglarge groups sluggish Improved performance: Fetches many uninitialized collections in 1 query Also possible on entity: Request CompanyGroup 1..* Company Better solution in hindsight: fetch join

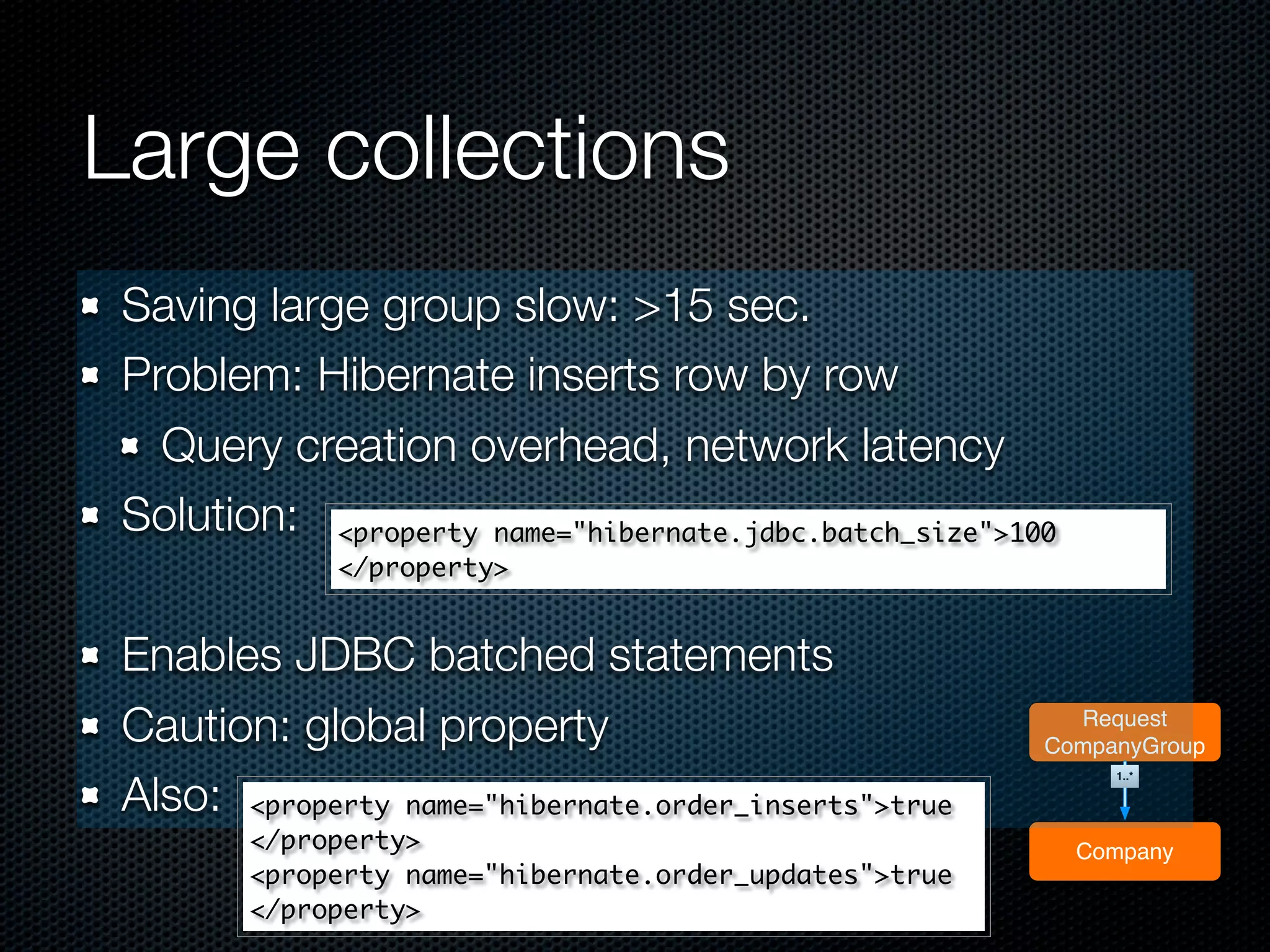

- 37. Large collections Savinglarge group slow: >15 sec. Problem: Hibernate inserts row by row Query creation overhead, network latency Solution: <property name="hibernate.jdbc.batch_size">100 </property> Enables JDBC batched statements Caution: global property Request CompanyGroup Also: <property name="hibernate.order_inserts">true 1..* </property> Company <property name="hibernate.order_updates">true </property>

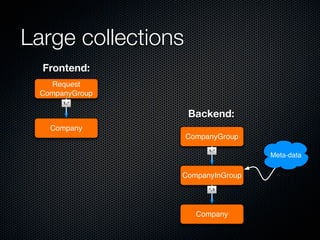

- 38. Large collections Frontend: Request CompanyGroup 1..* Backend: Company CompanyGroup 1..* Meta-data CompanyInGroup *..1 Company

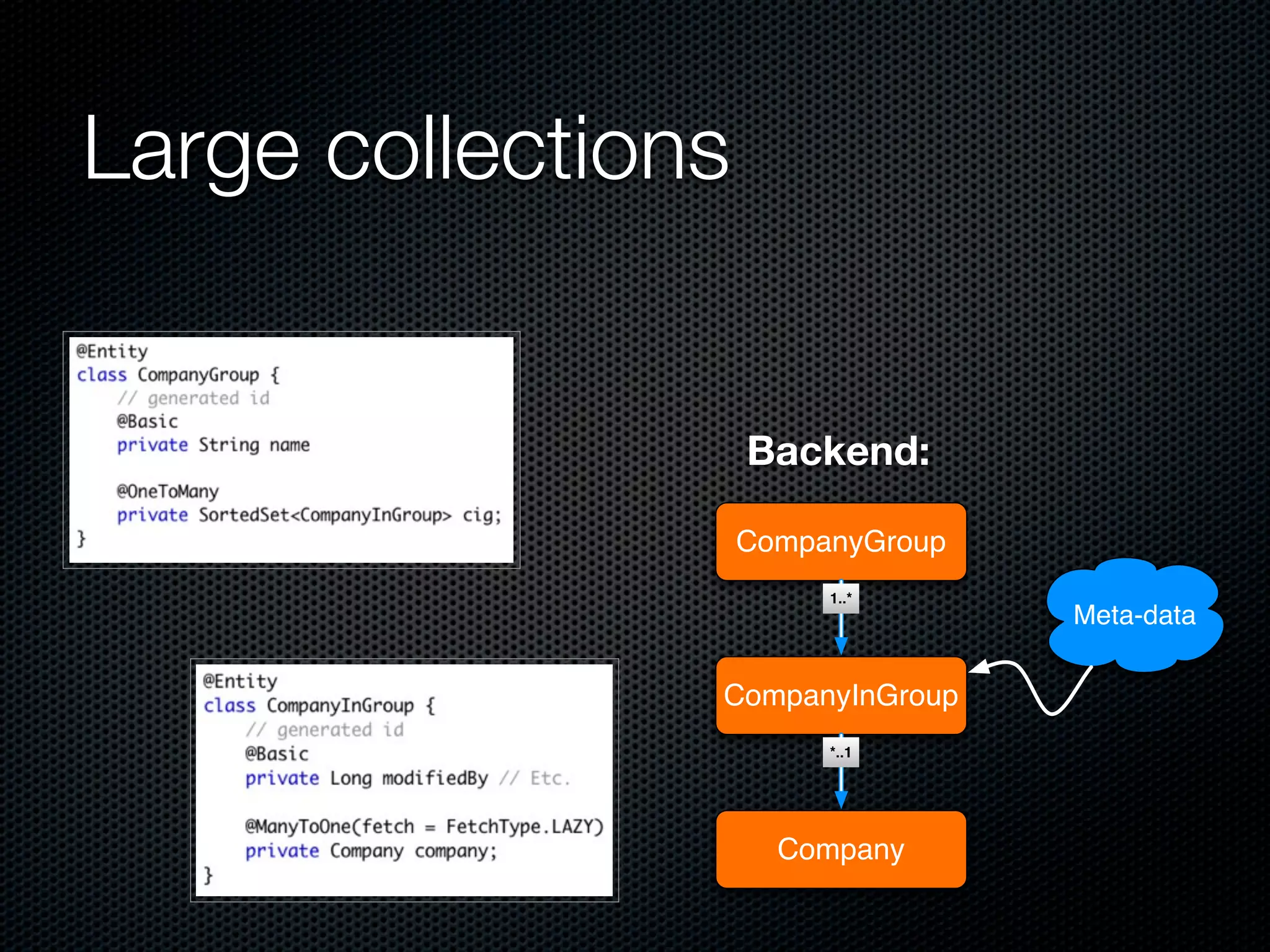

- 39. Large collections Backend: CompanyGroup 1..* Meta-data CompanyInGroup *..1 Company

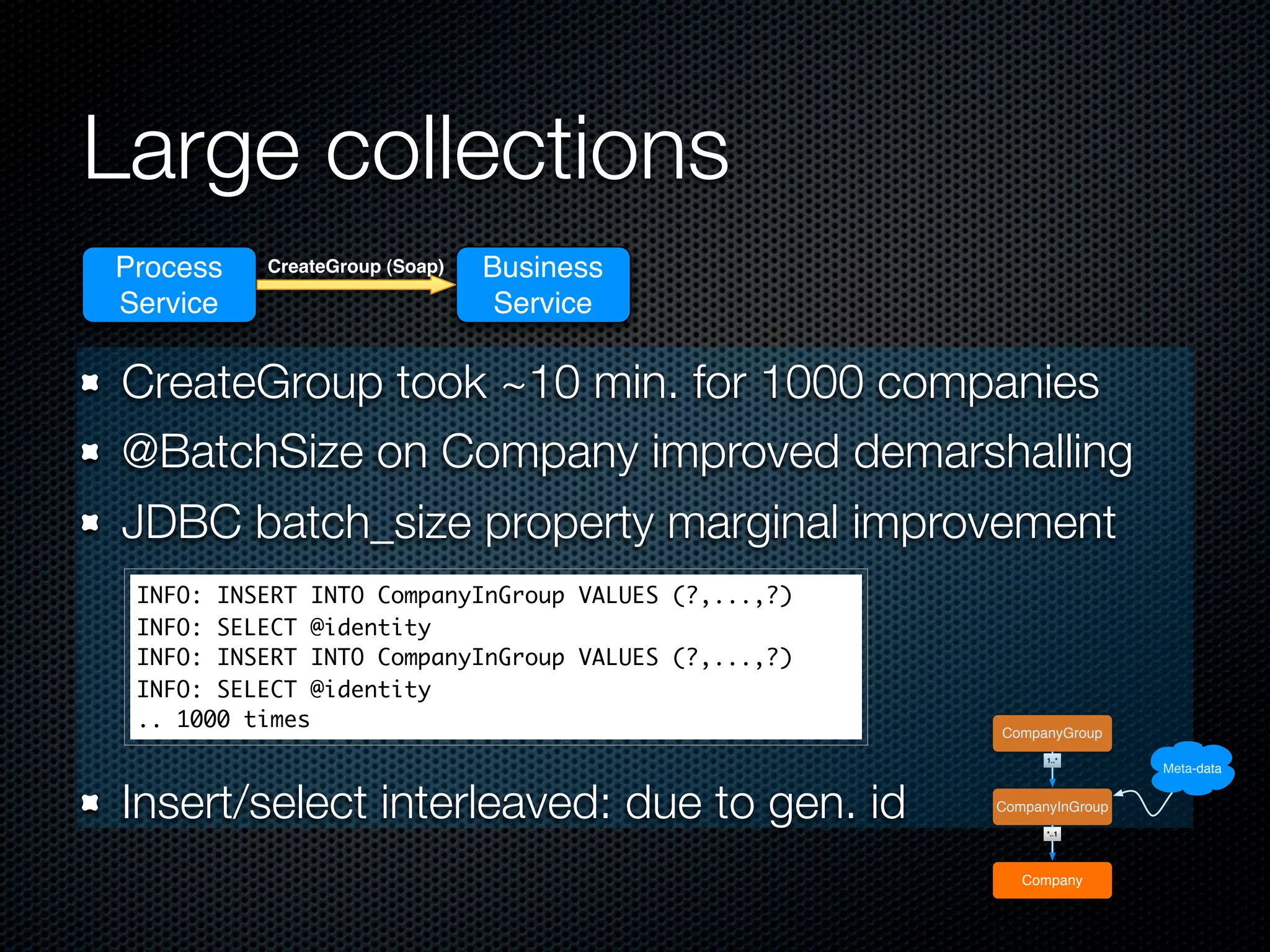

- 40. Large collections Process CreateGroup (Soap) Business Service Service CreateGroup took ~10 min. for 1000 companies @BatchSize on Company improved demarshalling JDBC batch_size property marginal improvement INFO: INSERT INTO CompanyInGroup VALUES (?,...,?) INFO: SELECT @identity INFO: INSERT INTO CompanyInGroup VALUES (?,...,?) INFO: SELECT @identity .. 1000 times CompanyGroup 1..* Meta-data Insert/select interleaved: due to gen. id CompanyInGroup *..1 Company

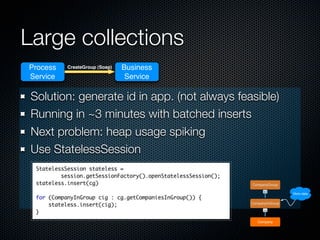

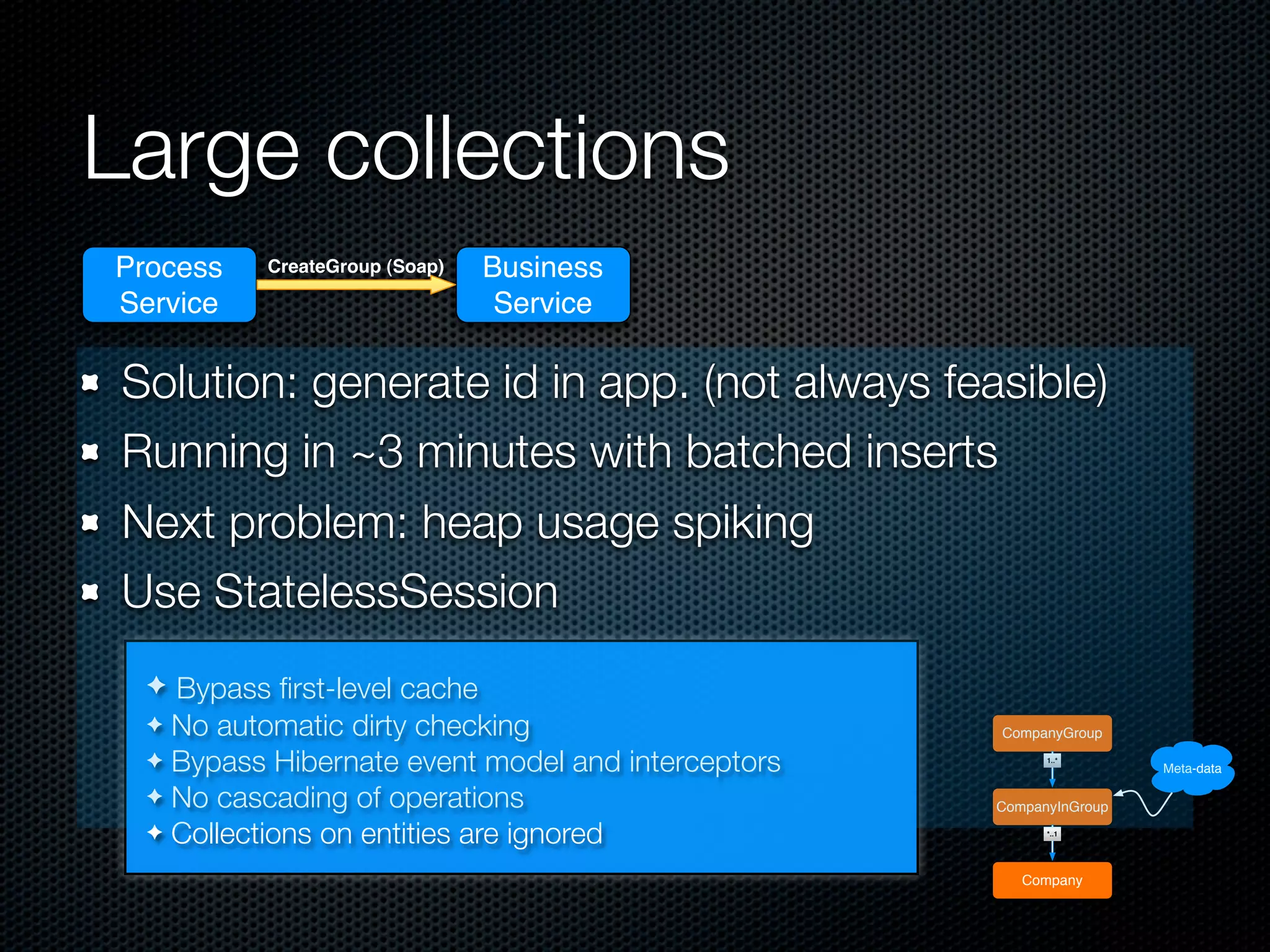

- 41. Large collections Process CreateGroup (Soap) Business Service Service Solution: generate id in app. (not always feasible) Running in ~3 minutes with batched inserts Next problem: heap usage spiking Use StatelessSession ✦ Bypass first-level cache ✦ No automatic dirty checking CompanyGroup ✦ Bypass Hibernate event model and interceptors 1..* Meta-data ✦ No cascading of operations CompanyInGroup ✦ Collections on entities are ignored *..1 Company
- 42. Large collections Process CreateGroup (Soap) Business Service Service Solution: generate id in app. (not always feasible) Running in ~3 minutes with batched inserts Next problem: heap usage spiking Use StatelessSession CompanyGroup 1..* Meta-data CompanyInGroup *..1 Company

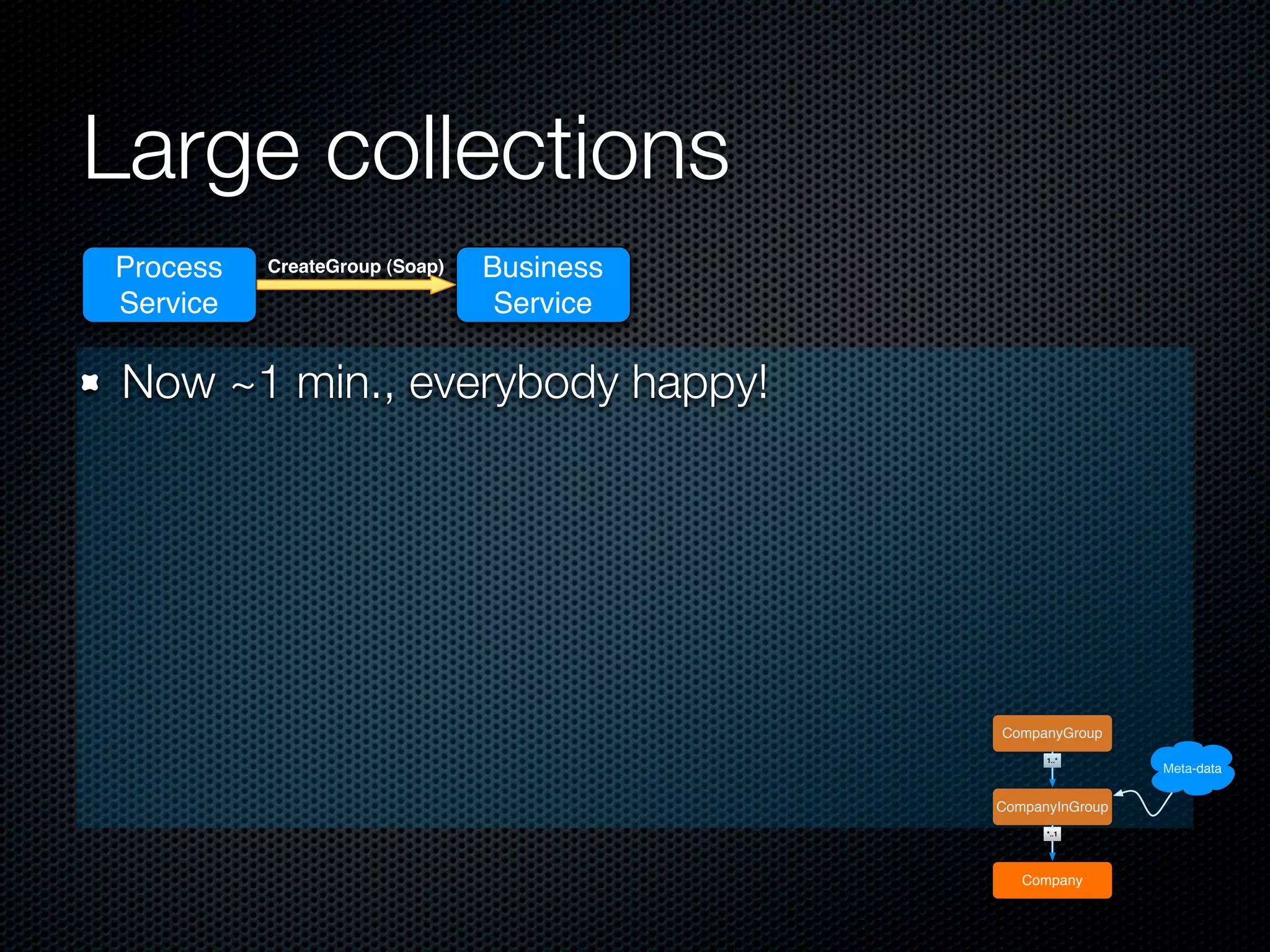

- 43. Large collections Process CreateGroup (Soap) Business Service Service Now ~1 min., everybody happy! CompanyGroup 1..* Meta-data CompanyInGroup *..1 Company
- 44. Large collections Process CreateGroup (Soap) Business Service Service Now ~1 min., everybody happy! Data loss detected! CompanyGroup 1..* Meta-data CompanyInGroup *..1 Company
- 45. Large collections Process CreateGroup (Soap) Business Service Service Data loss detected! StatelessSession and JDBC batch_size bug Only ‘full’ batches are performed! HHH-4042: Closed, won’t fix : CompanyGroup 1..* Meta-data CompanyInGroup *..1 Company
- 46.
- 47. Query hints Speed upread-only service calls: Hibernate Query.setHint(): Also: never use 2nd level cache just ‘because we can’

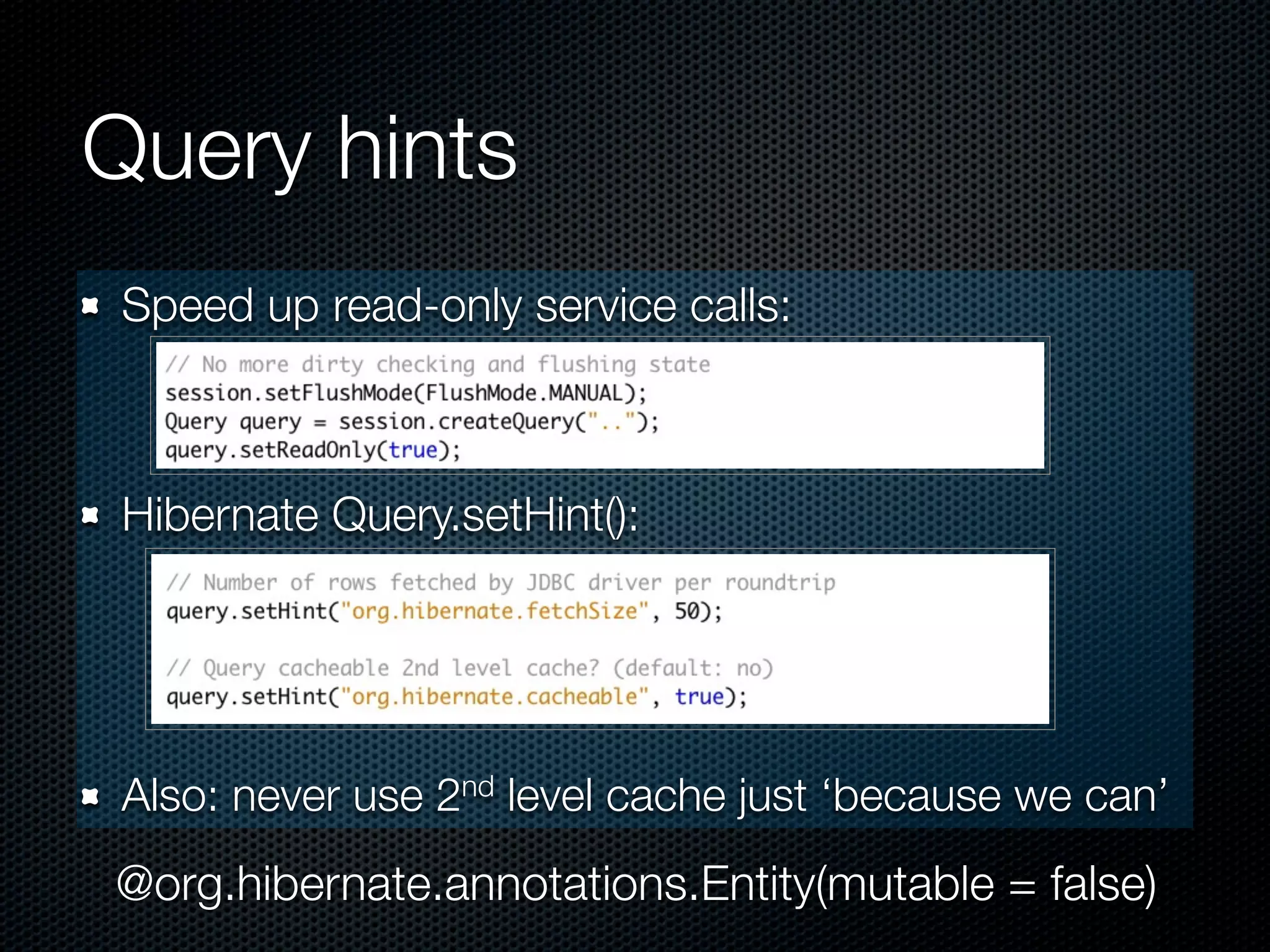

- 48. Query hints Speed upread-only service calls: Hibernate Query.setHint(): Also: never use 2nd level cache just ‘because we can’ @org.hibernate.annotations.Entity(mutable = false)
- 49. Large updates Naive approach: Entitiesare not always necessary: Changes are not reflected in persistence context With optimistic concurrency: VERSIONED keyword

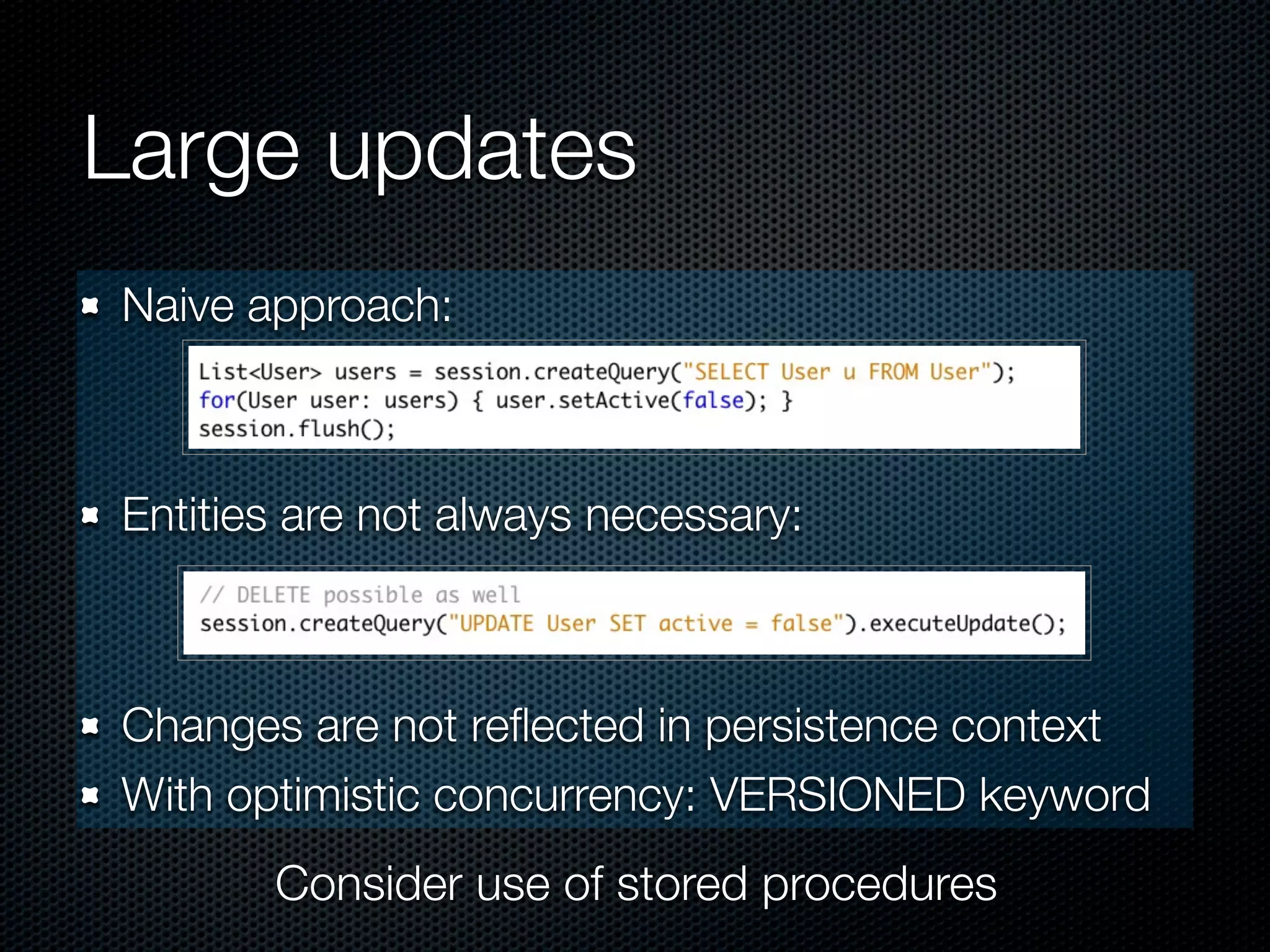

- 50. Large updates Naive approach: Entitiesare not always necessary: Changes are not reflected in persistence context With optimistic concurrency: VERSIONED keyword Consider use of stored procedures
- 51. Dynamic updates @org.hibernate.annotations.Entity (dynamicInsert= true, dynamicUpdate = true ) Only changed columns updated/inserted Beneficial for tables with many columns Downsides Runtime SQL generation overhead No PreparedStatement (caching) used anymore

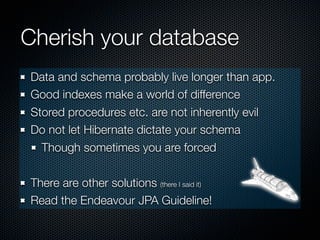

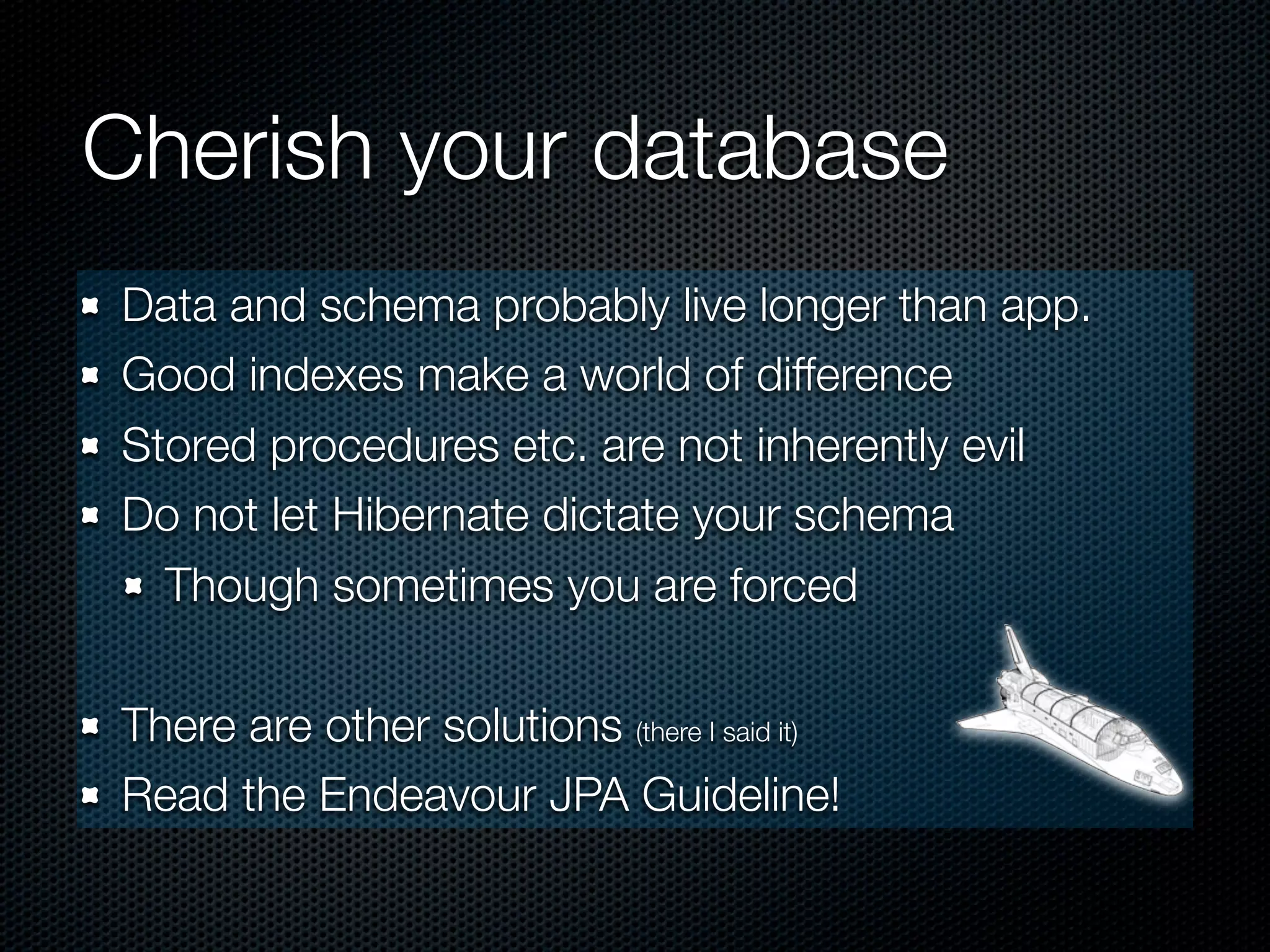

- 52. Cherish your database Dataand schema probably live longer than app. Good indexes make a world of difference Stored procedures etc. are not inherently evil Do not let Hibernate dictate your schema Though sometimes you are forced There are other solutions (there I said it) Read the Endeavour JPA Guideline!
- 53.
Editor's Notes
- #3 Typisch meer &#x2018;kunst dan wetenschap&#x2019;. Mijn aanpak niet heilig, hoor graag tijdens de presentatie ideeen &#x2018;wat als je dit of dat had gedaan&#x2019;, goed om te discussieren.
- #6 Preserving correctness: unit tests! However, the more you reach the edges of the DBMS, the easier you will hit an obscure bug in query optimizer, caching strategy etc.
- #7 Know your RDBMS! Database independence is nice when porting is necessary, but focus on particular DB for production situation (document!), that is what counts! (once you get into nitty-gritty opt. details, you will have to know the RDBMS intimately)
- #8 Know your RDBMS! Database independence is nice when porting is necessary, but focus on particular DB for production situation (document!), that is what counts! (once you get into nitty-gritty opt. details, you will have to know the RDBMS intimately)
- #9 Know your RDBMS! Database independence is nice when porting is necessary, but focus on particular DB for production situation (document!), that is what counts! (once you get into nitty-gritty opt. details, you will have to know the RDBMS intimately)
- #15 Beware: you might retrieve your whole database in one go... Code example: will load Company eager, Auths. lazy
- #16 Beware: you might retrieve your whole database in one go... Code example: will load Company eager, Auths. lazy
- #17 Zonder Hibernate zou je niet eens over zo&#x2019;n soort scenario nadenken, nu moet je wel.
- #18 Zonder Hibernate zou je niet eens over zo&#x2019;n soort scenario nadenken, nu moet je wel.
- #19 Zonder Hibernate zou je niet eens over zo&#x2019;n soort scenario nadenken, nu moet je wel.
- #29 Zelfde overwegingen gelden voor reporting queries, zoveel mogelijk in de query oplossen en geen entities teruggeven als niet nodig
- #36 Example: 20 groups with uninitialized collections, access first collection: all are initialized with 1 query. Measured: opening first group was slightly slower, general user experience better
- #43 stateless session ideaal for fire-and-forget service calls, minder in user-facing applicatie waar consistent houden persistence context van belang is.
- #44 stateless session ideaal for fire-and-forget service calls, minder in user-facing applicatie waar consistent houden persistence context van belang is.
- #50 Hibernate does some optimizing for read-only entities: It saves execution time by not dirty-checking simple properties or single-ended associations. It saves memory by deleting database snapshot cache increases load on memory, possibly more GC pauses for app. if co-located with application
- #51 Interesting: all instances of entity are evicted from second level cache with such a query, even if WHERE clause limits affected entities Also, no events fired as Hibernate normally would do.
- #52 Interesting: all instances of entity are evicted from second level cache with such a query, even if WHERE clause limits affected entities Also, no events fired as Hibernate normally would do.
