© 2018 Nokia1
Deploying MariaDB databases with
containers at Nokia
Deploying MariaDB solutions in containerized environments in Nokia Networks
Rick Lane
27-02-2019
© 2018 Nokia2
Deploying MariaDB databases with
containers at Nokia
Deploying MariaDB solutions in containerized environments in Nokia Networks
Rick Lane
27-02-2019
© 2018 Nokia3 © 2018 Nokia3
CMDB - MariaDB
Common Software Foundation (CSF)
Component MariaDB (CMDB)
© 2018 Nokia4

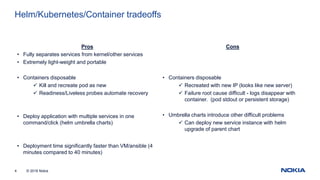

Helm/Kubernetes/Container tradeoffs
Pros
• Fully separates services from kernel/other services
• Extremely light-weight and portable
• Containers disposable
 Kill and recreate pod as new
 Readiness/Liveless probes automate recovery
• Deploy application with multiple services in one
command/click (helm umbrella charts)
• Deployment time significantly faster than VM/ansible (4
minutes compared to 40 minutes)
Cons
• Containers disposable
 Recreated with new IP (looks like new server)
 Failure root cause difficult - logs disappear with
container. (pod stdout or persistent storage)
• Umbrella charts introduce other difficult problems
 Can deploy new service instance with helm
upgrade of parent chart
© 2018 Nokia5

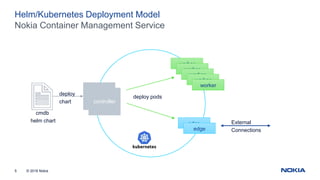

Nokia Container Management Service
Helm/Kubernetes Deployment Model
controller
worker
worker
worker
worker
worker
controller
edge
edge
deploy
chart
cmdb
helm chart
deploy pods
External
Connections
© 2018 Nokia6

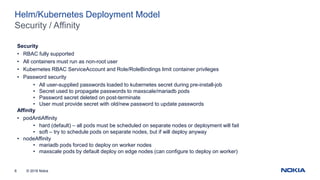

Security / Affinity
Helm/Kubernetes Deployment Model
Security
• RBAC fully supported
• All containers must run as non-root user
• Kubernetes RBAC ServiceAccount and Role/RoleBindings limit container privileges
• Password security
• All user-supplied passwords loaded to kubernetes secret during pre-install-job
• Secret used to propagate passwords to maxscale/mariadb pods
• Password secret deleted on post-terminate
• User must provide secret with old/new password to update passwords
Affinity
• podAntiAffinity
• hard (default) – all pods must be scheduled on separate nodes or deployment will fail
• soft – try to schedule pods on separate nodes, but if will deploy anyway
• nodeAffinity
• mariadb pods forced to deploy on worker nodes
• maxscale pods by default deploy on edge nodes (can configure to deploy on worker)
© 2018 Nokia7

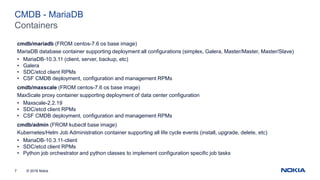

Containers
CMDB - MariaDB
cmdb/mariadb (FROM centos-7.6 os base image)
MariaDB database container supporting deployment all configurations (simplex, Galera, Master/Master, Master/Slave)
• MariaDB-10.3.11 (client, server, backup, etc)
• Galera
• SDC/etcd client RPMs
• CSF CMDB deployment, configuration and management RPMs
cmdb/maxscale (FROM centos-7.6 os base image)
MaxScale proxy container supporting deployment of data center configuration
• Maxscale-2.2.19
• SDC/etcd client RPMs
• CSF CMDB deployment, configuration and management RPMs
cmdb/admin (FROM kubectl base image)
Kubernetes/Helm Job Administration container supporting all life cycle events (install, upgrade, delete, etc)
• MariaDB-10.3.11-client
• SDC/etcd client RPMs
• Python job orchestrator and python classes to implement configuration specific job tasks

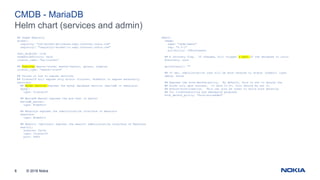

© 2018 Nokia8
Helm chart (services and admin)
CMDB - MariaDB
## Image Registry
global:
registry: "csf-docker-delivered.repo.internal.nokia.com"
registry1: "registry1-docker-io.repo.internal.nokia.com"
rbac_enabled: true
nodeAntiAffinity: hard
cluster_name: "my-cluster“
## Topology master-slave, master-master, galera, simplex
cluster_type: “master-slave“
## Values on how to expose services
## ClusterIP will expose only within cluister, NodePort to expose externally
services:
## MySQL service exposes the mysql database service (mariadb or maxscale)
mysql:
type: ClusterIP
## MariaDB Master exposes the pod that is master
mariadb_master:
type: NodePort
## Maxscale exposes the administrative interface of Maxscale
maxscale:
type: NodePort
## Maxctrl (optional) exposes the maxctrl administrative interface of Maxscale
maxctrl:
enabled: false
type: ClusterIP
port: 8989
admin:
image:
name: "cmdb/admin"
tag: "4.5-1"
pullPolicy: IfNotPresent
## A recovery flag. If changed, will trigger a heal of the database to occur
#recovery: none
quickInstall: ""
## If set, administrative jobs will be more verbose to stdout (kubectl logs)
debug: false
## Exposes the hook-delete-policy. By default, this is set to delete the
## hooks only upon success. In helm v2.9+, this should be set to
## before-hook-creation. This can also be unset to avoid hook deletion
## for troubleshooting and debugging purposes
hook_delete_policy: "hook-succeeded"

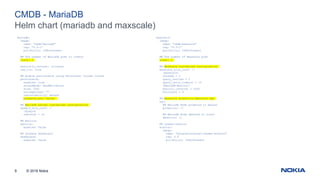

© 2018 Nokia9
Helm chart (mariadb and maxscale)
CMDB - MariaDB
mariadb:
image:
name: "cmdb/mariadb"
tag: "4.5-1"
pullPolicy: IfNotPresent
## The number of MariaDB pods to create
count: 3
heuristic_recover: rollback
use_tls: true
## Enable persistence using Persistent Volume Claims
persistence:
enabled: true
accessMode: ReadWriteOnce
size: 20Gi
storageClass: ""
resourcePolicy: delete
preserve_pvc: false
## MariaDB server customized configuration
mysqld_site_conf: |-
[mysqld]
userstat = on
## metrics
metrics:
enabled: false
## Grafana dashboard
dashboard:
enabled: false
maxscale:
image:
name: "cmdb/maxscale"
tag: "4.5-1”
pullPolicy: IfNotPresent
## The number of MaxScale pods
count: 2
## MaxScale customized configuration
maxscale_site_conf: |-
[maxscale]
threads = 2
query_retries = 2
query_retry_timeout = 10
[MariaDB-Monitor]
monitor_interval = 1000
failcount = 4
## MaxScale promotion/demotion SQL
sql:
## Mariadb Node promoted to master
promotion: []
## Mariadb Node demoted to slave
demotion: []
## leader-elector
elector:
image:
name: "googlecontainer/leader-elector"
tag: 0.5
pullPolicy: IfNotPresent
© 2018 Nokia10
Events
Life Cycle Management
• Kubernetes native events
 install = deploy chart and create resources
 delete = terminate chart and delete all resources created by install
 upgrade = make any changes to mariadb/maxscale resources (configuration, etc)
special code to handle heal and scale-in/out events
• Nokia plugin events
 heal = implemented also with kubernetes upgrade admin.recovery value
 scale-in/scale-out = implemented also with kubernetes upgrade mariadb.count or maxscale.count
 backup/restore = implemented with Backup/Restore policy
© 2018 Nokia11

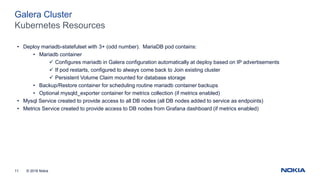

Kubernetes Resources
Galera Cluster
• Deploy mariadb-statefulset with 3+ (odd number). MariaDB pod contains:
• Mariadb container
 Configures mariadb in Galera configuration automatically at deploy based on IP advertisements
 If pod restarts, configured to always come back to Join existing cluster
 Persistent Volume Claim mounted for database storage
• Backup/Restore container for scheduling routine mariadb container backups
• Optional mysqld_exporter container for metrics collection (if metrics enabled)
• Mysql Service created to provide access to all DB nodes (all DB nodes added to service as endpoints)
• Metrics Service created to provide access to DB nodes from Grafana dashboard (if metrics enabled)
© 2018 Nokia12

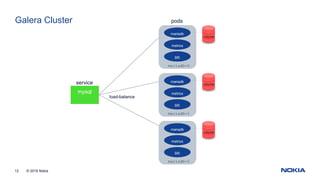

Galera Cluster
mysql
load-balance
pods
service
mariadb
metrics
mariadb-0
BR
volume
mariadb
metrics
mariadb-1
BR
volume
mariadb
metrics
mariadb-2
BR
volume
© 2018 Nokia13

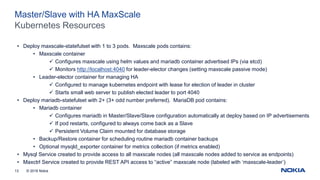

Kubernetes Resources
Master/Slave with HA MaxScale
• Deploy maxscale-statefulset with 1 to 3 pods. Maxscale pods contains:
• Maxscale container
 Configures maxscale using helm values and mariadb container advertised IPs (via etcd)
 Monitors http://localhost:4040 for leader-elector changes (setting maxscale passive mode)
• Leader-elector container for managing HA
 Configured to manage kubernetes endpoint with lease for election of leader in cluster
 Starts small web server to publish elected leader to port 4040
• Deploy mariadb-statefulset with 2+ (3+ odd number preferred). MariaDB pod contains:
• Mariadb container
 Configures mariadb in Master/Slave/Slave configuration automatically at deploy based on IP advertisements
 If pod restarts, configured to always come back as a Slave
 Persistent Volume Claim mounted for database storage
• Backup/Restore container for scheduling routine mariadb container backups
• Optional mysqld_exporter container for metrics collection (if metrics enabled)
• Mysql Service created to provide access to all maxscale nodes (all maxscale nodes added to service as endpoints)
• Maxctrl Service created to provide REST API access to “active” maxscale node (labeled with ‘maxscale-leader’)
© 2018 Nokia14
mariadb
metrics
mariadb-0
BR
volume

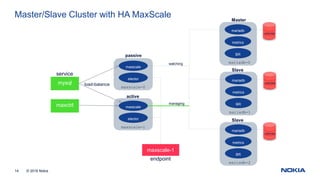

Master/Slave Cluster with HA MaxScale
maxscale
elector
maxscale-0
maxscale
elector
maxscale-1
mysql
service
maxctrl
maxscale-1
endpoint
watching
managing
Master
Slave
Slave
passive
active
load-balance
mariadb
metrics
mariadb-2
BR
volume
mariadb
metrics
mariadb-1
BR
volume
© 2018 Nokia15

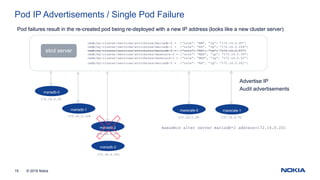

Pod IP Advertisements / Single Pod Failure
Pod failures result in the re-created pod being re-deployed with a new IP address (looks like a new cluster server)
mariadb-0
etcd server
cmdb/my-cluster/services/attributes/mariadb-0 = {“role”: “RM”, “ip”: “172.16.0.35”}
cmdb/my-cluster/services/attributes/mariadb-1 = {“role”: “RS”, “ip”: “172.16.0.104”}
cmdb/my-cluster/services/attributes/mariadb-2 = {“role”: “RS”, “ip”: “172.16.0.97”}
cmdb/my-cluster/services/attributes/maxscale-0 = {“role”: “MXS”, “ip”: “172.16.0.39”}
cmdb/my-cluster/services/attributes/maxscale-1 = {“role”: “MXS”, “ip”: “172.16.0.52”}
cmdb/my-cluster/services/attributes/mariadb-2 = {“role”: “RS”, “ip”: “172.16.0.201”}
mariadb-1
mariadb-2
maxscale-0 maxscale-1
172.16.0.35
172.16.0.104
172.16.0.97
172.16.0.39 172.16.0.52
172.16.0.201
mariadb-2
maxadmin alter server mariadb-2 address=172.16.0.201
Advertise IP
Audit advertisements
© 2018 Nokia16

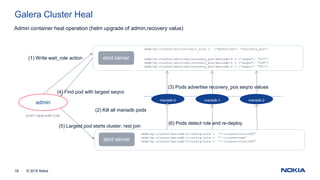

Galera Cluster Heal
mariadb-0 mariadb-1 mariadb-2
etcd server
cmdb/my-cluster/mariadb-0/config/role = “--cluster=join:SST”
cmdb/my-cluster/mariadb-1/config/role = “--cluster=new”
cmdb/my-cluster/mariadb-2/config/role = “--cluster=join:SST”
admin
post-upgrade-job
Admin container heal operation (helm upgrade of admin.recovery value)
etcd server
cmdb/my-cluster/actions/wait_role = {“advertise”: “recovery_pos”}
cmdb/my-cluster/services/recovery_pos/mariadb-0 = {“seqno”: “527”}
cmdb/my-cluster/services/recovery_pos/mariadb-1 = {“seqno”: “528”}
cmdb/my-cluster/services/recovery_pos/mariadb-2 = {“seqno”: “527”}
(1) Write wait_role action
(2) Kill all mariadb pods
(3) Pods advertise recovery_pos seqno values
(4) Find pod with largest seqno
(5) Largest pod starts cluster, rest join
(6) Pods detect role and re-deploy
© 2018 Nokia17

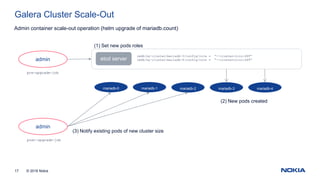

Galera Cluster Scale-Out
mariadb-0 mariadb-1 mariadb-2
etcd server
cmdb/my-cluster/mariadb-3/config/role = “--cluster=join:SST”
cmdb/my-cluster/mariadb-4/config/role = “--cluster=join:SST”admin
pre-upgrade-job
Admin container scale-out operation (helm upgrade of mariadb.count)
mariadb-3 mariadb-4
admin
post-upgrade-job
(1) Set new pods roles
(2) New pods created
(3) Notify existing pods of new cluster size
© 2018 Nokia18

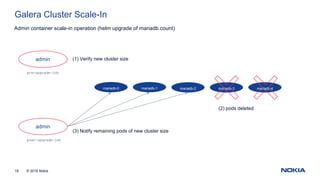

Galera Cluster Scale-In
mariadb-0 mariadb-1 mariadb-2
admin
pre-upgrade-job
Admin container scale-in operation (helm upgrade of mariadb.count)
mariadb-3 mariadb-4
admin
post-upgrade-job
(1) Verify new cluster size
(2) pods deleted
(3) Notify remaining pods of new cluster size
© 2018 Nokia19

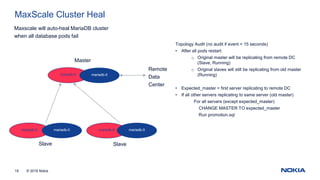

MaxScale Cluster Heal
mariadb-0
Maxscale will auto-heal MariaDB cluster
when all database pods fail
mariadb-0 mariadb-0 mariadb-0
mariadb-0 mariadb-0
Remote
Data
Center
Master
SlaveSlave
Topology Audit (no audit if event < 15 seconds)
• After all pods restart:
o Original master will be replicating from remote DC
(Slave, Running)
o Original slaves will still be replicating from old master
(Running)
• Expected_master = first server replicating to remote DC
• If all other servers replicating to same server (old master)
For all servers (except expected_master)
CHANGE MASTER TO expected_master
Run promotion.sql
© 2018 Nokia20

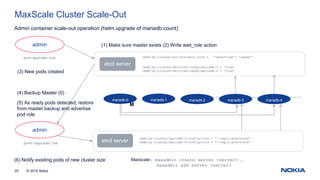

MaxScale Cluster Scale-Out
etcd server
cmdb/my-cluster/mariadb-3/config/role = “--replicate=slave”
cmdb/my-cluster/mariadb-4/config/role = “--replicate=slave”
admin
pre-upgrade-job
Admin container scale-out operation (helm upgrade of mariadb.count)
etcd server
cmdb/my-cluster/actions/wait_role = {“advertise”: “ready”}
cmdb/my-cluster/services/ready/mariadb-3 = ‘true’
cmdb/my-cluster/services/ready/mariadb-4 = ‘true’
(1) Make sure master exists (2) Write wait_role action
(3) New pods created
(5) As ready pods detected, restore
from master backup and advertise
pod role
mariadb-0 mariadb-1 mariadb-2 mariadb-3 mariadb-4
admin
post-upgrade-job
(4) Backup Master (0)
M
(6) Notify existing pods of new cluster size Maxscale: maxadmin create server <server> …
maxadmin add server <server>
© 2018 Nokia21

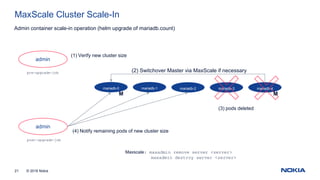

MaxScale Cluster Scale-In
mariadb-0 mariadb-1 mariadb-2
admin
pre-upgrade-job
Admin container scale-in operation (helm upgrade of mariadb.count)
mariadb-3 mariadb-4
admin
post-upgrade-job
(1) Verify new cluster size
(3) pods deleted
(4) Notify remaining pods of new cluster size
MM
(2) Switchover Master via MaxScale if necessary
Maxscale: maxadmin remove server <server>
maxadmin destroy server <server>
© 2018 Nokia22
Future Work
• Additional enhancements to prevent data loss
 Supporting semi-sync replication in Master/Slave/Slave cluster with MaxScale
 Implement preStop hook to trigger switchover if Master is being deleted (eg, for migration)
• Kubernetes Horizontal Pod Autoscaling (HPA)
Deploying MariaDB databases with containers at Nokia Networks
Deploying MariaDB databases with containers at Nokia Networks

More Related Content

What's hot

Maxscale switchover, failover, and auto rejoin
Maxscale switchover, failover, and auto rejoinMaxscale switchover, failover, and auto rejoin
Maxscale switchover, failover, and auto rejoin
Wagner Bianchi

Keepalived+MaxScale+MariaDB_운영매뉴얼_1.0.docx
Keepalived+MaxScale+MariaDB_운영매뉴얼_1.0.docxKeepalived+MaxScale+MariaDB_운영매뉴얼_1.0.docx
Keepalived+MaxScale+MariaDB_운영매뉴얼_1.0.docx
NeoClova

Galera cluster for high availability
Galera cluster for high availability Galera cluster for high availability
Galera cluster for high availability
Mydbops

MariaDB Performance Tuning and Optimization
MariaDB Performance Tuning and OptimizationMariaDB Performance Tuning and Optimization
MariaDB Performance Tuning and Optimization
MariaDB plc

MariaDB Galera Cluster
MariaDB Galera ClusterMariaDB Galera Cluster
MariaDB Galera Cluster
Abdul Manaf

MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)
MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)
MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)
Jean-François Gagné

PL22 - Backup and Restore Performance.pptx
PL22 - Backup and Restore Performance.pptxPL22 - Backup and Restore Performance.pptx
PL22 - Backup and Restore Performance.pptx
Vinicius M Grippa

Mastering PostgreSQL Administration
Mastering PostgreSQL AdministrationMastering PostgreSQL Administration
Mastering PostgreSQL Administration
EDB

MariaDB 10.11 key features overview for DBAs
MariaDB 10.11 key features overview for DBAsMariaDB 10.11 key features overview for DBAs
MariaDB 10.11 key features overview for DBAs
Federico Razzoli

How to Manage Scale-Out Environments with MariaDB MaxScale
How to Manage Scale-Out Environments with MariaDB MaxScaleHow to Manage Scale-Out Environments with MariaDB MaxScale
How to Manage Scale-Out Environments with MariaDB MaxScale
MariaDB plc

MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11
MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11
MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11
Kenny Gryp

ProxySQL High Availability (Clustering)
ProxySQL High Availability (Clustering)ProxySQL High Availability (Clustering)
ProxySQL High Availability (Clustering)
Mydbops

MariaDB MaxScale
MariaDB MaxScaleMariaDB MaxScale
MariaDB MaxScale
MariaDB plc

MySQL Parallel Replication by Booking.com
MySQL Parallel Replication by Booking.comMySQL Parallel Replication by Booking.com
MySQL Parallel Replication by Booking.com
Jean-François Gagné

Maria db 이중화구성_고민하기
Maria db 이중화구성_고민하기Maria db 이중화구성_고민하기
Maria db 이중화구성_고민하기
NeoClova

HandsOn ProxySQL Tutorial - PLSC18
HandsOn ProxySQL Tutorial - PLSC18HandsOn ProxySQL Tutorial - PLSC18
HandsOn ProxySQL Tutorial - PLSC18
Derek Downey

ProxySQL - High Performance and HA Proxy for MySQL
ProxySQL - High Performance and HA Proxy for MySQLProxySQL - High Performance and HA Proxy for MySQL
ProxySQL - High Performance and HA Proxy for MySQL
René Cannaò

MySQL_SQL_Tunning_v0.1.3.docx
MySQL_SQL_Tunning_v0.1.3.docxMySQL_SQL_Tunning_v0.1.3.docx
MySQL_SQL_Tunning_v0.1.3.docx
NeoClova

MySQL8.0_performance_schema.pptx
MySQL8.0_performance_schema.pptxMySQL8.0_performance_schema.pptx
MySQL8.0_performance_schema.pptx
NeoClova

MariaDB High Availability
MariaDB High AvailabilityMariaDB High Availability
MariaDB High Availability
MariaDB plc


What's hot (20)

Maxscale switchover, failover, and auto rejoin
Maxscale switchover, failover, and auto rejoinMaxscale switchover, failover, and auto rejoin
Maxscale switchover, failover, and auto rejoin

Keepalived+MaxScale+MariaDB_운영매뉴얼_1.0.docx
Keepalived+MaxScale+MariaDB_운영매뉴얼_1.0.docxKeepalived+MaxScale+MariaDB_운영매뉴얼_1.0.docx
Keepalived+MaxScale+MariaDB_운영매뉴얼_1.0.docx

Galera cluster for high availability
Galera cluster for high availability Galera cluster for high availability
Galera cluster for high availability

MariaDB Performance Tuning and Optimization
MariaDB Performance Tuning and OptimizationMariaDB Performance Tuning and Optimization
MariaDB Performance Tuning and Optimization

MariaDB Galera Cluster
MariaDB Galera ClusterMariaDB Galera Cluster
MariaDB Galera Cluster

MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)
MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)
MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)

PL22 - Backup and Restore Performance.pptx
PL22 - Backup and Restore Performance.pptxPL22 - Backup and Restore Performance.pptx
PL22 - Backup and Restore Performance.pptx

Mastering PostgreSQL Administration
Mastering PostgreSQL AdministrationMastering PostgreSQL Administration
Mastering PostgreSQL Administration

MariaDB 10.11 key features overview for DBAs
MariaDB 10.11 key features overview for DBAsMariaDB 10.11 key features overview for DBAs
MariaDB 10.11 key features overview for DBAs

How to Manage Scale-Out Environments with MariaDB MaxScale
How to Manage Scale-Out Environments with MariaDB MaxScaleHow to Manage Scale-Out Environments with MariaDB MaxScale
How to Manage Scale-Out Environments with MariaDB MaxScale

MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11
MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11
MySQL Database Architectures - MySQL InnoDB ClusterSet 2021-11

ProxySQL High Availability (Clustering)
ProxySQL High Availability (Clustering)ProxySQL High Availability (Clustering)
ProxySQL High Availability (Clustering)

MariaDB MaxScale
MariaDB MaxScaleMariaDB MaxScale
MariaDB MaxScale

MySQL Parallel Replication by Booking.com
MySQL Parallel Replication by Booking.comMySQL Parallel Replication by Booking.com
MySQL Parallel Replication by Booking.com

Maria db 이중화구성_고민하기
Maria db 이중화구성_고민하기Maria db 이중화구성_고민하기
Maria db 이중화구성_고민하기

HandsOn ProxySQL Tutorial - PLSC18
HandsOn ProxySQL Tutorial - PLSC18HandsOn ProxySQL Tutorial - PLSC18
HandsOn ProxySQL Tutorial - PLSC18

ProxySQL - High Performance and HA Proxy for MySQL
ProxySQL - High Performance and HA Proxy for MySQLProxySQL - High Performance and HA Proxy for MySQL
ProxySQL - High Performance and HA Proxy for MySQL

MySQL_SQL_Tunning_v0.1.3.docx
MySQL_SQL_Tunning_v0.1.3.docxMySQL_SQL_Tunning_v0.1.3.docx
MySQL_SQL_Tunning_v0.1.3.docx

MySQL8.0_performance_schema.pptx
MySQL8.0_performance_schema.pptxMySQL8.0_performance_schema.pptx
MySQL8.0_performance_schema.pptx

MariaDB High Availability
MariaDB High AvailabilityMariaDB High Availability
MariaDB High Availability


Similar to Deploying MariaDB databases with containers at Nokia Networks

Running database infrastructure on containers
Running database infrastructure on containersRunning database infrastructure on containers
Running database infrastructure on containers
MariaDB plc

How MariaDB is approaching DBaaS
How MariaDB is approaching DBaaSHow MariaDB is approaching DBaaS
How MariaDB is approaching DBaaS
MariaDB plc

Differences between MariaDB 10.3 & MySQL 8.0
Differences between MariaDB 10.3 & MySQL 8.0Differences between MariaDB 10.3 & MySQL 8.0
Differences between MariaDB 10.3 & MySQL 8.0
Colin Charles

MariaDB on Docker
MariaDB on DockerMariaDB on Docker
MariaDB on Docker
MariaDB plc

Getting started with MariaDB with Docker
Getting started with MariaDB with DockerGetting started with MariaDB with Docker
Getting started with MariaDB with Docker
MariaDB plc

Introduction to MariaDB
Introduction to MariaDBIntroduction to MariaDB
Introduction to MariaDB
JongJin Lee

Getting Started with MariaDB with Docker
Getting Started with MariaDB with DockerGetting Started with MariaDB with Docker
Getting Started with MariaDB with Docker
MariaDB plc

MariaDB: Connect Storage Engine
MariaDB: Connect Storage EngineMariaDB: Connect Storage Engine
MariaDB: Connect Storage Engine
Kangaroot

MariaDB 10 and what's new with the project
MariaDB 10 and what's new with the projectMariaDB 10 and what's new with the project
MariaDB 10 and what's new with the project
Colin Charles

Mariadb10 和新项目中有什么
Mariadb10 和新项目中有什么Mariadb10 和新项目中有什么
Mariadb10 和新项目中有什么
YUCHENG HU

Meet MariaDB Server 10.1 London MySQL meetup December 2015
Meet MariaDB Server 10.1 London MySQL meetup December 2015Meet MariaDB Server 10.1 London MySQL meetup December 2015
Meet MariaDB Server 10.1 London MySQL meetup December 2015
Colin Charles

Les fonctionnalites mariadb
Les fonctionnalites mariadbLes fonctionnalites mariadb
Les fonctionnalites mariadb
lemugfr

MySQL Scalability and Reliability for Replicated Environment
MySQL Scalability and Reliability for Replicated EnvironmentMySQL Scalability and Reliability for Replicated Environment
MySQL Scalability and Reliability for Replicated Environment
Jean-François Gagné

NY Meetup: Scaling MariaDB with Maxscale
NY Meetup: Scaling MariaDB with MaxscaleNY Meetup: Scaling MariaDB with Maxscale
NY Meetup: Scaling MariaDB with Maxscale
Wagner Bianchi

2010 12 mysql_clusteroverview
2010 12 mysql_clusteroverview2010 12 mysql_clusteroverview
2010 12 mysql_clusteroverview
Dimas Prasetyo

MySQL on Docker and Kubernetes
MySQL on Docker and KubernetesMySQL on Docker and Kubernetes
MySQL on Docker and Kubernetes
Balasubramanian Kandasamy

The New MariaDB Offering: MariaDB 10, MaxScale and More
The New MariaDB Offering: MariaDB 10, MaxScale and MoreThe New MariaDB Offering: MariaDB 10, MaxScale and More
The New MariaDB Offering: MariaDB 10, MaxScale and More
MariaDB Corporation

Meet MariaDB 10.1 at the Bulgaria Web Summit
Meet MariaDB 10.1 at the Bulgaria Web SummitMeet MariaDB 10.1 at the Bulgaria Web Summit
Meet MariaDB 10.1 at the Bulgaria Web Summit
Colin Charles

MariaDB for the Enterprise
MariaDB for the EnterpriseMariaDB for the Enterprise
MariaDB for the Enterprise
All Things Open

2012 09 MariaDB Boston Meetup - MariaDB 是 Mysql 的替代者吗
2012 09 MariaDB Boston Meetup - MariaDB 是 Mysql 的替代者吗2012 09 MariaDB Boston Meetup - MariaDB 是 Mysql 的替代者吗
2012 09 MariaDB Boston Meetup - MariaDB 是 Mysql 的替代者吗
YUCHENG HU


Similar to Deploying MariaDB databases with containers at Nokia Networks (20)

Running database infrastructure on containers
Running database infrastructure on containersRunning database infrastructure on containers
Running database infrastructure on containers

How MariaDB is approaching DBaaS
How MariaDB is approaching DBaaSHow MariaDB is approaching DBaaS
How MariaDB is approaching DBaaS

Differences between MariaDB 10.3 & MySQL 8.0
Differences between MariaDB 10.3 & MySQL 8.0Differences between MariaDB 10.3 & MySQL 8.0
Differences between MariaDB 10.3 & MySQL 8.0

MariaDB on Docker
MariaDB on DockerMariaDB on Docker
MariaDB on Docker

Getting started with MariaDB with Docker
Getting started with MariaDB with DockerGetting started with MariaDB with Docker
Getting started with MariaDB with Docker

Introduction to MariaDB
Introduction to MariaDBIntroduction to MariaDB
Introduction to MariaDB

Getting Started with MariaDB with Docker
Getting Started with MariaDB with DockerGetting Started with MariaDB with Docker
Getting Started with MariaDB with Docker

MariaDB: Connect Storage Engine
MariaDB: Connect Storage EngineMariaDB: Connect Storage Engine
MariaDB: Connect Storage Engine

MariaDB 10 and what's new with the project
MariaDB 10 and what's new with the projectMariaDB 10 and what's new with the project
MariaDB 10 and what's new with the project

Mariadb10 和新项目中有什么
Mariadb10 和新项目中有什么Mariadb10 和新项目中有什么
Mariadb10 和新项目中有什么

Meet MariaDB Server 10.1 London MySQL meetup December 2015
Meet MariaDB Server 10.1 London MySQL meetup December 2015Meet MariaDB Server 10.1 London MySQL meetup December 2015
Meet MariaDB Server 10.1 London MySQL meetup December 2015

Les fonctionnalites mariadb
Les fonctionnalites mariadbLes fonctionnalites mariadb
Les fonctionnalites mariadb

MySQL Scalability and Reliability for Replicated Environment
MySQL Scalability and Reliability for Replicated EnvironmentMySQL Scalability and Reliability for Replicated Environment
MySQL Scalability and Reliability for Replicated Environment

NY Meetup: Scaling MariaDB with Maxscale
NY Meetup: Scaling MariaDB with MaxscaleNY Meetup: Scaling MariaDB with Maxscale
NY Meetup: Scaling MariaDB with Maxscale

2010 12 mysql_clusteroverview
2010 12 mysql_clusteroverview2010 12 mysql_clusteroverview
2010 12 mysql_clusteroverview

MySQL on Docker and Kubernetes
MySQL on Docker and KubernetesMySQL on Docker and Kubernetes
MySQL on Docker and Kubernetes

The New MariaDB Offering: MariaDB 10, MaxScale and More
The New MariaDB Offering: MariaDB 10, MaxScale and MoreThe New MariaDB Offering: MariaDB 10, MaxScale and More
The New MariaDB Offering: MariaDB 10, MaxScale and More

Meet MariaDB 10.1 at the Bulgaria Web Summit
Meet MariaDB 10.1 at the Bulgaria Web SummitMeet MariaDB 10.1 at the Bulgaria Web Summit
Meet MariaDB 10.1 at the Bulgaria Web Summit

MariaDB for the Enterprise
MariaDB for the EnterpriseMariaDB for the Enterprise
MariaDB for the Enterprise

2012 09 MariaDB Boston Meetup - MariaDB 是 Mysql 的替代者吗
2012 09 MariaDB Boston Meetup - MariaDB 是 Mysql 的替代者吗2012 09 MariaDB Boston Meetup - MariaDB 是 Mysql 的替代者吗
2012 09 MariaDB Boston Meetup - MariaDB 是 Mysql 的替代者吗


More from MariaDB plc

MariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.xMariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB plc

MariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - NewpharmaMariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - Newpharma
MariaDB plc

MariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - CloudMariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - Cloud
MariaDB plc

MariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB EnterpriseMariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB plc

MariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance OptimizationMariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance Optimization
MariaDB plc

MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale
MariaDB plc

MariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentationMariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentation
MariaDB plc

MariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentationMariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentation
MariaDB plc

MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB plc

MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-BackupMariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB plc

Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023
MariaDB plc

Hochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDBHochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDB
MariaDB plc

Die Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise ServerDie Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise Server
MariaDB plc

Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®
MariaDB plc

Introducing workload analysis
Introducing workload analysisIntroducing workload analysis
Introducing workload analysis
MariaDB plc

Under the hood: SkySQL monitoring
Under the hood: SkySQL monitoringUnder the hood: SkySQL monitoring
Under the hood: SkySQL monitoring
MariaDB plc

Introducing the R2DBC async Java connector
Introducing the R2DBC async Java connectorIntroducing the R2DBC async Java connector
Introducing the R2DBC async Java connector
MariaDB plc

MariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introductionMariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introduction
MariaDB plc

Faster, better, stronger: The new InnoDB
Faster, better, stronger: The new InnoDBFaster, better, stronger: The new InnoDB
Faster, better, stronger: The new InnoDB
MariaDB plc

The architecture of SkySQL
The architecture of SkySQLThe architecture of SkySQL
The architecture of SkySQL
MariaDB plc


More from MariaDB plc (20)

MariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.xMariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.x

MariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - NewpharmaMariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - Newpharma

MariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - CloudMariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - Cloud

MariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB EnterpriseMariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB Enterprise

MariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance OptimizationMariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance Optimization

MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale

MariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentationMariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentation

MariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentationMariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentation

MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server

MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-BackupMariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup

Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023

Hochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDBHochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDB

Die Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise ServerDie Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise Server

Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®

Introducing workload analysis
Introducing workload analysisIntroducing workload analysis
Introducing workload analysis

Under the hood: SkySQL monitoring
Under the hood: SkySQL monitoringUnder the hood: SkySQL monitoring
Under the hood: SkySQL monitoring

Introducing the R2DBC async Java connector
Introducing the R2DBC async Java connectorIntroducing the R2DBC async Java connector
Introducing the R2DBC async Java connector

MariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introductionMariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introduction

Faster, better, stronger: The new InnoDB
Faster, better, stronger: The new InnoDBFaster, better, stronger: The new InnoDB
Faster, better, stronger: The new InnoDB

The architecture of SkySQL
The architecture of SkySQLThe architecture of SkySQL
The architecture of SkySQL


Recently uploaded

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理
dakas1

一比一原版(UMN毕业证)明尼苏达大学毕业证如何办理
一比一原版(UMN毕业证)明尼苏达大学毕业证如何办理一比一原版(UMN毕业证)明尼苏达大学毕业证如何办理
一比一原版(UMN毕业证)明尼苏达大学毕业证如何办理
dakas1

Preparing Non - Technical Founders for Engaging a Tech Agency
Preparing Non - Technical Founders for Engaging  a  Tech AgencyPreparing Non - Technical Founders for Engaging  a  Tech Agency
Preparing Non - Technical Founders for Engaging a Tech Agency
ISH Technologies

Mobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona InfotechMobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona Infotech
Drona Infotech

KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
KuberTENes Birthday Bash Guadalajara - Introducción a Argo CDKuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
rodomar2

Superpower Your Apache Kafka Applications Development with Complementary Open...
Superpower Your Apache Kafka Applications Development with Complementary Open...Superpower Your Apache Kafka Applications Development with Complementary Open...
Superpower Your Apache Kafka Applications Development with Complementary Open...
Paul Brebner

WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...
WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...
WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...
Luigi Fugaro

Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
The Third Creative Media

DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSISDECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
Tier1 app

Transforming Product Development using OnePlan To Boost Efficiency and Innova...
Transforming Product Development using OnePlan To Boost Efficiency and Innova...Transforming Product Development using OnePlan To Boost Efficiency and Innova...
Transforming Product Development using OnePlan To Boost Efficiency and Innova...
OnePlan Solutions

Benefits of Artificial Intelligence in Healthcare!
Benefits of  Artificial Intelligence in Healthcare!Benefits of  Artificial Intelligence in Healthcare!
Benefits of Artificial Intelligence in Healthcare!
Prestware

Oracle Database 19c New Features for DBAs and Developers.pptx
Oracle Database 19c New Features for DBAs and Developers.pptxOracle Database 19c New Features for DBAs and Developers.pptx
Oracle Database 19c New Features for DBAs and Developers.pptx
Remote DBA Services

What is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdfWhat is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdf
kalichargn70th171

Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptxOperational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
sandeepmenon62

ppt on the brain chip neuralink.pptx
ppt  on   the brain  chip neuralink.pptxppt  on   the brain  chip neuralink.pptx
ppt on the brain chip neuralink.pptx
Reetu63

Migration From CH 1.0 to CH 2.0 and Mule 4.6 & Java 17 Upgrade.pptx
Migration From CH 1.0 to CH 2.0 and  Mule 4.6 & Java 17 Upgrade.pptxMigration From CH 1.0 to CH 2.0 and  Mule 4.6 & Java 17 Upgrade.pptx
Migration From CH 1.0 to CH 2.0 and Mule 4.6 & Java 17 Upgrade.pptx
ervikas4

Kubernetes at Scale: Going Multi-Cluster with Istio
Kubernetes at Scale:  Going Multi-Cluster  with IstioKubernetes at Scale:  Going Multi-Cluster  with Istio
Kubernetes at Scale: Going Multi-Cluster with Istio
Severalnines

WWDC 2024 Keynote Review: For CocoaCoders Austin
WWDC 2024 Keynote Review: For CocoaCoders AustinWWDC 2024 Keynote Review: For CocoaCoders Austin
WWDC 2024 Keynote Review: For CocoaCoders Austin
Patrick Weigel

Modelling Up - DDDEurope 2024 - Amsterdam
Modelling Up - DDDEurope 2024 - AmsterdamModelling Up - DDDEurope 2024 - Amsterdam
Modelling Up - DDDEurope 2024 - Amsterdam
Alberto Brandolini

Malibou Pitch Deck For Its €3M Seed Round
Malibou Pitch Deck For Its €3M Seed RoundMalibou Pitch Deck For Its €3M Seed Round
Malibou Pitch Deck For Its €3M Seed Round
sjcobrien


Recently uploaded (20)

一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理一比一原版(USF毕业证)旧金山大学毕业证如何办理
一比一原版(USF毕业证)旧金山大学毕业证如何办理

一比一原版(UMN毕业证)明尼苏达大学毕业证如何办理
一比一原版(UMN毕业证)明尼苏达大学毕业证如何办理一比一原版(UMN毕业证)明尼苏达大学毕业证如何办理
一比一原版(UMN毕业证)明尼苏达大学毕业证如何办理

Preparing Non - Technical Founders for Engaging a Tech Agency
Preparing Non - Technical Founders for Engaging  a  Tech AgencyPreparing Non - Technical Founders for Engaging  a  Tech Agency
Preparing Non - Technical Founders for Engaging a Tech Agency

Mobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona InfotechMobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona Infotech

KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
KuberTENes Birthday Bash Guadalajara - Introducción a Argo CDKuberTENes Birthday Bash Guadalajara - Introducción a Argo CD
KuberTENes Birthday Bash Guadalajara - Introducción a Argo CD

Superpower Your Apache Kafka Applications Development with Complementary Open...
Superpower Your Apache Kafka Applications Development with Complementary Open...Superpower Your Apache Kafka Applications Development with Complementary Open...
Superpower Your Apache Kafka Applications Development with Complementary Open...

WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...
WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...
WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...

Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...

DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSISDECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS

Transforming Product Development using OnePlan To Boost Efficiency and Innova...
Transforming Product Development using OnePlan To Boost Efficiency and Innova...Transforming Product Development using OnePlan To Boost Efficiency and Innova...
Transforming Product Development using OnePlan To Boost Efficiency and Innova...

Benefits of Artificial Intelligence in Healthcare!
Benefits of  Artificial Intelligence in Healthcare!Benefits of  Artificial Intelligence in Healthcare!
Benefits of Artificial Intelligence in Healthcare!

Oracle Database 19c New Features for DBAs and Developers.pptx
Oracle Database 19c New Features for DBAs and Developers.pptxOracle Database 19c New Features for DBAs and Developers.pptx
Oracle Database 19c New Features for DBAs and Developers.pptx

What is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdfWhat is Continuous Testing in DevOps - A Definitive Guide.pdf
What is Continuous Testing in DevOps - A Definitive Guide.pdf

Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptxOperational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx

ppt on the brain chip neuralink.pptx
ppt  on   the brain  chip neuralink.pptxppt  on   the brain  chip neuralink.pptx
ppt on the brain chip neuralink.pptx

Migration From CH 1.0 to CH 2.0 and Mule 4.6 & Java 17 Upgrade.pptx
Migration From CH 1.0 to CH 2.0 and  Mule 4.6 & Java 17 Upgrade.pptxMigration From CH 1.0 to CH 2.0 and  Mule 4.6 & Java 17 Upgrade.pptx
Migration From CH 1.0 to CH 2.0 and Mule 4.6 & Java 17 Upgrade.pptx

Kubernetes at Scale: Going Multi-Cluster with Istio
Kubernetes at Scale:  Going Multi-Cluster  with IstioKubernetes at Scale:  Going Multi-Cluster  with Istio
Kubernetes at Scale: Going Multi-Cluster with Istio

WWDC 2024 Keynote Review: For CocoaCoders Austin
WWDC 2024 Keynote Review: For CocoaCoders AustinWWDC 2024 Keynote Review: For CocoaCoders Austin
WWDC 2024 Keynote Review: For CocoaCoders Austin

Modelling Up - DDDEurope 2024 - Amsterdam
Modelling Up - DDDEurope 2024 - AmsterdamModelling Up - DDDEurope 2024 - Amsterdam
Modelling Up - DDDEurope 2024 - Amsterdam

Malibou Pitch Deck For Its €3M Seed Round
Malibou Pitch Deck For Its €3M Seed RoundMalibou Pitch Deck For Its €3M Seed Round
Malibou Pitch Deck For Its €3M Seed Round


Deploying MariaDB databases with containers at Nokia Networks

  • 1. © 2018 Nokia1 Deploying MariaDB databases with containers at Nokia Deploying MariaDB solutions in containerized environments in Nokia Networks Rick Lane 27-02-2019
  • 2. © 2018 Nokia2 Deploying MariaDB databases with containers at Nokia Deploying MariaDB solutions in containerized environments in Nokia Networks Rick Lane 27-02-2019
  • 3. © 2018 Nokia3 © 2018 Nokia3 CMDB - MariaDB Common Software Foundation (CSF) Component MariaDB (CMDB)
  • 4. © 2018 Nokia4 Helm/Kubernetes/Container tradeoffs Pros • Fully separates services from kernel/other services • Extremely light-weight and portable • Containers disposable  Kill and recreate pod as new  Readiness/Liveless probes automate recovery • Deploy application with multiple services in one command/click (helm umbrella charts) • Deployment time significantly faster than VM/ansible (4 minutes compared to 40 minutes) Cons • Containers disposable  Recreated with new IP (looks like new server)  Failure root cause difficult - logs disappear with container. (pod stdout or persistent storage) • Umbrella charts introduce other difficult problems  Can deploy new service instance with helm upgrade of parent chart
  • 5. © 2018 Nokia5 Nokia Container Management Service Helm/Kubernetes Deployment Model controller worker worker worker worker worker controller edge edge deploy chart cmdb helm chart deploy pods External Connections
  • 6. © 2018 Nokia6 Security / Affinity Helm/Kubernetes Deployment Model Security • RBAC fully supported • All containers must run as non-root user • Kubernetes RBAC ServiceAccount and Role/RoleBindings limit container privileges • Password security • All user-supplied passwords loaded to kubernetes secret during pre-install-job • Secret used to propagate passwords to maxscale/mariadb pods • Password secret deleted on post-terminate • User must provide secret with old/new password to update passwords Affinity • podAntiAffinity • hard (default) – all pods must be scheduled on separate nodes or deployment will fail • soft – try to schedule pods on separate nodes, but if will deploy anyway • nodeAffinity • mariadb pods forced to deploy on worker nodes • maxscale pods by default deploy on edge nodes (can configure to deploy on worker)
  • 7. © 2018 Nokia7 Containers CMDB - MariaDB cmdb/mariadb (FROM centos-7.6 os base image) MariaDB database container supporting deployment all configurations (simplex, Galera, Master/Master, Master/Slave) • MariaDB-10.3.11 (client, server, backup, etc) • Galera • SDC/etcd client RPMs • CSF CMDB deployment, configuration and management RPMs cmdb/maxscale (FROM centos-7.6 os base image) MaxScale proxy container supporting deployment of data center configuration • Maxscale-2.2.19 • SDC/etcd client RPMs • CSF CMDB deployment, configuration and management RPMs cmdb/admin (FROM kubectl base image) Kubernetes/Helm Job Administration container supporting all life cycle events (install, upgrade, delete, etc) • MariaDB-10.3.11-client • SDC/etcd client RPMs • Python job orchestrator and python classes to implement configuration specific job tasks
  • 8. © 2018 Nokia8 Helm chart (services and admin) CMDB - MariaDB ## Image Registry global: registry: "csf-docker-delivered.repo.internal.nokia.com" registry1: "registry1-docker-io.repo.internal.nokia.com" rbac_enabled: true nodeAntiAffinity: hard cluster_name: "my-cluster“ ## Topology master-slave, master-master, galera, simplex cluster_type: “master-slave“ ## Values on how to expose services ## ClusterIP will expose only within cluister, NodePort to expose externally services: ## MySQL service exposes the mysql database service (mariadb or maxscale) mysql: type: ClusterIP ## MariaDB Master exposes the pod that is master mariadb_master: type: NodePort ## Maxscale exposes the administrative interface of Maxscale maxscale: type: NodePort ## Maxctrl (optional) exposes the maxctrl administrative interface of Maxscale maxctrl: enabled: false type: ClusterIP port: 8989 admin: image: name: "cmdb/admin" tag: "4.5-1" pullPolicy: IfNotPresent ## A recovery flag. If changed, will trigger a heal of the database to occur #recovery: none quickInstall: "" ## If set, administrative jobs will be more verbose to stdout (kubectl logs) debug: false ## Exposes the hook-delete-policy. By default, this is set to delete the ## hooks only upon success. In helm v2.9+, this should be set to ## before-hook-creation. This can also be unset to avoid hook deletion ## for troubleshooting and debugging purposes hook_delete_policy: "hook-succeeded"
  • 9. © 2018 Nokia9 Helm chart (mariadb and maxscale) CMDB - MariaDB mariadb: image: name: "cmdb/mariadb" tag: "4.5-1" pullPolicy: IfNotPresent ## The number of MariaDB pods to create count: 3 heuristic_recover: rollback use_tls: true ## Enable persistence using Persistent Volume Claims persistence: enabled: true accessMode: ReadWriteOnce size: 20Gi storageClass: "" resourcePolicy: delete preserve_pvc: false ## MariaDB server customized configuration mysqld_site_conf: |- [mysqld] userstat = on ## metrics metrics: enabled: false ## Grafana dashboard dashboard: enabled: false maxscale: image: name: "cmdb/maxscale" tag: "4.5-1” pullPolicy: IfNotPresent ## The number of MaxScale pods count: 2 ## MaxScale customized configuration maxscale_site_conf: |- [maxscale] threads = 2 query_retries = 2 query_retry_timeout = 10 [MariaDB-Monitor] monitor_interval = 1000 failcount = 4 ## MaxScale promotion/demotion SQL sql: ## Mariadb Node promoted to master promotion: [] ## Mariadb Node demoted to slave demotion: [] ## leader-elector elector: image: name: "googlecontainer/leader-elector" tag: 0.5 pullPolicy: IfNotPresent
  • 10. © 2018 Nokia10 Events Life Cycle Management • Kubernetes native events  install = deploy chart and create resources  delete = terminate chart and delete all resources created by install  upgrade = make any changes to mariadb/maxscale resources (configuration, etc) special code to handle heal and scale-in/out events • Nokia plugin events  heal = implemented also with kubernetes upgrade admin.recovery value  scale-in/scale-out = implemented also with kubernetes upgrade mariadb.count or maxscale.count  backup/restore = implemented with Backup/Restore policy
  • 11. © 2018 Nokia11 Kubernetes Resources Galera Cluster • Deploy mariadb-statefulset with 3+ (odd number). MariaDB pod contains: • Mariadb container  Configures mariadb in Galera configuration automatically at deploy based on IP advertisements  If pod restarts, configured to always come back to Join existing cluster  Persistent Volume Claim mounted for database storage • Backup/Restore container for scheduling routine mariadb container backups • Optional mysqld_exporter container for metrics collection (if metrics enabled) • Mysql Service created to provide access to all DB nodes (all DB nodes added to service as endpoints) • Metrics Service created to provide access to DB nodes from Grafana dashboard (if metrics enabled)
  • 12. © 2018 Nokia12 Galera Cluster mysql load-balance pods service mariadb metrics mariadb-0 BR volume mariadb metrics mariadb-1 BR volume mariadb metrics mariadb-2 BR volume
  • 13. © 2018 Nokia13 Kubernetes Resources Master/Slave with HA MaxScale • Deploy maxscale-statefulset with 1 to 3 pods. Maxscale pods contains: • Maxscale container  Configures maxscale using helm values and mariadb container advertised IPs (via etcd)  Monitors http://localhost:4040 for leader-elector changes (setting maxscale passive mode) • Leader-elector container for managing HA  Configured to manage kubernetes endpoint with lease for election of leader in cluster  Starts small web server to publish elected leader to port 4040 • Deploy mariadb-statefulset with 2+ (3+ odd number preferred). MariaDB pod contains: • Mariadb container  Configures mariadb in Master/Slave/Slave configuration automatically at deploy based on IP advertisements  If pod restarts, configured to always come back as a Slave  Persistent Volume Claim mounted for database storage • Backup/Restore container for scheduling routine mariadb container backups • Optional mysqld_exporter container for metrics collection (if metrics enabled) • Mysql Service created to provide access to all maxscale nodes (all maxscale nodes added to service as endpoints) • Maxctrl Service created to provide REST API access to “active” maxscale node (labeled with ‘maxscale-leader’)
  • 14. © 2018 Nokia14 mariadb metrics mariadb-0 BR volume Master/Slave Cluster with HA MaxScale maxscale elector maxscale-0 maxscale elector maxscale-1 mysql service maxctrl maxscale-1 endpoint watching managing Master Slave Slave passive active load-balance mariadb metrics mariadb-2 BR volume mariadb metrics mariadb-1 BR volume
  • 15. © 2018 Nokia15 Pod IP Advertisements / Single Pod Failure Pod failures result in the re-created pod being re-deployed with a new IP address (looks like a new cluster server) mariadb-0 etcd server cmdb/my-cluster/services/attributes/mariadb-0 = {“role”: “RM”, “ip”: “172.16.0.35”} cmdb/my-cluster/services/attributes/mariadb-1 = {“role”: “RS”, “ip”: “172.16.0.104”} cmdb/my-cluster/services/attributes/mariadb-2 = {“role”: “RS”, “ip”: “172.16.0.97”} cmdb/my-cluster/services/attributes/maxscale-0 = {“role”: “MXS”, “ip”: “172.16.0.39”} cmdb/my-cluster/services/attributes/maxscale-1 = {“role”: “MXS”, “ip”: “172.16.0.52”} cmdb/my-cluster/services/attributes/mariadb-2 = {“role”: “RS”, “ip”: “172.16.0.201”} mariadb-1 mariadb-2 maxscale-0 maxscale-1 172.16.0.35 172.16.0.104 172.16.0.97 172.16.0.39 172.16.0.52 172.16.0.201 mariadb-2 maxadmin alter server mariadb-2 address=172.16.0.201 Advertise IP Audit advertisements
  • 16. © 2018 Nokia16 Galera Cluster Heal mariadb-0 mariadb-1 mariadb-2 etcd server cmdb/my-cluster/mariadb-0/config/role = “--cluster=join:SST” cmdb/my-cluster/mariadb-1/config/role = “--cluster=new” cmdb/my-cluster/mariadb-2/config/role = “--cluster=join:SST” admin post-upgrade-job Admin container heal operation (helm upgrade of admin.recovery value) etcd server cmdb/my-cluster/actions/wait_role = {“advertise”: “recovery_pos”} cmdb/my-cluster/services/recovery_pos/mariadb-0 = {“seqno”: “527”} cmdb/my-cluster/services/recovery_pos/mariadb-1 = {“seqno”: “528”} cmdb/my-cluster/services/recovery_pos/mariadb-2 = {“seqno”: “527”} (1) Write wait_role action (2) Kill all mariadb pods (3) Pods advertise recovery_pos seqno values (4) Find pod with largest seqno (5) Largest pod starts cluster, rest join (6) Pods detect role and re-deploy
  • 17. © 2018 Nokia17 Galera Cluster Scale-Out mariadb-0 mariadb-1 mariadb-2 etcd server cmdb/my-cluster/mariadb-3/config/role = “--cluster=join:SST” cmdb/my-cluster/mariadb-4/config/role = “--cluster=join:SST”admin pre-upgrade-job Admin container scale-out operation (helm upgrade of mariadb.count) mariadb-3 mariadb-4 admin post-upgrade-job (1) Set new pods roles (2) New pods created (3) Notify existing pods of new cluster size
  • 18. © 2018 Nokia18 Galera Cluster Scale-In mariadb-0 mariadb-1 mariadb-2 admin pre-upgrade-job Admin container scale-in operation (helm upgrade of mariadb.count) mariadb-3 mariadb-4 admin post-upgrade-job (1) Verify new cluster size (2) pods deleted (3) Notify remaining pods of new cluster size
  • 19. © 2018 Nokia19 MaxScale Cluster Heal mariadb-0 Maxscale will auto-heal MariaDB cluster when all database pods fail mariadb-0 mariadb-0 mariadb-0 mariadb-0 mariadb-0 Remote Data Center Master SlaveSlave Topology Audit (no audit if event < 15 seconds) • After all pods restart: o Original master will be replicating from remote DC (Slave, Running) o Original slaves will still be replicating from old master (Running) • Expected_master = first server replicating to remote DC • If all other servers replicating to same server (old master) For all servers (except expected_master) CHANGE MASTER TO expected_master Run promotion.sql
  • 20. © 2018 Nokia20 MaxScale Cluster Scale-Out etcd server cmdb/my-cluster/mariadb-3/config/role = “--replicate=slave” cmdb/my-cluster/mariadb-4/config/role = “--replicate=slave” admin pre-upgrade-job Admin container scale-out operation (helm upgrade of mariadb.count) etcd server cmdb/my-cluster/actions/wait_role = {“advertise”: “ready”} cmdb/my-cluster/services/ready/mariadb-3 = ‘true’ cmdb/my-cluster/services/ready/mariadb-4 = ‘true’ (1) Make sure master exists (2) Write wait_role action (3) New pods created (5) As ready pods detected, restore from master backup and advertise pod role mariadb-0 mariadb-1 mariadb-2 mariadb-3 mariadb-4 admin post-upgrade-job (4) Backup Master (0) M (6) Notify existing pods of new cluster size Maxscale: maxadmin create server <server> … maxadmin add server <server>
  • 21. © 2018 Nokia21 MaxScale Cluster Scale-In mariadb-0 mariadb-1 mariadb-2 admin pre-upgrade-job Admin container scale-in operation (helm upgrade of mariadb.count) mariadb-3 mariadb-4 admin post-upgrade-job (1) Verify new cluster size (3) pods deleted (4) Notify remaining pods of new cluster size MM (2) Switchover Master via MaxScale if necessary Maxscale: maxadmin remove server <server> maxadmin destroy server <server>
  • 22. © 2018 Nokia22 Future Work • Additional enhancements to prevent data loss  Supporting semi-sync replication in Master/Slave/Slave cluster with MaxScale  Implement preStop hook to trigger switchover if Master is being deleted (eg, for migration) • Kubernetes Horizontal Pod Autoscaling (HPA)
