1. OpenStack Storage on Flash – Breaking Performance
and Economic BoundariesVenkat Kolli
Director Product Marketing
November 2015

2. SanDisk Confidential 2

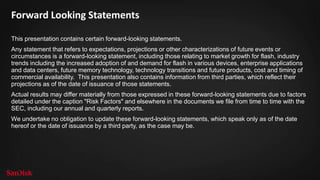

Forward Looking Statements
This presentation contains certain forward-looking statements.
Any statement that refers to expectations, projections or other characterizations of future events or circumstances is a
forward-looking statement, including those relating to market growth for flash, industry trends including the increased
adoption of and demand for flash in various devices, enterprise applications and data centers, future memory
technology, technology transitions and future products, cost and timing of commercial availability. This presentation
also contains information from third parties, which reflect their projections as of the date of issuance of those
statements.
Actual results may differ materially from those expressed in these forward-looking statements due to factors detailed
under the caption "Risk Factors" and elsewhere in the documents we file from time to time with the SEC, including our
annual and quarterly reports.
We undertake no obligation to update these forward-looking statements, which speak only as of the date hereof or
the date of issuance by a third party, as the case may be.

3. SanDisk Confidential 3
Speaker
 Venkat Kolli
 Director of Product Management
 Enterprise Solutions
 Over 15 years of Storage Industry experience
 Introduced many innovative products at Fusion-io, NetApp, Veritas
 Developed storage solutions for Fortune 100 companies
 Venkat.kolli@sandisk.com

4. SanDisk Confidential 4

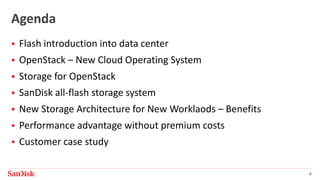

Agenda
 Flash introduction into data center
 OpenStack – New Cloud Operating System
 Storage for OpenStack
 SanDisk® all-flash storage system
 New Storage Architecture for New Worklaods – Benefits
 Performance advantage without premium costs
 Customer case study

5. SanDisk Confidential 5
A Global Fortune 500 Leader in Flash Storage Solutions
Personal Smartphones & Tablets Client SSDs Data Center SSDs, Systems & Software
Vertically Integrated
• Fab – Memory Cell Design
• Memory System Design
• Full Product Manufacturing
• Software Solutions
Patent Portfolio
• 5,000+ Patents
Financial Strength
Trailing 4 Quarter Financials*
• $6.1B Revenue
• $1.5B Net Cash
• $0.9B R&D Investment
SanDisk Ventures
• $75 Million for Strategic
Investments
Customers, Channels
• OEM
• Enterprise
• Hyperscalers
• Retail, Consumers
* Financials as of Q2’15. Net Cash = (Cash + cash equivalents + short-term and long-term marketable securities) less (debt at maturity value) as of end of Q2’15; patents are as of Q2 2015.

6. SanDisk Confidential 6
Datacenters are Increasingly Taxed to Provide Everything
with Minimal Budget
…with Quality of Service
Scale-out Capacity +
High Density
Performance
On-Demand
Low Operating Cost
(Low power, low cooling)
Simplicity
(Self-serve simple
administration)

7. SanDisk Confidential 7
Our All-Flash Designs Deliver Breakthrough Features and
Cost for an All-Flash Array
Low Power High Performance Scalable Reliable
Now
Breakthrough
Economics

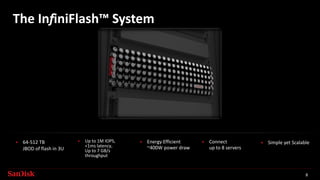

8. The InfiniFlash™ System
8
 64-512 TB
JBOD of flash in 3U
 Up to 1M IOPS,
<1ms latency,
Up to 7 GB/s
throughput
 Energy Efficient
~400W power draw
 Connect
up to 8 servers
 Simple yet Scalable

9. SanDisk Confidential 9

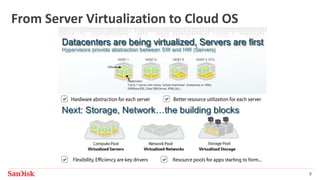

From Server Virtualization to Cloud OS

10. SanDisk Confidential 10

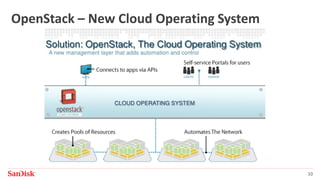

OpenStack – New Cloud Operating System

11. 11

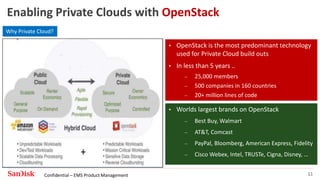

Enabling Private Clouds with OpenStack
 OpenStack is the most predominant technology
used for Private Cloud build outs
 In less than 5 years ..
– 25,000 members
– 500 companies in 160 countries
– 20+ million lines of code
Why Private Cloud?
 Worlds largest brands on OpenStack
– Best Buy, Walmart
– AT&T, Comcast
– PayPal, Bloomberg, American Express, Fidelity
– Cisco Webex, Intel, TRUSTe, Cigna, Disney, …

12. SanDisk Confidential 12

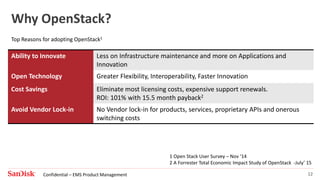

Why OpenStack?
Ability to Innovate Less on Infrastructure maintenance and more on Applications and
Innovation
Open Technology Greater Flexibility, Interoperability, Faster Innovation
Cost Savings Eliminate most licensing costs, expensive support renewals.
ROI: 101% with 15.5 month payback2
Avoid Vendor Lock-in No Vendor lock-in for products, services, proprietary APIs and onerous
switching costs
1 Open Stack User Survey – Nov ‘14
2 A Forrester Total Economic Impact Study of OpenStack -July’ 15
Top Reasons for adopting OpenStack1

13. SanDisk Confidential 13
Ideal Storage for OpenStack
• Ceph – The most widely used OpenStack Block Storage
• 45% of OpenStack Block Storage runs on Ceph*
• More than just “another” OpenStack Driver
• Ceph is integral to OpenStack Cinder block storage
• Shares the same open source community development roots
• Overcome the performance limitations of OpenStack with
InfiniFlash HW optimizations
• Scale horizontally on demand- architecture built for scale
• Fully tested & proven for OpenStack deployments
• Hardened and tested for PB-scale deployments and
workloads
• Single vendor support for both hardware and software
+

14. SanDisk Confidential 14

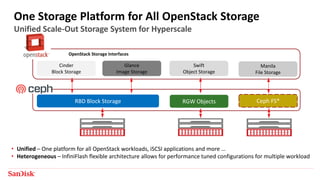

One Storage Platform for All OpenStack Storage
Unified Scale-Out Storage System for Hyperscale
• Unified – One platform for all OpenStack workloads, iSCSI applications and more …
• Heterogeneous – InfiniFlash flexible architecture allows for performance tuned configurations for multiple workload
Cinder
Block Storage
Glance
Image Storage
Swift
Object Storage
Manila
File Storage
OpenStack Storage Interfaces
RBD Block Storage RGW Objects Ceph FS*

15. SanDisk Confidential 15

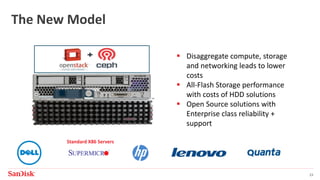

Disaggregation is the Key to Breakthrough Economics !
InfiniFlash™
Old Model
 Monolithic
 Proprietary storage OS
 Costly: $$$$$
New Model
 Disaggregated
 Open software stack
 Green !
 High performance
 Cost effective
Software Defined Storage
Standard X86 Servers
Advantages of
Disaggregation
 Lower TCA and TCO than
traditional models
 Rich choice of ecosystem
partners - compute,
networking and software
stacks
Evidence
 Decline of traditional
frame array business

16. SanDisk Confidential 16

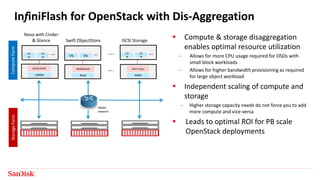

InfiniFlash for OpenStack with Dis-Aggregation
 Compute & storage disaggregation
enables optimal resource utilization
- Allows for more CPU usage required for OSDs with
small block workloads
- Allows for higher bandwidth provisioning as required
for large object workload
 Independent scaling of compute and
storage
- Higher storage capacity needs do not force you to add
more compute and vice-versa
 Leads to optimal ROI for PB scale
OpenStack deployments
….
….
ComputeFarm
LU
N
LU
N
iSCSI Storage
…Obj Obj
Swift ObjectStore
…LU
N
LU
N
Nova with Cinder
& Glance
…
LibRBD
QEMU/KVM
RGW
WebServer
KRBD
iSCSI Target
StorageFarm
40GbE
network

17. SanDisk Confidential 17

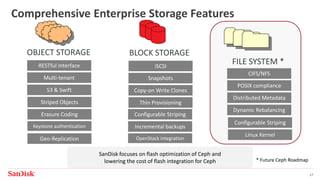

Comprehensive Enterprise Storage Features
FILE SYSTEM *
BLOCK STORAGEOBJECT STORAGE
Keystone authentication
Geo-Replication
Erasure Coding
Striped Objects
Incremental backups
OpenStack integration
Configurable Striping
iSCSI
CIFS/NFS
Linux Kernel
Configurable Striping
S3 & Swift
Multi-tenant
RESTful Interface
Thin Provisioning
Copy-on Write Clones
Snapshots
Dynamic Rebalancing
Distributed Metadata
POSIX compliance
SanDisk focuses on flash optimization of Ceph and
lowering the cost of flash integration for Ceph * Future Ceph Roadmap

18. SanDisk Confidential 18

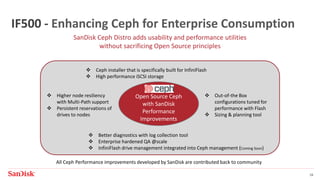

IF500 - Enhancing Ceph for Enterprise Consumption
SanDisk Ceph Distro adds usability and performance utilities
without sacrificing Open Source principles
All Ceph Performance improvements developed by SanDisk are contributed back to community
Open Source Ceph
with SanDisk
Performance
Improvements
 Out-of-the Box
configurations tuned for
performance with Flash
 Sizing & planning tool
 Higher node resiliency
with Multi-Path support
 Persistent reservations of
drives to nodes
 Ceph installer that is specifically built for InfiniFlash
 High performance iSCSI storage
 Better diagnostics with log collection tool
 Enterprise hardened QA @scale
 InfiniFlash drive management integrated into Ceph management (Coming Soon)

19. SanDisk Confidential 19

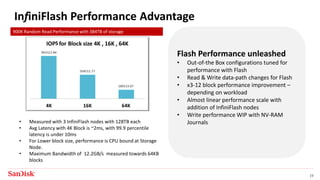

InfiniFlash Performance Advantage
900K Random Read Performance with 384TB of storage
Flash Performance unleashed
• Out-of-the Box configurations tuned for
performance with Flash
• Read & Write data-path changes for Flash
• x3-12 block performance improvement –
depending on workload
• Almost linear performance scale with
addition of InfiniFlash nodes
• Write performance WIP with NV-RAM
Journals• Measured with 3 InfiniFlash nodes with 128TB each
• Avg Latency with 4K Block is ~2ms, with 99.9 percentile
latency is under 10ms
• For Lower block size, performance is CPU bound at Storage
Node.
• Maximum Bandwidth of 12.2GB/s measured towards 64KB
blocks
S

20. SanDisk Confidential 20

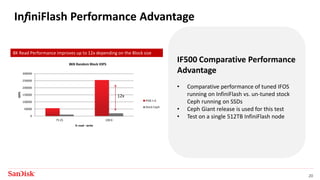

InfiniFlash Performance Advantage
8K Read Performance improves up to 12x depending on the Block size
0
50000
100000
150000
200000
250000
300000
75:25 100:0
IOPS
% read : wrtie
8KB Random Block IOPS
IFOS 1.0
Stock Ceph
12x
IF500 Comparative Performance
Advantage
• Comparative performance of tuned IFOS
running on InfiniFlash vs. un-tuned stock
Ceph running on SSDs
• Ceph Giant release is used for this test
• Test on a single 512TB InfiniFlash node

21. SanDisk Confidential 21

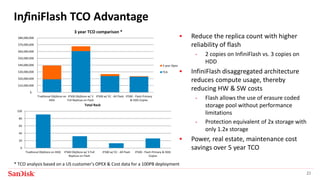

InfiniFlash TCO Advantage
$-
$10,000,000
$20,000,000
$30,000,000
$40,000,000
$50,000,000
$60,000,000
$70,000,000
$80,000,000
Tradtional ObjStore on
HDD
IF500 ObjStore w/ 3
Full Replicas on Flash
IF500 w/ EC - All Flash IF500 - Flash Primary
& HDD Copies
3 year TCO comparison *
3 year Opex
TCA
0
20
40
60
80
100
Tradtional ObjStore on HDD IF500 ObjStore w/ 3 Full
Replicas on Flash
IF500 w/ EC - All Flash IF500 - Flash Primary & HDD
Copies
Total Rack
 Reduce the replica count with higher
reliability of flash
- 2 copies on InfiniFlash vs. 3 copies on
HDD
 InfiniFlash disaggregated architecture
reduces compute usage, thereby
reducing HW & SW costs
- Flash allows the use of erasure coded
storage pool without performance
limitations
- Protection equivalent of 2x storage with
only 1.2x storage
 Power, real estate, maintenance cost
savings over 5 year TCO
* TCO analysis based on a US customer’s OPEX & Cost data for a 100PB deployment

22. SanDisk Confidential 22

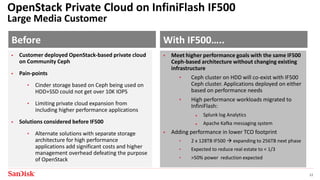

Before With IF500…..
 Customer deployed OpenStack-based private cloud
on Community Ceph
 Pain-points
• Cinder storage based on Ceph being used on
HDD+SSD could not get over 10K IOPS
• Limiting private cloud expansion from
including higher performance applications
 Solutions considered before IF500
• Alternate solutions with separate storage
architecture for high performance
applications add significant costs and higher
management overhead defeating the purpose
of OpenStack
 Meet higher performance goals with the same IF500
Ceph-based architecture without changing existing
infrastructure
• Ceph cluster on HDD will co-exist with IF500
Ceph cluster. Applications deployed on either
based on performance needs
• High performance workloads migrated to
InfiniFlash:
 Splunk log Analytics
 Apache Kafka messaging system
 Adding performance in lower TCO footprint
• 2 x 128TB IF500  expanding to 256TB next phase
• Expected to reduce real estate to < 1/3
• >50% power reduction expected
OpenStack Private Cloud on InfiniFlash IF500
Large Media Customer

23. SanDisk Confidential 23
The New Model
InfiniFlash™
 Disaggregate compute, storage
and networking leads to lower
costs
 All-Flash Storage performance
with costs of HDD solutions
 Open Source solutions with
Enterprise class reliability +
support
Standard X86 Servers

24. SanDisk Confidential 24
Faster time to insight and better business value
through disaggregated flash solutions
from SanDisk

25. SanDisk Confidential 25
© 2015-2016 Western Digital Corporation or its affiliates. All rights reserved. SanDisk and the SanDisk logo are trademarks of Western Digital Corporation or its affiliates, registered in the U.S. and other
countries. InfiniFlash is a trademark of Western Digital Corporation or its affiliates. Other brand names mentioned herein are for identification purposes only and may be the trademark(s) of their respective
holder(s).
@SanDiskDataCtr
@BigDataFlash itblog.sandisk.com
SanDisk Data Center Solutions
