A Developer’s Perspective on
Cloud Foundry Operations:
One Month in the Trenches
CF Summit 2015
Cornelia Davis, Director, Platform Engineering, Cloud Foundry  @cdavisafc
May 2015

3. 3© 2015 Pivotal Software, Inc. All rights reserved.

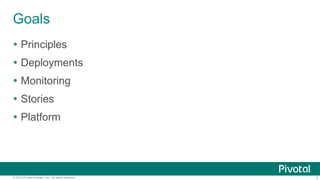

Goals
 Principles
 Deployments
 Monitoring
 Stories
 Platform

4. 4© 2015 Pivotal Software, Inc. All rights reserved.

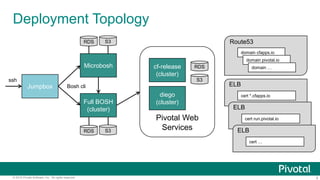

Deployment Topology
Jumpbox
ssh
Bosh cli
Microbosh
S3RDS
Full BOSH
(cluster)
S3RDS
cf-release
(cluster)
diego
(cluster)
Pivotal Web
Services
S3
RDS
Route53
domain cfapps.io
domain pivotal.io
domain …
ELB
cert *.cfapps.io
ELB
cert run.pivotal.io
ELB
cert …

5. 5© 2015 Pivotal Software, Inc. All rights reserved.

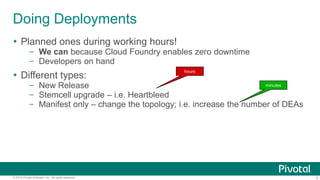

Doing Deployments
 Planned ones during working hours!
– We can because Cloud Foundry enables zero downtime
– Developers on hand
 Different types:
– New Release
– Stemcell upgrade – i.e. Heartbleed
– Manifest only – change the topology; i.e. increase the number of DEAs
minutes
hours

6. 6© 2015 Pivotal Software, Inc. All rights reserved.

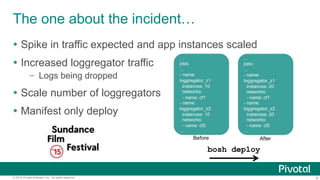

The one about the incident…
 Spike in traffic expected and app instances scaled
 Increased loggregator traffic
– Logs being dropped
 Scale number of loggregators
 Manifest only deploy
bosh deploy

7. 7© 2015 Pivotal Software, Inc. All rights reserved.
Doing Deployments
 We do them during working hours!
– We can because Cloud Foundry enables zero downtime
– Developers on hand
 Different types:
– New Release
– Stemcell upgrade – i.e. Heartbleed
– Manifest only – change the topology; i.e. increase the number of DEAs
 Release previously tested in a staging environment
– Separate env: BOSH, storage, etc.
– Shared package cache  compilation previously completed
– Same Tests
minutes
hours

8. 8© 2015 Pivotal Software, Inc. All rights reserved.

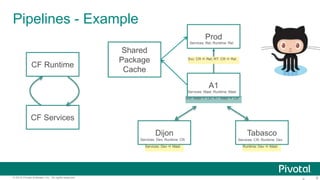

Pipelines - Example
CF Runtime
CF Services
Runtime: Dev a MastServices: Dev a Mast
Svc: Mast a CR; RT: Mast a CR
Dijon Tabasco
A1
Prod
Services: Dev; Runtime: CR Services: CR; Runtime: Dev
Services: Mast; Runtime: Mast
Services: Rel; Runtime: Rel
Svc: CR a Rel; RT: CR a Rel
Shared
Package
Cache

9. 9© 2015 Pivotal Software, Inc. All rights reserved.
Deployment Checklist: New Release
Pre-deployment:
 Socialization – talk to related groups
 Get the latest from github (put there by dev team)
 Generate release notes (yes, this is automated
too!)
 Generate final release
Deployment:
 Log into jumpbox
 git pull
 Generate new deployment manifest (from
templates and prod config)
 Log into bosh
 Upload release
 Bosh deploy – verify the diffs BOSH reports
Checklist for each
type of deployment
Post-deployment:
 Publish final release (into github)
 Update checklists

10. 10© 2015 Pivotal Software, Inc. All rights reserved.

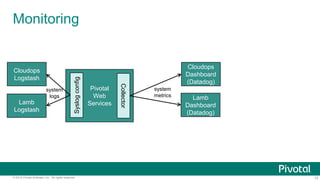

Monitoring
Cloudops
Dashboard
(Datadog)
Lamb
Dashboard
(Datadog)
Pivotal
Web
Services
Cloudops
Logstash
Lamb
Logstash
system
metrics
Collector
Syslogconfig
system
logs

11. 11© 2015 Pivotal Software, Inc. All rights reserved.

12. 12© 2015 Pivotal Software, Inc. All rights reserved.

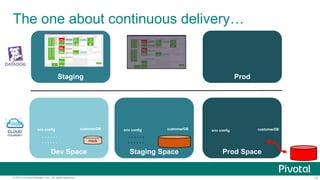

The one about continuous delivery…
Dev Space
mock
customerDBenv config
Staging Space
customerDBenv config
Prod Space
customerDBenv config
Staging Prod

13. 13© 2015 Pivotal Software, Inc. All rights reserved.
Monitoring
Cloudops
Dashboard
(Datadog)
Lamb
Dashboard
(Datadog)
Pivotal
Web
Services
Pager Duty
Cloudops
Logstash
Lamb
Logstash
system
metrics
Collector
Syslogconfig
system
logs

14. 14© 2015 Pivotal Software, Inc. All rights reserved.

15. 15© 2015 Pivotal Software, Inc. All rights reserved.

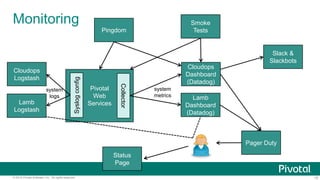

Monitoring
Cloudops
Dashboard
(Datadog)
Lamb
Dashboard
(Datadog)
Pivotal
Web
Services
Pager Duty
Slack &
Slackbots
Cloudops
Logstash
Lamb
Logstash
system
metrics
Collector
Syslogconfig
system
logs
Status
Page
Smoke
TestsPingdom

16. 16© 2015 Pivotal Software, Inc. All rights reserved.

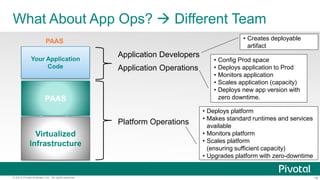

What About App Ops?  Different Team
Database
Web
Server
Messaging
Your Application
Code
PAAS
Virtualized
Infrastructure
PAAS
Platform Operations
Application Developers
Application Operations
• Deploys platform
• Makes standard runtimes and services
available
• Monitors platform
• Scales platform
(ensuring sufficient capacity)
• Upgrades platform with zero-downtime
• Creates deployable
artifact
• Config Prod space
• Deploys application to Prod
• Monitors application
• Scales application (capacity)
• Deploys new app version with
zero downtime.

17. 17© 2015 Pivotal Software, Inc. All rights reserved.

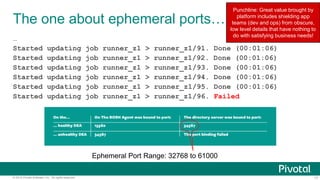

The one about ephemeral ports…
…
Started updating job runner_z1 > runner_z1/91. Done (00:01:06)
Started updating job runner_z1 > runner_z1/92. Done (00:01:06)
Started updating job runner_z1 > runner_z1/93. Done (00:01:06)
Started updating job runner_z1 > runner_z1/94. Done (00:01:06)
Started updating job runner_z1 > runner_z1/95. Done (00:01:06)
Started updating job runner_z1 > runner_z1/96. Failed
Ephemeral Port Range: 32768 to 61000
Punchline: Great value brought by
platform includes shielding app
teams (dev and ops) from obscure,
low level details that have nothing to
do with satisfying business needs!

18. 18© 2015 Pivotal Software, Inc. All rights reserved.

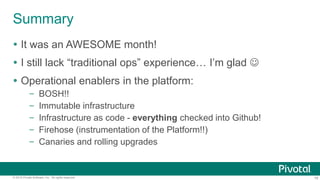

Summary
 It was an AWESOME month!
 I still lack “traditional ops” experience… I’m glad 
 Operational enablers in the platform:
– BOSH!!
– Immutable infrastructure
– Infrastructure as code - everything checked into Github!
– Firehose (instrumentation of the Platform!!)
– Canaries and rolling upgrades

19. 19© 2015 Pivotal Software, Inc. All rights reserved.
Blogs
 Revelations From the Field – Life in the Operations Team
(the one about the loggregator scaling) http://blog.pivotal.io/cloud-foundry-
pivotal/p-o-v/revelations-from-the-field-life-in-the-operations-team
 Is Continuous Delivery a First Class Concern of Your Platform?
(the one about dashboards) http://blog.pivotal.io/cloud-foundry-
pivotal/products/is-continuous-delivery-a-first-class-concern-of-your-platform
 Cloud Foundry Ops: Ephemeral Ports and the Value of a Platform as a
Service
(the one about, well, ephemeral ports)http://blog.pivotal.io/cloud-foundry-
pivotal/p-o-v/cloud-foundry-ops-ephemeral-ports-and-the-value-of-a-
platform-as-a-service
