1. Decalcification in Histopathology
Criteria, Techniques, and Types of
Decalcifying Agents
Dr. Jagroop Singh
PhD Biochemistry
Government Medical College
Amritsar

2. Introduction
Overview of decalcification;Decalcification is a
crucial process in histopathology for preparing
tissue samples that contain bone or other
calcified structures. The process involves
removing calcium deposits to allow for proper
sectioning and examination of the tissue under a
microscope.

3. Overview of Decalcification
• 1. Importance in Histopathology:
• Essential for examining calcified tissues,
such as bones and teeth.
• Ensures that tissues can be sectioned
thinly without damage.
• Allows for better visualization of cellular
and extracellular components during
microscopic examination.

4. Criteria of a Good Decalcification Agent
• • Effective removal of calcium
• • Preservation of tissue morphology
• • Minimal damage to cellular components
• • Compatibility with staining methods

5. Techniques of Decalcification
• • Selection of tissue
• • Fixation before decalcification
• • Methods of decalcification
• • Neutralization of acid
• • Thorough washing

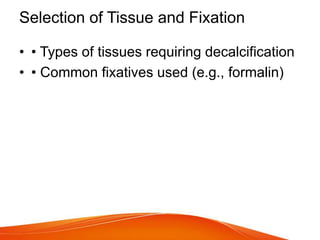

6. Selection of Tissue and Fixation
• • Types of tissues requiring decalcification
• • Common fixatives used (e.g., formalin)

7. Decalcification Process
• Immersion method; The immersion method is a
widely used technique for decalcifying tissue samples
in histopathology. This method involves submerging
the tissue in a decalcifying solution for a specified
period.
• Immersion Process:
• Place the fixed tissue sample in a container with a
sufficient volume of decalcifying solution.
• Ensure the tissue is completely submerged in the
solution.

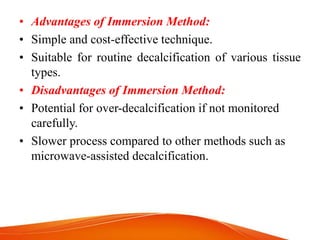

8. • Advantages of Immersion Method:
• Simple and cost-effective technique.
• Suitable for routine decalcification of various tissue
types.
• Disadvantages of Immersion Method:
• Potential for over-decalcification if not monitored
carefully.
• Slower process compared to other methods such as
microwave-assisted decalcification.

9. • Microwave-assisted decalcification;
Microwave-assisted decalcification is an advanced
technique that utilizes microwave energy to accelerate
the decalcification process. This method is
particularly useful for reducing the time required to
decalcify hard tissues while preserving tissue
morphology and improving diagnostic outcomes.
• Advantages of Microwave-Assisted Decalcification:
• Speed: Significantly faster than traditional
decalcification methods.
• Preservation: Better preservation of tissue
morphology due to controlled heating.

10. • Efficiency: Enhanced penetration of
decalcifying solution into the tissue.
• Disadvantages of Microwave-Assisted
Decalcification:
• Equipment Cost: Requires specialized
microwave
• Potential for Overheating: Risk of tissue
damage if not carefully monitored and
controlled.

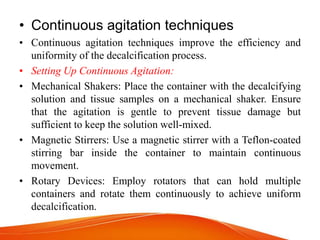

11. • Continuous agitation techniques
• Continuous agitation techniques improve the efficiency and
uniformity of the decalcification process.
• Setting Up Continuous Agitation:
• Mechanical Shakers: Place the container with the decalcifying
solution and tissue samples on a mechanical shaker. Ensure
that the agitation is gentle to prevent tissue damage but
sufficient to keep the solution well-mixed.
• Magnetic Stirrers: Use a magnetic stirrer with a Teflon-coated
stirring bar inside the container to maintain continuous
movement.
• Rotary Devices: Employ rotators that can hold multiple
containers and rotate them continuously to achieve uniform
decalcification.

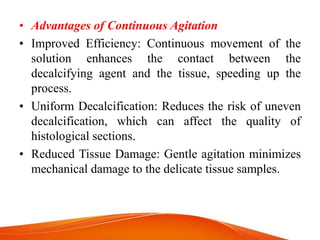

12. • Advantages of Continuous Agitation
• Improved Efficiency: Continuous movement of the
solution enhances the contact between the
decalcifying agent and the tissue, speeding up the
process.
• Uniform Decalcification: Reduces the risk of uneven
decalcification, which can affect the quality of
histological sections.
• Reduced Tissue Damage: Gentle agitation minimizes
mechanical damage to the delicate tissue samples.

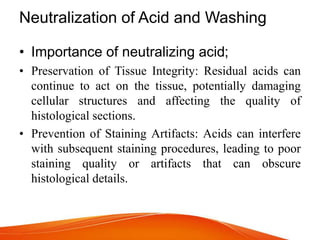

13. Neutralization of Acid and Washing
• Importance of neutralizing acid;
• Preservation of Tissue Integrity: Residual acids can
continue to act on the tissue, potentially damaging
cellular structures and affecting the quality of
histological sections.
• Prevention of Staining Artifacts: Acids can interfere
with subsequent staining procedures, leading to poor
staining quality or artifacts that can obscure
histological details.

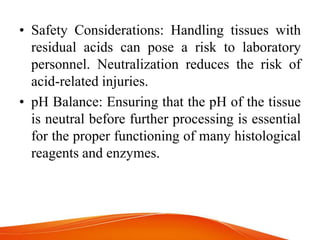

14. • Safety Considerations: Handling tissues with
residual acids can pose a risk to laboratory
personnel. Neutralization reduces the risk of
acid-related injuries.
• pH Balance: Ensuring that the pH of the tissue
is neutral before further processing is essential
for the proper functioning of many histological
reagents and enzymes.

15. • Methods of neutralization;
• Thorough Washing with Water:
• Running Tap Water: Place the decalcified tissues under
running tap water for several hours (typically 4-8 hours). This
helps to wash away any residual acid and bring the pH to a
neutral level.
• Distilled Water: For more precise control, tissues can be
washed in multiple changes of distilled water.
• Neutralizing Solutions:
• Sodium Bicarbonate Solution: Immerse the tissue in a 1-2%
sodium bicarbonate solution for several hours. Sodium
bicarbonate neutralizes the acid and can help in bringing the
pH to a neutral level.

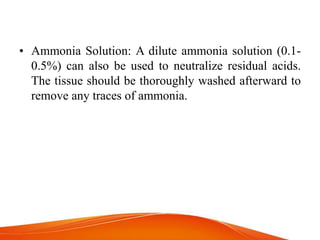

16. • Ammonia Solution: A dilute ammonia solution (0.1-
0.5%) can also be used to neutralize residual acids.
The tissue should be thoroughly washed afterward to
remove any traces of ammonia.

17. • Thorough washing protocols;
• Initial Rinse:
• After decalcification, rinse the tissues briefly under
running tap water to remove the bulk of the
decalcifying solution.
• Extended Washing:
• Place the tissues in a container under running tap
water for 4-8 hours. Ensure a gentle flow of water to
avoid mechanical damage to the tissues.
• Alternatively, immerse the tissues in multiple changes
of distilled water, changing the water every 30
minutes for several hours.

18. • Neutralizing Solution Rinse:
• If using a neutralizing solution like sodium bicarbonate or
ammonia, immerse the tissues in the solution for the
recommended time.
• Follow with another extended wash in running tap water or
multiple changes of distilled water to ensure complete removal
of the neutralizing agent.
• Final Rinse:
• Perform a final rinse in distilled water to ensure that all traces
of acids and neutralizing agents are removed, and the tissues
are at a neutral pH.

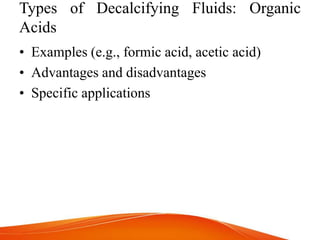

19. Types of Decalcifying Fluids: Organic
Acids
• Examples (e.g., formic acid, acetic acid)
• Advantages and disadvantages
• Specific applications

20. Types of Decalcifying Fluids: Inorganic
Acids
• • Examples (e.g., hydrochloric acid, nitric
acid)
• • Advantages and disadvantages
• • Specific applications

21. Types of Decalcifying Fluids: Chelating
Agents
• • Examples (e.g., EDTA)
• • Mechanism of action
• • Advantages and disadvantages

22. Ion-Exchange Resins
Principle
Ion exchange resins are insoluble polymers that can
exchange particular ions within their structure with ions
in a solution that is passed through them. These resins
contain ionic functional groups that can attract and hold
oppositely charged ions from a solution while releasing
ions of the same charge from the resin.

23. • Application
• Water Softening: Removing calcium and magnesium ions from
hard water and replacing them with sodium ions to prevent
scale formation in boilers and other equipment.
• Water Purification: Removing impurities such as heavy metals,
nitrates, and other contaminants from drinking water.
• Pharmaceutical Industry: Purifying active ingredients,
separating ions, and stabilizing pharmaceutical products.
• Food and Beverage Industry: Decolorizing sugar syrups,
softening water for brewing, and removing unwanted ions
from food products.
• Chemical Analysis: Separating and purifying ions in analytical
chemistry processes.
• Medical Applications: Removing excess potassium from the
blood in patients with hyperkalemia.

24. • Advantages and Disadvantages
• Advantages
• Efficiency: High efficiency in removing ions from solutions,
even at low concentrations.
• Selectivity: Can be tailored to selectively remove specific ions
based on the functional groups used.
• Regenerability: Resins can be regenerated and reused multiple
times by reversing the ion exchange process using a regenerant
solution.
• Versatility: Applicable in various industries, from water
treatment to pharmaceuticals and food processing.
• Scalability: Suitable for both small-scale laboratory
applications and large-scale industrial processes.

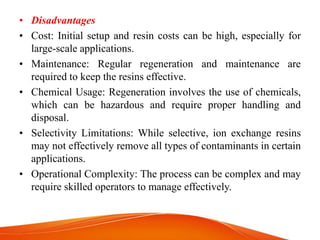

25. • Disadvantages
• Cost: Initial setup and resin costs can be high, especially for
large-scale applications.
• Maintenance: Regular regeneration and maintenance are
required to keep the resins effective.
• Chemical Usage: Regeneration involves the use of chemicals,
which can be hazardous and require proper handling and
disposal.
• Selectivity Limitations: While selective, ion exchange resins
may not effectively remove all types of contaminants in certain
applications.
• Operational Complexity: The process can be complex and may
require skilled operators to manage effectively.

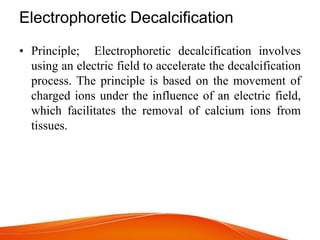

26. Electrophoretic Decalcification
• Principle; Electrophoretic decalcification involves
using an electric field to accelerate the decalcification
process. The principle is based on the movement of
charged ions under the influence of an electric field,
which facilitates the removal of calcium ions from
tissues.

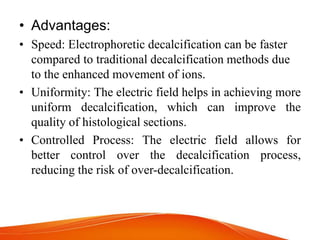

27. • Advantages:
• Speed: Electrophoretic decalcification can be faster
compared to traditional decalcification methods due
to the enhanced movement of ions.
• Uniformity: The electric field helps in achieving more
uniform decalcification, which can improve the
quality of histological sections.
• Controlled Process: The electric field allows for
better control over the decalcification process,
reducing the risk of over-decalcification.

28. • Disadvantages:
• Equipment Costs: Requires specialized
electrophoretic equipment, which can be expensive.
• Complexity: The process can be more complex and
may require careful monitoring and adjustment of
parameters.
• Potential for Damage: High electric fields or
improper settings might potentially damage delicate
tissues or cause artifacts.
• Limited Applicability: May not be suitable for all
types of tissues or decalcifying agents.

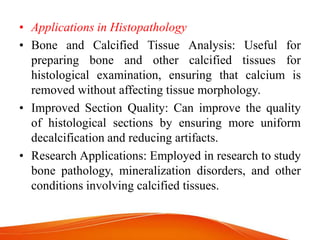

29. • Applications in Histopathology
• Bone and Calcified Tissue Analysis: Useful for
preparing bone and other calcified tissues for
histological examination, ensuring that calcium is
removed without affecting tissue morphology.
• Improved Section Quality: Can improve the quality
of histological sections by ensuring more uniform
decalcification and reducing artifacts.
• Research Applications: Employed in research to study
bone pathology, mineralization disorders, and other
conditions involving calcified tissues.

30. Treatment of Hard Tissues Not
Calcified
• Techniques for non-calcified hard tissues
• Examples and applications

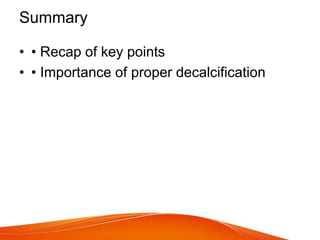

31. Summary
• • Recap of key points
• • Importance of proper decalcification

32. THANK YOU
