Debugging Live Apps in k8s
- 1. Debugging Live Appsin k8s Faheem Memon
- 2. Current Troubleshooting Options ●Application logs ● Application metrics ● Pod description and status ● Pod events ● Pod shell aka exec ○ Requires debug tooling to be available in the containers ○ Sometimes requires higher tooling ○ Harder to control through governance
- 3. Ephemeral Containers ● Motivation ○Minimal images lower operational burden and reduce attack vectors. ○ Immutable images improve correctness and reliability. ○ Smaller image size reduces resource usage and speeds deployments. ● Graduated to beta with v1.23 ○ alpha since v1.16) ● Adds new containers to running pods ● Follow ContainerSpec ○ Ephemeral containers may not have ports ○ Lack guarantees for resources or execution ○ Never restarted
- 4. Ephemeral Containers PlayNice ● Allow access to namespaces and the file systems of individual containers ● Fetch container images at run time rather than at the time of pod or image creation ● Respect admission controllers and audit logging ● Be discoverable via the API ● Support arbitrary runtimes via the CRI (possibly with reduced feature set) ● Require no administrative access to the node ● Have no inherent side effects to the running container image ● Define a v1.Container available for inspection by admission controllers
- 5. Kubectl debug # Createan interactive debugging session in pod mypod and immediately attach to it. kubectl debug mypod -it --image=busybox # Create a debug container named debugger using a custom automated debugging image. kubectl debug --image=myproj/debug-tools -c debugger mypod # Create a copy of mypod adding a debug container and attach to it kubectl debug mypod -it --image=busybox --copy-to=my-debugger # Create a copy of mypod changing the command of mycontainer kubectl debug mypod -it --copy-to=my-debugger --container=mycontainer -- sh # Create a copy of mypod changing all container images to busybox kubectl debug mypod --copy-to=my-debugger --set-image=*=busybox # Create a copy of mypod adding a debug container and changing container images kubectl debug mypod -it --copy-to=my-debugger --image=debian --set-image=app=app:debug,sidecar=sidecar:debug # Create an interactive debugging session on a node and immediately attach to it kubectl debug node/mynode -it --image=busybox
- 6. Potential Use Cases ●Live debugging for hard to find issues ○ Process start – init containers ○ Networking issues ○ File-system issues ○ Hard to replicate issues ● Run security and inventory scans ● Information gathering for tech support
- 7. Creating Ephemeral Containers ●Fetch a Pod object from the /pods resource. ● Modify spec.ephemeralContainers and write it back to the Pod's /ephemeralcontainers subresource, ● The apiserver discards all changes except those to spec.ephemeralContainers. ● The apiserver validates the update. ○ Pod validation fails if container spec contains fields disallowed for Ephemeral Containers or the same name as a container in the spec or EphemeralContainers. ○ Registered admission controllers receive an AdmissionReview request containing the entire Pod. ● The kubelet's pod watcher notices the update and triggers a syncPod(). ● syncPod() finishes a regular sync, publishing an updated PodStatus ● The client performs an attach to the debug container's console.
- 8.

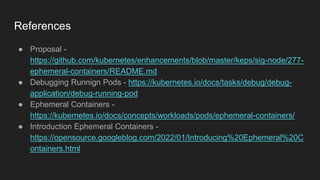

- 9. References ● Proposal - https://github.com/kubernetes/enhancements/blob/master/keps/sig-node/277- ephemeral-containers/README.md ●Debugging Runnign Pods - https://kubernetes.io/docs/tasks/debug/debug- application/debug-running-pod ● Ephemeral Containers - https://kubernetes.io/docs/concepts/workloads/pods/ephemeral-containers/ ● Introduction Ephemeral Containers - https://opensource.googleblog.com/2022/01/Introducing%20Ephemeral%20C ontainers.html
