This document provides specifications for a display screen including a 19-inch LCD with 1024x768 resolution and 32-bit color. It has an Intel P4 2.4GHz processor as its core platform and uses a 51-core MCU processor as the lower-level control unit. Key measurement capabilities include withstanding over 2500V for 1 minute, 16-bit accuracy for DC voltage/current readings, sampling rates up to 100kS for regulators and 100MS for impulse tests, and storage of 1M impulse measurements. It also has 16 digital inputs and 16 outputs for the lower processor.

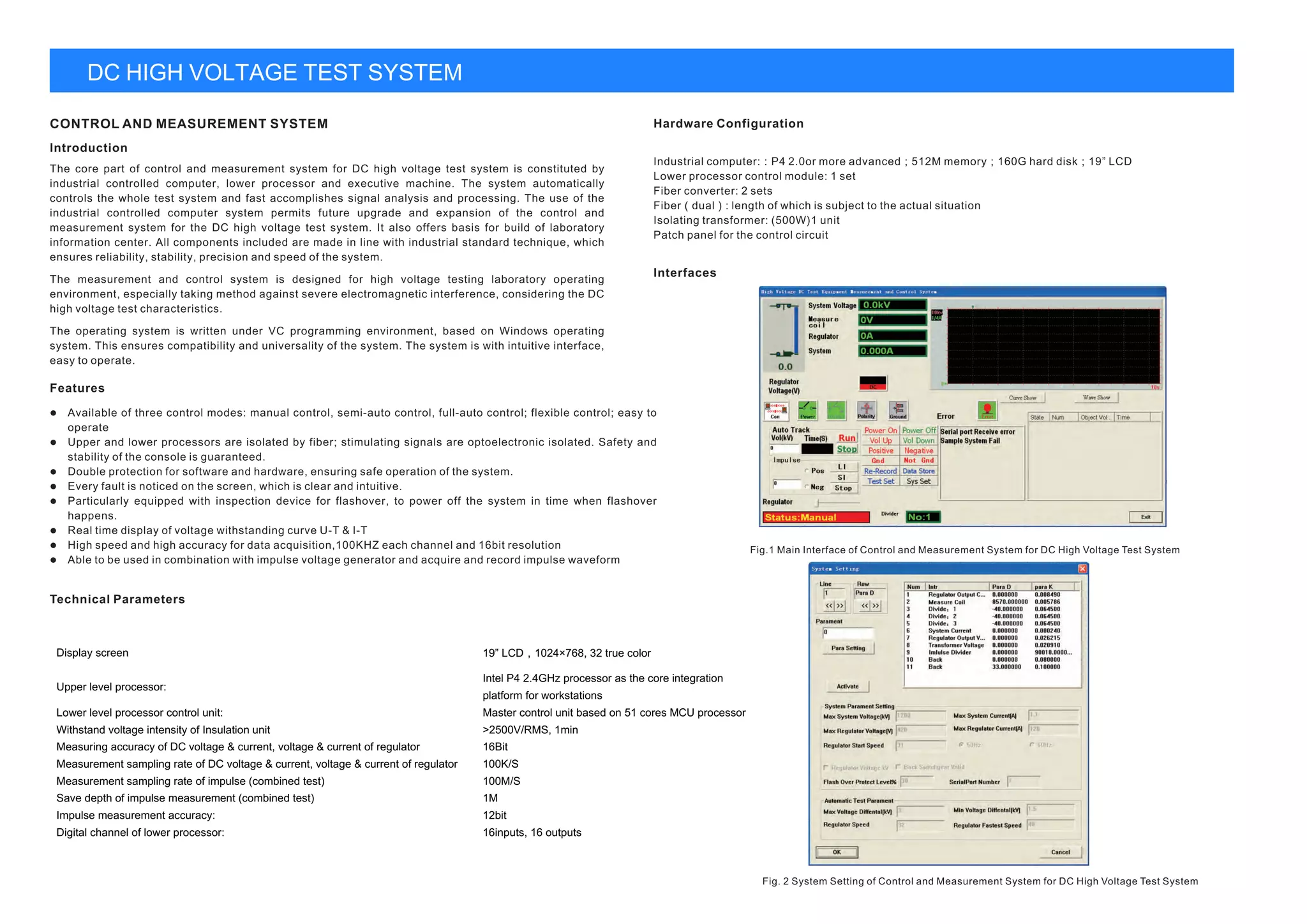

3. Display screen 19” LCD，1024×768, 32 true color
Intel P4 2.4GHz processor as the core integration
Upper level processor:
platform for workstations
Lower level processor control unit: Master control unit based on 51 cores MCU processor
Withstand voltage intensity of Insulation unit >2500V/RMS, 1min
Measuring accuracy of DC voltage & current, voltage & current of regulator 16Bit
Measurement sampling rate of DC voltage & current, voltage & current of regulator 100K/S
Measurement sampling rate of impulse (combined test) 100M/S
Save depth of impulse measurement (combined test) 1M
Impulse measurement accuracy: 12bit
Digital channel of lower processor: 16inputs, 16 outputs
