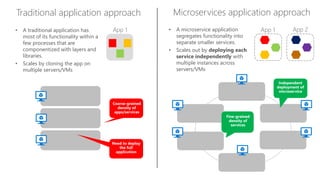

3. Traditional application approach Microservices application approach
• A microservice application
segregates functionality into
separate smaller services.
• Scales out by deploying each
service independently with
multiple instances across
servers/VMs
• A traditional application has
most of its functionality within a
few processes that are
componentized with layers and
libraries.
• Scales by cloning the app on
multiple servers/VMs
App 1 App 2App 1
4. • Single monolithic database
• Tiers of specific technologies
Data in Traditional approach Data in Microservices approach
• Graph of interconnected microservices
• State typically scoped to the microservice
• Remote Storage for cold data
Stateful
services
Web presentation
services
Stateless
servicesSQL DB
or
No-SQL
Mobile
apps
Web Tier
Services Tier
Data Tier
Monolithic Databases are
shared across services.
Stateless services
with
separate stores
Each microservice
owns its model/data!
SQL
[…]
Database servers are
usually the bottleneck
Cache Tier
Cache doesn’t help
much for massive data
ingress (Events, IoT, etc.)
5. Identifying a Domain Model per Microservice or Bounded Context
Ordering Microservice Model
Basket Microservice Model
Identity Microservice Model
Order Buyer
OrderItem
BasketItem
ApplicationUser
Basket
… Address
Catalog Microservice Model
Type
BrandCatalogItem
6. Focus on:
- Dockerfile & Docker-compose.yml
Debugging Multi-Containers App
- Simple CRUD microservice
vs
DDD microservice

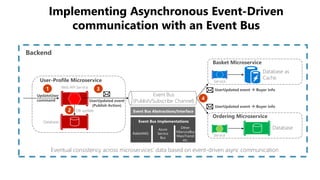

8. Implementing Asynchronous Event-Driven
communication with an Event Bus
Database
Ordering Microservice
Basket Microservice
Database as
Cache
Service
ServiceUser-Profile Microservice
Web API Service
Database
Backend
UserUpdated event
(Publish Action)
Event Bus
(Publish/Subscribe Channel)
UpdateUser
command
UserUpdated event Buyer info
UserUpdated event Buyer info
Eventual consistency across microservices’ data based on event-driven async communication
DB update Event Bus Abstractions/Interface
Event Bus Implementations
RabbitMQ
Azure
Service
Bus
Other:
NServiceBus
MassTransit
etc.

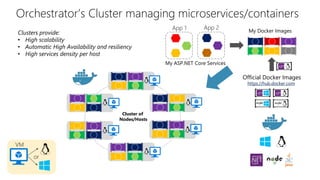

11. Orchestrator’s Cluster managing microservices/containers
Clusters provide:
• High scalability
• Automatic High Availability and resiliency
• High services density per host
Official Docker Images
https://hub.docker.com
or
Cluster of
Nodes/Hosts
VM
App 1 App 2
My ASP.NET Core Services
My Docker Images

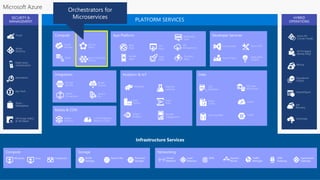

12. Web
Apps
Mobile
Apps
API
Management
API
Apps
Logic
Apps
Notification
Hubs
Content Delivery
Network (CDN)
Media
Services
HDInsight Machine
Learning
Stream
Analytics
Data
Factory
Event
Hubs
Mobile
Engagement
Biztalk
Services
Hybrid
Connections
Service
Bus
Storage
Queues
Backup
StorSimple
Site
Recovery
Import/Export
SQL
Database
DocumentDB
Redis
Cache
Search
Tables
SQL Data
Warehouse
Azure AD
Connect Health
AD Privileged
Identity Mngt
Operational
Insights
Cloud
Services
Batch
Service
Fabric Visual Studio
Application
Insights
Azure SDK
Team Project
Active
Directory
Multi-Factor
Authentication
Automation
Portal
Key Vault
Store /
Marketplace
VM Image Gallery
& VM Depot
SECURITY &
MANAGEMENT PLATFORM SERVICES HYBRID
OPERATIONS
Microsoft Azure
Azure Container
Service
Function
Apps

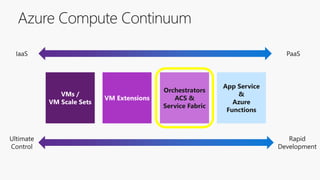

14. Orchestrator Description Good for Common workloads
Azure Service Fabric is a distributed
systems platform that makes it easy
to package, deploy, and manage
scalable and reliable microservices
a) Stateful svc & Actors
b) Microservices based
on plain processes
c) Microservices based
on containers
Docker Swarm is a clustering and
scheduling tool for Docker containers.
With Swarm, IT administrators and
developers can establish and manage a
cluster of Docker nodes as a single
virtual system
Microservices based on
containers
Kubernetes is an open-source platform
for automating deployment, scaling,
and operations of application
containers across clusters of hosts
Microservices based on
containers
As a datacenter operating system,
DC/OS is itself a distributed system, a
cluster manager and a container
platform
Microservices based on
containers (Including other
Linux containers, not just
Docker)
More mature:
Less mature:
More mature:
Less mature:
More mature:
Less mature:
Azure Product
Azure Service Fabric
Azure Container Service
Docker Swarm
Service Fabric
Production-ready &
Microsoft ecosystem
Mesosphere DC/OS
More mature:
Less mature:
Production-ready &
Linux ecosystem
Easy to get started
Dev/Test and Production
Kubernetes
Production-ready &
Linux ecosystem
15. aka.ms/MicroservicesEbook aka.ms/MicroservicesArchitecture
Additional subjects covered in the eBook
Domain Driven Design Patterns
• Domain Models (Aggregates, Entity, VO, etc.)
• Simplified CQRS
• Dapper MicroORM for queries
• Commands and Mediator patter
• Domain Events (within the same microservice)
Microservices
• Integration Events (across microservices)
• Multi-container docker-compose.yml
• Swagger w/ Swashbuckle
• Security (Authentication/Authorization) with tokens
from IdentityServer4 wrapping ASP.NET Identity
Traditional Approach : Application is made up of layers and will be part of a process and if you want to scale you need to scale cloning the application into multiple servers
Microservices Approach : The application comprises small set of services and the scaling out is done by scaling out each service Independently by running multiple instance across servers
These services or microservices run in its own process and the communication between other microservices using protocols such as http , web sockets or AMQP.
Microservice implements a specific business capability end to end and each of these services should be developed autonomously and should be independently deployable with fully automated deployment mechanism
Microservices should own its data model and data and logic
Cold data for reporting
Advantages and disadvantages of microservices
Maintainability
Cost savings
Polygot
Disadvantage
Initial implementation
Microserices :Small and focused on doing one thing well
Vertical slicing or Functional cohesion
Bounded context
This is just a sample, actual bounded context boundaries would depend on your real Domains. Depending on each Domain, the entities and their position could be different.

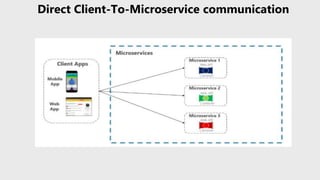

Client apps can access the microservices using HTTP synchronous protocol
If we are using the same for communication between microservices then there will issues like
If there is dependency between microservices then microservices cannot be deployed independently. Usually microservices should not be aware of other microservices
One of the microservice will be waiting for response from the other microservices and which in turn call another service. Then the first microservices will be waiting for the response
And also if the downstream microservice fails . The failure will get cascaded
