The document discusses stacks as a linear data structure where elements are added and removed based on a last-in, first-out principle. It covers stack operations like push, pop, and peek, and provides examples of implementing a stack using arrays with functions for adding and removing elements. Applications of stacks mentioned include reversing the order of characters in a string by pushing them onto a stack and then popping them off.

1. Data Structures and
Algorithms
Stack

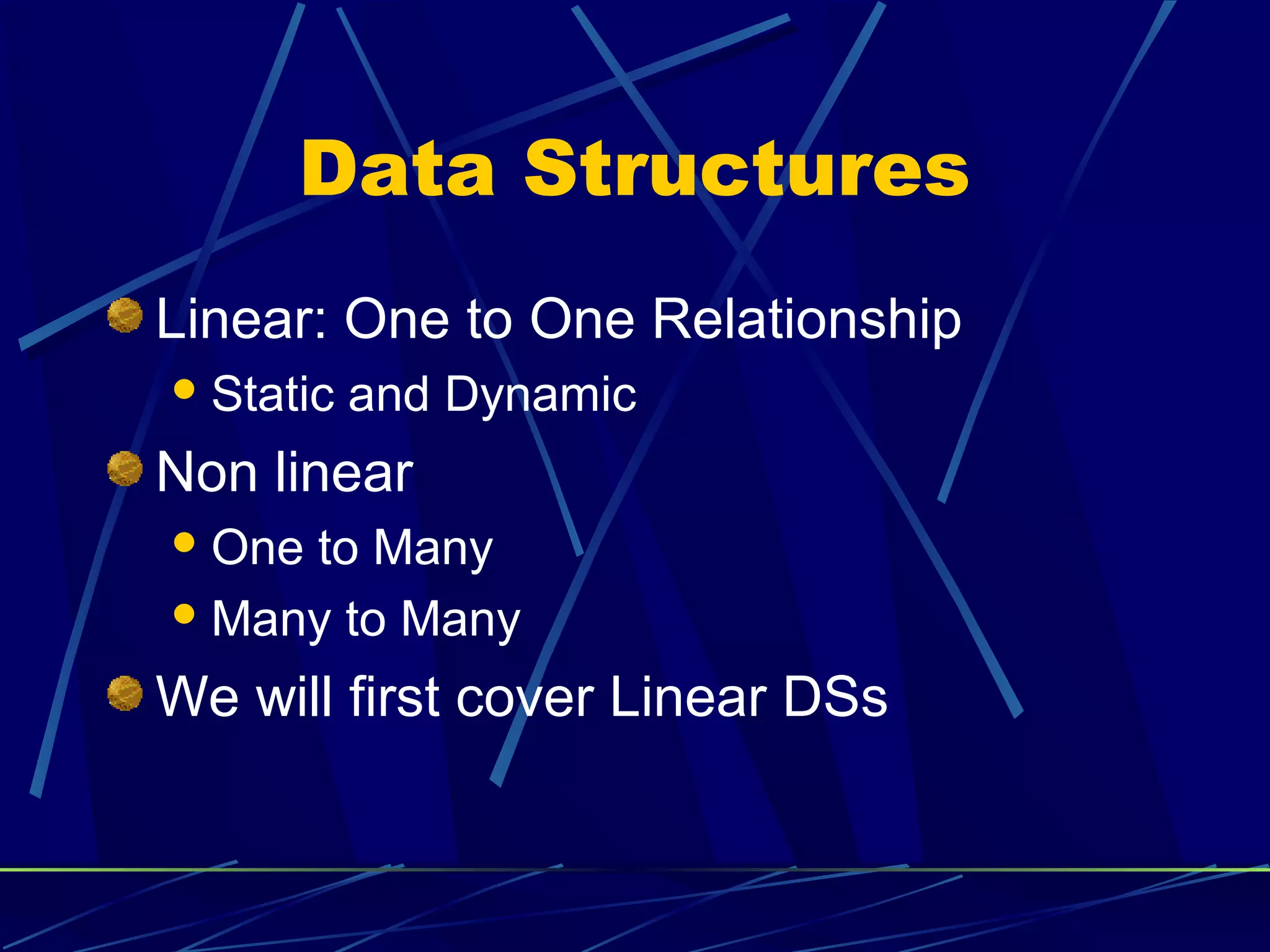

2. Data Structures
Linear: One to One Relationship
 Static and Dynamic
Non linear
 Oneto Many
 Many to Many
We will first cover Linear DSs

3. Stack
A stack is used to store elements where
the Last element In is the First one Out
(LIFO).
A common model of a stack is a plate
or coin stacker.
Plates are "pushed" onto to the top and
“pooped” off the top.

4. Stack

5. Stack
New elements are added or pushed
onto the top of the stack.
The first element to be removed or
popped is taken from the top - the last
one in.

6. Stack

7. Stack Operations
A stack is generally implemented with only
two principle operations
 Push adds an item to a stack
 Pop extracts the most recently pushed item from
the stack
Other methods such as
 Top returns the item at the top without removing it
 Isempty determines whether the stack has
anything in it

8. Stack Implementation
Static Implementation (Using arrays)
Dynamic Implementation (Using
dynamic lists)

9. Stack Implementation
Using Arrays
For the static implementation of stack
an array will be used.
This array will hold the stack elements.
The top of a stack is represented by an
integer type variable which contains the
index of an array containing top element
of a stack.

10. Stack Implementation
Using Arrays
4 4 4 4 4 top 4 5
3 3 3 3 top 3 4 3 4
2 2 2 top 2 9 2 9 2 9
Push 8
Push 7 Push 9 Push 4 Push 5
1 1 top1 8 1 8 1 8 1 8
0 top 0 7 0 7 0 7 0 7 0 7
Empty stack top = StackSize – 1,
StackSize = 5 Stack is full,
top = -1 We can’t push more elements.

11. Stack Implementation
Using Arrays
push(element)
{
if (top == StackSize – 1)
cout<<“stack is full”;
else
Stack[++top] = element;
}

12. Stack Implementation
Using Arrays
4
top 4 5 4 4 4 4
3 4 top 3 4 3 3
3 3
2 9 2 9 top 2 9 2
2 2
Pop Pop Pop Pop
Pop
1 8 1 8 1 8 1
top1 8 1
0 7 0 7 0 7 0
0 7 top 0 7
Empty stack
top = StackSize – 1, top = -1
Stack is full, We can’t pop mpre
We can’t push more elements. elements

13. Stack Implementation
Using Arrays
pop()
{
if (top == –1)
cout<<“stack is empty”;
else
return Stack[top--];
}

14. Stack Implementation
Using Arrays
topElement() //returns the top element of
stack //without removing it.
{
if (top == –1)
cout<<“stack is empty”;
else
return Stack[top];
}

15. Stack Implementation
Using Arrays
isEmpty() //checks stack is empty or not
{
if (top == –1)
return true
else
return false
}

16. Stack Implementation
Using Arrays
template <class Element_Type>
class Stack
{
private:
/* This variable is used to indicate stack is
full or not*/
unsigned int Full_Stack;
/* This variable is used to indicate top of
the stack */
int Top_of_Stack;
/* This pointer points to the array which
behaves as stack, the space for this array is
allocated dynamically */
Element_Type *Stack_Array
Continue on next slide…

17. Stack Implementation
Using Arrays
//This constructor creates a stack.
Stack(unsigned int Max_Size)
{
Full_Stack = Max_Size;
Top_of_Stack = -1;
Stack_Array = new Element_Type[Max_Size];
}
/* This Destructor frees the dynamically allocated
space to the array */
~Stack()
{
delete Stack_Array;
}
Continue on next slide…

18. Stack Implementation
Using Arrays
/*This function Return TRUE if the stack is full, FALSE otherwise.*/
bool Is_Full()
{ if (Top_of_Stack == Full_Stack-1)
returns True;
else
returns False;
}
/*This function Return TRUE if the stack is empty, FALSE
otherwise.*/
bool Is_Empty()
{ if(Top_of_Stack == -1)
returns True;
else
returns False; Continue on next slide…
}

19. Stack Implementation
Using Arrays
// If stack is not full then push an element x in it
void Push(Element_Type x)
{ if(is_Full())
cout<<“stack is full”;
else
Stack_Array[++Top_of_Stack] = x;
}
//if Stack is not empty then pop an element form
it
Element_Type pop()
{ if(is_Empty())
cout<<“stack is empty”;
else
return Stack_Array[Top_of_Stack--];
} Continue on next slide…

20. Stack Implementation
Using Arrays
// This function makes the stack empty
void Make_Empty()
{ Top_of_Stack = -1;
}
/* This function returns the top element of stack
*/
Element_Type Top()
{
if(is_Empty())
cout<<“stack is emepty”;
else
return Stack_Array[Top_of_Stack];
}
};

21. Applications of Stack
Reversing the string
 push each character on to a stack as it is
read.
 When the line is finished, we then pop
characters off the stack, and they will come
off in the reverse order.

22. Applications of Stack
Reversing the string
void ReverseRead (void)
{ STACK<char> stack(256); //The stack stack is created and can
//hold at most 256 elements of type char
char item;
cin>>item;
while (!stack.is_Full() && item ! = “n”)
{ stack.Push (item); // push each character onto the stack
cin>>item;
}
while(! stack.is_Empty() )
{ item = stack.Pop (); //Pop an element from stack
cout<<item;
}
}
