1) The document discusses using a semantic wiki to map and integrate data from multiple sources for visualization on maps. 2) Key features described include displaying mapped coordinates, semantic query results, KML files as layers, and location searching/filtering. 3) The RPI Map and VSTO Instrument Map are presented as examples that integrate data from various sources like databases, RSS feeds, and real-time APIs onto interactive semantic maps.

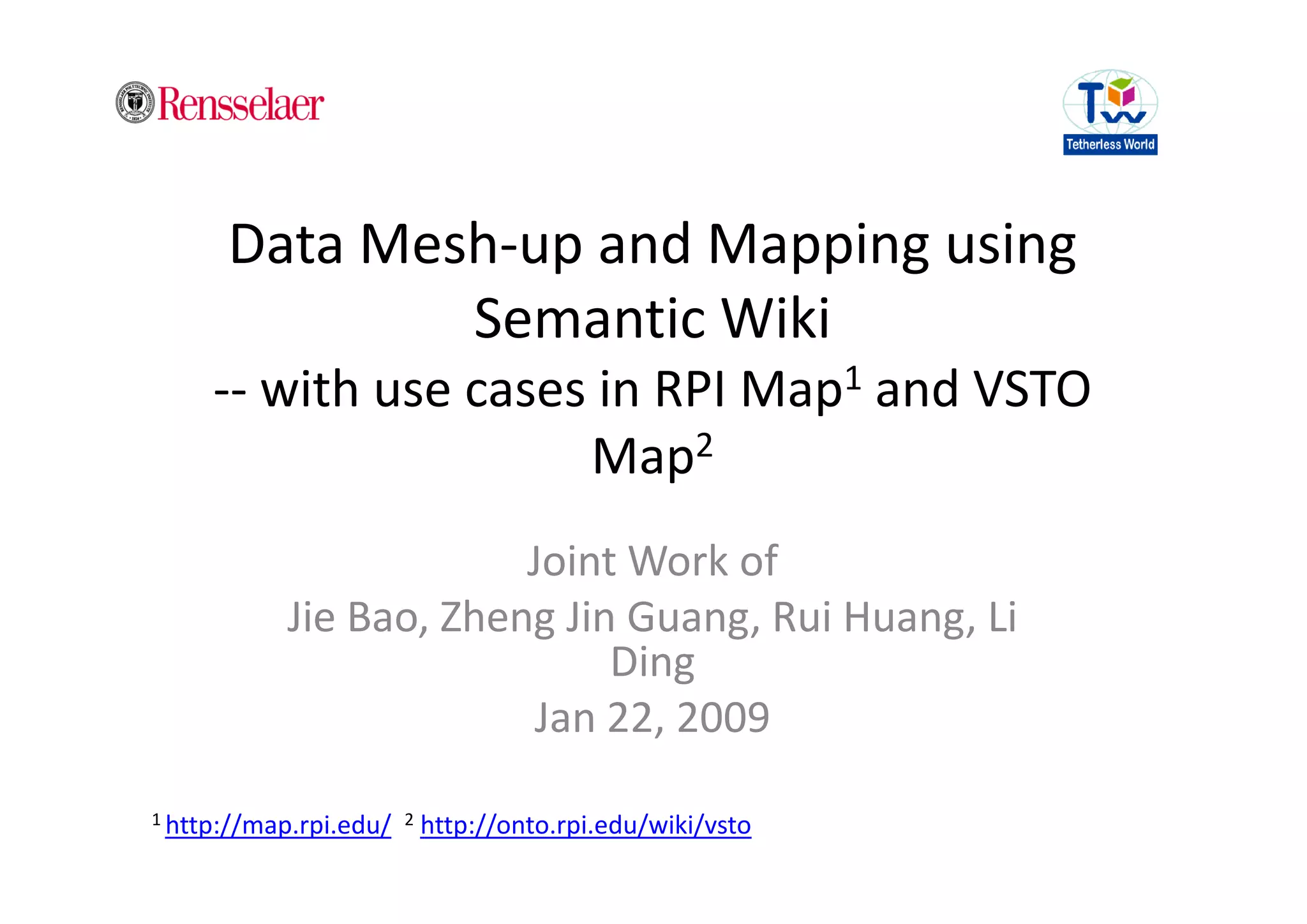

1. Data Mesh-up and Mapping using
Semantic Wiki
-- with use cases in RPI Map1 and VSTO
Map2
Joint Work of
Jie Bao, Zheng Jin Guang, Rui Huang, Li
Ding
Jan 22, 2009
1 http://map.rpi.edu/ 2 http://onto.rpi.edu/wiki/vsto

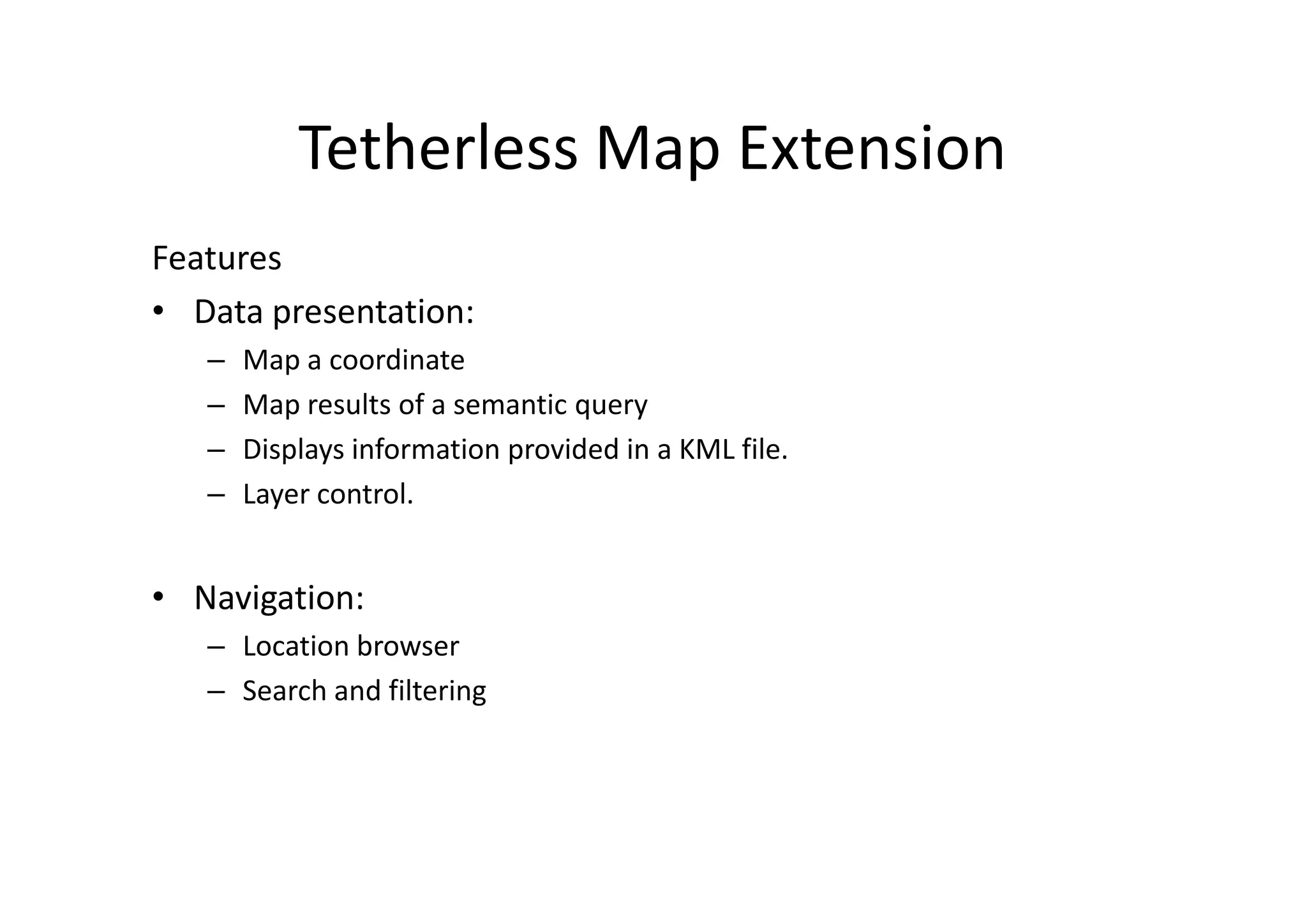

2. Tetherless Map Extension
Features
• Data presentation:
– Map a coordinate
– Map results of a semantic query
– Displays information provided in a KML file.
– Layer control.
• Navigation:
– Location browser
– Search and filtering

3. Two Parser Functions
Semantic query
{{#map_objects: {{#ask: {{#insert_map:
[[Category:Location]] 17.3,17.8
| ?Has LatLong |2
| ?Has URL |G_HYBRID_MAP
| ?Has short name |GLargeMapControl
| ?Has service |class1
| ?FOAF:page |800 |600
|limit=200 |border: thin dotted#00FF00
|link=none}} |<b>This is an example</b>
|Route;http://shuttles.rpi.edu |Empire Building
/data/route.kml }}
}}
Integrate KML file as a map layer
3

4. RPI Map
http://map.rpi.edu
RPI Event Feed
Event
•RPI Building Listing
•Parking Map
Building Course RPI Catalog
Google Map
Service People
User input RPI Directory
Shuttle
GPS

5. RPI Map
External Data Mediators
Wiki DB
Semantic Wiki Text
Form
Publisher
Wiki Template
Google
Map API SMW RDF DB
RDF
Consumer
Query
Semantic Query
result 5

6. RPI Map
Balloon tip
Layer Control
Bus Tracking
Main interface

7. RPI Map
RSS Feed

8. RPI Map
• Why semantic wiki helps?
– Lessen naming heterogeneity:
• where are Incubator Center, Peoples Ave Complex J, J Building, or J
Bldg ?
– Data can flow (by semantic query)
• E.g., Today’s events, Events at a building, Person in the same
building
– (a little bit) reasoning
• All seminars are also meetings (and events)
– The wiki-way to improve data
• Anybody, anytime, anywhere, anything

9. VSTO
VSTO = Virtual Solar Terrestrial Observatory
vsto.hao.ucar.edu, www.vsto.org
Instrument
management
Goal: a unified semantic environment serving data from diverse
data archives in the fields of solar, solar-terrestrial, and space
physics

10. VSTO Instrument List
(the traditional way)

11. VSTO Instrument Map
VSTO instrument Map
Data source: imported from VSTO instrument ontology
http://onto.rpi.edu/wiki/vsto

12. VSTO Instrument Map
Real time satellite tracking
Data source: real time query to n2yo.com

13. Lessons Learned
• Data Integration is the most difficult part
– Heterogeneity everywhere
– Data agent/mediator/convertors critical
• As parser function/shell script/javascript reload/KML feed, etc.
– Semantic wiki makes it easier
• Both semantics and wiki should be invisible to users
– Wiki as a light-weight RDF database
– By Semantic Forms, Templates, Skin and other UI tricks
– But recoverable if user needs
